Lifter Jibs

model: VAN-J

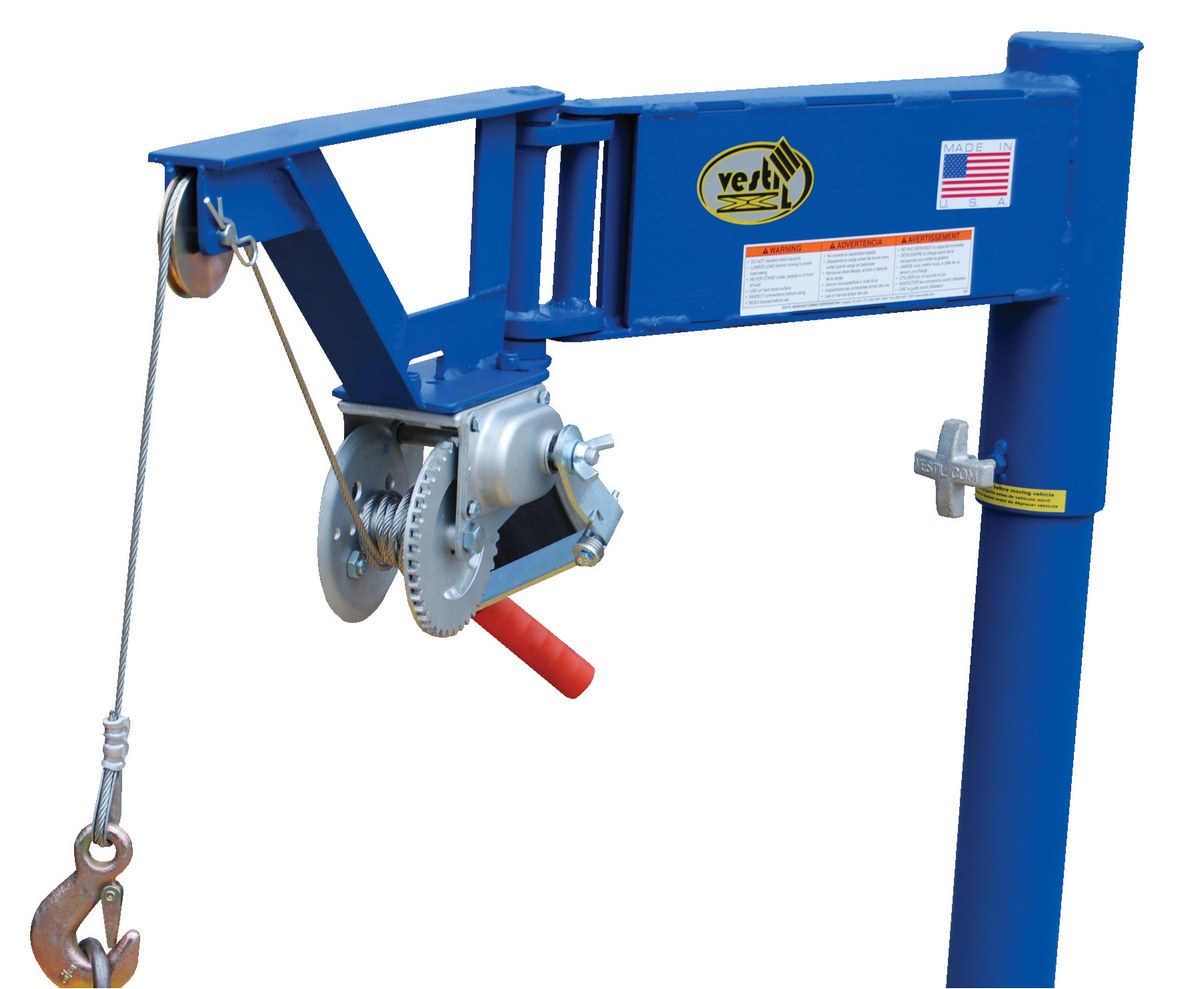

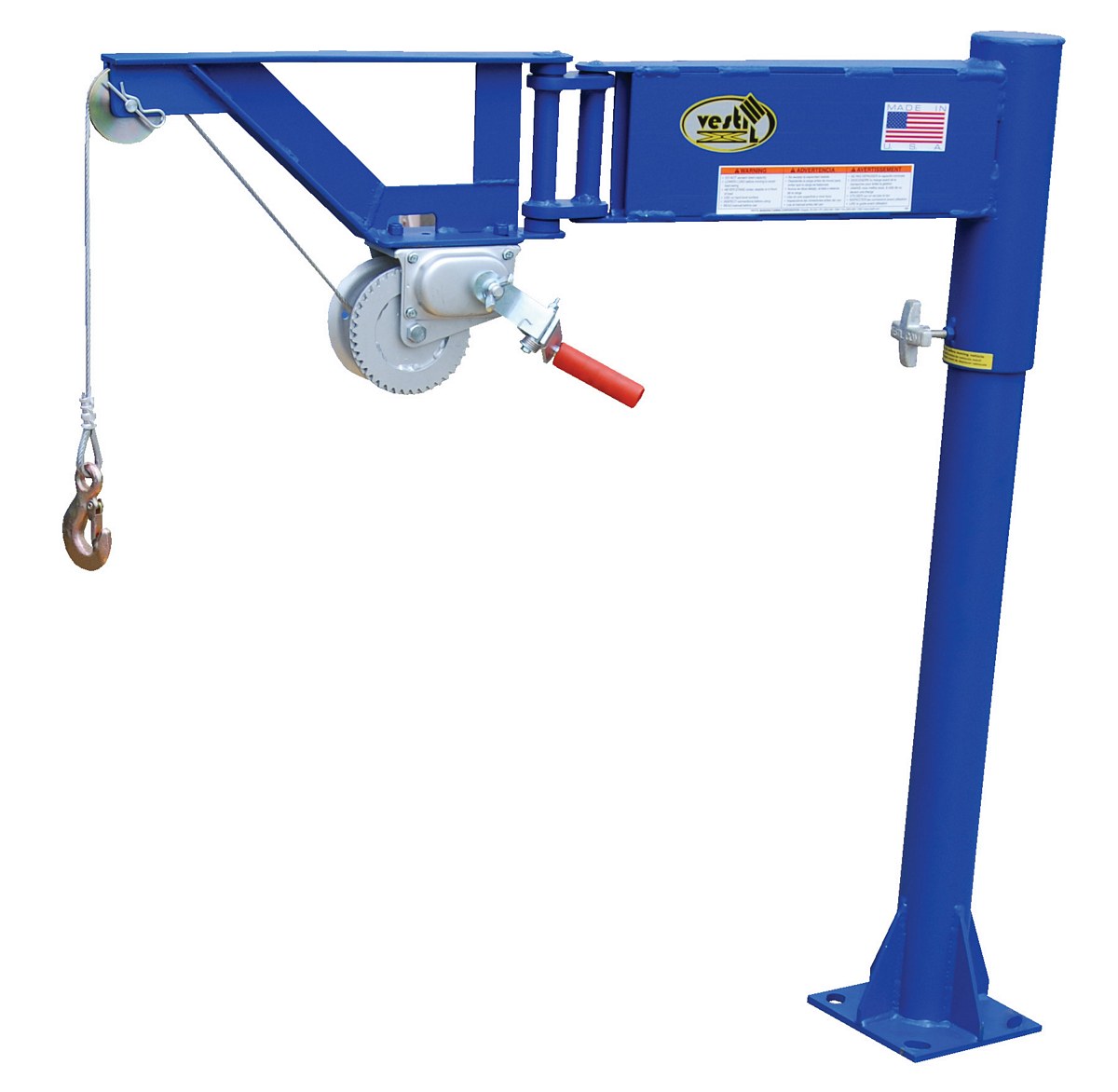

VAN-J_A.jpg VAN-J_B.jpg More Images +
Lifter Jibs
SERIES: VAN

Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Lifter Jibs

model: VAN-J

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VAN-J VAN-J90 Days Limited WarrantySteel Manual Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		143

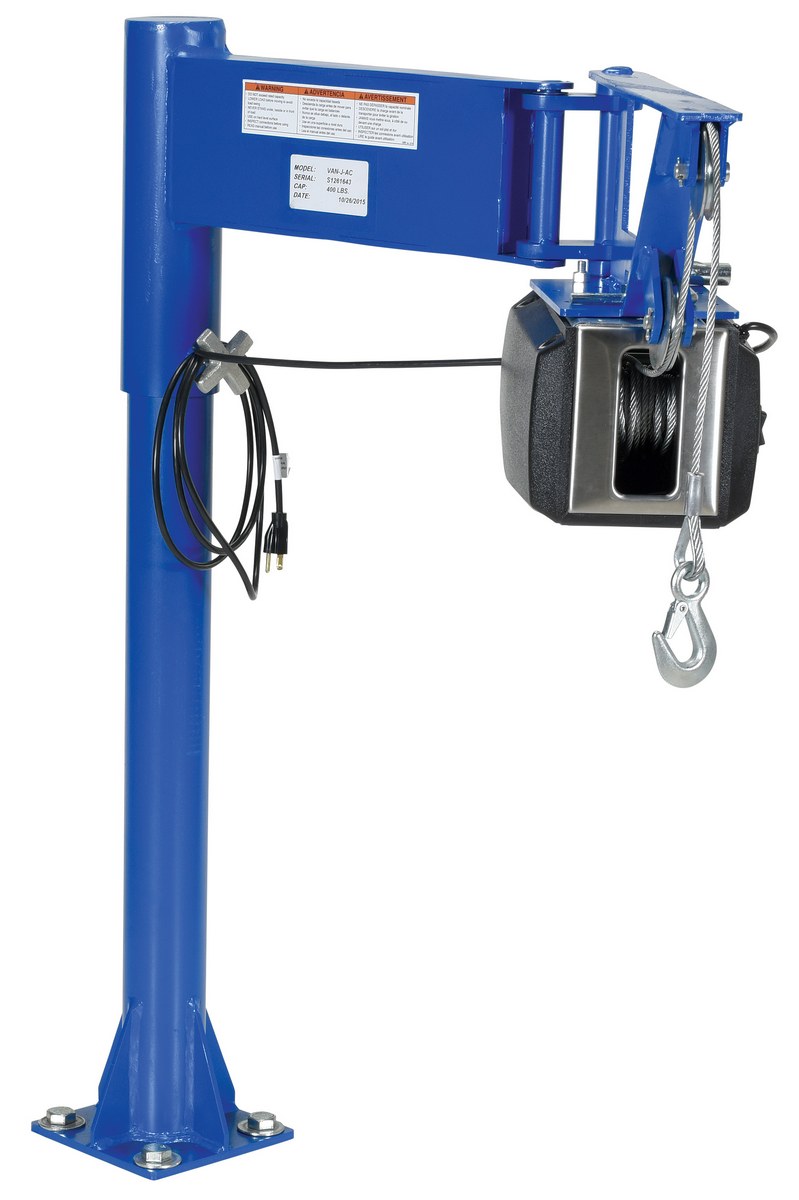

VAN-J-AC VAN-J-AC90 Days Limited WarrantySteel AC Powered Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		145

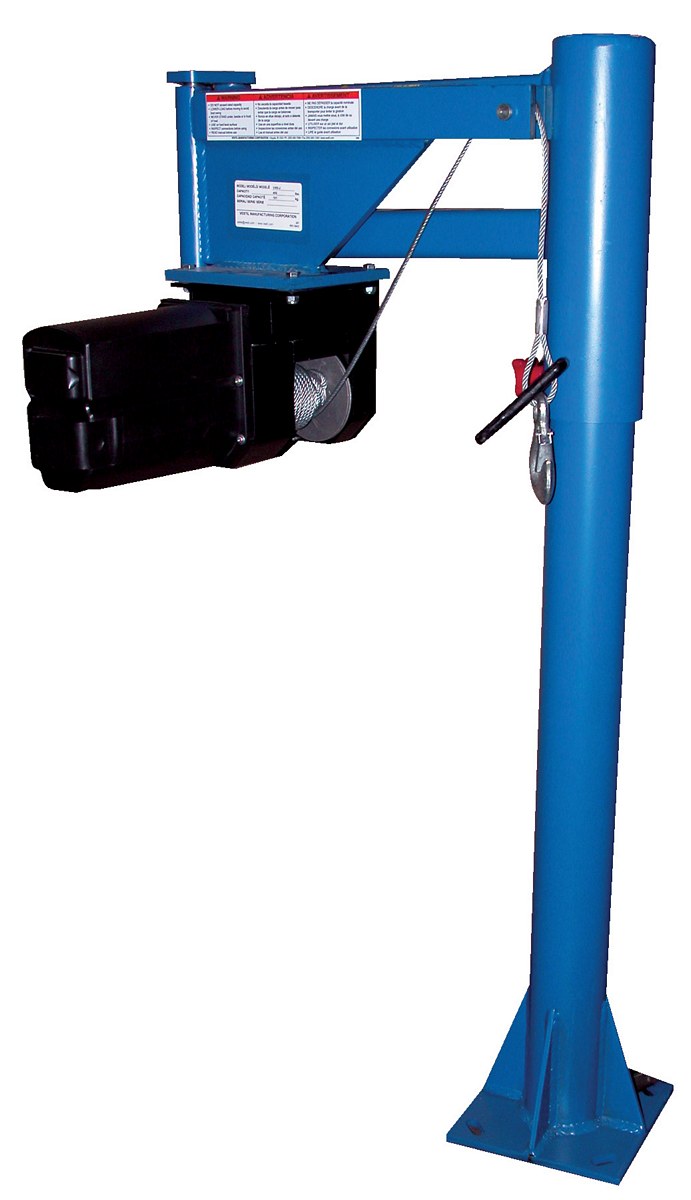

VAN-J-DC POPULAR VAN-J-DC90 Days Limited WarrantySteel DC Powered Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		145

* VAN-J-DC INCLUDES BATTERY-POWERED WINCH WITH 46 FEET OF CABLE

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VAN-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4

VAN-J-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4

VAN-J-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

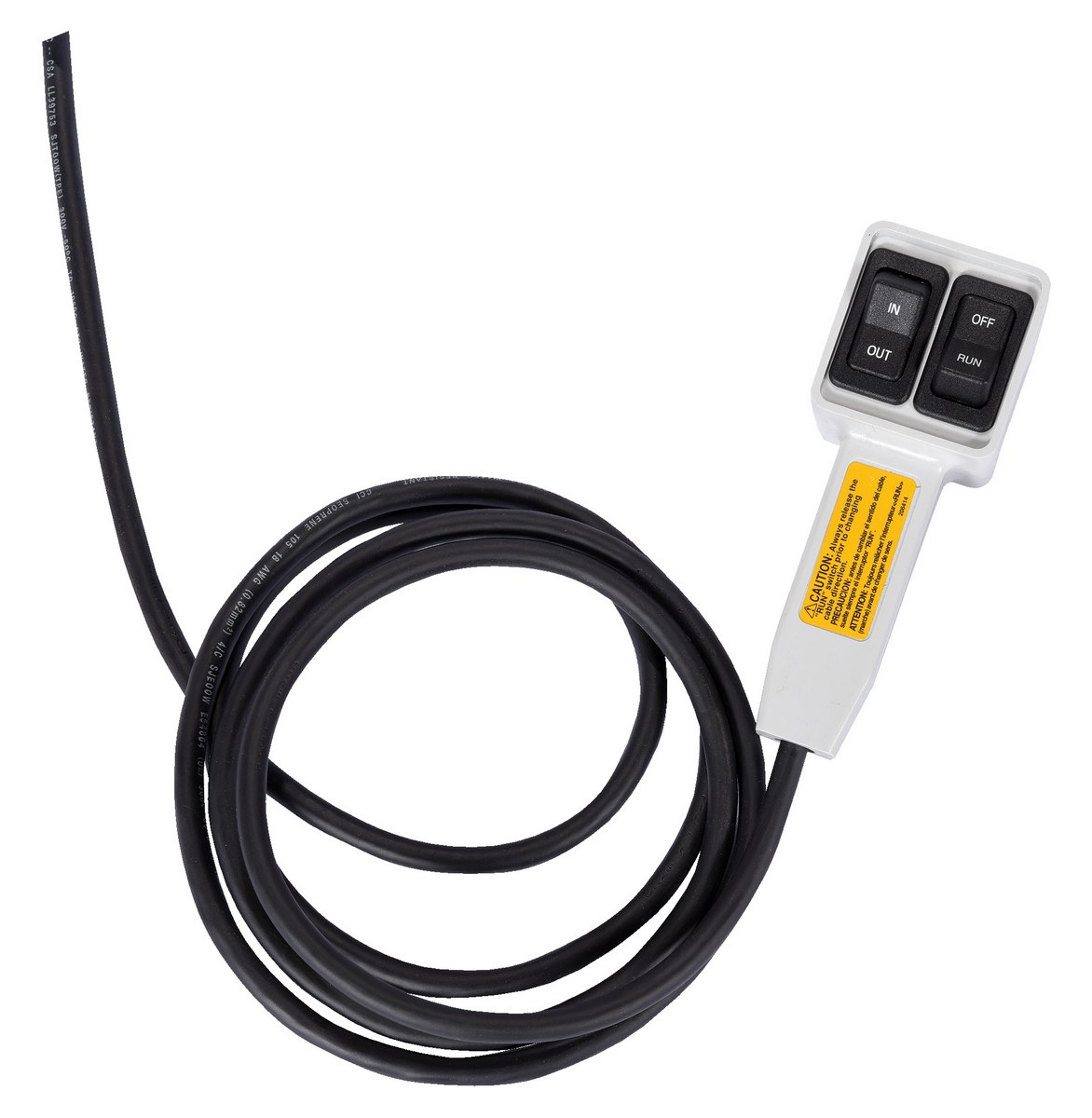

WINCH-AC-HHPB VAN-J-DCFactory Installed Hand Held Push Button Control For AC Power… Limited Warranty5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

VAN-J

Survey Sheets

VAN-J

Engineering Drawings

VAN-J

VAN-J-AC

VAN-J-DC

Testing Certificates

VAN-J

VAN-J-AC

VAN-J-DC

WINCH-AC-HHPB

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Q: Can the JIB be used outside?

A: The VAN-J and the VAN-J-DC are powder-coat carbon steel, however the winch is not waterproof and cannot be used outside.

Q: What is the diameter of the "Pole".

A: The diameter of the pole is 3-1/2".
