Portable Cantilever Hoists

model: P-JIB-4

P-JIB-4_A.jpg P-JIB-4_E.jpg P-JIB-4_H.jpg P-JIB-4_N.jpg P-JIB-4_D.jpg P-JIB-4_F.jpg P-JIB-4_J.jpg P-JIB-4_R.jpg More Images +

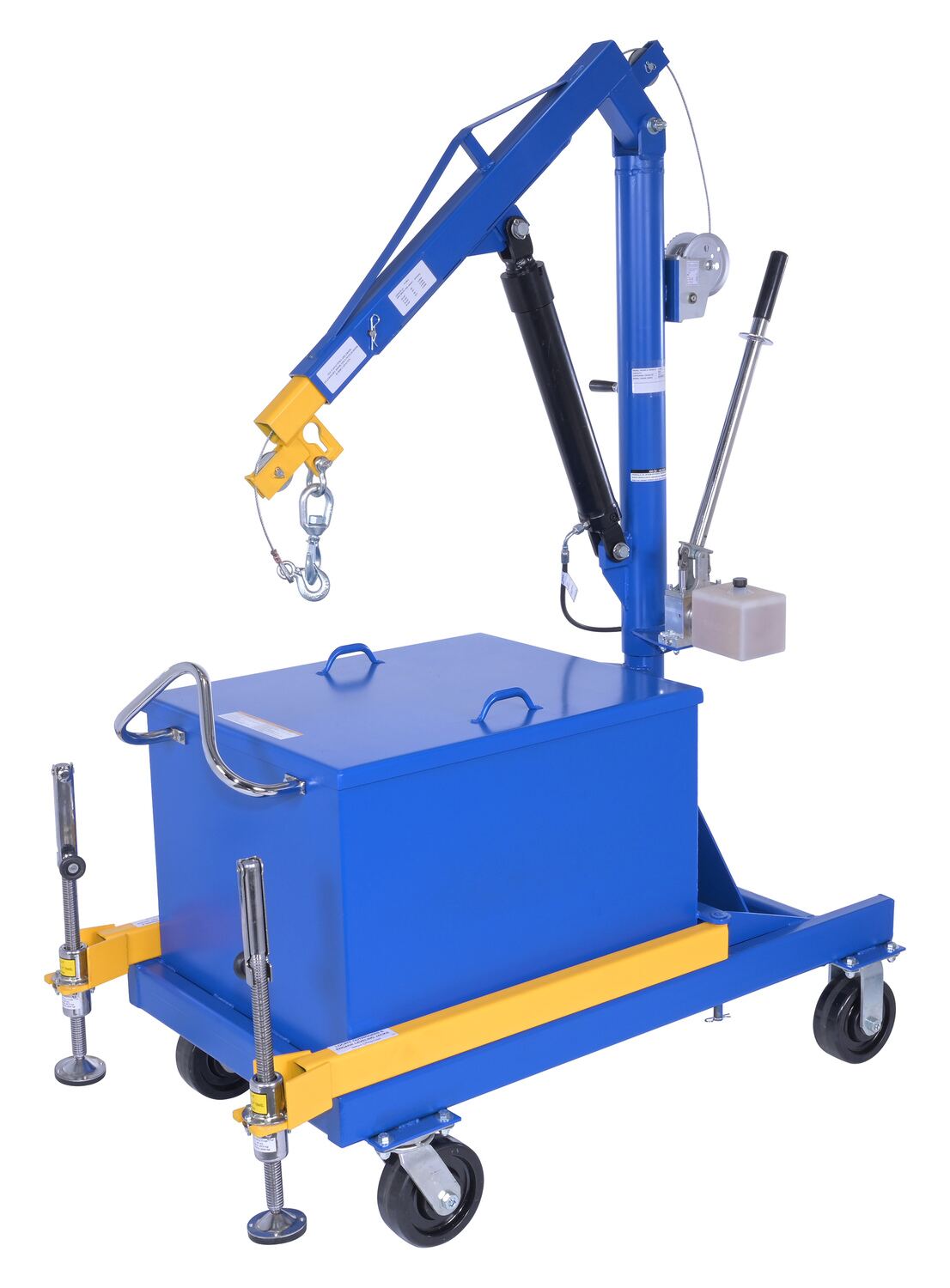

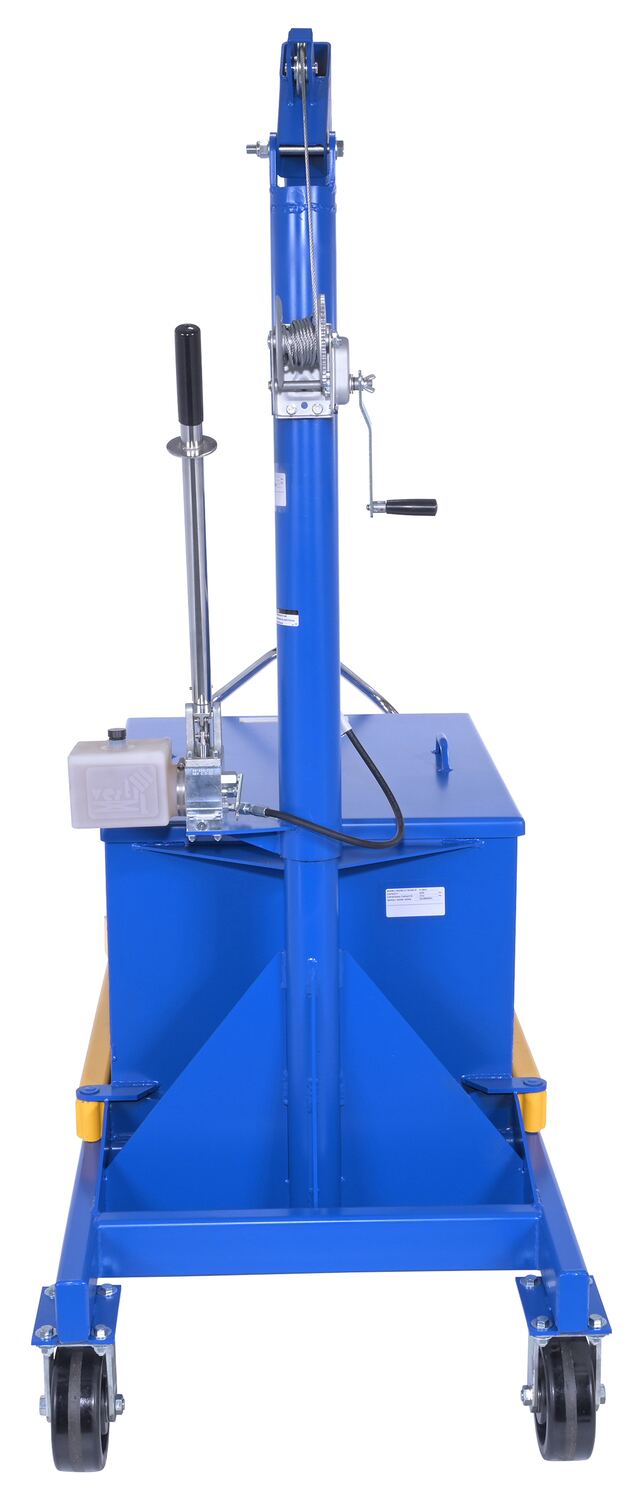

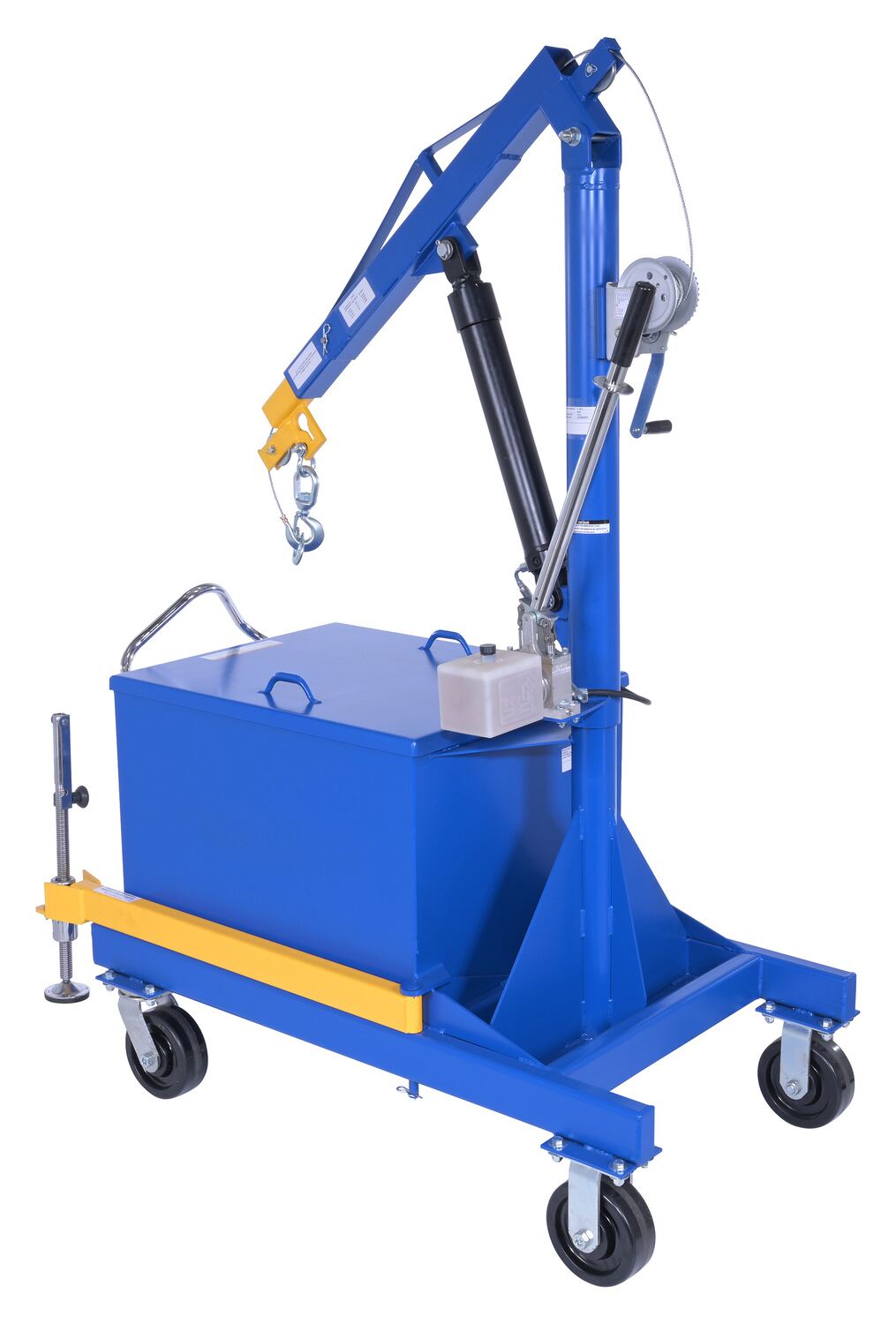

Portable Cantilever Hoists
SERIES: P-JIB

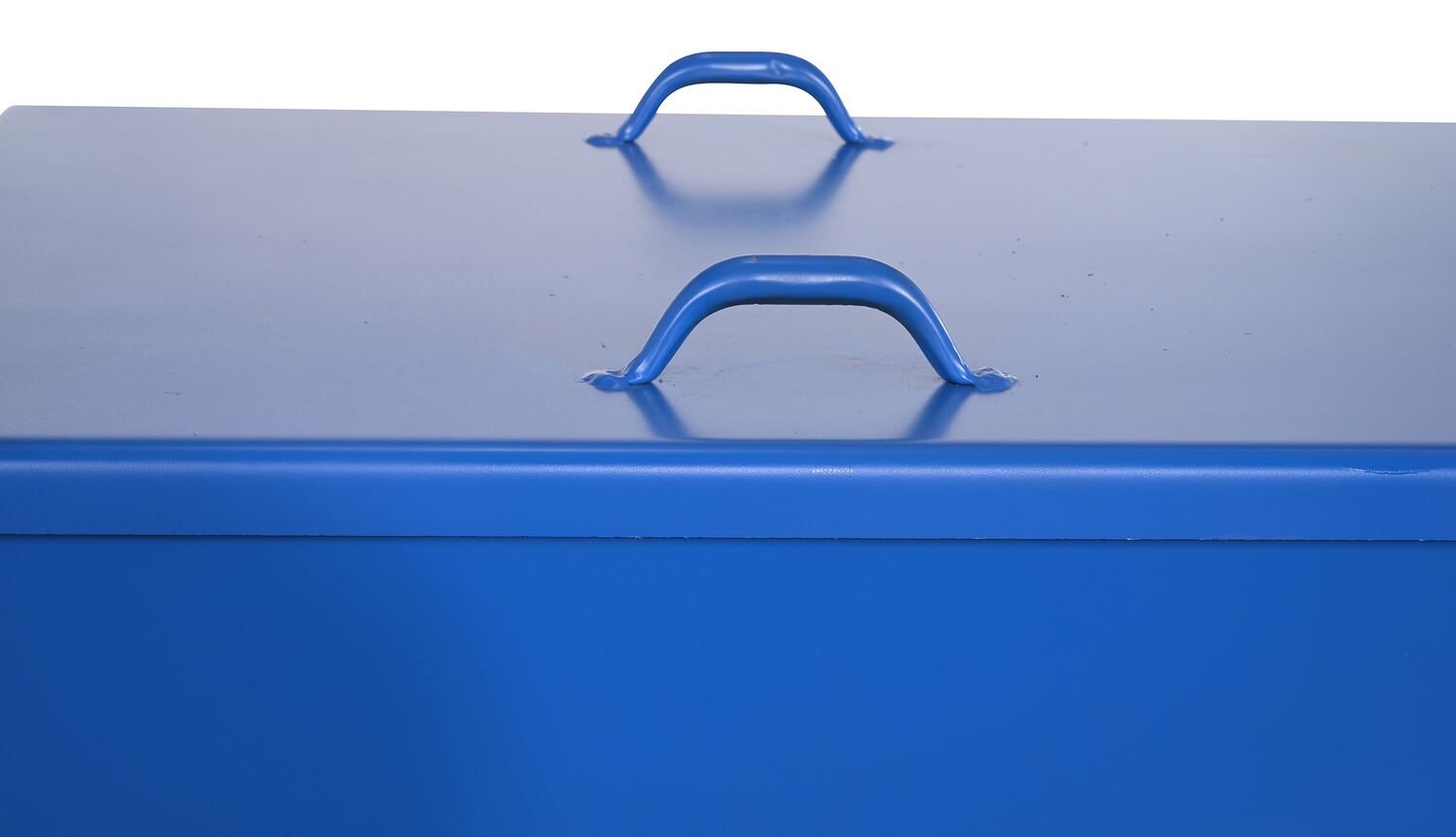

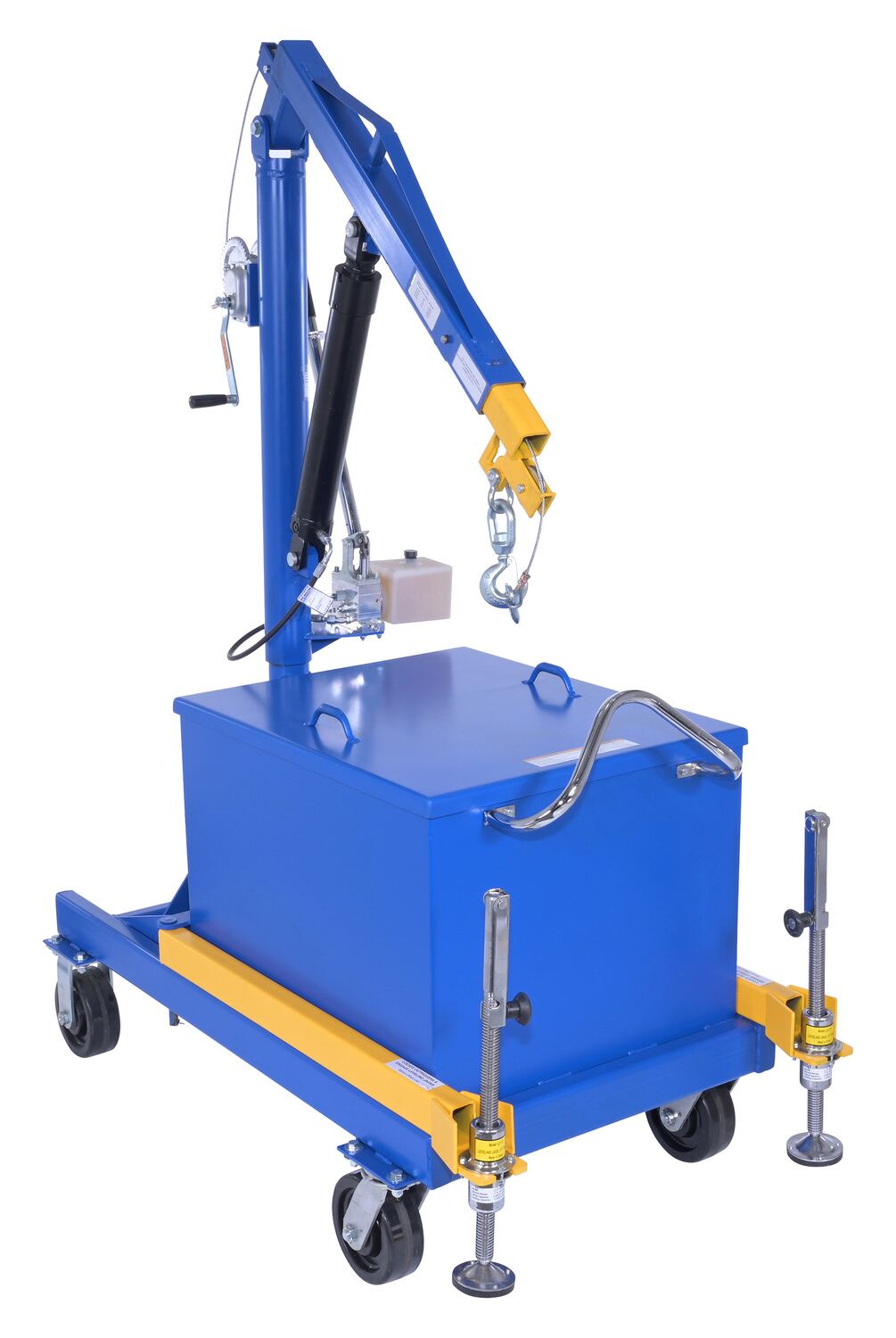

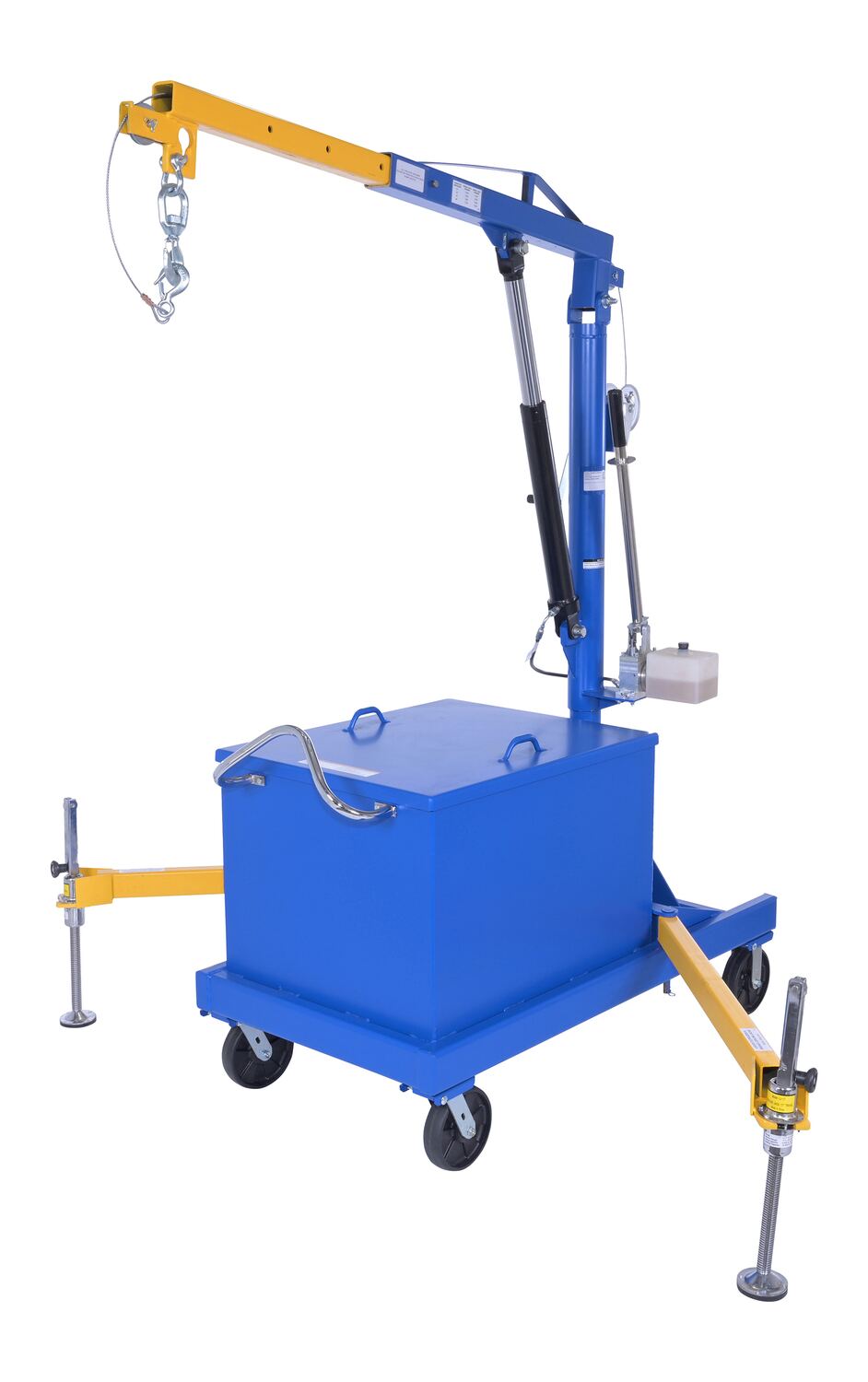

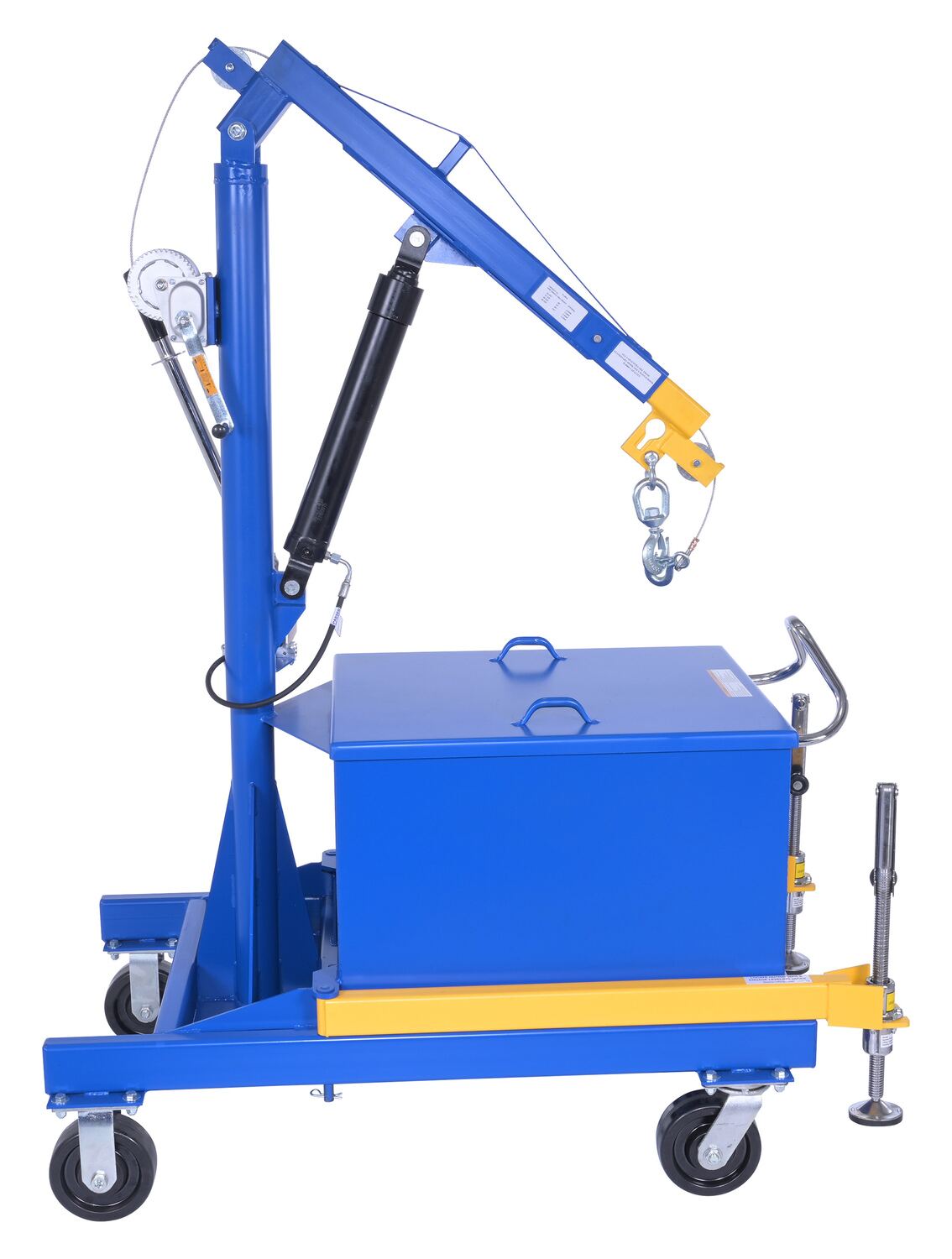

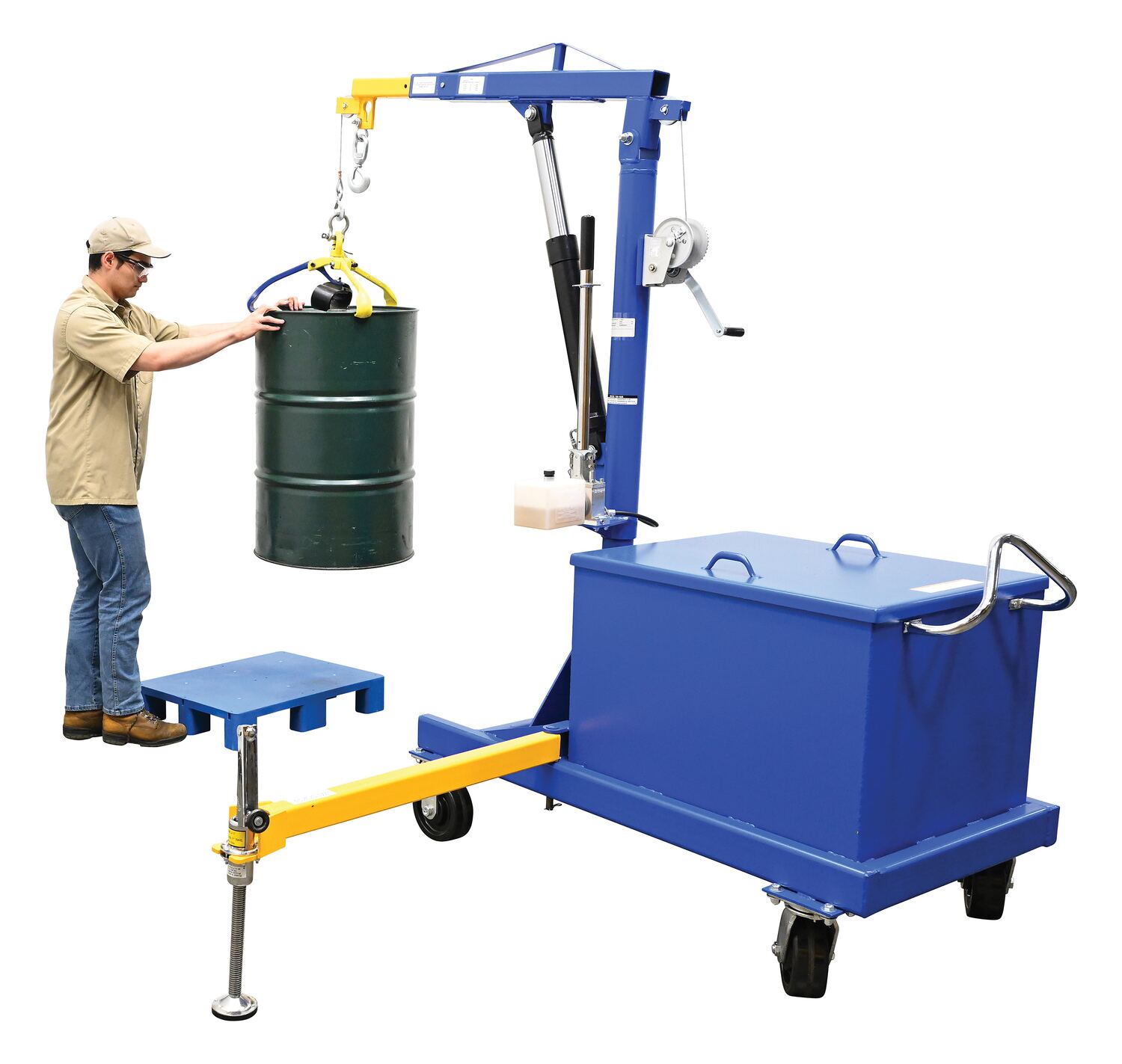

The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

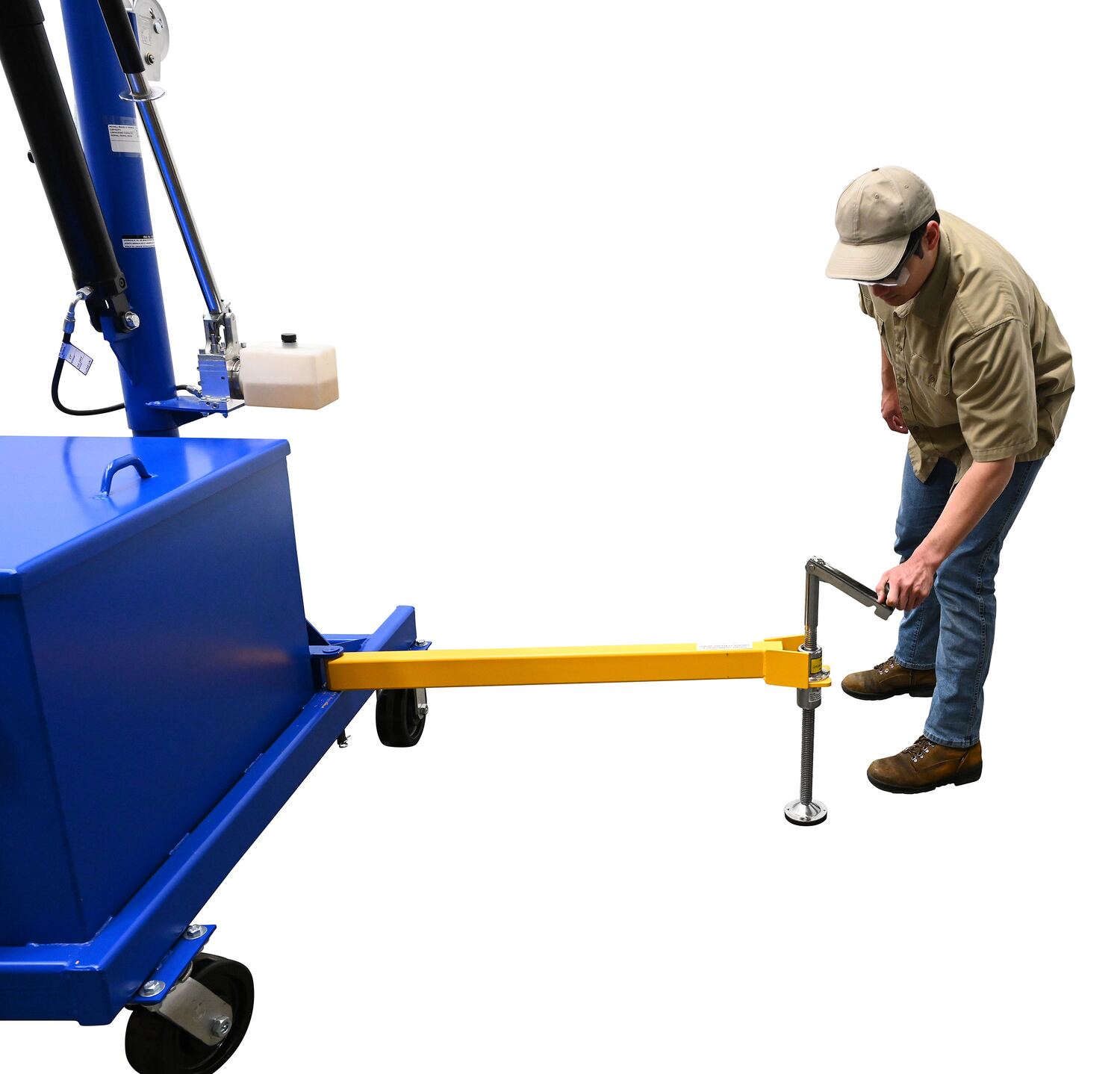

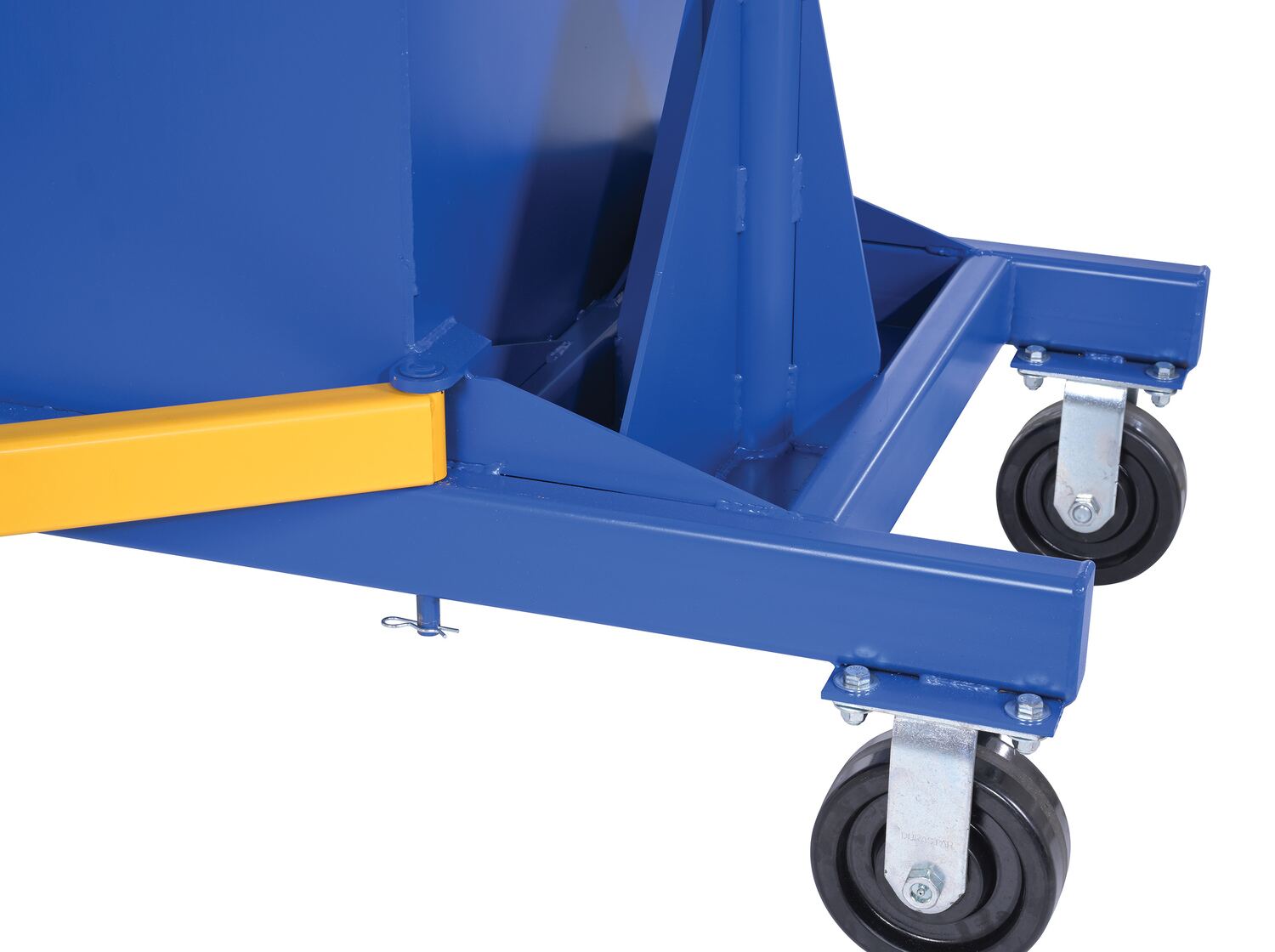

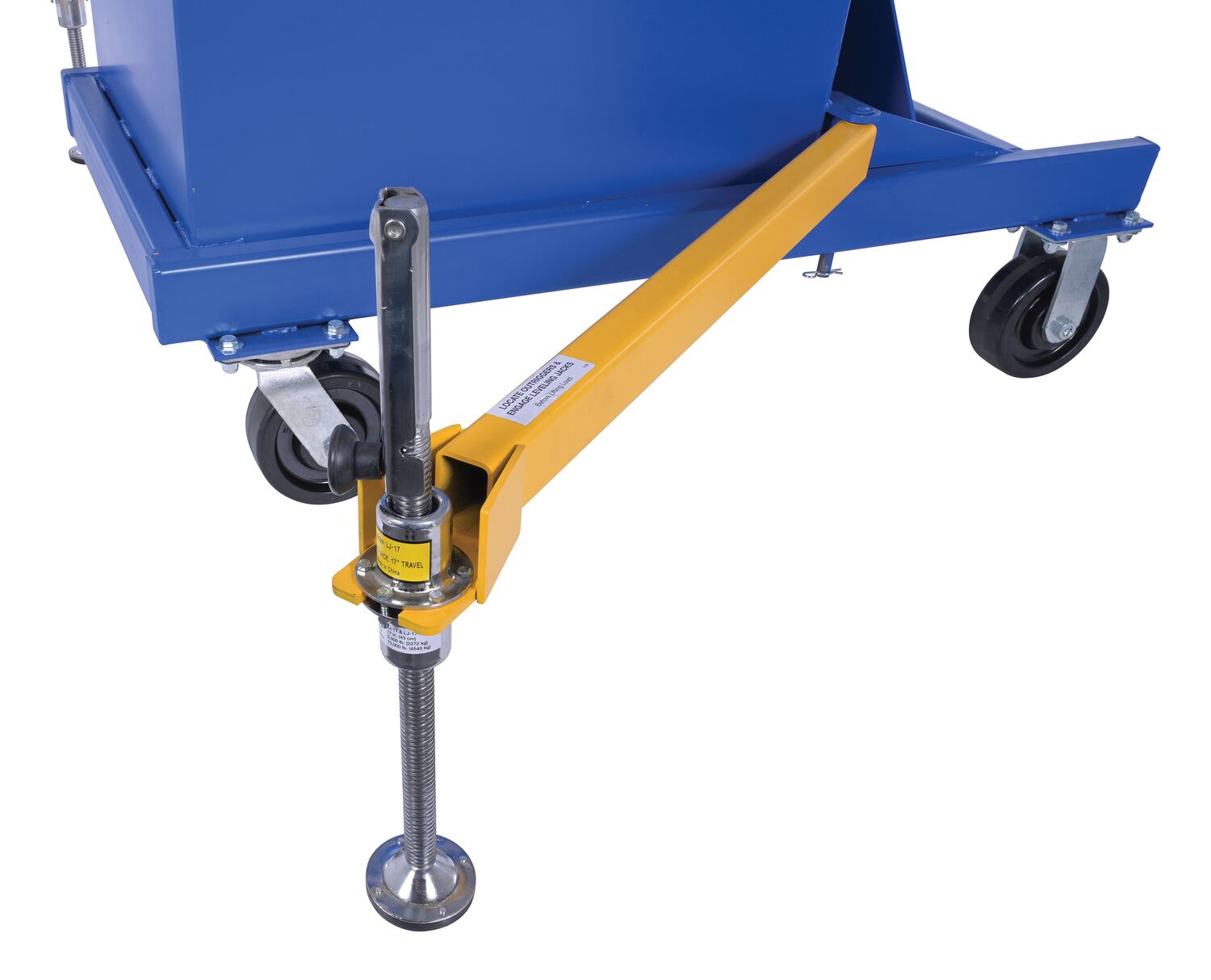

  • Outriggers increase stability with counter-balanced/cantilever design

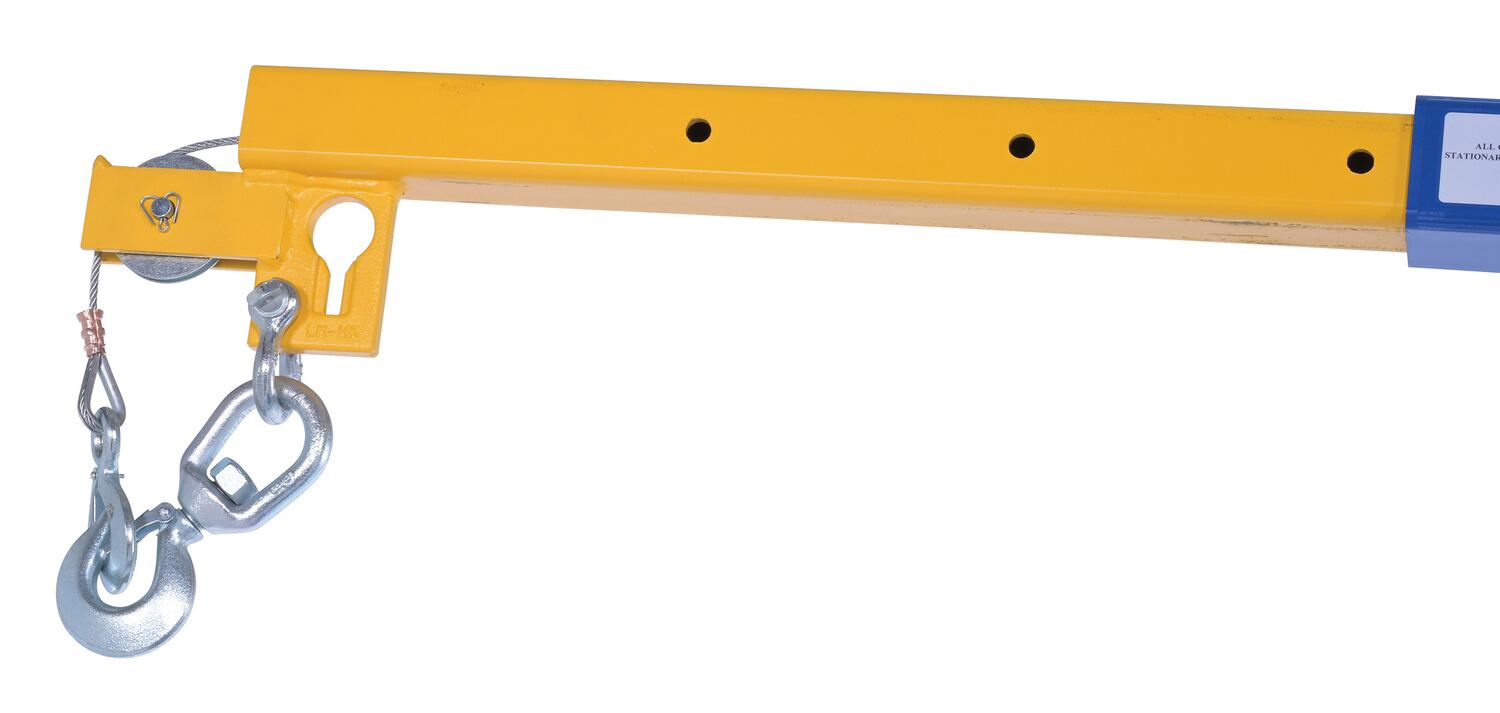

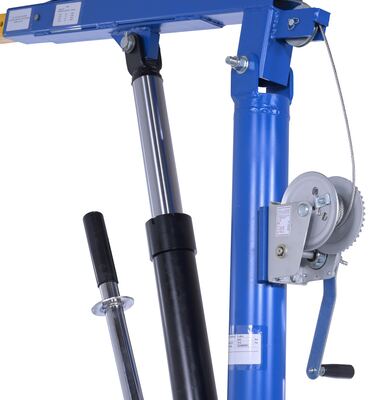

  • Adjustable extendable boom
  • Boom swivels 360 degrees

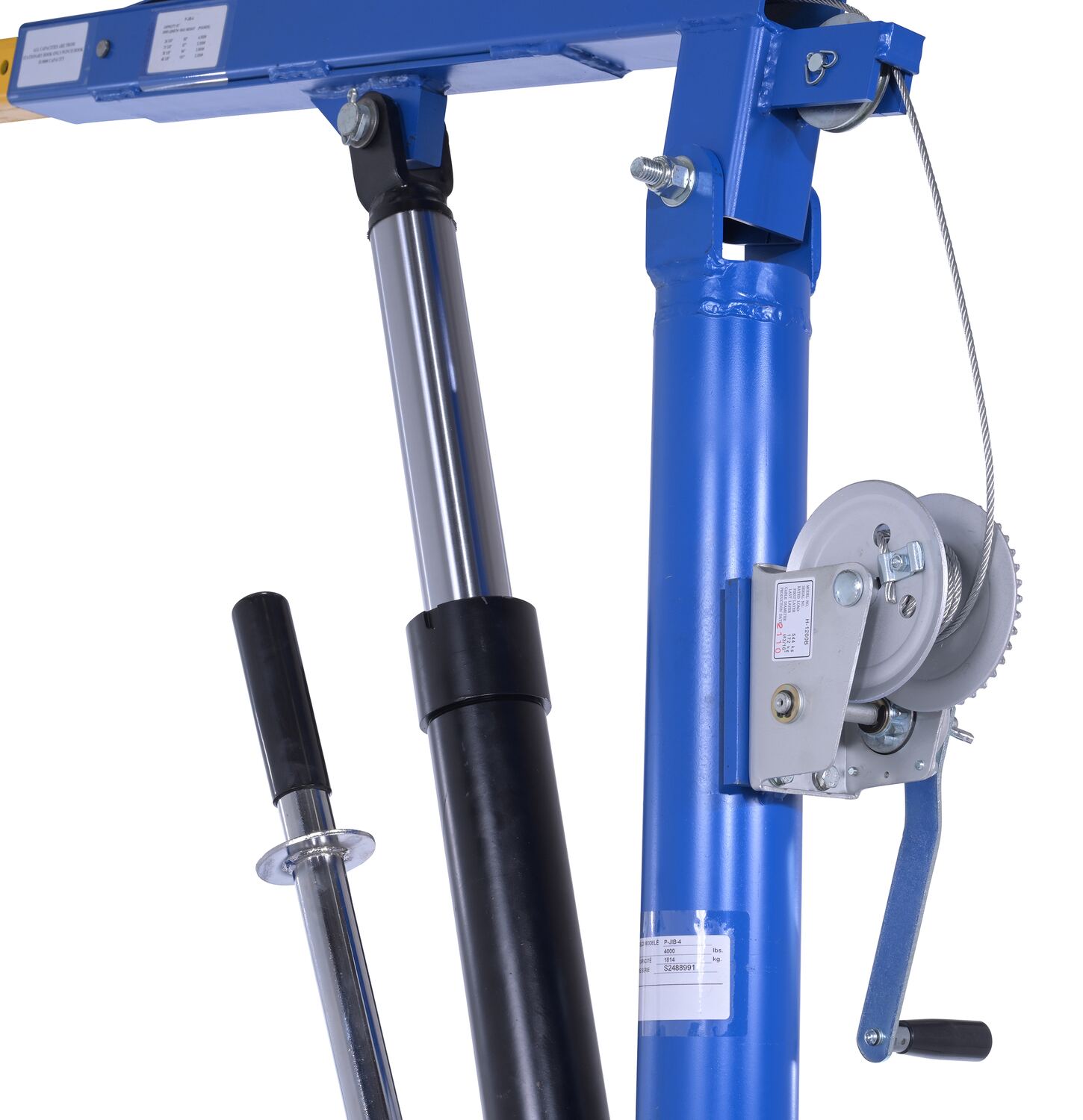

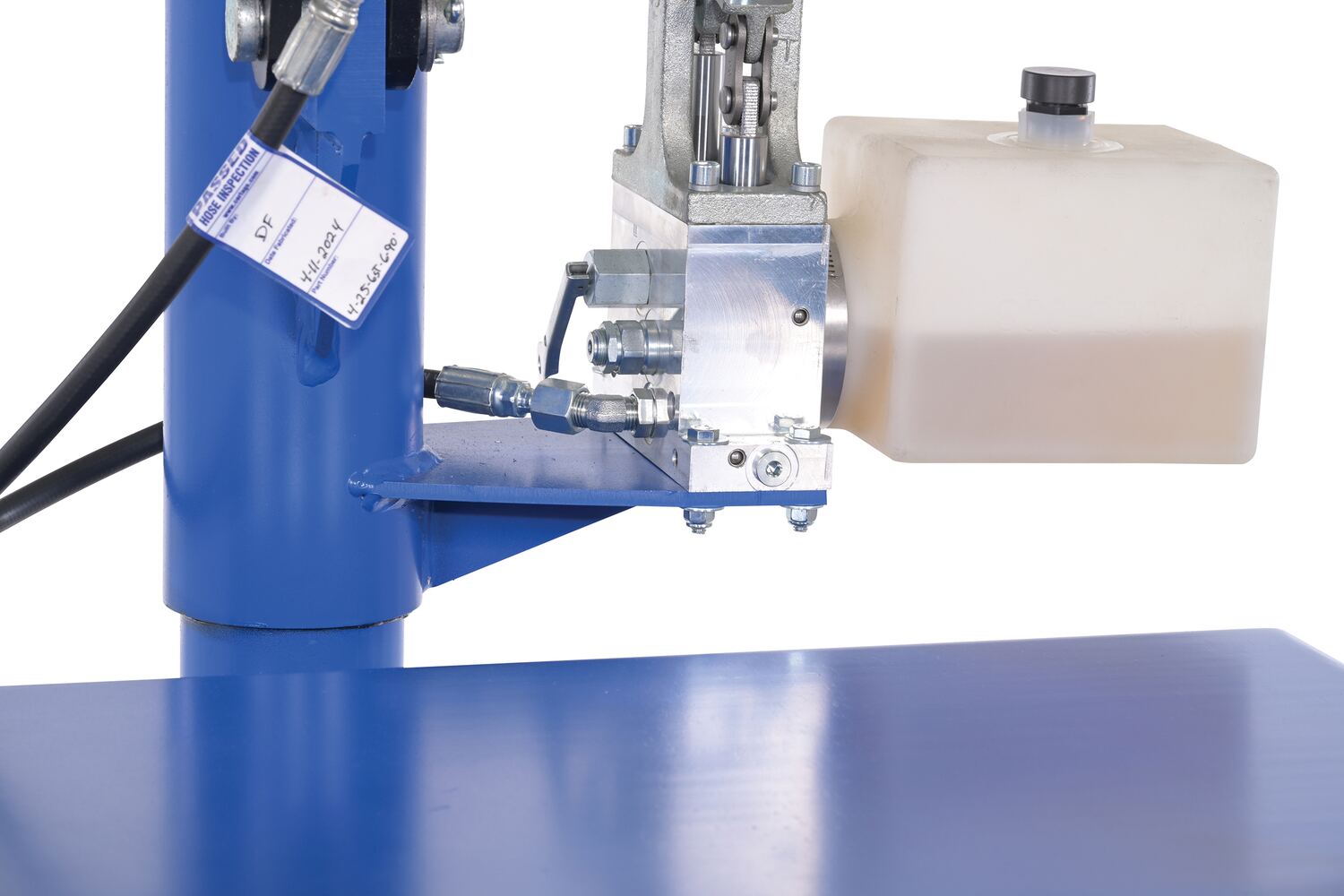

  • Double acting hydraulic hand pump
Portable Cantilever Hoists

model: P-JIB-4

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

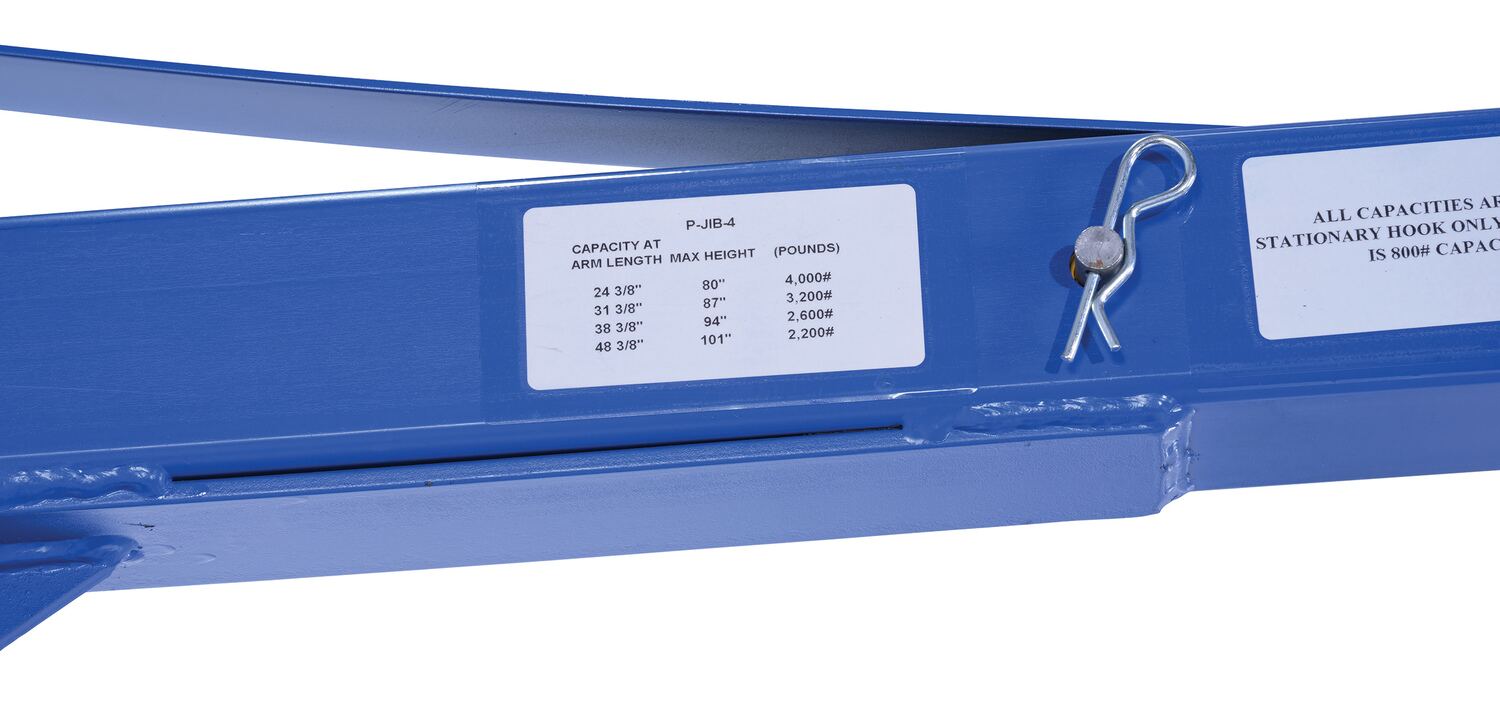

P-JIB-2 POPULAR P-JIB-21 Year Limited WarrantySteel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600		939
P-JIB-4 P-JIB-41 Year Limited WarrantySteel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200		950

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

P-JIB-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600

P-JIB-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

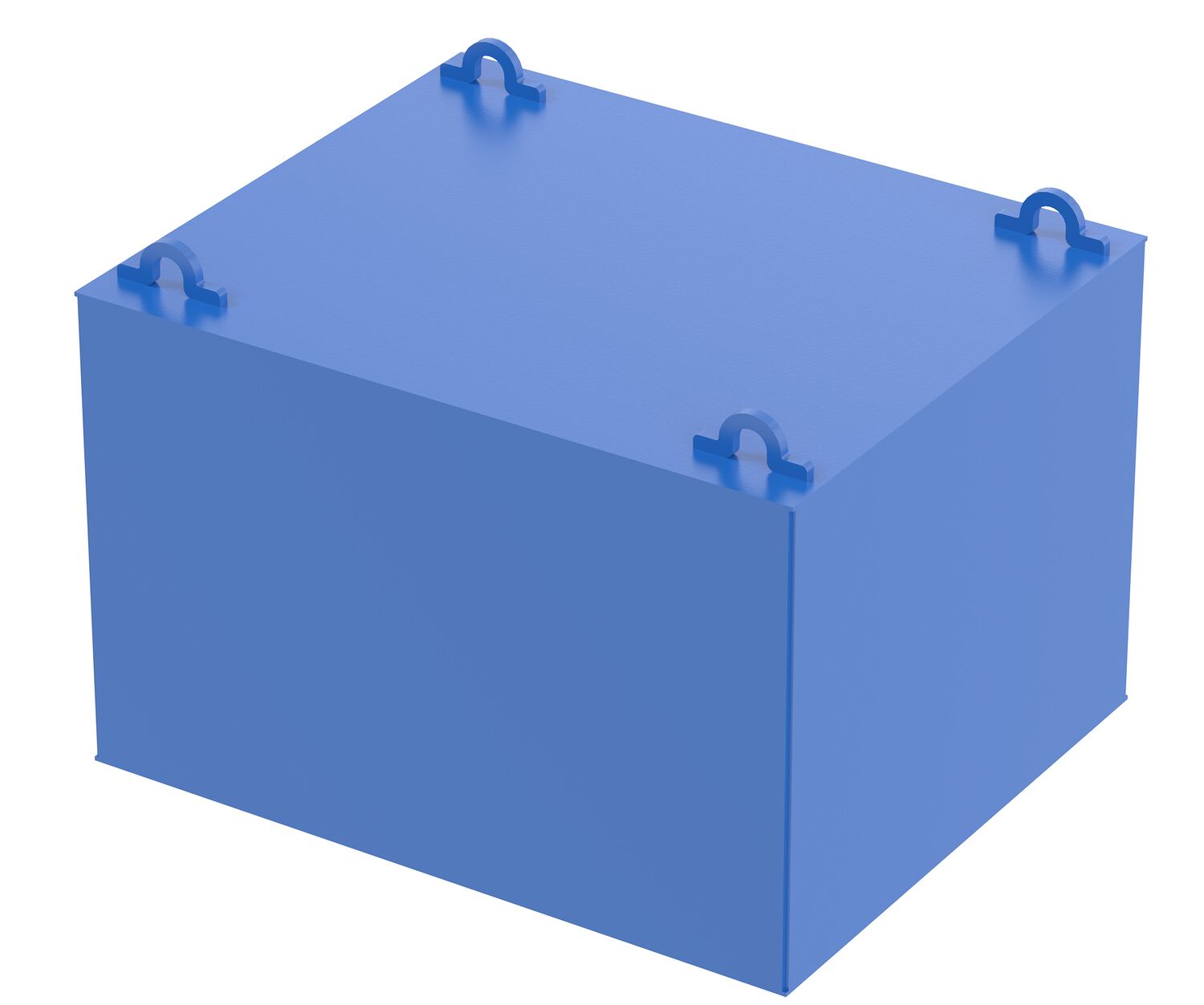

P-JIB-BALL-2 P-JIB-4Steel Cantilever Hoist Ballast 16-1/2 In. x 27 In. x 24 In. … Limited Warranty2142

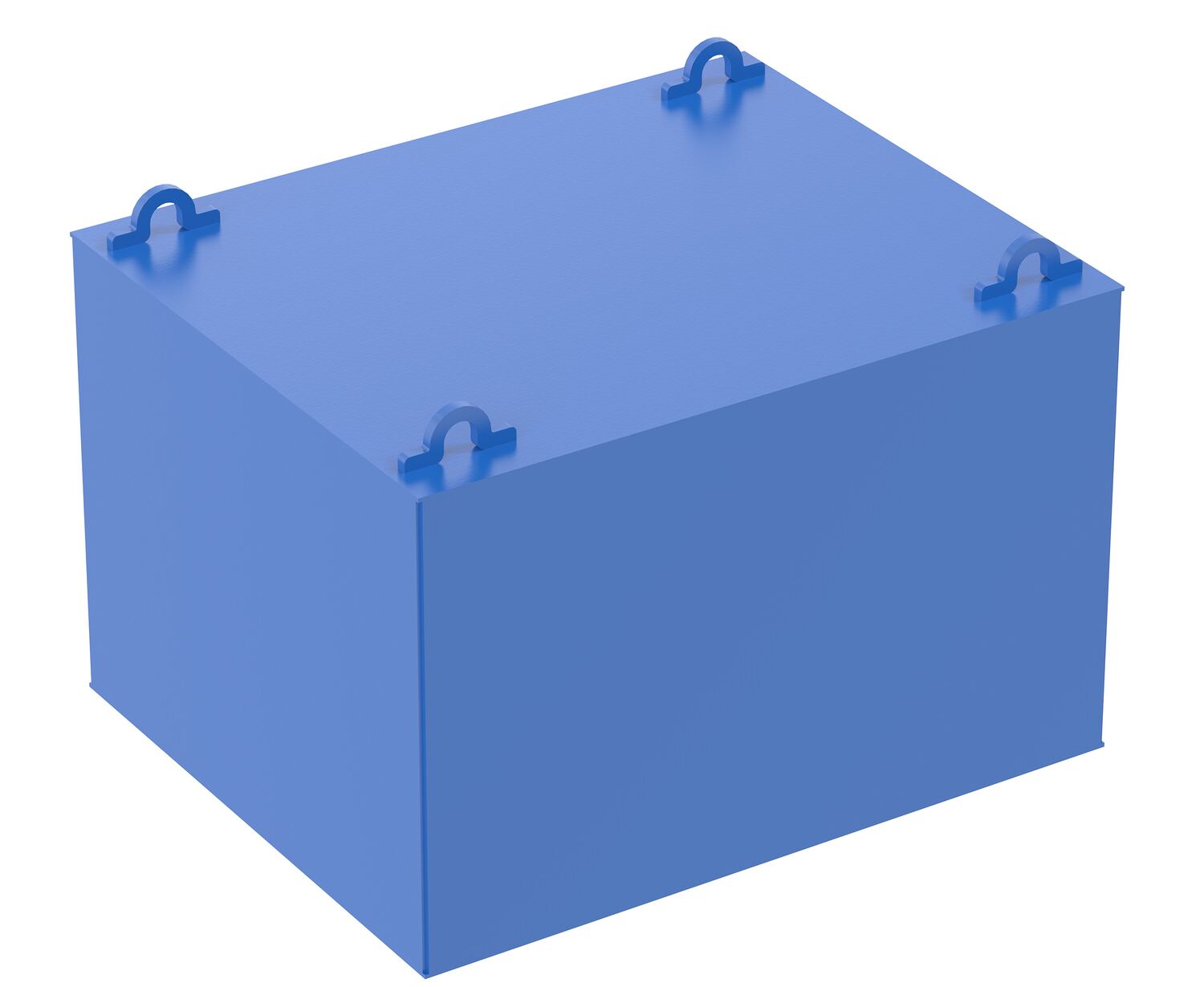

P-JIB-BALL-4 P-JIB-4Steel Cantilever Hoist Ballast 33 In. x 27 In. x 24 In. 4000… Limited Warranty3942

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

P-JIB

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

Testing Certificates

P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

SDS Sheets

Hydraulic Oil
P-JIB-2 SDS

Hydraulic Oil
P-JIB-4 SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the length of the line on the portable cantilever hoist?

A: The line on the P-JIB-2 is 14' long.

Q: What should be used for the ballast?

A: Our removable ballast weight is available. Or sand, scrap steel or bags of quikrete would be adequate for use with the JIB.

Q: What is the hook to ground measurement when boom is fully extended both horizontally and vertically?

A: The hook to ground measurement is 110"

Q: What is the overall height when the boom is extended?

A: 125"H (boom fully extended and fully raised)

Q: What is the length of the line on model P-JIB-4?

A: 15'-0" cable length

Q: Would you please advise if the P-Jib-4 can be moved when loaded?

A: The P-JIB should NOT be moved while loaded. If you need to transport a load, I'd suggest the CBFC units

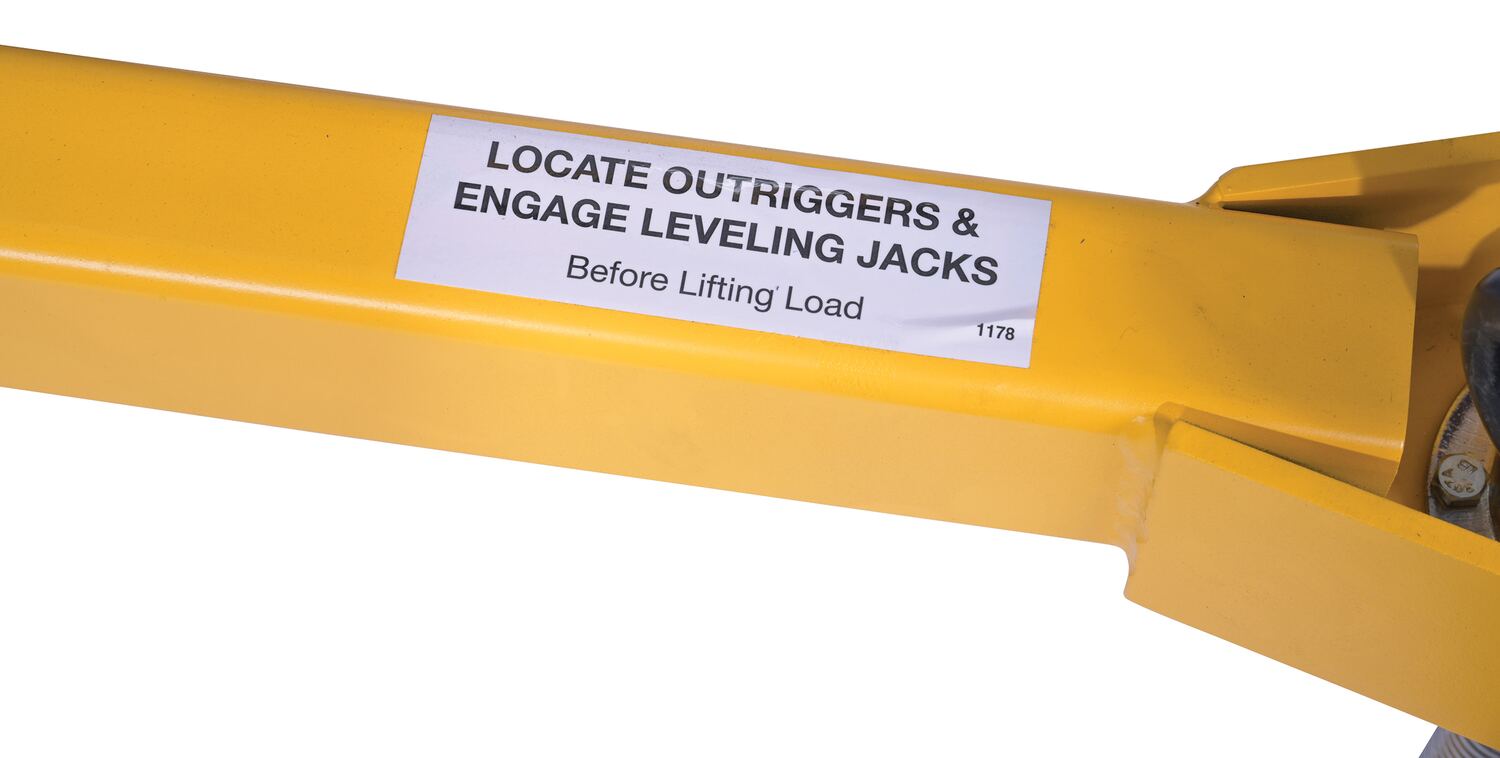

Q: Can the P-JIB-2 and P-JIB-4 be used without the outriggers?

A: The P-JIB-2 and P-JIB-4 cannot be used without the outriggers. The outriggers are necessary for stability of the unit.
