Winch Operated Truck Jib Cranes

model: WTJ-4

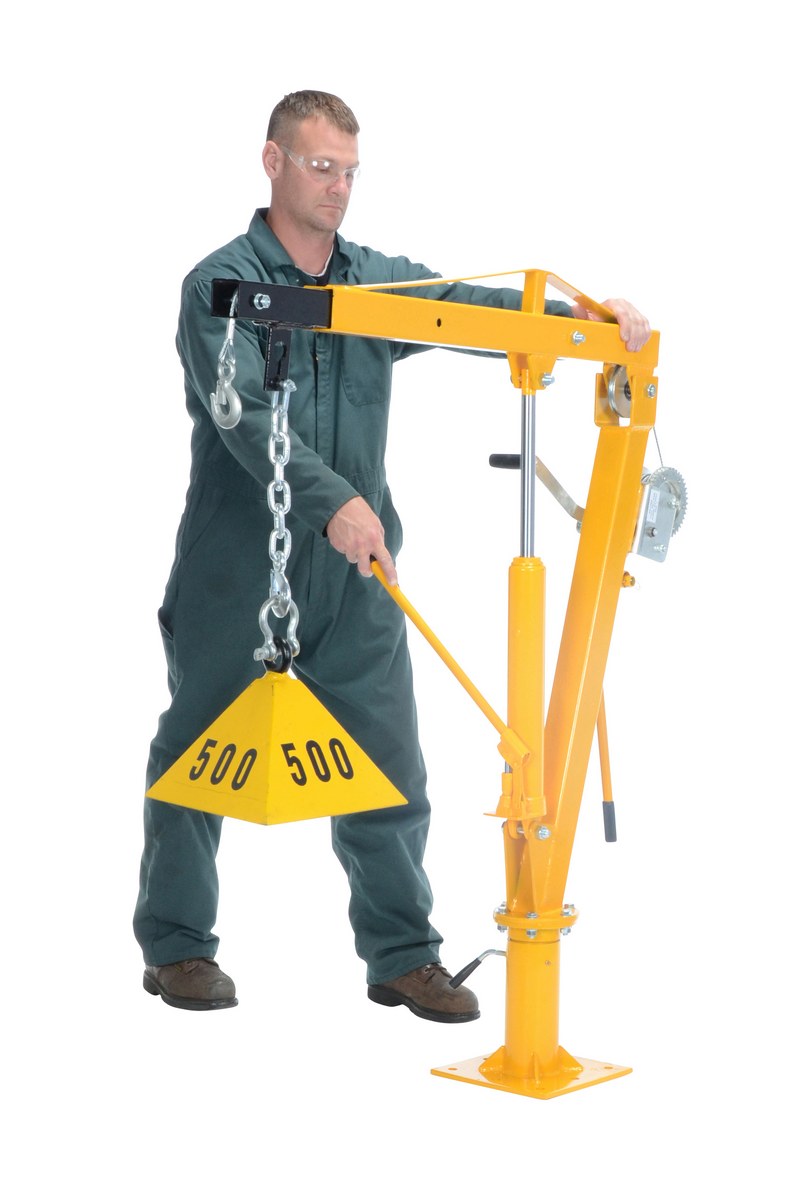

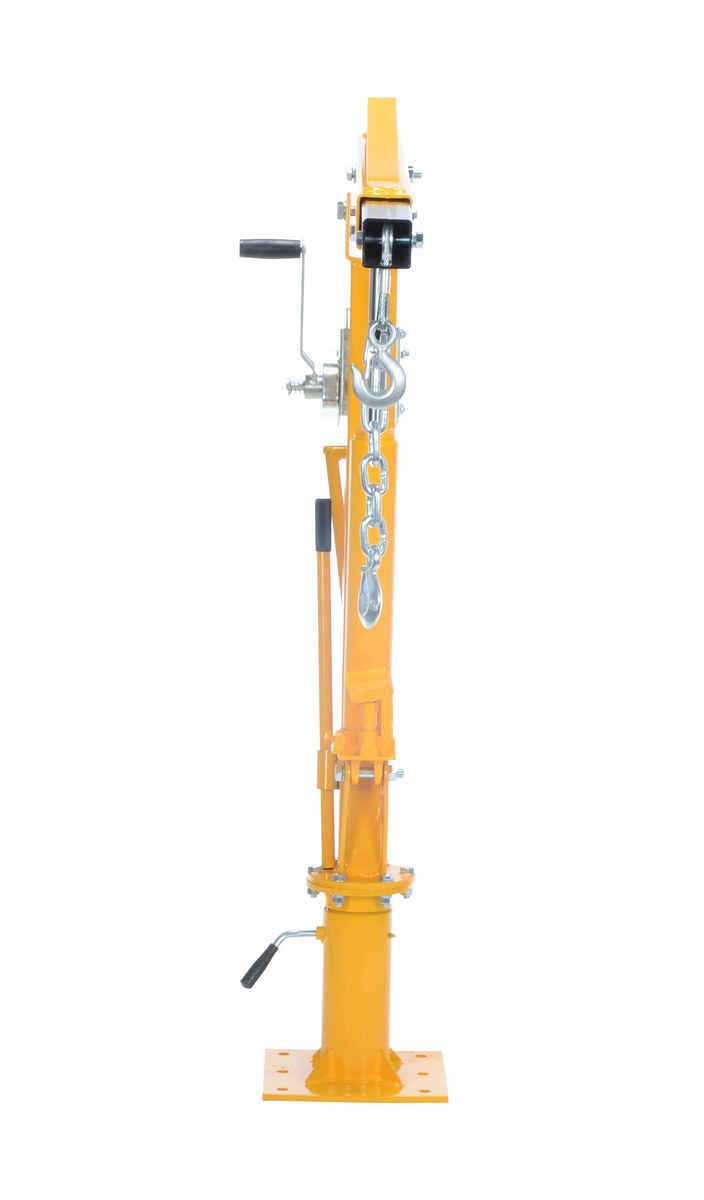

WTJ-4_E.jpg WTJ-4_A.jpg WTJ-4_B.jpg WTJ-4_C.jpg WTJ-4_D.jpg More Images +
Winch Operated Truck Jib Cranes
SERIES: WTJ

WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Manual cable winch and 12V DC power cable winch styles available.

Winch Operated Truck Jib Cranes

model: WTJ-4

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

WTJ-2
WTJ-2-DC
WTJ-2-G
WTJ-2-G-DC
WTJ-2-SS
WTJ-4
WTJ-4-DC
WTJ-4-G
WTJ-4-G-DC
WTJ-4-SS
PDFs will open in a new window when clicked.

Manuals

WTJ-2

WTJ-4

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

WTJ-2

WTJ-2-G

WTJ-4

WTJ-4-G

Testing Certificates

WTJ-2

WTJ-2-DC

WTJ-2-G

WTJ-2-G-DC

WTJ-2-SS

WTJ-4

WTJ-4-DC

WTJ-4-G

WTJ-4-G-DC

WTJ-4-SS

SDS Sheets


Hydraulic Oil
WTJ-2 SDS


Hydraulic Oil
WTJ-2-DC SDS


Hydraulic Oil
WTJ-2-G SDS


Hydraulic Oil
WTJ-2-G-DC SDS


Hydraulic Oil
WTJ-2-SS SDS


Hydraulic Oil
WTJ-4 SDS


Hydraulic Oil
WTJ-4-DC SDS


Hydraulic Oil
WTJ-4-G SDS


Hydraulic Oil
WTJ-4-G-DC SDS


Hydraulic Oil
WTJ-4-SS SDS

Other PDFs


Truck Jib Cranes Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Engine Hoists & Floor Cranes





Winch Operated Truck Jib Cranes




WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Manual cable winch and 12V DC power cable winch styles available.


Model # Description Attributes Net Wt.
(lbs)

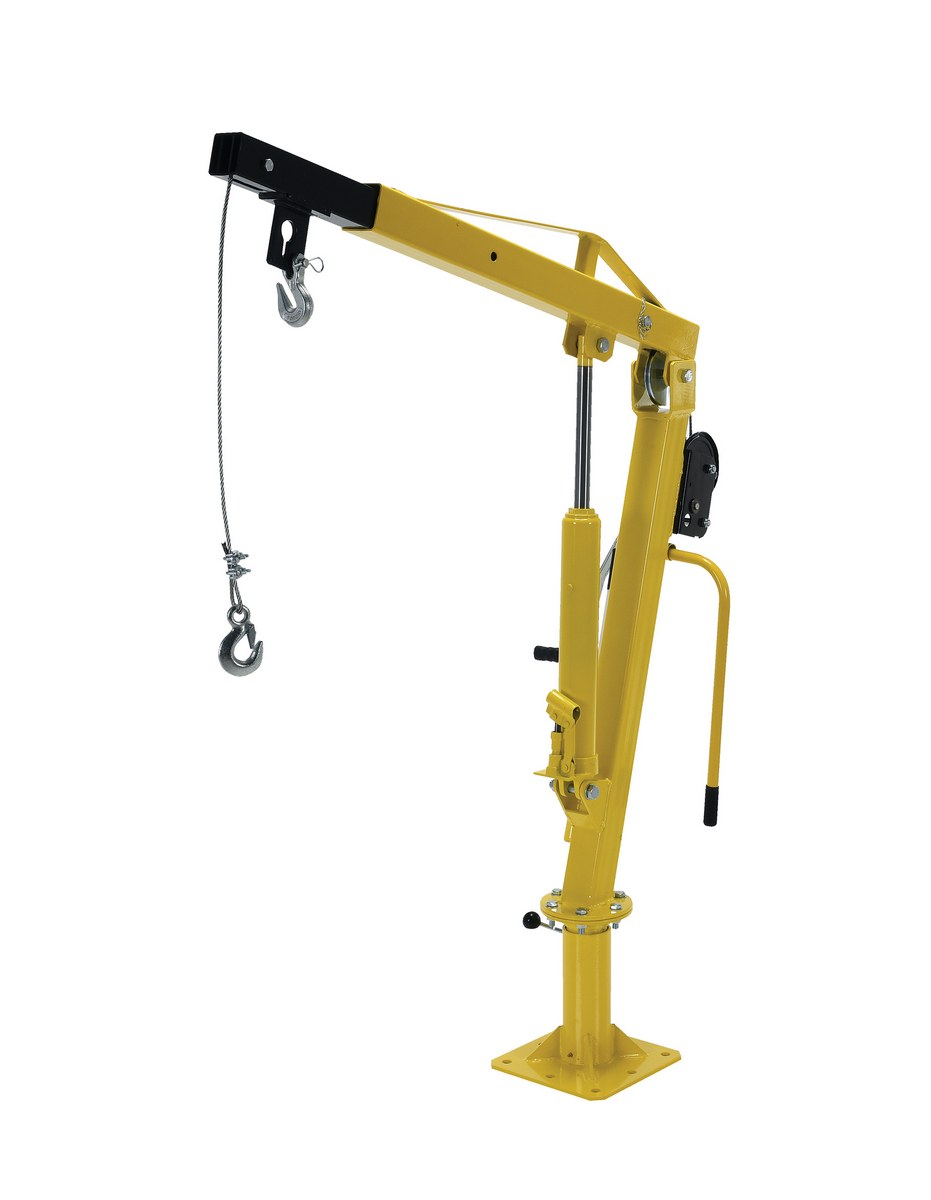

WTJ-2 WTJ-2Steel Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		135

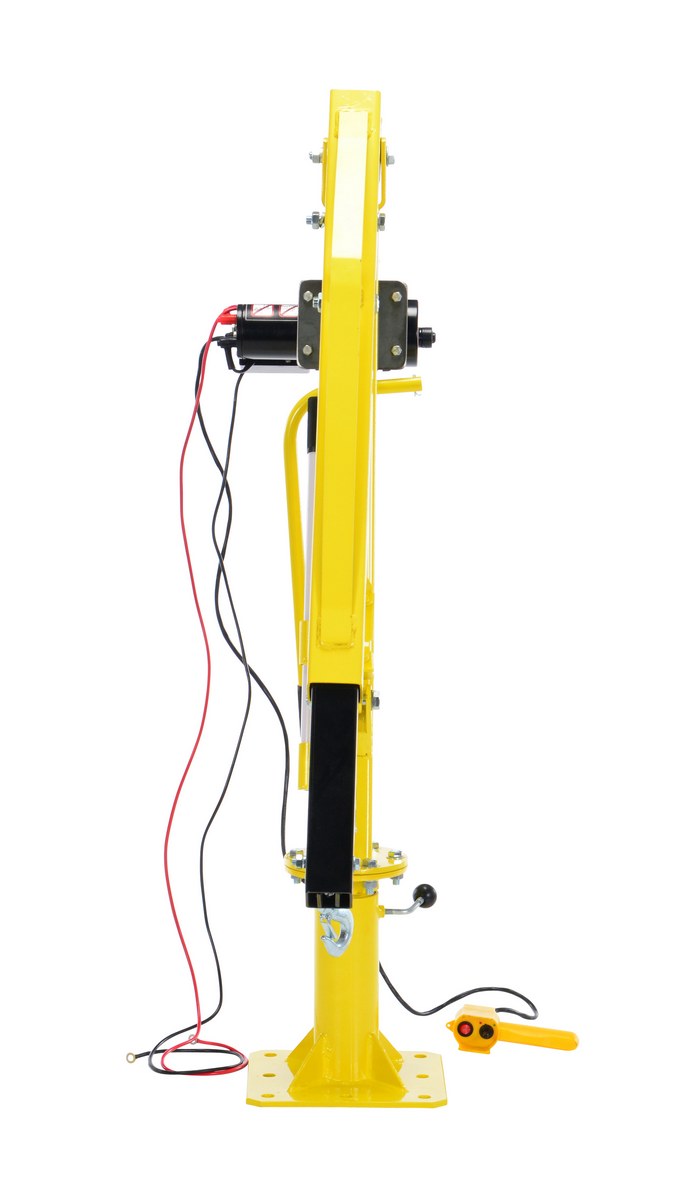

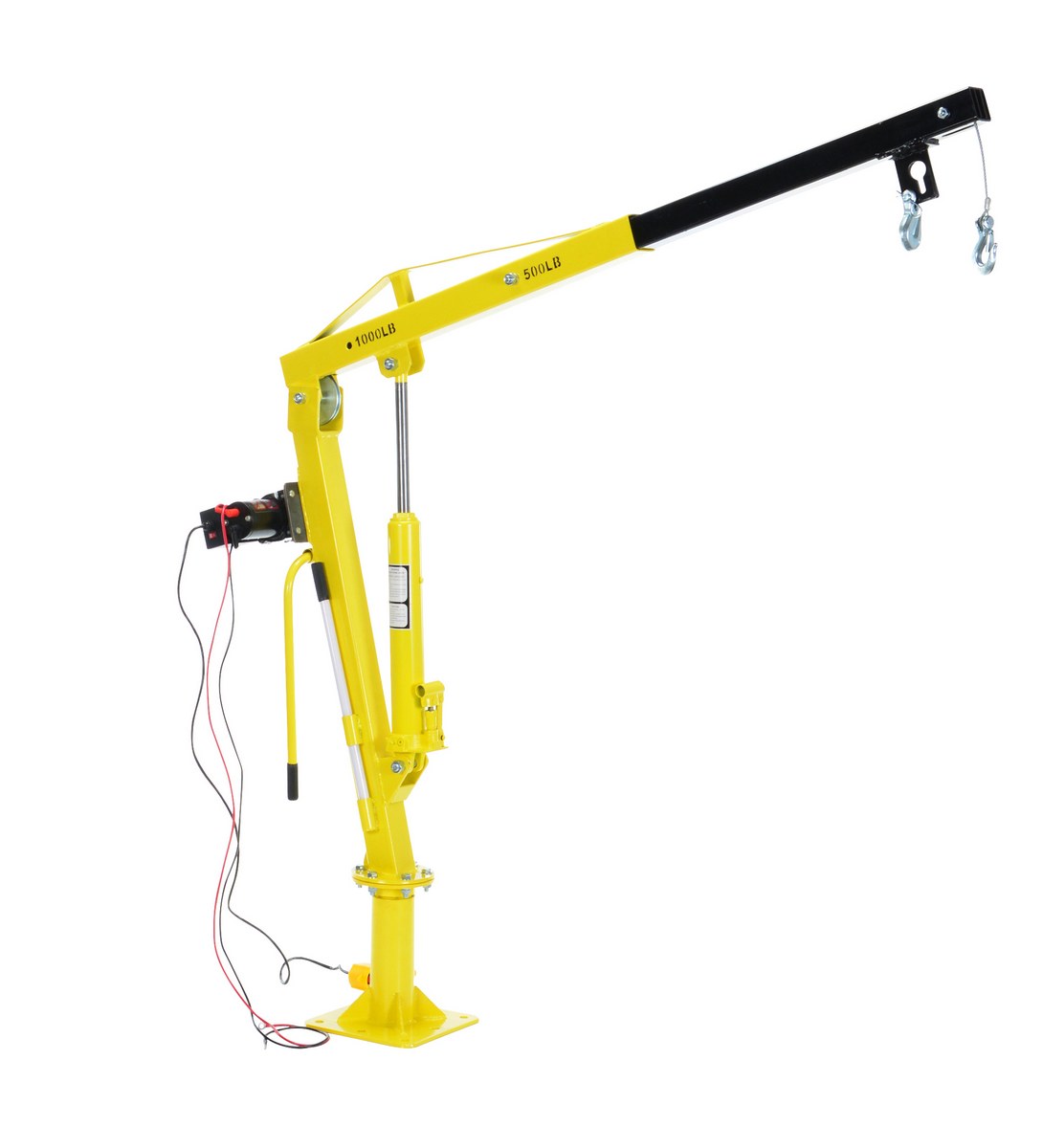

WTJ-2-DC WTJ-2-DCSteel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		160

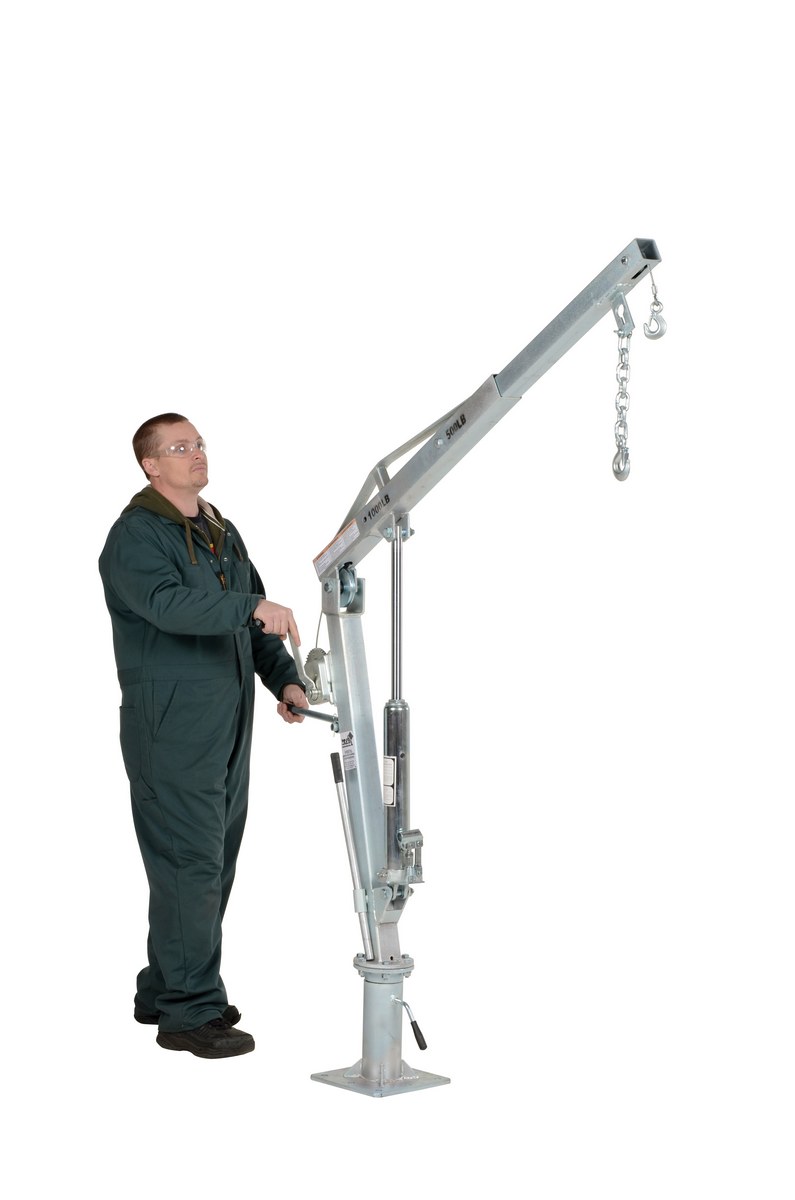

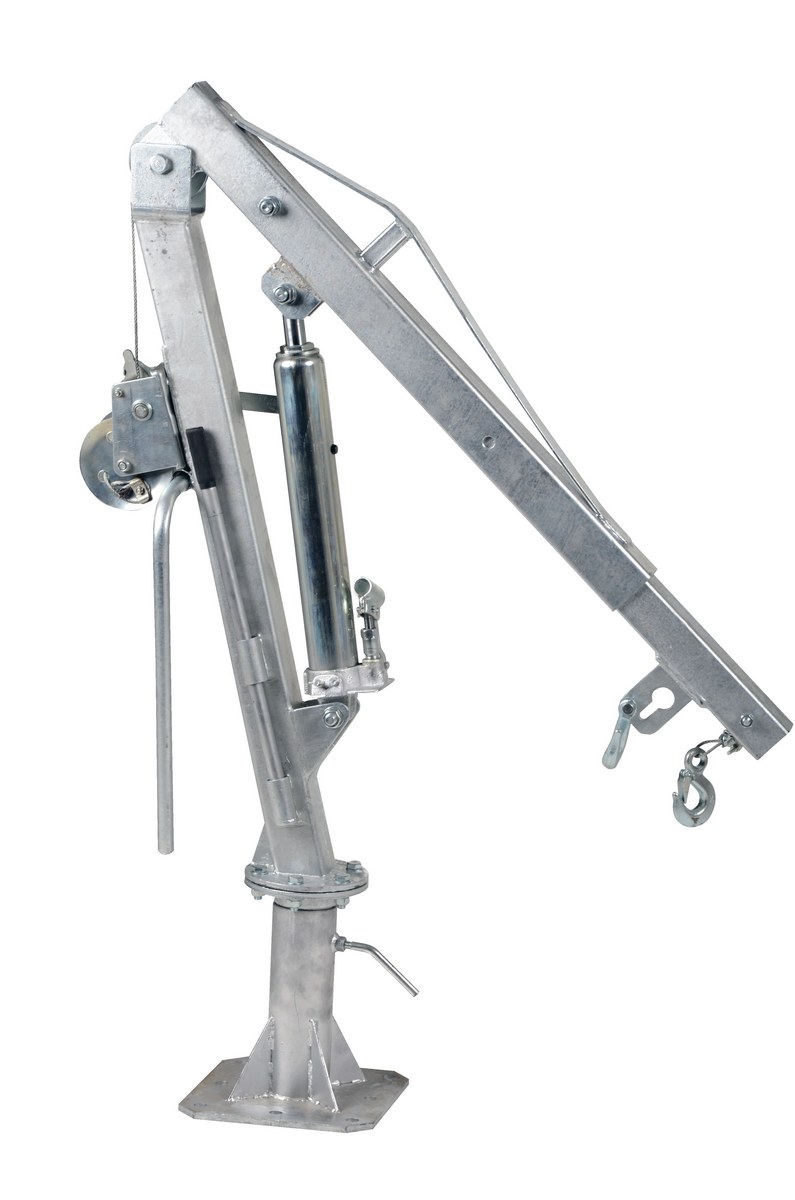

WTJ-2-G WTJ-2-GGalvanized Steel Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		134

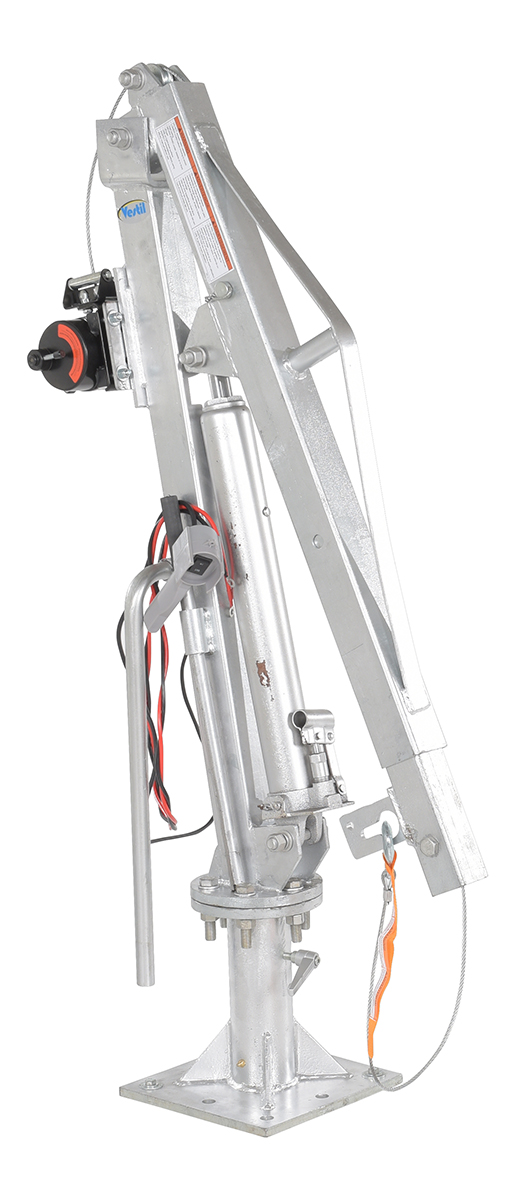

WTJ-2-G-DC WTJ-2-G-DCGalvanized Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		165

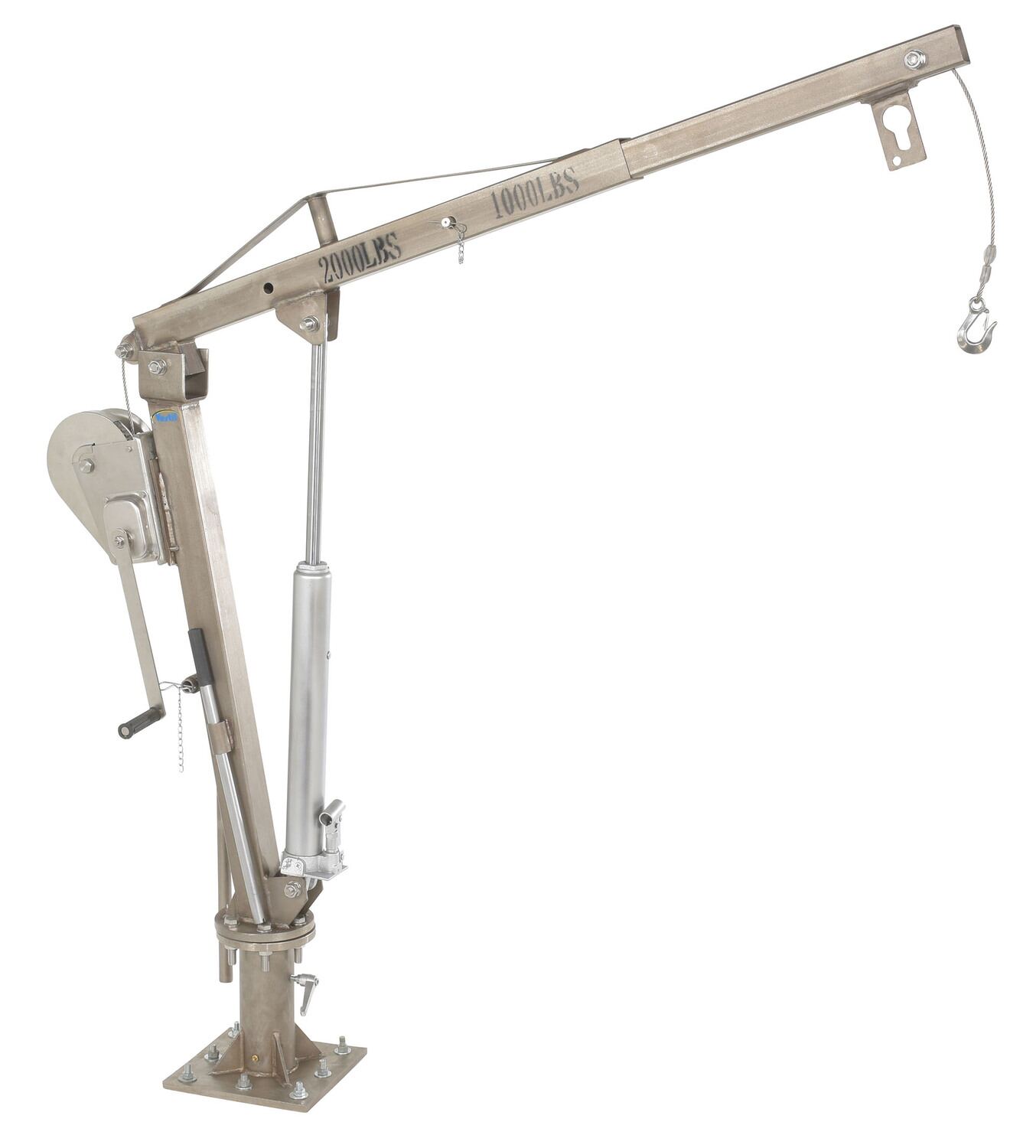

WTJ-2-SS WTJ-2-SSStainless Steel Winch Truck Jib Crane 550 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		134

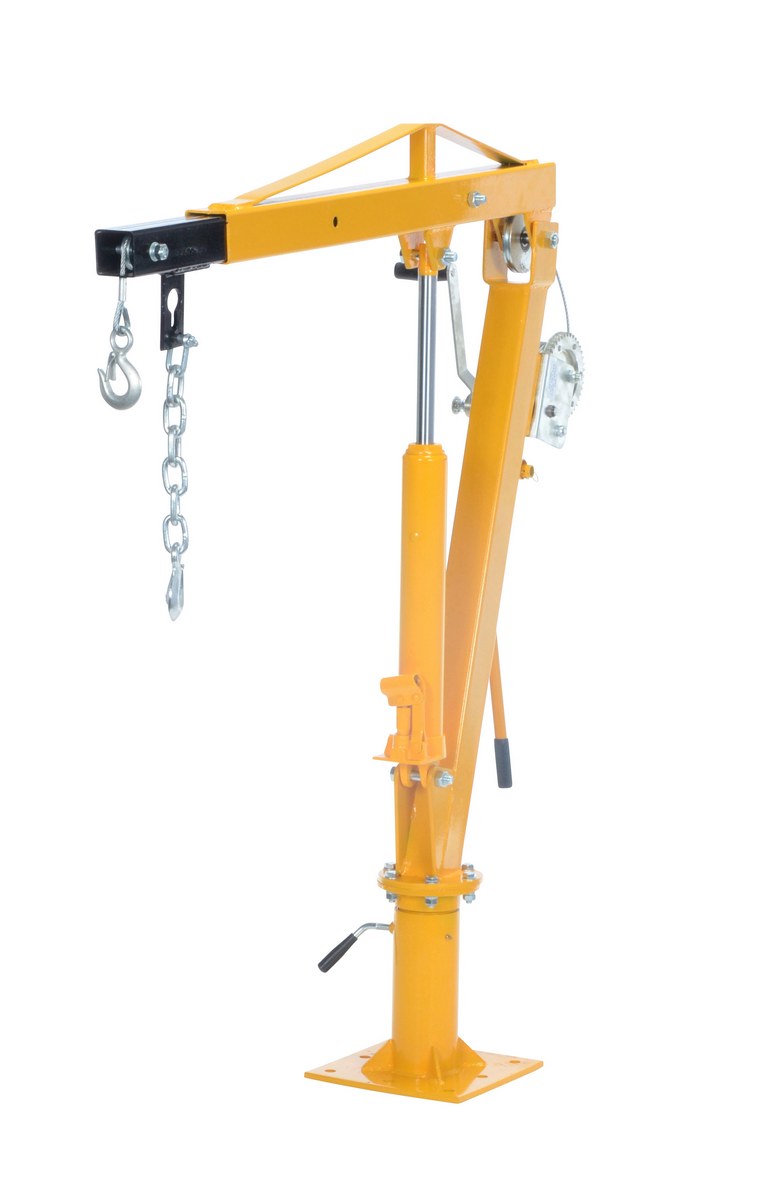

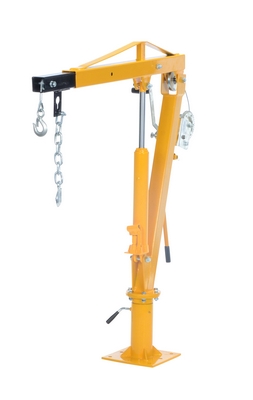

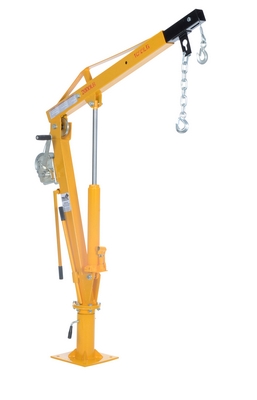

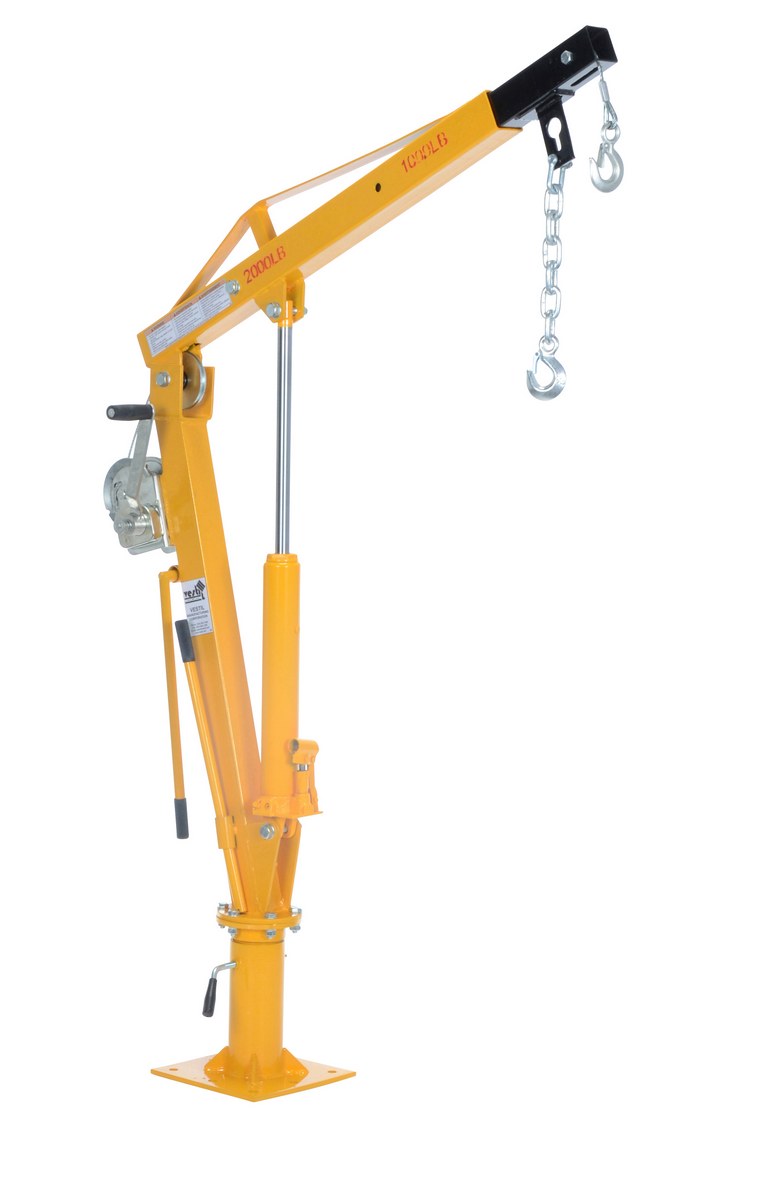

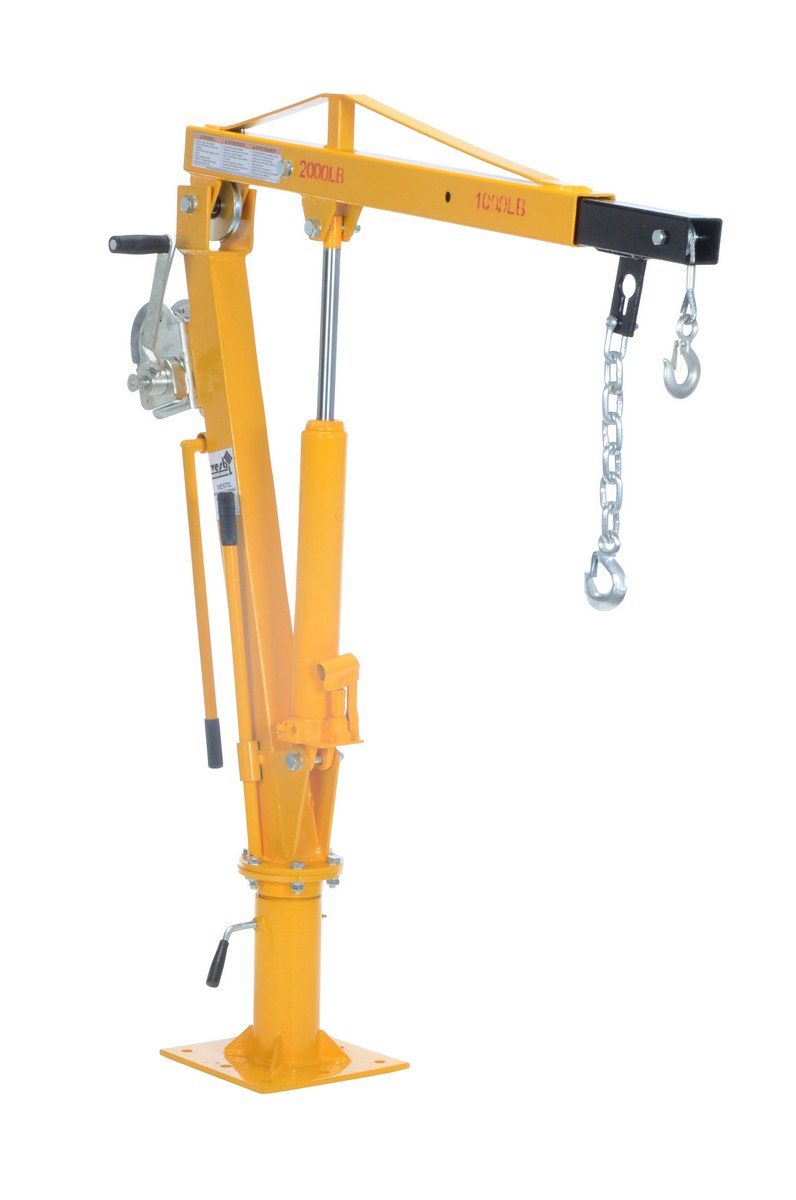

WTJ-4 WTJ-4Steel Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		145

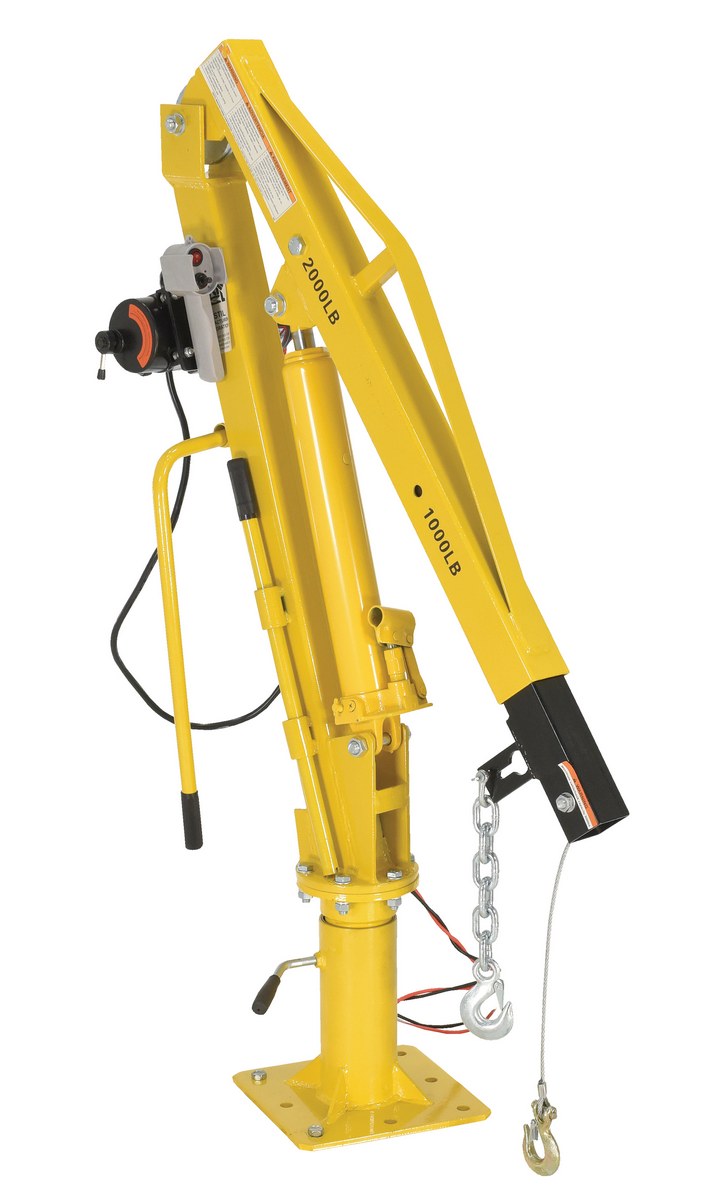

WTJ-4-DC WTJ-4-DCSteel DC Powered Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2		204

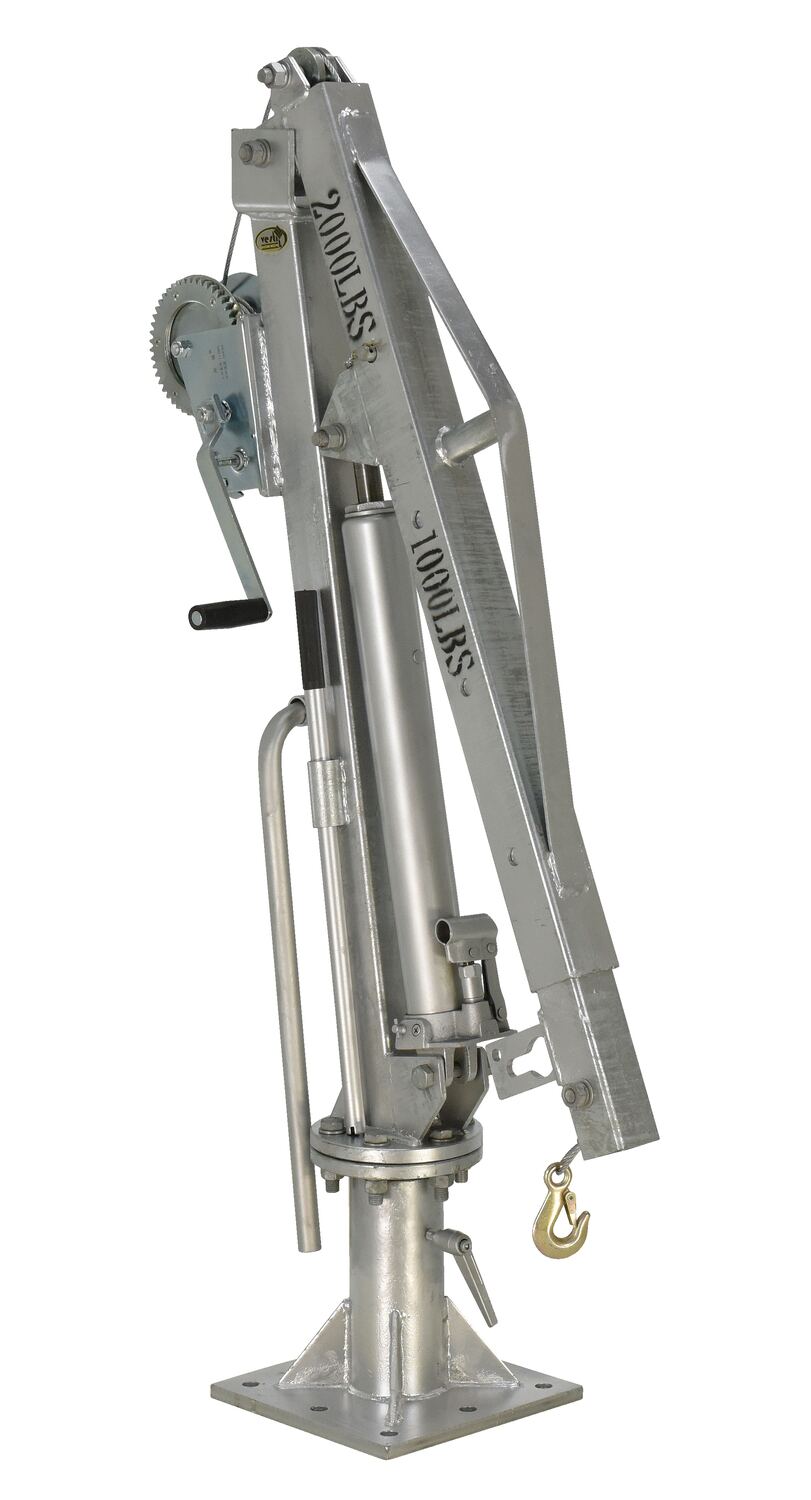

WTJ-4-G WTJ-4-GGalvanized Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		218

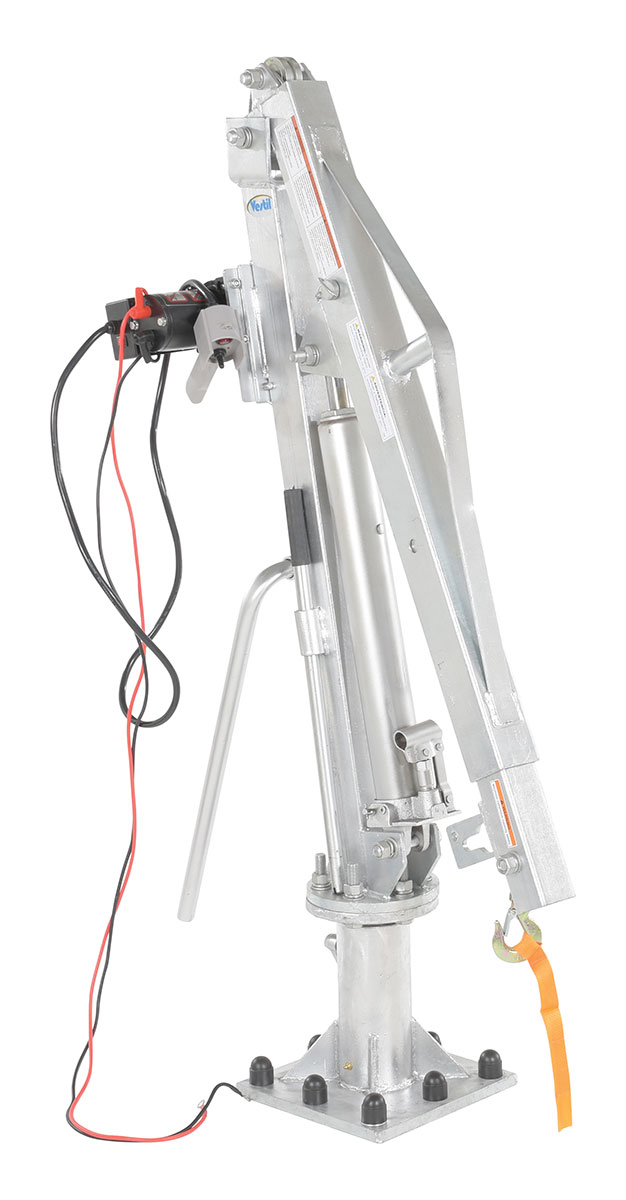

WTJ-4-G-DC WTJ-4-G-DCGalvanized Steel DC Powered Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayExtended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero		245

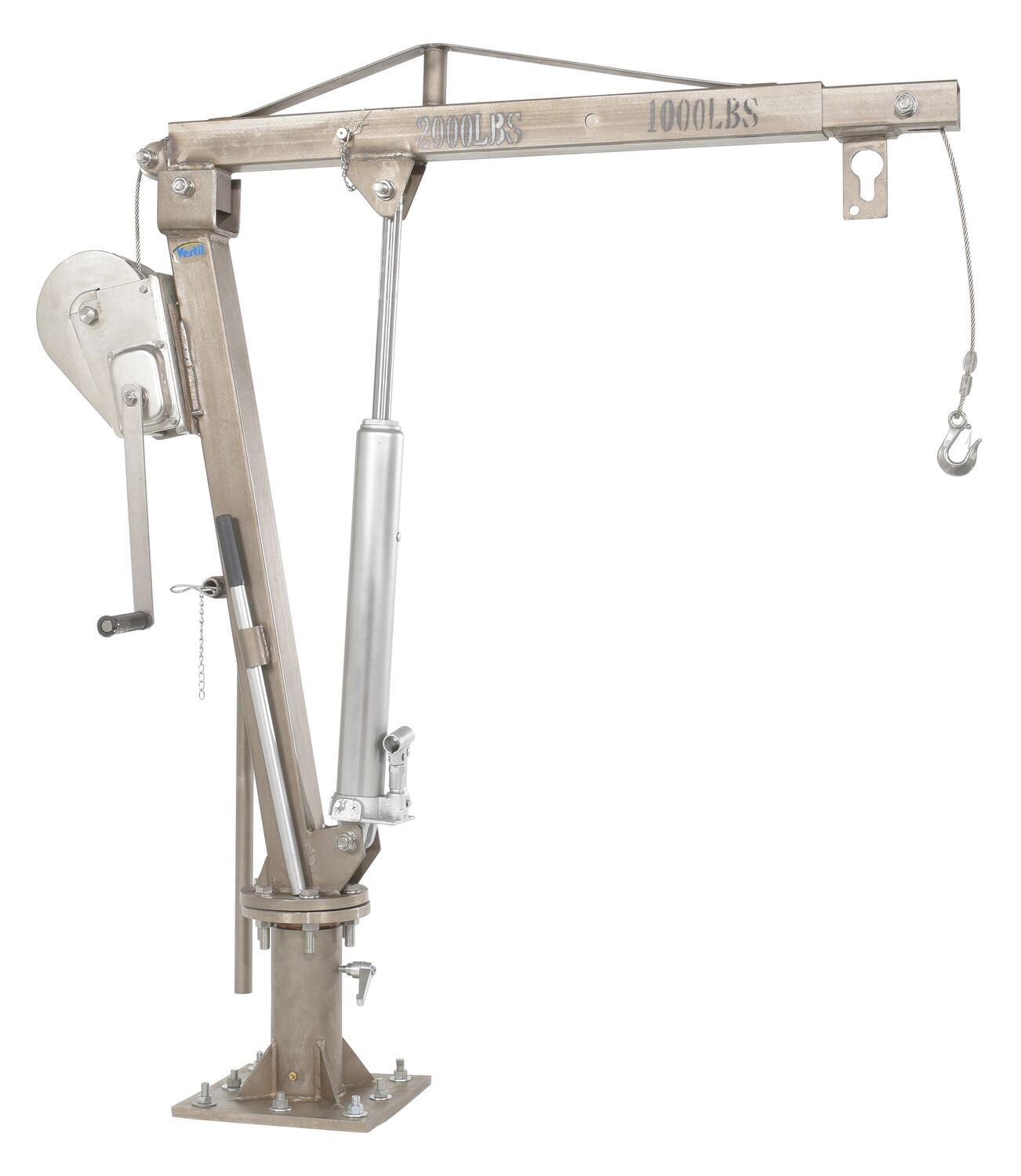

WTJ-4-SS WTJ-4-SSStainless Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		218
