PRDC-36-R

Printer Friendly
Available
PRDC-36-R
PRDC-36-R PRDC-36-R PRDC-36-R PRDC-36-R PRDC-36-R PRDC-36-R

Steel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue

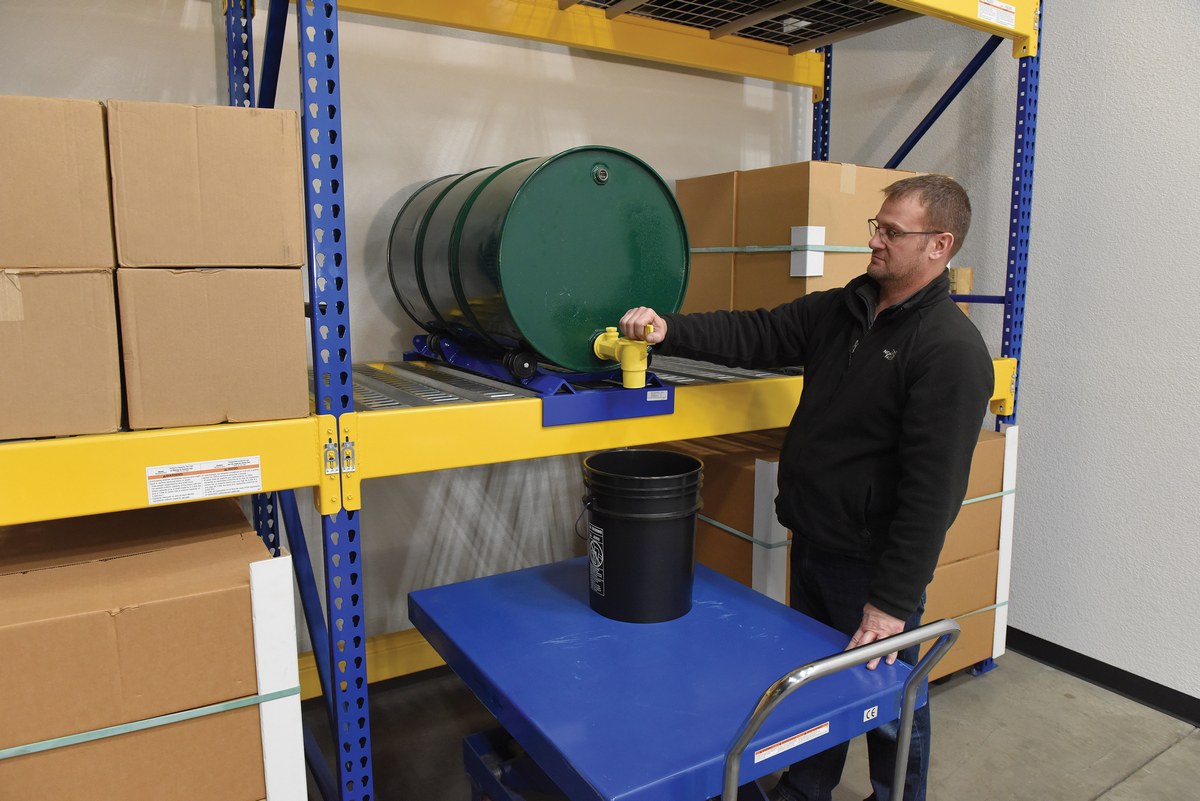

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Assembled Wt.(lbs.): 52 Assembled Size: 17.375"W x 36.5"L x 6.9375"H

Total Ship Wt.(lbs.): 52 (only 1 package) Package 1 Size: 17"W x 45"D x 6"H Color: Blue

Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 36 Roller Construction: Polypropylene Roller Diameter (in.): 3
Roller Width (in.): 1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: PRDC-36-R
Available
PRDC-36-R

Steel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Dimensions: 17.375"W x 36.5"L x 6.9375"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 52 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 36 Roller Construction: Polypropylene Roller Diameter (in.): 3
Roller Width (in.): 1
