Pallet Rack Drum Cradles

model: PRDC-42-R

PRDC-42-R_F.jpg PRDC-42-R_A.jpg PRDC-42-R_B.jpg PRDC-42-R_C.jpg PRDC-42-R_D.jpg PRDC-42-R_E.jpg More Images +
Pallet Rack Drum Cradles
SERIES: PRDC

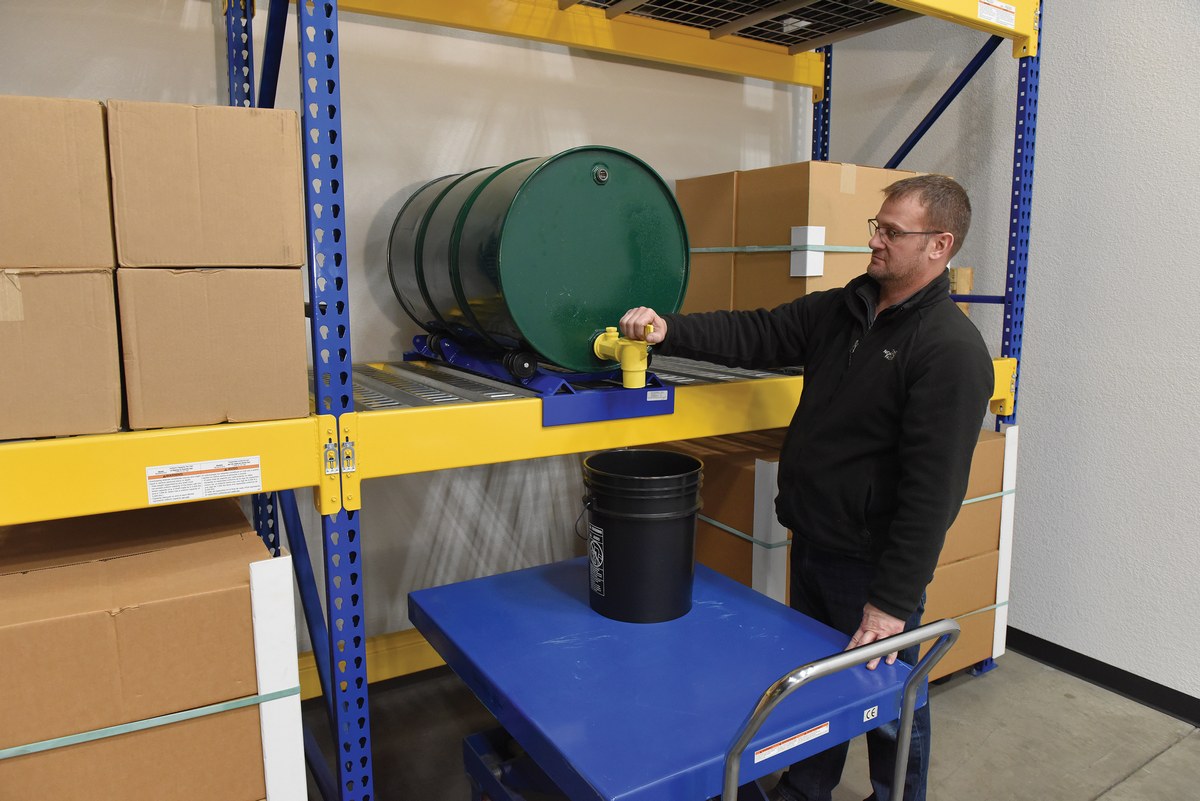

The Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.

  • Unique design converts standard pallet rack into a horizontal drum cradle

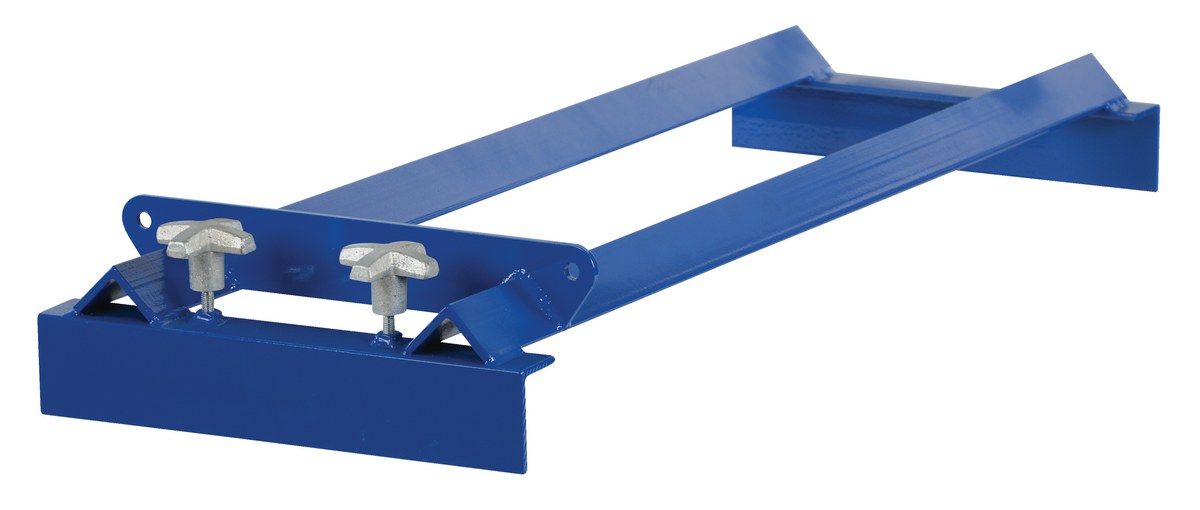

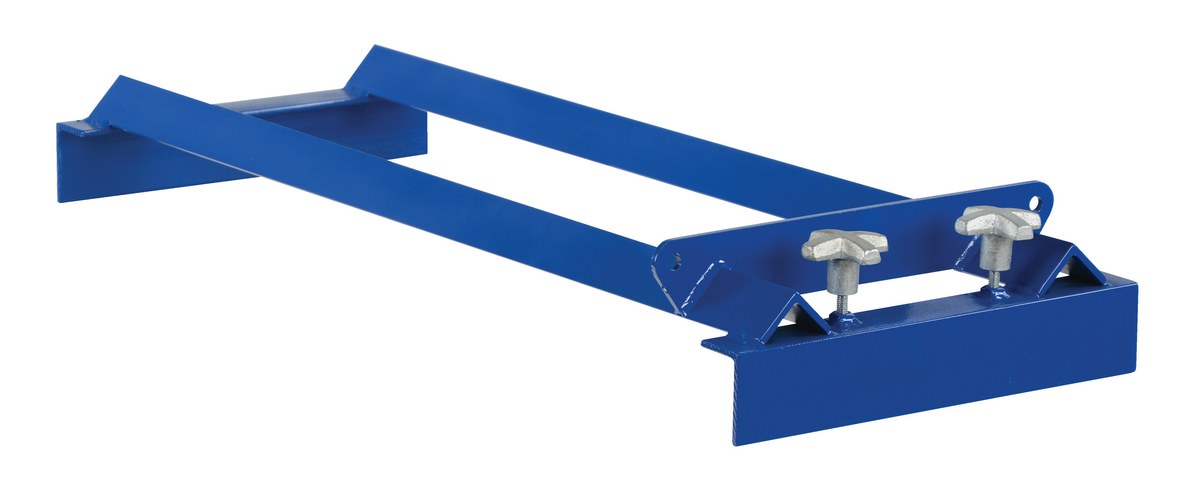

  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

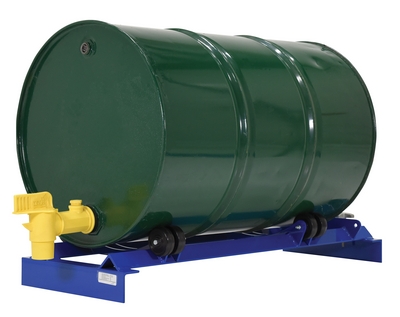

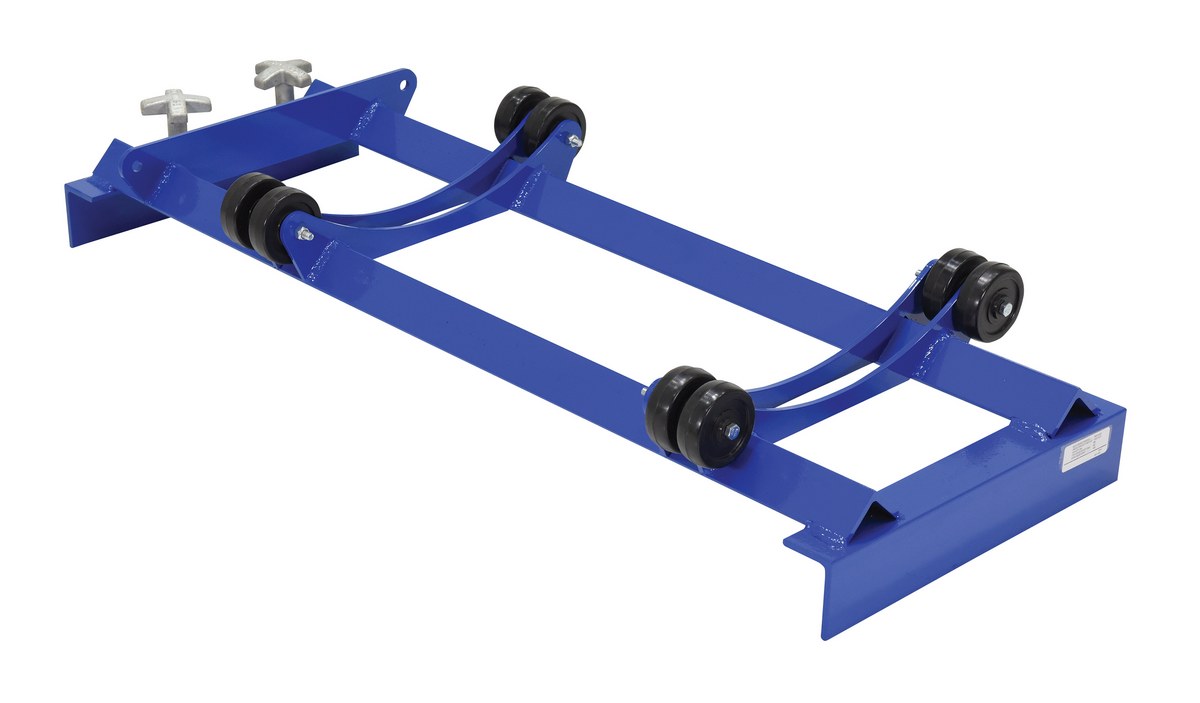

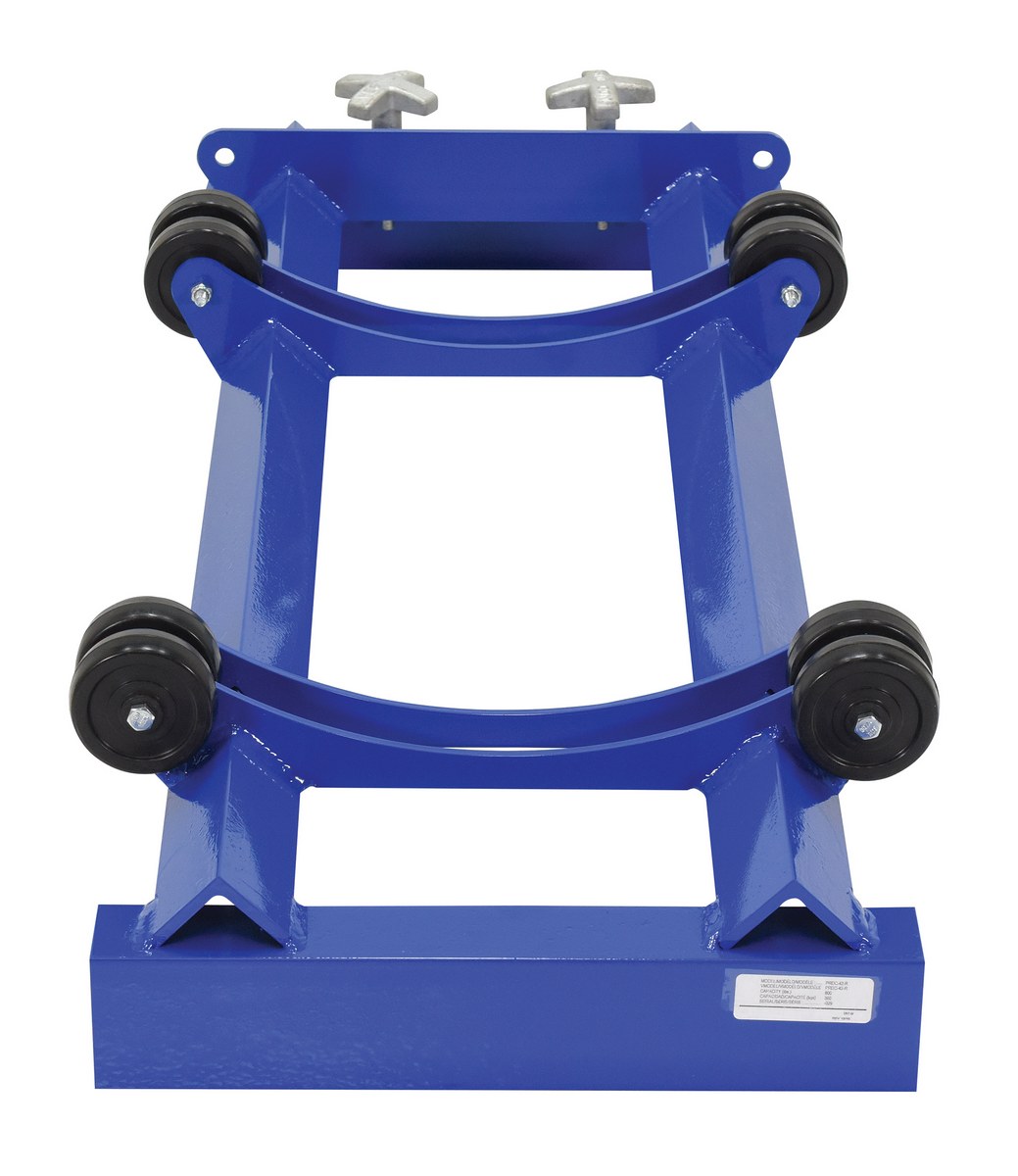

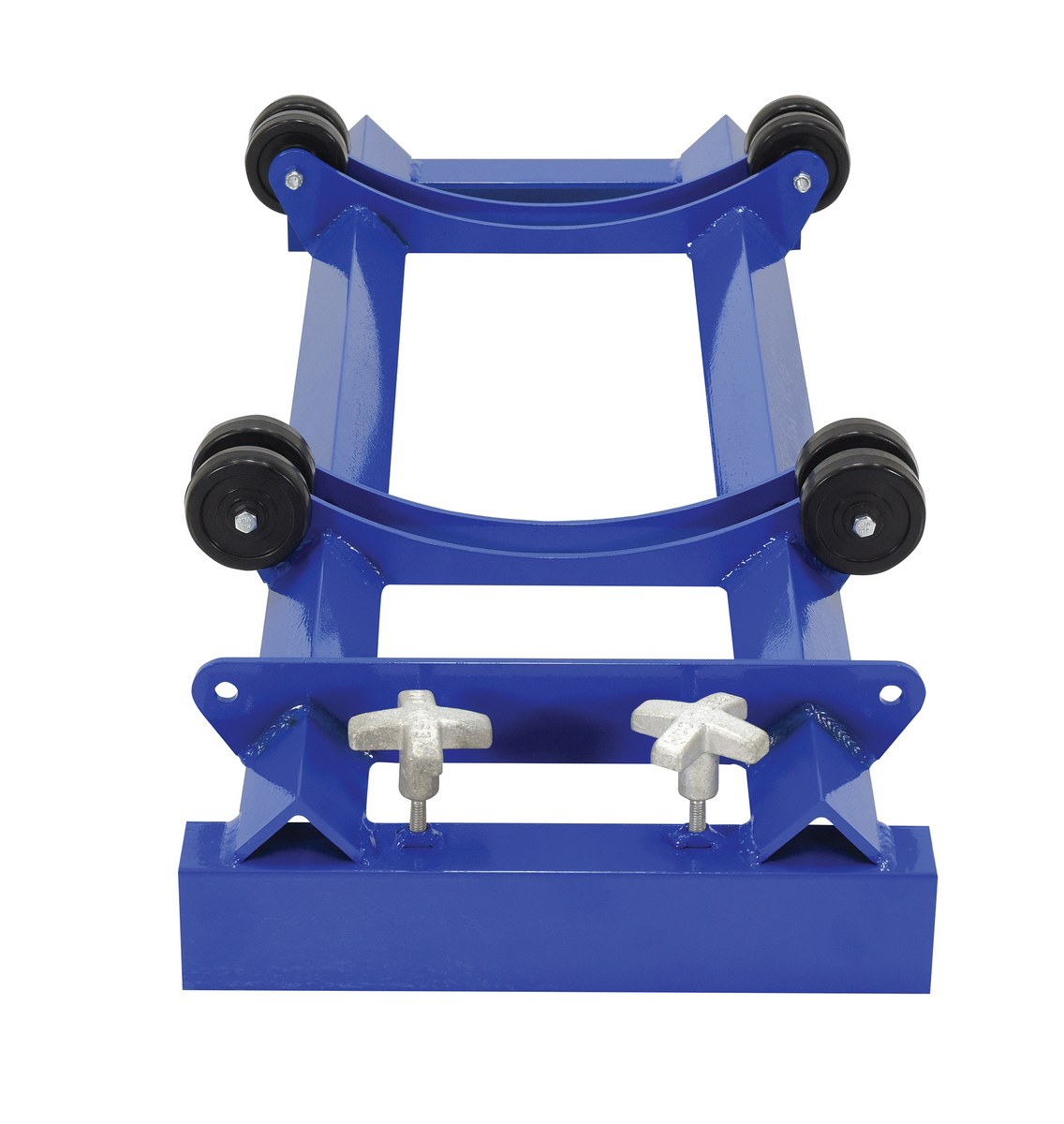

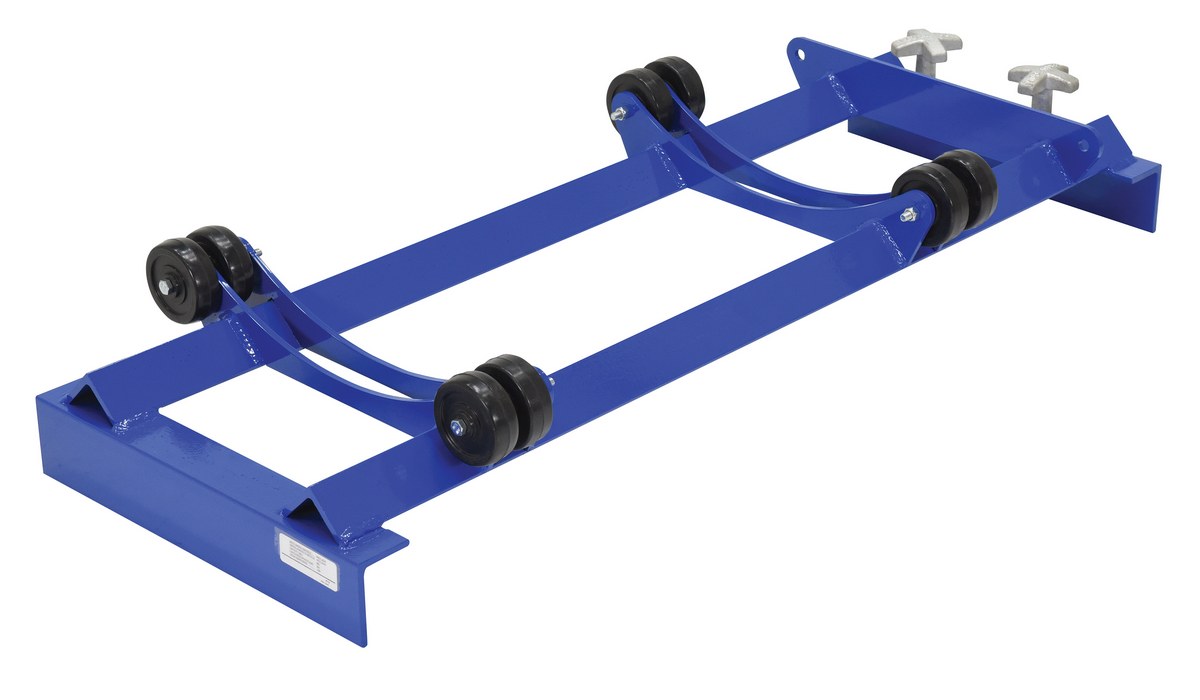

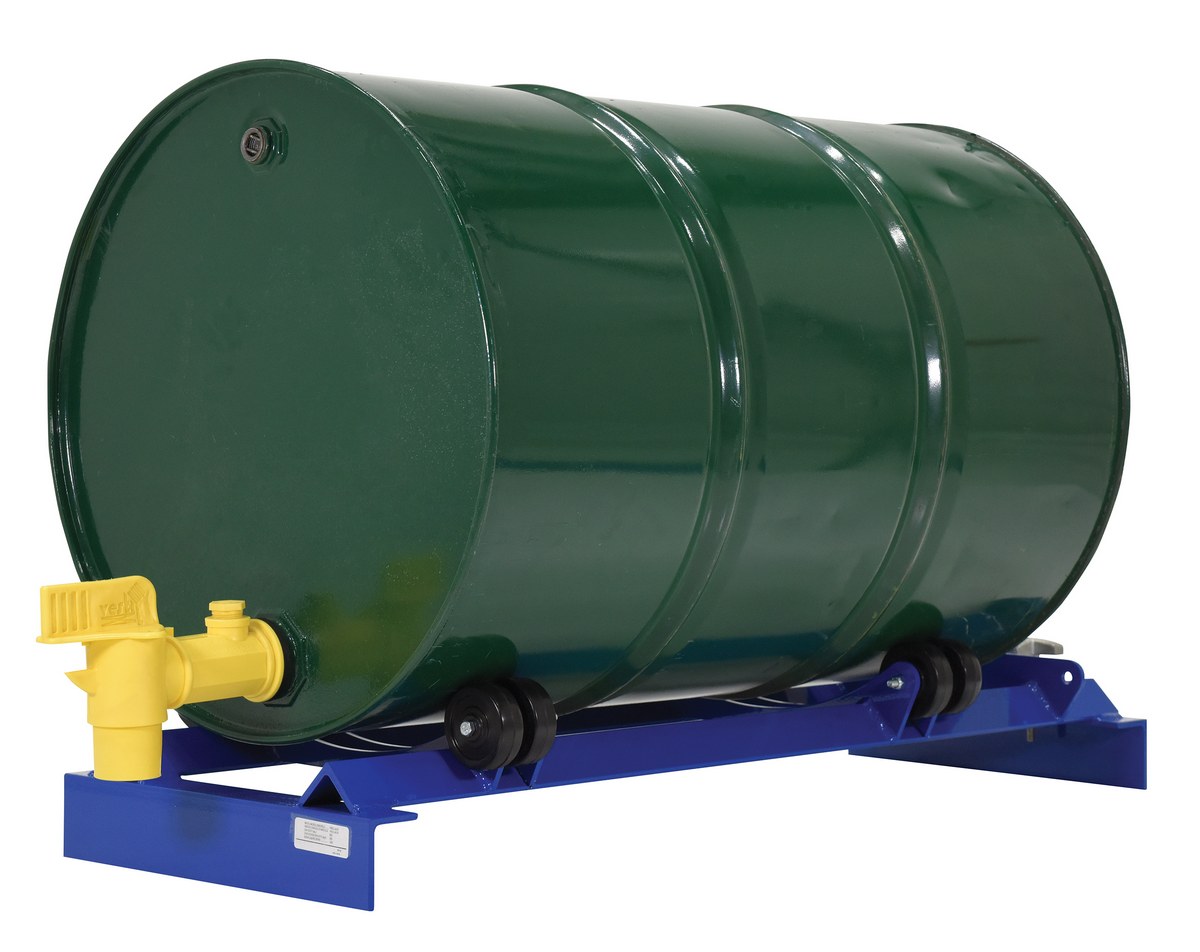

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

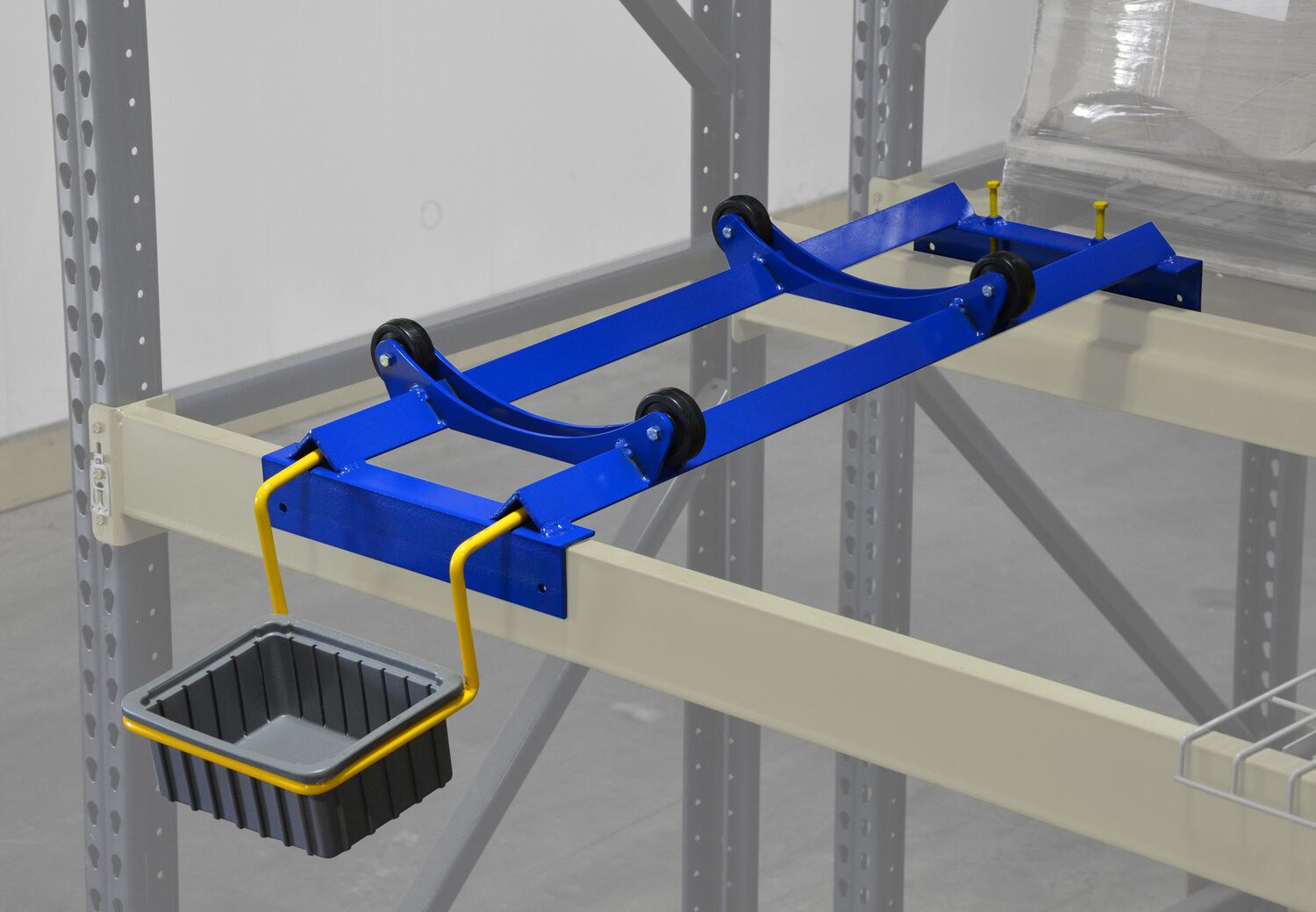

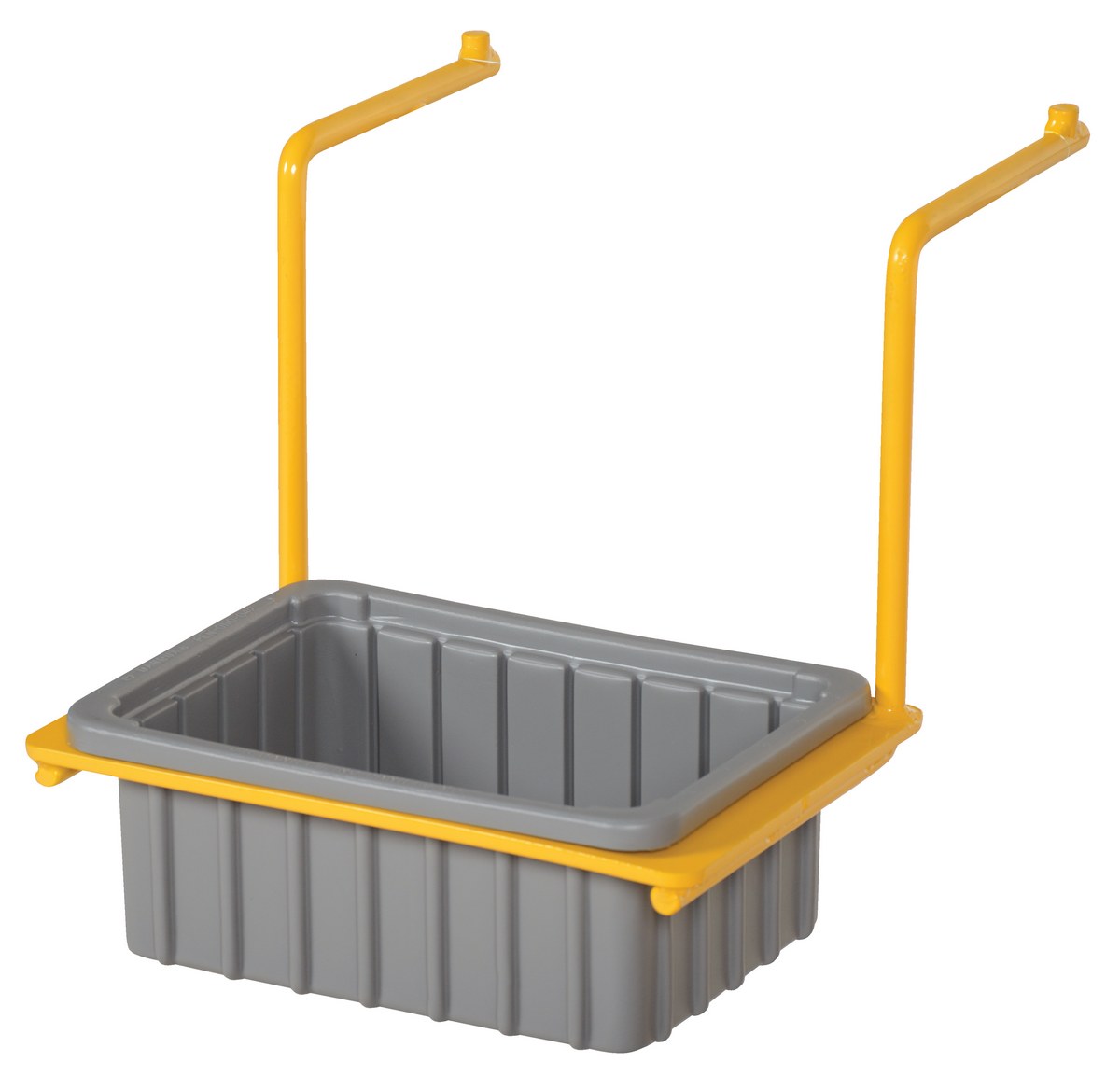

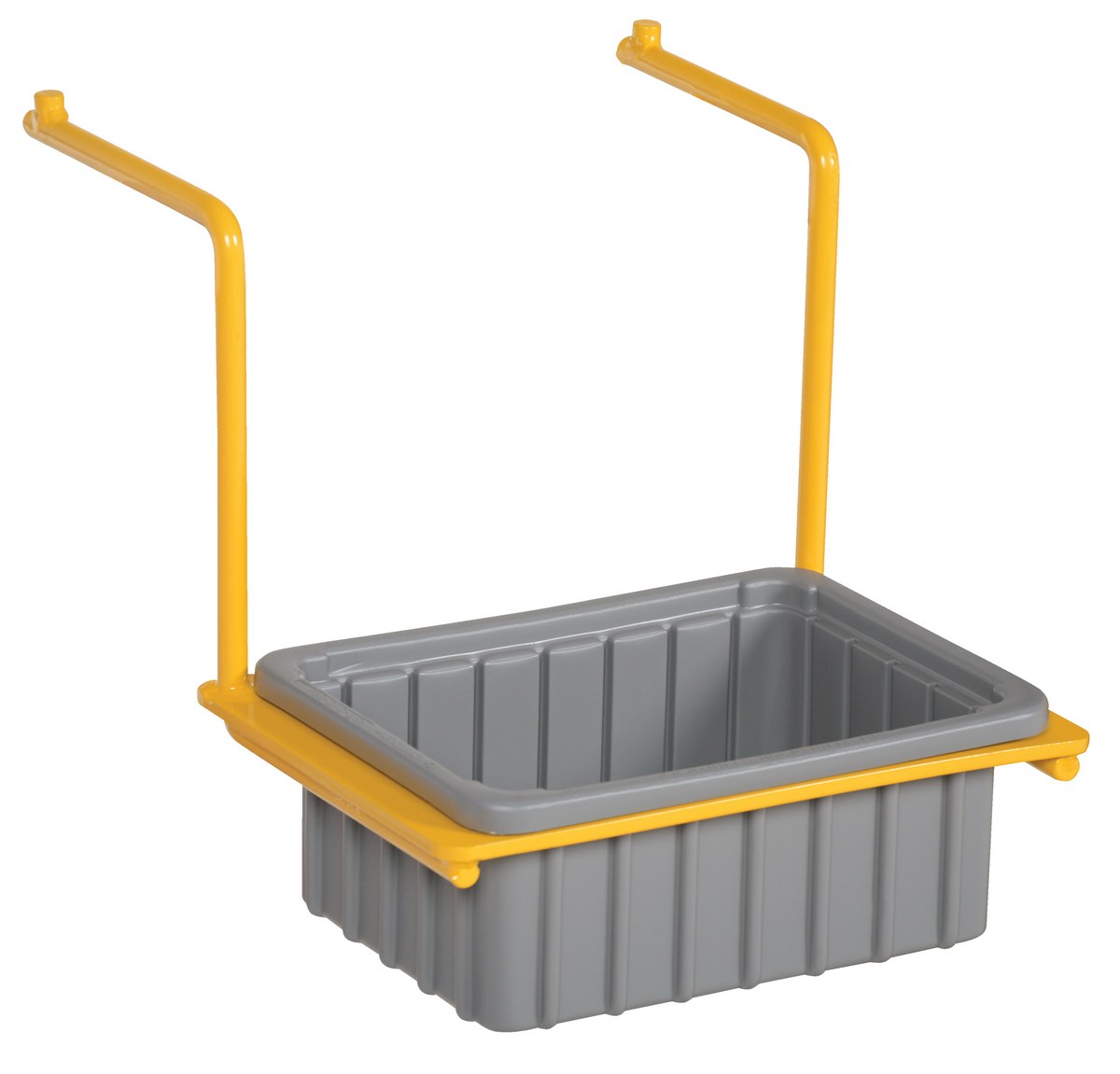

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.

Pallet Rack Drum Cradles

model: PRDC-42-R

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PRDC-36 PRDC-3690 Days Limited WarrantySteel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		61
PRDC-36-R PRDC-36-R90 Days Limited WarrantySteel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		52
PRDC-42 PRDC-4290 Days Limited WarrantySteel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		36
PRDC-42-R PRDC-42-R90 Days Limited WarrantySteel Pallet Rack Drum Roller Cradle 42-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		58

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PRDC-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-36-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-42-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
PRDC-DPN PRDC-42-RSteel Drip Pan For PRDC Models Yellow Limited Warranty5

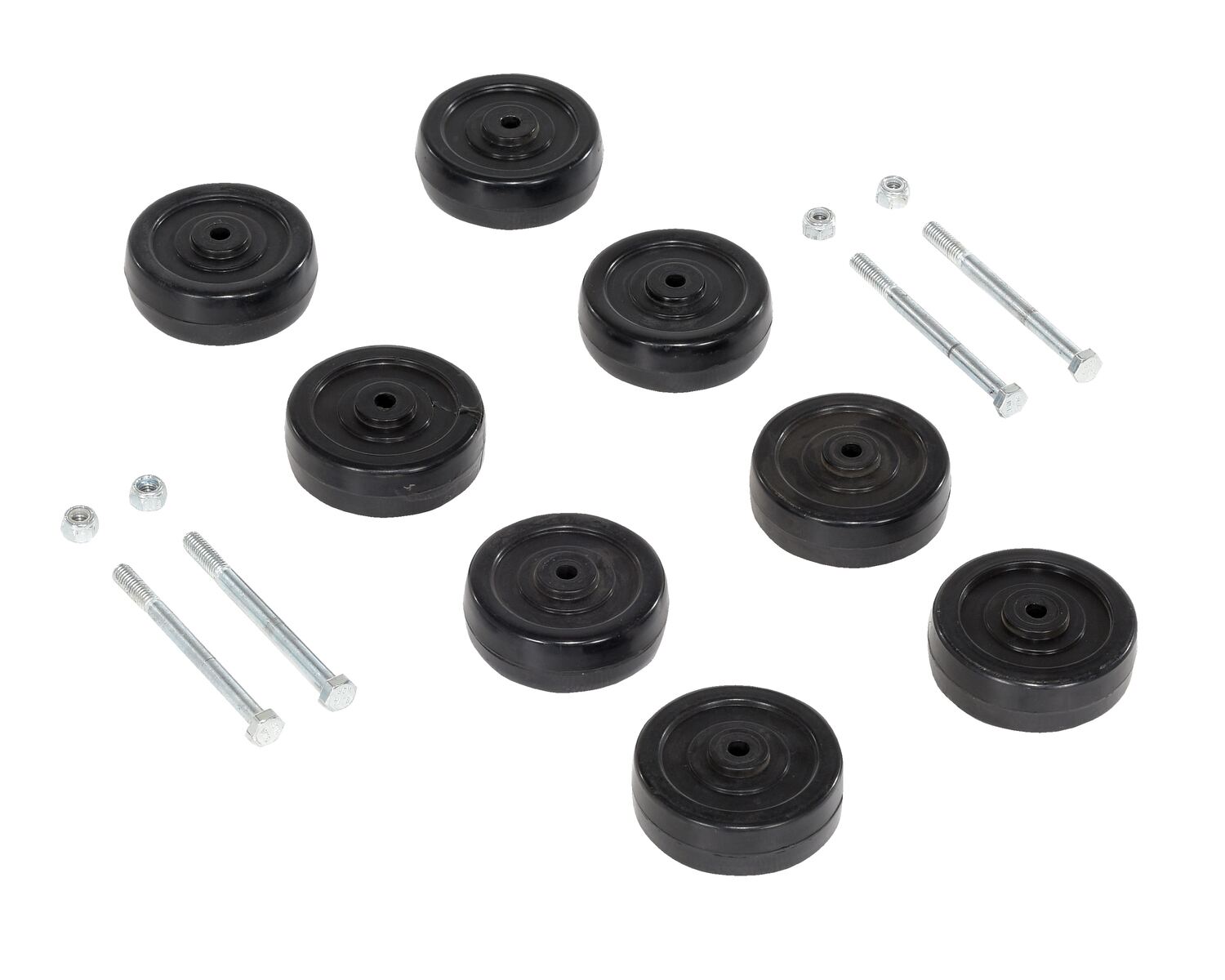

PRDC-RK-RF PRDC-42-RHard Rubber Retro Fit Roller Kit 3 In. x 1 In. For PRDC Mode… Limited Warranty4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

PRDC

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

Testing Certificates

PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Pallet Rack Drum Cradle Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can this be used with plastic drums?

A: The shape of a plastic drum can be affected by temperature and weight. As a result, We don't recommend these drum cradles for use with plastic drums.

Q: Can I use the PRDC-42 on my 48" wide pallet rack?

A: :No, it will not work on a 48" wide rack. You will have to switch out your current pallet racking for the 42" wide pallet racks.
