Model Details

← All Products- ← Fork Truck Attachments- ← Hoppers -← D Style - Self-Dumping Steel Hoppers with Bumper Release- D-500-HD

D-500-HD

Printer Friendly
Available
D-500-HD
D-500-HD D-500-HD D-500-HD D-500-HD

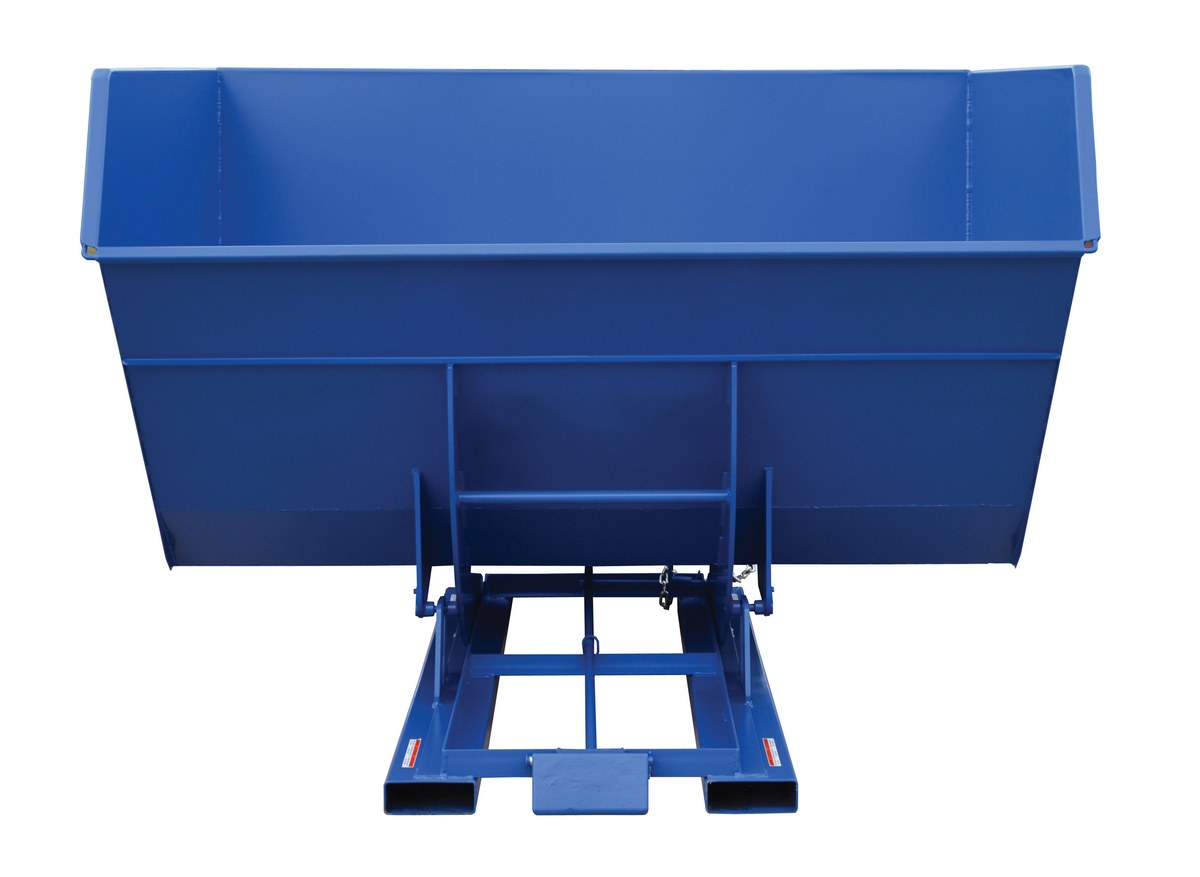

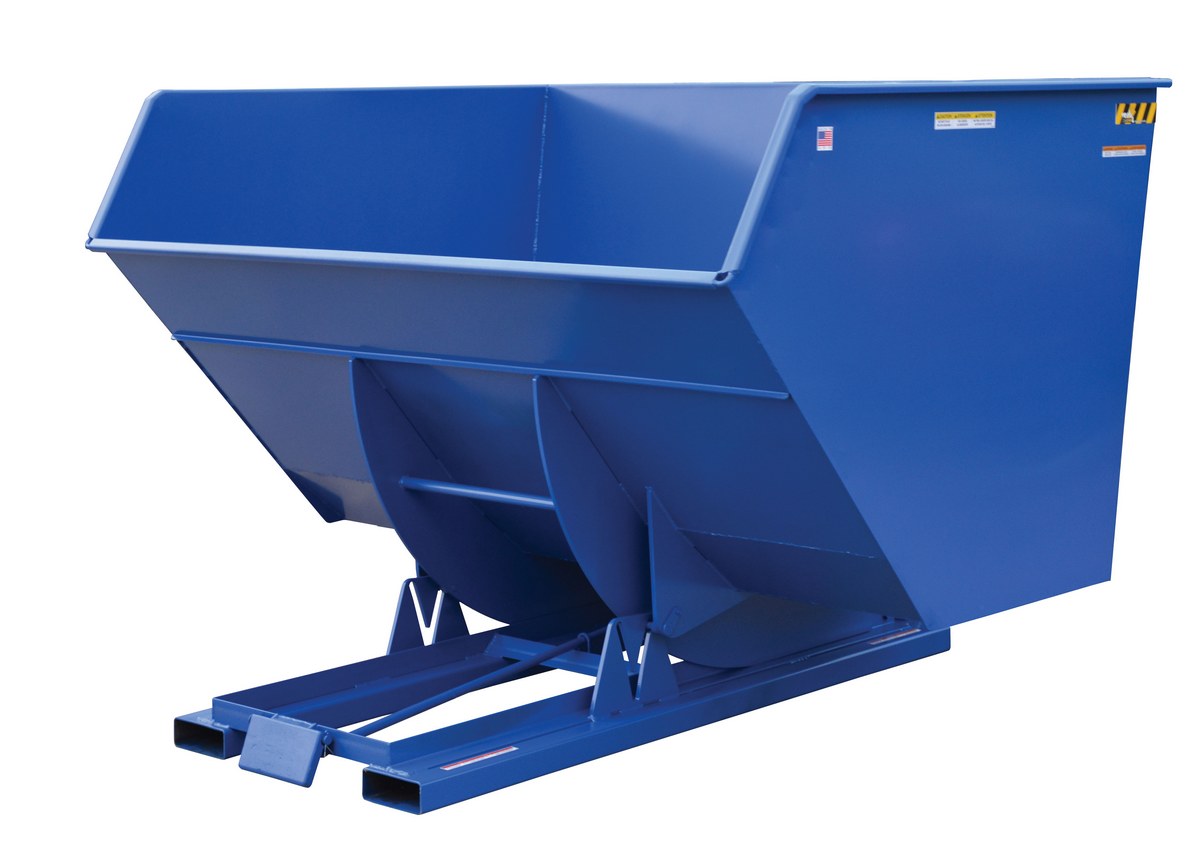

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

The self- dumping Hopper is ideal for discarding material products. The blue powder coated steel construction is durable and long lasting through the toughest of environments. Additional features include; an automatic return to the upright position, full length fork tubes for easy portability, a safety chain restraint for secure transporting while on fork lift, and a manual pull cable for dumping from the driving position, as well as, a front hopper release. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process.

  • Automatic bumper release dumps when it contacts the side of the dumpster
  • Returns to upright and locked position automatically
  • Full-length fork tube provide a solid base
  • Safety chain restraint secures the hopper to the fork truck
Assembled Wt.(lbs.): 1250 Assembled Size: 90.25"W x 79.375"L x 64.375"H

Total Ship Wt.(lbs.): 1250 (only 1 package) Package 1 Size: 90"W x 80"D x 65"H Color: Blue

Uniform Capacity (lb.): 6,000 Steel (gauge): 8 Volume (cu. yrd.): 5
Fork Pocket Center (in.): 28 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
Cable Length (in.): 48

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: D-500-HD
Available
D-500-HD

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

The self- dumping Hopper is ideal for discarding material products. The blue powder coated steel construction is durable and long lasting through the toughest of environments. Additional features include; an automatic return to the upright position, full length fork tubes for easy portability, a safety chain restraint for secure transporting while on fork lift, and a manual pull cable for dumping from the driving position, as well as, a front hopper release. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process.

  • Automatic bumper release dumps when it contacts the side of the dumpster
  • Returns to upright and locked position automatically
  • Full-length fork tube provide a solid base
  • Safety chain restraint secures the hopper to the fork truck
Dimensions: 90.25"W x 79.375"L x 64.375"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1250 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 6,000 Steel (gauge): 8 Volume (cu. yrd.): 5
Fork Pocket Center (in.): 28 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
Cable Length (in.): 48
