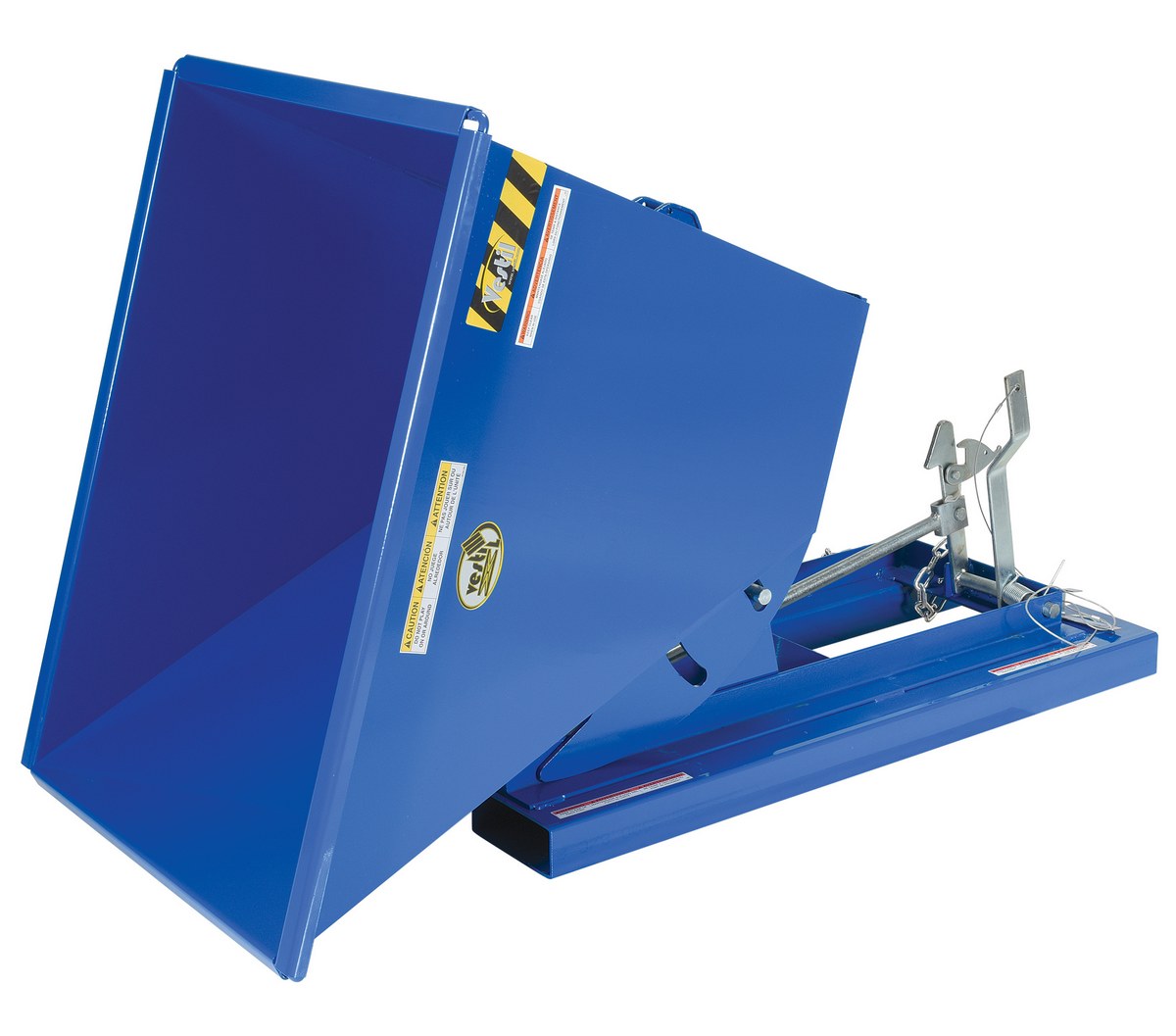

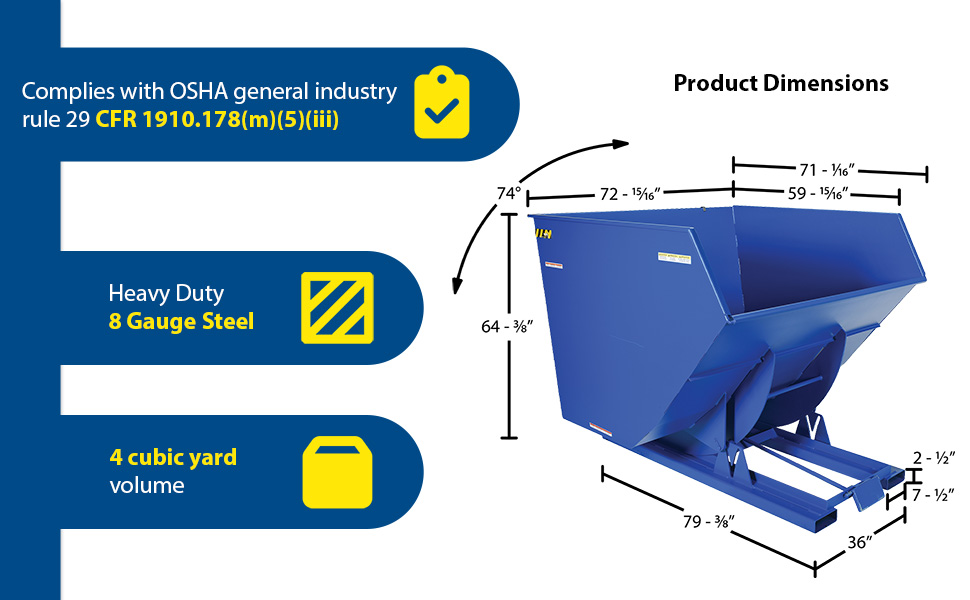

D Style - Self-Dumping Steel Hoppers with Bumper Release

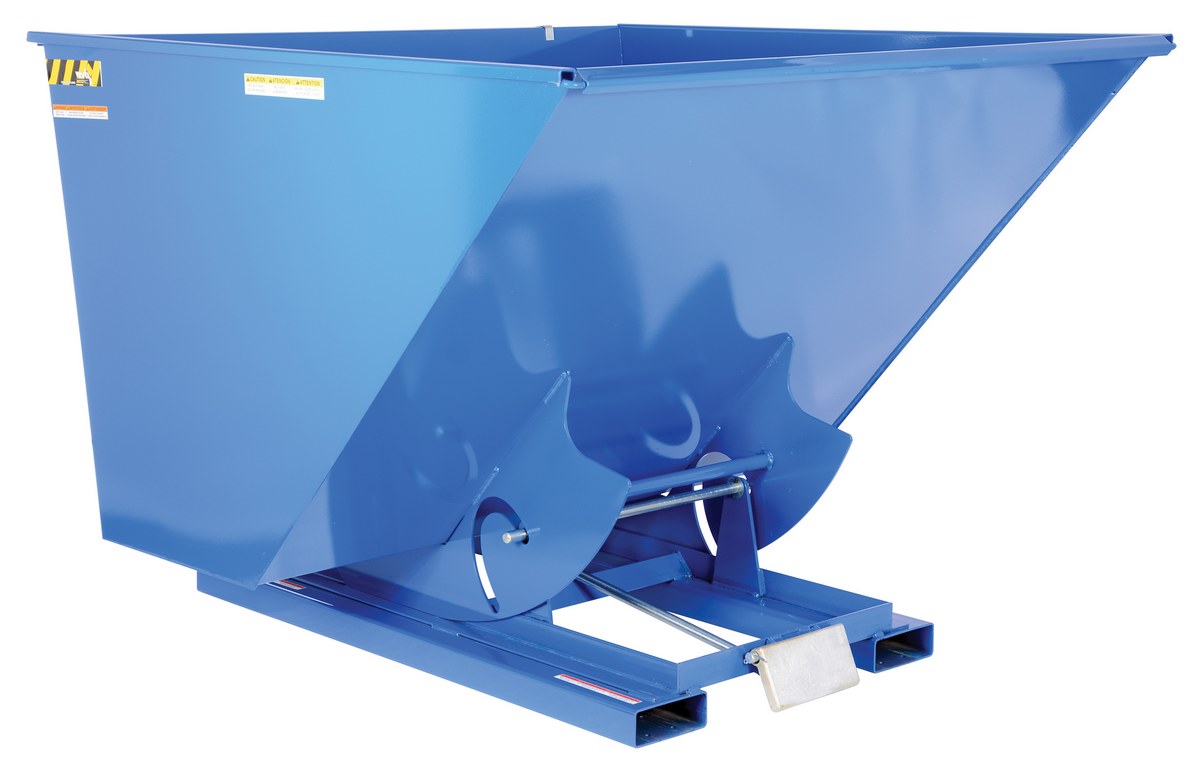

model: D-250-HD

More Images +

D Style - Self-Dumping Steel Hoppers with Bumper Release

SERIES: D

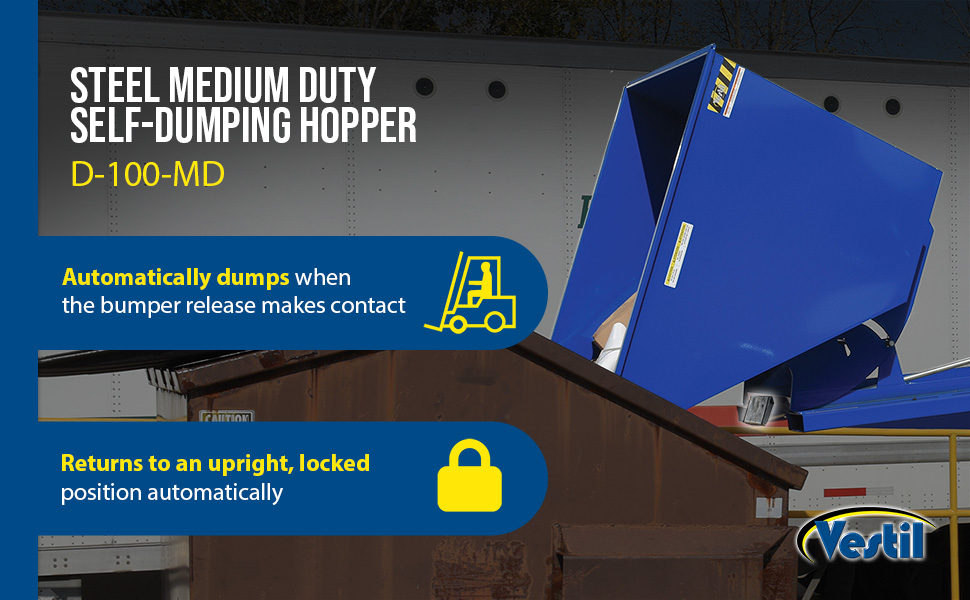

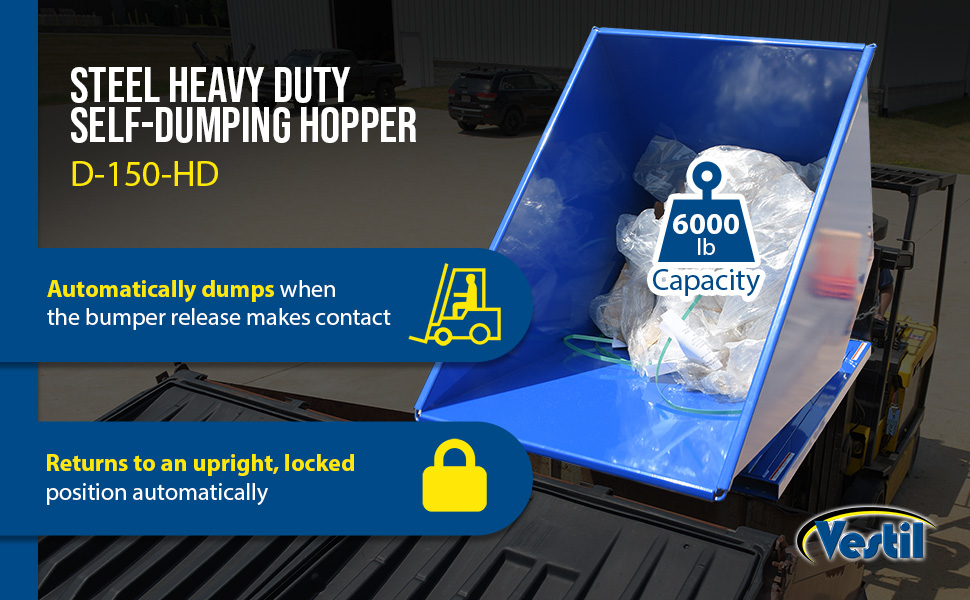

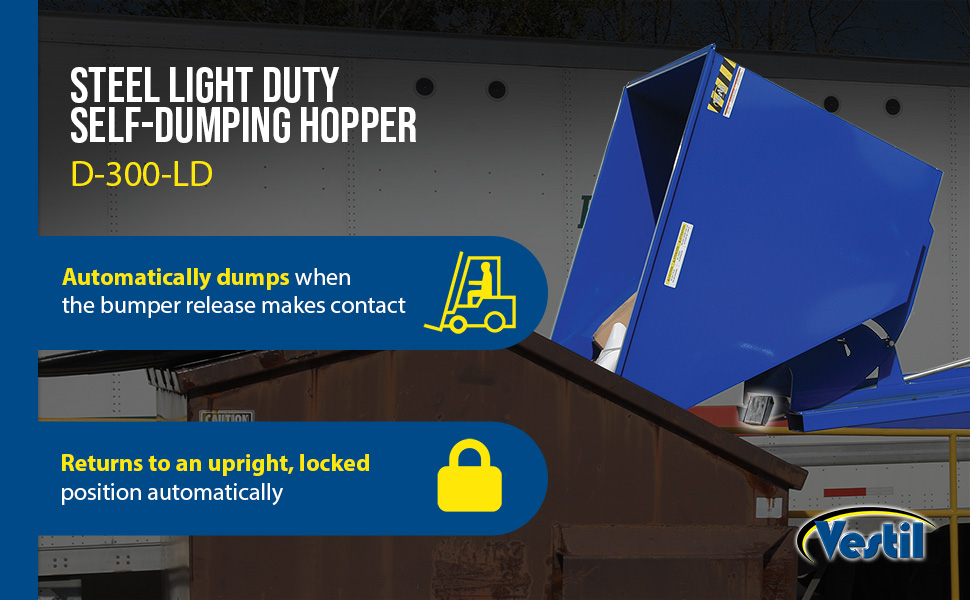

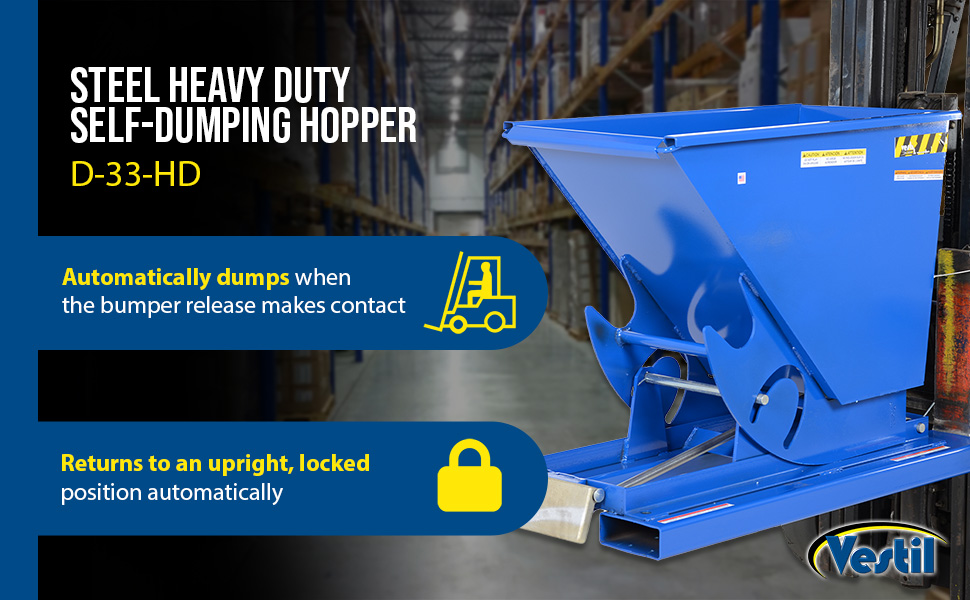

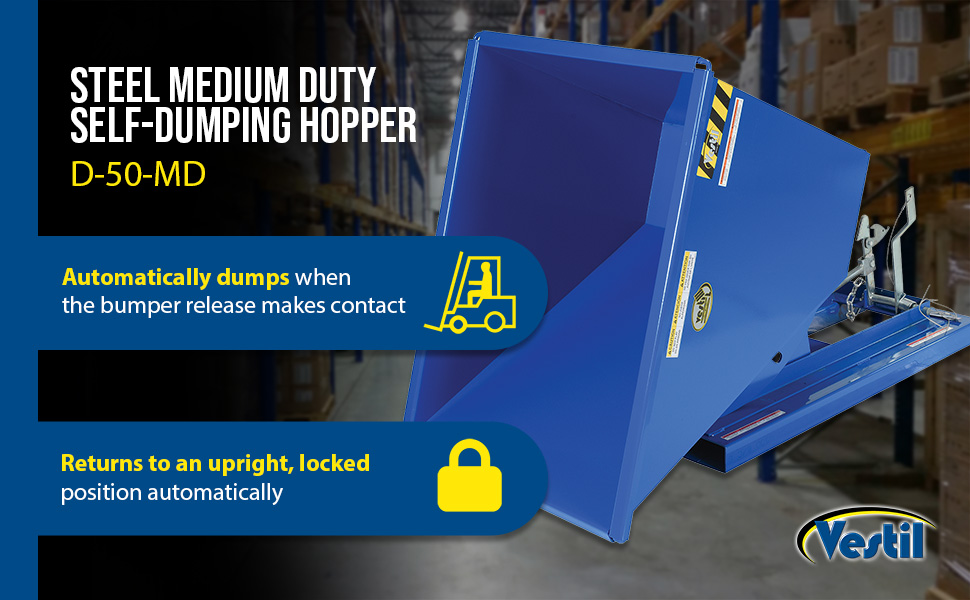

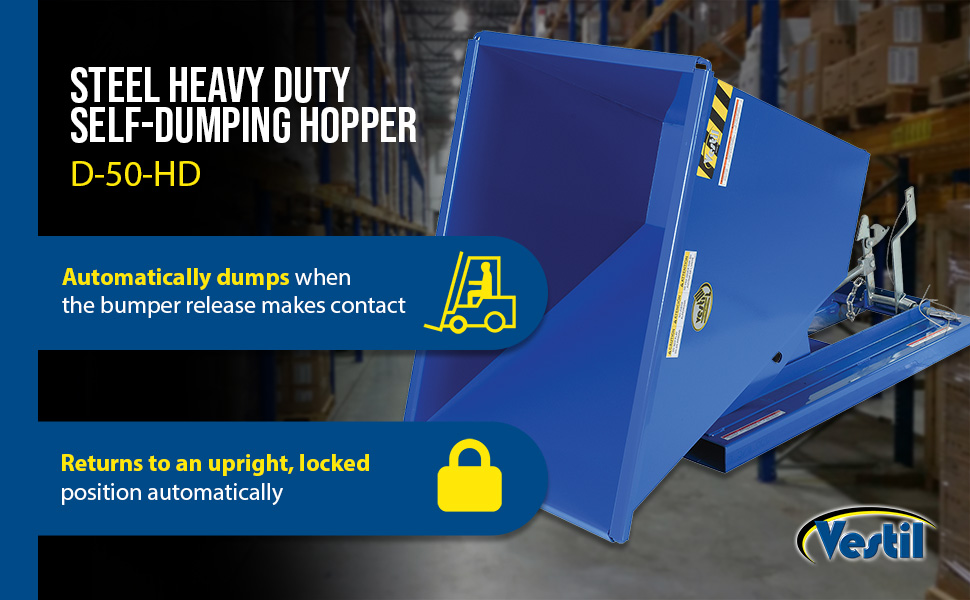

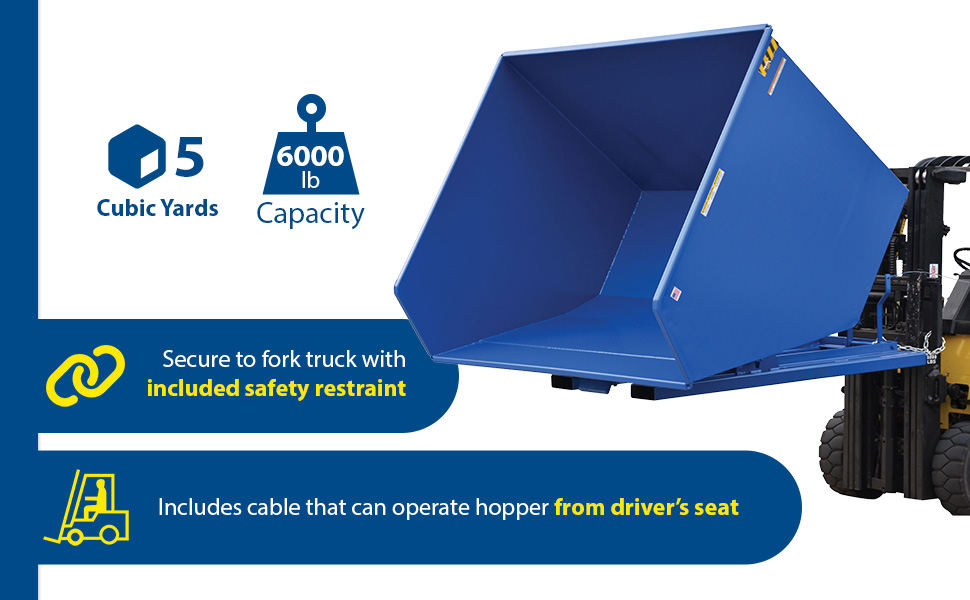

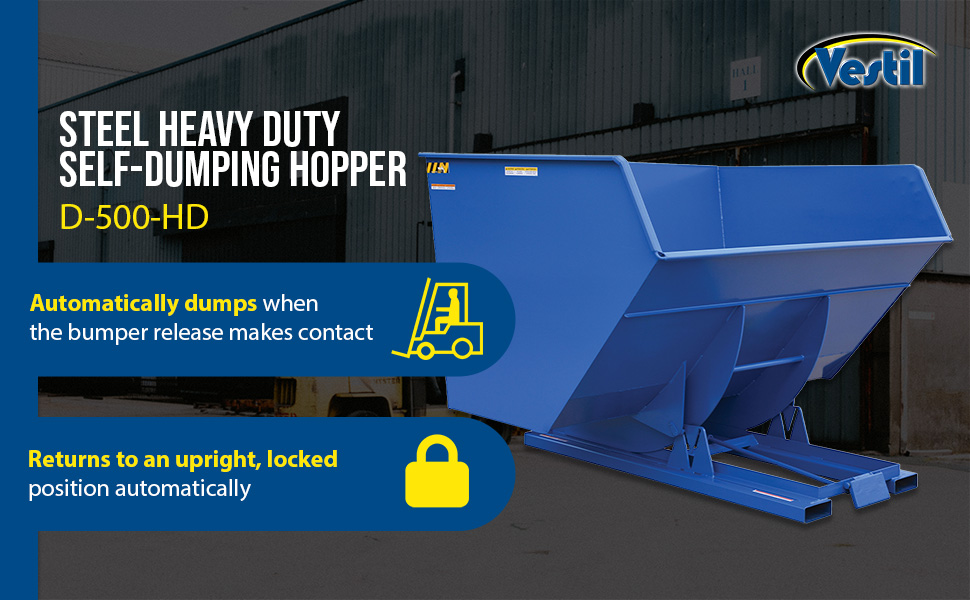

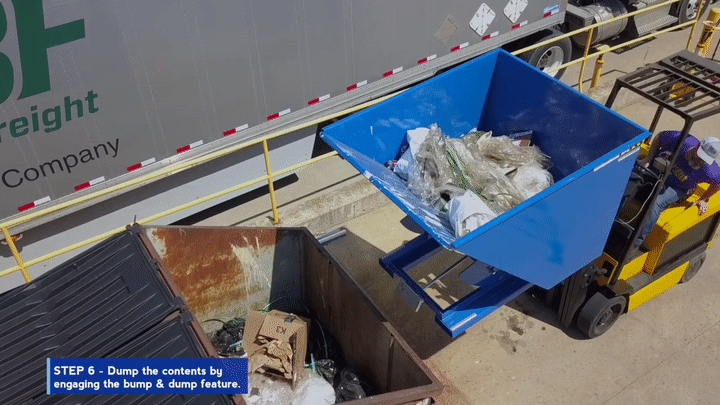

Hopper automatically dumps when bumper release contacts the front of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2"H. Self-dumping hoppers facilitate compliance with OSHA General Industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Optional leak proof design sold separately. D-25, D-33, D-50, D-75, and D-100 are stackable if you stack the top hopper turned 90 degrees from the bottom. Blue baked-in powder-coated toughness is standard. Must be attached to fork truck when dumping.

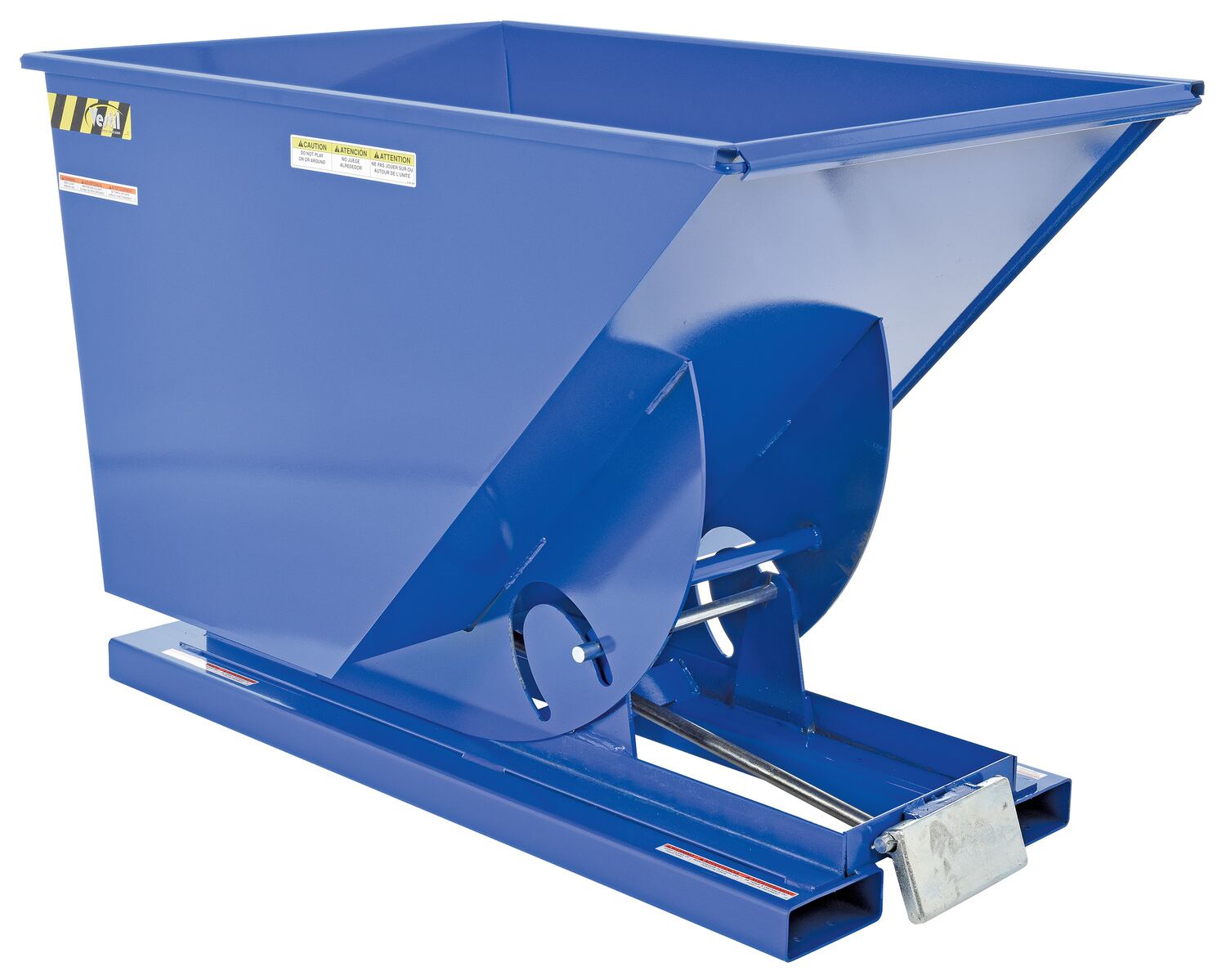

D-100-LD + D-CK4-GFN6-2 + PLID-D-100

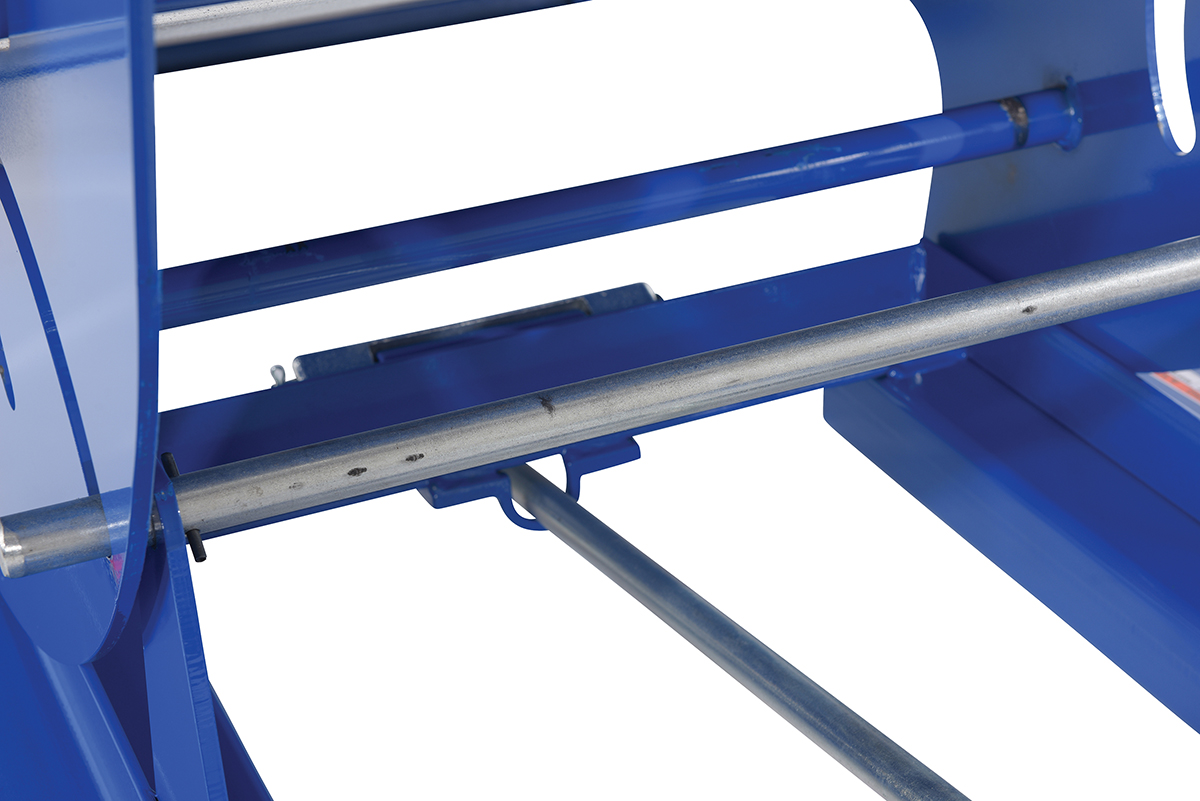

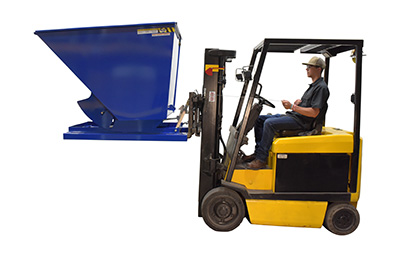

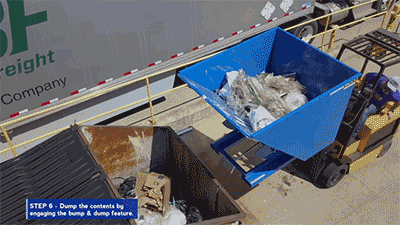

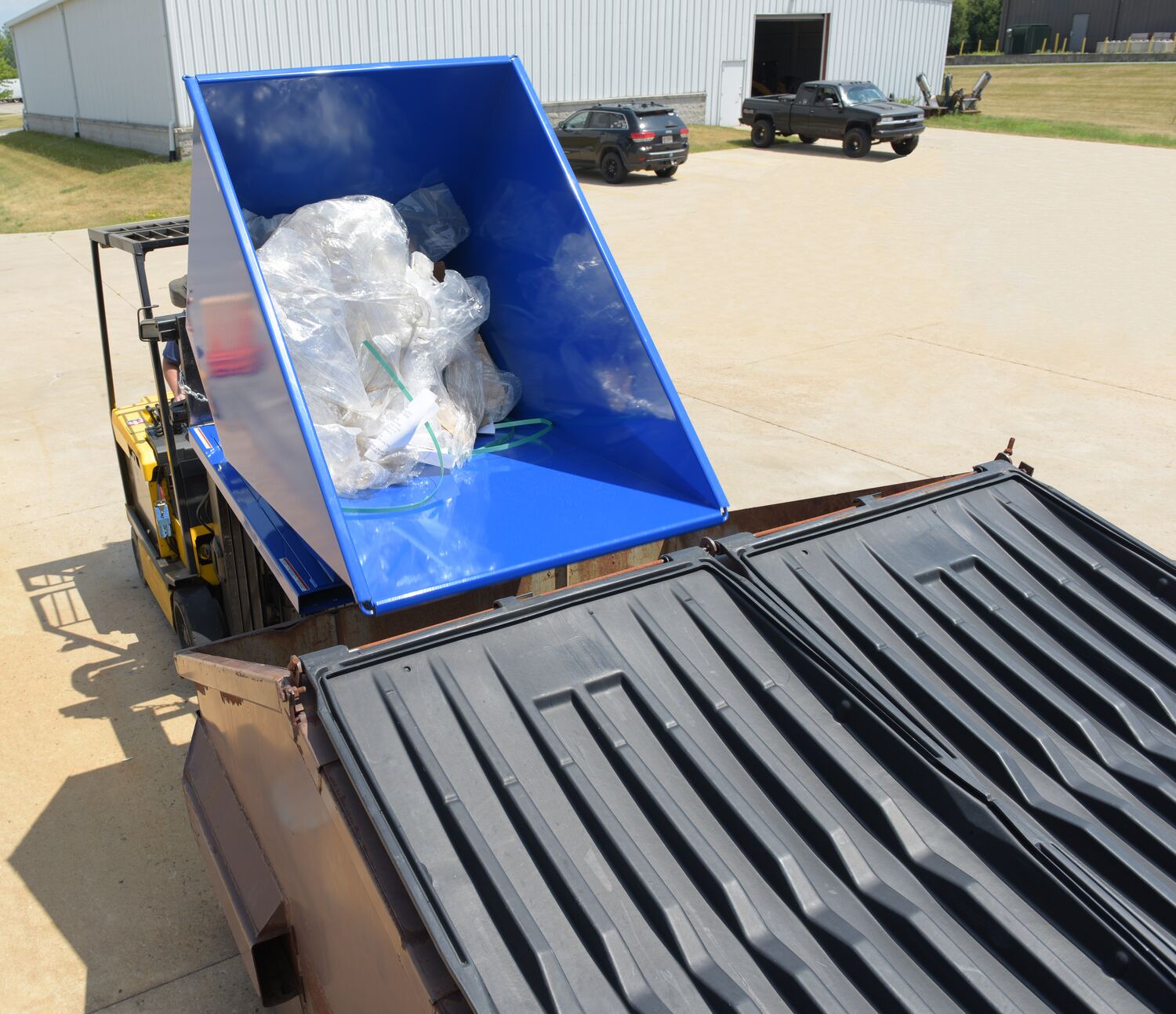

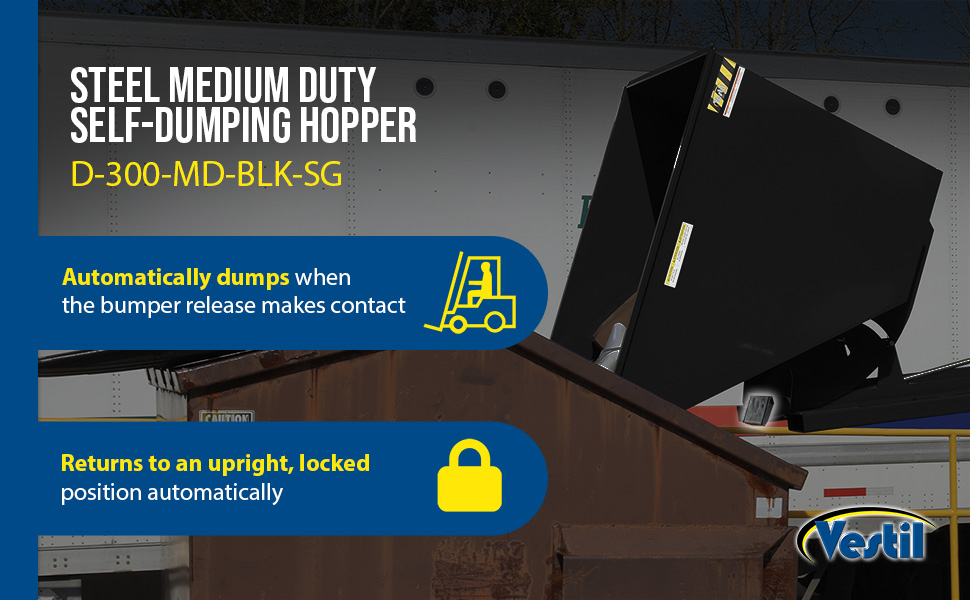

Automatic bumper release dumps when it contacts the side of the dumpster	Returns to upright and locked position automatically

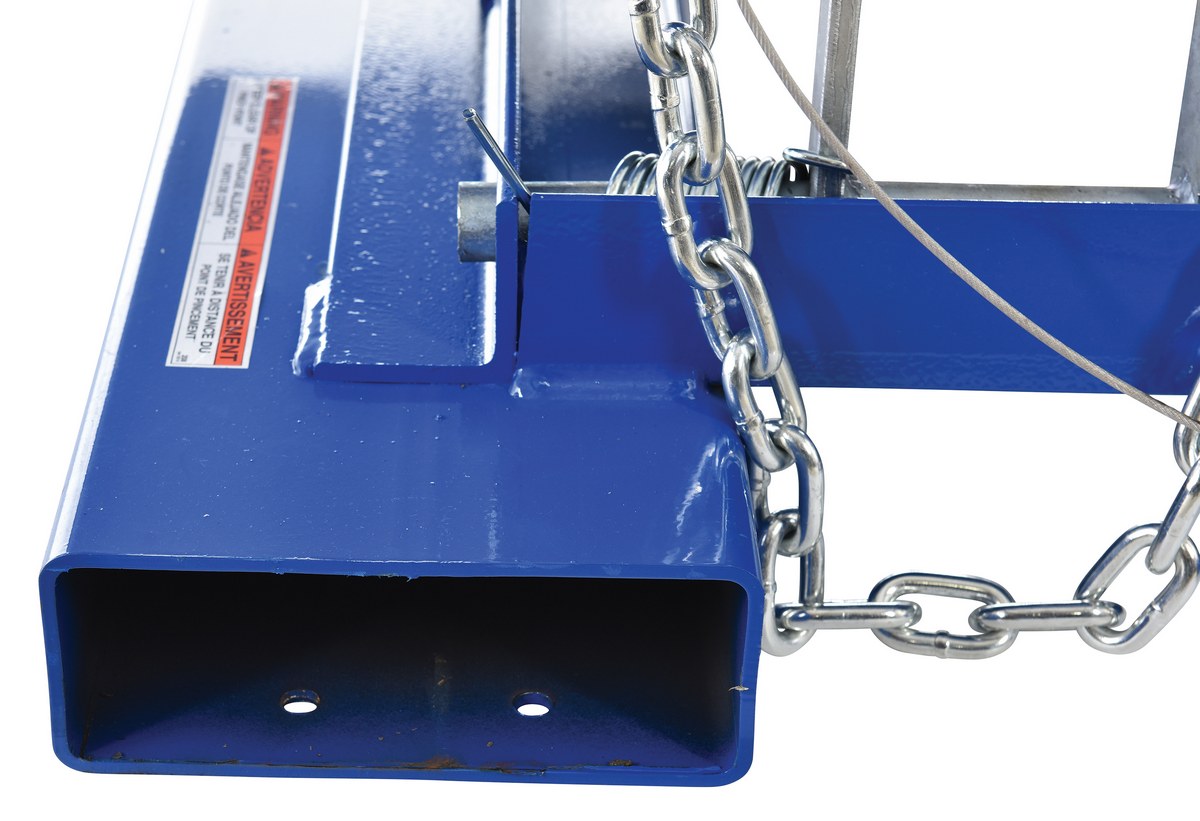

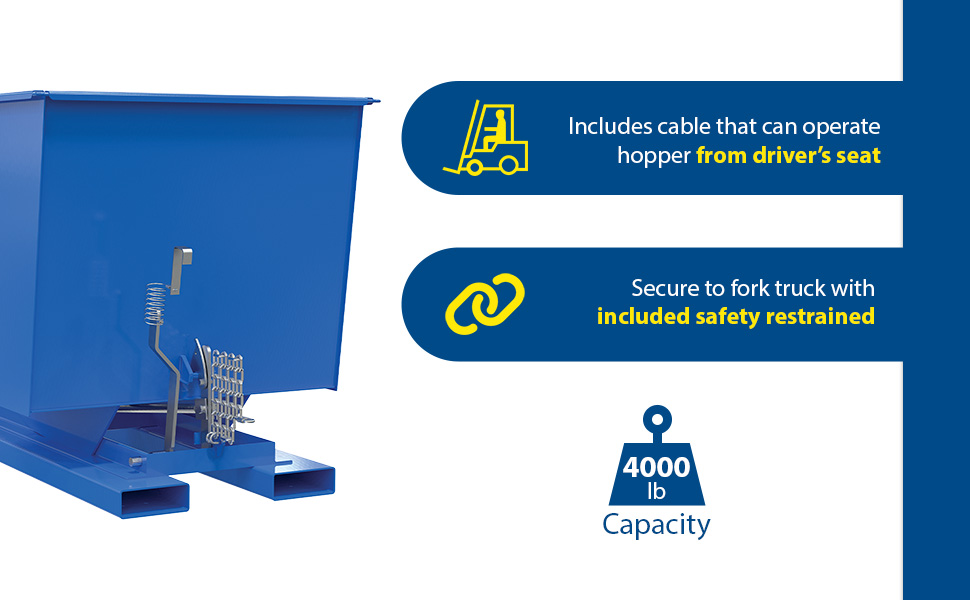

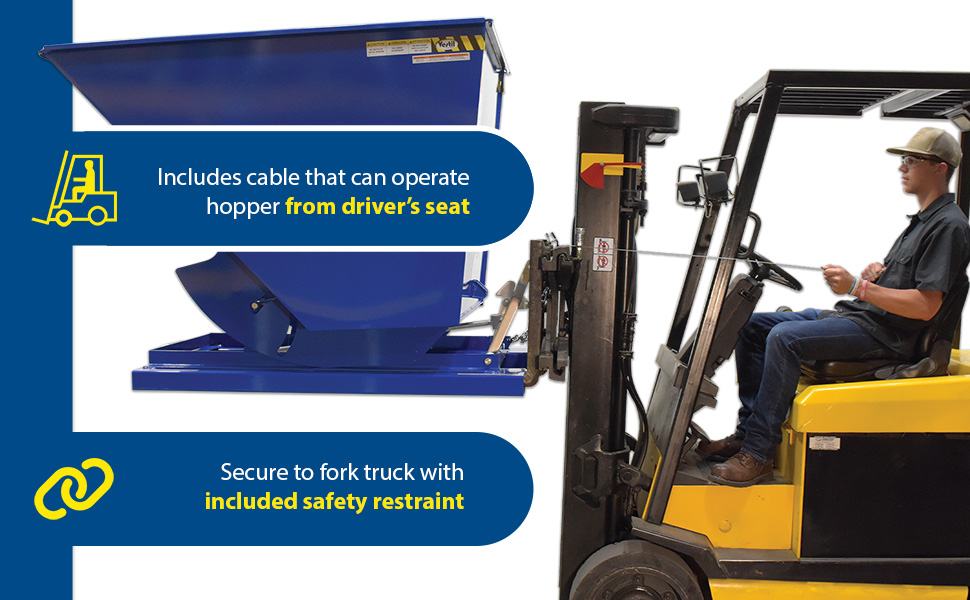

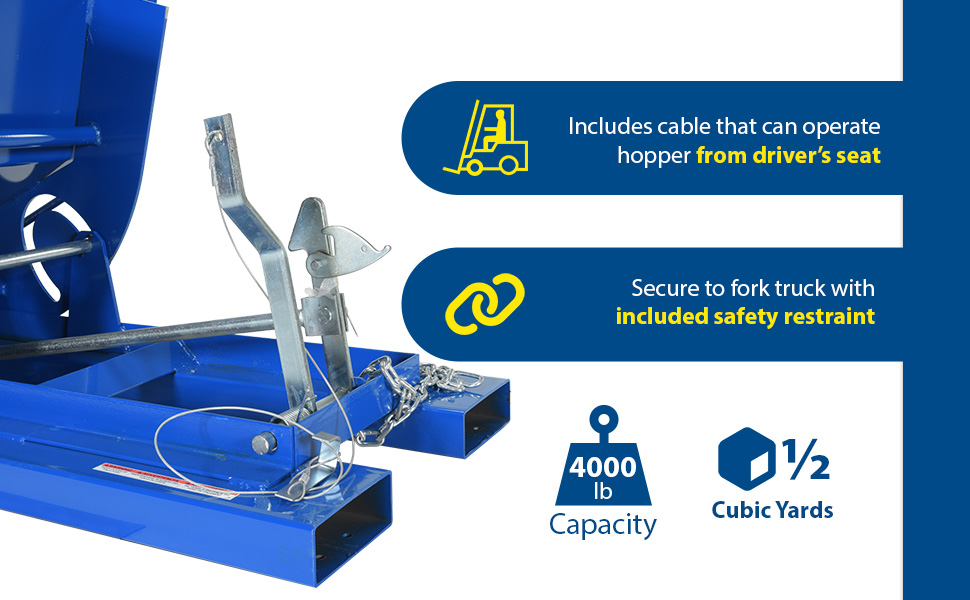

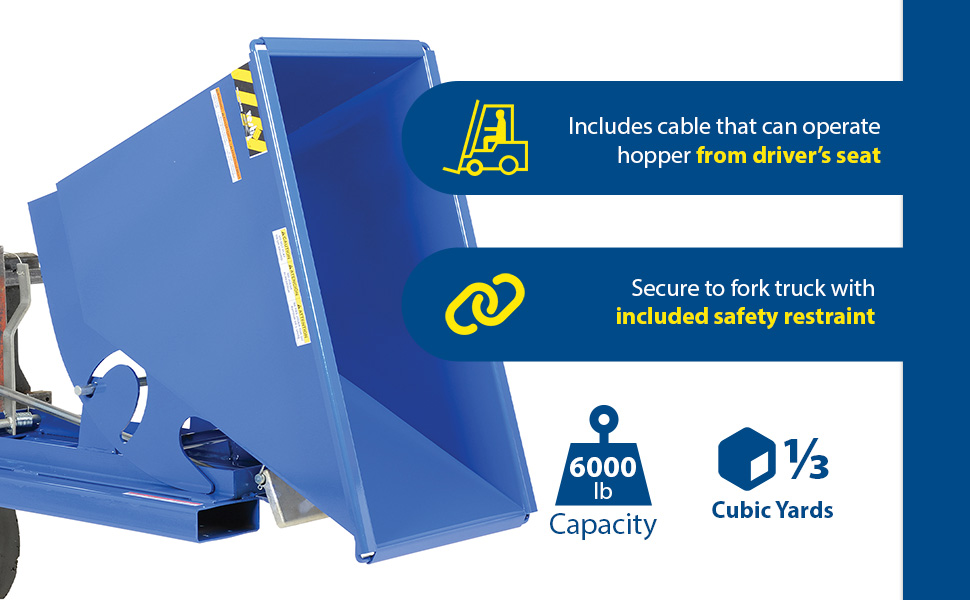

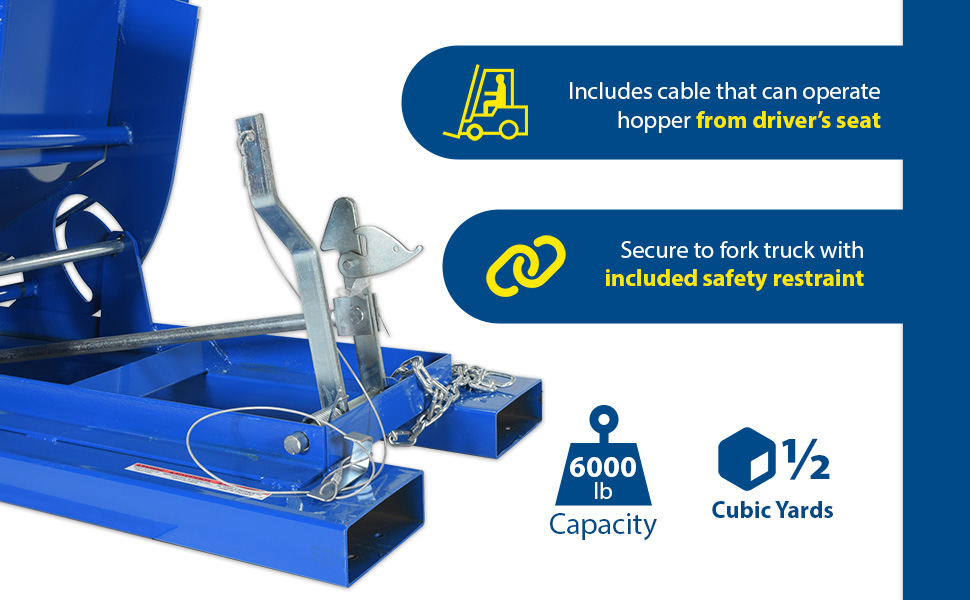

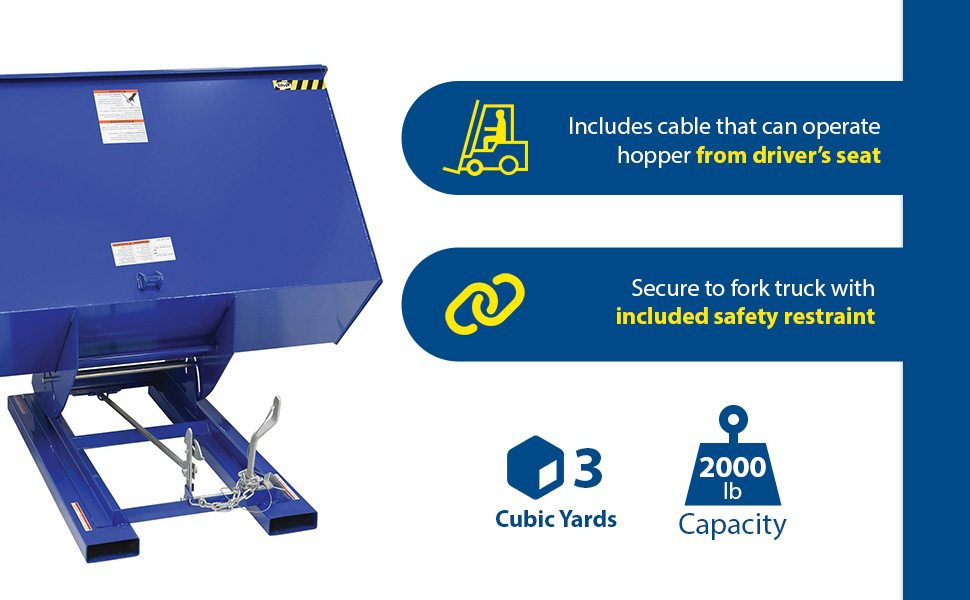

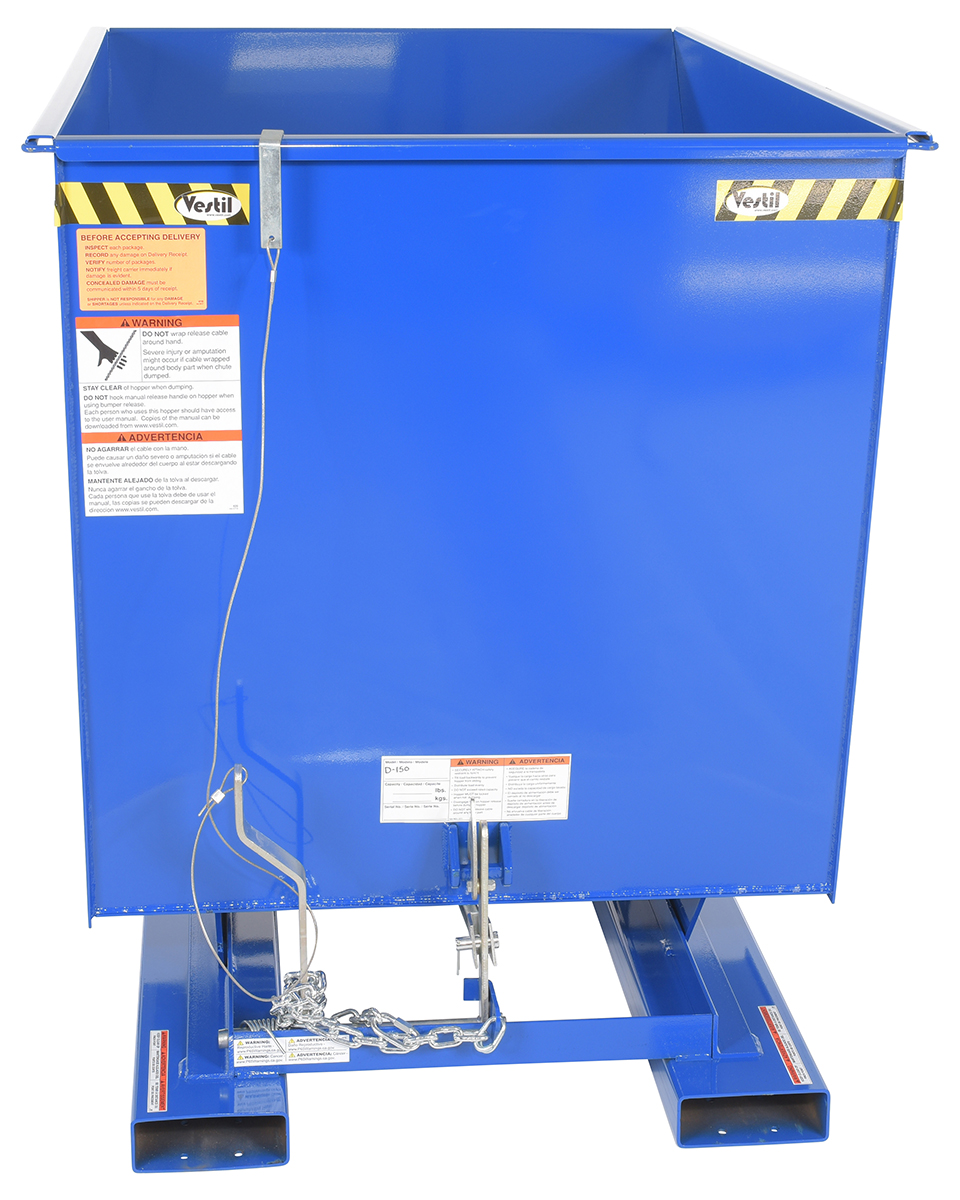

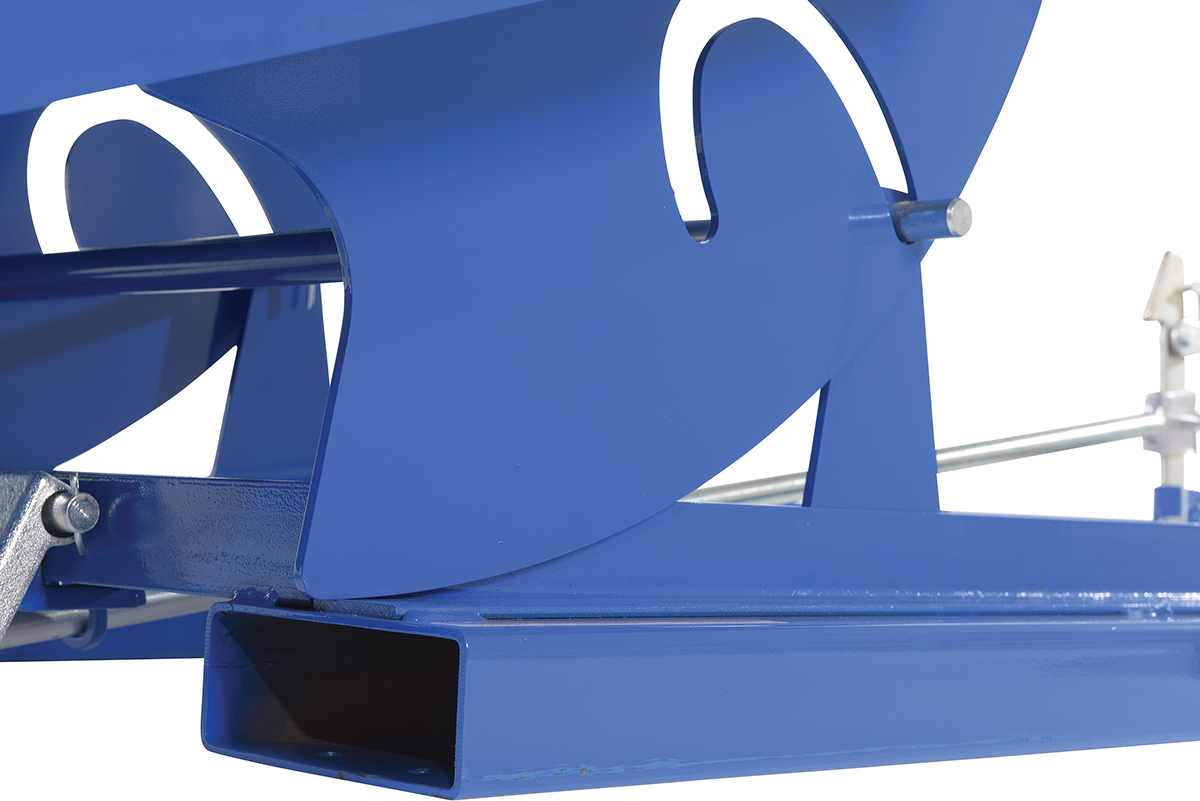

Full-length fork tubes provide a solid base	Safety restraint secures the hopper to the fork truck

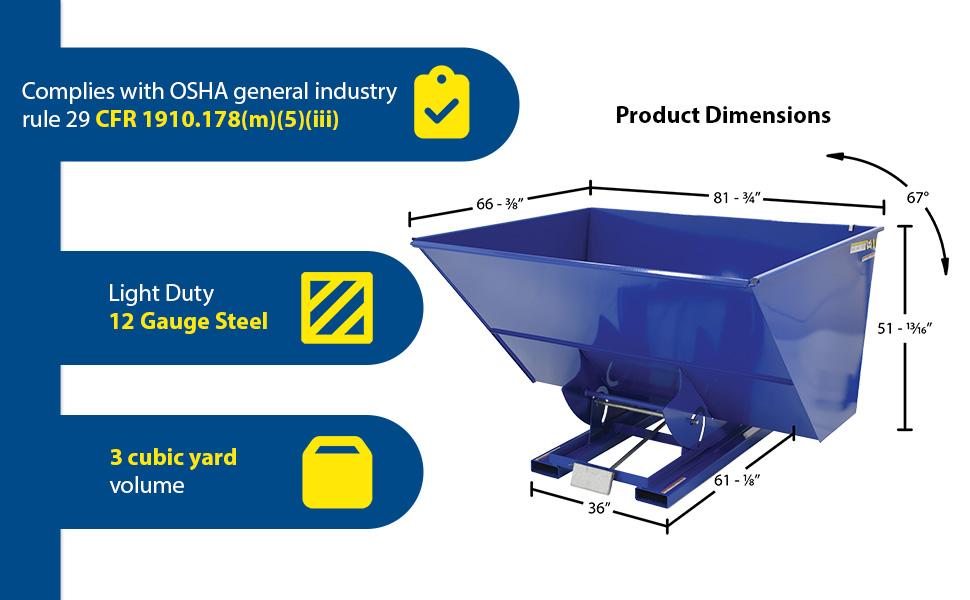

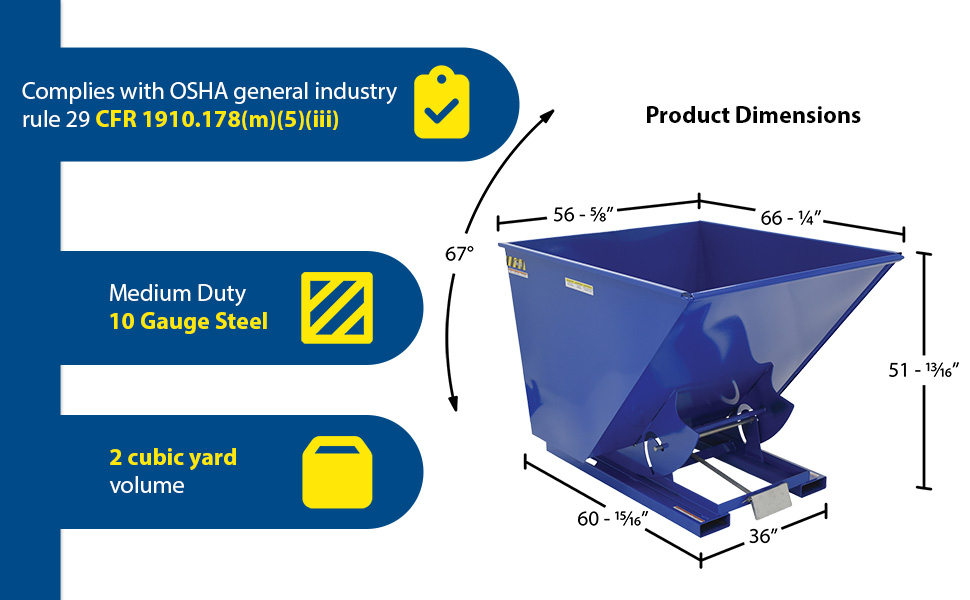

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)	.25 Cubic Yard
D-33-(strength)	.33 Cubic Yard

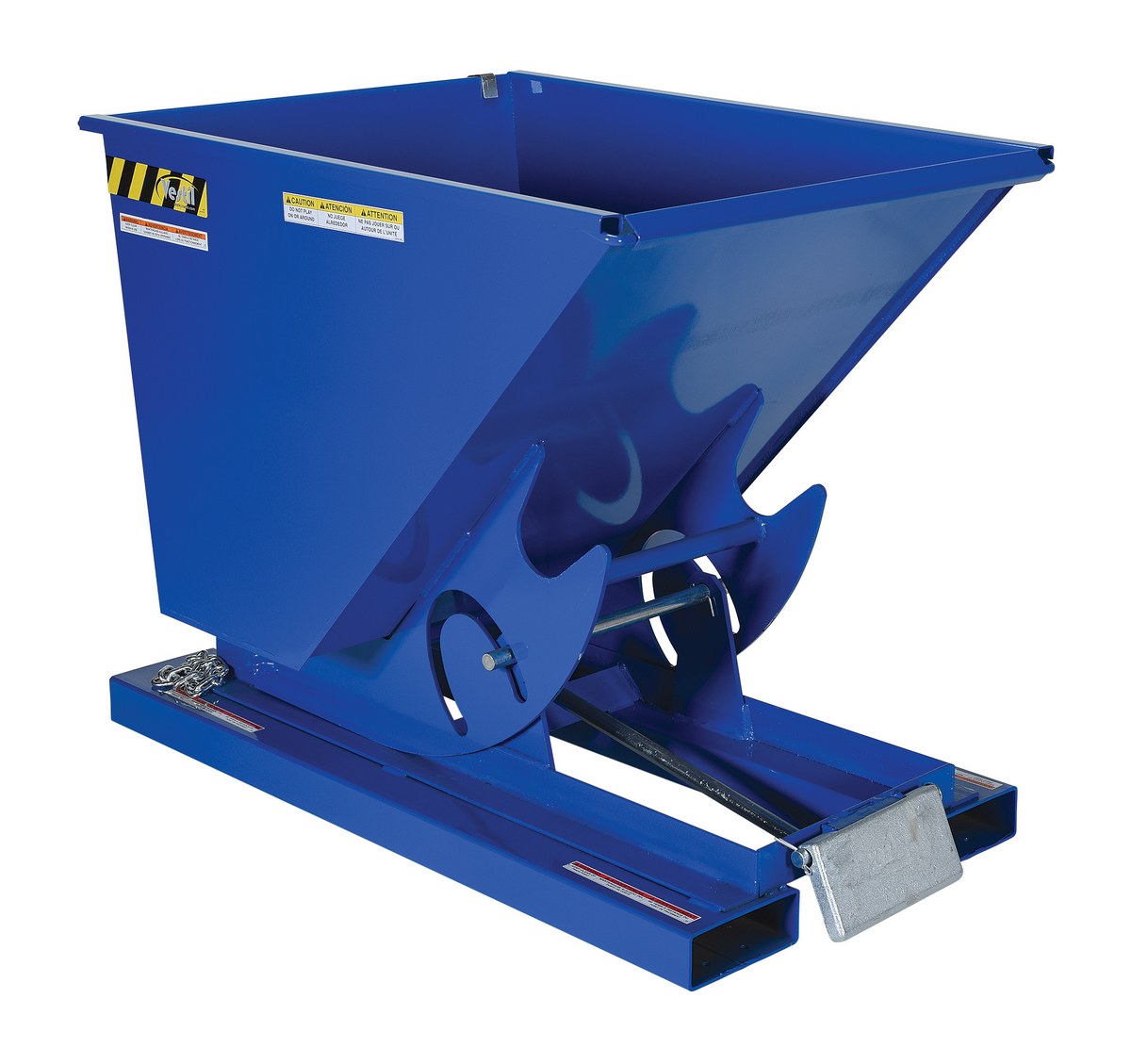

D-50-(strength)	.50 Cubic Yard

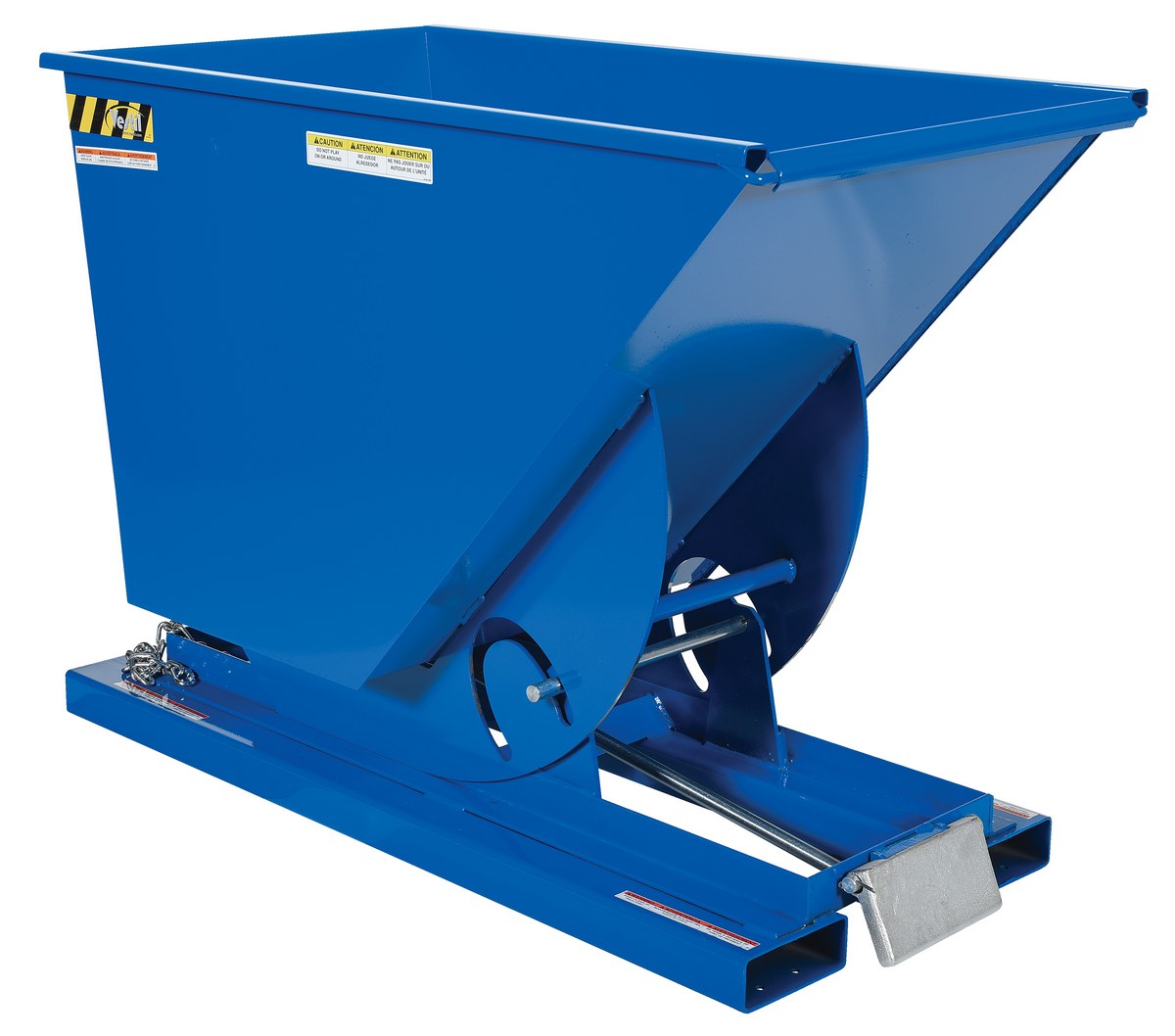

D-75-(strength)	.75 Cubic Yard
D-100-(strength)	1 Cubic Yard
D-150-(strength)	1.5 Cubic Yard

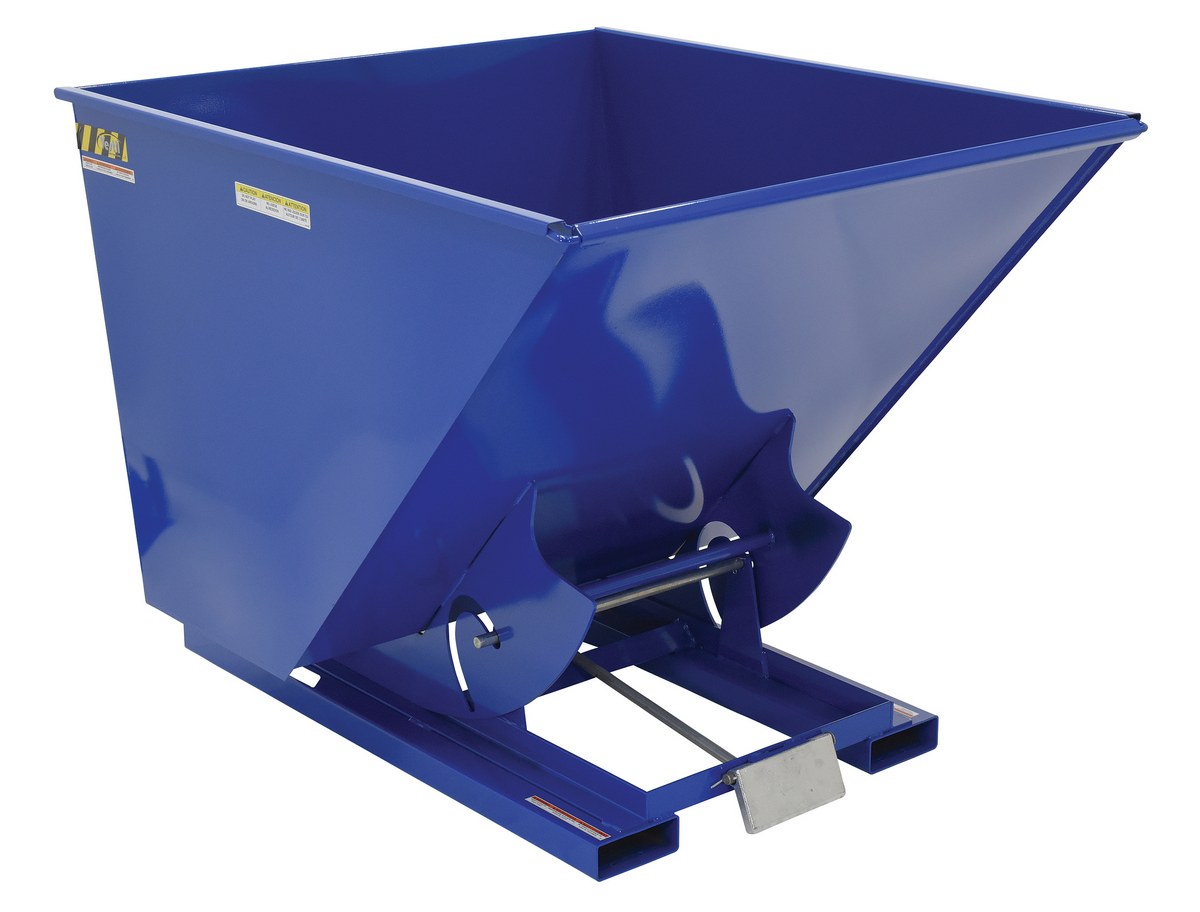

D-200-(strength)	2 Cubic Yard
D-250-(strength)	2.5 Cubic Yard

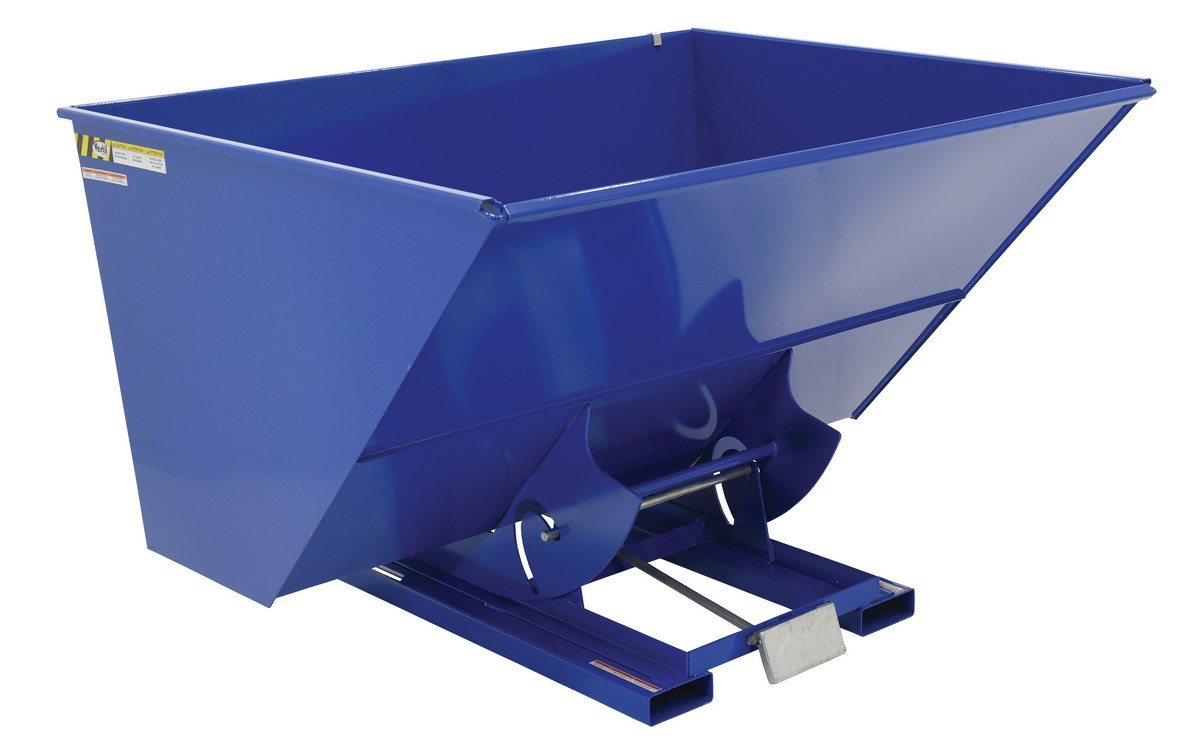

D-300-(strength)	3 Cubic Yard
D-350-(strength)	3.5 Cubic Yard

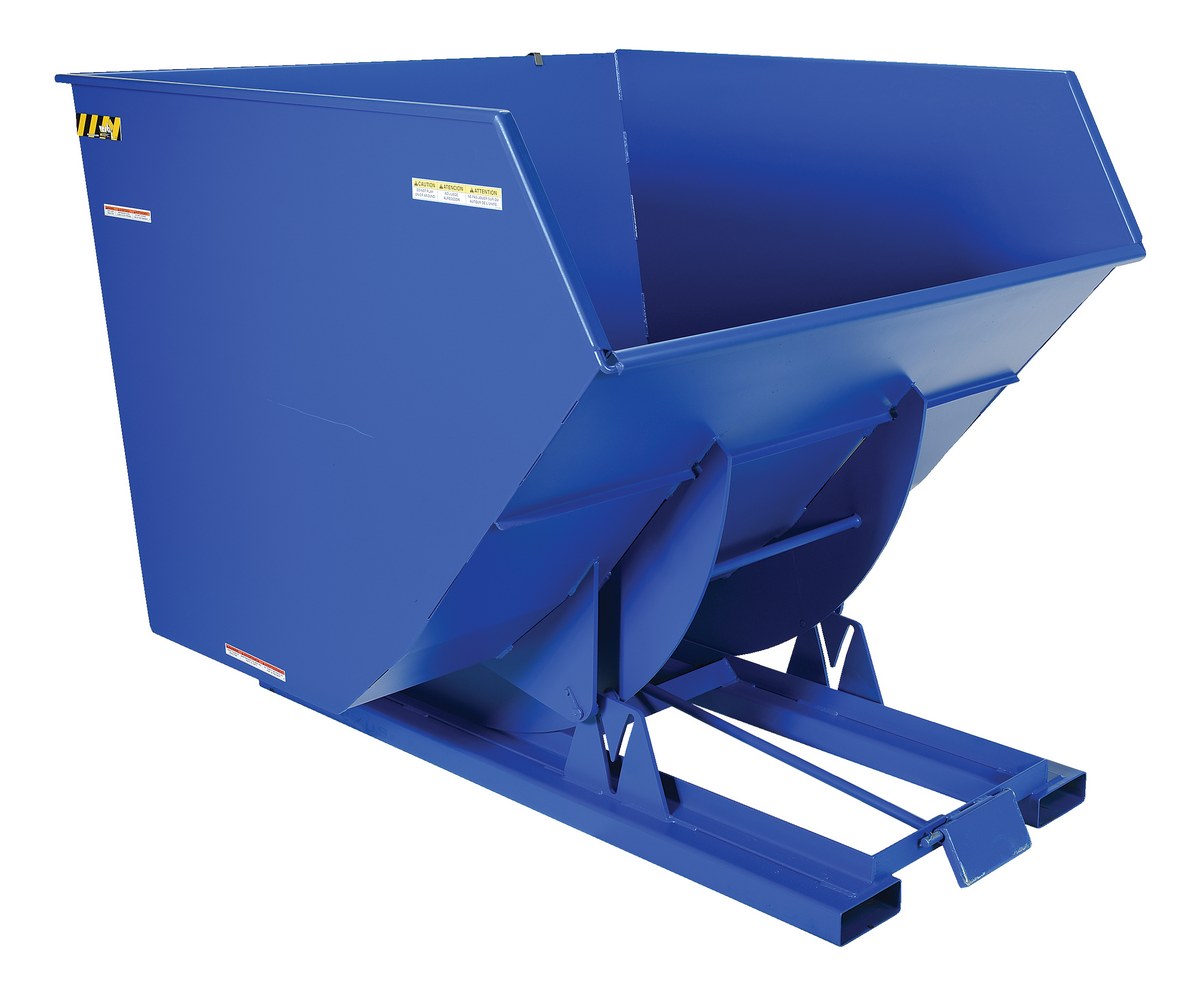

D-400-(strength)	4 Cubic Yard
D-500-(strength)	5 Cubic Yard

D-Style with NO BUMP & DUMP

Caster Options | Optional Lids

D Style - Self-Dumping Steel Hoppers with Bumper Release

model: D-250-HD

Table Search, not an entire site search.

Model #			Description	Attributes	Net Wt. (lbs)
D-100-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Steel (gauge): 8	580
D-100-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Steel (gauge): 12	460
D-100-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Steel (gauge): 10	545

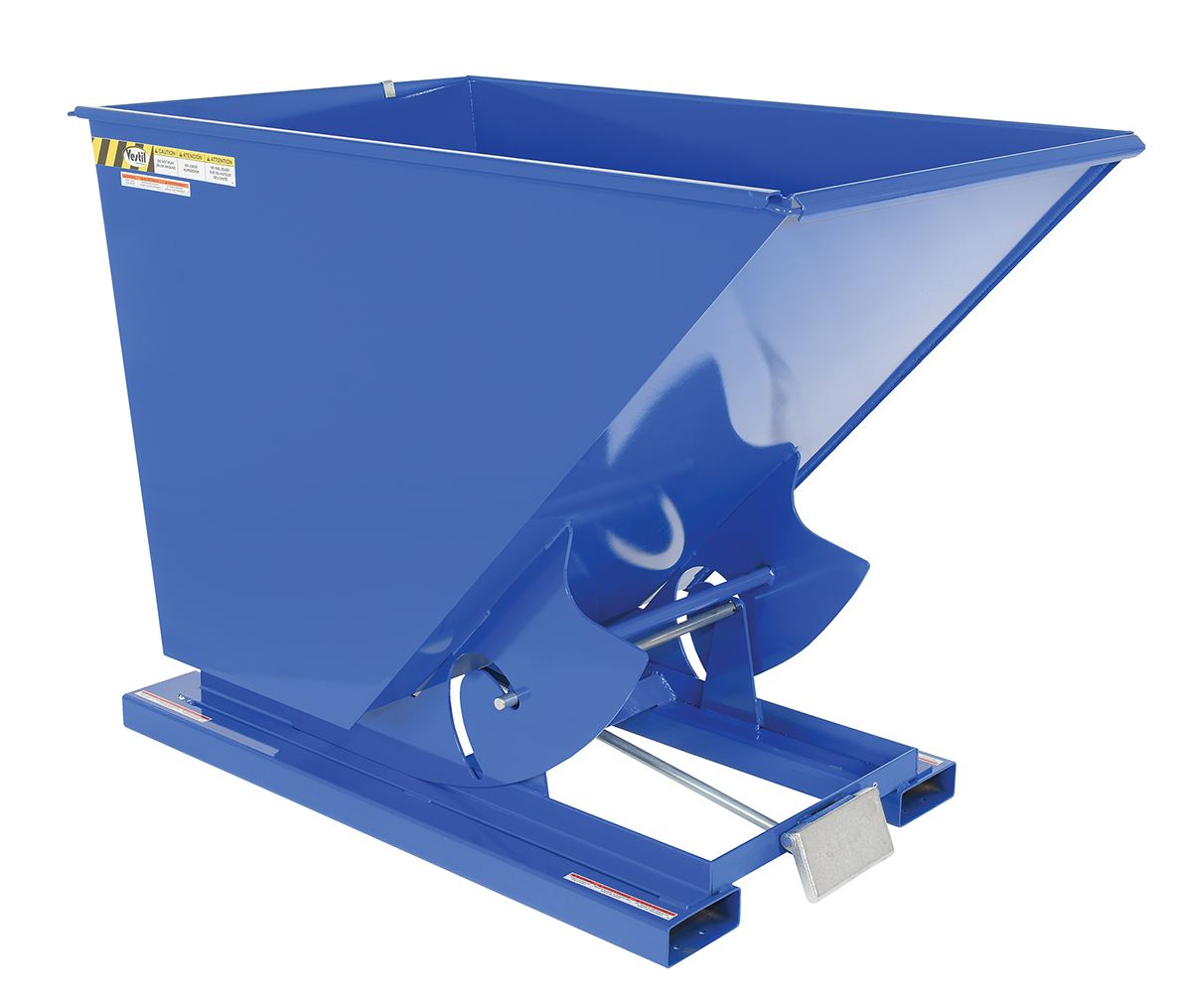

D-150-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	708

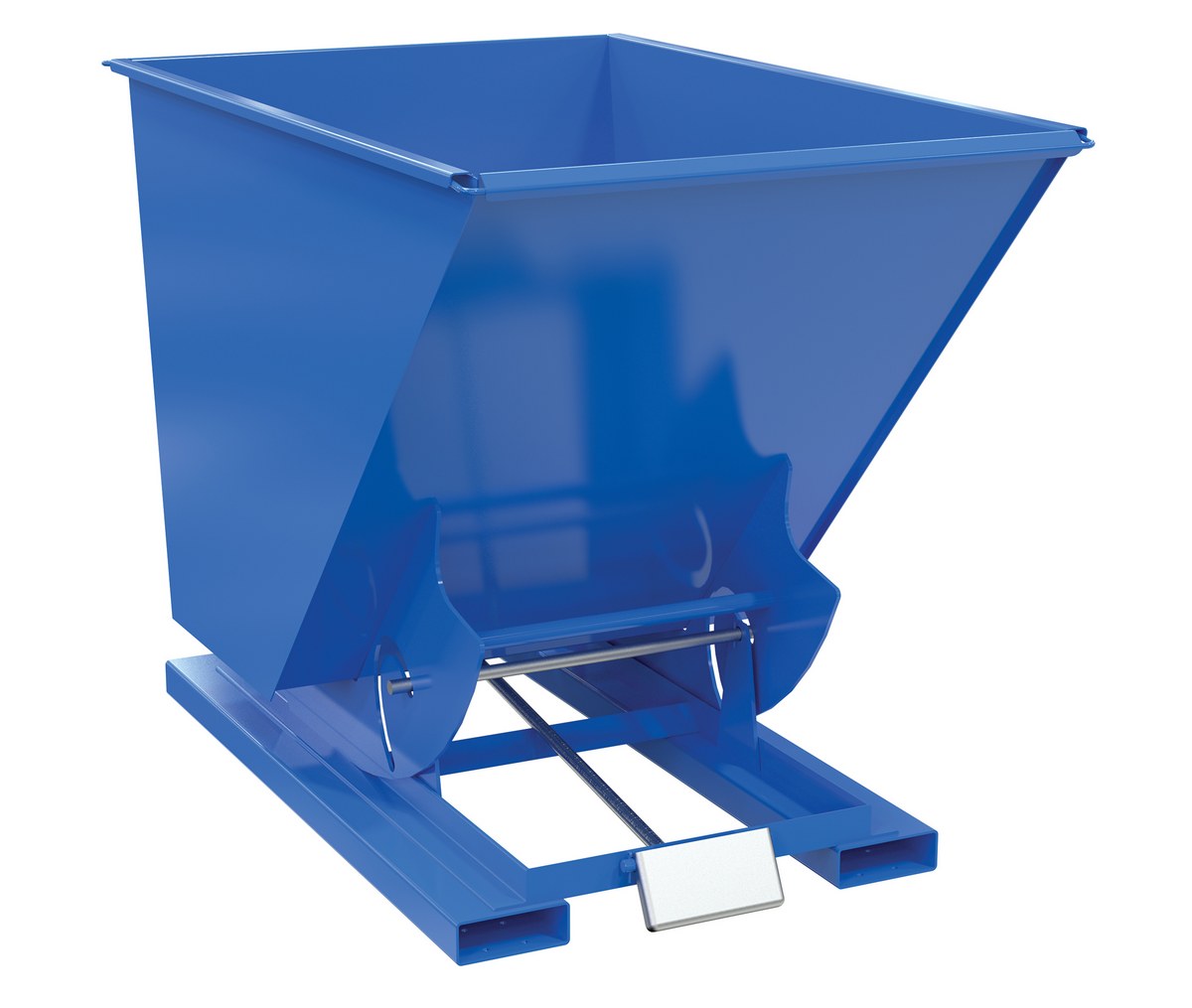

D-150-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	565
D-150-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	700
D-200-HD	POPULAR	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	782
D-200-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	615
D-200-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	690
D-25-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386
D-25-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341
D-25-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386
D-250-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	850
D-250-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	850
D-250-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	850

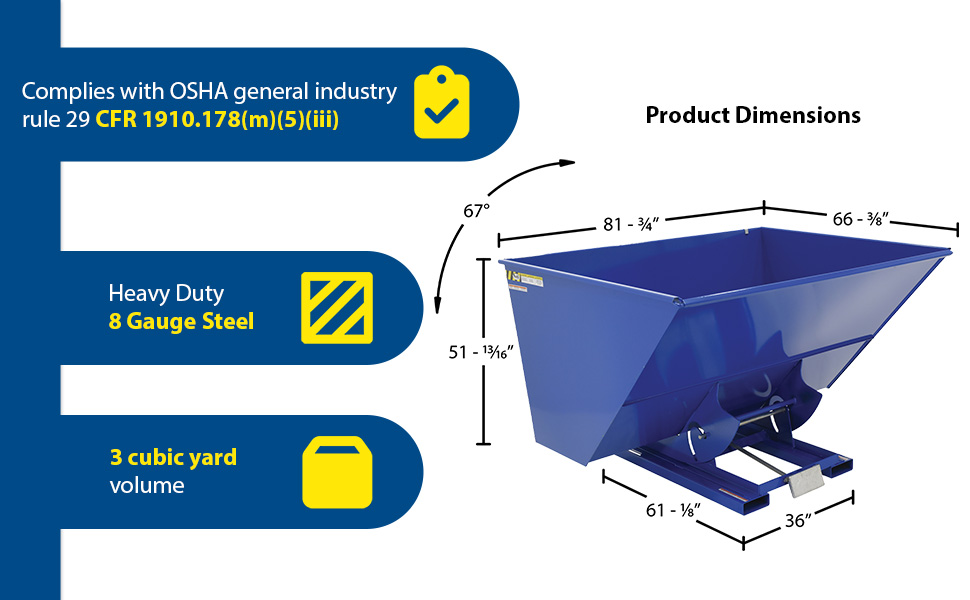

D-300-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	922

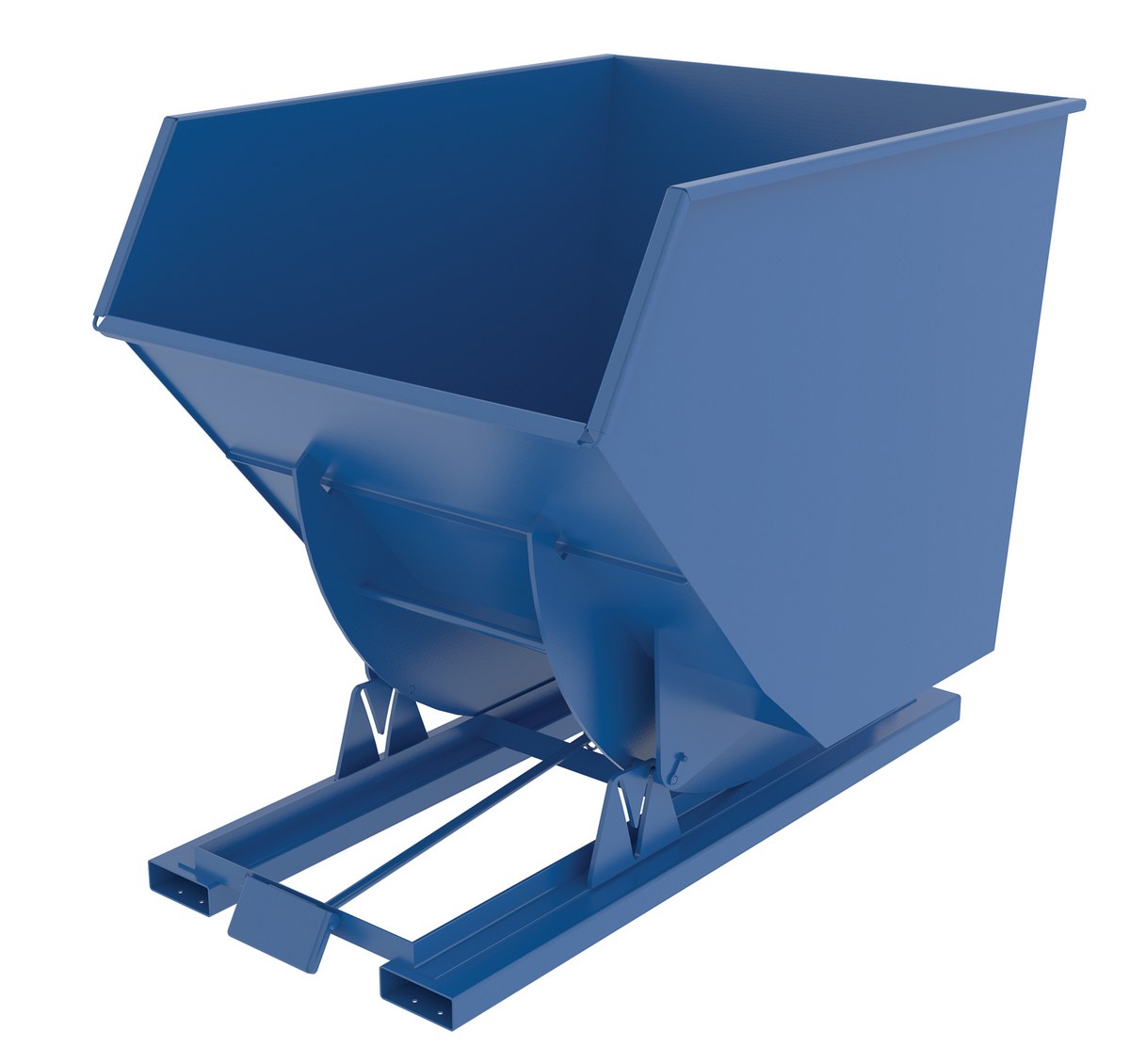

D-300-HD-NA		90 Days Limited Warranty	Steel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1016
D-300-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	922
D-300-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	922
D-33-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386
D-33-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341
D-33-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386

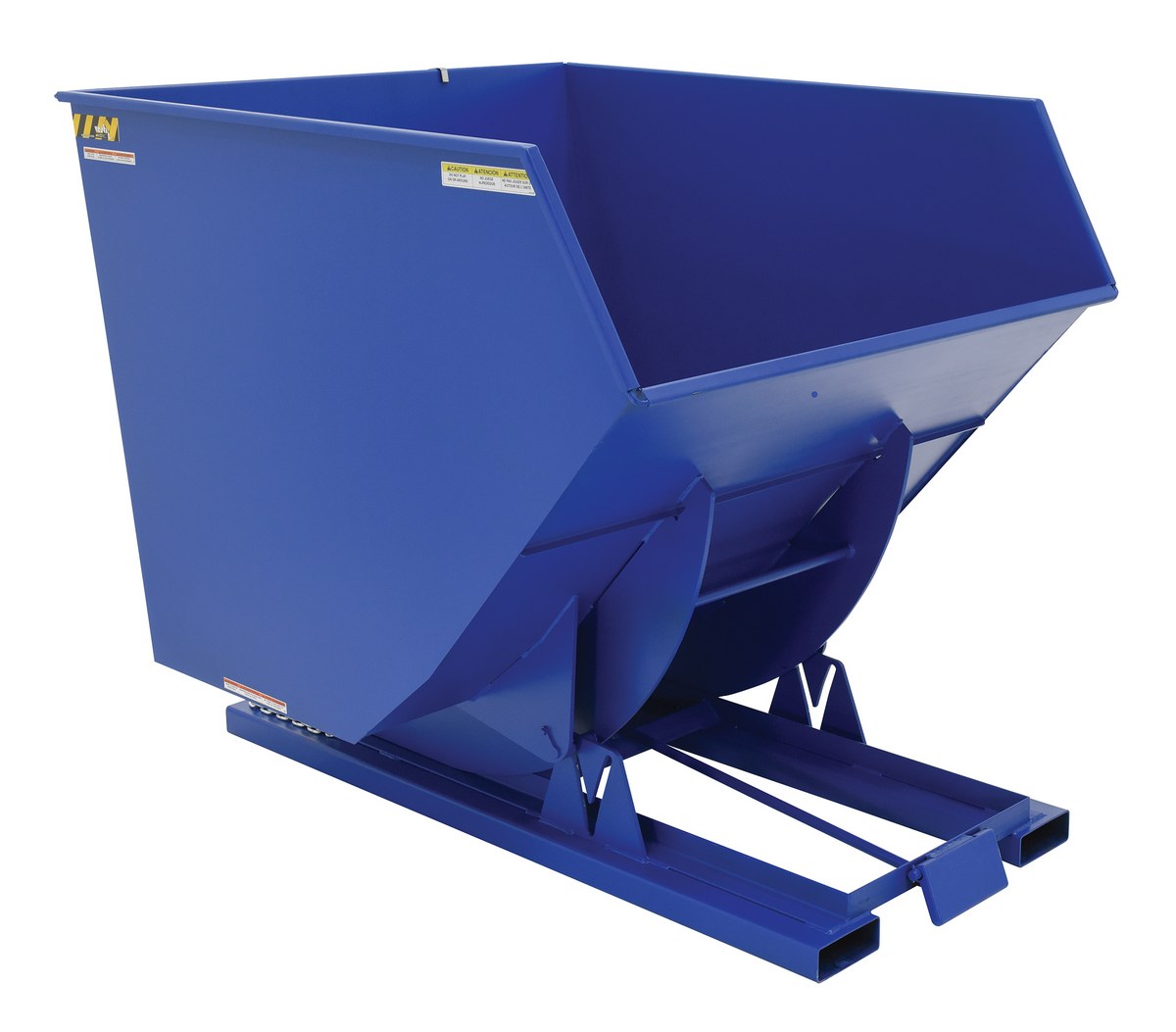

D-350-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1076
D-400-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1140
D-50-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	432
D-50-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	362
D-50-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	435

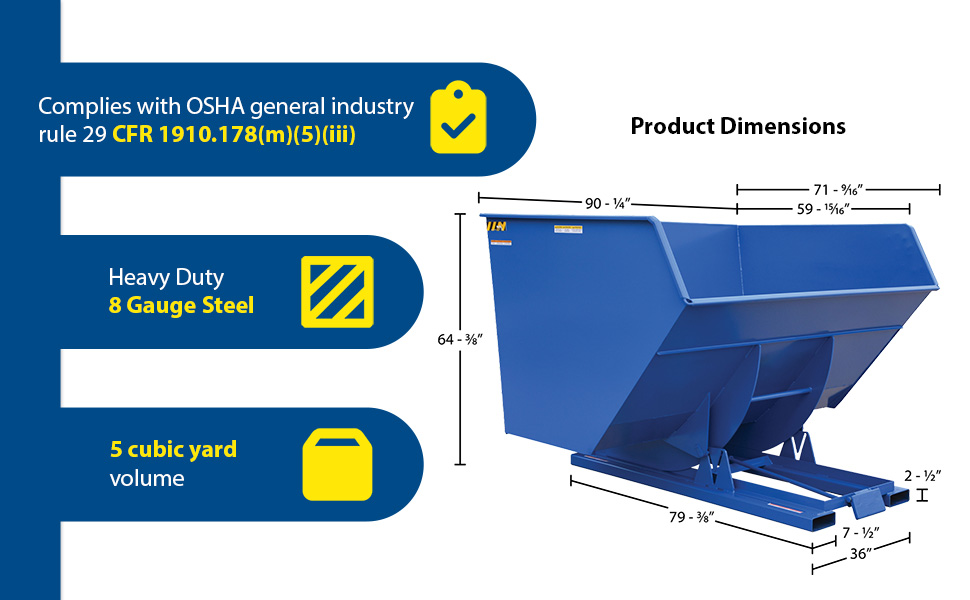

D-500-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1250
D-75-HD		90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	541
D-75-LD		90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	449
D-75-MD		90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	543

* Click the Comparison Table link above this table, or compare up to 3 products side-by-side by clicking Green +

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

D-25-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-25-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-25-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

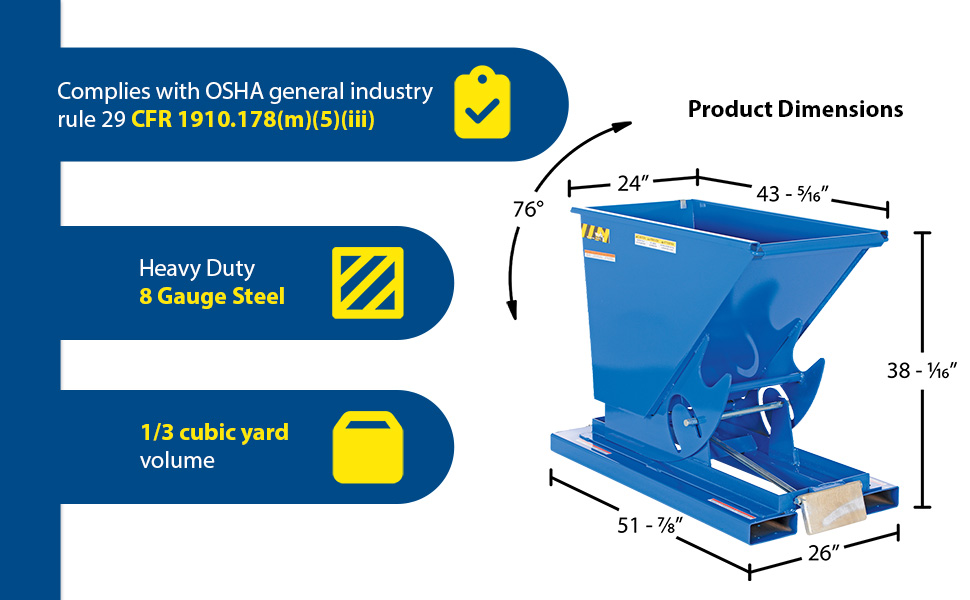

D-33-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-33-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-33-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

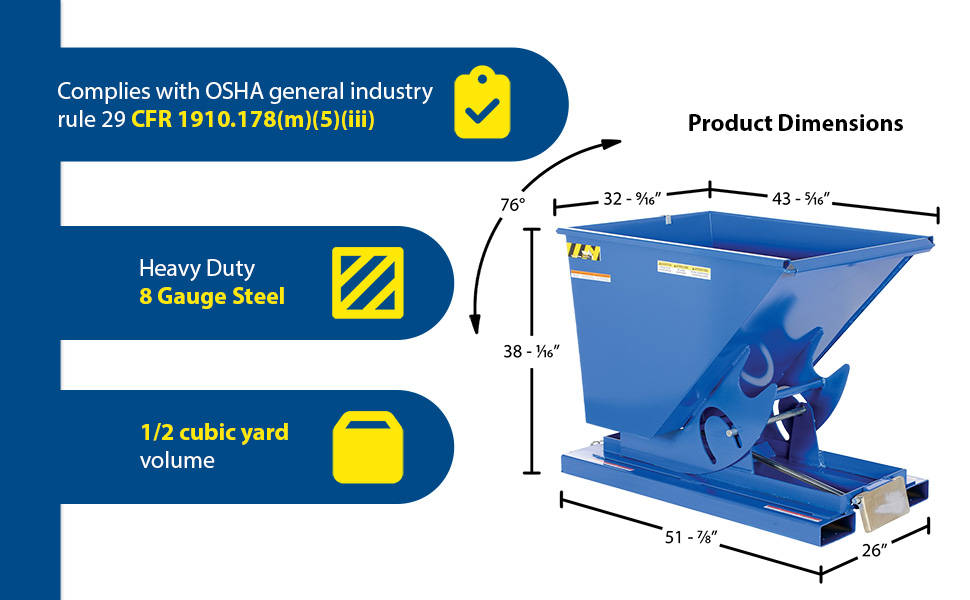

D-50-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-50-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-50-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-75-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-75-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-75-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-100-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Steel (gauge): 8
Uniform Capacity (lb.): 6000
Steel (gauge): 8

D-100-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Steel (gauge): 12
Uniform Capacity (lb.): 2000
Steel (gauge): 12

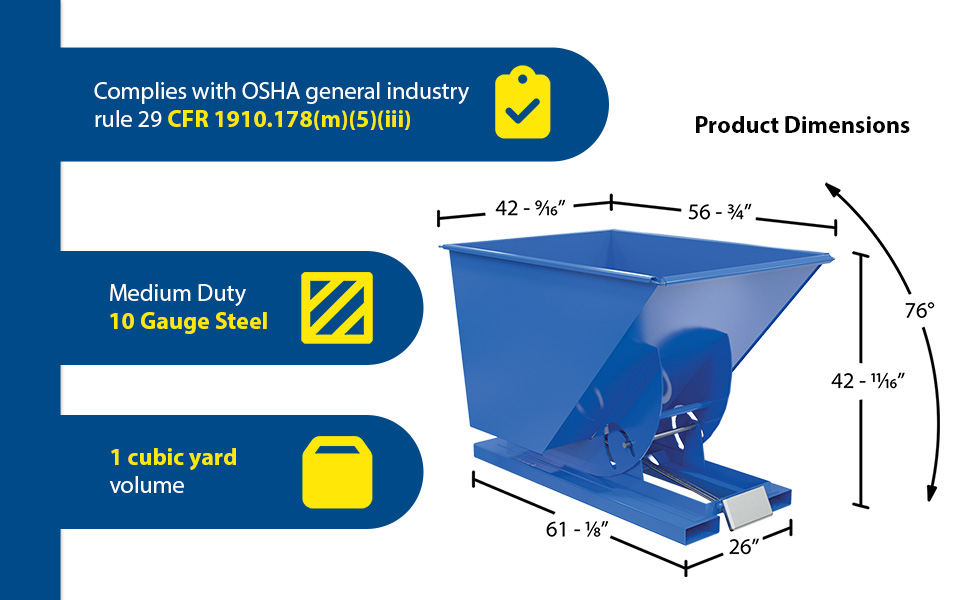

D-100-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Steel (gauge): 10
Uniform Capacity (lb.): 4000
Steel (gauge): 10

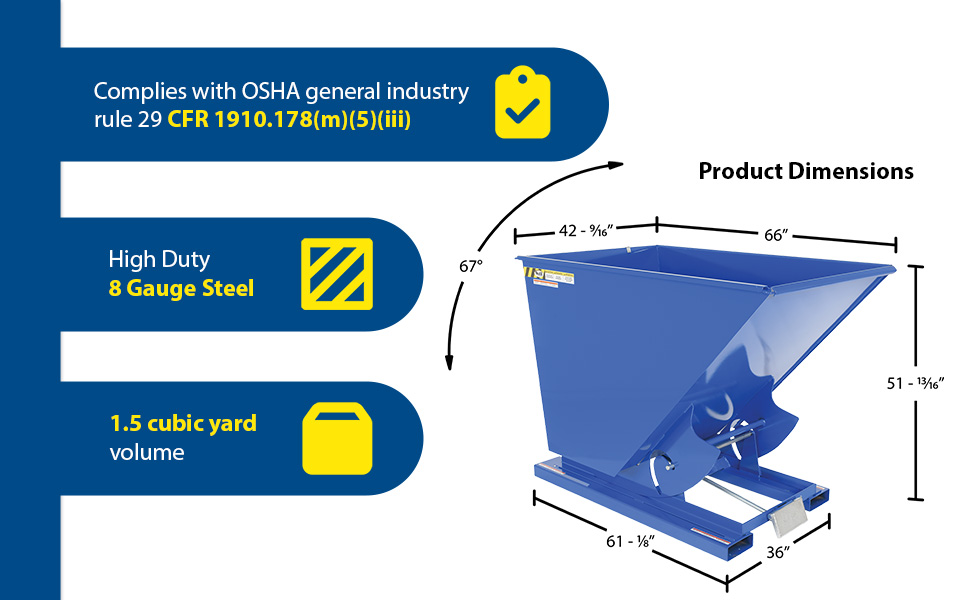

D-150-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-150-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-150-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-200-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-200-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-200-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-250-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-250-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-250-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-300-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-300-HD-NA

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-300-LD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-300-MD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-350-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-400-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-500-HD

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

For More Details of the Option Click the Red Model Button

Model	Details	Icons	Wt.
D-150-EXT-SMY	Steel Mesh D-150 Series Side Extensions 64-15/16 In. x 43-1/…	Limited Warranty	37
D-200-EXT-SMY	Steel Mesh D-200 Series Side Extension 64-15/16 In. x 56-1/8…	Limited Warranty	40
D-250-EXT-SMY	Steel Mesh D-250 Series Side Extensions 64-15/16 In. x 69-1/…	Limited Warranty	45
D-300-EXT-SMY	Steel Mesh D-350 Series Side Extensions 64-15/16 In. x 81-5/…	Limited Warranty	50

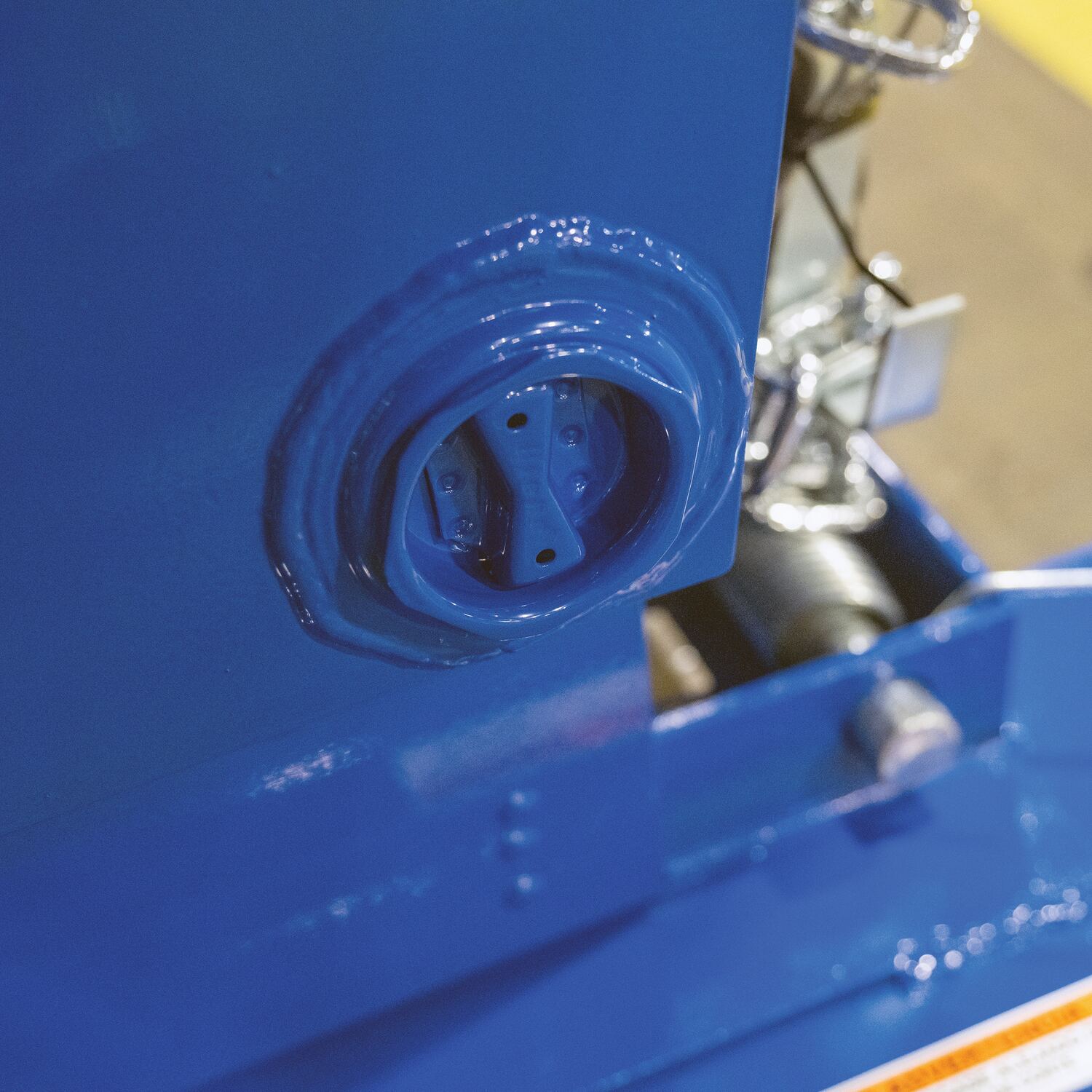

D-DPLG-2	Factory Installed Welded Steel 2 In. Threaded Drain Plug Lef…	Limited Warranty	2

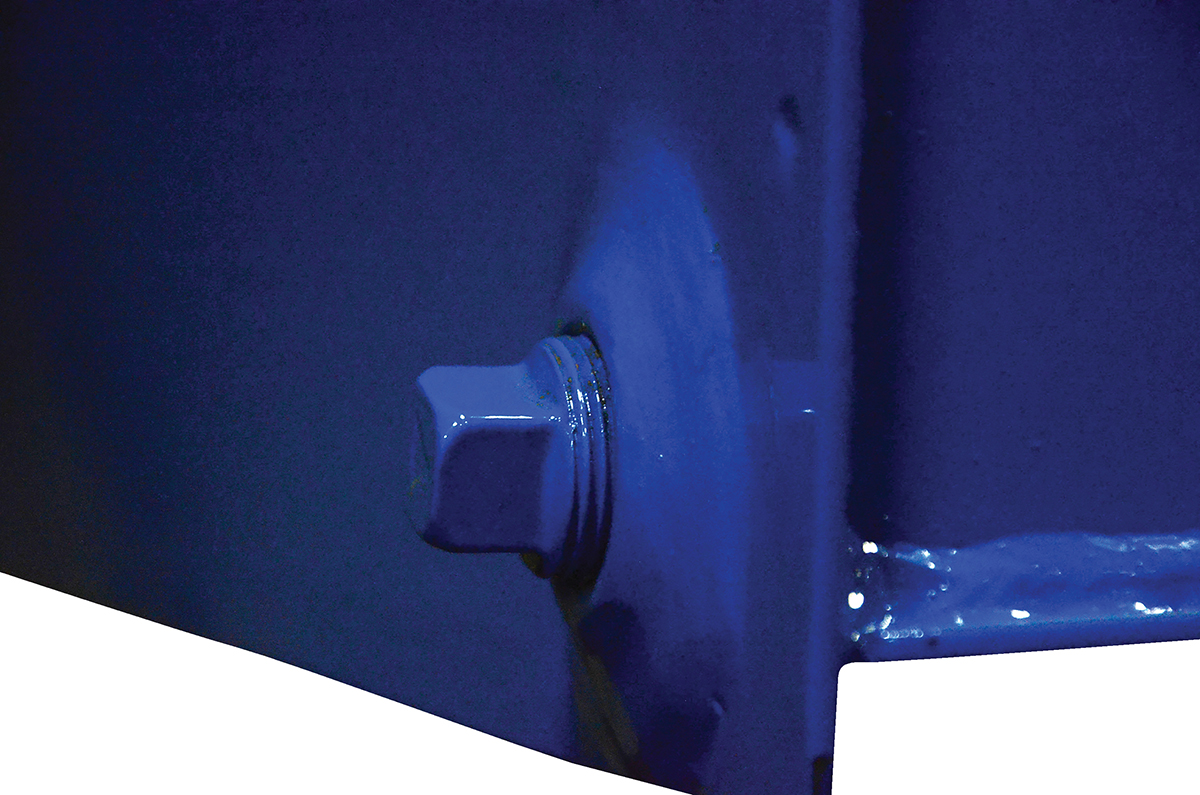

D-DPLG-75	Factory Installed Welded Steel 3/4 In. Threaded Drain Plug L…	Limited Warranty	1

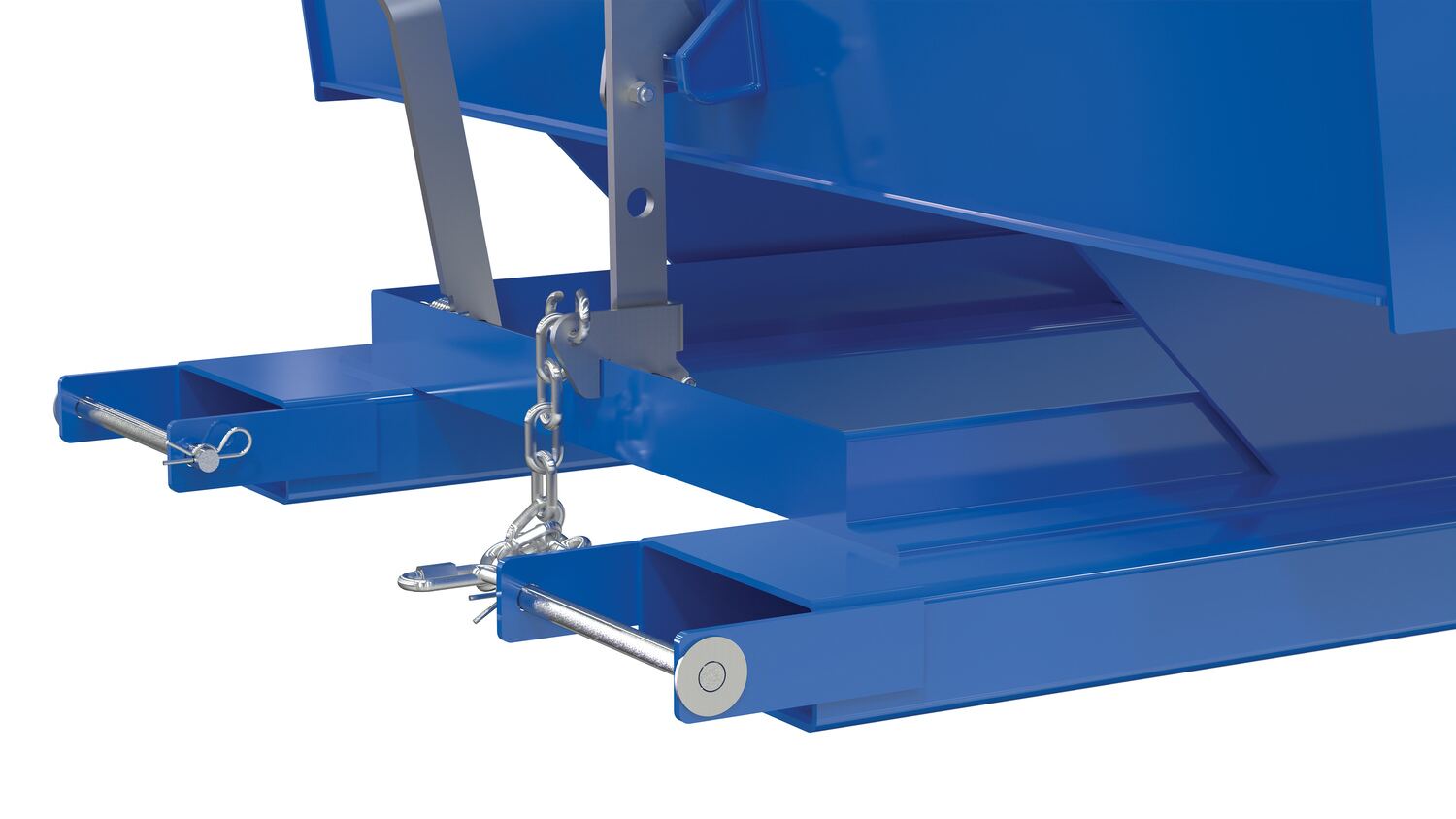

D-PIN	Factory Installed Welded Steel Fork Retaining Pin For D-Styl…	Limited Warranty	5

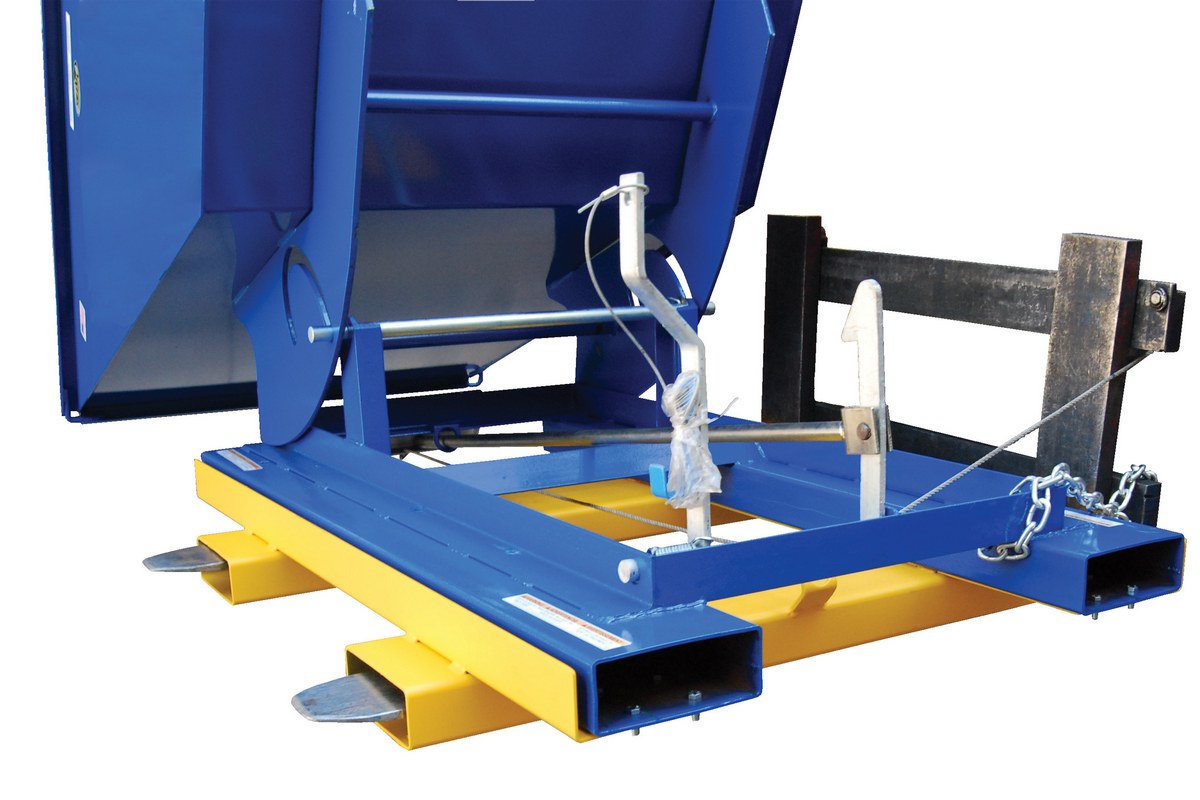

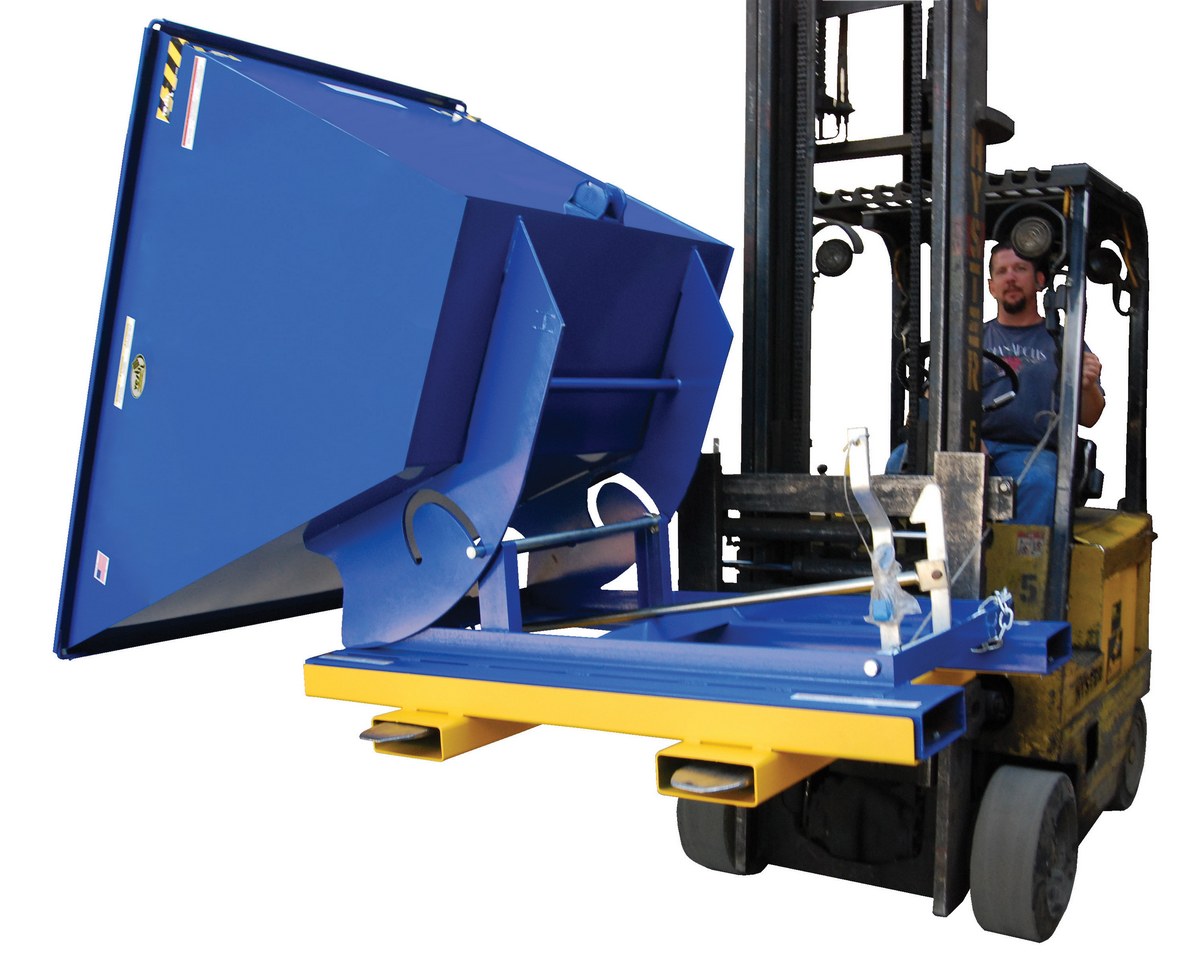

D-TILT	Steel Sideways Tilt Fork Attachment For D Style Hoppers Yell…	Limited Warranty	130

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Caster options for D style hoppers	-
Optional Lids		Lid options for D style hoppers	-
PLID-INSTALL		Vestil Optional Factory Installation of PLID	Factory Installation of Hopper Lid
LEKP		Welded leak proof Option	5
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG-75 and D-DPLG-2 options includes leak proof chute welds

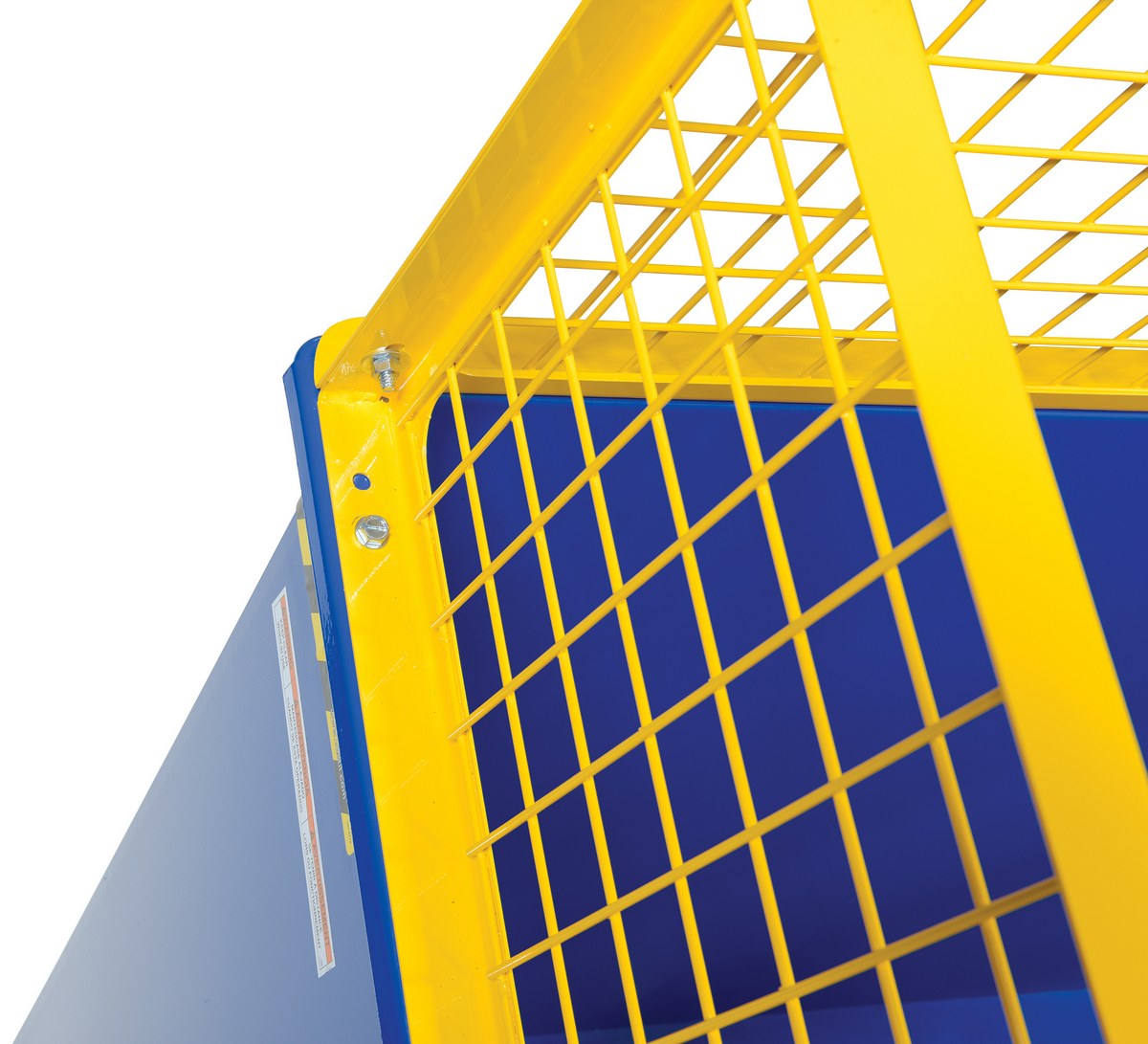

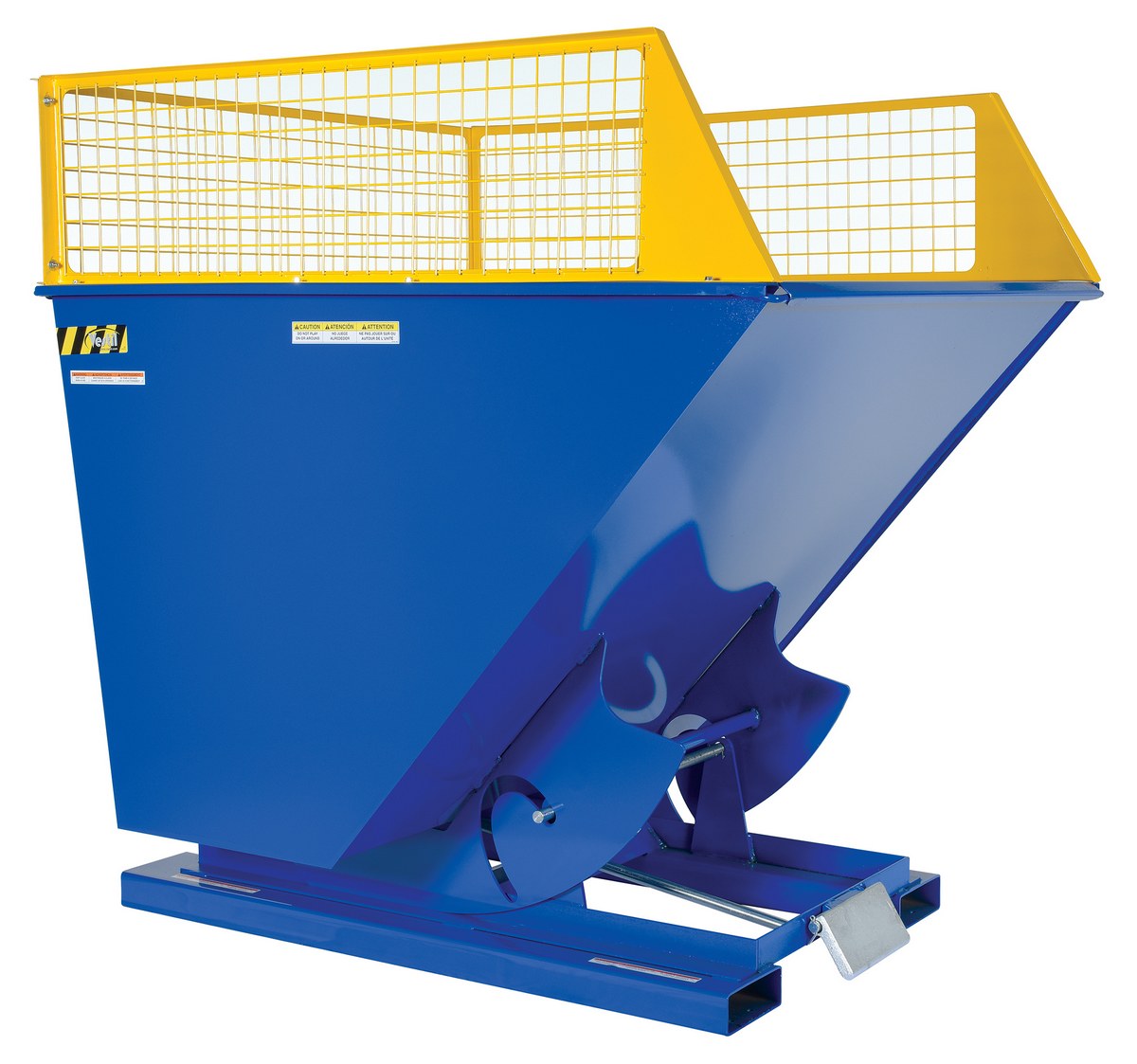

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

Hopper Spring Replacement

D-GAL

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

D-25-HD

D-25-LD

D-25-MD

D-33-HD

D-33-LD

D-33-MD

D-50-HD

D-50-LD

D-50-MD

D-75-HD

D-75-LD

D-75-MD

D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-350-HD

D-400-HD

D-500-HD

D-TILT

Testing Certificates

D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-25-HD

D-25-LD

D-25-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-33-HD

D-33-LD

D-33-MD

D-350-HD

D-400-HD

D-50-HD

D-50-LD

D-50-MD

D-500-HD

D-75-HD

D-75-LD

D-75-MD

D-DPLG-2

D-TILT

SDS Sheets

No SDS Sheets For This Product

Other PDFs

Specialty Hopper Colors Product Mailing Brochure

Extra Large Self-Dumping Hoppers Mailing Brochure

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for D Style Hoppers

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.

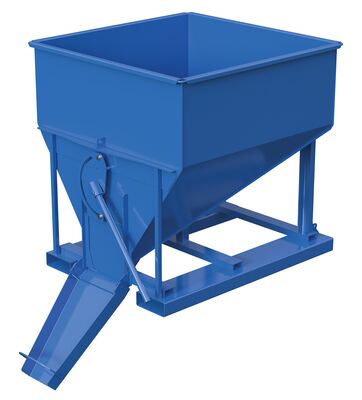

Reference #: CF-5998 Concrete Hopper

Reference #: CF-5998 Concrete Hopper
Special Concrete Hopper

For more Specialty Designs similar to these... Click Here

Q: I'm looking at the self dumping hopper . Does it come with casters?

A: Casters are available for the D- Style Self-Dumping Hopper. Please see the hopper caster options page for multiple options.

Q: Can the size of the self dumping hopper be modified?

A: We may be able to modify the width of the hopper. We are not able to modify the length. Please contact a sales associate for details.

Q: What does the "LD" mean on the hopper?

A: LD is "light duty" 12 gauge steel, 2,000 lb. capacity. MD is "medium duty" 10 gauge steel, 4,000 lb. capacity. HD is "heavy duty" 8 gauge steel , 6,000 lb. capacity.

Q: What is the bolt hole pattern for the casters?

A: The pattern gets punched at the front and back of each fork tube for the casters. The hole diameter is 7/16".

Q: Can the hoppers be used with a telehandler?

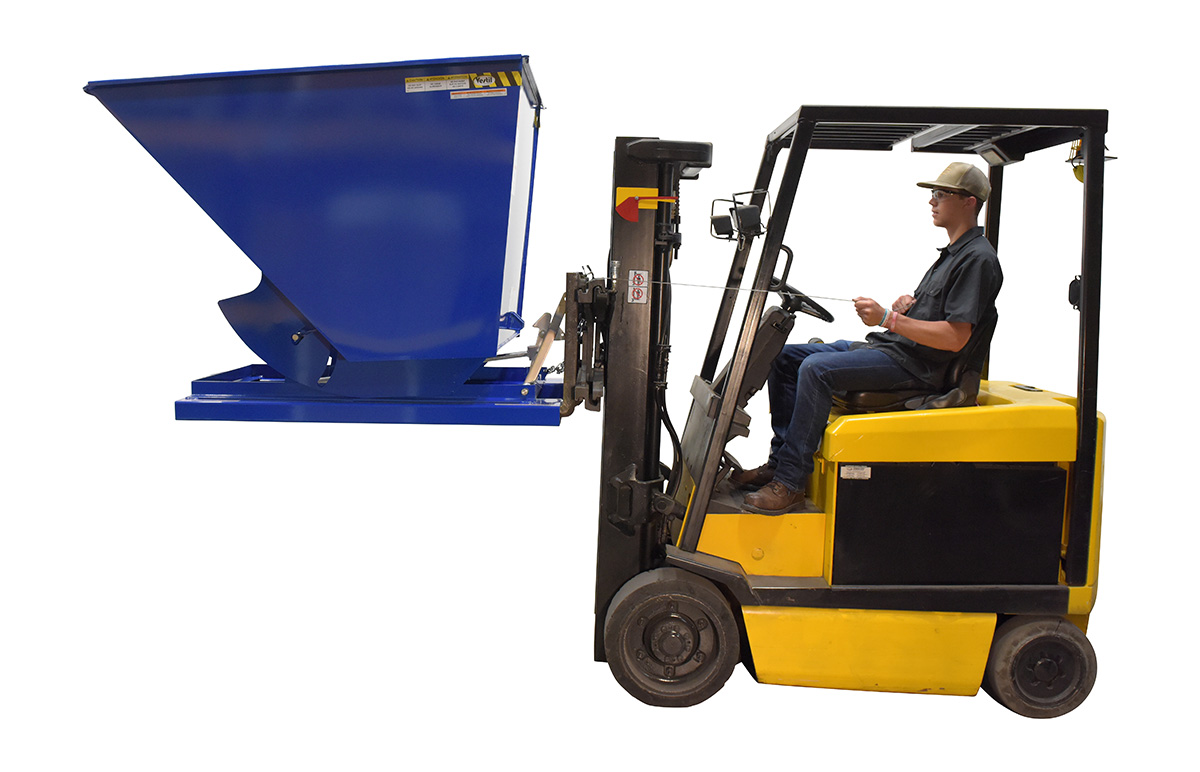

A: We do NOT recommend using the hopper with a telehandler. These hoppers are designed for use with powered fork lift trucks.

Q: What caster should I purchase for the hopper?

A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.

Q: What is the capacity of the lifting lugs?

A: The capacity of the lifting lug is compatible with the capacity of the hopper.

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

A: The D-TILT can be customer/field installed.

Print Friendly

Related or Similar Products:

D Style - Self-Dumping Steel H...

D-100-LD + D-CK4-GFN6-2 + PLID-D-100

Automatic bumper release dumps when it contacts the side of the dumpster	Returns to upright and locked position automatically

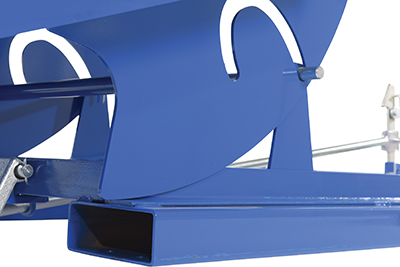

Full-length fork tubes provide a solid base	Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)	.25 Cubic Yard
D-33-(strength)	.33 Cubic Yard
D-50-(strength)	.50 Cubic Yard
D-75-(strength)	.75 Cubic Yard
D-100-(strength)	1 Cubic Yard
D-150-(strength)	1.5 Cubic Yard
D-200-(strength)	2 Cubic Yard
D-250-(strength)	2.5 Cubic Yard
D-300-(strength)	3 Cubic Yard
D-350-(strength)	3.5 Cubic Yard
D-400-(strength)	4 Cubic Yard
D-500-(strength)	5 Cubic Yard

D-Style with NO BUMP & DUMP

Caster Options | Optional Lids

Model #	Description	Attributes	Net Wt. (lbs)
D-100-HD	Steel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Steel (gauge): 8	580

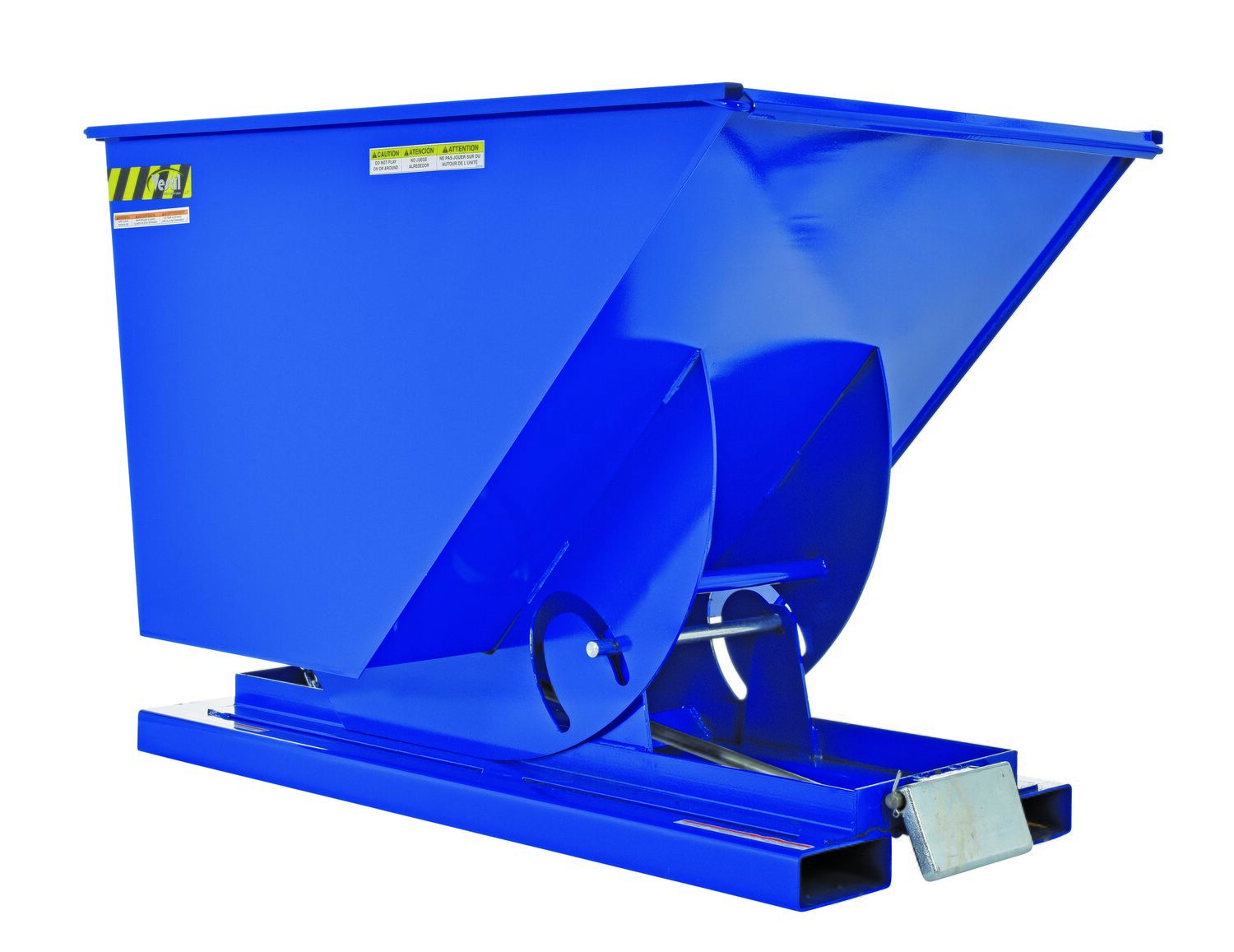

D-100-LD	Steel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Steel (gauge): 12	460

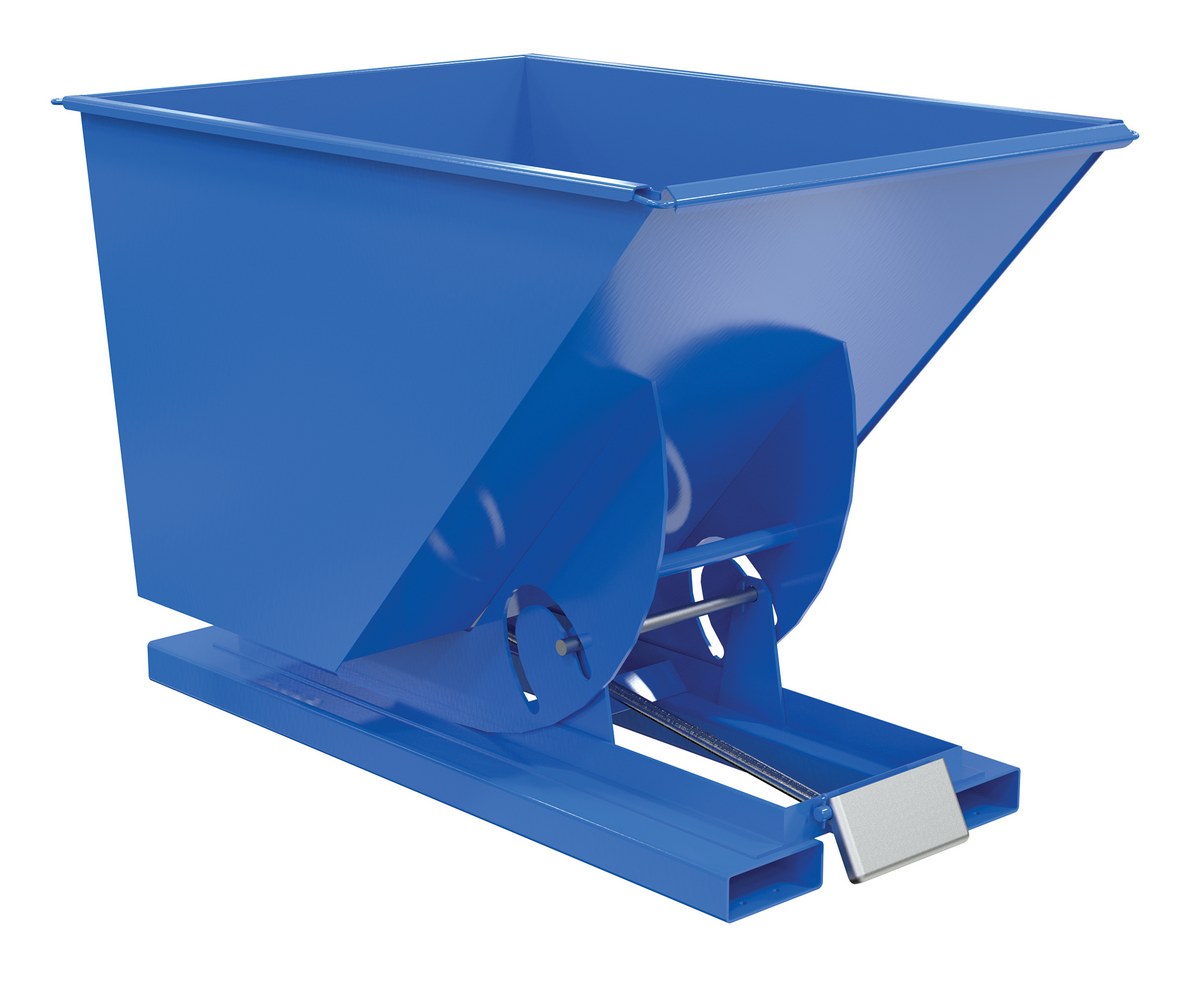

D-100-MD	Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Steel (gauge): 10	545

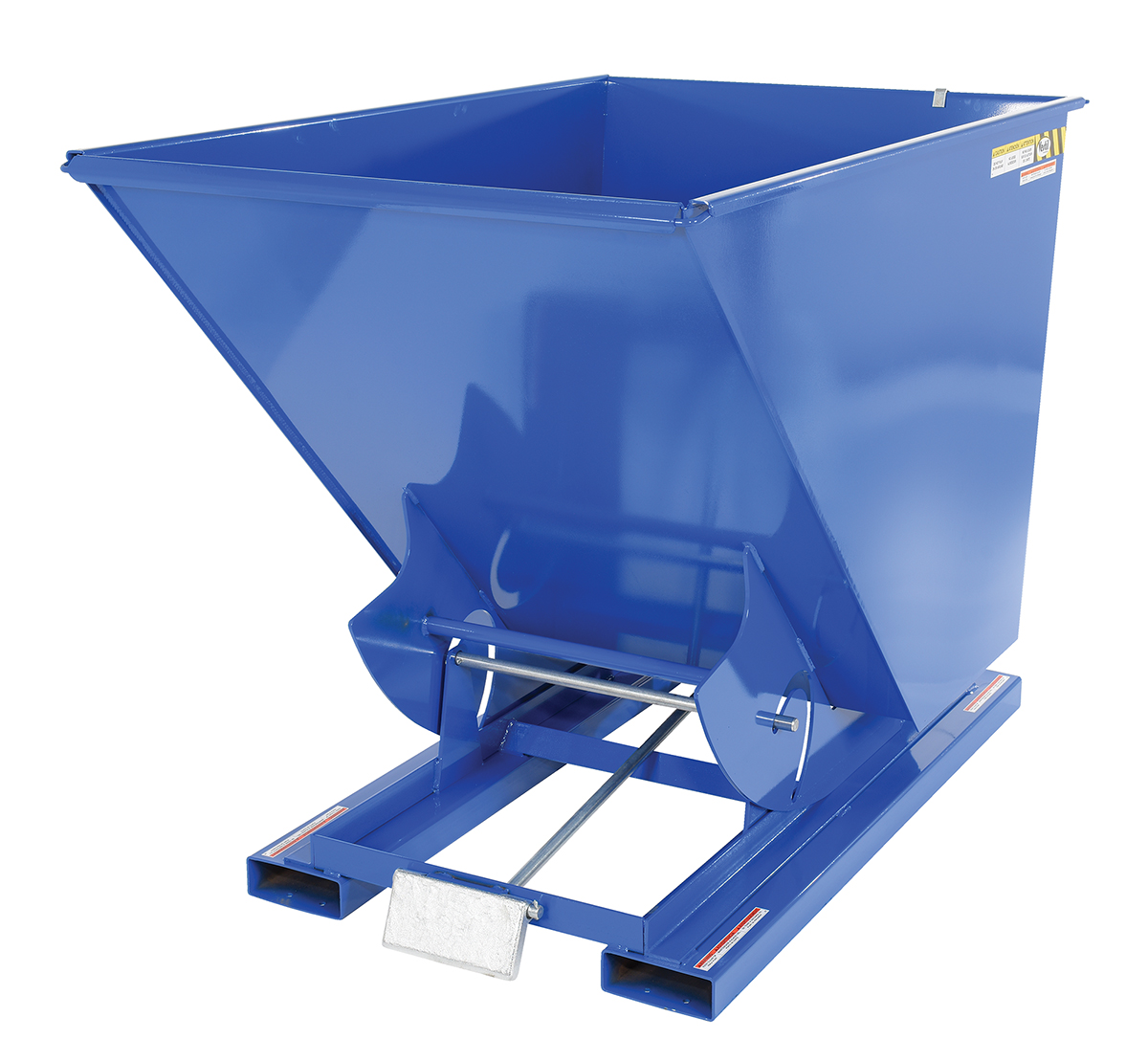

D-150-HD	Steel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	708
D-150-LD	Steel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	565

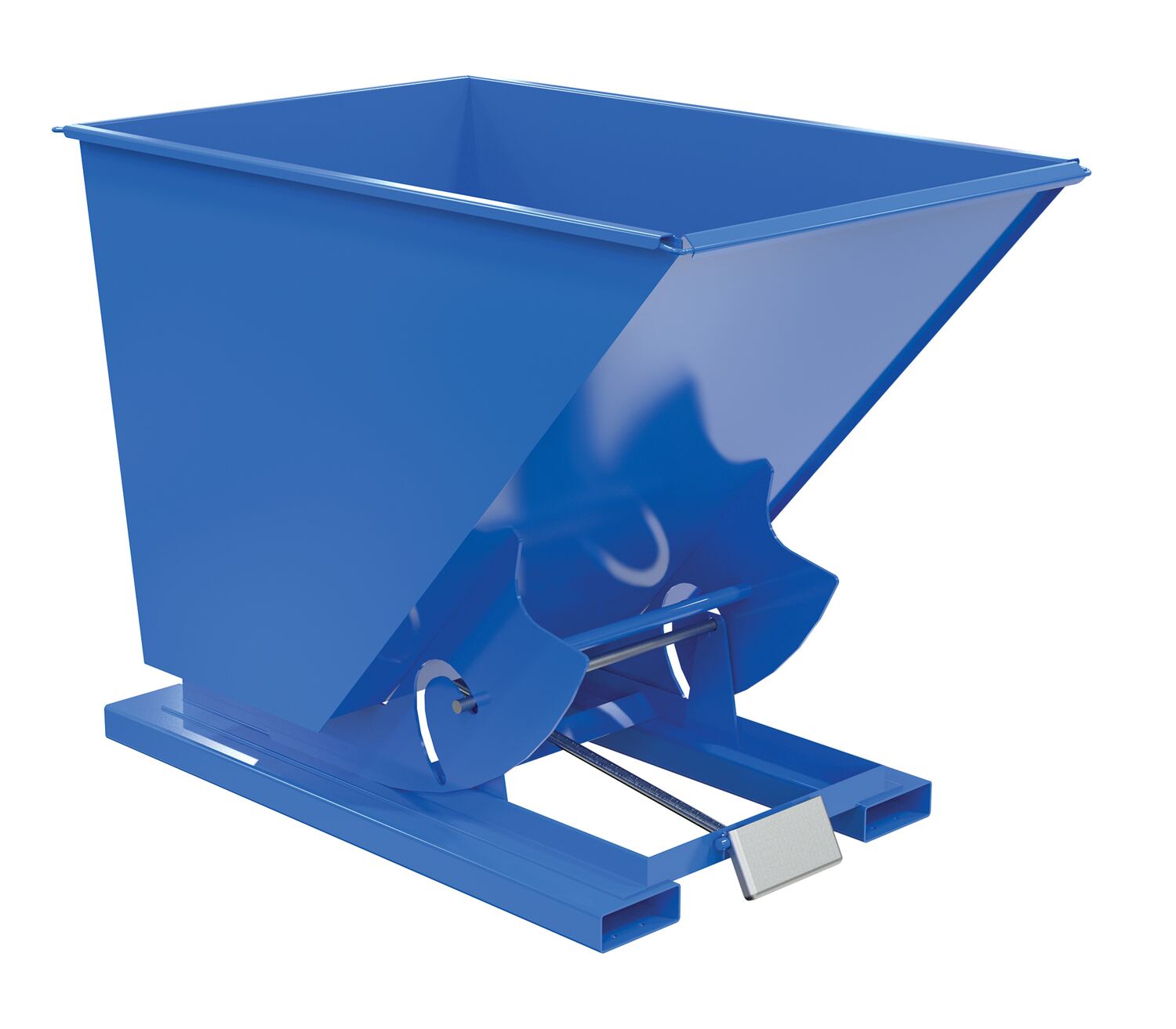

D-150-MD	Steel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	700

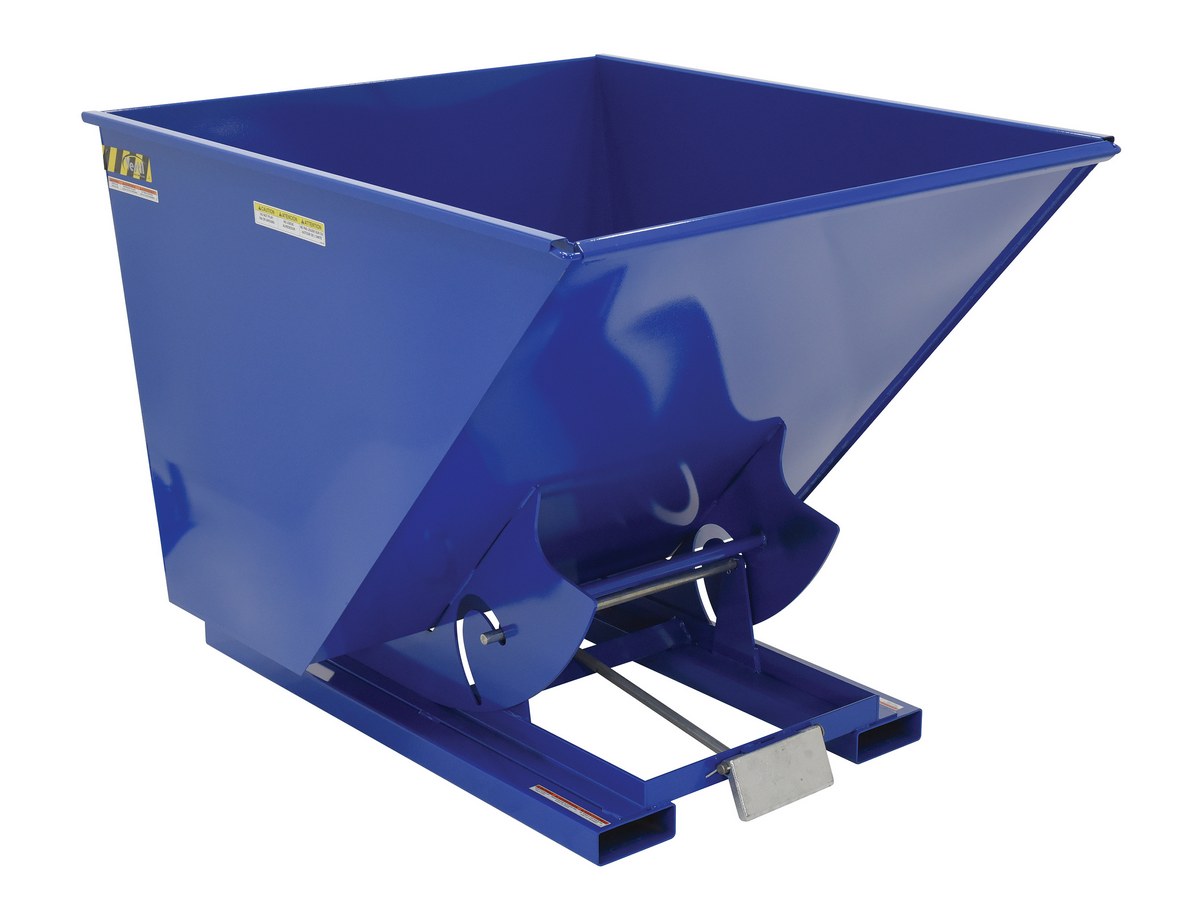

D-200-HD	Steel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	782

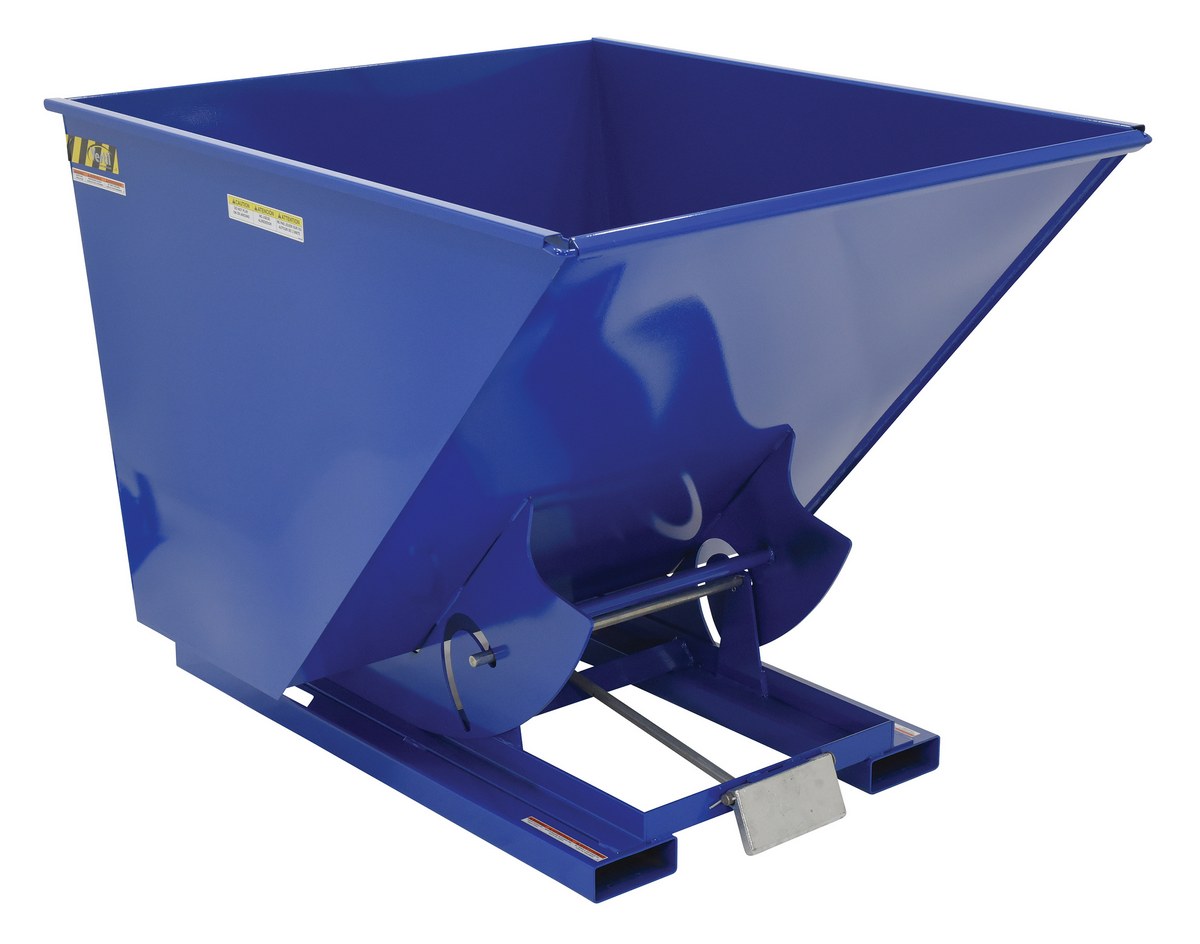

D-200-LD	Steel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	615
D-200-MD	Steel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	690
D-25-HD	Steel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386
D-25-LD	Steel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341
D-25-MD	Steel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386
D-250-HD	Steel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	850
D-250-LD	Steel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	850
D-250-MD	Steel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	850
D-300-HD	Steel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	922
D-300-HD-NA	Steel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1016
D-300-LD	Steel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	922
D-300-MD	Steel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	922
D-33-HD	Steel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386

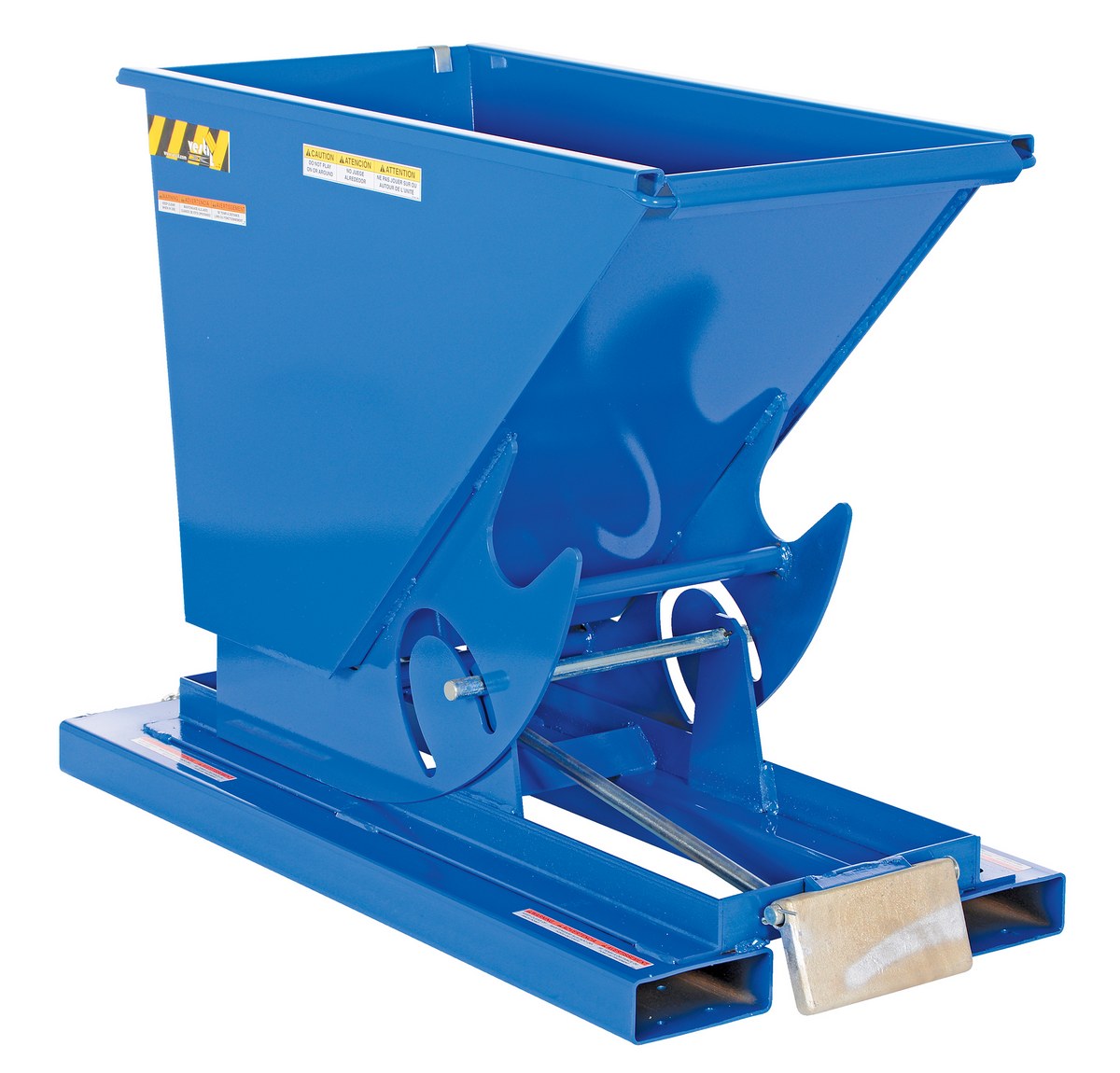

D-33-LD	Steel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341
D-33-MD	Steel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386
D-350-HD	Steel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1076

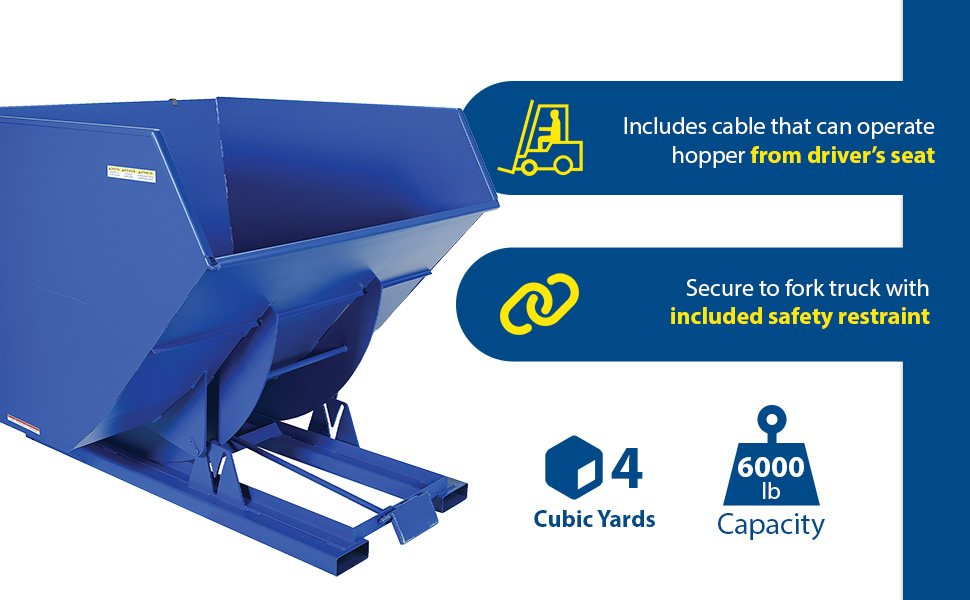

D-400-HD	Steel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1140

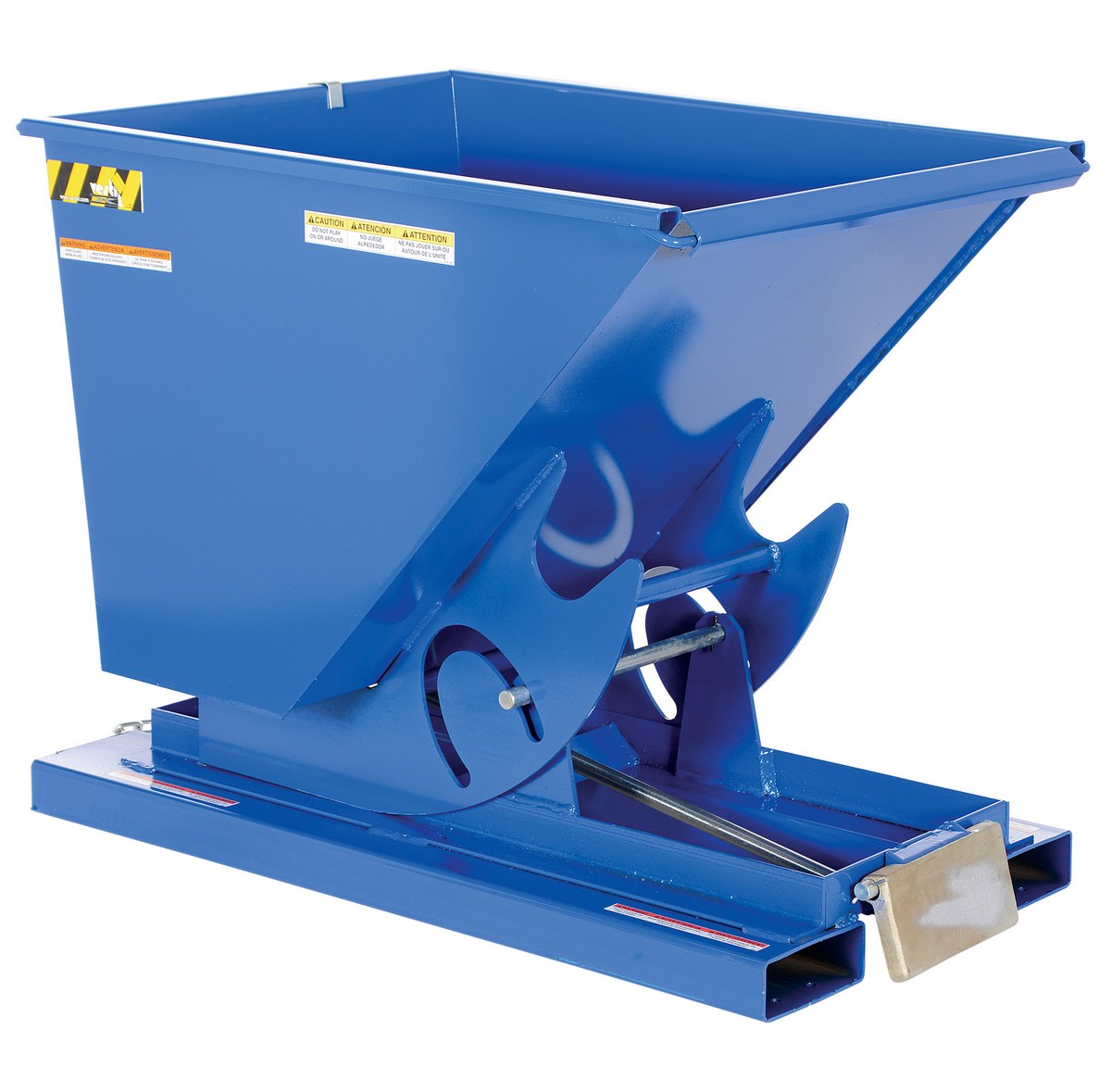

D-50-HD	Steel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	432
D-50-LD	Steel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	362
D-50-MD	Steel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	435

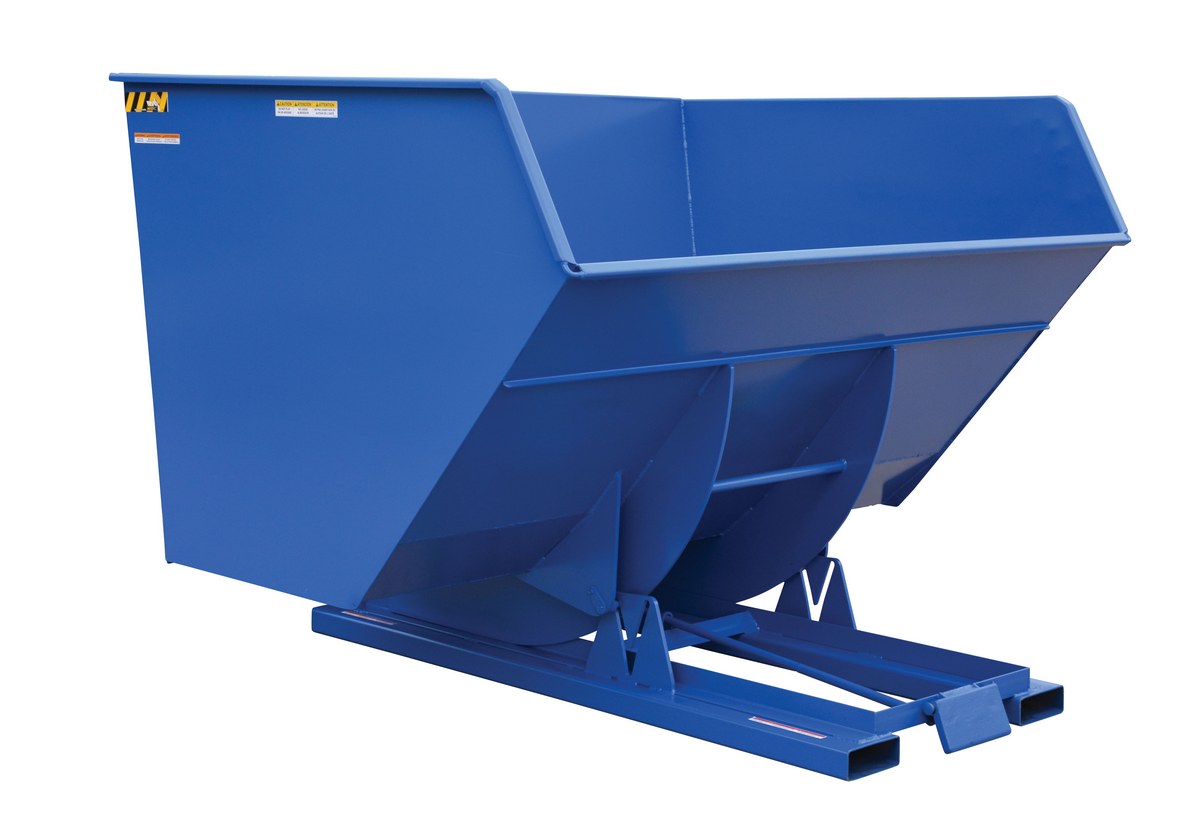

D-500-HD	Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1250

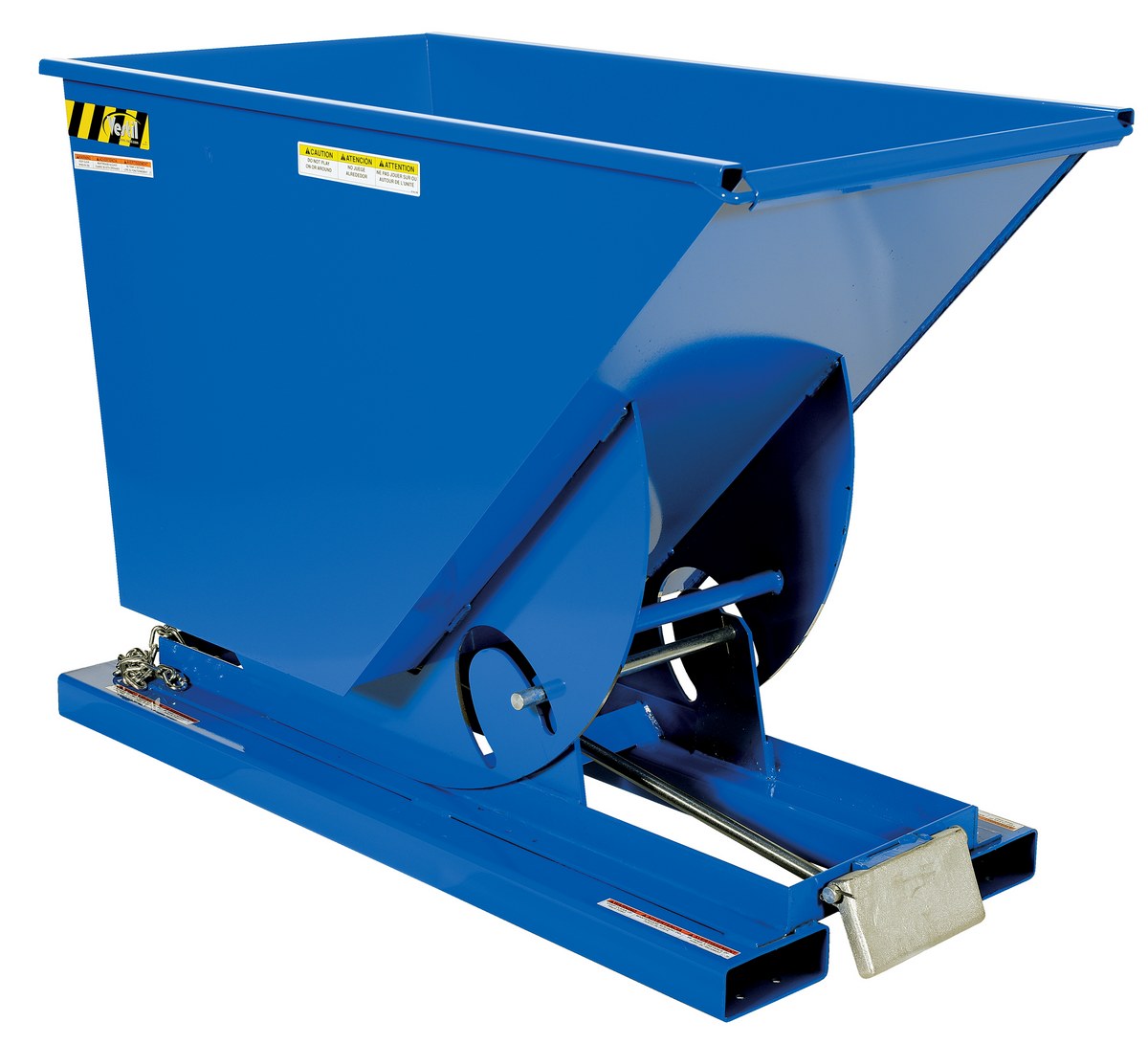

D-75-HD	Steel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	541
D-75-LD	Steel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	449
D-75-MD	Steel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	543

Options

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Caster options for D style hoppers	-
Optional Lids		Lid options for D style hoppers	-
PLID-INSTALL		Vestil Optional Factory Installation of PLID	Factory Installation of Hopper Lid
LEKP		Welded leak proof Option	5
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG-75 and D-DPLG-2 options includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

D Style - Self-Dumping Steel Hoppers with Bumper Release

D Style - Self-Dumping Steel Hoppers with Bumper Release

D Style - Self-Dumping Steel Hoppers with Bumper Release

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Engineering Drawings

Testing Certificates

SDS Sheets

Other PDFs

Q: I'm looking at the self dumping hopper . Does it come with casters?

Q: Can the size of the self dumping hopper be modified?

Q: What does the "LD" mean on the hopper?

Q: What is the bolt hole pattern for the casters?

Q: Can the hoppers be used with a telehandler?

Q: What caster should I purchase for the hopper?

Q: What is the capacity of the lifting lugs?

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

Heavy-Duty Poly Lids for D & H series Hoppers

Casters For Hoppers (D, R & H)

DC Power Trash Can Dumper

D-Style Hoppers, No Bump & Dump

Low Profile D-Style Self Dumping Hoppers

D Style - Self-Dumping Steel H...

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
