Edge-O-Dock Levelers

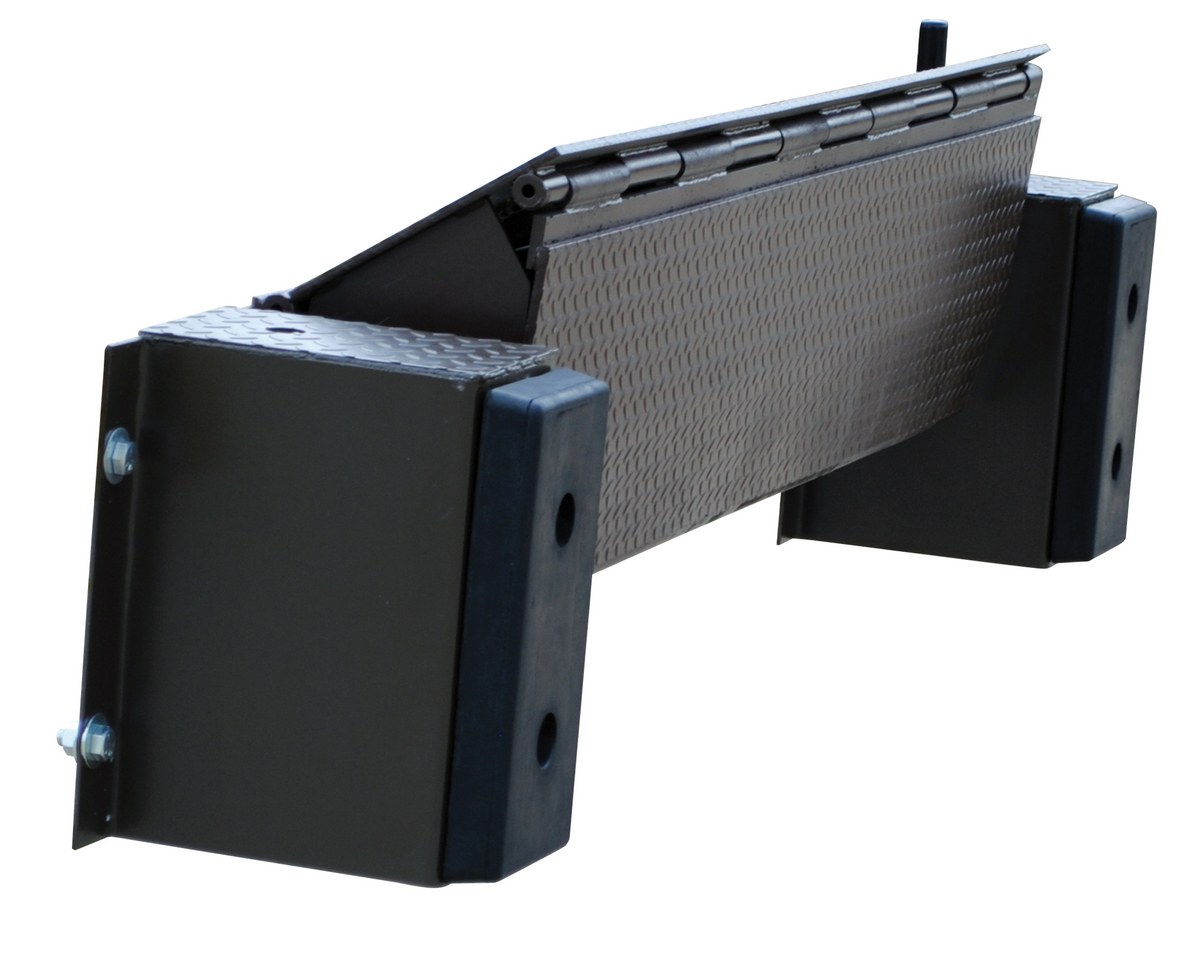

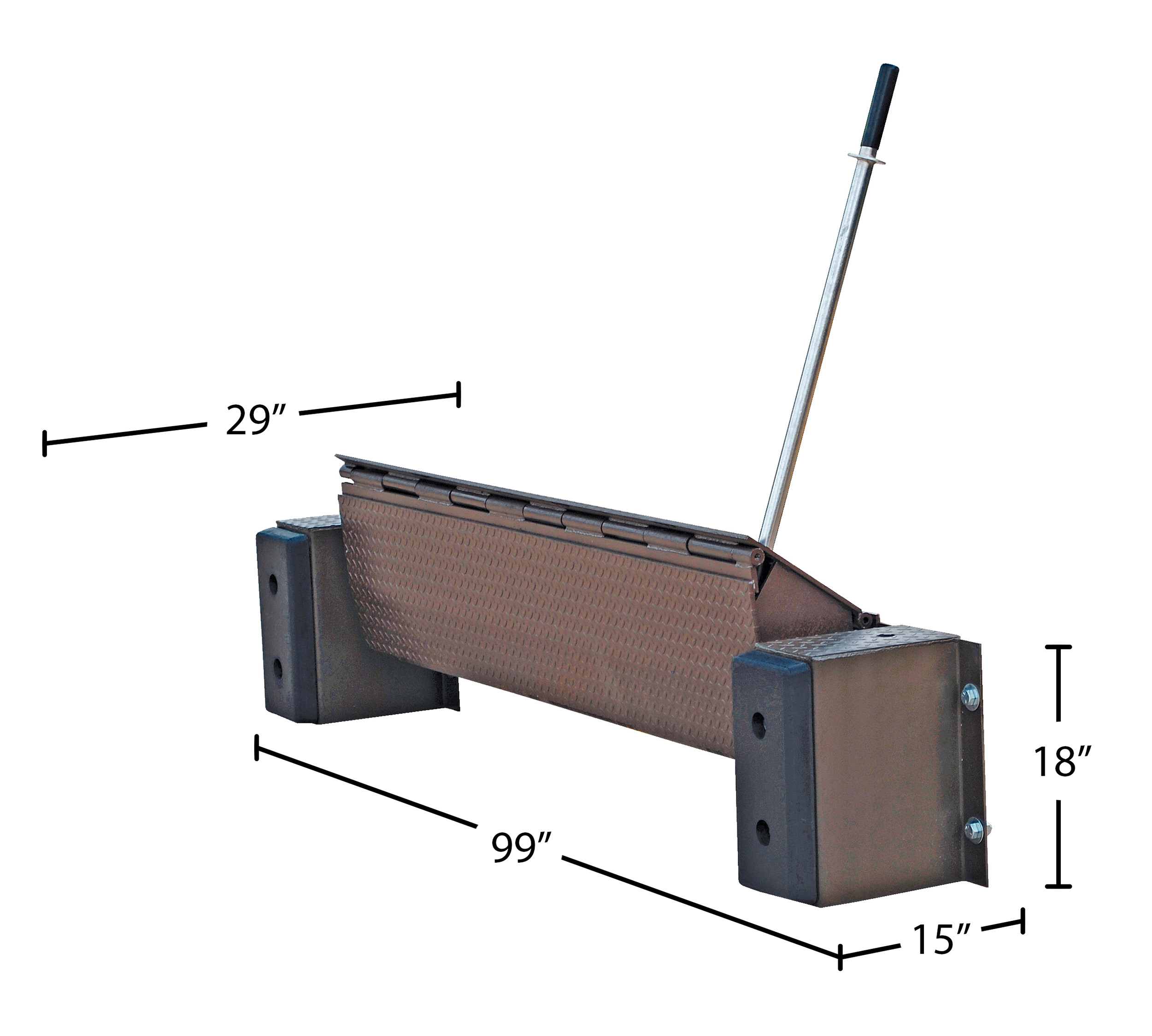

model: FM-2072

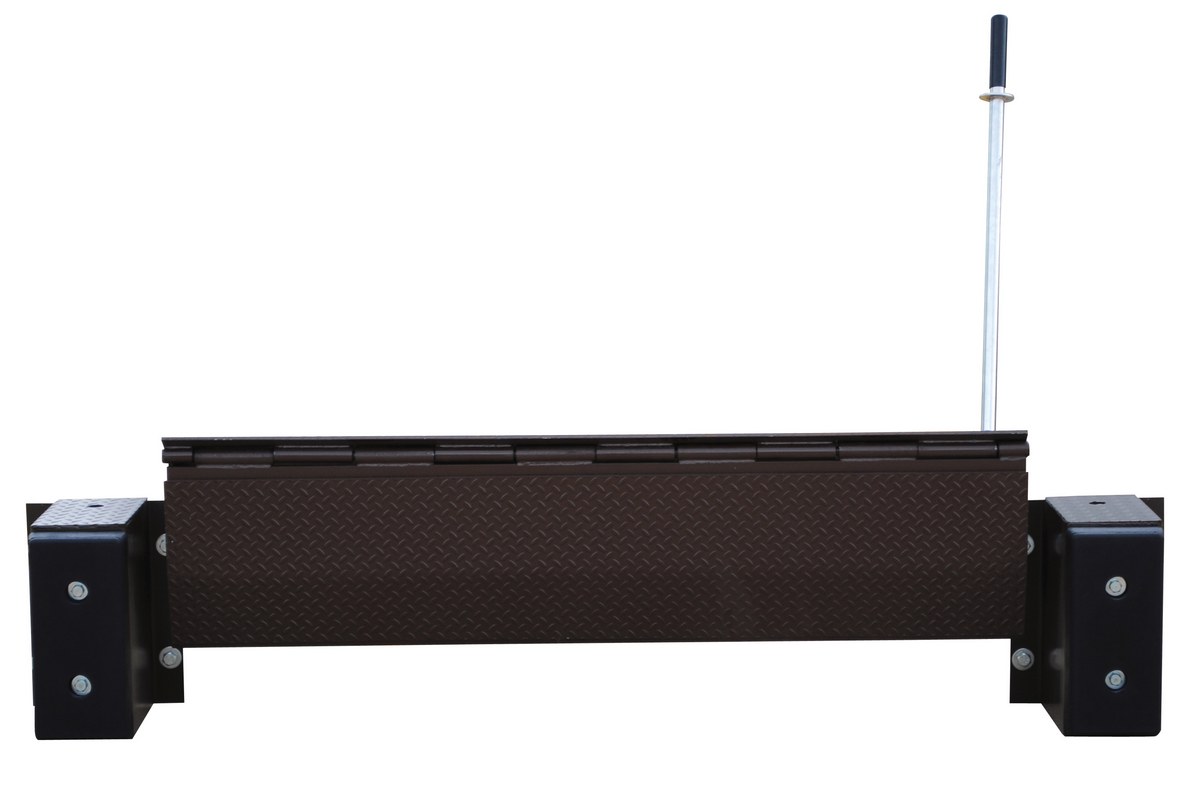

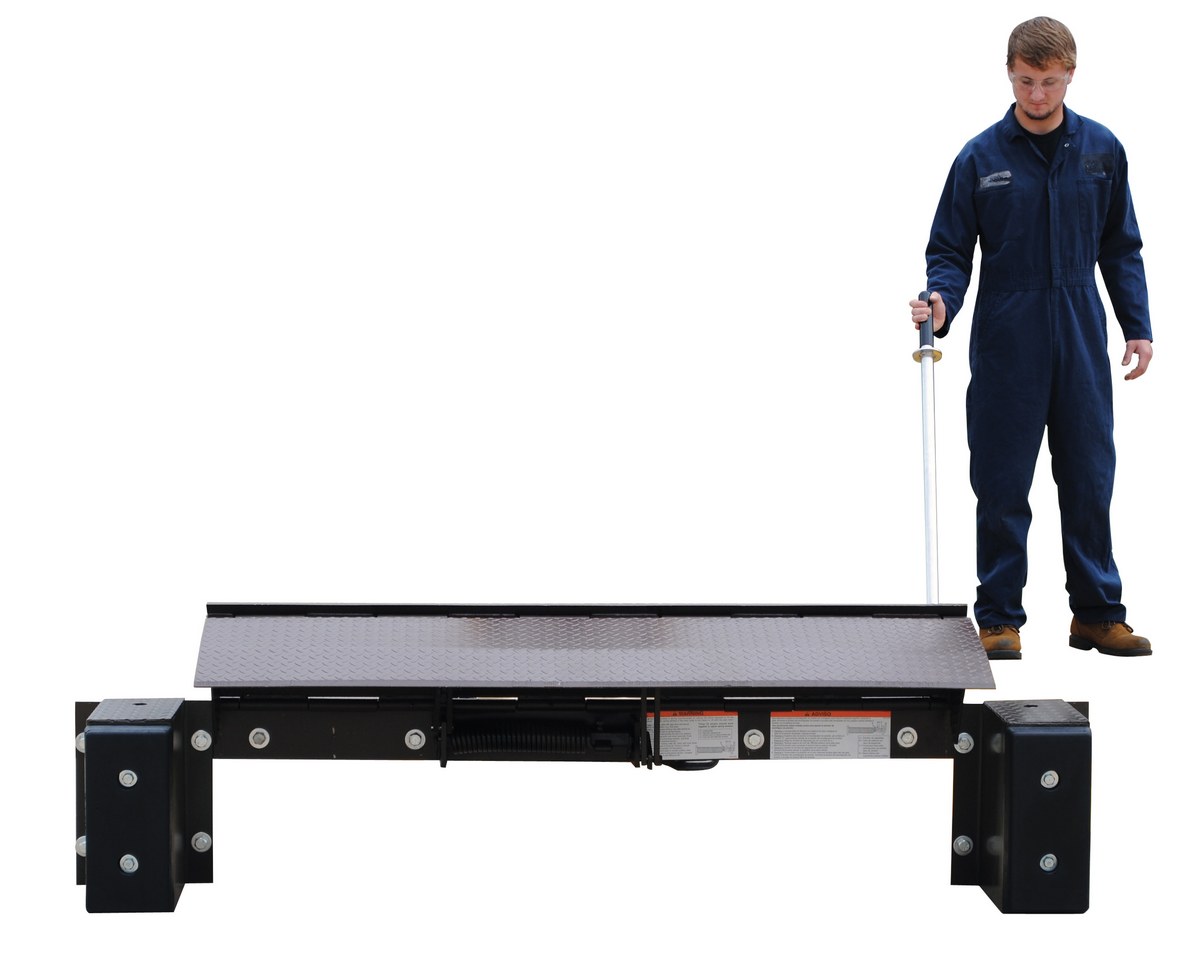

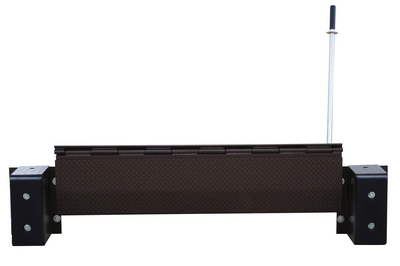

FM-2072_E.jpg FM-2072_A.jpg FM-2072_B.jpg FM-2072_C.jpg FM-2072_D.jpg FM_Z.gif FM-2072_1.jpg FM-2072_F.jpg More Images +
Edge-O-Dock Levelers
SERIES: FM, PE, PP

FM-2072The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. The leveler comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) with a (36-5/8") long ramping length available for smaller grade on PP and PE series levelers. A steel dock edge, approach ramp, or approach plate is necessary on the dock face, and a continuous weld (completely across the top, and down both sides of the mounting plate) is required for proper installation. Additionally, the mounting plate must be bolted to the dock face, via the anchor holes provided on the mounting plate.

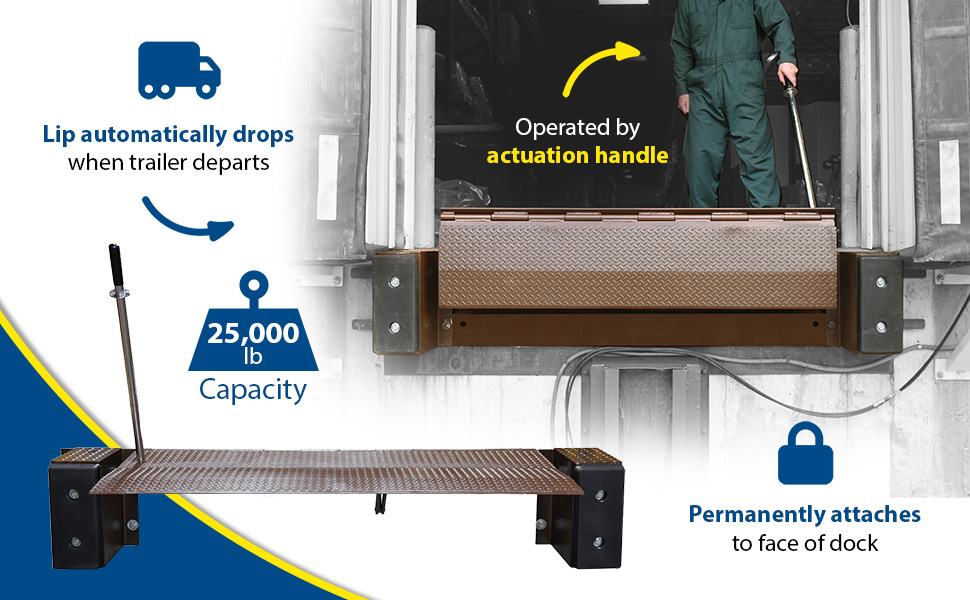

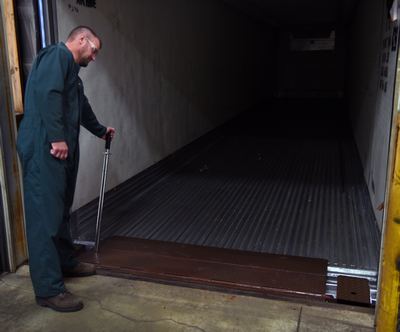

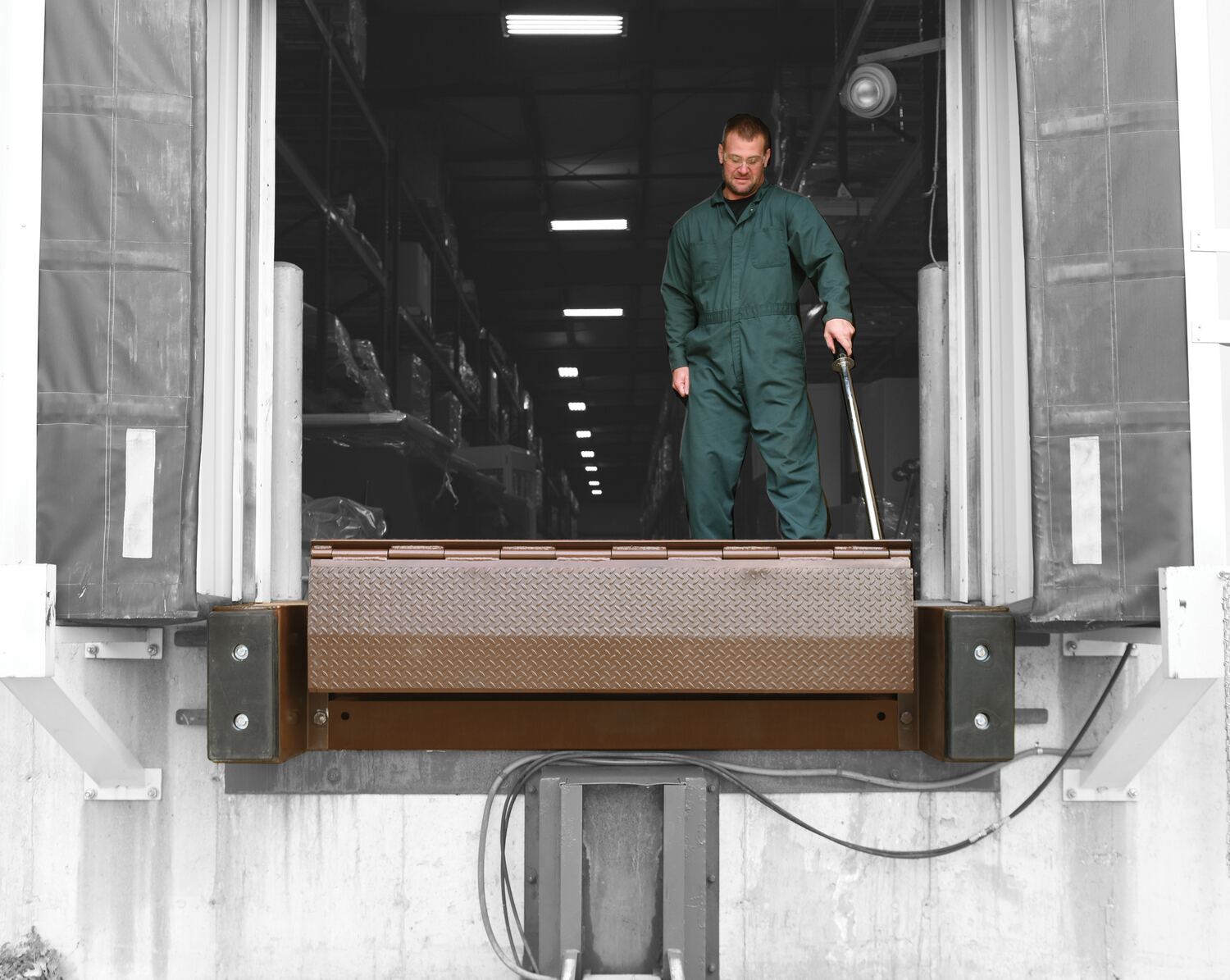

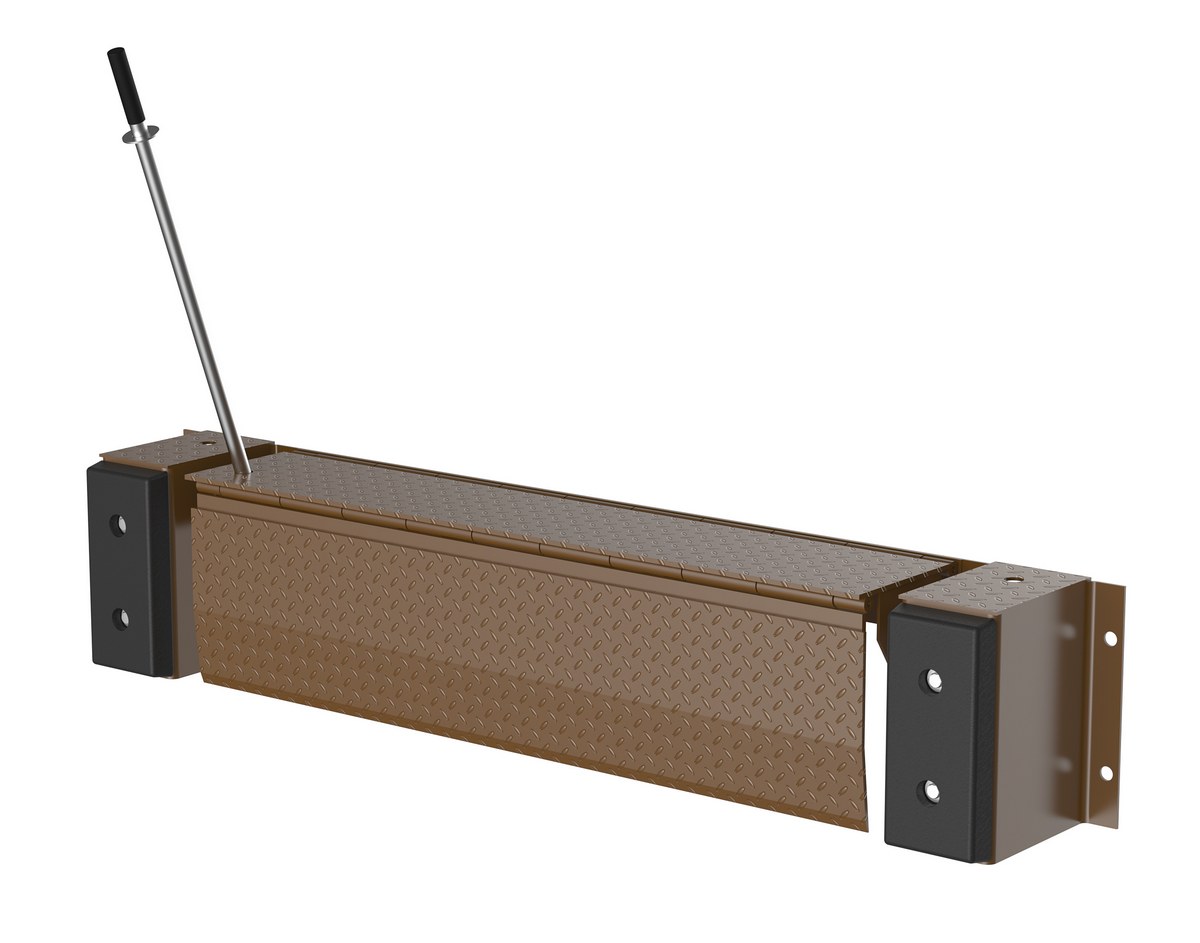

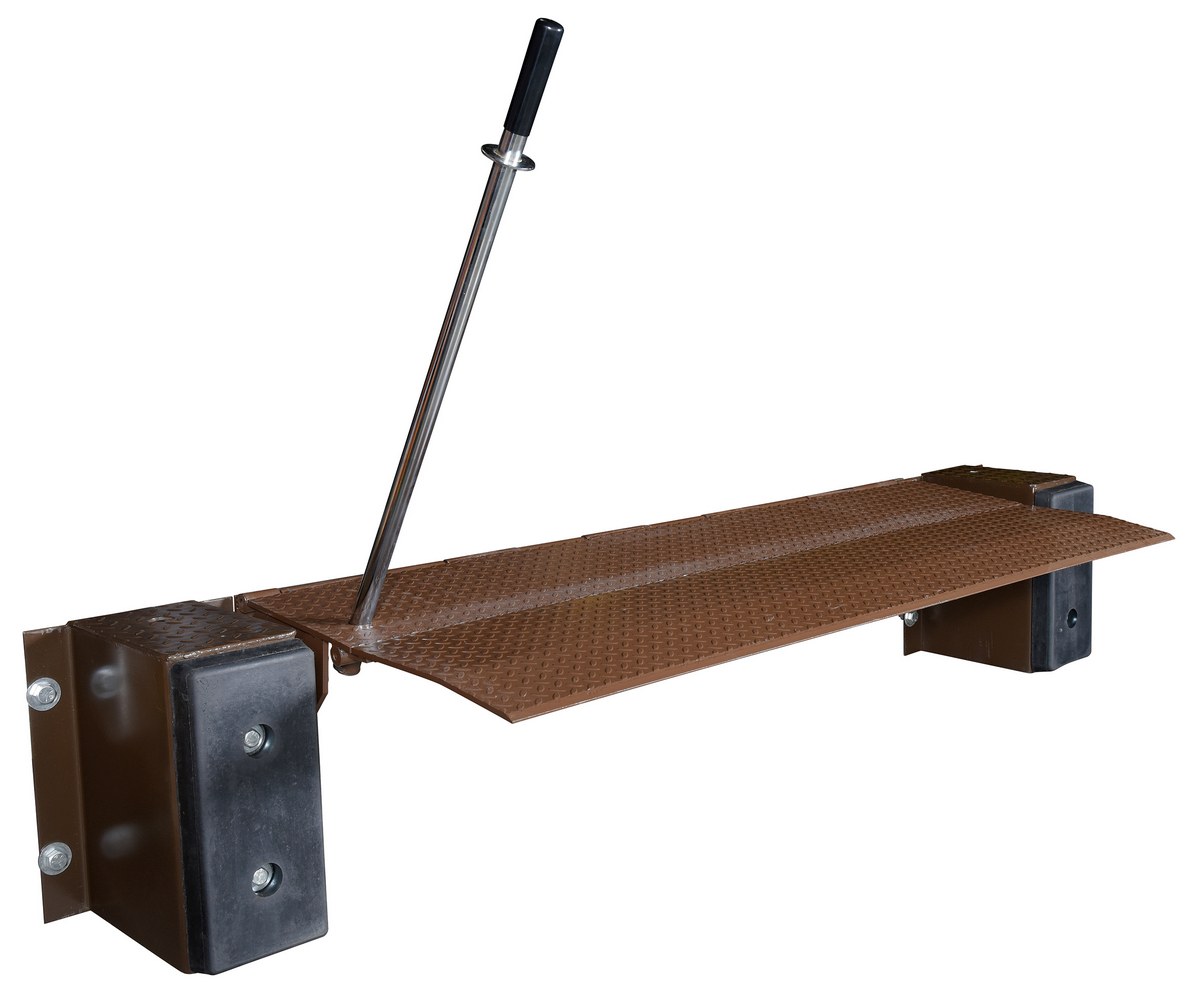

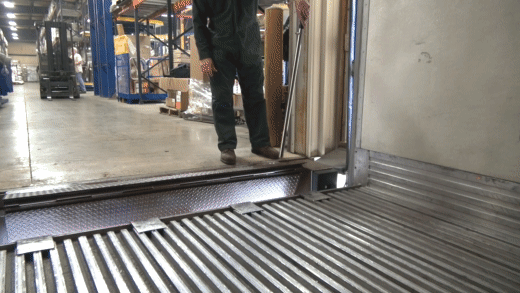

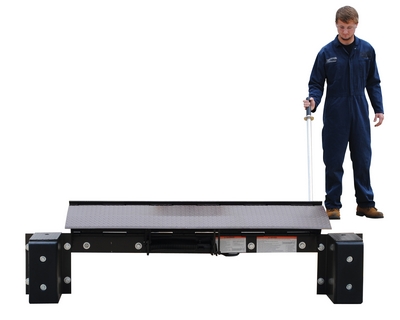

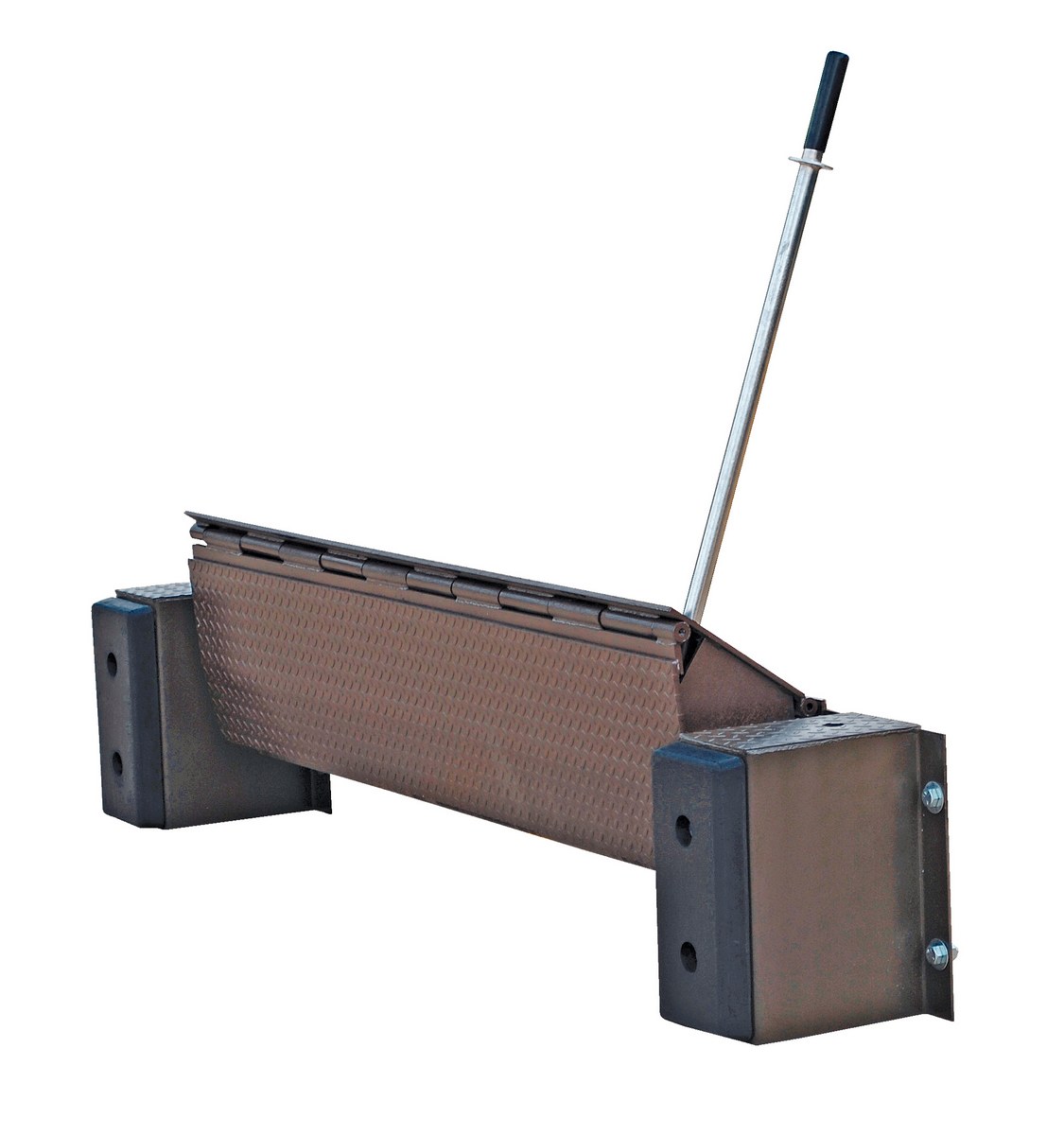

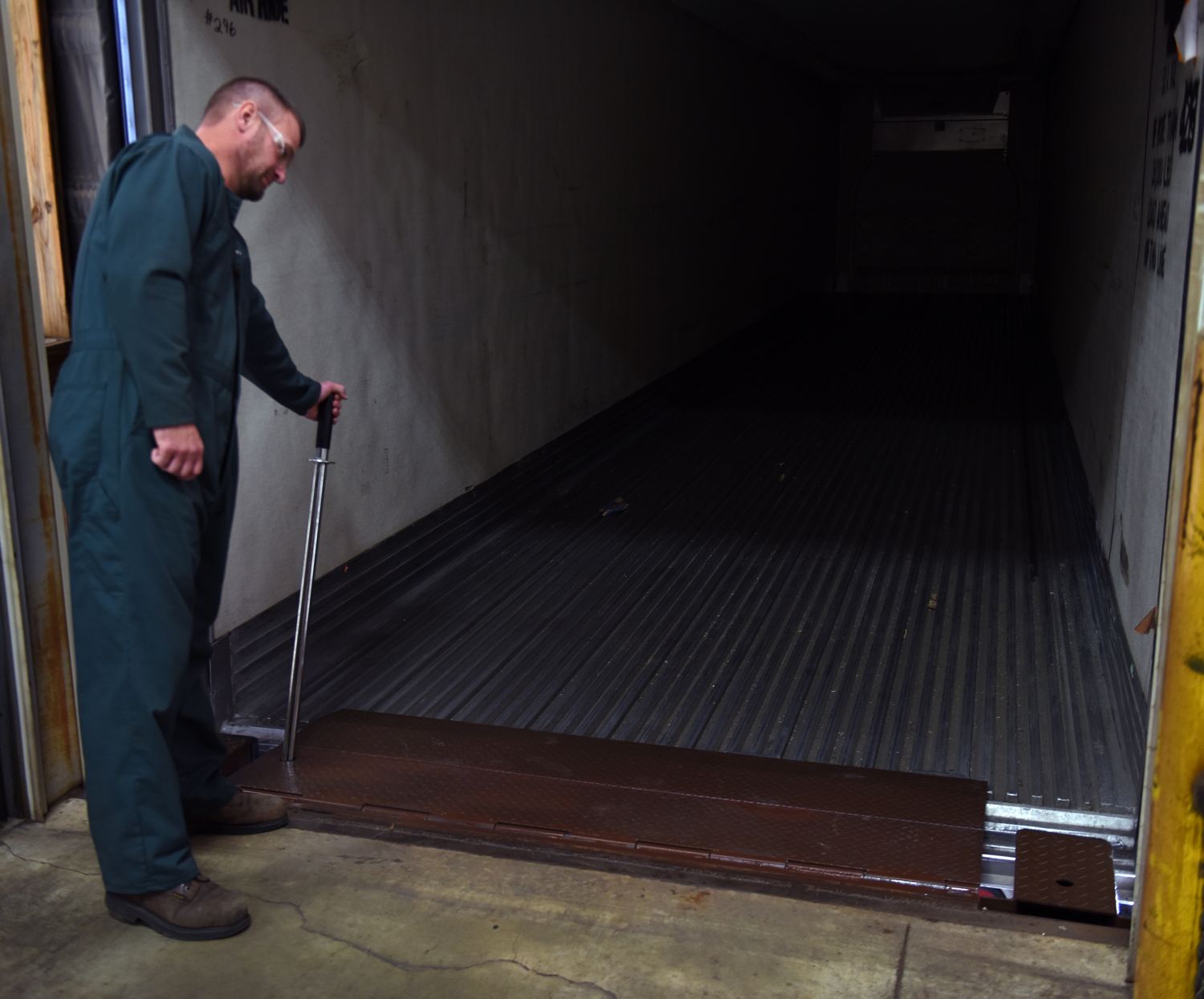

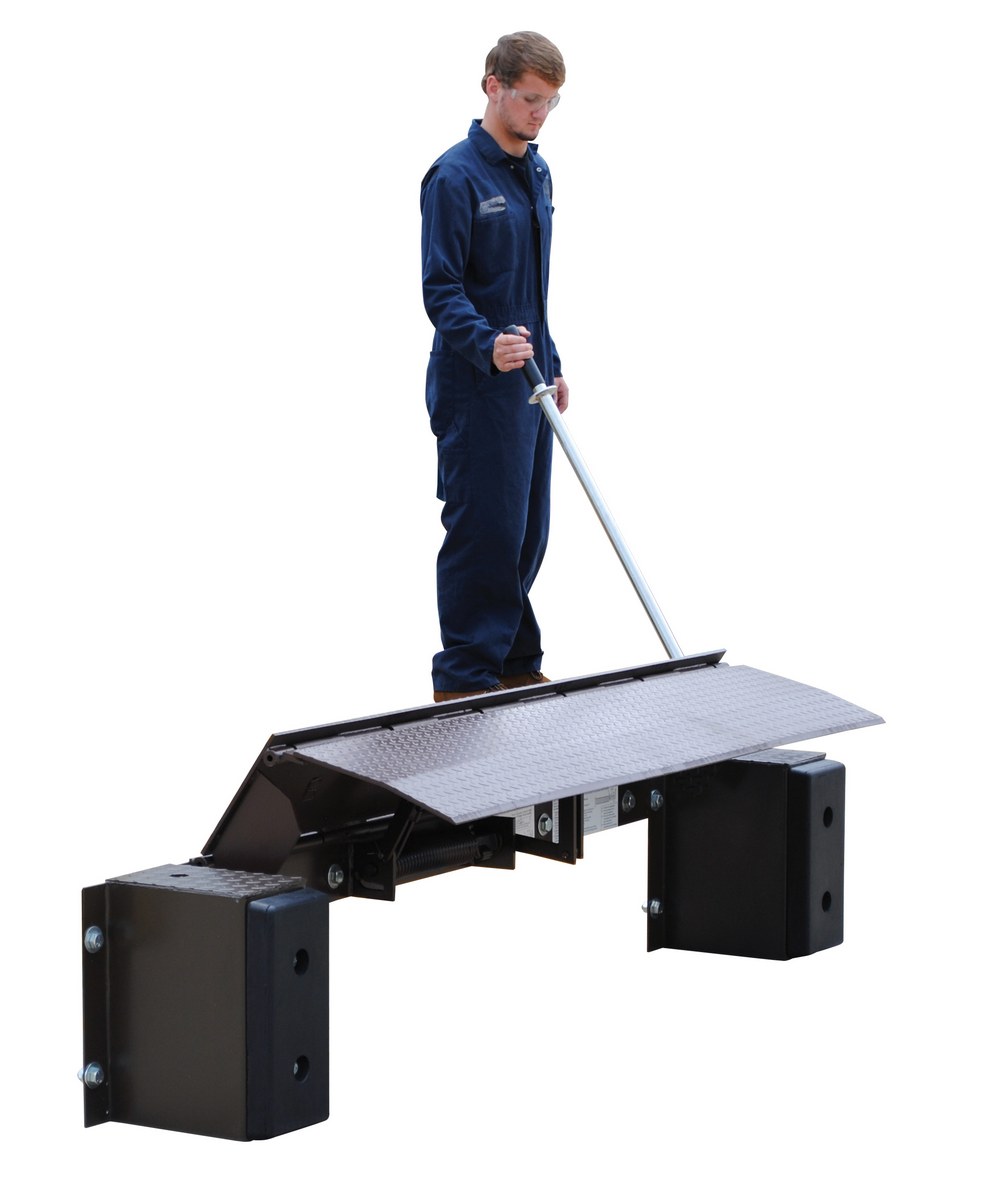

The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

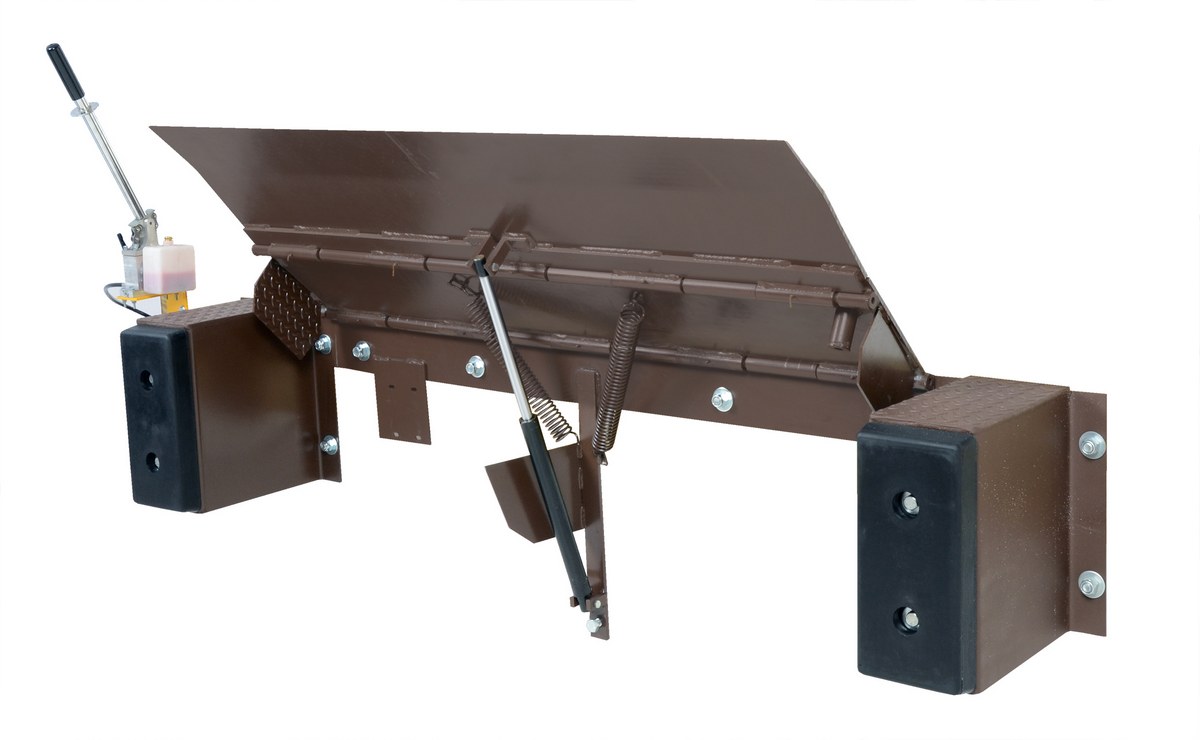

The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position.

The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge

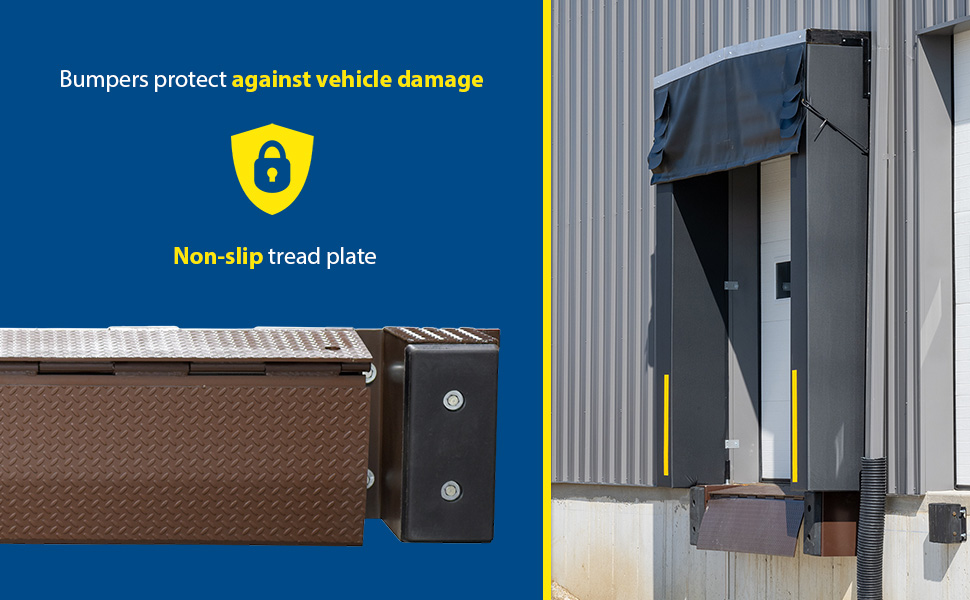

  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks
Edge-O-Dock Levelers

model: FM-2072

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FM-0648 FM-06481 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 48 In. Ramp Width 6,000 Lb. Capacity BrownUniform Capacity (lb.): 6000
Service range above dock (in.): 5		348
FM-2066 FM-20661 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 66 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		514
FM-2072 POPULAR FM-20721 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 72 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		523
FM-2078 FM-20781 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 78 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		560
FM-2566 FM-25661 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 66 In. Ramp Width 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		556

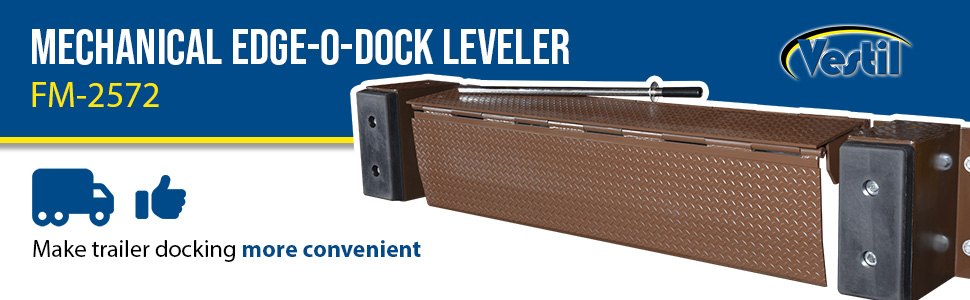

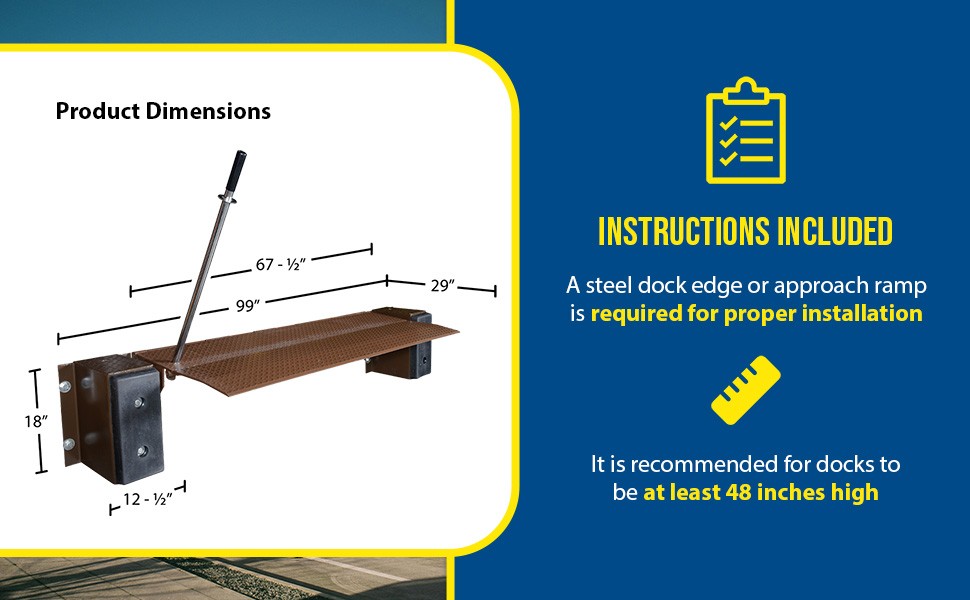

FM-2572 FM-25721 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 72 In. Ramp Width 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		585
FM-3066 FM-30661 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 66 In. Ramp Width 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		663

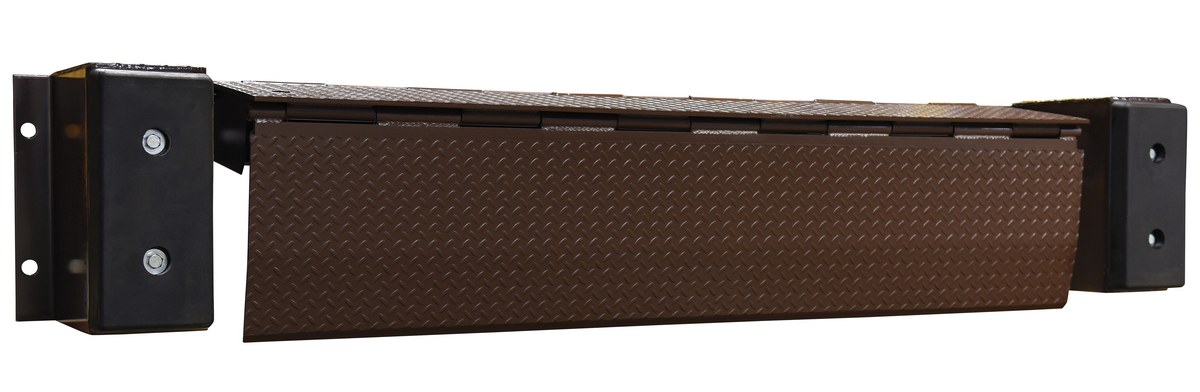

FM-3072 FM-30721 Year Limited WarrantySteel Mechanical Edge O Dock Leveler 72 In. Ramp Width 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		709
PE-1572-36 PE-1572-361 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 26-3/4 In. x 98 In. x 27-1/2 In. 15,000 Lb. Capacity BrownUniform Capacity (lb.): 15000
Service range above dock (in.): 5		749
PE-2066 PE-20661 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		581
PE-2072 PE-20721 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		601
PE-2078 PE-20781 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 105 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		567
PE-2566 PE-25661 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		619

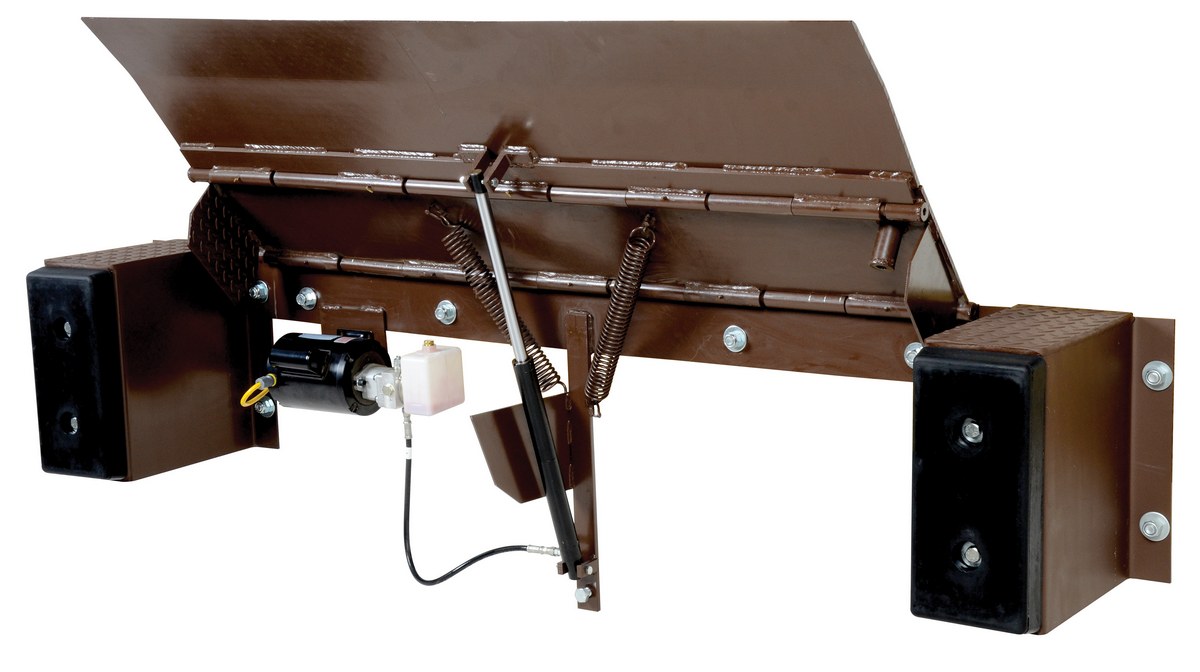

PE-2572 PE-25721 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		649

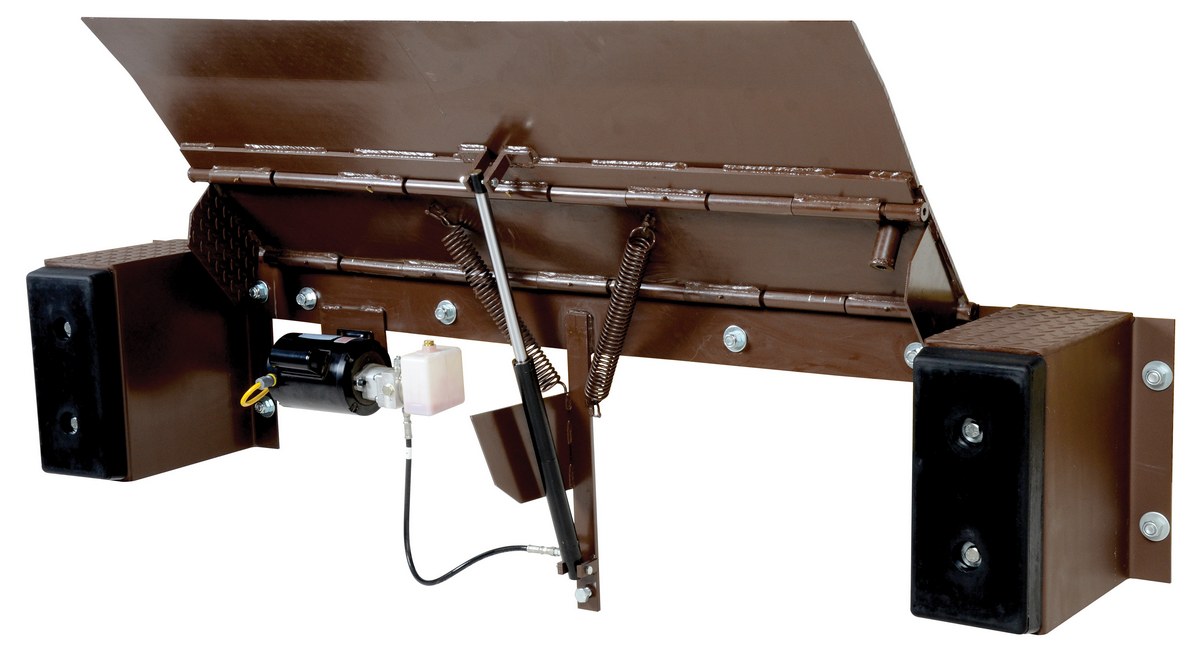

PE-2572-36 PE-2572-361 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 26-3/4 In. x 98 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		826
PE-3066 PE-30661 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		745
PE-3072 PE-30721 Year Limited WarrantySteel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		782

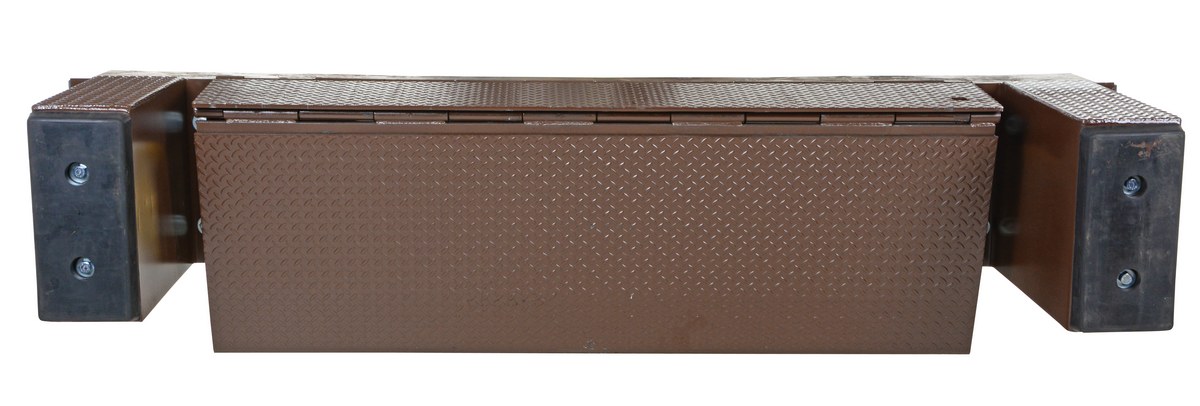

PP-1572-36 PP-1572-361 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 15,000 Lb. Capacity BrownUniform Capacity (lb.): 15000
Service range above dock (in.): 5		743
PP-2066 PP-20661 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		542
PP-2072 PP-20721 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		566
PP-2078 PP-20781 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 78 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		578
PP-2566 PP-25661 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		600
PP-2572 PP-25721 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		615
PP-2572-36 PP-2572-361 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		780
PP-3066 PP-30661 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29-13/16 In. Ramp Length 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		998
PP-3072 PP-30721 Year Limited WarrantySteel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29-13/16 In. Ramp Length 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		725

* 36 Denotes ramp length of 36-5/8" smaller grade ** Overall width is usable width plus 27"

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FM-0648
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Service range above dock (in.): 5
Uniform Capacity (lb.): 6000
Service range above dock (in.): 5

FM-2066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

FM-2072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

FM-2078
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

FM-2566
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

FM-2572
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

FM-3066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5

FM-3072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5

PE-1572-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Service range above dock (in.): 5
Uniform Capacity (lb.): 15000
Service range above dock (in.): 5

PE-2066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PE-2072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PE-2078
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PE-2566
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PE-2572
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PE-2572-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PE-3066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5

PE-3072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5

PP-1572-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Service range above dock (in.): 5
Uniform Capacity (lb.): 15000
Service range above dock (in.): 5

PP-2066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PP-2072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PP-2078
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5
Uniform Capacity (lb.): 20000
Service range above dock (in.): 5

PP-2566
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PP-2572
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PP-2572-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5
Uniform Capacity (lb.): 25000
Service range above dock (in.): 5

PP-3066
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5

PP-3072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
Uniform Capacity (lb.): 30000
Service range above dock (in.): 5
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

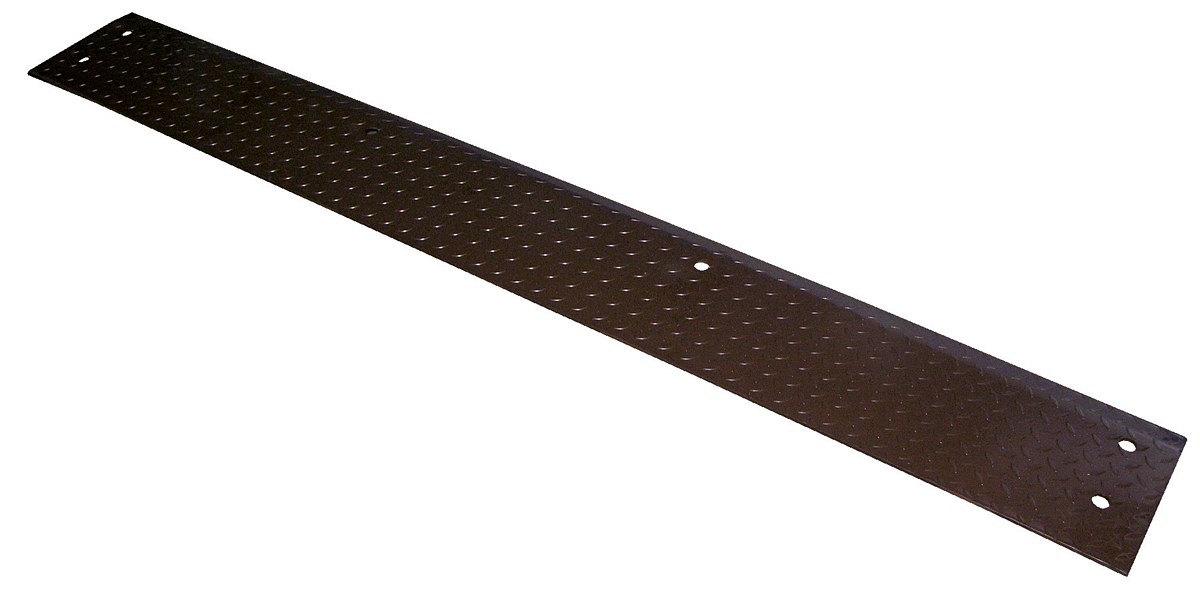

AP PP-3072Steel Edge-O-Dock Leveler Approach Plate 12 In. x 96 In. x 1… Limited Warranty121
AP-BE PP-3072Steel Dock Leveler Approach Plate with Bevel 12 In. x 96 In.… Limited Warranty130
CE PP-3072Steel Curb Edge 6 In. x 96 In. Projection For Edge-O-Dock Le… Limited Warranty90

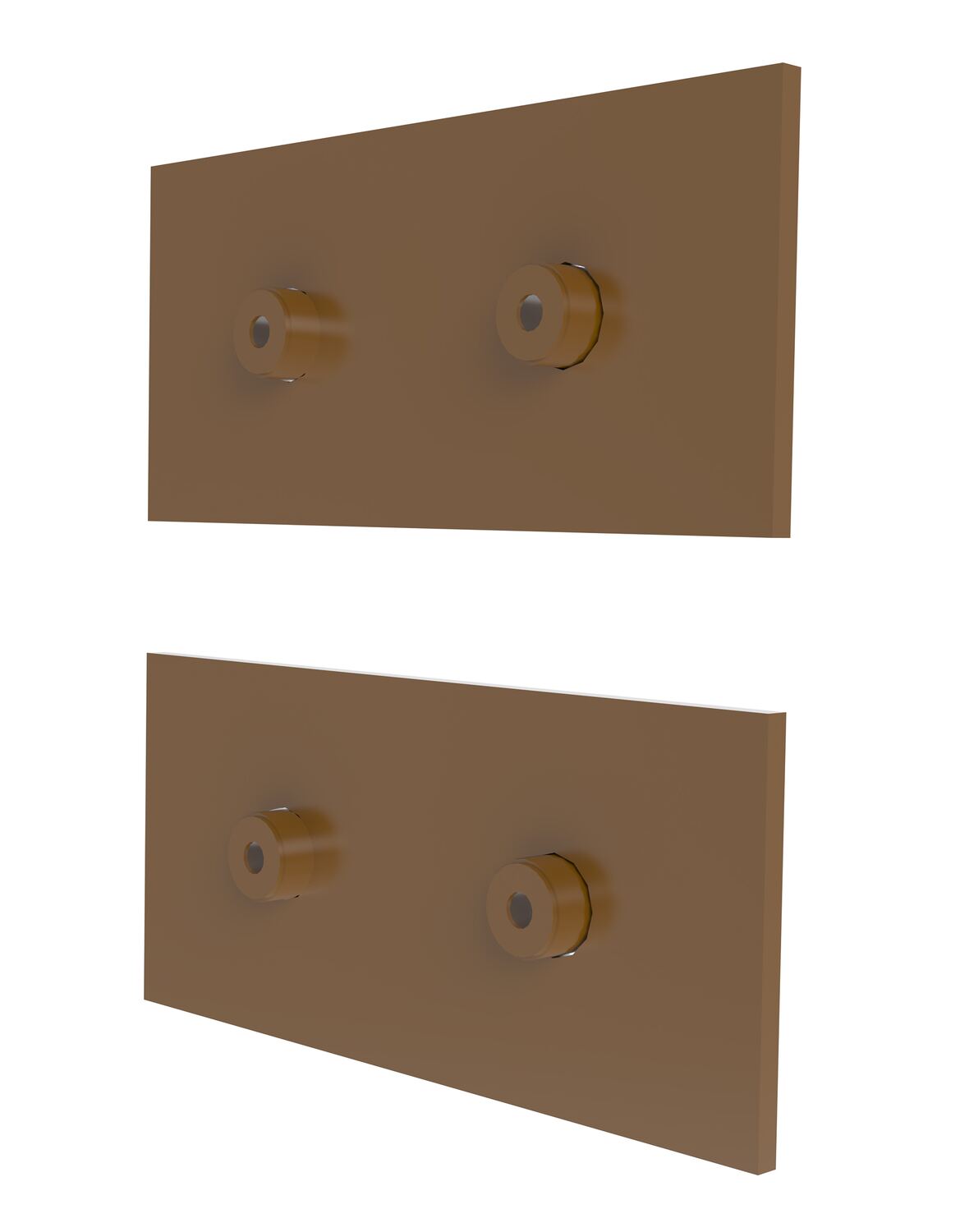

EOD-SF PP-3072Factory Installed Steel Face For Bumper 8 In. x 18 In. x 1.7… Limited Warranty14

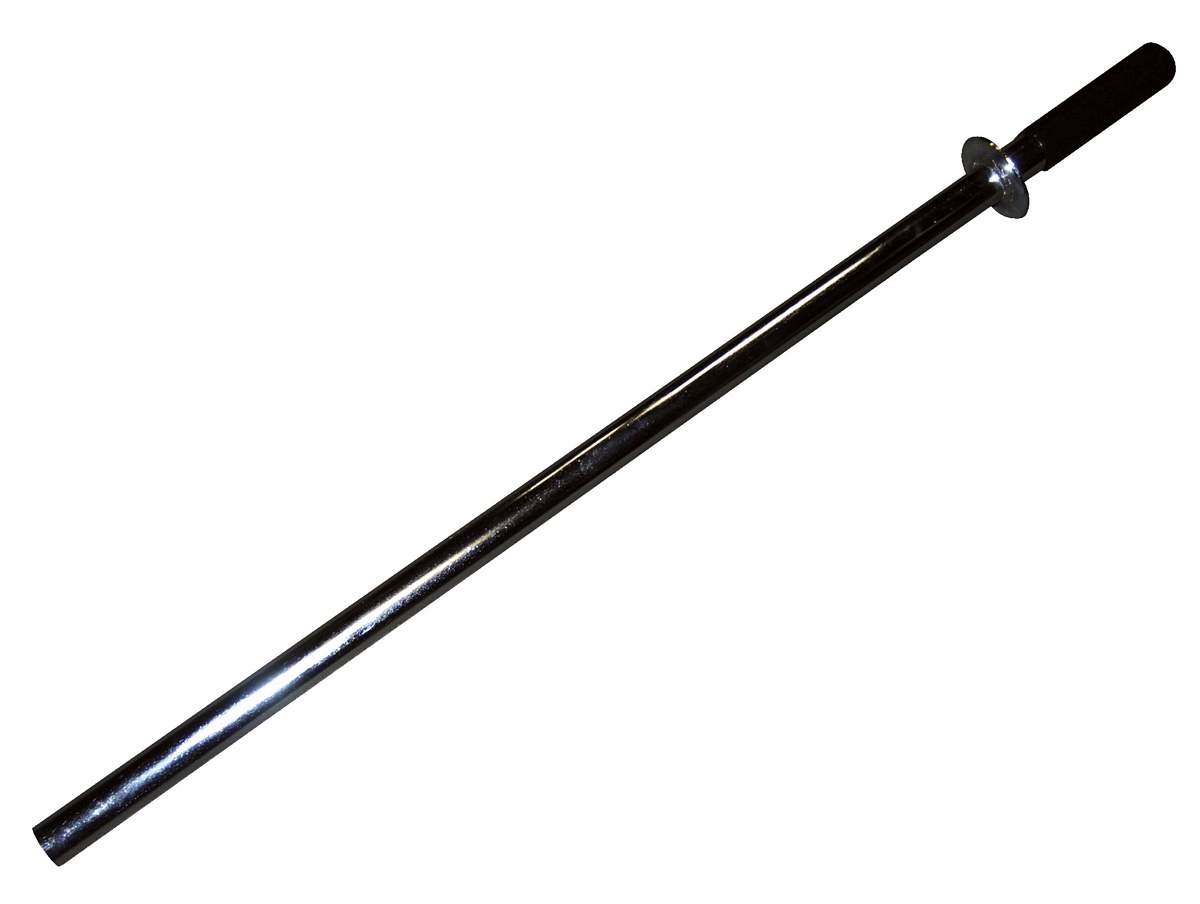

FM-BAR PP-3072Steel Actuation Handle 41-1/2 In. Length For Edge-O-Dock Lev… Limited Warranty13

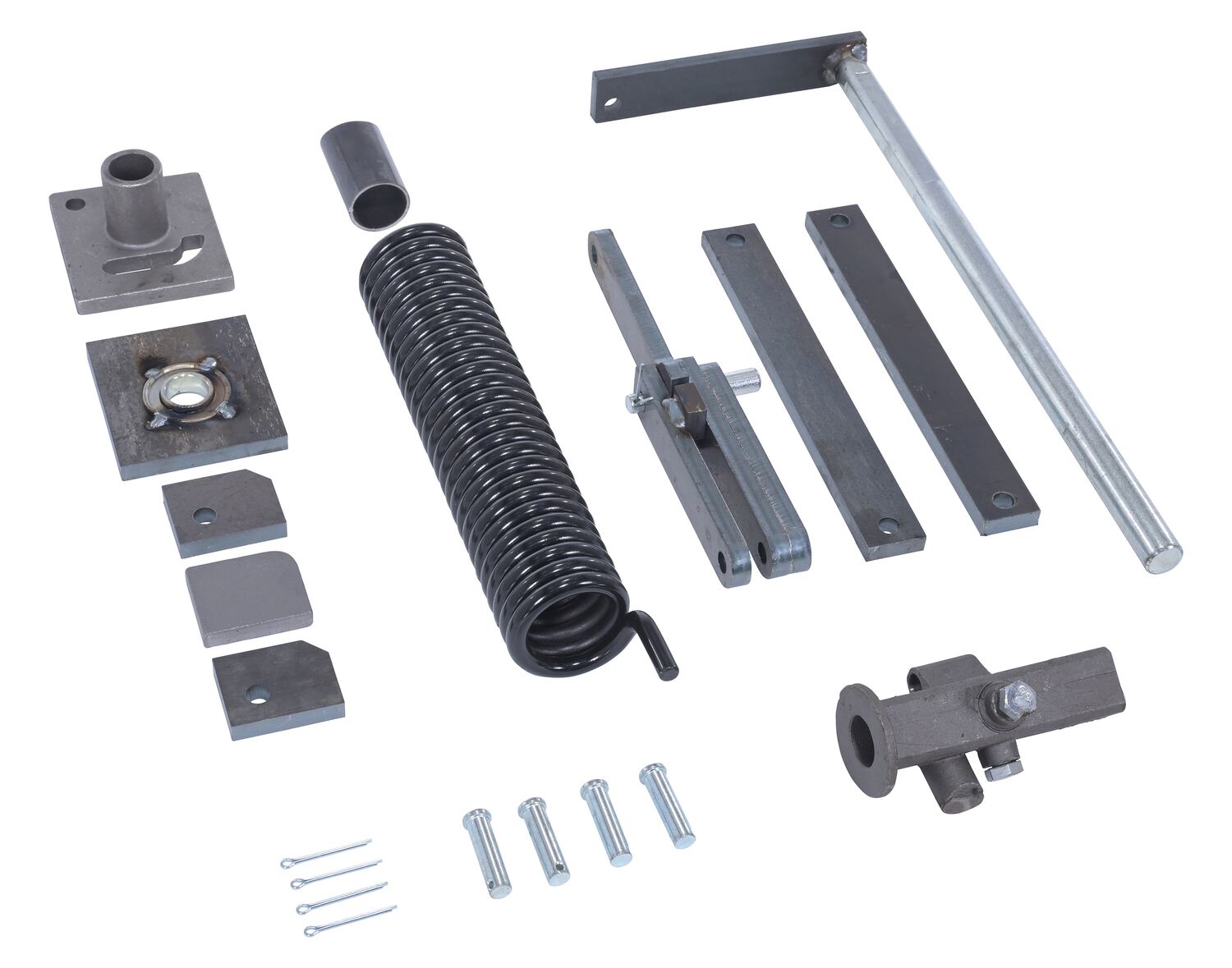

FM-FM PP-3072Conversion Kit Hook Style to Handle Style For Edge-O-Dock Le… Limited Warranty12

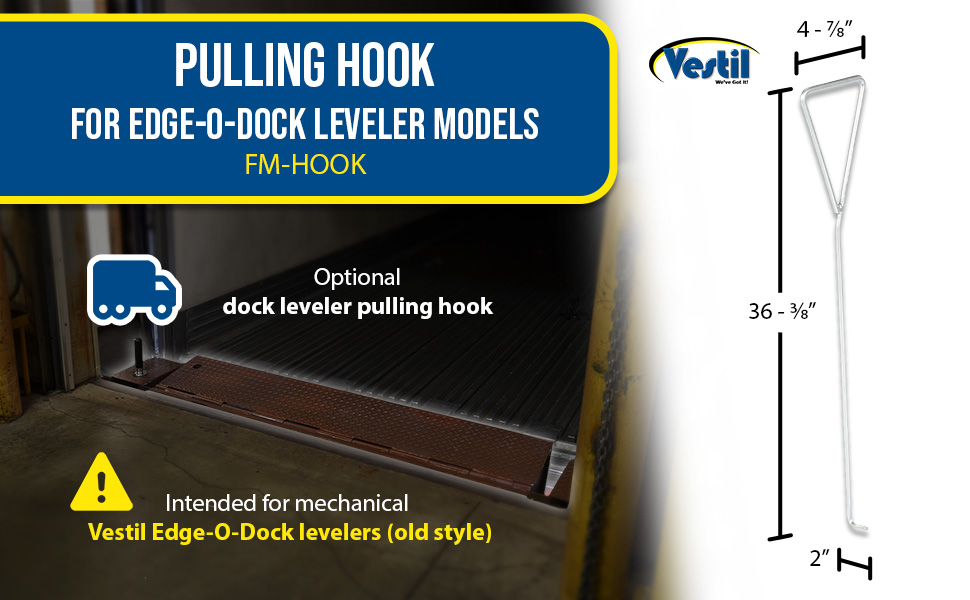

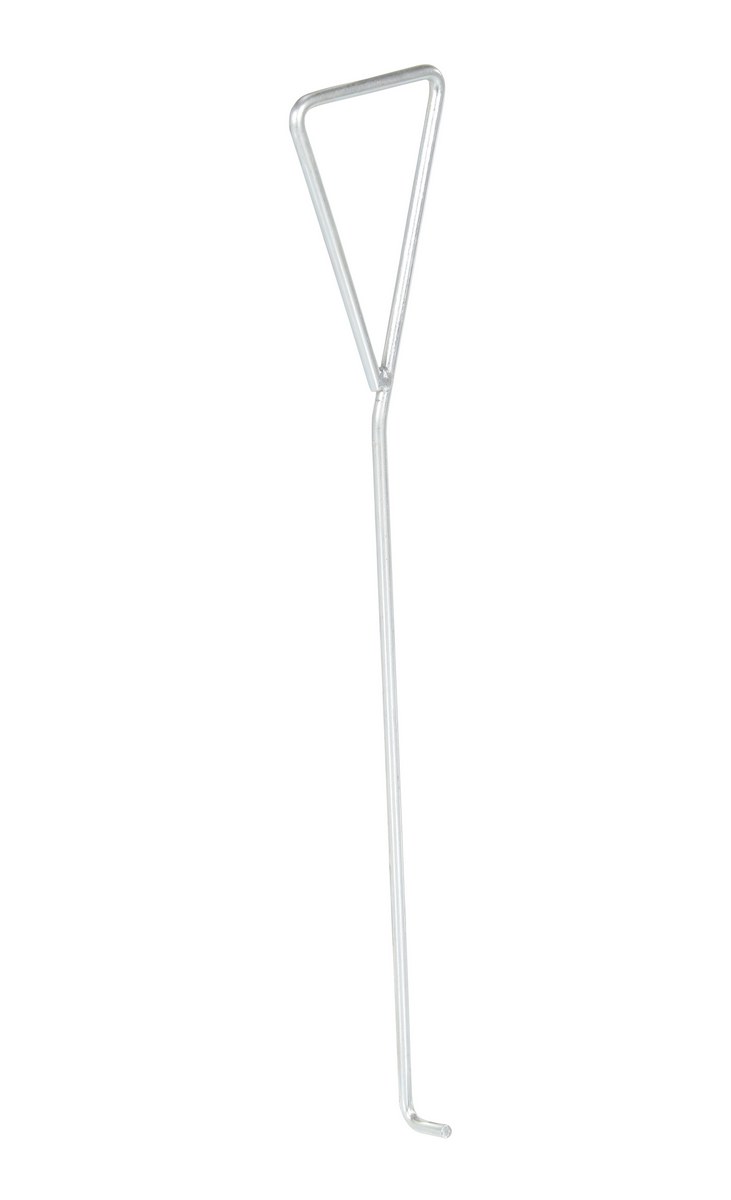

FM-HOOK PP-3072Pulling Hook For Edge-O-Dock Leveler Models Silver Limited Warranty3

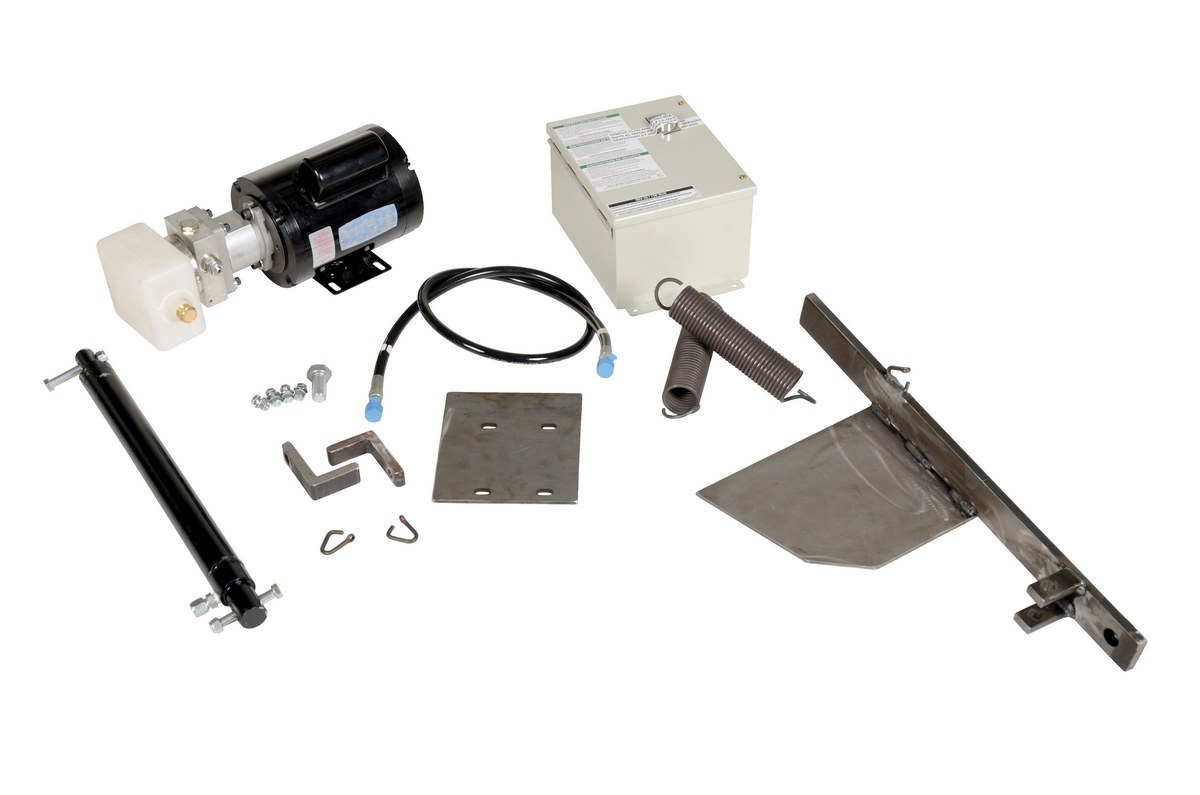

FM-PE PP-3072Conversion Kit Mechanical To Electric For Edge-O-Dock Levele… Limited Warranty89

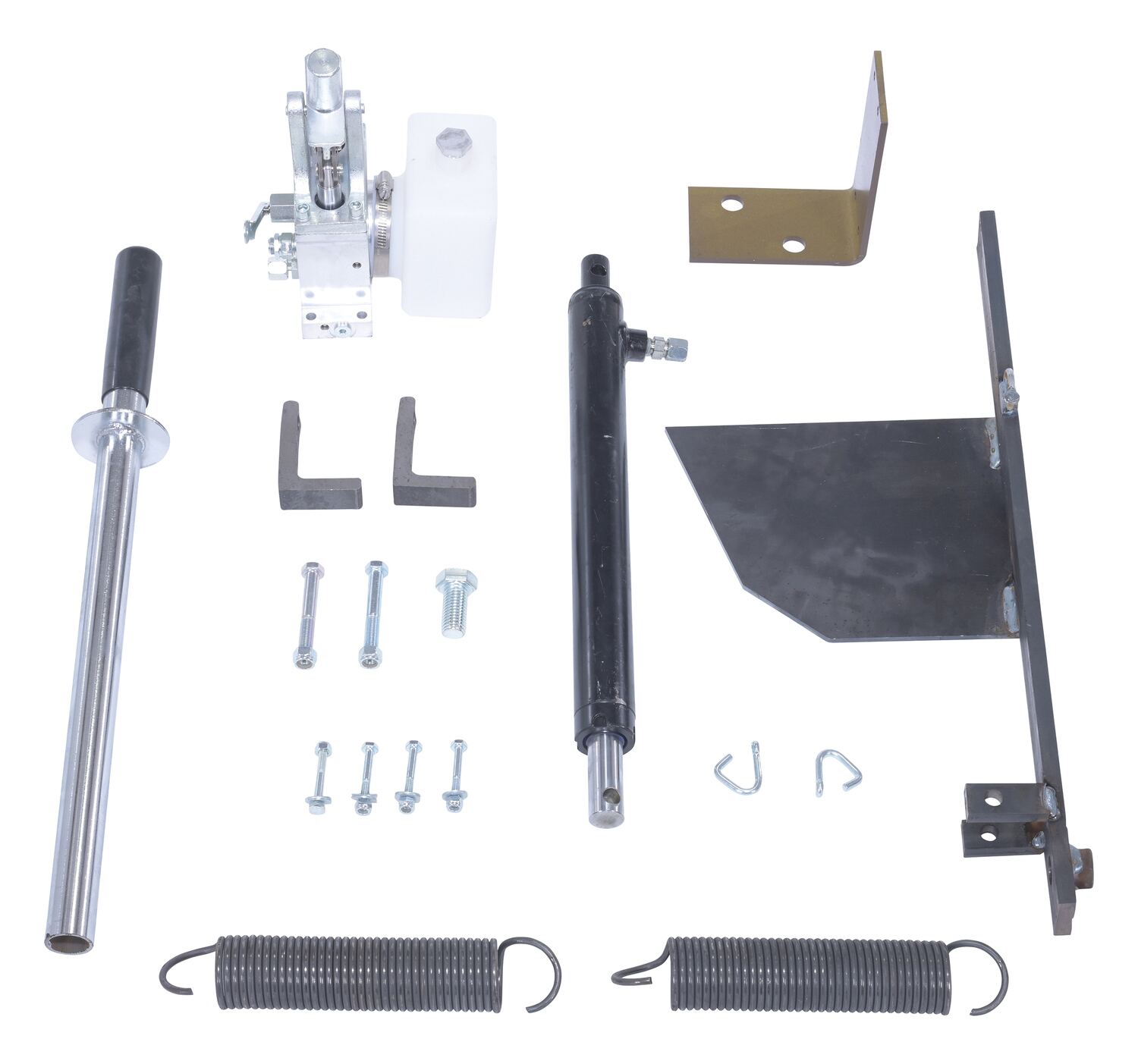

FM-PP PP-3072Conversion Kit Mechanical To Hand Pump Edge-O-Dock Leveler M… Limited Warranty53

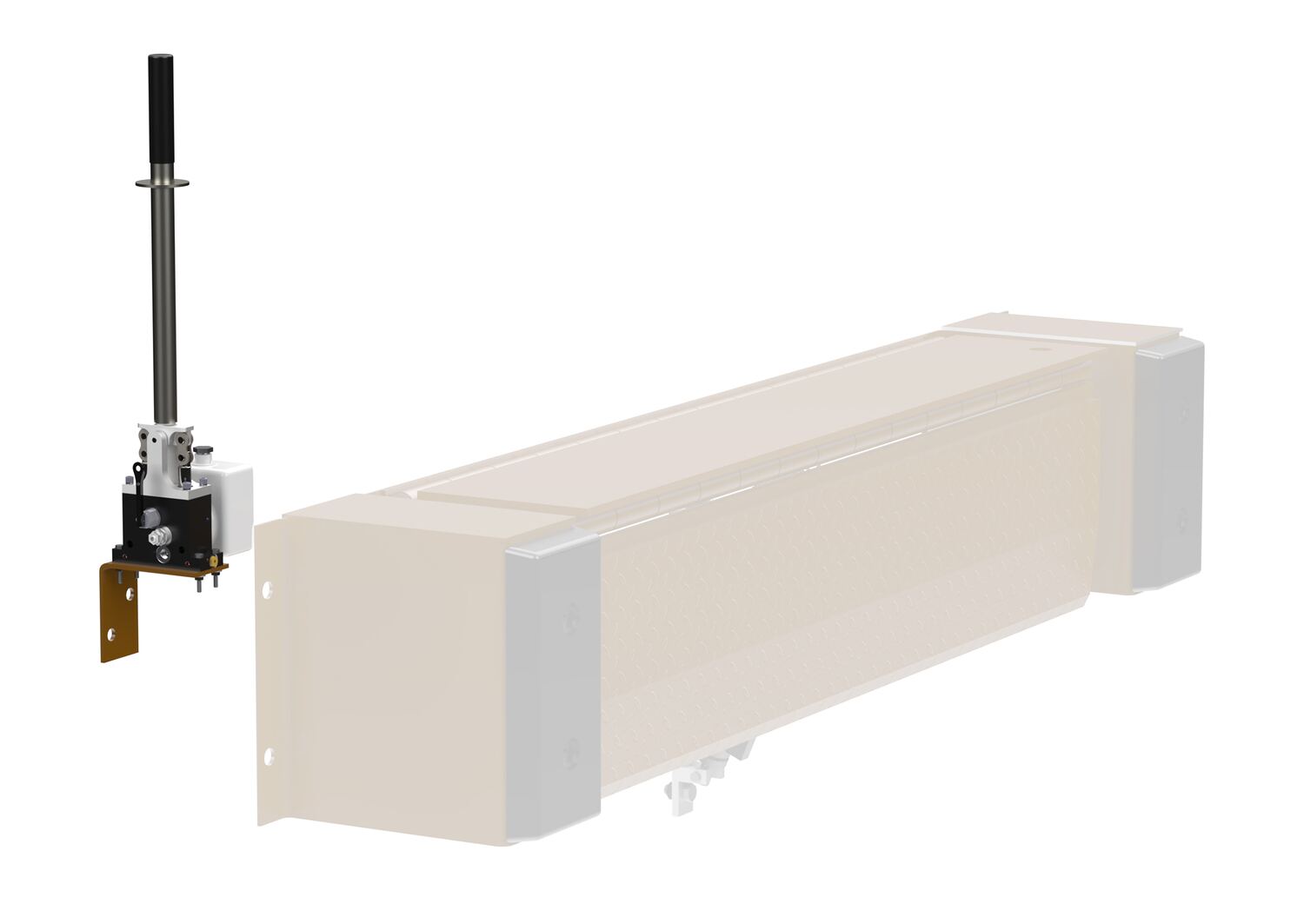

PP-PE PP-3072Conversion Kit For Edge-O-Dock Leveler Hand Pump To Electric Limited Warranty56

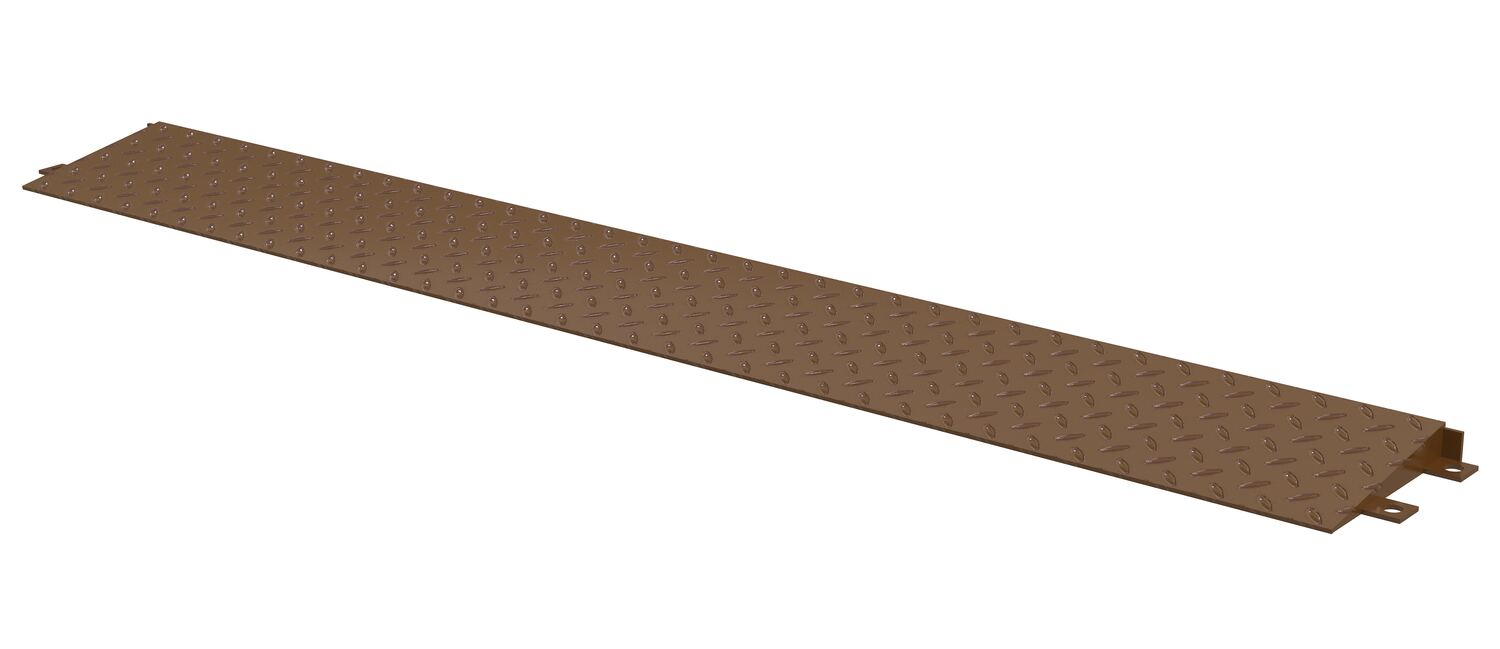

RAMP-2 PP-3072Steel Edge-O-Dock Leveler Approach Ramp 12 In. x 98 In. x 2 … Limited Warranty120

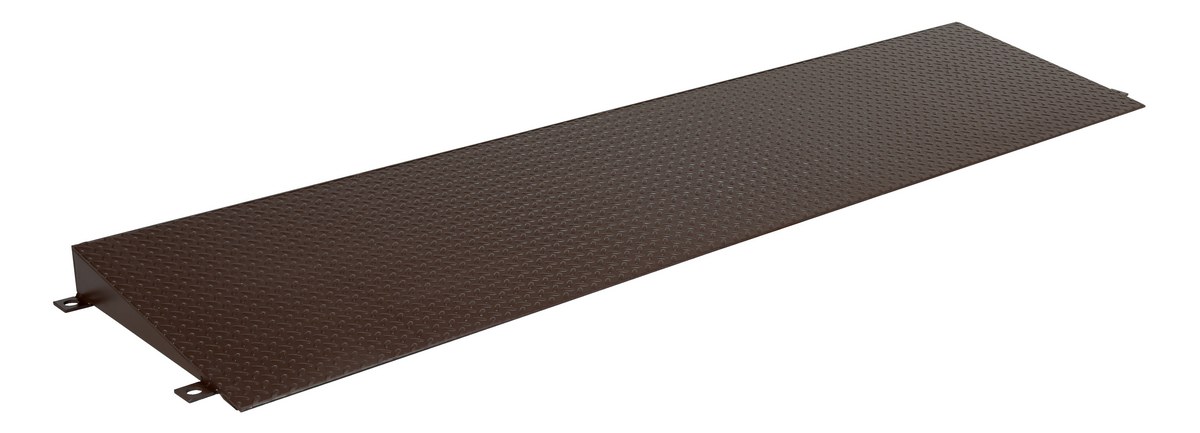

RAMP-4 PP-3072Steel Edge-O-Dock Leveler Approach Ramp 24 In. x 98 In. x 4 … Limited Warranty215

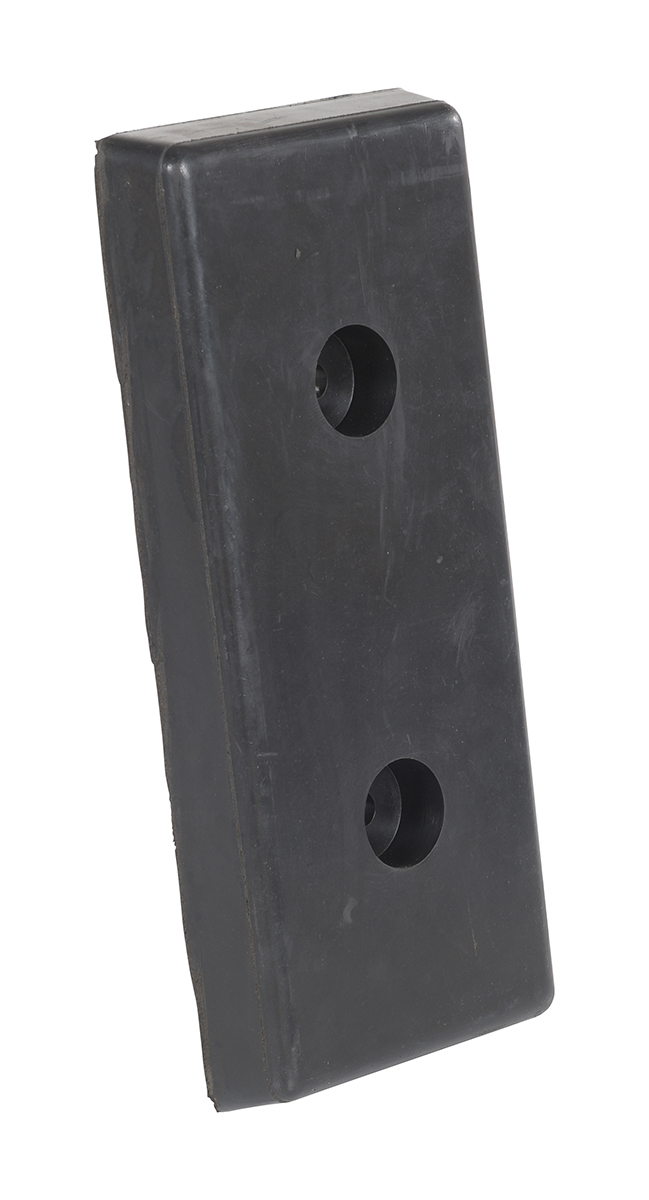

RB PP-3072Rubber Edge-O-Dock Leveler Bumper 8 In. x 18 In. x 2 In. Bla… Limited Warranty11

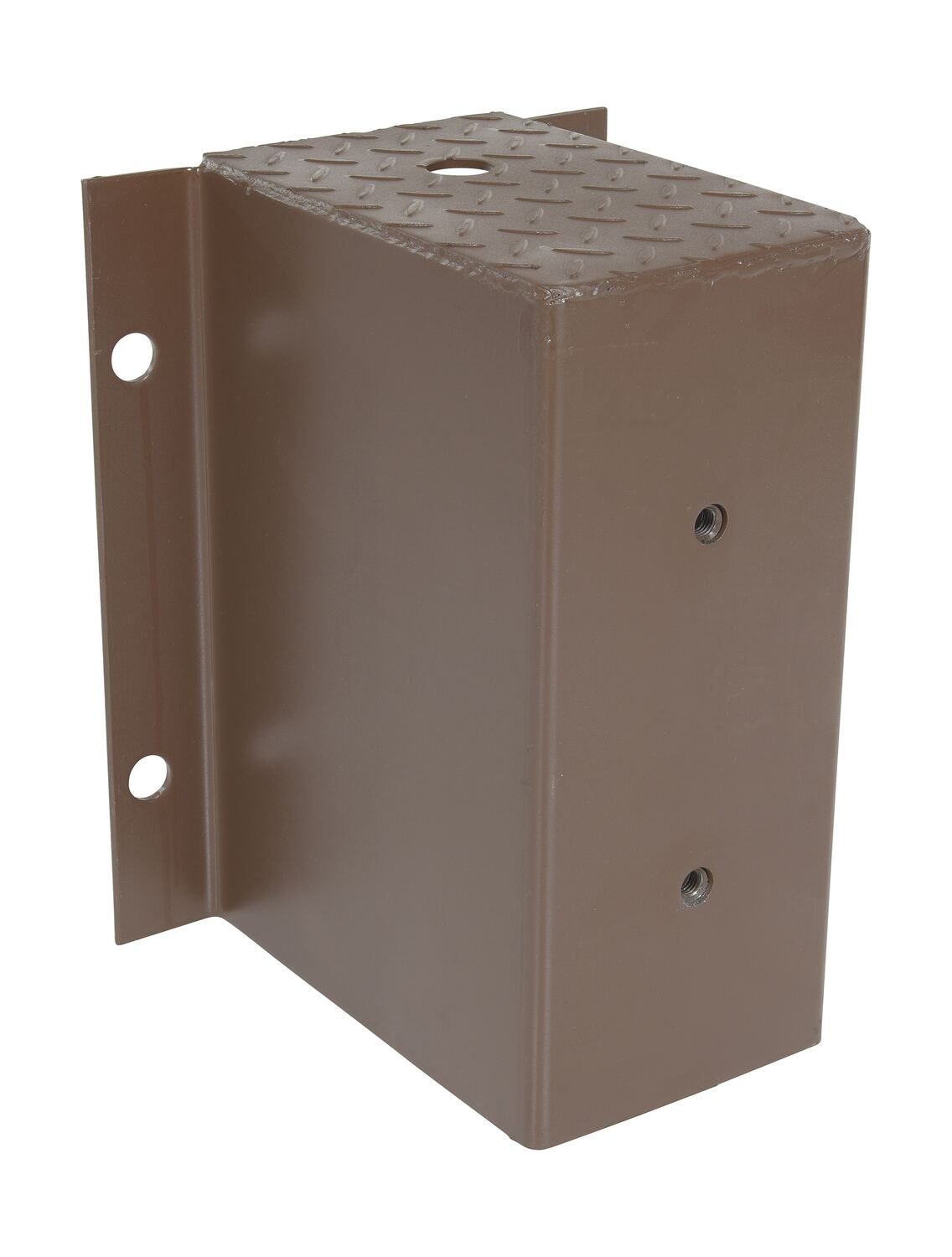

EOD-BB PP-3072Factory Installed Steel Bumper Box Without Pad For Mechanica… Limited Warranty58
Model Image Description Wt. (lbs)
B-818-SF 16"Wx5"Hx2-1/2"P (Steel Faced Molded Bumper) 21
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

FM

PE

PP

Survey Sheets

FM

Engineering Drawings

AP

AP-BE

CE

FM-0648

FM-2066

FM-2072

FM-2078

FM-2566

FM-2572

FM-3066

FM-3072

FM-HOOK

PE-1572-36

PE-2066

PE-2072

PE-2078

PE-2566

PE-2572

PE-2572-36

PE-3066

PE-3072

PP-1572-36

PP-2066

PP-2072

PP-2078

PP-2566

PP-2572

PP-2572-36

PP-3066

PP-3072

RAMP-2

RAMP-4

EOD-SF

Testing Certificates

AP

AP-BE

CE

EOD-SF

FM-0648

FM-2066

FM-2072

FM-2078

FM-2566

FM-2572

FM-3066

FM-3072

FM-BAR

FM-FM

FM-HOOK

FM-PE

FM-PP

PE-1572-36

PE-2066

PE-2072

PE-2078

PE-2566

PE-2572

PE-2572-36

PE-3066

PE-3072

PP-1572-36

PP-2066

PP-2072

PP-2078

PP-2566

PP-2572

PP-2572-36

PP-3066

PP-3072

PP-PE

RAMP-2

RAMP-4

RB

SDS Sheets

Hydraulic Oil
FM-PE SDS

Hydraulic Oil
FM-PP SDS

Hydraulic Oil
PE-1572-36 SDS

Hydraulic Oil
PE-2066 SDS

Hydraulic Oil
PE-2072 SDS

Hydraulic Oil
PE-2078 SDS

Hydraulic Oil
PE-2566 SDS

Hydraulic Oil
PE-2572 SDS

Hydraulic Oil
PE-2572-36 SDS

Hydraulic Oil
PE-3066 SDS

Hydraulic Oil
PE-3072 SDS

Hydraulic Oil
PP-1572-36 SDS

Hydraulic Oil
PP-2066 SDS

Hydraulic Oil
PP-2072 SDS

Hydraulic Oil
PP-2078 SDS

Hydraulic Oil
PP-2566 SDS

Hydraulic Oil
PP-2572 SDS

Hydraulic Oil
PP-2572-36 SDS

Hydraulic Oil
PP-3066 SDS

Hydraulic Oil
PP-3072 SDS

Hydraulic Oil
PP-PE SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the diameter of the FM-BAR used with edge o dock leveler?

A: The diameter of the FM-BAR is approximately 1 5/16".

Q: What are the AMPS for the Edge O Dock Levelers? We need a 115V.

A: The PE Edge-O-Dock Levelers with a 115V use 12 AMPS.

Q: How many pumps would it take to raise to full height on the PP-2072?

A: It would take approximately 25 strokes.

Q: What is the overall length of the actuation bar?

A: The overall length of the FM-BAR is 41".

Q: Which approach ramp works with the edge of dock RAMP-2 OR RAMP-4 ?

A: Both ramps work with the edge-o-dock.

Q: What is the gauge and thickness of the steel, please?

A: The lip, mid plate, and back plate are all 3/8 in for Models FM/PE/PP 20,000 lb. capacity.

Q: What is the gauge and thickness of the steel, please?

A: The lip and mid plate are 1/2 in. The back plate is 3/8 in for models FM/PE/PP 25,000 lb. capacity.

Q: What is the gauge and thickness of the steel, please?

A: Models FM/PE/PP 30,000 lb. capacity the lip, mid plate and back plate are all 1/2".

Q: What is the gauge and thickness of the steel, please?

A: On the FM-0648 the lip, mid plate, and back plate are all 1/4 in.

Q: Does this come with a Channeler to anchor in concrete to mount too?

A: UNIT COMES WITH HANDLE AND BUMPERS. We also have a EDGE-O-DOCKLEVELER OPTIONAL CURB EDGE (CE) available.

Q: Is the FM-BAR hollow or solid steel?

A: The FM-BAR is hollow.




Related or Similar Products:





Edge-O-Dock Levelers




FM-2072The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. The leveler comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) with a (36-5/8") long ramping length available for smaller grade on PP and PE series levelers. A steel dock edge, approach ramp, or approach plate is necessary on the dock face, and a continuous weld (completely across the top, and down both sides of the mounting plate) is required for proper installation. Additionally, the mounting plate must be bolted to the dock face, via the anchor holes provided on the mounting plate.

The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position.

The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks

Model # Description Attributes Net Wt.
(lbs)
FM-0648 FM-0648Steel Mechanical Edge O Dock Leveler 48 In. Ramp Width 6,000 Lb. Capacity BrownUniform Capacity (lb.): 6000
Service range above dock (in.): 5		348
FM-2066 FM-2066Steel Mechanical Edge O Dock Leveler 66 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		514
FM-2072 FM-2072Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		523
FM-2078 FM-2078Steel Mechanical Edge O Dock Leveler 78 In. Ramp Width 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		560
FM-2566 FM-2566Steel Mechanical Edge O Dock Leveler 66 In. Ramp Width 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		556
FM-2572 FM-2572Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		585
FM-3066 FM-3066Steel Mechanical Edge O Dock Leveler 66 In. Ramp Width 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		663
FM-3072 FM-3072Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		709
PE-1572-36 PE-1572-36Steel Electric Edge-O-Dock Leveler 26-3/4 In. x 98 In. x 27-1/2 In. 15,000 Lb. Capacity BrownUniform Capacity (lb.): 15000
Service range above dock (in.): 5		749
PE-2066 PE-2066Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		581
PE-2072 PE-2072Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		601
PE-2078 PE-2078Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 105 In. x 27-1/2 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		567
PE-2566 PE-2566Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		619
PE-2572 PE-2572Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		649
PE-2572-36 PE-2572-36Steel Electric Edge-O-Dock Leveler 26-3/4 In. x 98 In. x 27-1/2 In. 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		826
PE-3066 PE-3066Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 93 In. x 27-1/2 In. 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		745
PE-3072 PE-3072Steel Electric Edge-O-Dock Leveler 17-1/2 In. x 99 In. x 27-1/2 In. 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		782
PP-1572-36 PP-1572-36Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 15,000 Lb. Capacity BrownUniform Capacity (lb.): 15000
Service range above dock (in.): 5		743
PP-2066 PP-2066Steel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		542
PP-2072 PP-2072Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		566
PP-2078 PP-2078Steel Hand Pump Edge-O-Dock Leveler 78 In. Ramp Width x 29 In. Ramp Length 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20000
Service range above dock (in.): 5		578
PP-2566 PP-2566Steel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		600
PP-2572 PP-2572Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		615
PP-2572-36 PP-2572-36Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 25,000 Lb. Capacity BrownUniform Capacity (lb.): 25000
Service range above dock (in.): 5		780
PP-3066 PP-3066Steel Hand Pump Edge-O-Dock Leveler 66 In. Ramp Width x 29-13/16 In. Ramp Length 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		998
PP-3072 PP-3072Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 29-13/16 In. Ramp Length 30,000 Lb. Capacity BrownUniform Capacity (lb.): 30000
Service range above dock (in.): 5		725

Options


Model Image Description Wt. (lbs)
B-818-SF 16"Wx5"Hx2-1/2"P (Steel Faced Molded Bumper) 21

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
