Truck Actuated Dock Levelers

model: RU-600-SCB

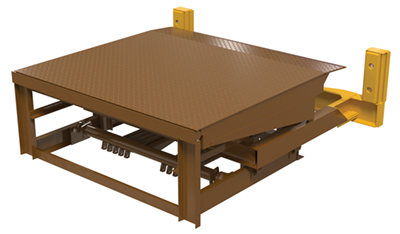

RU-600-SCB_A.jpg PU-600-SCB_A.jpg More Images +
Truck Actuated Dock Levelers
SERIES: RU,PU,SU

Truck Actuated Dock Levelers are designed to provide a seamless and automatic way to bridge the gap between a truck and a loading dock, ensuring a smooth transition for loading and unloading goods. They are a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock
Truck Actuated Dock Levelers

model: RU-600-SCB

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

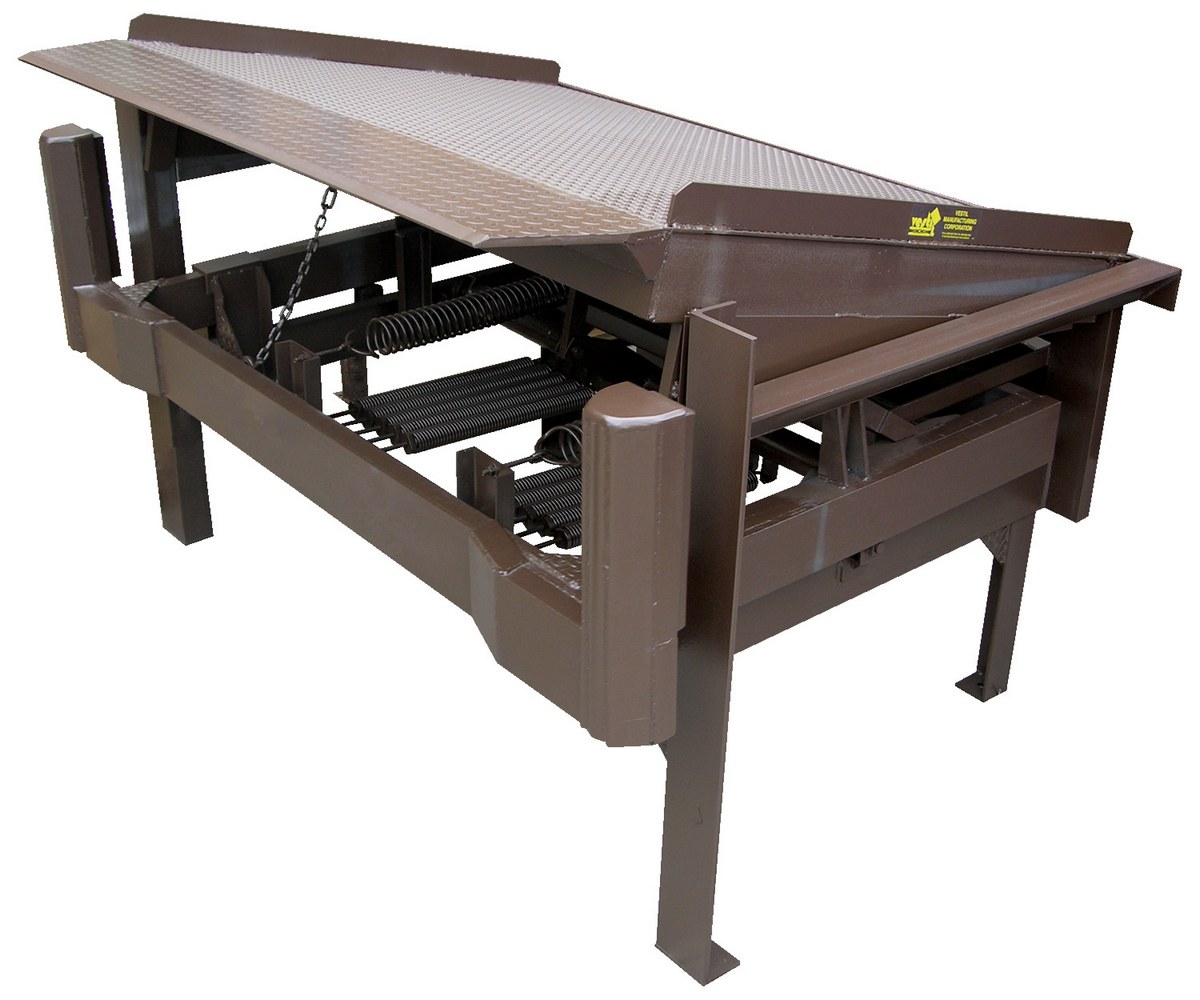

PU-1000-SCB
PU-1000-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 10 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		3203
PU-600-SCB
PU-600-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 6 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2394
PU-800-SCB
PU-800-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2830

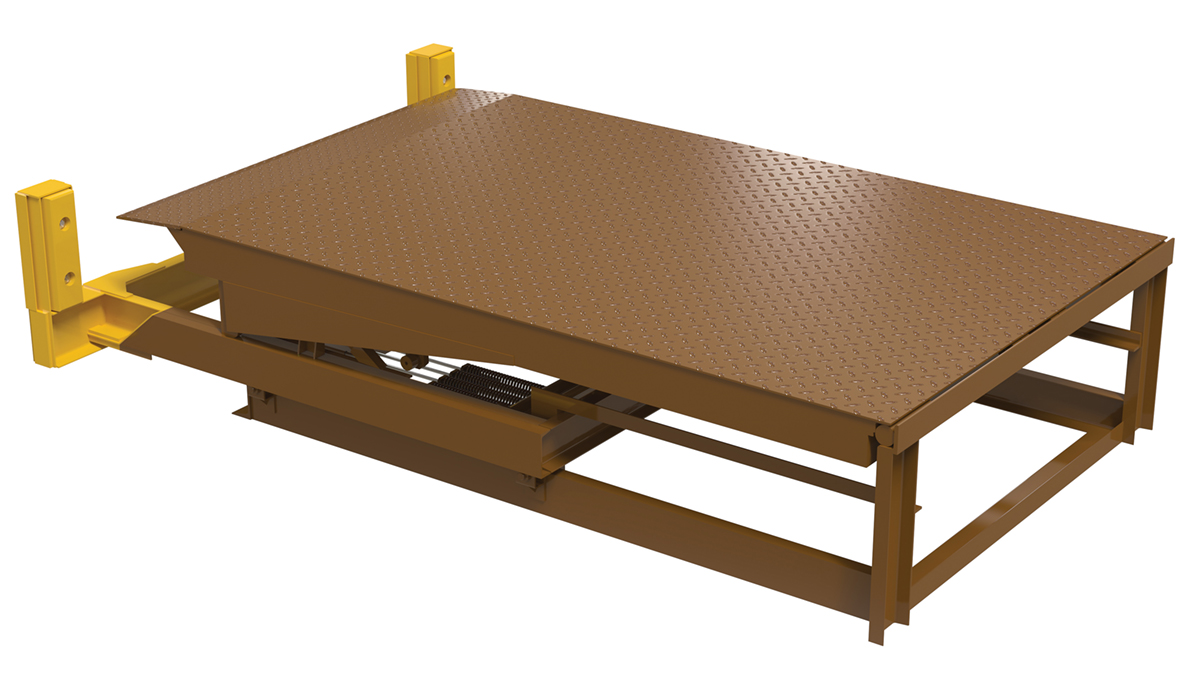

RU-1000-SCB
RU-1000-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 131-1/16 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2730

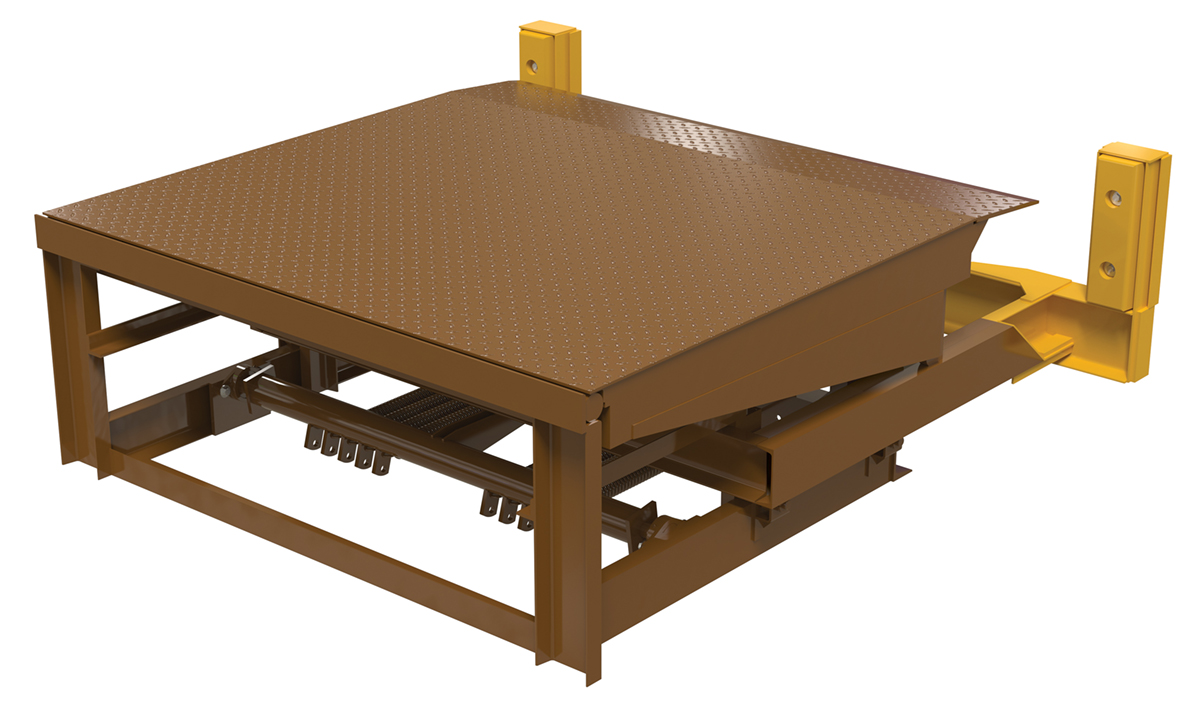

RU-600-SCB
RU-600-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 85-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2056

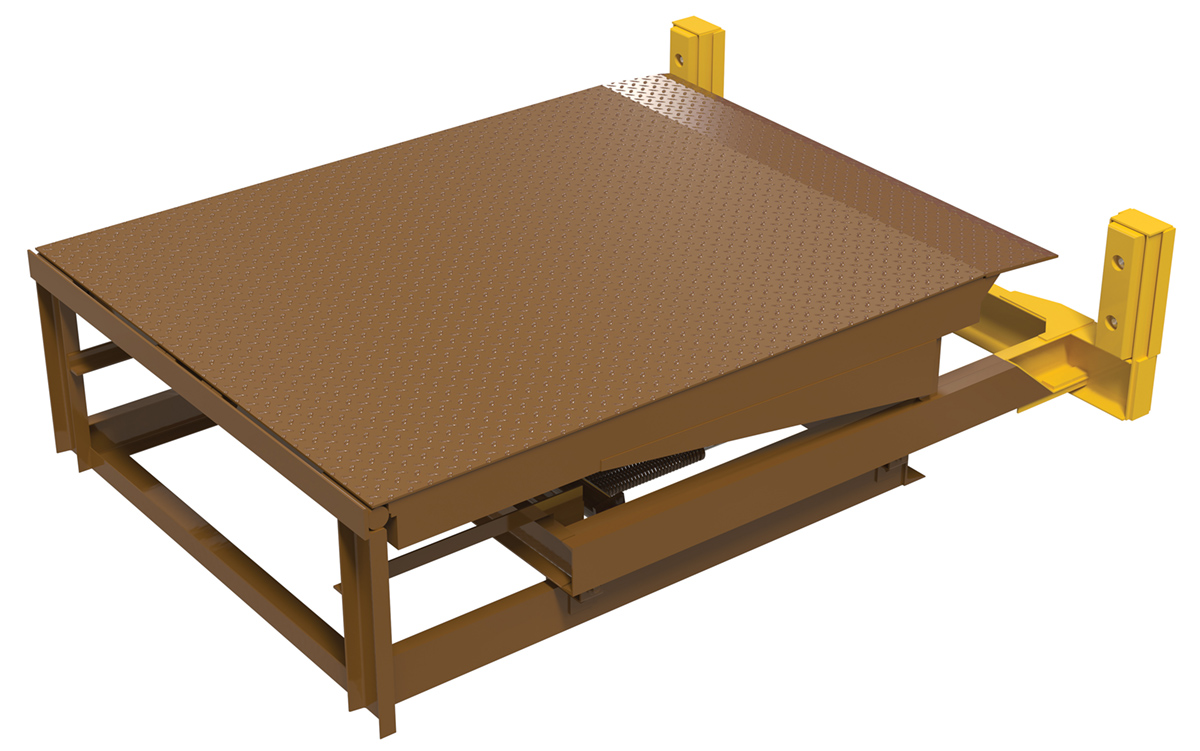

RU-800-SCB
RU-800-SCB1 Year Limited WarrantySteel Truck Actuated Dock Leveler 107-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2425

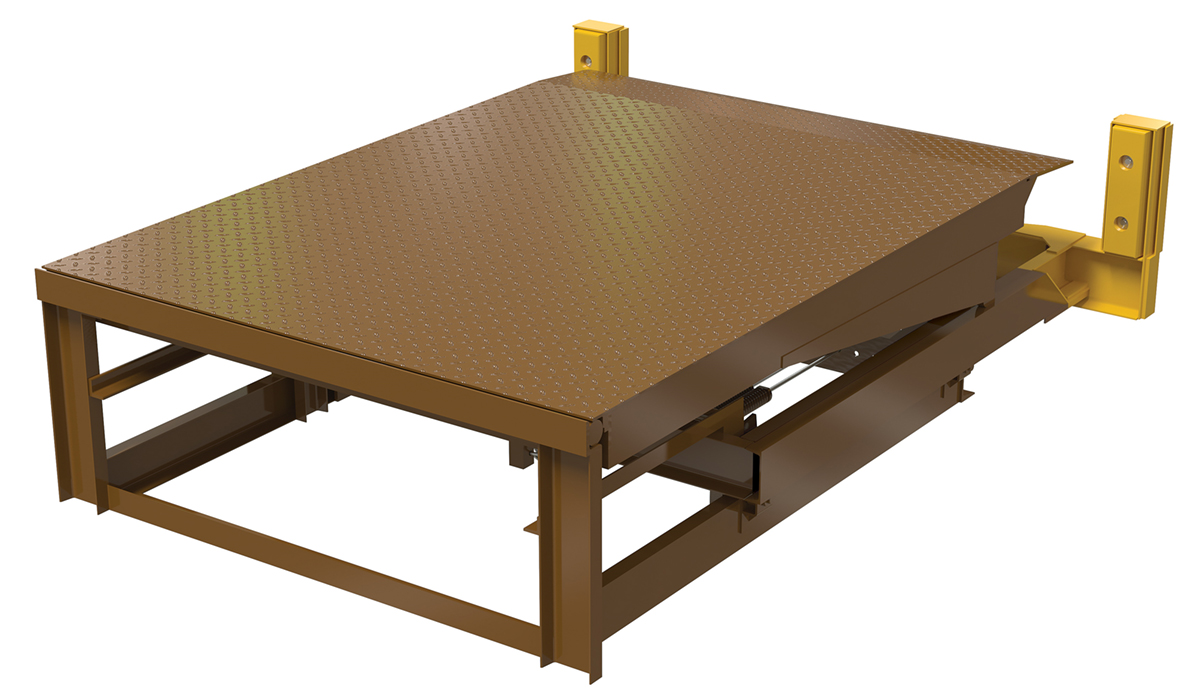

RU-800-SCB-F
RU-800-SCB-F1 Year Limited WarrantySteel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2475

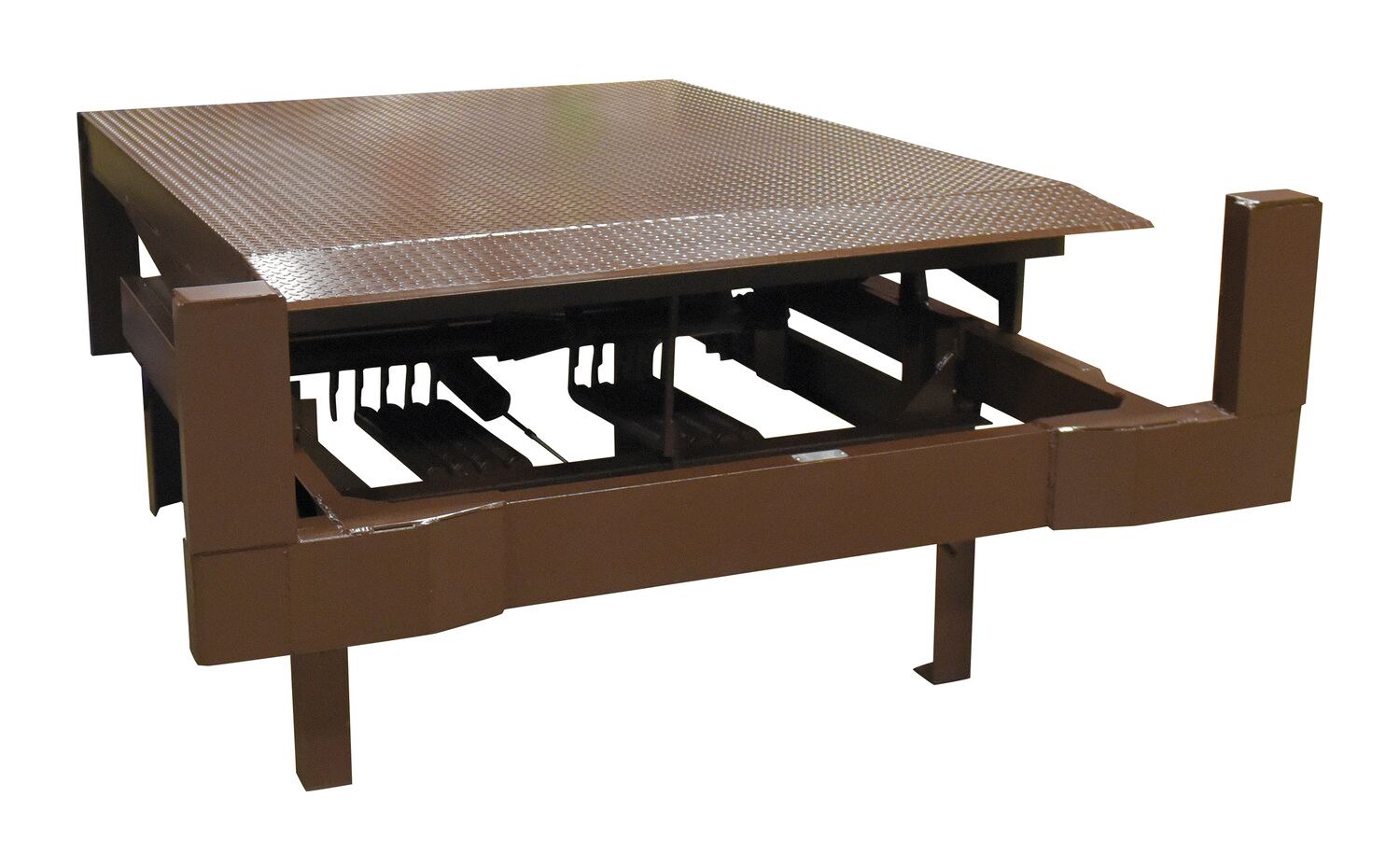

SU-1000-SCB
SU-1000-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2821
SU-600-SCB
SU-600-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 84-1/2 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2147
SU-800-SCB
SU-800-SCB1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2516
SU-800-SCB-F
SU-800-SCB-F1 Year Limited WarrantySteel Actuated Dock Leveler with Legs 113-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2592

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

PU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

PU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-800-SCB-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

RU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-600-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-800-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-800-SCB-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5

SU-1000-SCB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
BE SU-1000-SCBFactory Installed Welded Bumper Extension For Truck Actuated… Limited Warranty
48

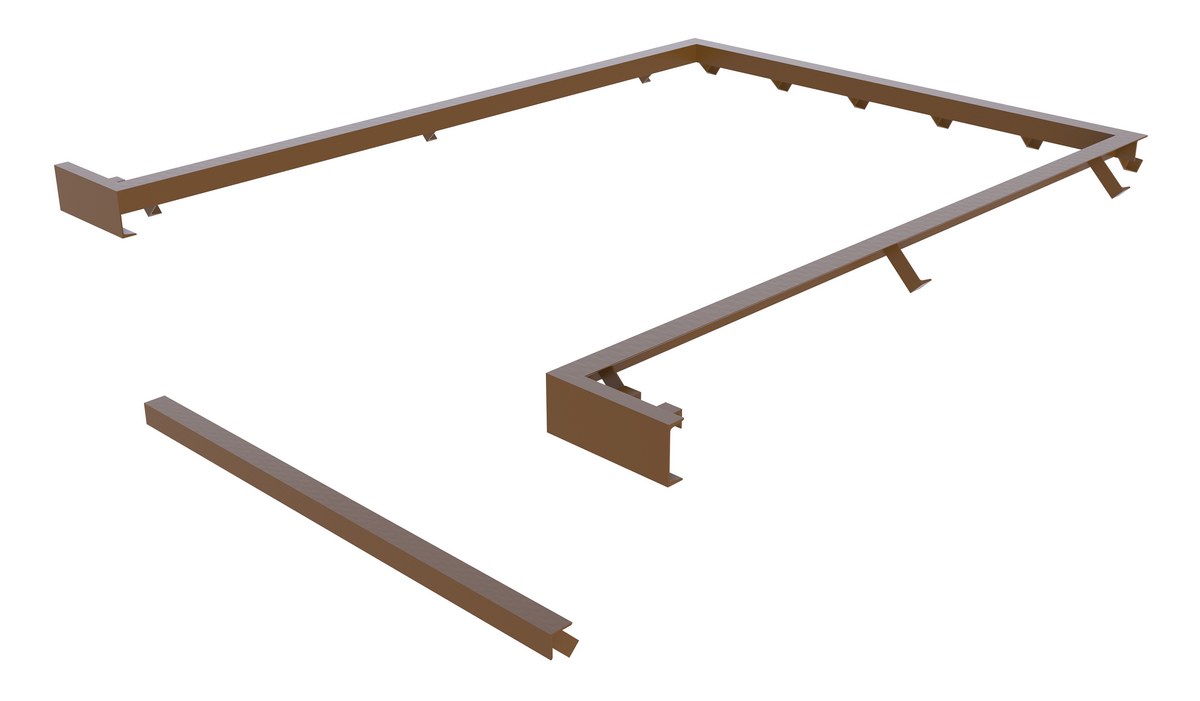

CAS-RU-1000 SU-1000-SCBFactory Installed Steel Curb Angle Set Usable Dimensions 104… Limited Warranty
233

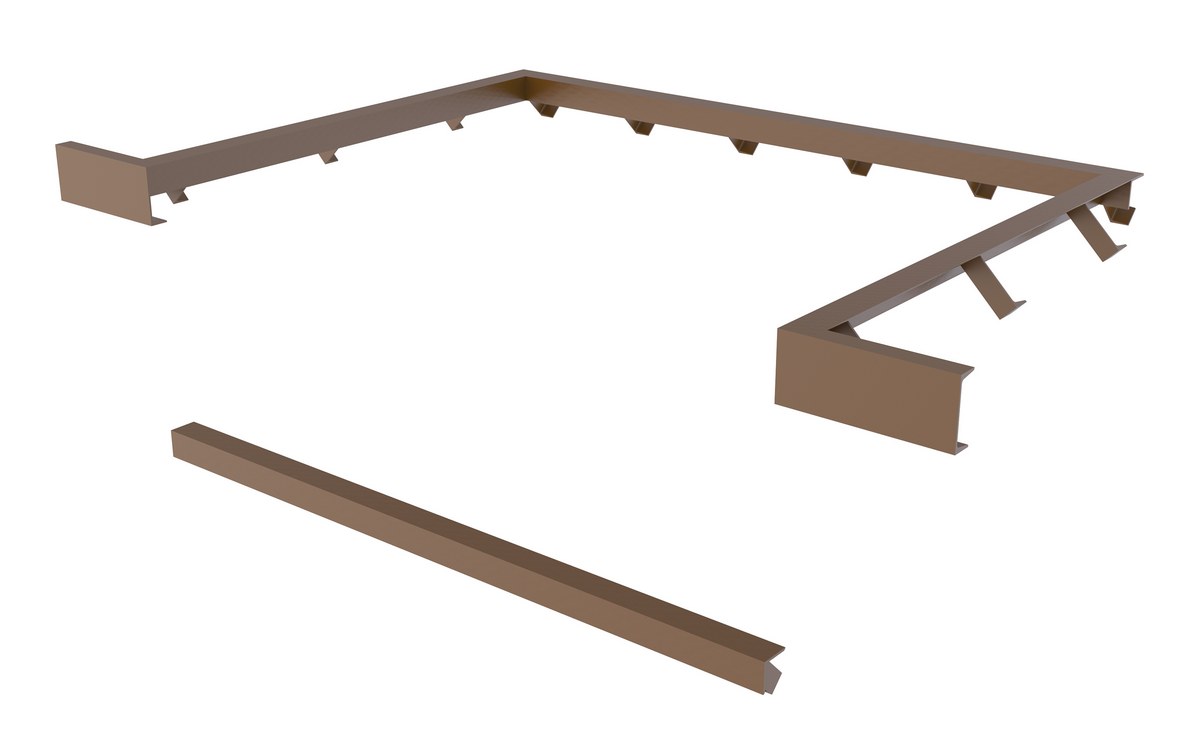

CAS-RU-600 SU-1000-SCBFactory Installed Steel Curb Angle Set Usable Dimensions 56-… Limited Warranty
196

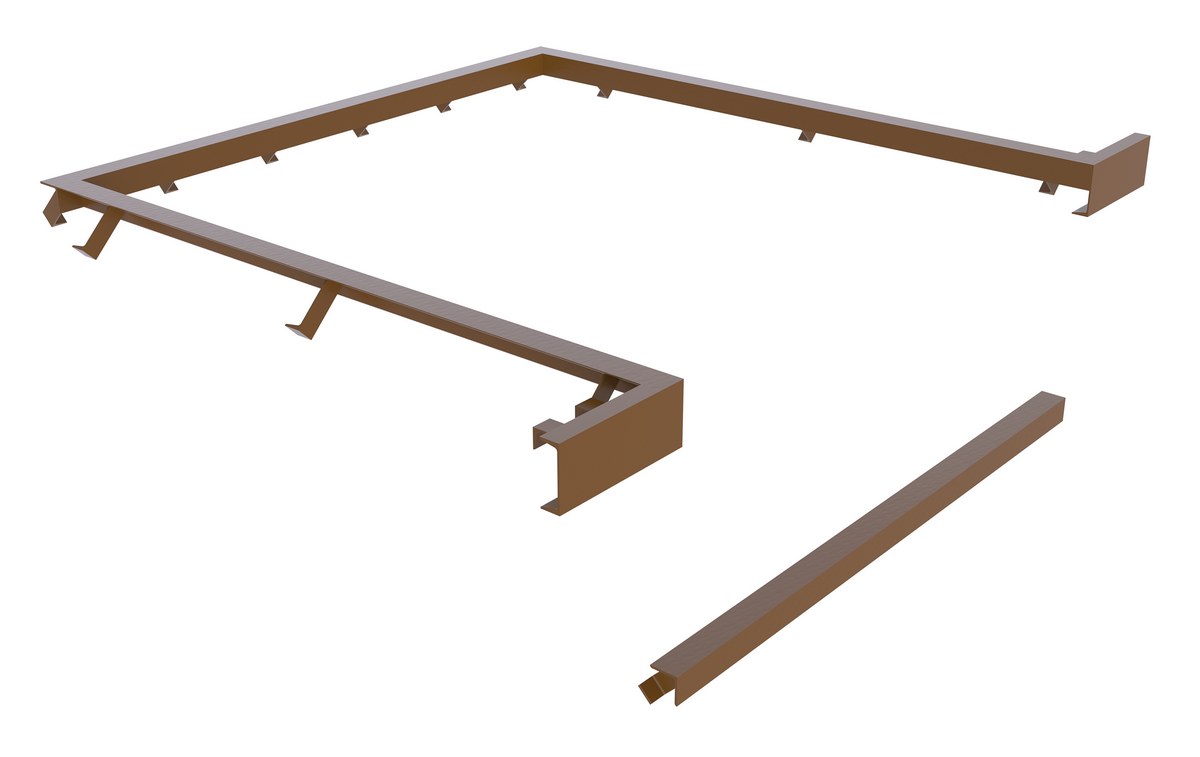

CAS-RU-800 SU-1000-SCBFactory Installed Steel Curb Angle Set Usable Dimensions 80-… Limited Warranty
214

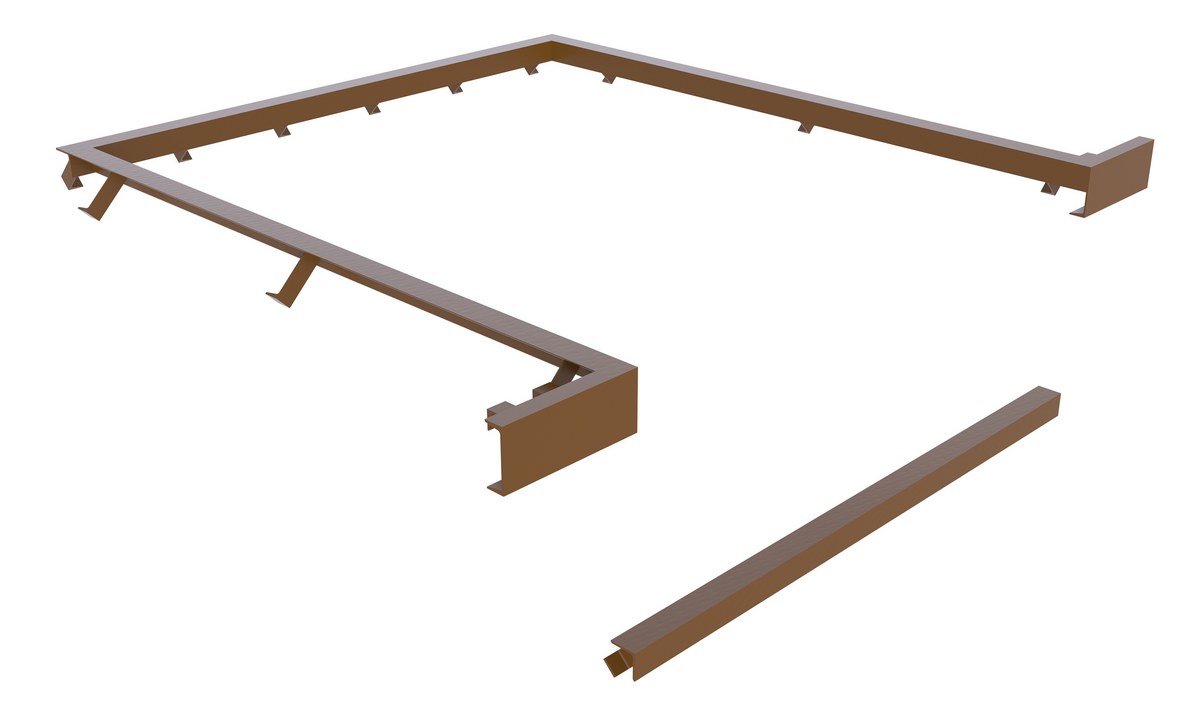

CAS-RU-800-F SU-1000-SCBFactory Installed Steel Curb Angle Set Usable Dimensions 86-… Limited Warranty
318
SPO SU-1000-SCBFactory Installed Fabricated Shallow Pit To Fit Dock Leveler… Limited Warranty
SPO-RU SU-1000-SCBFactory Installed/Fabricated Shallow Pit 24 In. Minimum Dept… Limited Warranty
TA-30K/10 SU-1000-SCBFactory Installed Additional 30,000 Lb. Capacity for 10' Len… Limited Warranty
TA-30K/6 SU-1000-SCBFactory Installed Additional 30,000 Lb. Capacity for 6' Leng… Limited Warranty
TA-30K/8 SU-1000-SCBFactory Installed Additional 30,000 Lb. Capacity for 8' Leng… Limited Warranty
Model Image Description Wt.
(lbs.)
WS-DV Dual vinyl weather stripping (factory installed) -
FI Foam Insulation 6
Capacities to 100,000 pounds available - contact factory
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
