Trailer Lock Systems

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

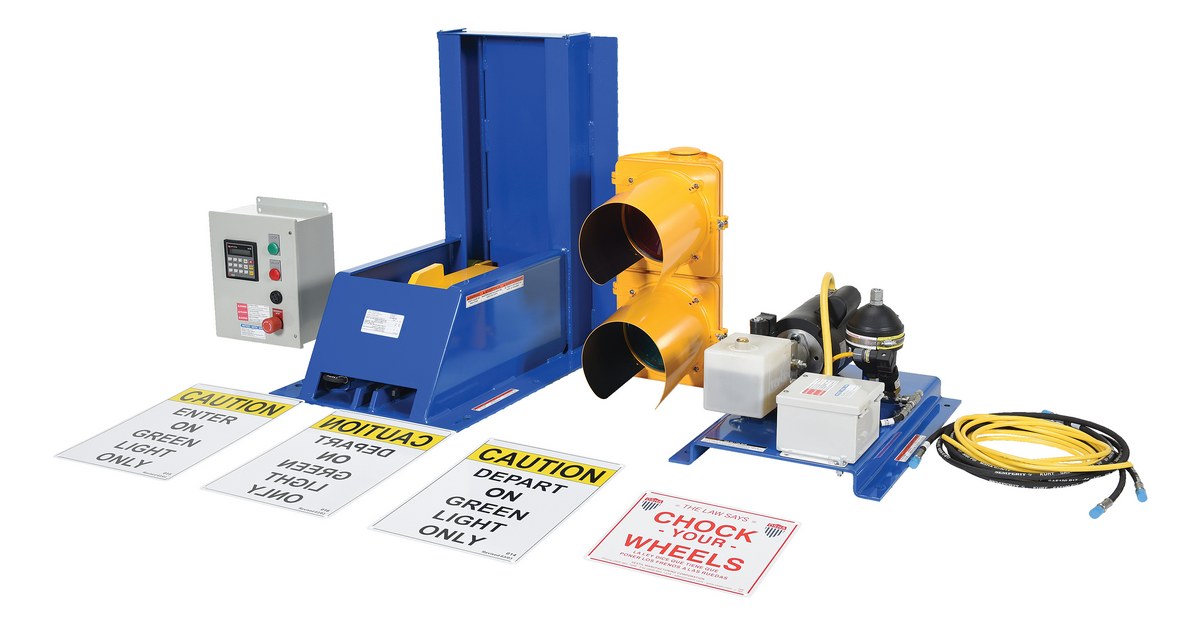

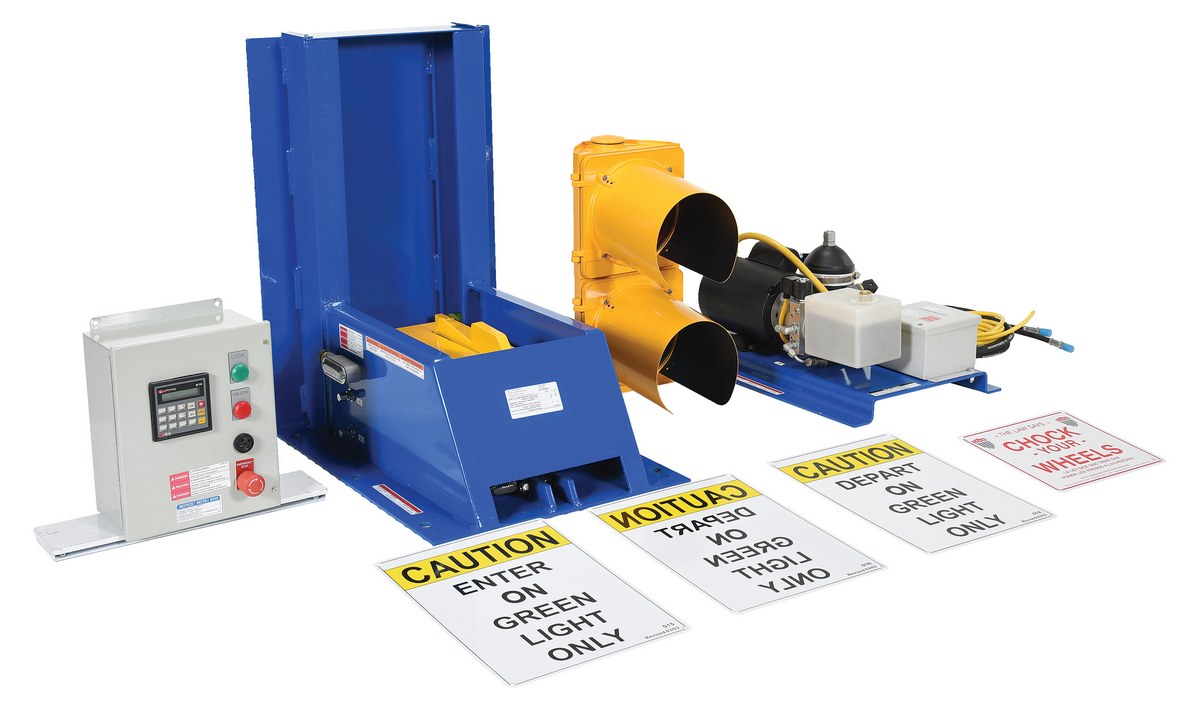

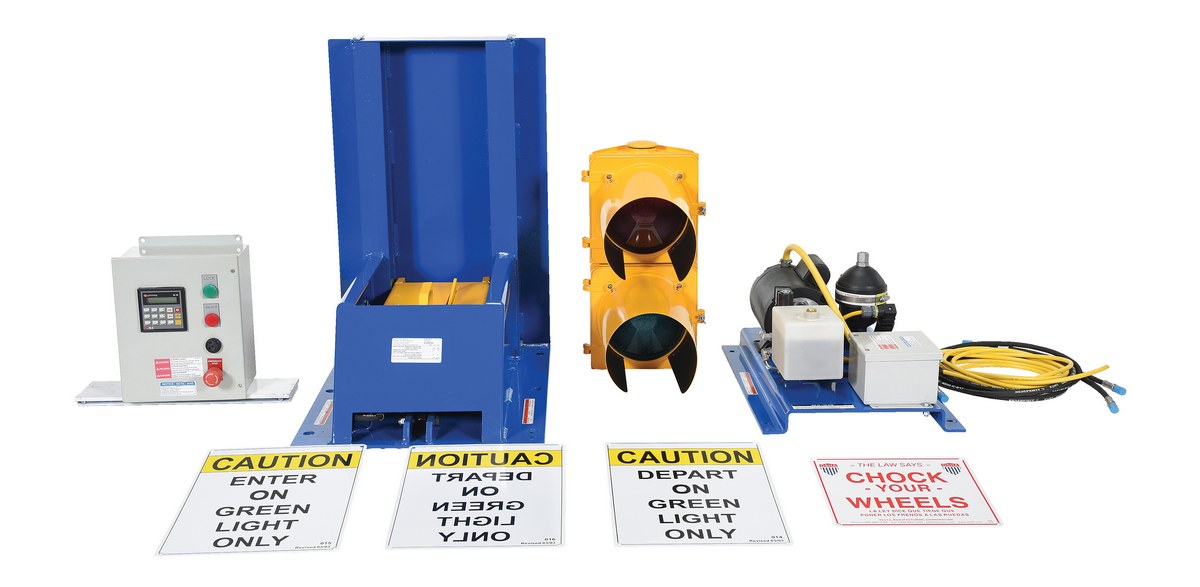

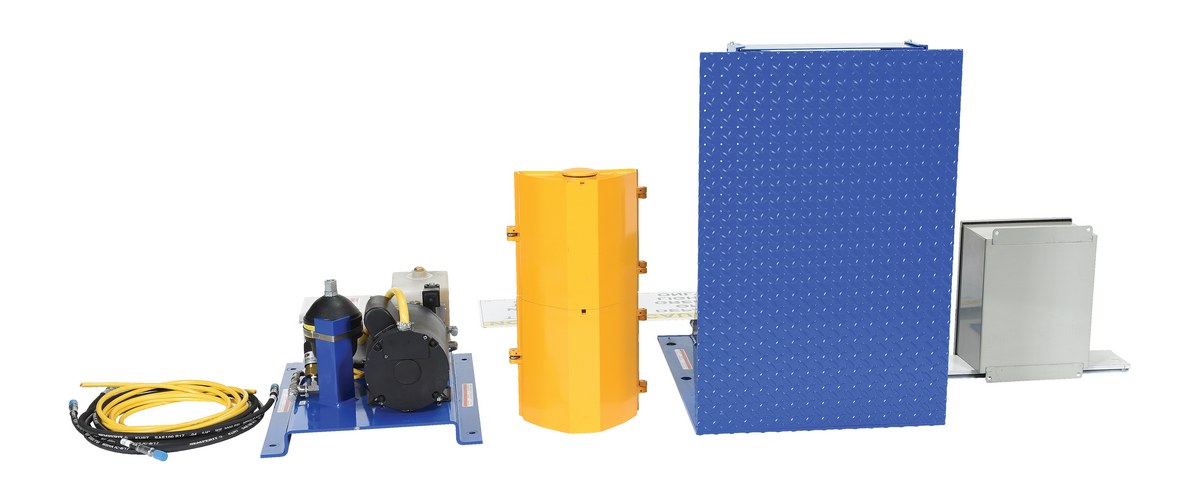

TL-100-F_A.jpg TL-100-F_B.jpg TL-100-F_C.jpg TL-100-F_D.jpg
Trailer Lock Systems

model: TL-100-F



Trailer Lock Systems

model: TL-100-F

Featured Loading Dock Equipment


Quilted Moving Pads

Premium Truck Scissor Dock Lifts

Wheel Chock Accessories

Dock Barricades

Universal Steel Rail Chocks

Dock Doors

Steel Dock Plate Storage Rack

Dock Gates

Retractable Dock Shelter
model chart
Print Friendly
Trailer Lock Systems
SERIES: TL

The Trailer Lock System is designed for installation directly in front of the loading dock. The electric hydraulic system captures the ICC bar on the back of semi-trailers. To ensure maximum safety the unit comes standard with an accumulator that allows the lock to follow the trailer up and down as it is loaded/unloaded. A beeper and flashing light warns the operator if the lock does not engage the trailer properly. A visual indication of the restraint's status is shown at all times by the traffic light outside and the control panel inside. It comes standard with light package, control panel and three (3) large visual signs. Draw pull shear strength is 22,500 lbs per foot. Pre-drilled holes included for wall or ground mounting.

Standard Safety Features

"Floats" with Trailers - Once the hook is raised into position the motor shuts off. The hook will follow the various trailer heights, up or down, during Loading/Unloading. This accomplished through an in-line accumulator.

Operator Warned If Hook Misses Or If Hook Is Restricted - If the hook is interfered with or misses the ICC bar, it will automatically retract and the control panel will alert the attendant. The attendant must then chock the wheels and change the lights manually on the control panel.
  • Hydraulic system captures the ICC bar on back of semi-trailers
  • Beeper and flashing light warns if the lock does not engage properly
  • Traffic light outside for visual indication is shown at all times
  • Includes light package, control panel, and three (3) large visual signs

The Trailer Lock System is designed for installation directly in front of the loading dock. The electric hydraulic system captures the ICC bar on the back of semi-trailers. To ensure maximum safety the unit comes standard with an accumulator that allows the lock to follow the trailer up and down as it is loaded/unloaded. A beeper and flashing light warns the operator if the lock does not engage the trailer properly. A visual indication of the restraint's status is shown at all times by the traffic light outside and the control panel inside. It comes standard with light package, control panel and three (3) large visual signs. Draw pull shear strength is 22,500 lbs per foot. Pre-drilled holes included for wall or ground mounting.

Standard Safety Features

"Floats" with Trailers - Once the hook is raised into position the motor shuts off. The hook will follow the various trailer heights, up or down, during Loading/Unloading. This accomplished through an in-line accumulator.

Operator Warned If Hook Misses Or If Hook Is Restricted - If the hook is interfered with or misses the ICC bar, it will automatically retract and the control panel will alert the attendant. The attendant must then chock the wheels and change the lights manually on the control panel.
  • Hydraulic system captures the ICC bar on back of semi-trailers
  • Beeper and flashing light warns if the lock does not engage properly
  • Traffic light outside for visual indication is shown at all times
  • Includes light package, control panel, and three (3) large visual signs

Other Dock Safety & Maintenance

 Wheel Alignment Curbs Shelter Guard Posts Dock Gates Trailer Wheel Locks

Additional Models In This Family
view entire Image Gallery

TL-100-F-S

model TL-100-F-S

TL-200-HP-F

model TL-200-HP-F

TL-200-HP-F-S

model TL-200-HP-F-S

model chart
How To Purchase
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TL-100-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum

TL-100-F-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene

TL-100-F-S-LED
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene LED
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene LED

TL-200-HP-F
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum

TL-200-HP-F-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
For More Details of the Option Click the Red Model Button
Model Image Description Wt.
(lbs)
RRC-2PB Radio remote Control 2-Button System (Lift-Hold-Lower Circuit) 1
CWHF-SM - Cold weather oil, less than 1/2 gallon, oil pour point -50F -
CWHF-MD - Cold weather oil, up to 1 gallon, oil pour point -50F -
CWHF-LG - Cold weather oil, up to 3 gallons, oil pour point -50F -
CWHF-XLG - Cold weather oil, up to 16 gallons, oil pour point -50F -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Trailer Lock Systems PDF's will open in a new window when clicked.

Manuals


TL-100-F
Owners Manual

TL-200
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


TL-100-F

Testing Certificates


TL-100-F

TL-100-F-S

TL-100-F-S-LED

TL-200-HP-F

TL-200-HP-F-S

SDS Sheets

Hydraulic Oil SDS Sheet for: TL-100-F
Hydraulic Oil SDS Sheet for: TL-100-F-S
Hydraulic Oil SDS Sheet for: TL-200-HP-F
Hydraulic Oil SDS Sheet for: TL-200-HP-F-S

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How well do these lock systems operate in cold, freezing weather elements? I have a customer that is based in MN.

A: We suggest using the low temp oil in freezing climates.

Q: Can these systems be used with Edge-O-Dock Levelers?

A: No. The trailer lock systems can only be used with pit levelers.




Related or Similar Products:

Dock Traffic Systems
Product

Dock Traffic Systems

Dock Barricades
Product

Dock Barricades

Safety Lift Gates
Product

Safety Lift Gates

Trailer Wheel Locks
Product

Trailer Wheel Locks

Dock Chain Bollard Barrier Systems
Product

Dock Chain Bollard Barrier Systems

Overhead Door Warning Barriers
Product

Overhead Door Warning Barriers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Trailer Lock Systems




The Trailer Lock System is designed for installation directly in front of the loading dock. The electric hydraulic system captures the ICC bar on the back of semi-trailers. To ensure maximum safety the unit comes standard with an accumulator that allows the lock to follow the trailer up and down as it is loaded/unloaded. A beeper and flashing light warns the operator if the lock does not engage the trailer properly. A visual indication of the restraint's status is shown at all times by the traffic light outside and the control panel inside. It comes standard with light package, control panel and three (3) large visual signs. Draw pull shear strength is 22,500 lbs per foot. Pre-drilled holes included for wall or ground mounting.

Standard Safety Features

"Floats" with Trailers - Once the hook is raised into position the motor shuts off. The hook will follow the various trailer heights, up or down, during Loading/Unloading. This accomplished through an in-line accumulator.

Operator Warned If Hook Misses Or If Hook Is Restricted - If the hook is interfered with or misses the ICC bar, it will automatically retract and the control panel will alert the attendant. The attendant must then chock the wheels and change the lights manually on the control panel.
  • Hydraulic system captures the ICC bar on back of semi-trailers
  • Beeper and flashing light warns if the lock does not engage properly
  • Traffic light outside for visual indication is shown at all times
  • Includes light package, control panel, and three (3) large visual signs

Model # Description Attributes Net Wt.
(lbs)
TL-100-F TL-100-FSteel Electric Hydraulic with Aluminum Light Package Trailer Lock System Blue / YellowDraw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum		470
TL-100-F-S TL-100-F-SSteel Electric Hydraulic with Polypropylene Light Package Trailer Lock System Blue / YellowDraw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene		518

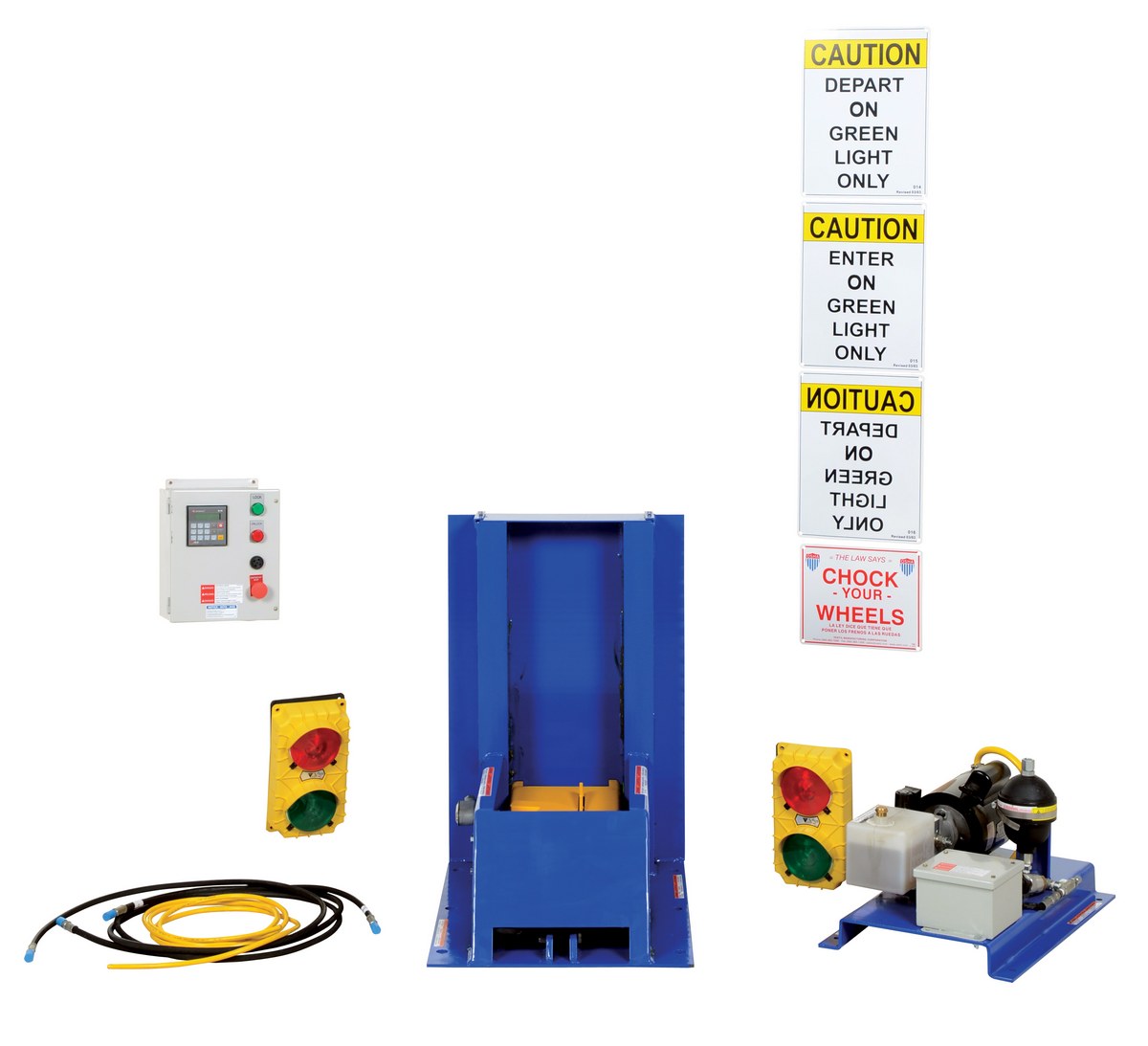

TL-100-F-S-LED TL-100-F-S-LEDSteel Electric Hydraulic with Polypropylene LED Light Package Trailer Lock System Blue / YellowDraw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene LED		470

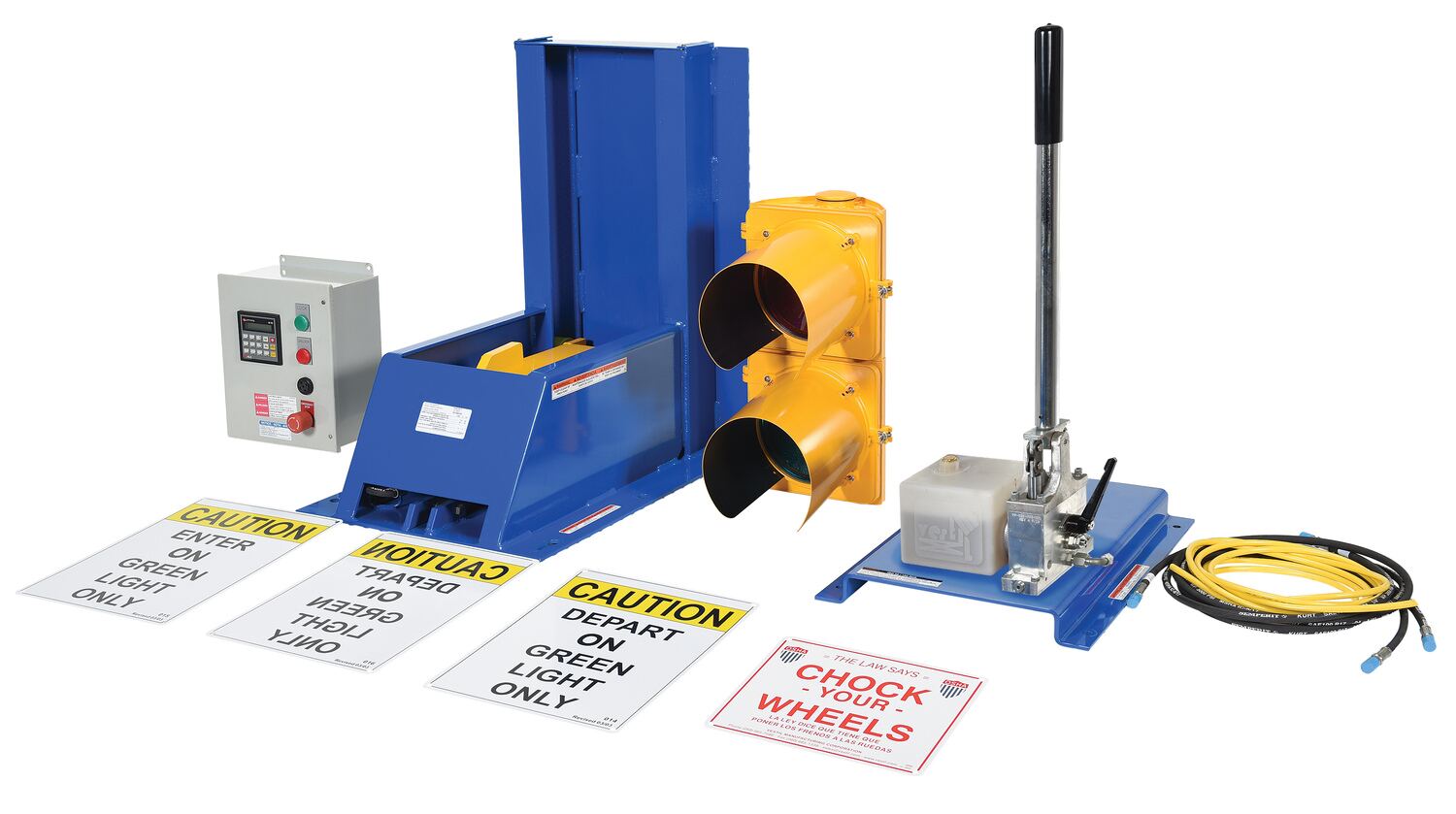

TL-200-HP-F TL-200-HP-FSteel Hydraulic Hand Pump with Aluminum Light Package Trailer Lock System Blue / YellowDraw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum		405

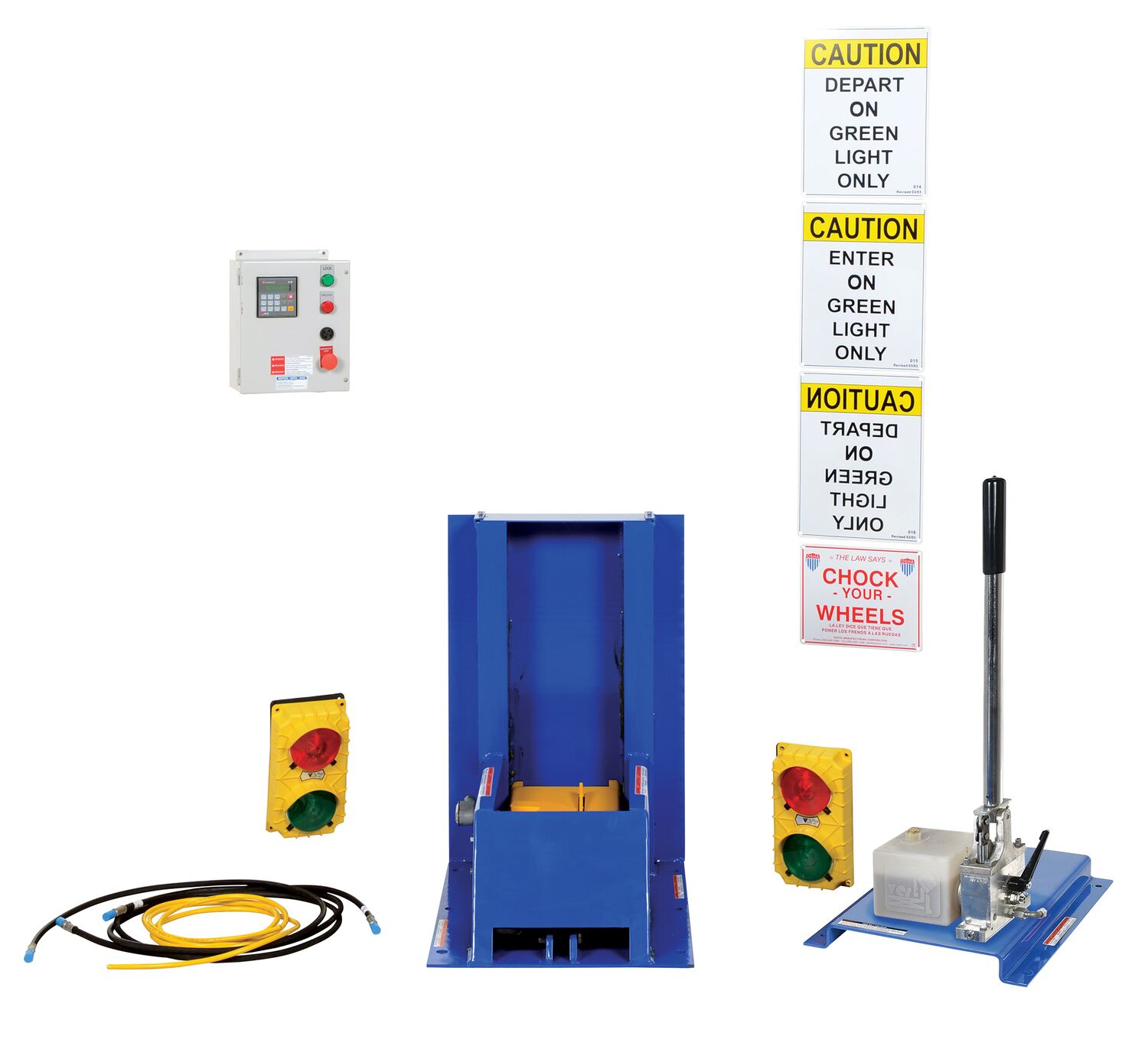

TL-200-HP-F-S TL-200-HP-F-SSteel Hydraulic Hand Pump Trailer Lock System Blue / YellowDraw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene		495

Options


Model Image Description Wt.
(lbs)
RRC-2PB Radio remote Control 2-Button System (Lift-Hold-Lower Circuit) 1
CWHF-SM - Cold weather oil, less than 1/2 gallon, oil pour point -50F -
CWHF-MD - Cold weather oil, up to 1 gallon, oil pour point -50F -
CWHF-LG - Cold weather oil, up to 3 gallons, oil pour point -50F -
CWHF-XLG - Cold weather oil, up to 16 gallons, oil pour point -50F -
