Universal Trash Can Dumpers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

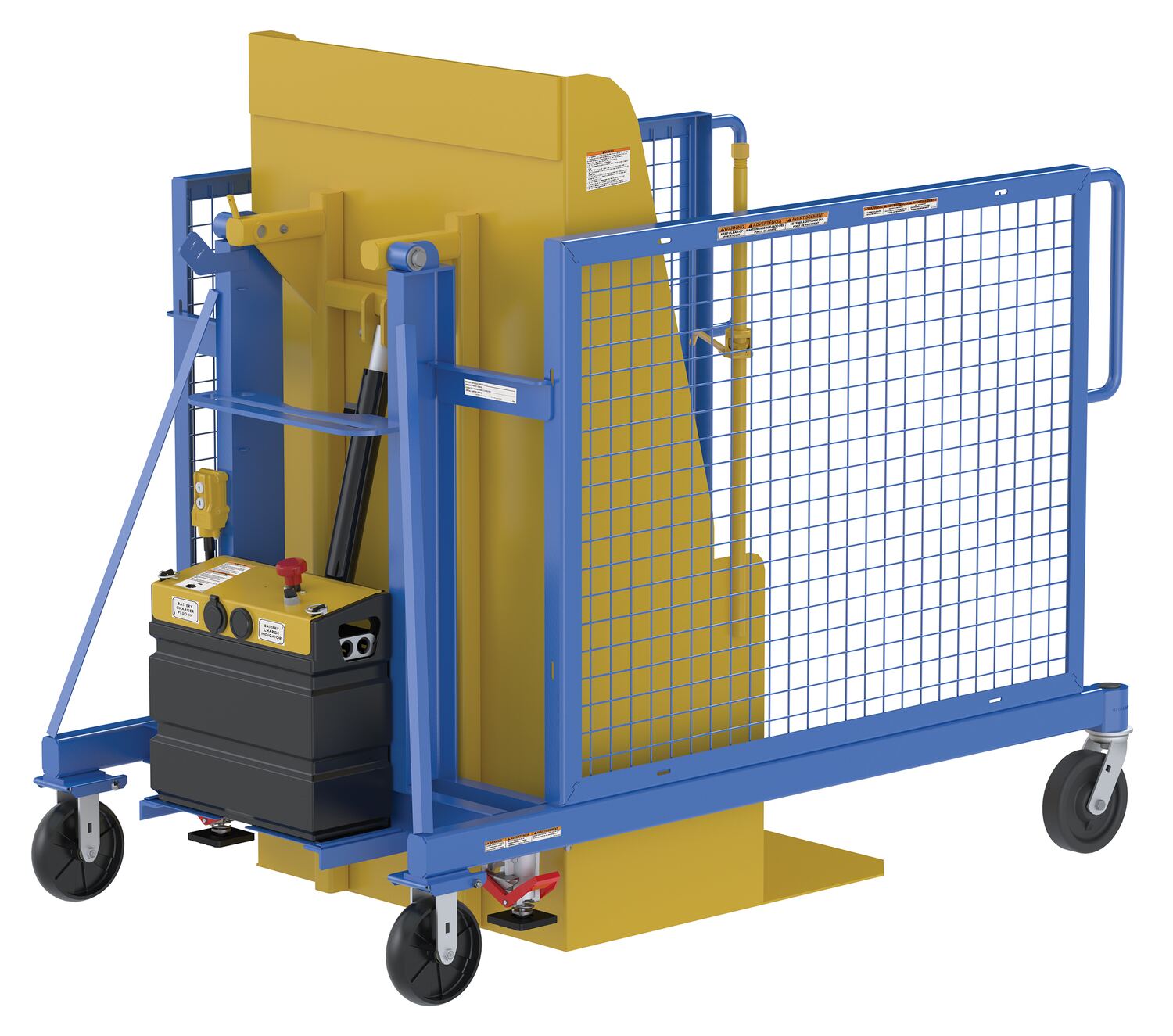

TCD-U-48-DC_D.jpg TCD-U-48-DC_A.jpg TCD-U-48-DC_B.jpg TCD-U-48-DC_C.jpg
Universal Trash Can Dumpers

model: TCD-U-48-DC



Universal Trash Can Dumpers

model: TCD-U-48-DC

Featured Ergonomic Solutions


Powered All Terrain Stackers and Pallet Trucks
Hydra Carts
Economy Fully Automatic Electric Pallet Trucks
Low Profile Scissor Cart w/ Auto-Shift
Super Low Profile Pallet Trucks
Mechanical Scissor Carts
Electric Adjustable-Height Work Benches
Electric Pallet Truck For Cold Rooms
Add-A-Levels
model chart

Product Family Overview

Print Friendly
Universal Trash Can Dumpers
SERIES: TCD-U

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

Other Dumpers

 Universal Trash Can Dumpers Manual Trash Bin Compactor Multi-Purpose Tote Dumpers Electric/Hydraulic Box Dumpers

Additional Models In This Family
view entire Image Gallery

TCD-U-60-AC

model TCD-U-60-AC

TCD-U-60-DC

model TCD-U-60-DC

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

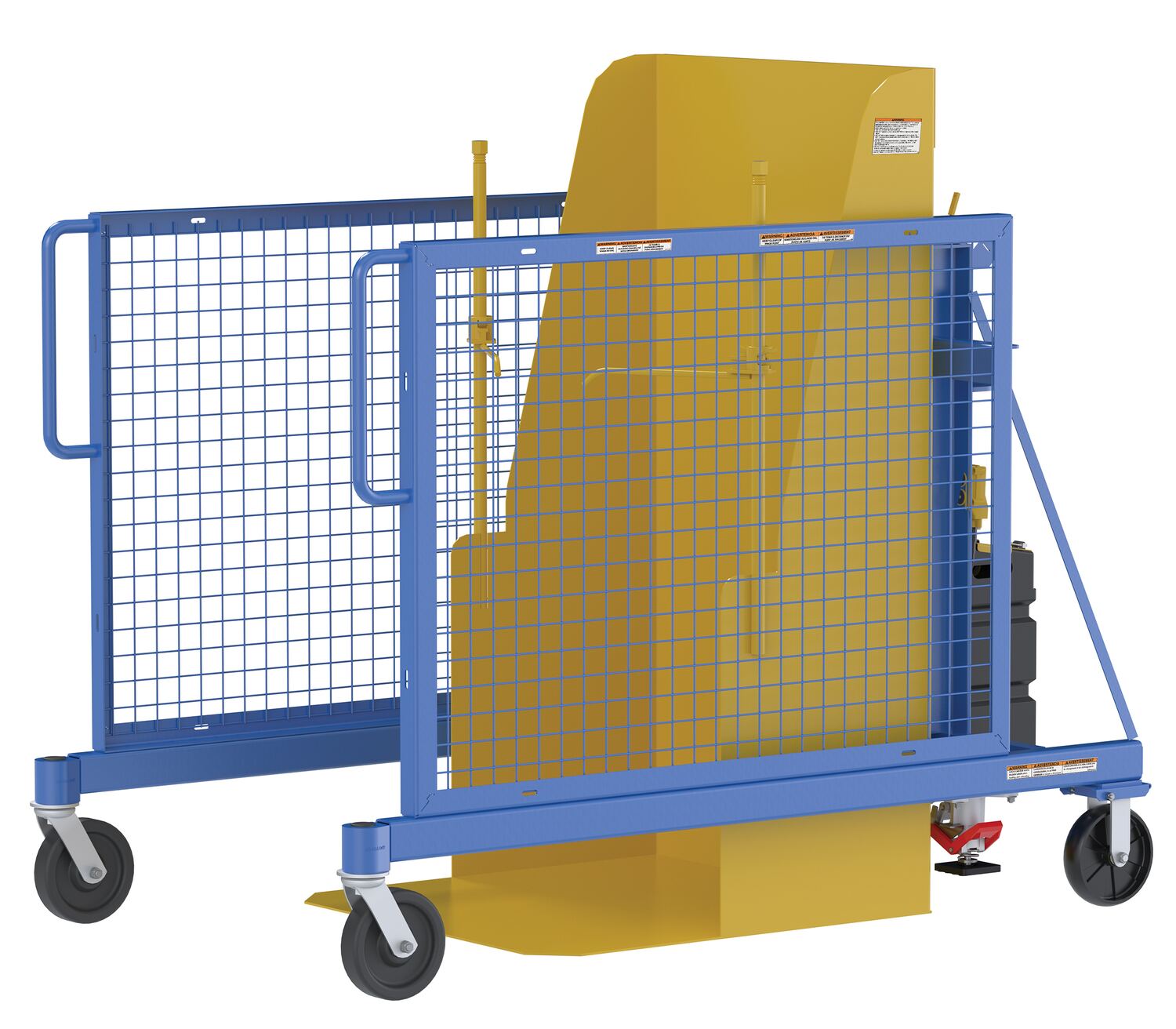

TCD-U-48-AC
TCD-U-48-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48		888
TCD-U-48-DC TCD-U-48-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16		908

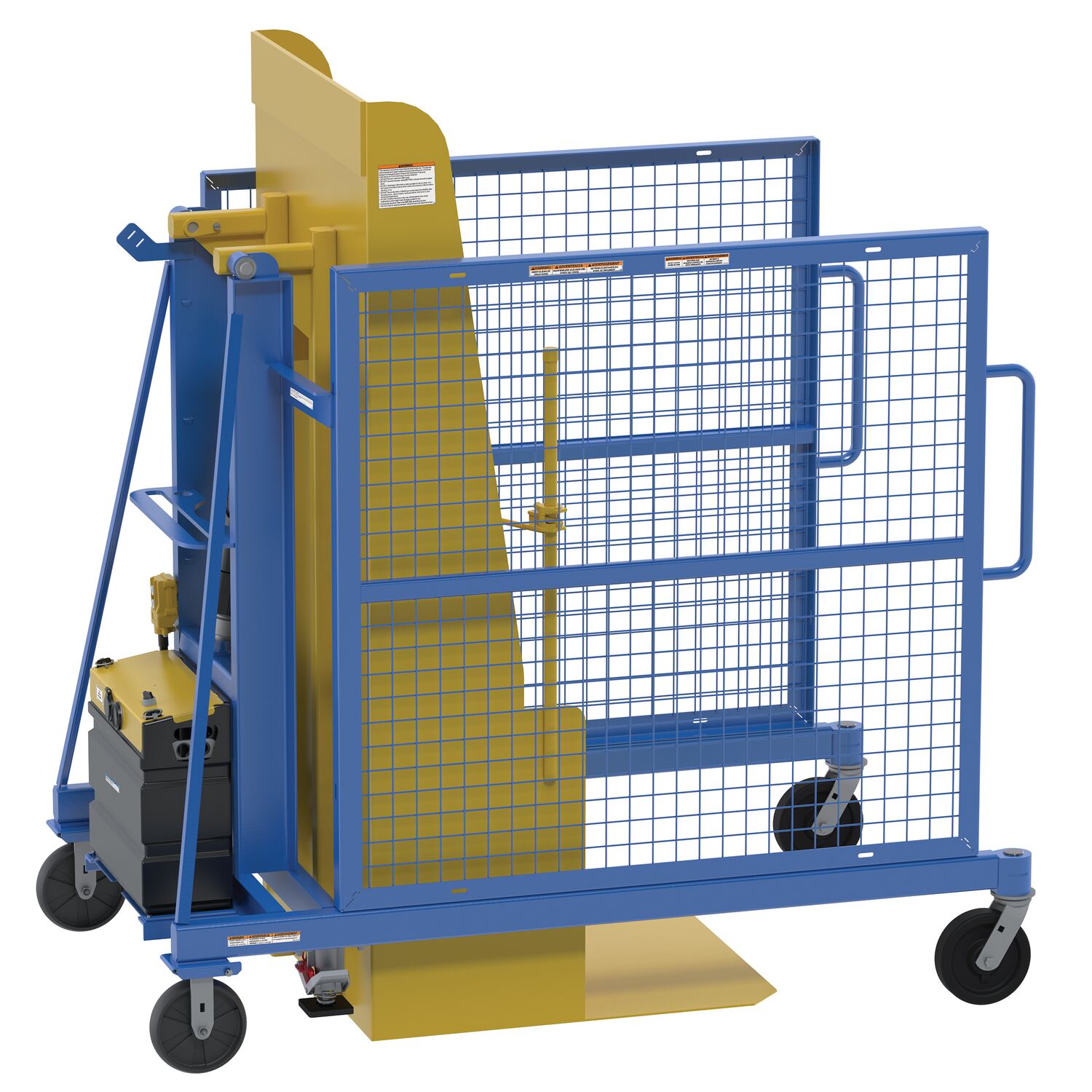

TCD-U-60-AC
TCD-U-60-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16		864

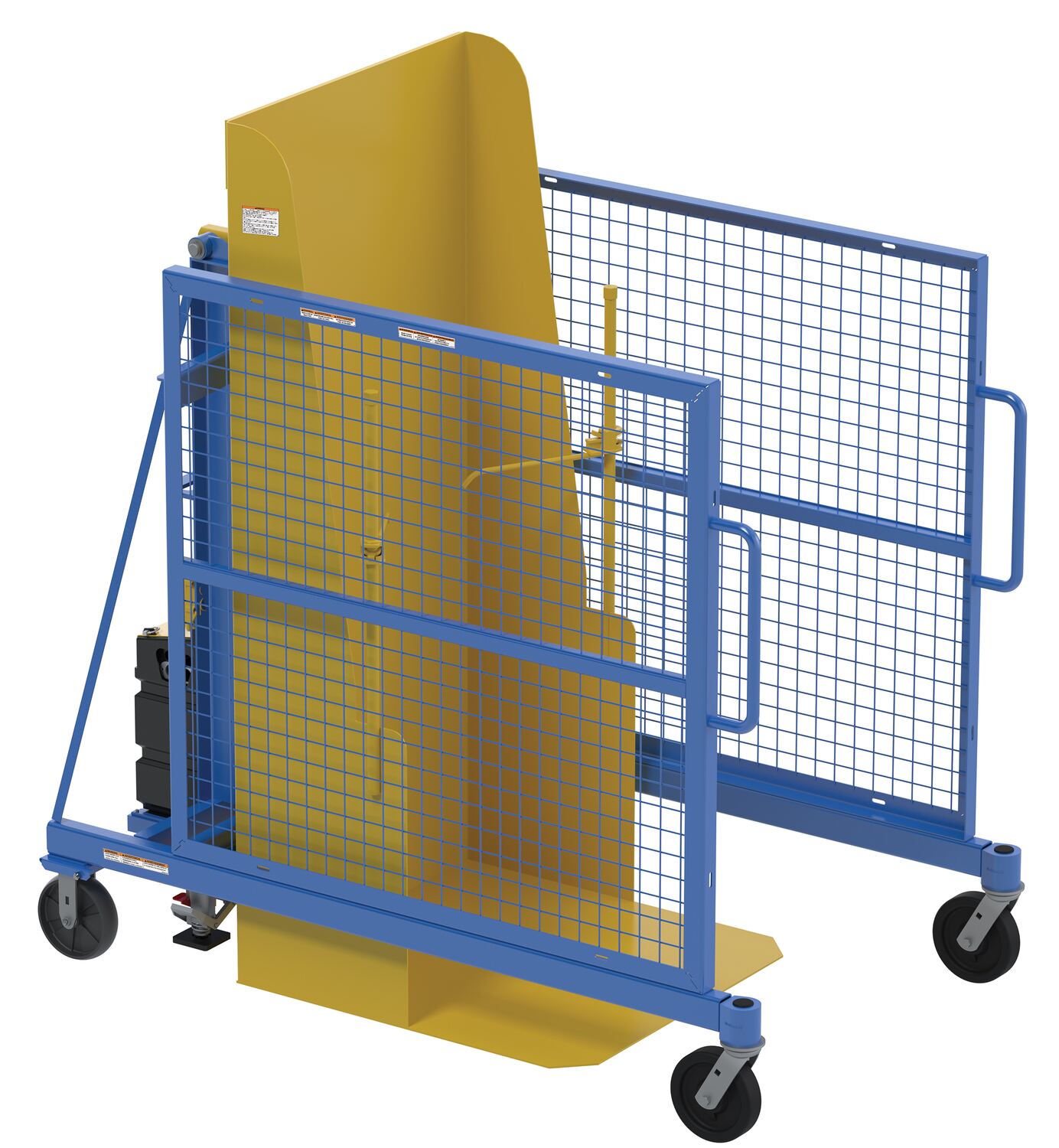

TCD-U-60-DC TCD-U-60-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16		942

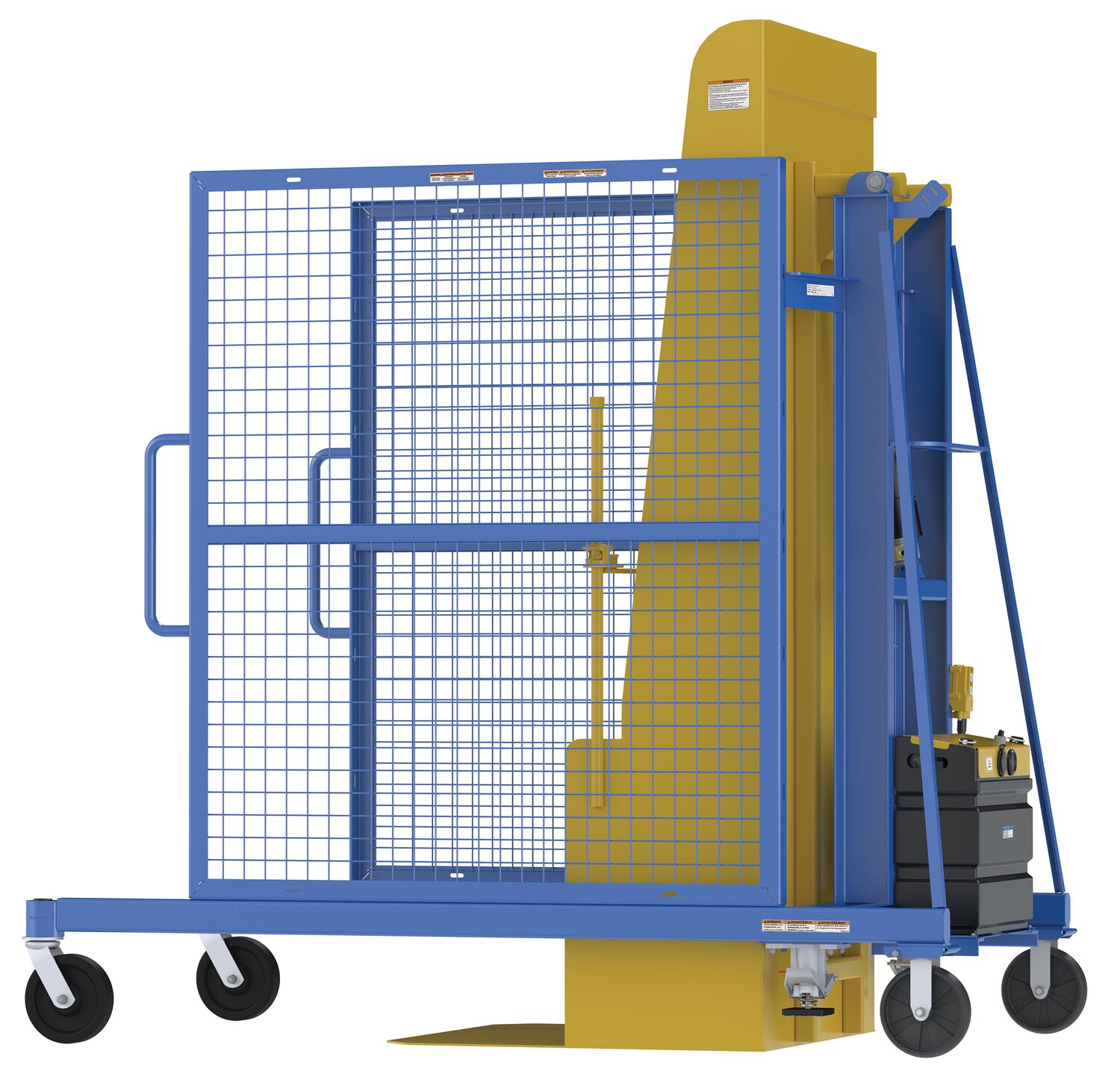

TCD-U-72-AC
TCD-U-72-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16		991

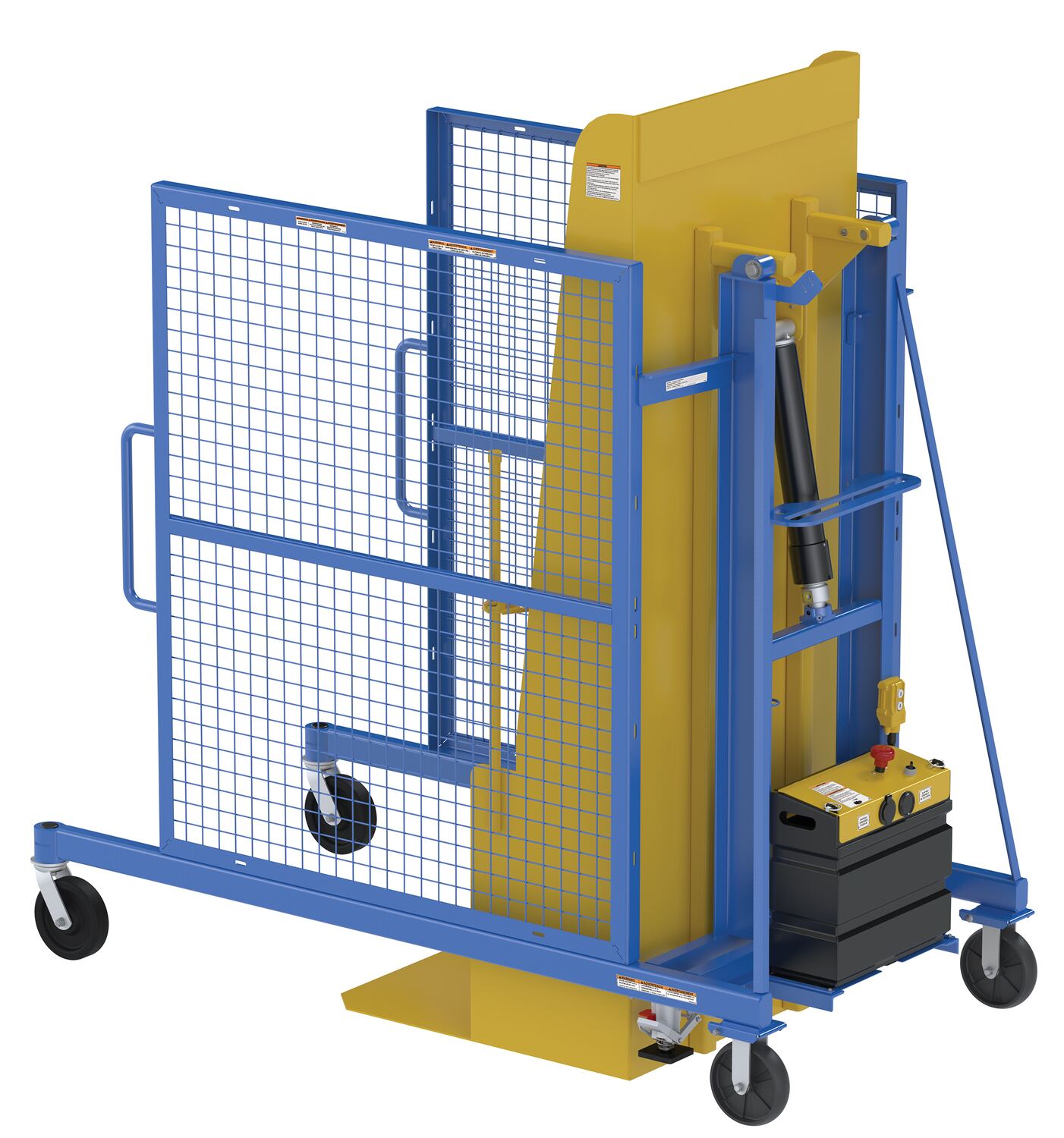

TCD-U-72-DC TCD-U-72-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16		1071

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TCD-U-48-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48

TCD-U-48-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16

TCD-U-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16

TCD-U-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16

TCD-U-72-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16

TCD-U-72-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
For More Details of the Option Click the Red Model Button
HCP-2642 HCP-2642 Optional Hand Control Pedestal
MBC-1513-14 MBC-1513-14 Manual Trash Bin Compactor
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Universal Trash Can Dumpers PDF's will open in a new window when clicked.

Manuals


TCD
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


TCD-U-48-AC

TCD-U-48-DC

TCD-U-60-AC

TCD-U-60-DC

TCD-U-72-AC

TCD-U-72-DC

Testing Certificates


TCD-U-48-AC

TCD-U-48-DC

TCD-U-60-AC

TCD-U-60-DC

TCD-U-72-AC

TCD-U-72-DC

SDS Sheets

Hydraulic Oil SDS Sheet for: TCD-U-48-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-72-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

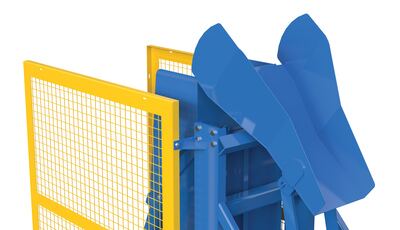

Reference #: CF-5777 Hydraulic Box Dumper Chute
Reference #: CF-5777 Hydraulic Box Dumper Chute
Reference #: CF-5777 Hydraulic Box Dumper Chute
Special Hydraulic Box Dumper Articulating Chute
For more Specialty Designs similar to these... Click Here

Q: What is the cycle time for the TCD-U-48-DC or the TCD-U-60-DC?

A: Speed is approximately 35 seconds to raise and 35 seconds to lower.

Q: How long does it take to charge the battery for the TCD-U-48-DC or the TCD-U-60-DC?

A: It takes approximately 6-8 hours to charge the battery.

Q: How long does the battery last on the TCD-U-48-DC or the TCD-U-60-DC?

A: Under normal conditions, the battery will last approximately 3.5 hours when raised every 5 minutes. The battery will last approximately 7.5 hours when raised every 10 minutes.




Related or Similar Products:

Electric Hydraulic Trash Can Dumpers
Product

Electric Hydraulic Trash Can Dumpers

Electric/Hydraulic Box Dumpers
Product

Electric/Hydraulic Box Dumpers

Multi-Purpose Tote Dumpers
Product

Multi-Purpose Tote Dumpers

Universal Trash Can Dumpers
Product

Universal Trash Can Dumpers

Trash Can Carts
Product

Trash Can Carts

Trash Can Dumper
Product

Trash Can Dumper

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Universal Trash Can Dumpers




This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

Model # Description Attributes Net Wt.
(lbs)
TCD-U-48-AC TCD-U-48-ACSteel Universal AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48		888
TCD-U-48-DC TCD-U-48-DCSteel Universal DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16		908
TCD-U-60-AC TCD-U-60-ACSteel Universal AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16		864
TCD-U-60-DC TCD-U-60-DCSteel Universal DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16		942
TCD-U-72-AC TCD-U-72-ACSteel Universal AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16		991
TCD-U-72-DC TCD-U-72-DCSteel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16		1071

Options


HCP-2642 HCP-2642 Optional Hand Control Pedestal
MBC-1513-14 MBC-1513-14 Manual Trash Bin Compactor
