Electric/Hydraulic Box Dumpers

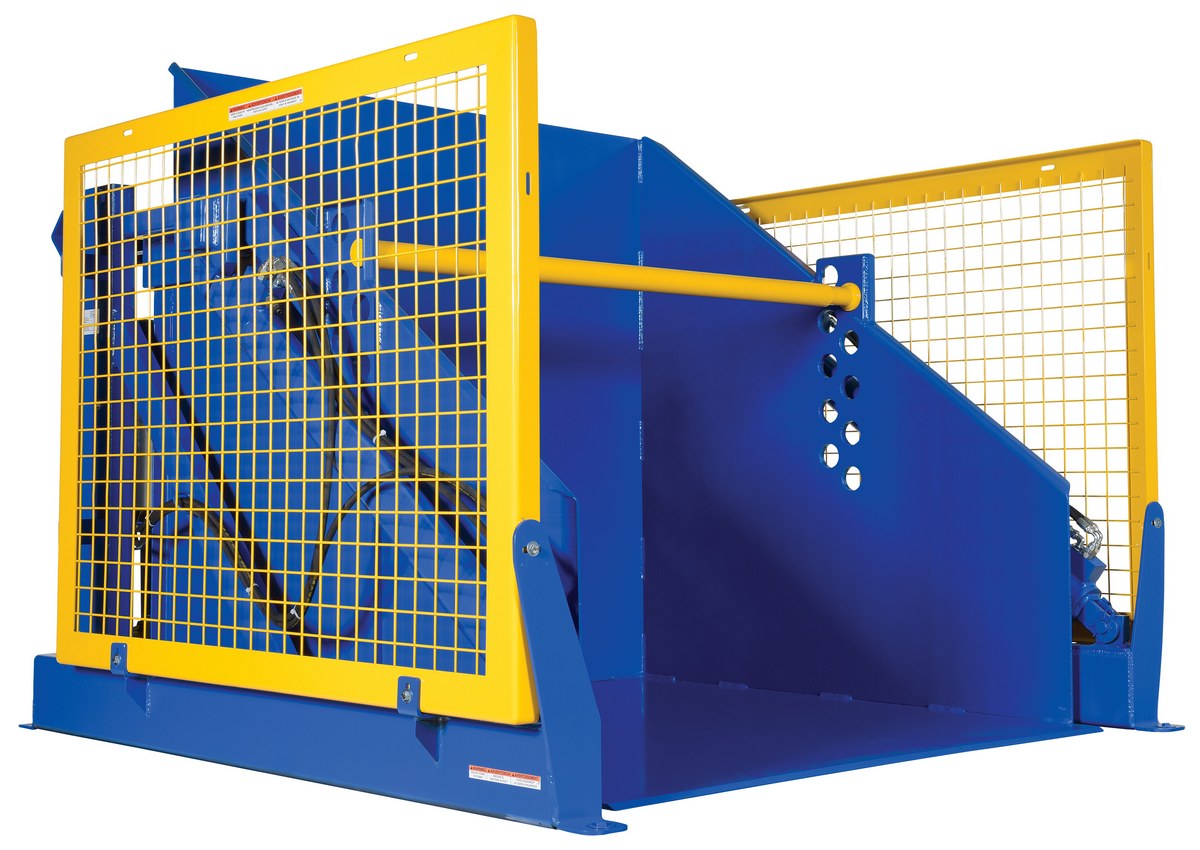

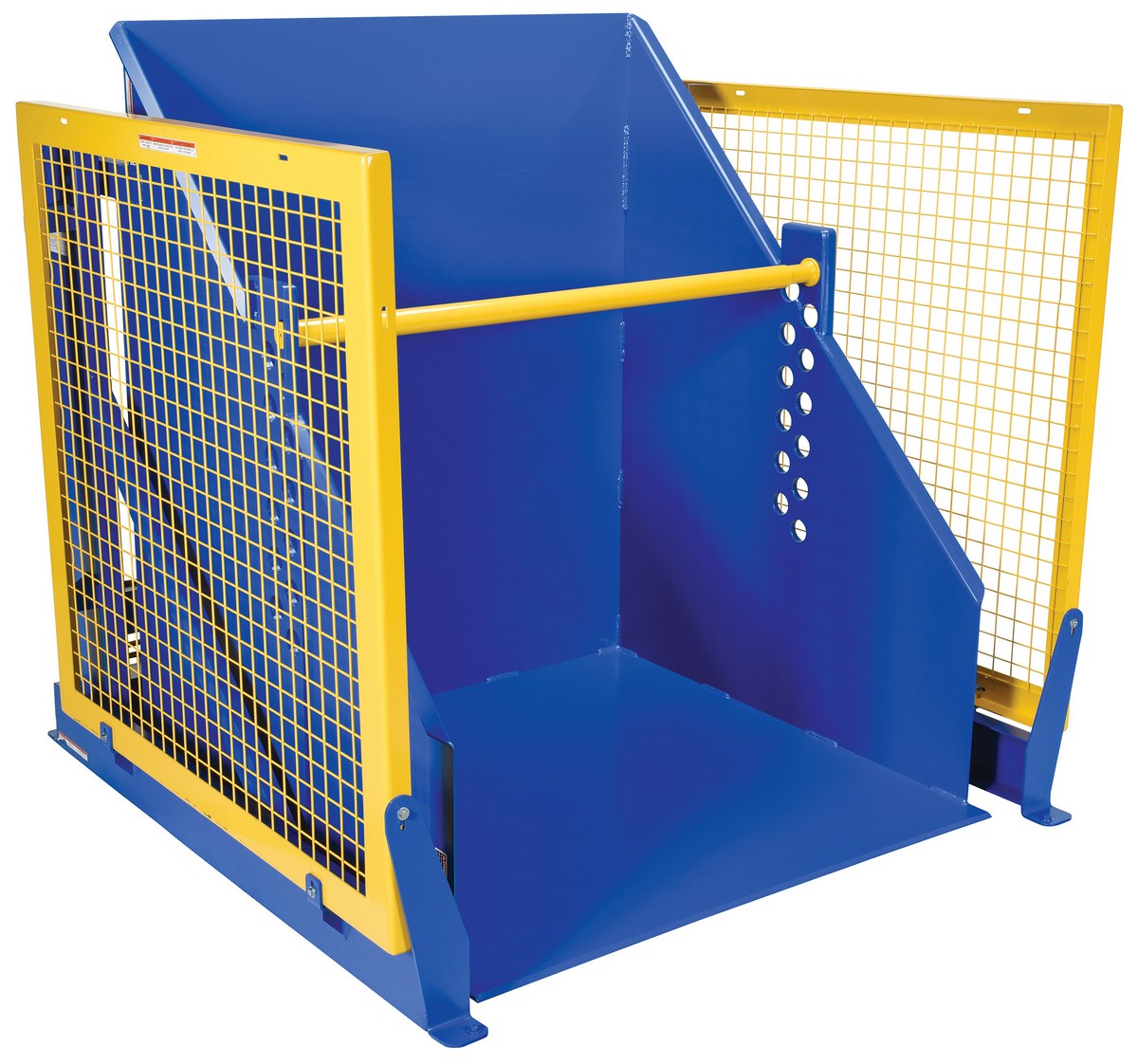

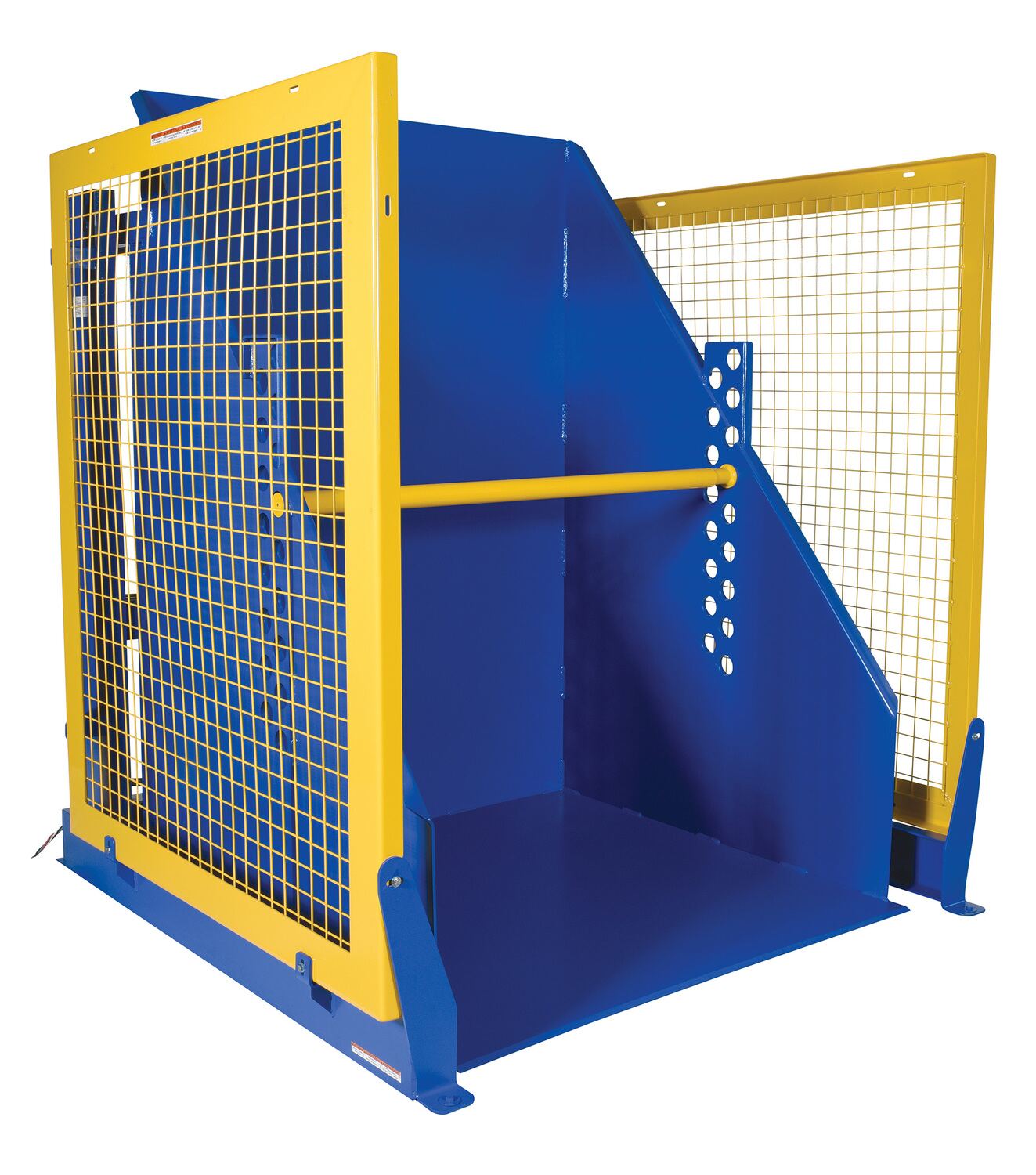

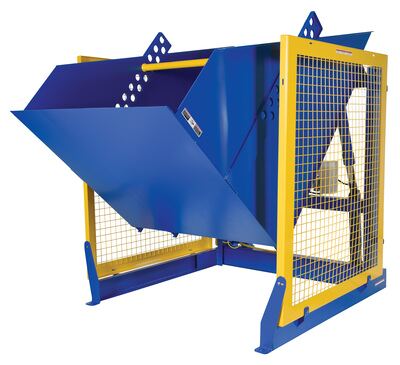

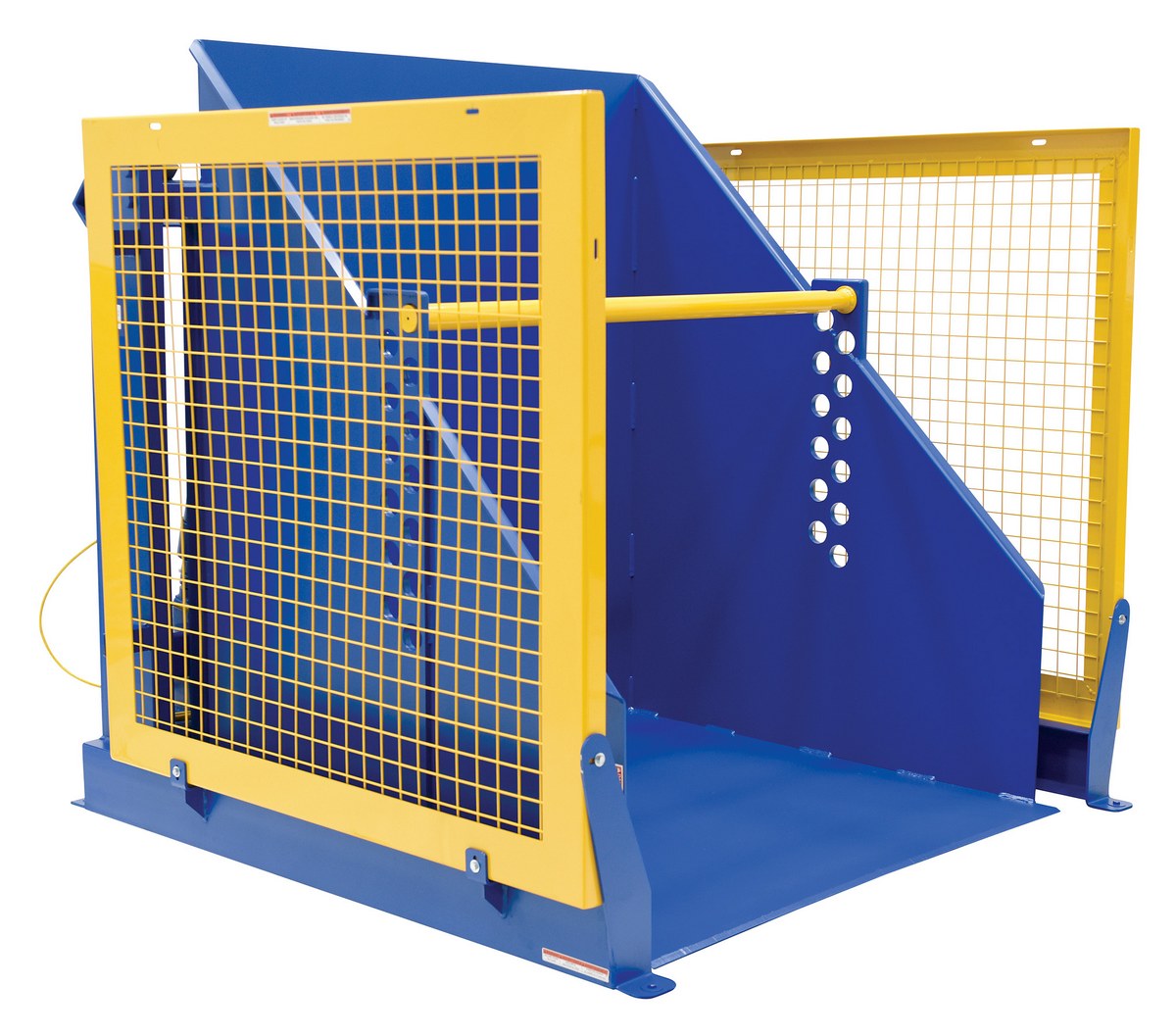

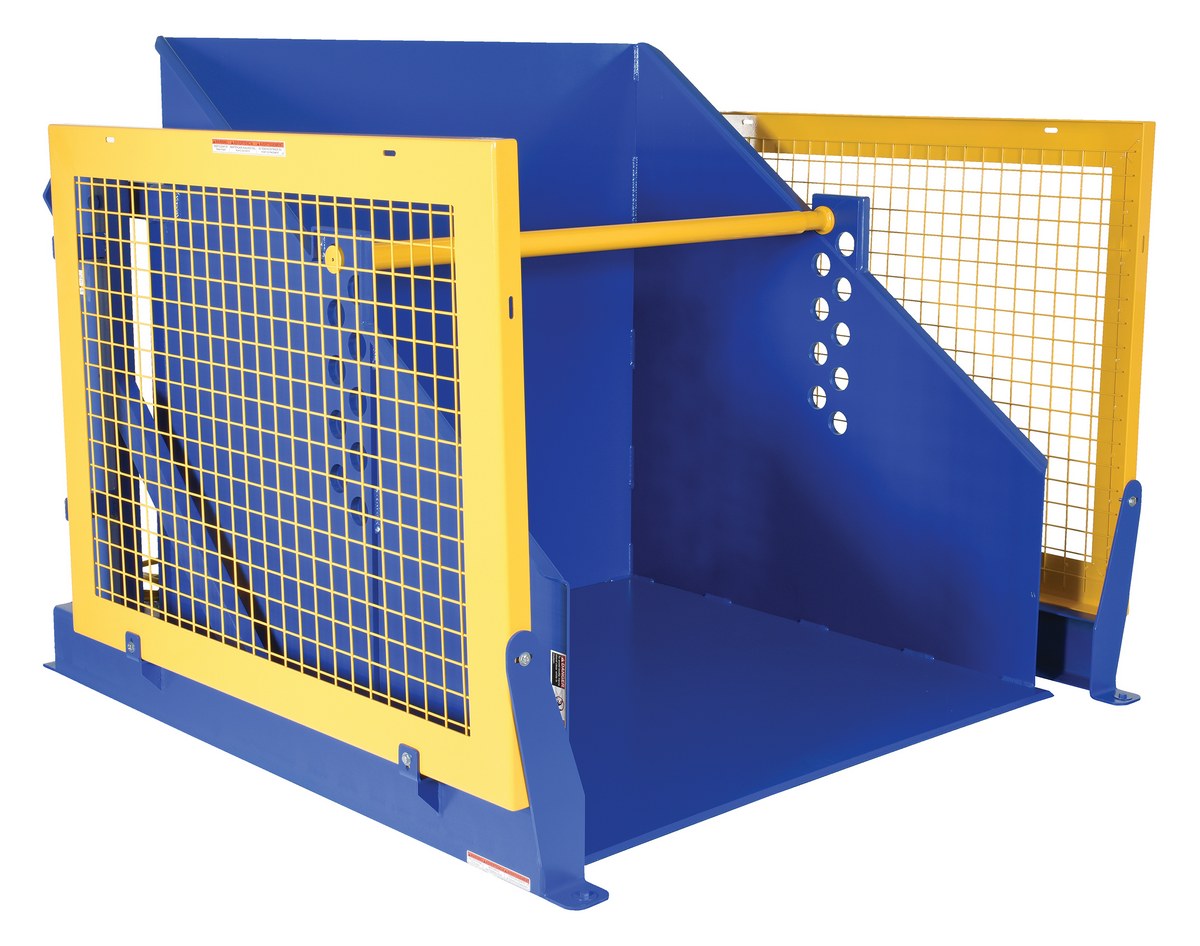

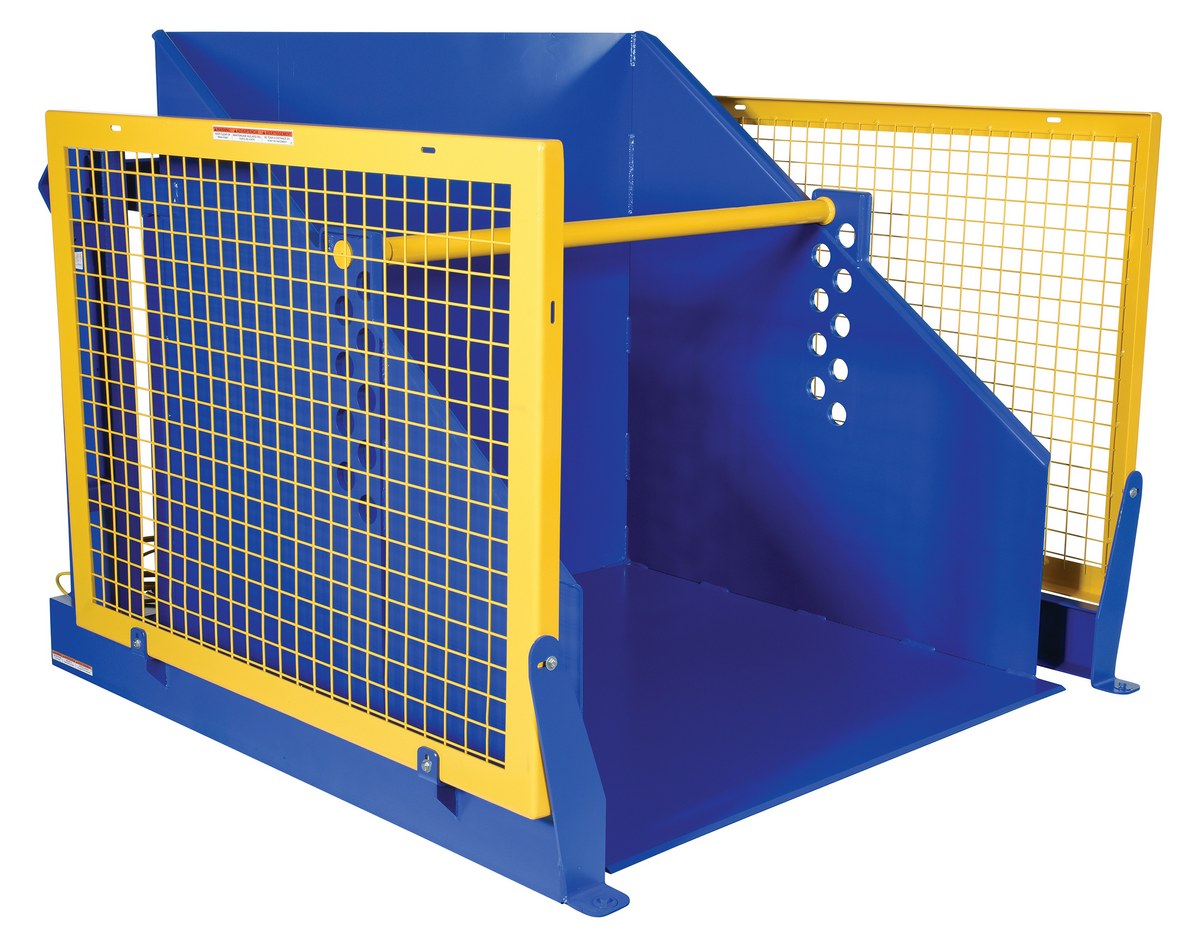

model: HBD-2-60

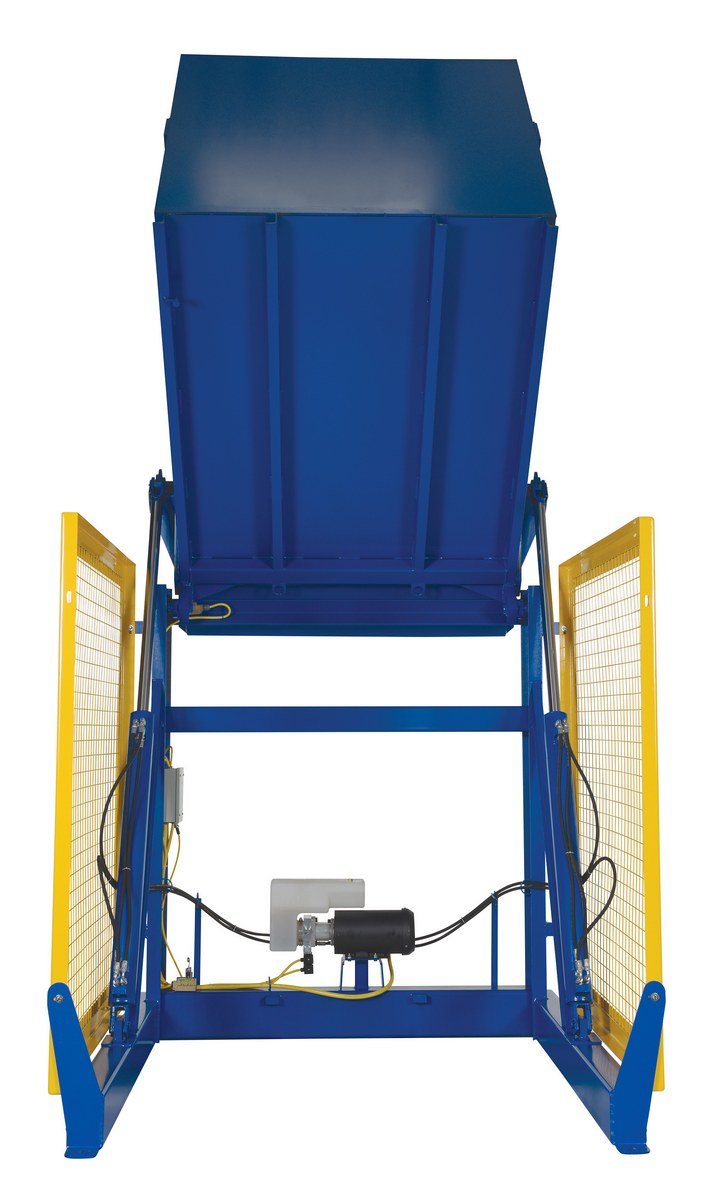

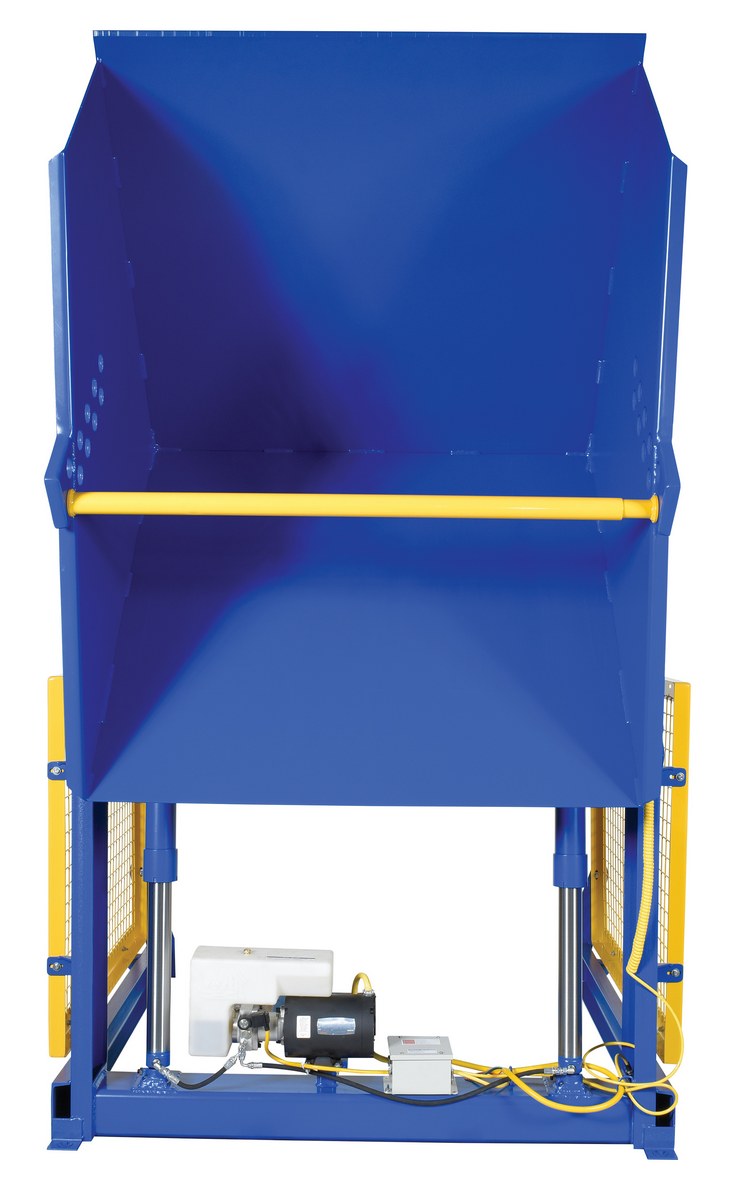

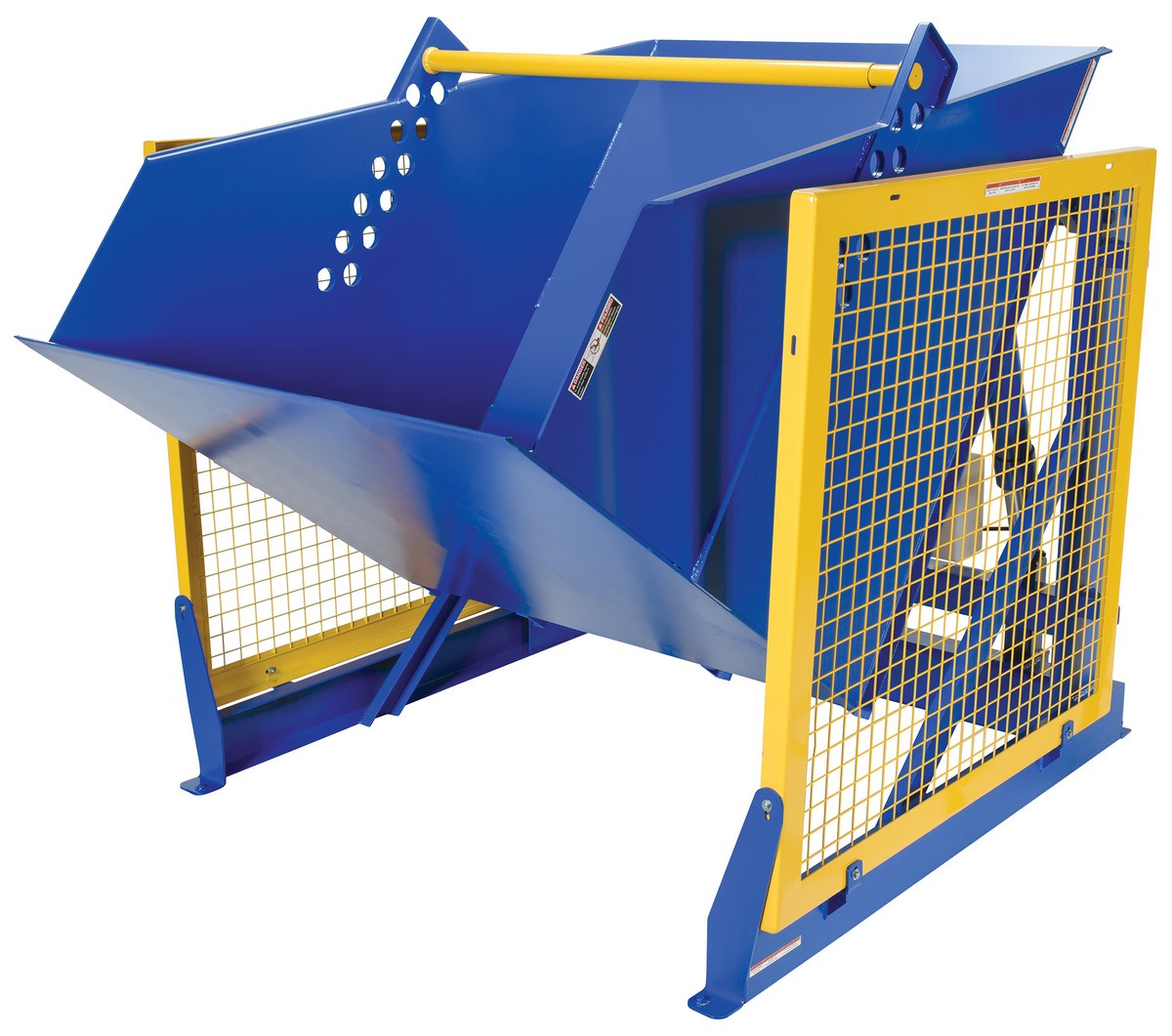

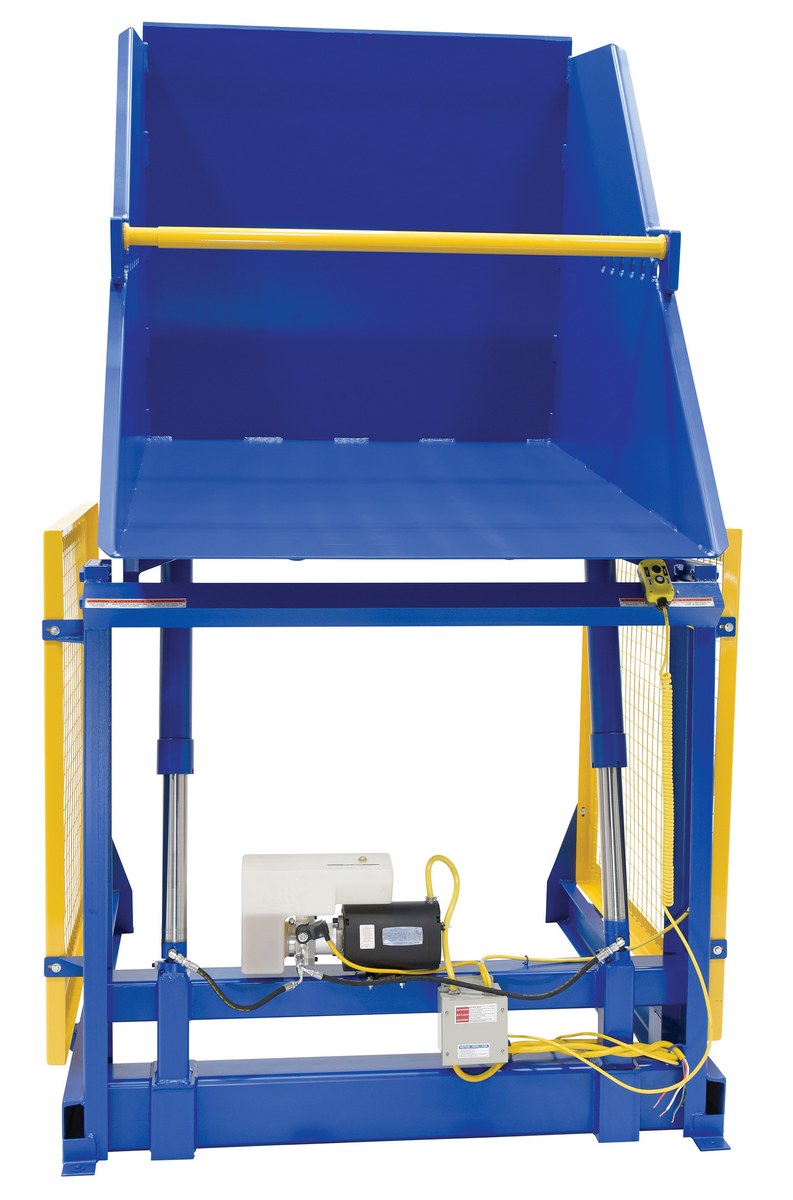

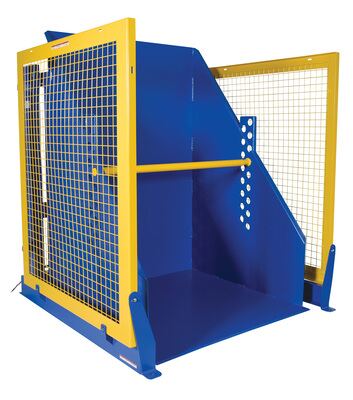

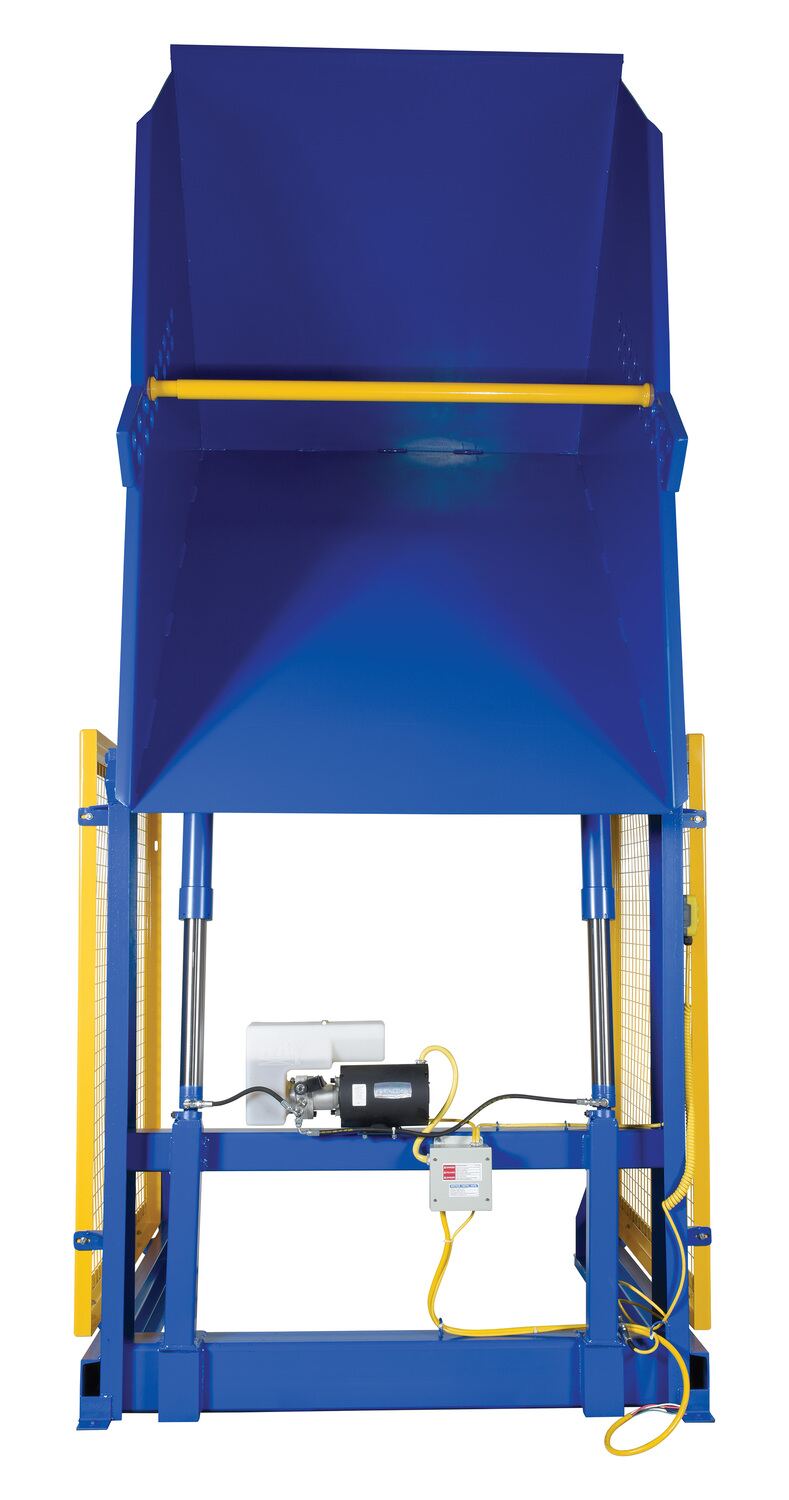

HBD-2-60_A.jpg HBD-2-60_B.jpg HBD-2-60_C.jpg HBD-2-60_D.jpg HBD-2-60_E.jpg HBD-2-60_F.jpg HBD-2-60_G.jpg HBD_X.gif More Images +

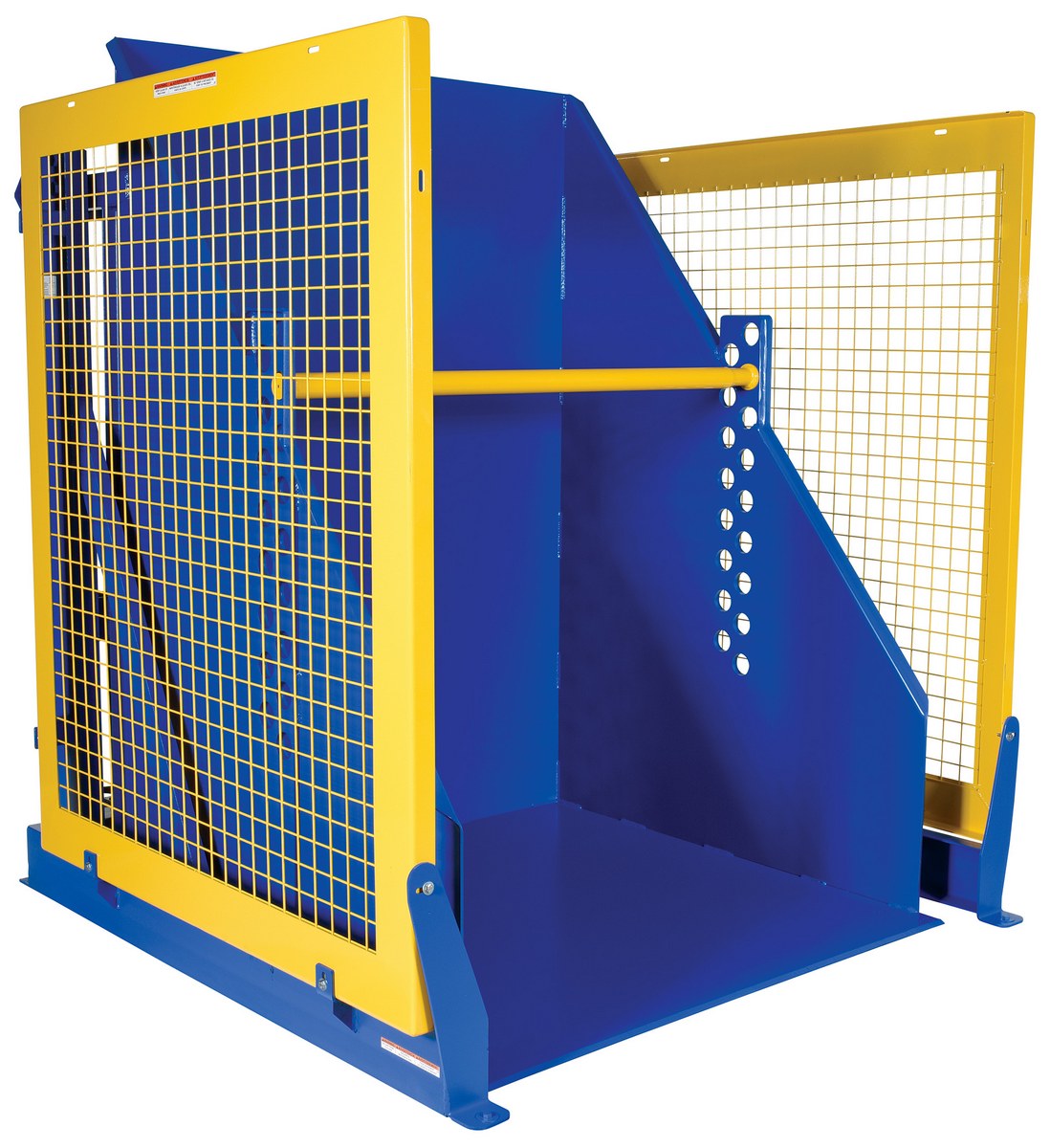

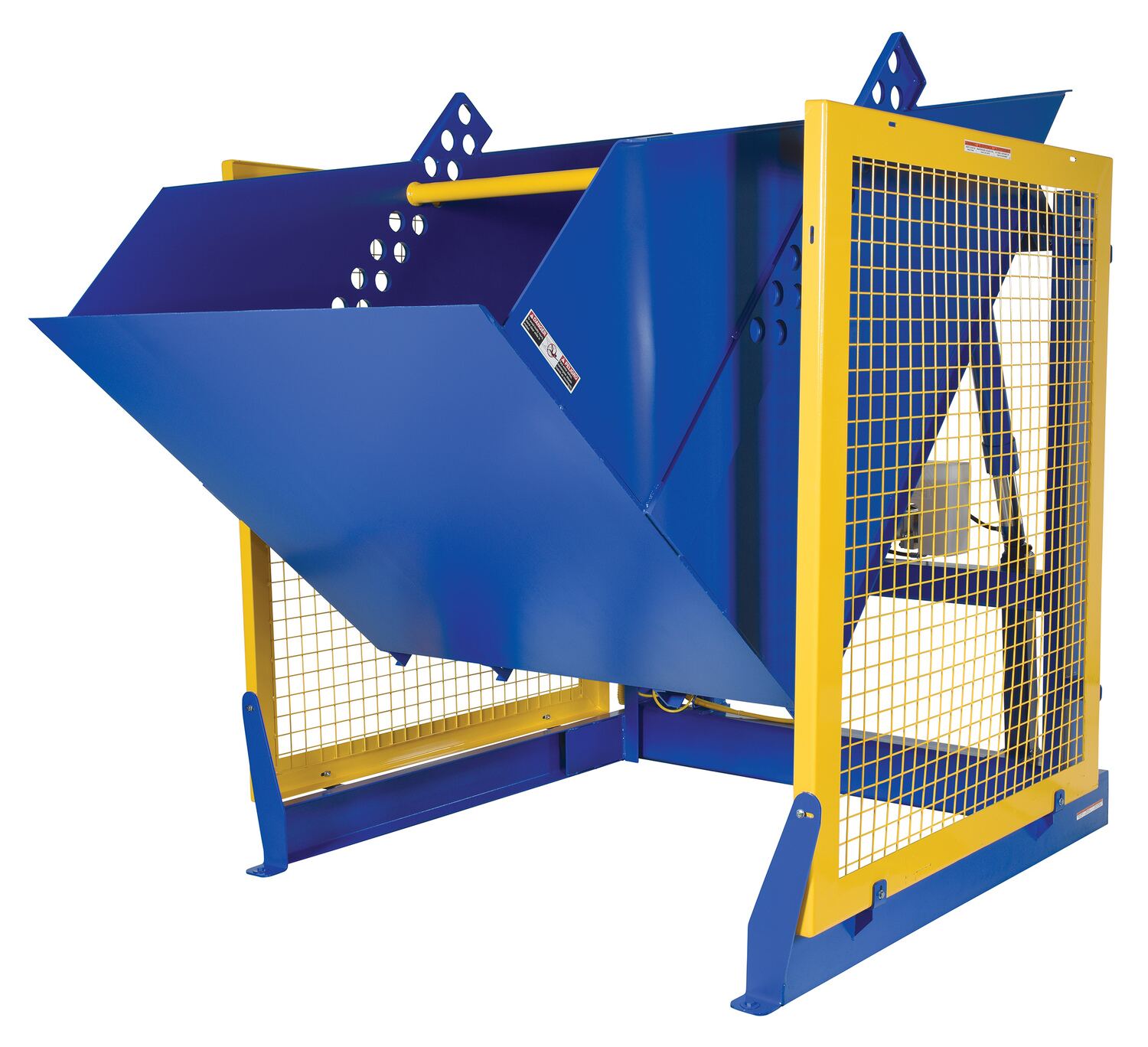

Electric/Hydraulic Box Dumpers
SERIES: HBD

460V 3-Phase Standard

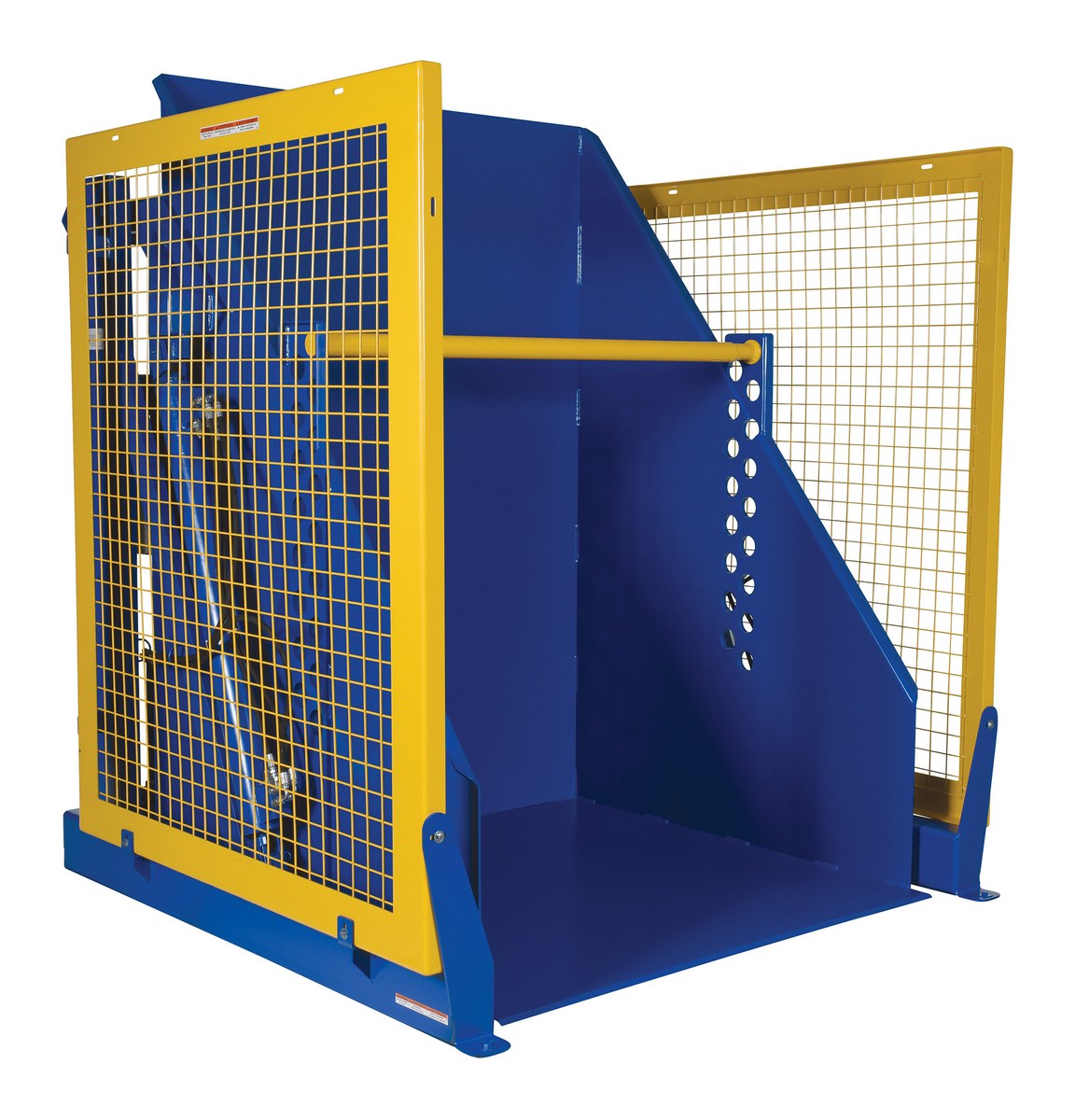

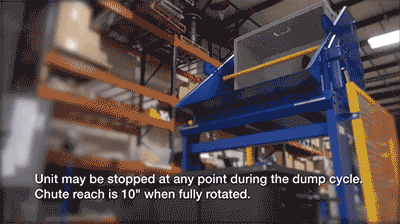

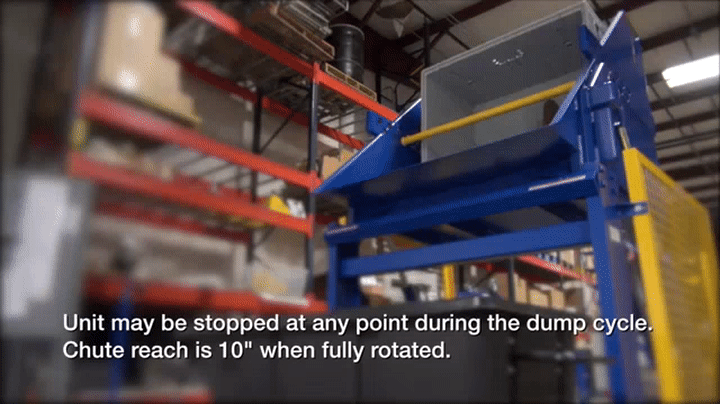

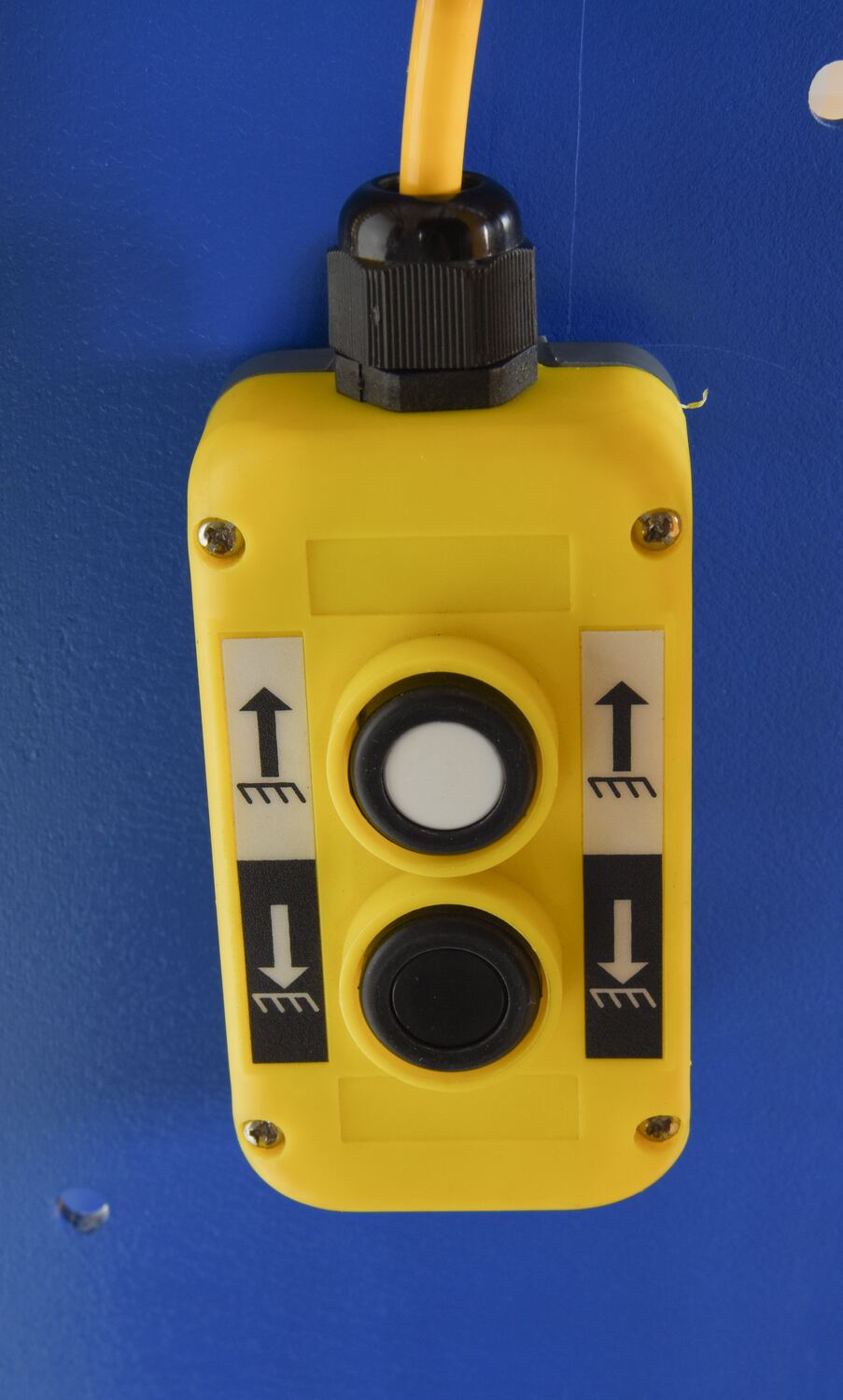

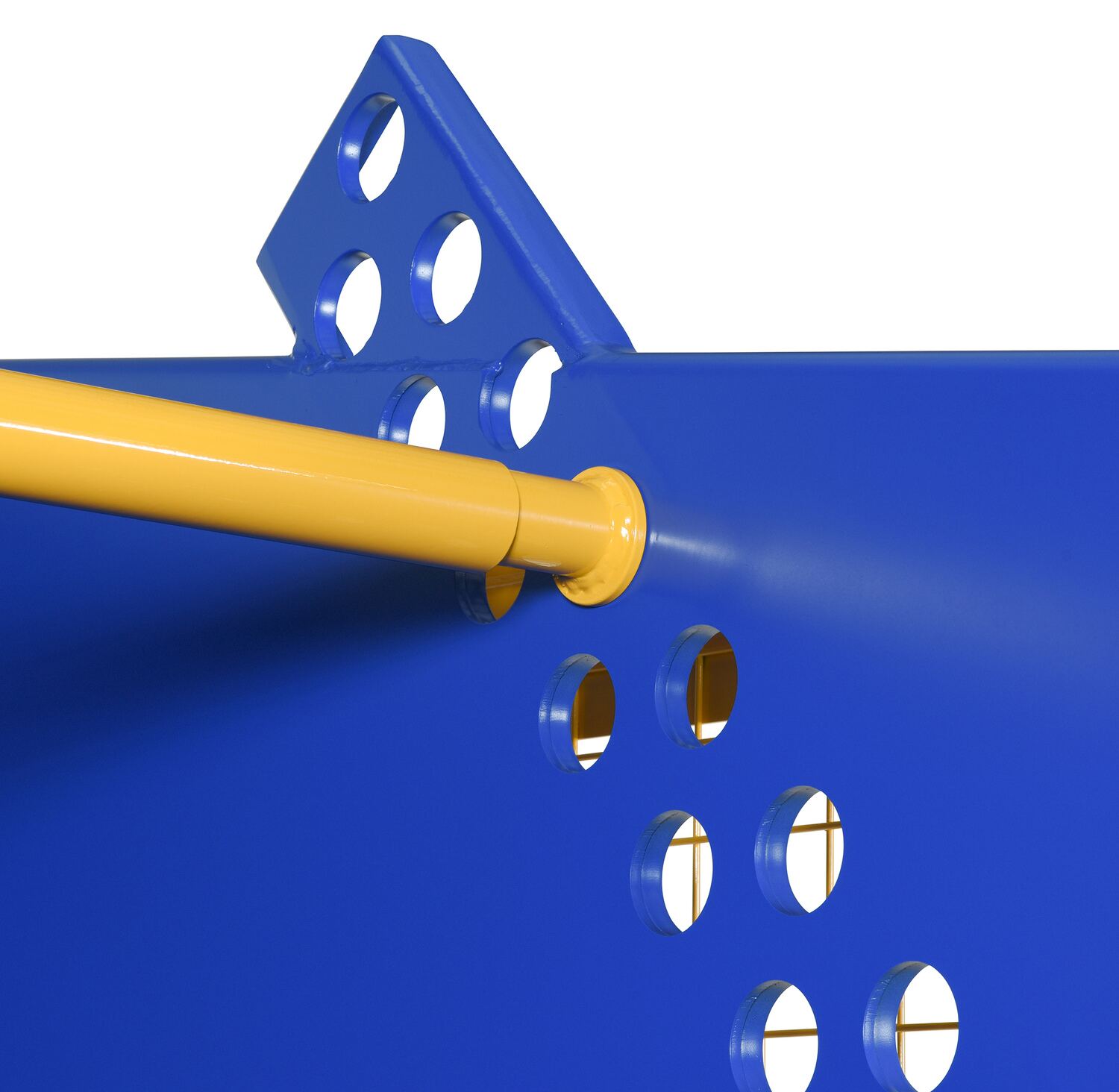

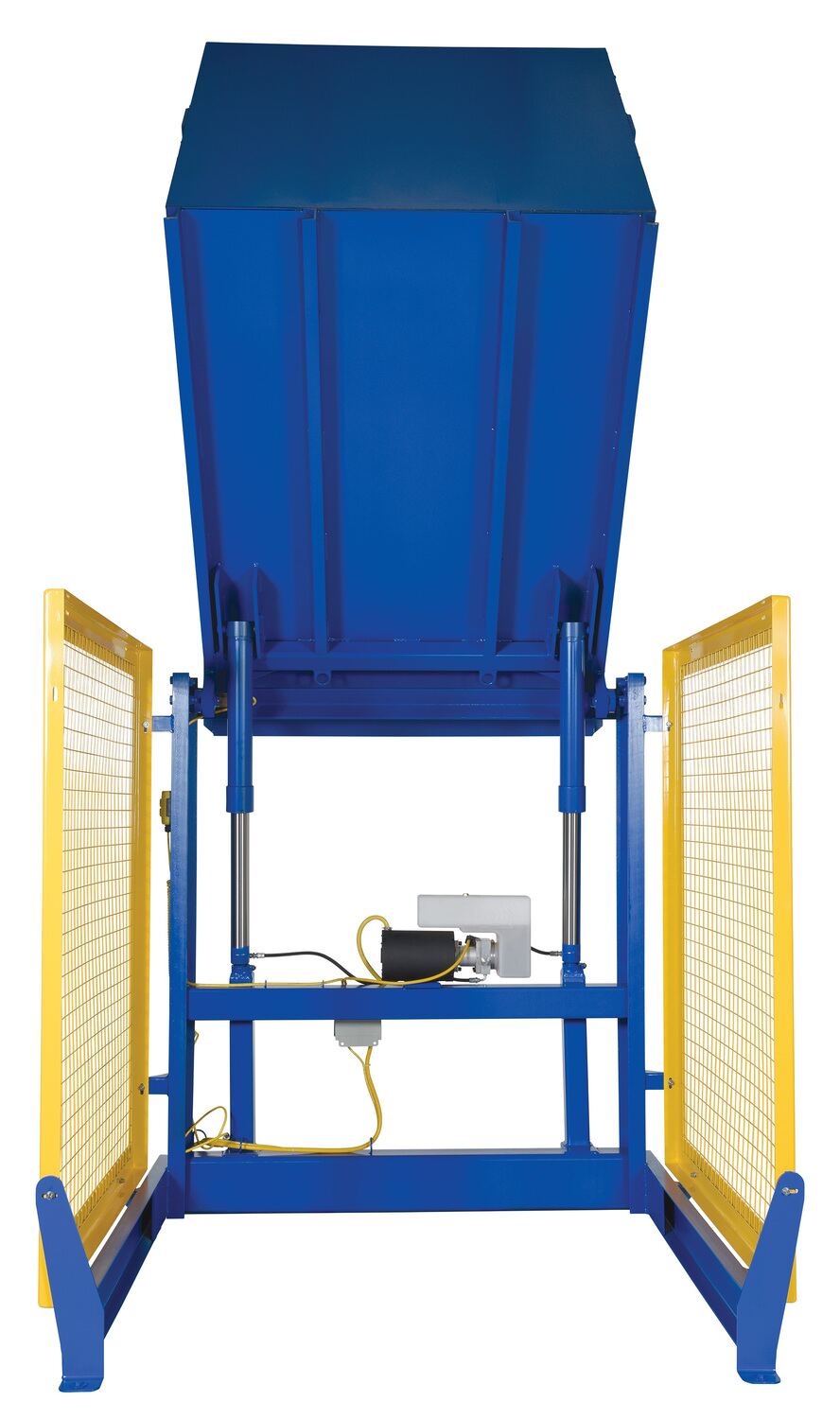

Designed for controlled dumping of material from boxes, crates, and other types of containers. Lowered height of only 3/8" allows for pallet truck loading and unloading. Retaining bar adjusts every 2" to accommodate a wide range of container heights. Each dump height has a hold down range, see chart. Maximum rotation is 135 degrees yielding a 45 degree dump angle. Unit may be stopped at any point during the dump cycle. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard (5.5 HP power unit on 6,000 pound models). Protective mesh side screens included. Heavy-duty welded steel construction. Standard duty cycle equals maximum 15 starts per hour in a normal environment. Duty cycle is calculated by starts per hour or number of times "up" button is pushed. Jogging (bouncing of the chute) is NOT recommended.

Features:

  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Voltage - 460 Volt, 60 cycle, 3 phase. Options available

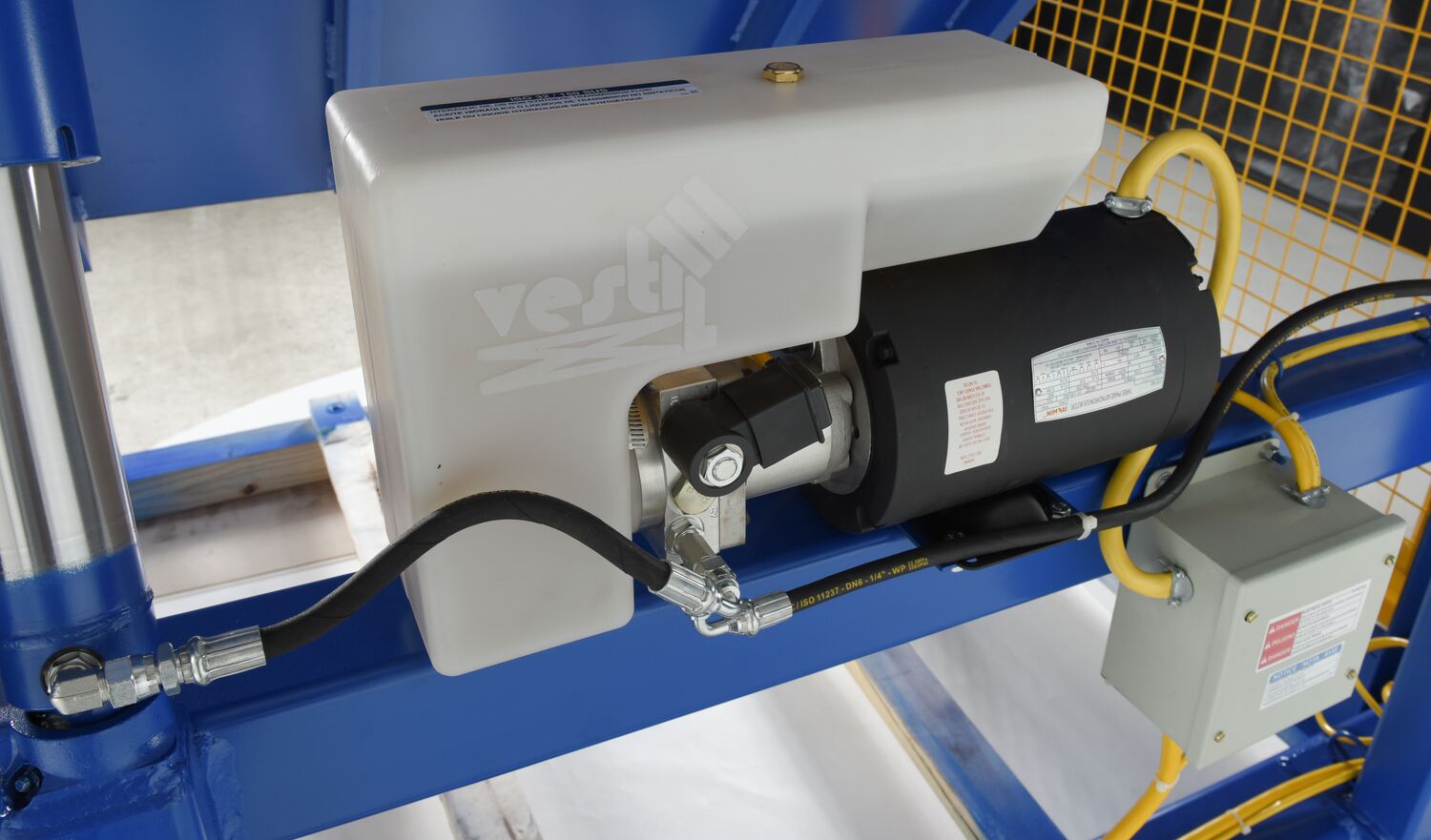

  • Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve and pressure compensated flow control valve.
  • 24 Volt, fused control circuit to protect operator.
  • Hydraulic Actuators have internal safety velocity fuse w/stainless steel spring for emergency lockup.
  • Welding to meet A.W.S.

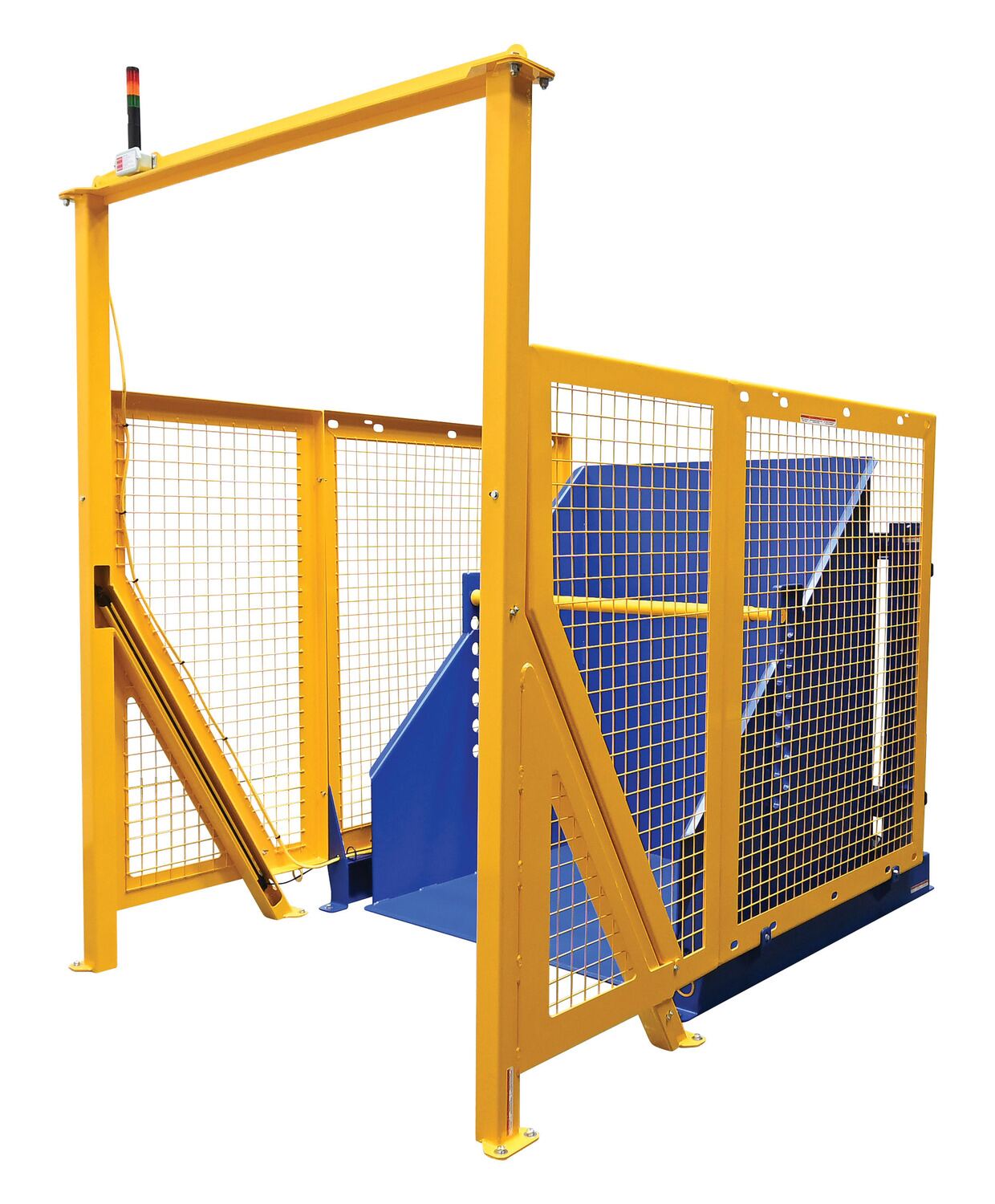

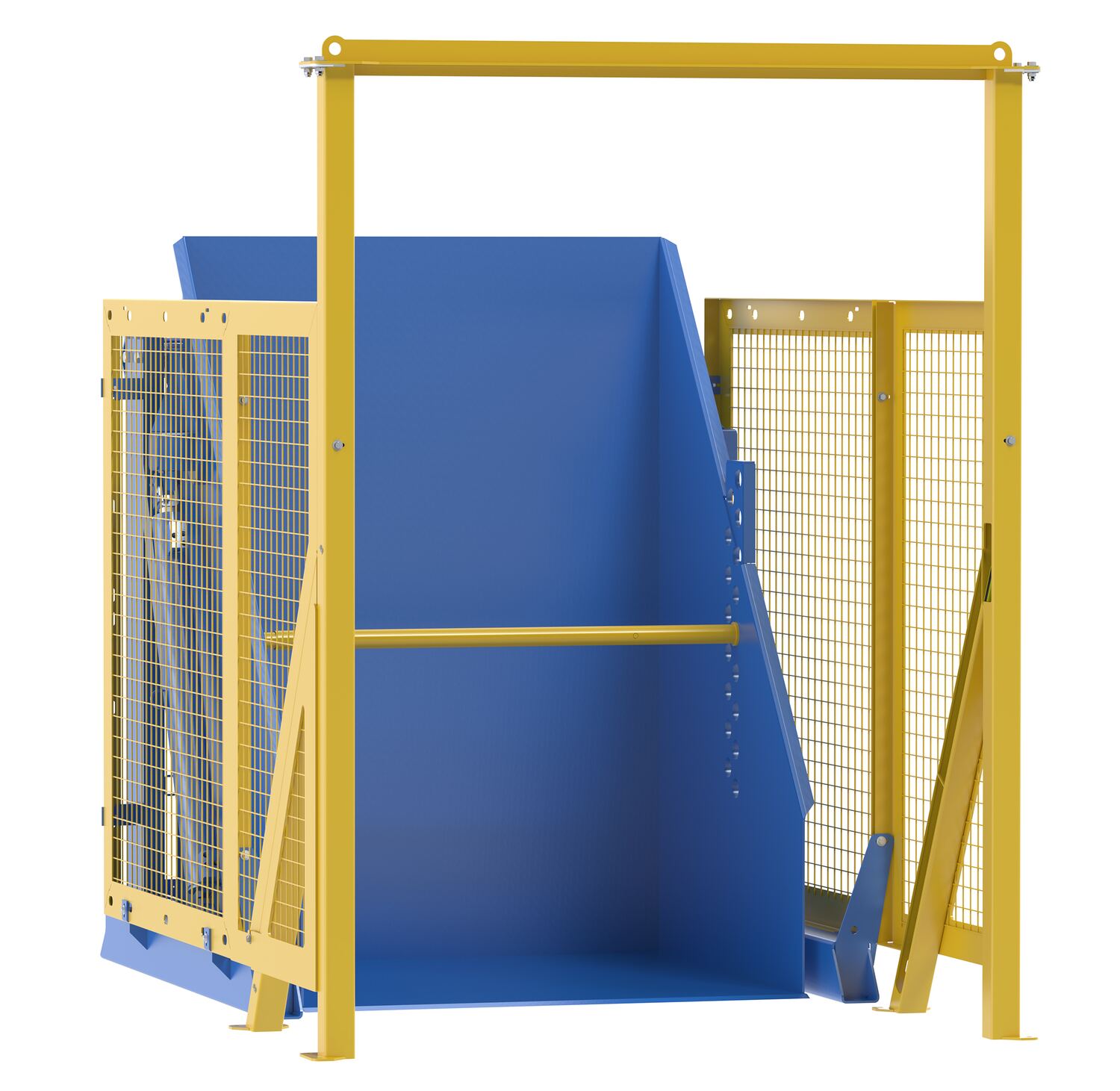

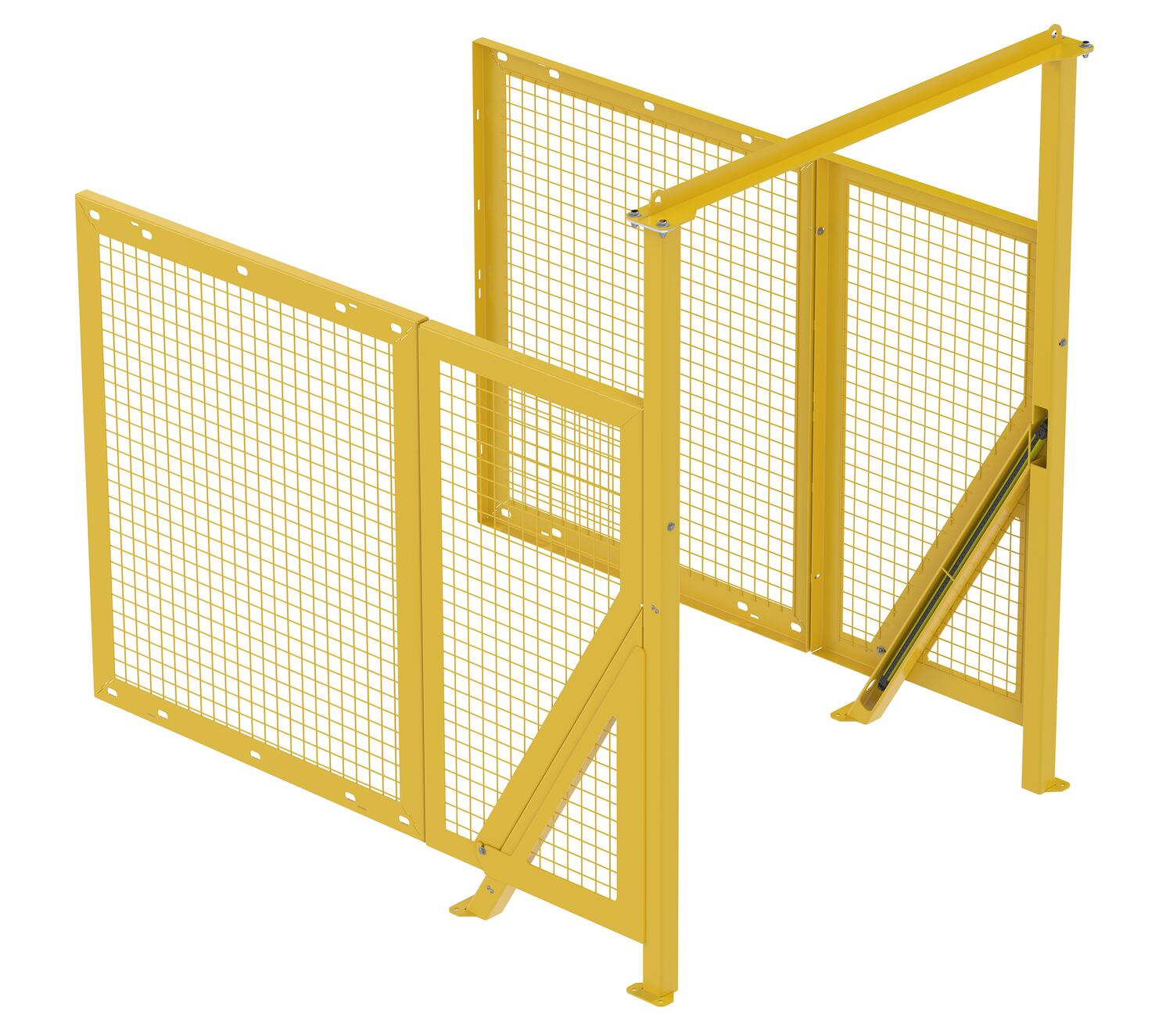

Safety Light Curtain Option - model HBD-SLC

HBD-SLCAre you looking to improve your workplace safety? Are you tired of the ordinary and want something modern? If so, try a safety light curtain! Traditional safety gates need constant interaction, which wreak havoc on production efficiencies. On the contrary, the safety light curtain is so hands off; one might forget that it's even there! The photoelectric sensor of the light curtain keeps both personnel and work areas safe, while taking the element of human error away. If one or more of the light beams is interrupted the automatic safety switch will engage causing the operation of the box dumper to shut down. With this curtain protecting the entrance to a specific work area, the layout continues to give ample room for the box dumper to maneuver and operate in its natural way! See more details under OPTIONS tab below.

Electric/Hydraulic Box Dumpers

model: HBD-2-60

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HBD-2-36
HBD-2-361 Year Limited WarrantySteel Electric Hydraulic Box Dumper 36 In. Dump Height 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Dump Height (in.): 36		1787
HBD-2-48
HBD-2-481 Year Limited WarrantySteel Electric Hydraulic Box Dumper 48 In. Dump Height 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Dump Height (in.): 48		1948
HBD-2-60 POPULAR
HBD-2-601 Year Limited WarrantySteel Electric Hydraulic Box Dumper 60 In. Dump Height 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Dump Height (in.): 60		2092
HBD-4-36
HBD-4-361 Year Limited WarrantySteel Electric Hydraulic Box Dumper 36 In. Dump Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Dump Height (in.): 36		1721
HBD-4-48
HBD-4-481 Year Limited WarrantySteel Electric Hydraulic Box Dumper 48 In. Dump Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Dump Height (in.): 48		1970
HBD-4-60
HBD-4-601 Year Limited WarrantySteel Electric Hydraulic Box Dumper 60 In. Dump Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Dump Height (in.): 60		2130
HBD-6-36
HBD-6-361 Year Limited WarrantySteel Electric Hydraulic Box Dumper 36 In. Dump Height 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Dump Height (in.): 36		2003
HBD-6-48
HBD-6-481 Year Limited WarrantySteel Electric Hydraulic Box Dumper 48 In. Dump Height 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Dump Height (in.): 48		2147
HBD-6-60
HBD-6-601 Year Limited WarrantySteel Electric Hydraulic Box Dumper 60 In. Dump Height 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Dump Height (in.): 60		2227

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HBD-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 36
Uniform Capacity (lb.): 2000
Dump Height (in.): 36

HBD-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 48
Uniform Capacity (lb.): 2000
Dump Height (in.): 48

HBD-2-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 60
Uniform Capacity (lb.): 2000
Dump Height (in.): 60

HBD-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 36
Uniform Capacity (lb.): 4000
Dump Height (in.): 36

HBD-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 48
Uniform Capacity (lb.): 4000
Dump Height (in.): 48

HBD-4-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 60
Uniform Capacity (lb.): 4000
Dump Height (in.): 60

HBD-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 36
Uniform Capacity (lb.): 6000
Dump Height (in.): 36

HBD-6-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 48
Uniform Capacity (lb.): 6000
Dump Height (in.): 48

HBD-6-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 60
Uniform Capacity (lb.): 6000
Dump Height (in.): 60
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

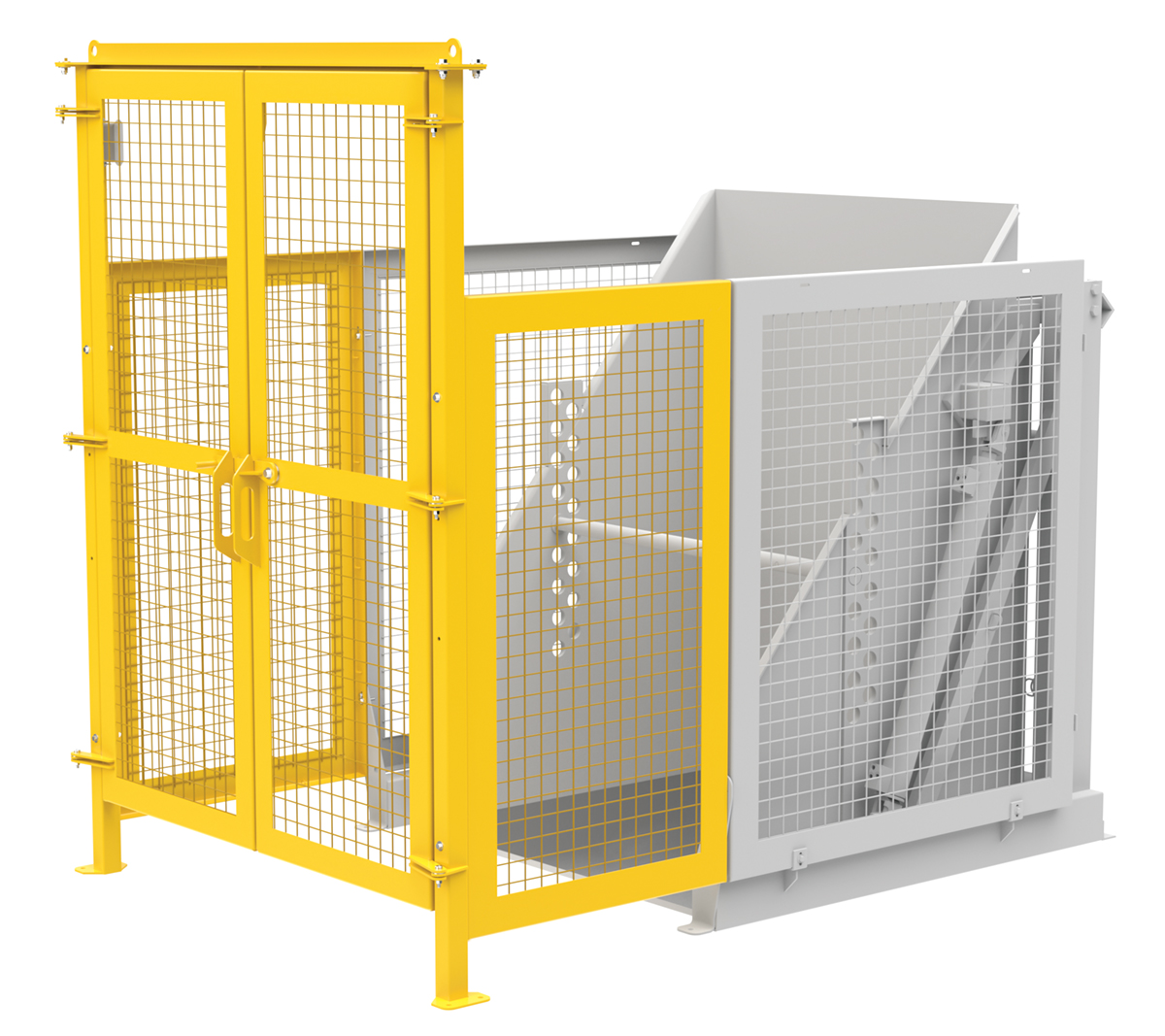

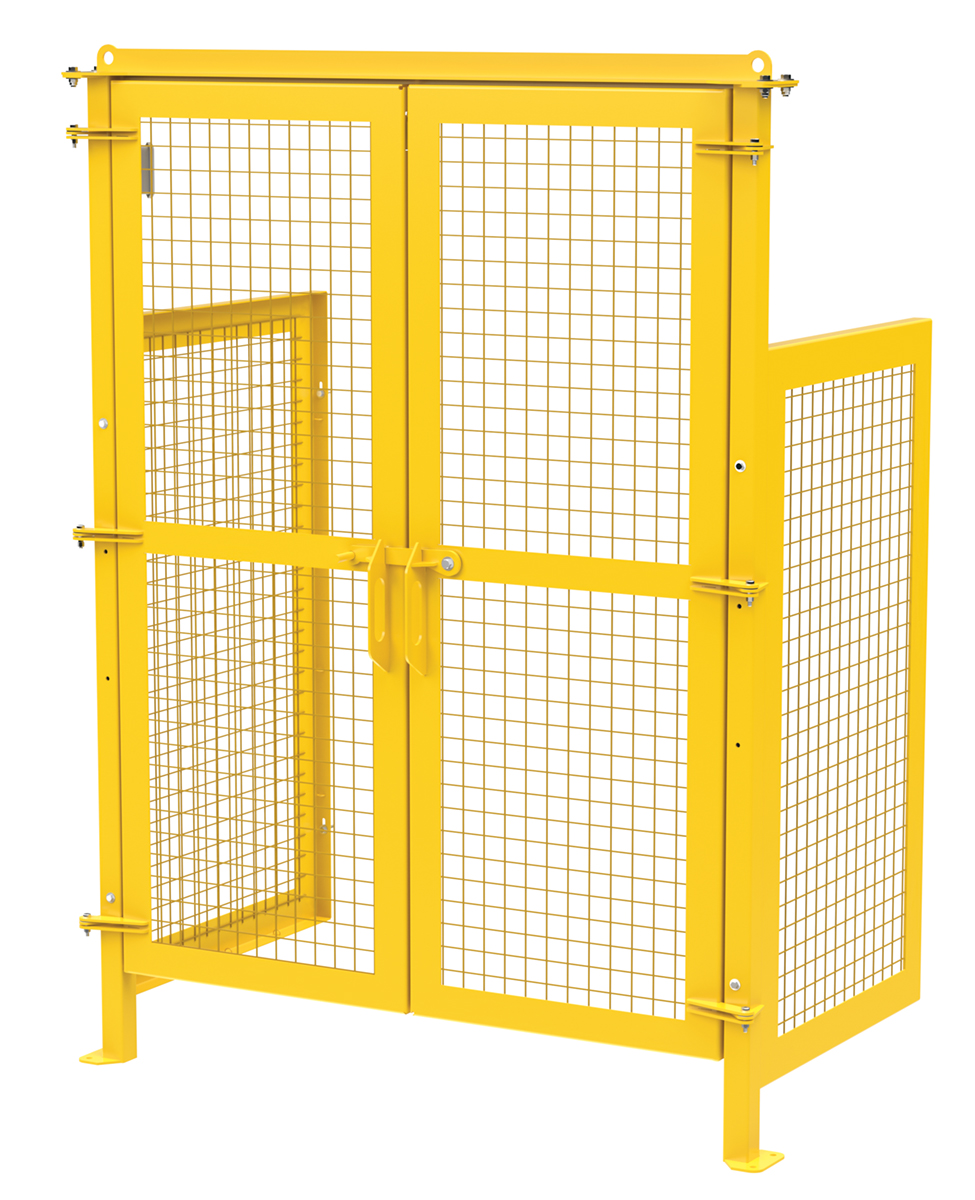

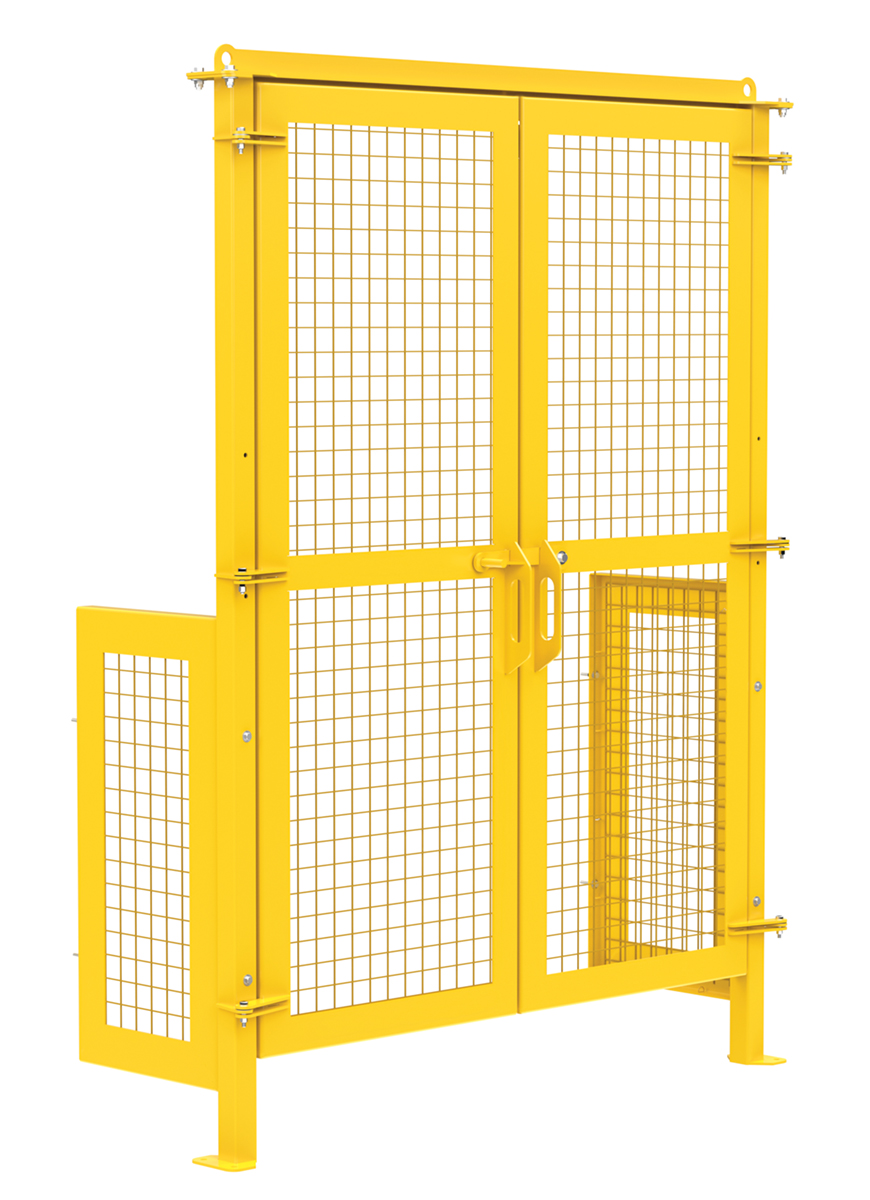

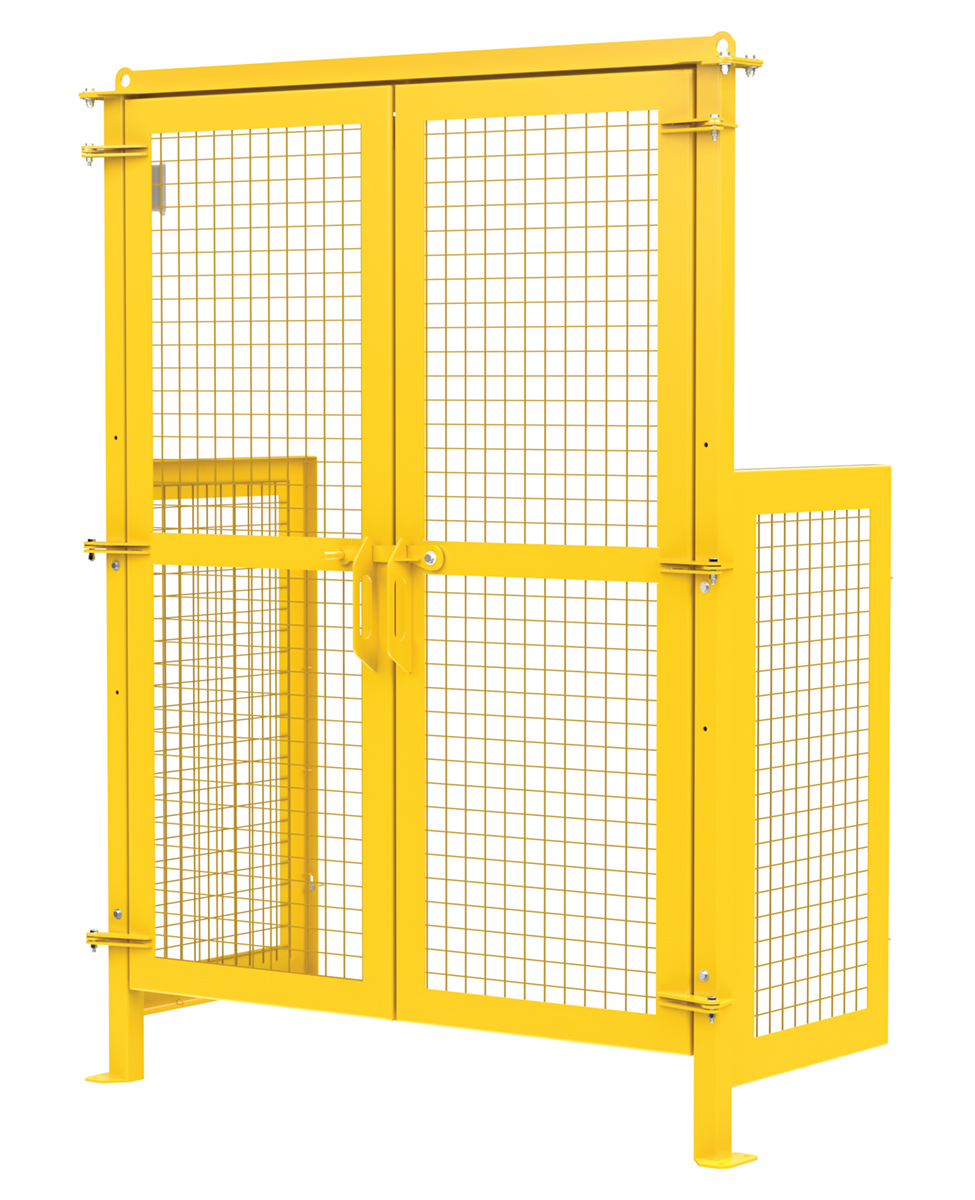

HBD-GATE-36 HBD-6-60Steel Hydraulic Box Dumper Gate 25-1/2 In Length x 92 In Hei… Limited Warranty
500
HBD-GATE-48 HBD-6-60Steel Hydraulic Box Dumper Gate 33-1/4 In Length x 92 In Hei… Limited Warranty
525
HBD-GATE-60 HBD-6-60Steel Hydraulic Box Dumper Gate 41-1/2 In Length x 92 In Hei… Limited Warranty
550
HBD-PU-X HBD-6-60Factory Installed Extended Duty Power for 6000 Lb. Capacity … Limited Warranty
450
HBD-SLC HBD-6-60Steel Hydraulic Box Dumper Factory Installed Safety Light Cu… Limited Warranty
481
Model Image Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal 12
FC-2 Foot Control 6
RRC-2PB Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit) 1
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

HBD

Survey Sheets

HBD BOX DUMPER

Engineering Drawings

HBD-2-36

HBD-2-48

HBD-2-60

HBD-4-36

HBD-4-48

HBD-4-60

HBD-6-36

HBD-6-48

HBD-6-60

HBD-GATE-36

HBD-GATE-48

HBD-GATE-60

HBD-SLC

Testing Certificates

HBD-2-36

HBD-2-48

HBD-2-60

HBD-4-36

HBD-4-48

HBD-4-60

HBD-6-36

HBD-6-48

HBD-6-60

HBD-GATE-36

HBD-GATE-48

HBD-GATE-60

HBD-PU-X

HBD-SLC

SDS Sheets

Hydraulic Oil
HBD-2-36 SDS

Hydraulic Oil
HBD-2-48 SDS

Hydraulic Oil
HBD-2-60 SDS

Hydraulic Oil
HBD-4-36 SDS

Hydraulic Oil
HBD-4-48 SDS

Hydraulic Oil
HBD-4-60 SDS

Hydraulic Oil
HBD-6-36 SDS

Hydraulic Oil
HBD-6-48 SDS

Hydraulic Oil
HBD-6-60 SDS

Other PDFs


Safety Light Curtain Option Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products
Reference #: CF-5777 Hydraulic Box Dumper Chute
Reference #: CF-5777 Hydraulic Box Dumper Chute
Reference #: CF-5777 Hydraulic Box Dumper Chute
Special Hydraulic Box Dumper Articulating Chute
For more Specialty Designs similar to these... Click Here

Q: I'm looking at the HBD-4-60 but need a higher dump height.

A: Our engineering team may be able to accommodate your height request. Please contact one of our sales associates to request a modified box dumper quote.

Q: What qualifies as a "start" for the box dumper? We will be using it consistently during the shift.

A: The standard power unit can accommodate 15 starts per hour. A "start" is when the motor is started or the button is pushed ( on, off, up, down). An extended duty continuous run power unit is available for the box dumper. Please contact a sales associate for more information.

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The box dumpers come standard 460 V 3 phase. The voltage and phase can be changed. Please contact a sales associate for voltage options.

Q: Can the Electric Hydraulic Box Dumpers be installed/used outdoors?

A: The Electric Hydraulic Box Dumpers are intended to be installed in an indoor environment. It is not recommended to be installed outdoors with constant exposure to sun and weather elements.

Q: What is the angle of the opening angle of the door? 90 or 180 degrees?

A: The gate will open all the way back to the perimeter guard side of HBD unit.




Related or Similar Products:





Electric/Hydraulic Box Dumpers




460V 3-Phase Standard

Designed for controlled dumping of material from boxes, crates, and other types of containers. Lowered height of only 3/8" allows for pallet truck loading and unloading. Retaining bar adjusts every 2" to accommodate a wide range of container heights. Each dump height has a hold down range, see chart. Maximum rotation is 135 degrees yielding a 45 degree dump angle. Unit may be stopped at any point during the dump cycle. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard (5.5 HP power unit on 6,000 pound models). Protective mesh side screens included. Heavy-duty welded steel construction. Standard duty cycle equals maximum 15 starts per hour in a normal environment. Duty cycle is calculated by starts per hour or number of times "up" button is pushed. Jogging (bouncing of the chute) is NOT recommended.

Features:

  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Voltage - 460 Volt, 60 cycle, 3 phase. Options available
  • Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve and pressure compensated flow control valve.
  • 24 Volt, fused control circuit to protect operator.
  • Hydraulic Actuators have internal safety velocity fuse w/stainless steel spring for emergency lockup.
  • Welding to meet A.W.S.

Safety Light Curtain Option - model HBD-SLC

HBD-SLCAre you looking to improve your workplace safety? Are you tired of the ordinary and want something modern? If so, try a safety light curtain! Traditional safety gates need constant interaction, which wreak havoc on production efficiencies. On the contrary, the safety light curtain is so hands off; one might forget that it's even there! The photoelectric sensor of the light curtain keeps both personnel and work areas safe, while taking the element of human error away. If one or more of the light beams is interrupted the automatic safety switch will engage causing the operation of the box dumper to shut down. With this curtain protecting the entrance to a specific work area, the layout continues to give ample room for the box dumper to maneuver and operate in its natural way! See more details under OPTIONS tab below.
