WTJ-E-15-3-DC-GAL

Printer Friendly
Available
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GAL

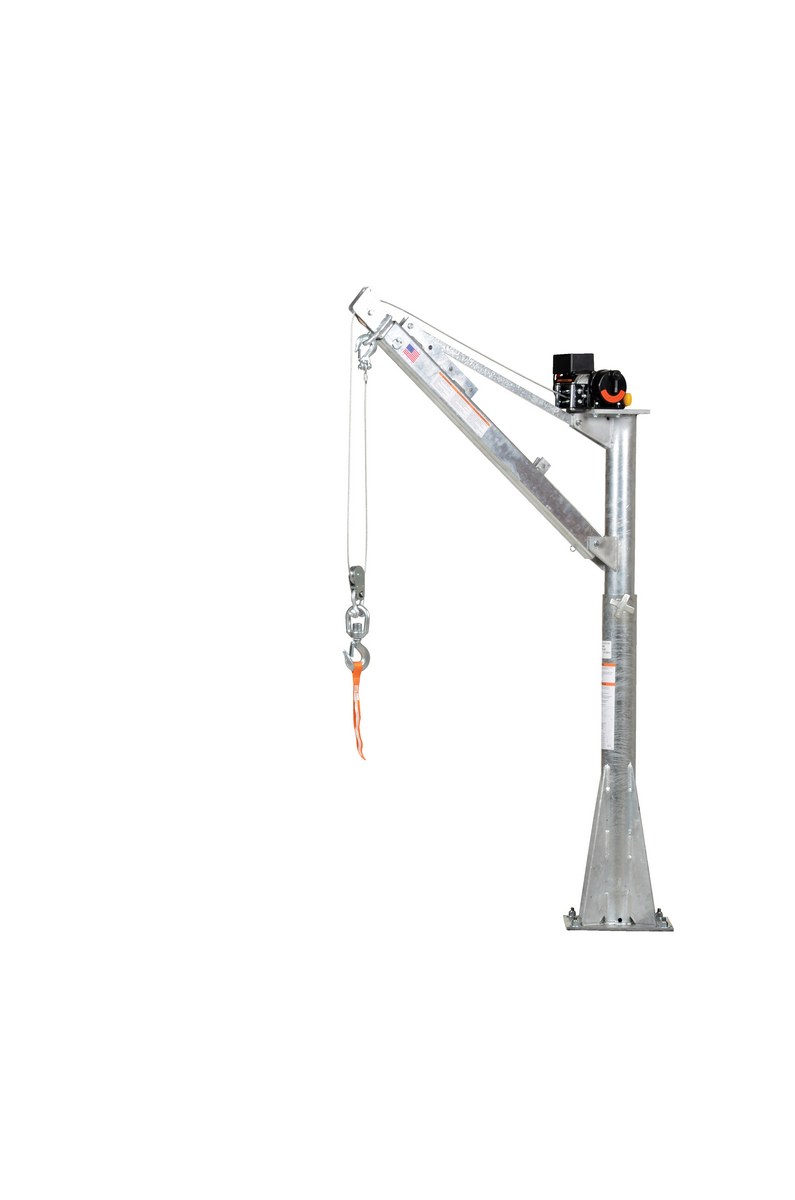

Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

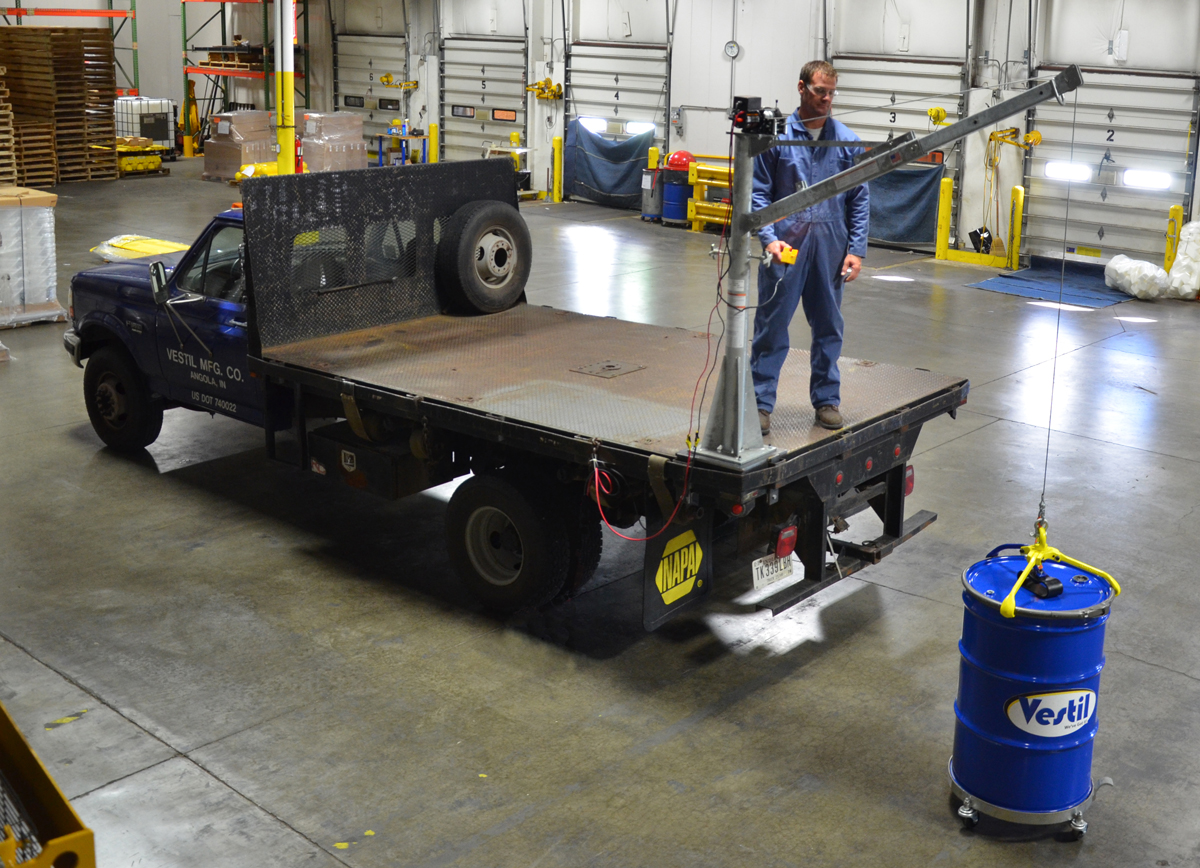

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy

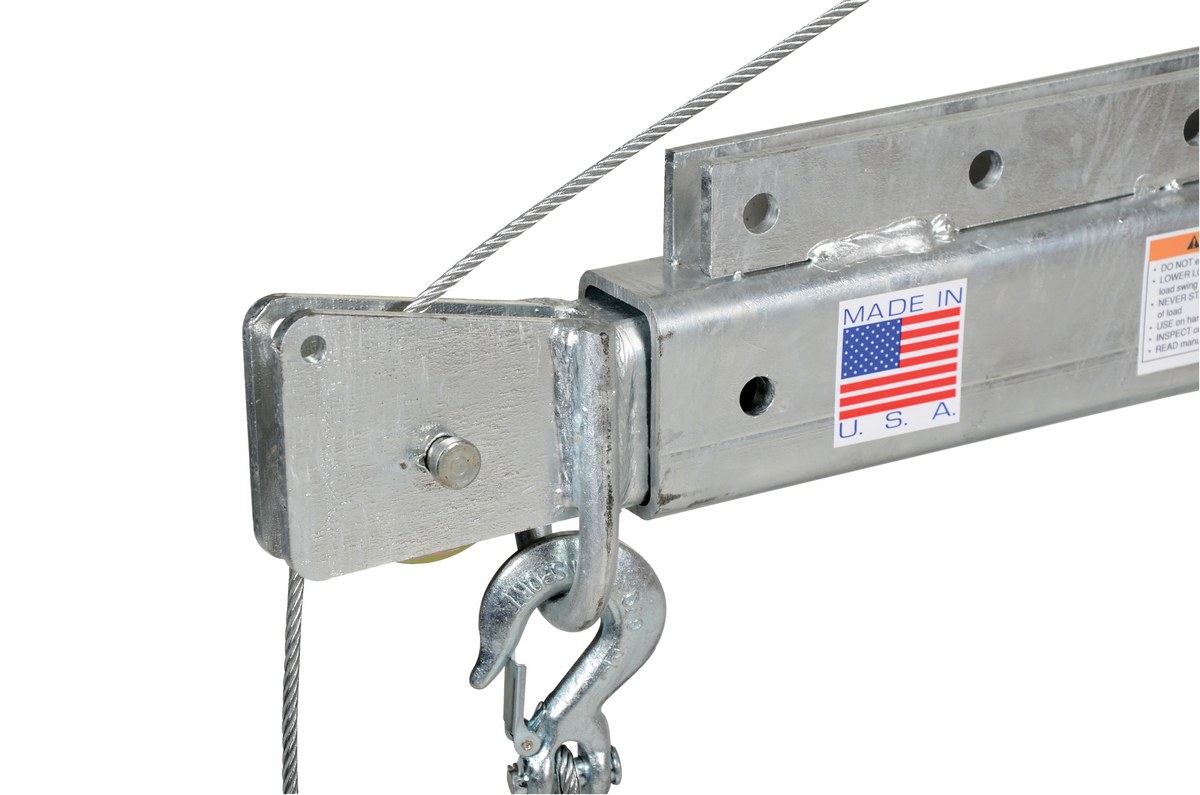

  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Assembled Wt.(lbs.): 200 Assembled Size: 13.5"W x 51.0625"L x 65.6875"H

Total Ship Wt.(lbs.): 213 (only 1 package) Package 1 Size: 29"W x 65"D x 17"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 DC (volts): 12 Horsepower: 1
Wire Rope Length (ft.): 46 Wire Rope Diameter (in.): 3/16 Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16 Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200 Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550 Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850 Capacity at 64-3/4" Fully Extended (lbs.): 650 Overall Width (in.): 13-1/2
Overall Retracted Length (in.): 51 Overall Height (in.): 65-11/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: WTJ-E-15-3-DC-GAL
Available
WTJ-E-15-3-DC-GAL

Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 13.5"W x 51.0625"L x 65.6875"H Sell UOM: -- Color: Gray
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 213 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 DC (volts): 12 Horsepower: 1
Wire Rope Length (ft.): 46 Wire Rope Diameter (in.): 3/16 Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16 Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200 Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550 Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850 Capacity at 64-3/4" Fully Extended (lbs.): 650 Overall Width (in.): 13-1/2
Overall Retracted Length (in.): 51 Overall Height (in.): 65-11/16
