VHPS-NM-1000-FF

Printer Friendly
Available
VHPS-NM-1000-FF
VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF VHPS-NM-1000-FF

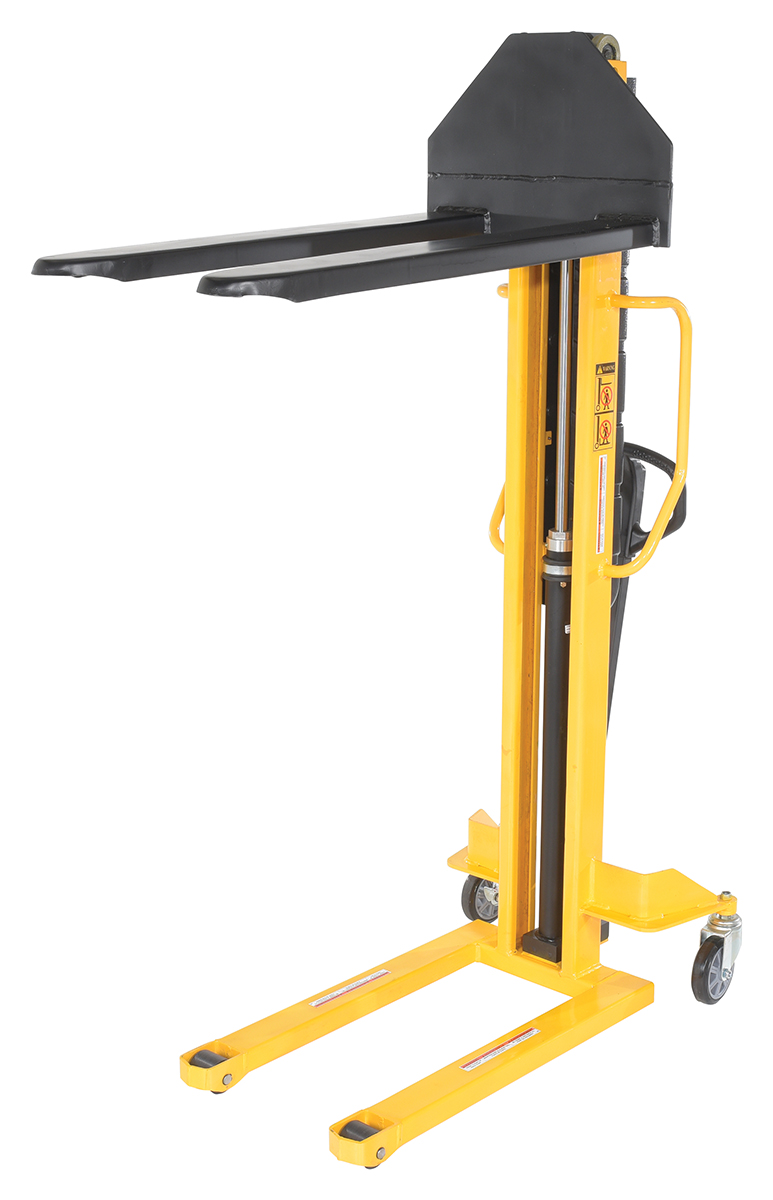

Steel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Design offers easier and safer lifting
Assembled Wt.(lbs.): 434 Assembled Size: 27.375"W x 61.8125"L x 77.75"H

Total Ship Wt.(lbs.): 470 (only 1 package) Package 1 Size: 40"W x 64"D x 87"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 1,000 Service Range (in.): 3-1/2 to 62 Fork Length (in.): 42
Lift per Handle Pump (in.): 3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-NM-1000-FF
Available
VHPS-NM-1000-FF

Steel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Design offers easier and safer lifting
Dimensions: 27.375"W x 61.8125"L x 77.75"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 470 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Service Range (in.): 3-1/2 to 62 Fork Length (in.): 42
Lift per Handle Pump (in.): 3/4
