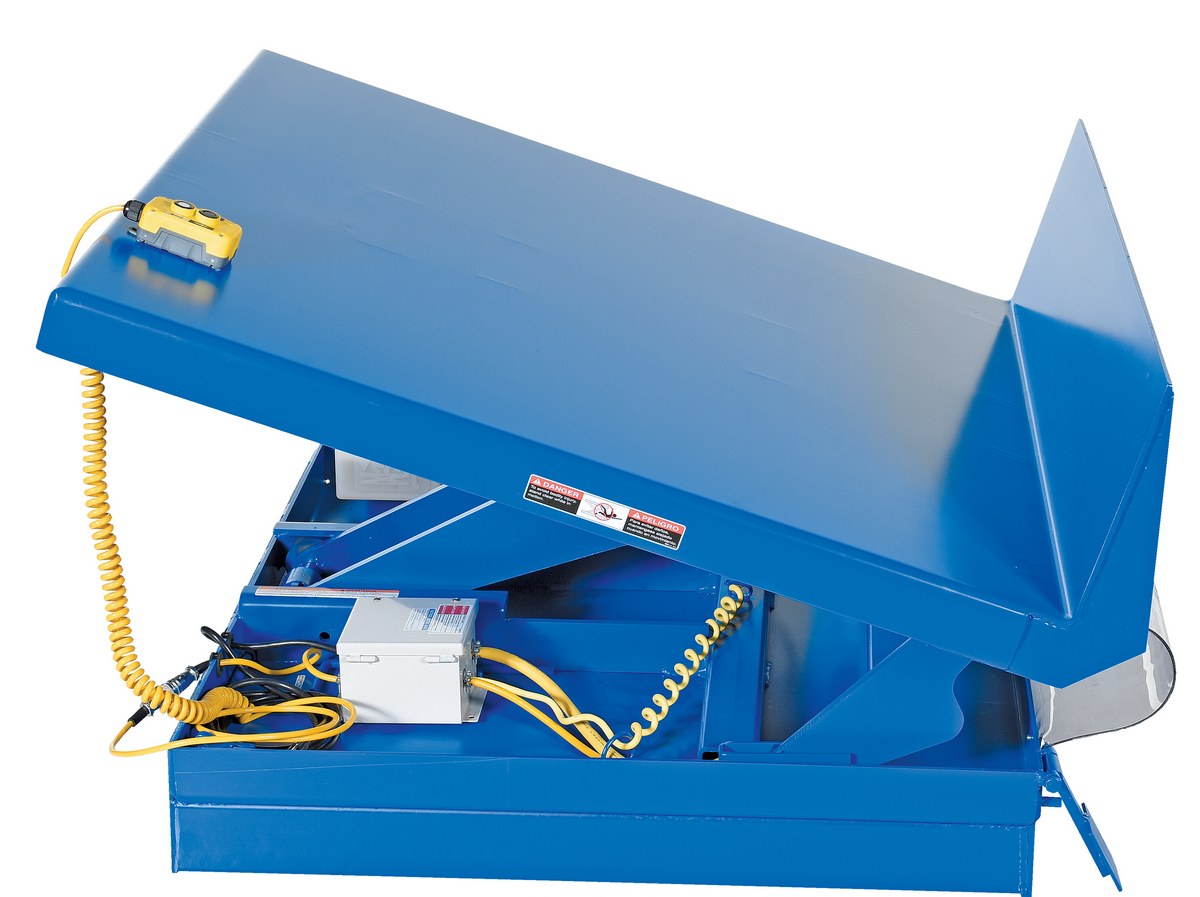

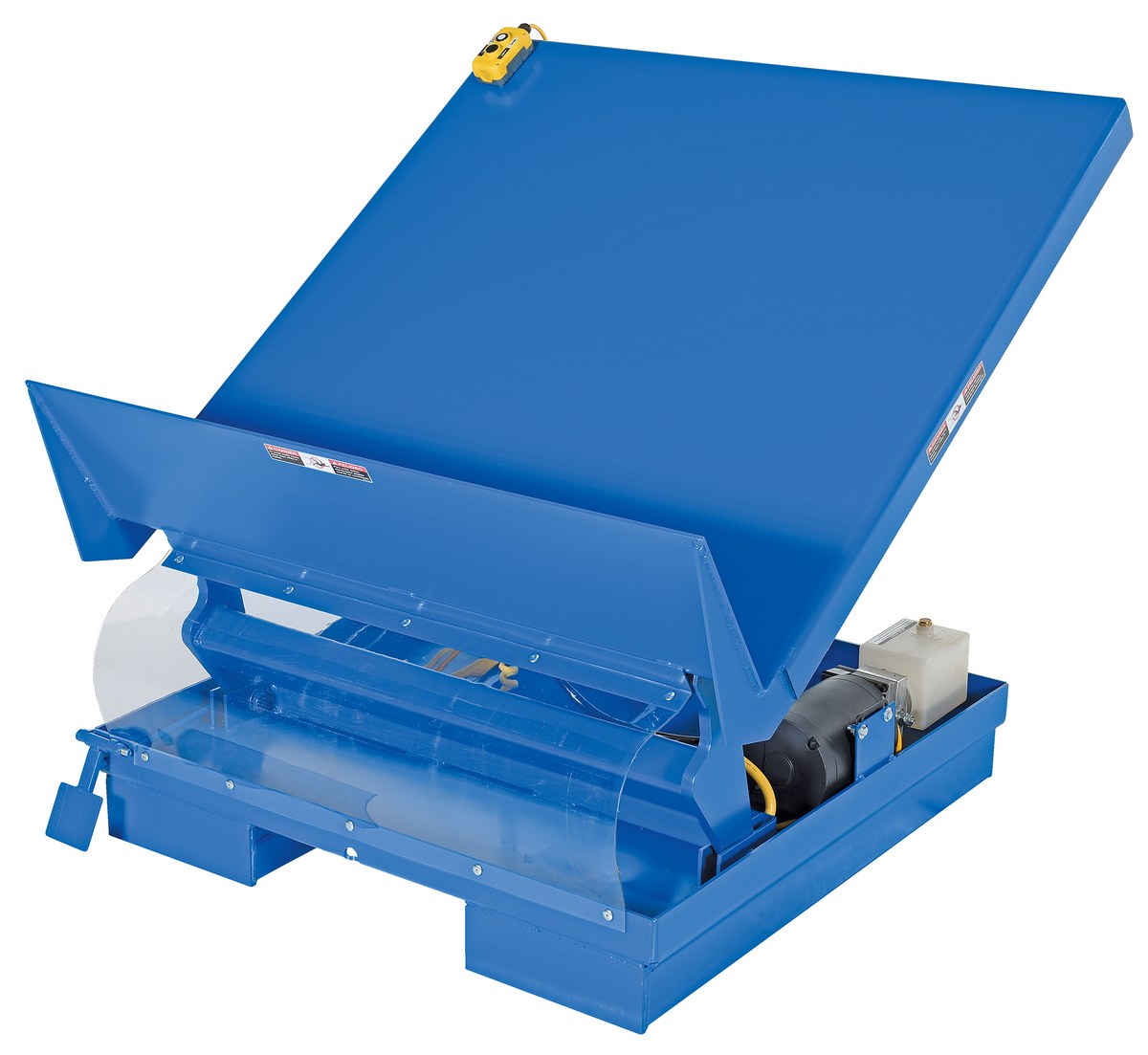

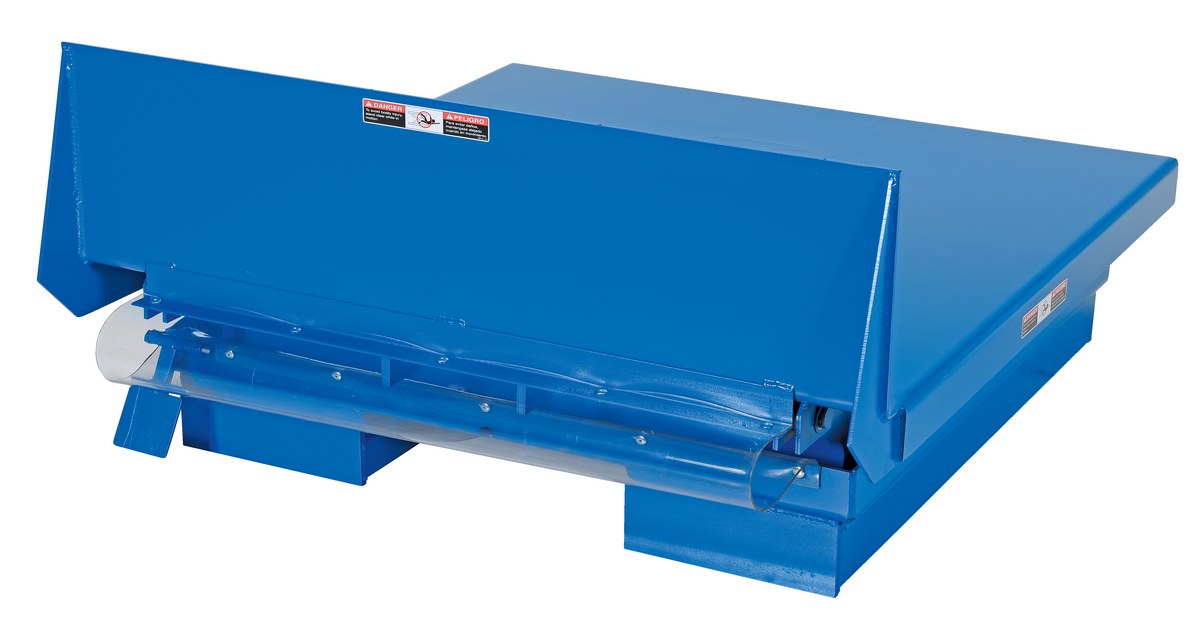

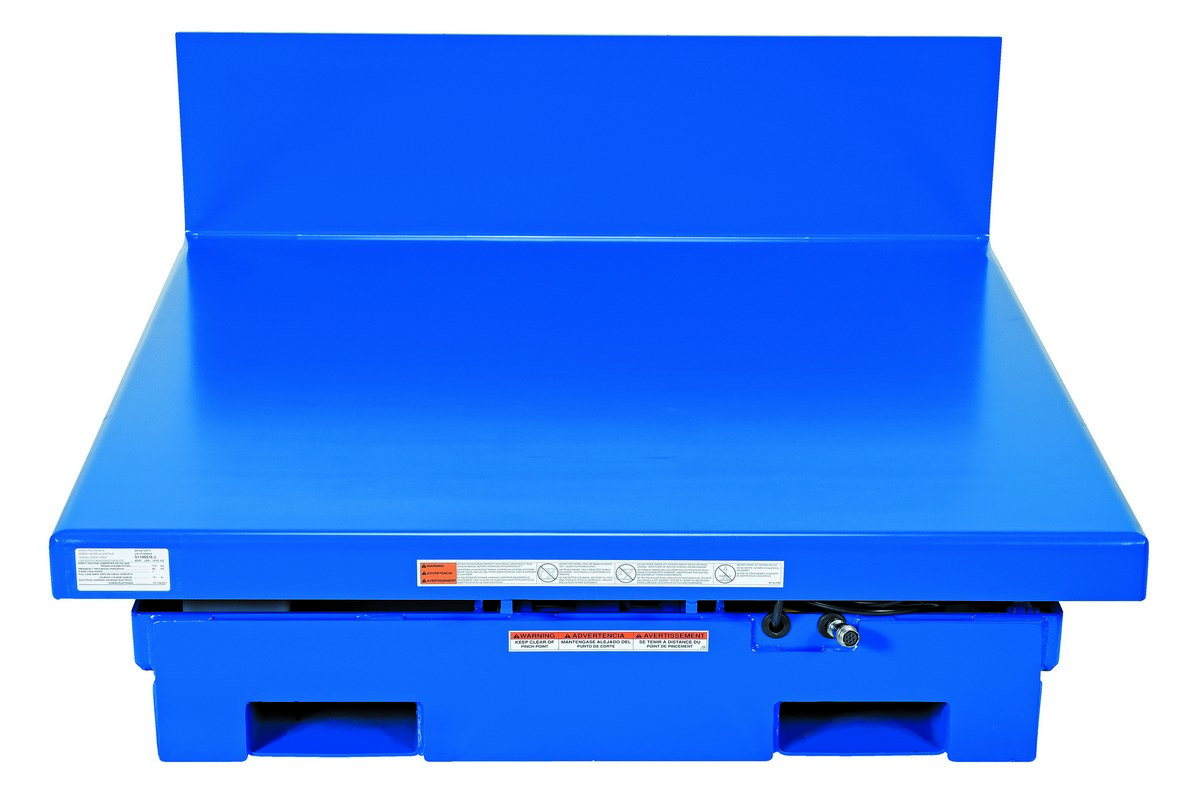

Steel Fork Truck Portable Uni-Tilt 48 In x 48 In 460 Volt 3 Phase 4,000 Lb. Capacity Blue

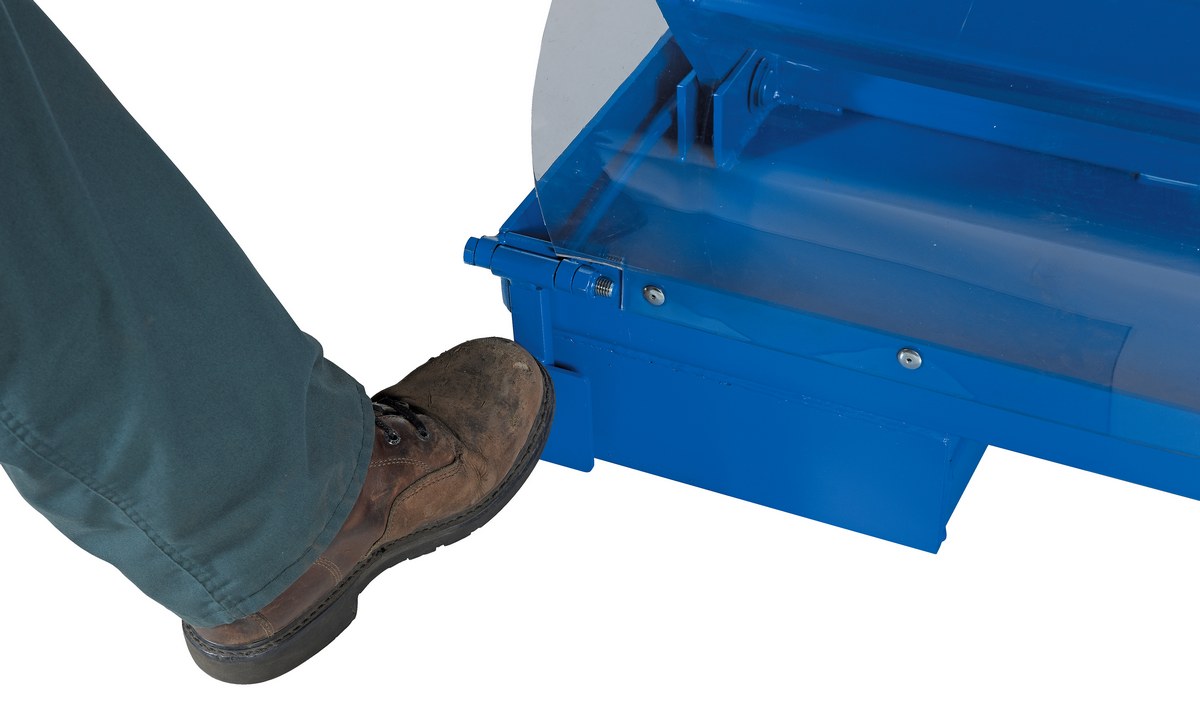

The portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available.

  • Ergonomic design reduces fatigue and back injuries increasing productivity
  • Welded steel construction provides long lasting rugged use
  • 40 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Assembled Wt.(lbs.): 1498 Assembled Size: 48"W x 51.5"L x 24"H

Total Ship Wt.(lbs.): 1525 (only 1 package) Package 1 Size: 48"W x 52"D x 25"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Platform Width (in.): 48 Platform Length (in.): 48
Level Height (in.): 12 Maximum Tilt Degree: 40 Power Unit: Internal
Lip Height (in.): 12 Motor Horsepower: 2 Voltage/Phase: 460/3
Power Cord Length (ft.): 2) Usable Fork Pocket Height (in.): 2-1/2 Usable Fork Pocket Width (in.): 7-1/2
Fork Pocket Center (in.): 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: UNI-P-4848-4
Available
UNI-P-4848-4

Steel Fork Truck Portable Uni-Tilt 48 In x 48 In 460 Volt 3 Phase 4,000 Lb. Capacity Blue

The portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available.

  • Ergonomic design reduces fatigue and back injuries increasing productivity
  • Welded steel construction provides long lasting rugged use
  • 40 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Dimensions: 48"W x 51.5"L x 24"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1525 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4000 Platform Width (in.): 48 Platform Length (in.): 48
Level Height (in.): 12 Maximum Tilt Degree: 40 Power Unit: Internal
Lip Height (in.): 12 Motor Horsepower: 2 Voltage/Phase: 460/3
Power Cord Length (ft.): 2) Usable Fork Pocket Height (in.): 2-1/2 Usable Fork Pocket Width (in.): 7-1/2
Fork Pocket Center (in.): 24
