Model Details

TM-20-DC

Printer Friendly
TM-20-DC

Steel Tilt Master DC Powered 12 Volt 2,000 Lb. Capacity Blue

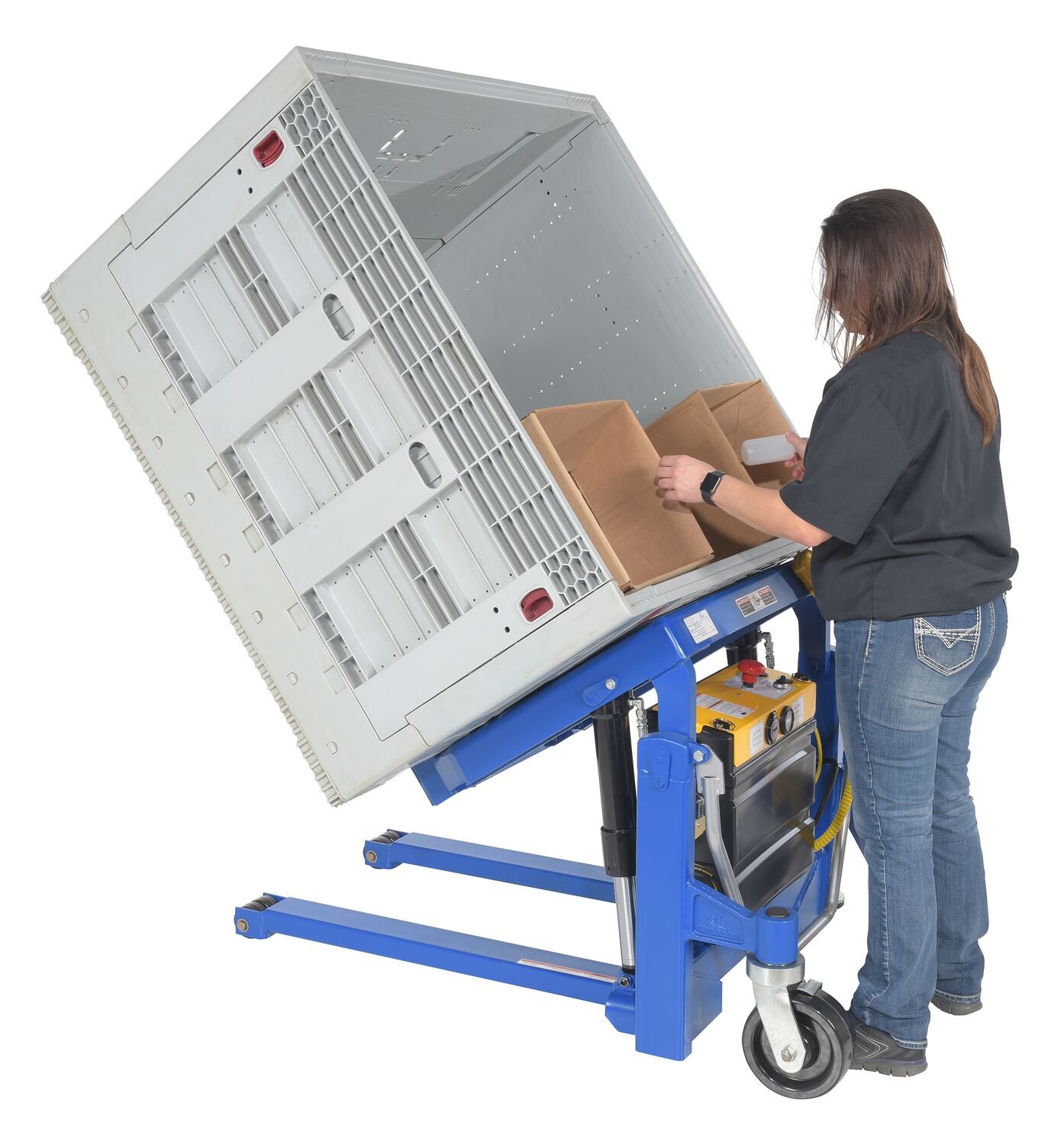

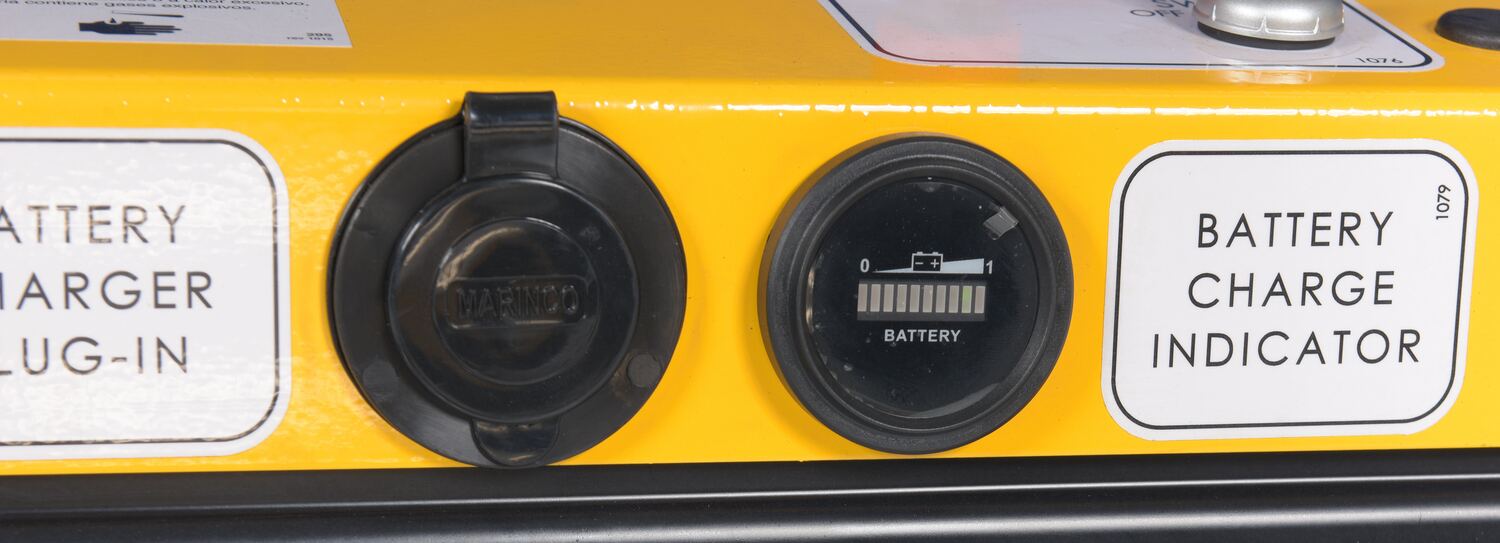

The tilt master lifts and positions filled tote boxes or baskets. It also functions as a transporter, by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an electric DC motor that includes an on-board battery charger and battery charge indicator.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access

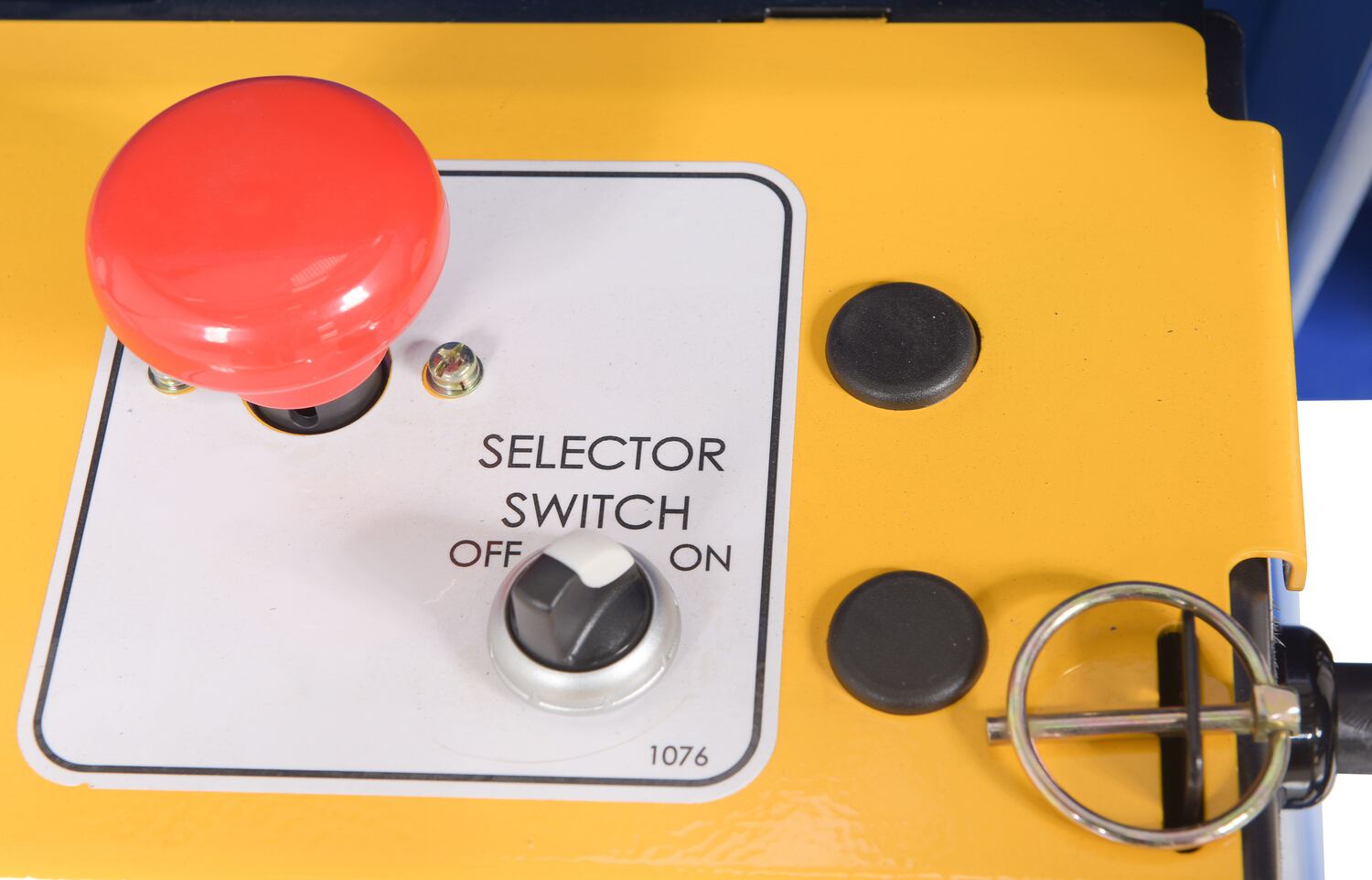

  • Push button hand control for quick lifting and lowering
Total Ship Wt.(lbs.): 680 (only 1 package) Size: 41.0625"W x 75.5625"L x 28.3125"H Color: Blue

Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Maximum Tilt Degree: 90 Power: 12V DC
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-20-DC
TM-20-DC

Steel Tilt Master DC Powered 12 Volt 2,000 Lb. Capacity Blue

The tilt master lifts and positions filled tote boxes or baskets. It also functions as a transporter, by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an electric DC motor that includes an on-board battery charger and battery charge indicator.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Push button hand control for quick lifting and lowering
Dimensions: 41.0625"W x 75.5625"L x 28.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215042222 GTIN: 00691215042222
Warranty: -- Shipping Weight: 680 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Maximum Tilt Degree: 90 Power: 12V DC
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20
