Model Details

← All Products- ← Ergonomic Solutions- ← Roller & Ball Conveyors -← Pop-Up Ball Transfer Platforms- POPUP-4048

POPUP-4048

Printer Friendly
Available
POPUP-4048
POPUP-4048 POPUP-4048 POPUP-4048

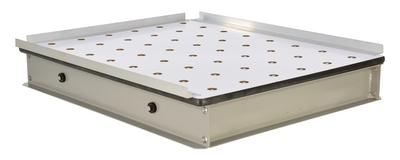

Steel Pop-Up Ball Transfer Platform 48 In. x 40 In. x 8-3/4 In. 250 Lb. Capacity Blue

The "pop-up" ball transfer platform is an economical way to increase usable height and product manipulation to any cart or table. A ball retraction handle is conveniently located on the side to secure load. Can be mounted to scissor carts or post tables.

  • "Pop-up" ball transfer platform is economical for simple applications
  • Increase usable height and product manipulation to any cart or table
  • Ball retraction handle is conveniently located on the side to secure load
  • Ideal to be mounted to scissor carts or post tables for optimal results
Assembled Wt.(lbs.): 207 Assembled Size: 40"W x 48"L x 8.75"H

Total Ship Wt.(lbs.): 222 (only 1 package) Package 1 Size: 43"W x 50"D x 10"H Color: Gray

Uniform Capacity (lbs.): 250 Ball Spacing Width (in.): 4-1/2 Ball Spacing Length (in.): 5-1/4
Roller Ball (qty.): 48 Roller Ball Diameter (in.): 1 Roller Ball Raise Above Surface (in.): 0.25
Platform Usable Length (in.): 47-3/4 Platform Usable Width (in.): 41-3/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: POPUP-4048
Available
POPUP-4048

Steel Pop-Up Ball Transfer Platform 48 In. x 40 In. x 8-3/4 In. 250 Lb. Capacity Blue

The "pop-up" ball transfer platform is an economical way to increase usable height and product manipulation to any cart or table. A ball retraction handle is conveniently located on the side to secure load. Can be mounted to scissor carts or post tables.

  • "Pop-up" ball transfer platform is economical for simple applications
  • Increase usable height and product manipulation to any cart or table
  • Ball retraction handle is conveniently located on the side to secure load
  • Ideal to be mounted to scissor carts or post tables for optimal results
Dimensions: 40"W x 48"L x 8.75"H Sell UOM: -- Color: Gray
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lbs.): 250 Ball Spacing Width (in.): 4-1/2 Ball Spacing Length (in.): 5-1/4
Roller Ball (qty.): 48 Roller Ball Diameter (in.): 1 Roller Ball Raise Above Surface (in.): 0.25
Platform Usable Length (in.): 47-3/4 Platform Usable Width (in.): 41-3/8
