PM4-2048-LP

Steel Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

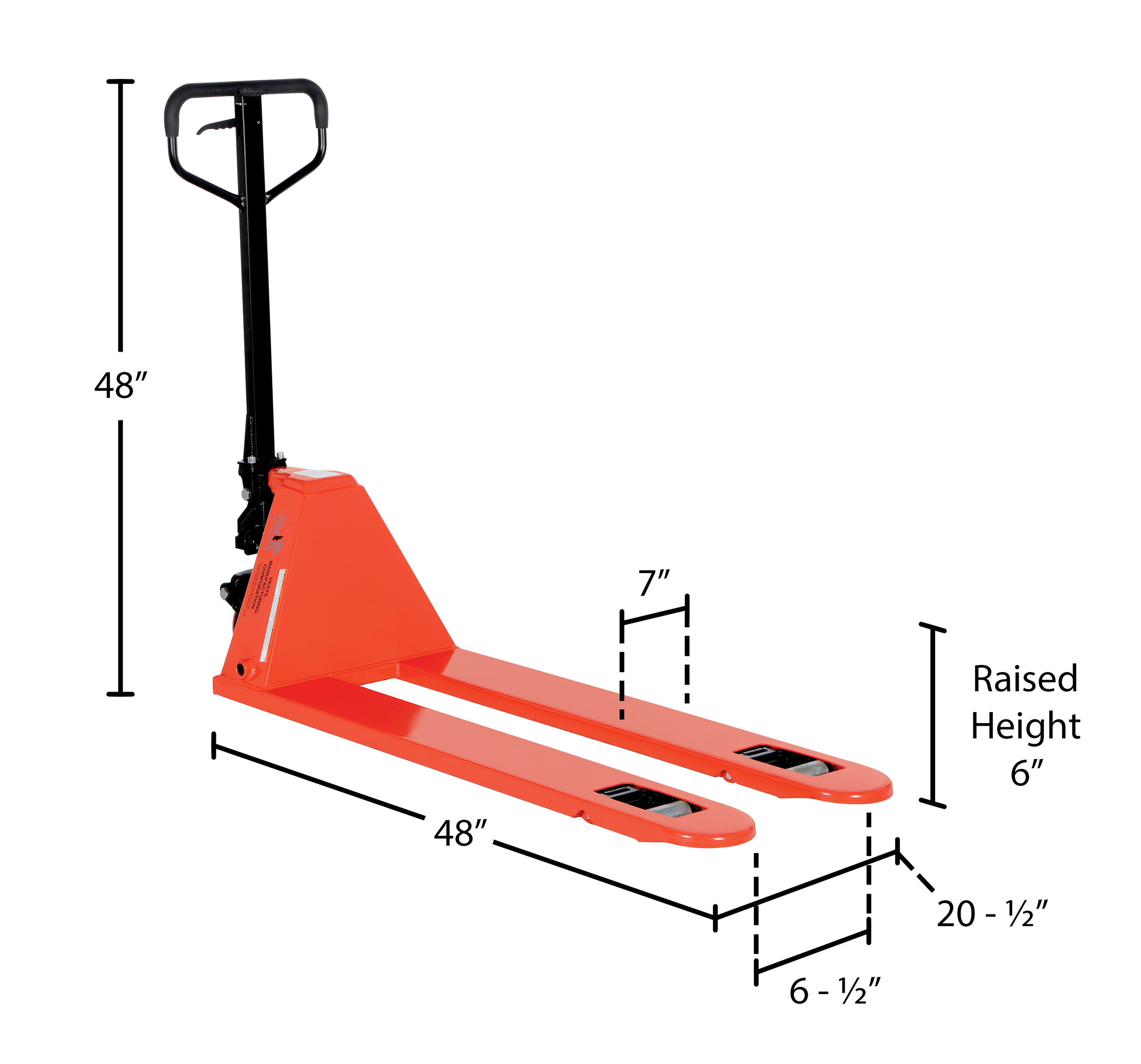

Total Ship Wt.(lbs.): 229 (only 1 package) Size: 20.5"W x 61"L x 49"H Color: Red

Uniform Capacity (lb.): 4000 Overall Fork Width (in.): 20-5/8 Overall Fork Length (in.): 48
Lowered Height (in.): 1-7/8 Raised Height (in.): 6 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Steel Load Roller Diameter (in.): 4-1/2 Load Roller Width (in.): 1-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM4-2048-LP
PM4-2048-LP

Steel Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work
Dimensions: 20.5"W x 61"L x 49"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215030564 GTIN: 00691215030564
Warranty: -- Shipping Weight: 229 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Overall Fork Width (in.): 20-5/8 Overall Fork Length (in.): 48
Lowered Height (in.): 1-7/8 Raised Height (in.): 6 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Steel Load Roller Diameter (in.): 4-1/2 Load Roller Width (in.): 1-1/2
