IBC-TLT-FPL-SS

Printer Friendly
Available
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS IBC-TLT-FPL-SS IBC-TLT-FPL-SS IBC-TLT-FPL-SS IBC-TLT-FPL-SS IBC-TLT-FPL-SS IBC-TLT-FPL-SS

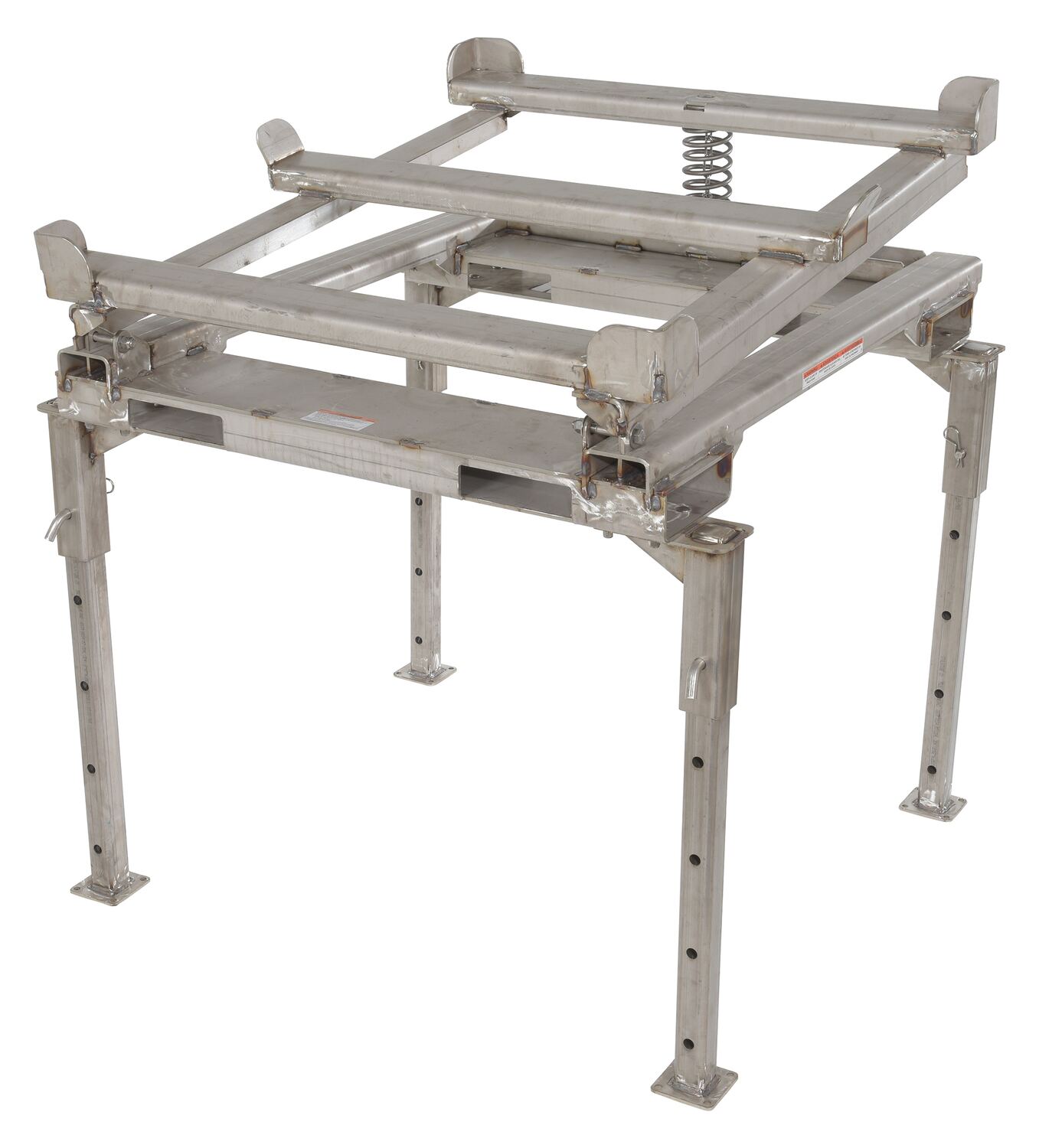

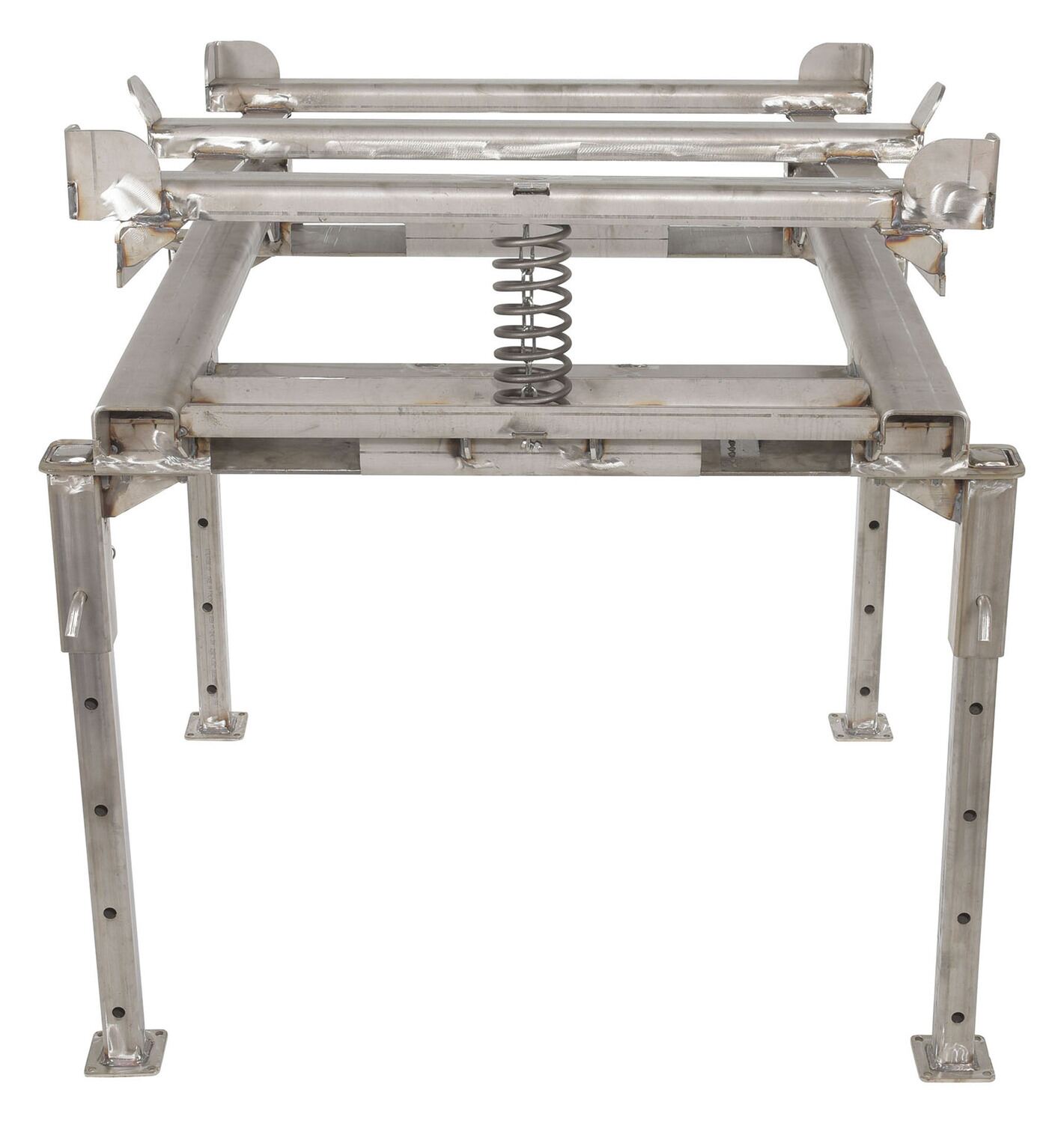

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.

  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes
Assembled Wt.(lbs.): 402 Assembled Size: 48"W x 49.75"L x 35.25"H

Total Ship Wt.(lbs.): 452 (only 1 package) Package 1 Size: 41"W x 49"D x 26"H Color: Silver

Uniform Capacity (lb.): 4,400 Platform Length (in.): 48-1/2 Platform Width (in.): 40-1/2
Platform Raised Height (in.): 10 Platform Lowered Height (in.): 6 Maximum Tilt Degree: 5
Fork Pocket Size (in.): 7 x 2 Fork Pocket Center (in.): 23 Height Adjustment: 6 In. Increments
Foot Bolt Hole Diameter: 7/16 Vertical Center of Gravity (in.): 15-1/4 Horizontal Center of Gravity (in.): 24-9/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: IBC-TLT-FPL-SS
Available
IBC-TLT-FPL-SS

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.

  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes
Dimensions: 48"W x 49.75"L x 35.25"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 452 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,400 Platform Length (in.): 48-1/2 Platform Width (in.): 40-1/2
Platform Raised Height (in.): 10 Platform Lowered Height (in.): 6 Maximum Tilt Degree: 5
Fork Pocket Size (in.): 7 x 2 Fork Pocket Center (in.): 23 Height Adjustment: 6 In. Increments
Foot Bolt Hole Diameter: 7/16 Vertical Center of Gravity (in.): 15-1/4 Horizontal Center of Gravity (in.): 24-9/16
