HOP-LP

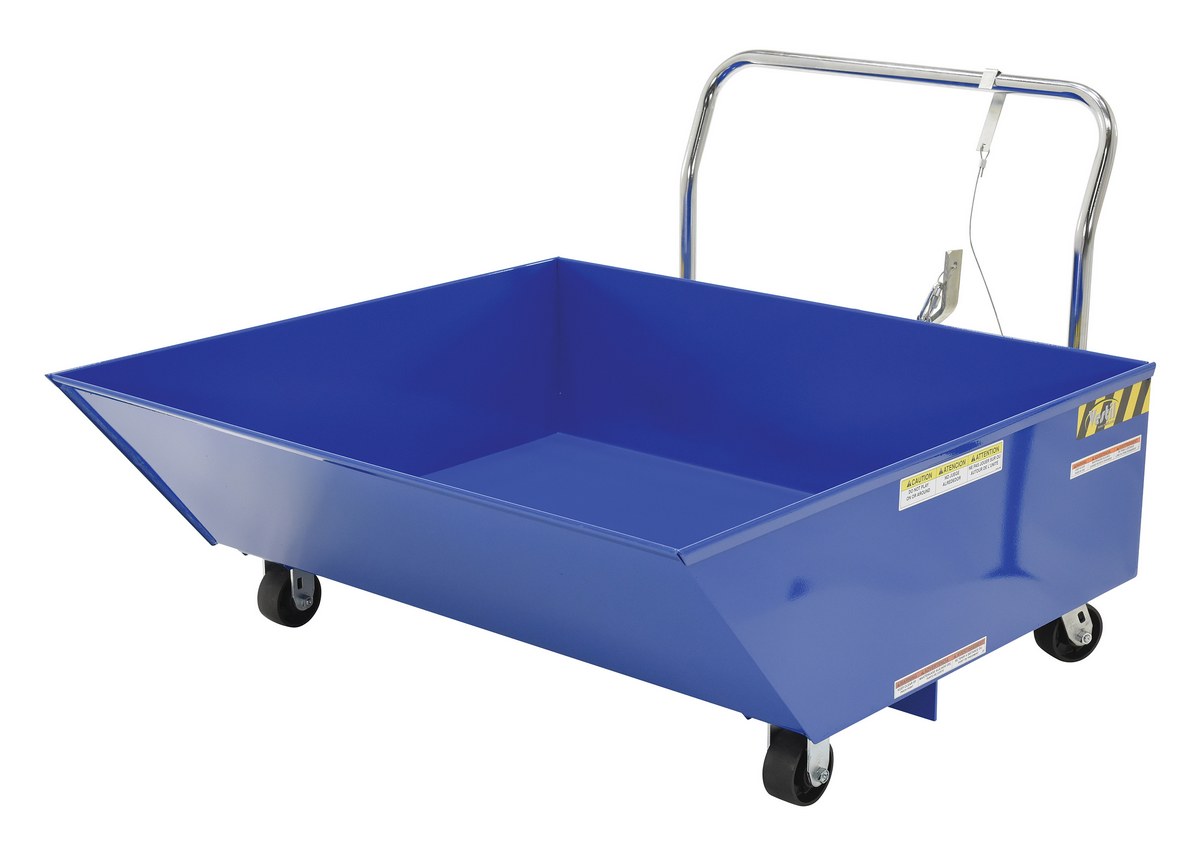

Steel Low Profile Parts Hopper 1/2 Cubic Yd. 2000 Lb. Capacity Blue

This unique Low Profile parts Hopper has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low profile design allows the hopper to be placed underneath machinery as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences, and time associated with collecting parts off the floor. Unit rolls smoothly on casters and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping.

  • Special low-profile design catches parts under machinery dispensing chutes
  • Unique design returns to upright & locked position when lowered to floor
  • Safety restraint secures hopper to fork truck
  • Two rigid, one swivel and one swivel with brake casters make the unit portable
Total Ship Wt.(lbs.): 310 (Multiple Packages: P1: 282 lbs + P2: 14 lbs) +(P3: 14 lbs) Size: 48.4375"W x 54.0625"L x 34"H Color: Blue

Uniform Capacity (lb.): 2,000 Volume (cu. yrd.): 1/2 Fork Pocket Width (in.): 7
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 21-5/8 Dumping Radius (degree): 90
Caster Quantity/Diameter/Width (in.): (4) 4x2 Caster Material: Glass Filled Nylon Caster Quantity/Type: (2) Rigid, (1) Swivel, (1) Swivel w/Brake
Hopper Top Lip Height (chute height) (in.): 19-1/8 Gauge (in.): 10 Overall Width (in.): 48-7/16
Overall Length (in.): 54-1/16 Overall Height (in.): 34 Work Envelope (in.): 48-7/16 x 57-11/16 x 13-34/
Chute Size (in.): 48-7/16 x 44-11/16 x 13-3/4 Release cable Length (in.): 48

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HOP-LP
HOP-LP

Steel Low Profile Parts Hopper 1/2 Cubic Yd. 2000 Lb. Capacity Blue

This unique Low Profile parts Hopper has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low profile design allows the hopper to be placed underneath machinery as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences, and time associated with collecting parts off the floor. Unit rolls smoothly on casters and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping.

  • Special low-profile design catches parts under machinery dispensing chutes
  • Unique design returns to upright & locked position when lowered to floor
  • Safety restraint secures hopper to fork truck
  • Two rigid, one swivel and one swivel with brake casters make the unit portable
Dimensions: 48.4375"W x 54.0625"L x 34"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215023771 GTIN: 00691215023771
Warranty: -- Shipping Weight: 282 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Volume (cu. yrd.): 1/2 Fork Pocket Width (in.): 7
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 21-5/8 Dumping Radius (degree): 90
Caster Quantity/Diameter/Width (in.): (4) 4x2 Caster Material: Glass Filled Nylon Caster Quantity/Type: (2) Rigid, (1) Swivel, (1) Swivel w/Brake
Hopper Top Lip Height (chute height) (in.): 19-1/8 Gauge (in.): 10 Overall Width (in.): 48-7/16
Overall Length (in.): 54-1/16 Overall Height (in.): 34 Work Envelope (in.): 48-7/16 x 57-11/16 x 13-34/
Chute Size (in.): 48-7/16 x 44-11/16 x 13-3/4 Release cable Length (in.): 48
