← All Products- ← Drum Handling Equipment- ← Drum Positioners & Dumpers -← Hydraulic Drum Dumpers- HDD-48-7-S

HDD-48-7-S

Printer Friendly
Available
HDD-48-7-S
HDD-48-7-S HDD-48-7-S HDD-48-7-S HDD-48-7-S

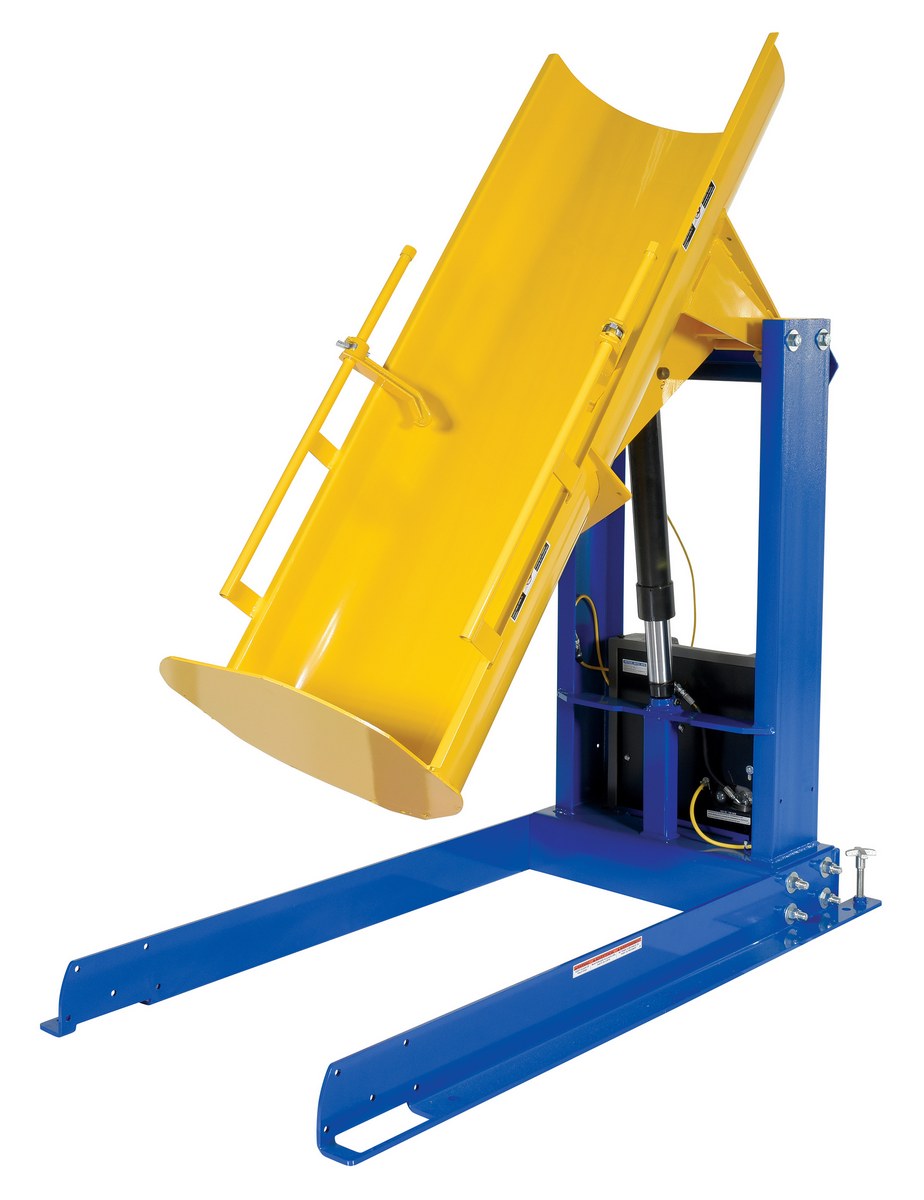

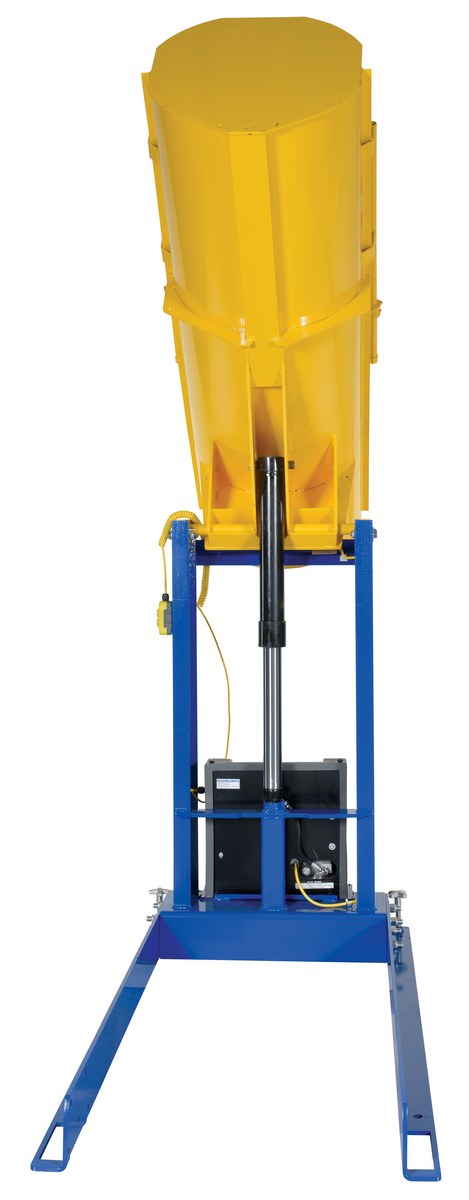

Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / Yellow

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Assembled Wt.(lbs.): 676 Assembled Size: 36"W x 71.5"L x 72"H

Total Ship Wt.(lbs.): 811 (only 1 package) Package 1 Size: 43"W x 78"D x 79"H Color: Blue (Frame), Yellow (Chute)

Uniform Capacity (lb.): 750 Dump Height (in.): 48 Rotated Height (in.): 116
Level Height (in.): 72-1/2 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 34 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14
Accepted Drum Diameter (in.): 16.5 to 23.5 Accepted Drum Height (in.): 27.5 to 39.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: HDD-48-7-S
Available
HDD-48-7-S

Steel Stationary Hydraulic Drum Dumper 48 In. Dump Height 750 Lb. Capacity Blue / Yellow

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute and all steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Dimensions: 36"W x 71.5"L x 72"H Sell UOM: -- Color: Blue (Frame), Yellow (Chute)
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 811 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 750 Dump Height (in.): 48 Rotated Height (in.): 116
Level Height (in.): 72-1/2 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 34 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 14
Accepted Drum Diameter (in.): 16.5 to 23.5 Accepted Drum Height (in.): 27.5 to 39.5
