HDC-305-72

Printer Friendly
Available
HDC-305-72
HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72 HDC-305-72

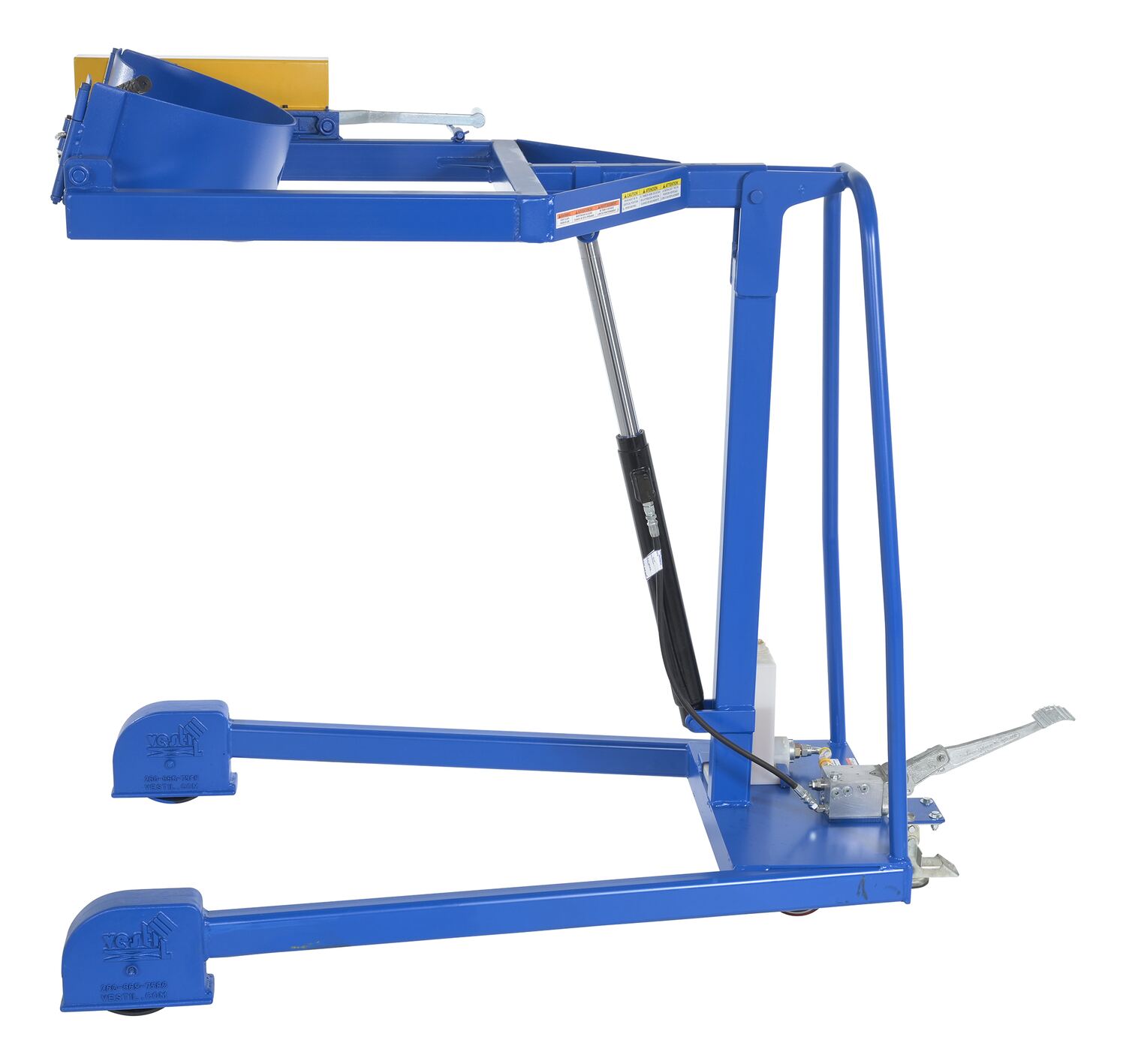

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow

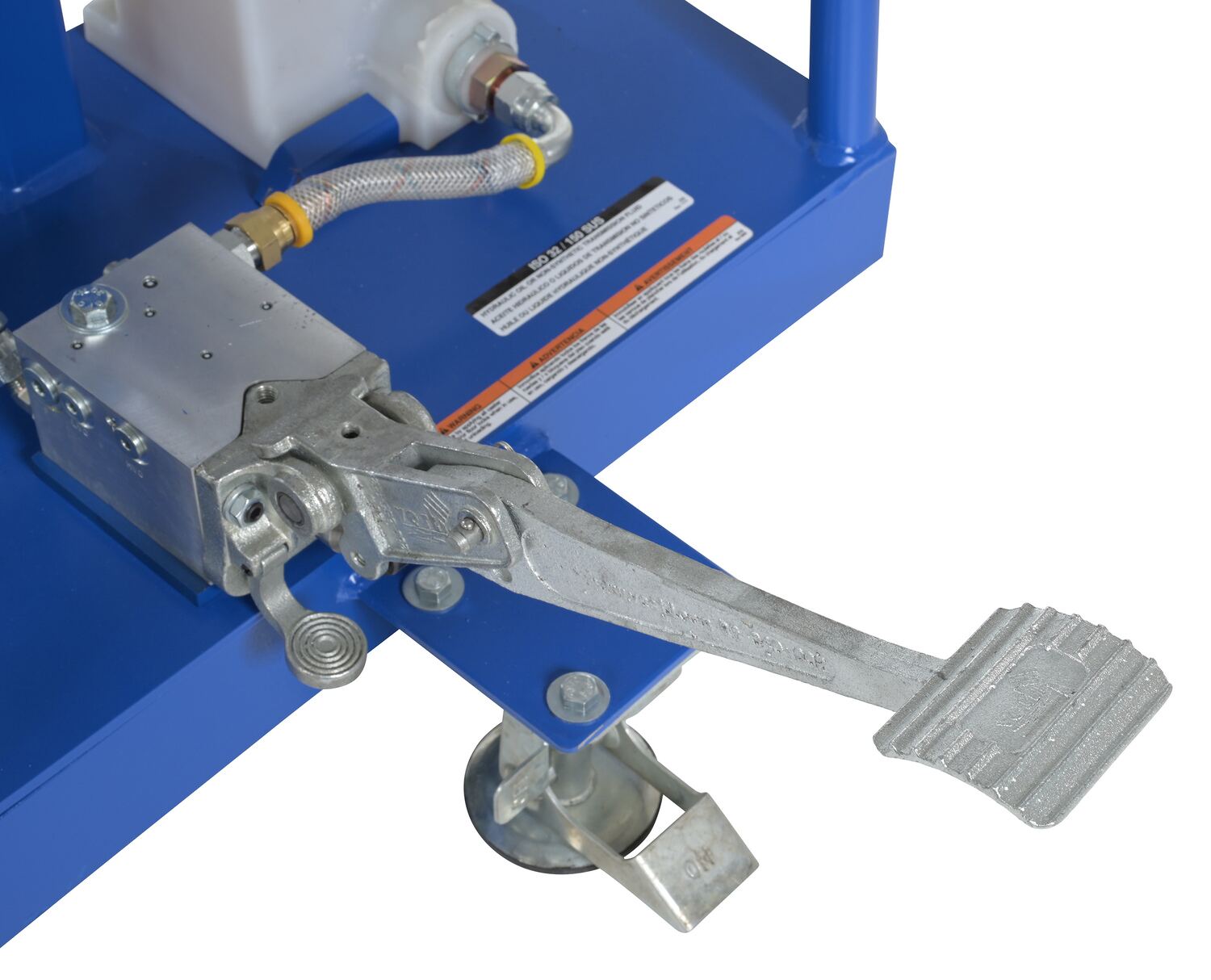

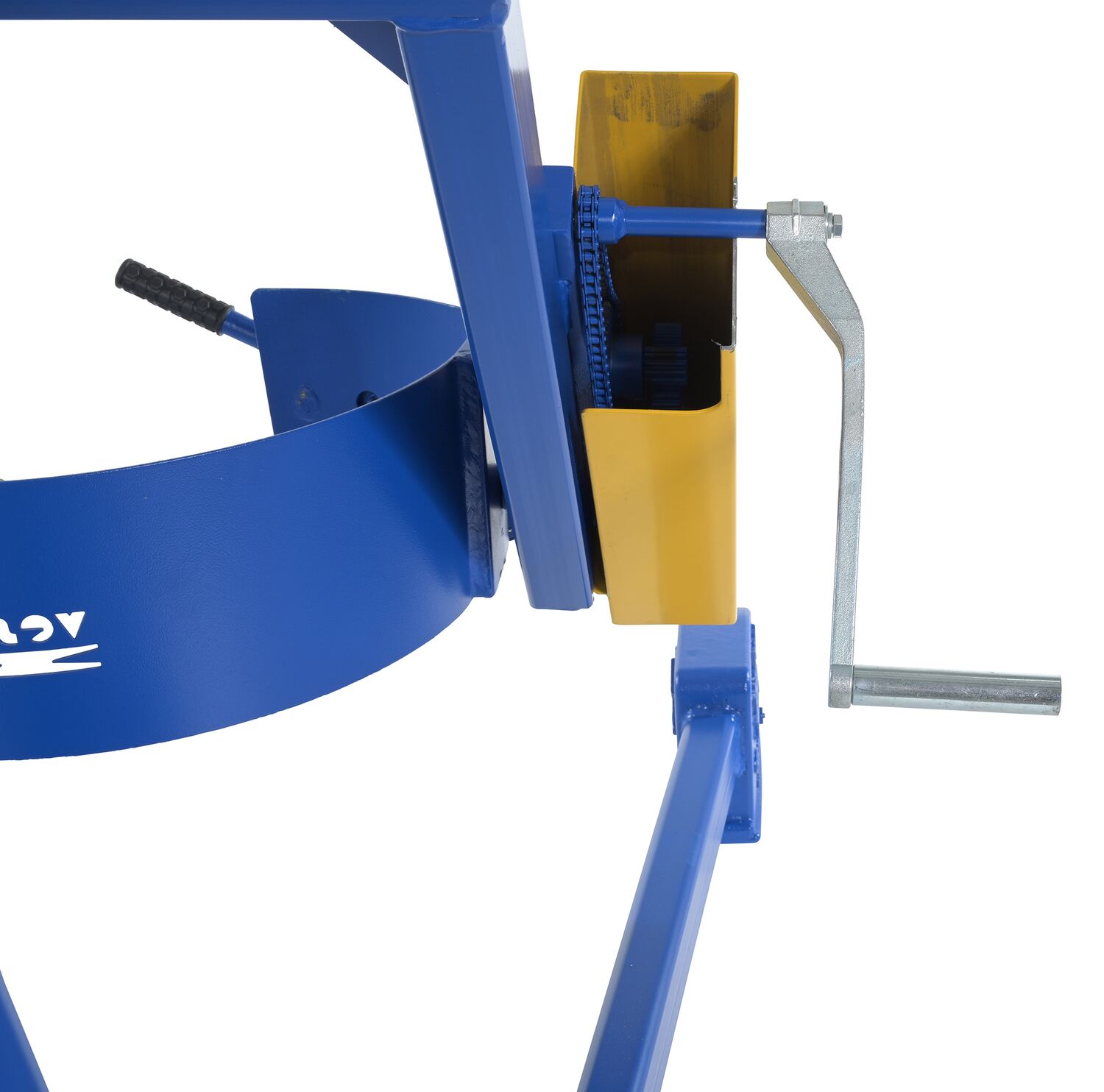

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees

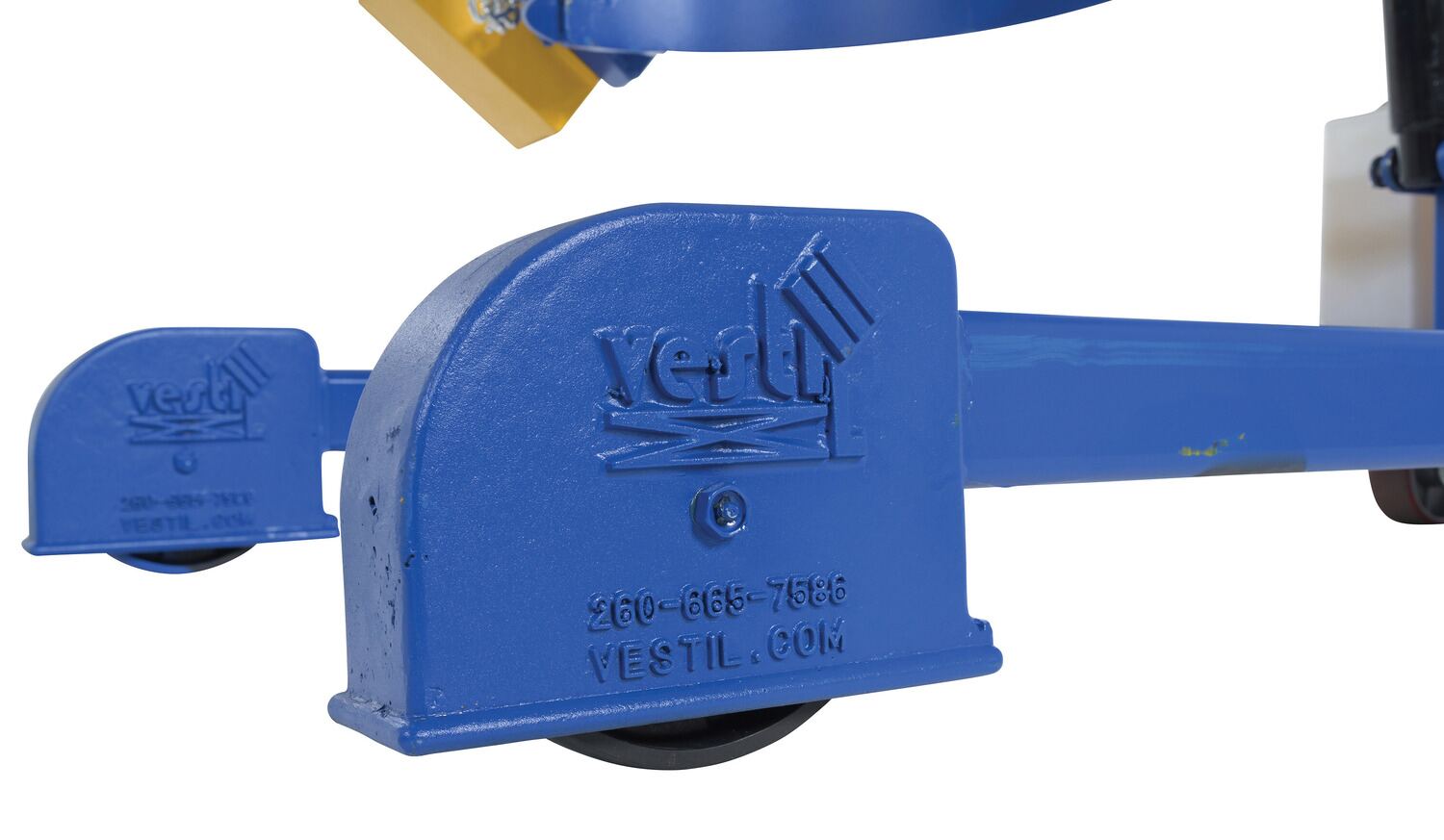

  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Assembled Wt.(lbs.): 409 Assembled Size: 39.9375"W x 72.5"L x 92.4375"H

Total Ship Wt.(lbs.): 487 (only 1 package) Package 1 Size: 40"W x 67"D x 69"H Color: Blue

Uniform Capacity (lb.): 800 Lift Height (in.): 71-1/4 Accepts: 55-gallon drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: HDC-305-72
Available
HDC-305-72

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Dimensions: 39.9375"W x 72.5"L x 92.4375"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 487 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 800 Lift Height (in.): 71-1/4 Accepts: 55-gallon drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain
