Model Details

← All Products- ← Overhead Lifting- ← Hoists & Trollies -← Economy Lever Hoists (disc brake)- ELH-120-5

ELH-120-5

Printer Friendly
Available
ELH-120-5
ELH-120-5 ELH-120-5

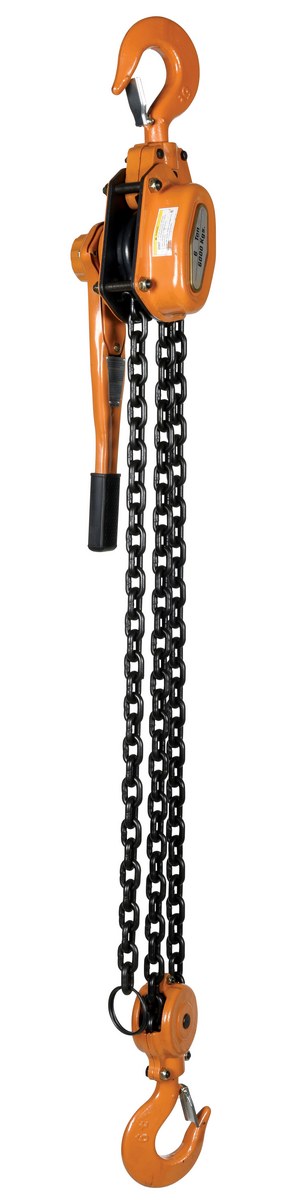

Steel Economy Lever Hoist 5 Ft. Chain Length 12,000 Lb. Capacity Orange

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Durable baked enamel paint shields non-wearing parts from environmental damage. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • Single-hand "free chaining" offers trouble-free operation in the vertical or horizontal positions
  • 360 degree lever handle rotation
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Assembled Wt.(lbs.): 65 Assembled Size: 5.5"W x 6.75"L x 20"H

Total Ship Wt.(lbs.): 70 (only 1 package) Package 1 Size: 13"W x 25"D x 13"H Color: Orange

Uniform Capacity (lb.): 12,000 Chain Length (ft.): 5 Minimum Distance Between Hooks (in.): 24-7/16
Handle Length (in.): 14 Rotation (degrees): 360

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: ELH-120-5
Available
ELH-120-5

Steel Economy Lever Hoist 5 Ft. Chain Length 12,000 Lb. Capacity Orange

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Durable baked enamel paint shields non-wearing parts from environmental damage. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • Single-hand "free chaining" offers trouble-free operation in the vertical or horizontal positions
  • 360 degree lever handle rotation
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Dimensions: 5.5"W x 6.75"L x 20"H Sell UOM: -- Color: Orange
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 70 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 12,000 Chain Length (ft.): 5 Minimum Distance Between Hooks (in.): 24-7/16
Handle Length (in.): 14 Rotation (degrees): 360
