CH-20-8

Printer Friendly
Available
CH-20-8
CH-20-8 CH-20-8 CH-20-8 CH-20-8

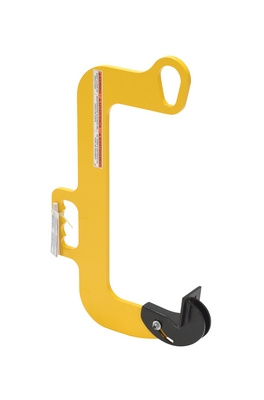

Steel Overhead Coil Hook 8 In. 2000 Lb. Capacity Yellow

This overhead coil hook is designed for lifting heavy coils with overhead lifting device. Easy position coils from horizontal to vertical position.

  • 8" max coil width
  • 2,000 lb. lifting capacity
  • May also be used as a beam clamp for smaller, less heavier beams
  • Made from steel and powder coated yellow for durability and easy visibility
Assembled Wt.(lbs.): 23 Assembled Size: 3"W x 27.125"L x 15.0625"H

Total Ship Wt.(lbs.): 25 (only 1 package) Package 1 Size: 21"W x 32"D x 4"H Color: Yellow

Lifting Capacity (lb.): 2,000 Maximum Coil Width (in.): 8 Maximum Coil Radial (in.): 16
Minimum Coil Inside Diameter (in.): 10 Jaw Depth (in.): 8-13/16 Max. Jaw Opening (in.): 18-7/8
Clamp Lock Mechanism: Lever

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: CH-20-8
Available
CH-20-8

Steel Overhead Coil Hook 8 In. 2000 Lb. Capacity Yellow

This overhead coil hook is designed for lifting heavy coils with overhead lifting device. Easy position coils from horizontal to vertical position.

  • 8" max coil width
  • 2,000 lb. lifting capacity
  • May also be used as a beam clamp for smaller, less heavier beams
  • Made from steel and powder coated yellow for durability and easy visibility
Dimensions: 3"W x 27.125"L x 15.0625"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Lifting Capacity (lb.): 2,000 Maximum Coil Width (in.): 8 Maximum Coil Radial (in.): 16
Minimum Coil Inside Diameter (in.): 10 Jaw Depth (in.): 8-13/16 Max. Jaw Opening (in.): 18-7/8
Clamp Lock Mechanism: Lever
