AH-3024

Printer Friendly
Out of Stock - Please Contact Sales
AH-3024
AH-3024 AH-3024 AH-3024

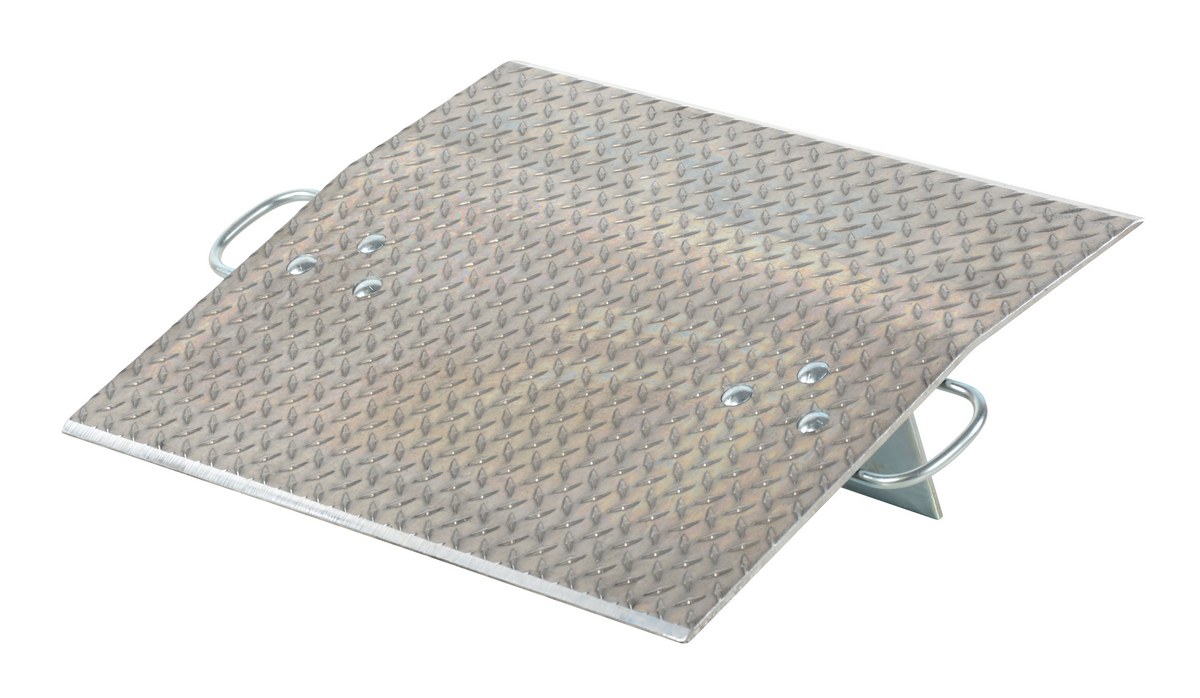

Aluminum Hand Truck Dock Plate 30 In. x 24 In. 700 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance

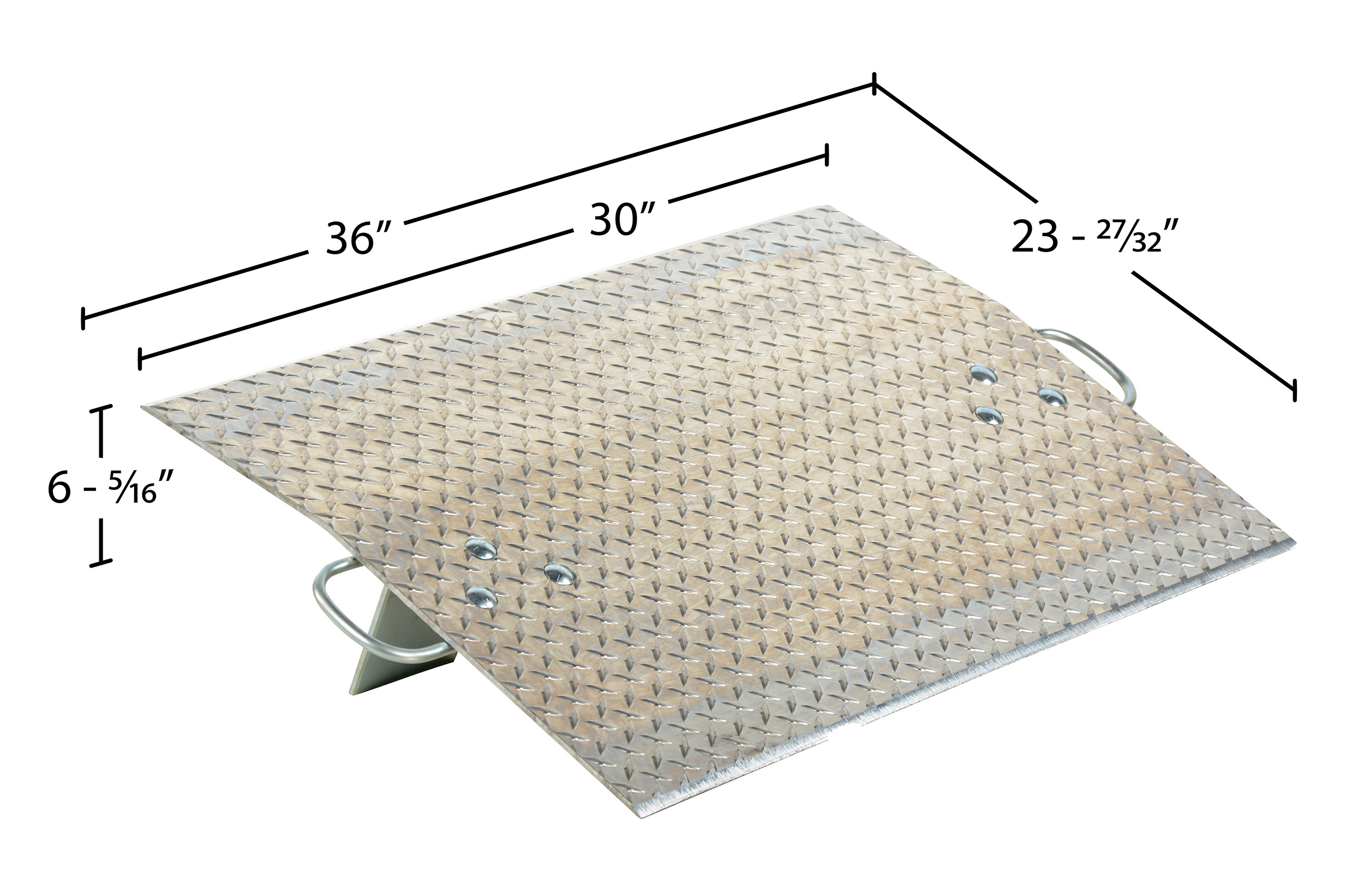

Assembled Wt.(lbs.): 34 Assembled Size: 36"W x 23.84375"L x 6.3125"H

Total Ship Wt.(lbs.): 36 (Multiple Packages: P1: 24 lbs + P2: 12 lbs) Package 1 Size: 24"W x 30"D x 1"H Color: Silver

Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 24 Plate Thickness (in.): 5/16
Height Difference Between Truck and Door (in.): 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: AH-3024
Out of Stock - Please Contact Sales
AH-3024

Aluminum Hand Truck Dock Plate 30 In. x 24 In. 700 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Dimensions: 36"W x 23.84375"L x 6.3125"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 24 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 24 Plate Thickness (in.): 5/16
Height Difference Between Truck and Door (in.): 3
