Lever Action Drum Pumps

- - - -

Description
Model Chart
PDF's
Image Gallery

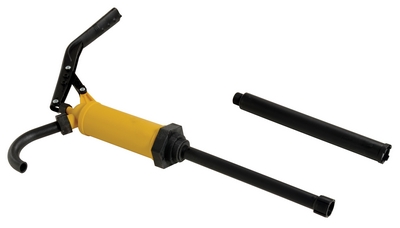

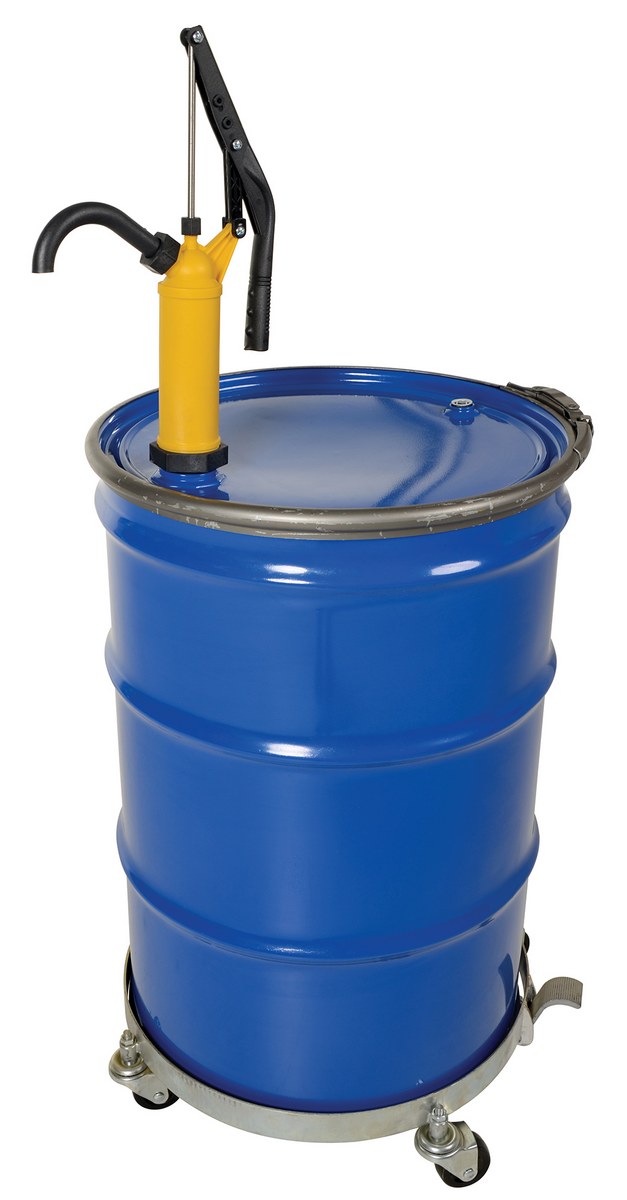

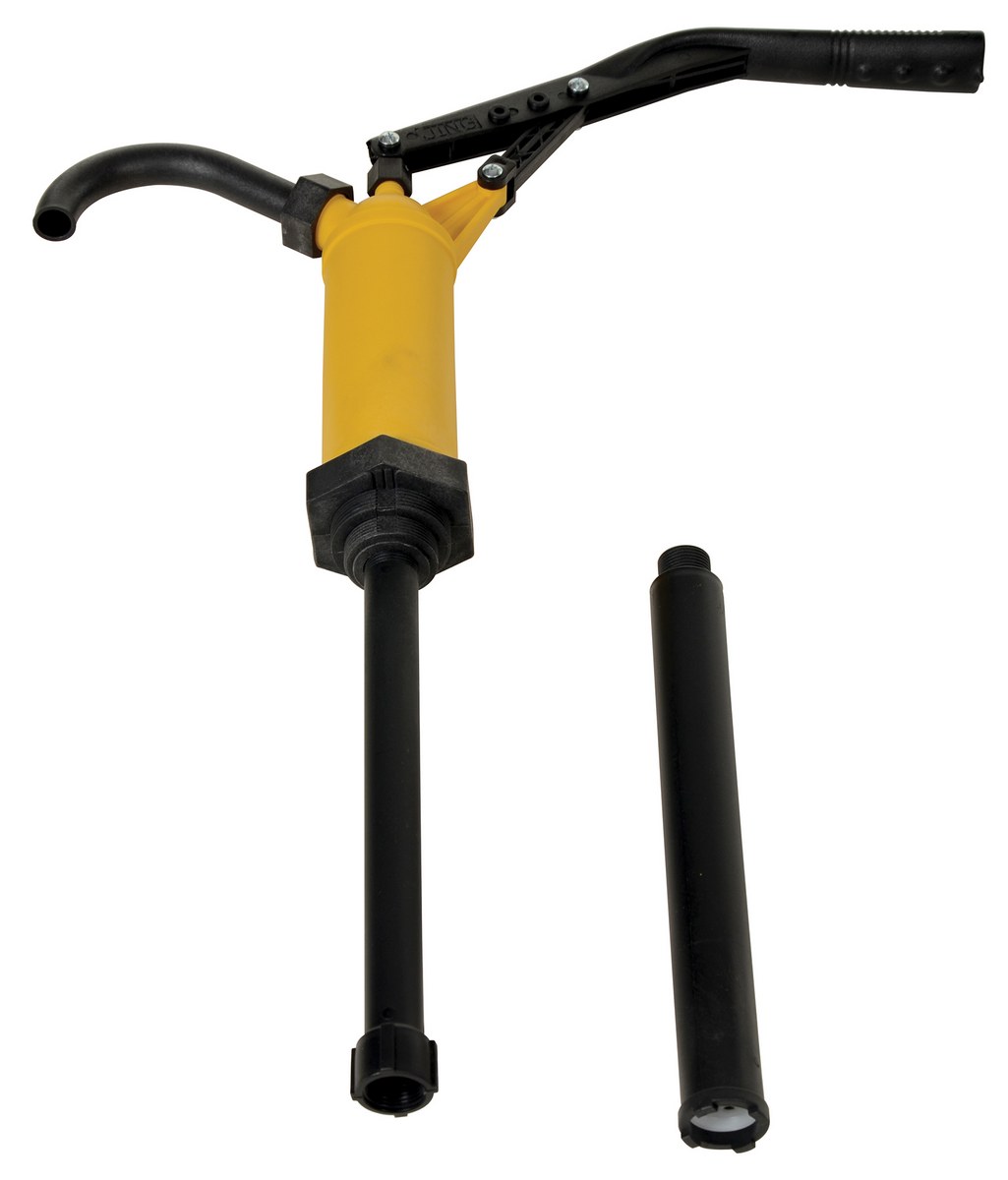

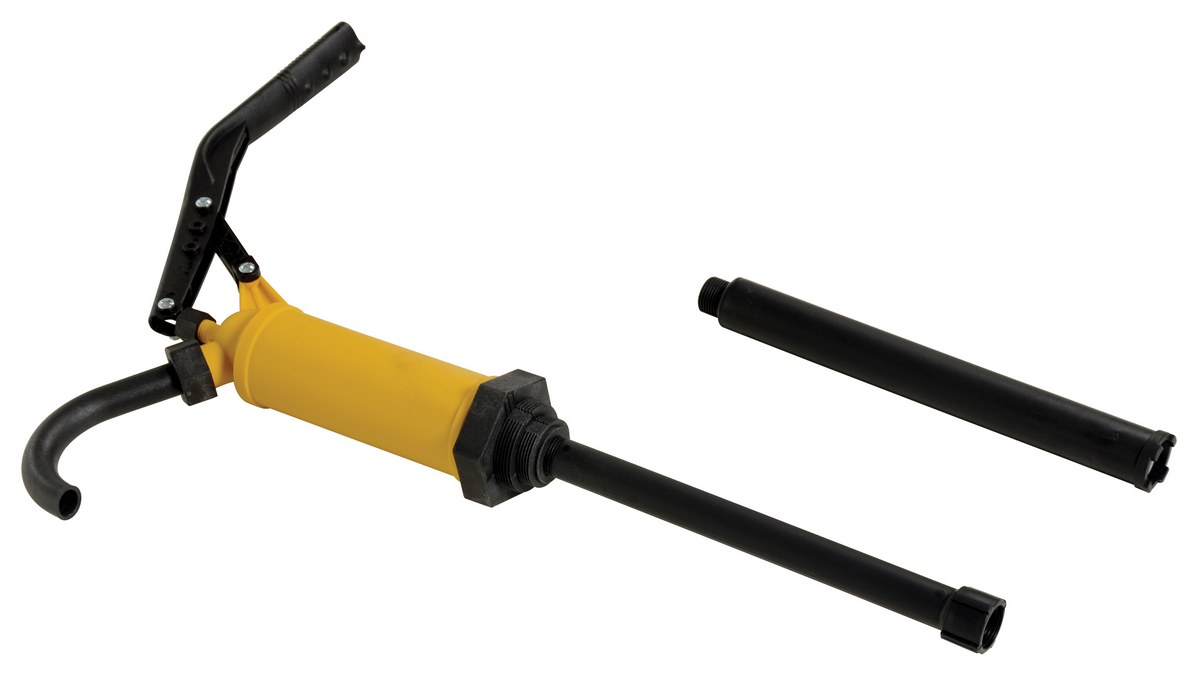

LDP-POLY-304_D.jpg LDP-POLY-304_C.jpg LDP-POLY-304_A.jpg LDP-POLY-304_B.jpg
Lever Action Drum Pumps

model: LDP-POLY-304



Lever Action Drum Pumps

model: LDP-POLY-304

Featured Drum Handling Equipment


Electric Drum Pumps
Drum Storage Hard Top Containers
Stackable Transport Pallets with Side Rails
Drum Lid Tool
Horizontal Steel Retention Basins
Drum Carrier Right Angle
Drum Wrenches, Sockets & Tools
Hoist Mounted Drum Carrier/Rotators
Plastic & Fiber Drum Adapters and Other Upgrades
model chart

Product Family Overview

Print Friendly
Lever Action Drum Pumps
SERIES: LDP

Designed for dispensing and transferring liquids out of 55-gallon drums. VLDP - Handles viscous liquids up to 12,000 cPs (equivalent to SAE 90 oil). Not for use above 125 degrees Fahrenheit or with heated drums. Includes 35" long dip tube.

LDP-ST - For petroleum products up to 200 cPs.

Designed for dispensing and transferring liquids out of 55-gallon drums. VLDP - Handles viscous liquids up to 12,000 cPs (equivalent to SAE 90 oil). Not for use above 125 degrees Fahrenheit or with heated drums. Includes 35" long dip tube.

LDP-ST - For petroleum products up to 200 cPs.

Other Drum Faucets & Pumps

 Lever Action Drum Pumps Electric Drum Pumps Manual Drum Faucets Horizontal Drum Gauge Level Indicator

Additional Models In This Family
view entire Image Gallery

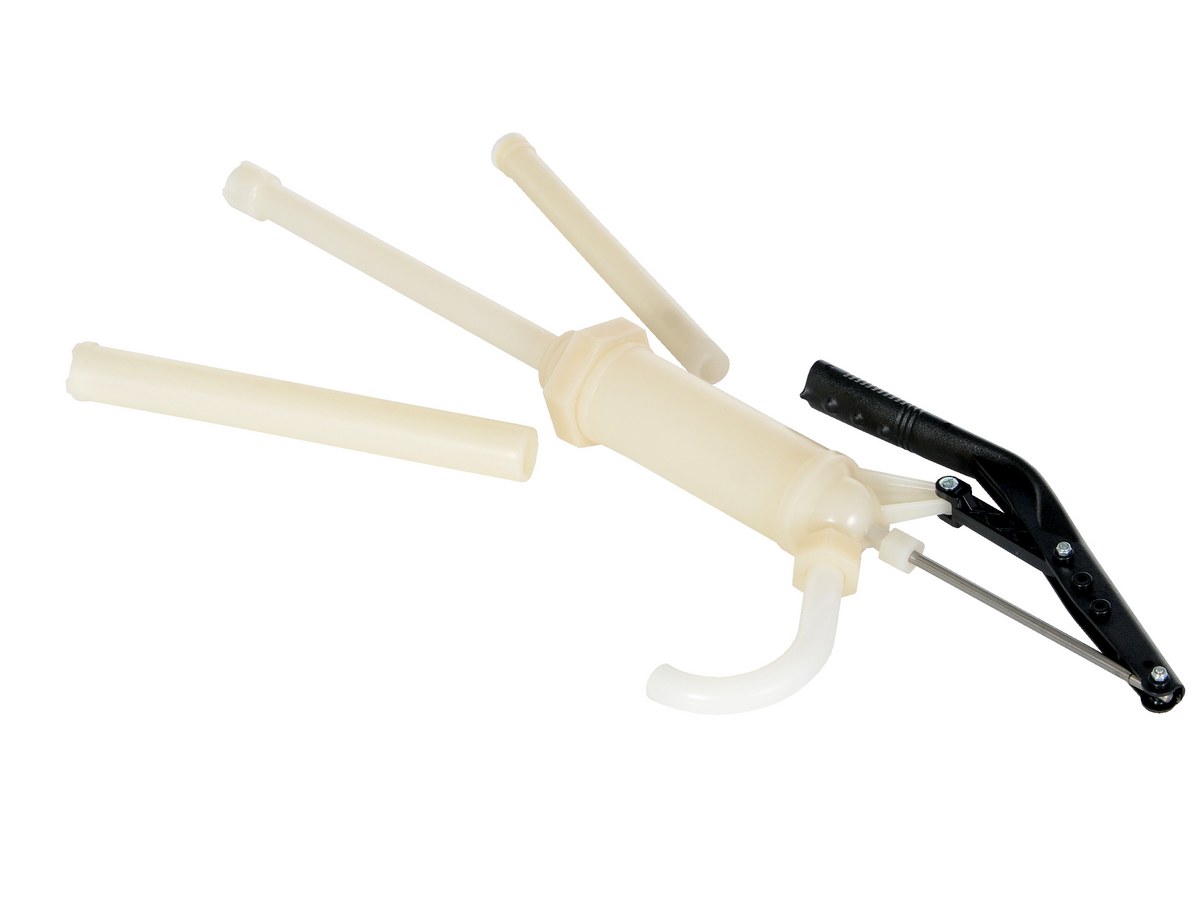

LDP-FG

LDP-FG

LDP-POLY

LDP-POLY

LDP-POLY-304

LDP-POLY-304

LDP-FG

LDP-FG

VLDP

VLDP

LDP-POLY-304

LDP-POLY-304

LDP-POLY-304

LDP-POLY-304

LDP-FG

LDP-FG

LDP-POLY-304

LDP-POLY-304

LDP-SS-316

LDP-SS-316

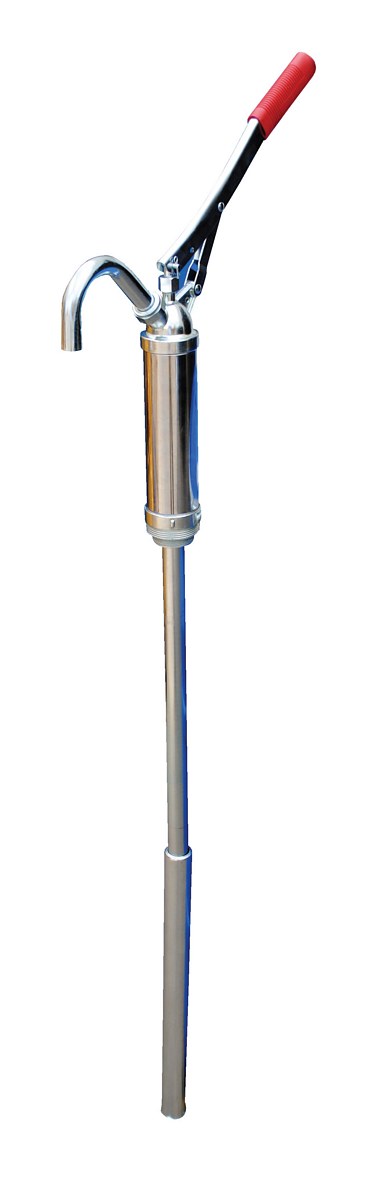

LDP-ST

LDP-ST

LDP-SS-316

LDP-SS-316

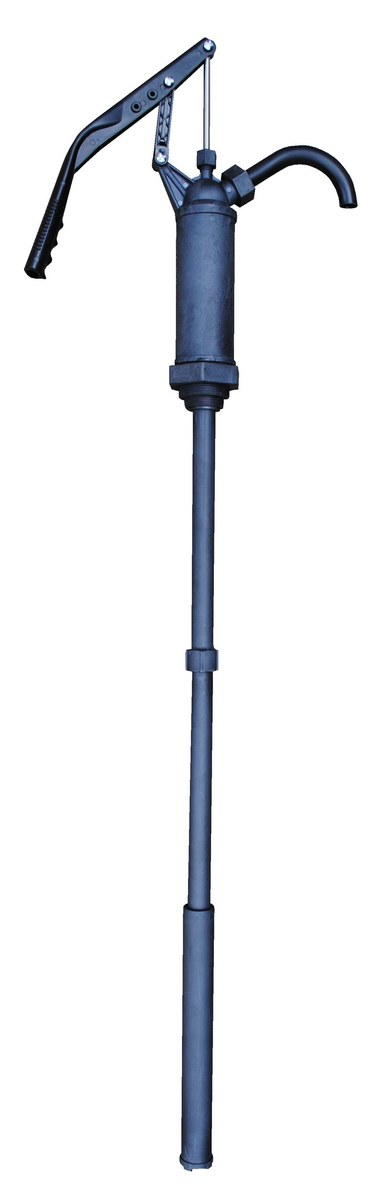

LDP-RYT

LDP-RYT

LDP-SS-316

LDP-SS-316

LDP-POLY

LDP-POLY

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

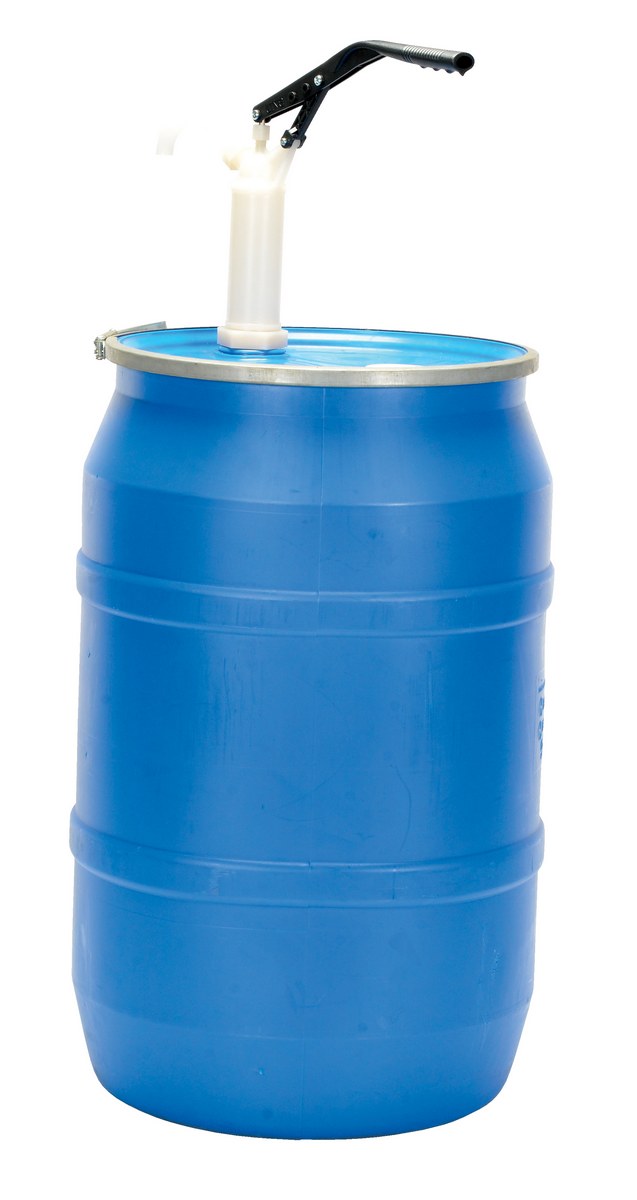

LDP-FG LDP-FG30 Days Limited WarrantyPTFE Drum Pump Lever Action 15 In. x 3-1/2 In. x 38 In. WhiteAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 12		4

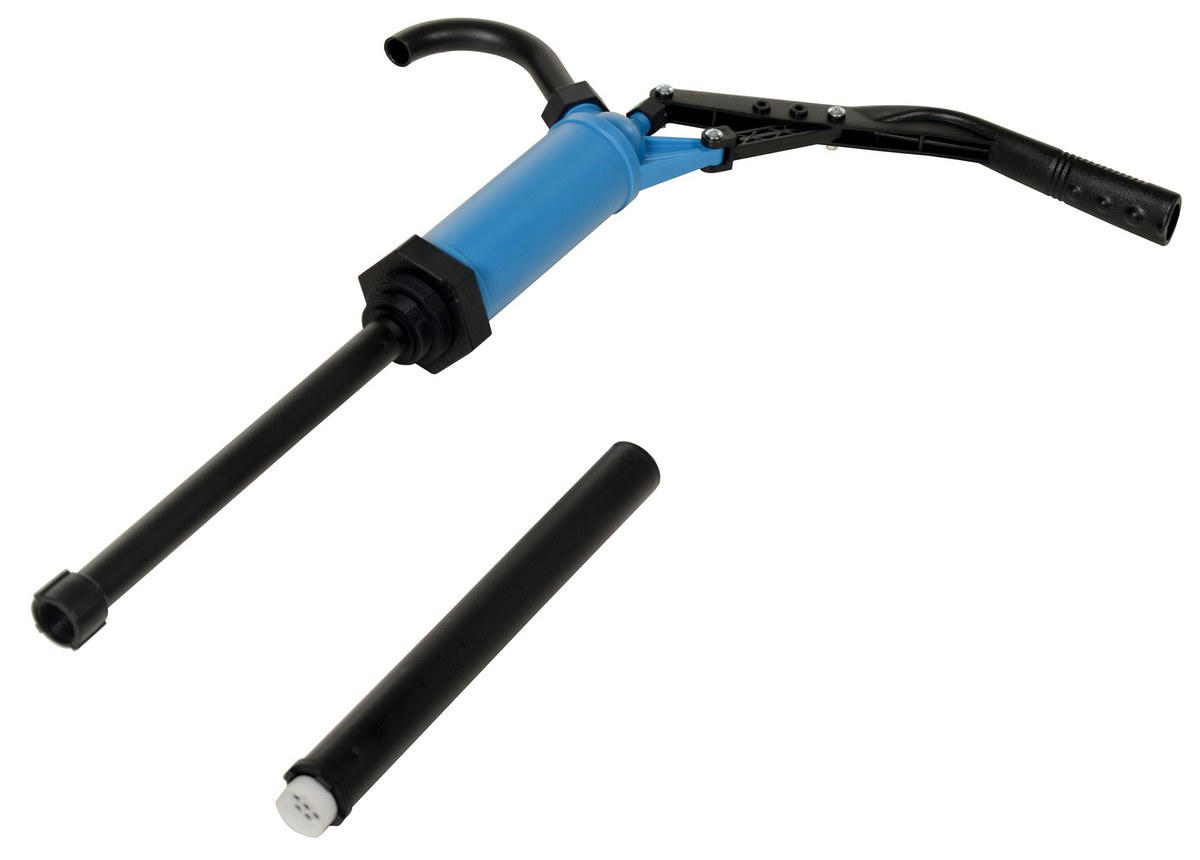

LDP-POLY LDP-POLY30 Days Limited WarrantyPolypropylene Bung Drum Pump Lever Action 2 In. BlueAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 12		4

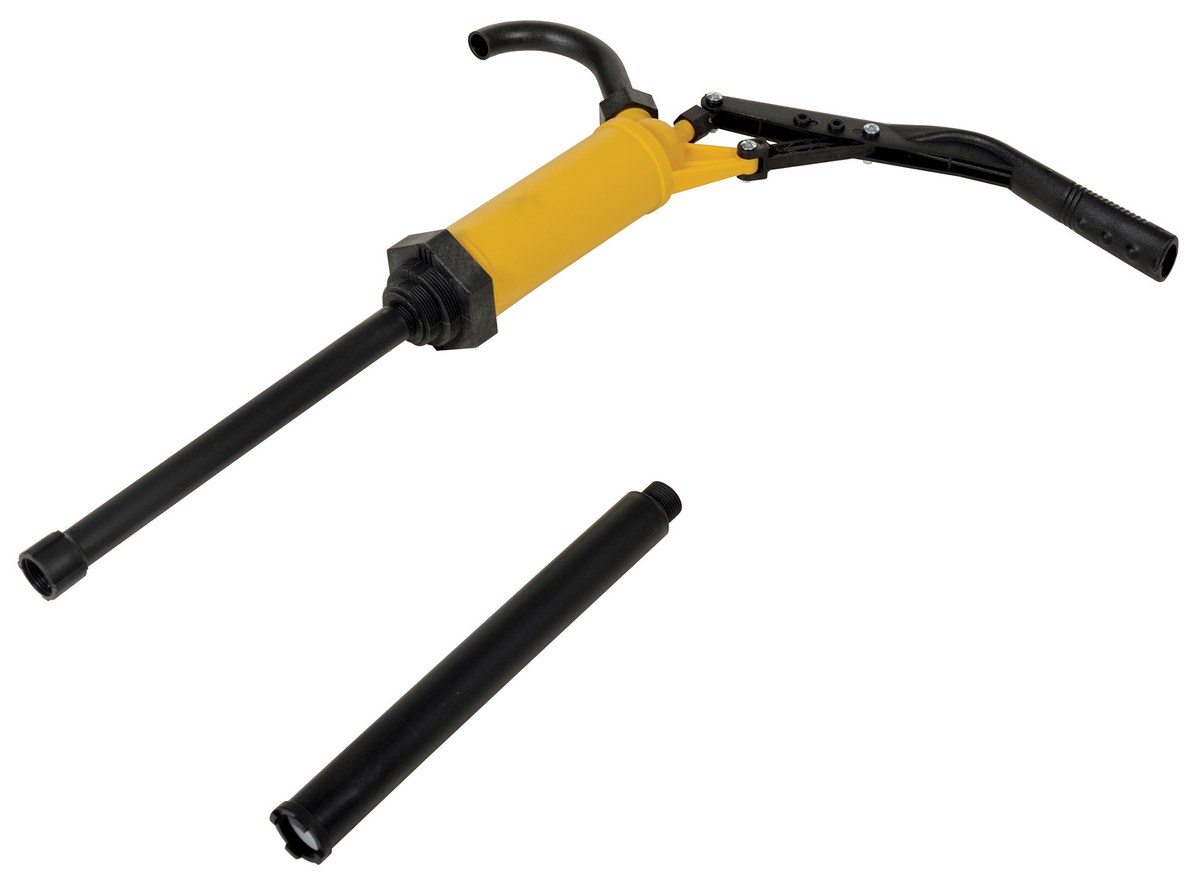

LDP-POLY-304 LDP-POLY-30430 Days Limited WarrantyPolypropylene Bung Drum Pump Lever Action 2 In. YellowAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 12		4
LDP-RYT LDP-RYT30 Days Limited WarrantyPolyphenylene Sulfide Bung Drum Pump Lever Action 2 In. BlackAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 12		4

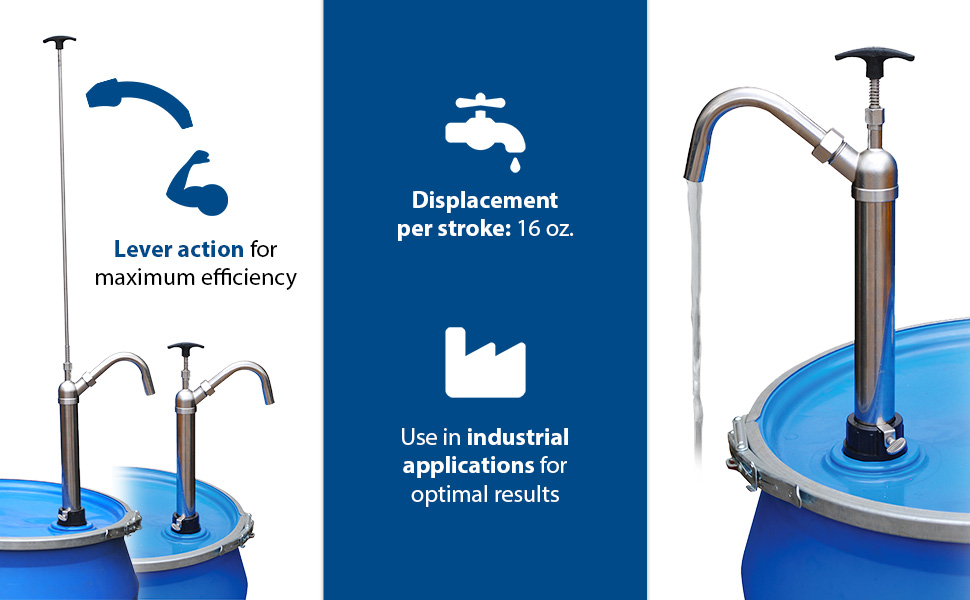

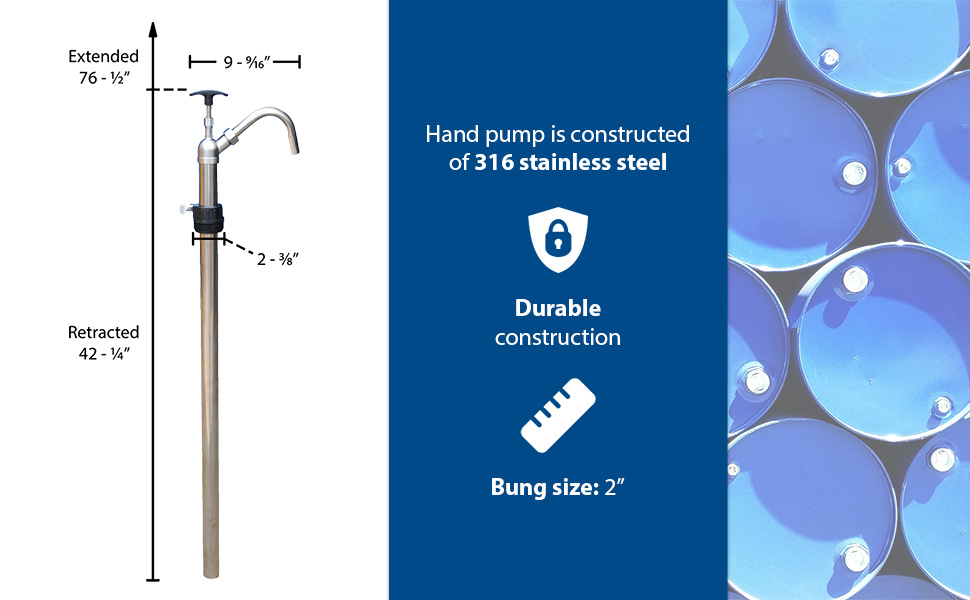

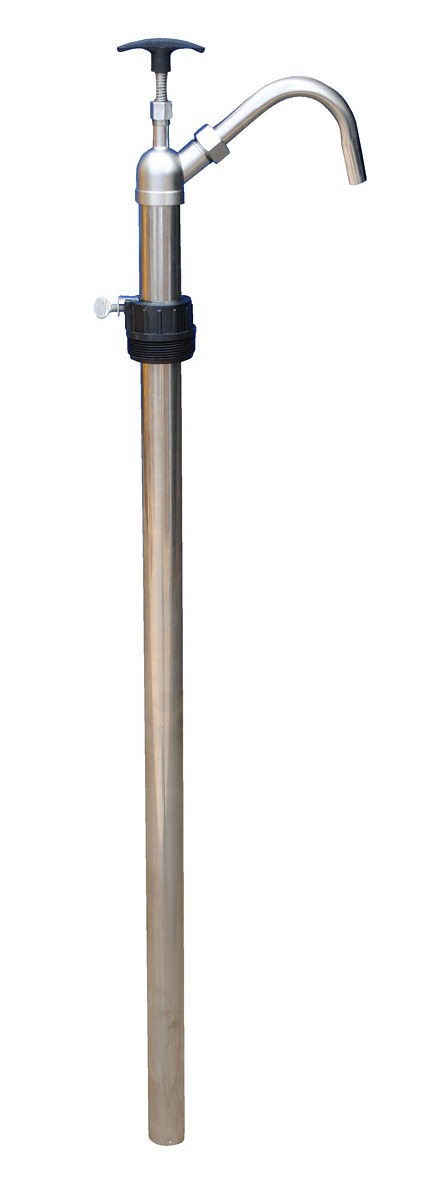

LDP-SS-316 LDP-SS-31630 Days Limited WarrantyBung Stainless Steel Hand Drum Pump 2 In. SilverAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 16		5
LDP-ST LDP-ST30 Days Limited WarrantySteel Drum Pump Lever Action 2 In. SilverAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 12		5

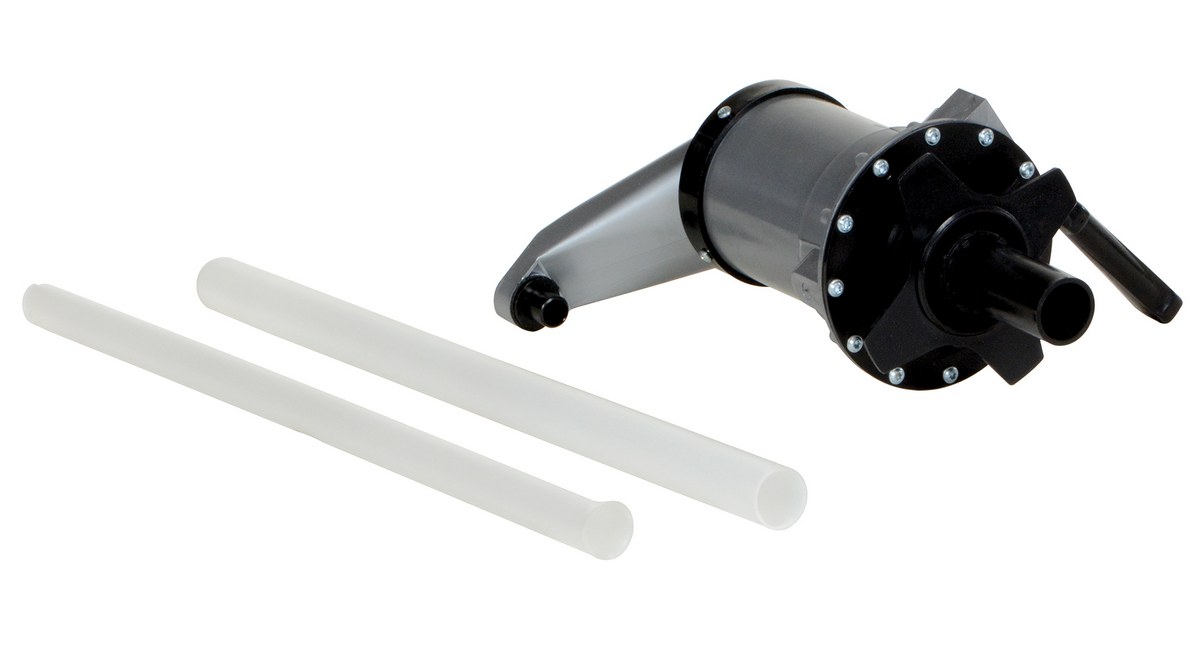

VLDP VLDP30 Days Limited WarrantyPolypropylene Manual Lever Action Drum & Pail Pump 10 Ounces GrayAccommodates: 55 gallon drum
Displacement per Stroke (oz.): 10		2

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LDP-FG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12

LDP-POLY
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12

LDP-POLY-304
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12

LDP-RYT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12

LDP-SS-316
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 16
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 16

LDP-ST
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 12

VLDP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 10
Accommodates: 55 gallon drum
Displacement per Stroke (oz.): 10
Lever Action Drum Pumps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LDP-POLY

LDP-POLY-304

LDP-RYT

LDP-SS-316

LDP-ST

VLDP

Testing Certificates


LDP-FG

LDP-POLY

LDP-POLY-304

LDP-RYT

LDP-SS-316

LDP-ST

VLDP

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can you attach a hose to this drum pump?

A: It is not recommended to attach a hose to the drum pump.

Q: Are the internal gaskets for LDP-SS-316 Teflon or silicone?

A: Are the internal gasketsare Teflon.
