DC Powered Hefti-Lifts

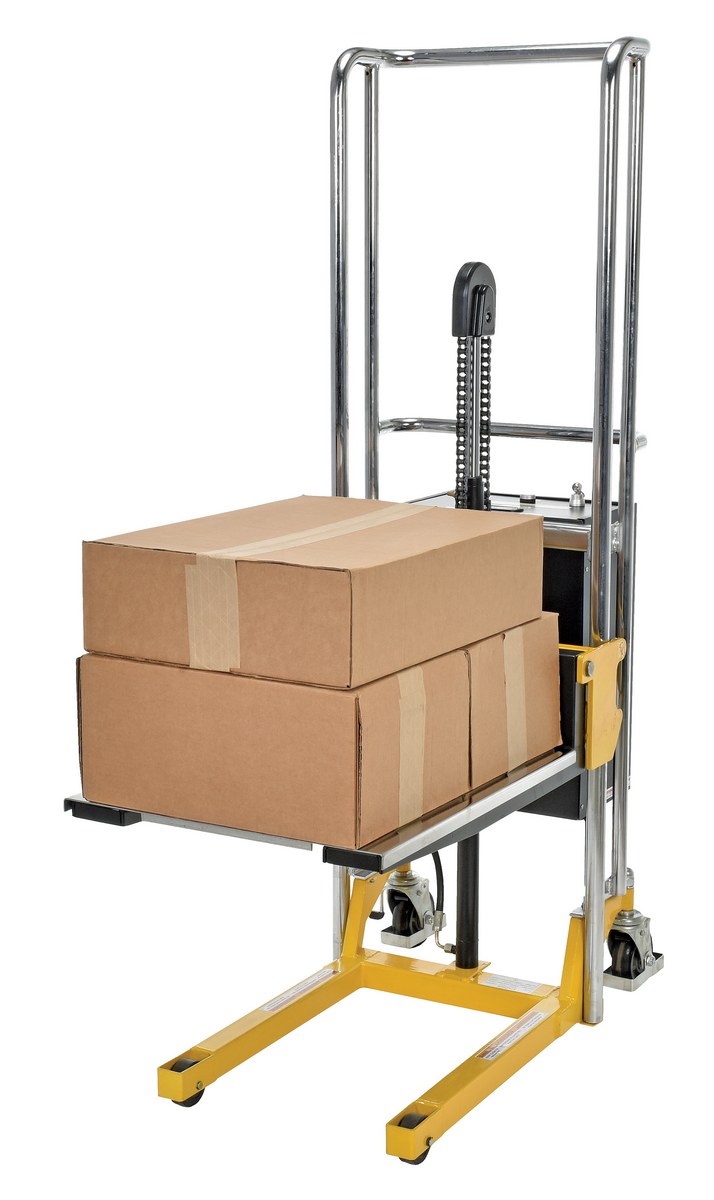

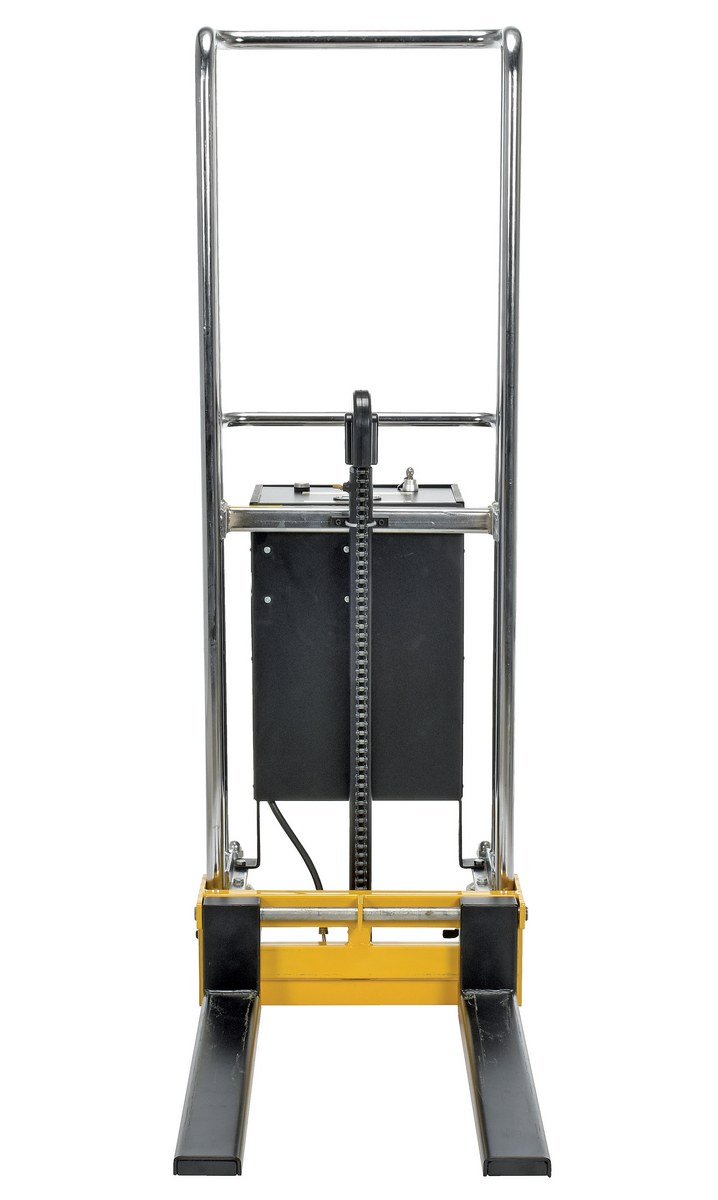

model: HYD-10-DC

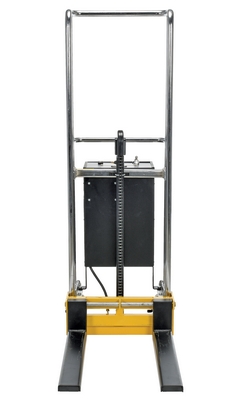

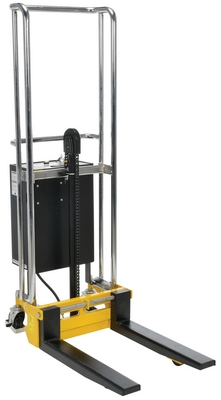

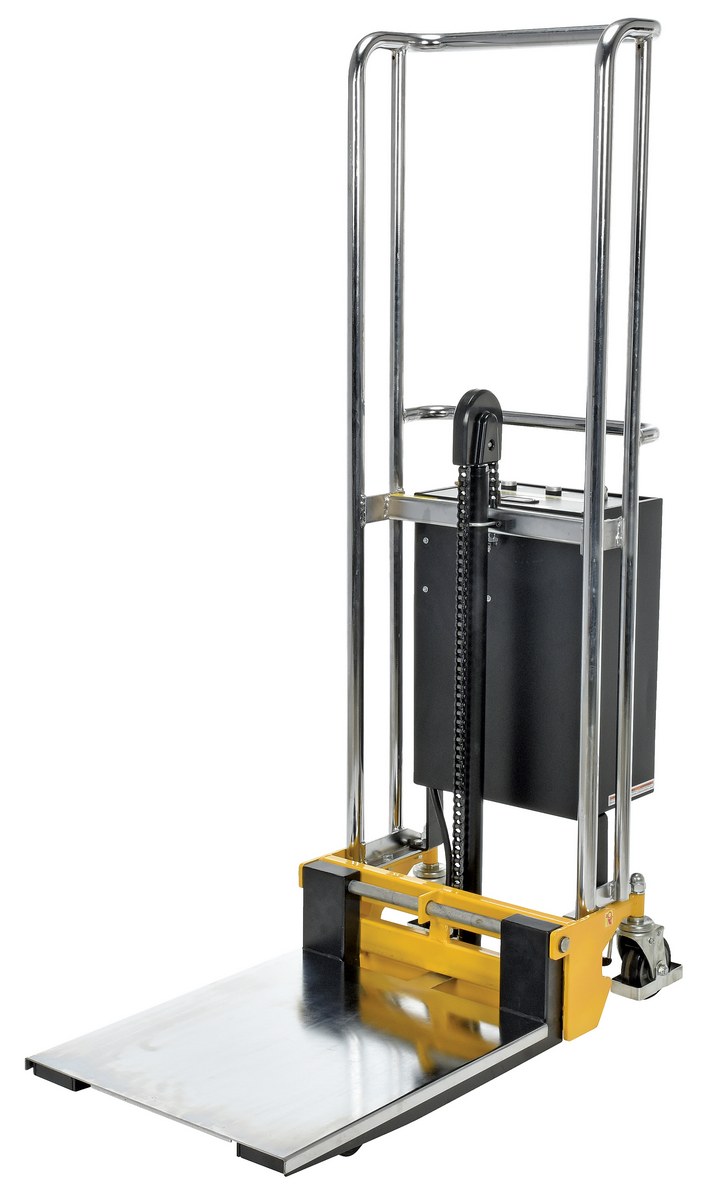

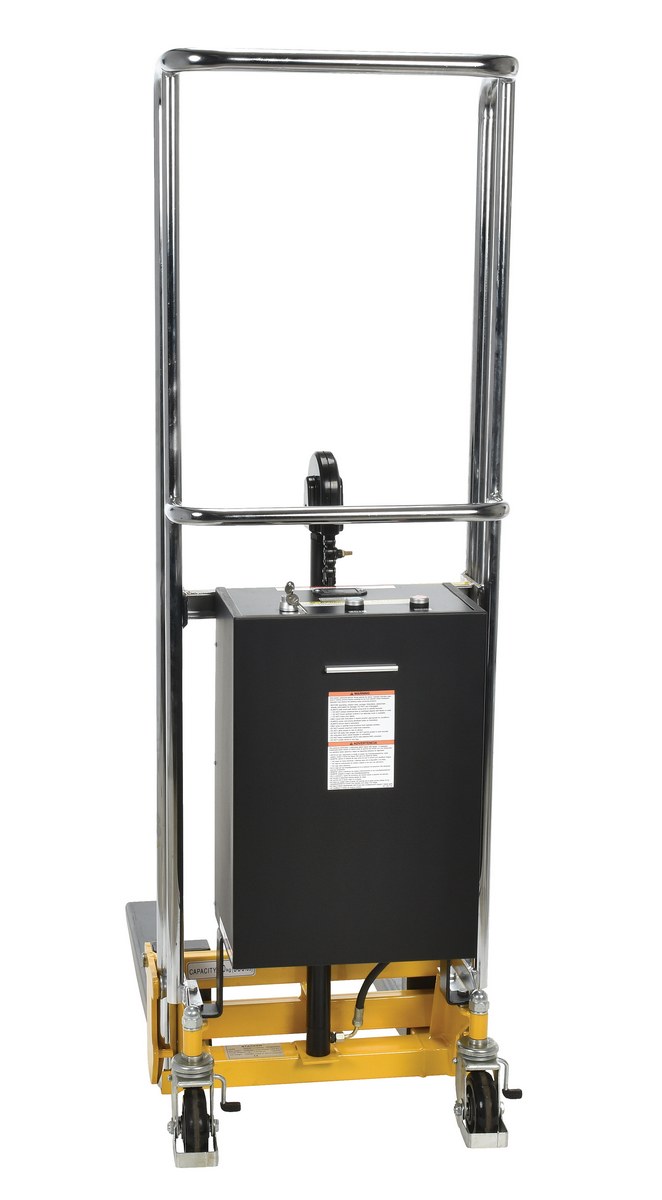

HYD-10-DC_F.jpg HYD-10-DC_A.jpg HYD-10-DC_B.jpg HYD-10-DC_C.jpg HYD-10-DC_D.jpg HYD-10-DC_E.jpg HYD-10-DC_G.jpg HYD-10-DC_H.jpg More Images +
DC Powered Hefti-Lifts
SERIES: HYD

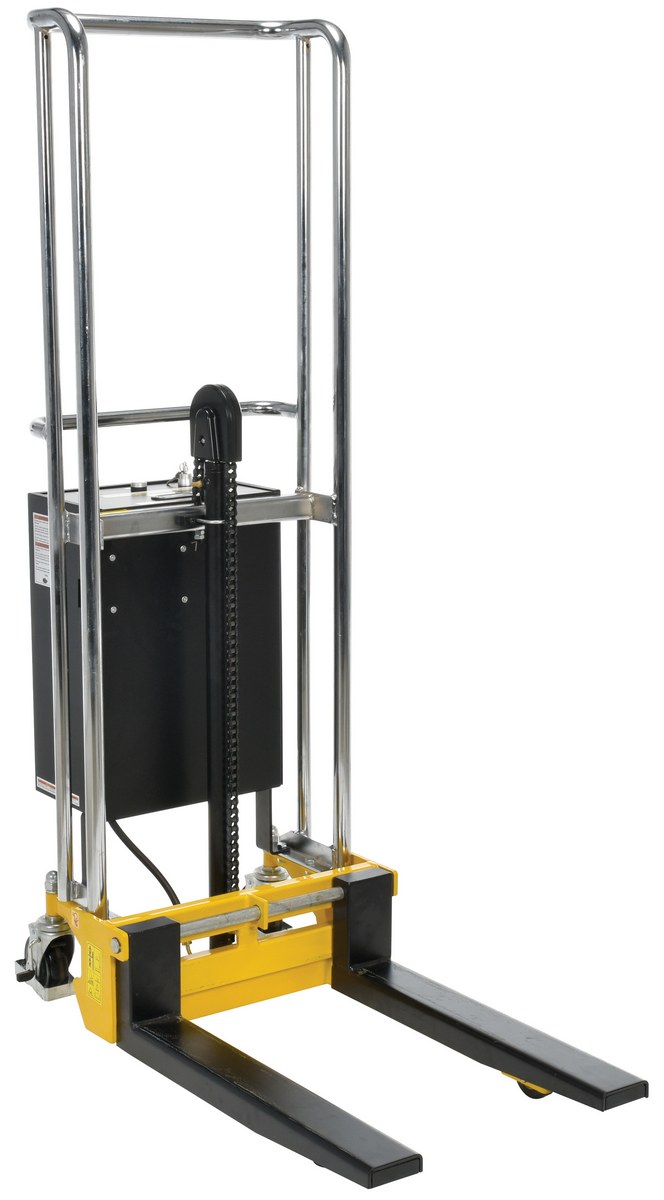

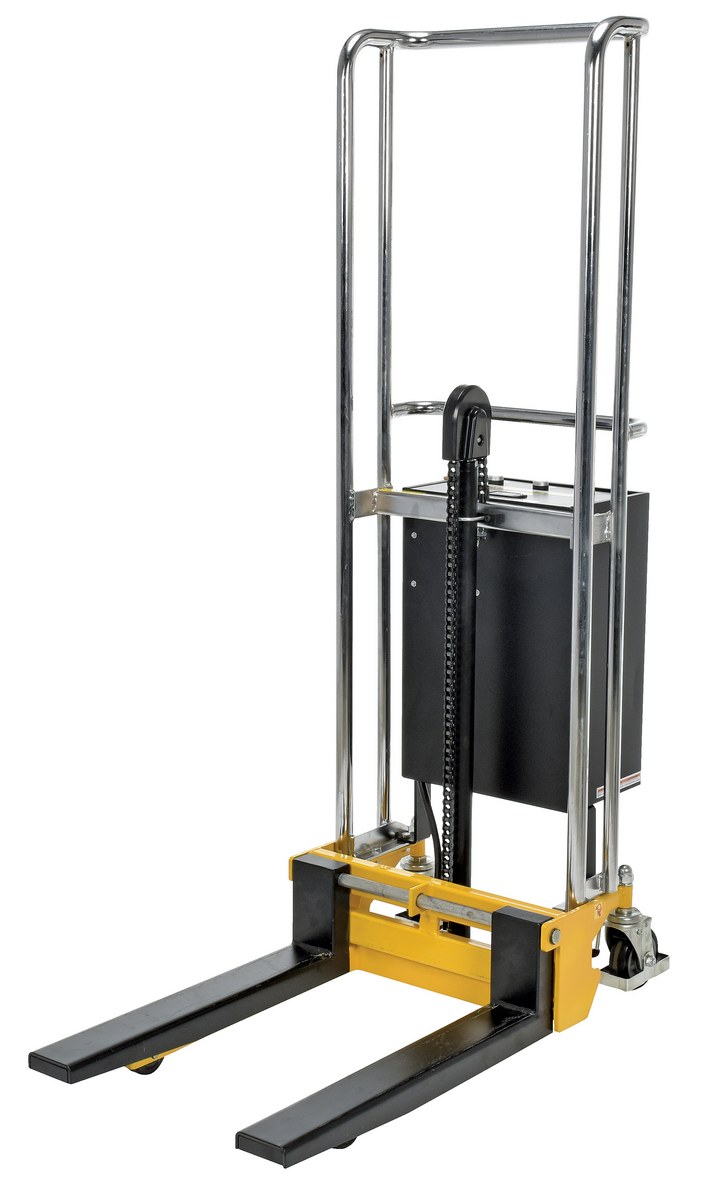

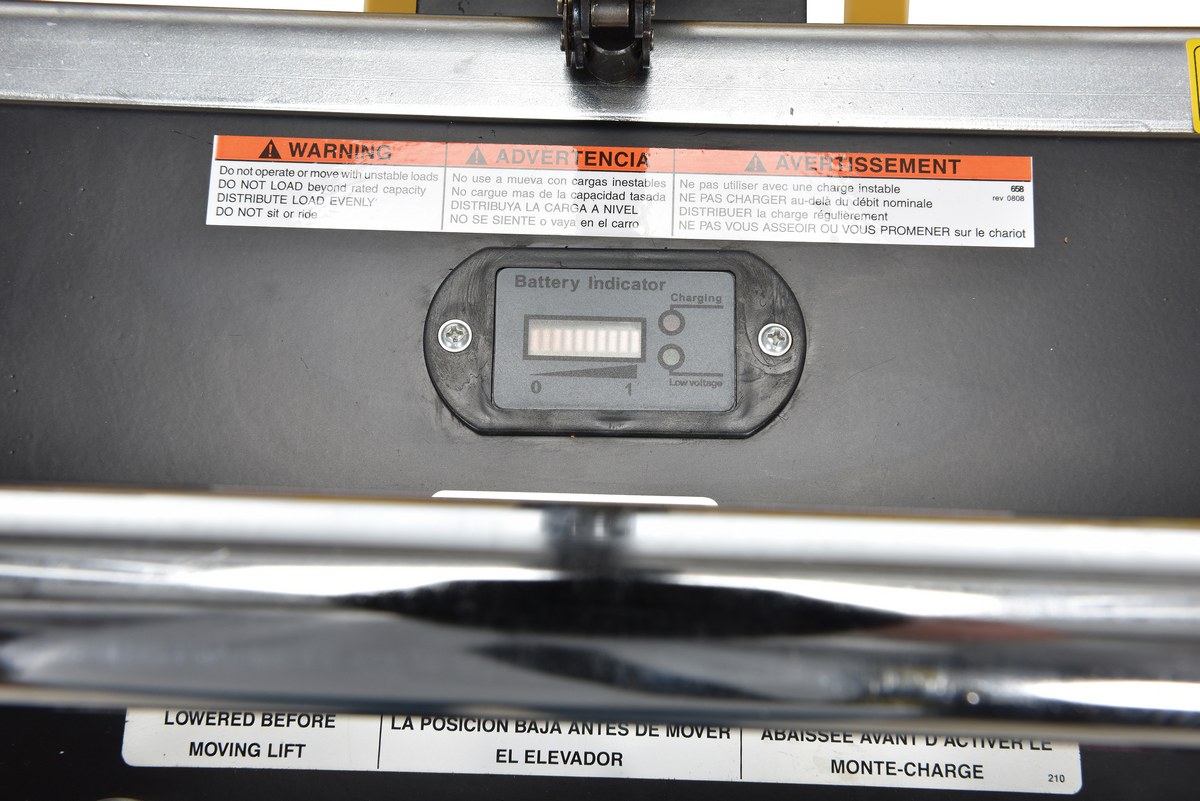

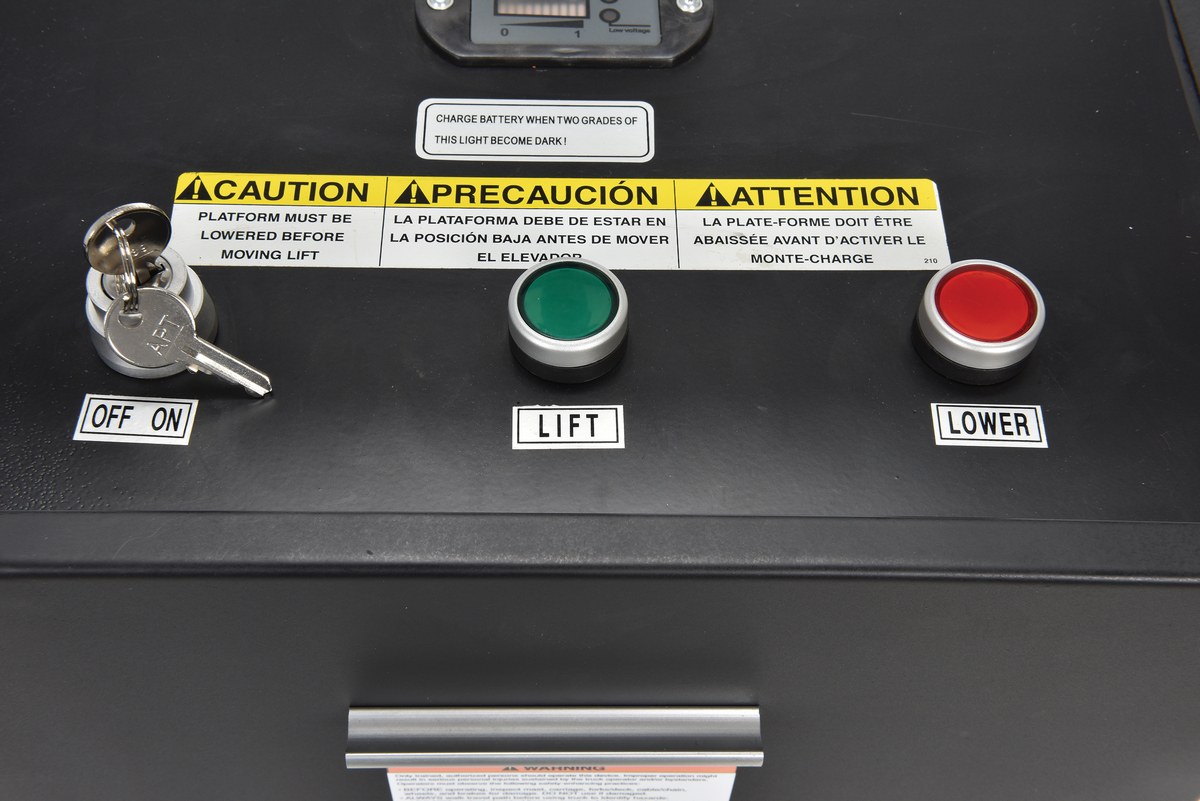

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Ideal for working in confined spaces and eliminates manual handling problems and injuries. Includes removable platform for operations requiring forks (excpt HYD-CB-10-DC). Units roll easily on two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome platform and uprights. Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Units run off one (1) 12V battery. Includes battery charger, battery charge indicator and emergency on/off switch. Variety of attachments available.

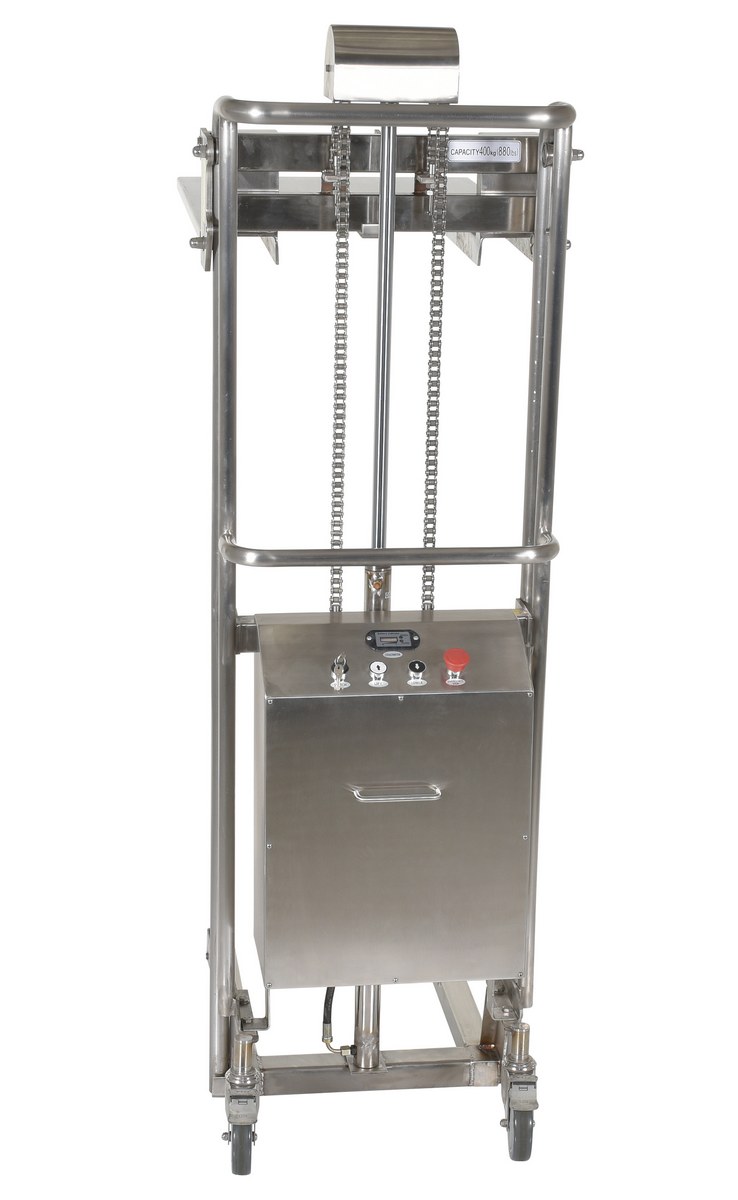

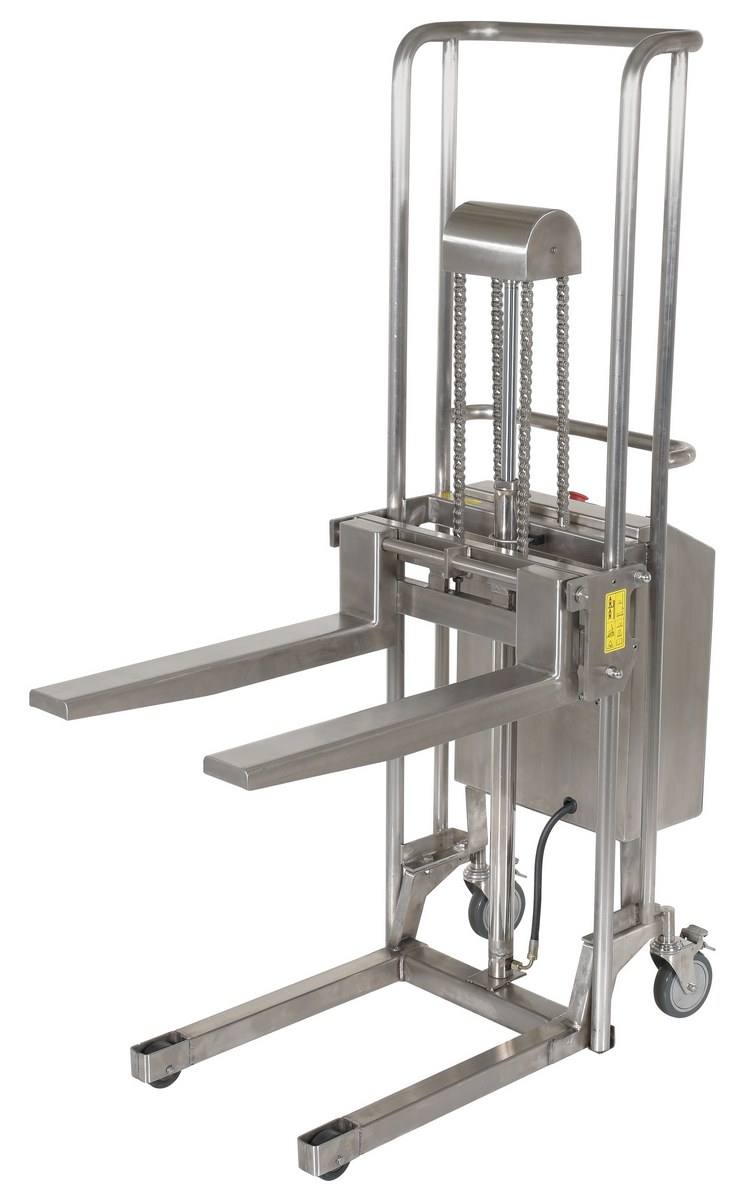

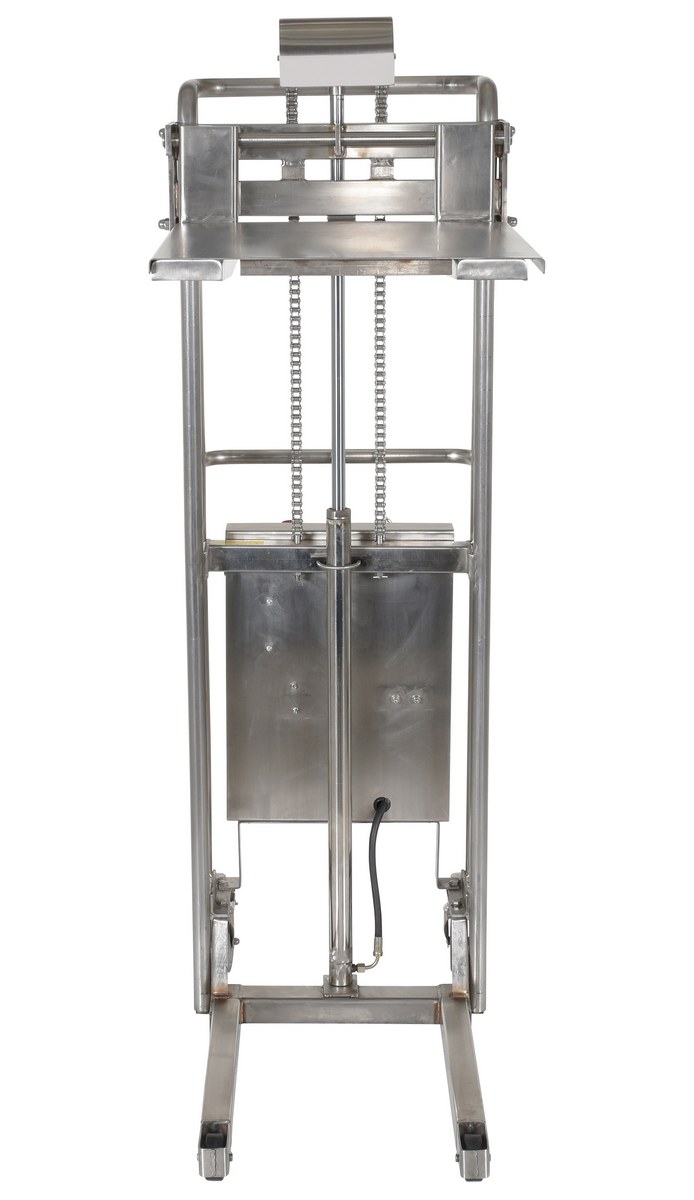

304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
DC Powered Hefti-Lifts

model: HYD-10-DC

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HYD-10-DC POPULAR HYD-10-DC90 Days Limited WarrantySteel Portable DC Powered Hefti-Lift 37 In. x 69 In. 880 Lb. Capacity Silver / BlackUniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4		348

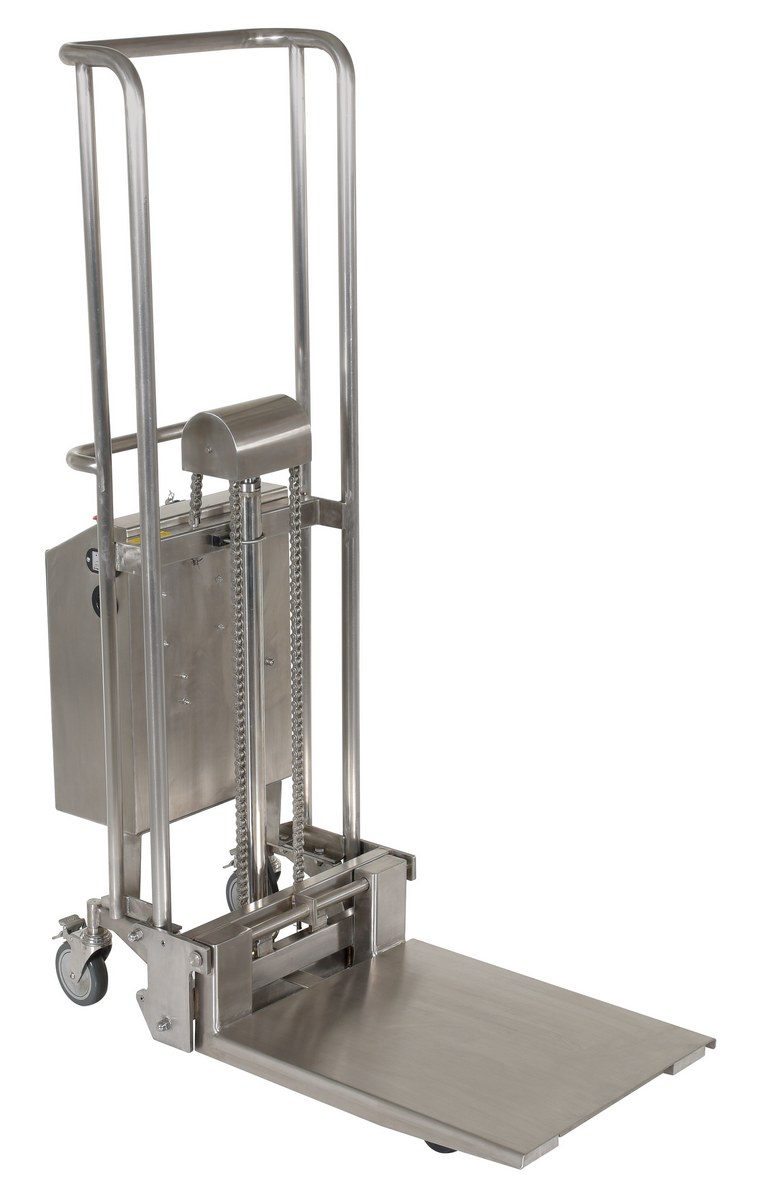

HYD-10-DC-SS
HYD-10-DC-SS90 Days Limited WarrantyPartially Stainless Steel Portable DC Powered Hefti-Lift 44 In. x 68 In. 880 Lb. Capacity SilverUniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4		292

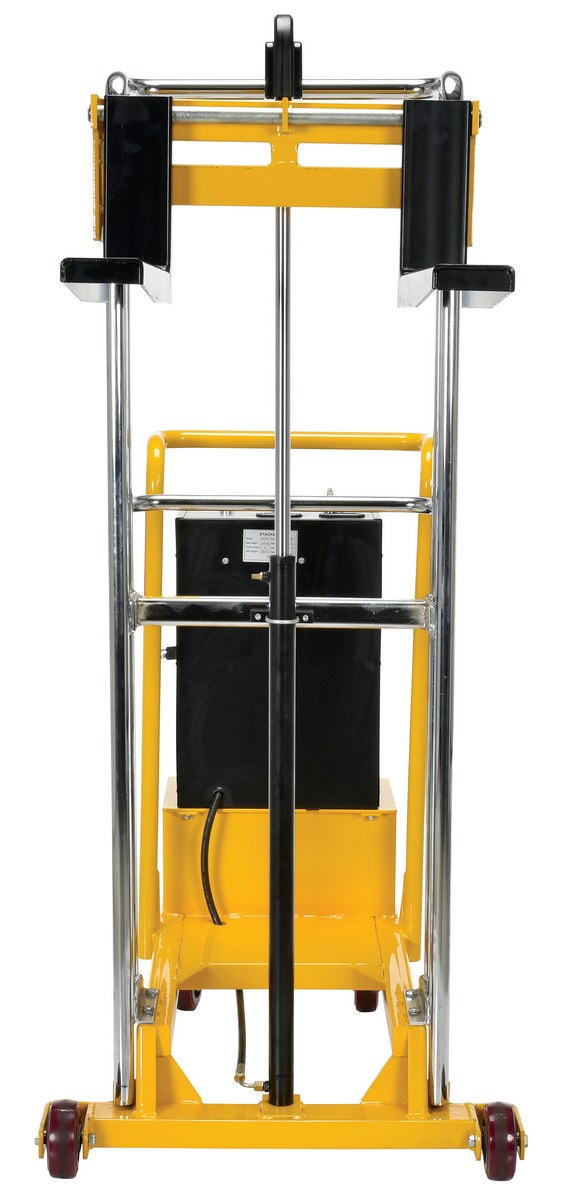

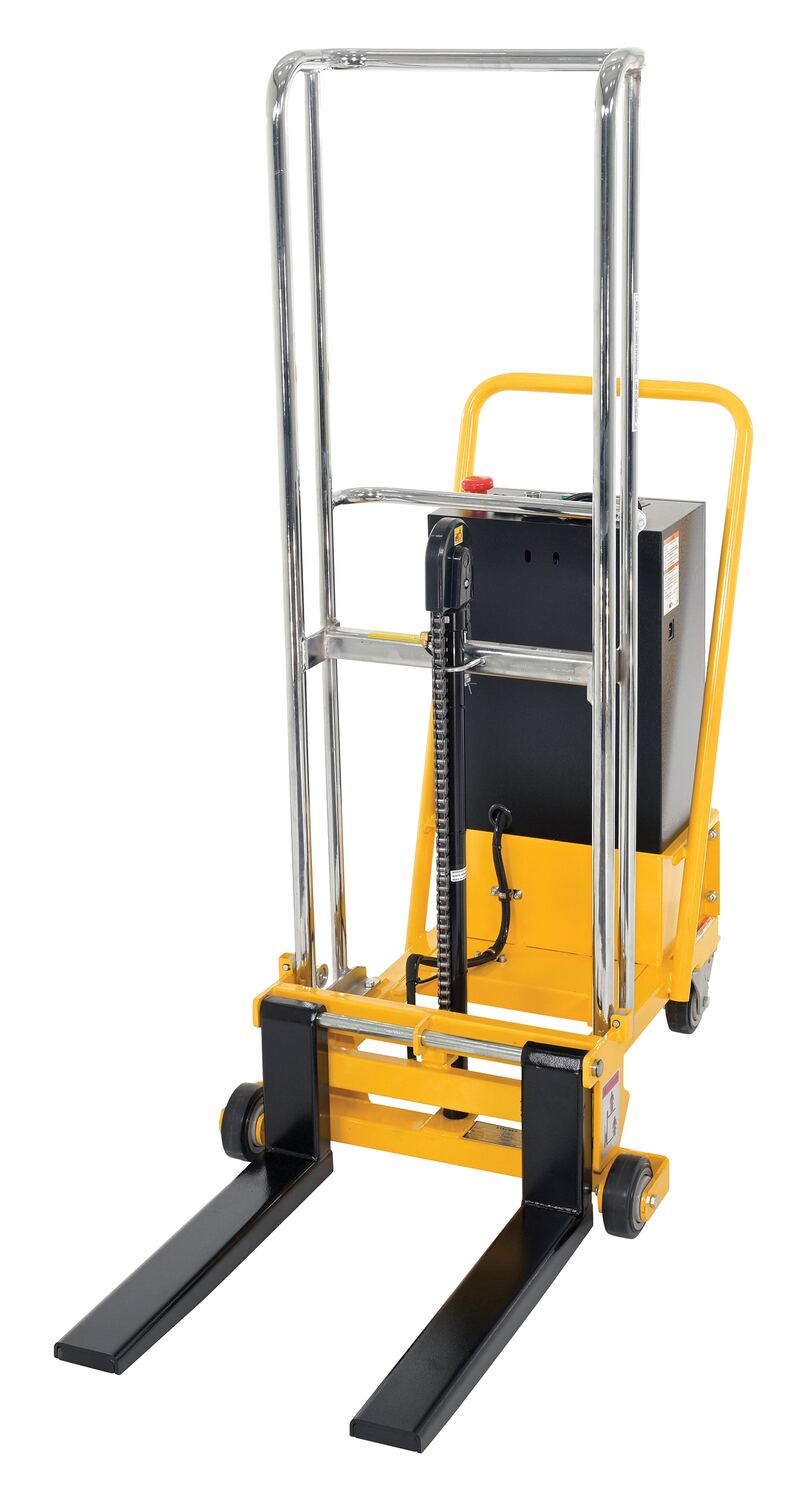

HYD-CB-10-DC HYD-CB-10-DC90 Days Limited WarrantySteel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / BlackUniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2		555

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HYD-10-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4

HYD-10-DC-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4

HYD-CB-10-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

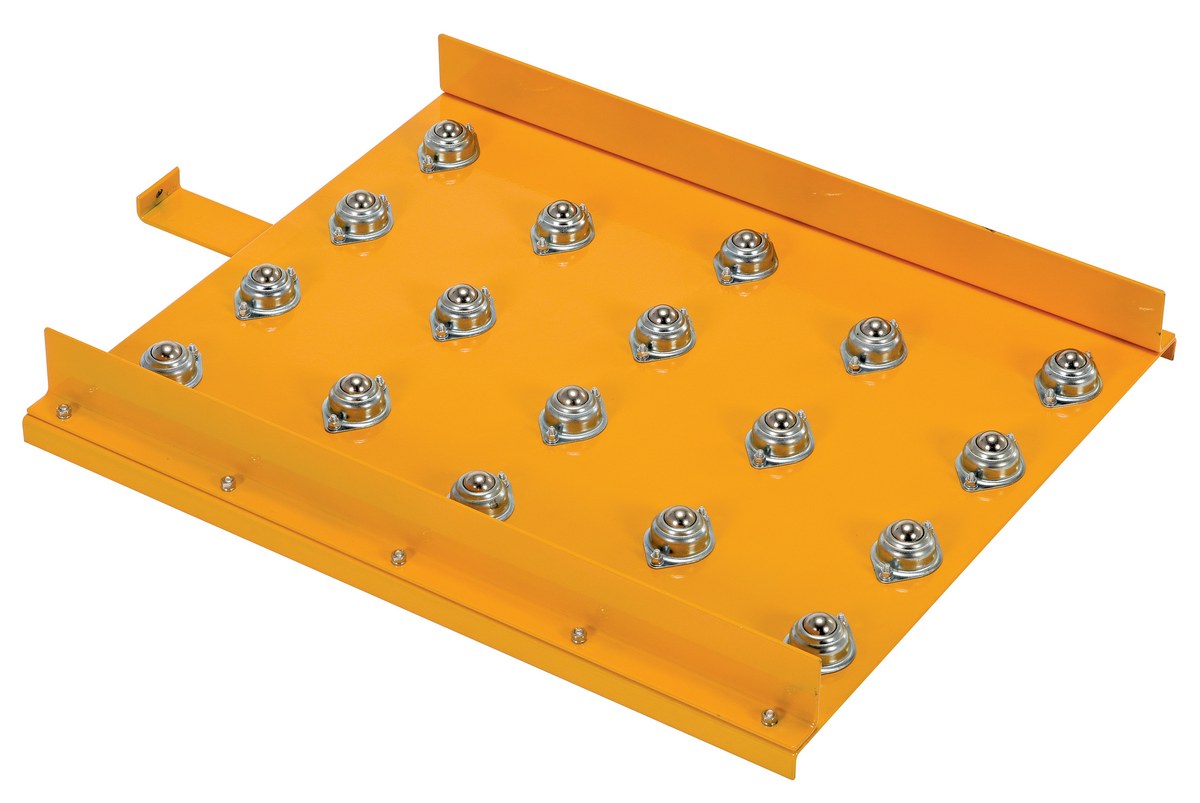

HYDC-BTP HYD-CB-10-DCSteel Ball Transfer Platform 25-3/4 In. x 19-1/4 In. For Hef… Limited Warranty34
HYDC-DSPIN HYD-CB-10-DCSteel Double Spindle Attachment For Hefti-Lift Models 800 Lb… Limited Warranty18

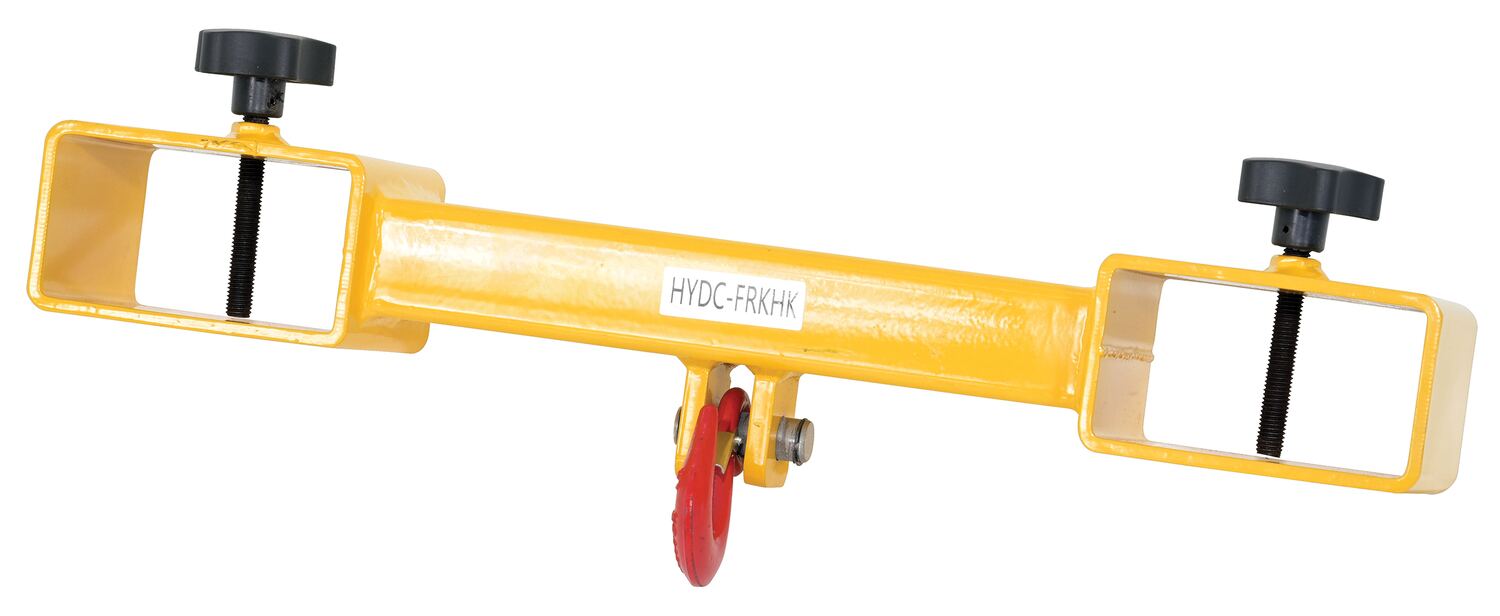

HYDC-FRKHK HYD-CB-10-DCSteel Fork Hook Attachment For Hefti-Lift Models Yellow Limited Warranty15

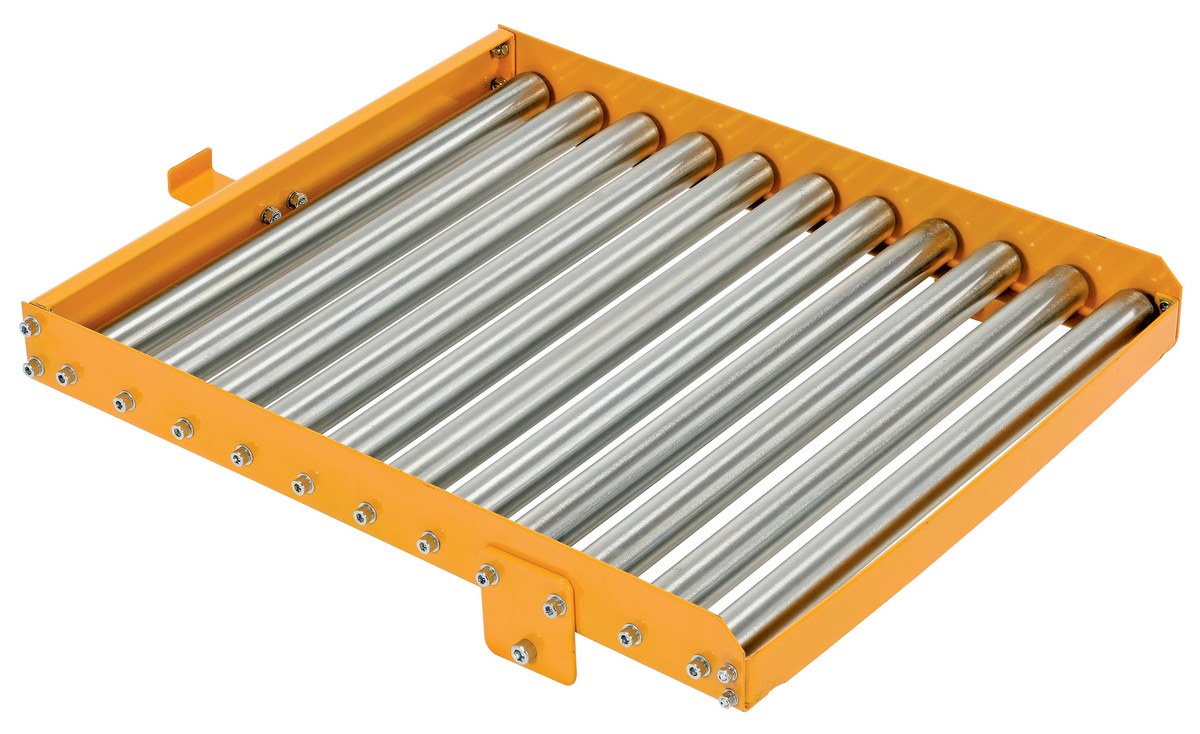

HYDC-RP HYD-CB-10-DCSteel Roller Platform 26 In. x 21-1/2 In. Hefti-Lift Models … Limited Warranty51

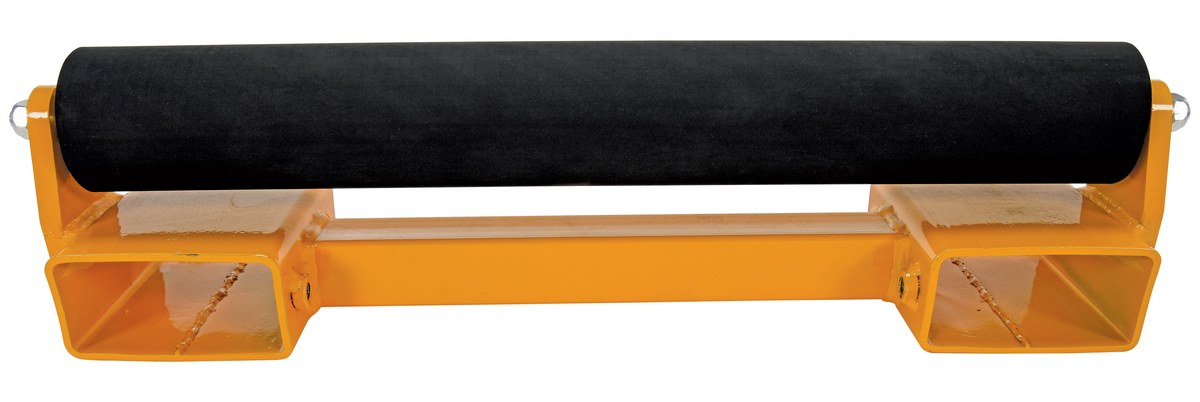

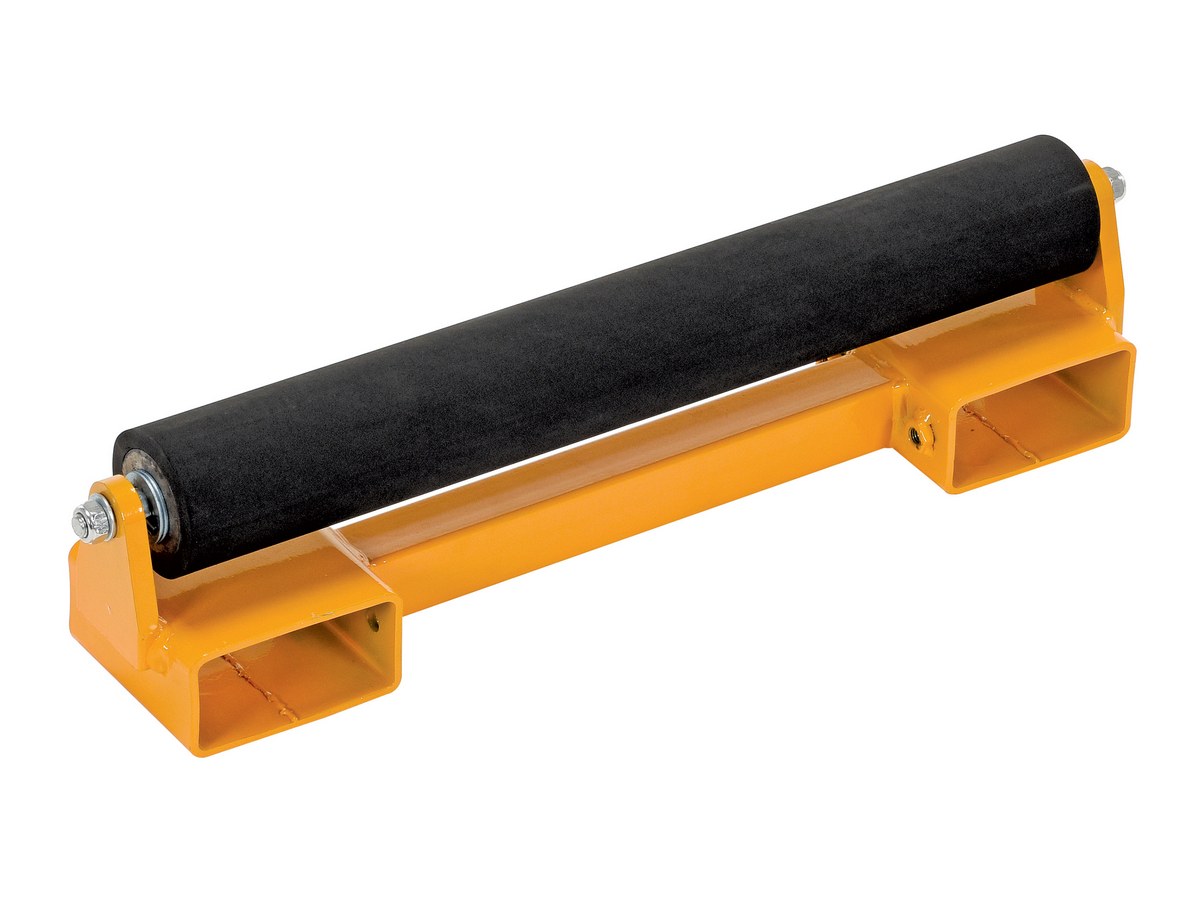

HYDC-RR HYD-CB-10-DCRubber Roller Attachment For Hefti-Lift Models Yellow Limited Warranty22

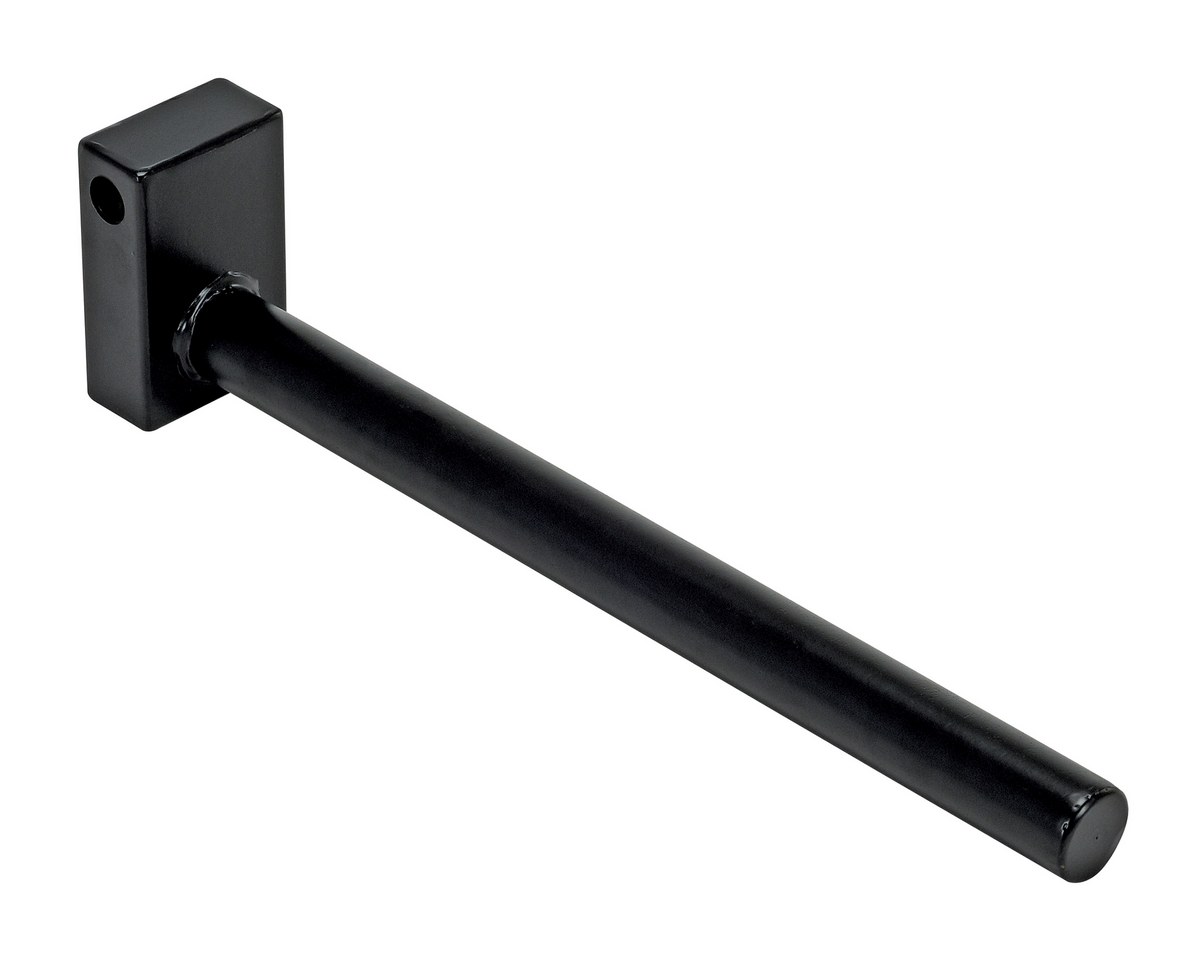

HYDC-SPIN HYD-CB-10-DCSteel Single Spindle Attachment For Hefti-Lift Models Black Limited Warranty10

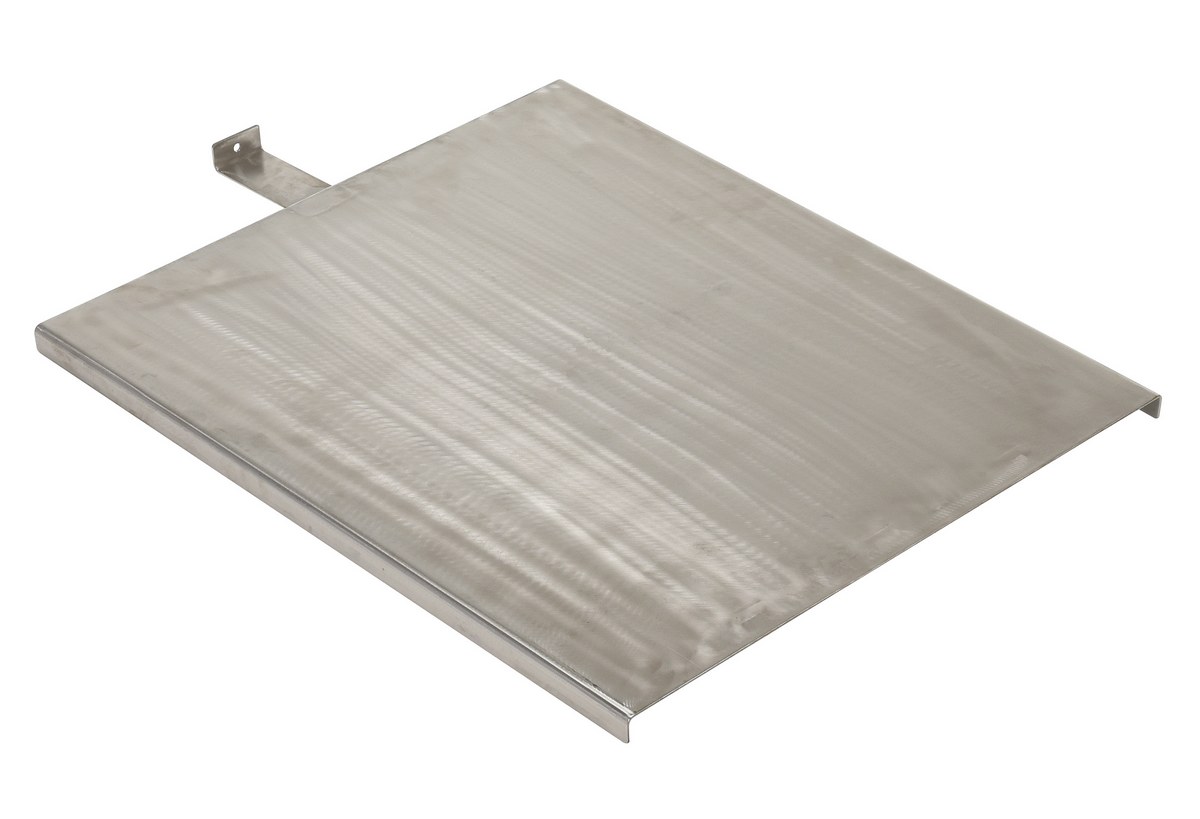

HYDC-SSP HYD-CB-10-DCStainless Steel Platform Attachment 25-3/4 In. x 22 In. For … Limited Warranty22

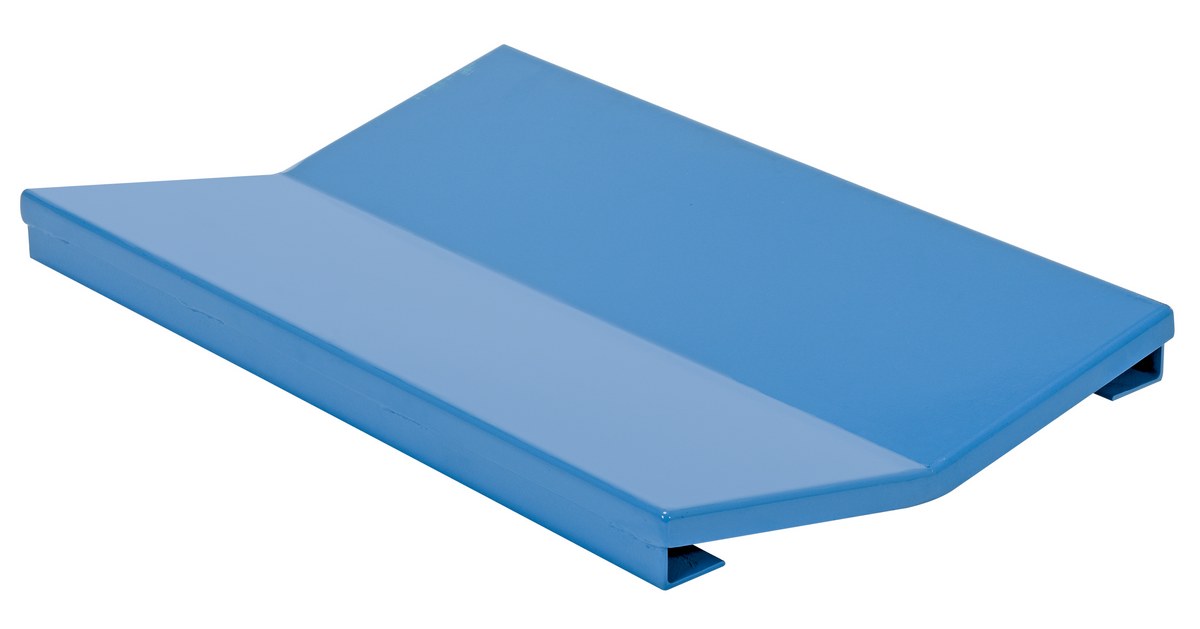

HYDC-VBLK HYD-CB-10-DCSteel V-Block Conveyor Attachment For Hefti-Lift Models Blue Limited Warranty27

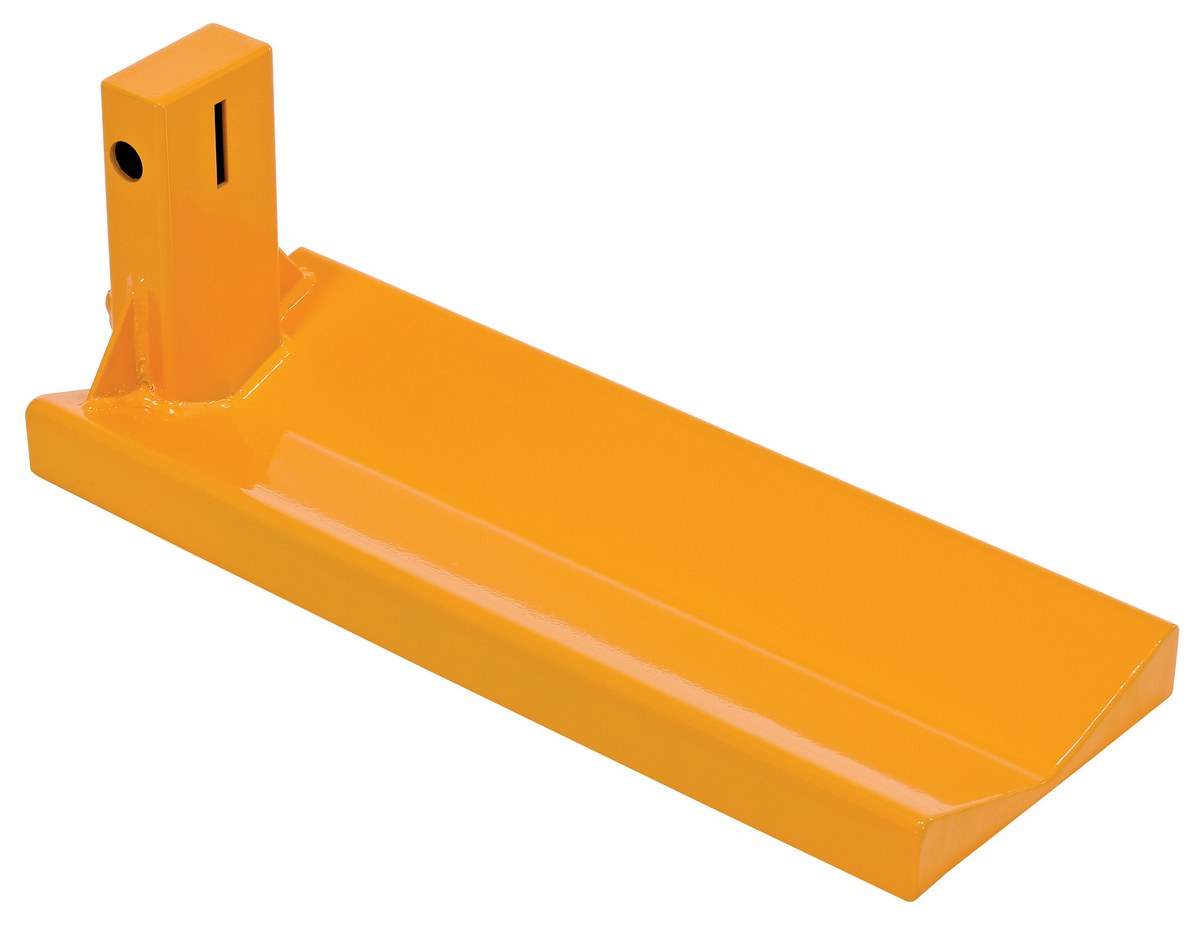

HYDC-VFRK HYD-CB-10-DCSteel V Fork Attachment For Hefti-Lift Models Yellow Limited Warranty28

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

HYD-10-DC

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HYD-10-DC

HYD-10-DC-SS

HYD-CB-10-DC

HYDC-SPIN

HYDC-VBLK

Testing Certificates

HYD-10-DC

HYD-10-DC-SS

HYD-CB-10-DC

HYDC-BTP

HYDC-DSPIN

HYDC-FRKHK

HYDC-RP

HYDC-RR

HYDC-SPIN

HYDC-SSP

HYDC-VBLK

HYDC-VFRK

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HYD-10-DC SDS

Hydraulic Oil
HYD-10-DC SDS

Hydraulic Oil
HYD-10-DC-SS SDS

Valve-Regulated Lead Acid Batteries
HYD-CB-10-DC SDS

Hydraulic Oil
HYD-CB-10-DC SDS

Other PDFs


DC Powered Hefti-Lifts Mailing Brochure

DC Powered Hefti-Lifts Mailing Brochure(2)







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the capacity of the HYDC-SPIN?

A: The HYDC-SPIN capacity is 400 lbs.

Q: Are the forks adjustable on the HYD-10-DC?

A: Yes, when the forks are extended, overall fork width is 21-5/8", and when forks are retracted the overall fork width is 9".

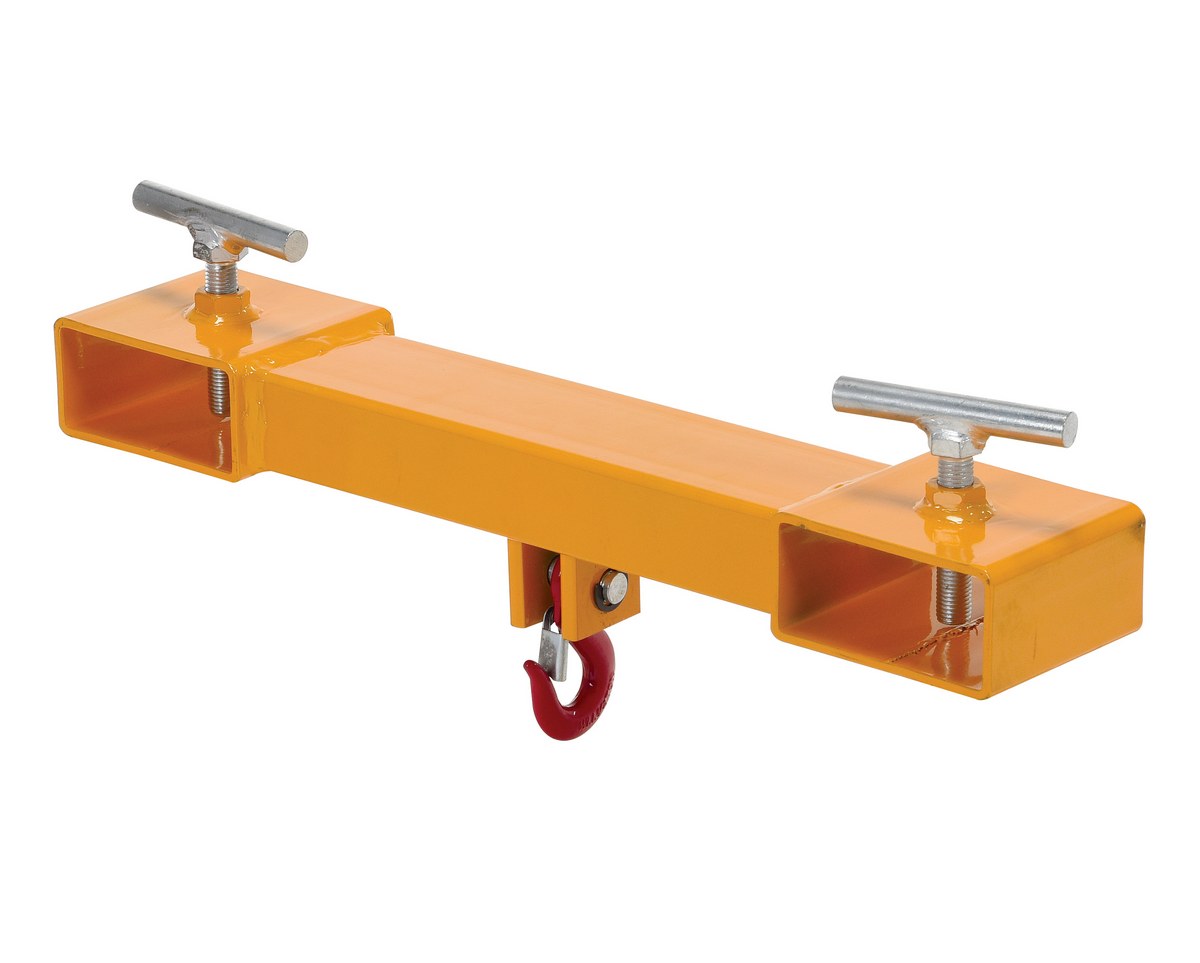

Q: What is the capacity of the HYDC-FRKHK?

A: The HYDC-FRKHK has a 600 lb. capacity.

Q: What is the turning radius of HYD-CB-10-DC?

A: The turning radius of HYD-CB-10-DC is 34-1/4"
