Counter-Balanced Powered Drive Lifts

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

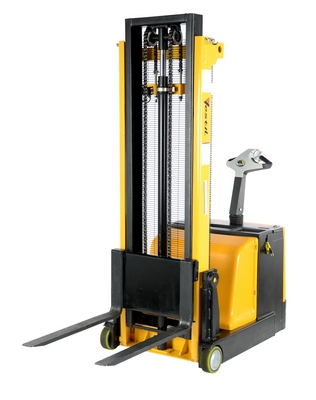

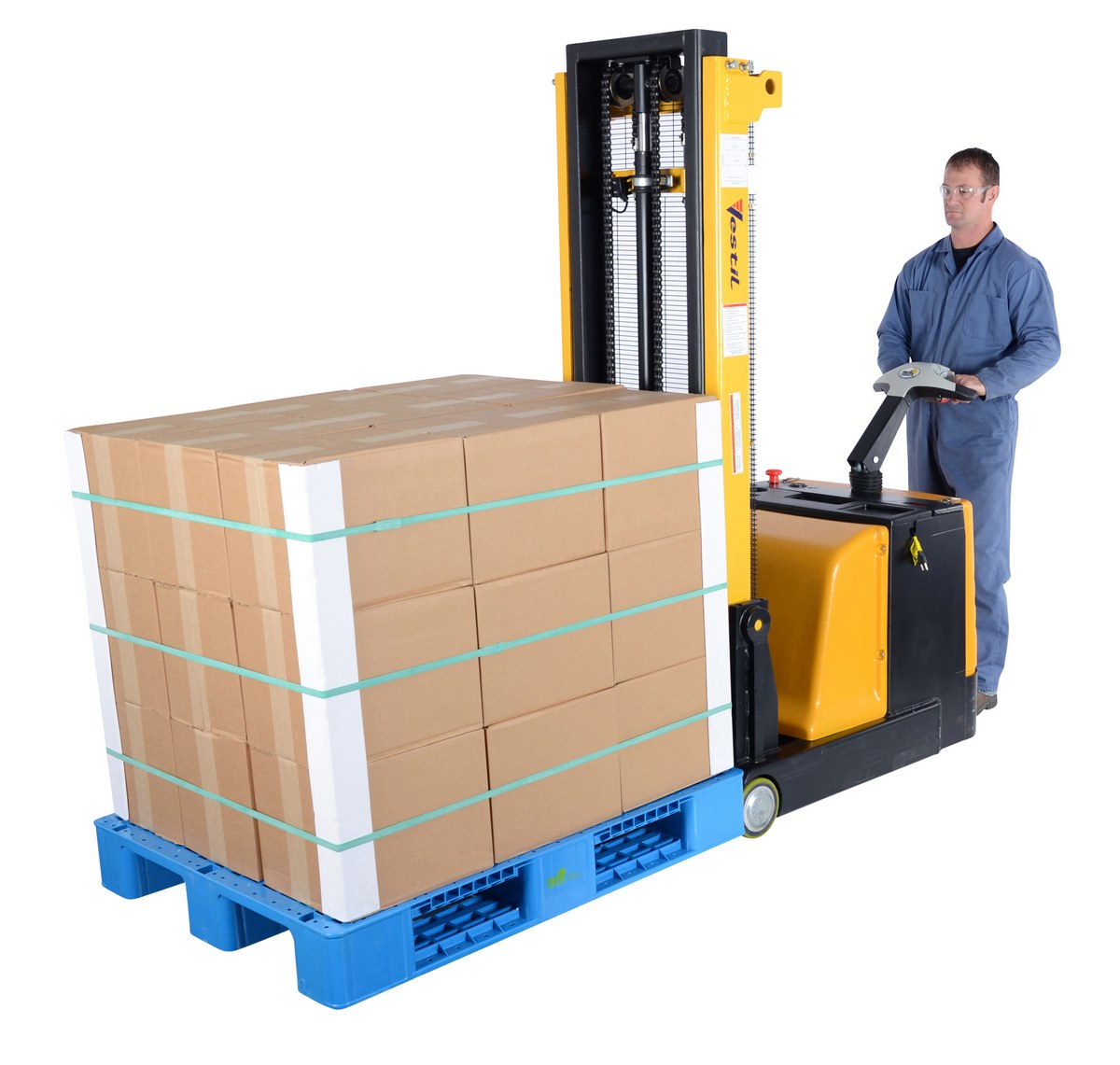

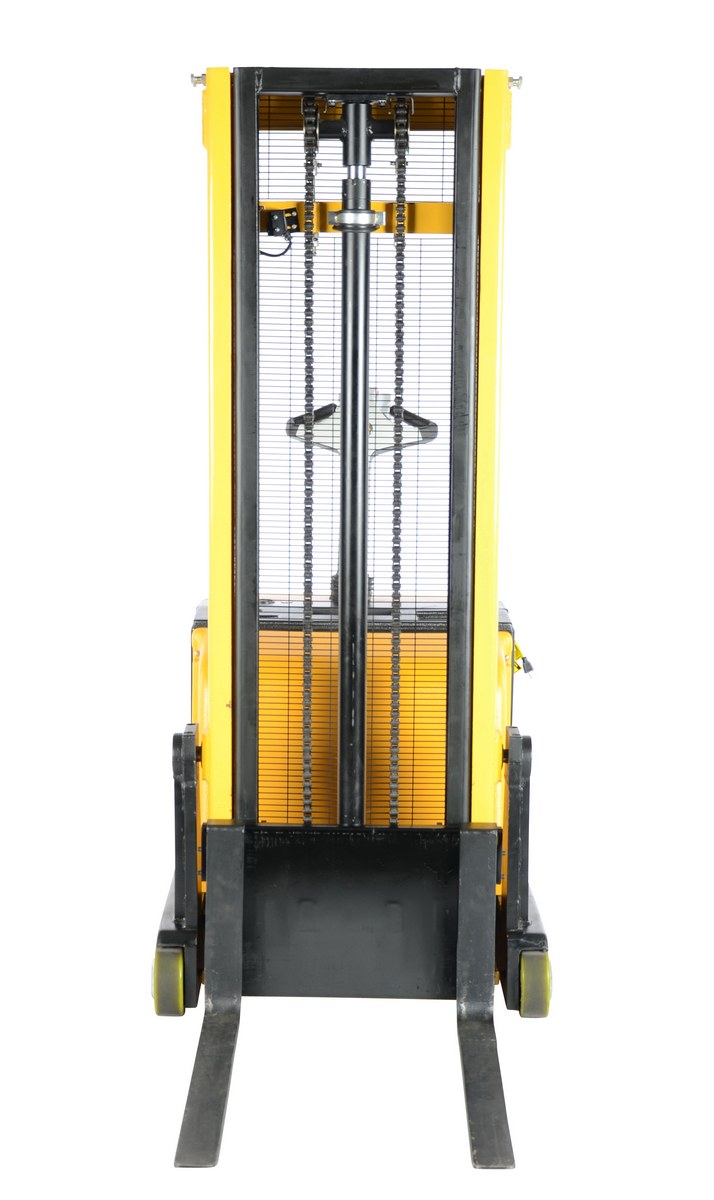

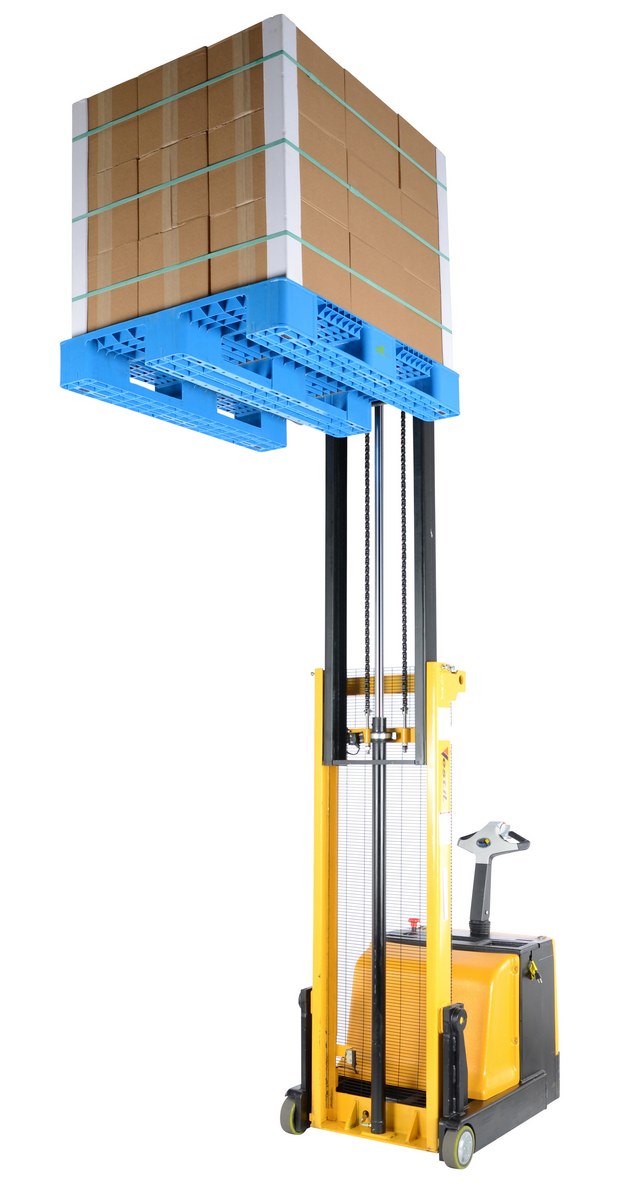

S-CB-118_E.jpg S-CB-118_A.jpg S-CB-118_B.jpg S-CB-118_C.jpg
Counter-Balanced Powered Drive Lifts

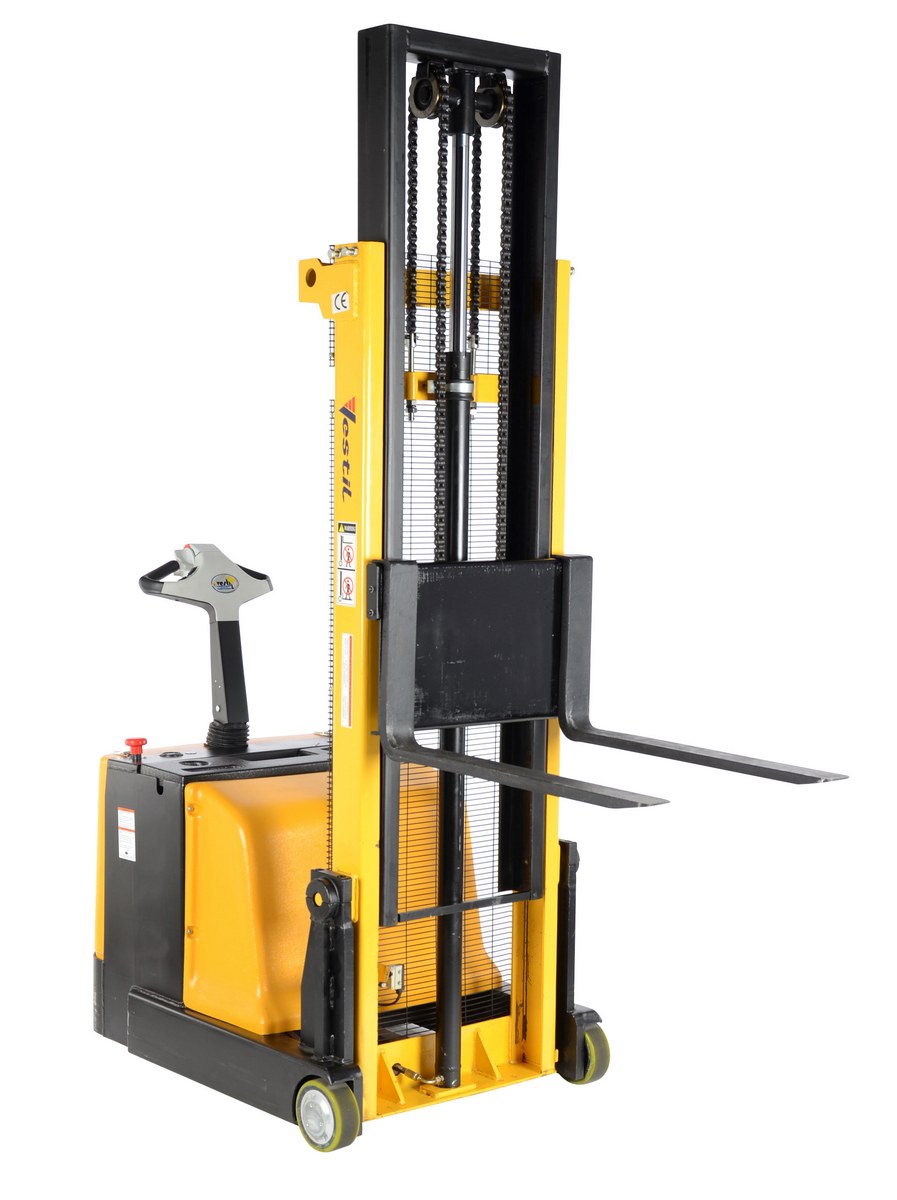

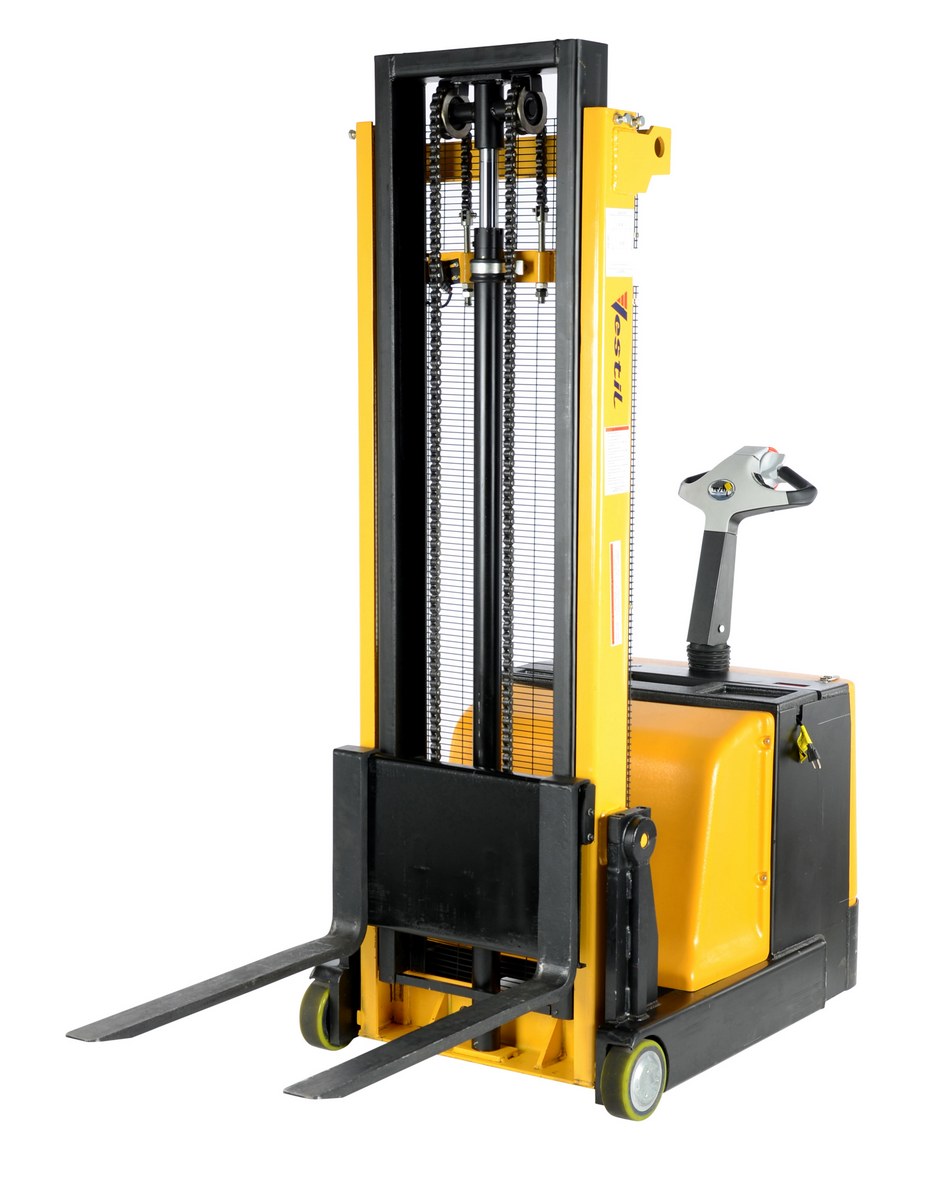

model: S-CB-118



Counter-Balanced Powered Drive Lifts

model: S-CB-118

Featured Ergonomic Solutions


Long Deck Carts
Back Support Cushion
Electric Pallet Truck (Pramac)
Stackers with Powered Drive and Powered Lift
Lift & Tilt High Lift Pallet Truck
Single Fork Skid Positioner Lifter
Fully Electric Pallet Truck with Backrest (6,000 lb. Capacity)
Fork Truck Seats and Accessories
Electric Car Mover
model chart

Product Family Overview

Print Friendly
Counter-Balanced Powered Drive Lifts
SERIES: S-CB

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3?" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3?" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Other Stackers

 Electric Stackers (Pramac) Stackers with Lithium Ion Battery Manual & Electric Stackers Basket & Skid Stackers

Additional Models In This Family
view entire Image Gallery

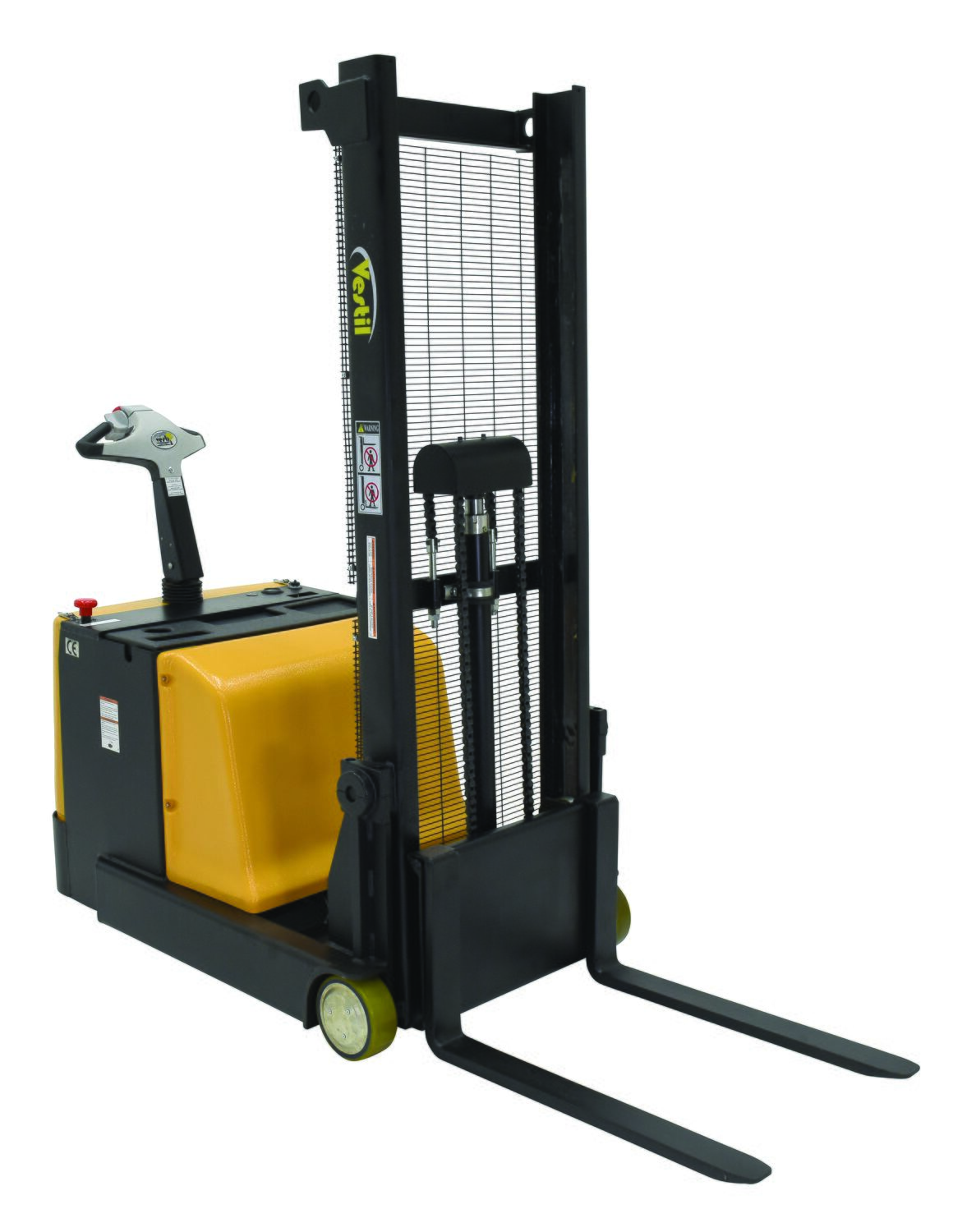

S-CB-62

model S-CB-62

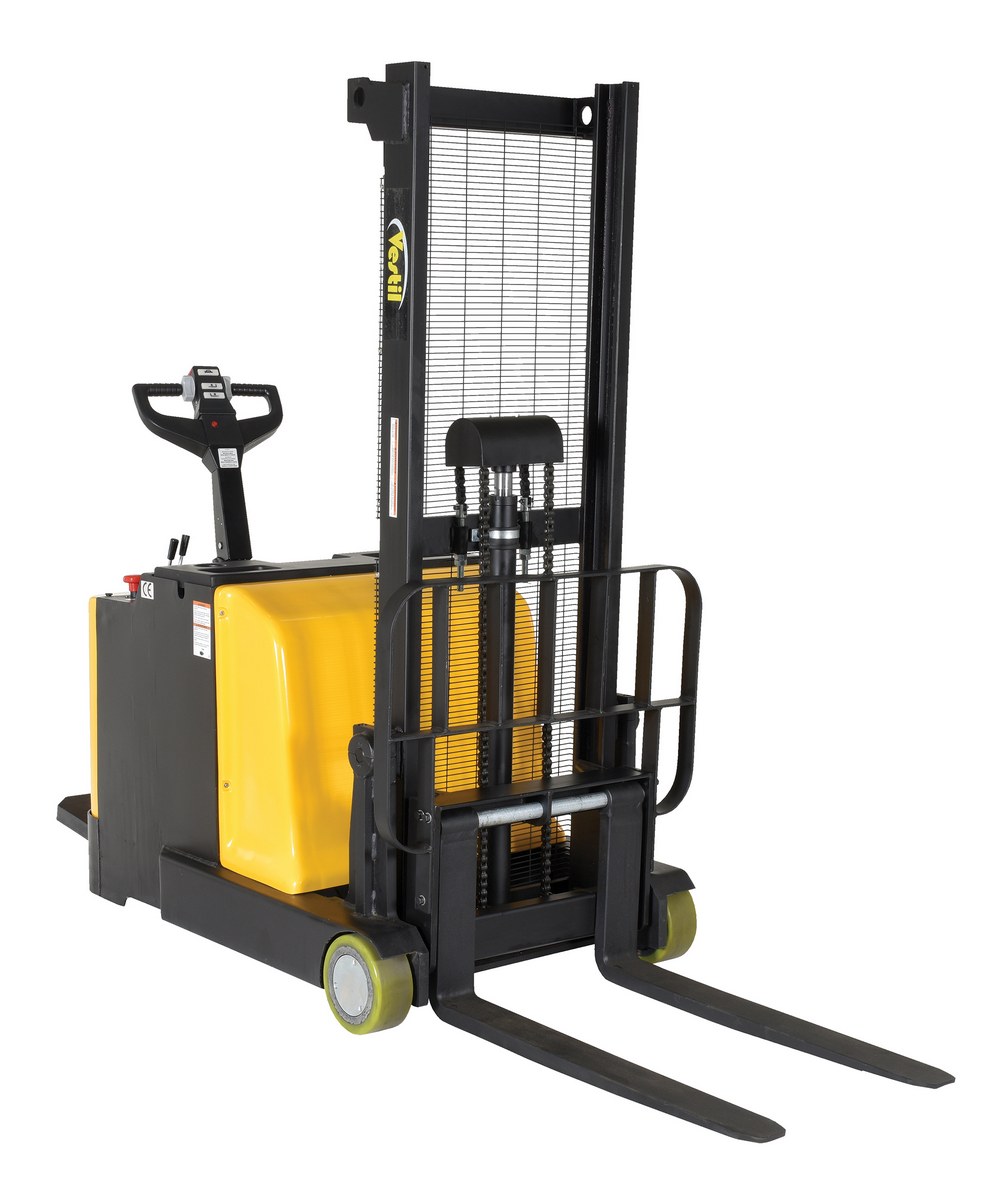

S-2CB-62

model S-2CB-62

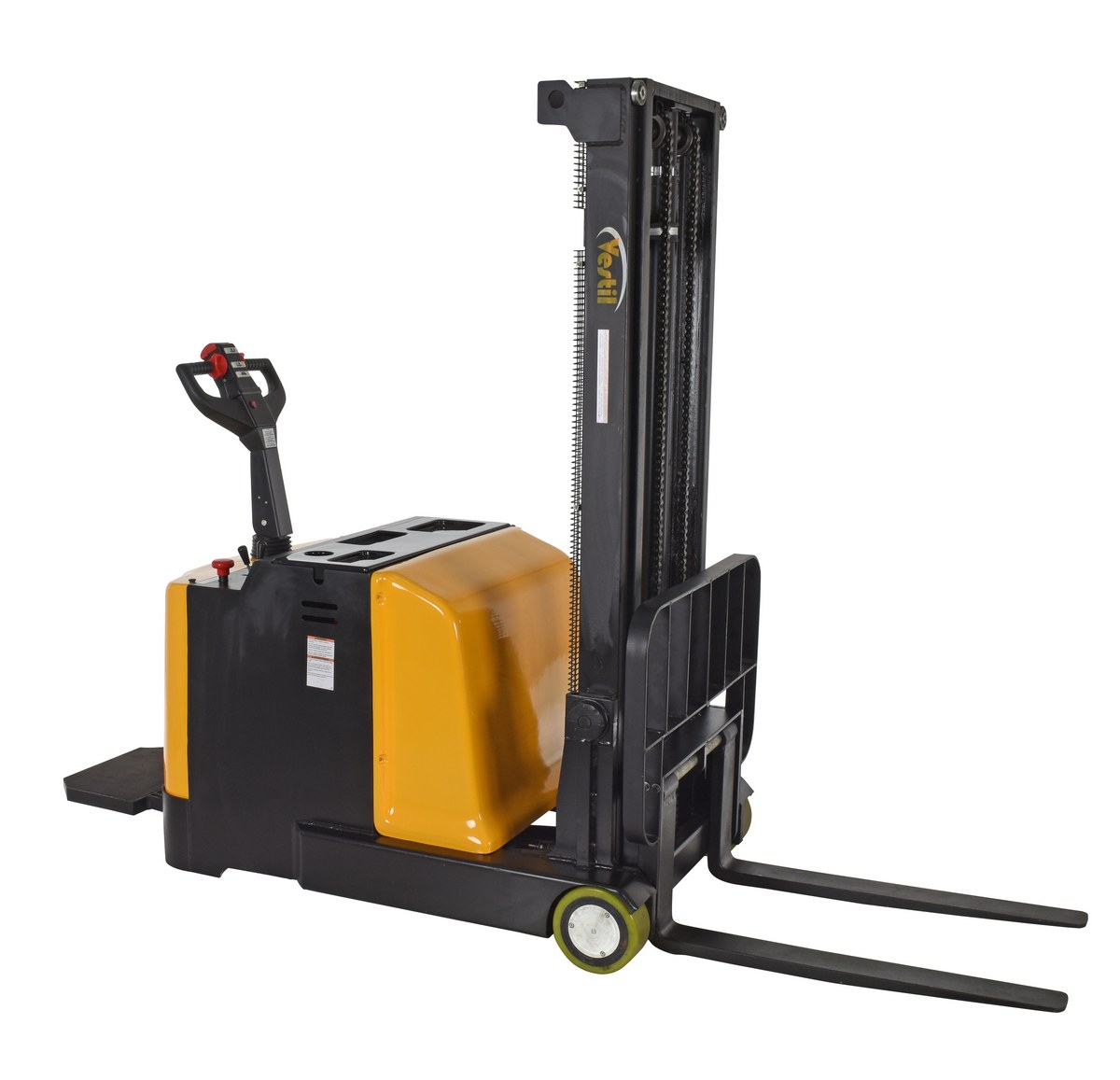

S-2CB-118

model S-2CB-118

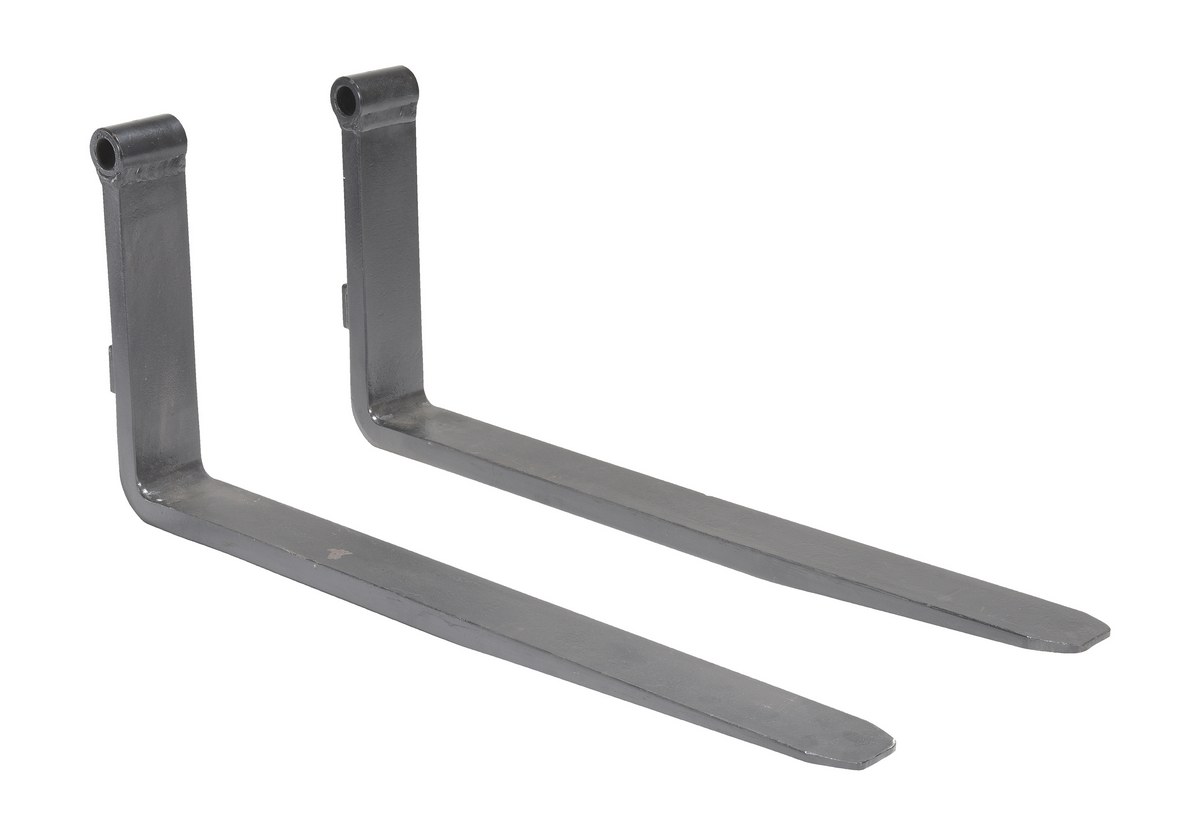

S-2CB-42-FK

model S-2CB-42-FK

Applications



Trucking Companies

Warehouses

Gas Stations

Superstores

Moving Companies

Postal Services

Loading Docks

Packaging Areas
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
S-2CB-118 S-2CB-1181 Year Limited WarrantySteel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000		2652
S-2CB-62 S-2CB-621 Year Limited WarrantySteel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Fork Length (in.): 36-1/4		2496
S-CB-118 POPULAR S-CB-1181 Year Limited WarrantySteel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-62 (in.): 1,000
Uniform Capacity (lb.) at 62-118 (in.): 500		2140
S-CB-62 S-CB-621 Year Limited WarrantySteel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-62 (in.): 1,000
Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8		1850

* S-2CB* model's Include rider platform (ground clearance 1-1/2")

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-2CB-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000

S-2CB-62
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Fork Length (in.): 36-1/4
Uniform Capacity (lb.): 2000
Fork Length (in.): 36-1/4

S-CB-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Uniform Capacity (lb.) at 62-118 (in.): 500
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Uniform Capacity (lb.) at 62-118 (in.): 500

S-CB-62
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8
Uniform Capacity (lb.) at 0-62 (in.): 1,000
Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8
For More Details of the Option Click the Red Model Button

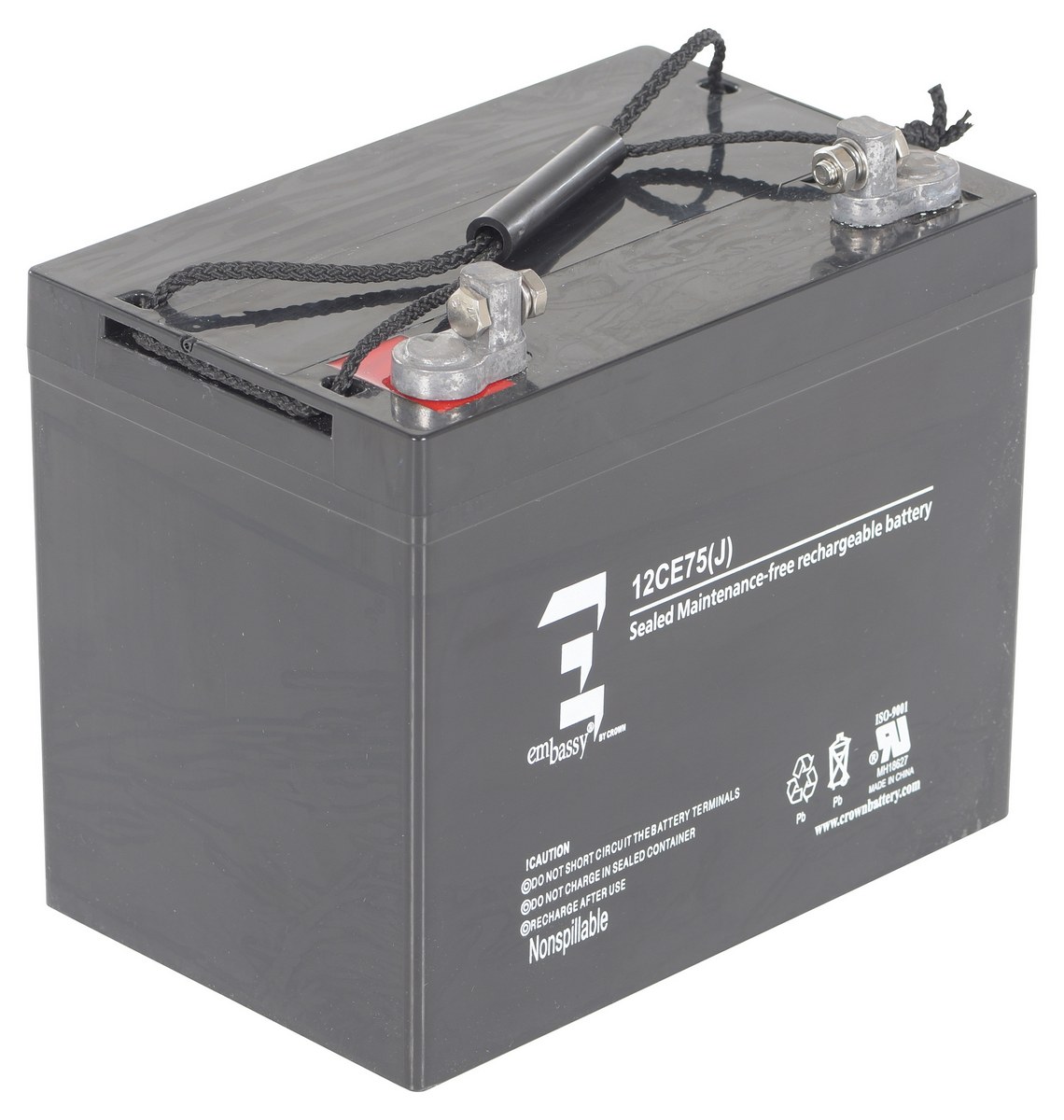

AGM-UPG-2-12V AGM-UPG-2-12V90 Days Limited WarrantyFactory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt Battery Quantity 2Battery Quantity: 2
Volts: 12		120
S-2CB-42-FK S-2CB-42-FK90 Days Limited WarrantySteel Forks 42 In. Long For Counter Balanced Powered Lift Models BlackUniform Capacity at 0" to 62" Raised Height (lb.): 1,200
Uniform Capacity at 62" to 118" Raised Height (lb.): 600		191

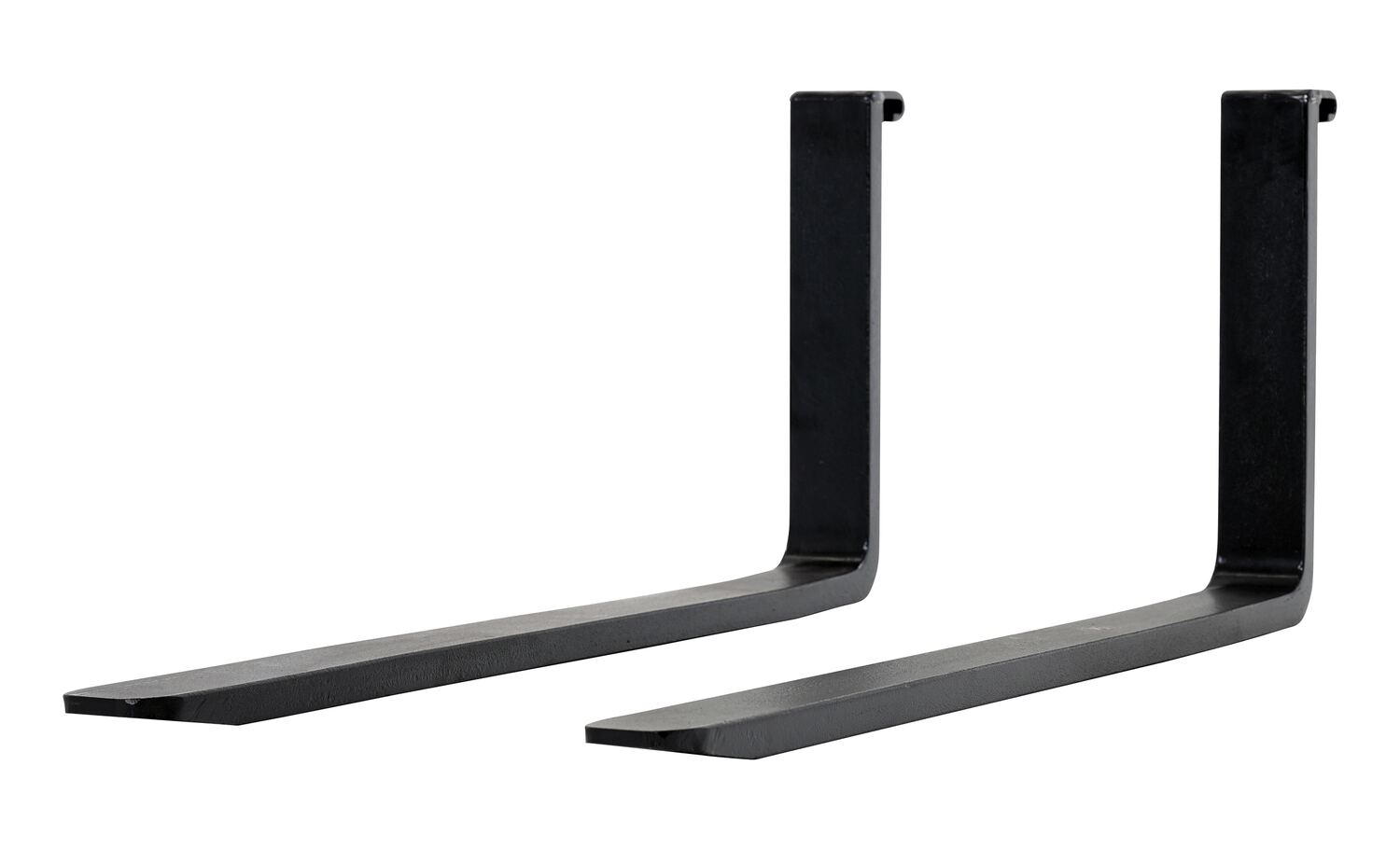

S-CB-42-FK 90 Days Limited WarrantySteel Forks for Stackers 42 In. Length 500 Lb. Capacity BlackForklift Carriage Class: Class III
Capacity (lbs.) at 62": 500		205

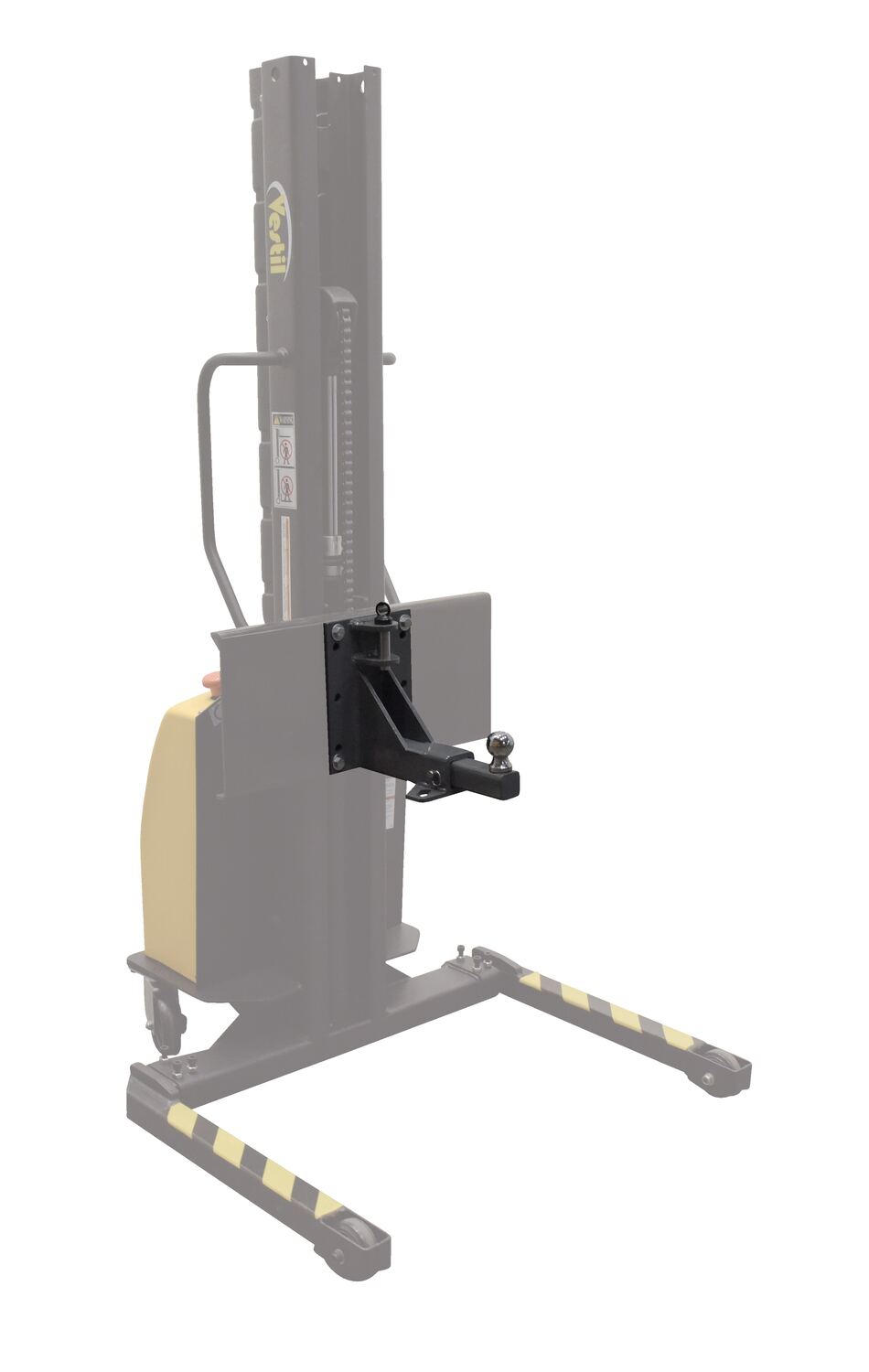

S-CB-BAH S-CB-BAH90 Days Limited WarrantySteel Counter Balanced Power Lift Single Ball Hitch Attachment BlackShank Diameter (in):
Ball Size: 		37

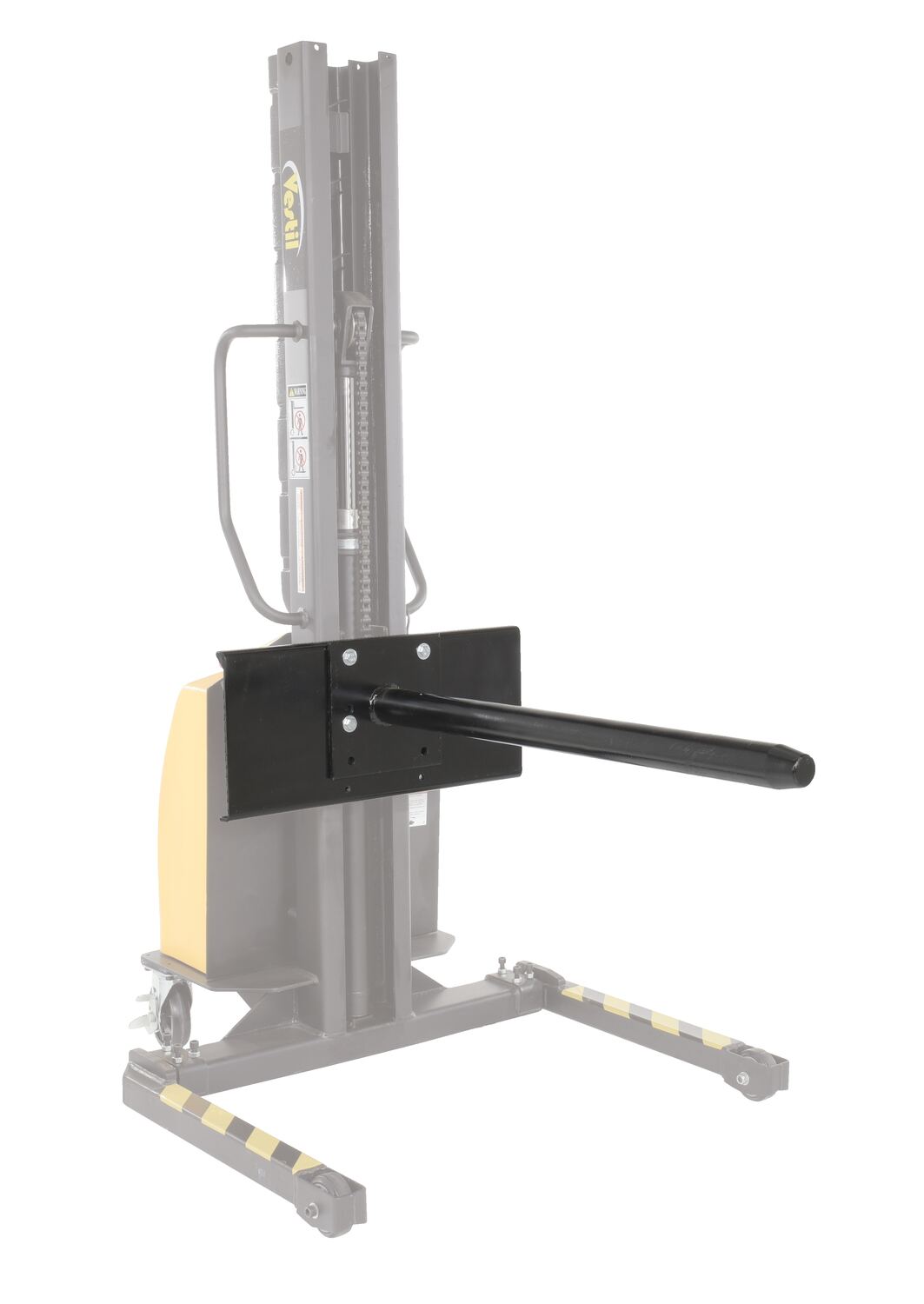

S-CB-PRP S-CB-PRP90 Days Limited WarrantySteel Counter Balanced Power Lift Pole Attachment Black-
35

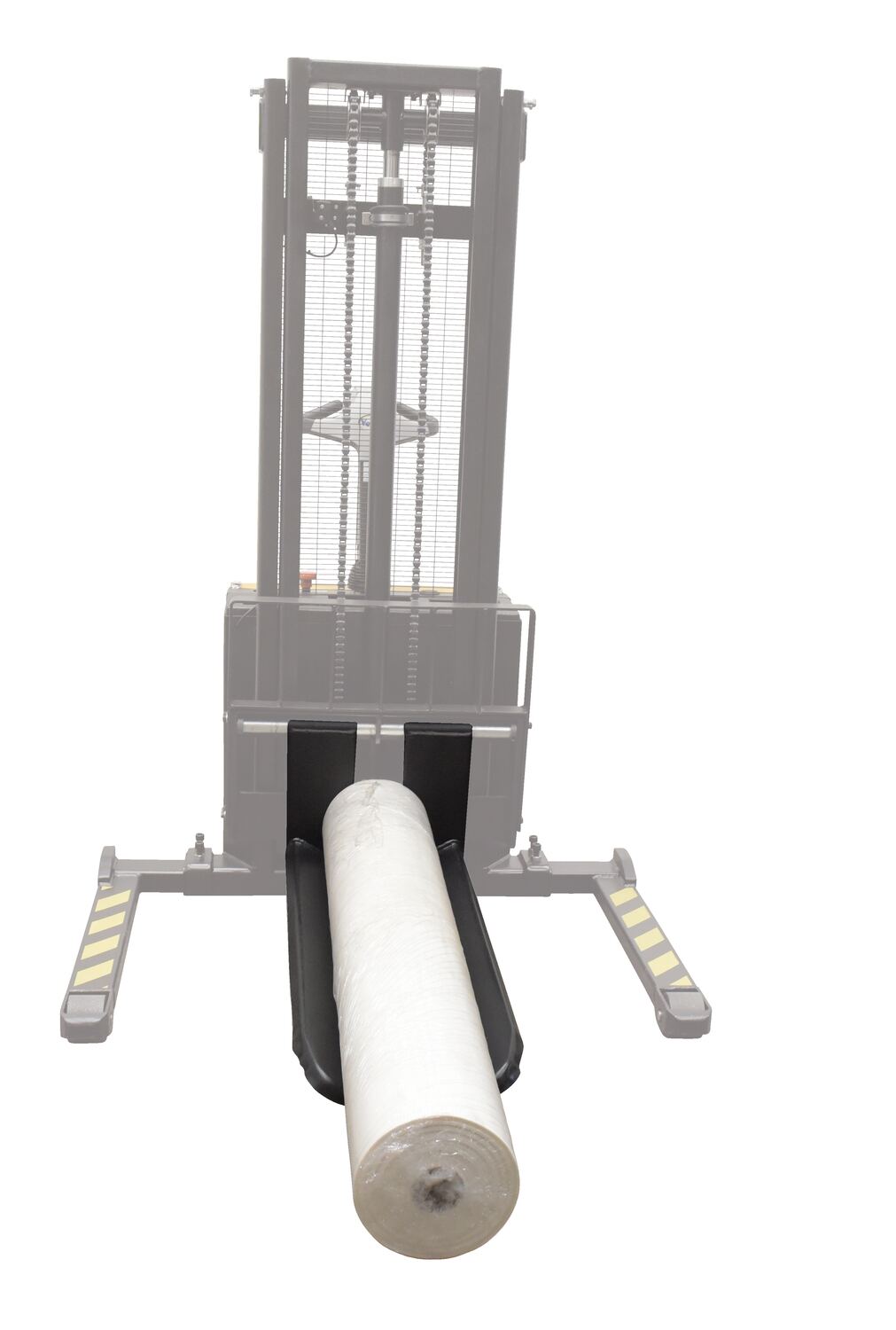

S-CB-RFK S-CB-RFK90 Days Limited WarrantySteel Counter Balanced Power Lift Roll Fork Attachment BlackForklift Carriage Class: Class III
Capacity (lbs): 1000		111

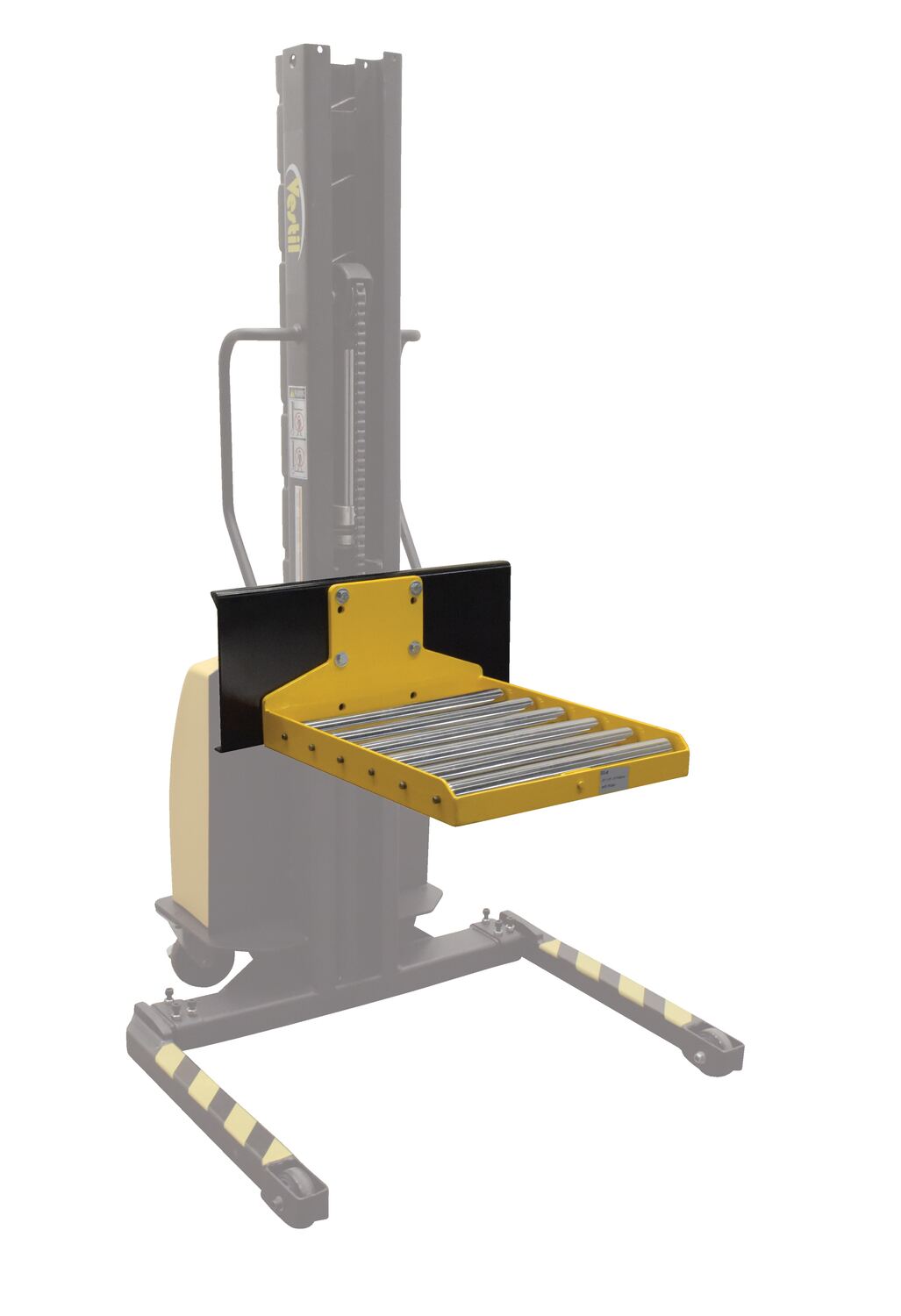

S-CB-RP S-CB-RP90 Days Limited WarrantySteel Counter Balanced Power Lift Roller Platform Attachment Yellow-
57

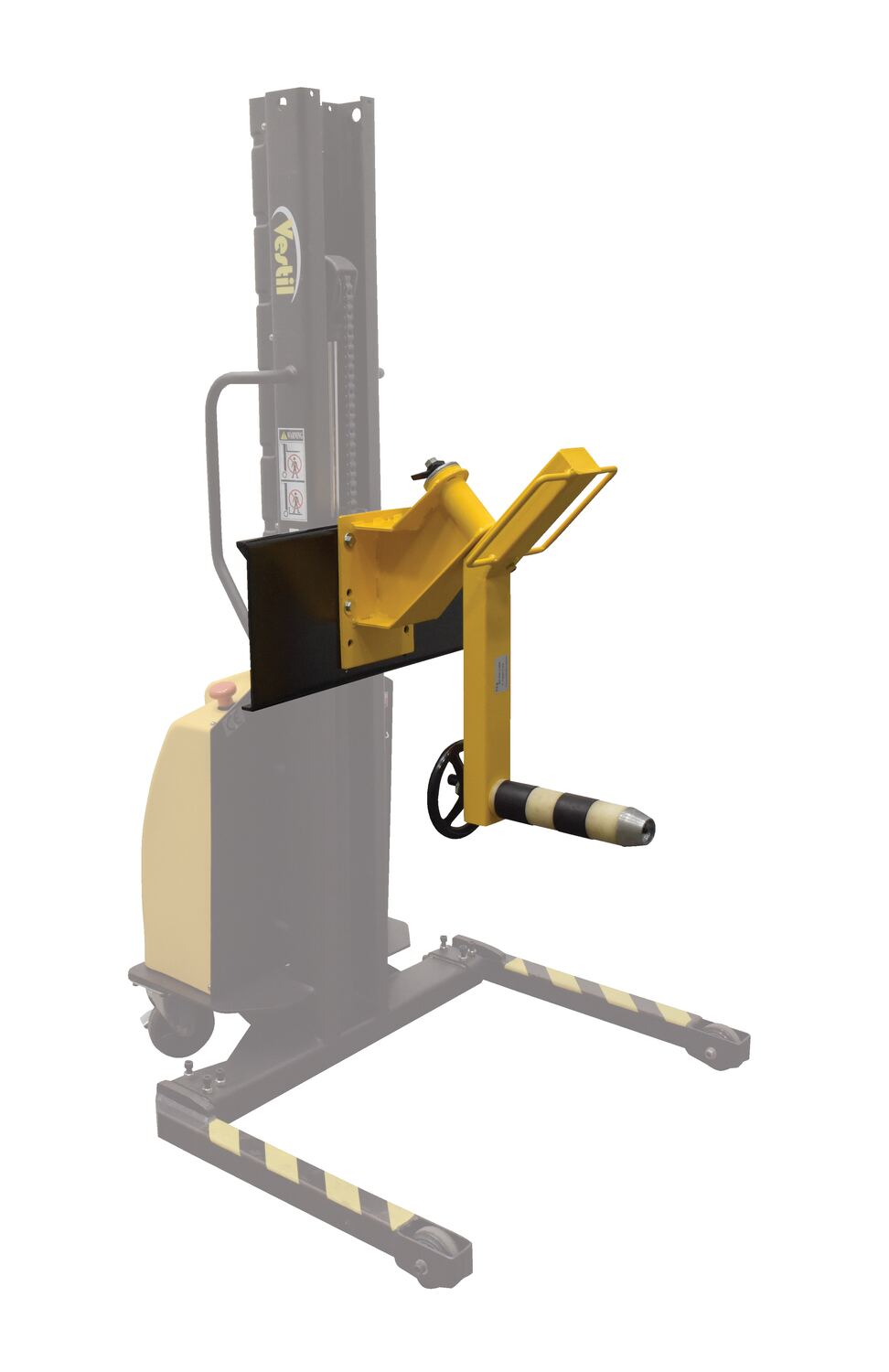

S-CB-RR S-CB-RR90 Days Limited WarrantySteel Counter Balanced Power Lift Reel Rotator Attachment Yellow-
55
Model Image PDFs Description Capacity Wt (lbs.)
AGM-UPG-4-6V Compliance Certificate AGM Battery Upgrade (4x6V) w/ purchase w/ new unit - 67
S-2CB-DRR-FK - Drum/Roll/Reel Forks for S-2CB Models 1200 140
S-AA-DRR-FK - Drum/Roll/Reel Forks for S-2CB Models 1200 140
S-DK - Factory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For S-2CB models 2000 40
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Counter-Balanced Powered Drive Lifts PDF's will open in a new window when clicked.

Manuals


S-CB-118
Owners Manual

S-2CB
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


S-2CB-118

S-2CB-62

S-CB-118

S-CB-62

Testing Certificates


S-2CB-118

S-2CB-42-FK

S-2CB-62

S-CB-118

S-CB-62

S-CB-BAH

S-CB-PRP

S-CB-RFK

S-CB-RP

S-CB-RR

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-2CB-118
Hydraulic Oil SDS Sheet for: S-2CB-118
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-2CB-62
Hydraulic Oil SDS Sheet for: S-2CB-62
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-118
Hydraulic Oil SDS Sheet for: S-CB-118
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-CB-62
Hydraulic Oil SDS Sheet for: S-CB-62

Other PDF's


Counter-Balanced Powered Drive Lifts Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: I'm interested in adding the 42" forks to the S-2CB-62 stacker. What would the load center be with the longer forks?

A: The S-2CB-42-FK load center would be 21" when installed on the S-2CB-62 stacker.

Q: Is S-CB-118 a class 2 carriage?

A: This is not a class 2 carriage.

Q: Are the forks removable on the S-CB-118?

A: Yes! The forks on the S-CB-118 are removable.

Q: What is the free lift on the counterbalanced stackers?

A: There is not a "free lift" on the counterbalanced stackers. It will lift at a 2:1 ratio. For every 2" the forks raise , the mast will raise 1".

Q: Will the S-2CB-42-FK forks come installed on the stacker?

A: When the S-2CB-42 is ordered with the counter balanced stacker, the original forks will be shipped on the stacker and the 42" forks will be sent along the side.

Q: Does S-DK work with S-CB models?

A: S-DK does not work with S-CB models, but it does work with S-2CB models.
