Deluxe Roller Stands| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

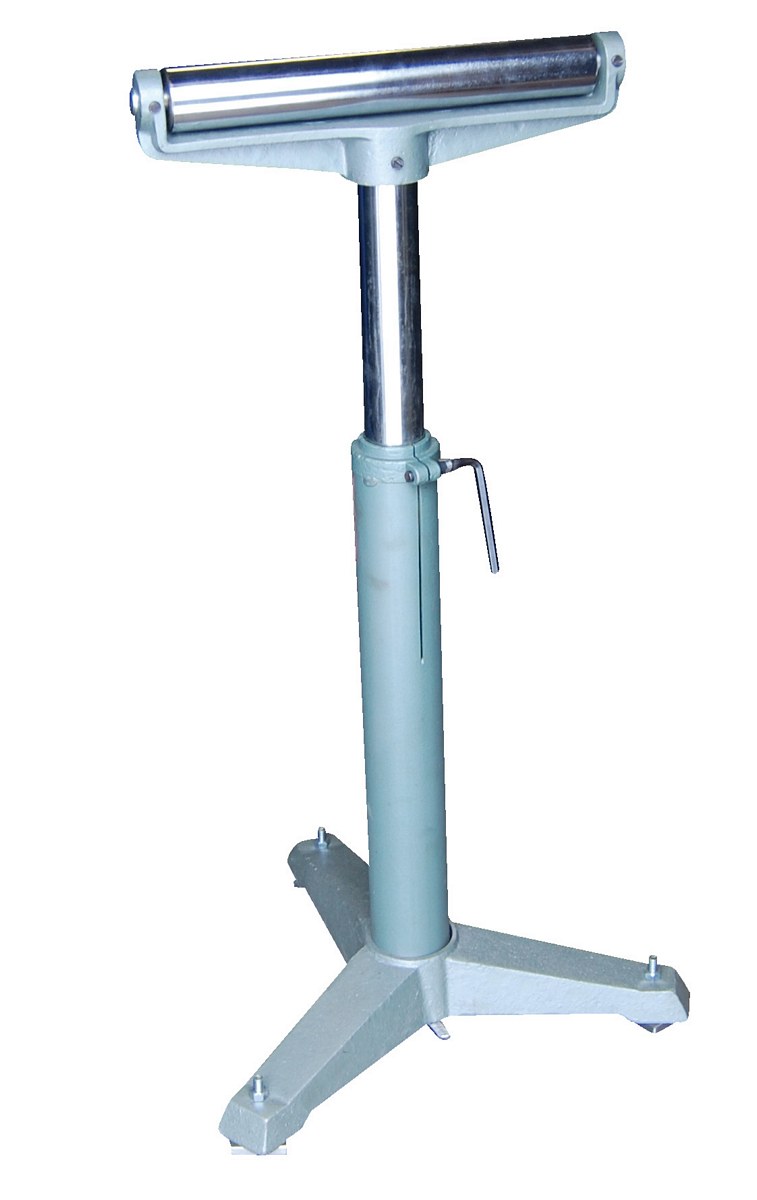

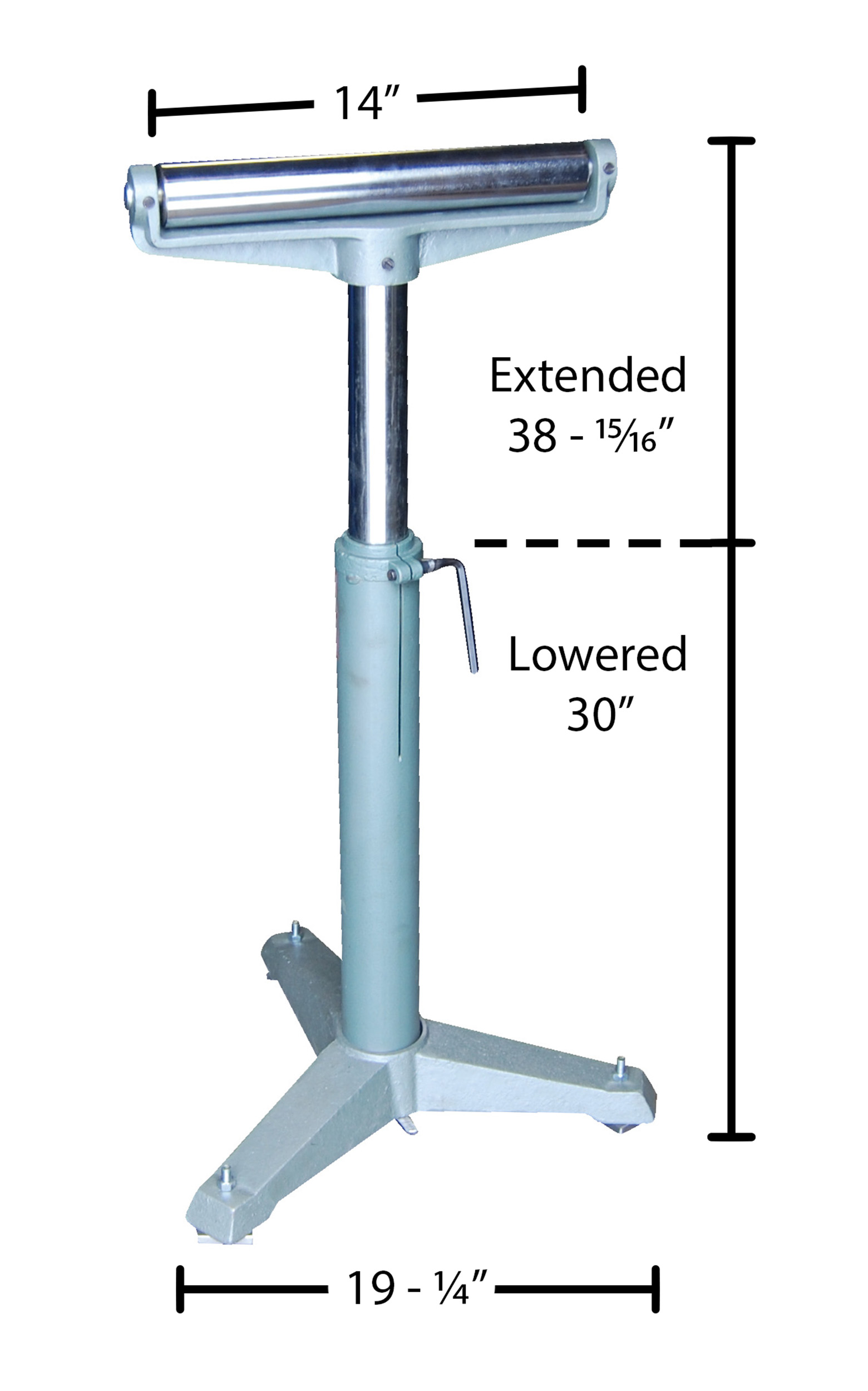

| STAND-G-H |  | 90 Days Limited Warranty | Steel Horizontal Roller Stand 29 In. to 39-1/8 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 29 | 40 | ||

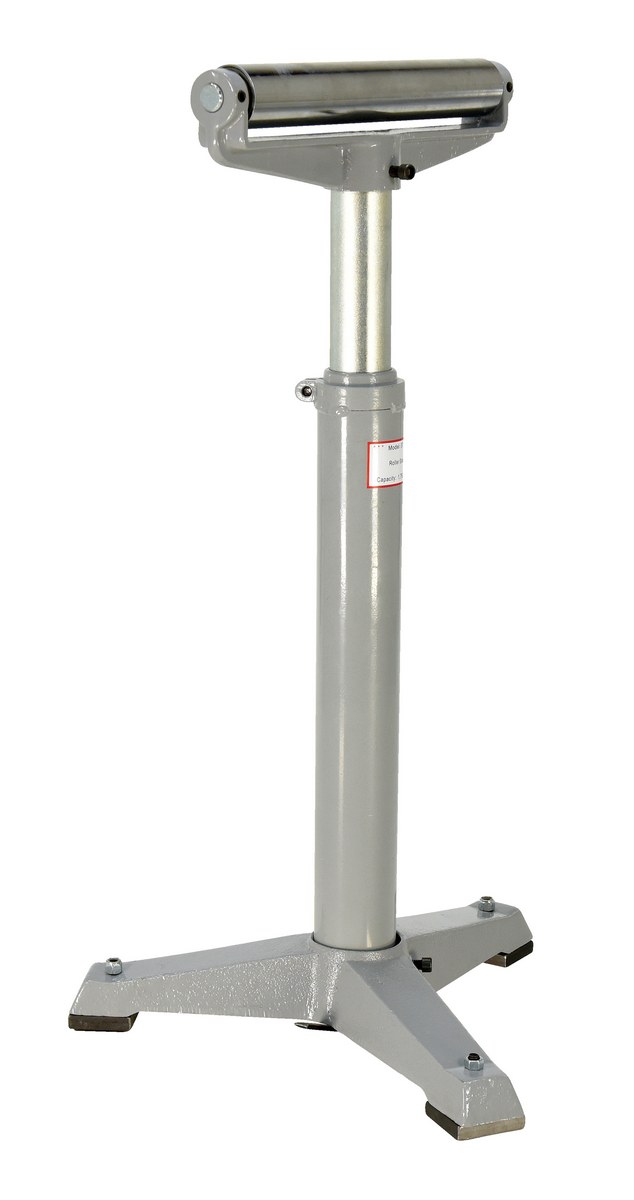

| STAND-G-H-HP |  | 90 Days Limited Warranty | Steel Horizontal Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 33 | 239 | ||

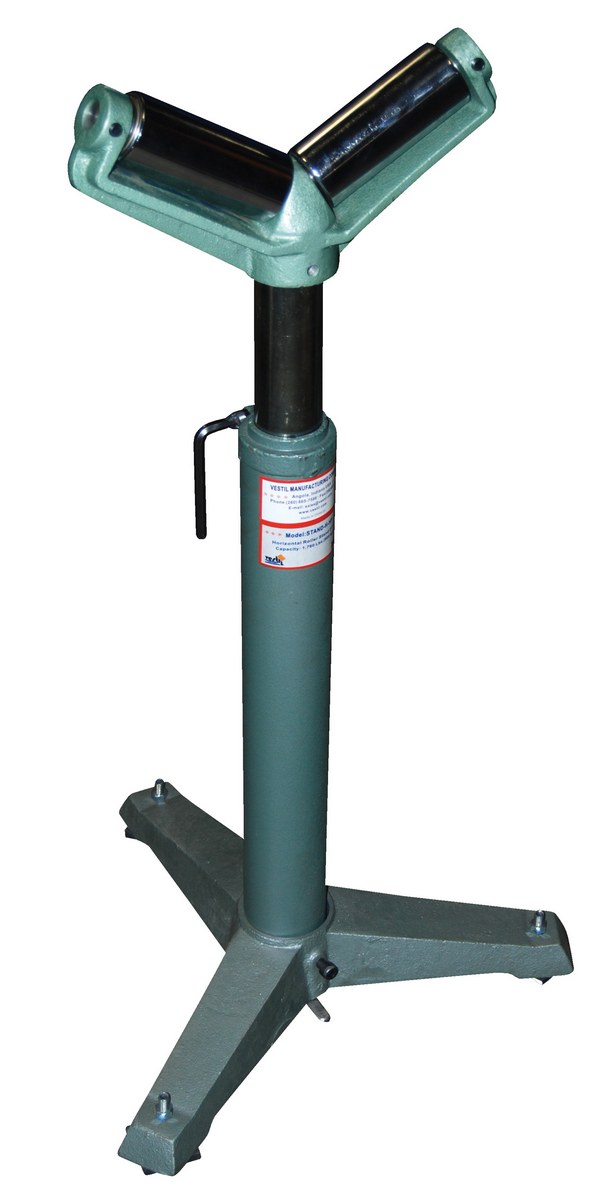

| STAND-G-V |  | 90 Days Limited Warranty | Steel V Roller Stand 29-1/16 In. to 38-11/16 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 29-1/16 | 40 | ||

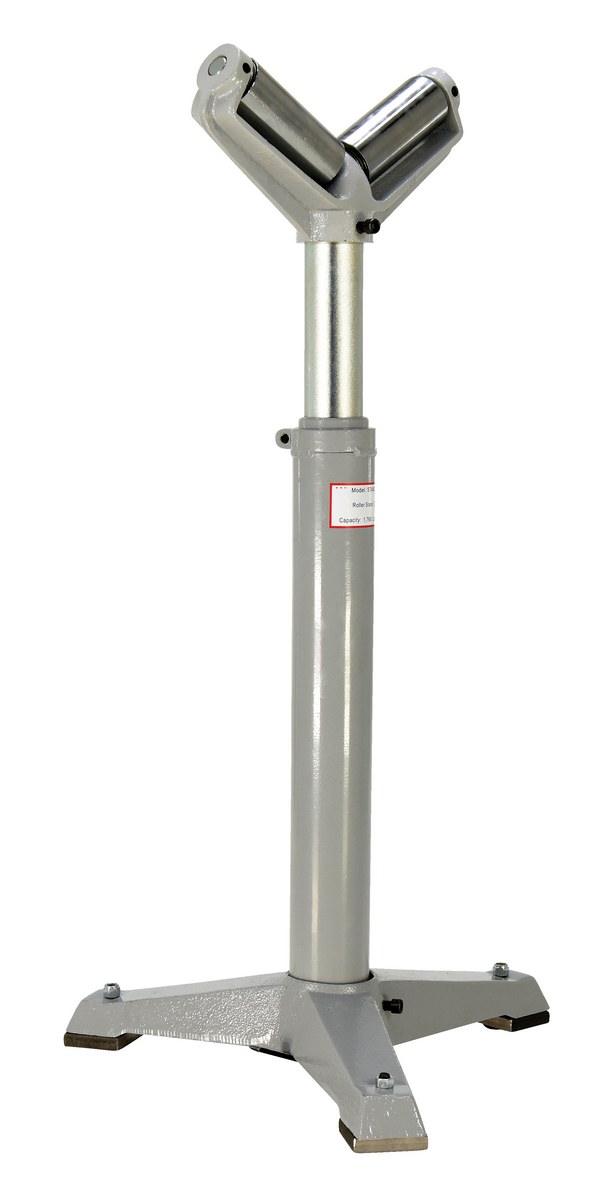

| STAND-G-V-HP |  | 90 Days Limited Warranty | Steel V Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 33 | 42 | ||

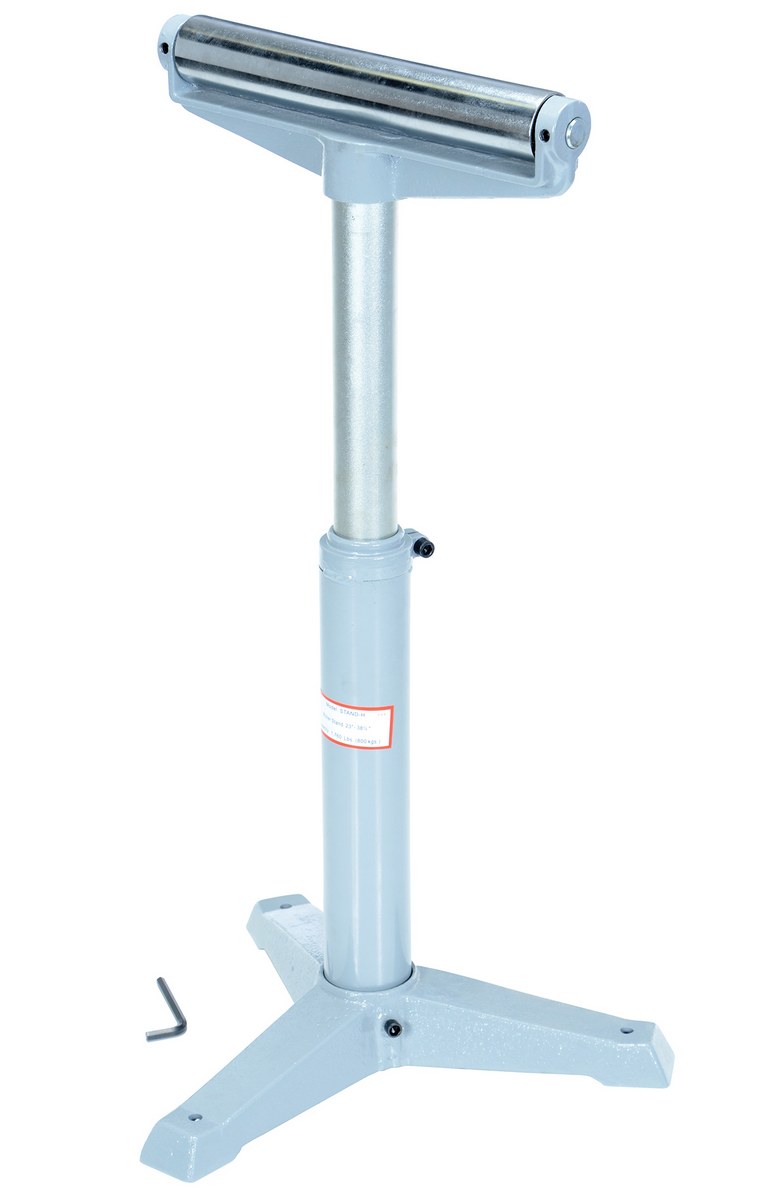

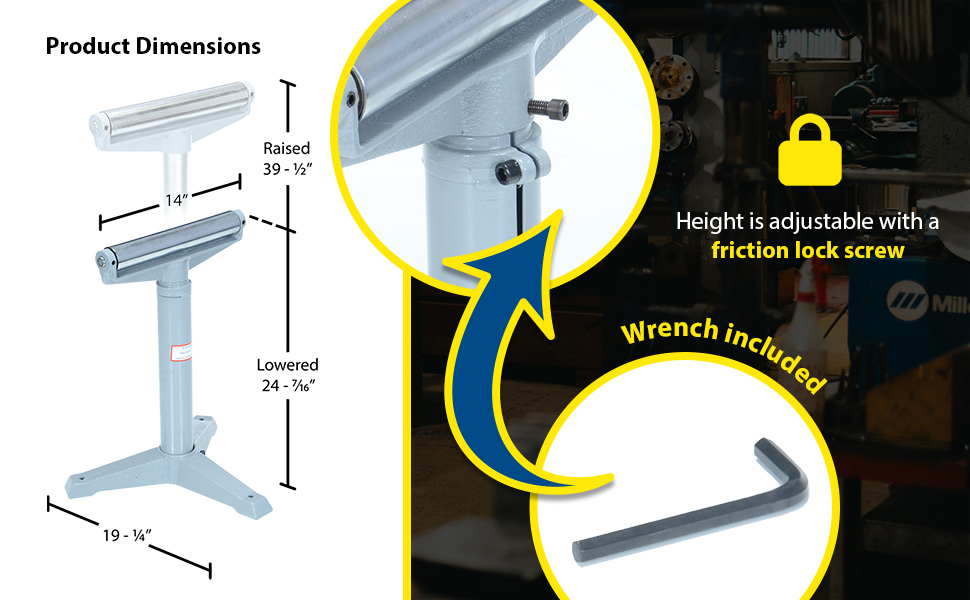

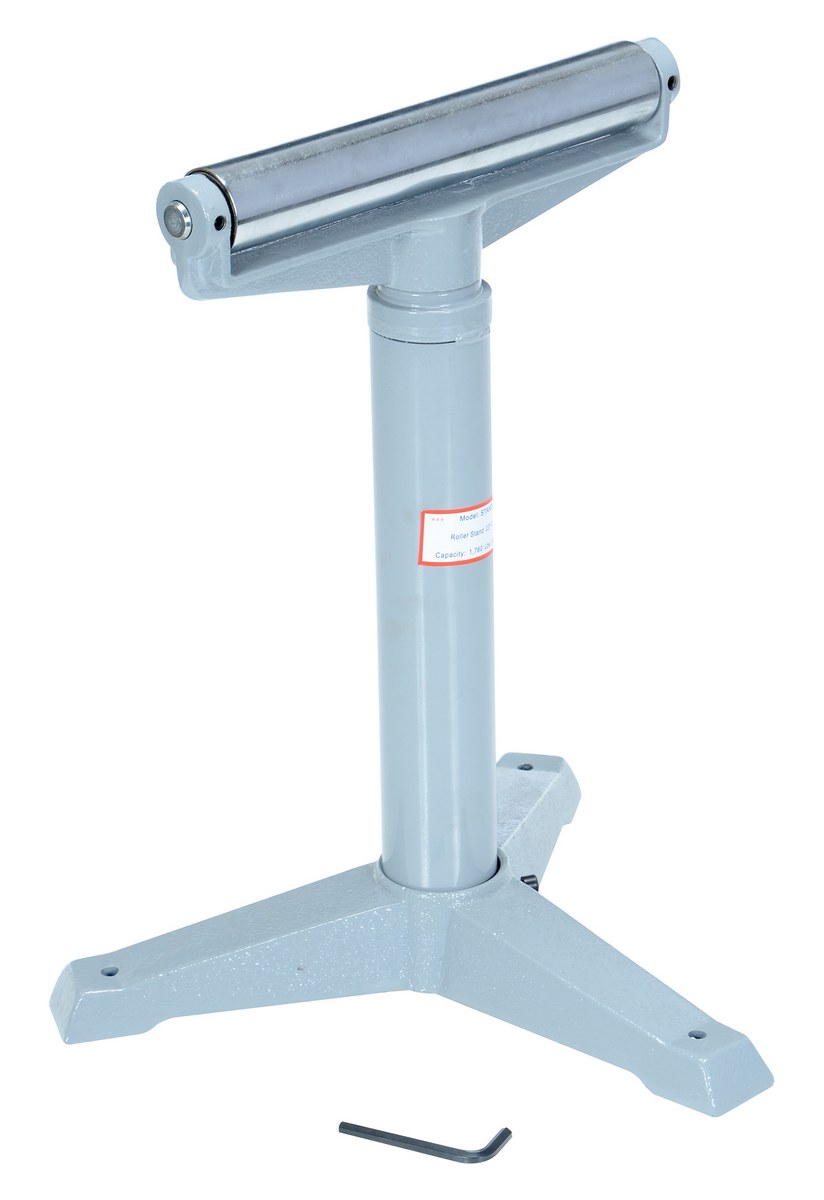

| STAND-H | POPULAR |  | 90 Days Limited Warranty | Steel Horizontal Roller Stand 23 In. to 38-1/2 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 23 | 32 | |

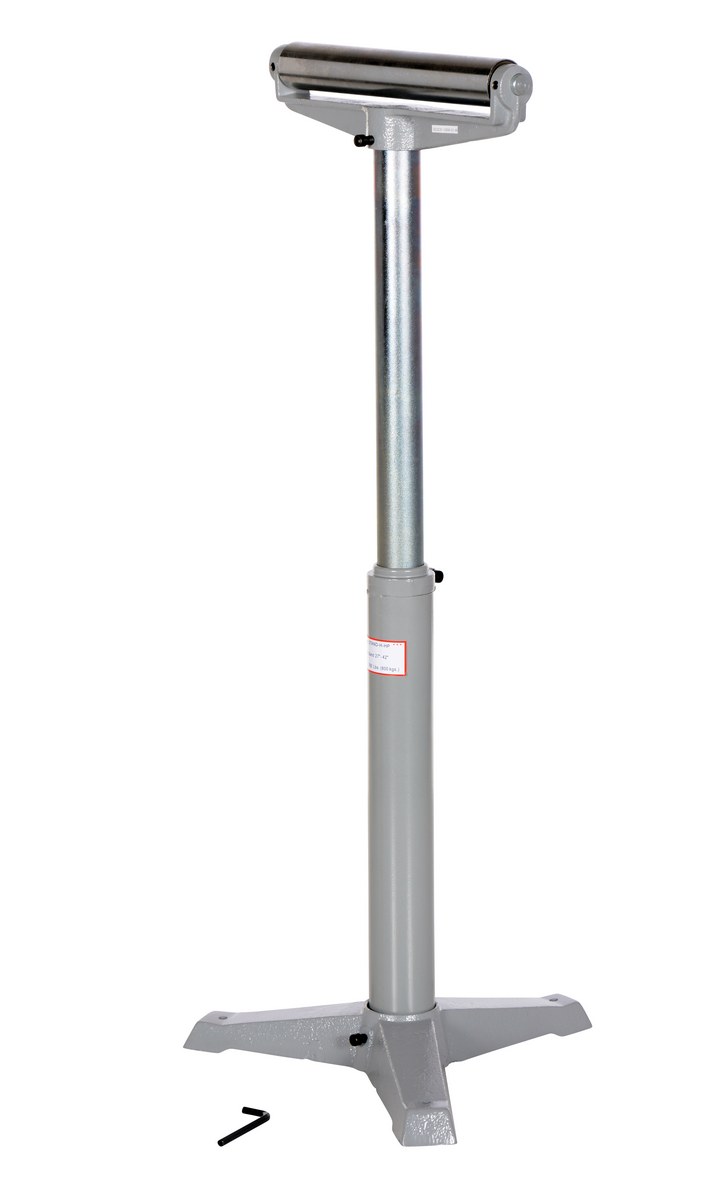

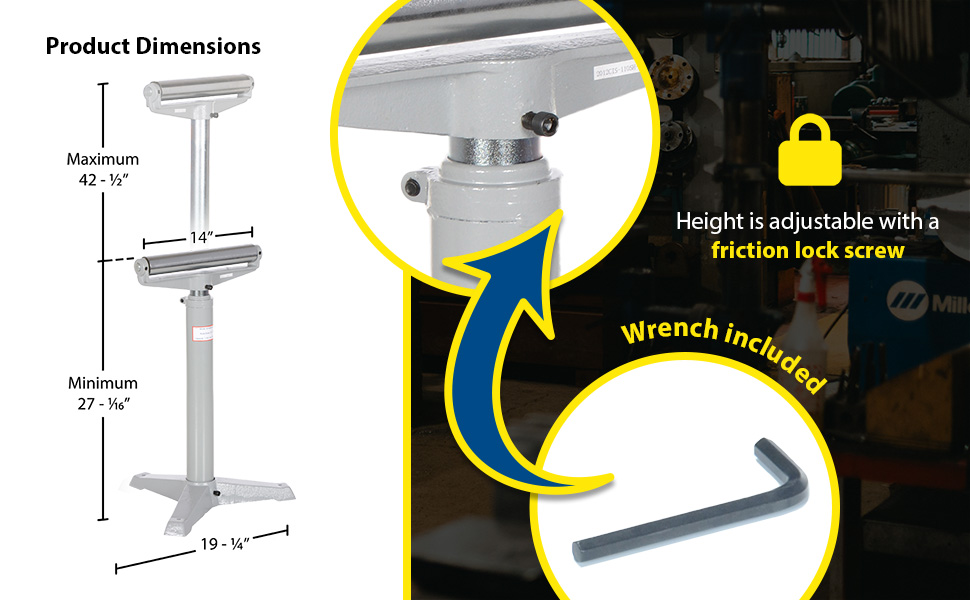

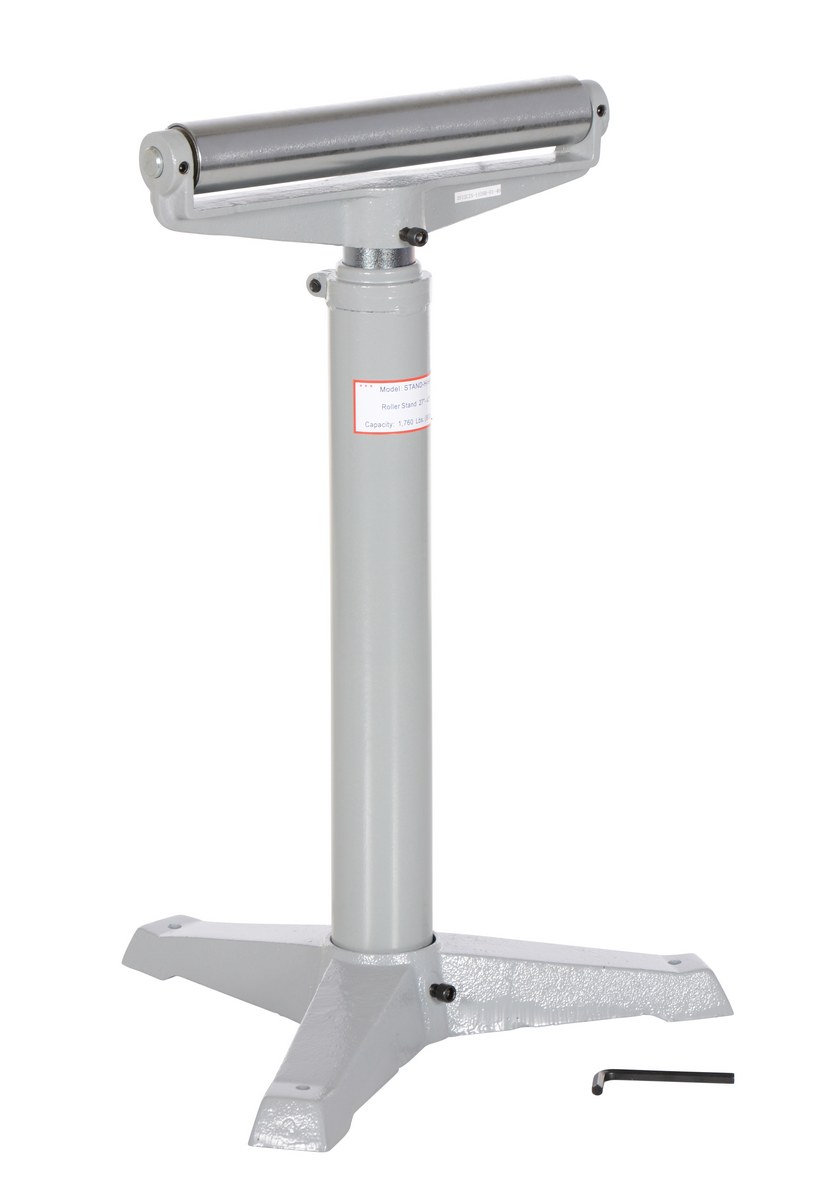

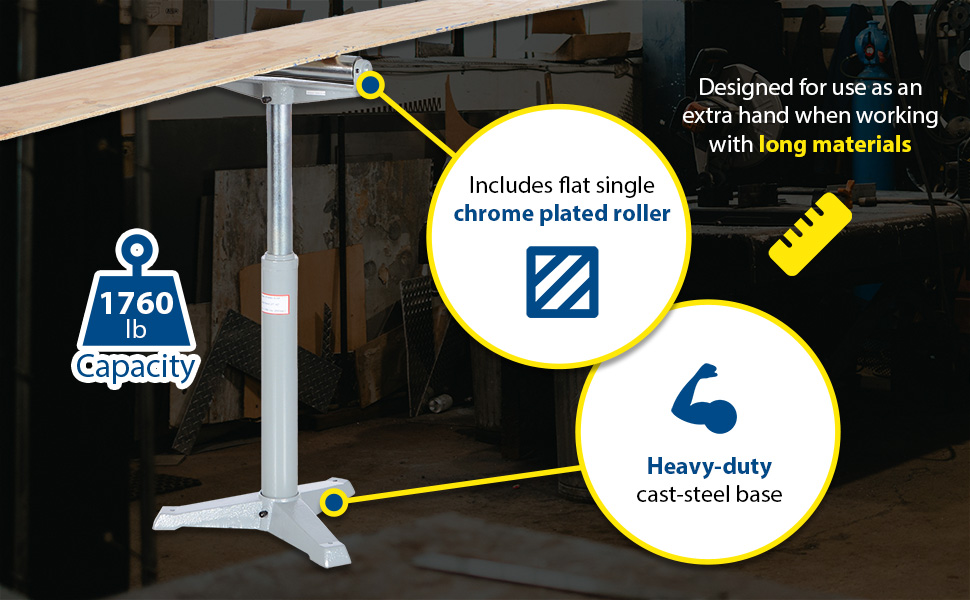

| STAND-H-HP |  | 90 Days Limited Warranty | Steel Horizontal Roller Stand 27 In. to 42 In. Raised Height 1,760 Lb. Capacity Gray | Uniform Capacity (lb.): 1760 Lowered Height (in.): 27 | 36 | ||

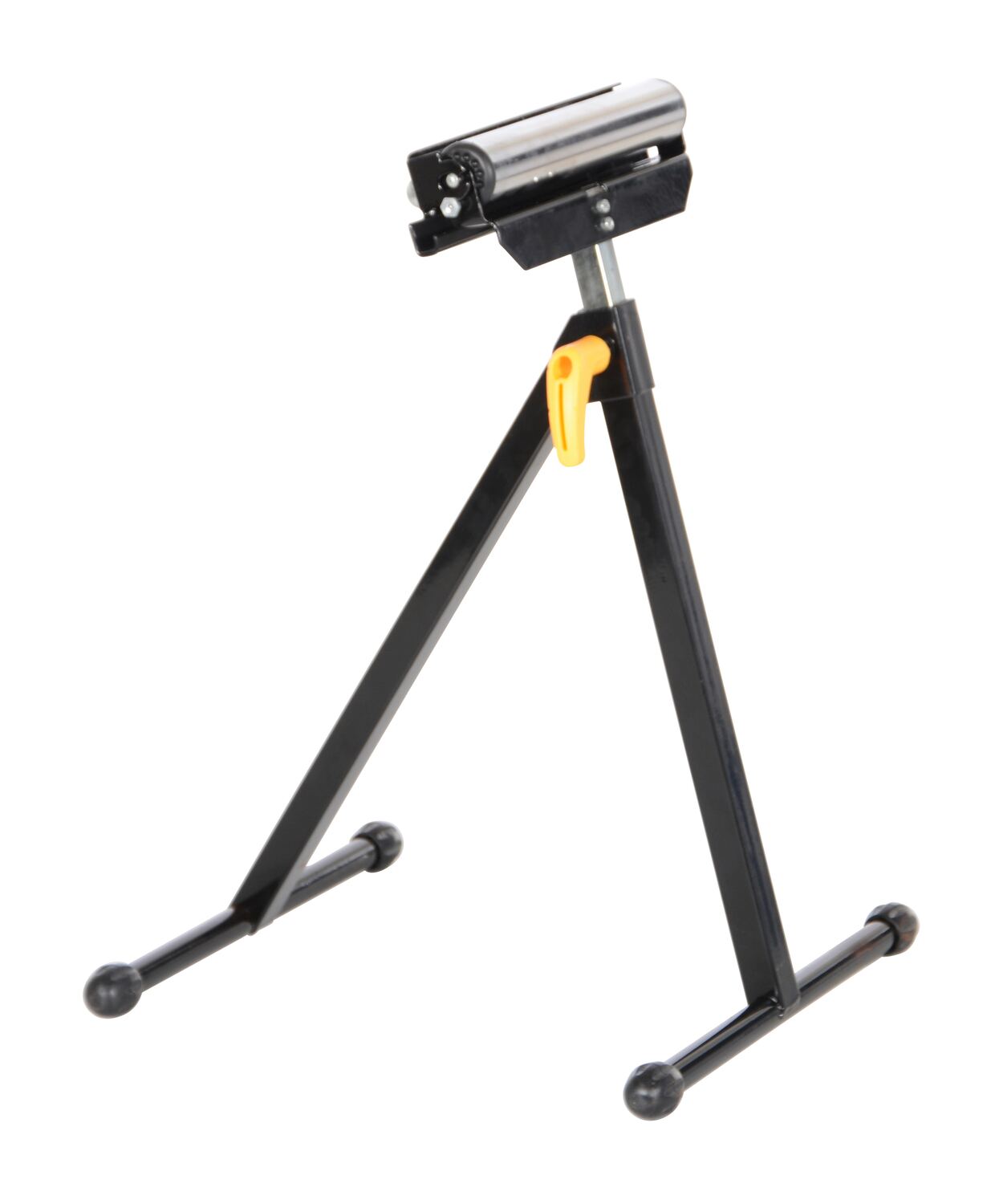

| STAND-MF |  | 90 Days Limited Warranty | Steel Roller Stand Four-Way 8 Ball Roller 28 In. to 44 In. Raised Height 125 Lb. Load Capacity Black | Maximum Load Capacity (lb.): 125 Lowered Height (in.): 27-1/2 | 15 | ||

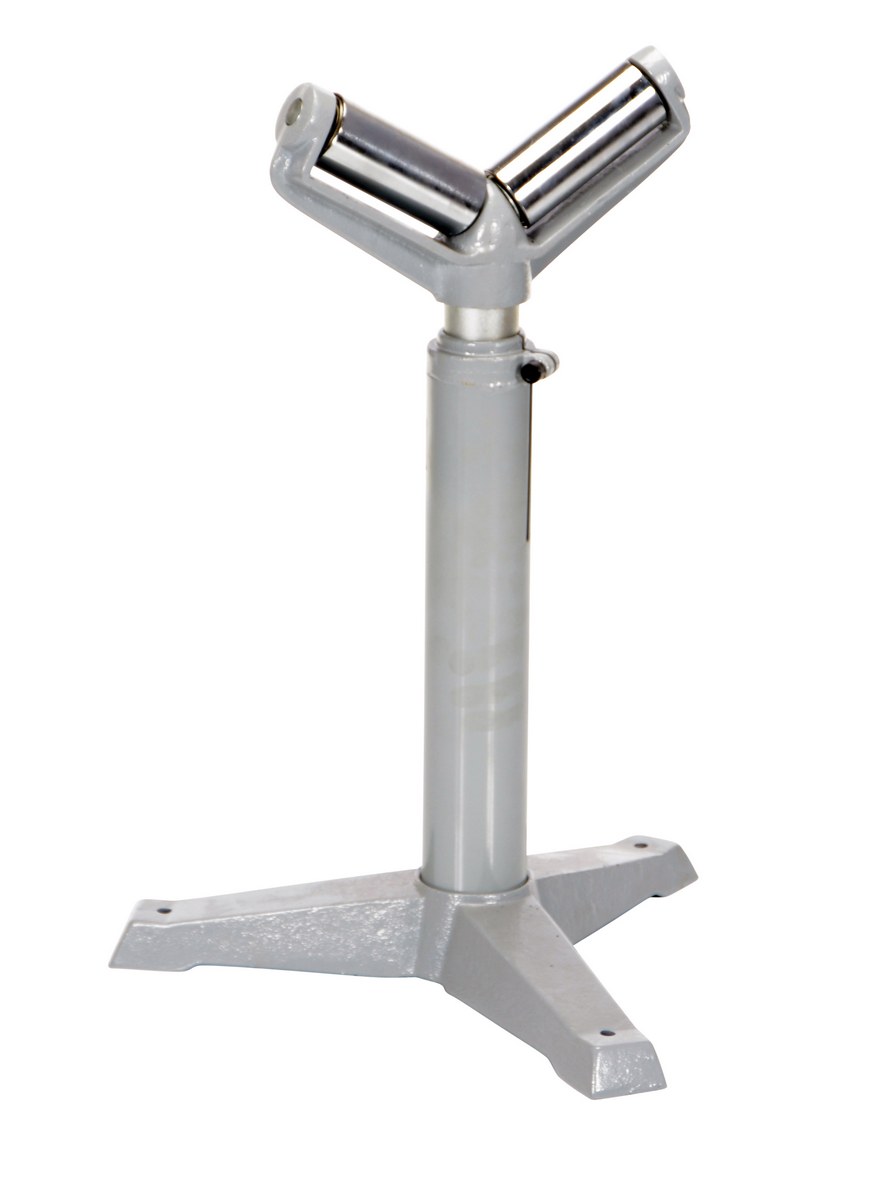

| STAND-V |  | 90 Days Limited Warranty | Steel Roller Stand 23-1/2 to 39-1/4 Raised Height 1,760 Lb. Capacity Silver | Uniform Capacity (lb.): 1760 Lowered Height (in.): 23-1/2 | 35 | ||

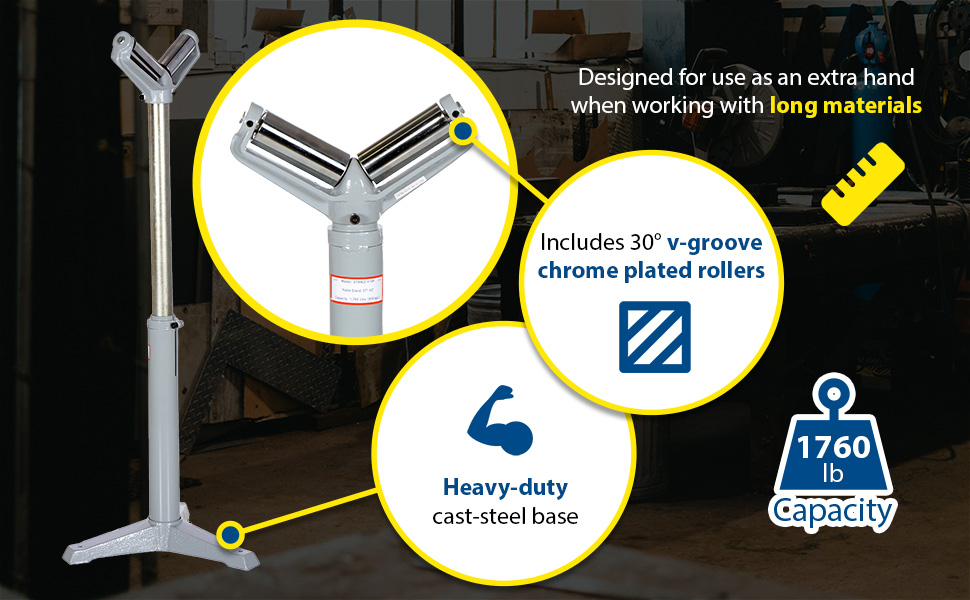

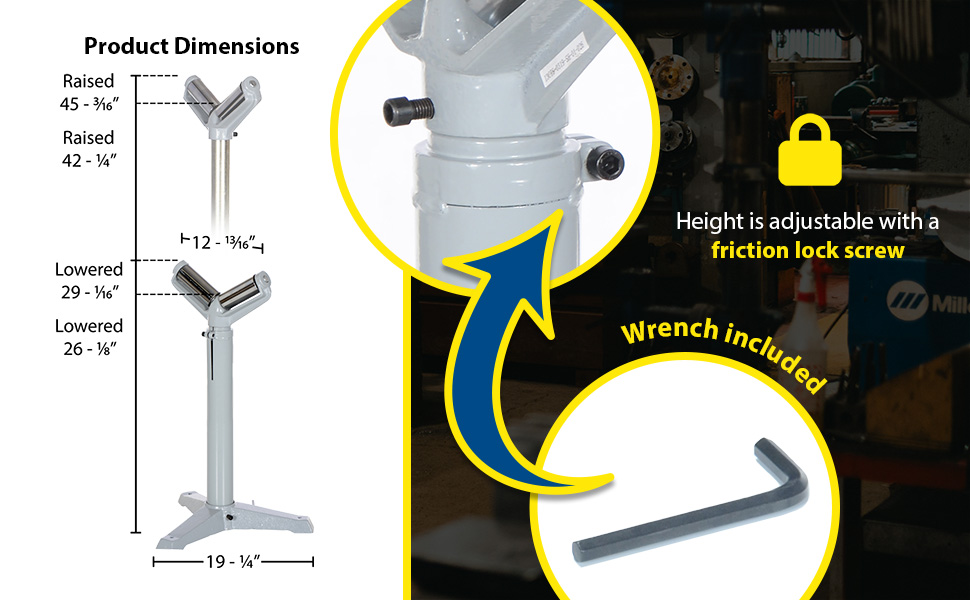

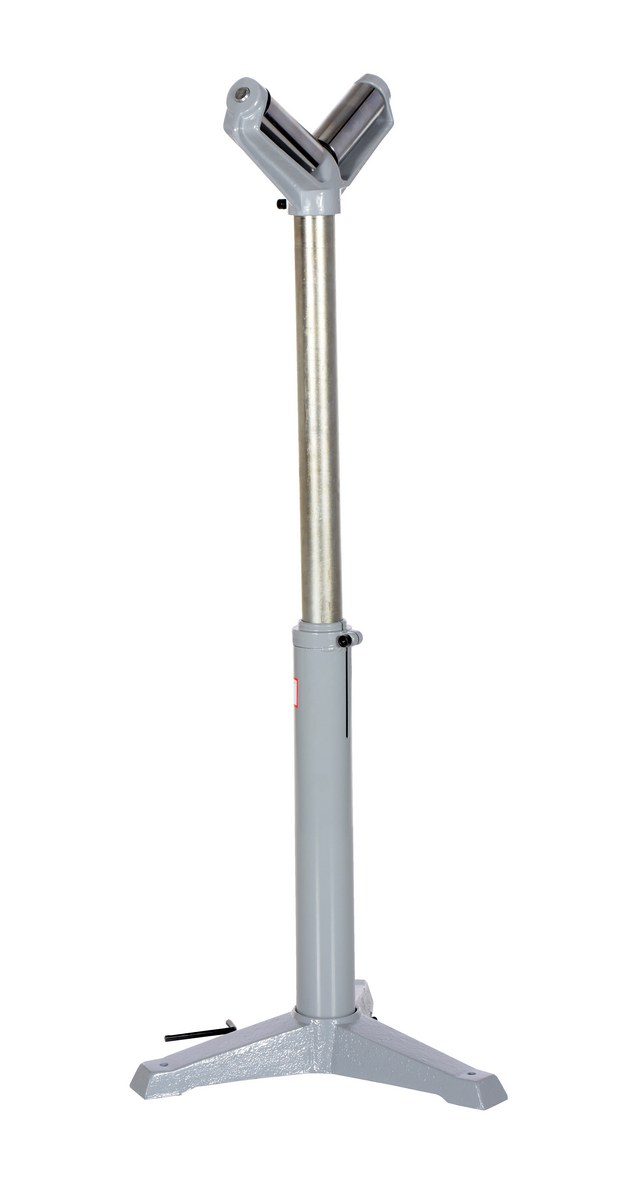

| STAND-V-HP |  | 90 Days Limited Warranty | Steel Roller Stand Quantity 27 In. to 42 In. Raised Height 1,760 Lb. Capacity Silver | Uniform Capacity (lb.): 1760 Lowered Height (in.): 27 | 36 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Model | Image | Details | Icons | Wt. |
|---|---|---|---|---|

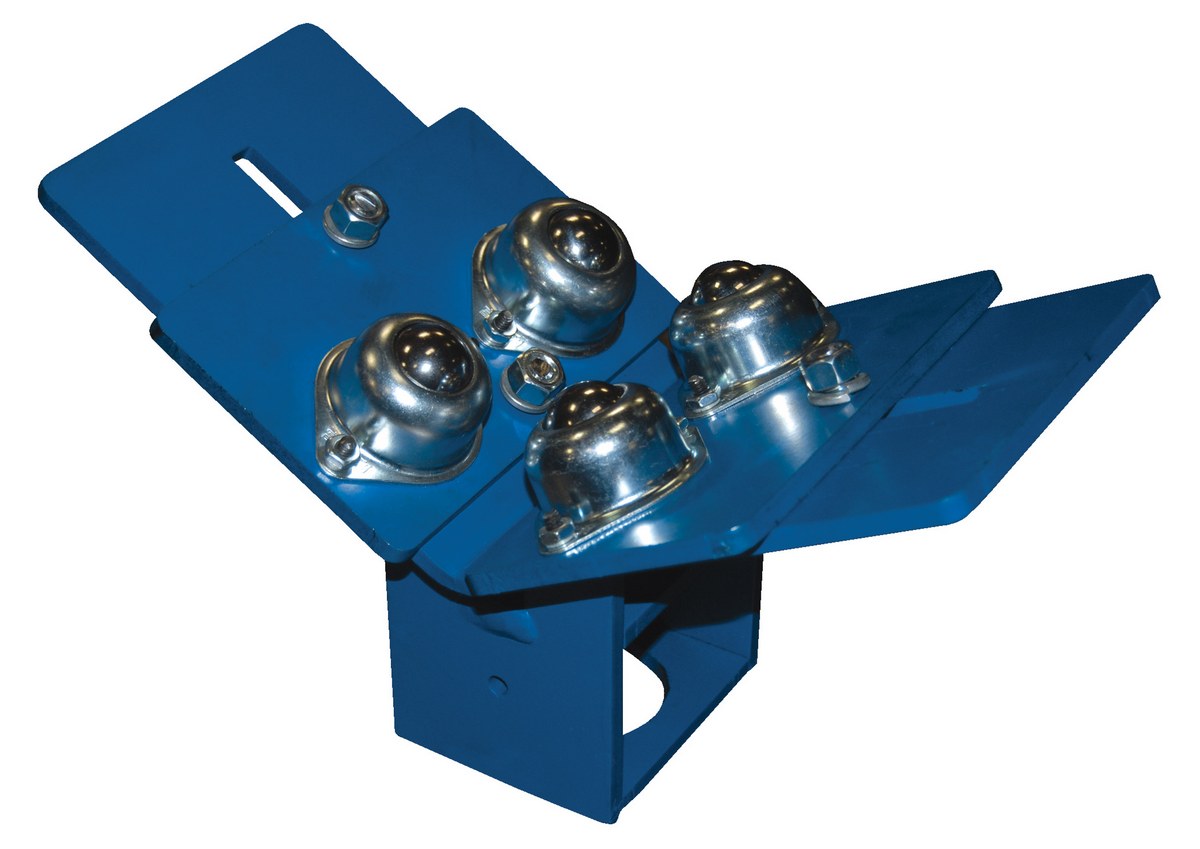

| STAND-T | | Steel Roller Stand Roller Plate 300 Lb. Capacity Blue | Limited Warranty | 12 |
.
A: Yes the hex wrench is included.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Deluxe Roller Stands |
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||

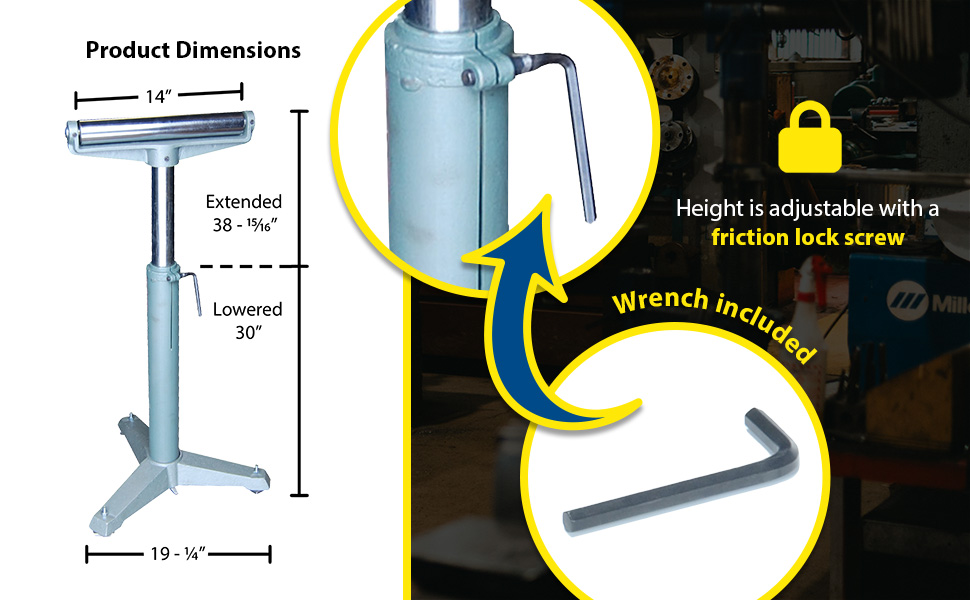

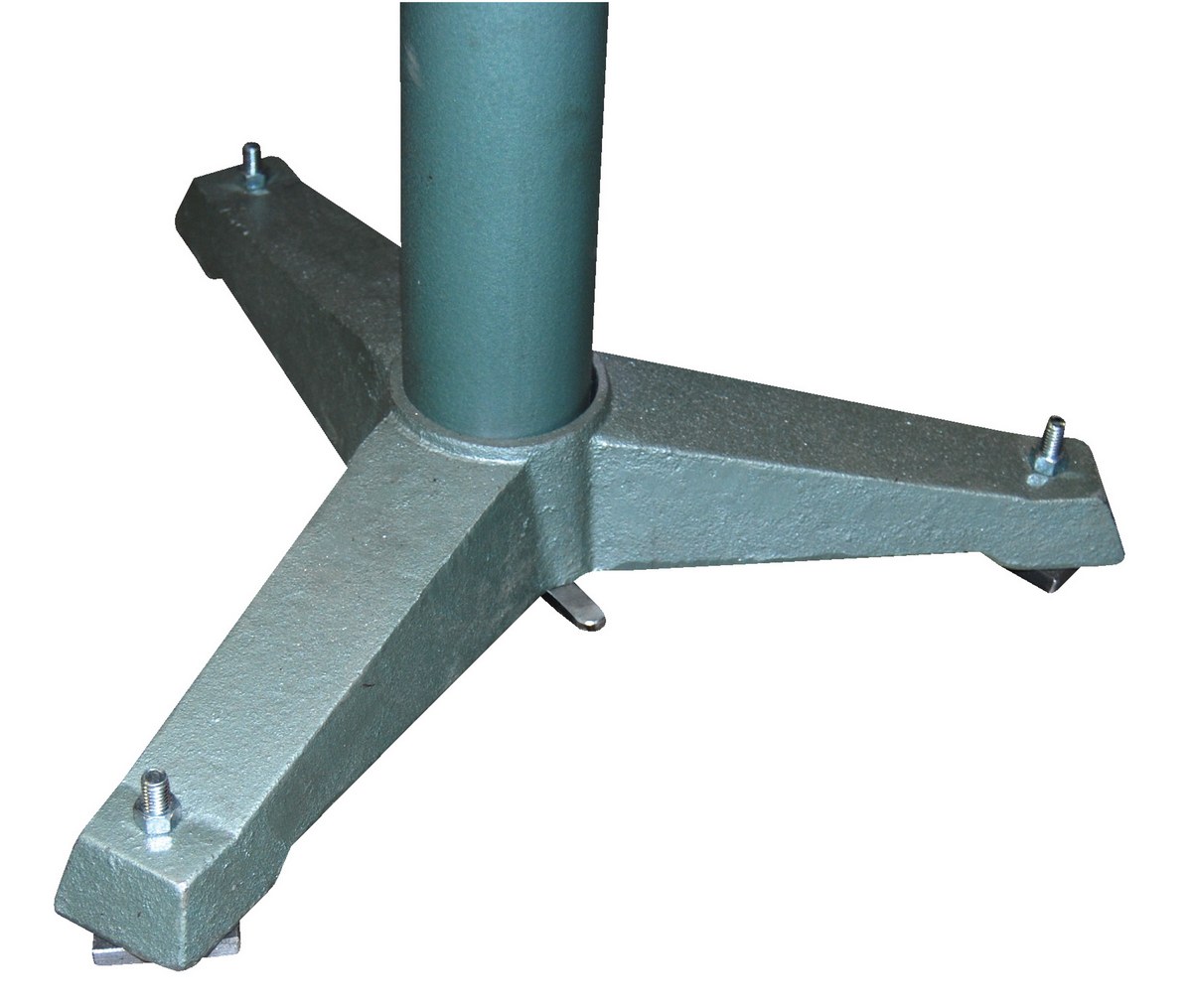

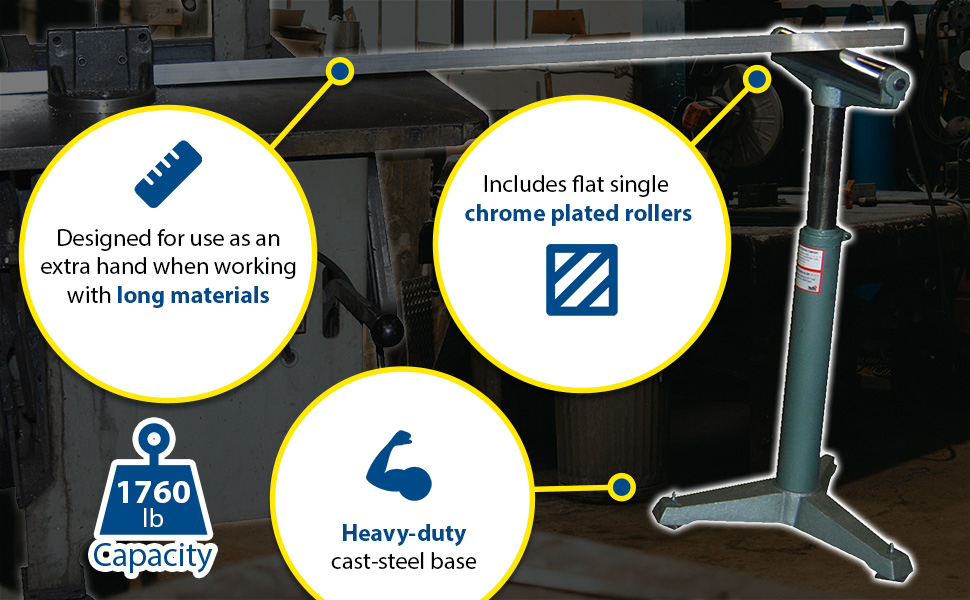

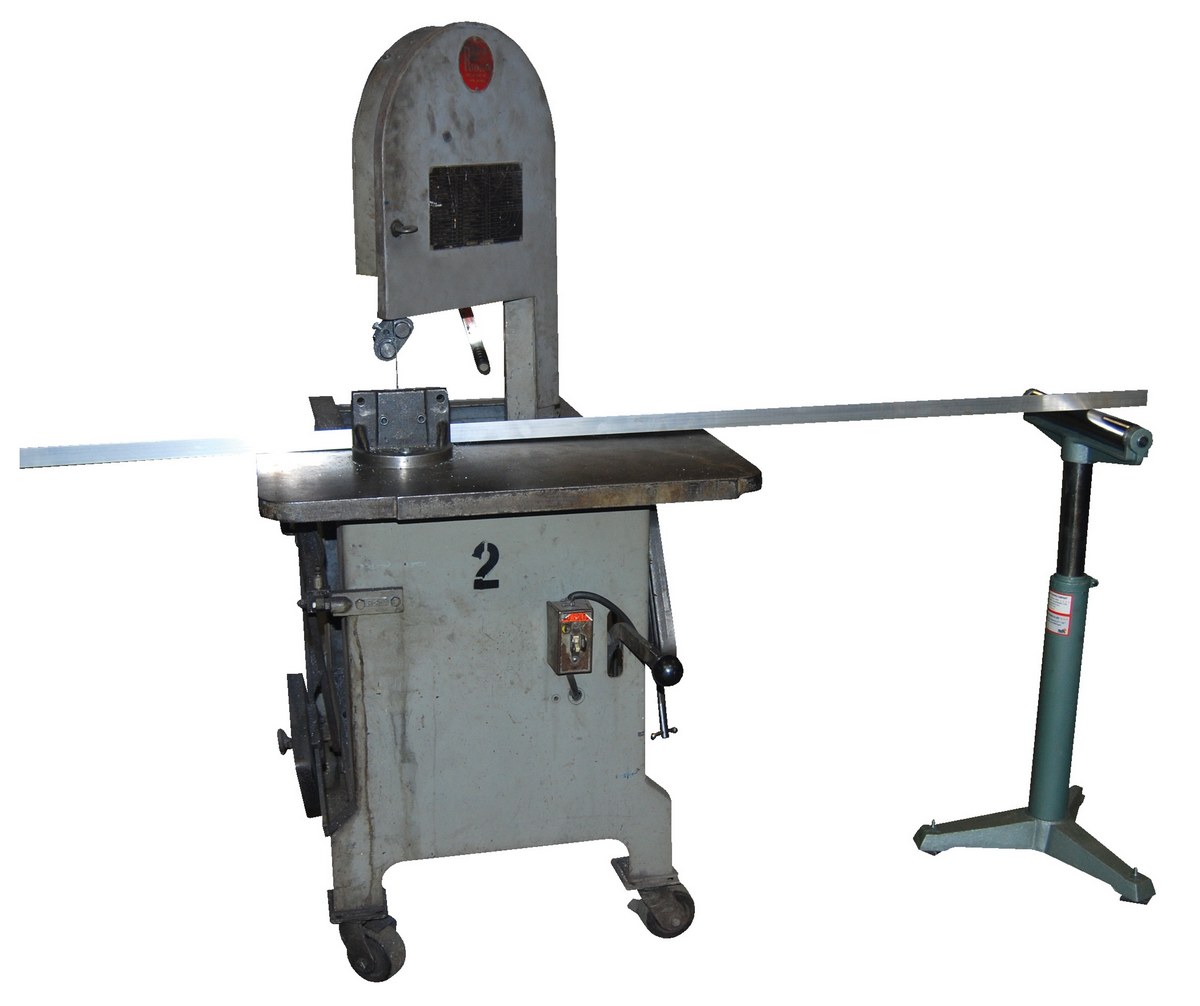

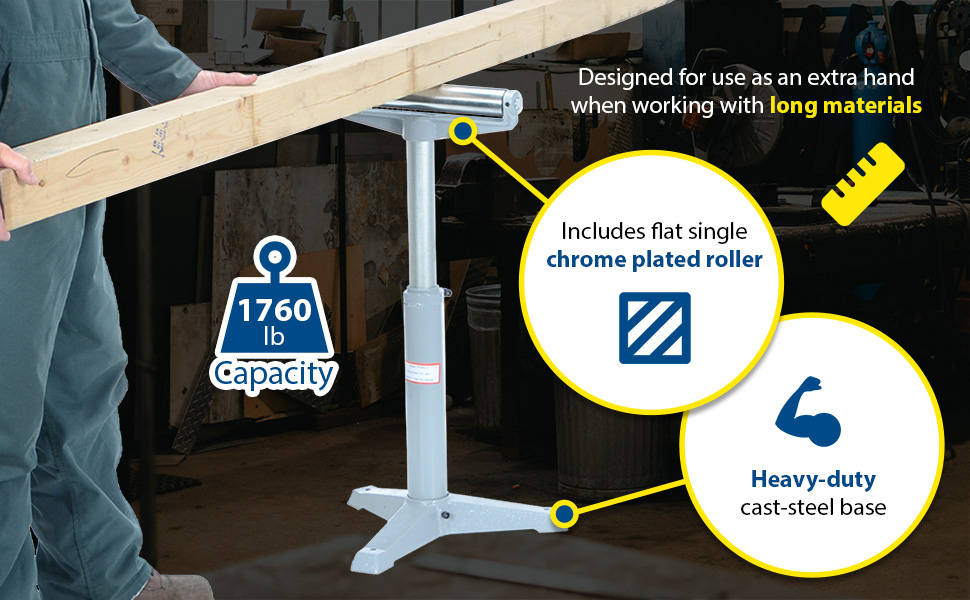

Designed for use as an extra hand when working with long materials. Each stand includes 2" chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown. Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit. Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16" to 6-1/8". Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
