Tote Lifters

model: L-220-DC-HD



Featured Ergonomic Solutions


Specialty Stackers
Scissor Cart with Built-In Scale (partially stainless steel)
Single Fork Electric Pallet Truck w/ Scale
Portable Electric Hydraulic Lift Table
Roll Pallet Trucks
Hefti-Lifts
Powered Quick Lifts
Partially Stainless Steel Hydraulic Elevating Carts
Portable Electric Hydraulic Lift Table w/ Attached Hoist
model chart

Product Family Overview

Print Friendly
Tote Lifters
SERIES: L

Tote LiftersDesigned to raise open bottom skids, boxes, and baskets. Two operations available: hand pump or DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one (1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised above 20-1/2". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. Stainless steel units roll on nylon wheels.

Power Traction Drive

L-270-DC-HD-CTD L-270-DC-HD-CTD

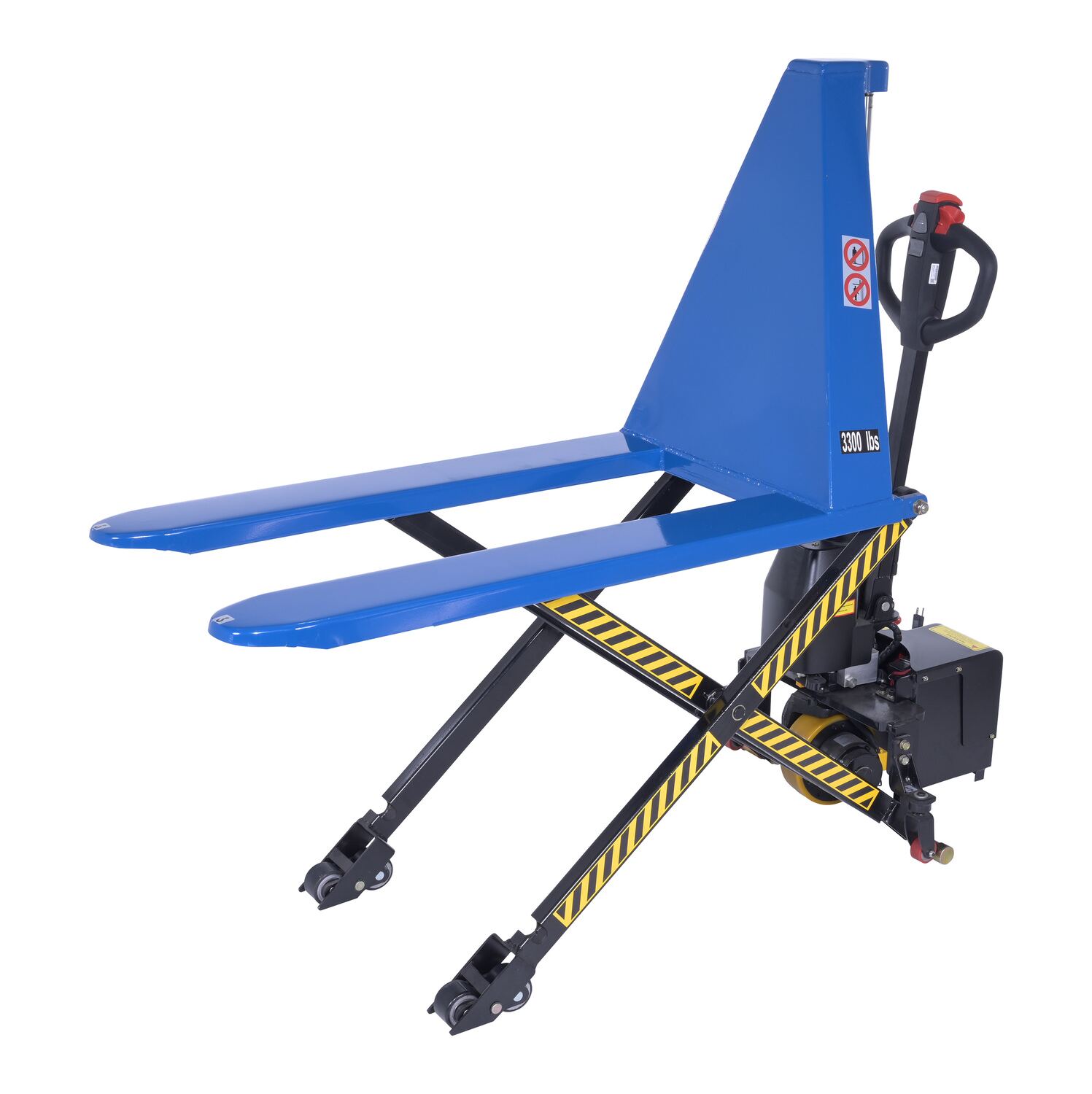

Model L-270-DC-HD-CTD has a power traction drive system to move unit with a 8-1/4"x3" drive wheel.

Tote LiftersDesigned to raise open bottom skids, boxes, and baskets. Two operations available: hand pump or DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one (1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised above 20-1/2". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. Stainless steel units roll on nylon wheels.

Power Traction Drive

L-270-DC-HD-CTD L-270-DC-HD-CTD
Model L-270-DC-HD-CTD has a power traction drive system to move unit with a 8-1/4"x3" drive wheel.

Other Tote/ Skid Lifters

 High Rise Lift Trucks High Tote Lifter Tote-A-Loads Tote Lifters

Additional Models In This Family
view entire Image Gallery

L-270-HD

L-270-HD

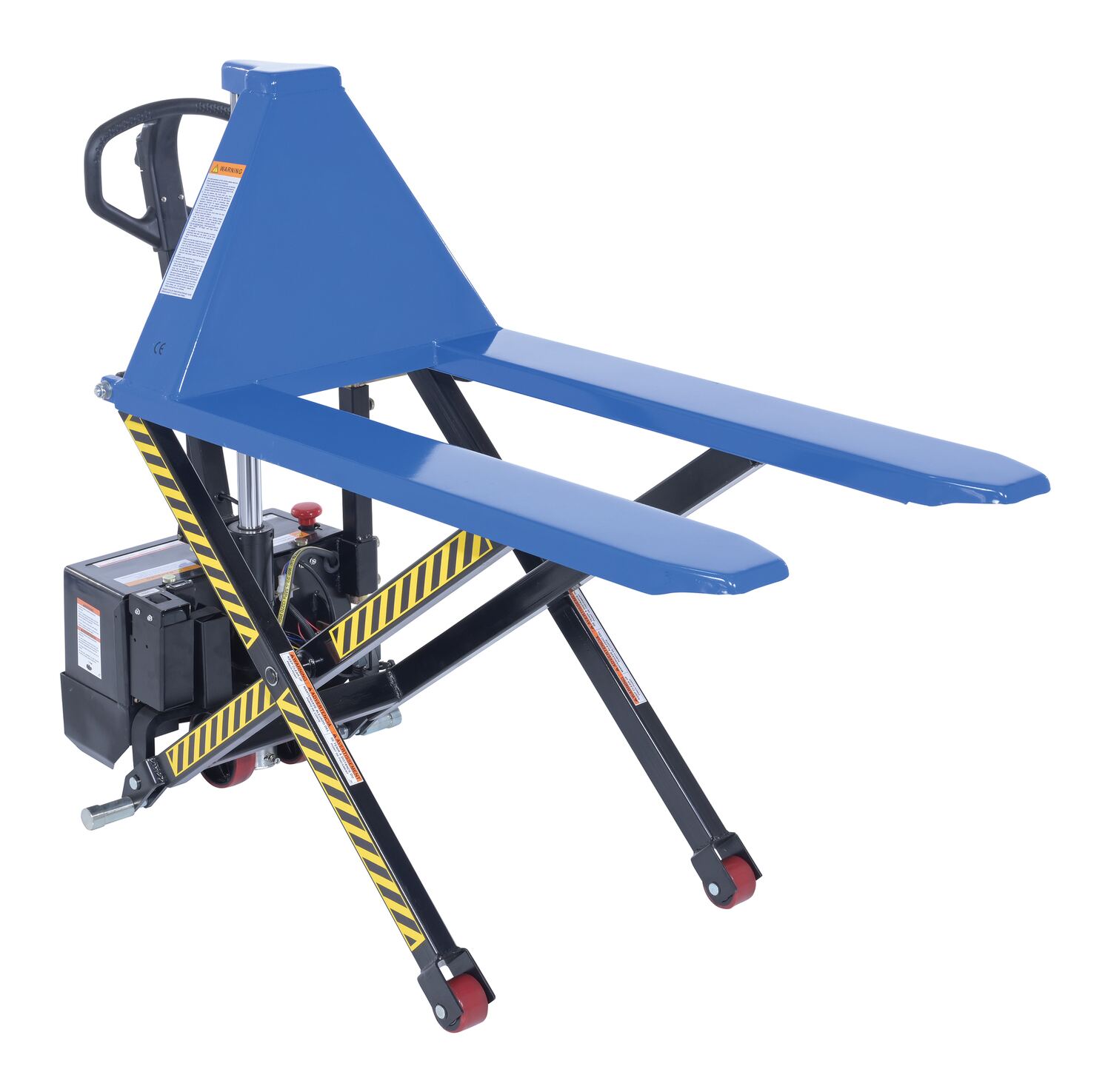

L-270-DC-HD-CTD

L-270-DC-HD-CTD

L-270-DC-HD-SS

L-270-DC-HD-SS

L-270-DC-HD-CTD

L-270-DC-HD-CTD

L-270-DC-HD-CTD

L-270-DC-HD-CTD

L-270-DC-HD-CTD

L-270-DC-HD-CTD

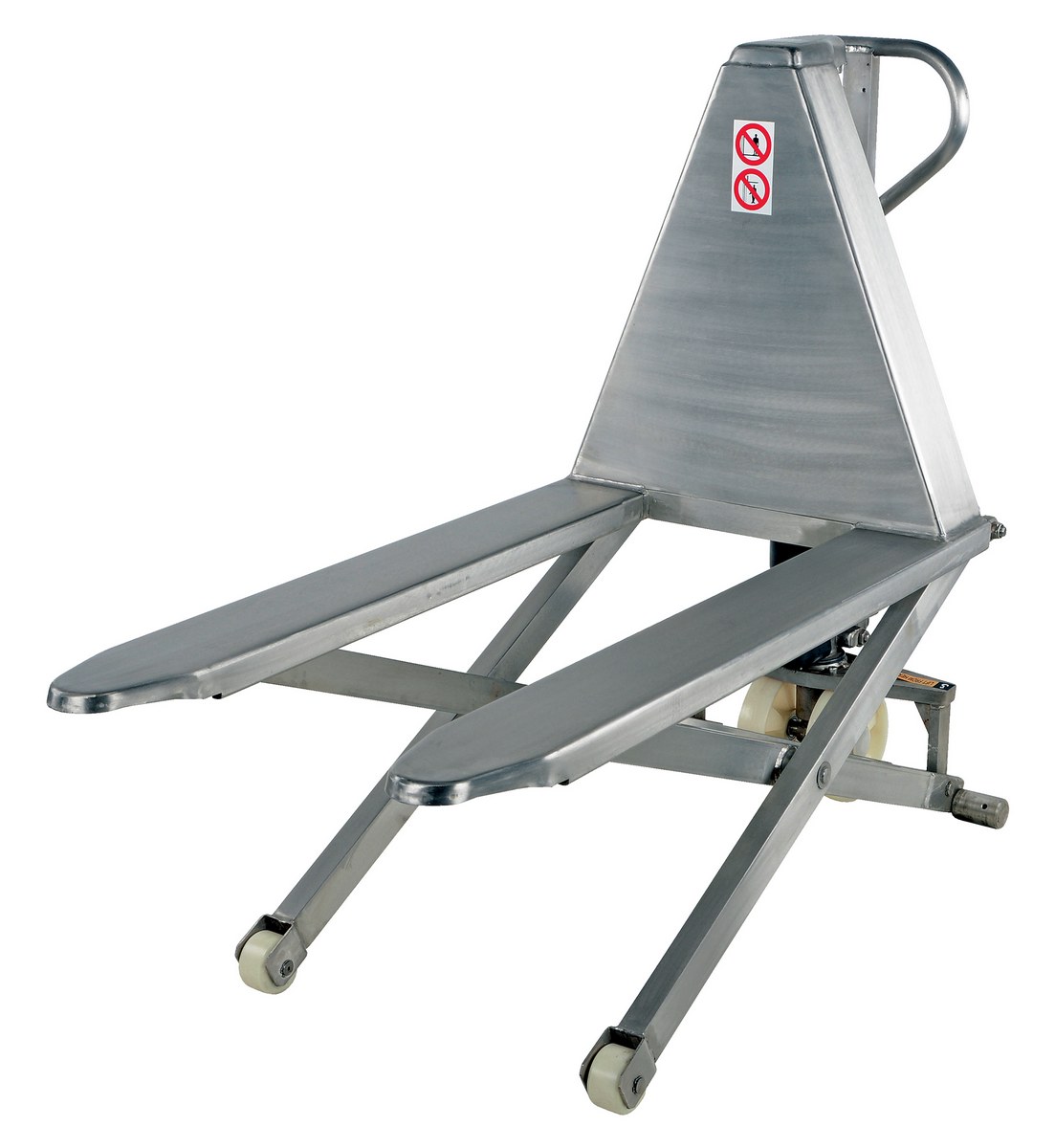

L-270-HD-SS

L-270-HD-SS

L-270-DC-HD-SS

L-270-DC-HD-SS

L-PLATE-27

L-PLATE-27

L-PLATE-27

L-PLATE-27

L-PLATE-27

L-PLATE-27

L-270-DC-HD

L-270-DC-HD

L-220-DC-HD

L-220-DC-HD

L-220-DC-HD

L-220-DC-HD

L-PLATE-20

L-PLATE-20

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

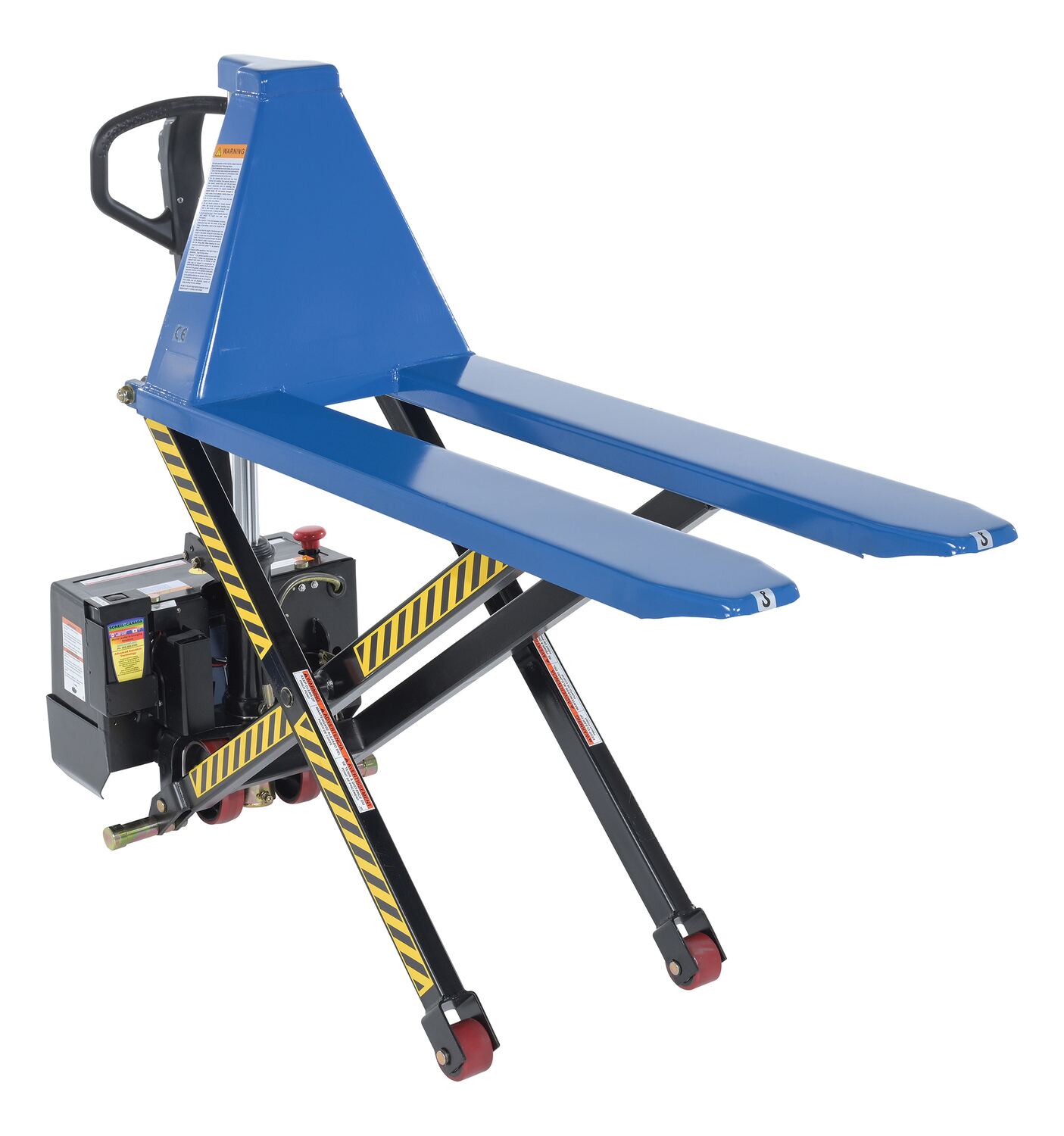

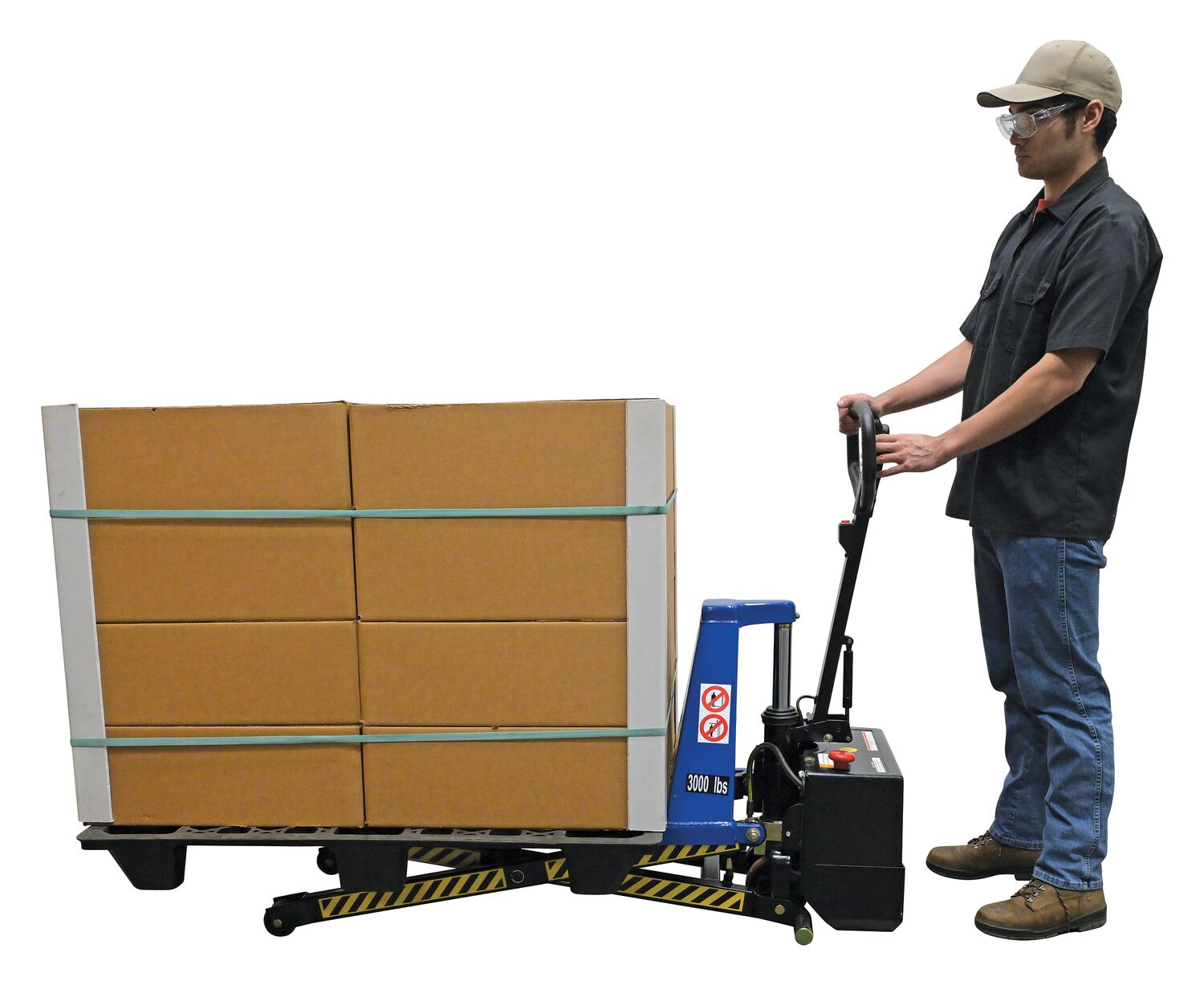

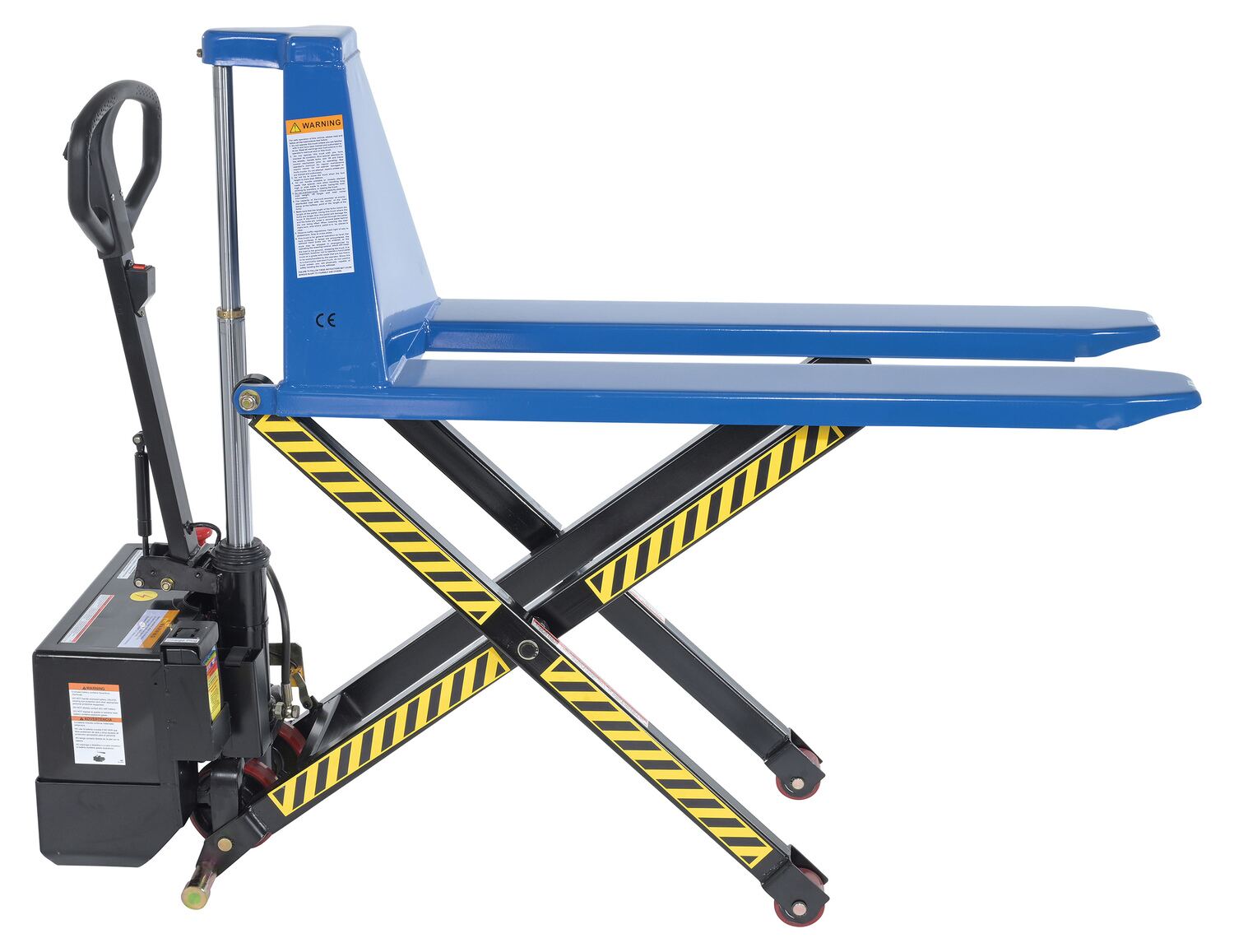

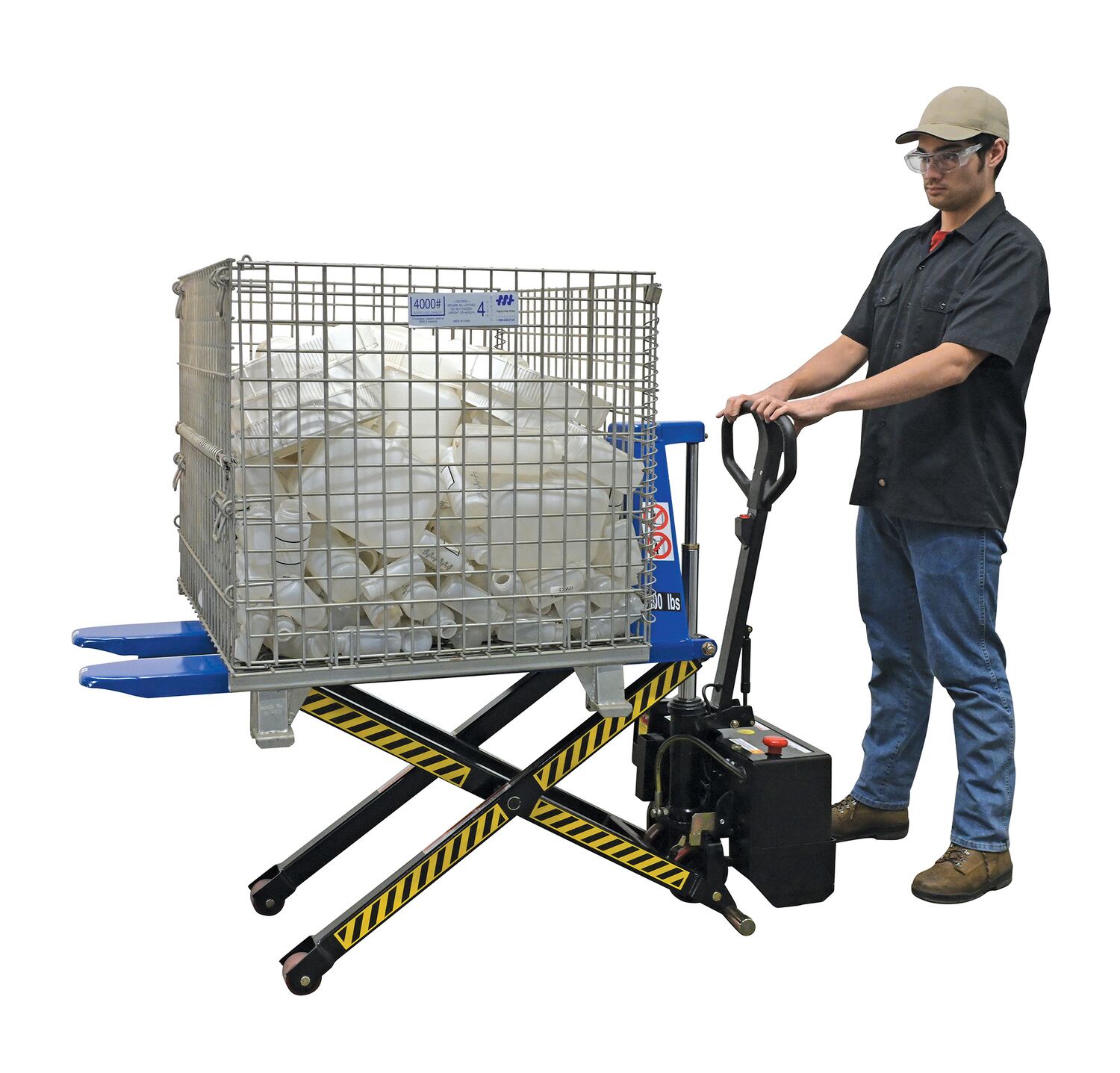

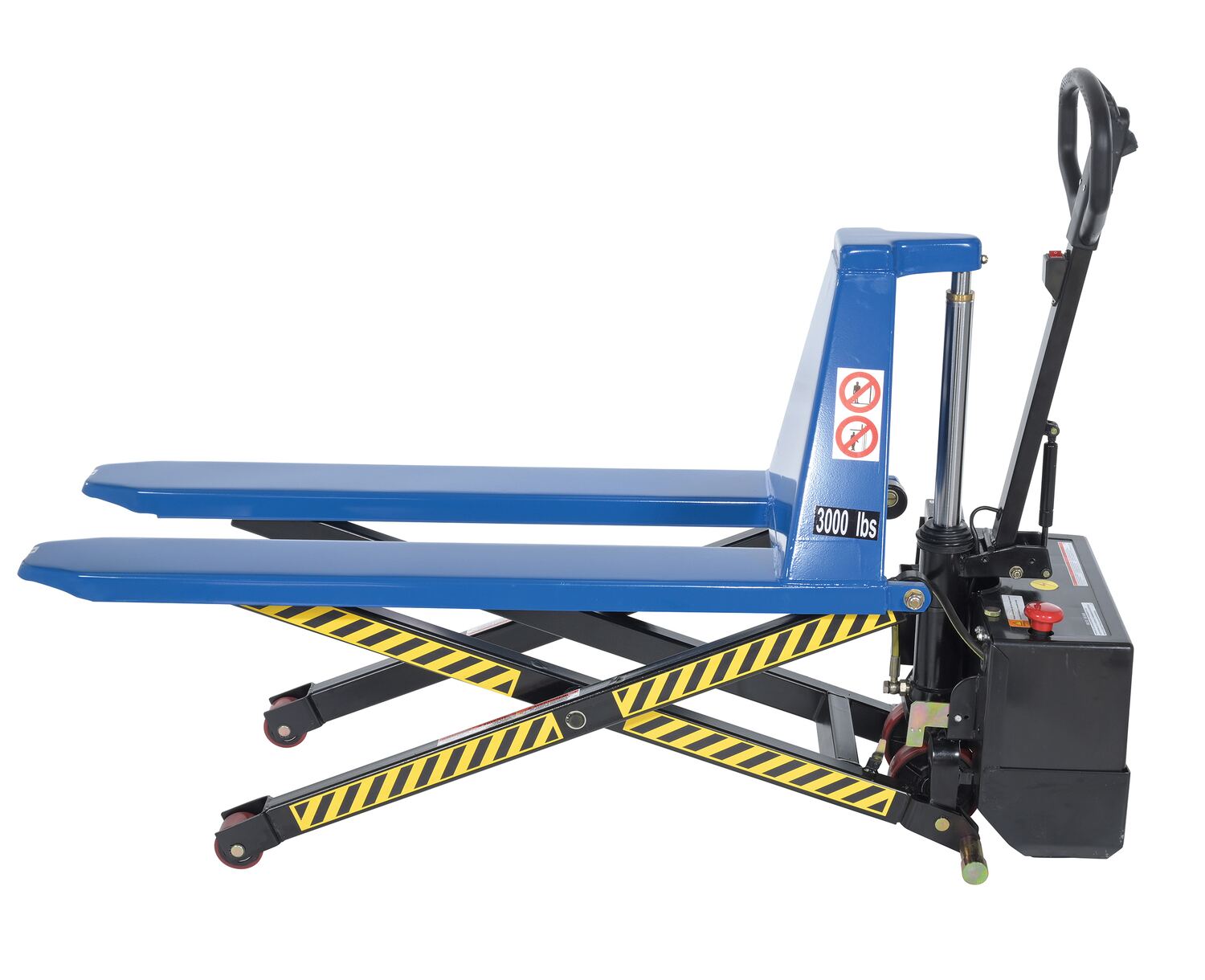

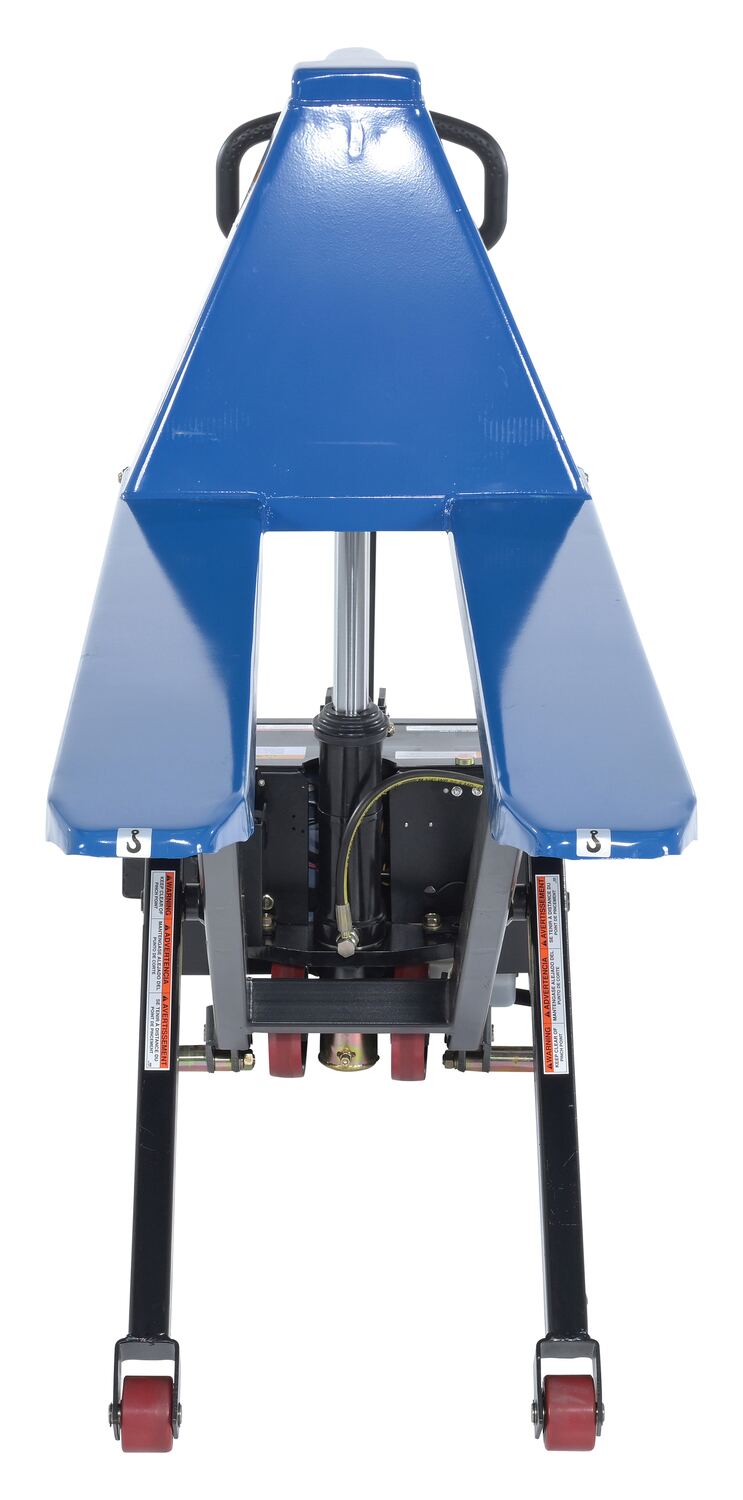

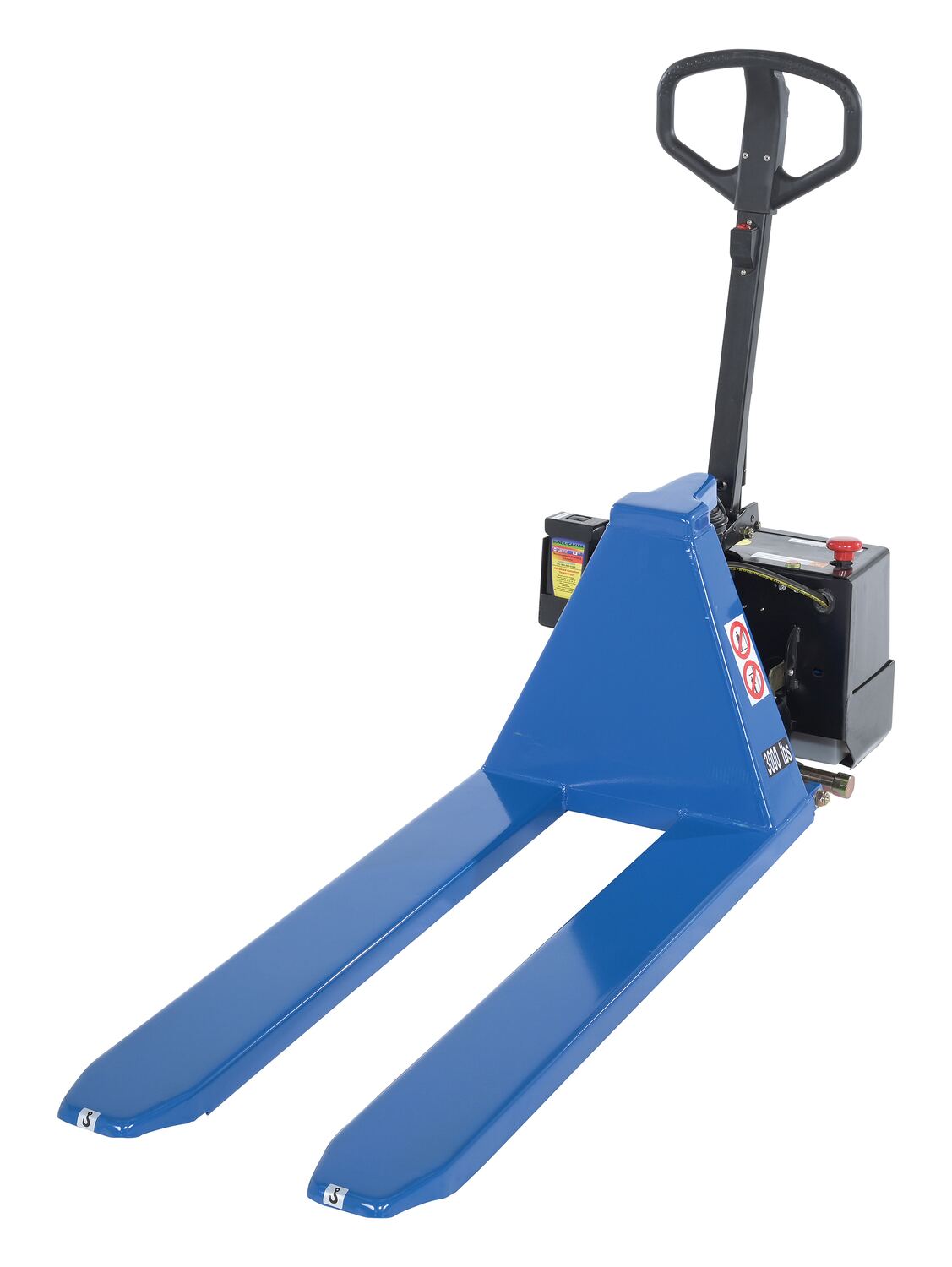

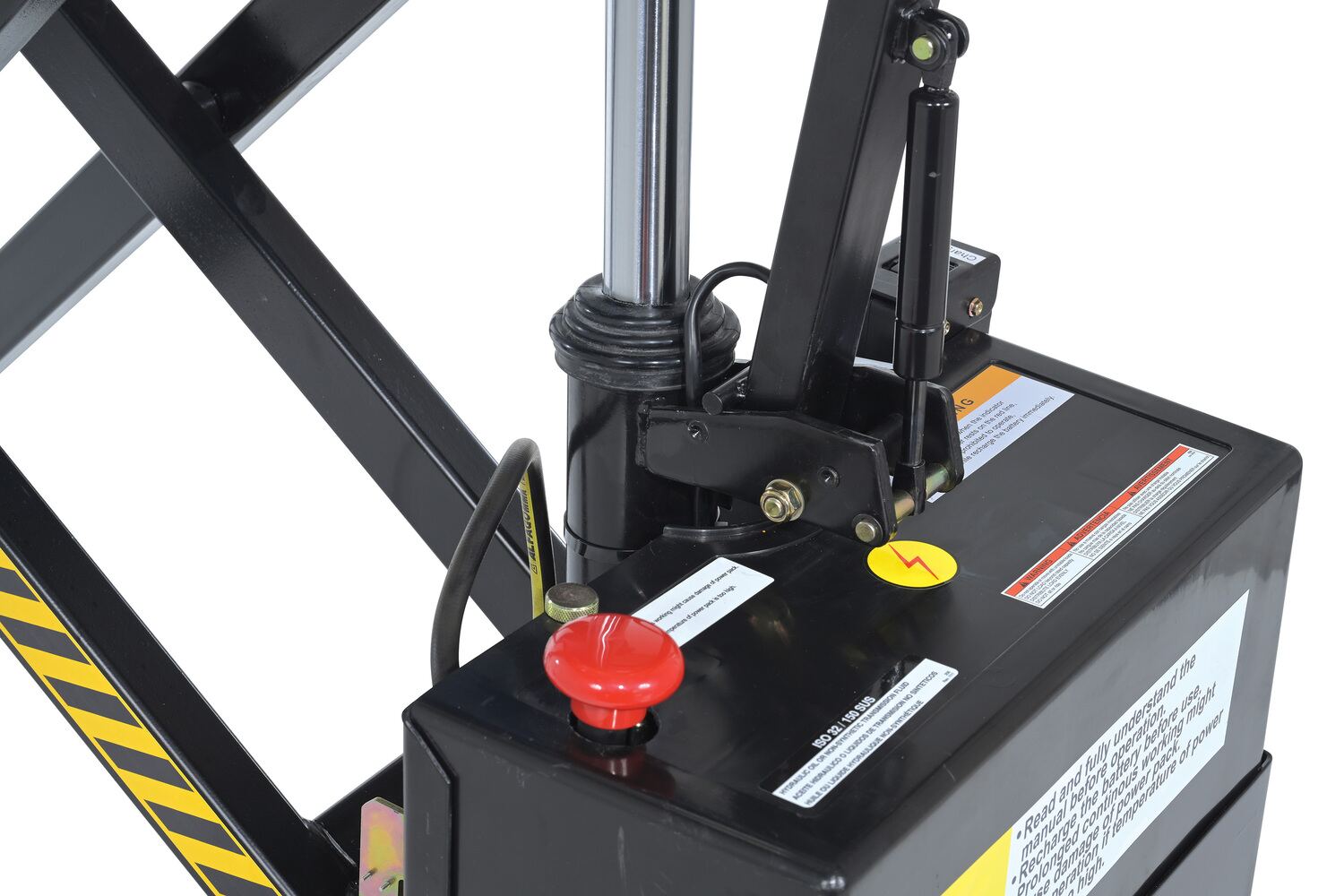

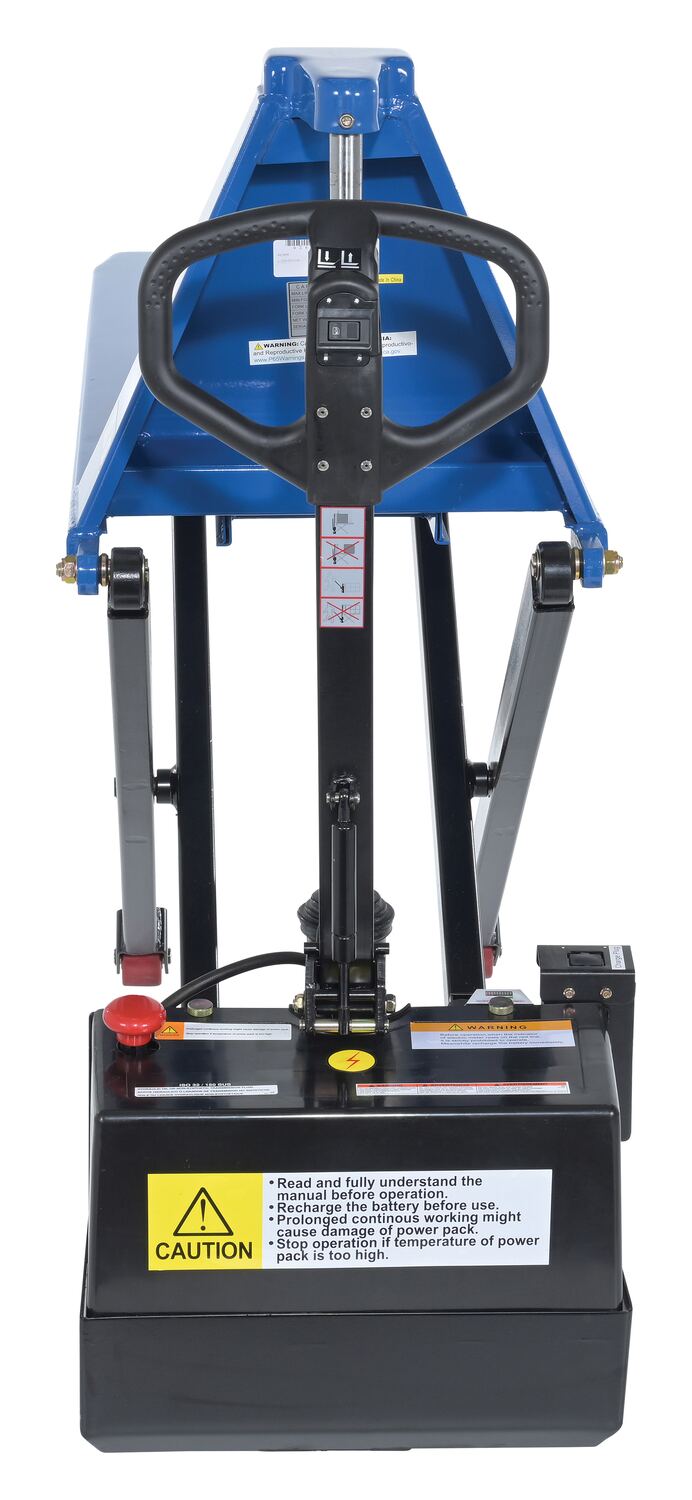

L-220-DC-HD L-220-DC-HD1 Year Limited WarrantySteel DC Powered Tote Lift 62-3/4 In. x 20-1/2 In. x 46-1/2 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Operation: 12 Volt DC Power		406

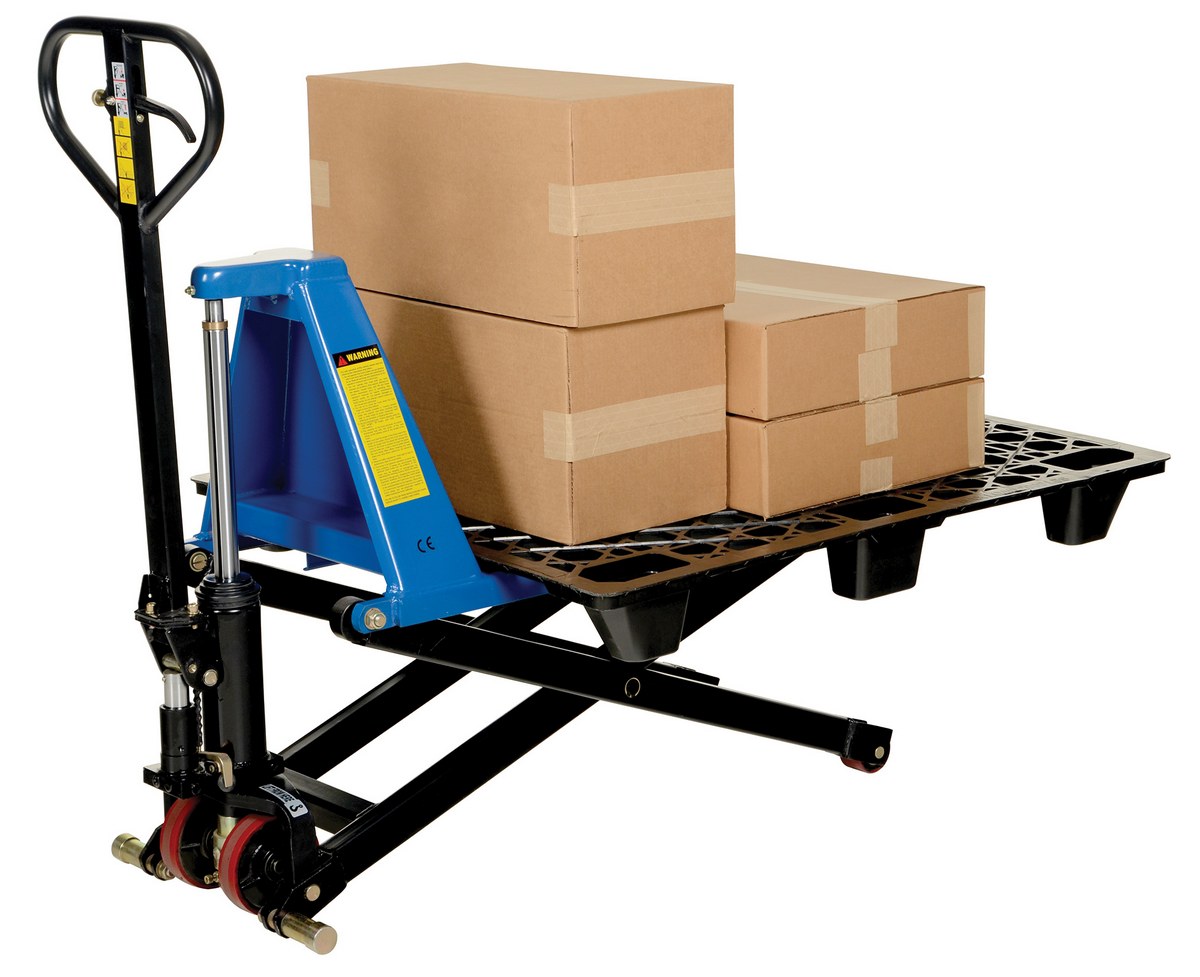

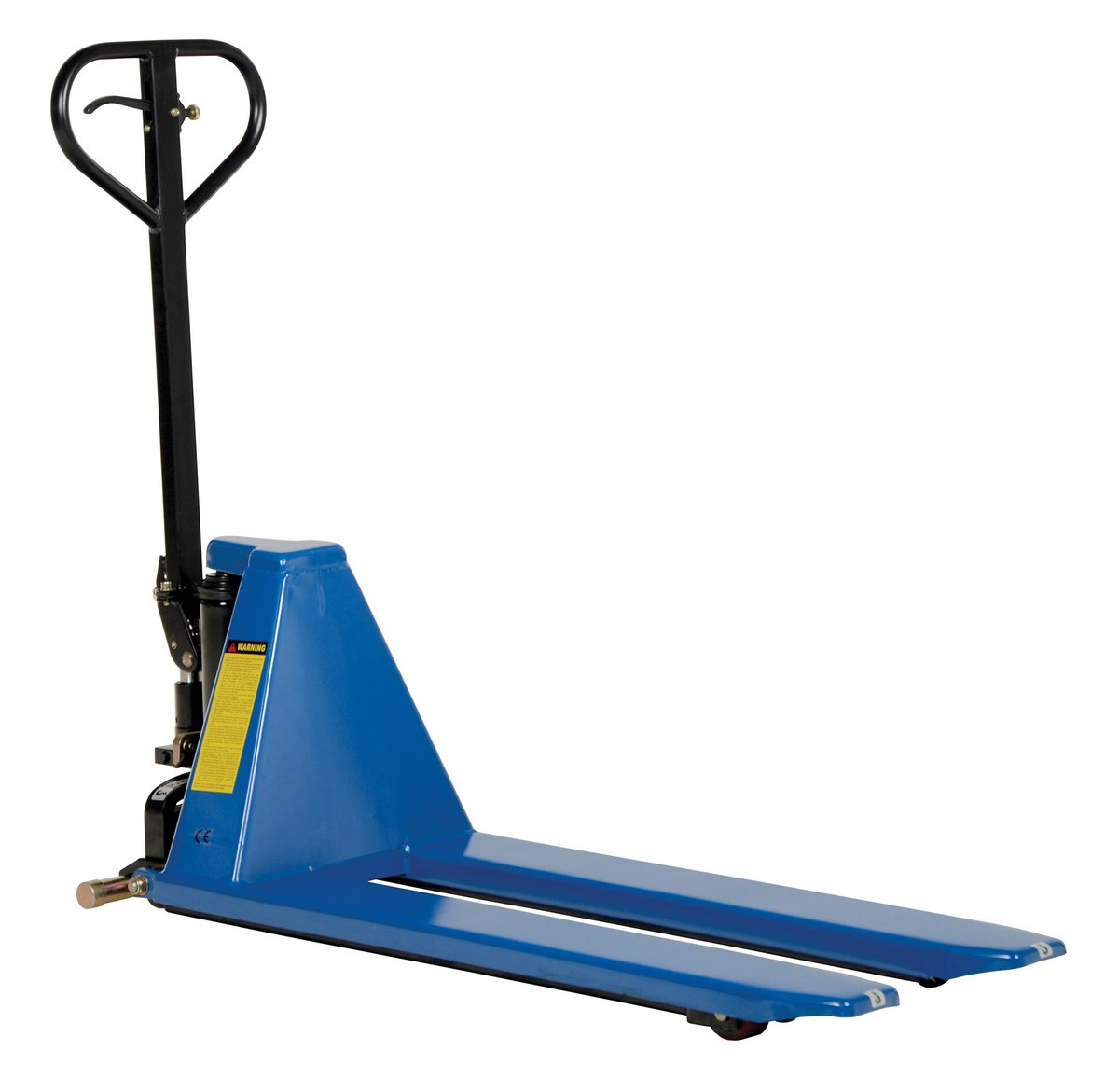

L-220-HD L-220-HD1 Year Limited WarrantySteel Hand Pump Tote Lift 58 In. x 21 In. x 50 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Operation: Hand Pump		275

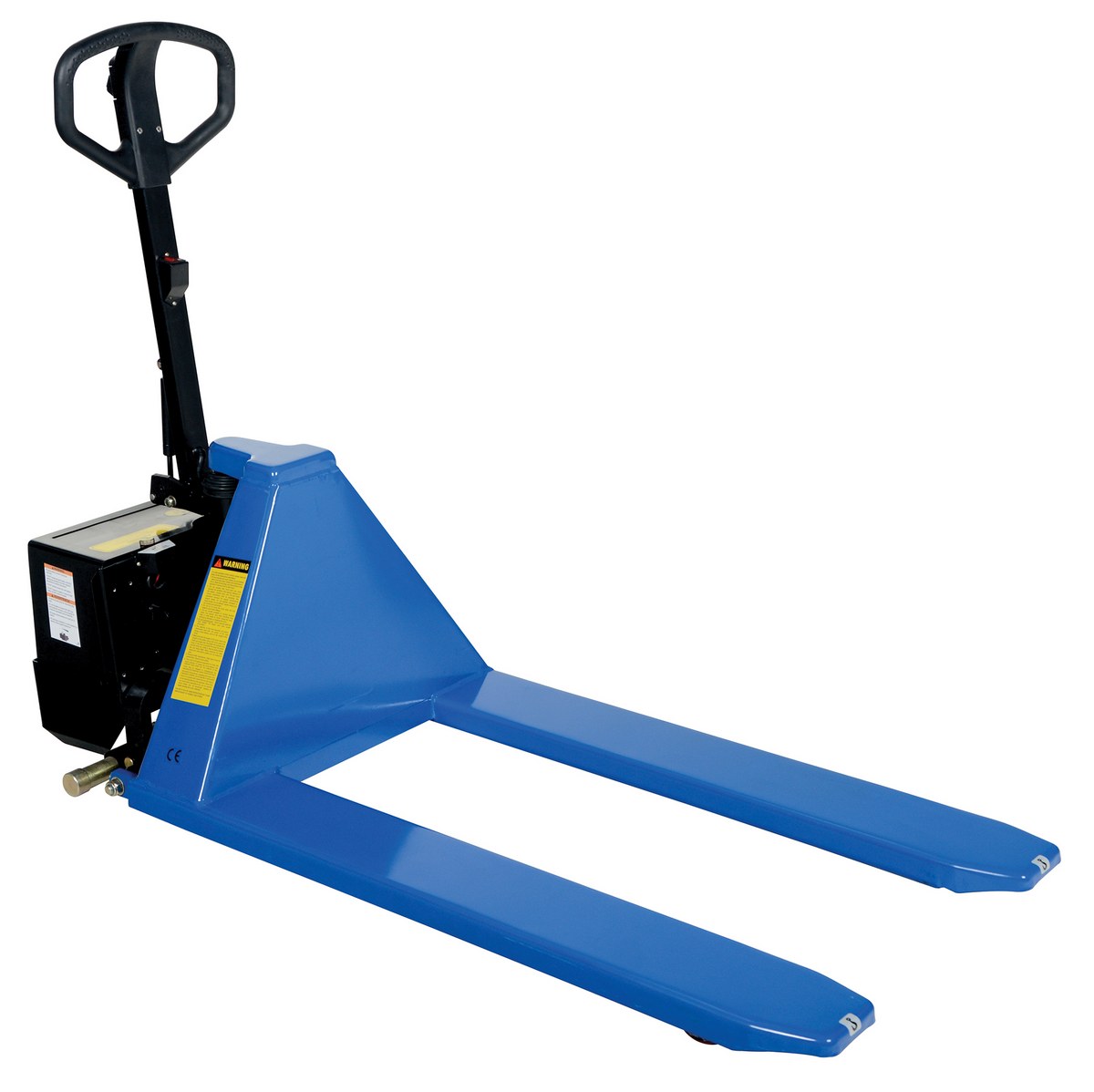

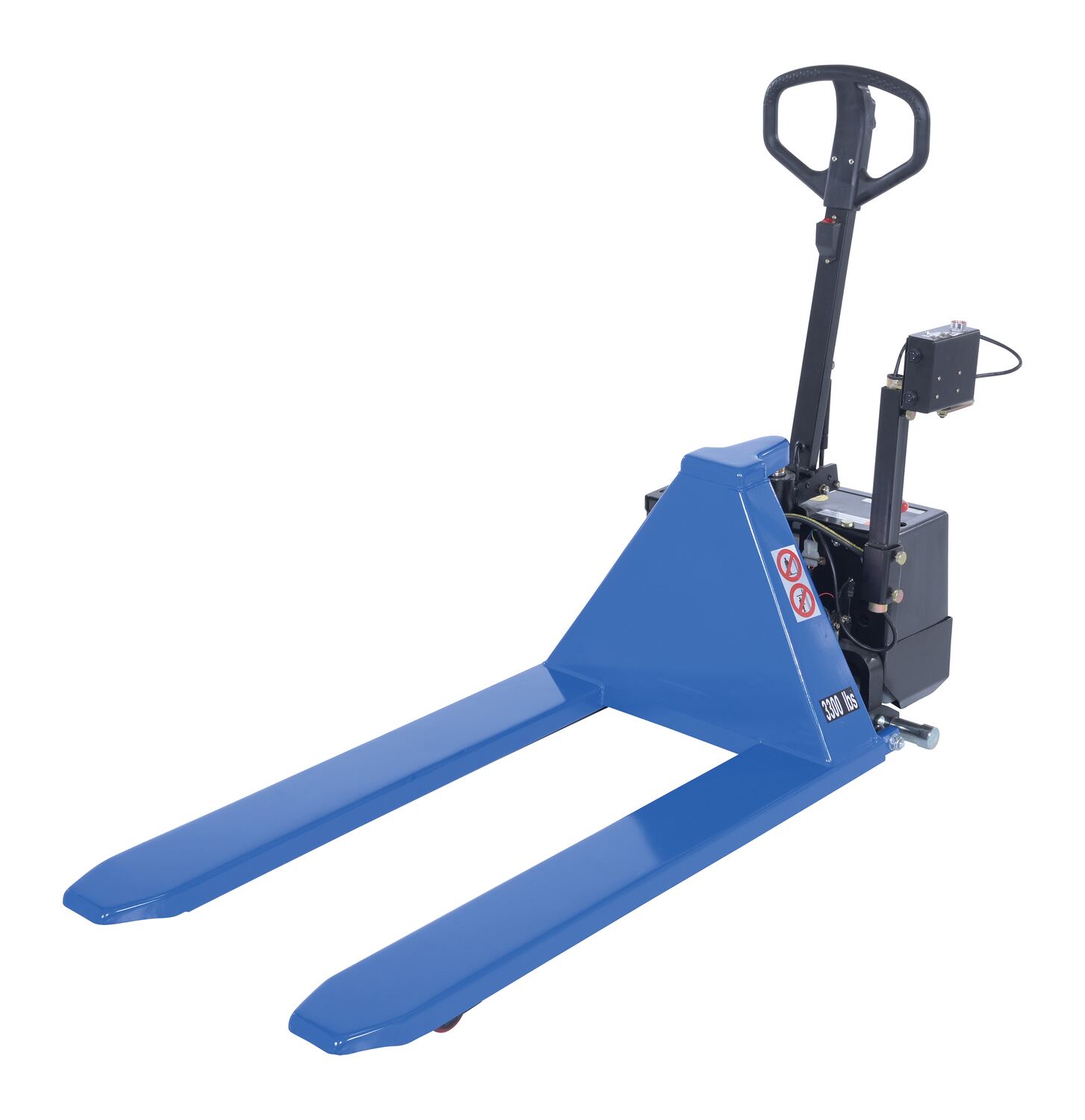

L-270-DC-HD L-270-DC-HD1 Year Limited WarrantySteel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Operation: 12 Volt DC Power		428
L-270-DC-HD-CTD NEW L-270-DC-HD-CTD1 Year Limited WarrantySteel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Operation: 12 Volt DC Power		410

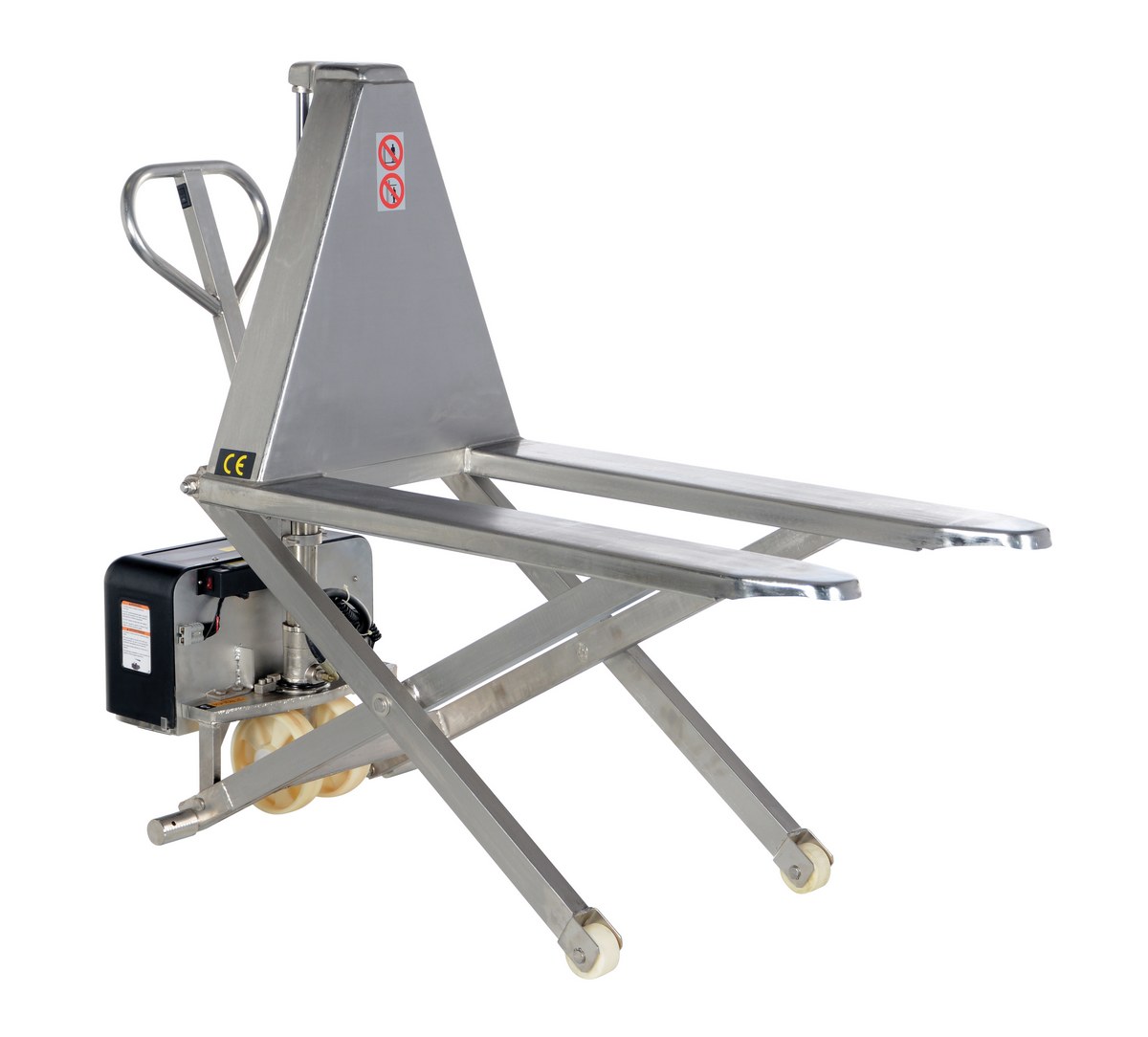

L-270-DC-HD-SS
L-270-DC-HD-SS1 Year Limited WarrantyStainless Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Operation: 12 Volt DC Power		366

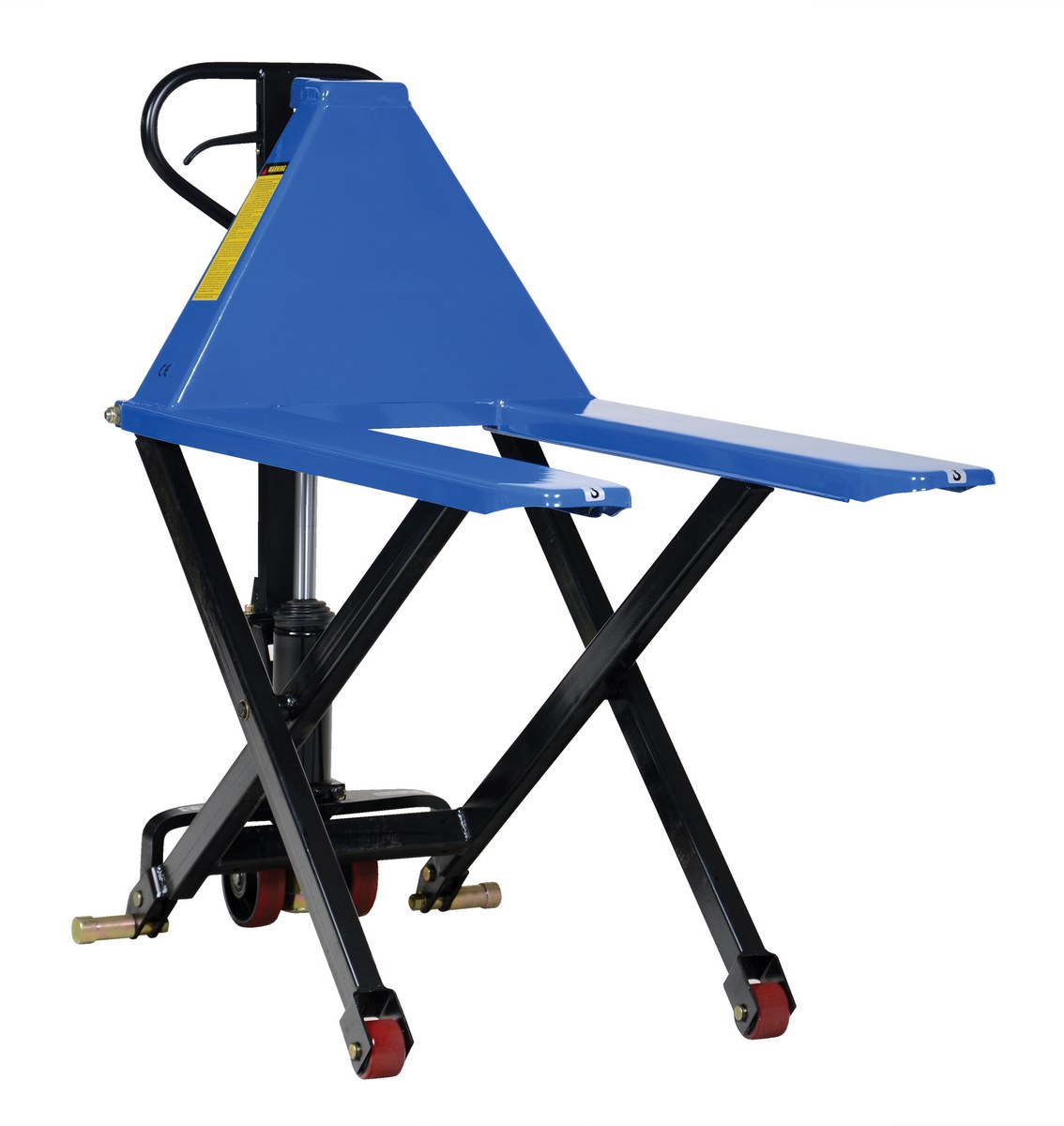

L-270-HD L-270-HD1 Year Limited WarrantySteel Hand Pump Tote Lift 58 In. x 27 In. x 50 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Operation: Hand Pump		292

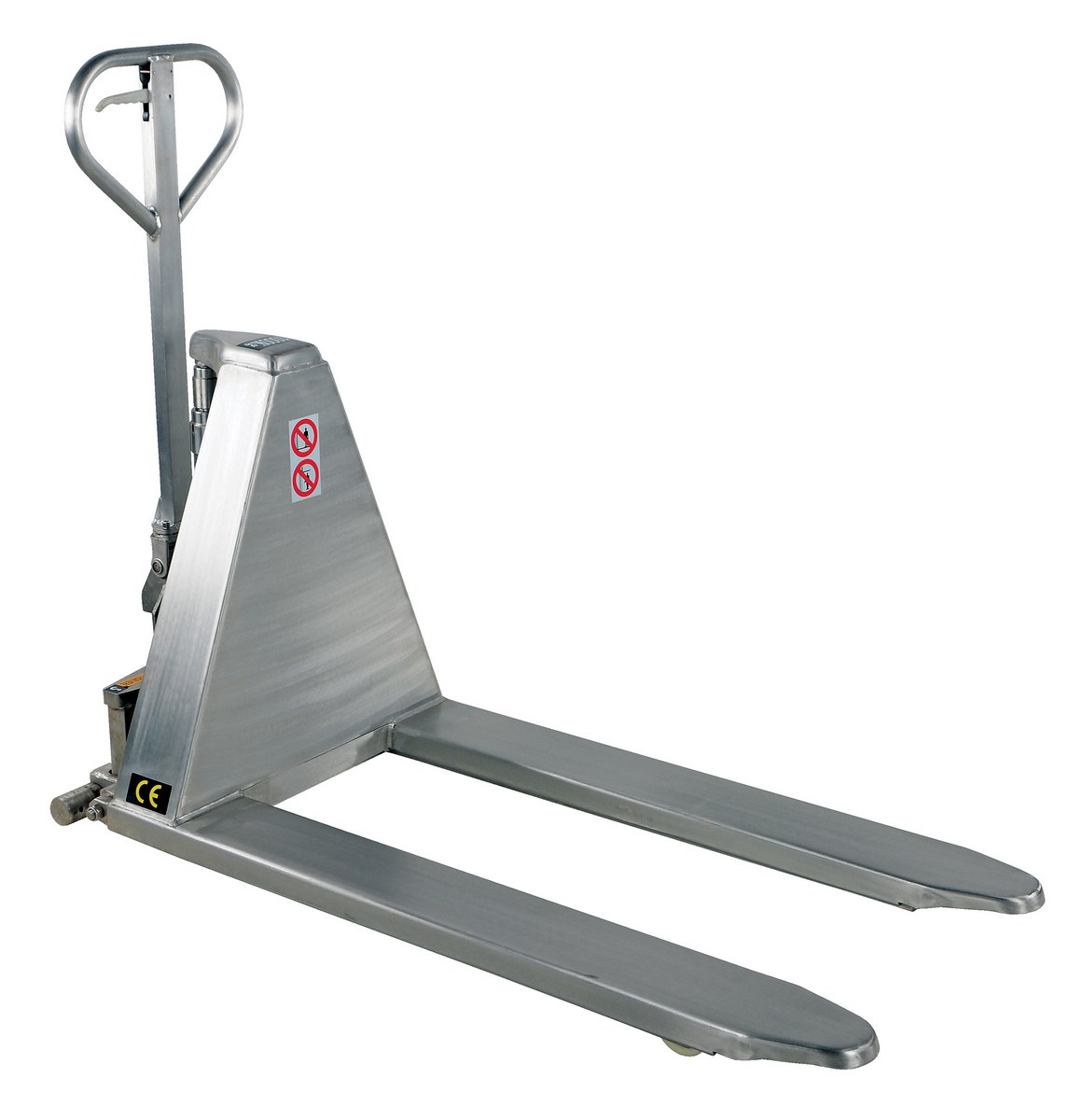

L-270-HD-SS
L-270-HD-SS1 Year Limited WarrantyStainless Steel Hand Pump Tote Lift 60 In. x 27 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Operation: Hand Pump		310

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

L-220-DC-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power

L-220-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Uniform Capacity (lb.): 3000
Operation: Hand Pump

L-270-DC-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power

L-270-DC-HD-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2000
Operation: 12 Volt DC Power

L-270-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Uniform Capacity (lb.): 3000
Operation: Hand Pump

L-270-HD-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Operation: Hand Pump
Uniform Capacity (lb.): 2000
Operation: Hand Pump

L-270-DC-HD-CTD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
For More Details of the Option Click the Red Model Button

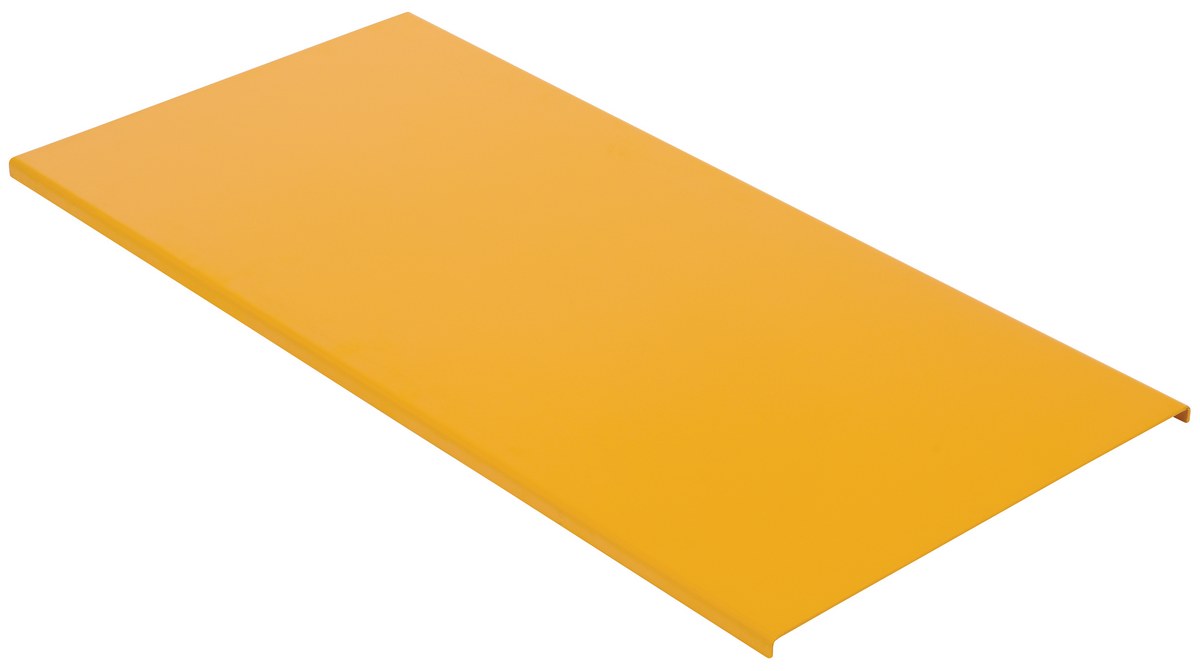

L-PLATE-20 L-PLATE-2030 Days Limited WarrantySteel Solid Platform 44 In. x 21-1/4 In. x 7/8 In. For Tote Lifters YellowWeight Capacity (lbs): 3000
Attachment Method: Bolt on		36

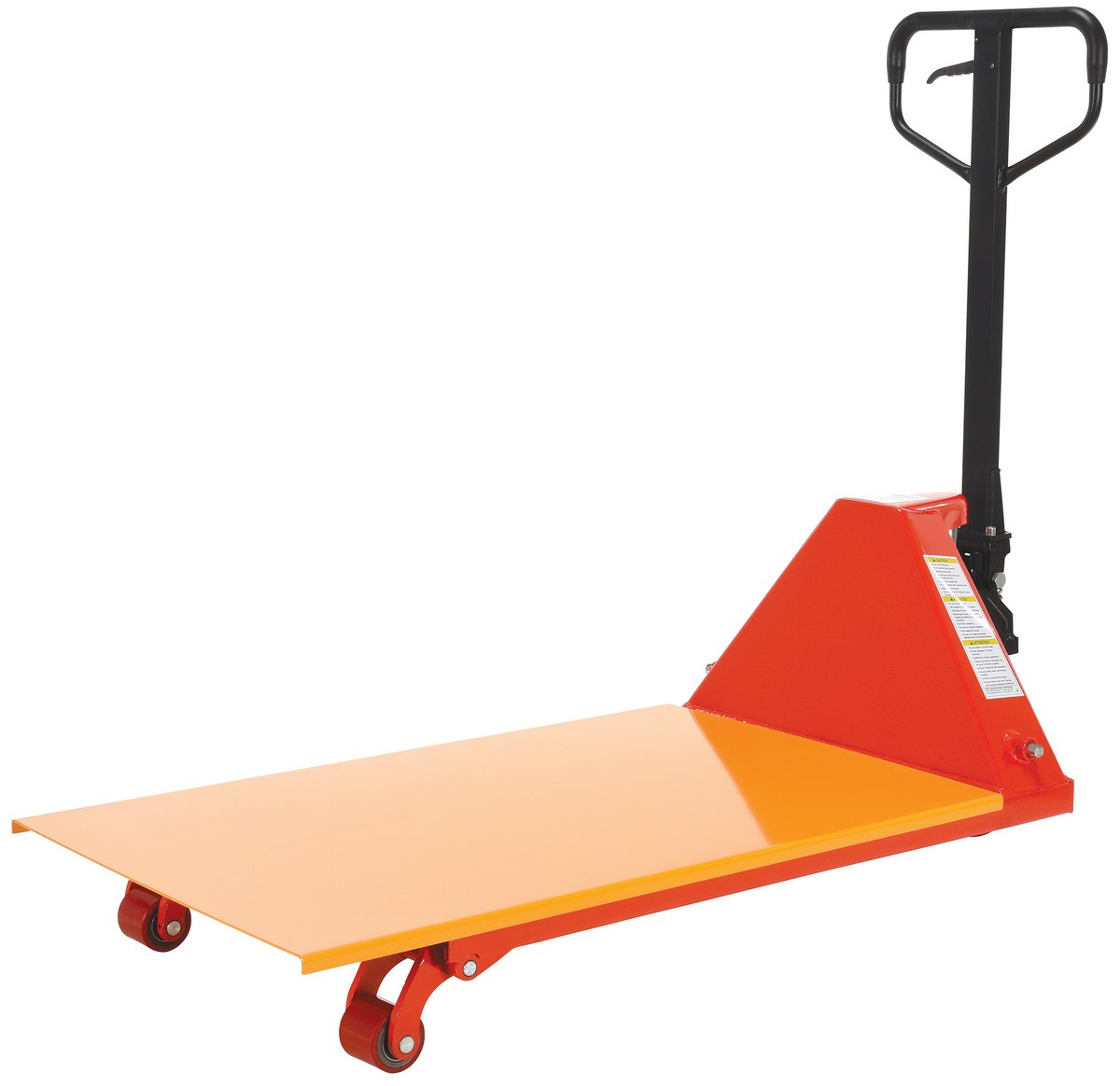

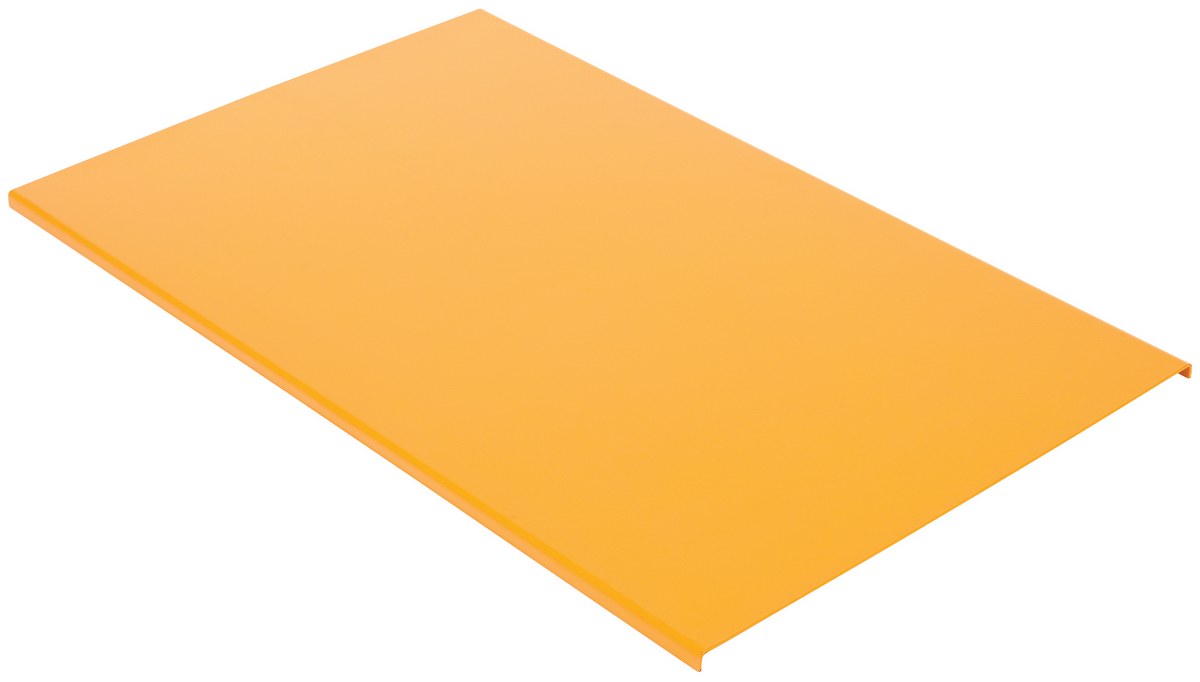

L-PLATE-27 L-PLATE-2730 Days Limited WarrantySteel Solid Platform 43-7/8 In. x 27-3/4 In. x 7/8 In. For Tote Lifters YellowWeight Capacity (lbs): 2200
Attachment Method: Bolt on		48

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Tote Lifters PDF's will open in a new window when clicked.

Manuals


L-220-DC, L-270-DC
Owners Manual

L-220-HD & L-270-HD
Owners Manual

L-27
Owners Manual

L-220, -270-DC, 04-'04 mfr's%20owner'
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


L-220-DC-HD

L-220-HD

L-270-DC-HD

L-270-DC-HD-SS

L-270-HD

L-270-HD-SS

Testing Certificates


L-220-DC-HD

L-220-HD

L-270-DC-HD

L-270-DC-HD-CTD

L-270-DC-HD-SS

L-270-HD

L-270-HD-SS

L-PLATE-20

L-PLATE-27

SDS Sheets


Non-Spillable Lead Acid Battery SDS Sheet for: L-220-DC-HD
Hydraulic Oil SDS Sheet for: L-220-DC-HD
Hydraulic Oil SDS Sheet for: L-220-HD
Hydraulic Oil SDS Sheet for: L-270-DC-HD

MSE Valve Regulated Lead Acid Battery Series SDS Sheet for: L-270-DC-HD-SS
Hydraulic Oil SDS Sheet for: L-270-DC-HD-SS
Hydraulic Oil SDS Sheet for: L-270-DP-HD
Hydraulic Oil SDS Sheet for: L-270-HD
Hydraulic Oil SDS Sheet for: L-270-HD-SS

Lvdao battery SDS Sheet for: L-270-DP-HD

Lvdao battery SDS Sheet for: L-270-DC-HD

MSE Valve Regulated Lead Acid Battery Series SDS Sheet for: L-270-DC-HD

Other PDF's


DC Tote Lifter with Traction Drive Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does the L-220-DC-HD have a battery charge indicator on it?

A: The L-220-DC-HD and the L-270-DC-HD come standard with a battery charge indicator.

Q: What is the run time for the pallet jack? How long should a pallet jack battery be charged for without causing damage?

A: Run time depends on the load being lifted but approximately 3-6 hours intermittently. Battery charger will turn off and on automatically as to avoid over charging.

Q: What is the volume of oil inside the hydraulic cylinder of the L-220-HD?

A: The volume of oil is .75 quart.

Q: Can the lift trucks be pushed while in the raised height?

A: No they cannot.

Q: What is the measurement of the "mast" (the triangular piece at the back of the forks)?

A: The "mast" is 18" tall.

Q: What's the space between the forks?

A: Overall fork width is 26.75". Approx. 13 1/4 in between forks on the L-270-DC-HD.

Q: What kind of battery is on the L-220-DC-HD?

A: The L-220-DC-HD has an AGM battery.
