Air Bag Scissor Lift Tables

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Air Bag Scissor Lift Tables

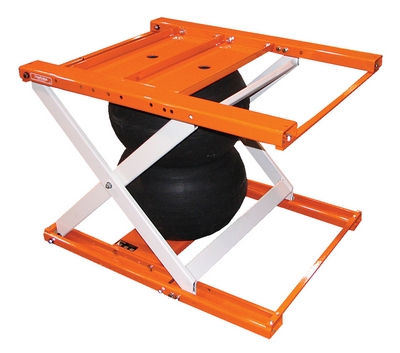

model: ABLT-H-2-32

ABLT-H-2-32_A.jpg More Images +
Air Bag Scissor Lift Tables
SERIES: ABLT

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering
Air Bag Scissor Lift Tables

model: ABLT-H-2-32

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

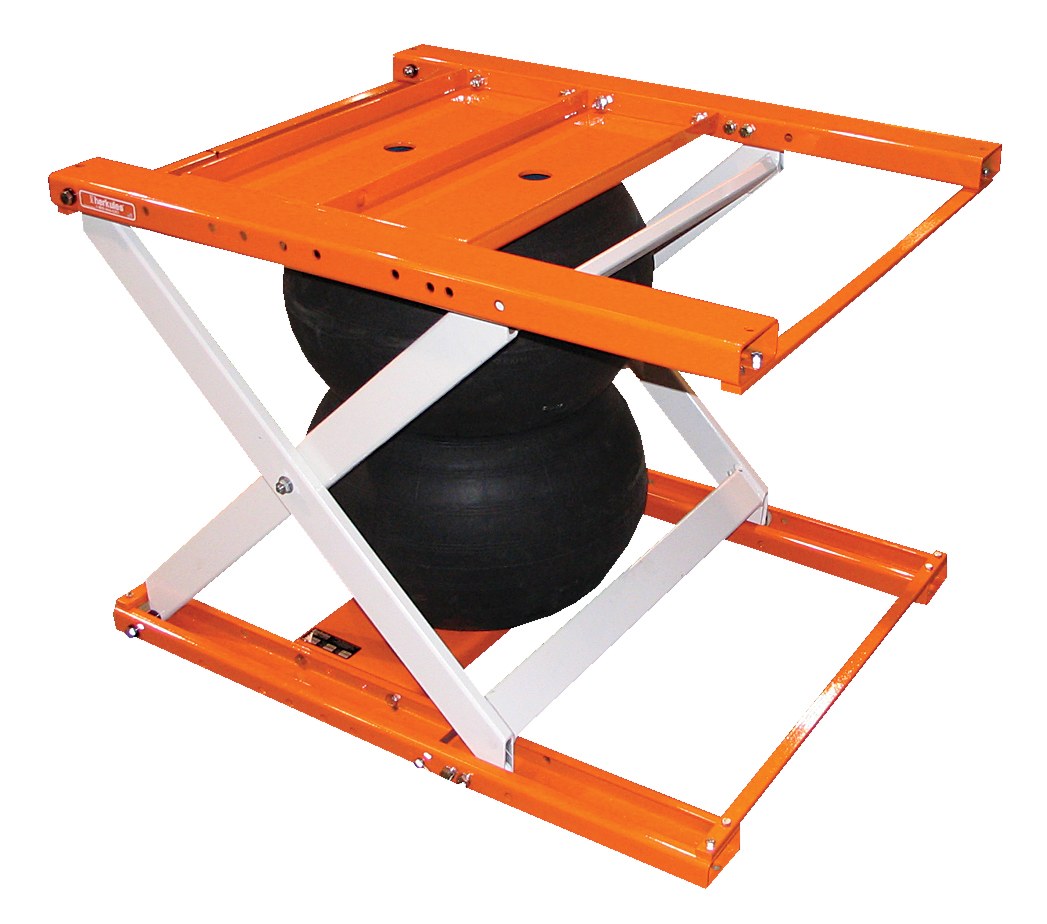

ABLT-H-1-32
ABLT-H-1-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Raised Height (in.): 32		385
ABLT-H-2-32
ABLT-H-2-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Raised Height (in.): 32		385
ABLT-H-3-32
ABLT-H-3-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Raised Height (in.): 32		385
ABLT-H-4-32
ABLT-H-4-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Raised Height (in.): 32		385

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ABLT-H-1-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32

ABLT-H-2-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32

ABLT-H-3-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32

ABLT-H-4-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

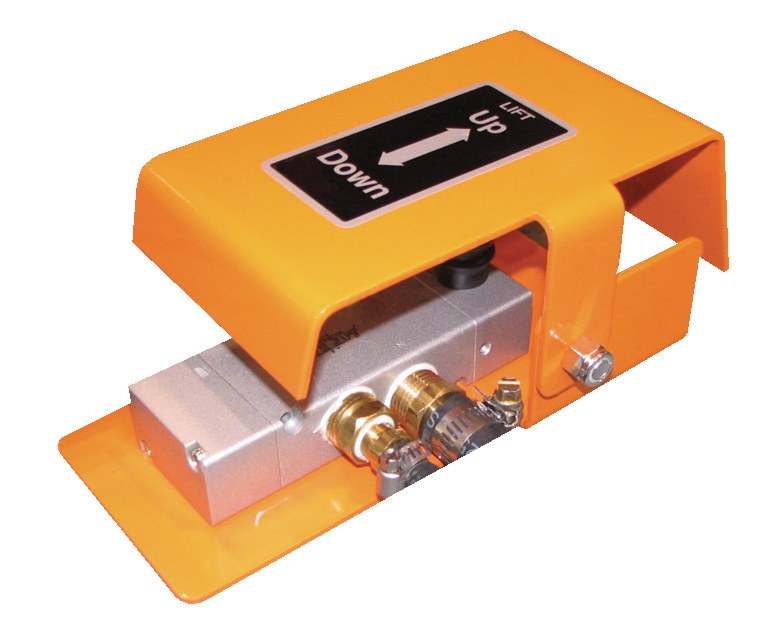

ABLT-H-FC ABLT-H-4-32Factory Installed Steel Foot Pedal Control For Air Bag Sciss… Limited Warranty
25

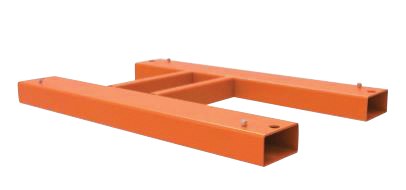

ABLT-H-FP ABLT-H-4-32Factory Installed Steel Fork Pockets For Air Bag Scissor Lif… Limited Warranty
80

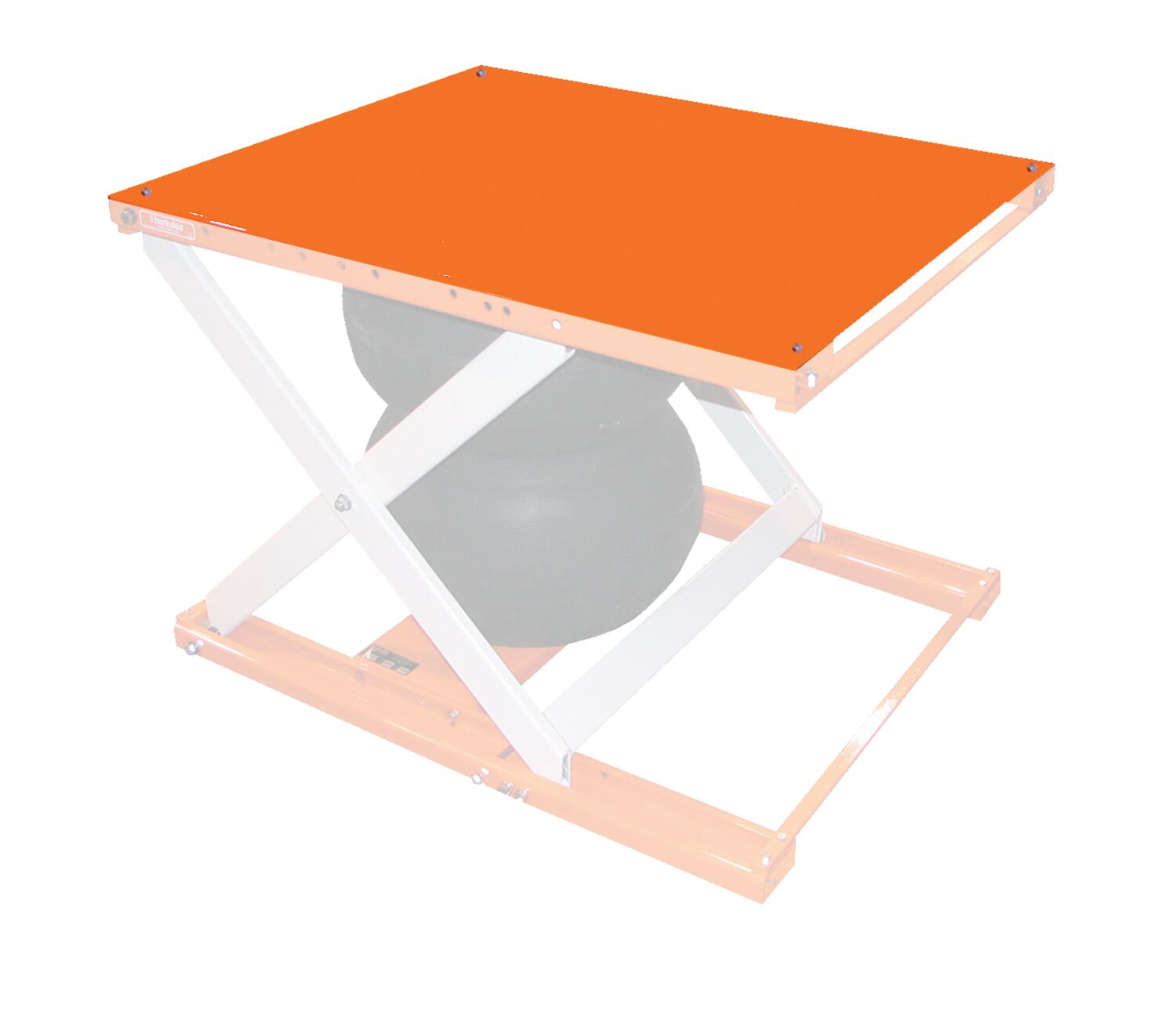

ABLT-H-P-3648 ABLT-H-4-32Factory Installed Steel 48 In. x 36 In. Solid Platform For A… Limited Warranty
135
ABLT-H-P-4848 ABLT-H-4-32Factory Installed Steel 48 In. x 48 In. Solid Platform For A… Limited Warranty
175
ABLT-H-P-4848-4K ABLT-H-4-32Factory Installed Steel 48 In. x 48 In. Solid Platform For A… Limited Warranty
335

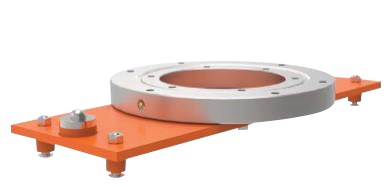

ABLT-H-RP-ND ABLT-H-4-32Steel Manual Rotation Carousel Addition No Detent For Air Ba… Limited Warranty
50
ABLT-H-RP-SD ABLT-H-4-32Steel Manual Rotation Carousel Addition With Detent For Air … Limited Warranty
50


Safety Accordion Skirt

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

ABLT-H

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

ABLT-H-1-32

ABLT-H-2-32

ABLT-H-3-32

ABLT-H-4-32

Testing Certificates

ABLT-H-2-32

ABLT-H-4-32

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:





Air Bag Scissor Lift Tables




Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering

Model # Description Attributes Net Wt.
(lbs)
ABLT-H-1-32 ABLT-H-1-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Raised Height (in.): 32		385
ABLT-H-2-32 ABLT-H-2-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Raised Height (in.): 32		385
ABLT-H-3-32 ABLT-H-3-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Raised Height (in.): 32		385
ABLT-H-4-32 ABLT-H-4-32Steel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Raised Height (in.): 32		385

Options



Safety Accordion Skirt
