Zero Lift & Tilt Tables

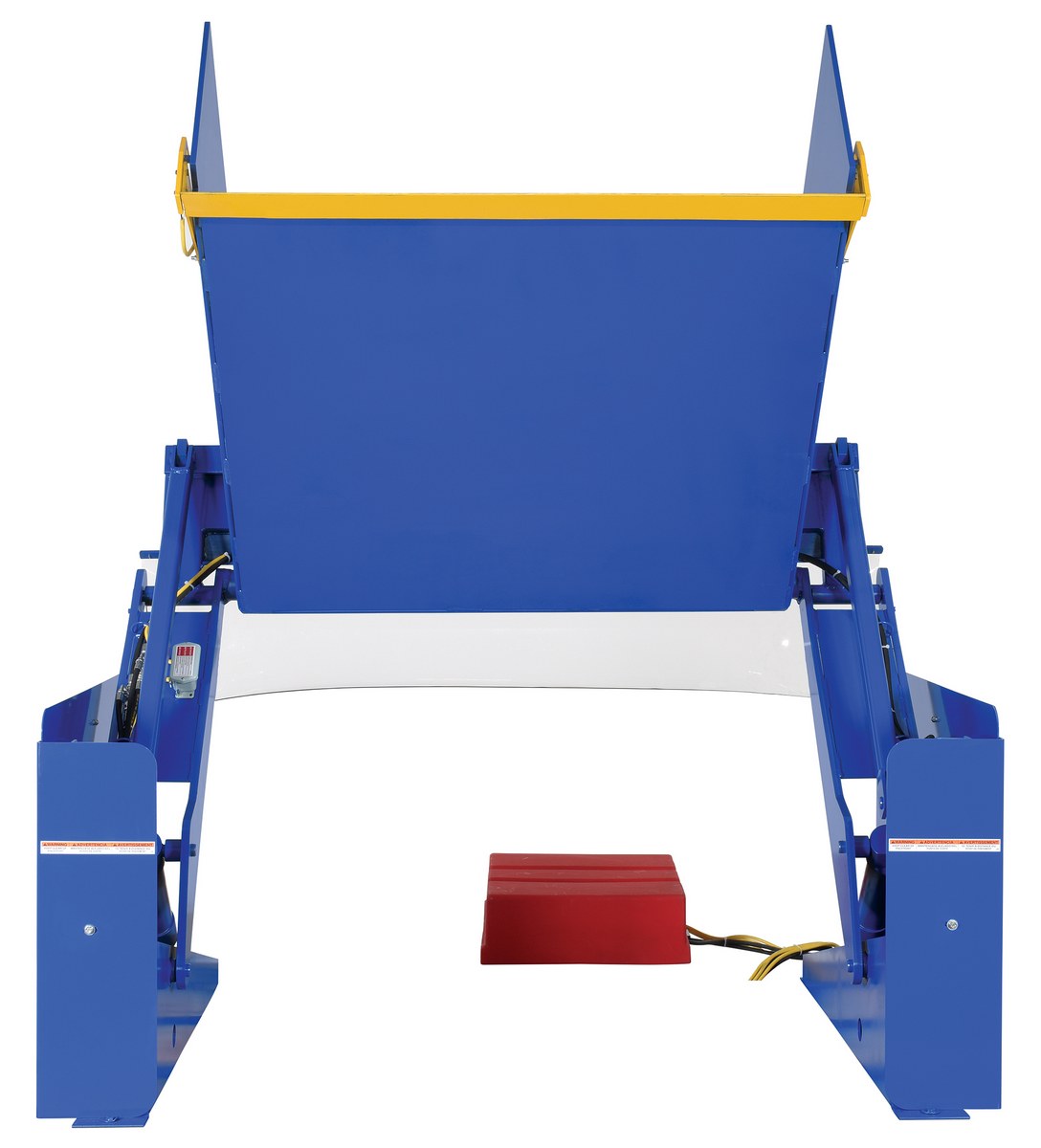

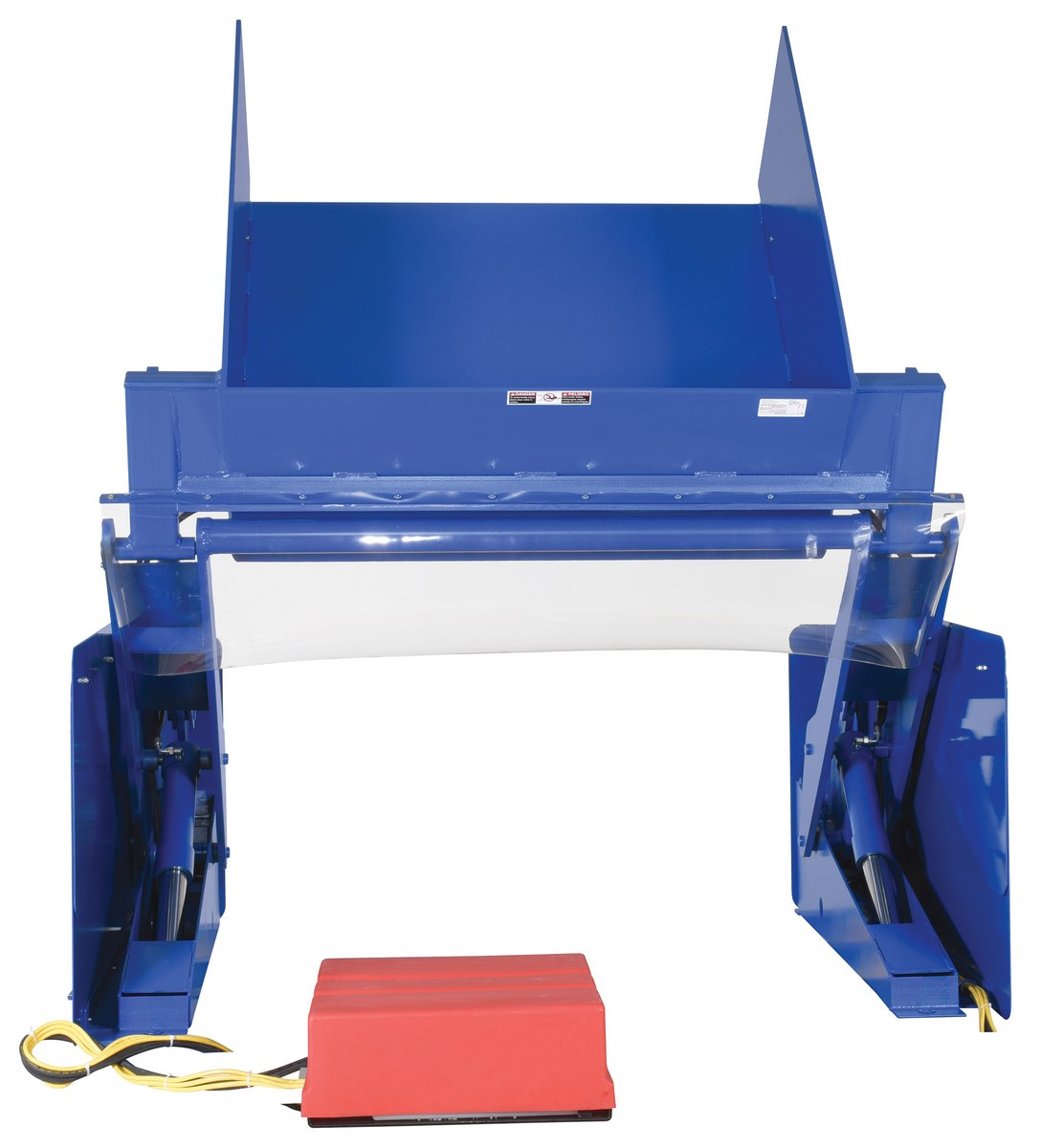

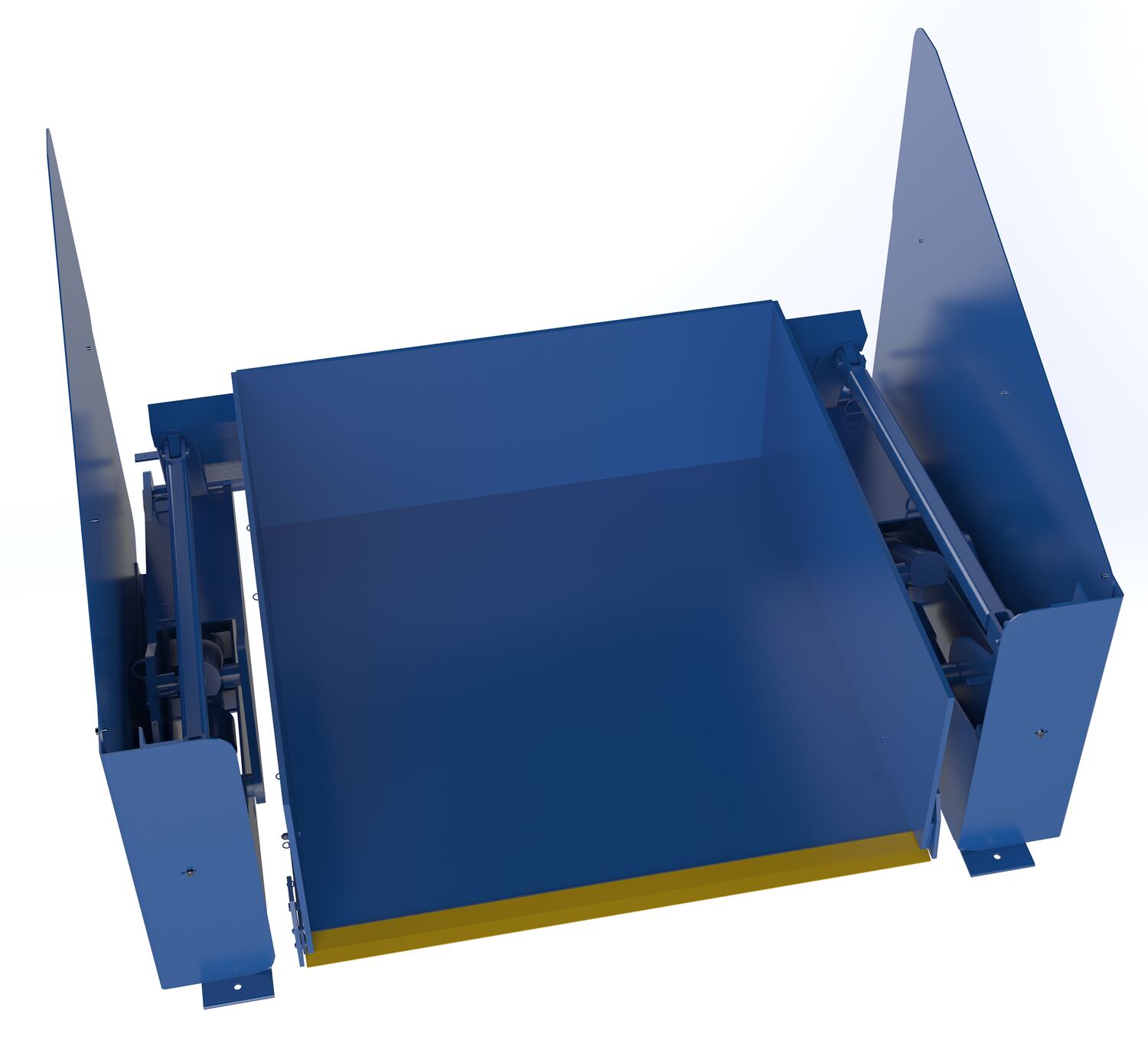

model: ZLTT-5252-2-36

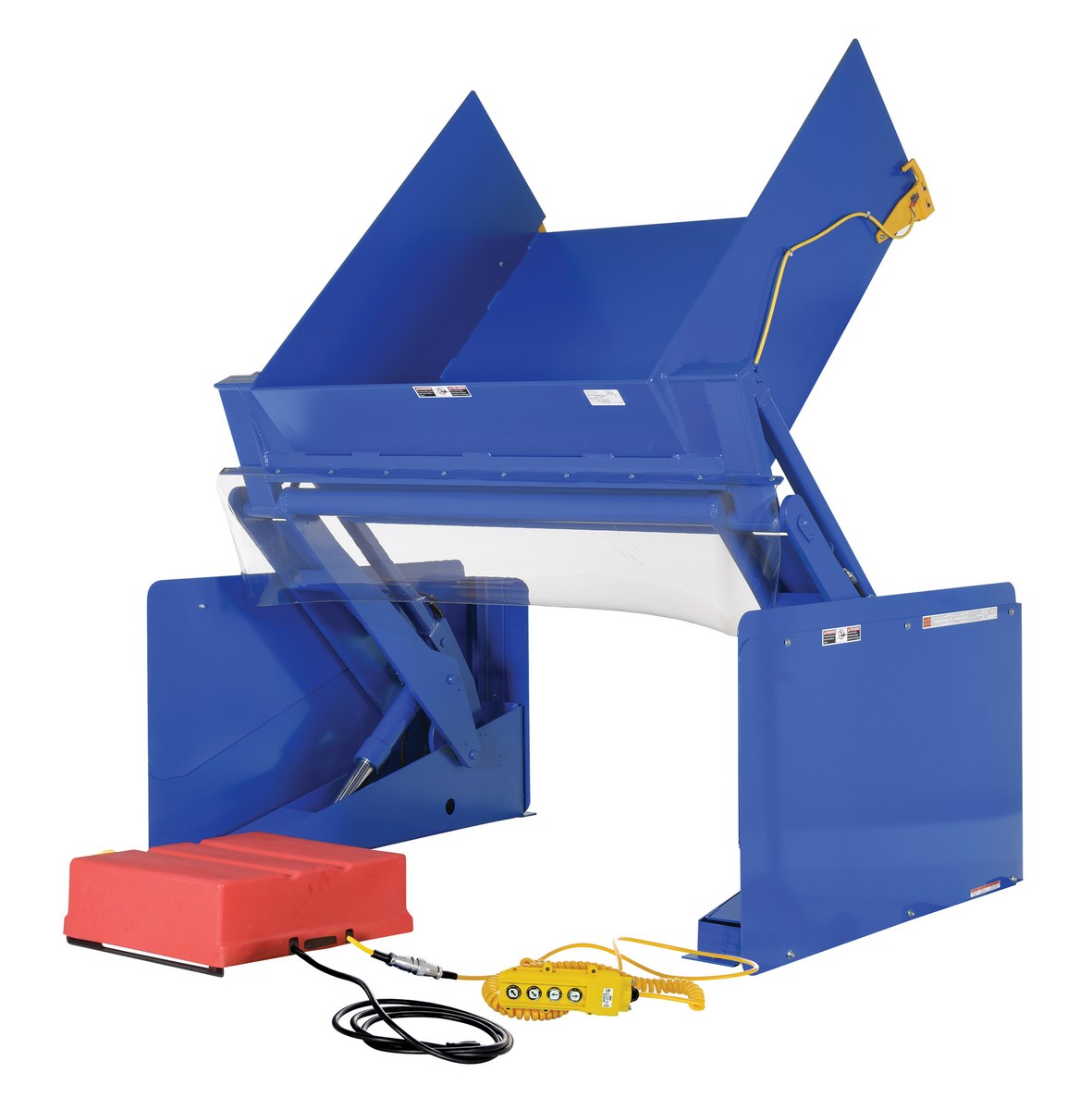

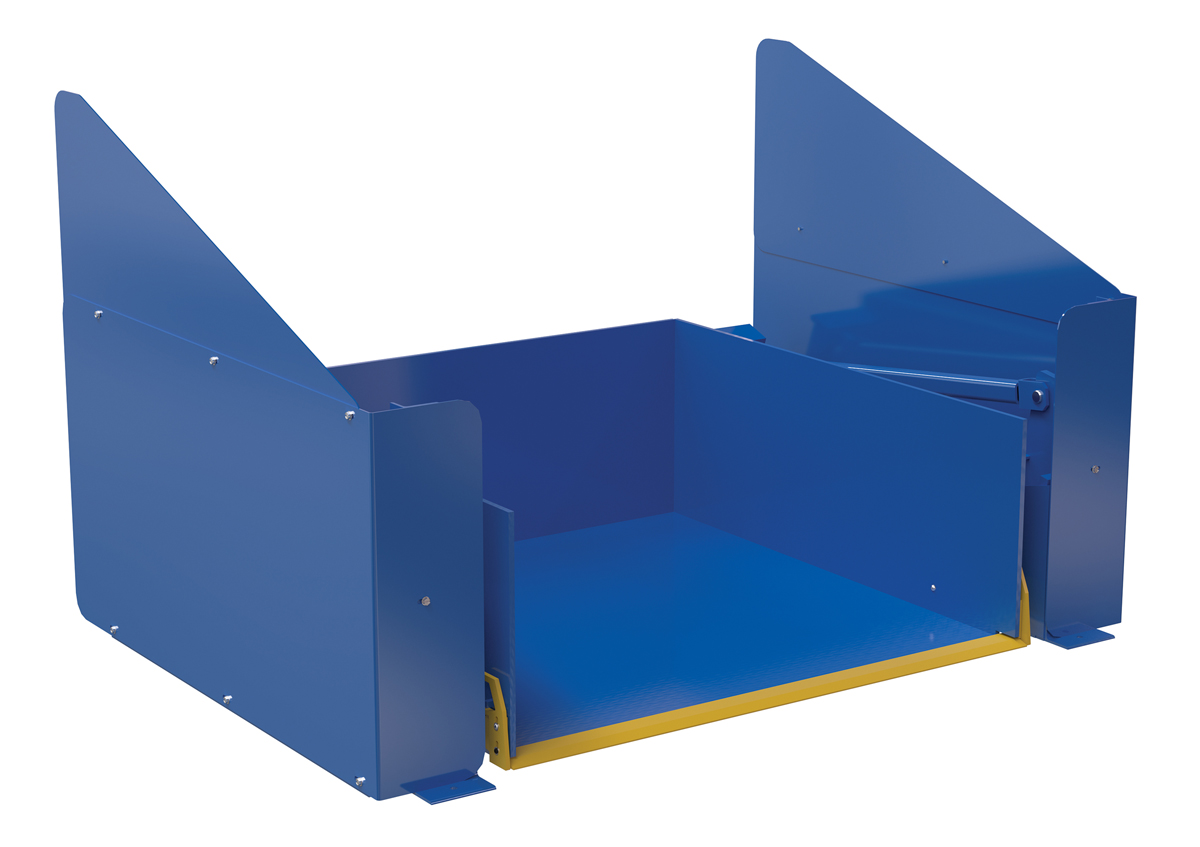

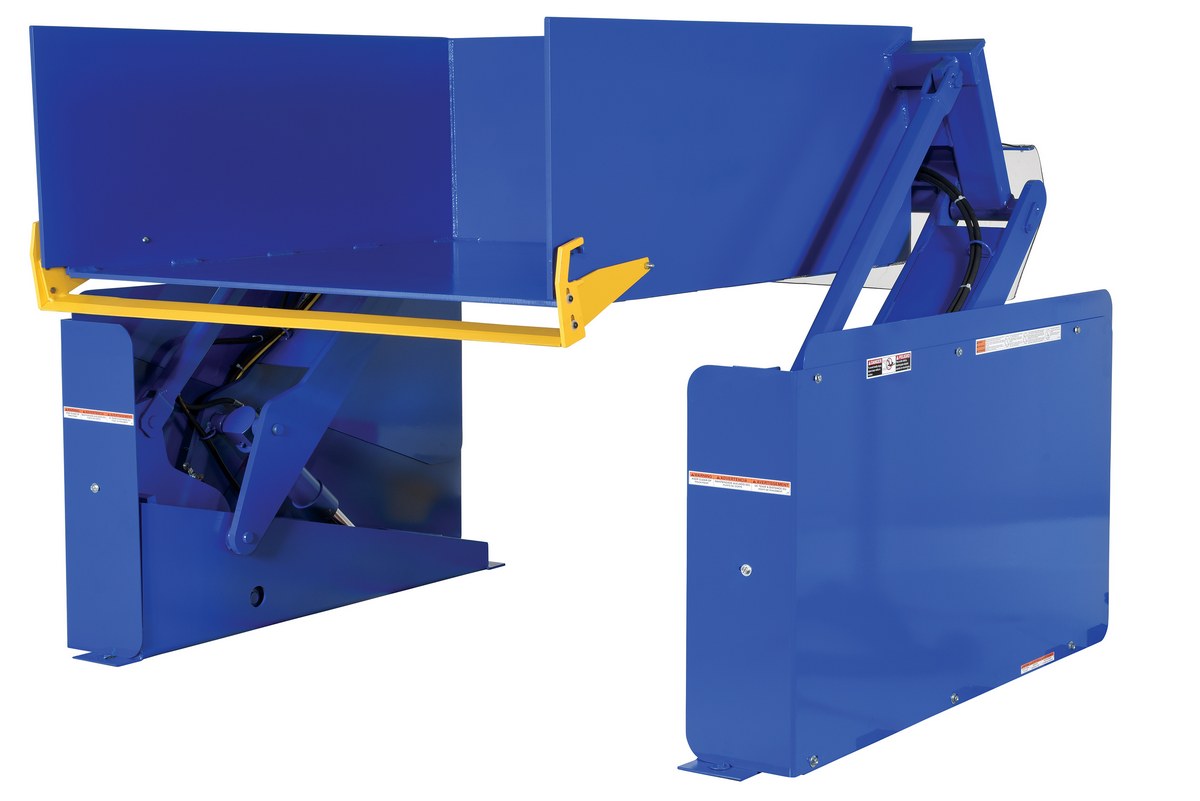

ZLTT-5252-2-36_A.jpg ZLTT-5252-2-36_B.jpg ZLTT-5252-2-36_C.jpg ZLTT-5252-2-36_D.jpg ZLTT-5252-2-36_E.jpg More Images +
Zero Lift & Tilt Tables
SERIES: ZLTT

ZLTTThe zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Maximum tilt angle is 45 degrees. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.

  • 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
  • Lift and tilt options are controlled separately allowing a precise working angle for the employee
  • No pit mounting required makes installation quick and easy
  • Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Zero Lift & Tilt Tables

model: ZLTT-5252-2-36

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ZLTT-4452-2-36

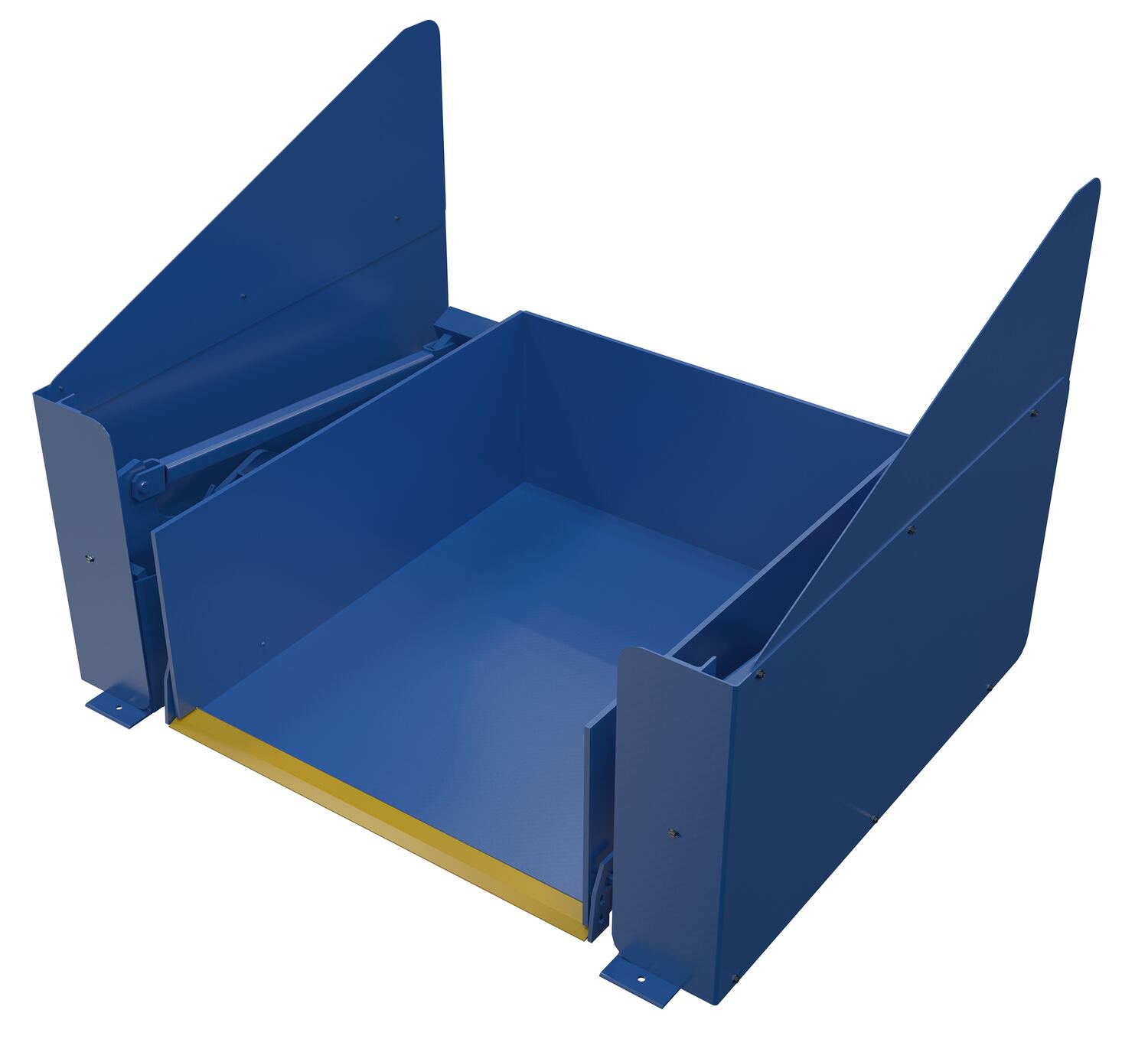

ZLTT-4452-2-361 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 36		2121
ZLTT-4452-4-36

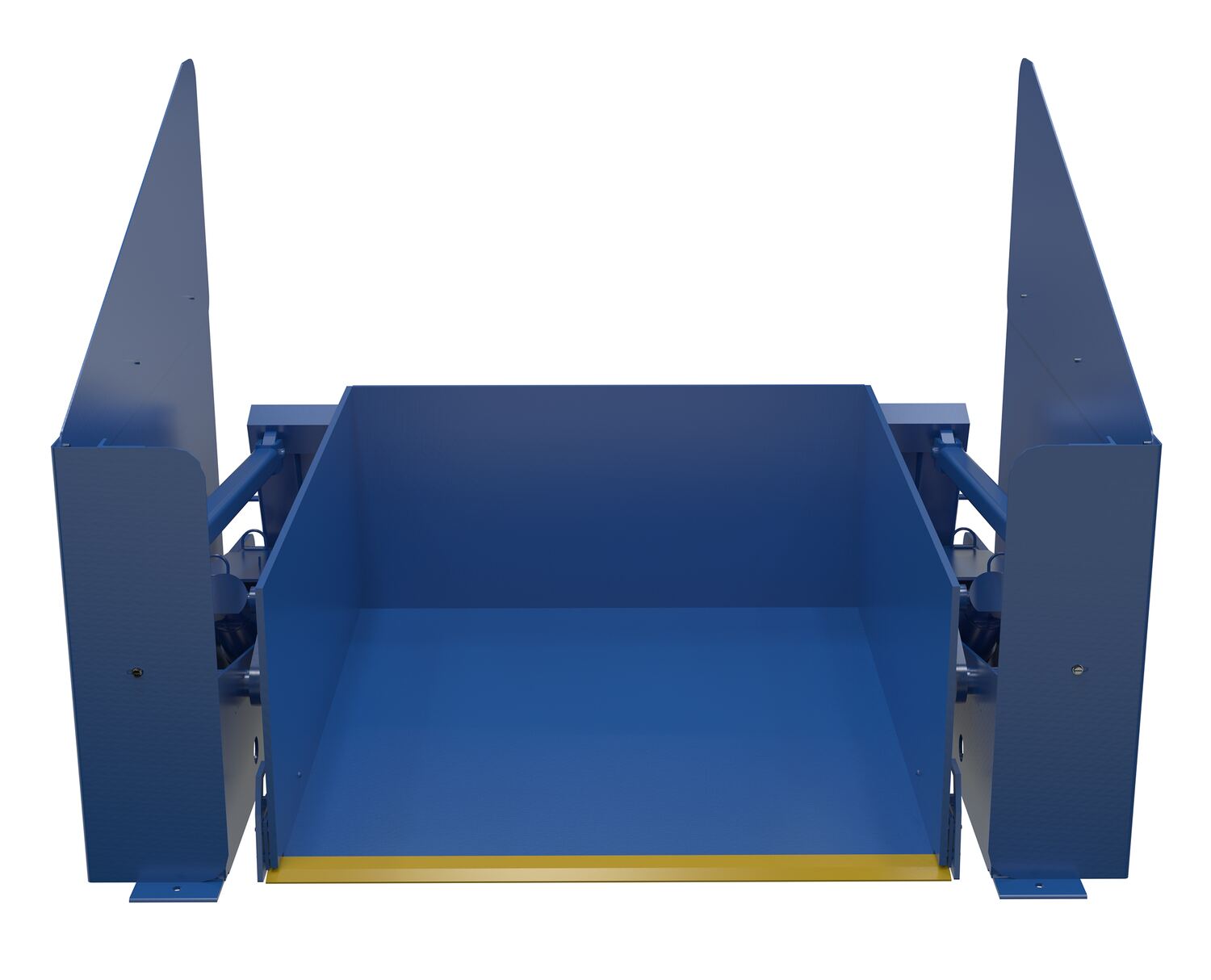

ZLTT-4452-4-361 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2230
ZLTT-4472-2-48

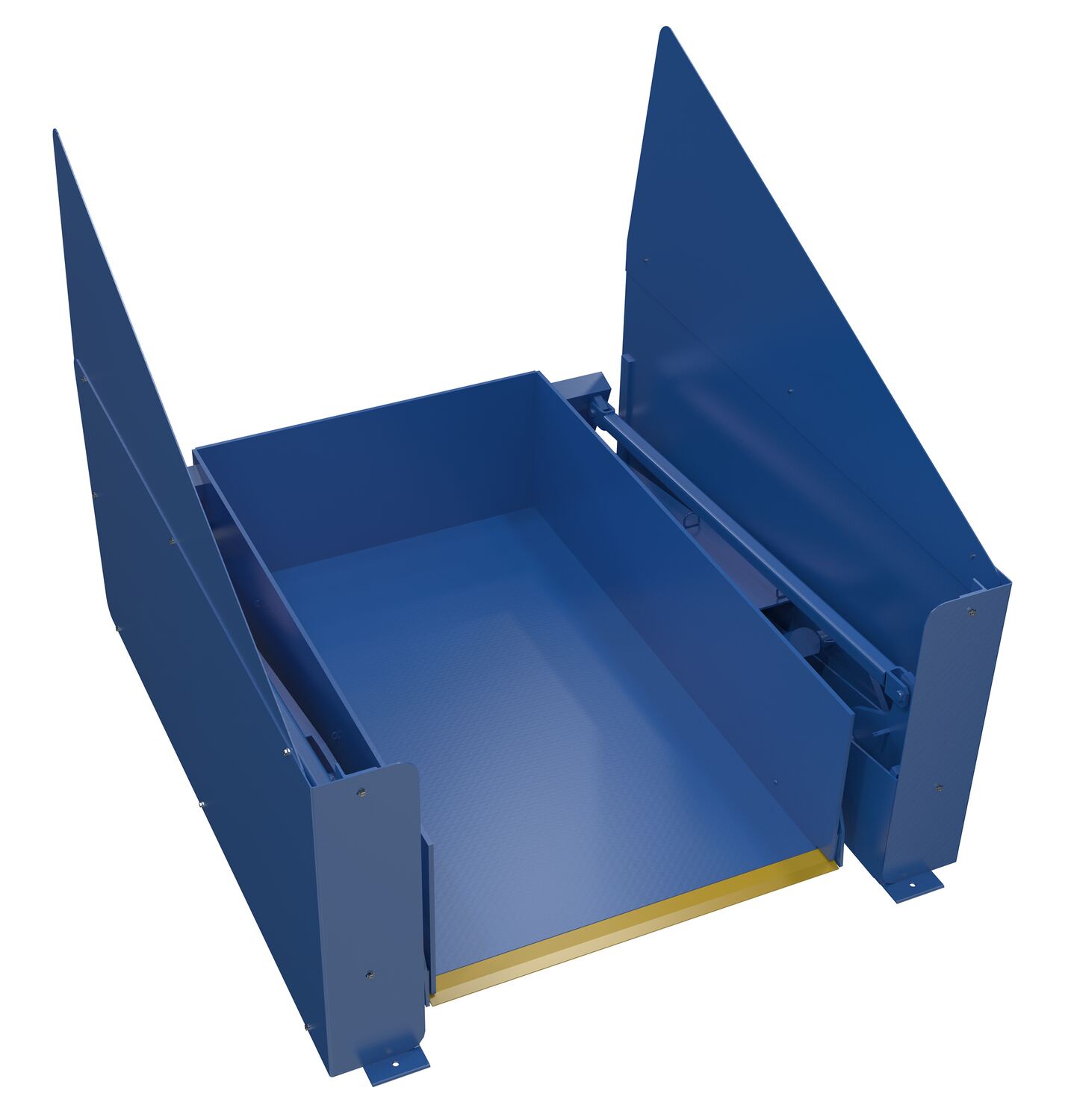

ZLTT-4472-2-481 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		2950
ZLTT-4472-4-48

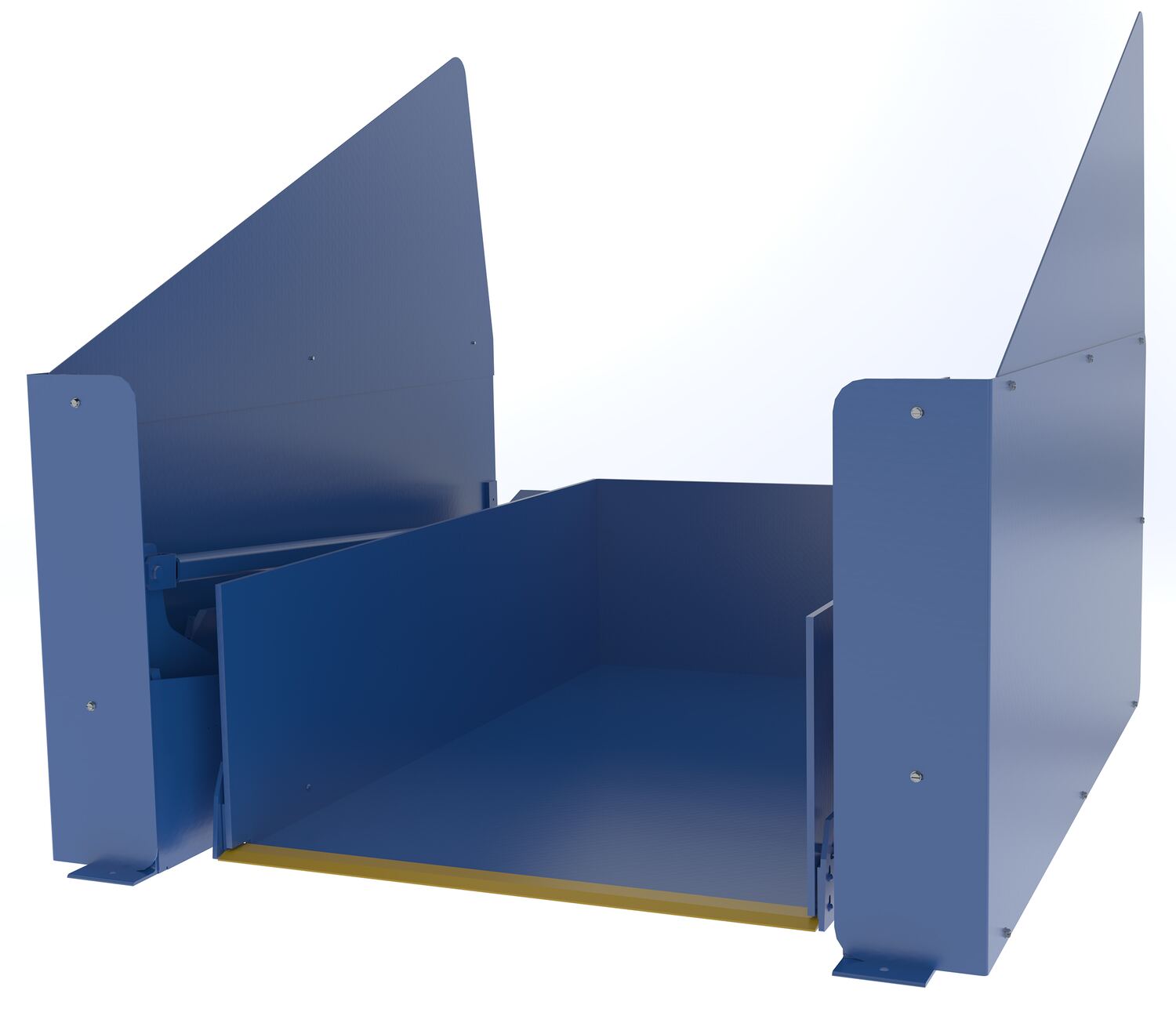

ZLTT-4472-4-481 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3013
ZLTT-5252-2-36
ZLTT-5252-2-361 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 36		2337
ZLTT-5252-4-36 POPULAR
ZLTT-5252-4-361 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2322
ZLTT-5272-2-48

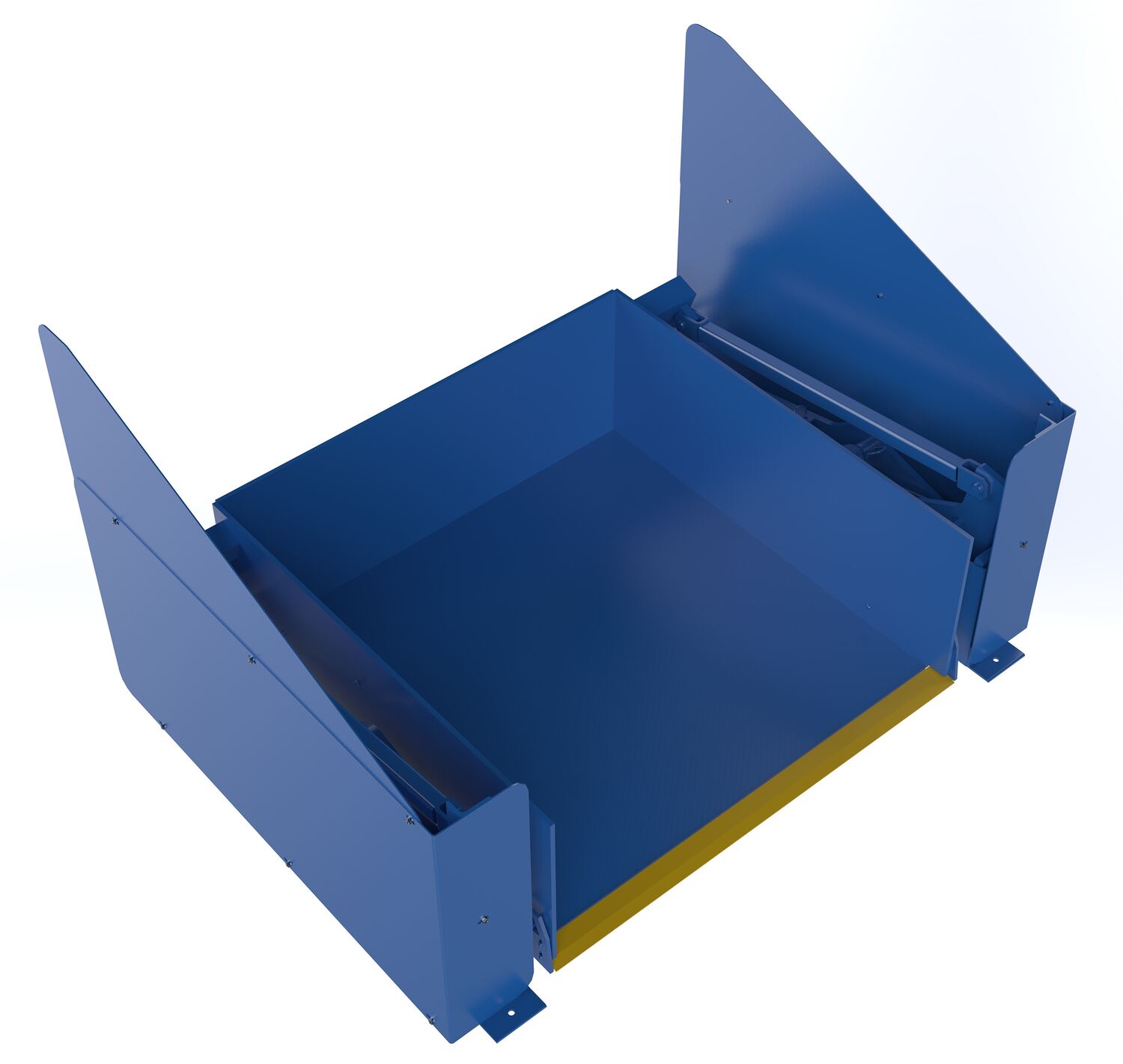

ZLTT-5272-2-481 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		3095
ZLTT-5272-4-48

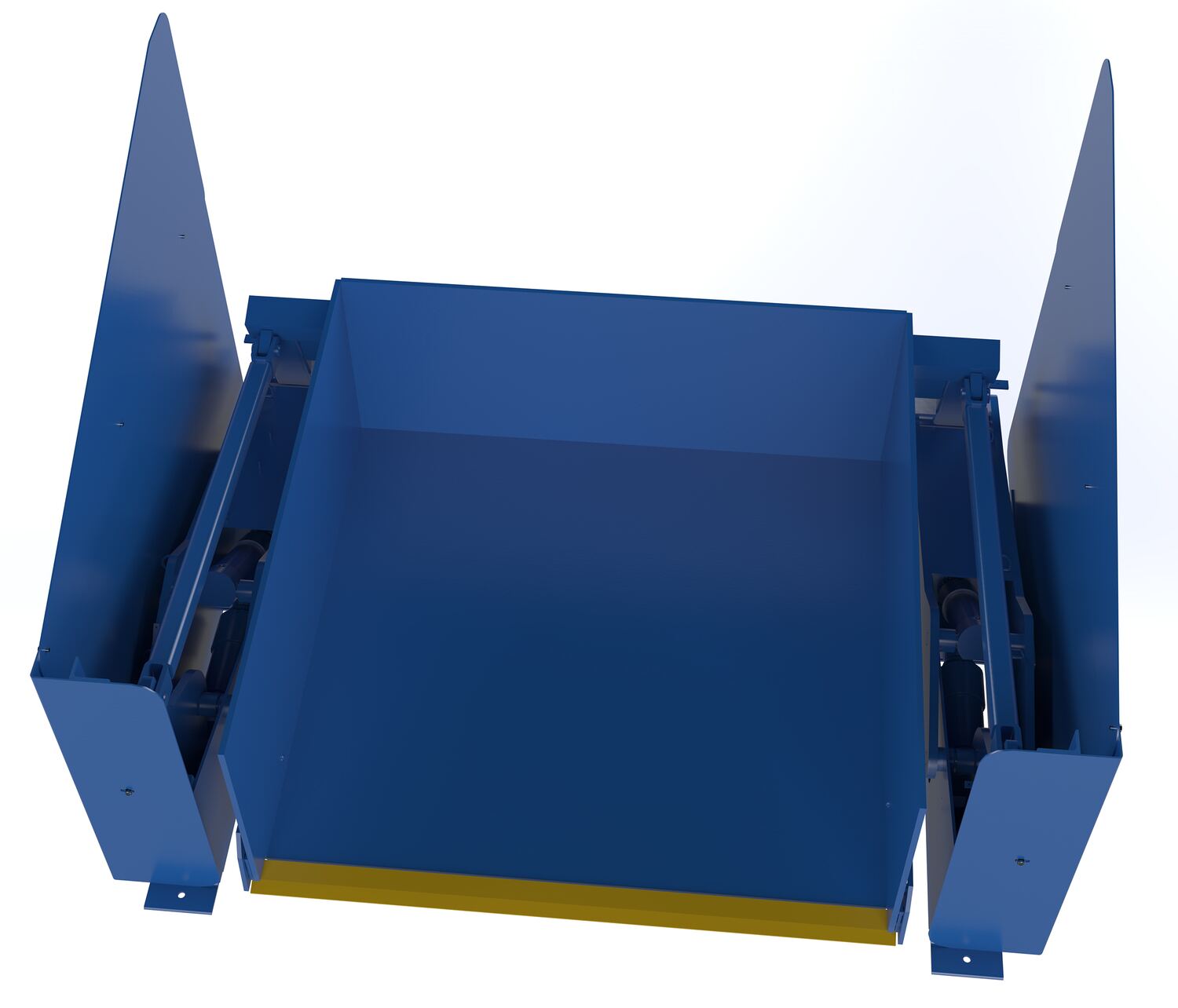

ZLTT-5272-4-481 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3074

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ZLTT-4452-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36

ZLTT-4452-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36

ZLTT-4472-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48

ZLTT-4472-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48

ZLTT-5252-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36

ZLTT-5252-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36

ZLTT-5272-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48

ZLTT-5272-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
For More Details of the Option Click the Red Model Button
No options available for this product.
Model Image Details Icons Wt.
Model Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-4PB Radio Remote Control 4-Button System (Lift and Tilt Circuit) 1
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

ZLTT

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

ZLTT-4452-2-36

ZLTT-4452-4-36

ZLTT-4472-2-48

ZLTT-4472-4-48

ZLTT-5252-2-36

ZLTT-5252-4-36

ZLTT-5272-2-48

ZLTT-5272-4-48

Testing Certificates

ZLTT-4452-2-36

ZLTT-4452-4-36

ZLTT-4472-2-48

ZLTT-4472-4-48

ZLTT-5252-2-36

ZLTT-5252-4-36

ZLTT-5272-2-48

ZLTT-5272-4-48

SDS Sheets

Hydraulic Oil
ZLTT-4452-2-36 SDS

Hydraulic Oil
ZLTT-4452-4-36 SDS

Hydraulic Oil
ZLTT-4472-2-48 SDS

Hydraulic Oil
ZLTT-4472-4-48 SDS

Hydraulic Oil
ZLTT-5252-2-36 SDS

Hydraulic Oil
ZLTT-5252-4-36 SDS

Hydraulic Oil
ZLTT-5272-2-48 SDS

Hydraulic Oil
ZLTT-5272-4-48 SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
