Machinery Skates

- - - -

Description
Model Chart
PDF's
Image Gallery

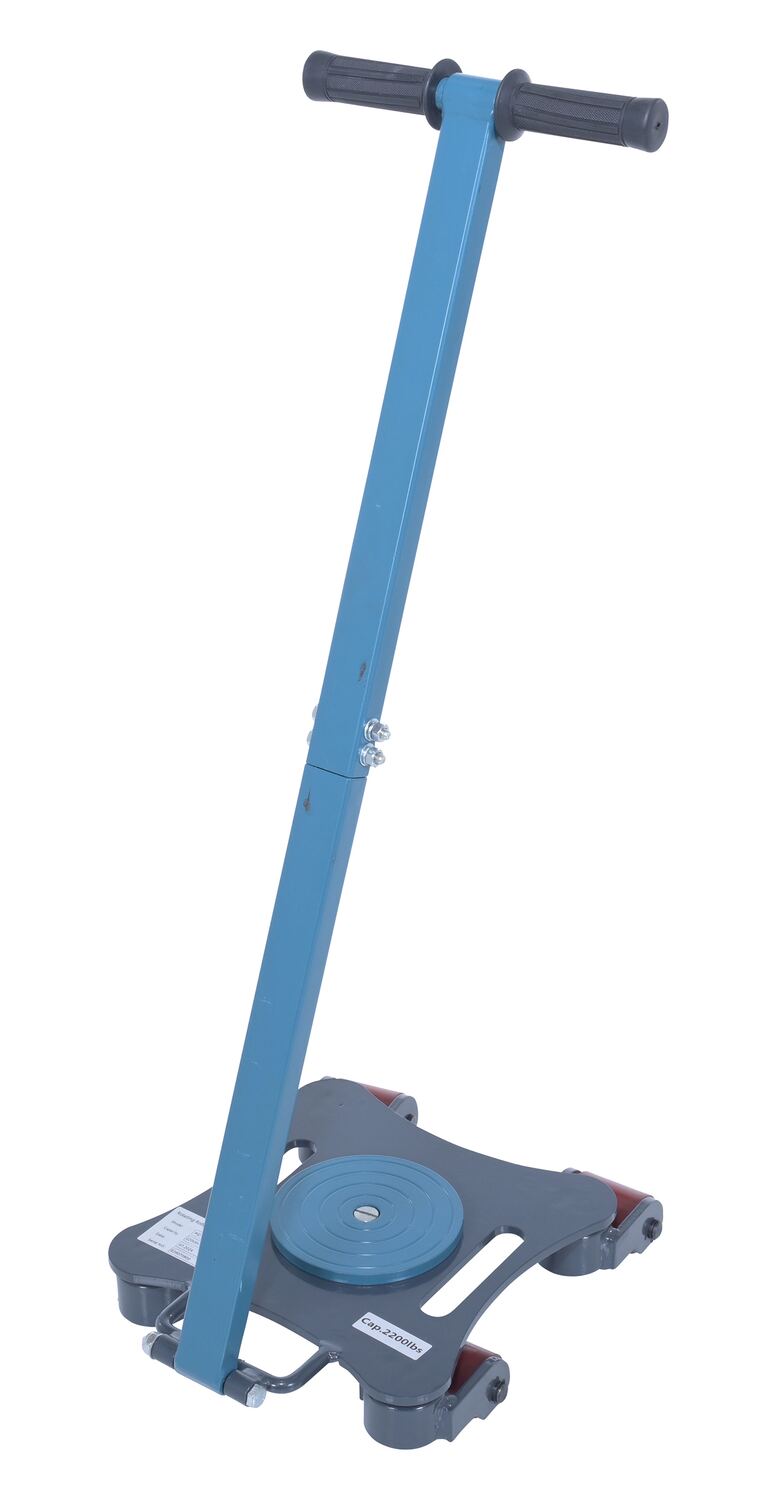

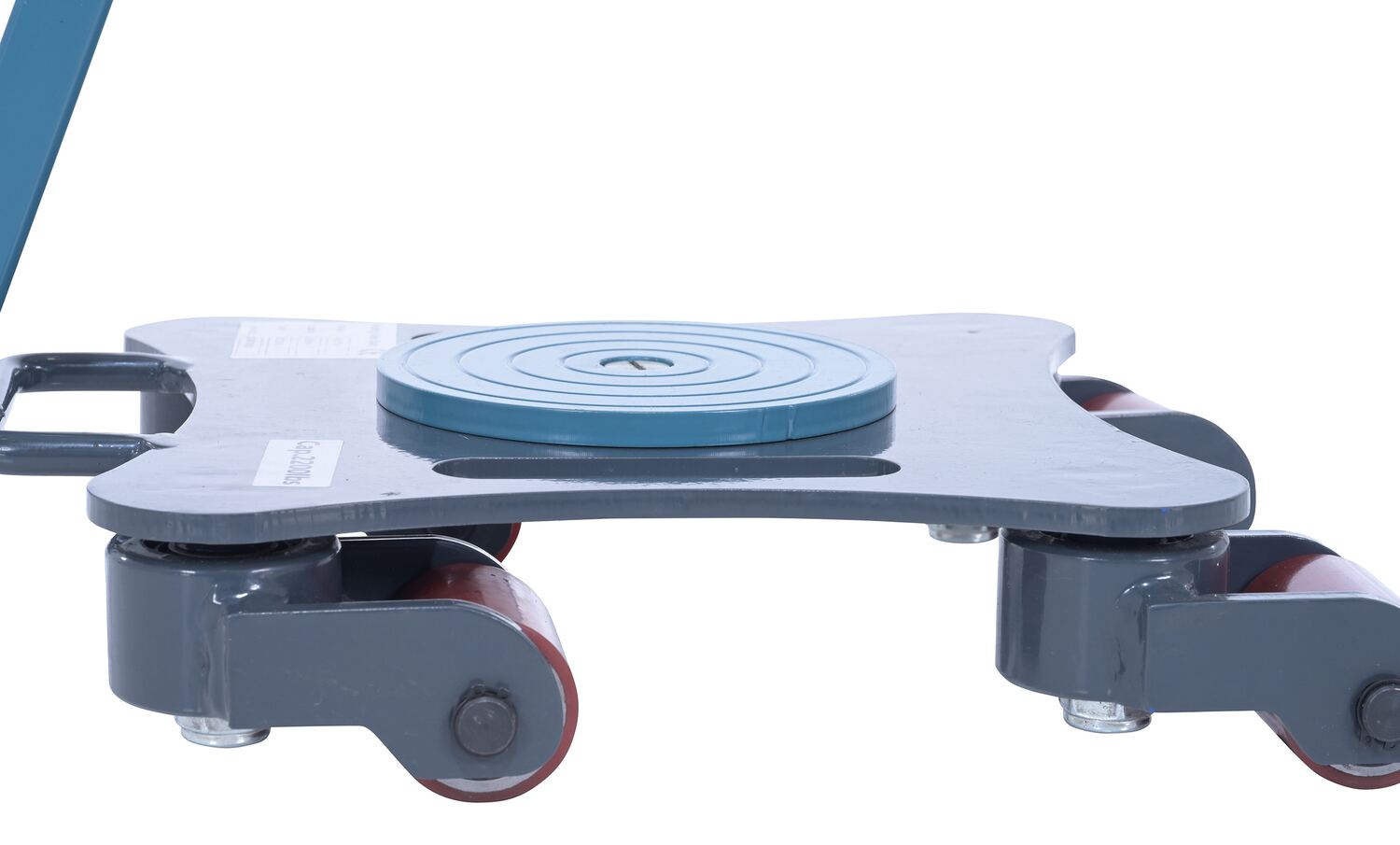

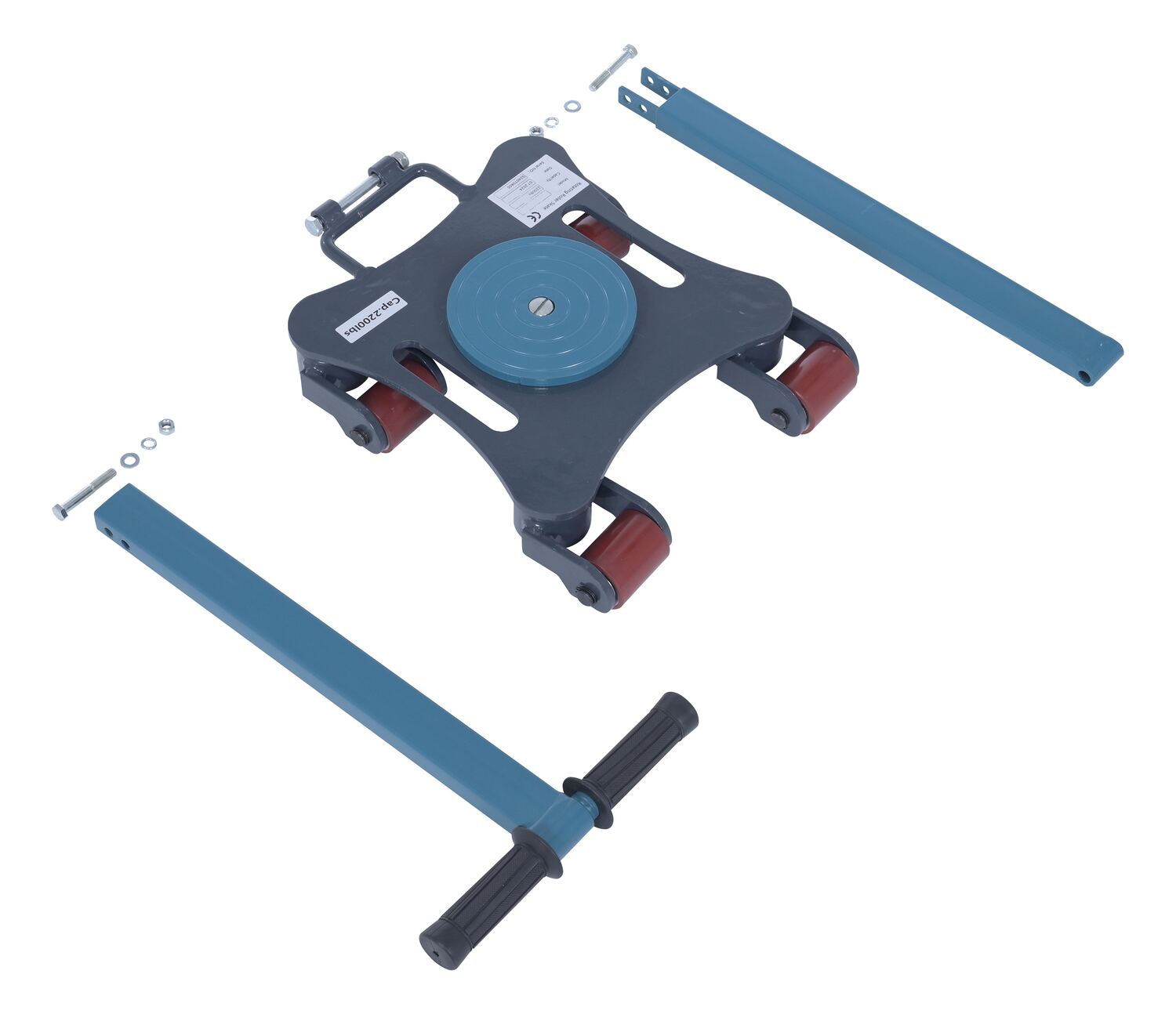

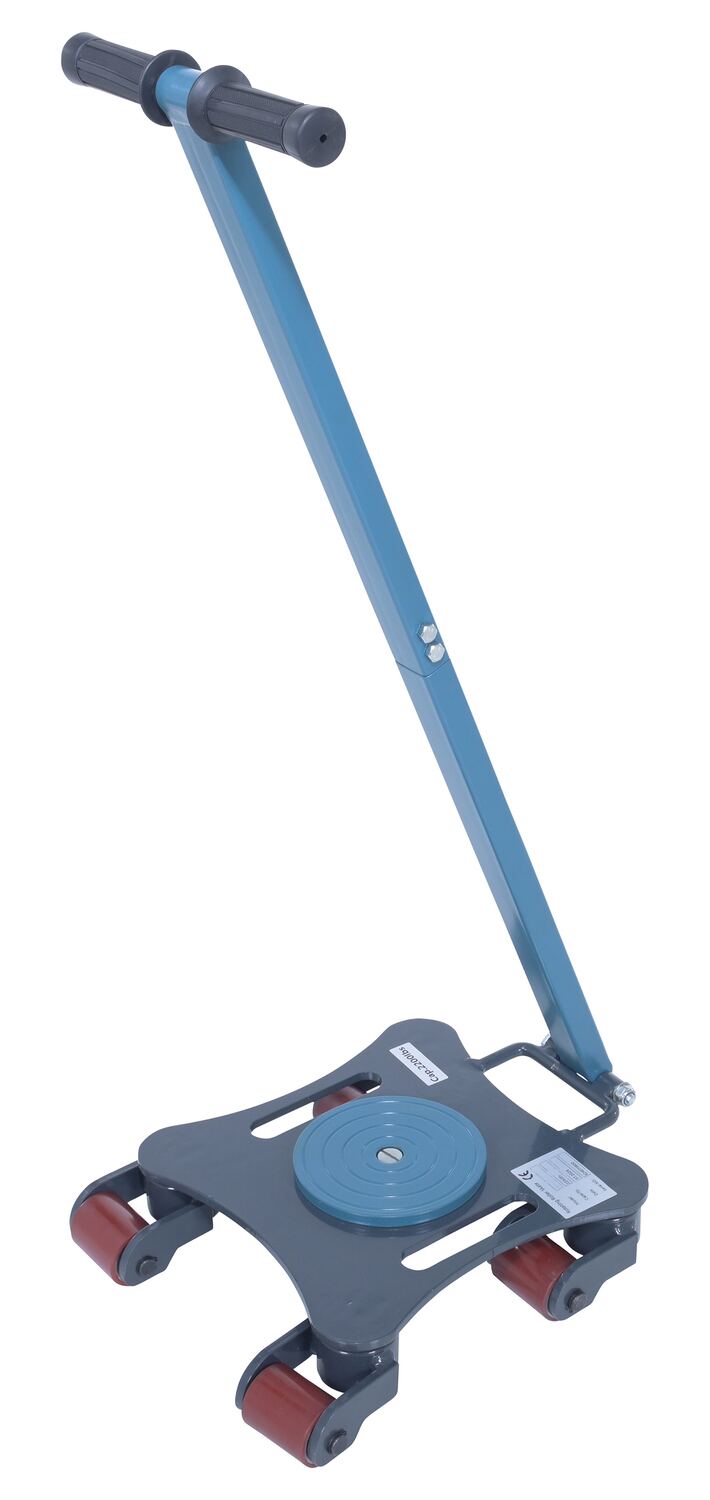

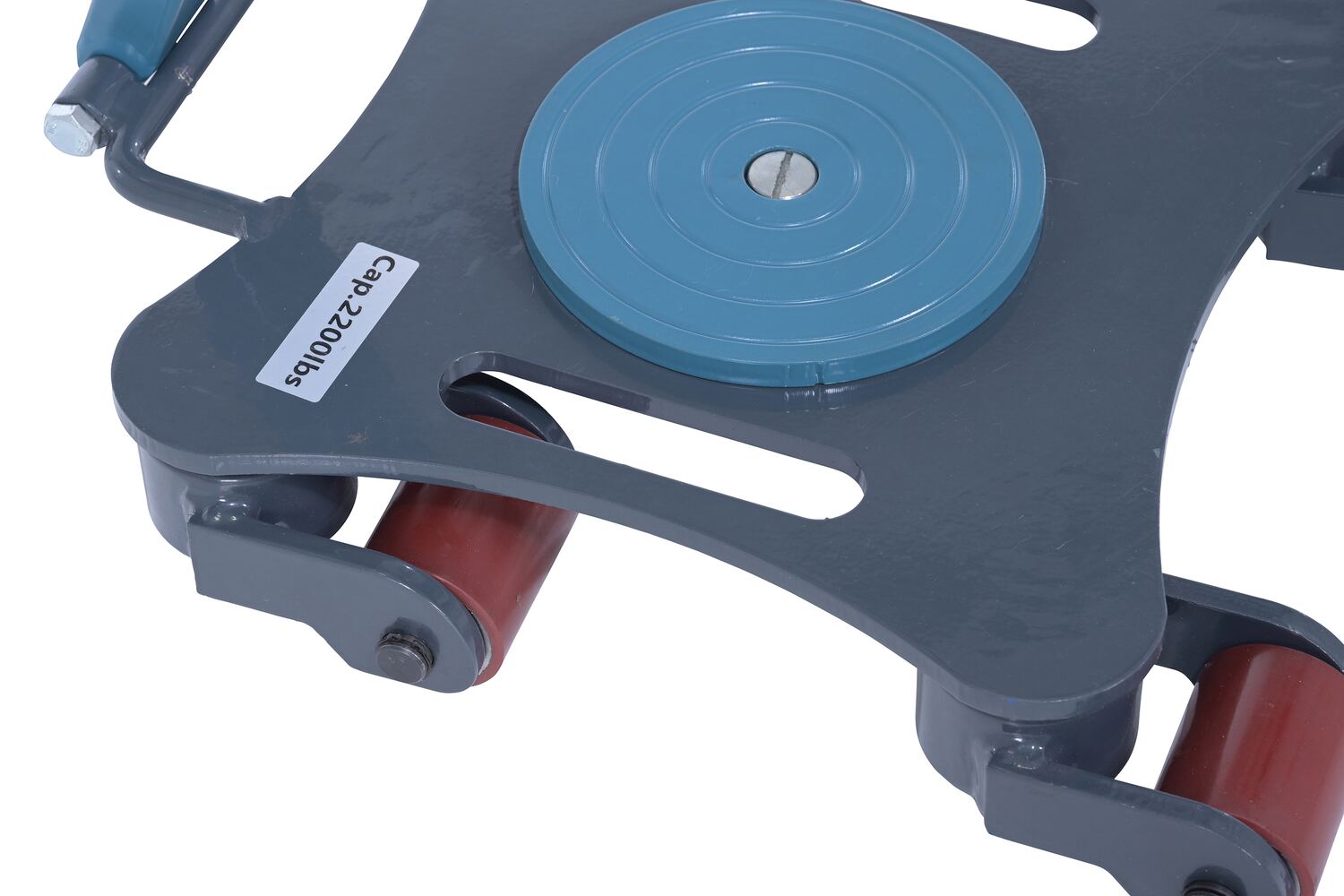

MDSKT-2_B.jpg MDSKT-2_C.jpg MDSKT-2_H.jpg MDSKT-2_G.jpg

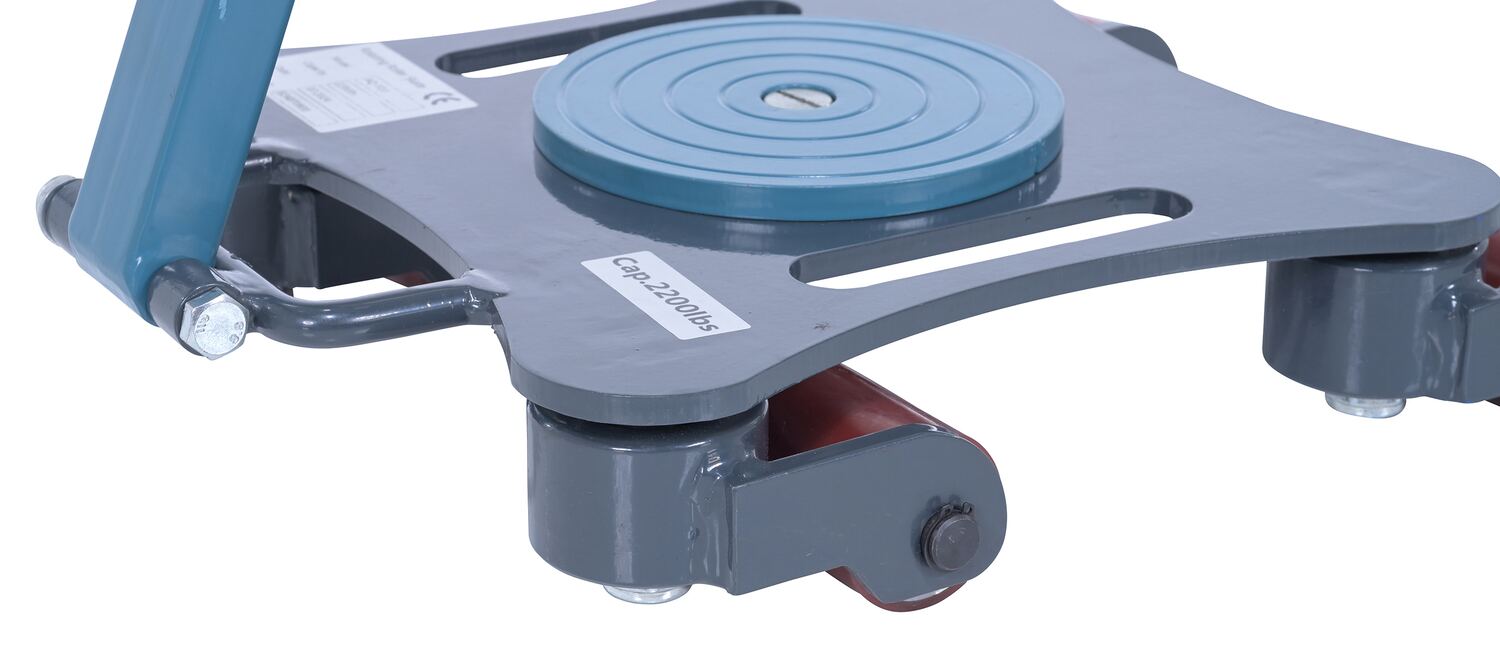

MDSKT-2_E.jpg MDSKT-2_I.jpg MDSKT-2_J.jpg MDSKT-2_K.jpg
Machinery Skates

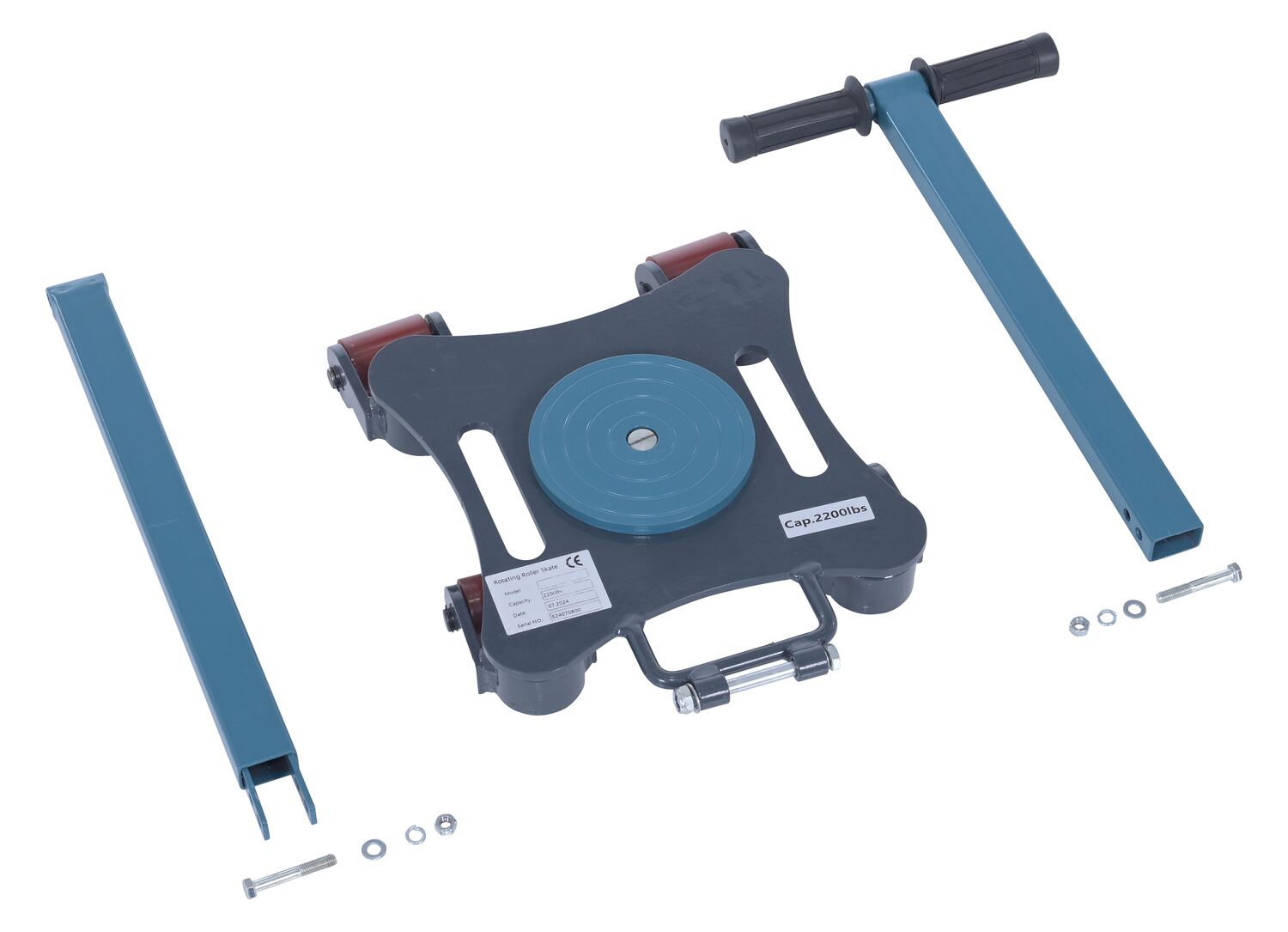

model: MDSKT-2



Machinery Skates

model: MDSKT-2

Featured Industrial Carts & Dollies


Plastic Platform Trucks with Fold Down Handle
Height Adjustable Steel Shelf Carts
Platform Trucks
Portable Carpet Dollies & Dispensers
Panel Dollies
Low Profile Floor Lock
Arctic Grip Hand Truck
Four Wheel Multi-Position Steel Hand Trucks
Gas Powered Trailer Mover
model chart

Product Family Overview

Print Friendly
Machinery Skates
SERIES: ASKT, FMS, MDSKT, SSKT

Sometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment.These skates are designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position.

Four Styles To Choose From...

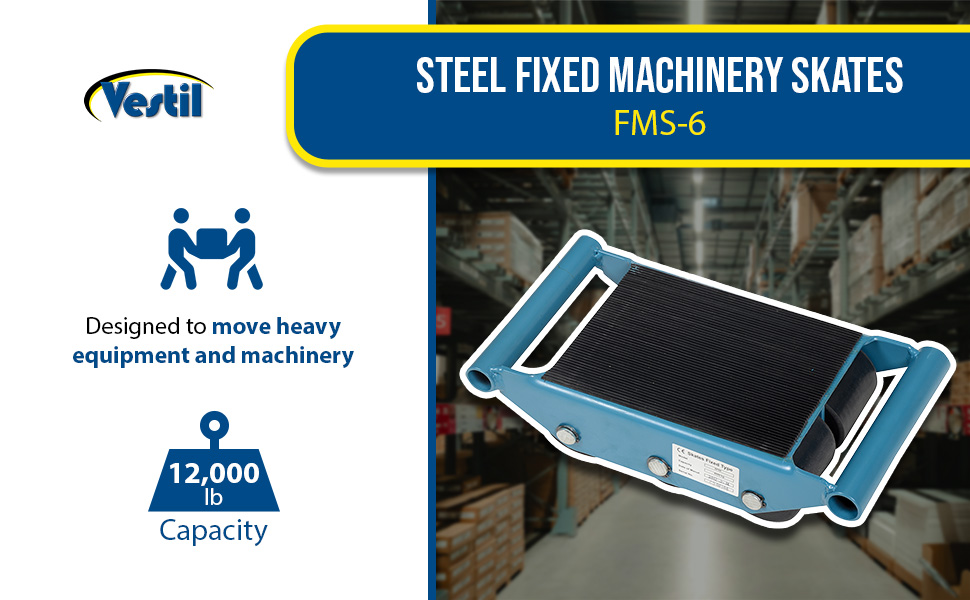

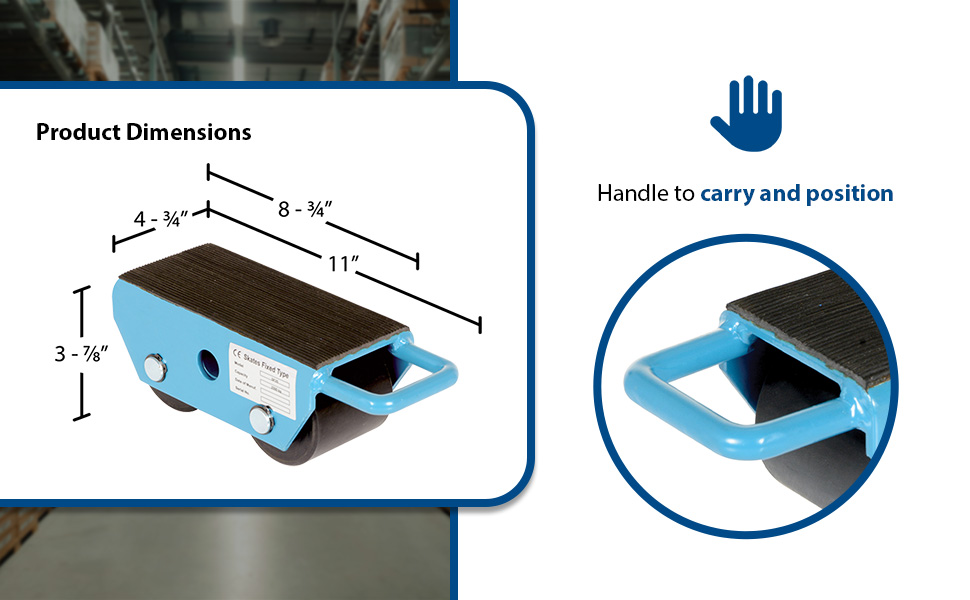

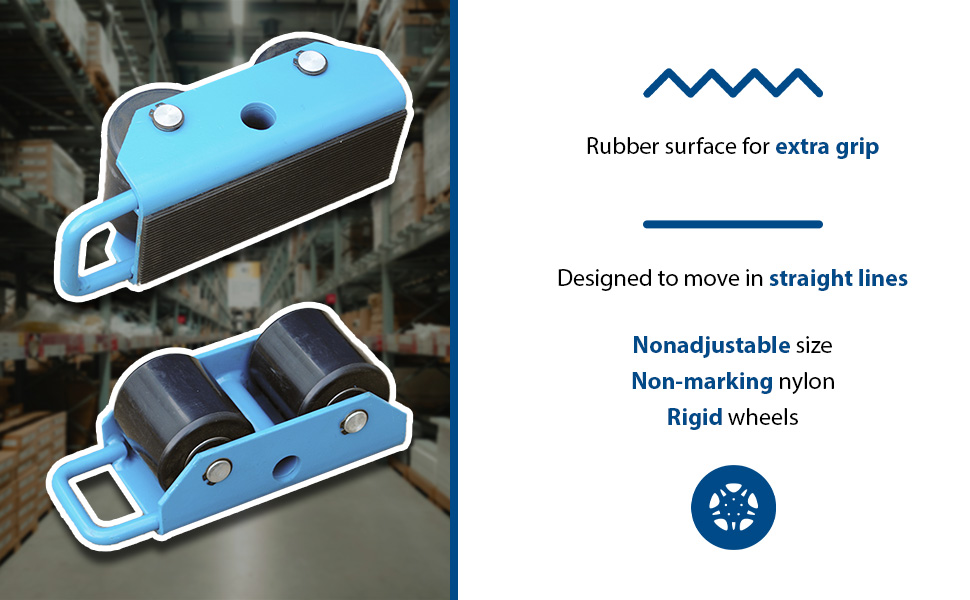

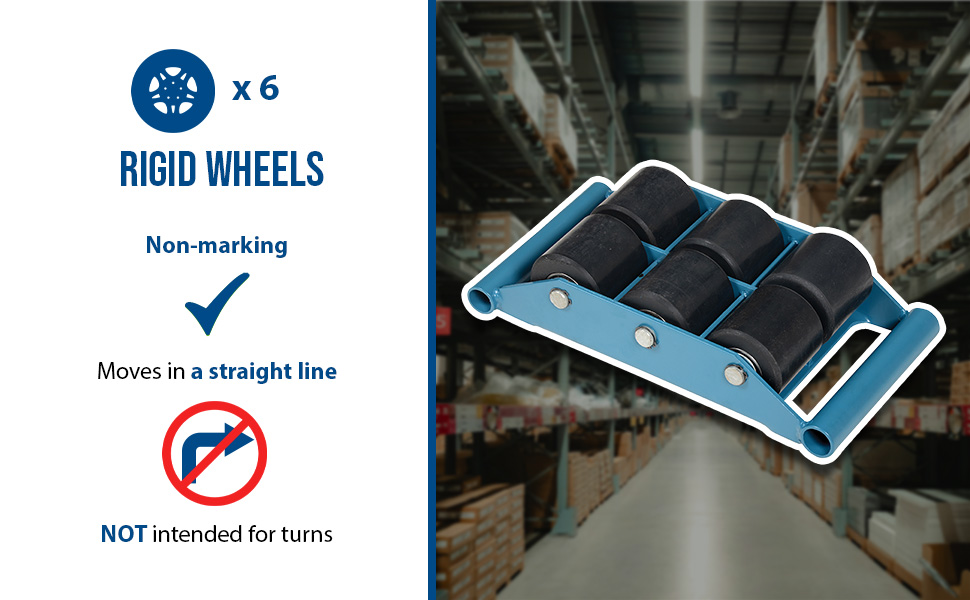

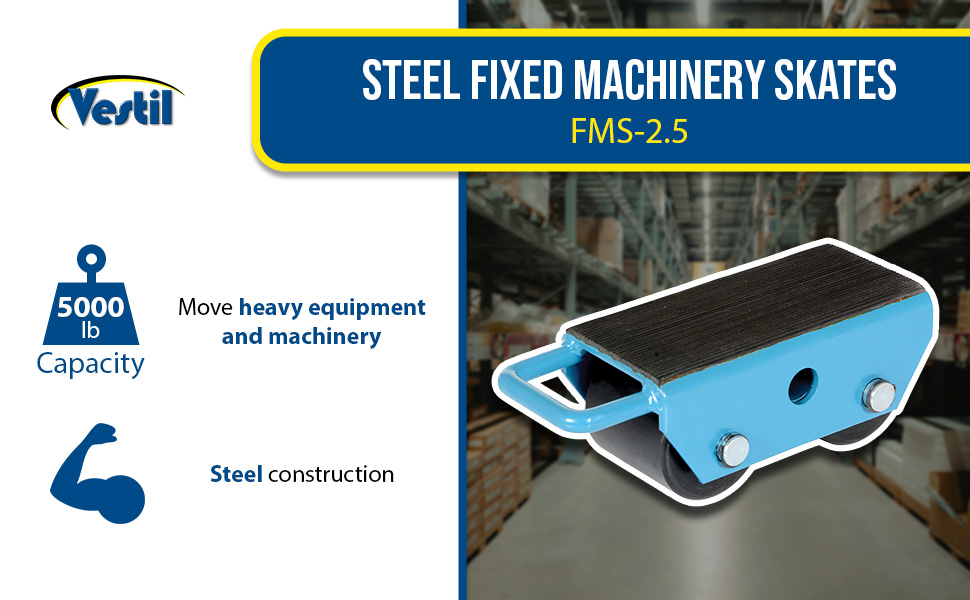

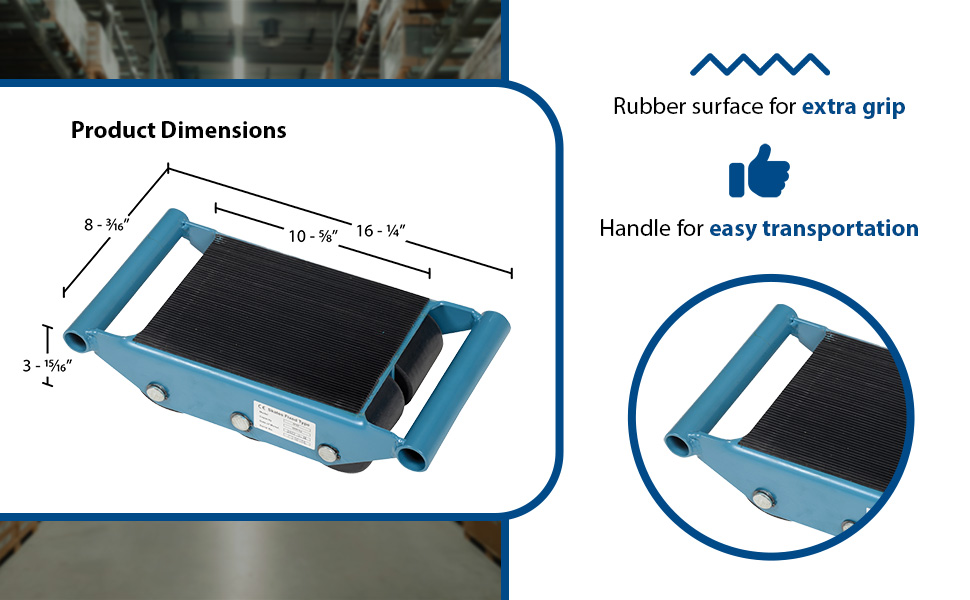

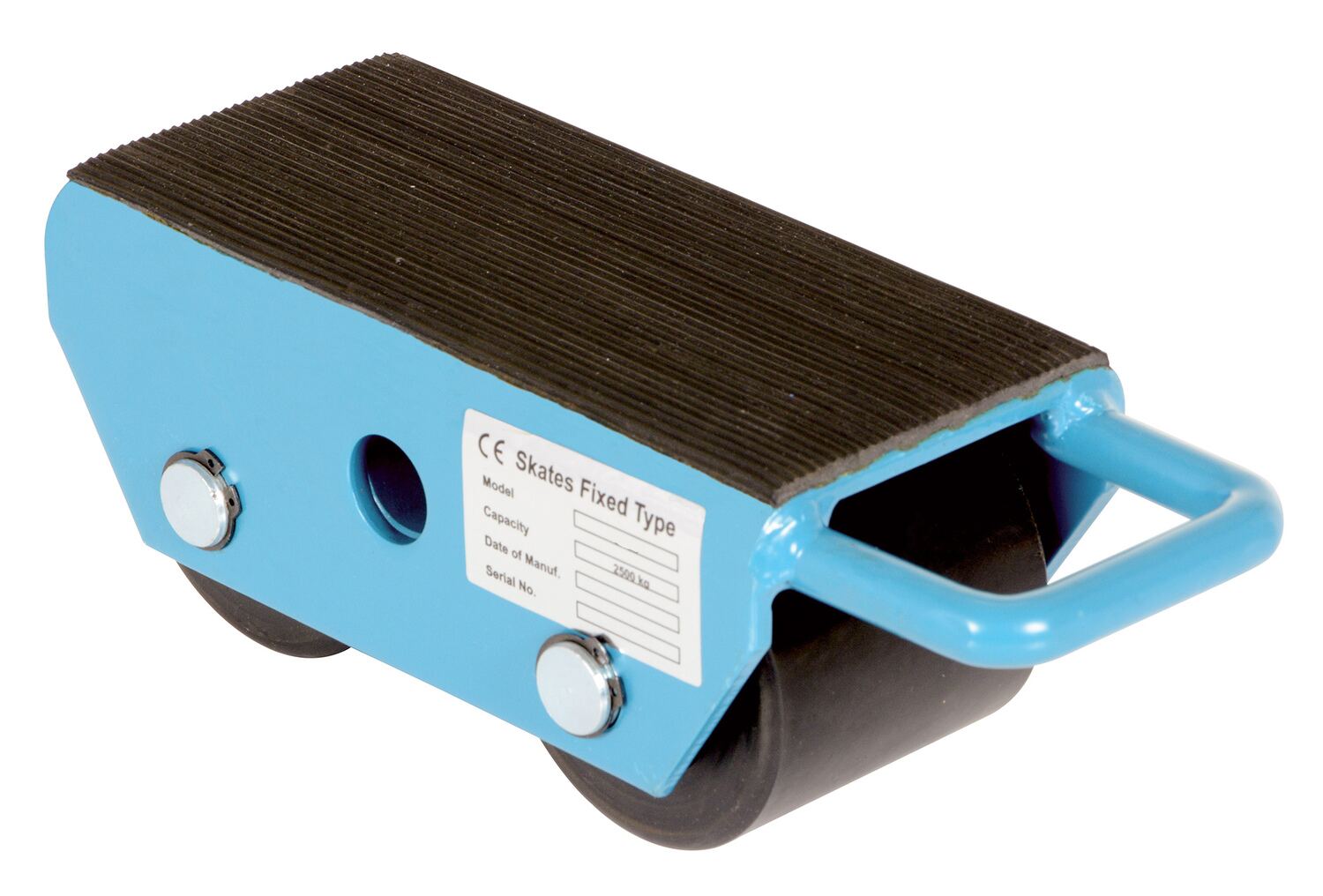

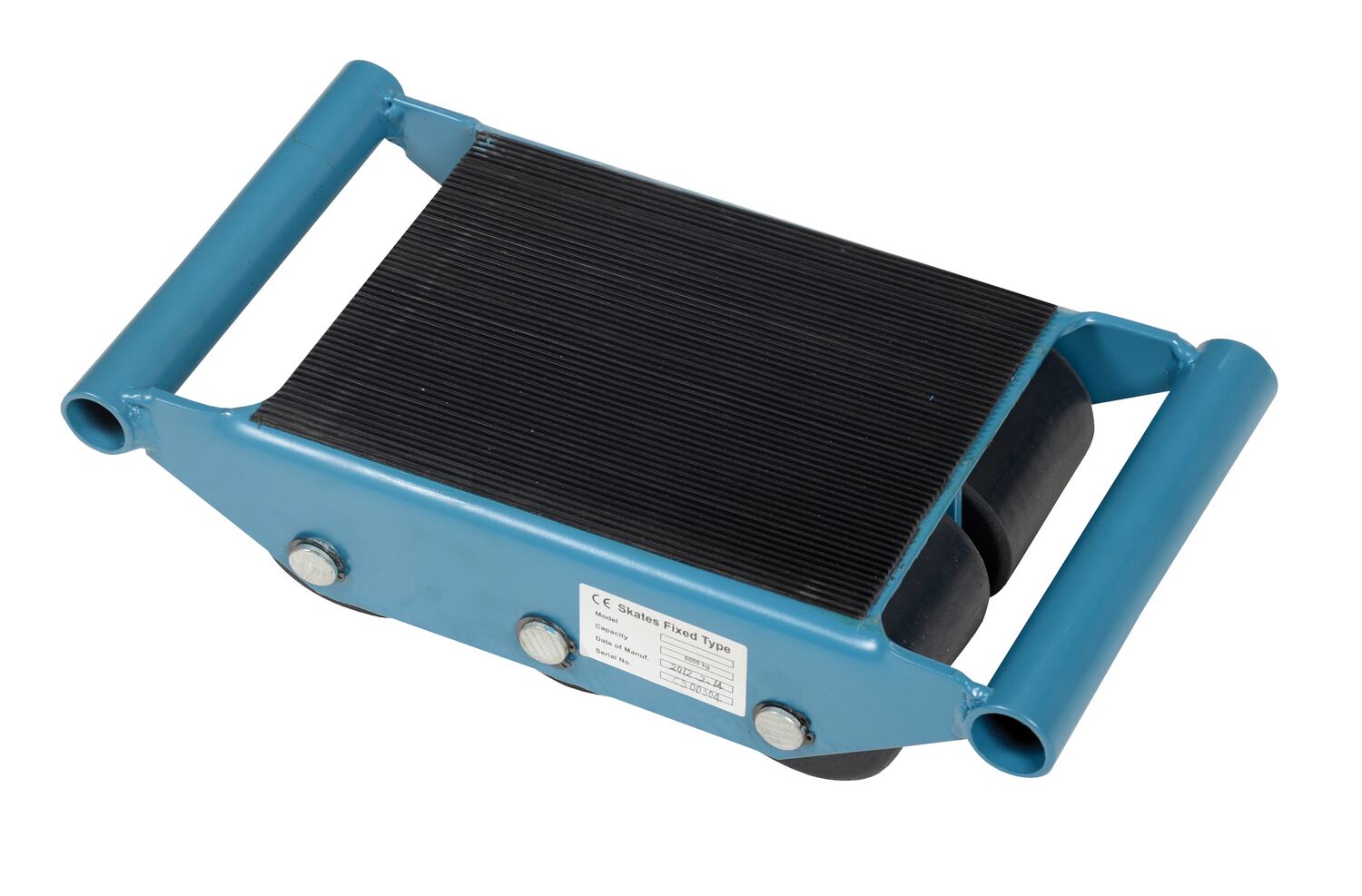

FMS-2.5_A.jpg Fixed - series FMS: Dolly size is non-adjustable and wheels are rigid. Designed for moving in straight lines.

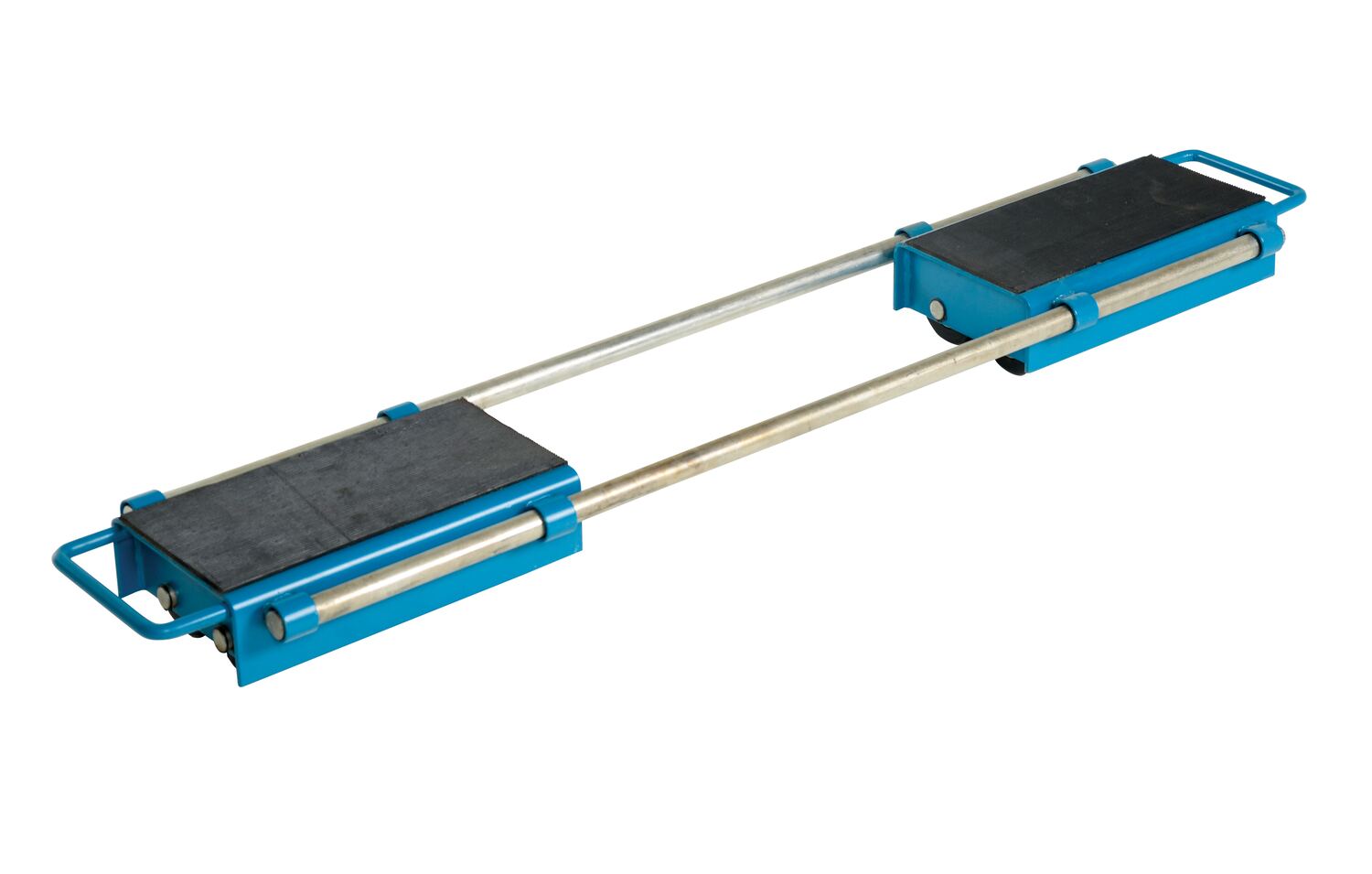

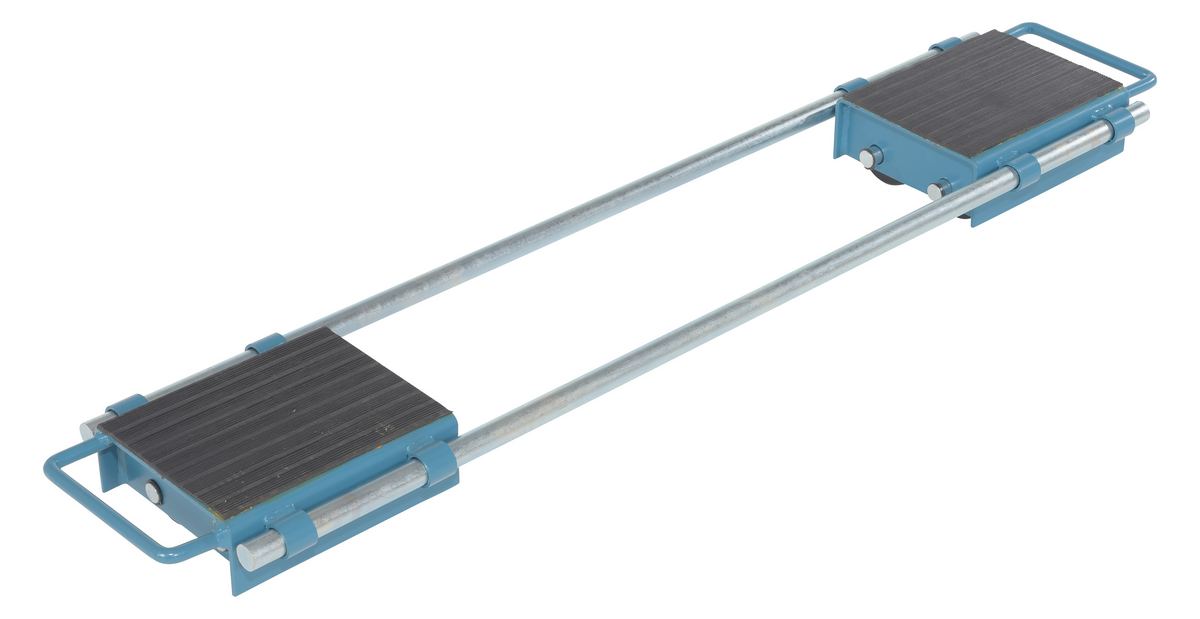

ASKT-12_A.jpg Adjustable - series ASKT: Includes two dollies connected with a slider bar to form one larger dolly. Slider bar allows for adjustable overall dolly width. Designed for moving in straight lines.

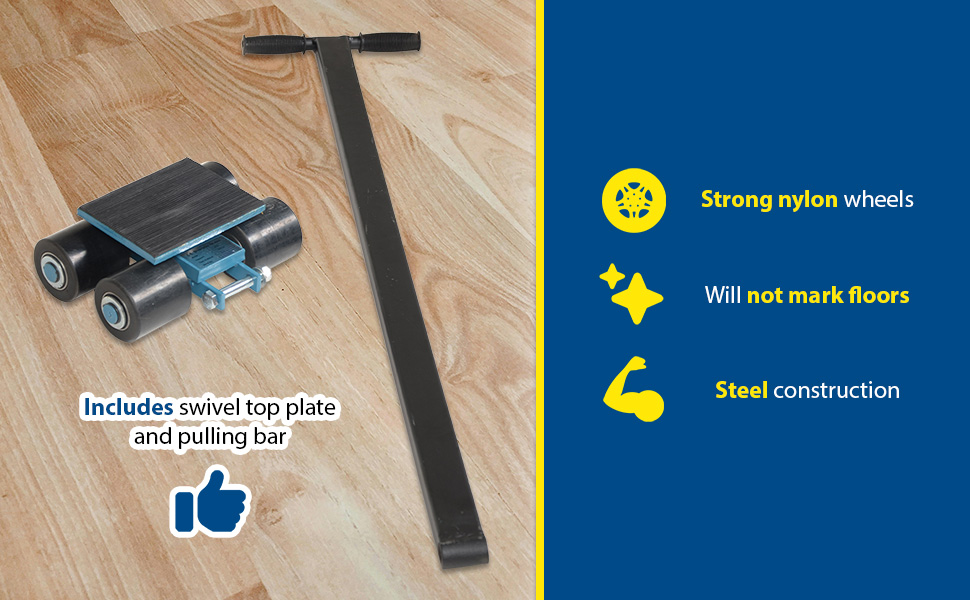

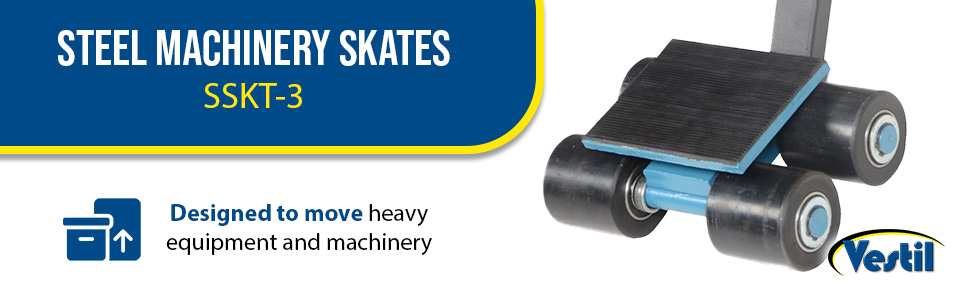

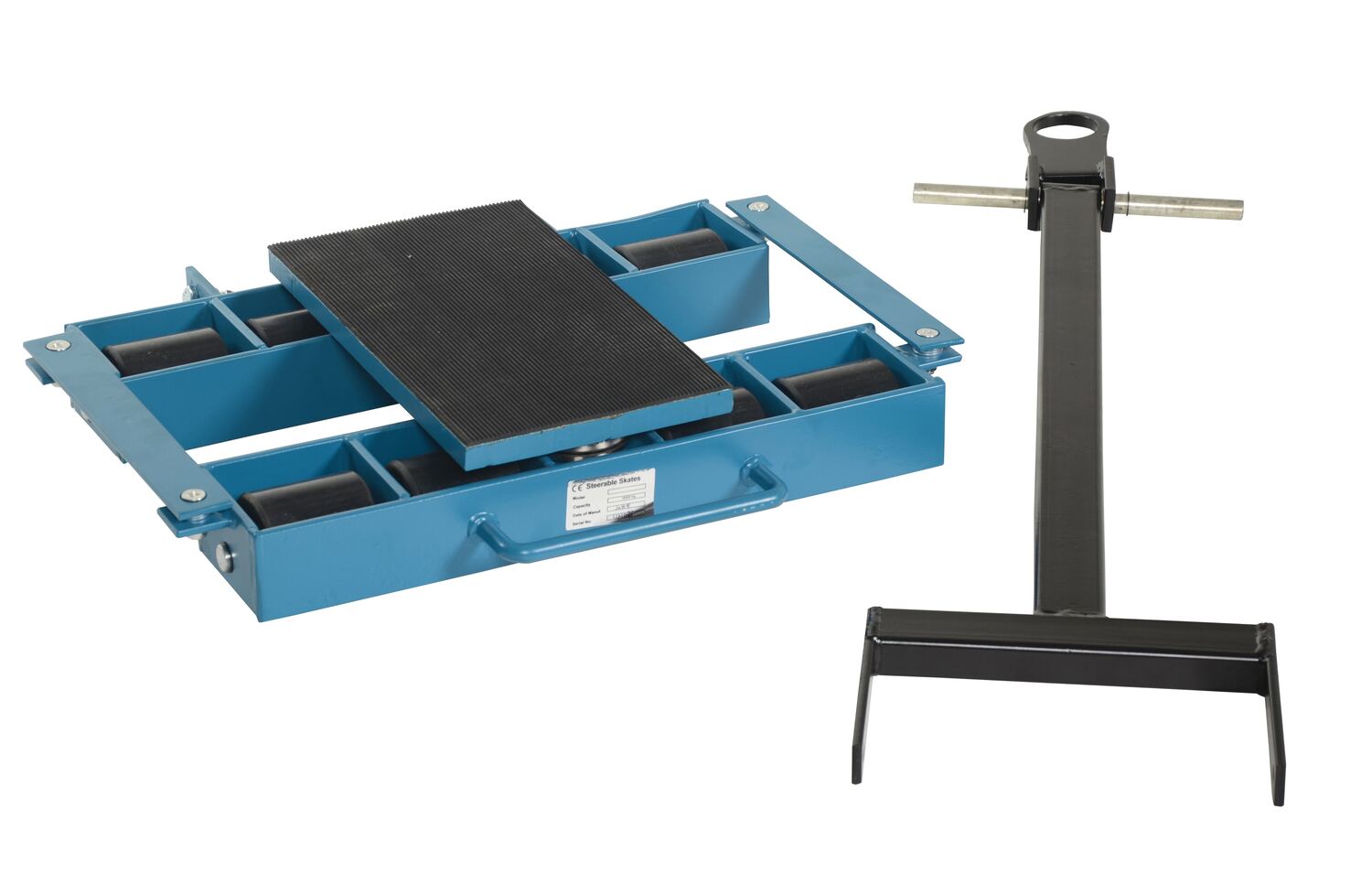

SSKT-6_C.jpg Steerable - series SSKT: Each dolly includes a swivel top plate and a pulling bar to allow for easy maneuvering around turns and corners.

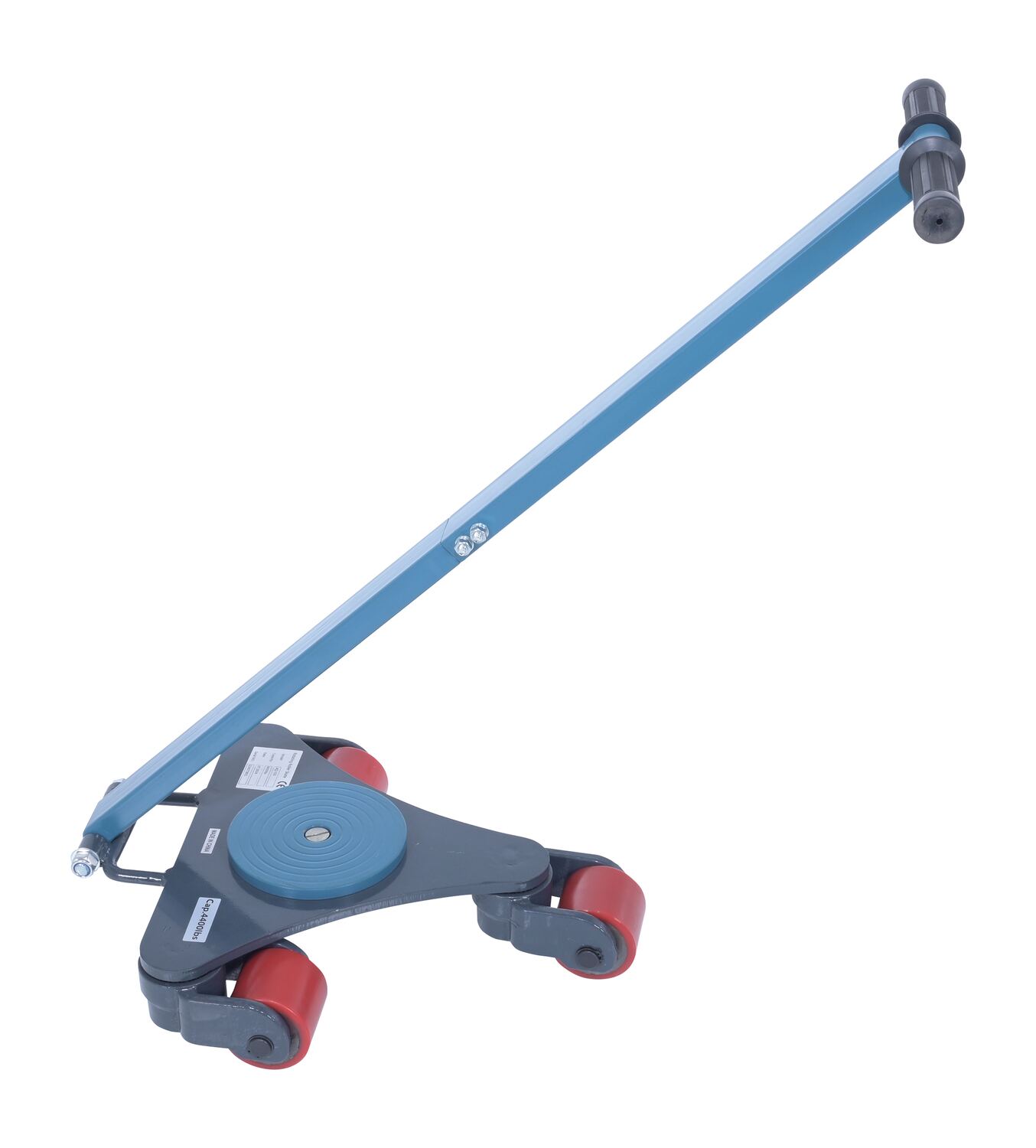

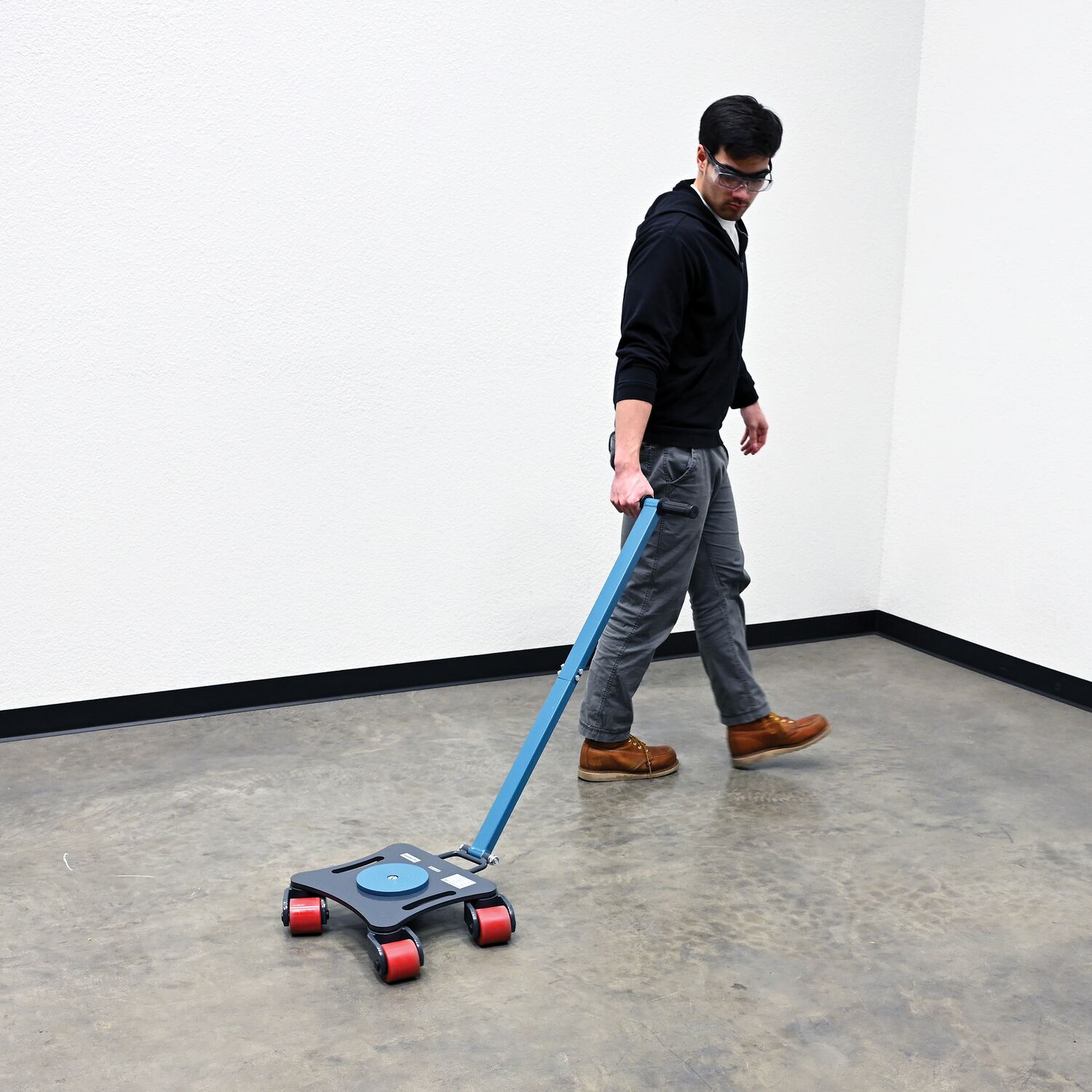

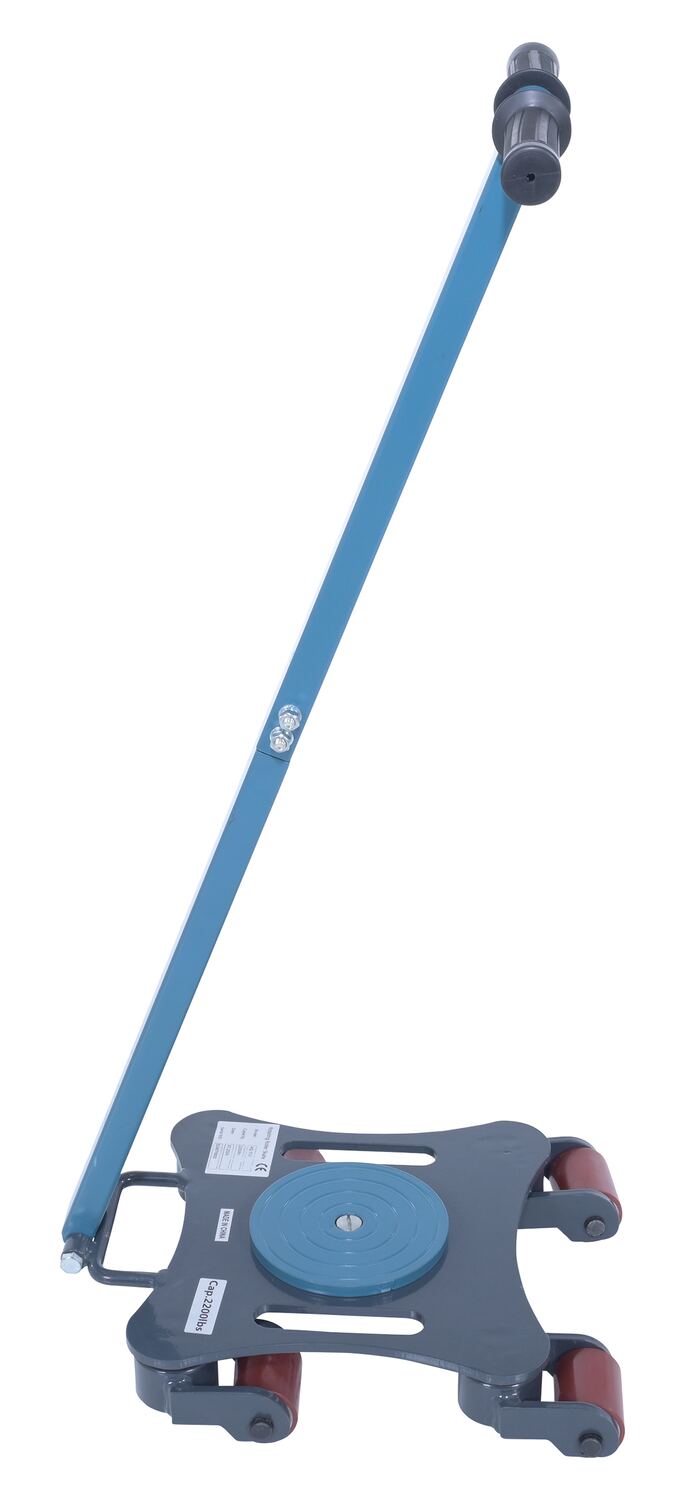

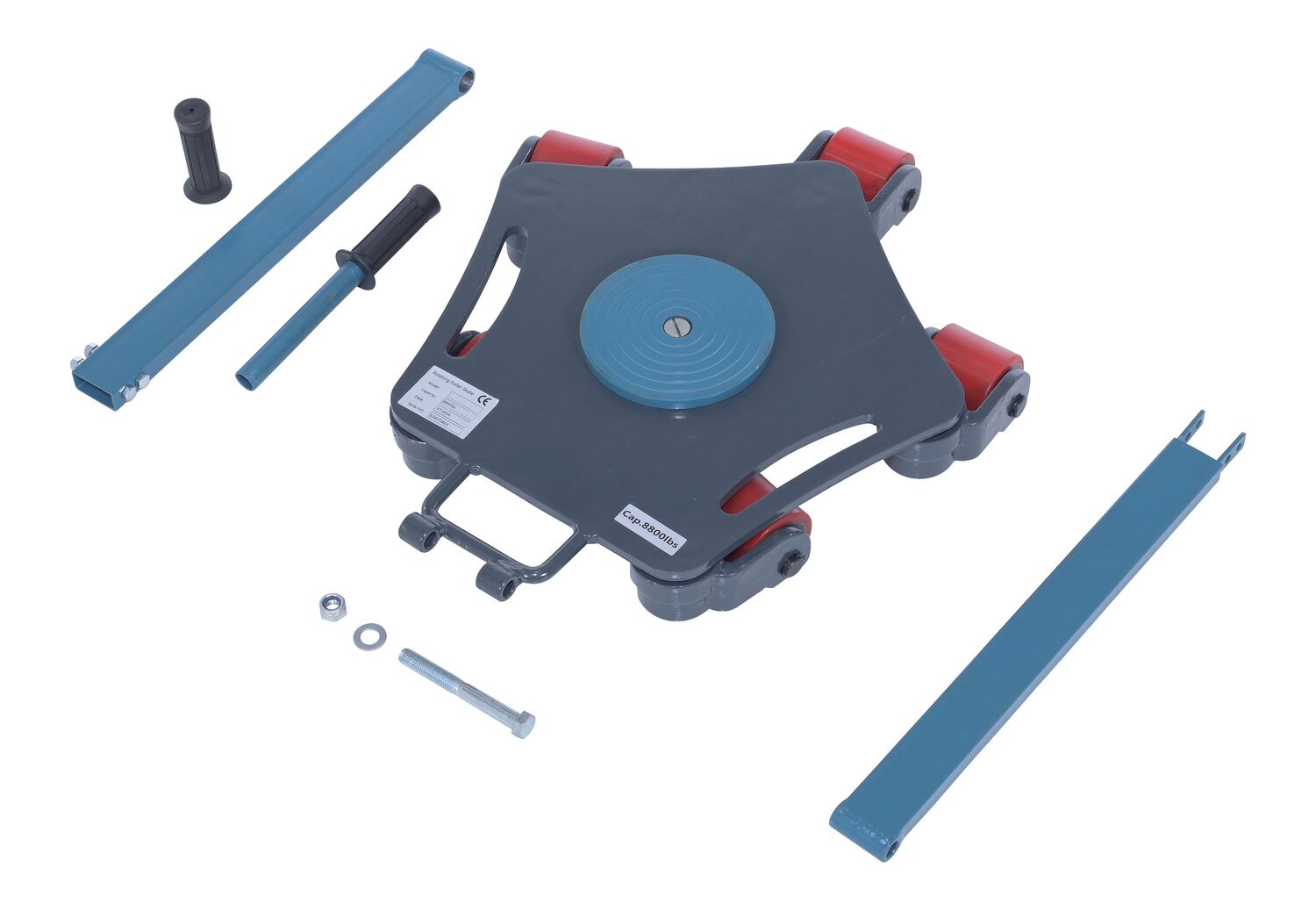

MDSKT-8_C.jpg Multi-Directional - series MDSKT: All poly on steel swivel rollers for movement in any direction. They have a detachable handle to help steering. Top plate has a rubber surface to provide extra grip.

Sometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment.These skates are designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position.

Four Styles To Choose From...
FMS-2.5_A.jpg Fixed - series FMS: Dolly size is non-adjustable and wheels are rigid. Designed for moving in straight lines.
ASKT-12_A.jpg Adjustable - series ASKT: Includes two dollies connected with a slider bar to form one larger dolly. Slider bar allows for adjustable overall dolly width. Designed for moving in straight lines.
SSKT-6_C.jpg Steerable - series SSKT: Each dolly includes a swivel top plate and a pulling bar to allow for easy maneuvering around turns and corners.
MDSKT-8_C.jpg Multi-Directional - series MDSKT: All poly on steel swivel rollers for movement in any direction. They have a detachable handle to help steering. Top plate has a rubber surface to provide extra grip.

Other Machine Rollers & Lifts

 Steel Machine Rollers & Accessories Mechanical Machinery Jacks Open Deck Machinery Dollies Cast Aluminum Dollies

Additional Models In This Family
view entire Image Gallery

ASKT-12

ASKT-12

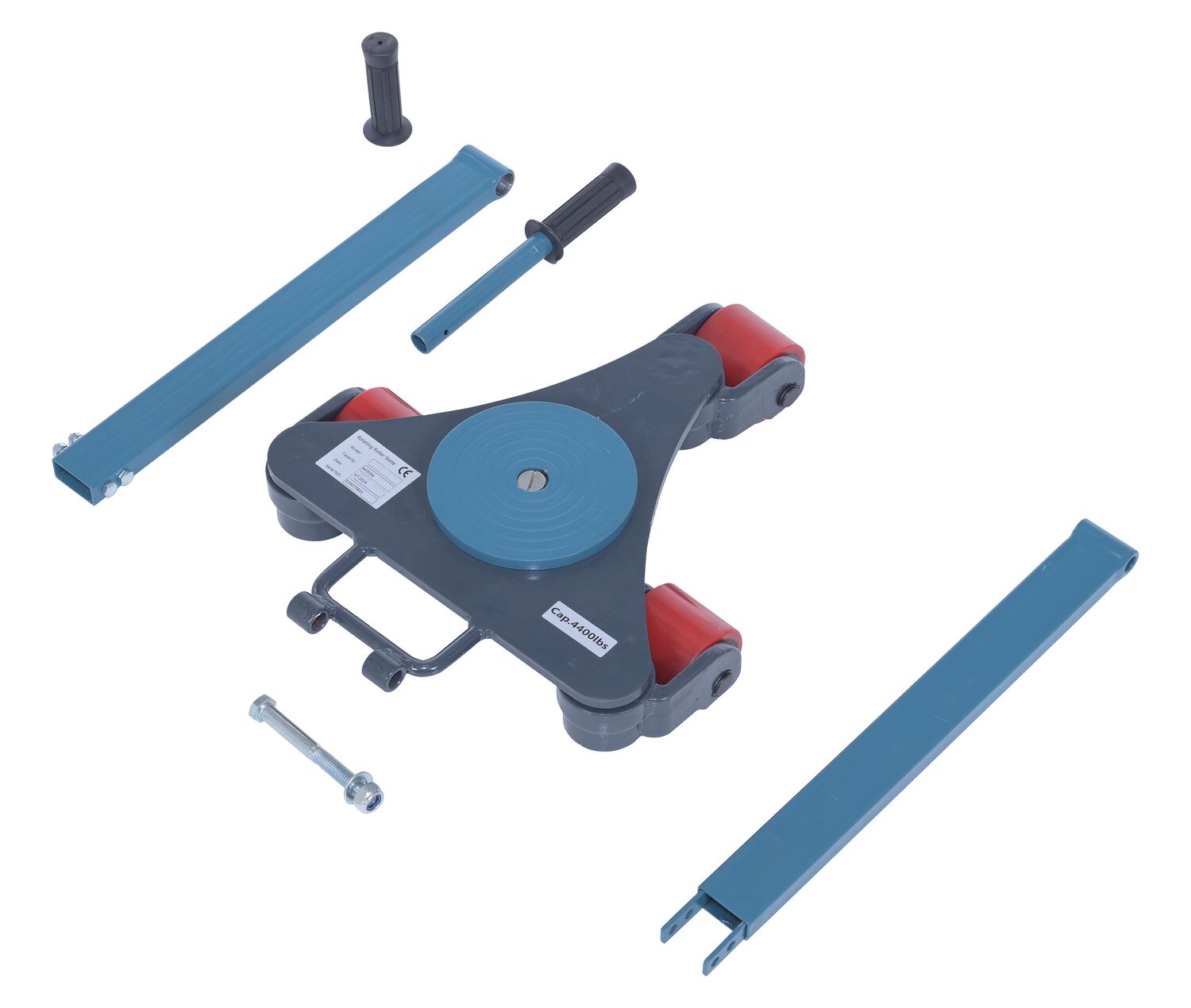

MDSKT-4

MDSKT-4

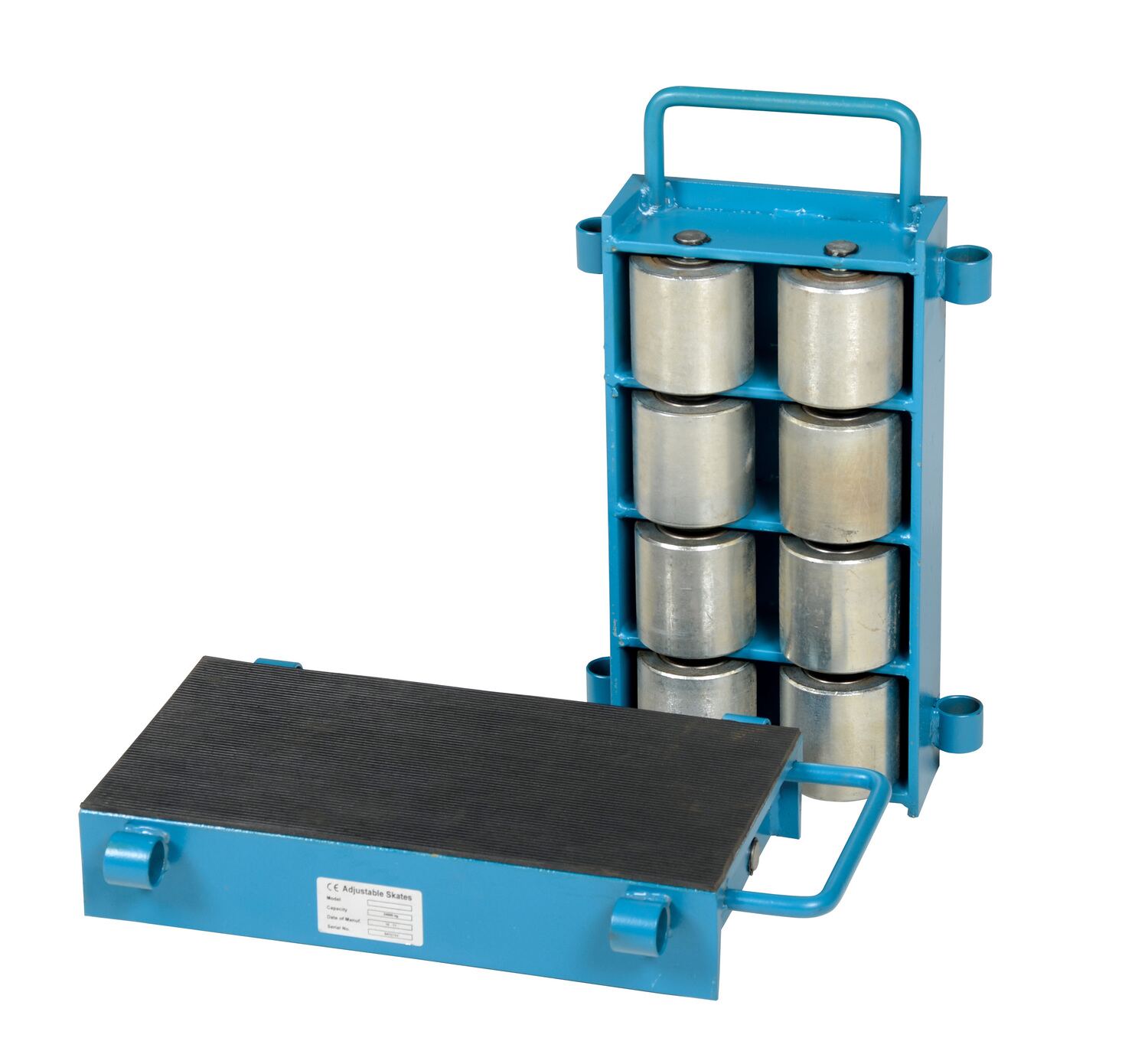

ASKT-24

ASKT-24

ASKT-6

ASKT-6

SSKT-12

SSKT-12

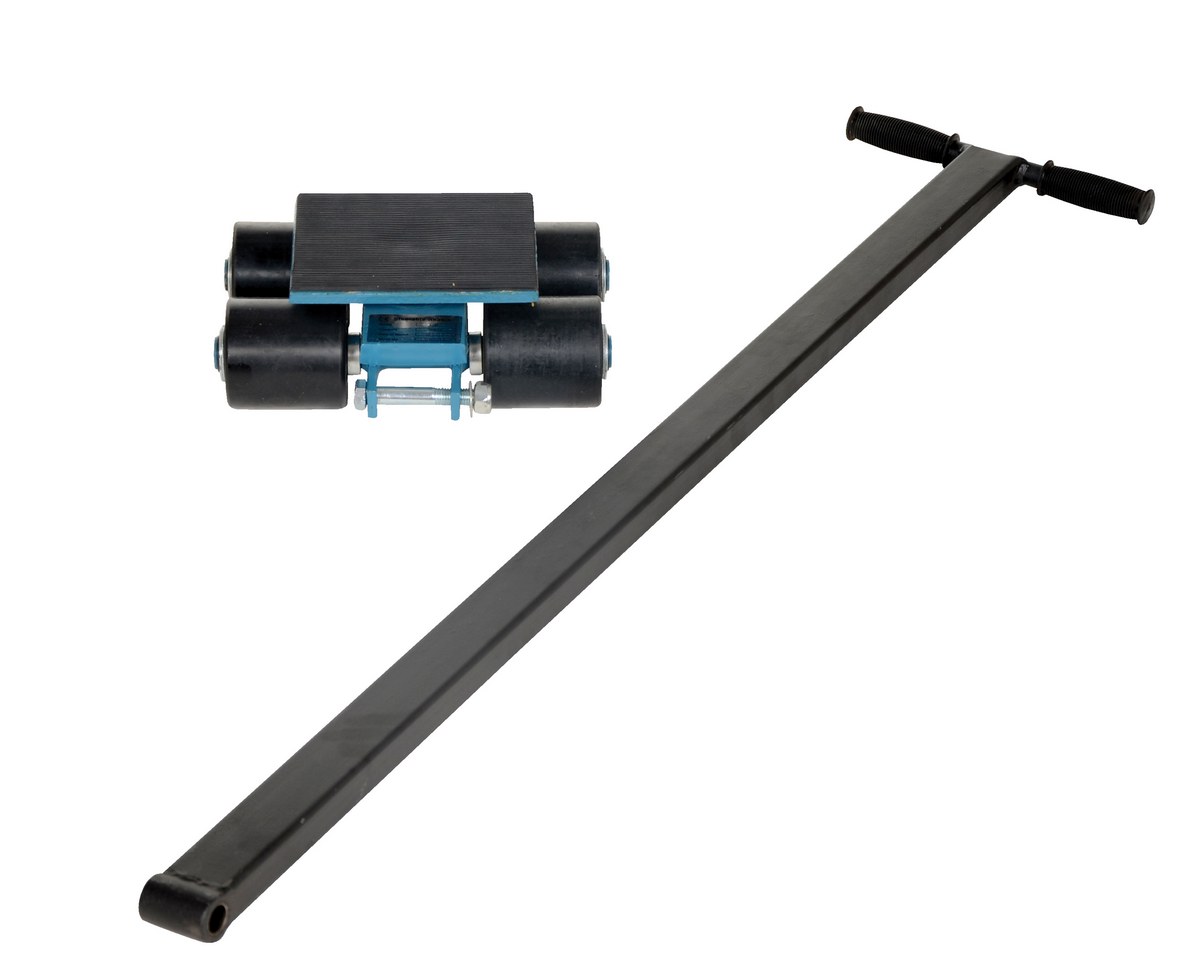

SSKT-3

SSKT-3

FMS-6

FMS-6

MDSKT-8

MDSKT-8

MDSKT-2

MDSKT-2

MDSKT-2

MDSKT-2

FMS-3

FMS-3

MDSKT-6

MDSKT-6

ASKT-6

ASKT-6

MDSKT-8

MDSKT-8

ASKT-12

ASKT-12

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ASKT-12 ASKT-1290 Days Limited WarrantySteel Adjustable Machinery Skates 10-1/2 In. x 16-1/2 In. x 4-1/2 In. 12 Ton Capacity BlueUniform Static Capacity (tons): 12
Roller Material: Nylon		130
ASKT-24 ASKT-2490 Days Limited WarrantySteel Adjustable Machinery Skates 11-5/16 In. x 19-9/16 In. x 4-1/2 In. 24 Ton Capacity BlueUniform Static Capacity (tons): 24
Roller Material: Steel		173
ASKT-6 ASKT-690 Days Limited WarrantySteel Adjustable Machinery Skates 10-1/2 In. x 12-13/16 In. x 4-3/8 In. 6 Ton Capacity BlueUniform Static Capacity (tons): 6
Roller Material: Nylon		272
FMS-2.5 FMS-2.530 Days Limited WarrantySteel Fixed Machinery Skates 10-3/4 In. x 4-3/4 In. x 4 In. 5,000 Lb. Capacity BlueUniform Capacity (tons): 2.5
Roller Material: Nylon		10

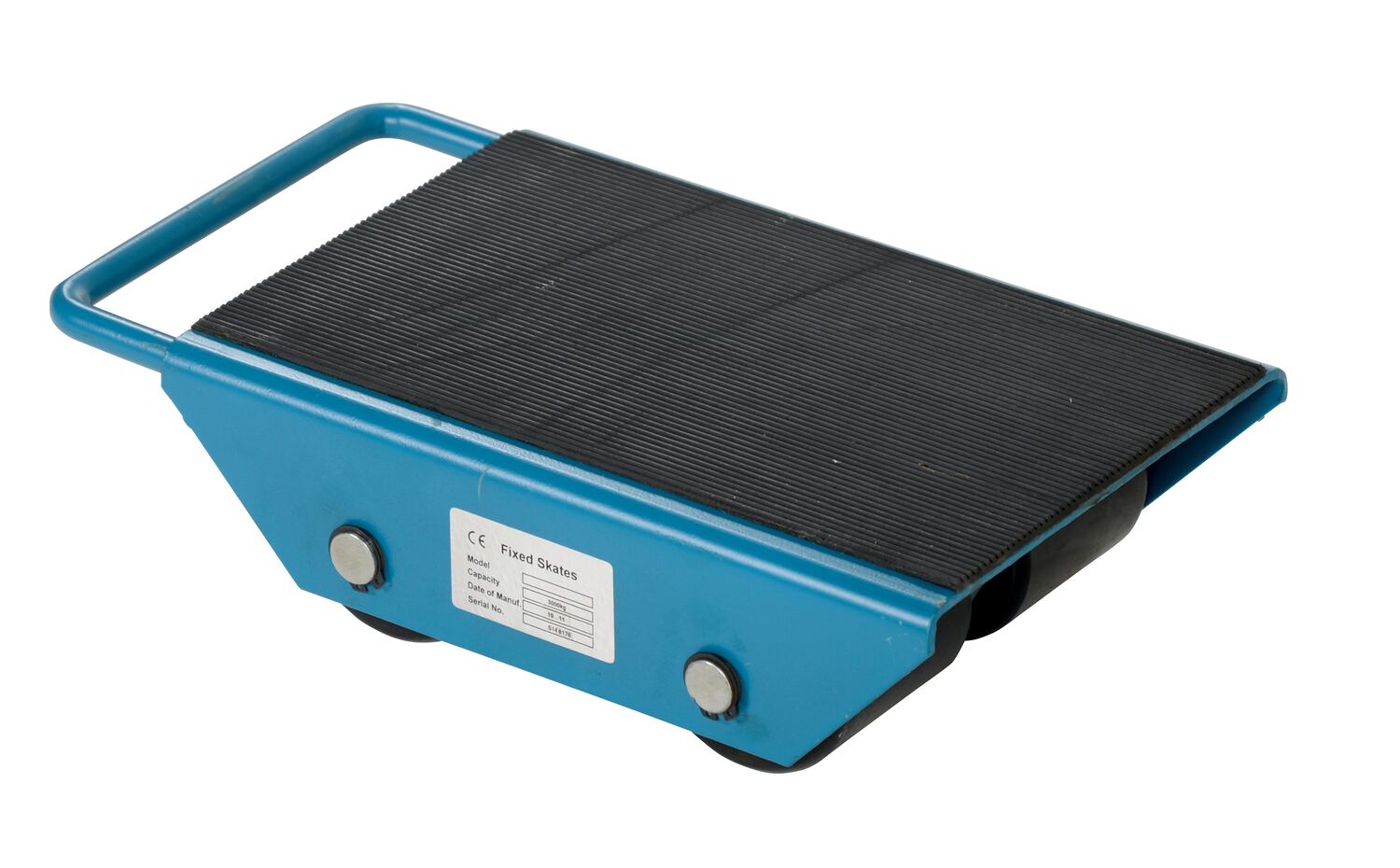

FMS-3 FMS-330 Days Limited WarrantySteel Fixed Machinery Skates 15-3/4 In. x 8 In. x 3-3/4 In. 6,000 Lb. Capacity BlueUniform Capacity (tons): 3
Roller Material: Nylon		22
FMS-6 FMS-630 Days Limited WarrantySteel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity BlueUniform Capacity (tons): 6
Roller Material: Nylon		28

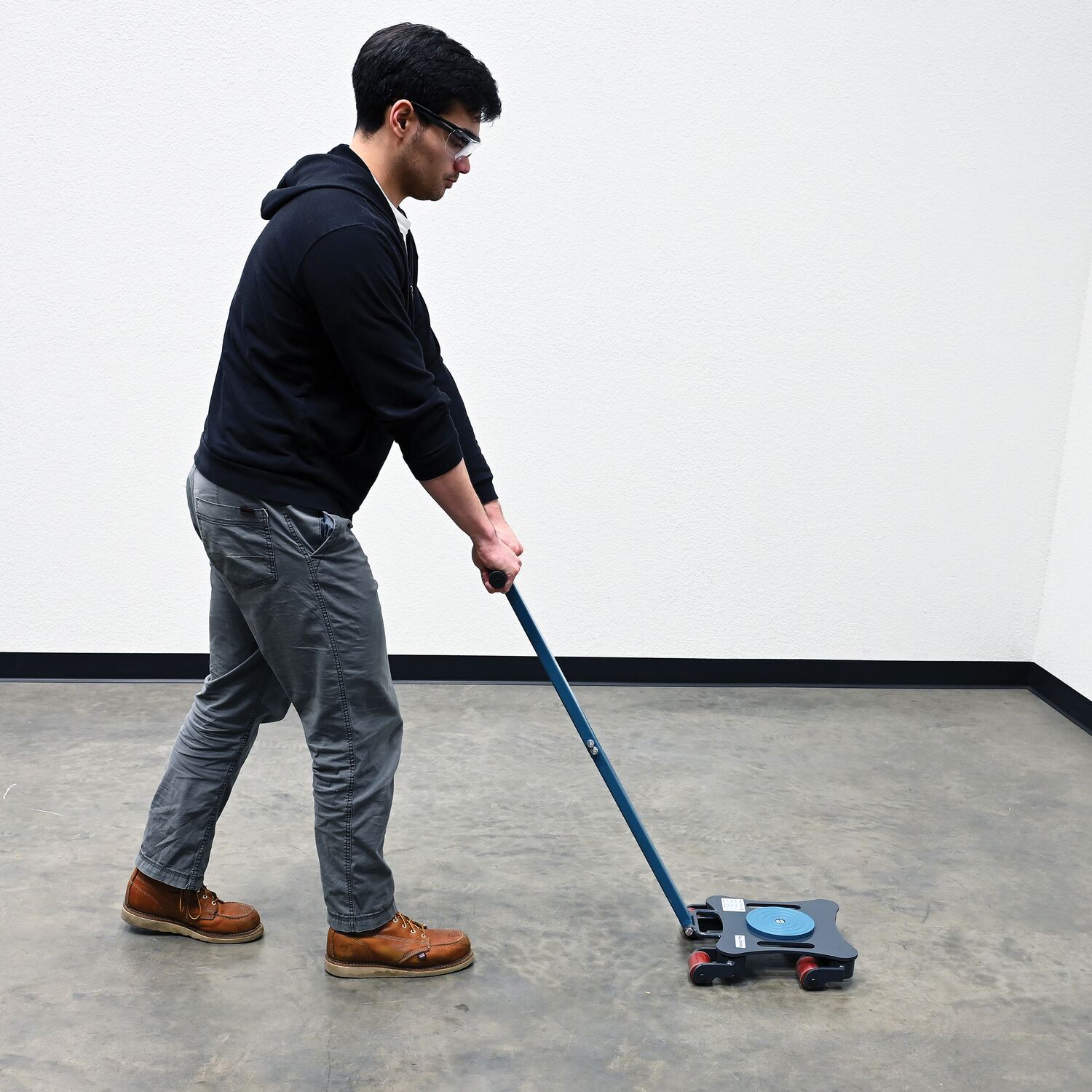

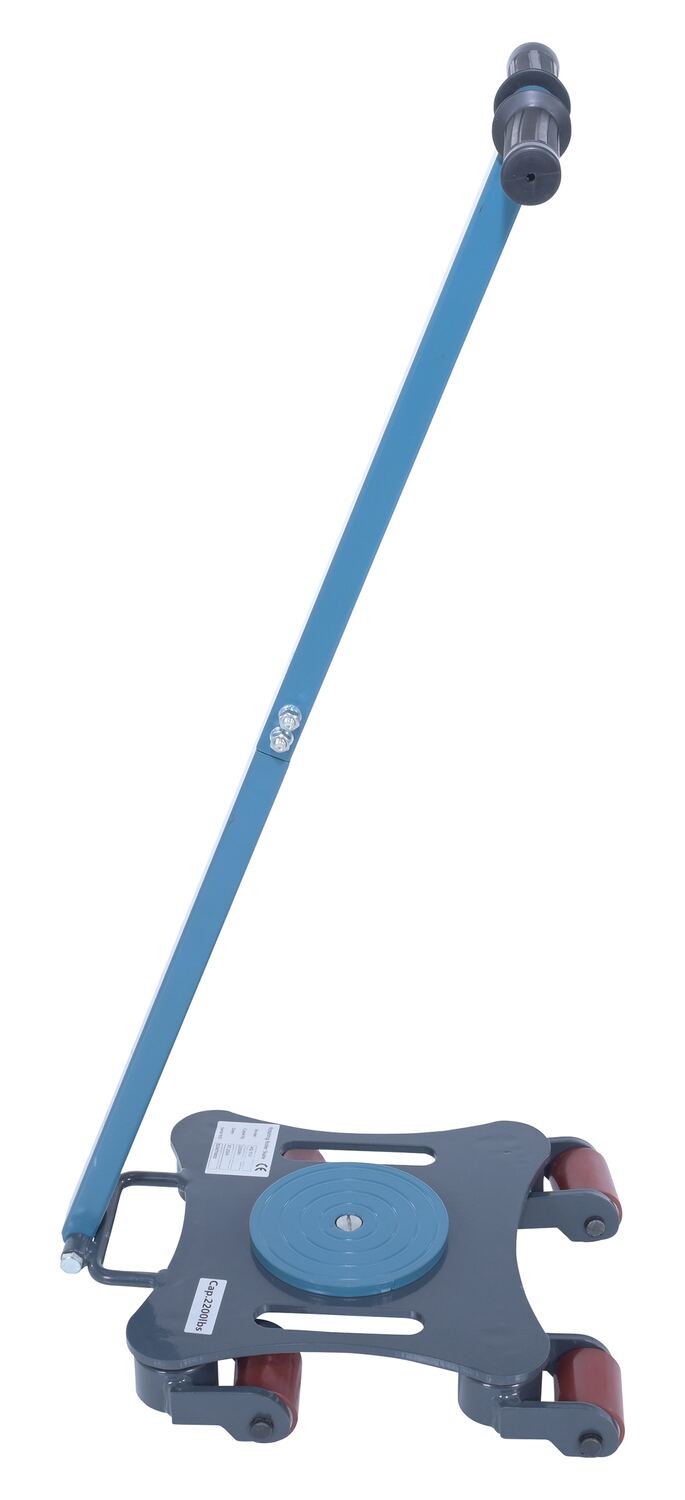

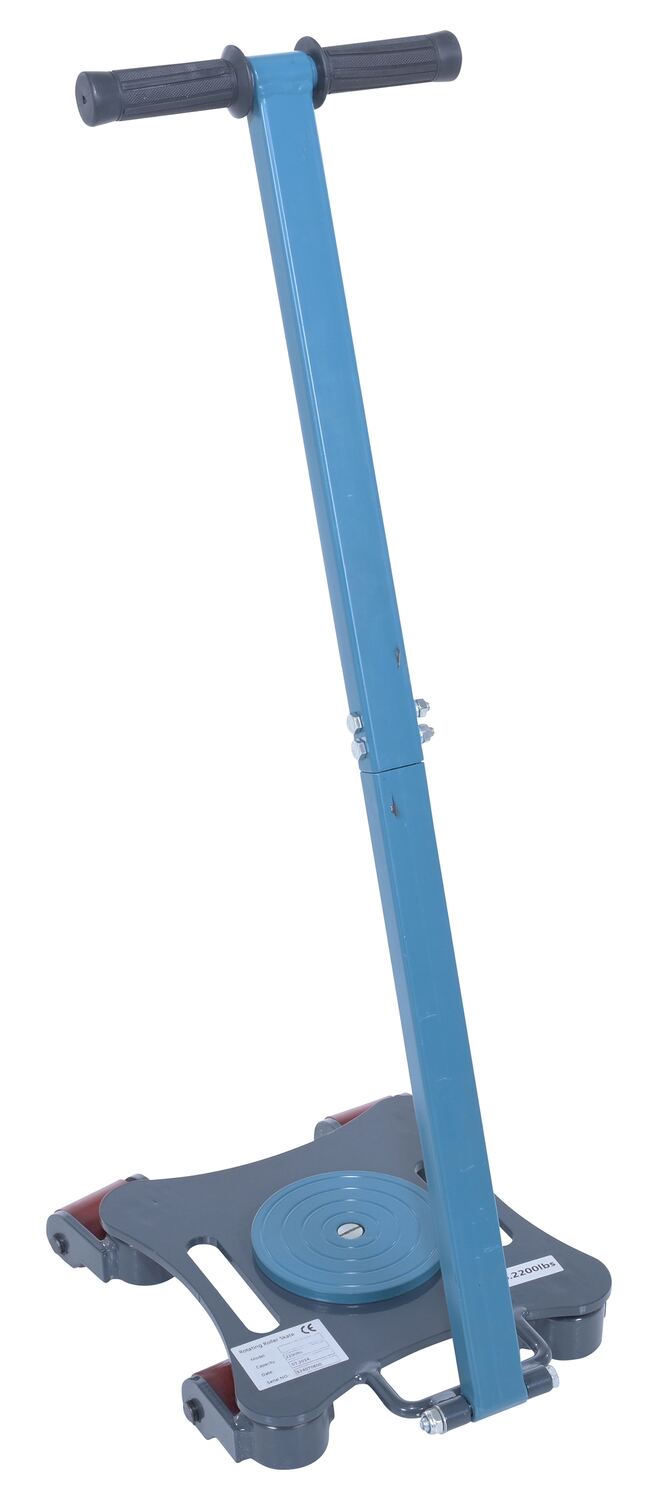

MDSKT-2 NEW MDSKT-290 Days Limited WarrantySteel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 2,200
Roller Material: Poly on Steel		40
MDSKT-4 NEW MDSKT-490 Days Limited WarrantySteel Multi Direction Machinery Skate 15 In. Length x 13 In. Width x 4-7/16 In. Height 4,400 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 4,400
Roller Material: Poly on Steel		57

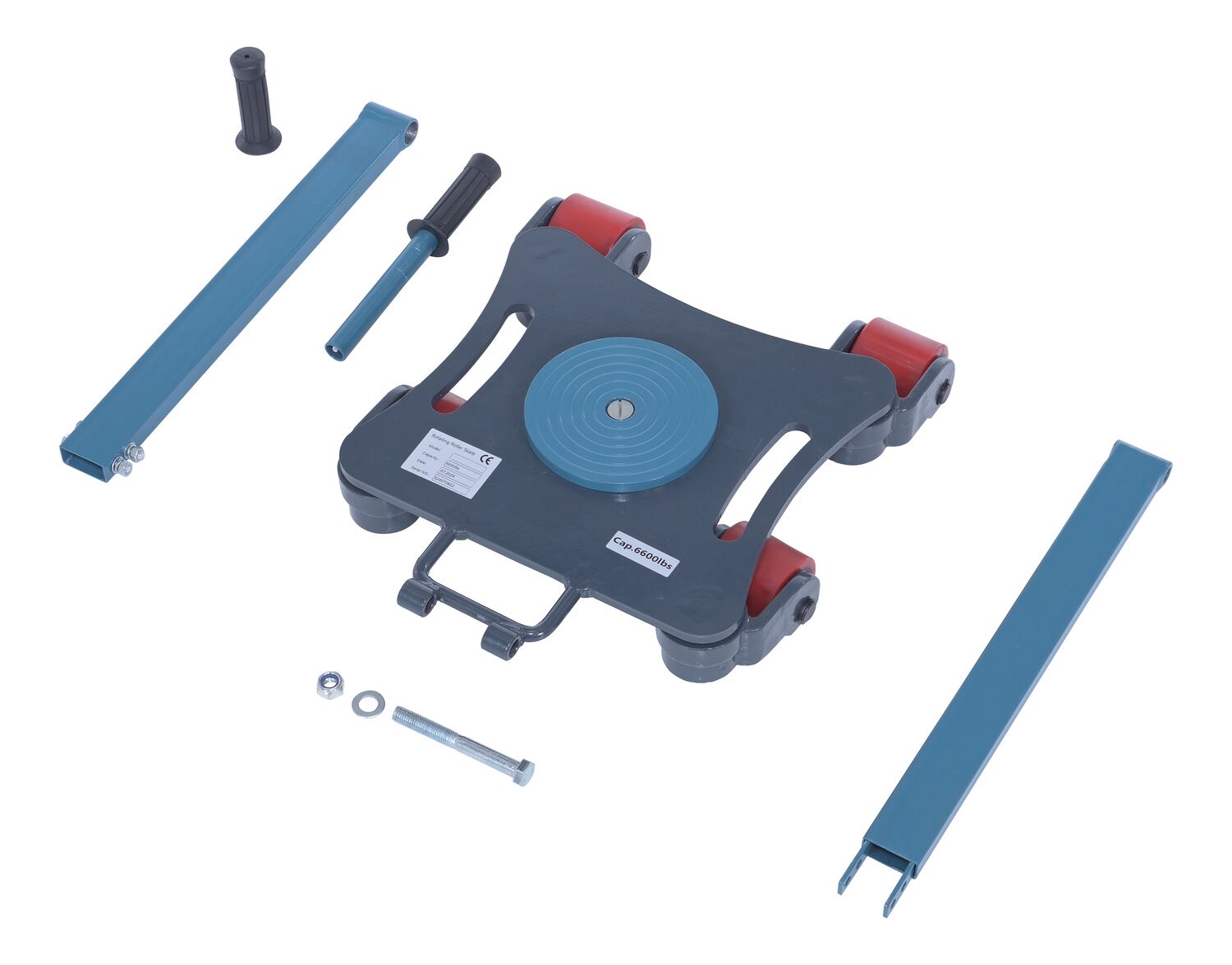

MDSKT-6 NEW MDSKT-690 Days Limited WarrantySteel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 4-7/16 In. Height 6,600 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 6,600
Roller Material: Poly on Steel		74
MDSKT-8 NEW MDSKT-890 Days Limited WarrantySteel Multi Direction Machinery Skate 18 In. Length x 17-1/2 In. Width x 4-7/16 In. Height 8,800 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 8,800
Roller Material: Poly on Steel		86

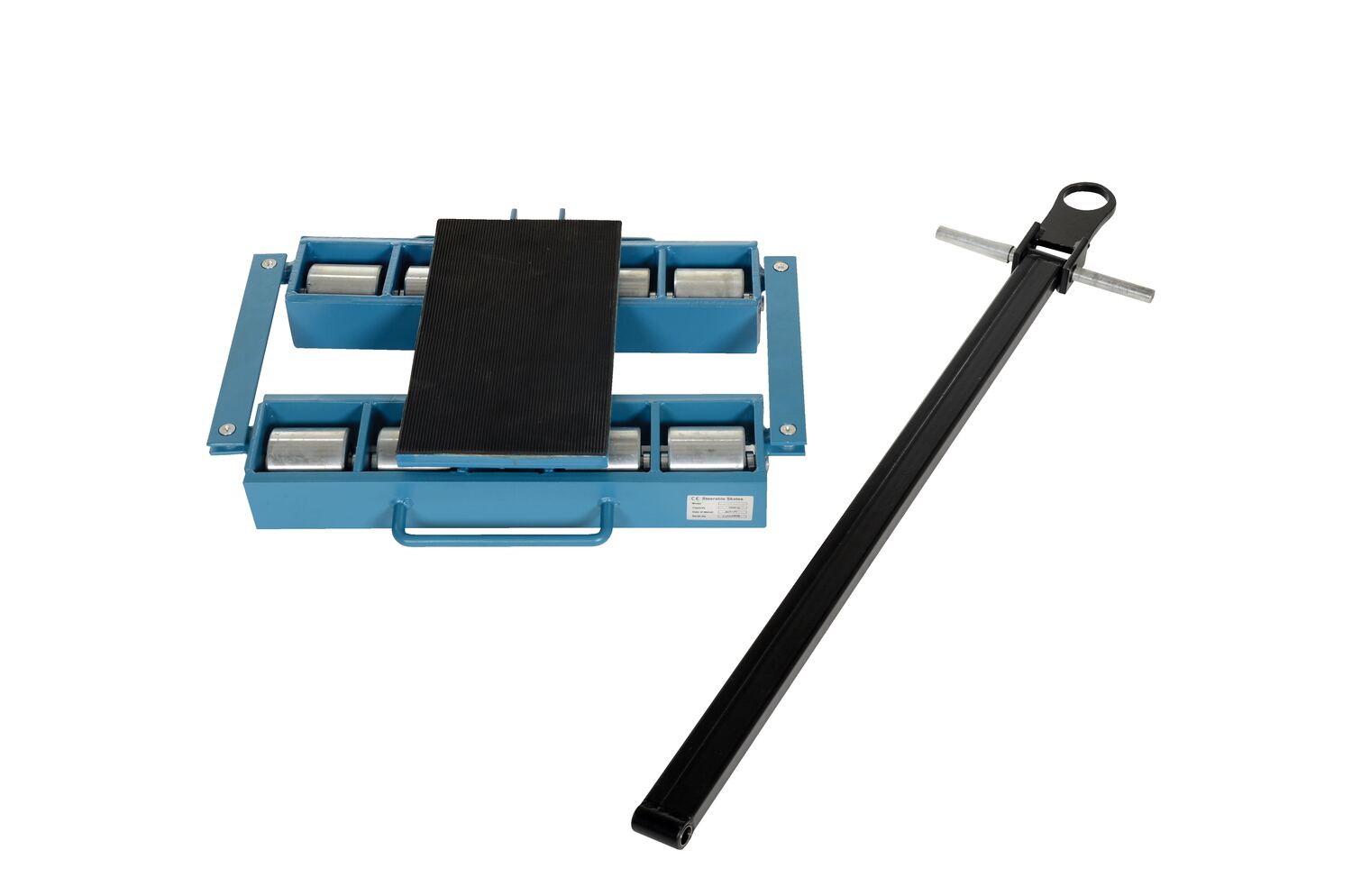

SSKT-12 SSKT-1230 Days Limited WarrantySteel Machinery Skates 8 Steel Rollers 12 Ton Static Capacity BlueUniform Static Capacity (tons): 12
Roller Material: Steel		202

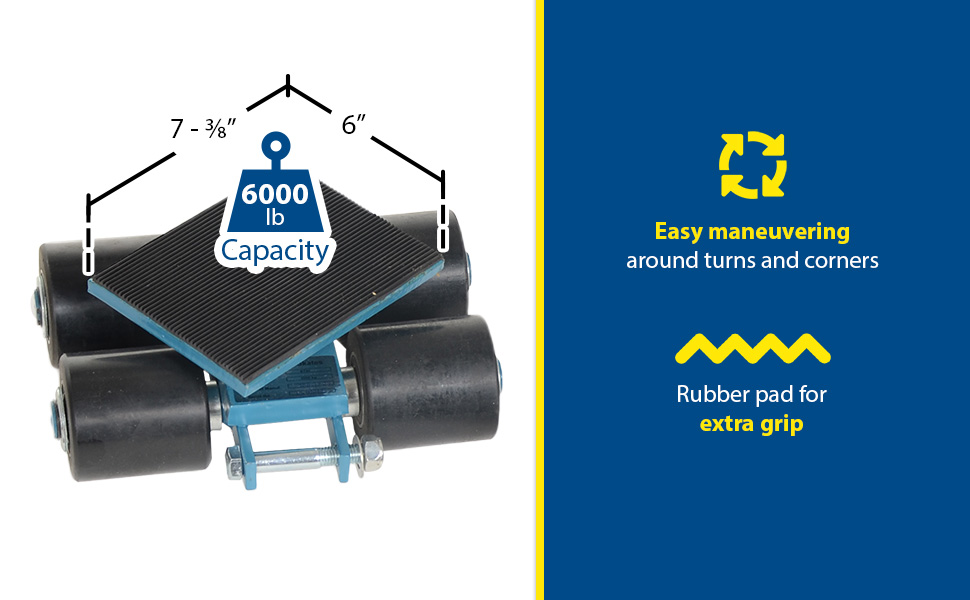

SSKT-3 SSKT-330 Days Limited WarrantySteel Machinery Skates 4 Nylon Rollers 3 Ton Static Capacity BlueUniform Static Capacity (tons): 3
Roller Material: Nylon		232
SSKT-6 SSKT-630 Days Limited WarrantySteel Machinery Skates 8 Nylon Rollers 6 Ton Static Capacity BlueUniform Static Capacity (tons): 6
Roller Material: Nylon		114

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ASKT-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 12
Roller Material: Nylon
Uniform Static Capacity (tons): 12
Roller Material: Nylon

ASKT-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 24
Roller Material: Steel
Uniform Static Capacity (tons): 24
Roller Material: Steel

ASKT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 6
Roller Material: Nylon
Uniform Static Capacity (tons): 6
Roller Material: Nylon

FMS-2.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (tons): 2.5
Roller Material: Nylon
Uniform Capacity (tons): 2.5
Roller Material: Nylon

FMS-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (tons): 3
Roller Material: Nylon
Uniform Capacity (tons): 3
Roller Material: Nylon

FMS-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (tons): 6
Roller Material: Nylon
Uniform Capacity (tons): 6
Roller Material: Nylon

SSKT-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 12
Roller Material: Steel
Uniform Static Capacity (tons): 12
Roller Material: Steel

SSKT-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 3
Roller Material: Nylon
Uniform Static Capacity (tons): 3
Roller Material: Nylon

SSKT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (tons): 6
Roller Material: Nylon
Uniform Static Capacity (tons): 6
Roller Material: Nylon

MDSKT-2
Unit:
Size: W x L x H
Weight:
Limited Warranty

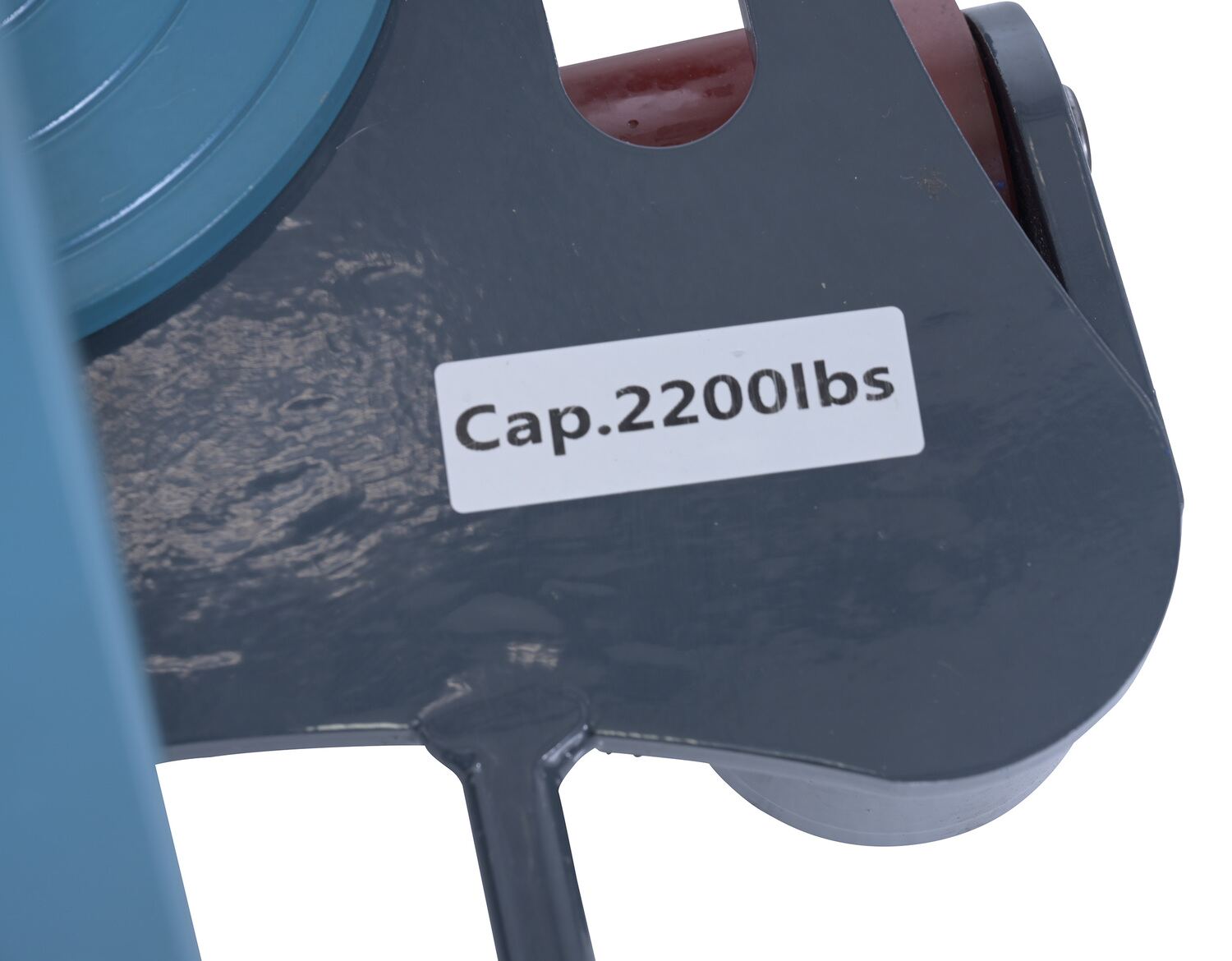

Uniform Static Capacity (Lbs.): 2,200
Roller Material: Poly on Steel
Uniform Static Capacity (Lbs.): 2,200
Roller Material: Poly on Steel

MDSKT-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (Lbs.): 4,400
Roller Material: Poly on Steel
Uniform Static Capacity (Lbs.): 4,400
Roller Material: Poly on Steel

MDSKT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (Lbs.): 6,600
Roller Material: Poly on Steel
Uniform Static Capacity (Lbs.): 6,600
Roller Material: Poly on Steel

MDSKT-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (Lbs.): 8,800
Roller Material: Poly on Steel
Uniform Static Capacity (Lbs.): 8,800
Roller Material: Poly on Steel
Machinery Skates PDF's will open in a new window when clicked.

Manuals


SSKT-3%20thru%20SSKT-12
Owners Manual

FMS
Owners Manual

ASKT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ASKT-12

ASKT-24

ASKT-6

FMS-2.5

FMS-3

FMS-6

SSKT-12

SSKT-3

SSKT-6

Testing Certificates


ASKT-12

ASKT-24

ASKT-6

FMS-2.5

FMS-3

FMS-6

MDSKT-2

MDSKT-4

MDSKT-6

MDSKT-8

SSKT-12

SSKT-3

SSKT-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Steel Machine Rollers & Accessories
Product

Steel Machine Rollers & Accessories

Cast Aluminum Dollies
Product

Cast Aluminum Dollies

Machinery Lifts
Product

Machinery Lifts

Furniture and Crate Movers
Product

Furniture and Crate Movers

Economical Pallet & Container Transporters
Product

Economical Pallet & Container Transporters

Portable Carpet Dollies & Dispensers
Product

Portable Carpet Dollies & Dispensers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Machinery Skates




Sometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment.These skates are designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position.

Four Styles To Choose From...
FMS-2.5_A.jpg Fixed - series FMS: Dolly size is non-adjustable and wheels are rigid. Designed for moving in straight lines.
ASKT-12_A.jpg Adjustable - series ASKT: Includes two dollies connected with a slider bar to form one larger dolly. Slider bar allows for adjustable overall dolly width. Designed for moving in straight lines.
SSKT-6_C.jpg Steerable - series SSKT: Each dolly includes a swivel top plate and a pulling bar to allow for easy maneuvering around turns and corners.
MDSKT-8_C.jpg Multi-Directional - series MDSKT: All poly on steel swivel rollers for movement in any direction. They have a detachable handle to help steering. Top plate has a rubber surface to provide extra grip.

Model # Description Attributes Net Wt.
(lbs)
ASKT-12 ASKT-12Steel Adjustable Machinery Skates 10-1/2 In. x 16-1/2 In. x 4-1/2 In. 12 Ton Capacity BlueUniform Static Capacity (tons): 12
Roller Material: Nylon		130
ASKT-24 ASKT-24Steel Adjustable Machinery Skates 11-5/16 In. x 19-9/16 In. x 4-1/2 In. 24 Ton Capacity BlueUniform Static Capacity (tons): 24
Roller Material: Steel		173
ASKT-6 ASKT-6Steel Adjustable Machinery Skates 10-1/2 In. x 12-13/16 In. x 4-3/8 In. 6 Ton Capacity BlueUniform Static Capacity (tons): 6
Roller Material: Nylon		50
FMS-2.5 FMS-2.5Steel Fixed Machinery Skates 10-3/4 In. x 4-3/4 In. x 4 In. 5,000 Lb. Capacity BlueUniform Capacity (tons): 2.5
Roller Material: Nylon		10
FMS-3 FMS-3Steel Fixed Machinery Skates 15-3/4 In. x 8 In. x 3-3/4 In. 6,000 Lb. Capacity BlueUniform Capacity (tons): 3
Roller Material: Nylon		22
FMS-6 FMS-6Steel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity BlueUniform Capacity (tons): 6
Roller Material: Nylon		28
MDSKT-2 MDSKT-2Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 2,200
Roller Material: Poly on Steel		40
MDSKT-4 MDSKT-4Steel Multi Direction Machinery Skate 15 In. Length x 13 In. Width x 4-7/16 In. Height 4,400 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 4,400
Roller Material: Poly on Steel		57
MDSKT-6 MDSKT-6Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 4-7/16 In. Height 6,600 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 6,600
Roller Material: Poly on Steel		74
MDSKT-8 MDSKT-8Steel Multi Direction Machinery Skate 18 In. Length x 17-1/2 In. Width x 4-7/16 In. Height 8,800 Lb. Capacity Black and RedUniform Static Capacity (Lbs.): 8,800
Roller Material: Poly on Steel		86
SSKT-12 SSKT-12Steel Machinery Skates 8 Steel Rollers 12 Ton Static Capacity BlueUniform Static Capacity (tons): 12
Roller Material: Steel		202
SSKT-3 SSKT-3Steel Machinery Skates 4 Nylon Rollers 3 Ton Static Capacity BlueUniform Static Capacity (tons): 3
Roller Material: Nylon		27
SSKT-6 SSKT-6Steel Machinery Skates 8 Nylon Rollers 6 Ton Static Capacity BlueUniform Static Capacity (tons): 6
Roller Material: Nylon		114
