Product Family Overview

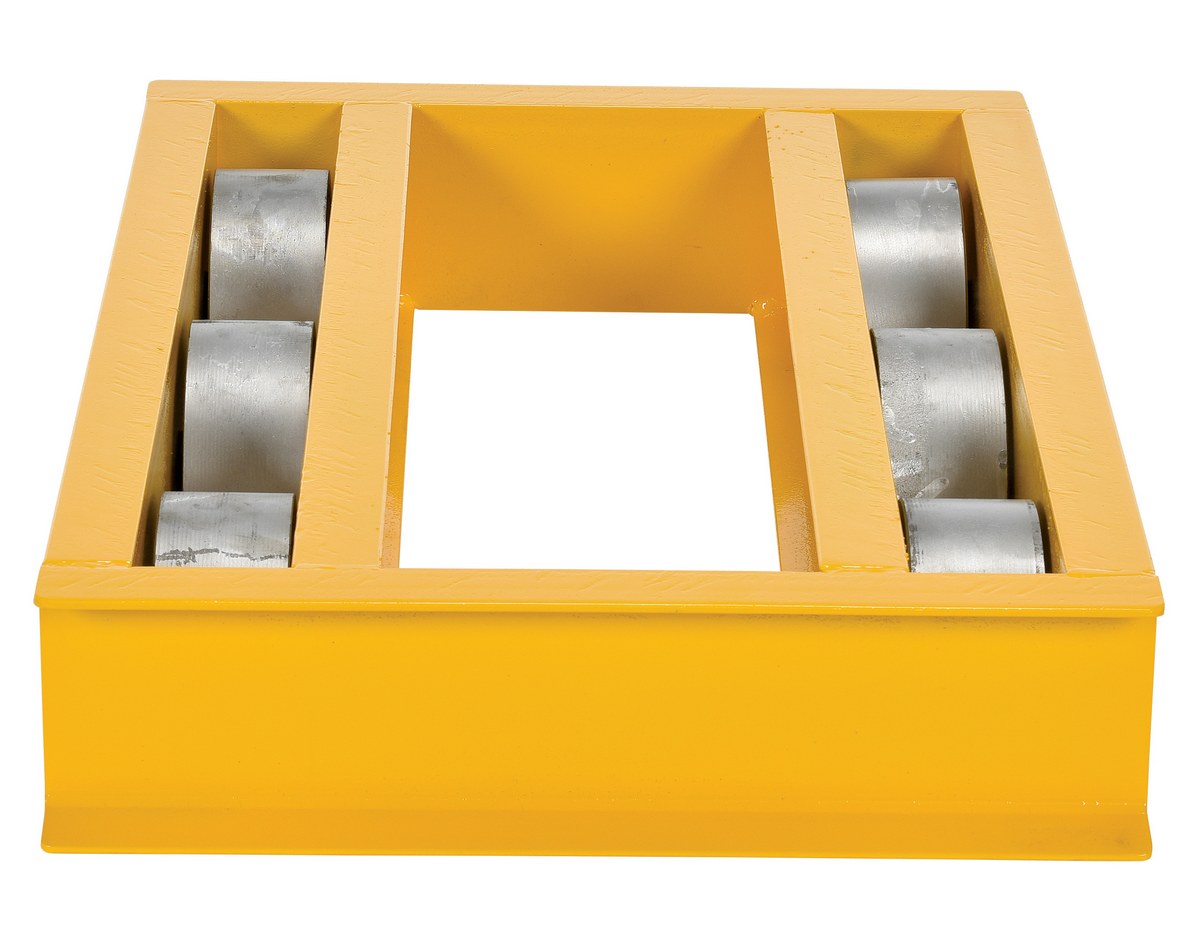

Open Deck Machinery Dollies
SERIES: ODMD

Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. 6,000 lb. model has a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. model has a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.

Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. 6,000 lb. model has a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. model has a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ODMD-2436-6 ODMD-2436-690 Days Limited WarrantySteel Open Deck Machinery Dolly 36 In. x 24 In. x 6-1/4 In. 6,000 Lb. Capacity YellowUniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2
149
ODMD-3660-10 ODMD-3660-1090 Days Limited WarrantySteel Open Deck Machinery Dolly 60 In. x 36 In. x 8-1/2 In. 10,000 Lb. Capacity YellowUniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16
328

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ODMD-2436-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2
Uniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2

ODMD-3660-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16
Uniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16

Open Deck Machinery Dollies PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


ODMD-2436-6

ODMD-3660-10

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Open Deck Machinery Dollies




Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. 6,000 lb. model has a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. model has a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.



Model # Description Attributes Net Wt.
(lbs)
ODMD-2436-6 ODMD-2436-6Steel Open Deck Machinery Dolly 36 In. x 24 In. x 6-1/4 In. 6,000 Lb. Capacity YellowUniform Static Capacity (lb.): 6,000
Center Opening Width (in.): 12-1/2
149
ODMD-3660-10 ODMD-3660-10Steel Open Deck Machinery Dolly 60 In. x 36 In. x 8-1/2 In. 10,000 Lb. Capacity YellowUniform Static Capacity (lb.): 10,000
Center Opening Width (in.): 21-3/16
328
