Multi-Tier Stock Carts| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

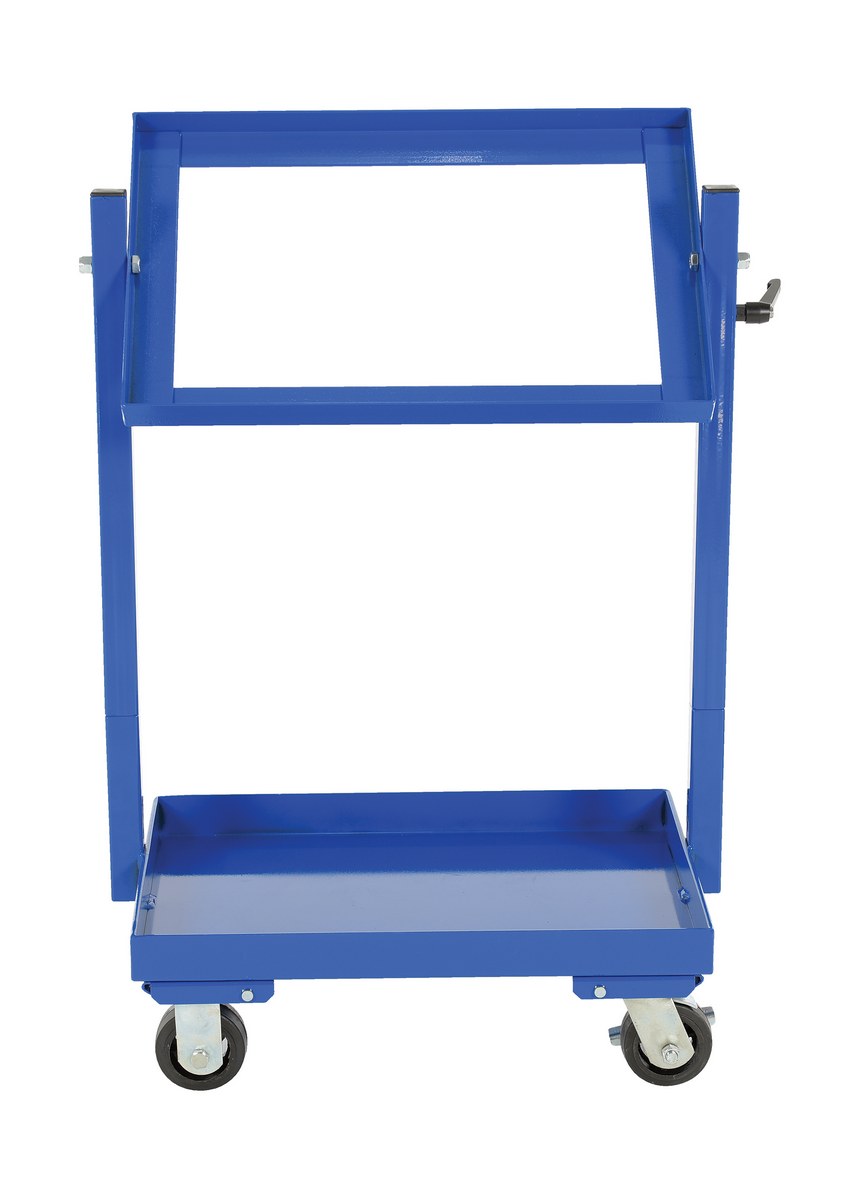

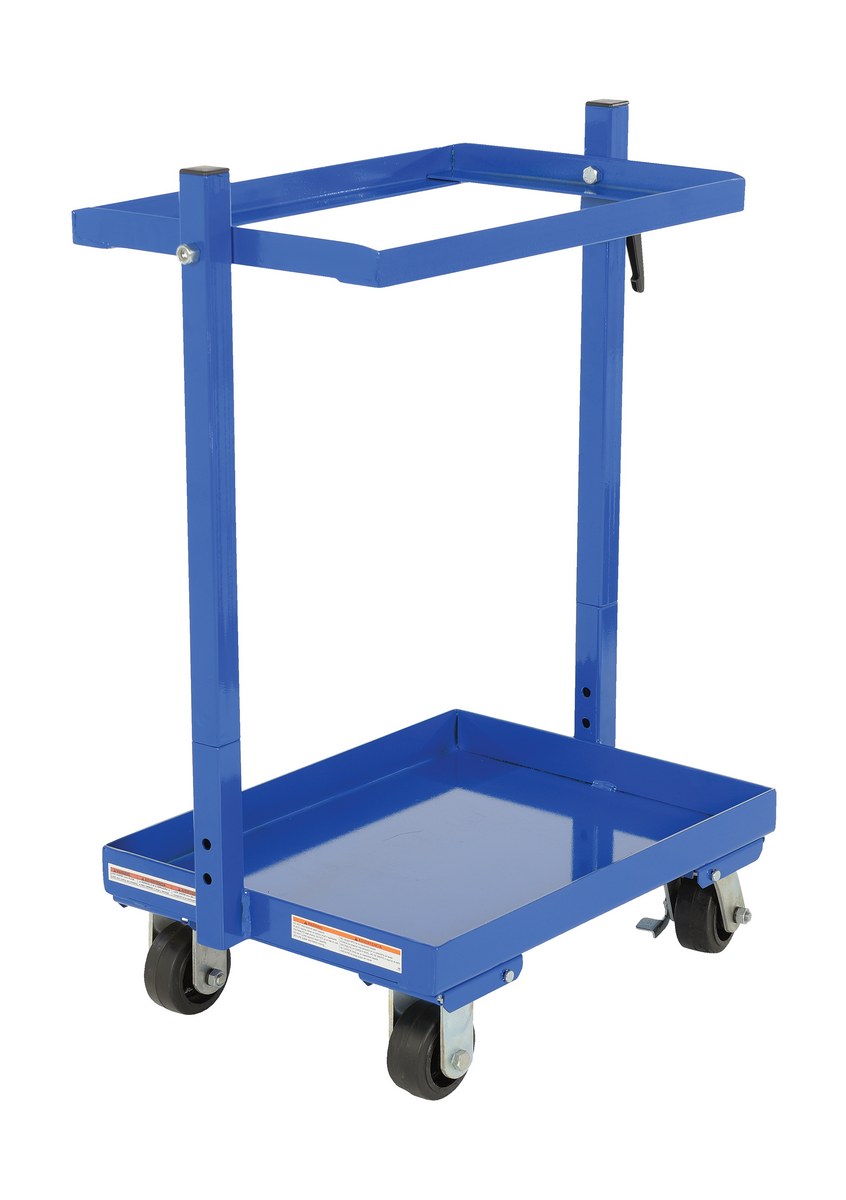

| TSCT-2 |  | 90 Days Limited Warranty | Steel Multi-Tier Cart with 2 Shelves 200 Lb. Static Capacity Blue | Uniform Static Capacity (lb.): 200 Uniform Static Capacity per shelf/bin (lb.): 100 | 108 | ||

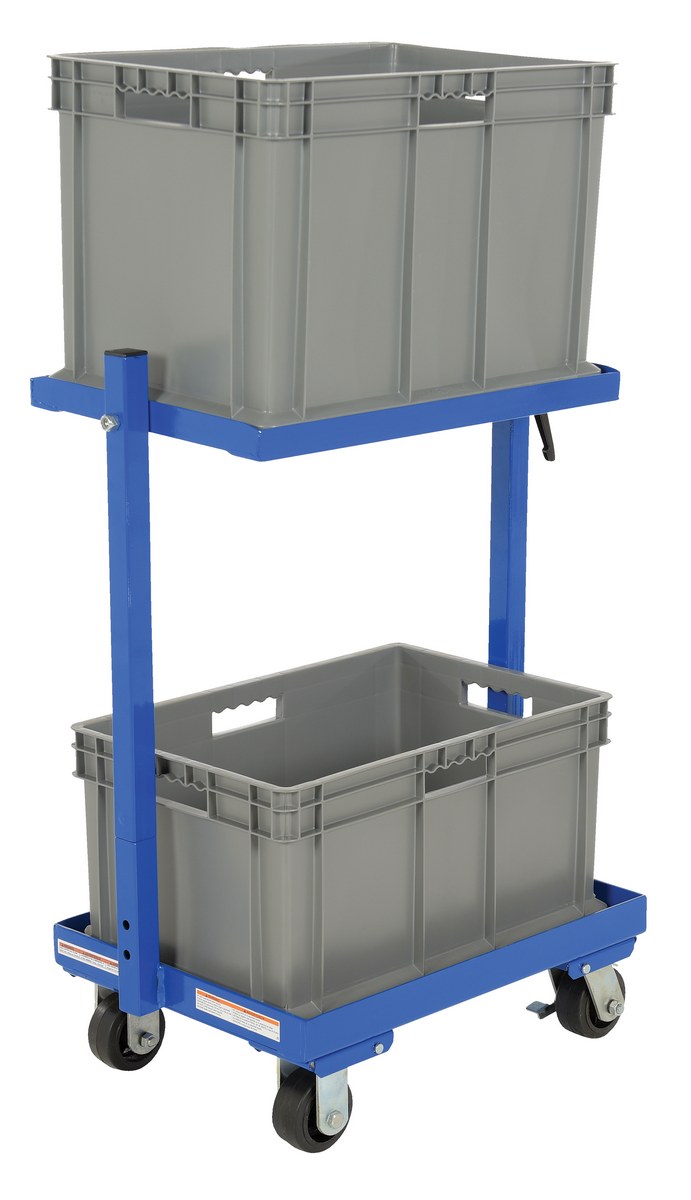

| TSCT-2B |  | 90 Days Limited Warranty | Steel Multi-Tier Cart with 2 Shelves and 2 Baskets 200 Lb. Static Capacity Blue | Uniform Static Capacity (lb.): 200 Uniform Static Capacity per shelf/bin (lb.): 100 | 154 | ||

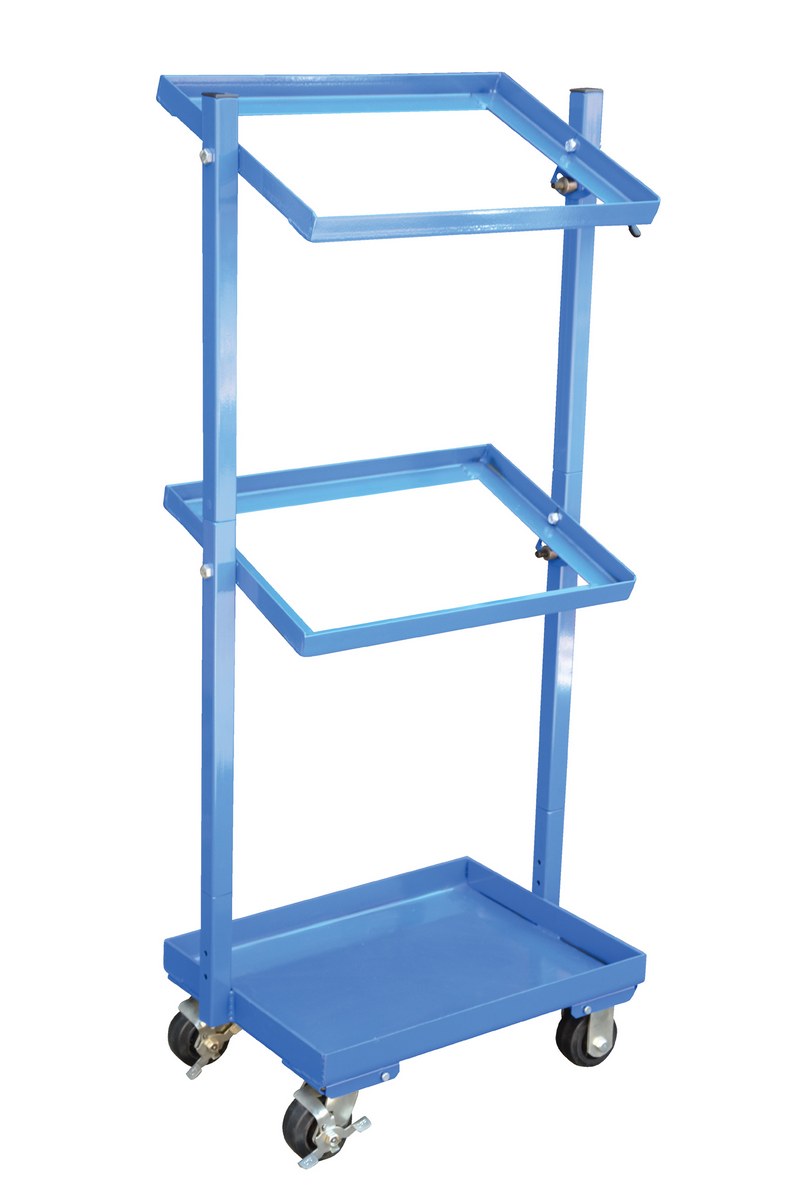

| TSCT-3 |  | 90 Days Limited Warranty | Steel Multi-Tier Cart with 3 Shelves 300 Lb. Static Capacity Blue | Uniform Static Capacity (lb.): 300 Uniform Static Capacity per shelf/bin (lb.): 100 | 134 | ||

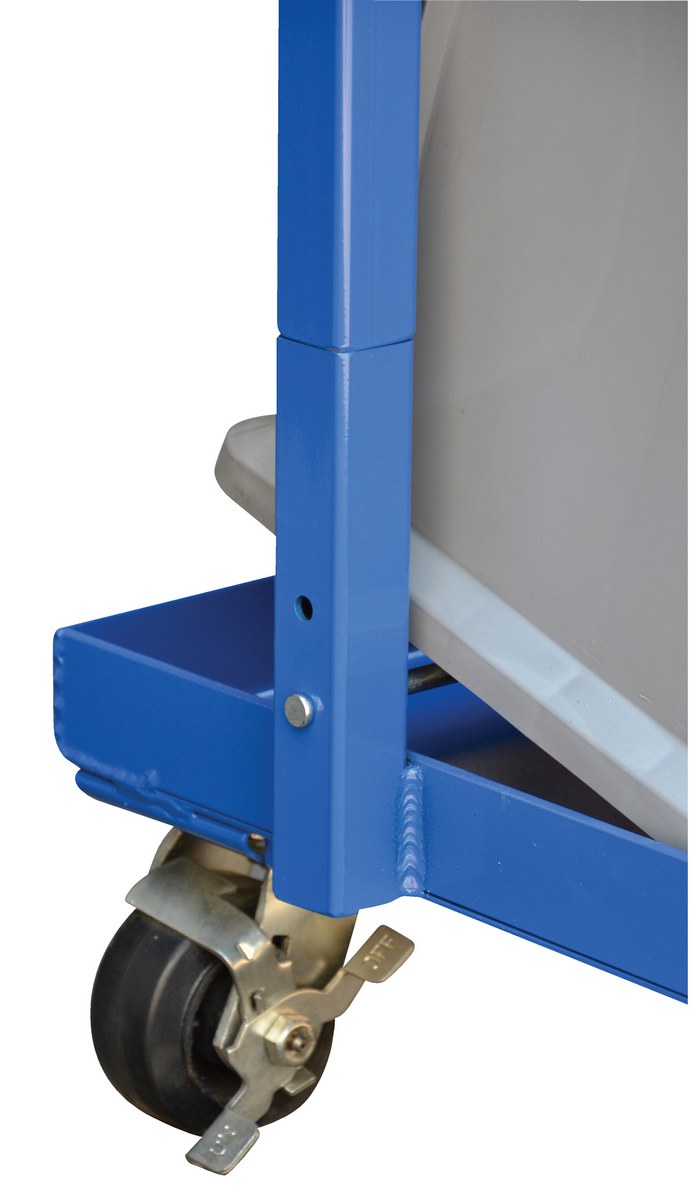

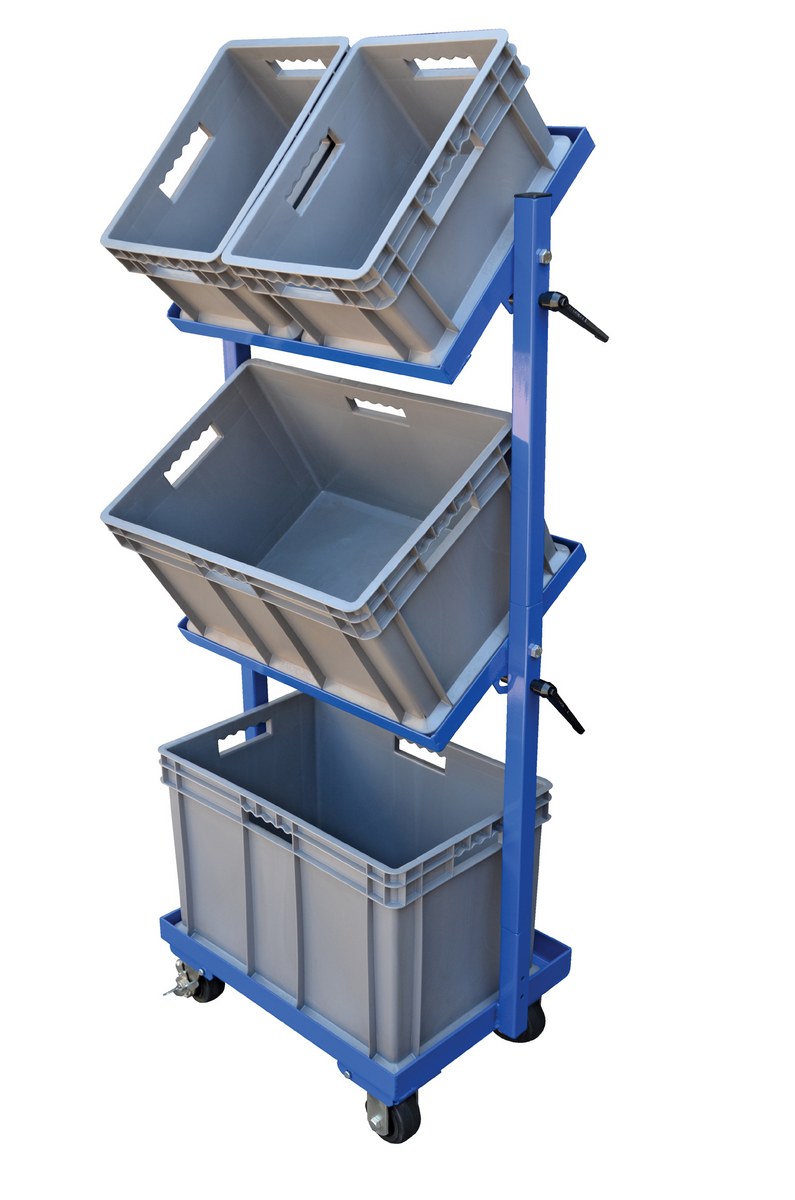

| TSCT-3B |  | 90 Days Limited Warranty | Steel Multi-Tier Cart with 3 Shelves and 3 Baskets 300 Lb. Evenly Distributed Static Capacity Blue | Uniform Static Capacity (lb.): 300 Uniform Static Capacity per shelf/bin (lb.): 100 | 182 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Model | Image | Details | Icons | Wt. |
|---|---|---|---|---|

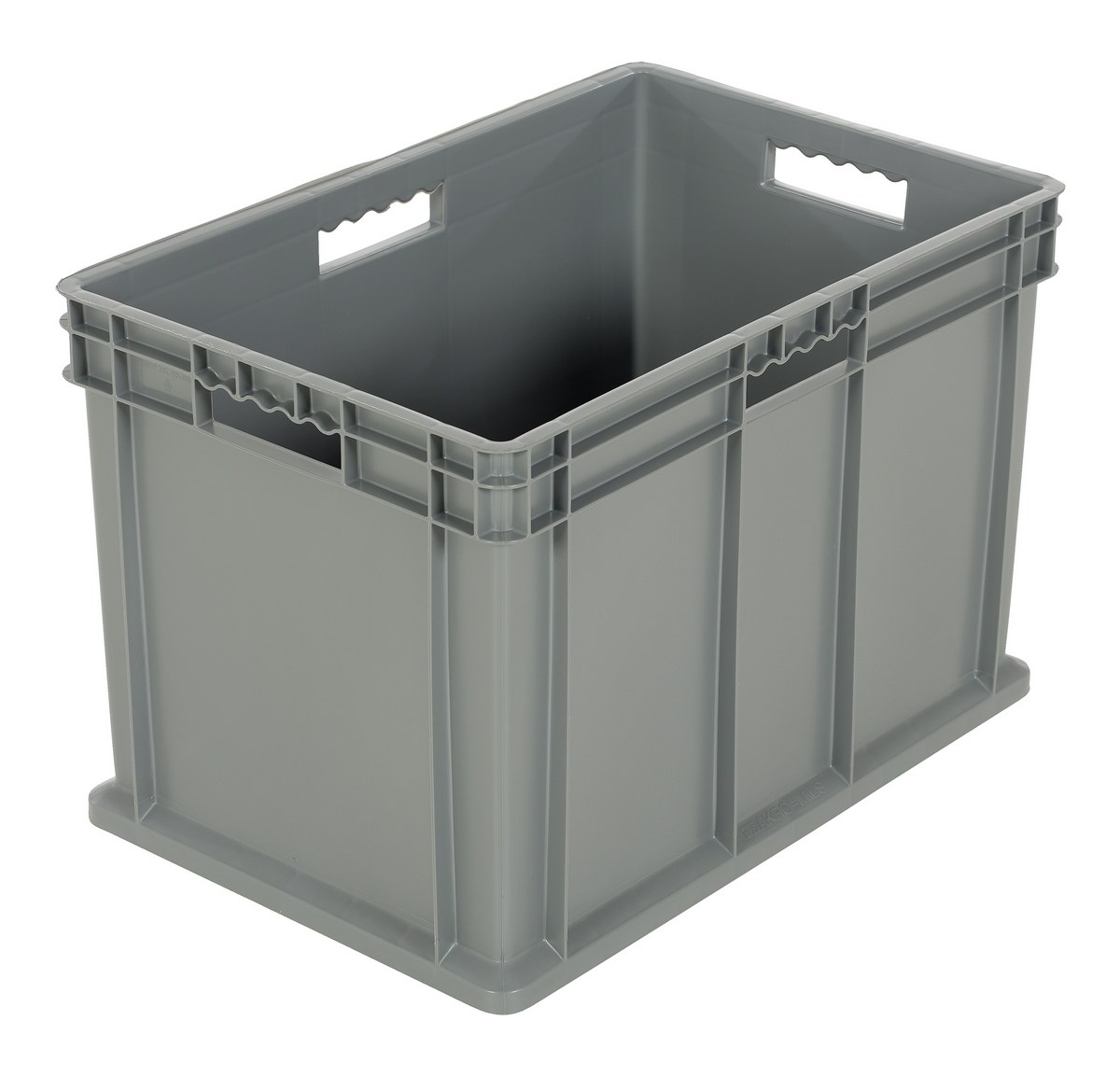

| TSCT-LGB | | Plastic Multi-Tier Stack Cart Large Bin 150 Lb. Load Capacit… | Limited Warranty | 10 |

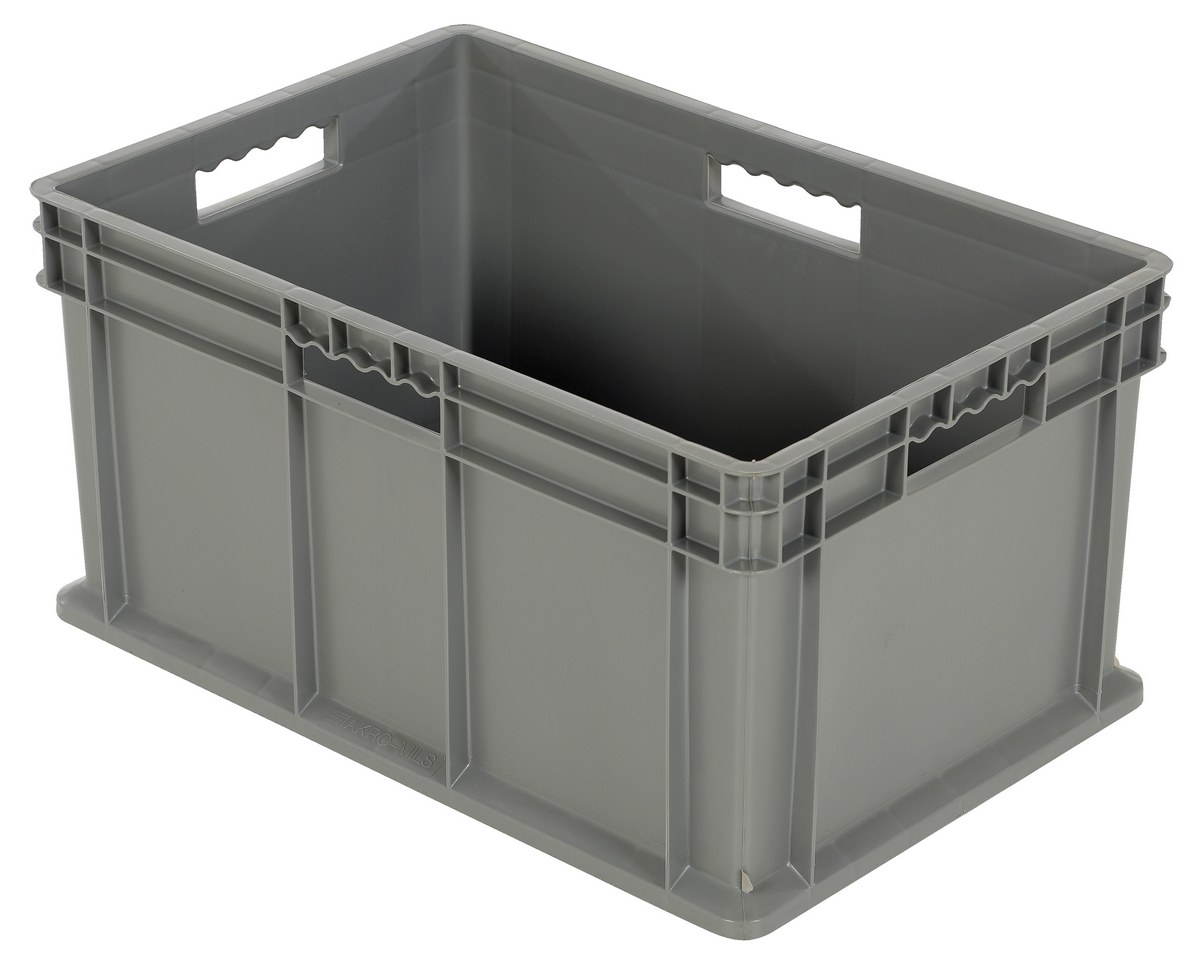

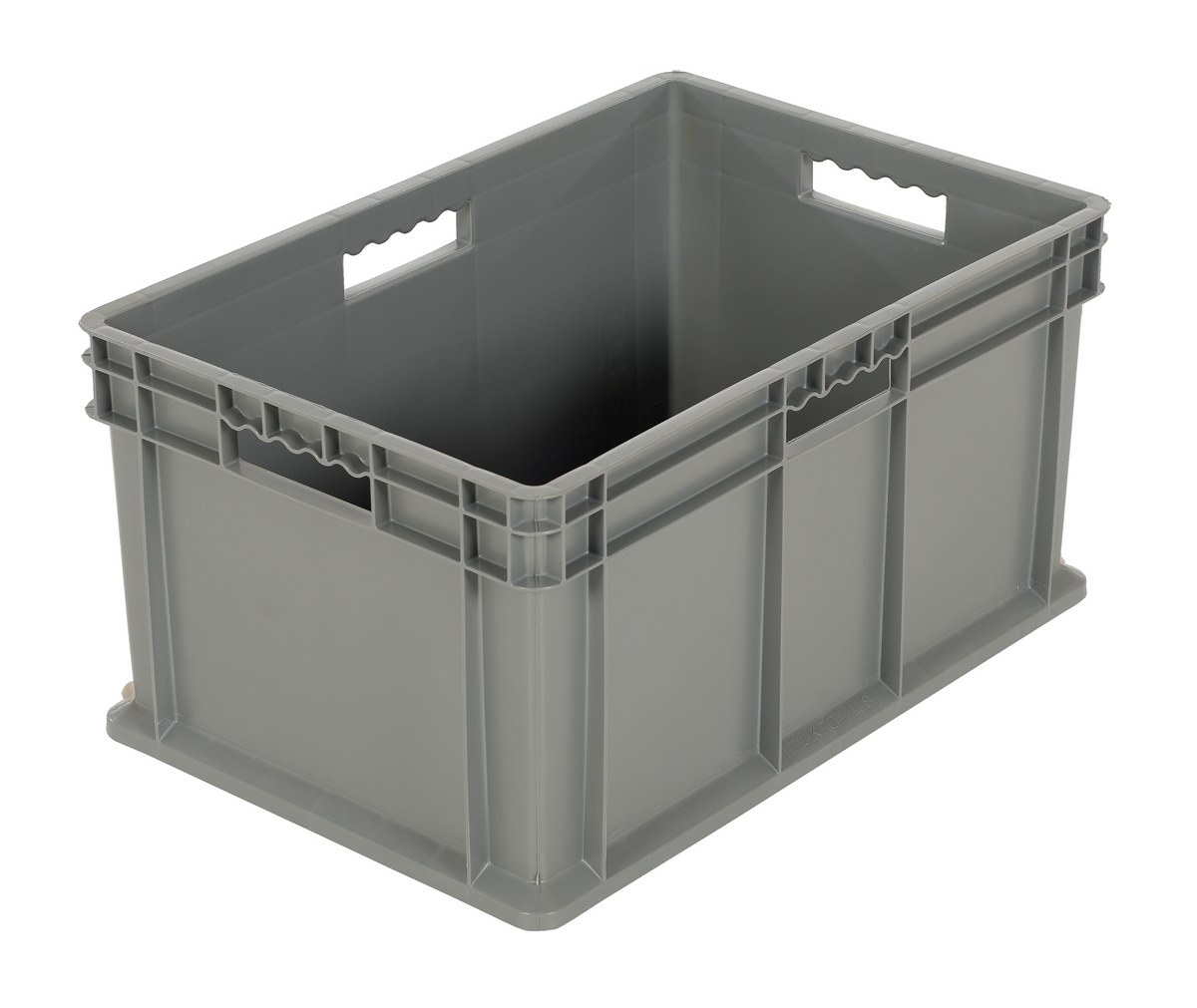

| TSCT-MDB | | Plastic Multi-Tier Stack Cart Medium Bin 125 Lb. Load Capaci… | Limited Warranty | 8 |

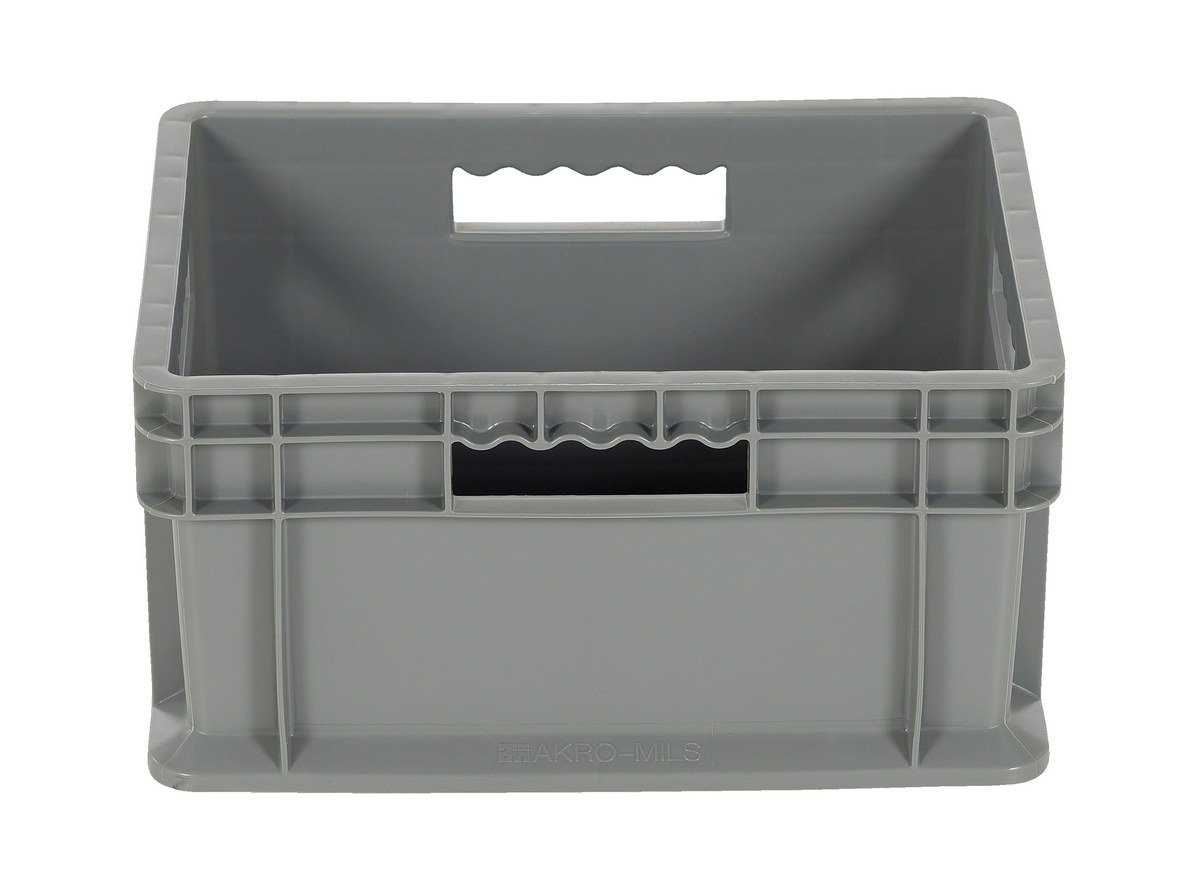

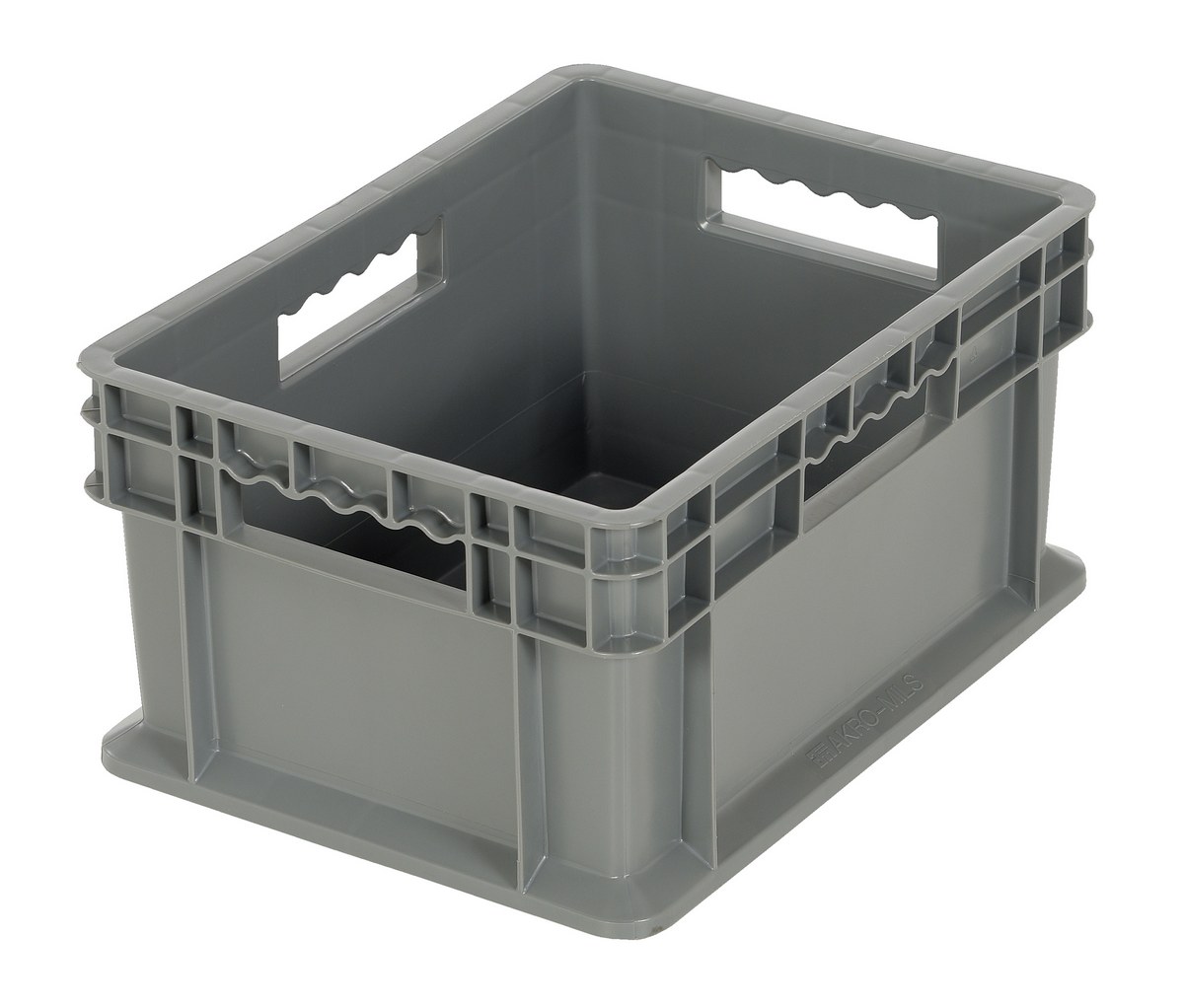

| TSCT-SMB | | Plastic Multi-Tier Stack Cart Small Bin 83 Lb. Load Capacity… | Limited Warranty | 4 |
.
|
|||||||||||||||||||||||||||
Multi-Tier Stock Carts |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||

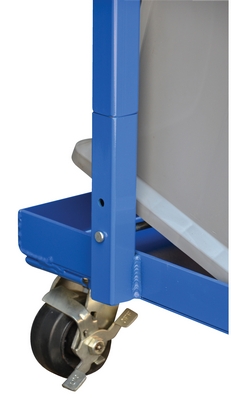

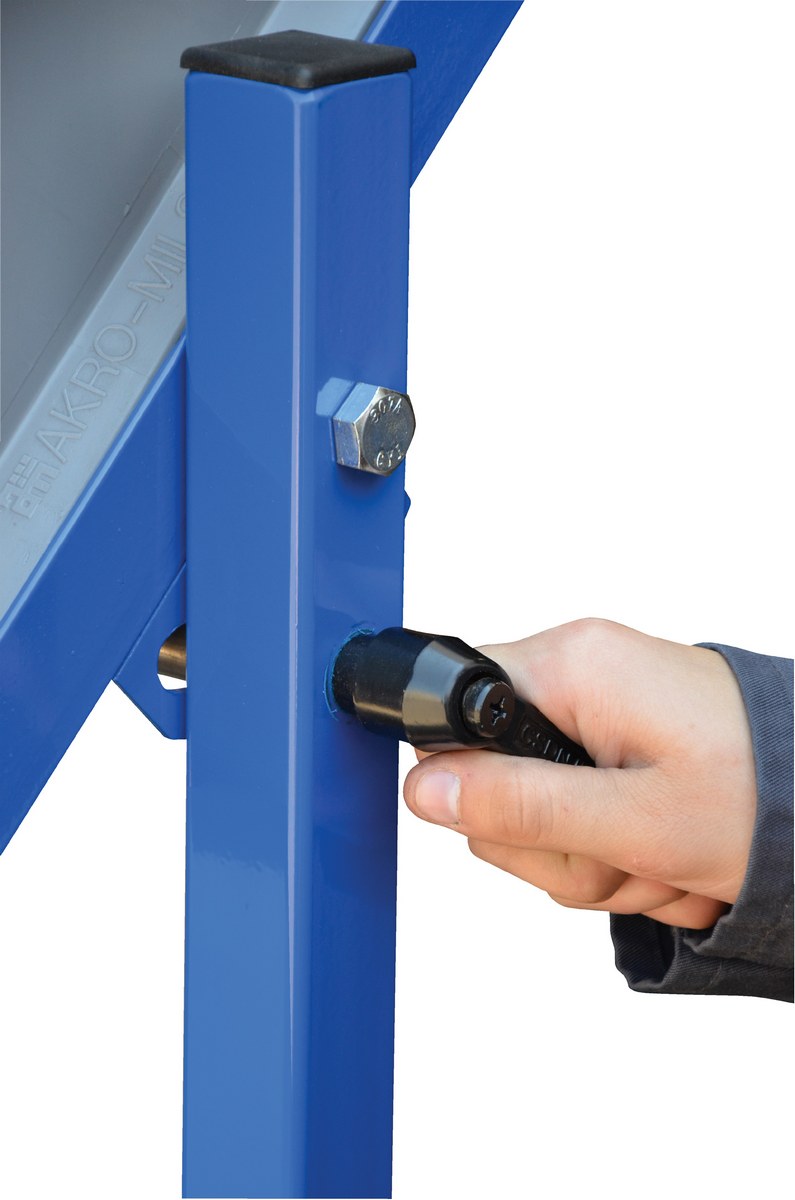

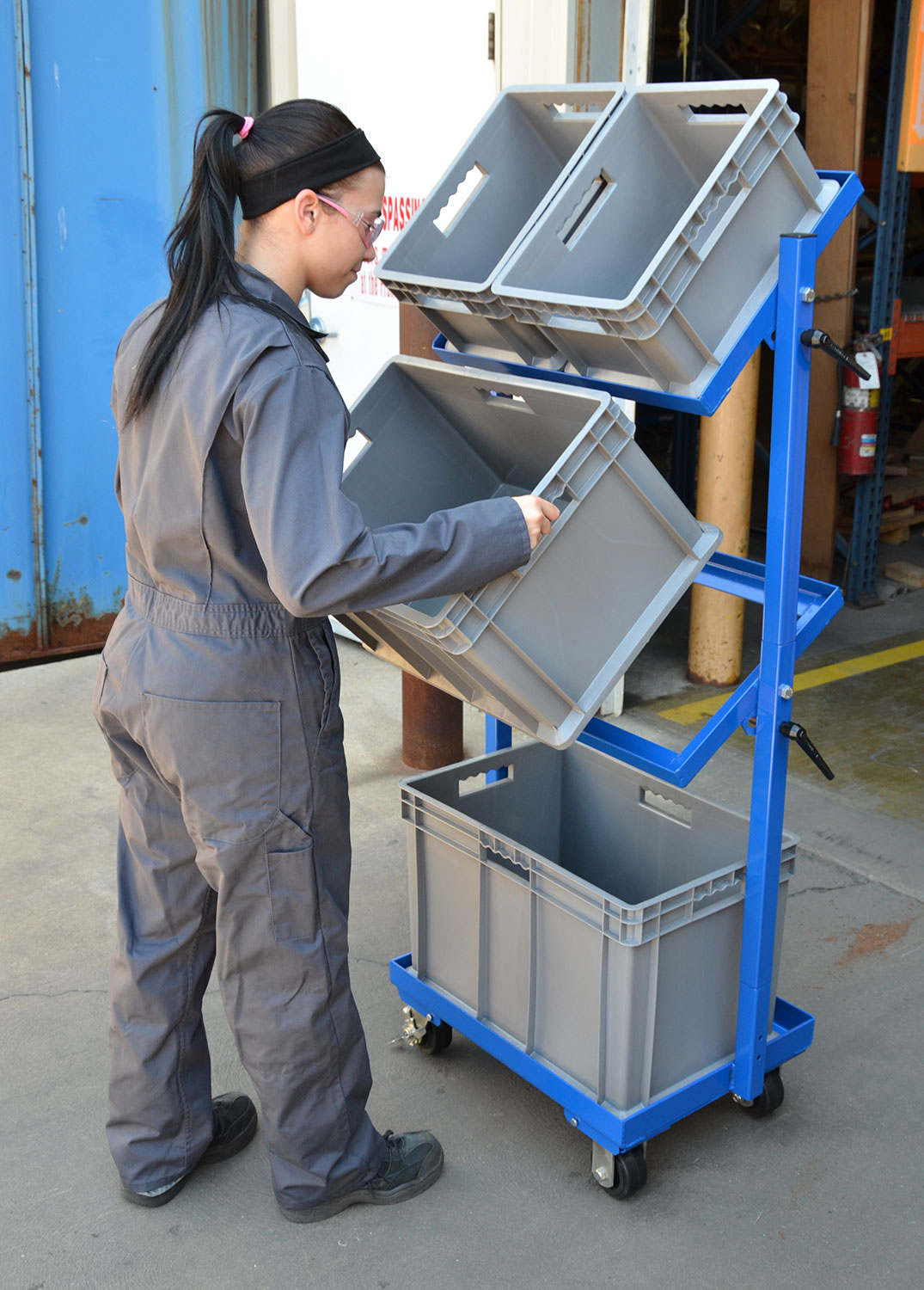

This unique cart makes it easy to organize and reach parts. Tilting shelves allow easy access to baskets. Ideal for stocking parts in work stations. Casters allow the parts to be moved to wherever they are needed. Upper shelves will tilt between 0-45 degrees. Shelf angle is locked with a hand operated friction lock screw. Bottom shelf will tilt at 26 degrees with clevis pens provided. Bottom shelf includes a 2" high lip on all four sides. Middle and top shelves include a 1-1/2."H lip on all four sides. Bottom shelf height is 5-7/8.". Middle shelf height is 34". Top shelf height is 57." Overall cart size (not including baskets) is 19-1/16"W x 30-11/16"L x 60-5/8"H (37-5/8"H for two-shelf models). Rolls smoothly on two (2) rigid and two (2) swivel with brakes 4" x 2" casters. Steel construction. Baked-in powder-coated toughness. (Weight must be evenly distributed between the shelves)
|
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
