Galvanized Construction Barrier Systems

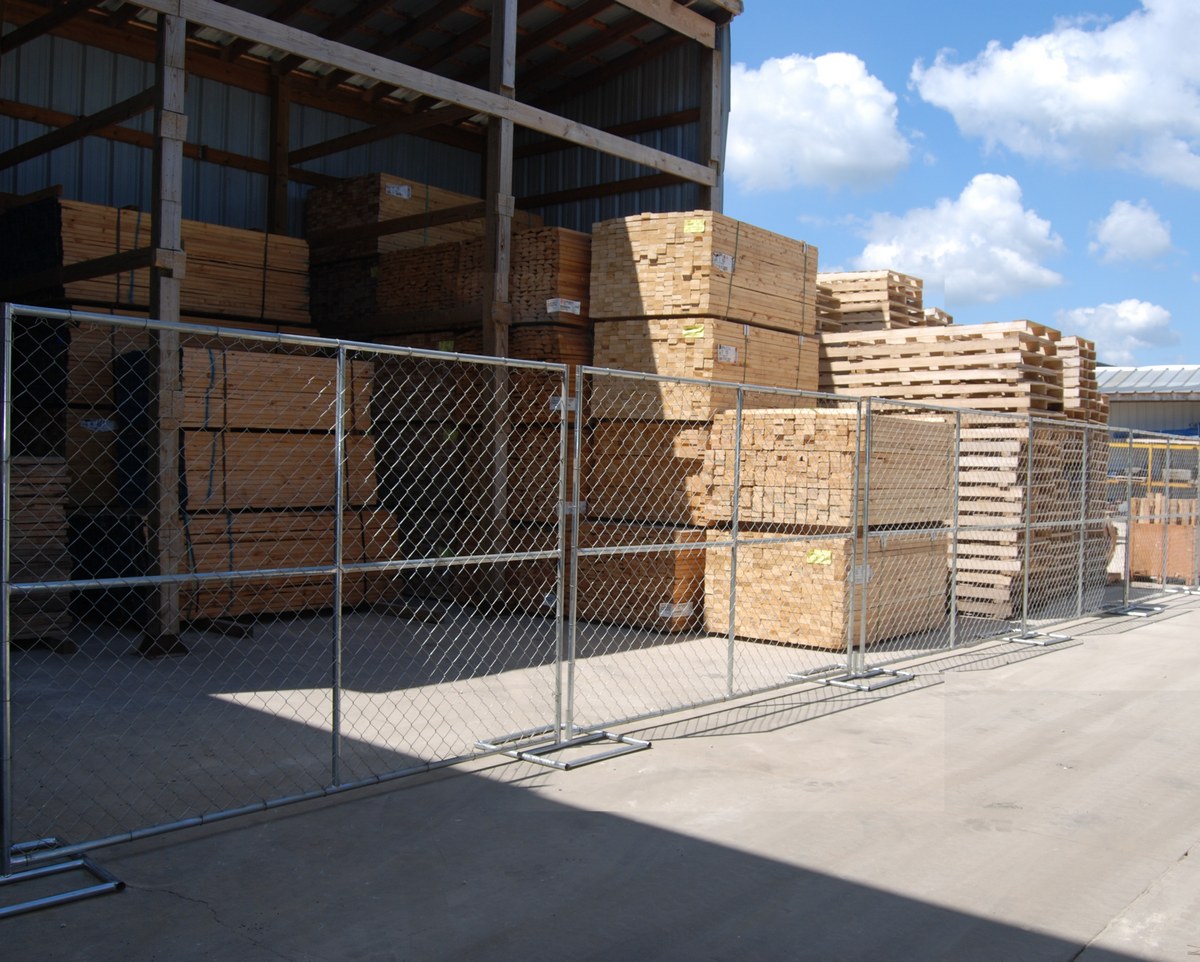

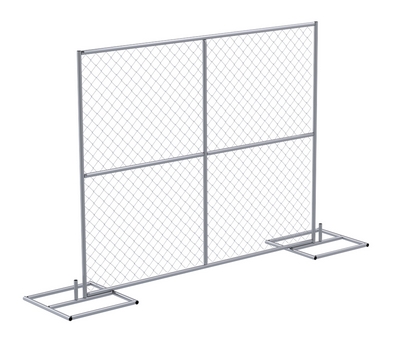

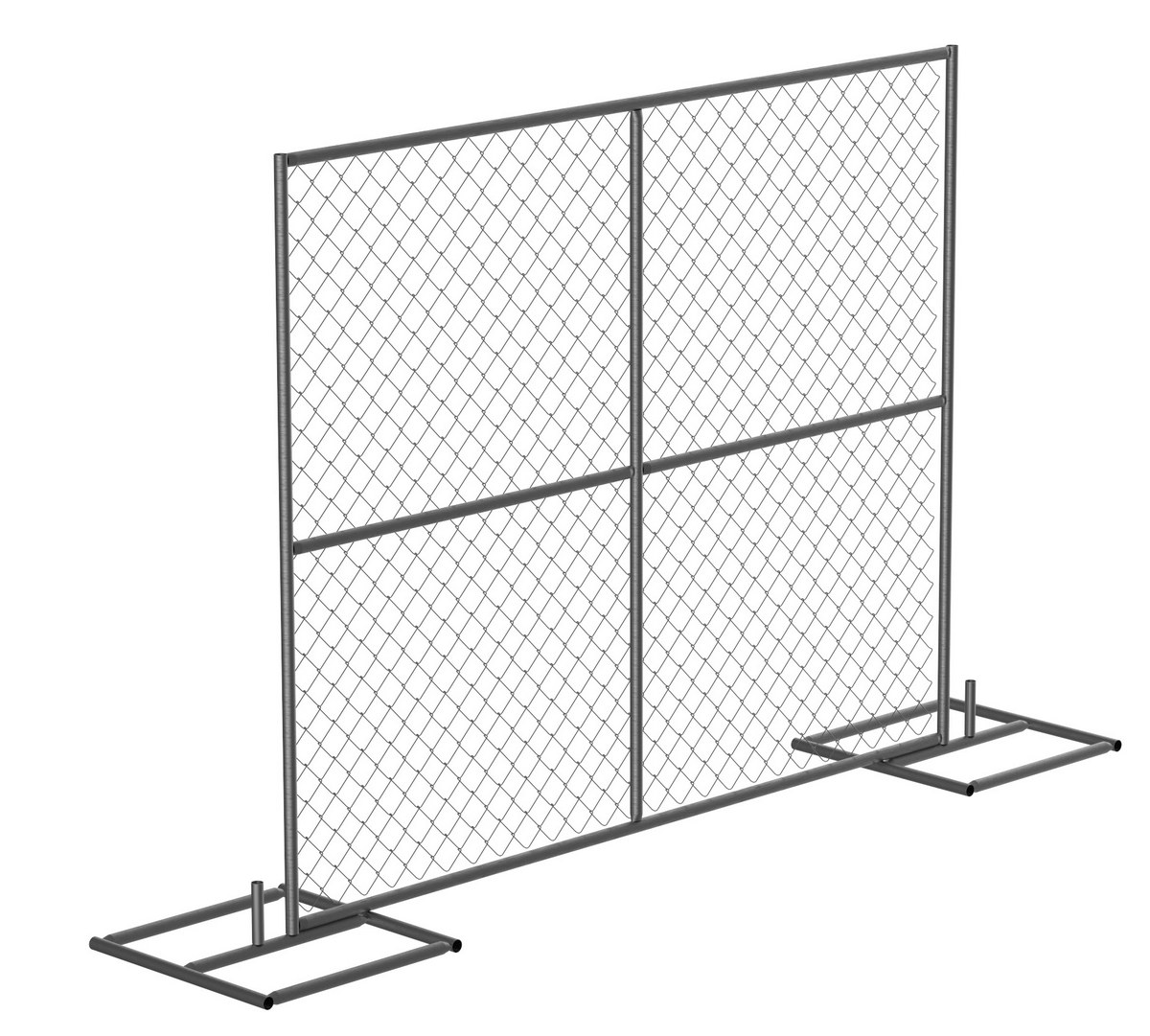

Galvanized Construction Barrier SystemsDesigned for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.
HRAIL-9072
HRAIL-9072
HRAIL-9072
HRAIL-BASE
HRAIL-CON
HRAIL-A-9072
HRAIL-PNL
HRAIL-CON
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

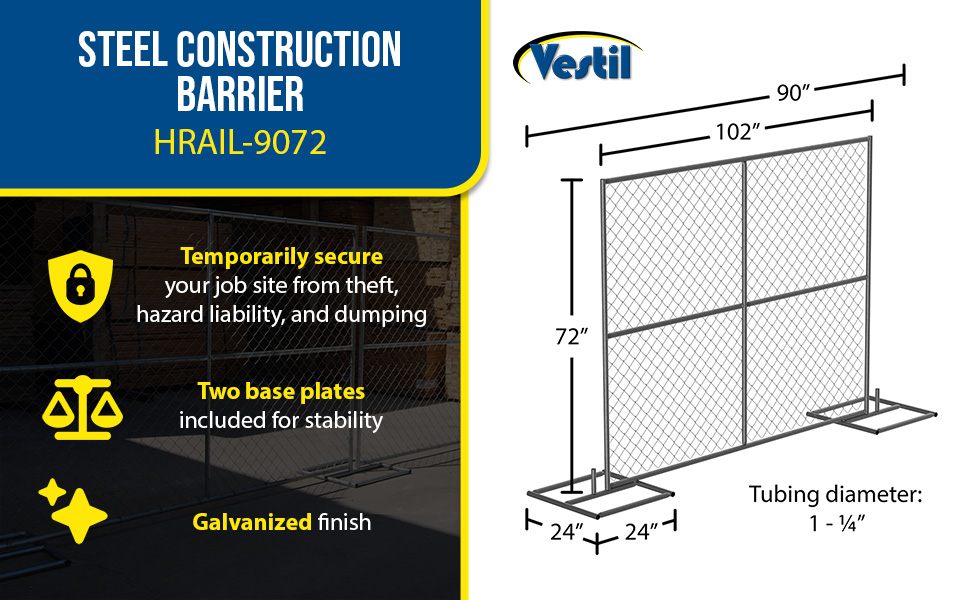

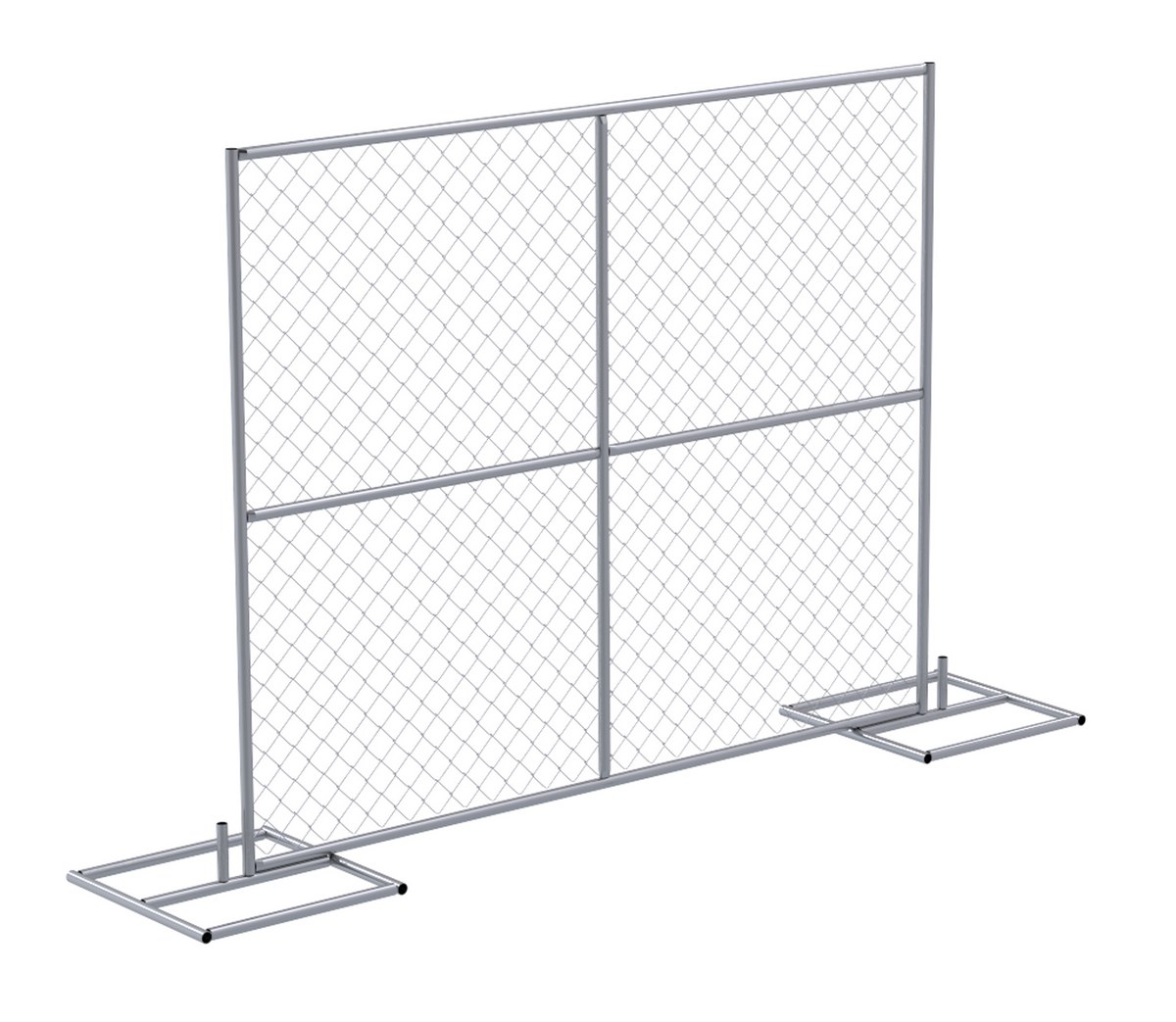

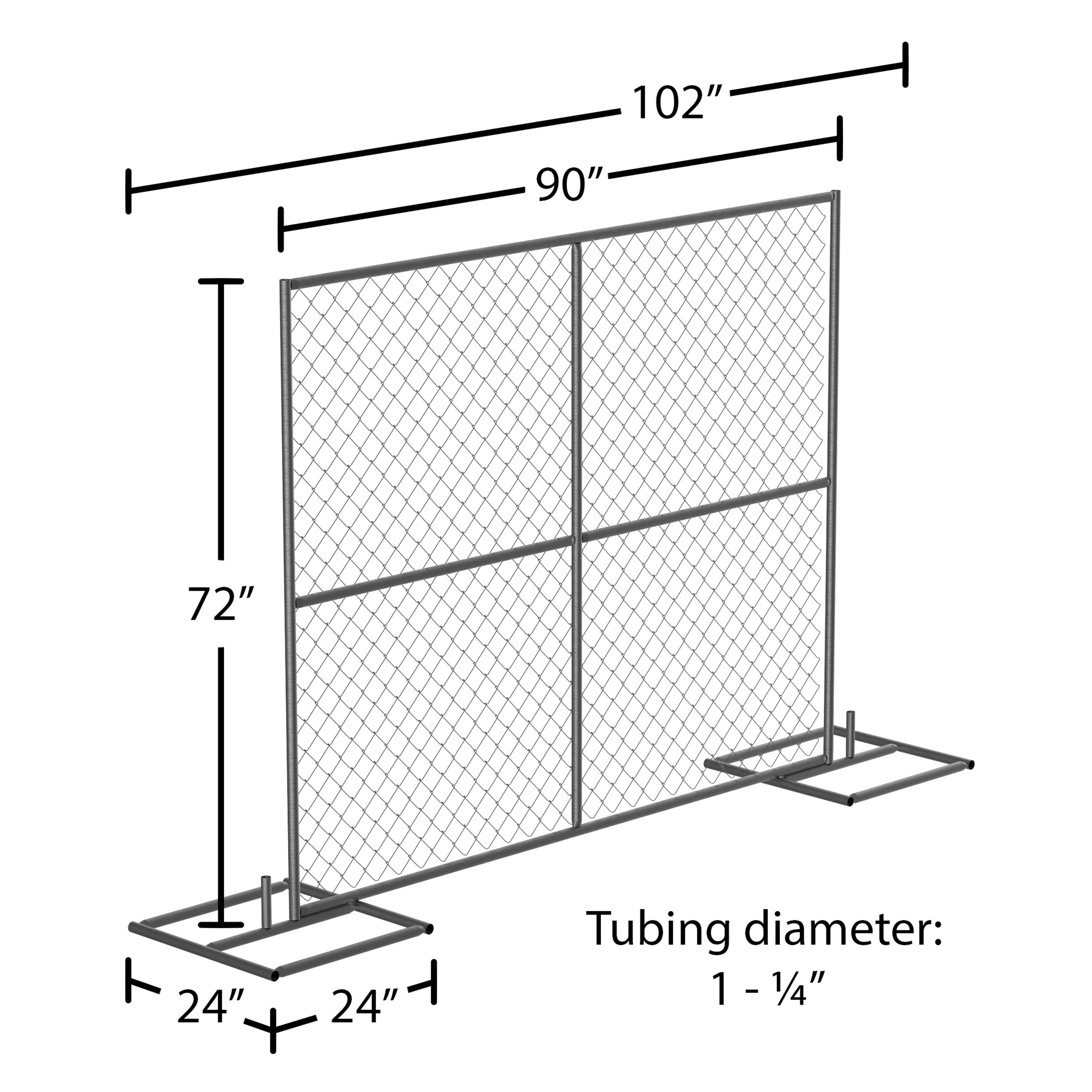

| HRAIL-9072 | | 90 Days Limited Warranty | Steel Construction Barrier System Silver | Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 104 | ||

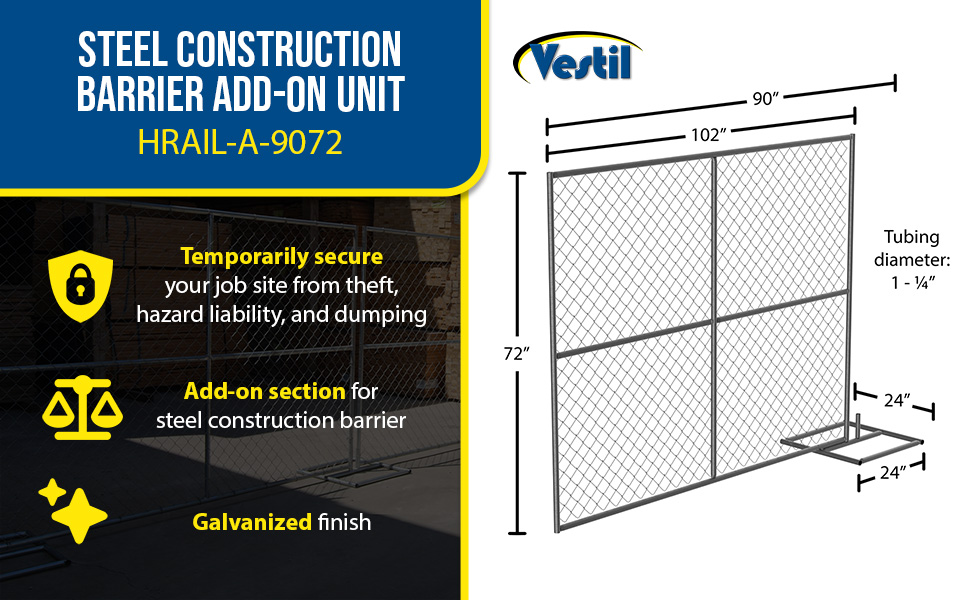

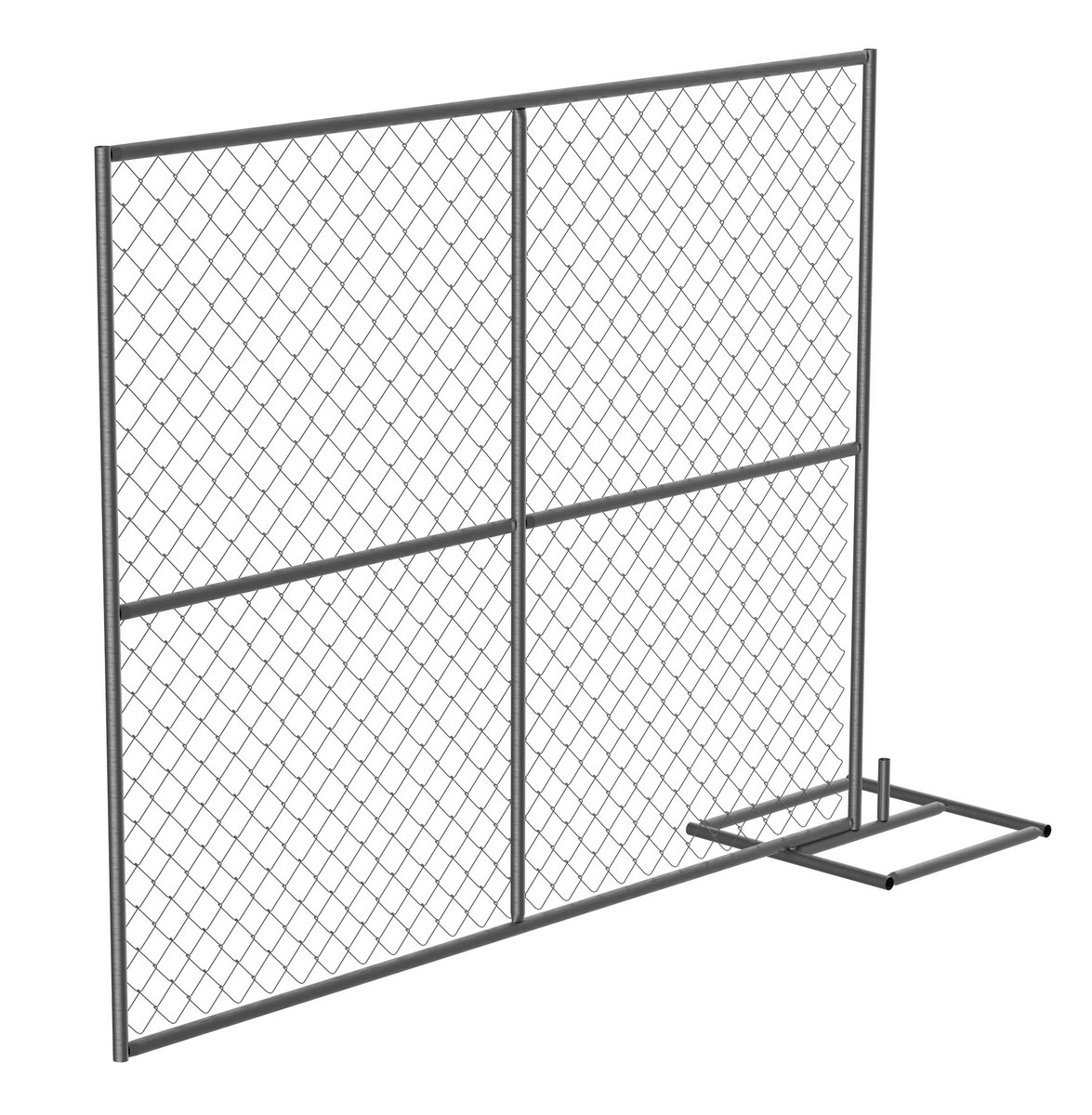

| HRAIL-A-9072 | POPULAR | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072 | Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 115 | |

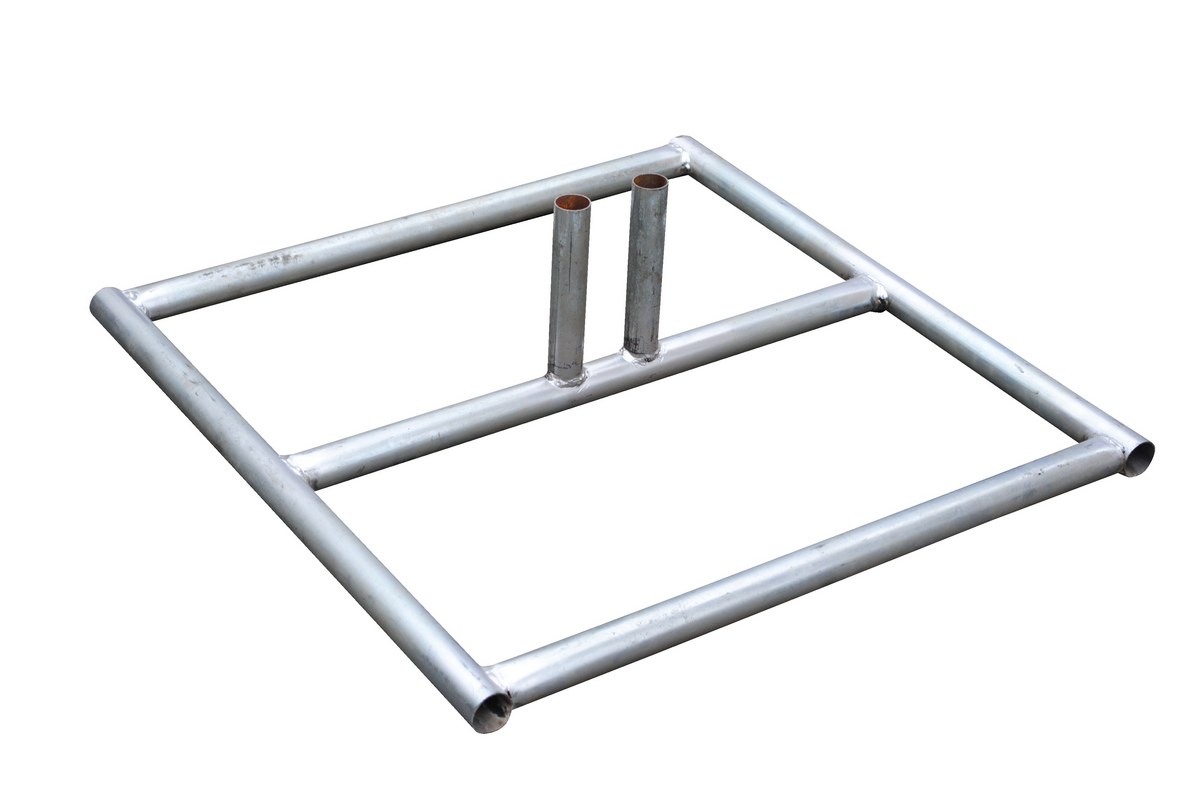

| HRAIL-BASE | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Base For HRAIL Models | Base Tubing Diameter (in.): 1-1/4 Receiver Post (qty.): 2 | 7 | ||

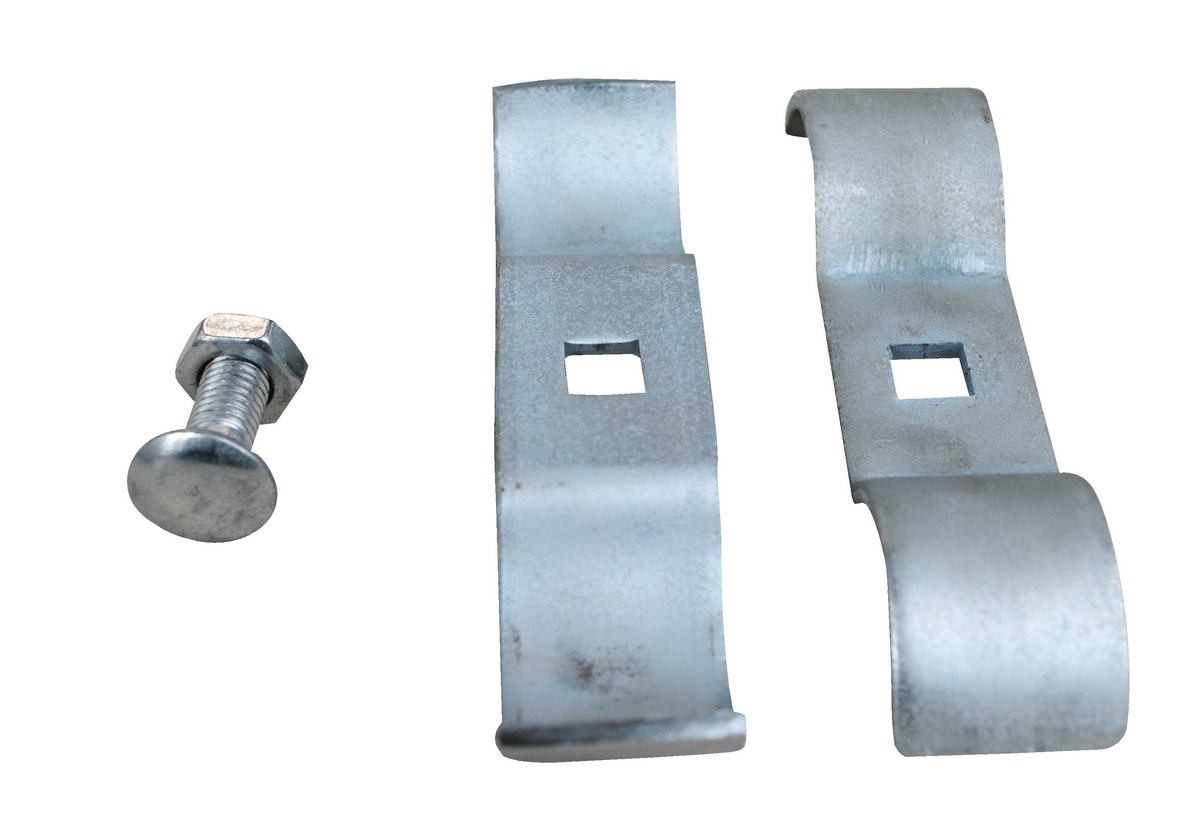

| HRAIL-CON | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Connector For HRAIL Models | Recommended Use: For use with HRAIL Models Application: Connector Bracket | 3 | ||

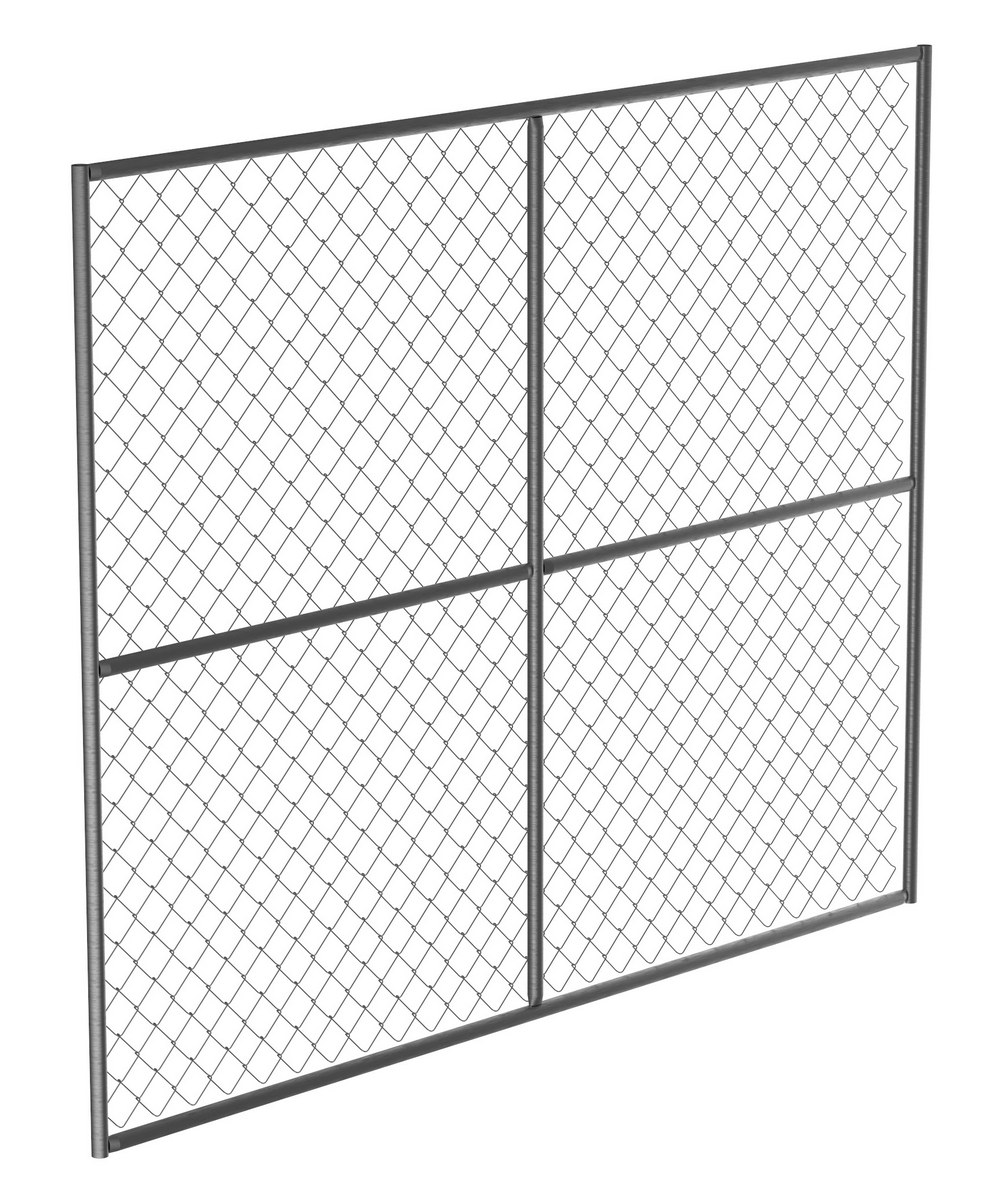

| HRAIL-PNL | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Panel Unit For HRAIL Models | Panel Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 111 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: We do not have a gate for this barrier system.
A: The inside diameter of the HRAIL-BASE is 15/16". The outside diameter is 1.10".
A: 1.25 L x 5.25 W x 1.125 H and weight is 2 lbs. The OD of the pipe this connector fits on is 1 1/4 in. The bold that holds the connector together can be adjusted, so I believe it will work with a 1 5/8 in OD, but it is designed for the 1 1/4 in OD round.
A: That piece is already assembled. If you need the whole "construction barrier system" it's listed under HRAIL-9072 and will need easy assembly.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||||||||||||
Galvanized Construction Barrie... |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.
|
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
