Modular Guard Systems

model: MG-CP-36-2

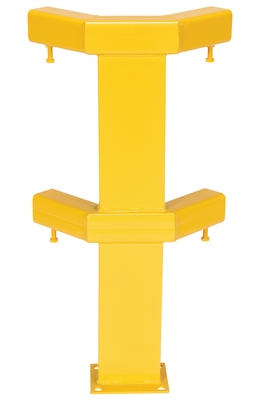

MG-CP-36-2_C.jpg MG-CP-36-2_D.jpg MG-CP-36-2_B.jpg MG-CP-36-2_A.jpg More Images +
Modular Guard Systems
SERIES: MG

Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength
Modular Guard Systems

model: MG-CP-36-2

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

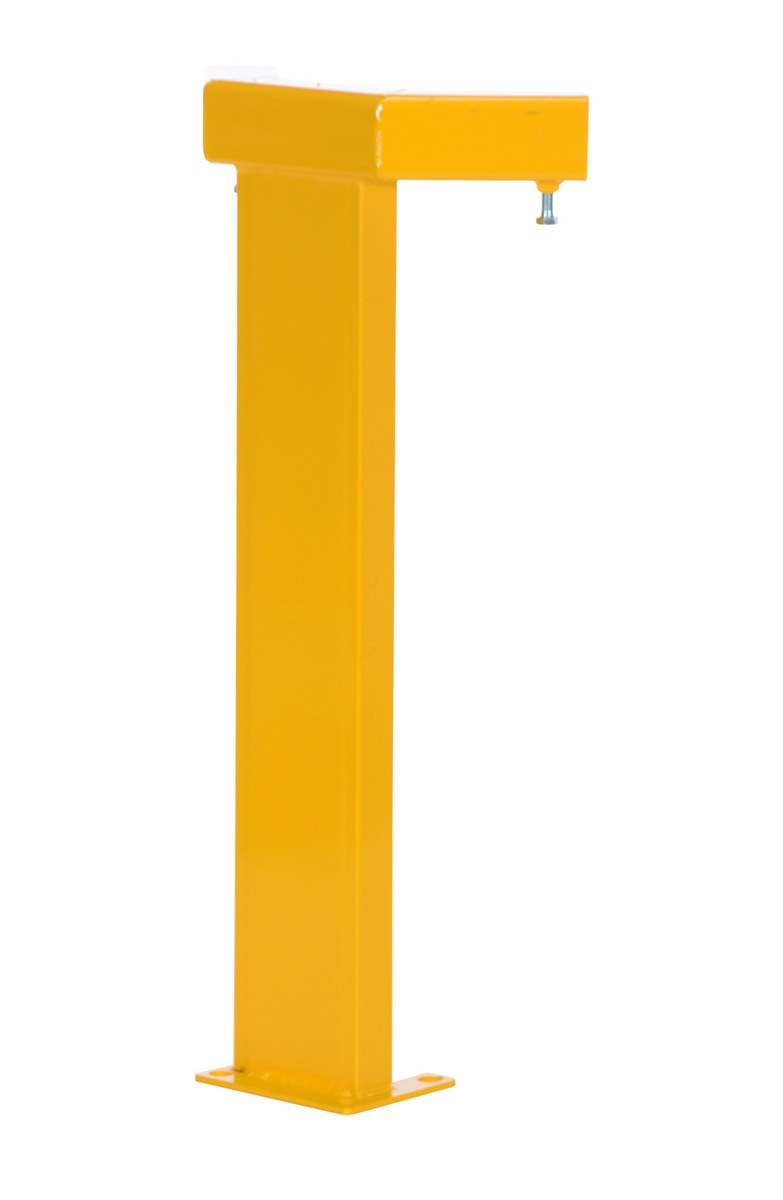

MG-CP-36-1 MG-CP-36-190 Days Limited WarrantySteel Modular Guard System Corner Post 1 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Single		37

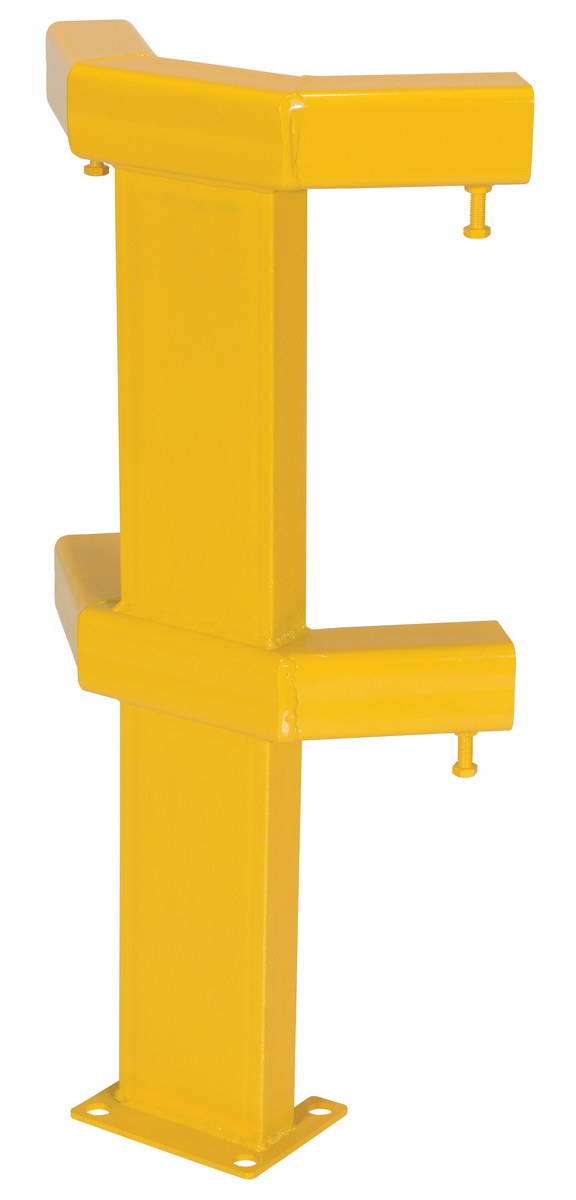

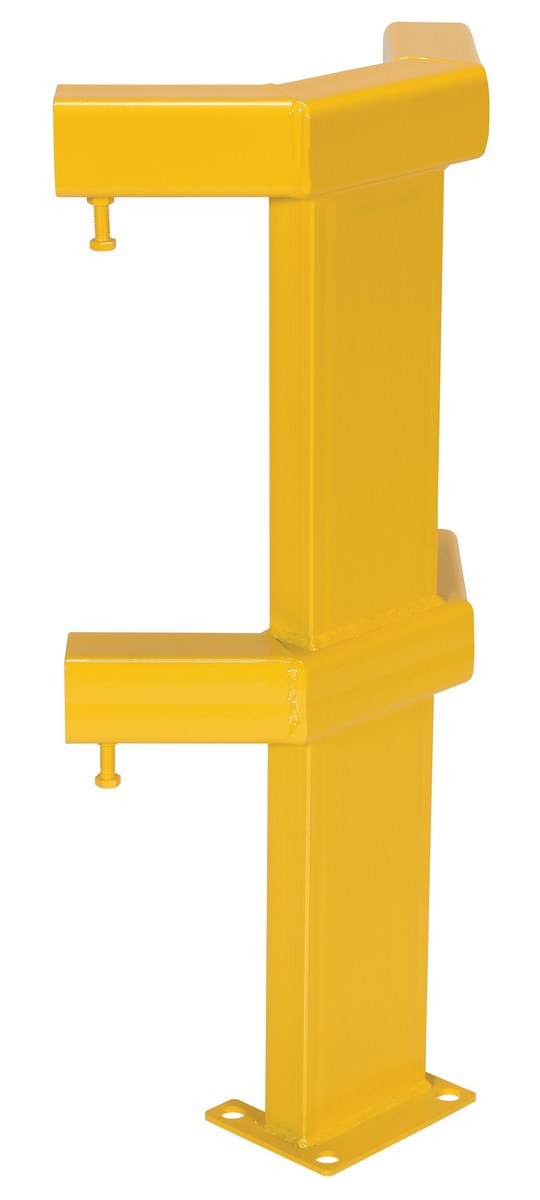

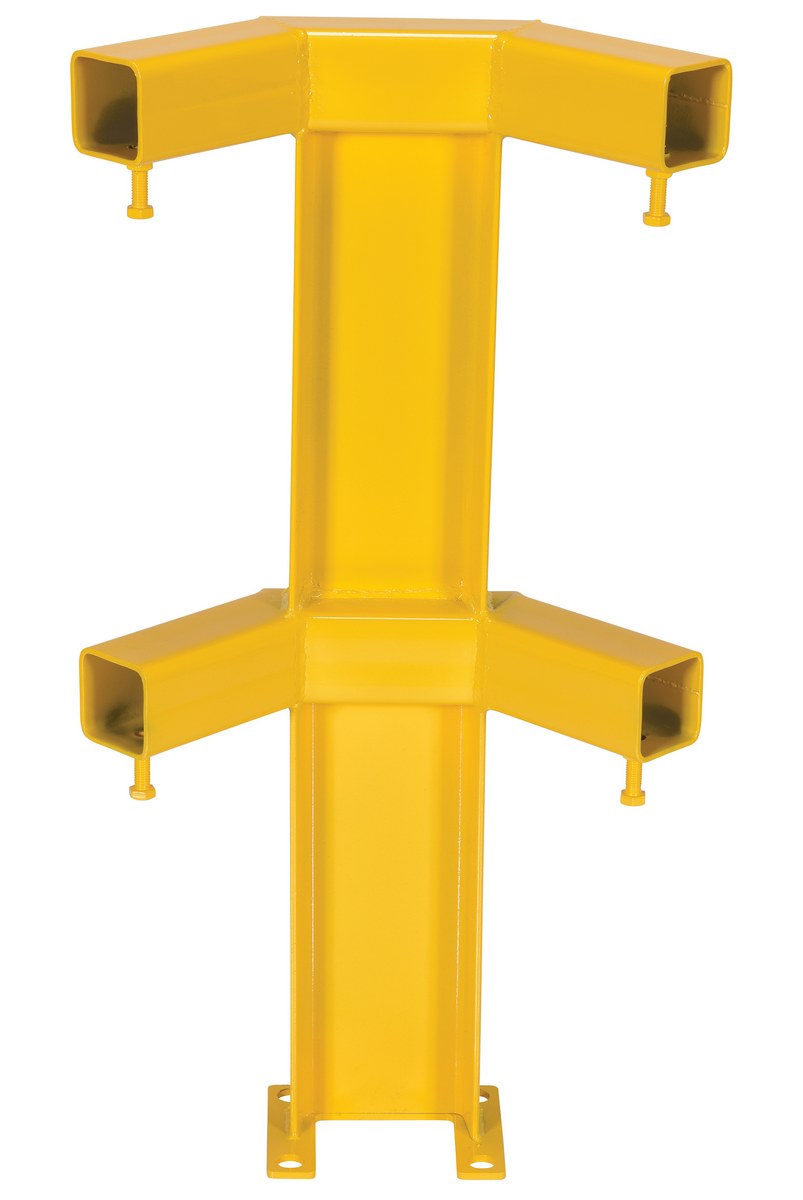

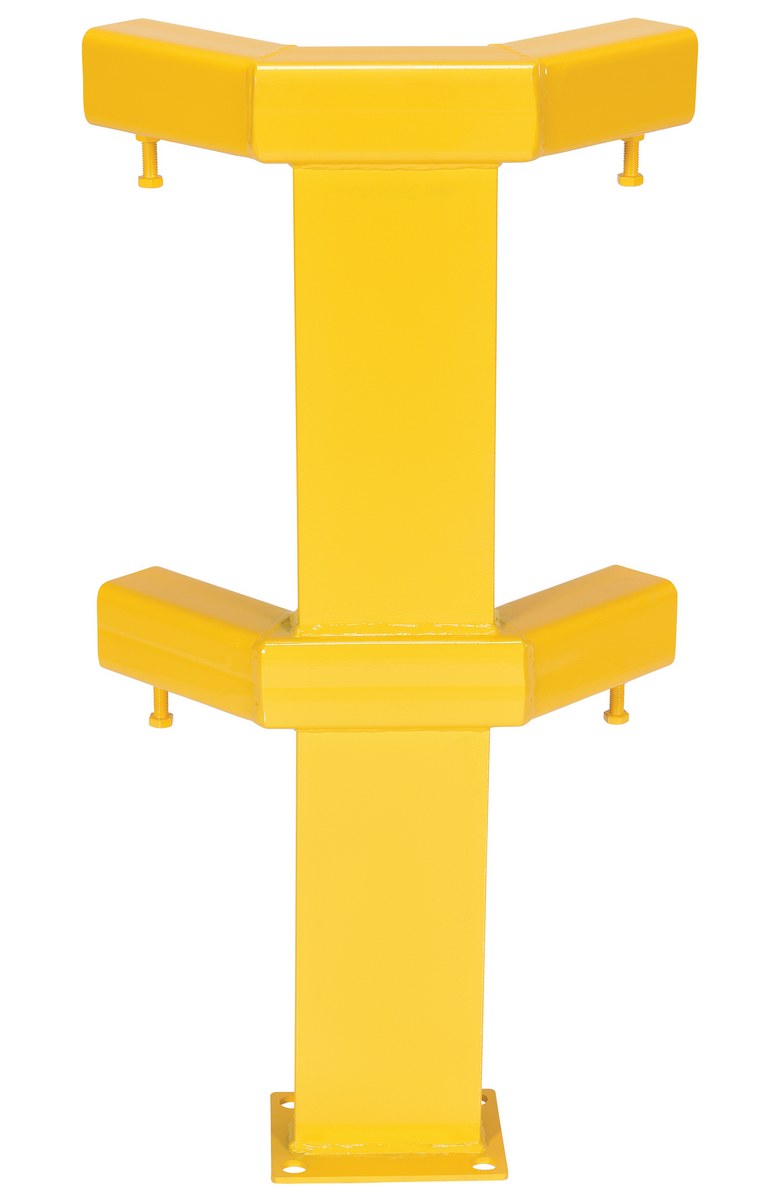

MG-CP-36-2 MG-CP-36-290 Days Limited WarrantySteel Modular Guard System Corner Post 2 Rail 7-5/8 In. x 6 In. x 36 In. YellowComponent: Mounting Corner Post
Rail Style: Double		54

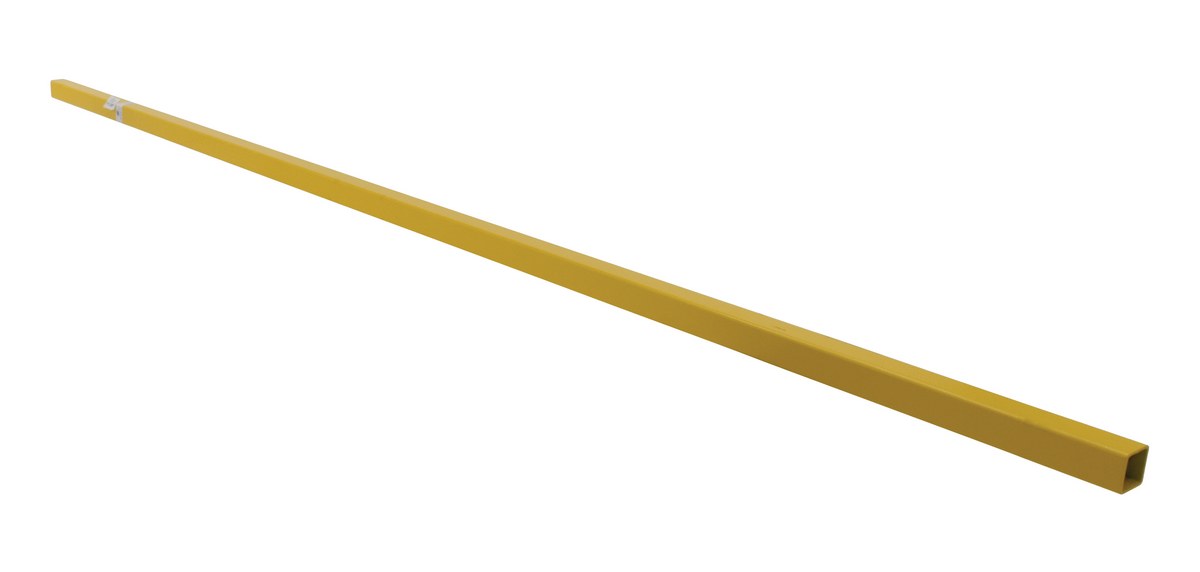

MG-R-10 MG-R-1090 Days Limited WarrantySteel Modular Guard Railing Section 128 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 120
Component: Railing		60

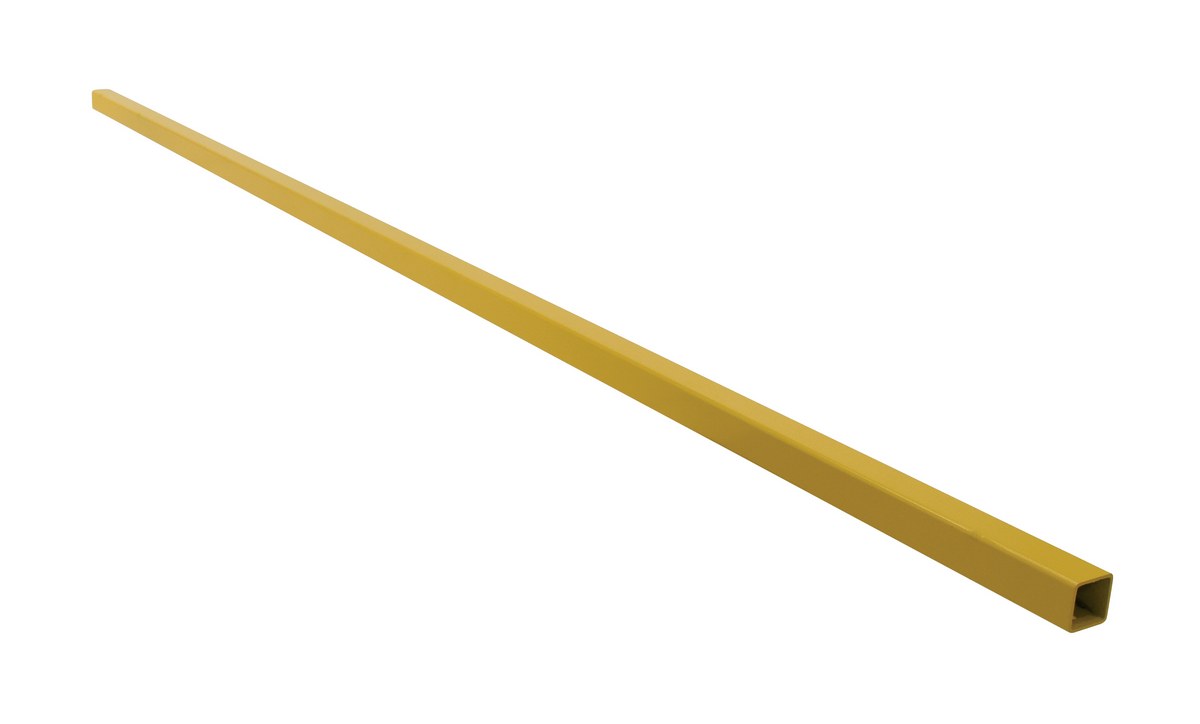

MG-R-12 MG-R-1290 Days Limited WarrantySteel Modular Guard Railing Section 152 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 144
Component: Railing		71

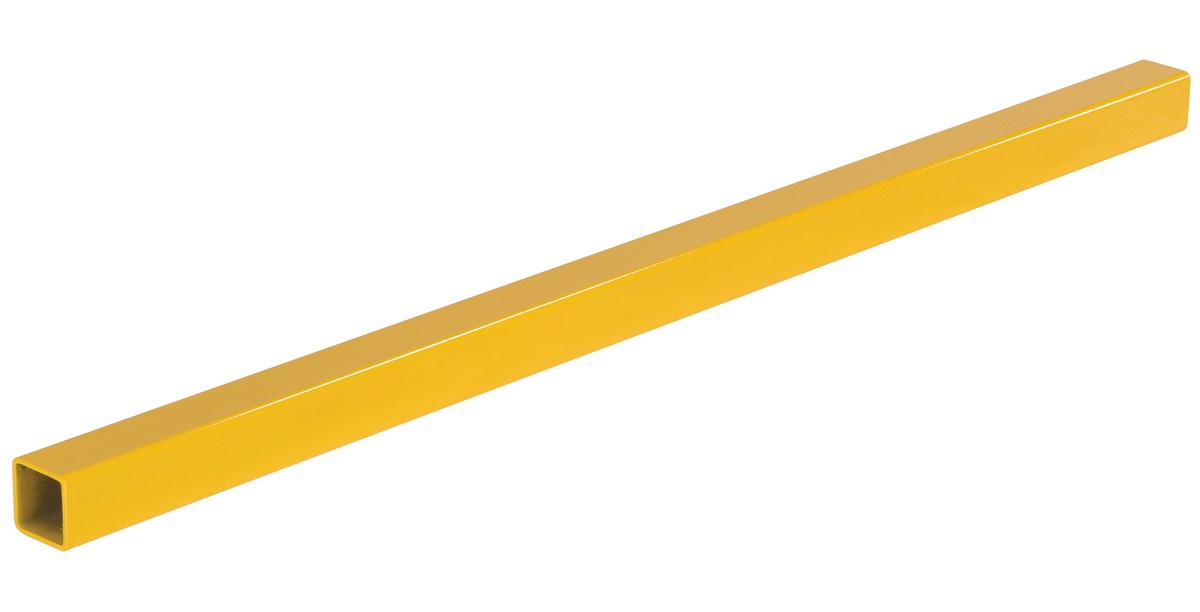

MG-R-4 MG-R-490 Days Limited WarrantySteel Modular Guard Railing Section 56 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 48
Component: Railing		29

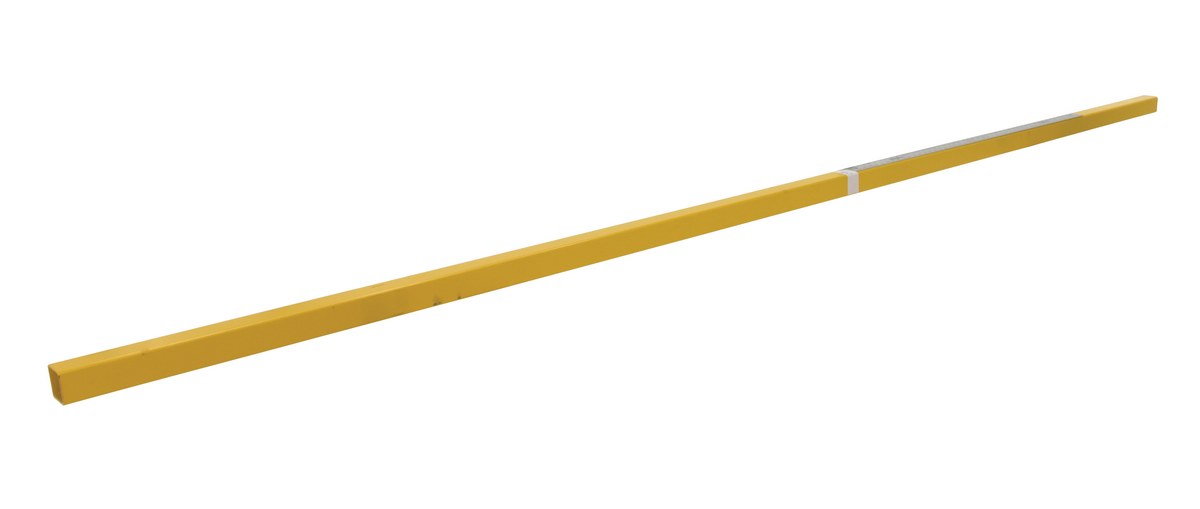

MG-R-6 MG-R-690 Days Limited WarrantySteel Modular Guard Railing Section 80 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 72
Component: Railing		38

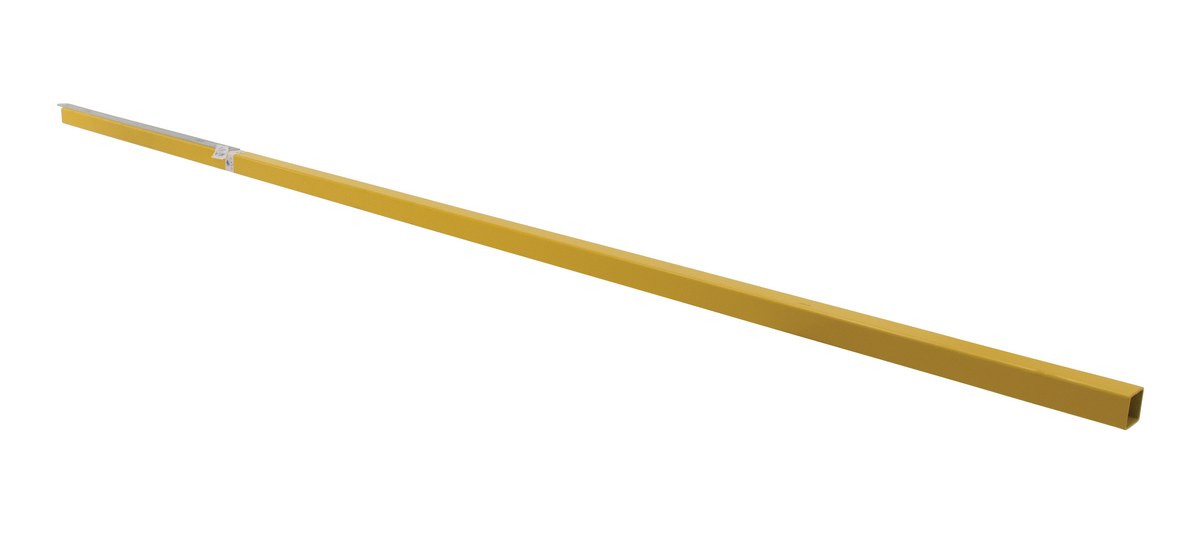

MG-R-8 MG-R-890 Days Limited WarrantySteel Modular Guard Railing Section 102 In. x 2-1/2 In. x 2-1/2 In. YellowEffective Length (in.): 96
Component: Railing		49

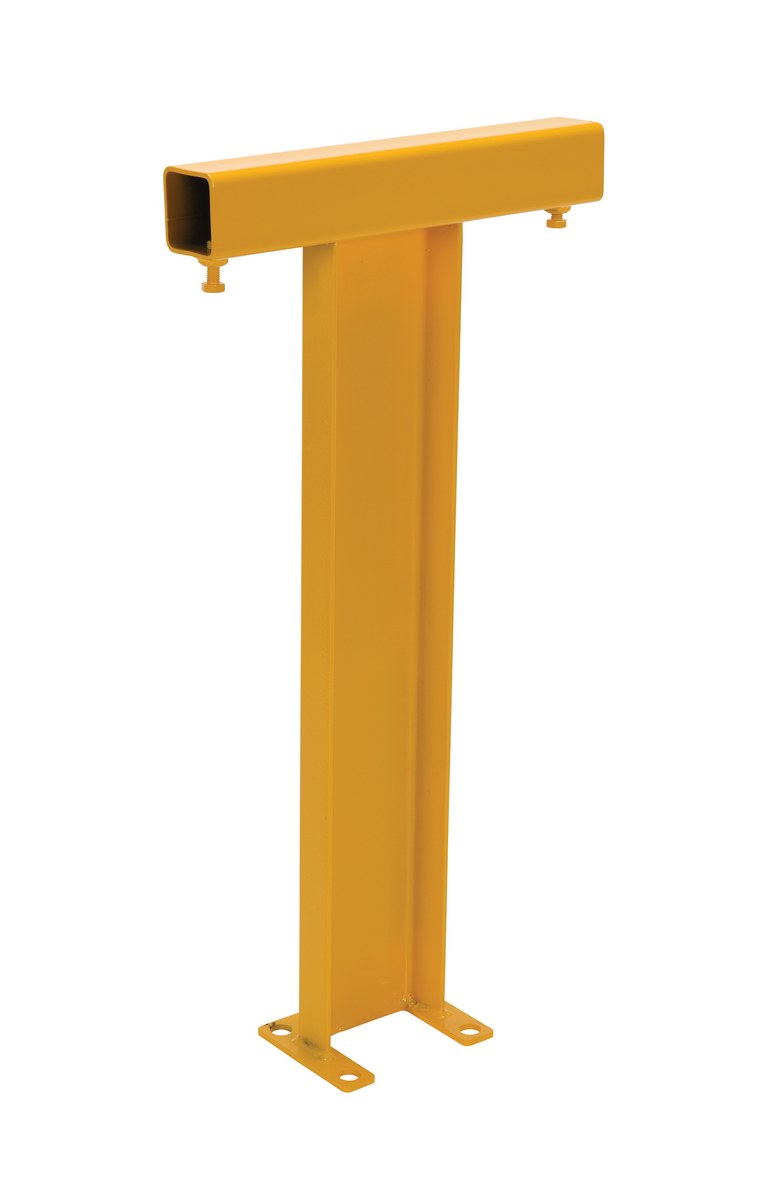

MG-SP-36-1 MG-SP-36-190 Days Limited WarrantySteel Modular Guard System Straight Post 1 Rail 7-5/8 In. x 18 In. x 36 In. YellowComponent: Mounting Straight Post
Rail Style: Single		37

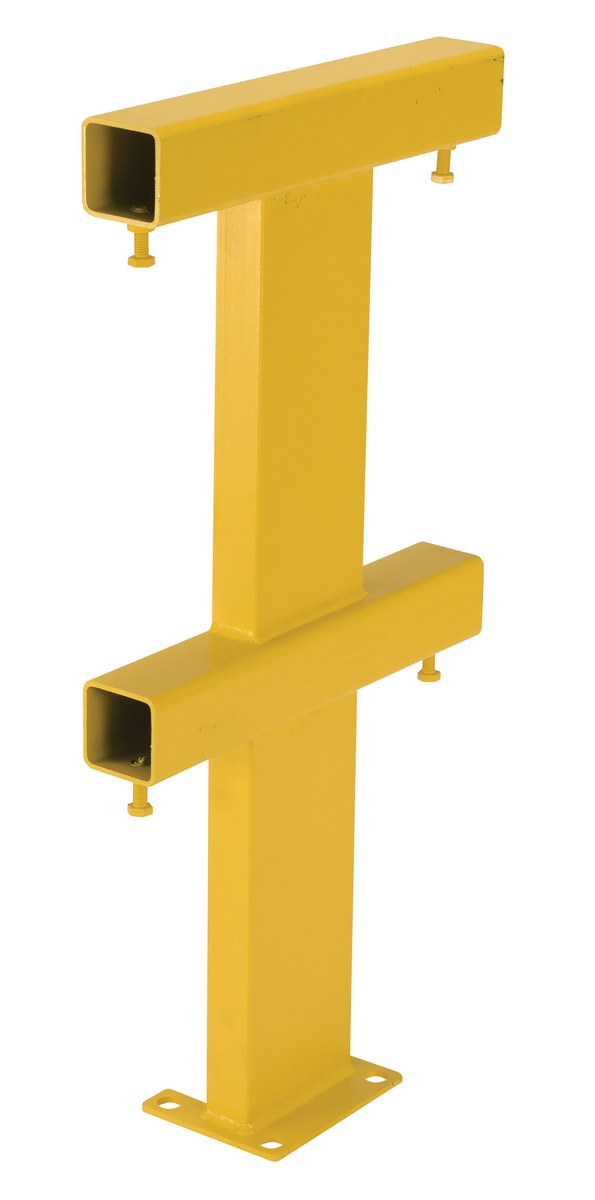

MG-SP-36-2 MG-SP-36-290 Days Limited WarrantySteel Modular Guard System Straight Post 2 Rail 7-5/8 In x 18 In. x 36 In YellowComponent: Mounting Straight Post
Rail Style: Double		68

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MG-CP-36-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Corner Post
Rail Style: Single
Component: Mounting Corner Post
Rail Style: Single

MG-CP-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Corner Post
Rail Style: Double
Component: Mounting Corner Post
Rail Style: Double

MG-R-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 48
Component: Railing
Effective Length (in.): 48
Component: Railing

MG-R-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 72
Component: Railing
Effective Length (in.): 72
Component: Railing

MG-R-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 96
Component: Railing
Effective Length (in.): 96
Component: Railing

MG-R-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 120
Component: Railing
Effective Length (in.): 120
Component: Railing

MG-R-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Effective Length (in.): 144
Component: Railing
Effective Length (in.): 144
Component: Railing

MG-SP-36-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Straight Post
Rail Style: Single
Component: Mounting Straight Post
Rail Style: Single

MG-SP-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Mounting Straight Post
Rail Style: Double
Component: Mounting Straight Post
Rail Style: Double
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

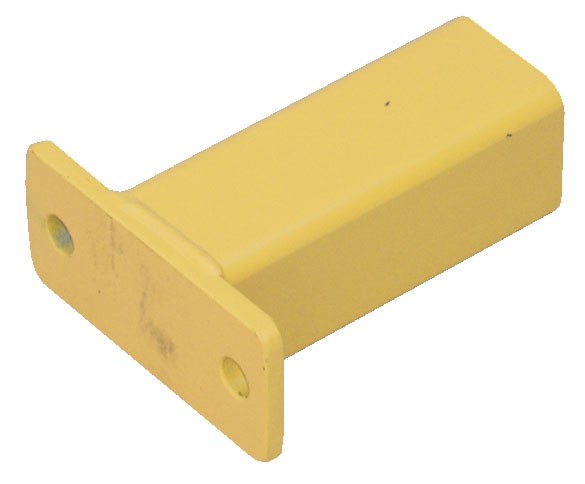

MG-WP-A MG-SP-36-2Steel Modular Guard Wall Mount for Inner Post Tubing Option … Limited Warranty7

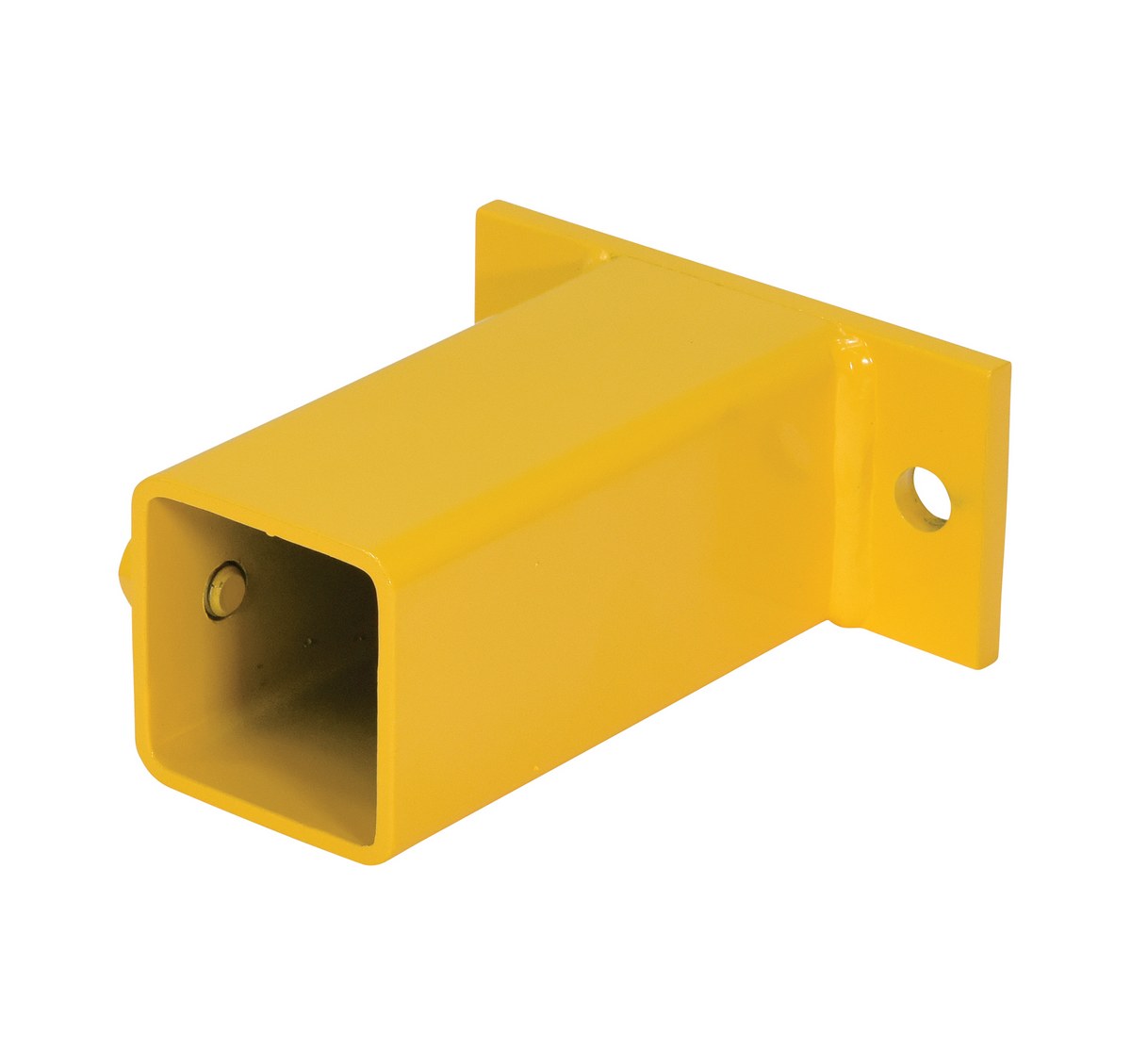

MG-WP-B MG-SP-36-2Steel Modular Guard Wall Mount for Outer Post Tubing Option … Limited Warranty8
Model Image Description Wt.
(lbs)
AS-344 Anchor Bolts For Concrete (1) 3/4"x4" 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4"x4" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

MG-CP-36-1

MG-CP-36-2

MG-R-4

MG-R-6

MG-R-8

MG-R-10

MG-R-12

MG-SP-36-1

MG-SP-36-2

MG-WP-A

MG-WP-B

Testing Certificates

MG-CP-36-1

MG-CP-36-2

MG-R-10

MG-R-12

MG-R-4

MG-R-6

MG-R-8

MG-SP-36-1

MG-SP-36-2

MG-WP-A

MG-WP-B

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product
