Steel Safety Railings

model: VDKR

Steel Safety Railings

SERIES: VDKR

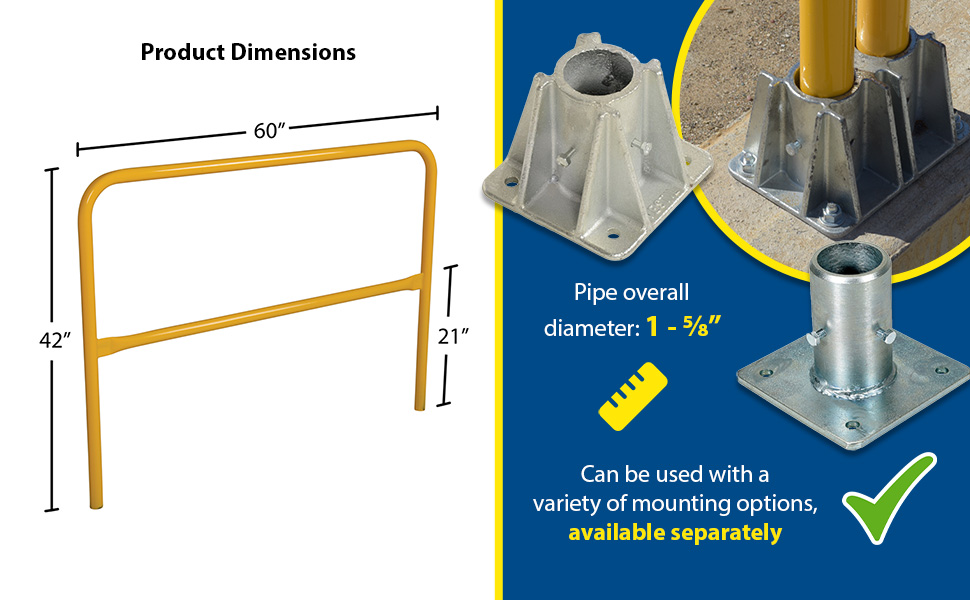

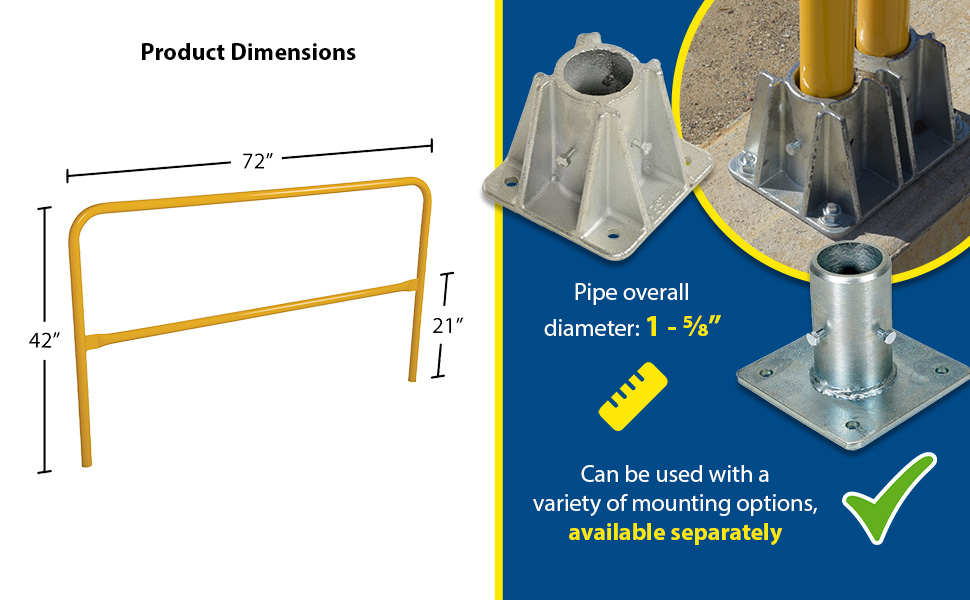

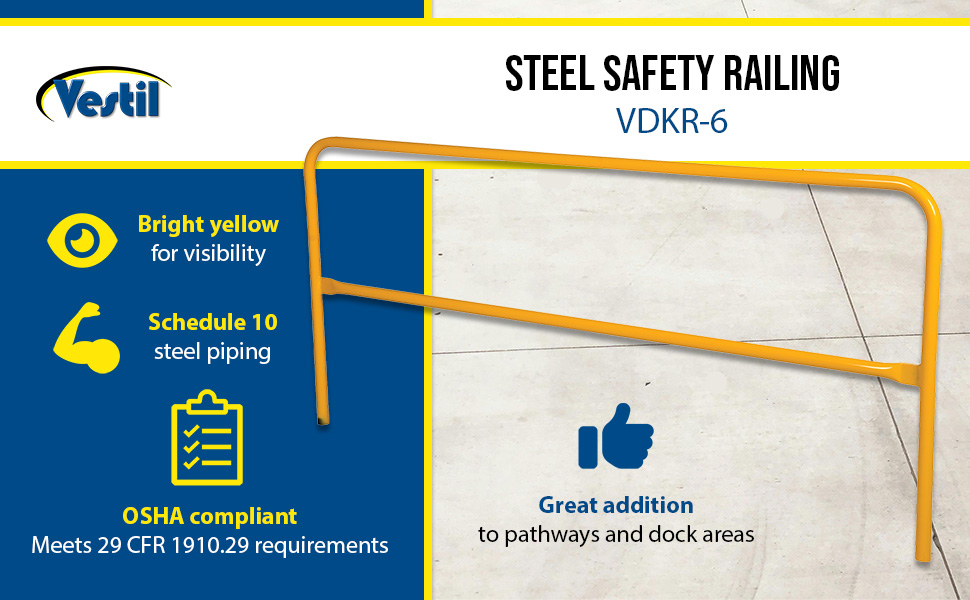

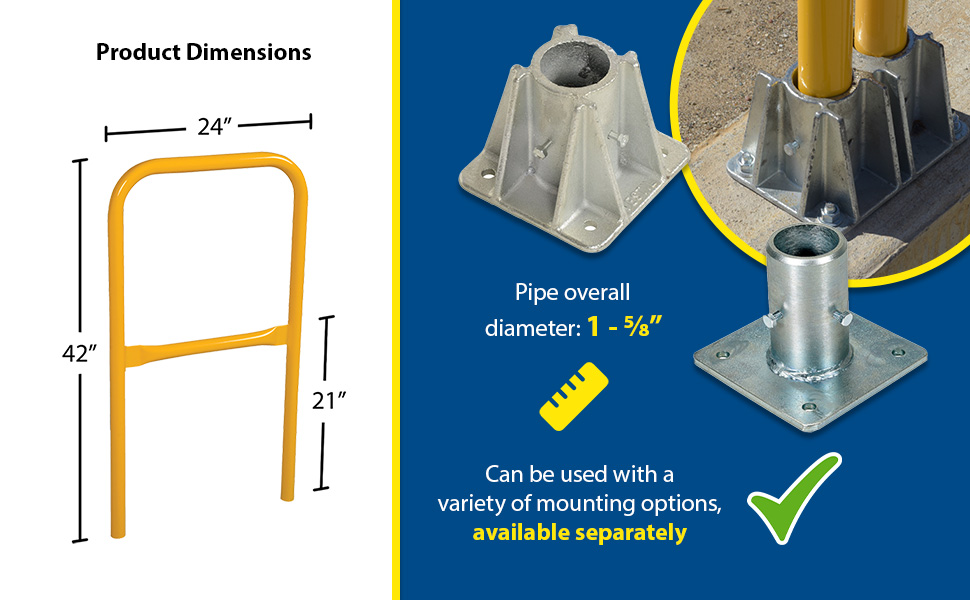

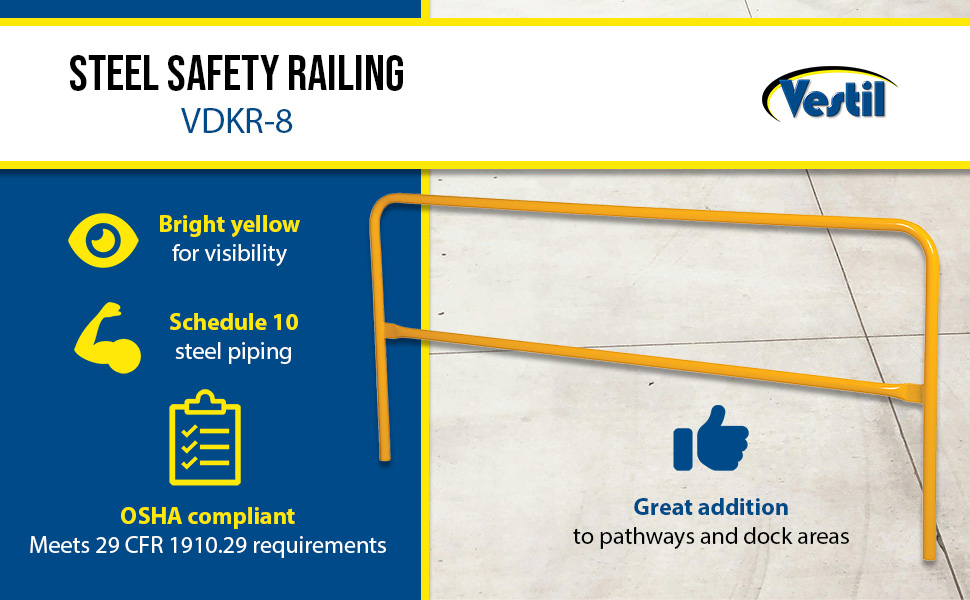

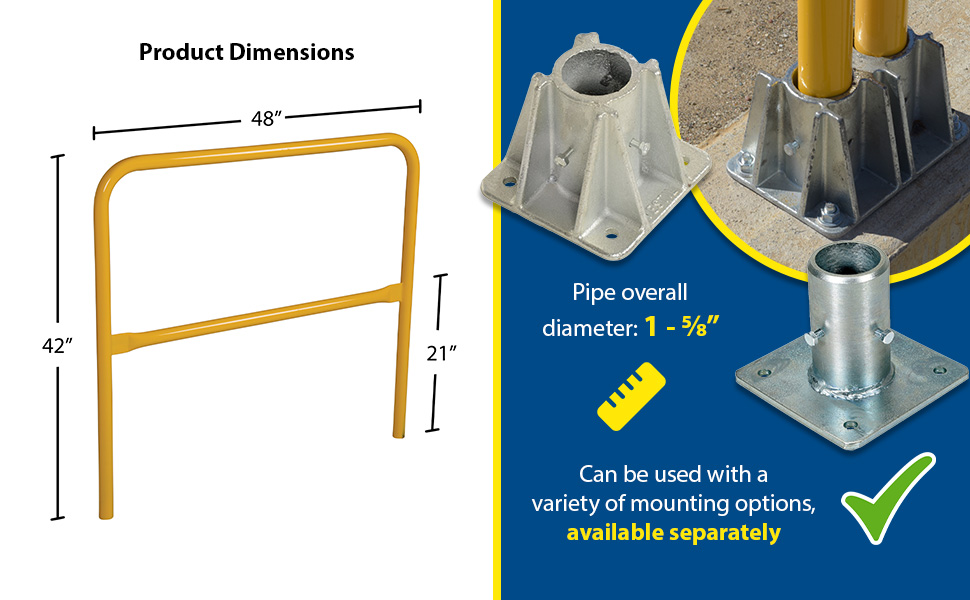

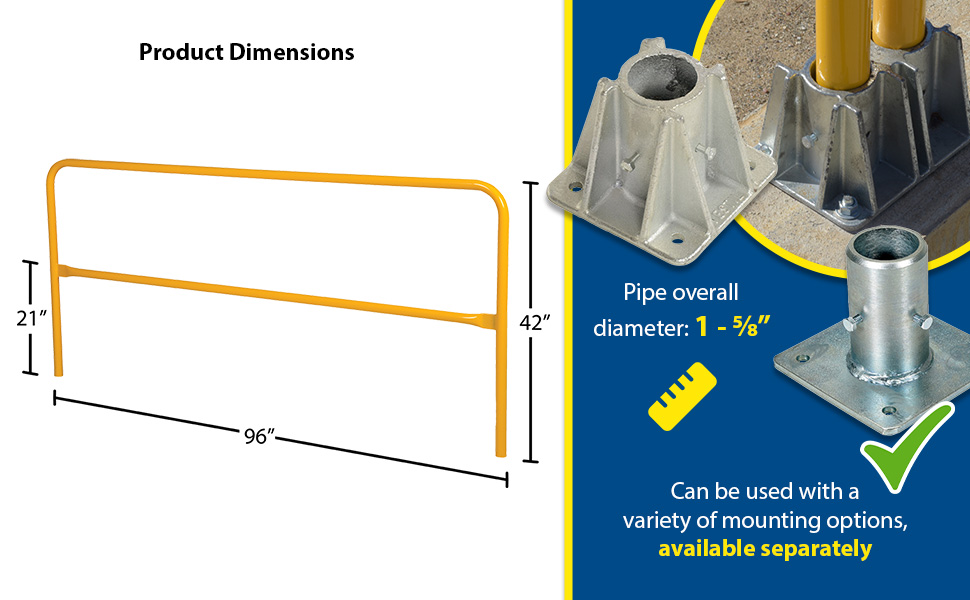

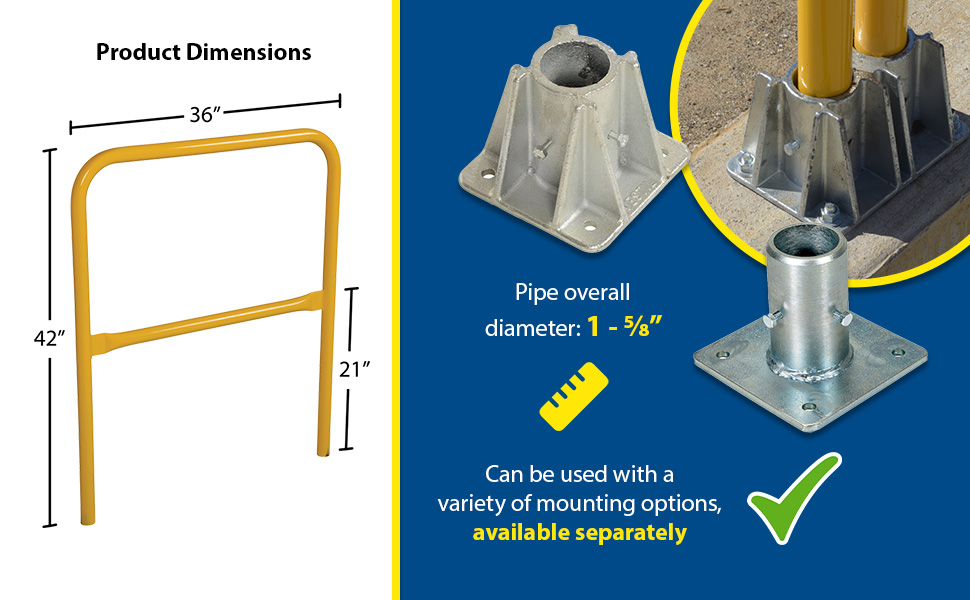

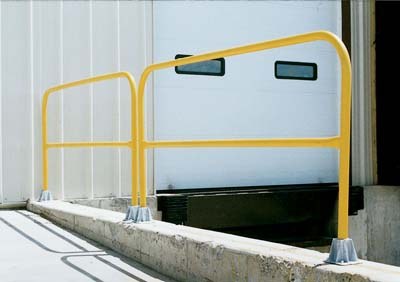

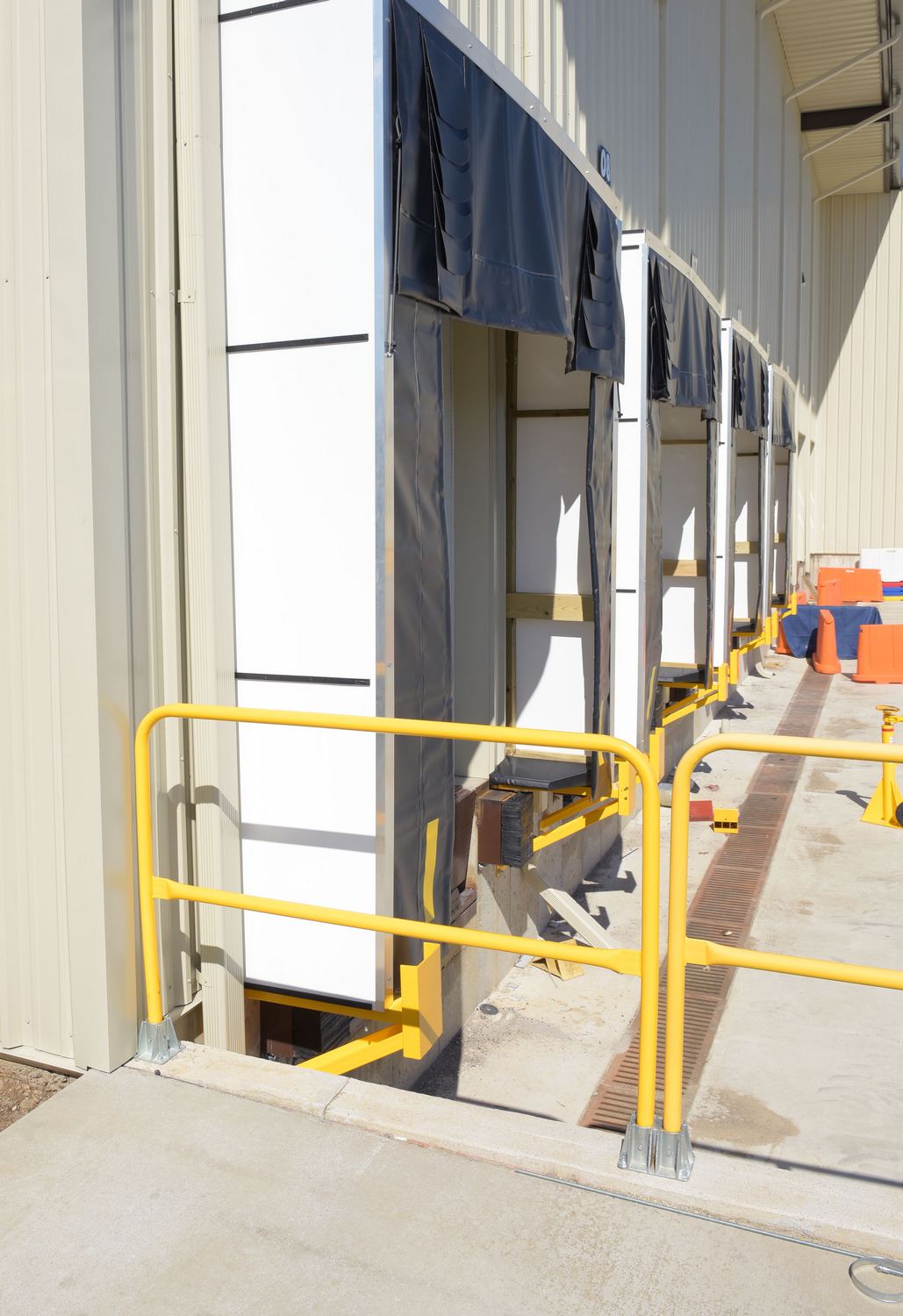

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

central rudder

Rail + Sockets + Toe Board

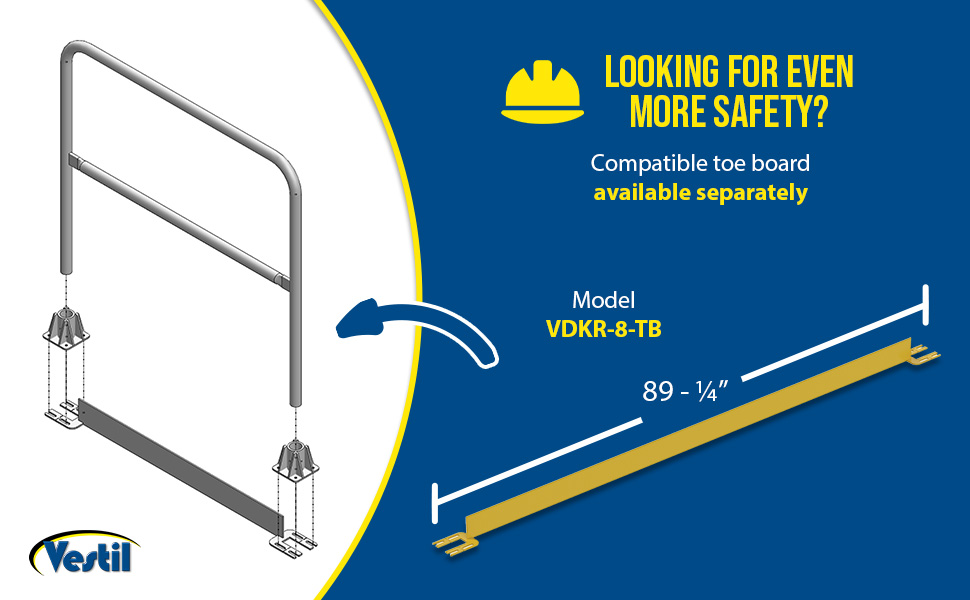

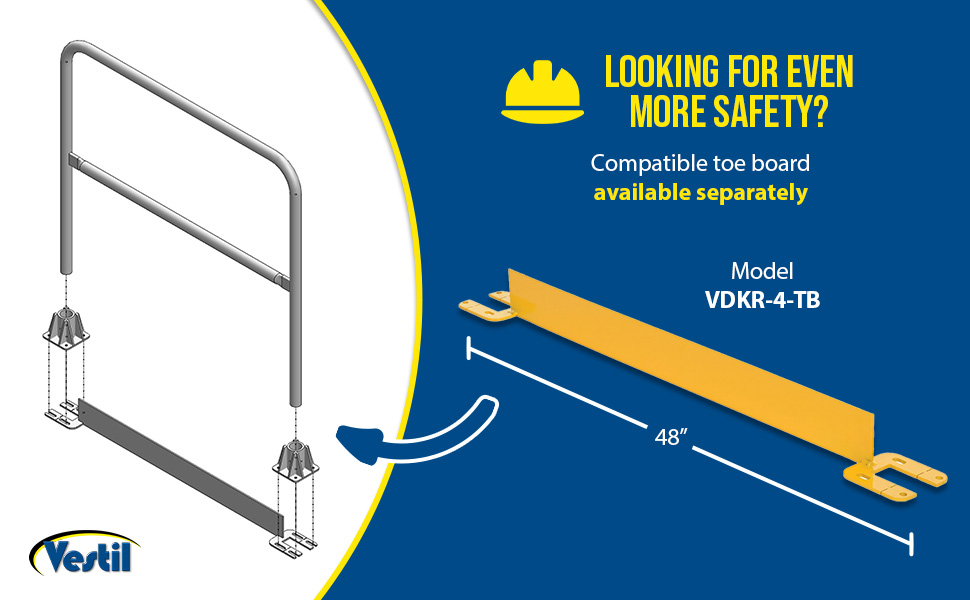

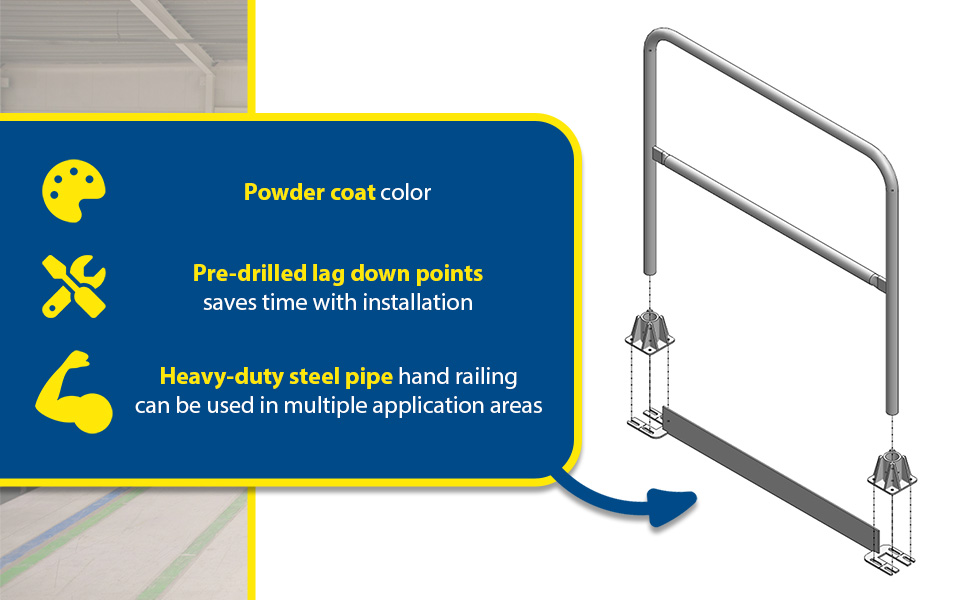

Add a toe board to your railing for extra safety! Installation is fast and easy with the predrilled lag down points. Protect people or employees from uneven walkways and mezzanine drop-offs.

Check Out Vestil's Other Safety Railing Styles:

Aluminum Safety Railing

Pour-In-Place Safety Railing

Steel Safety Railing w/ Welded Baseplate

Steel Safety Railings

model: VDKR

Table Search, not an entire site search.

	Model #				Description	Attributes	Net Wt. (lbs)

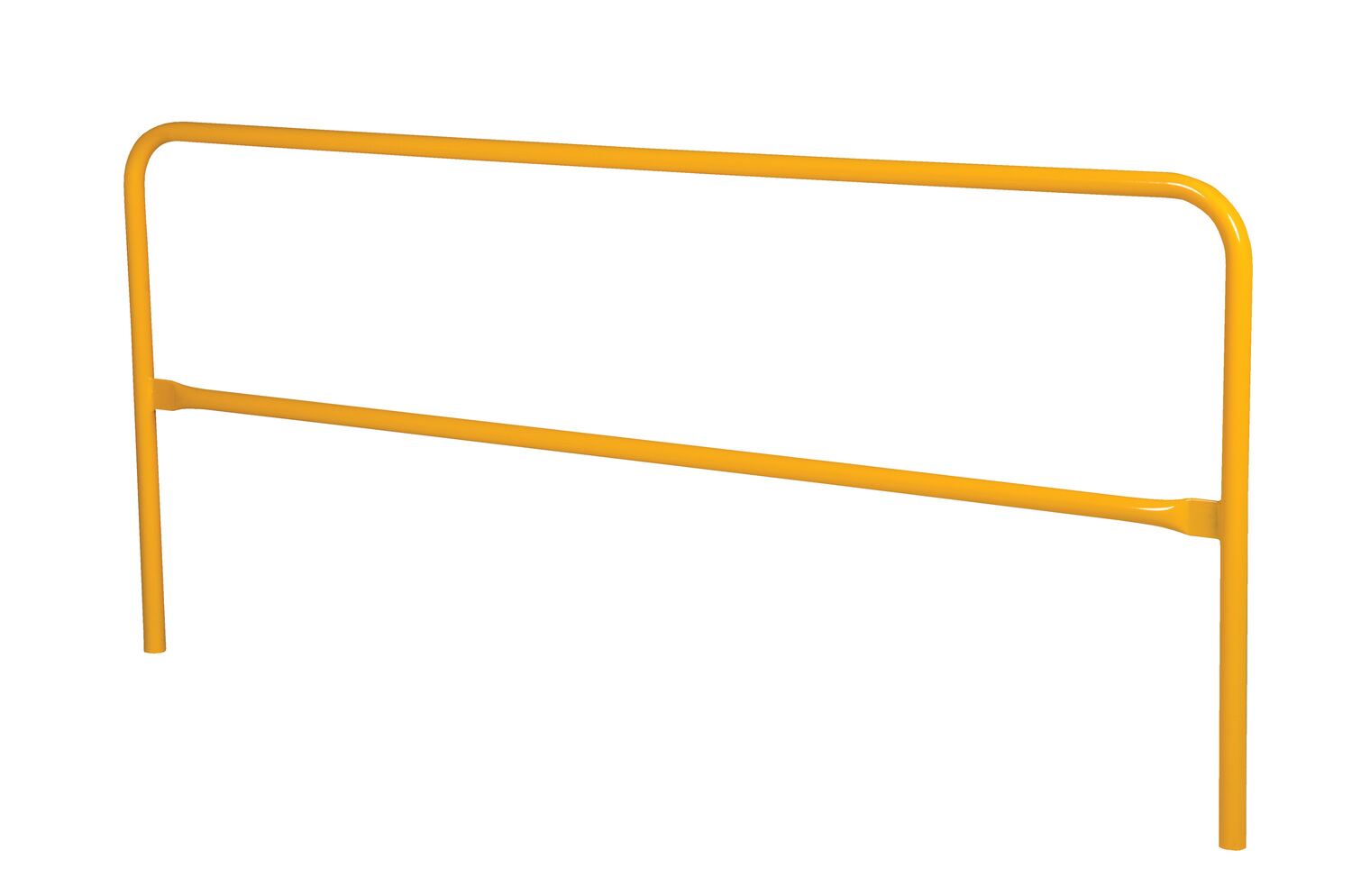

	VDKR-10			90 Days Limited Warranty	Steel Safety Railing 10 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	99

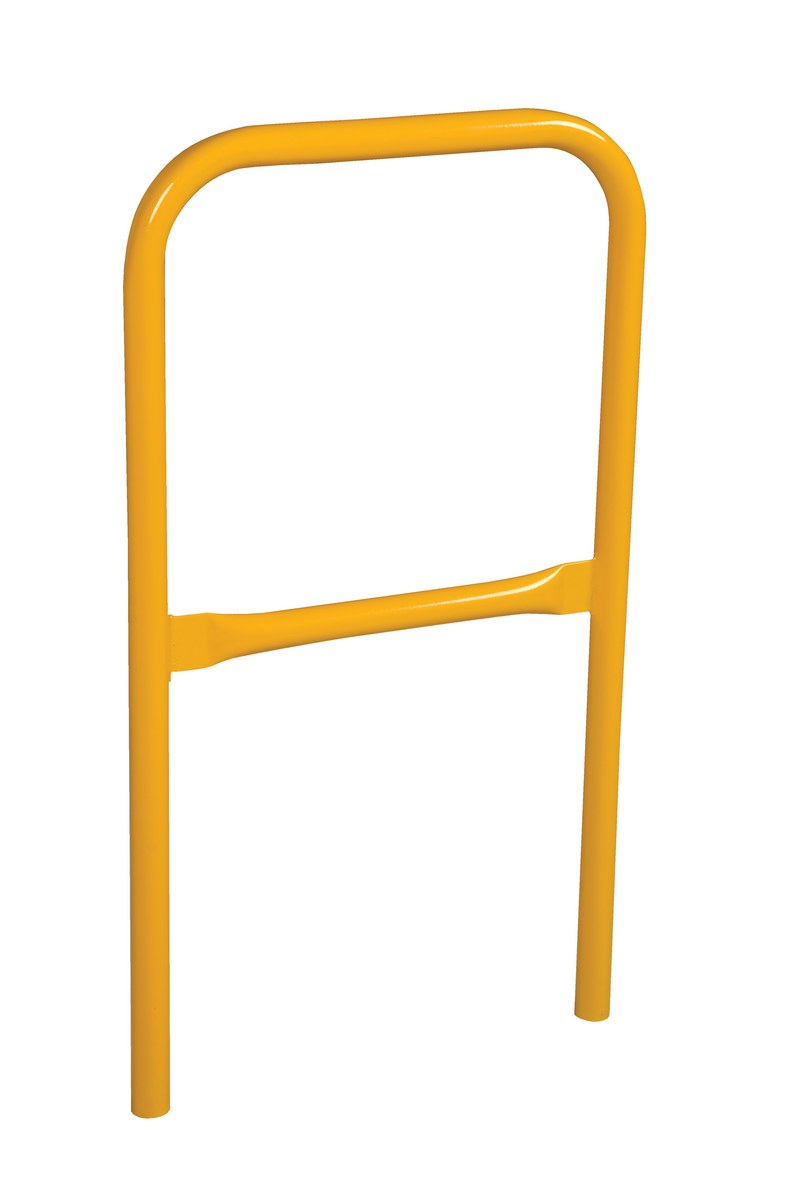

	VDKR-2			90 Days Limited Warranty	Steel Safety Railing 2 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	19

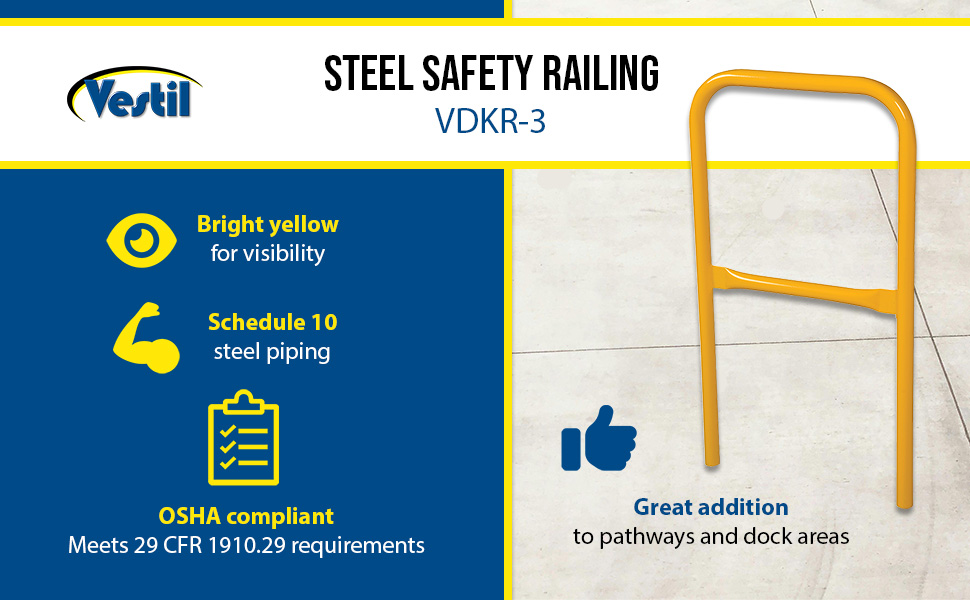

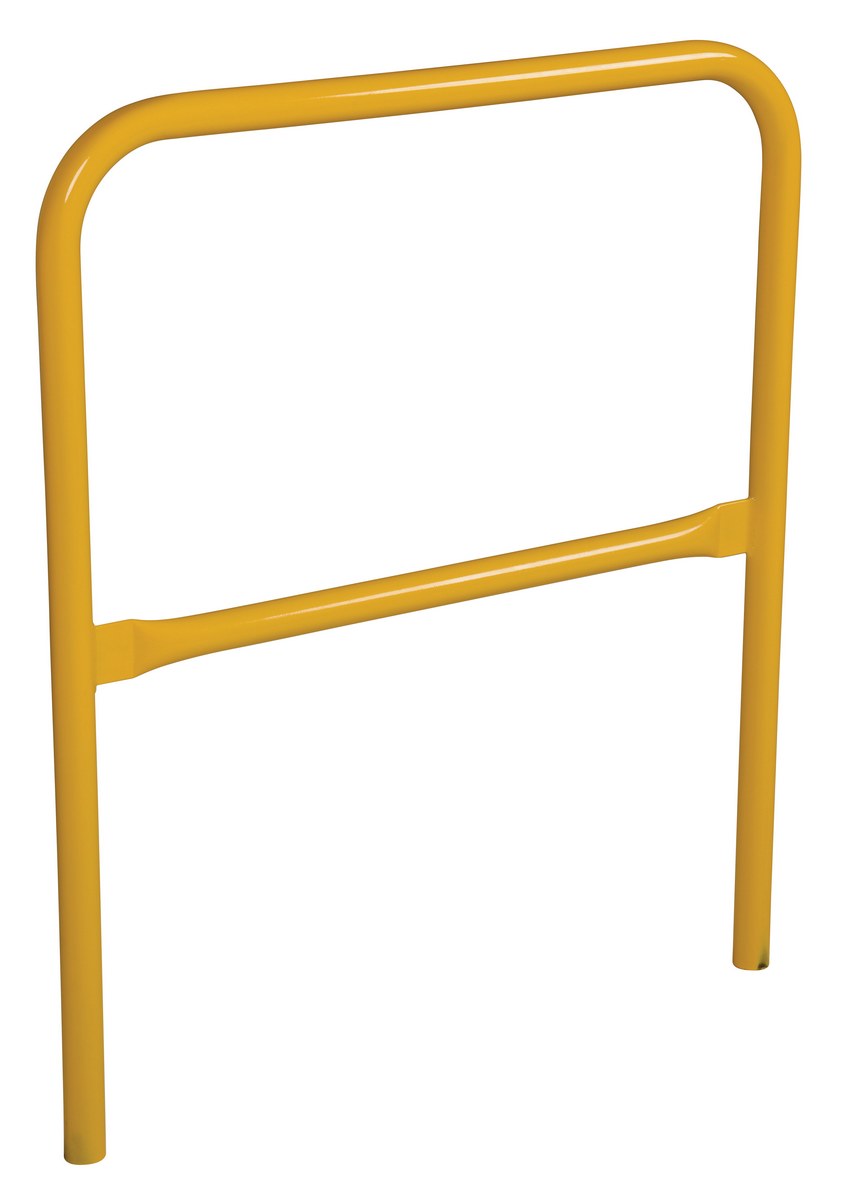

	VDKR-3			90 Days Limited Warranty	Steel Safety Railing 3 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	24

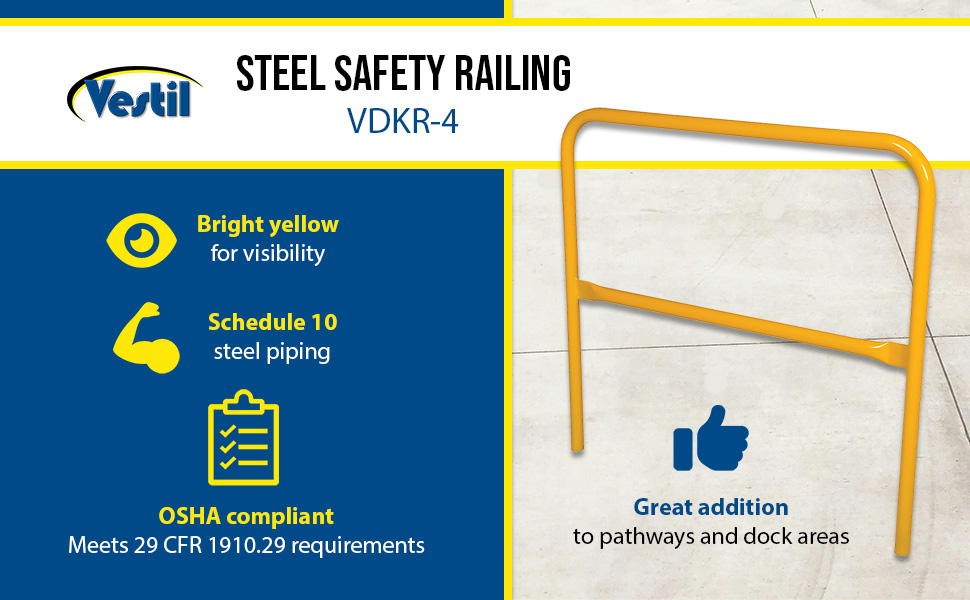

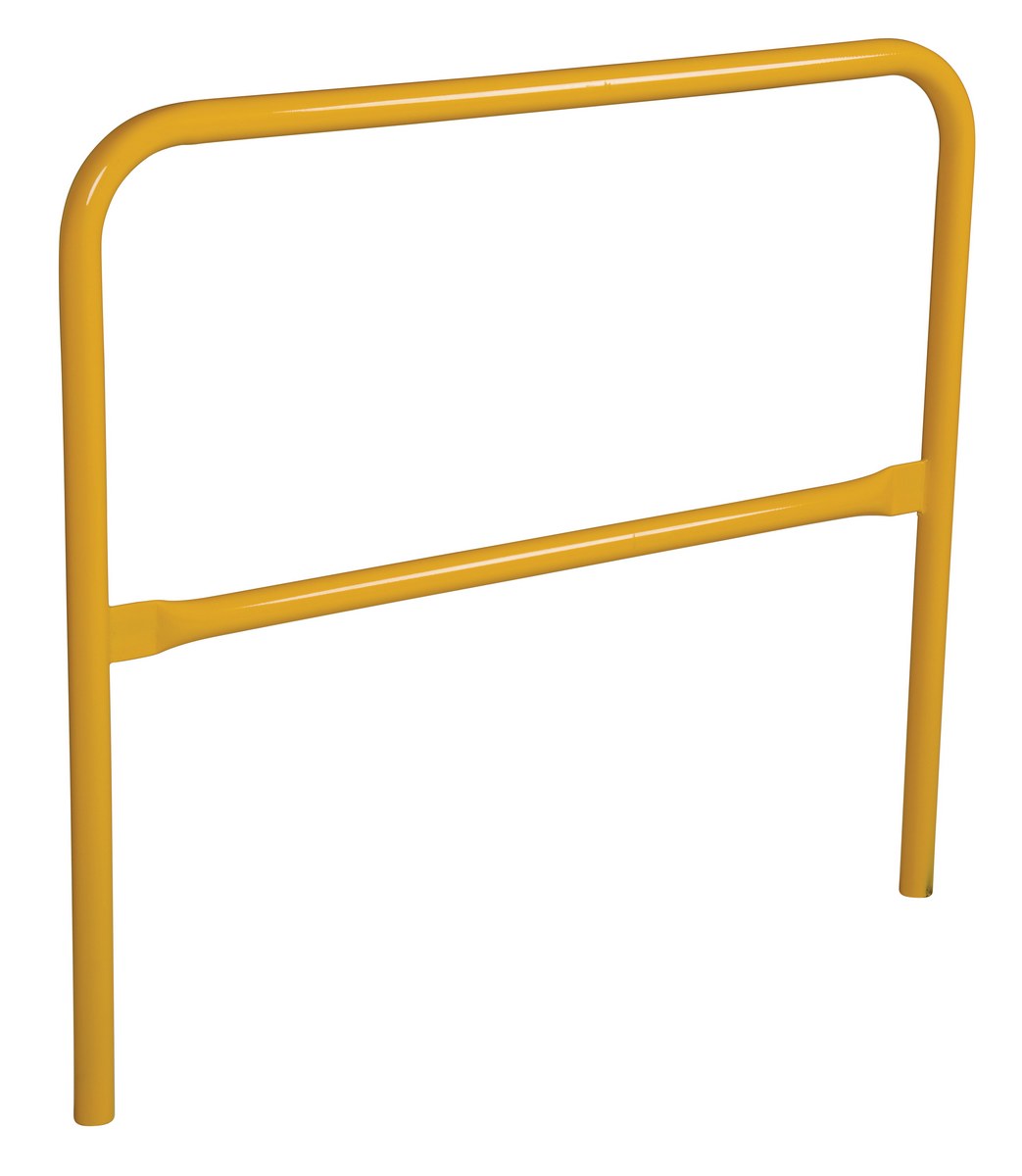

	VDKR-4			90 Days Limited Warranty	Steel Safety Railing 4 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	54

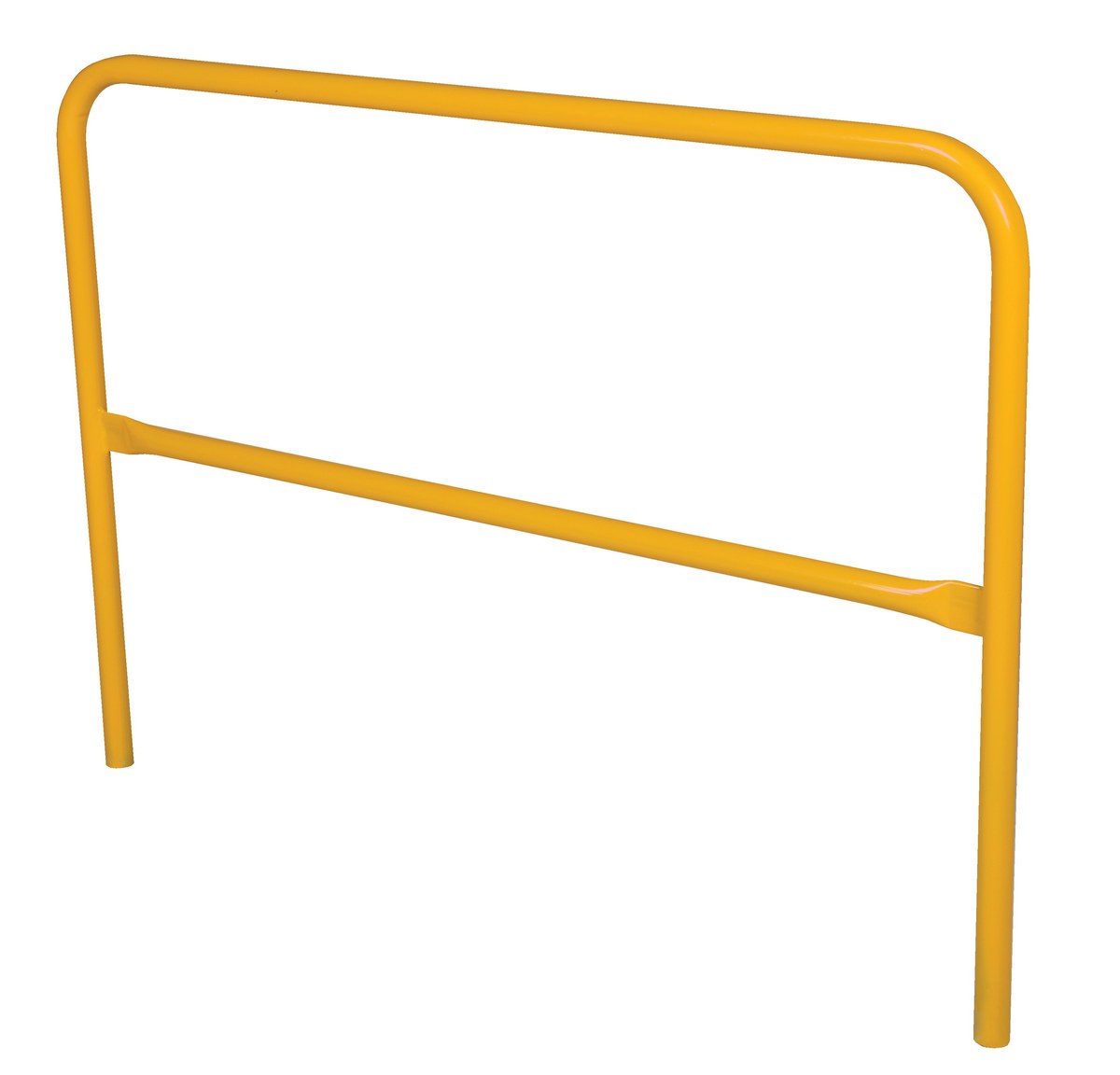

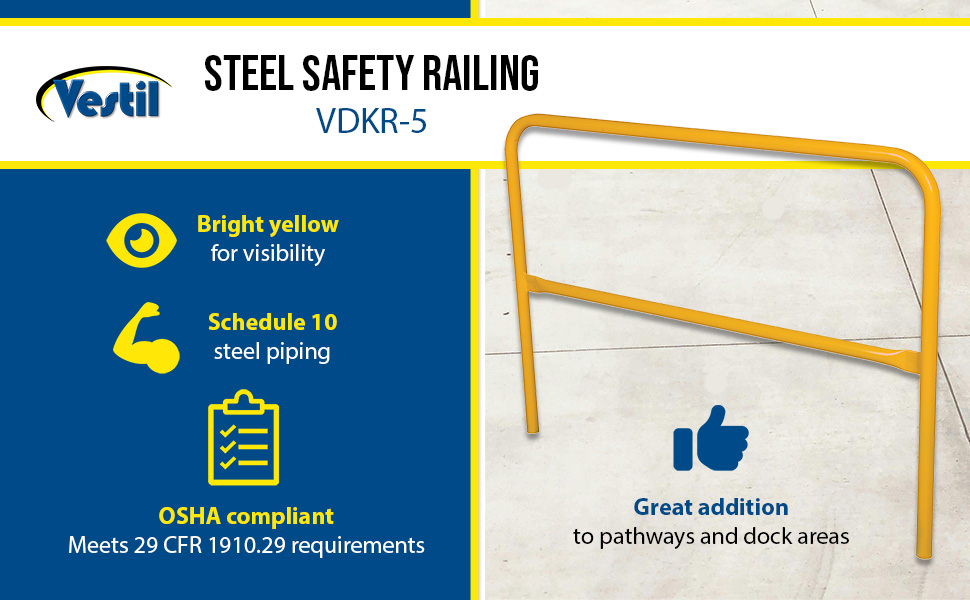

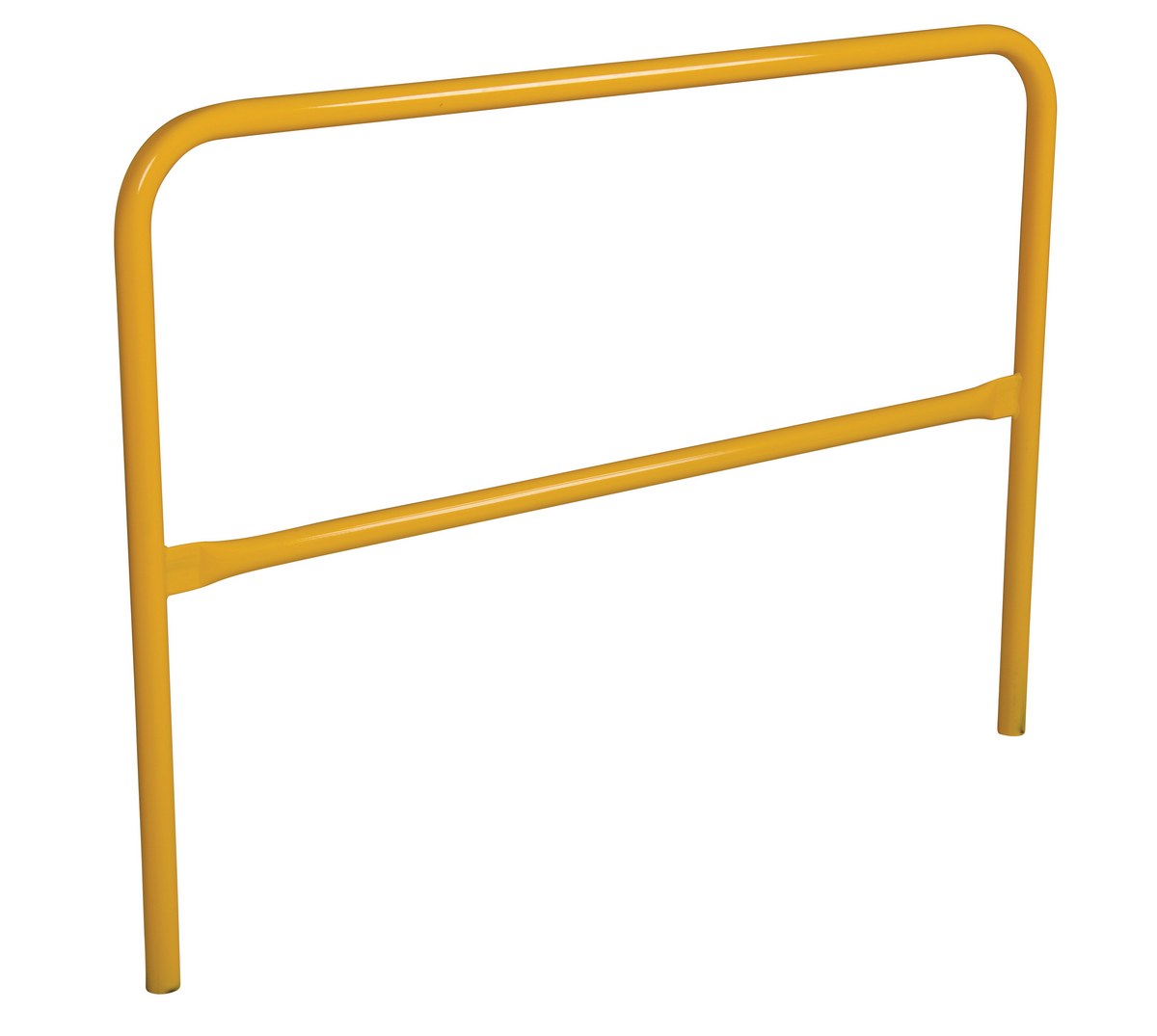

	VDKR-5			90 Days Limited Warranty	Steel Safety Railing 5 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	72

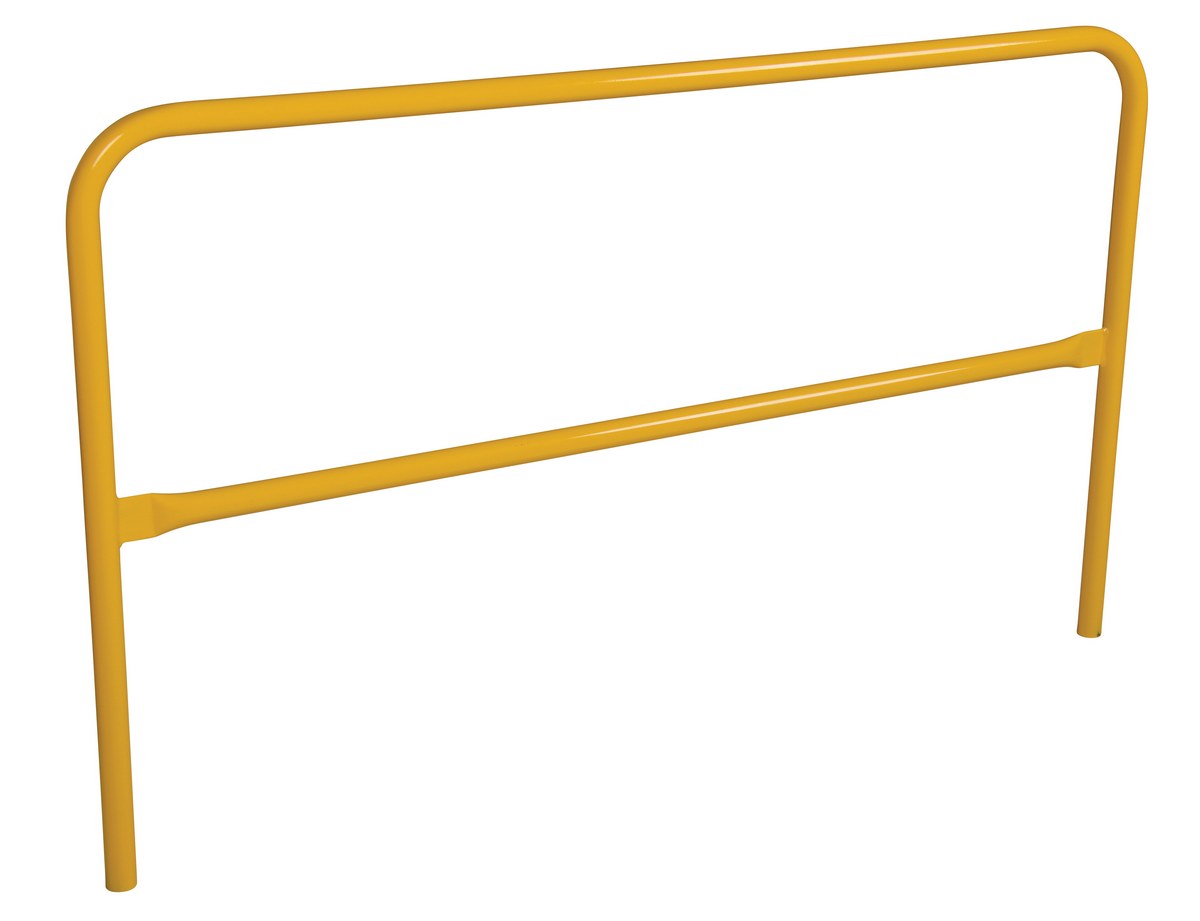

	VDKR-6			90 Days Limited Warranty	Steel Safety Railing 6 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	106

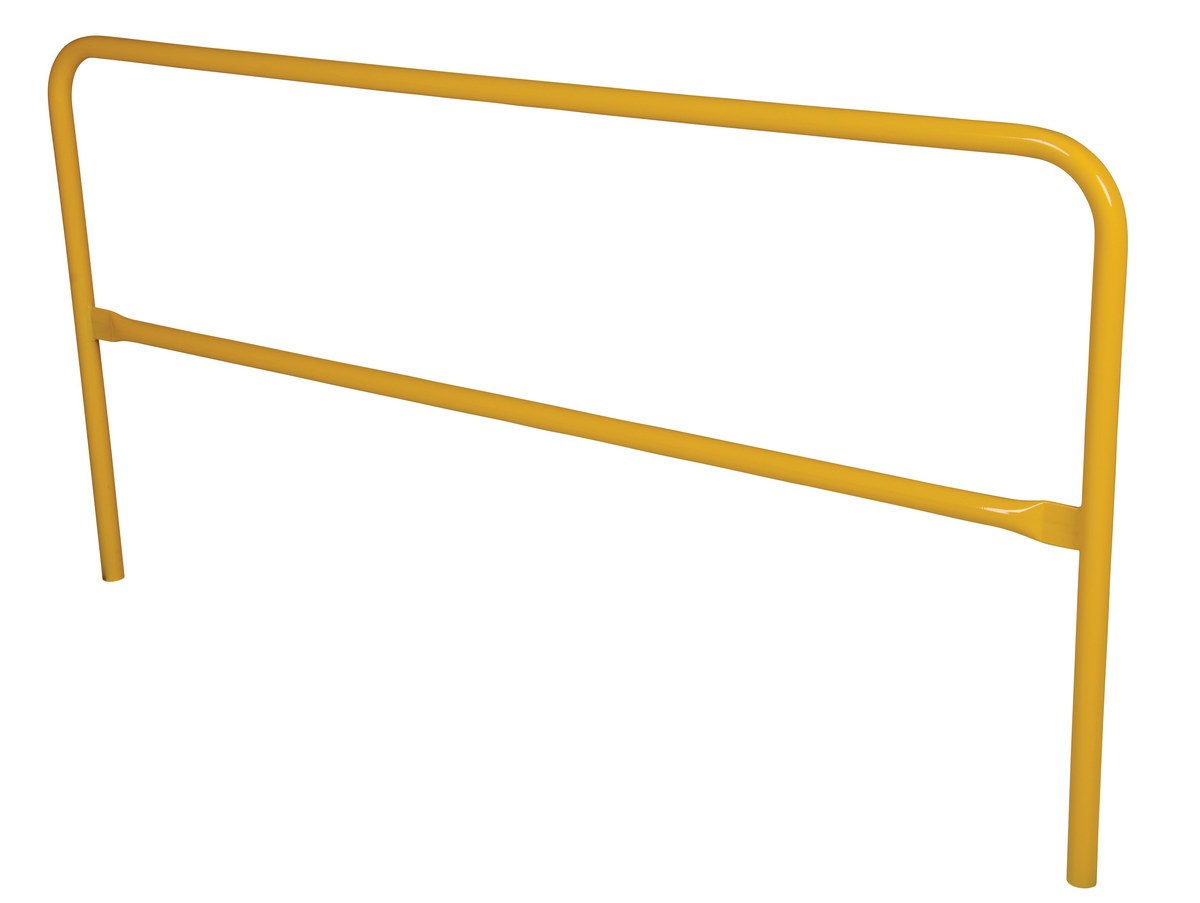

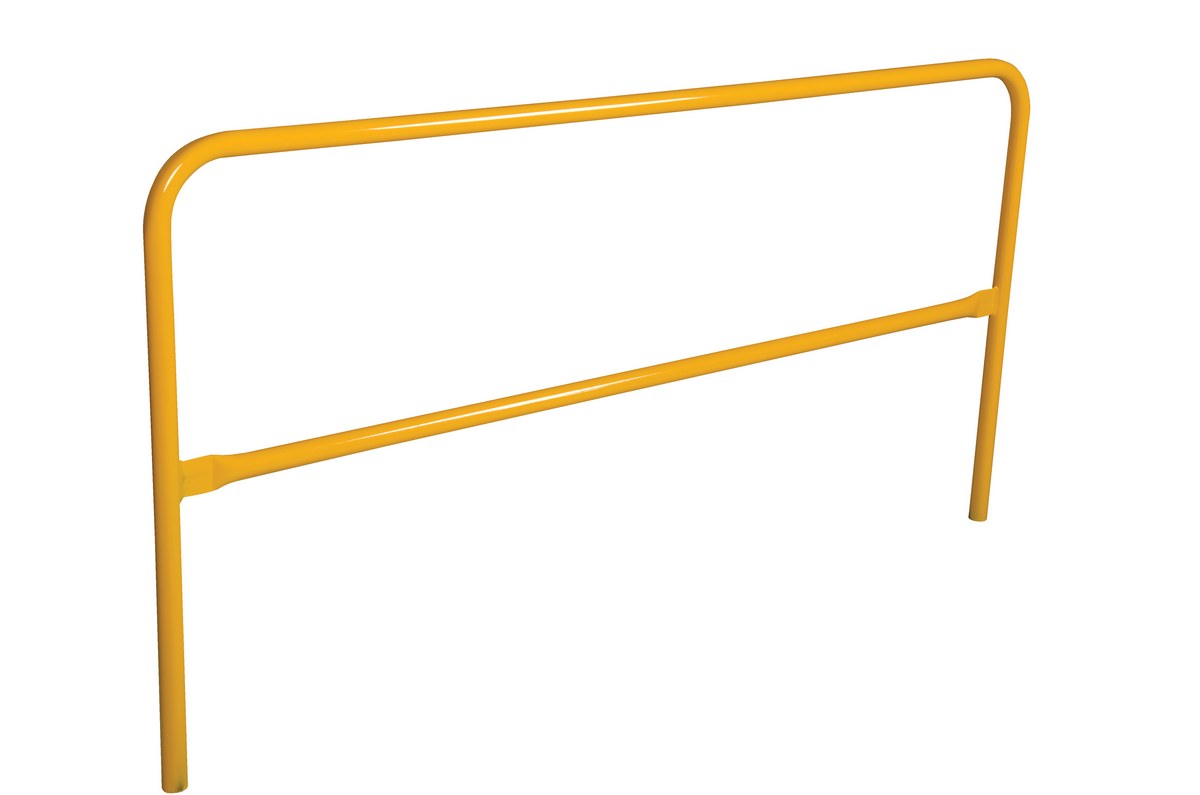

	VDKR-7			90 Days Limited Warranty	Steel Safety Railing 7 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	86
	VDKR-8			90 Days Limited Warranty	Steel Safety Railing 8 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	112

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VDKR-2

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-3

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-4

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-6

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-7

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-8

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-10

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

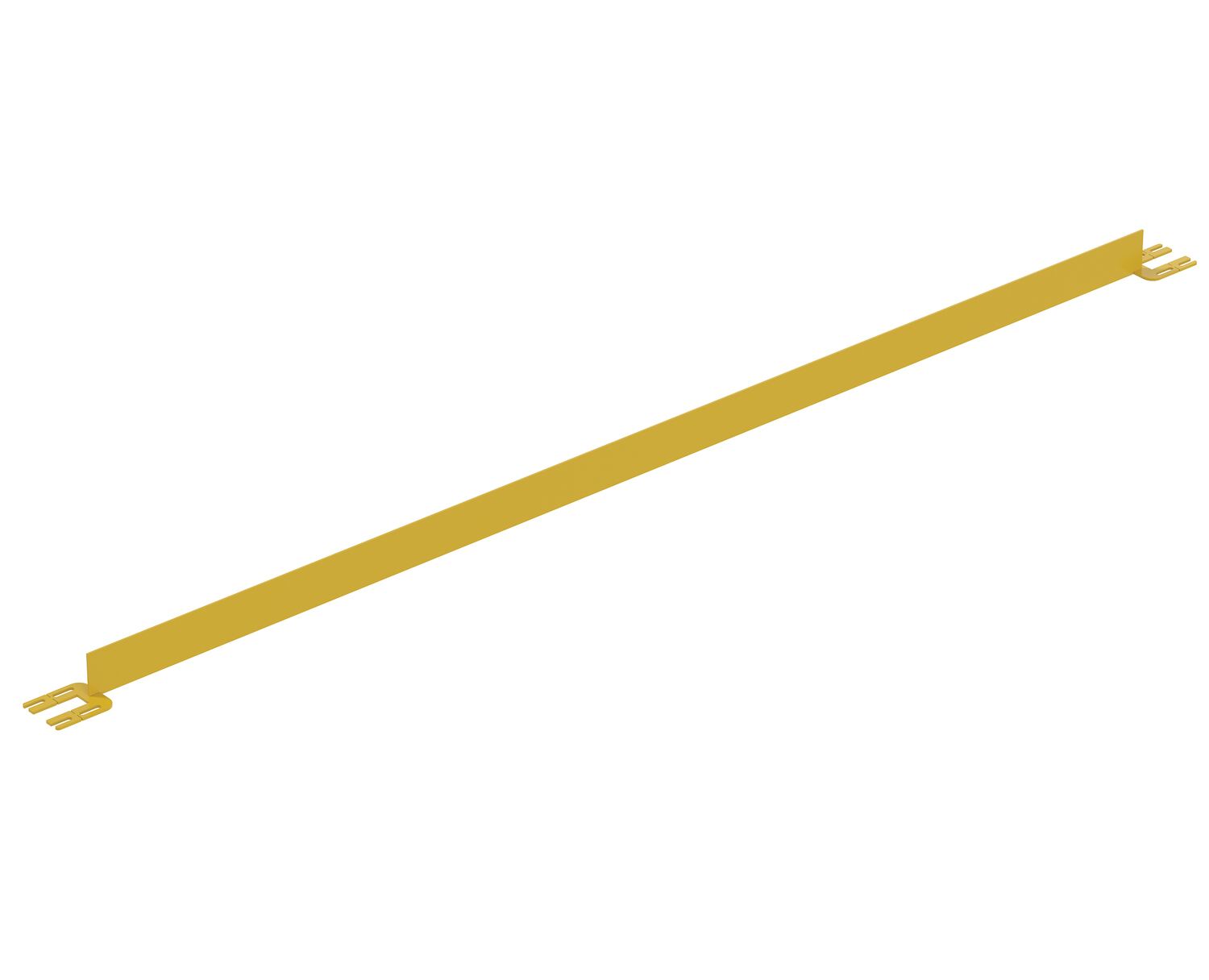

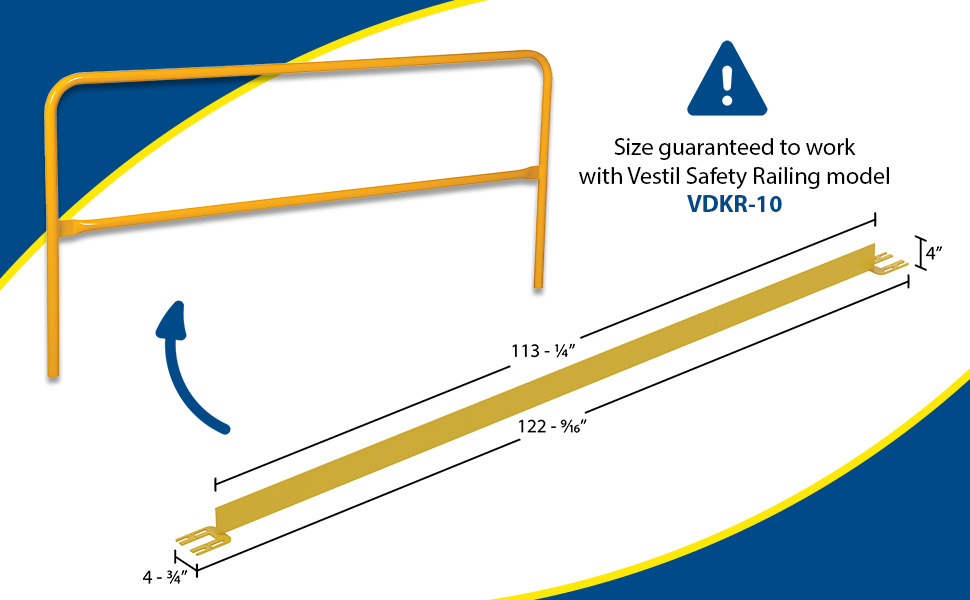

VDKR-10-TB		Steel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow	Limited Warranty	27

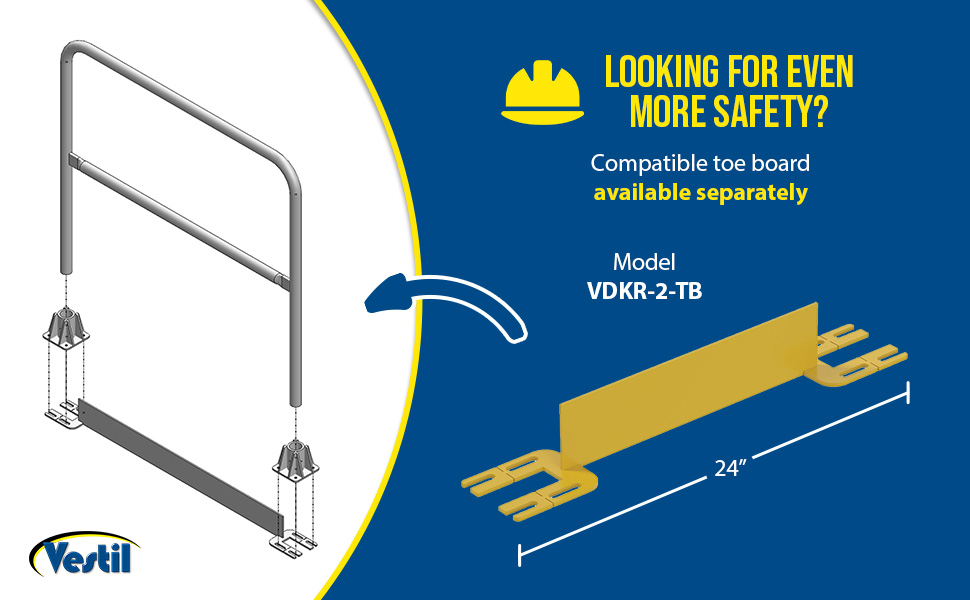

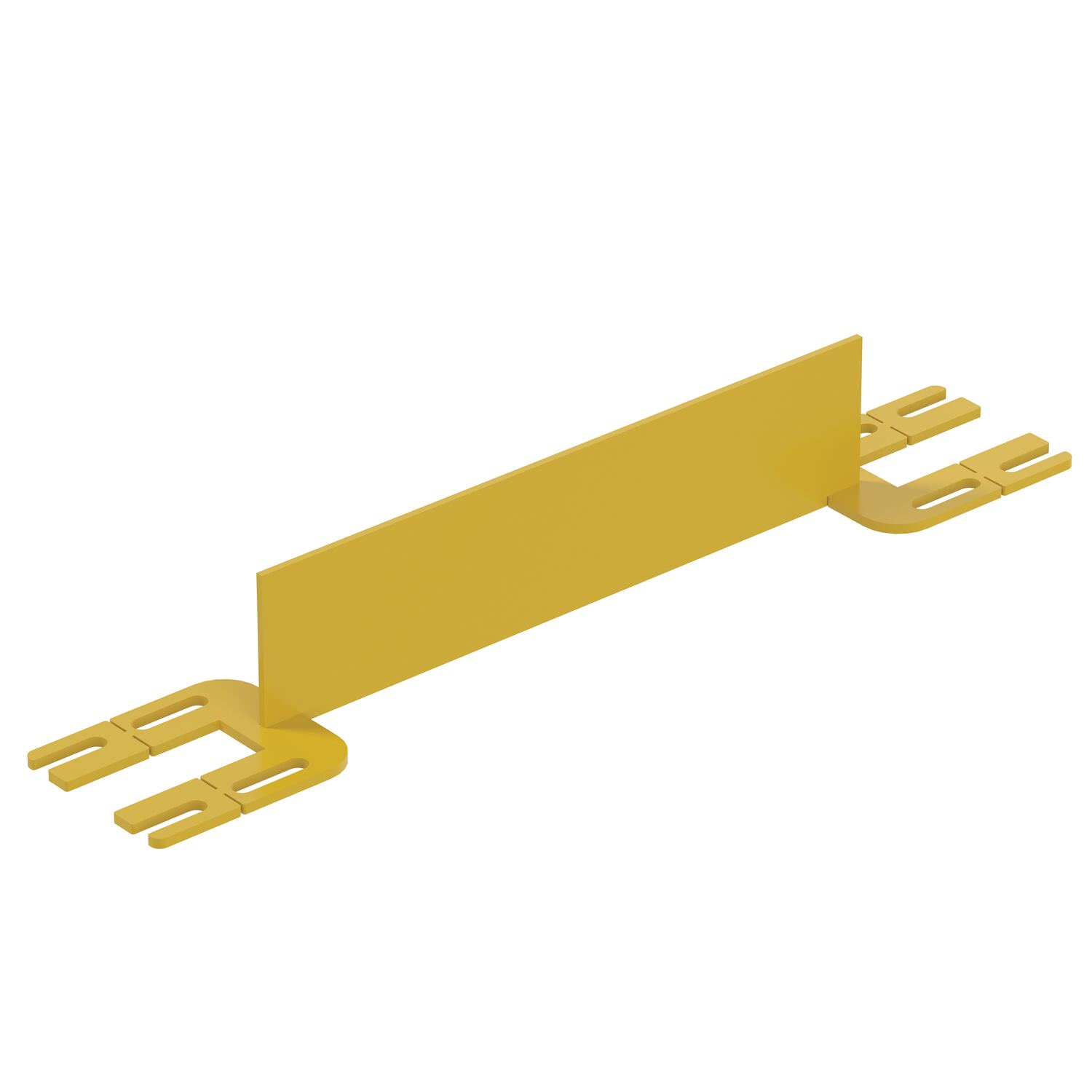

VDKR-2-TB		Steel Toe Board for Pipe Safety Railing 2 Ft. Length Yellow	Limited Warranty	7

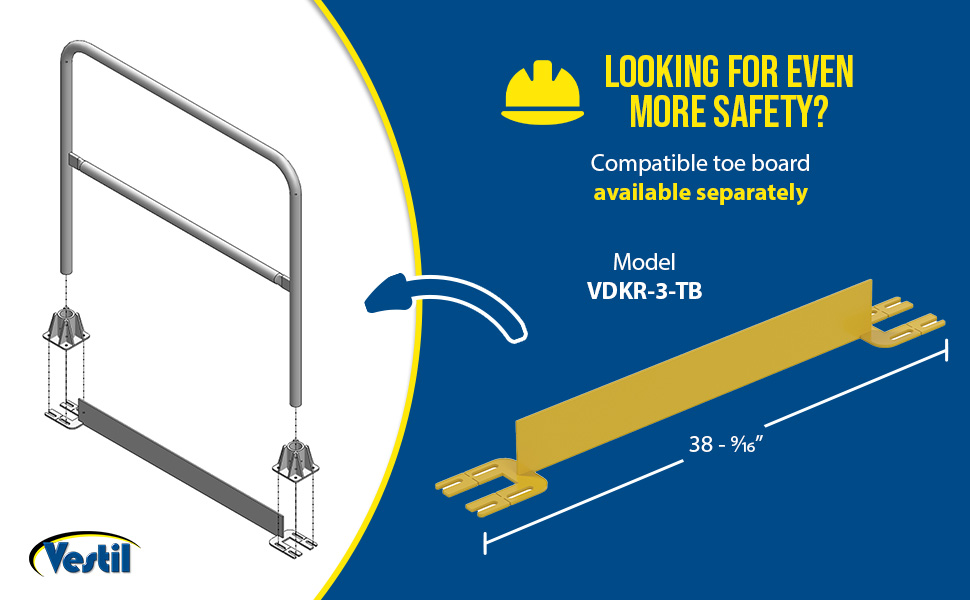

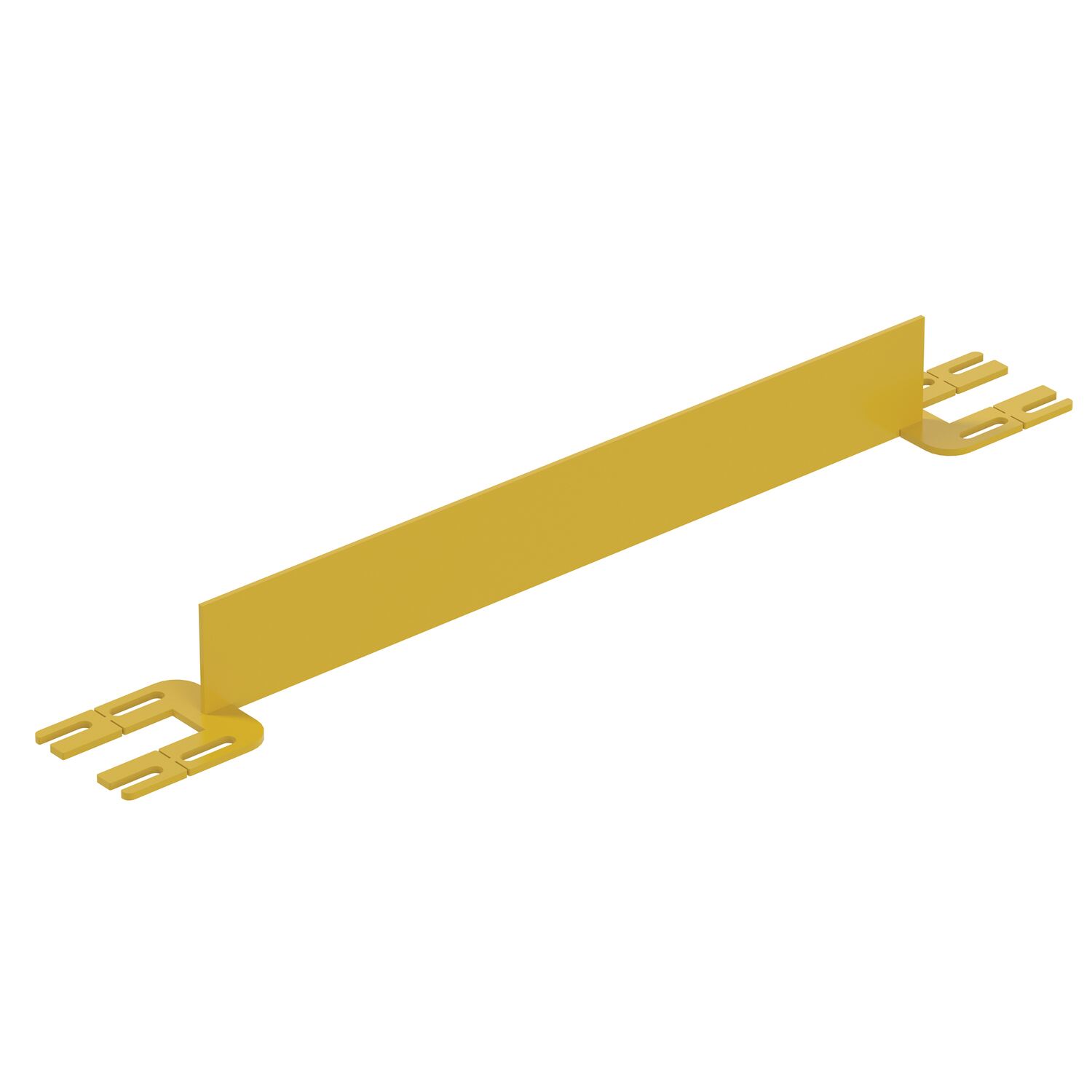

VDKR-3-TB		Steel Toe Board for Pipe Safety Railing 3 Ft. Length Yellow	Limited Warranty	10

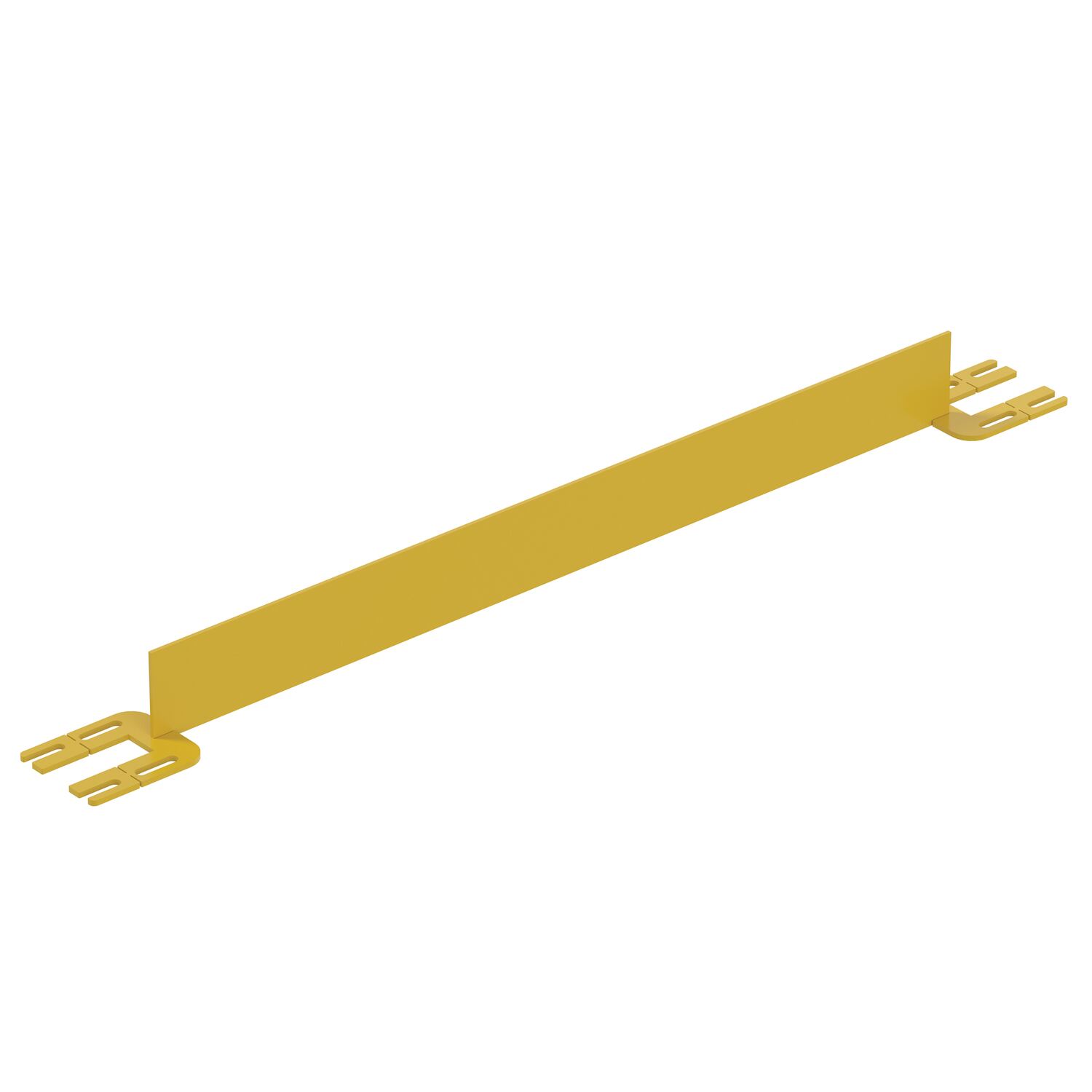

VDKR-4-TB		Steel Toe Board for Pipe Safety Railing 4 Ft. Length Yellow	Limited Warranty	14

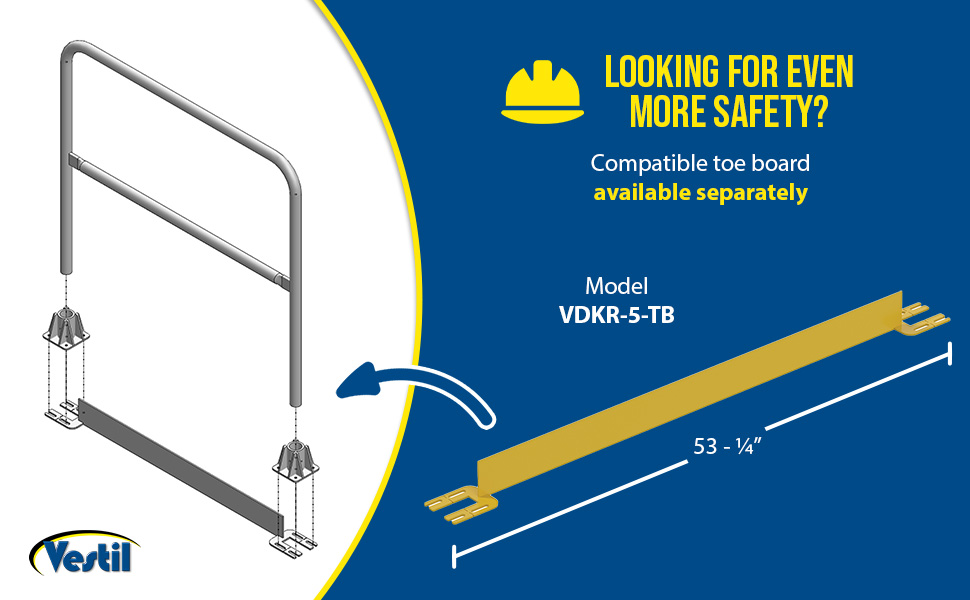

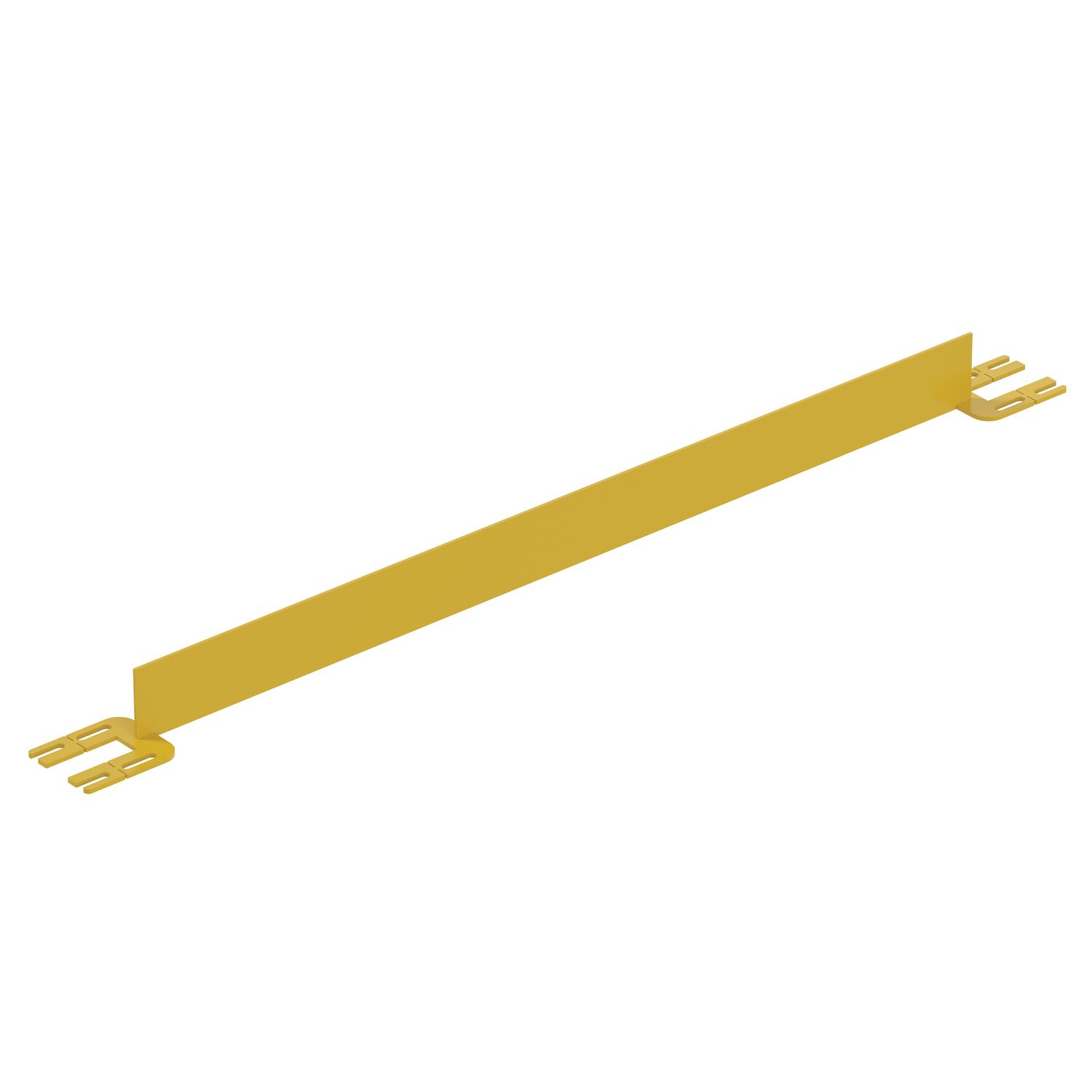

VDKR-5-TB		Steel Toe Board for Pipe Safety Railing 5 Ft. Length Yellow	Limited Warranty	22

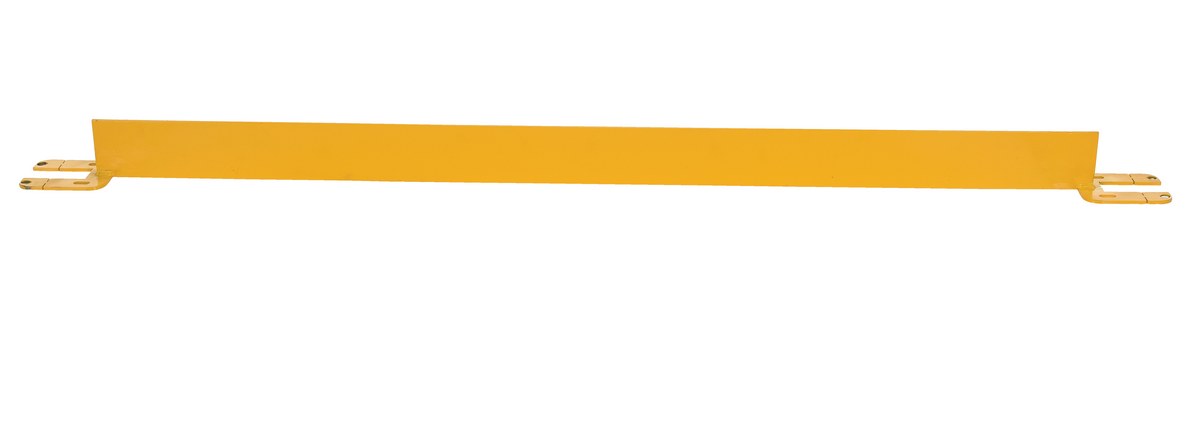

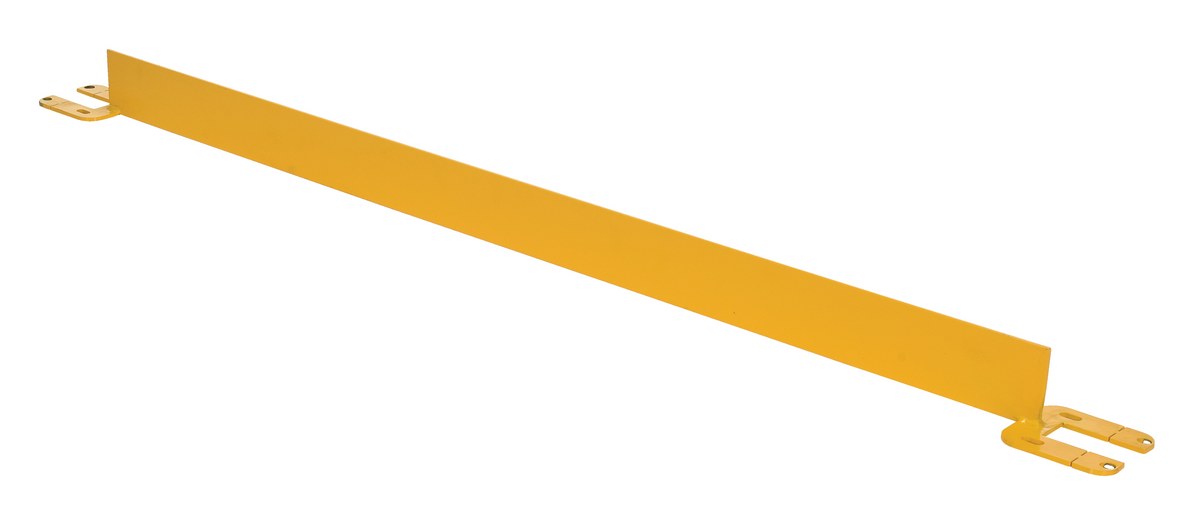

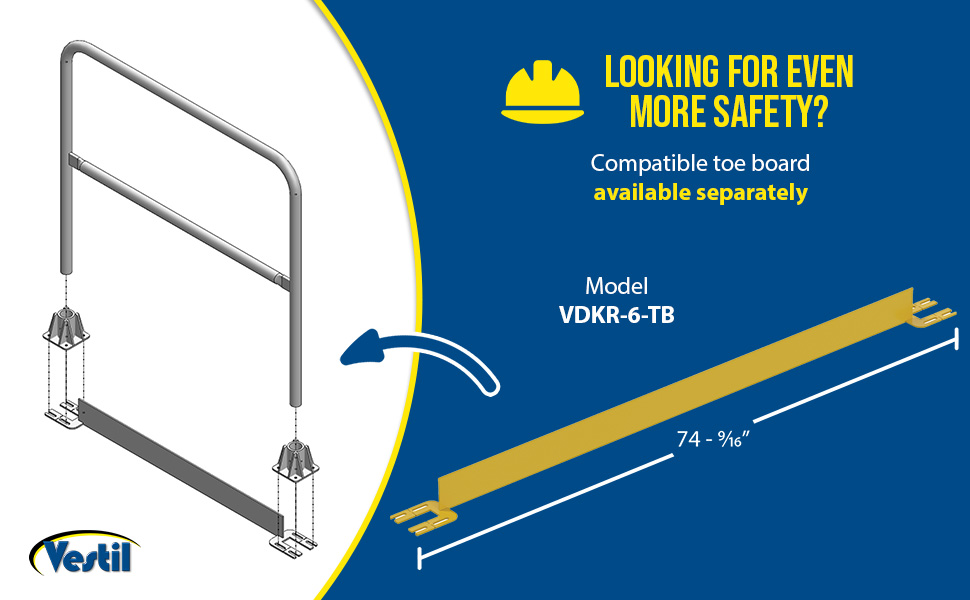

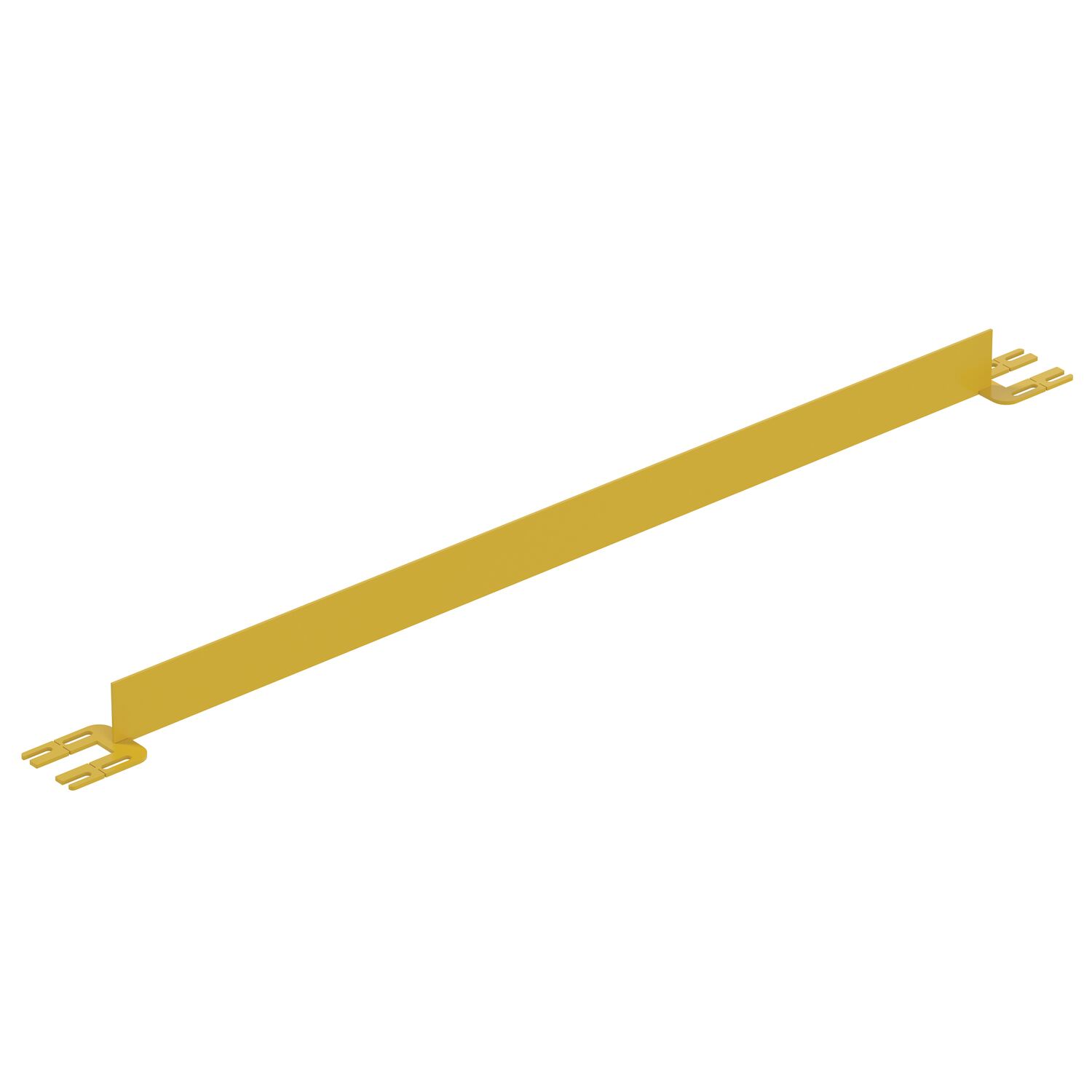

VDKR-6-TB		Steel Toe Board for Pipe Safety Railing 6 Ft. Length Yellow	Limited Warranty	51

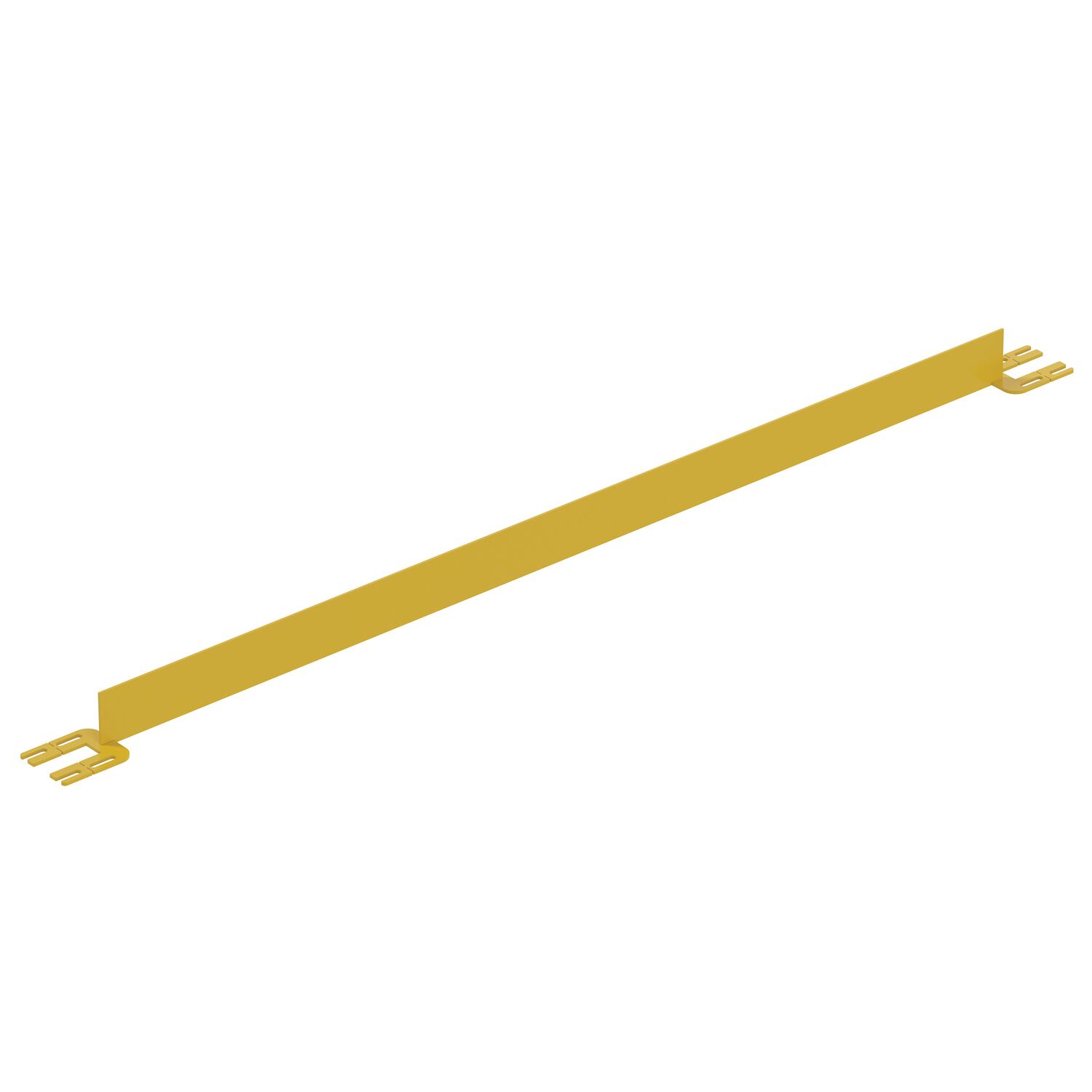

VDKR-7-TB		Steel Toe Board for Pipe Safety Railing 7 Ft. Length Yellow	Limited Warranty	30

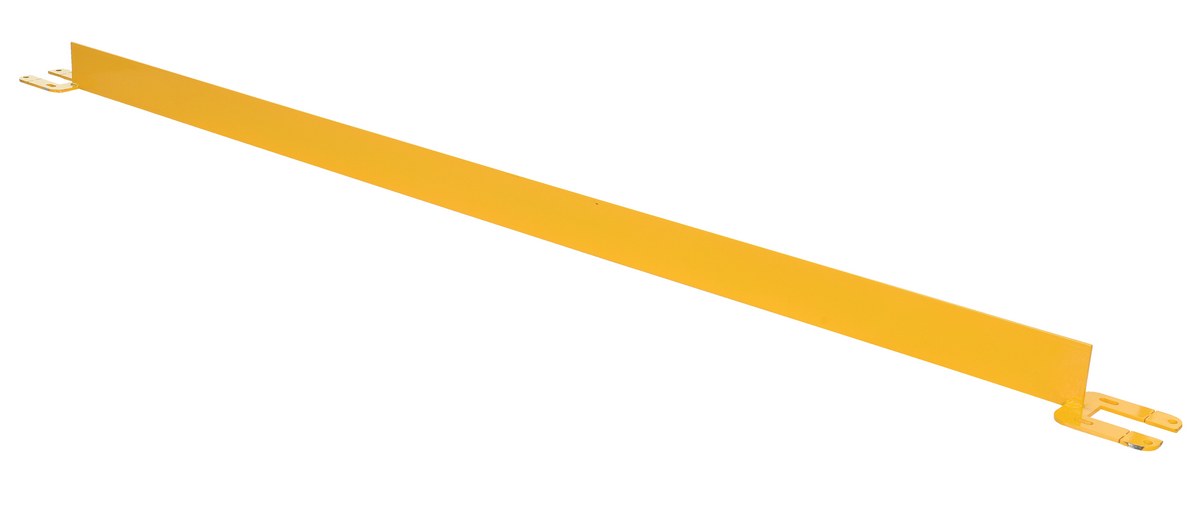

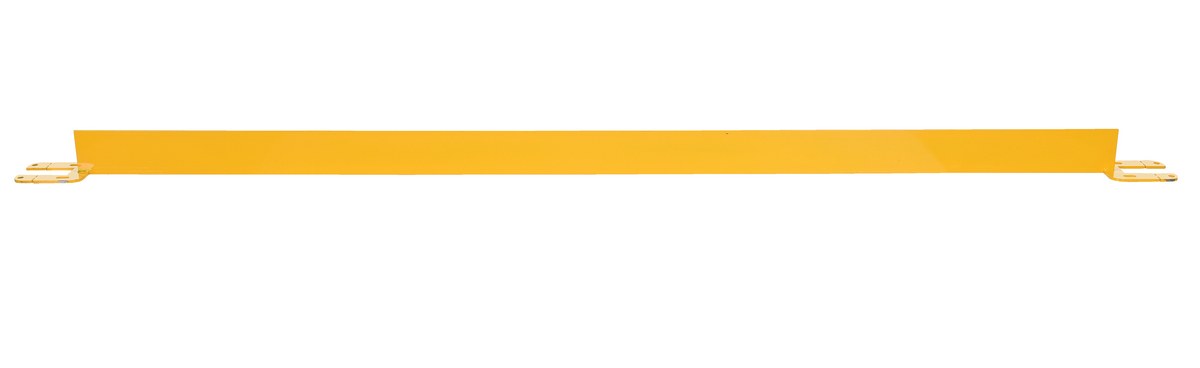

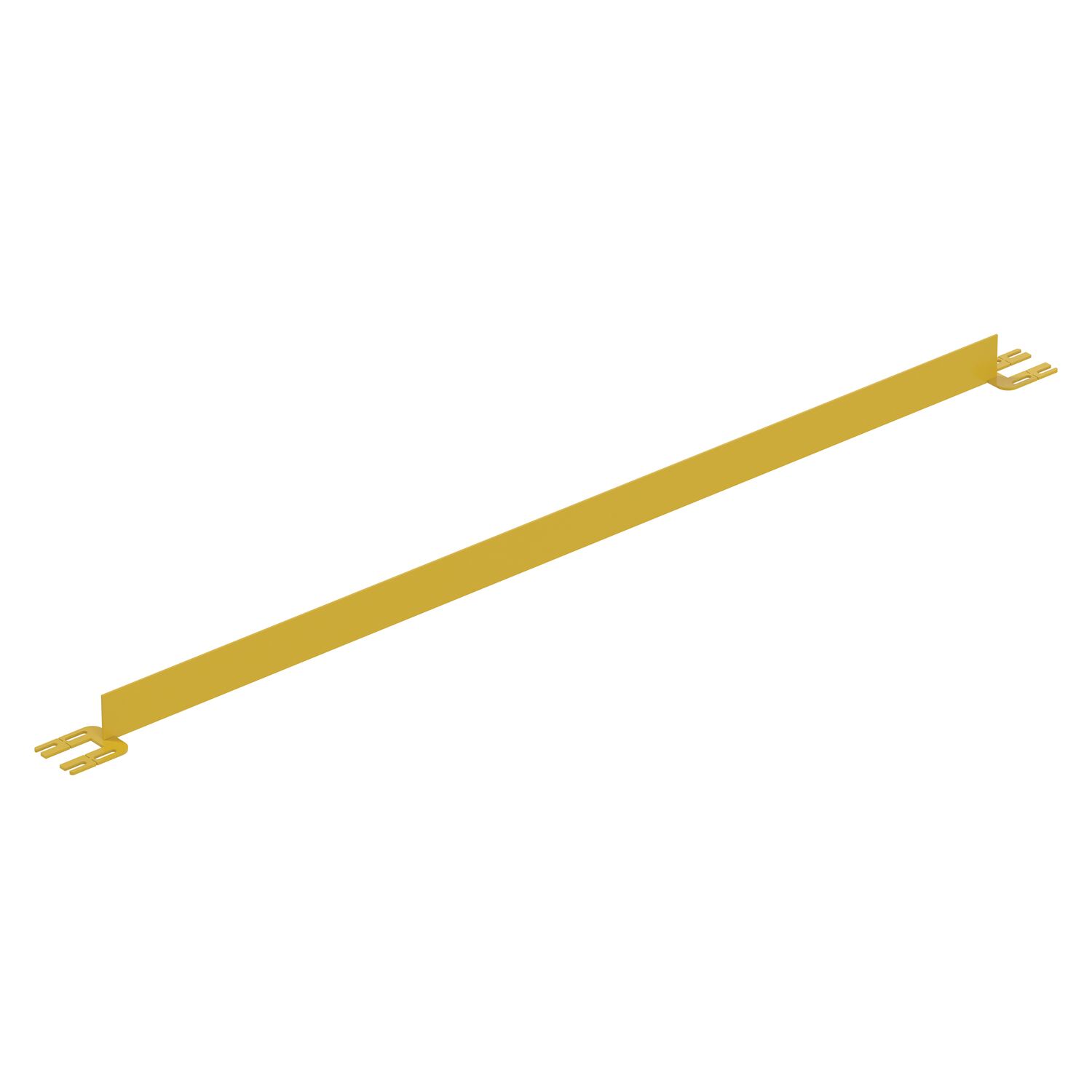

VDKR-8-TB		Steel Toe Board for Pipe Safety Railing 8 Ft. Length Yellow	Limited Warranty	58

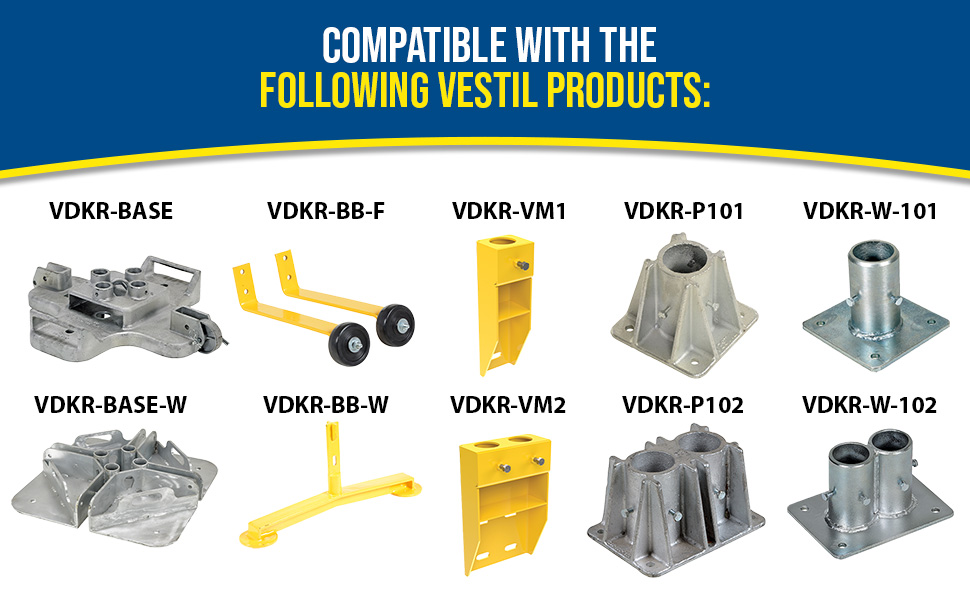

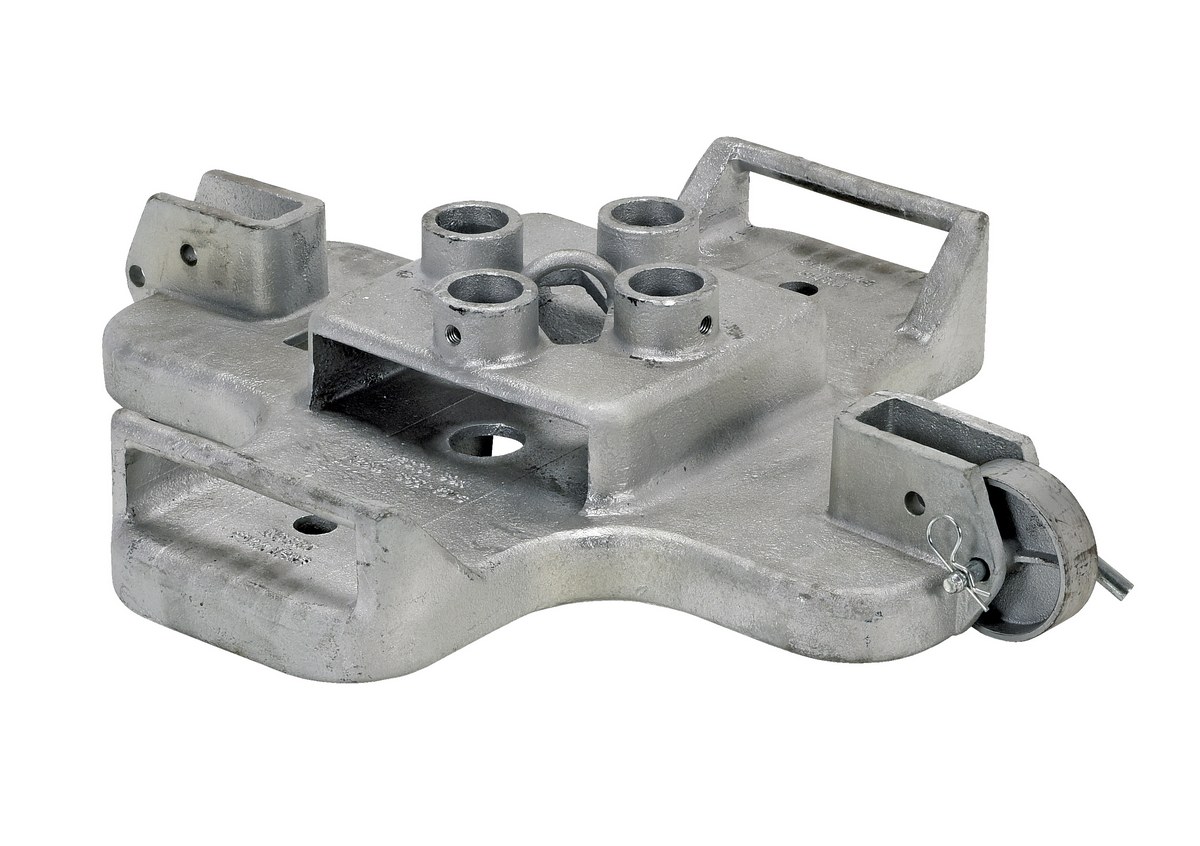

VDKR-BASE		Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7…	Limited Warranty	137

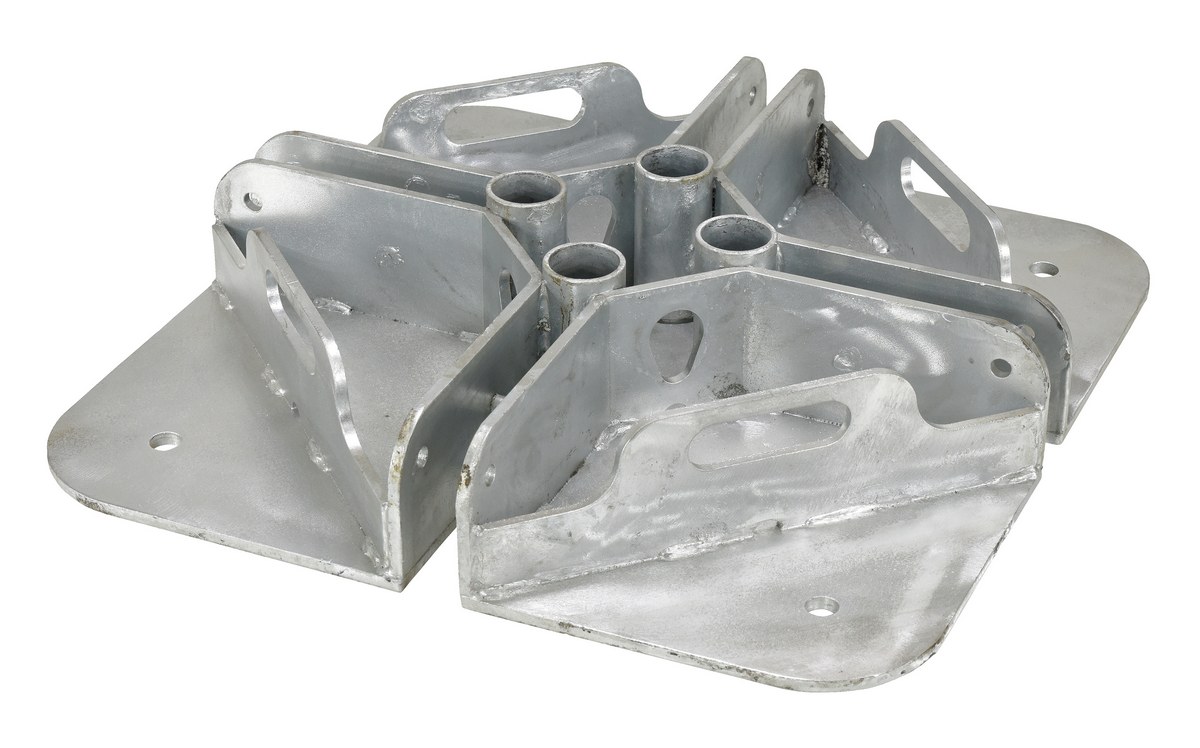

VDKR-BASE-W		Galvanized Steel Pipe Safety Railing Welded Base 24 In. x 24…	Limited Warranty	135

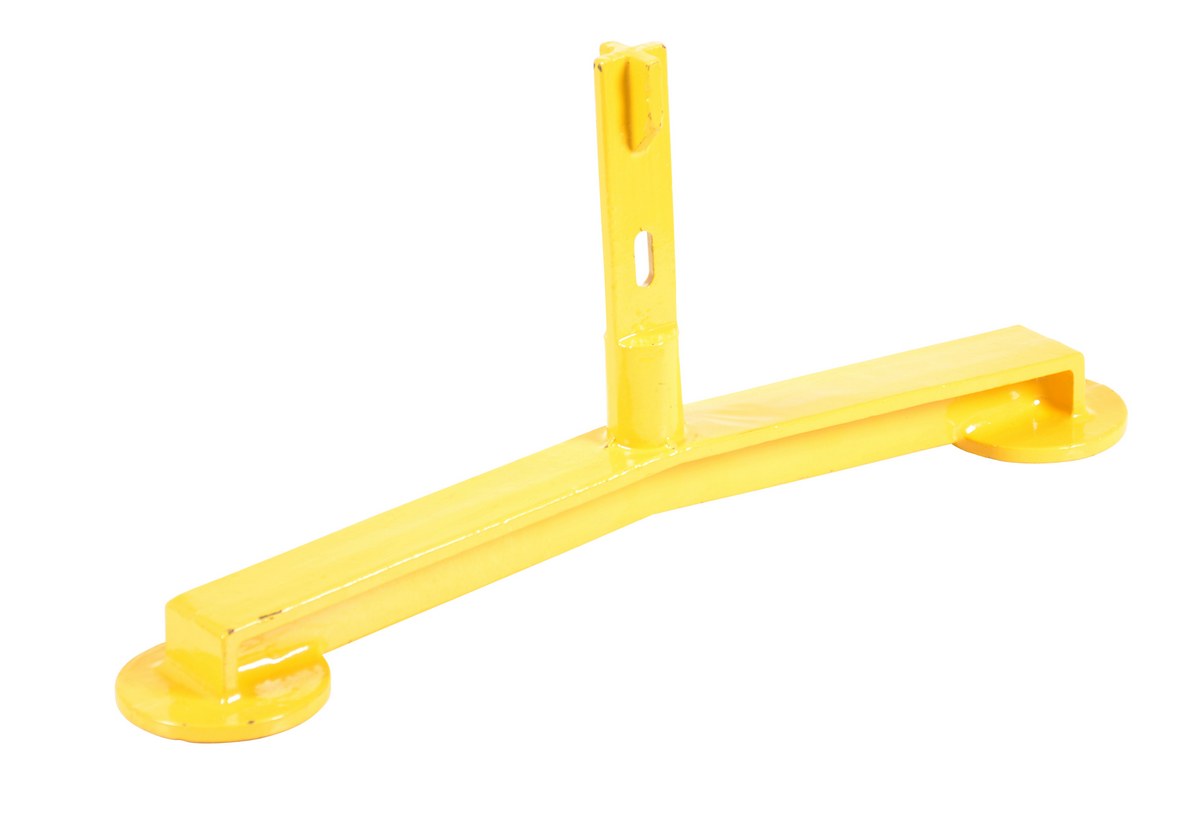

VDKR-BB-F		Steel Pipe Railing Barricade Base with Feet Yellow	Limited Warranty	6

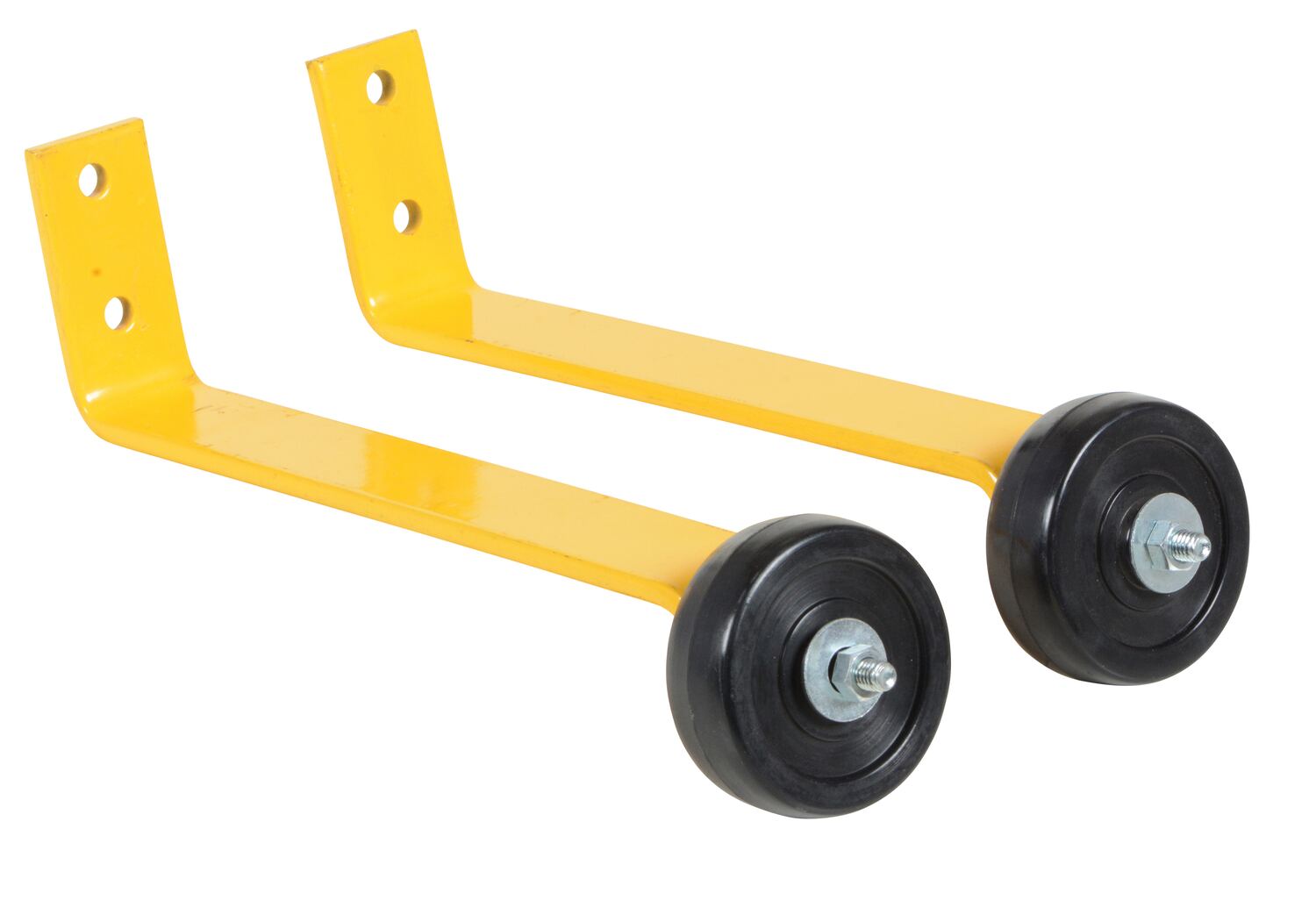

VDKR-BB-W		Steel Pipe Railing Barricade Base With Wheels Yellow	Limited Warranty	7

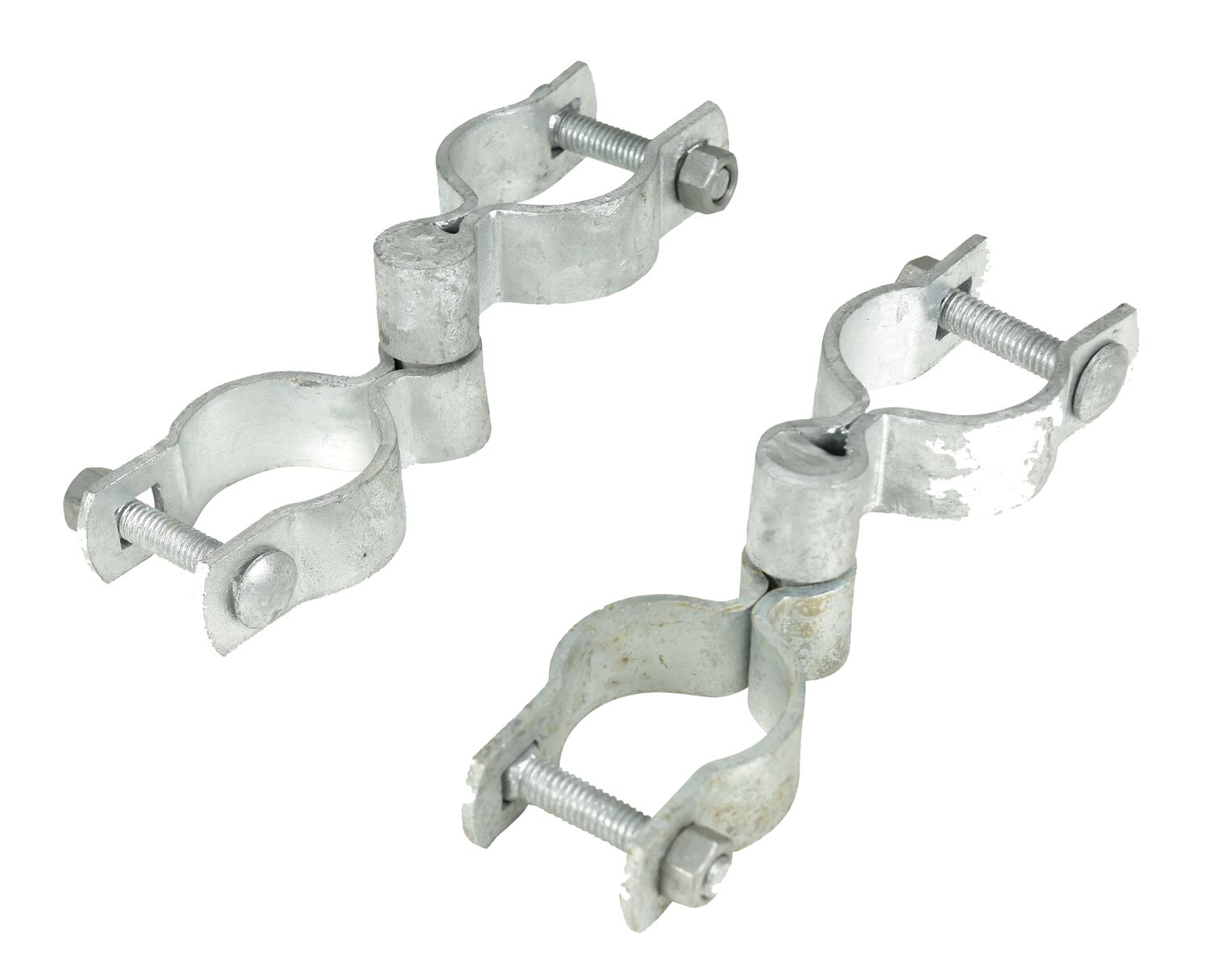

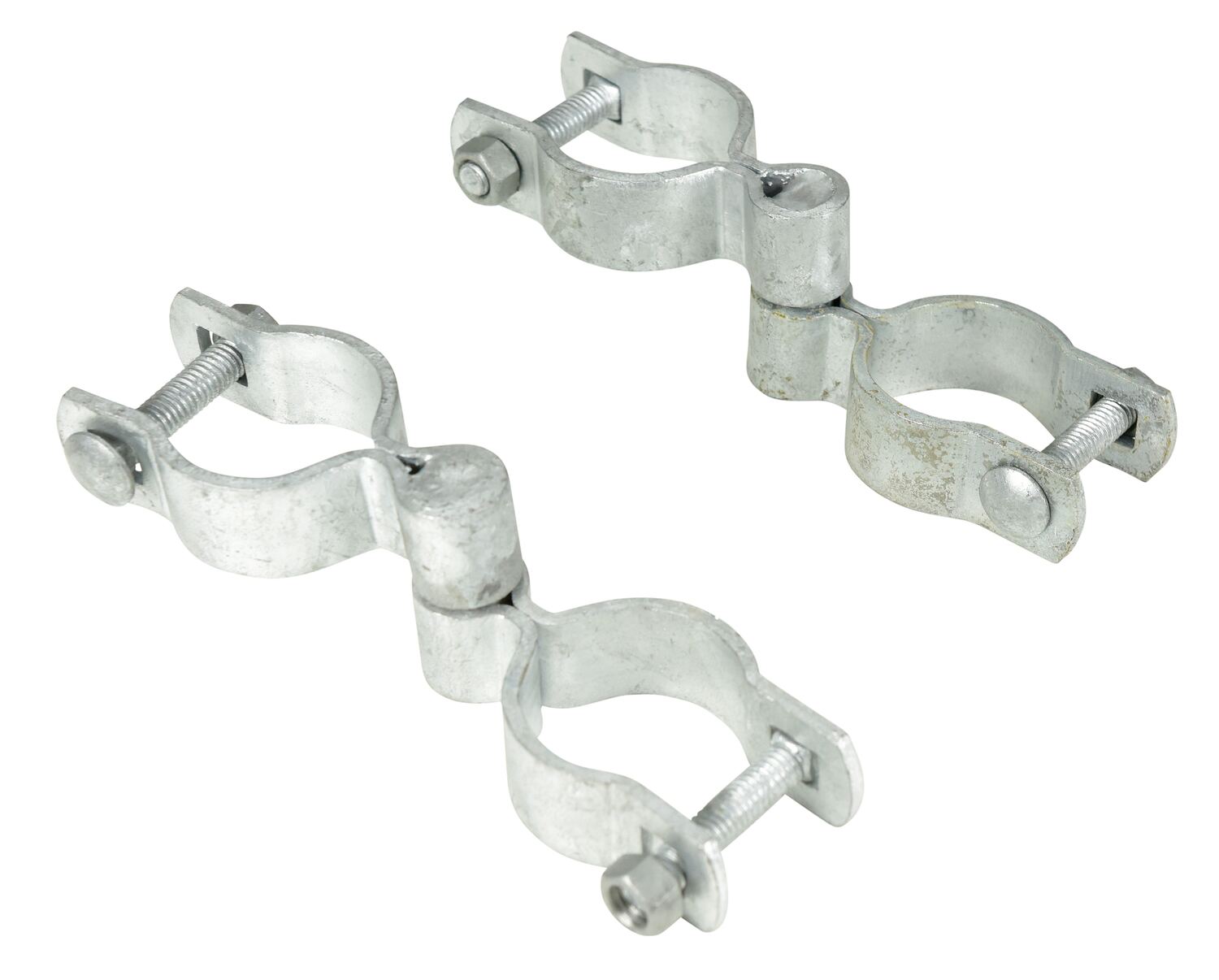

VDKR-CON		Steel Hinged Connectors For Pipe Safety Railing Silver	Limited Warranty	3

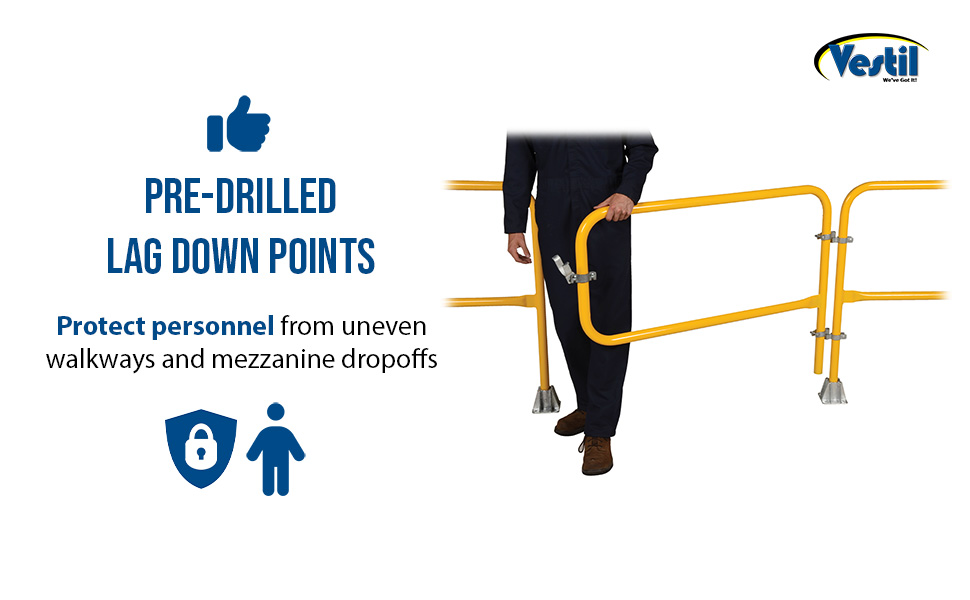

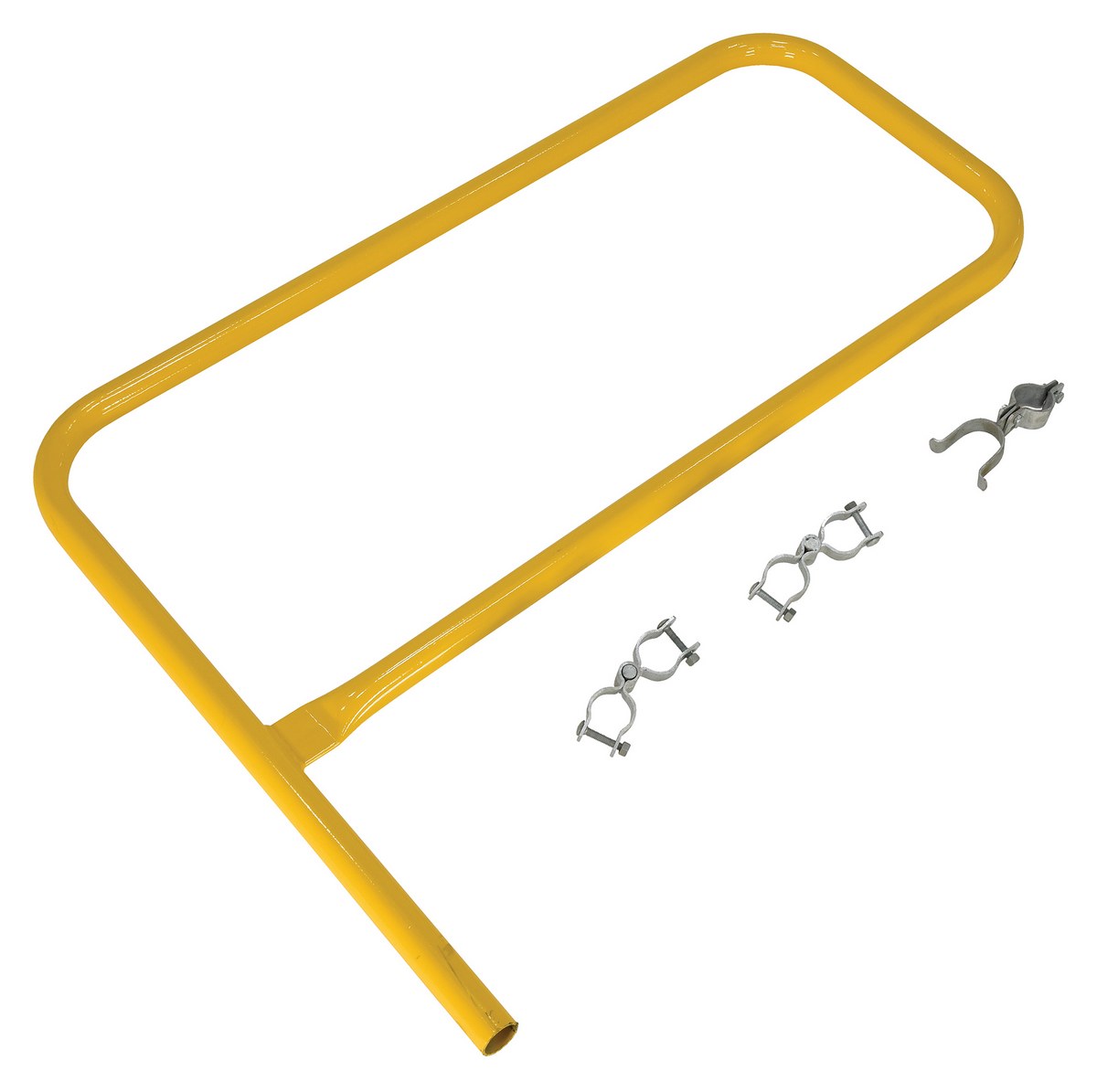

VDKR-G3		Steel Pipe Safety Railing Gate P-Shaped 36 In. x 36 In. Yell…	Limited Warranty	23

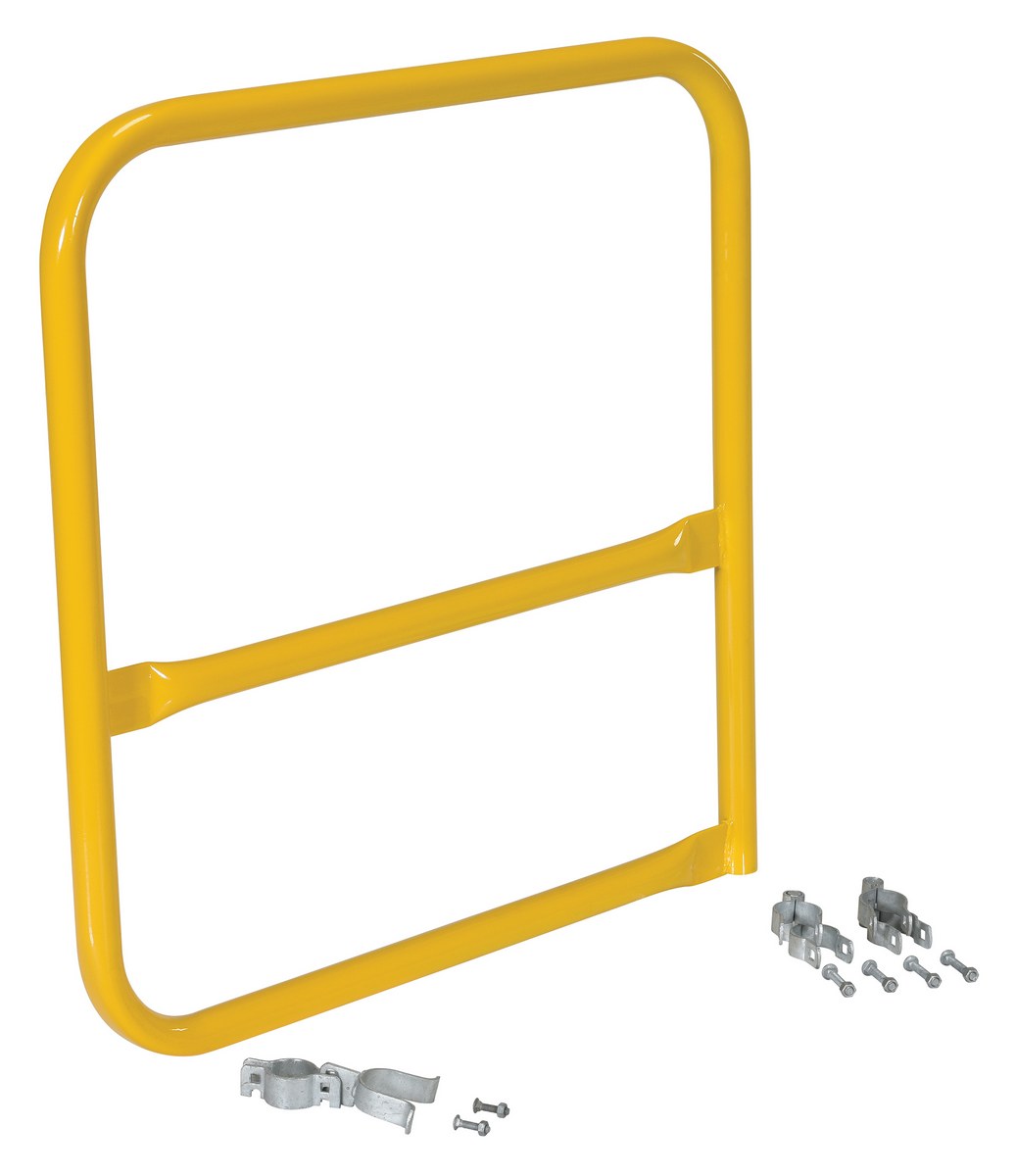

VDKR-G3-B		Steel Pipe Safety Railing Gate B-Shaped 36 In. x 36 In. Yell…	Limited Warranty	35

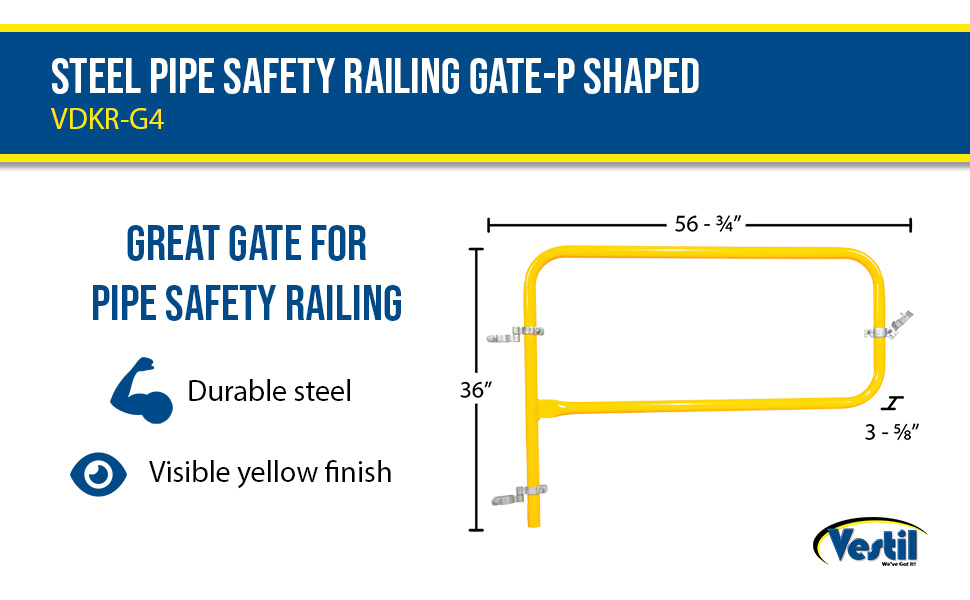

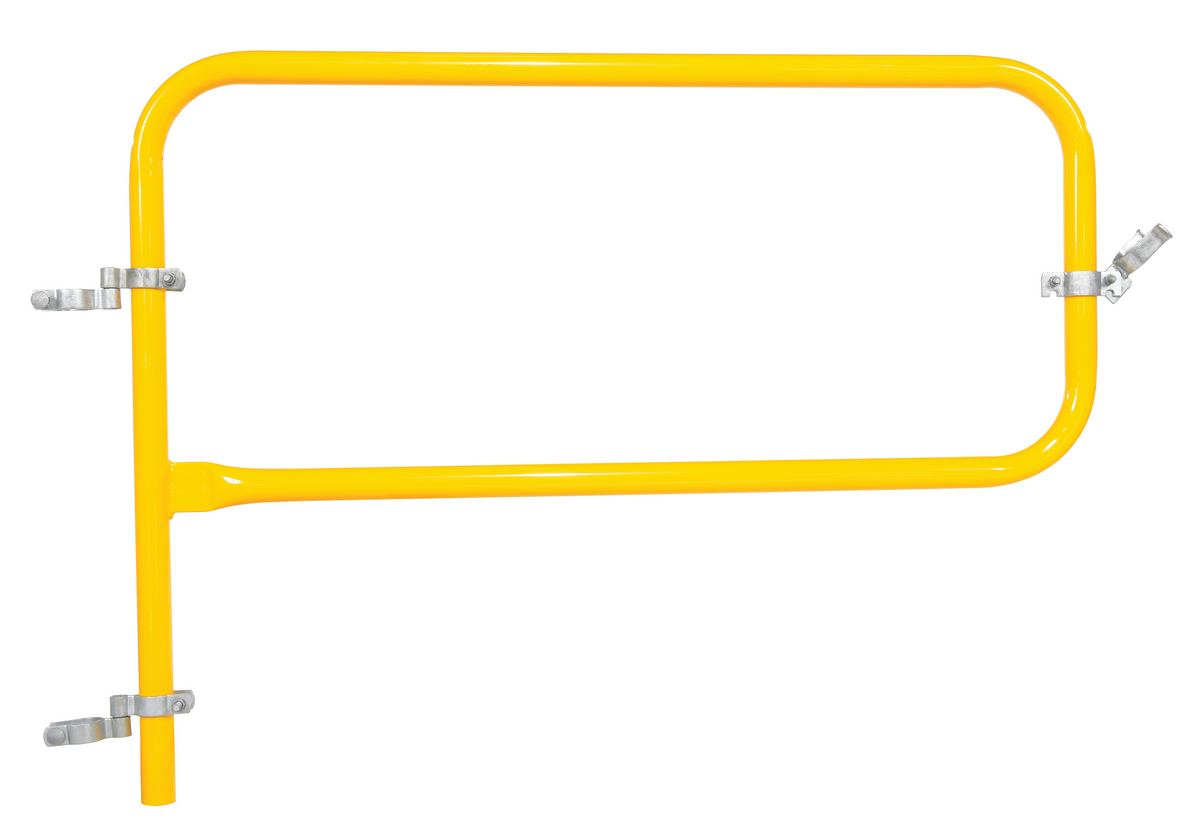

VDKR-G4		Steel Pipe Safety Railing Gate-P Shaped 48 In. x 36 In. Yell…	Limited Warranty	55

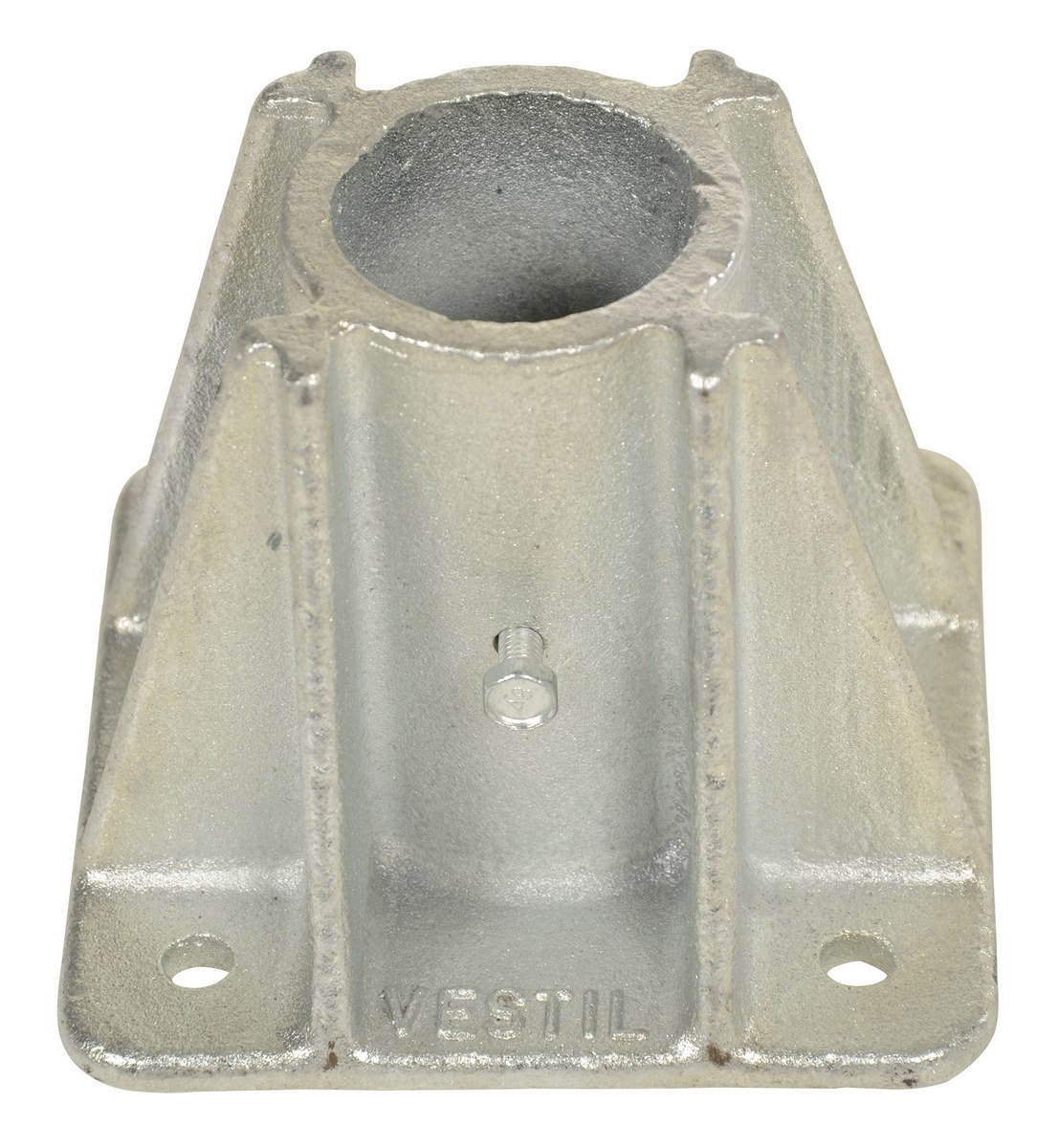

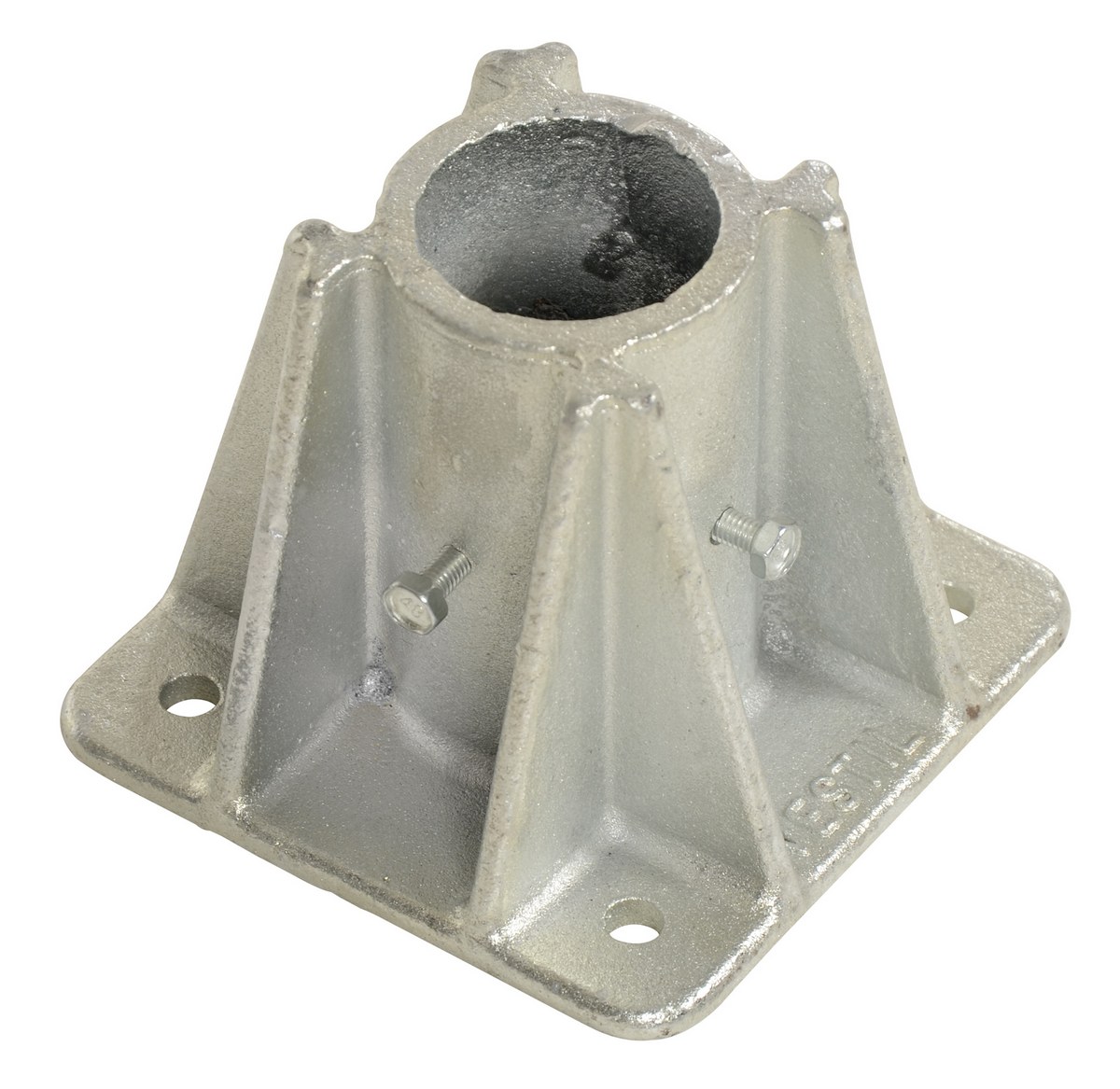

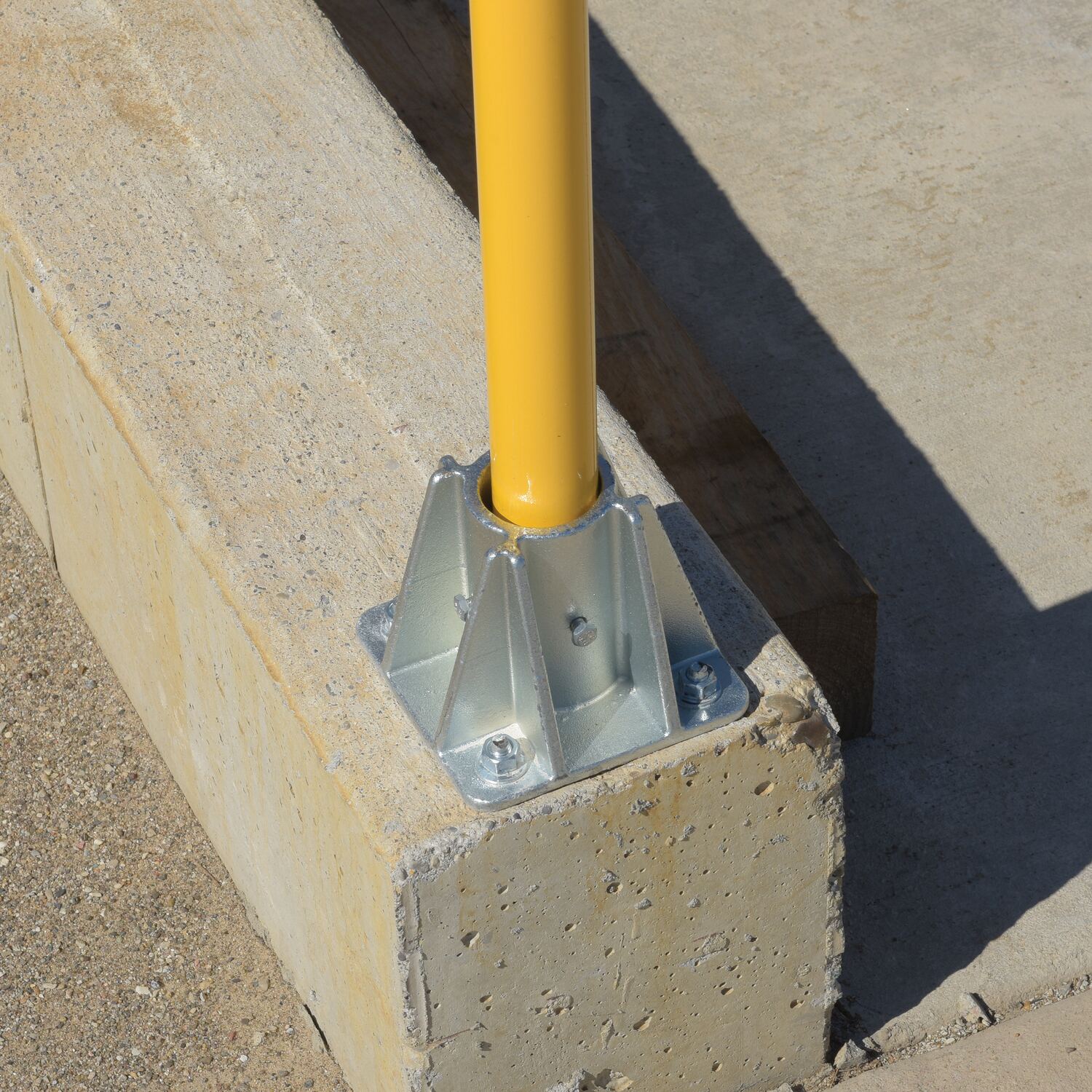

VDKR-P101		Cast Steel Single Socket For Pipe Safety Railing Silver	Limited Warranty	6

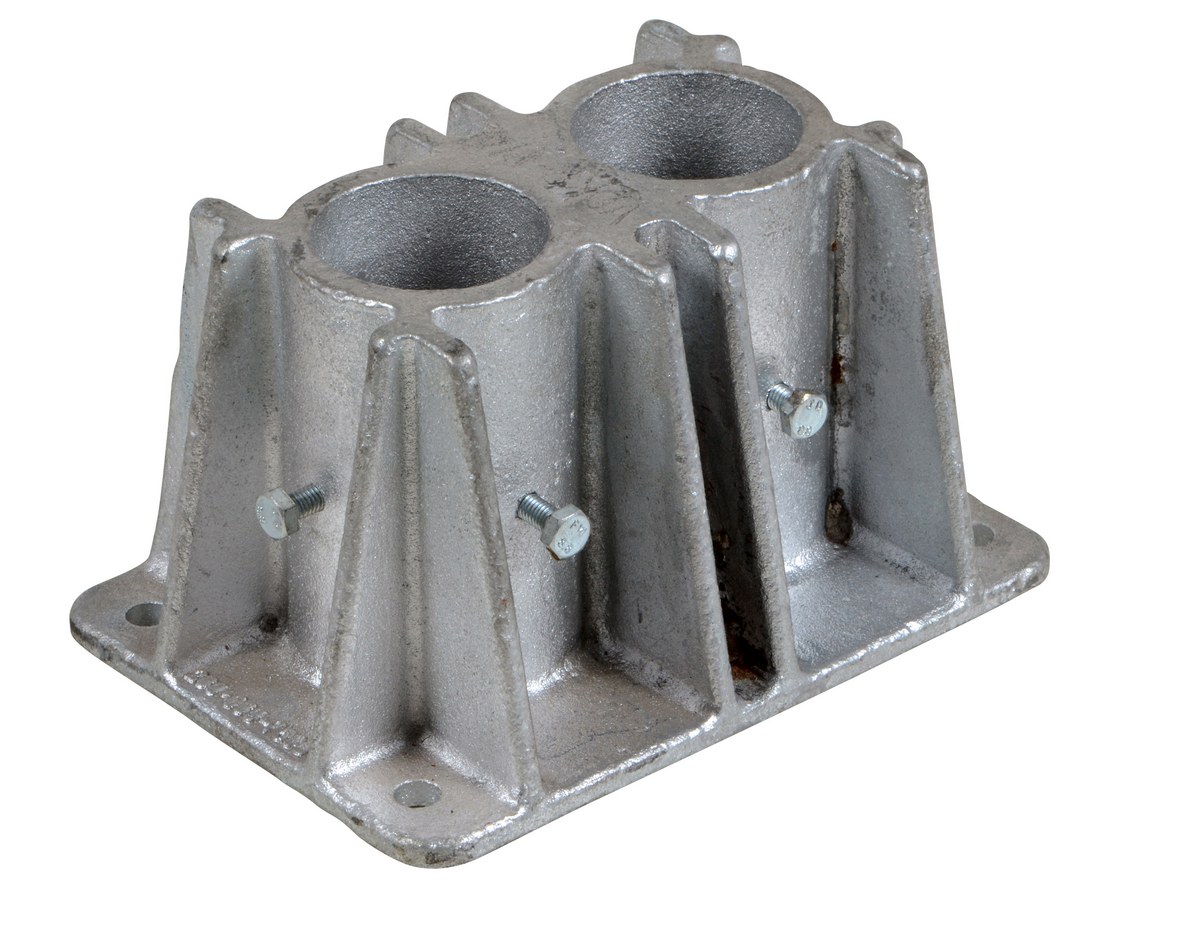

VDKR-P102		Cast Steel Double Socket For Pipe Safety Railing Silver	Limited Warranty	11

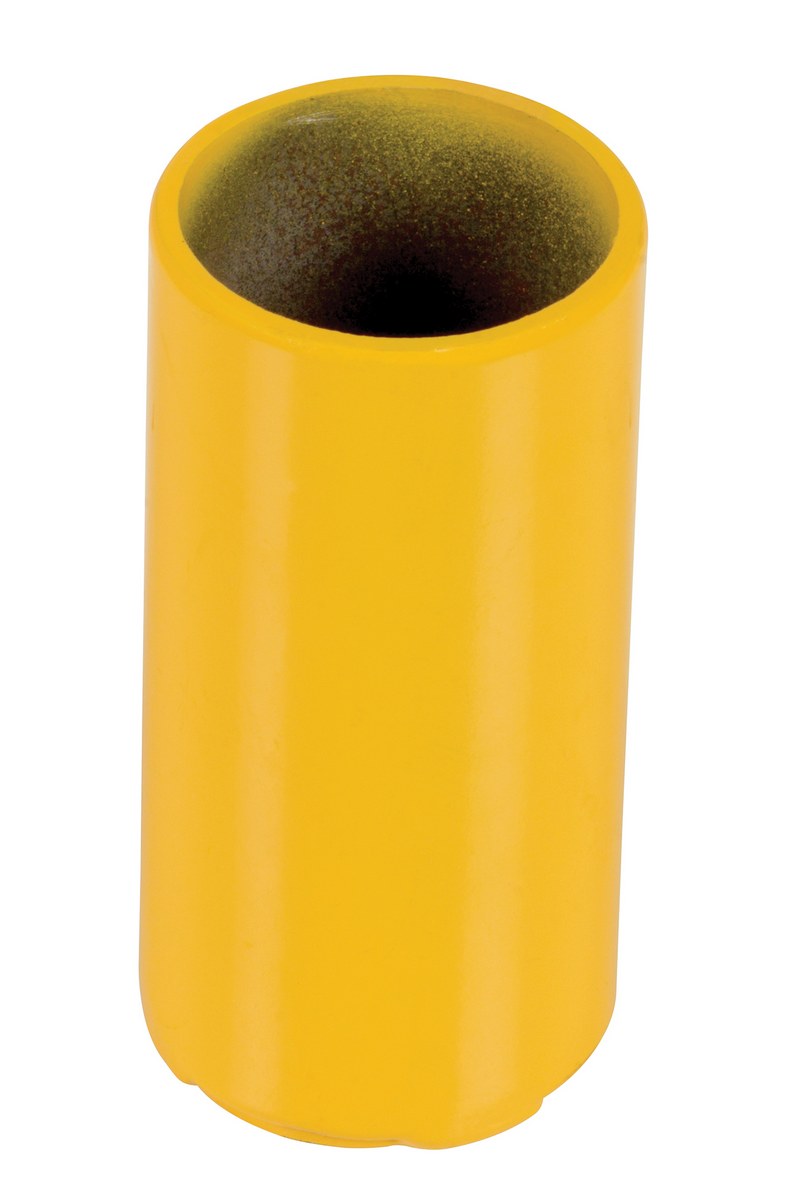

VDKR-P107		Steel Sleeve 2 In. Diameter For Pipe Safety Railing Yellow	Limited Warranty	1

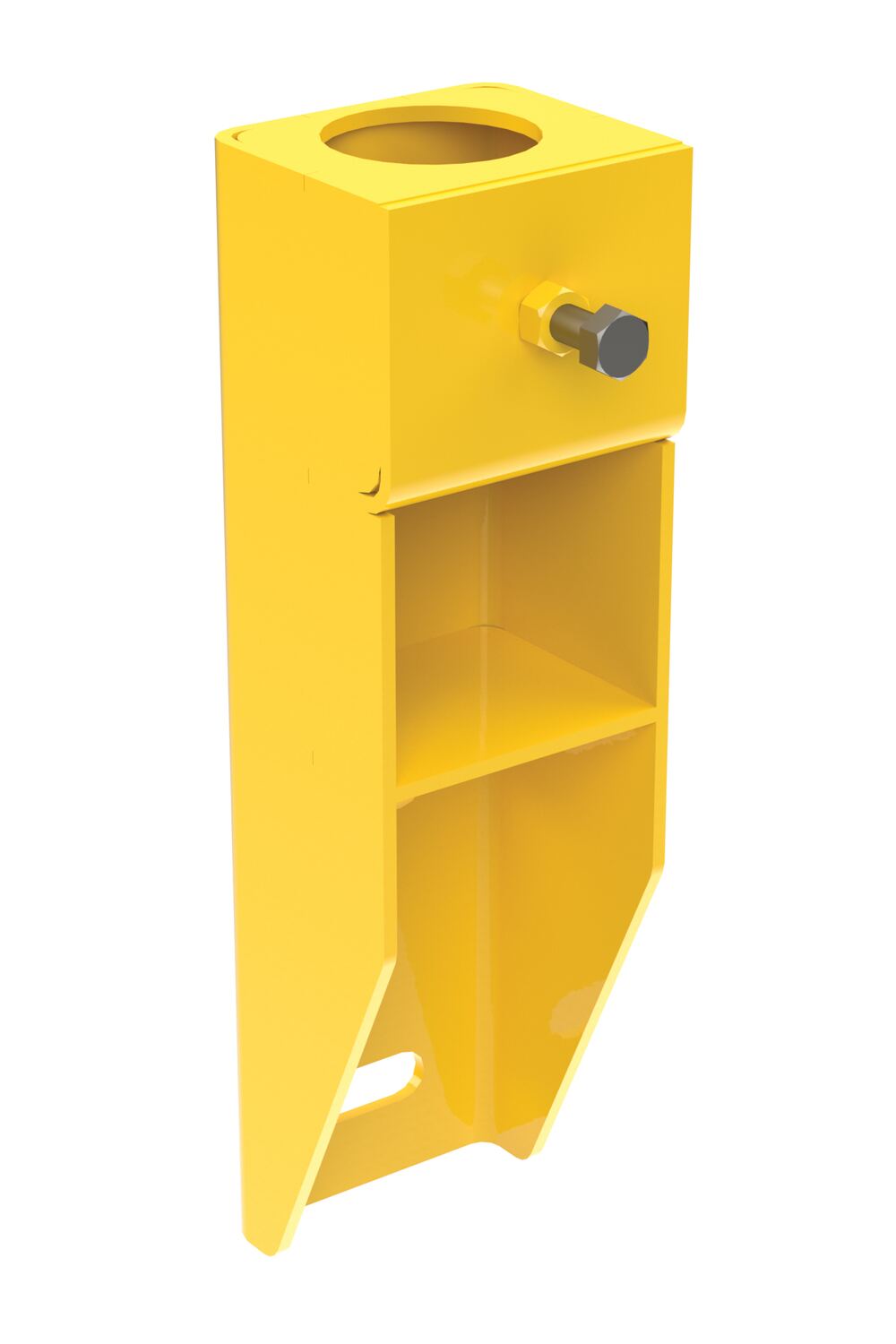

VDKR-VM1		Steel Vertical Wall Mount Handrail Socket Single Pocket	Limited Warranty	6

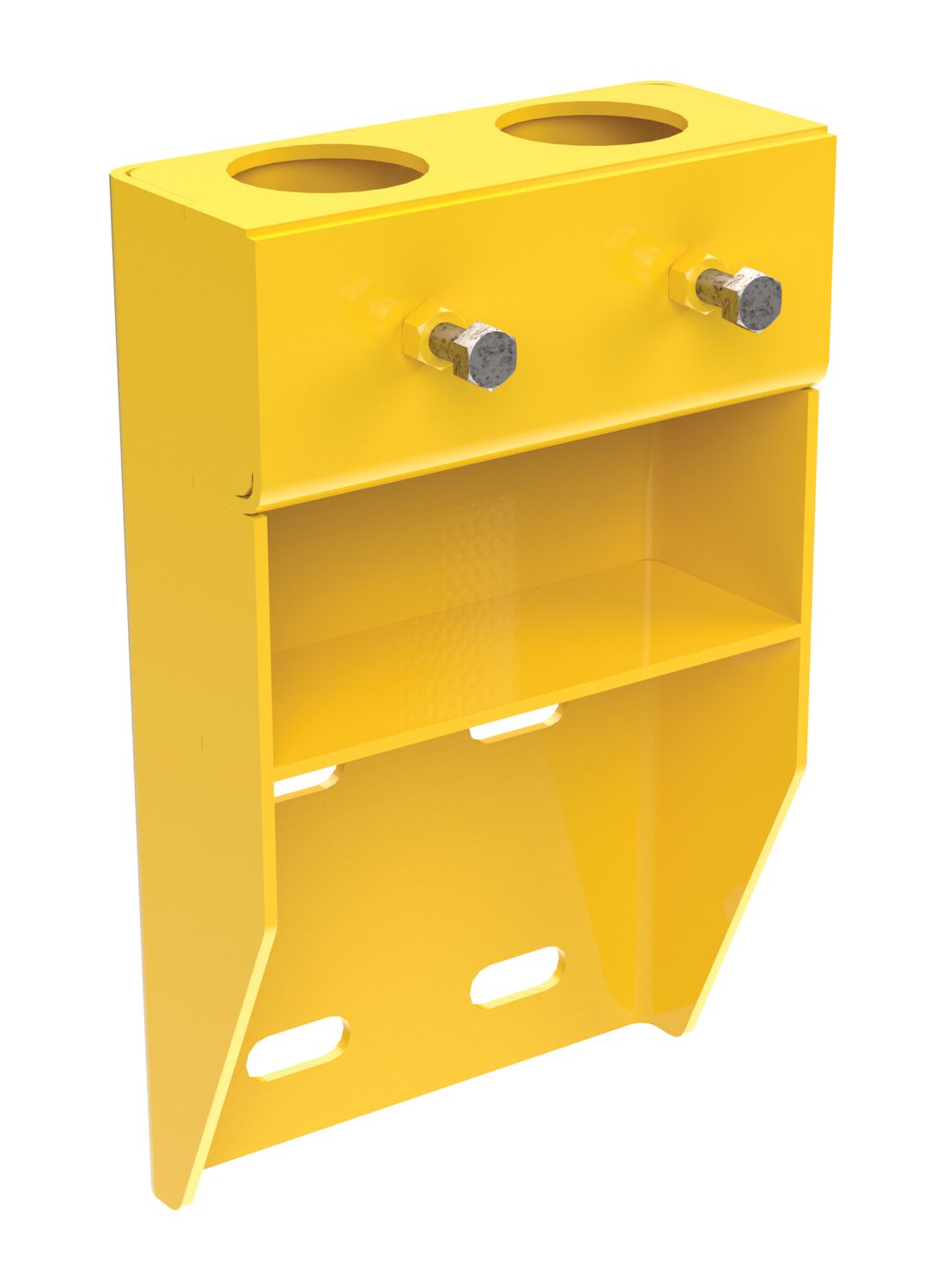

VDKR-VM2		Steel Wall Mount Bracket For Pipe Safety Railing Yellow	Limited Warranty	10

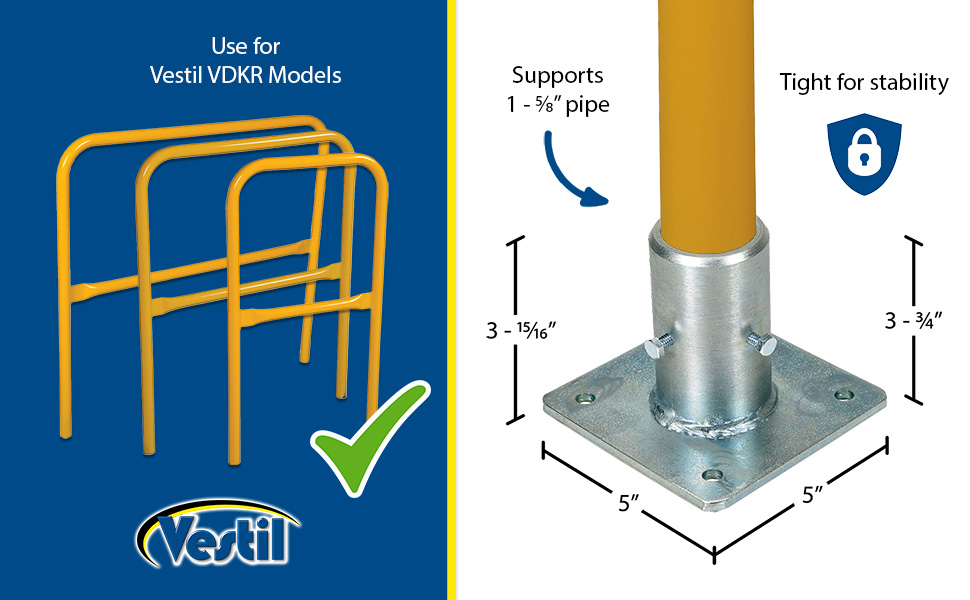

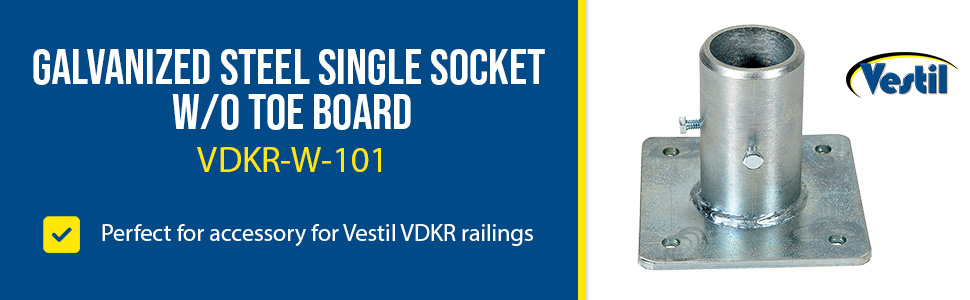

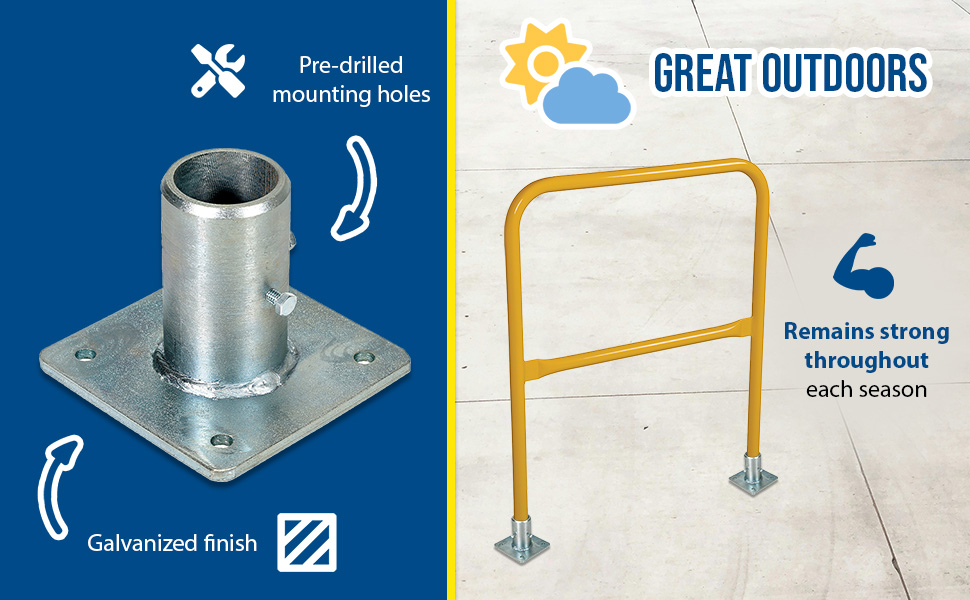

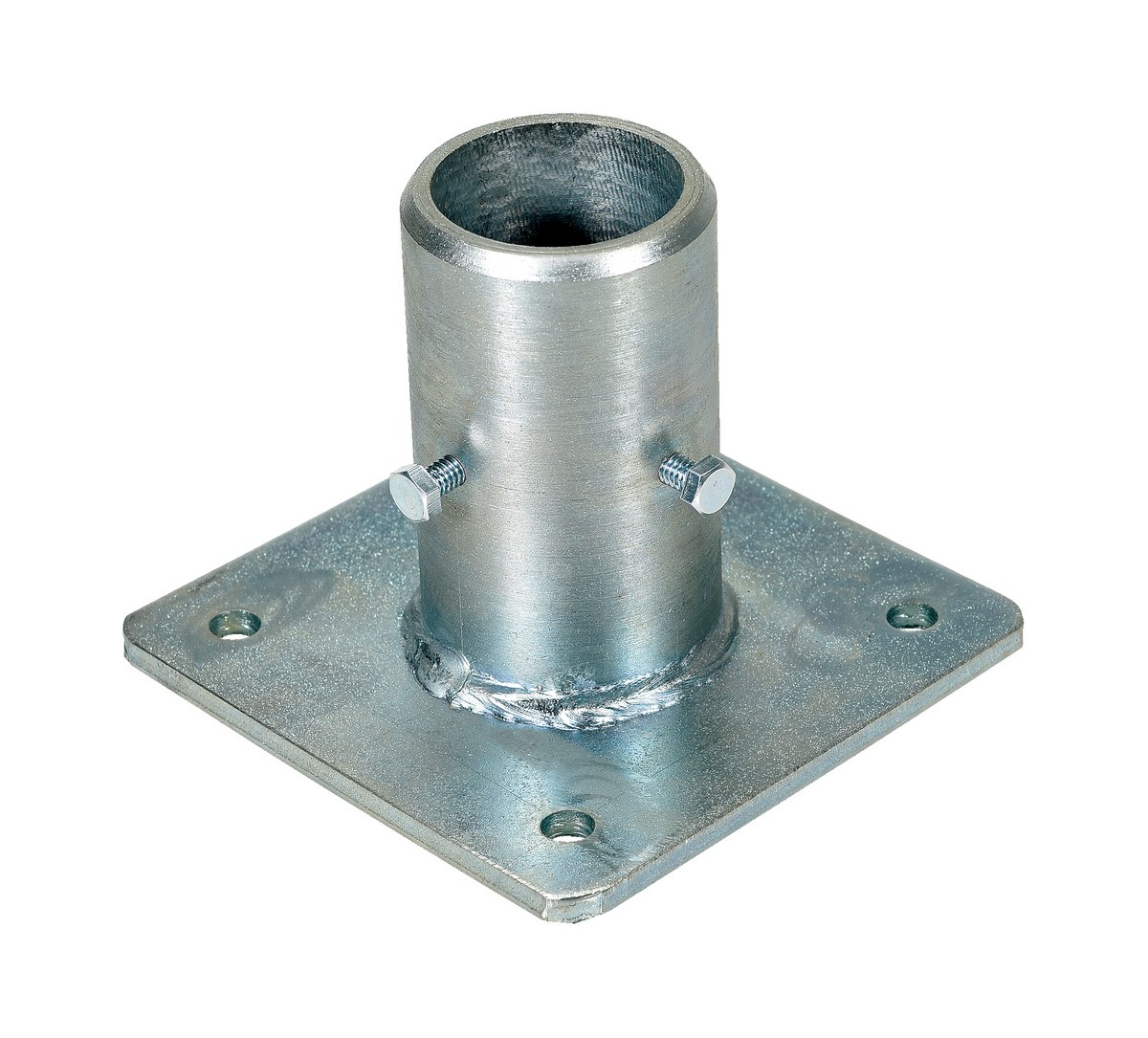

VDKR-W-101		Galvanized Steel Single Socket Without Toe Board For VDKR Mo…	Limited Warranty	5

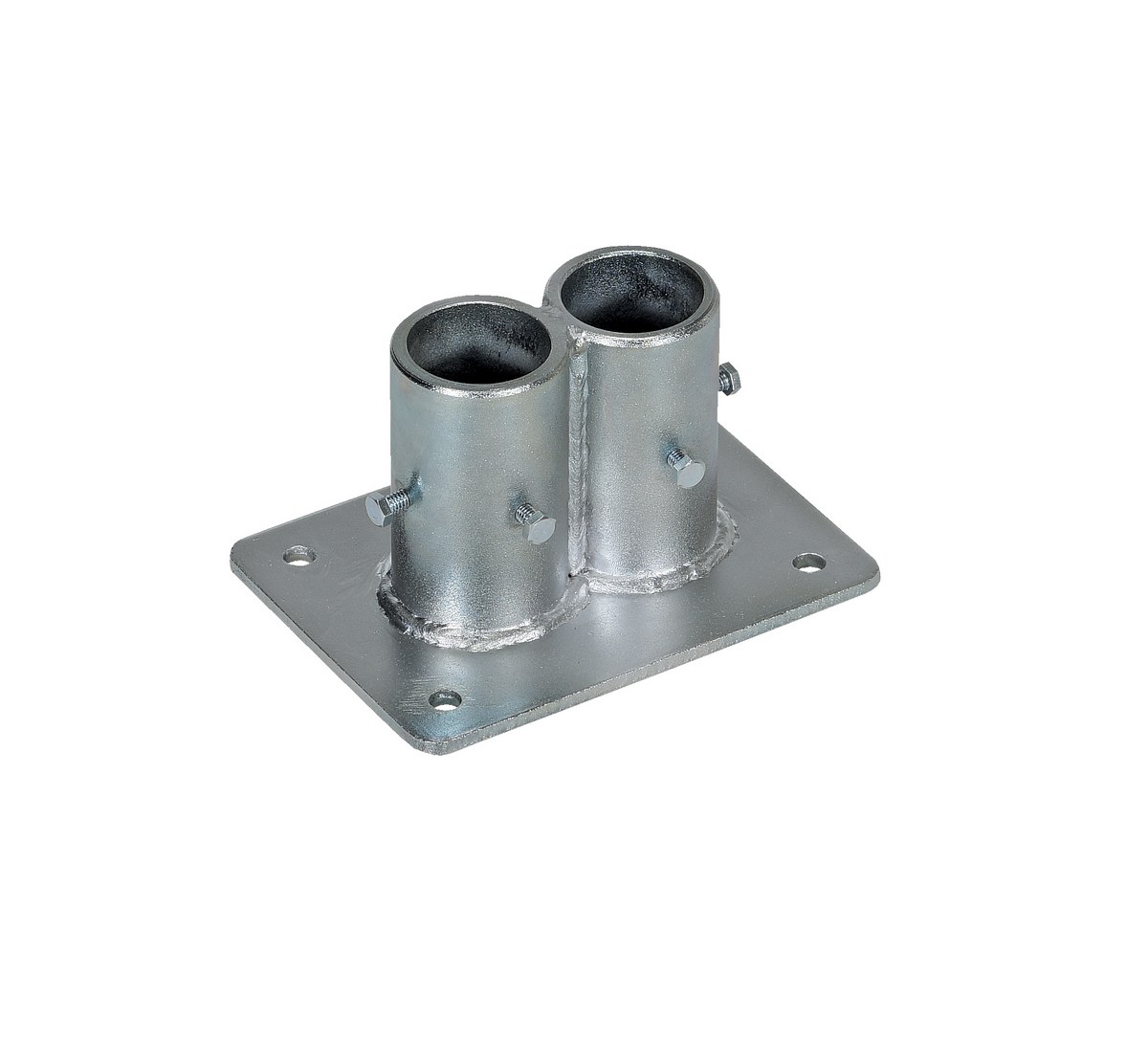

VDKR-W-102		Galvanized Steel Double Socket Without Toe Board For VDKR Mo…	Limited Warranty	7

Model	Image	PDF	Description					Wt. (lbs)
AS-383			Anchor Bolts [for concrete (1) 3/8" x 3"]					1
AS-383-4PK			Anchor Bolts [for concrete (4) 3/8" x 3"]					4

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

VDKR

VDKR-BASE

Engineering Drawings

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-10

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-VM2

VDKR-W-101

VDKR-W-102

VDKR-VM1

VDKR-10-TB

Testing Certificates

VDKR-10

VDKR-10-TB

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-P107

VDKR-VM1

VDKR-VM2

VDKR-W-101

VDKR-W-102

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Safety Railing Specialty Colors Available!

Steel VDKR Colors

YELLOW (standard)

YELLOW (standard)
Model Suffix: No Suffix

BLACK

BLACK
Model Suffix: -BK

BLUE

BLUE
Model Suffix: -BL

GRAY

GRAY
Model Suffix: -GYSG

ORANGE

ORANGE
Model Suffix: -OR

RED

RED
Model Suffix: -RD

SILVER

SILVER
Model Suffix: -SL

WHITE

WHITE
Model Suffix: -WT

Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu

Applications

Construction Projects

Municipalities

Universities

Military

Restaurants

Warehouses

Hotels

Train Stations

Superstores

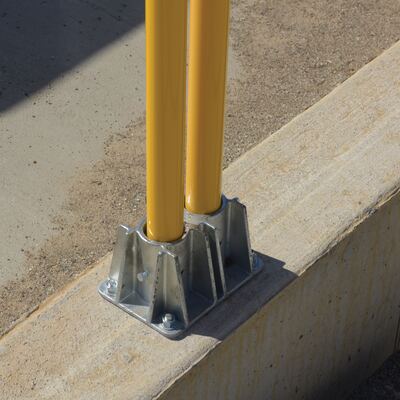

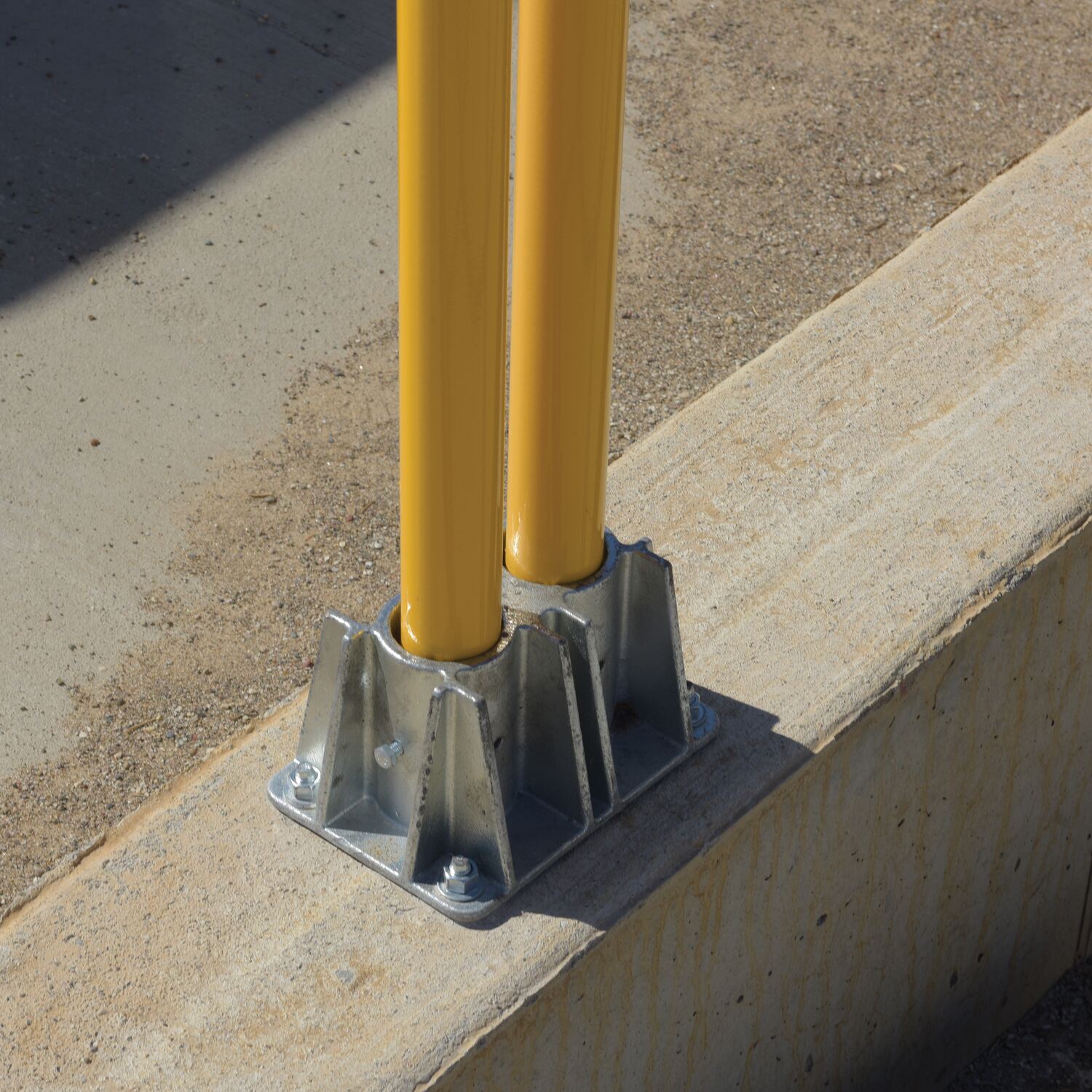

I'm interested in the steel safety railing. When using the double socket what is the gap between the two railings?

When using the VDKR-P102 socket the distance between the two railings is approximately 1".

We are installing the safety railing and using the double socket. VDKR-P102. How much does it add to the length of the safety railings?

The VDKR-P102 double socket has approximately 1" in between the two railings

We are interested in the safety railings. Will we need the VDKR-CON to connect multiple rails?

The VDKR-CON can be used with some of the bases. Please note if you are using VDKR-P102, VDKR-W-102, VDKR-BASE, or VDKR-BASE-W the connectors (VDKR-CON) should be excluded.

What is the capacity of the railing?

The VDKR will support 200 lbs. of force in any direction.

Does this gate swing in both directions?

Yes, the gate swings in both directions.

What grade is the steel?

The VDKR steel is Grade B.
