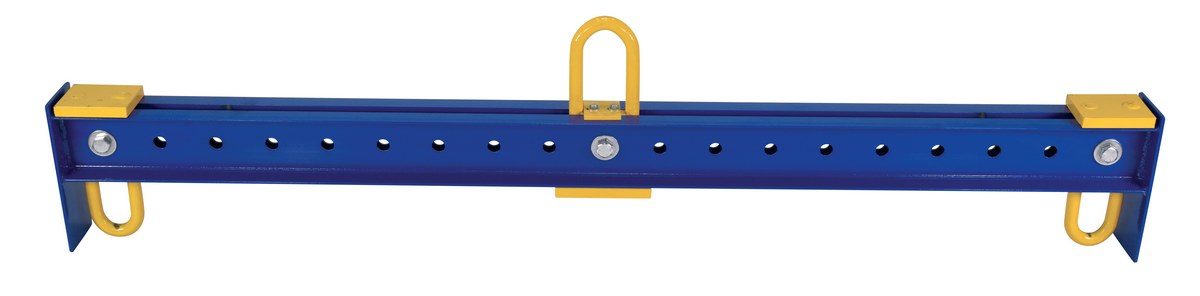

Adjustable Spreader Beams

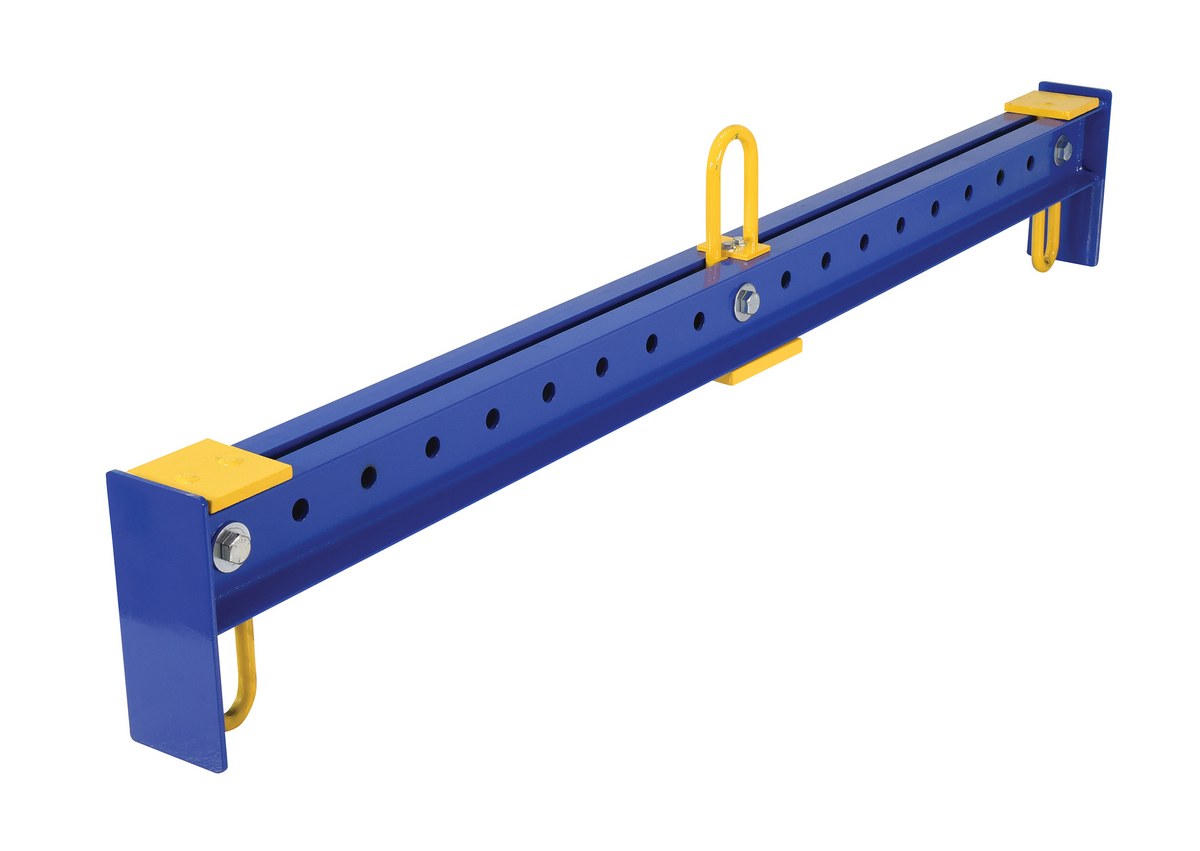

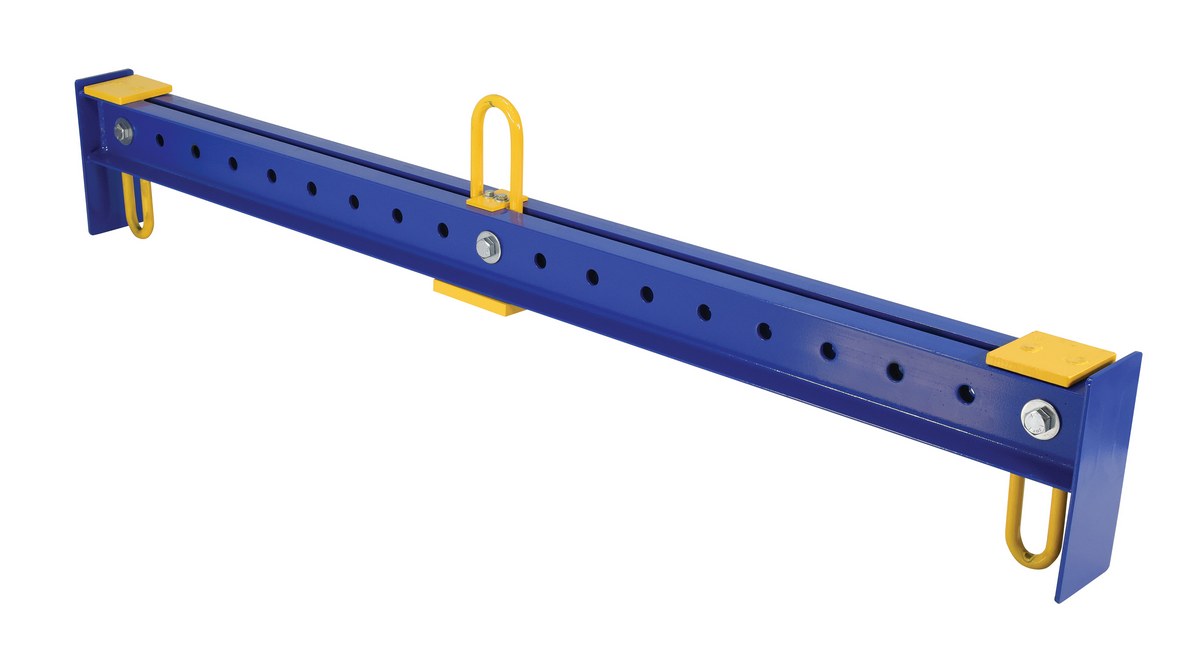

model: SBM-25

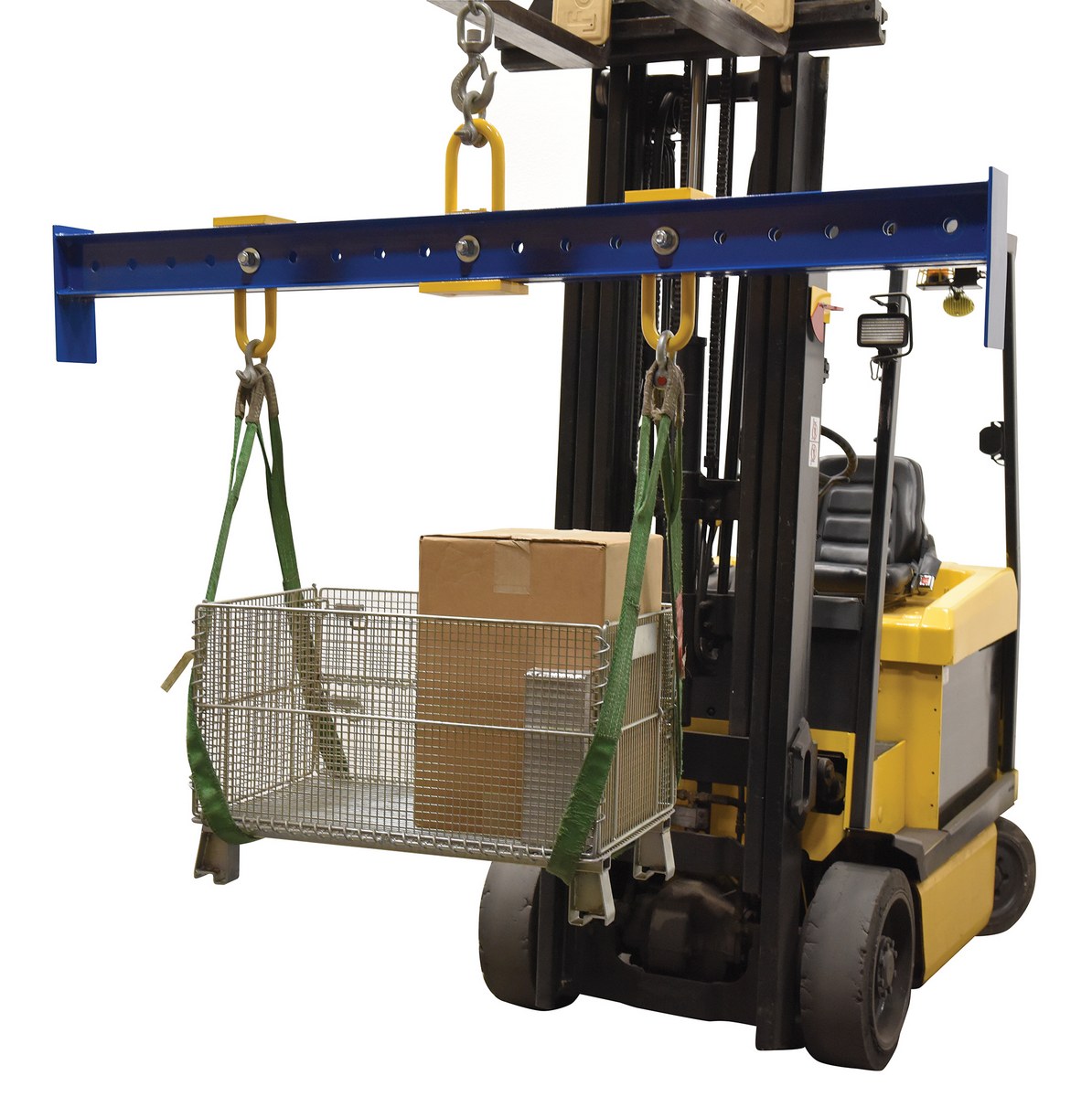

SBM-25_D.jpg SBM-25_A.jpg SBM-25_B.jpg SBM-25_C.jpg More Images +
Adjustable Spreader Beams
SERIES: SBM

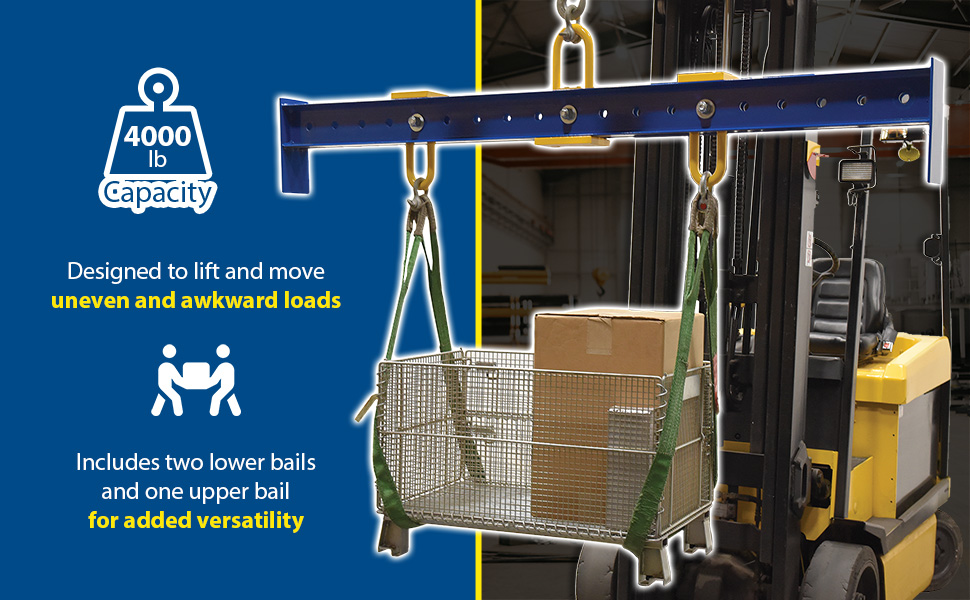

Lift uneven loads and keep them level with increased safety. Includes two lower bails and one upper bail. Adjust bails in 4" increments. The bails slide between two 5" high C-Channels (8" high model SBM-80). Meets ASME B30.20-1993 standard. Baked-in powder-coated finish for added toughness.

The SBM-BFB-100-10 models lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two (2) 5" high C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately. Additional bails are available for purchase. Additonal bail hardware sold separately.

Adjustable Spreader Beams

model: SBM-25

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

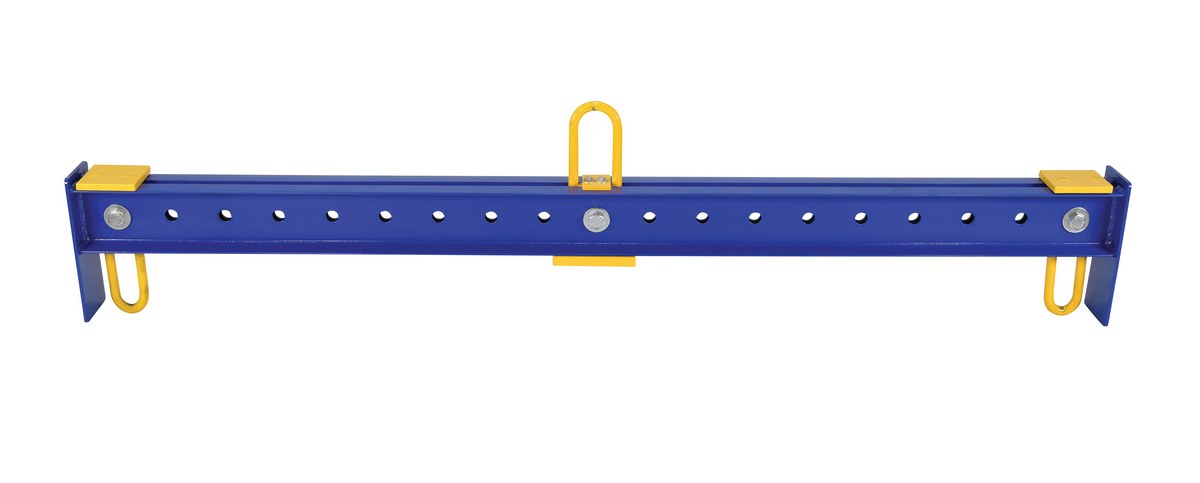

SBM-25 SBM-2590 Days Limited WarrantySteel Adjustable Spreader Beam 78 In. Length 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4		178

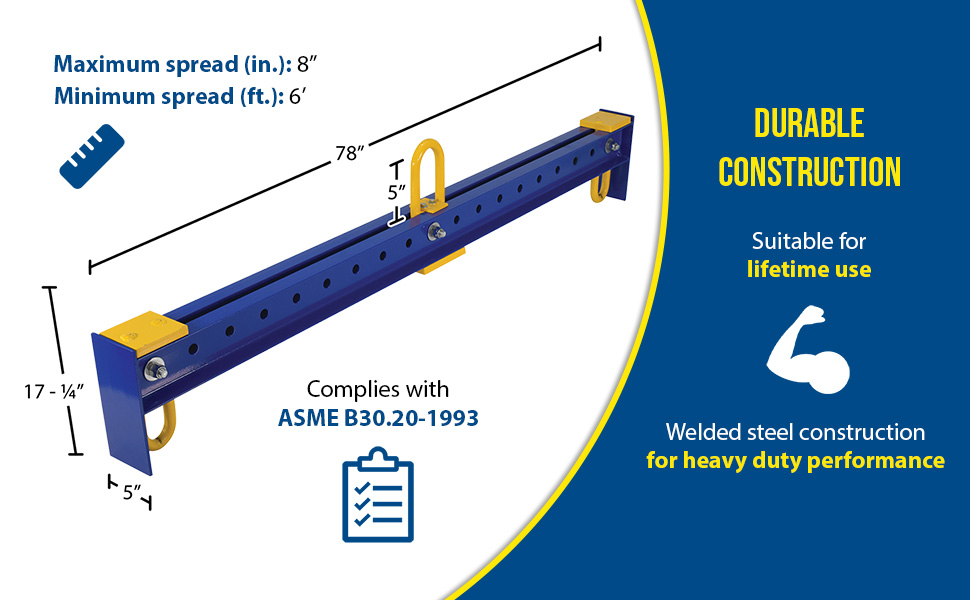

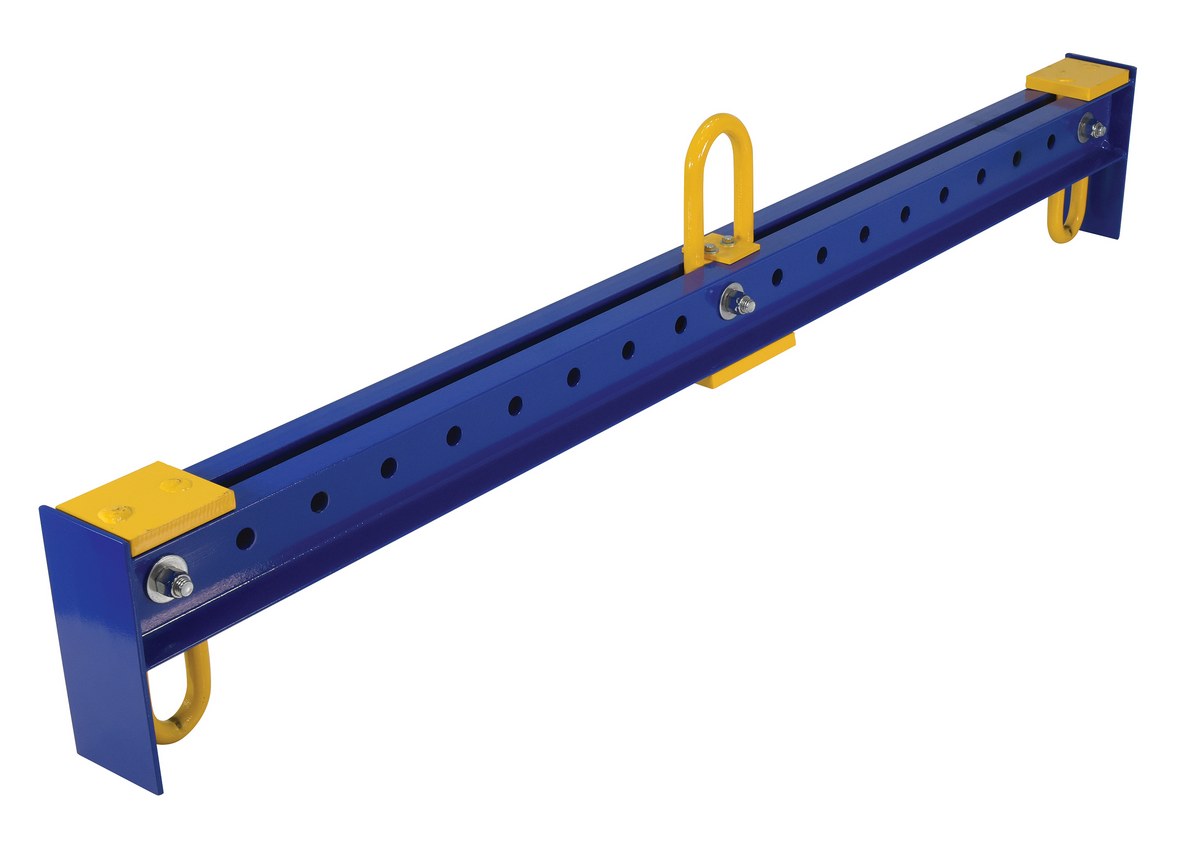

SBM-40 POPULAR SBM-4090 Days Limited WarrantySteel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4		196

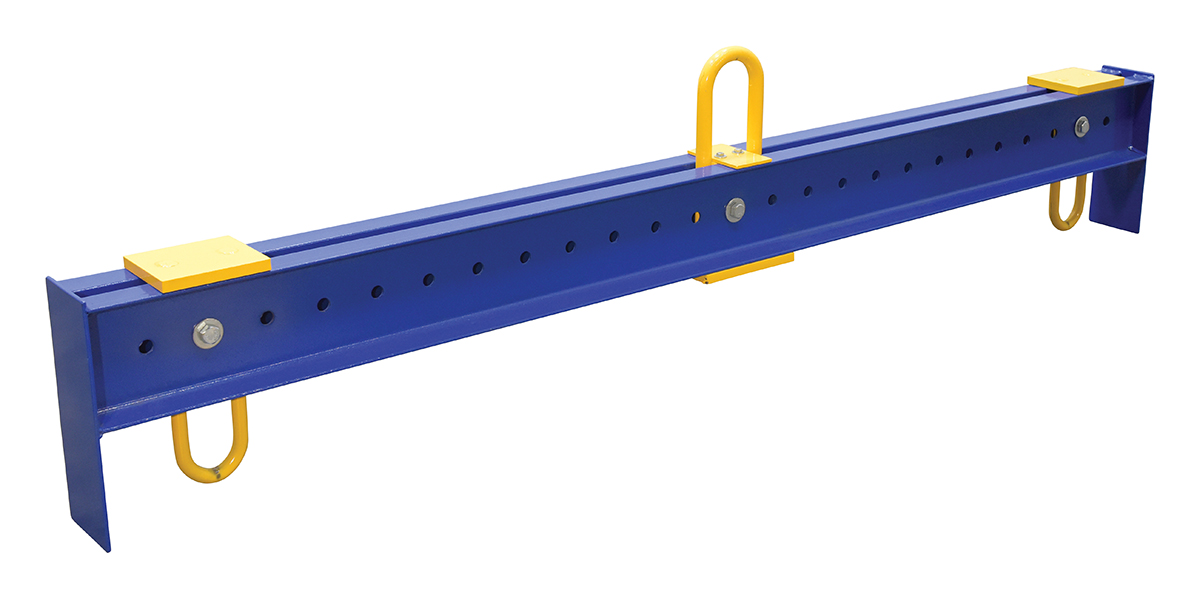

SBM-80 SBM-8090 Days Limited WarrantySteel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4		336

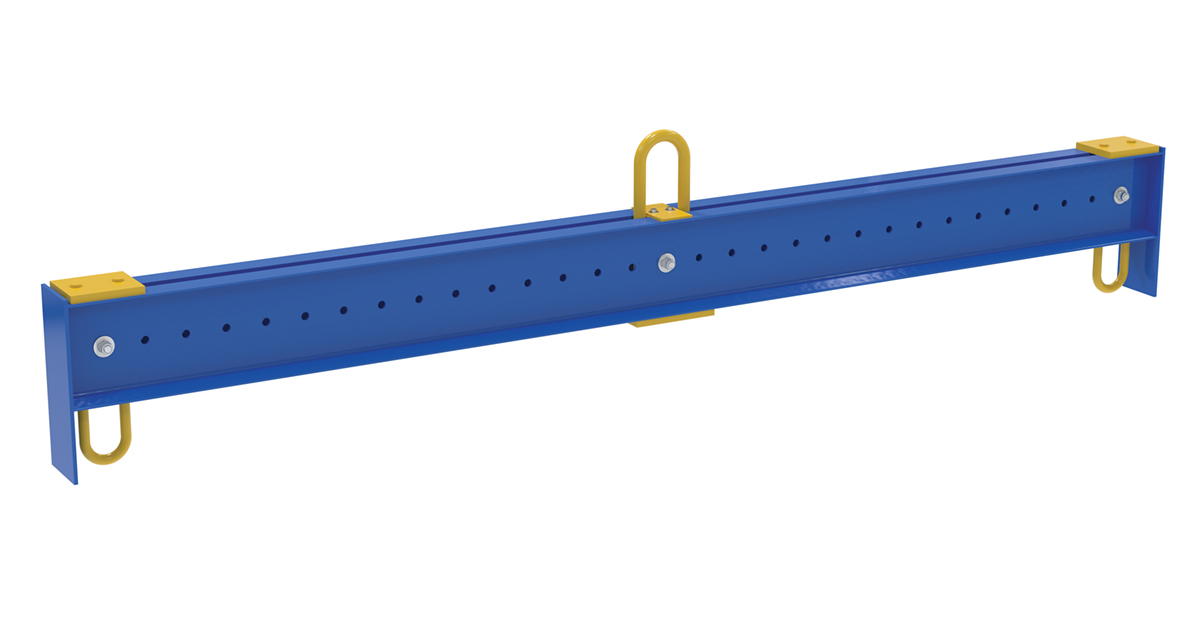

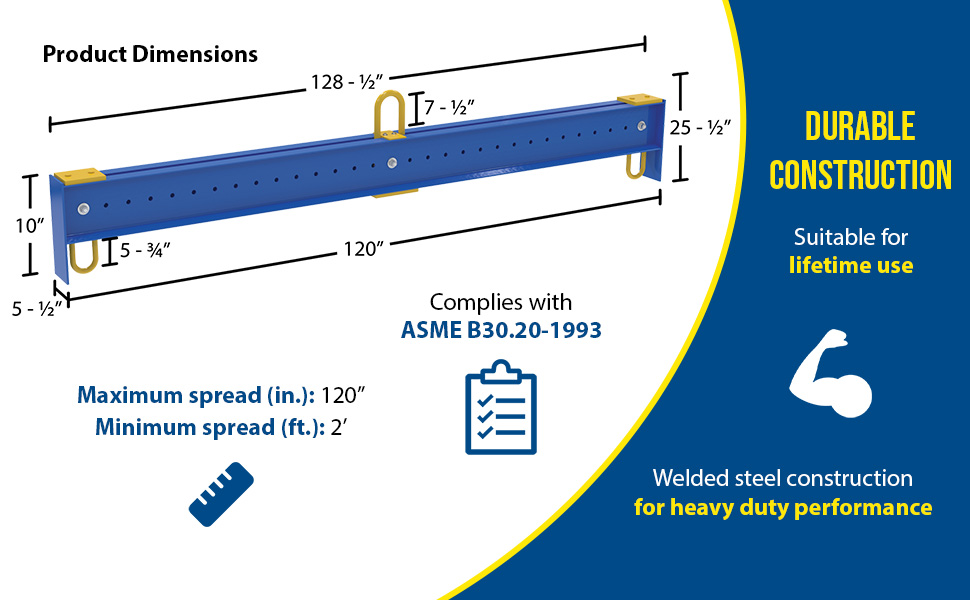

SBM-BFB-100-10 SBM-BFB-100-1090 Days Limited WarrantySteel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Lower Bail Width (in): 3		508

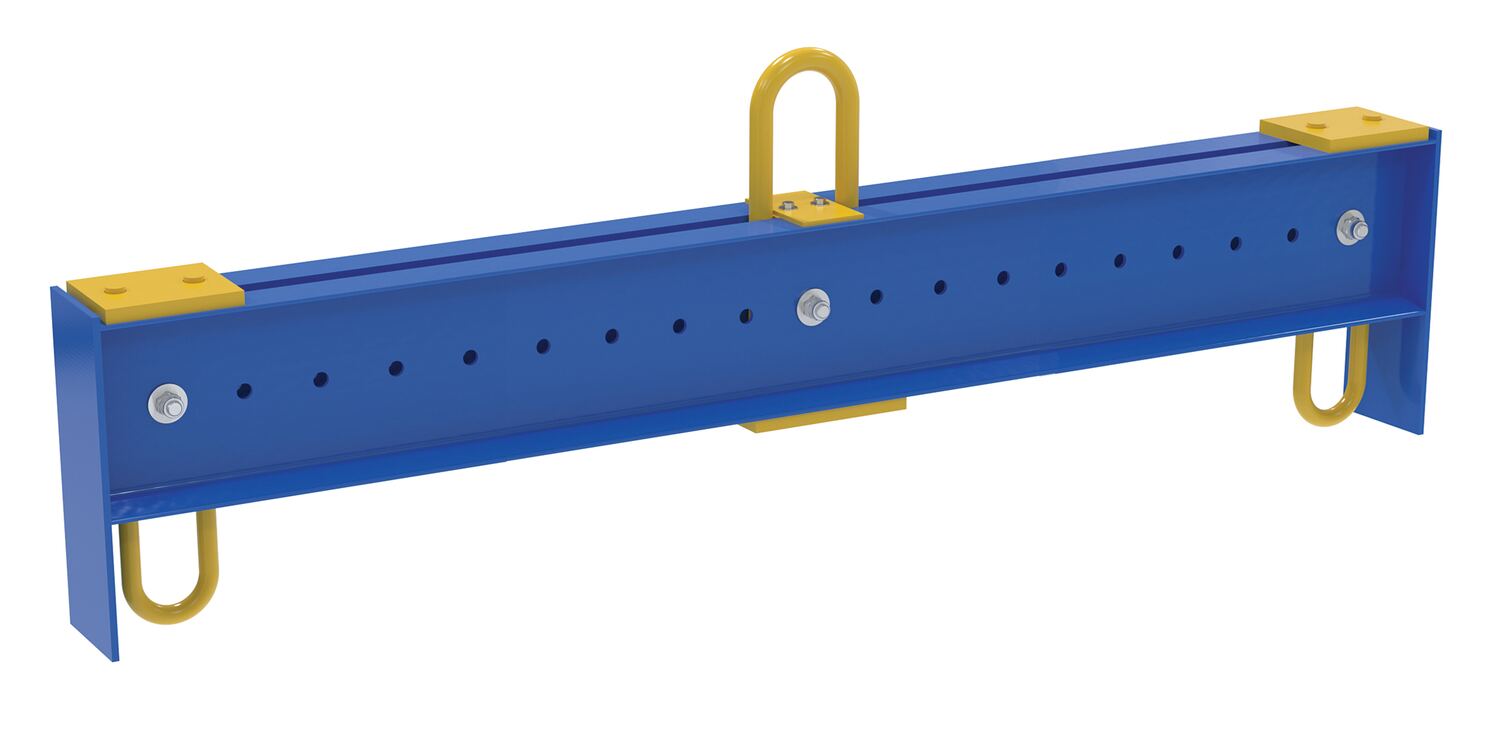

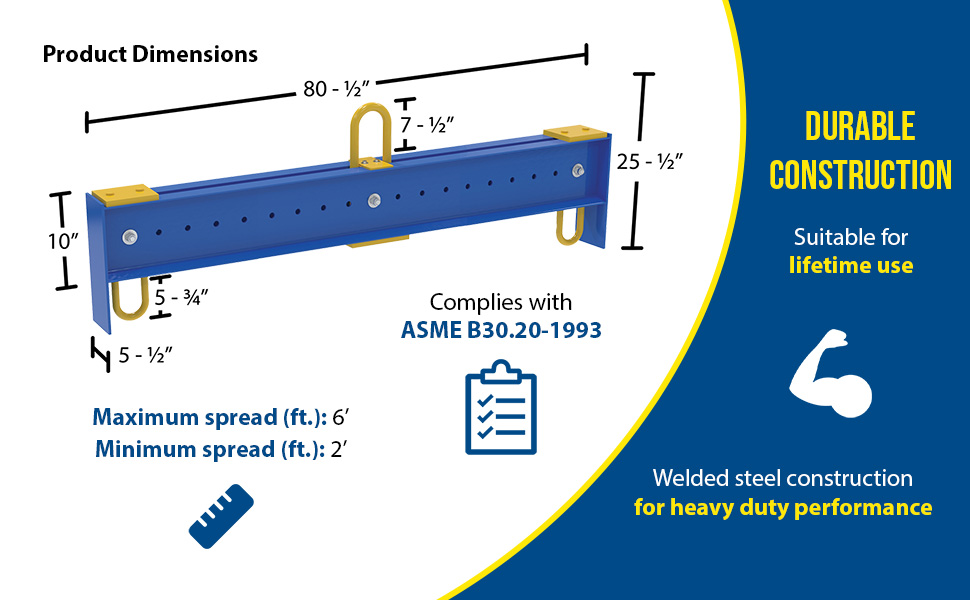

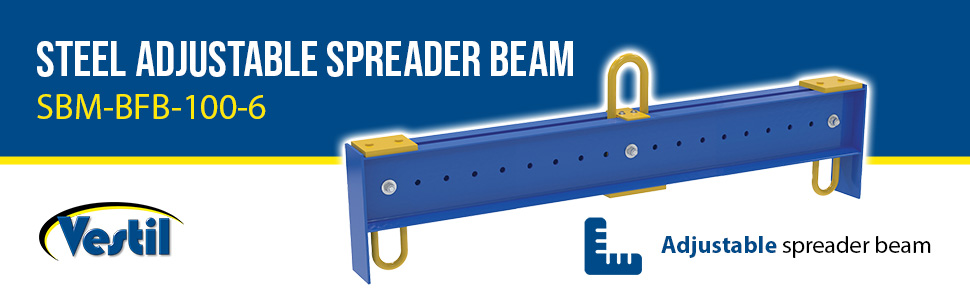

SBM-BFB-100-6 SBM-BFB-100-690 Days Limited WarrantySteel Adjustable Spreader Beam 6 Ft Maximum Spread 10,000 Lb. Capacity BlueUniform Capacity: 10000
Lower Bail Width (in): 3		388

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SBM-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4

SBM-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4

SBM-80
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4

SBM-BFB-100-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 10000
Lower Bail Width (in): 3
Uniform Capacity: 10000
Lower Bail Width (in): 3

SBM-BFB-100-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

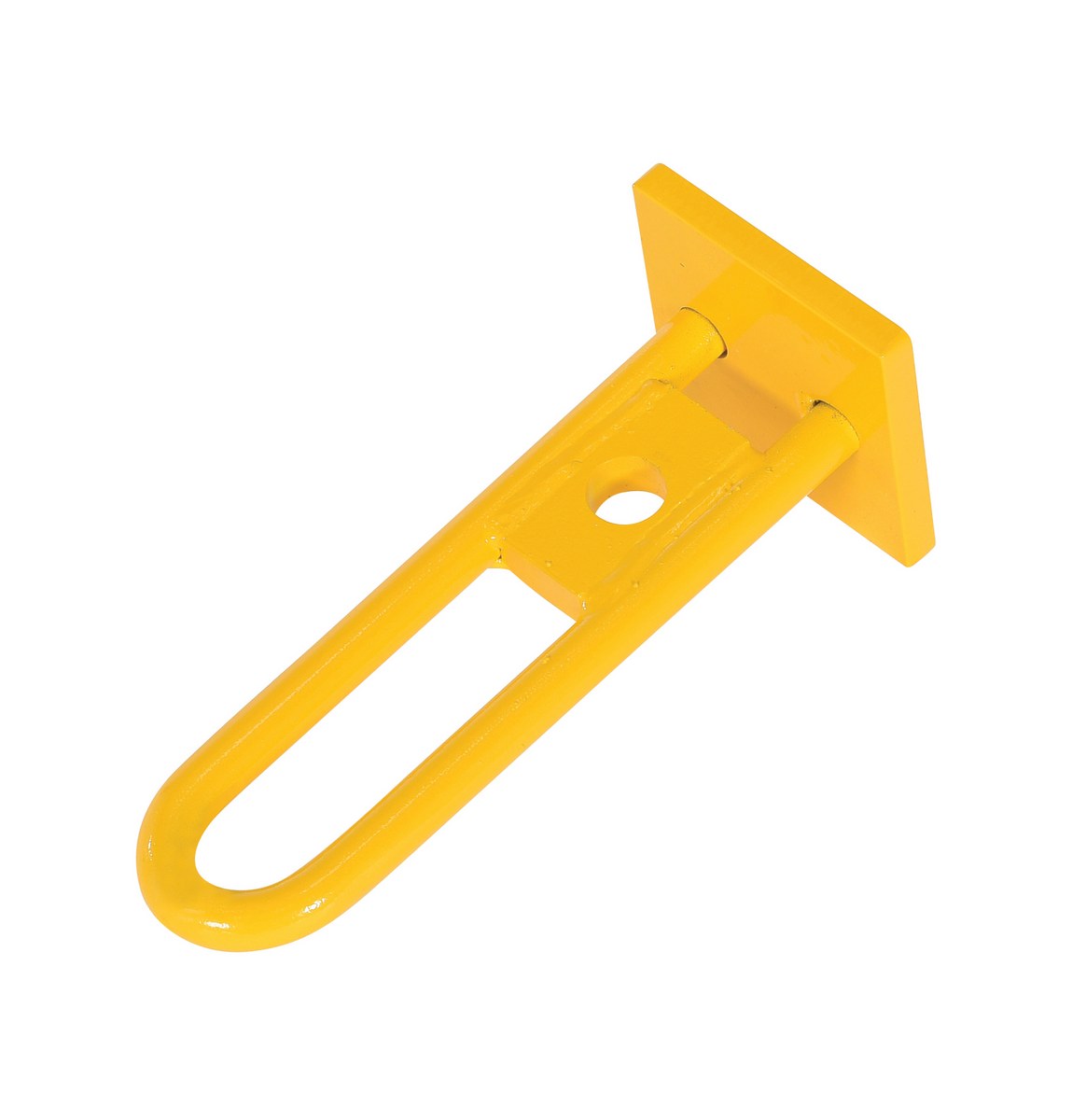

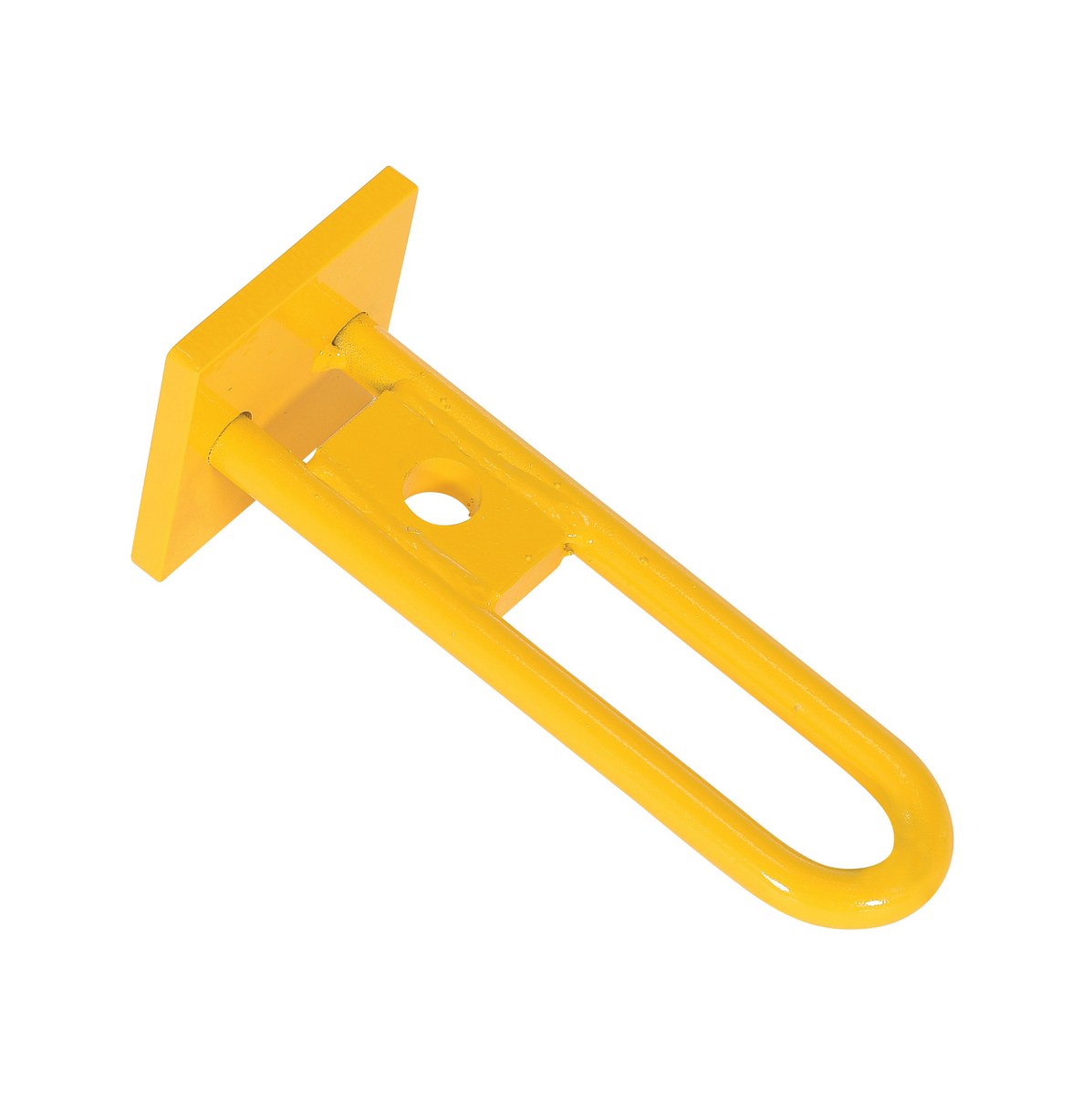

SM-LB-25 SBM-BFB-100-10Steel Lower Bail 4-1/4 In. x 4-1/2 In. x 11 In. For Adjustab… Limited Warranty10

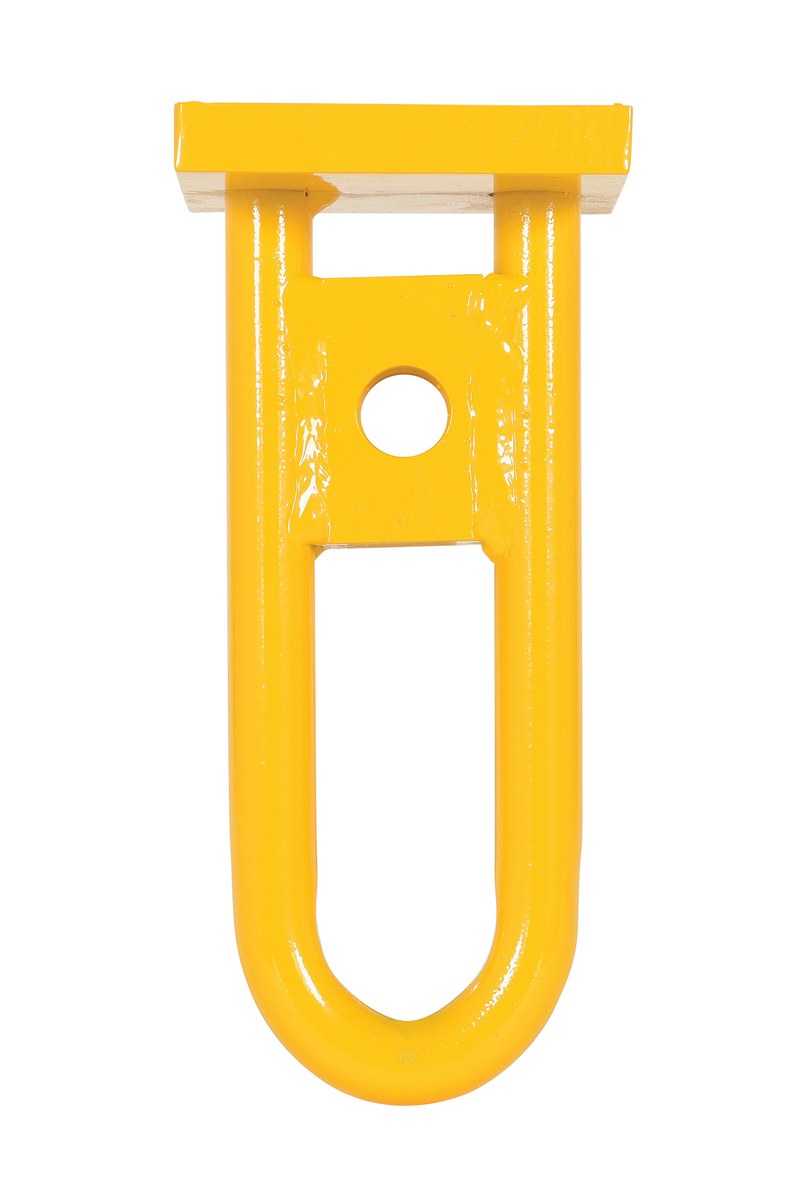

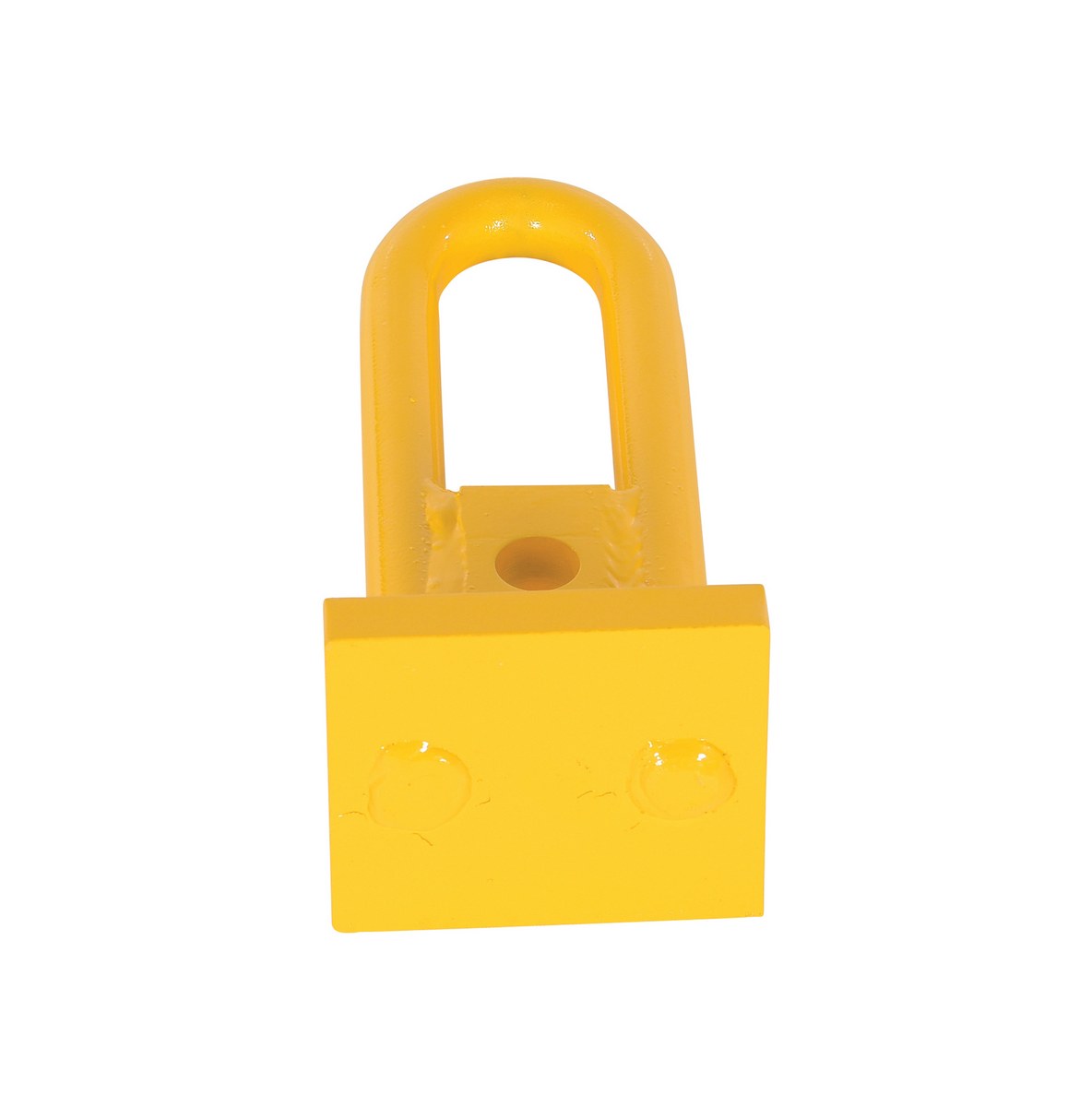

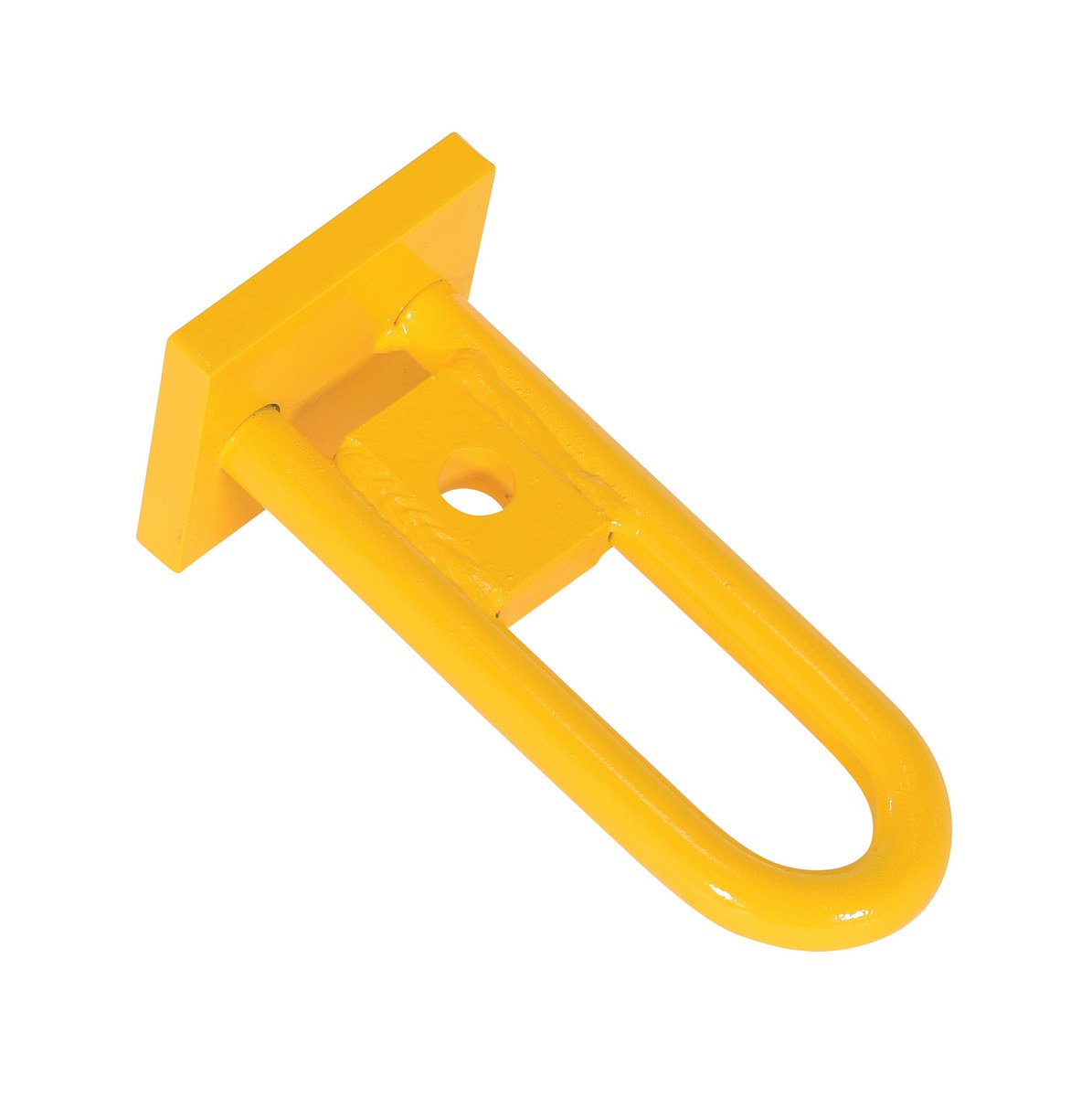

SM-LB-40 SBM-BFB-100-10Steel Lower Bail 4-1/2 In. x 5 In. x 11 In. For Adjustable S… Limited Warranty16

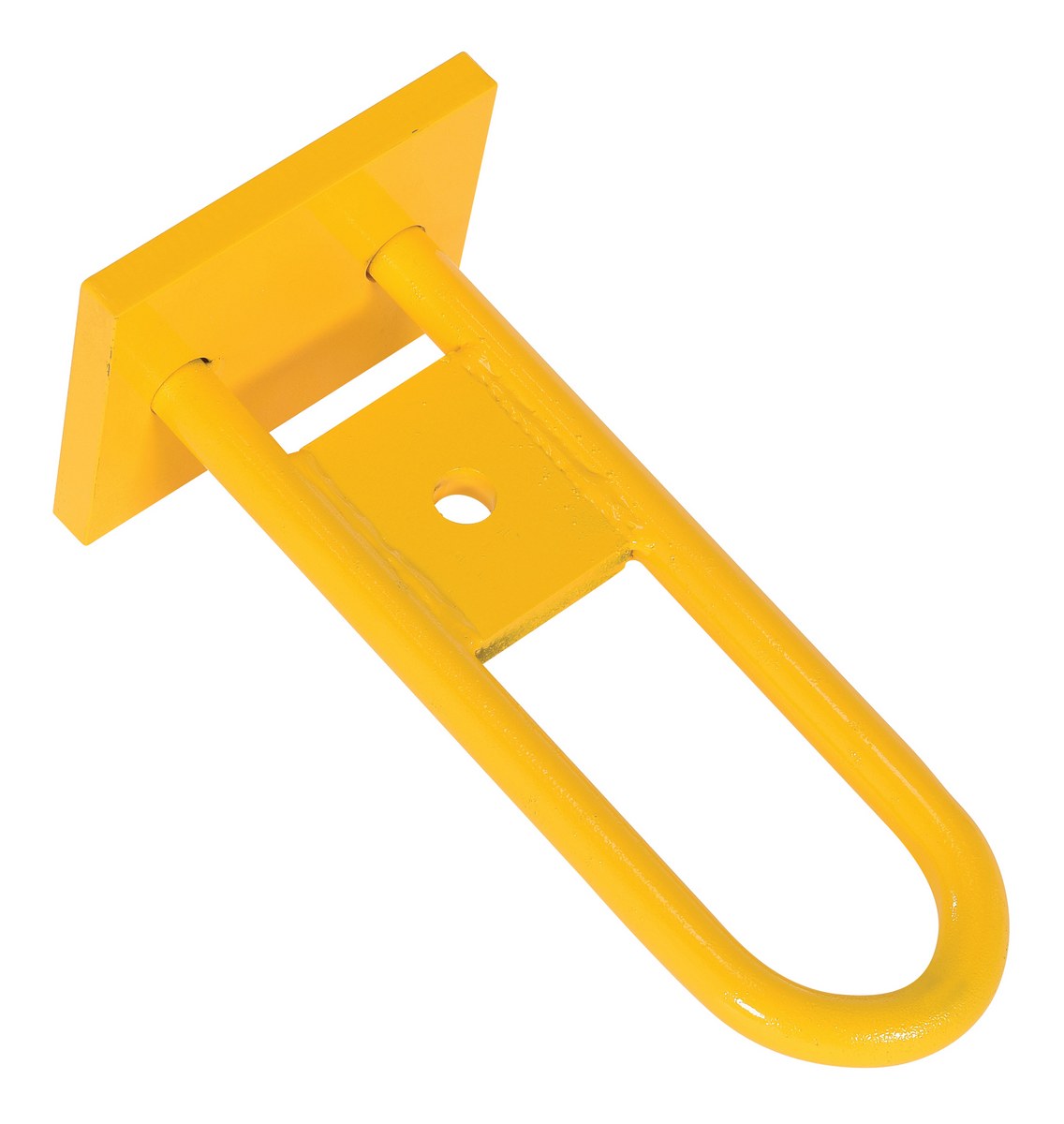

SM-LB-80 SBM-BFB-100-10Steel Lower Bail 6 In. x 7 In. x 15-1/4 In. For Adjustable S… Limited Warranty32

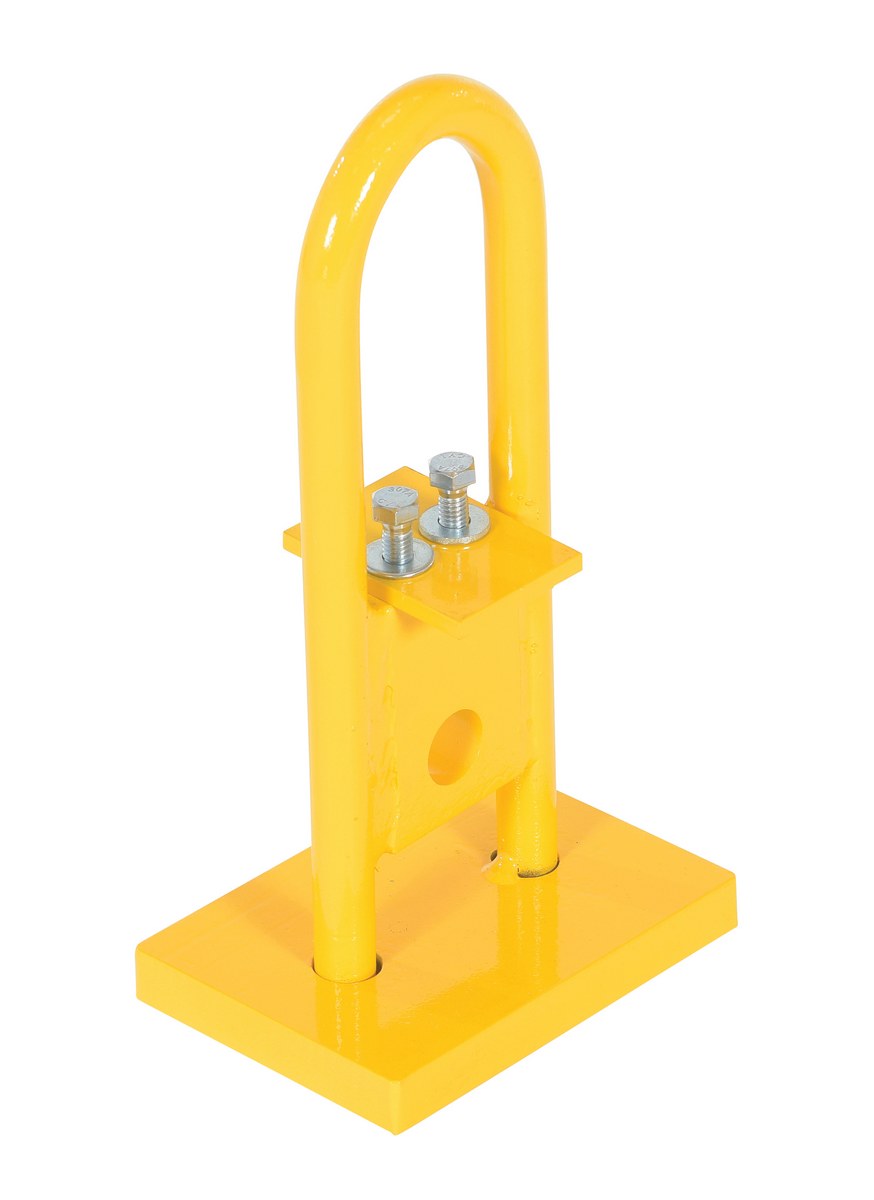

SM-UB-25 SBM-BFB-100-10Steel Upper Bail 4-1/2 In. x 6-1/4 In. x 12 In. For Adjustab… Limited Warranty11

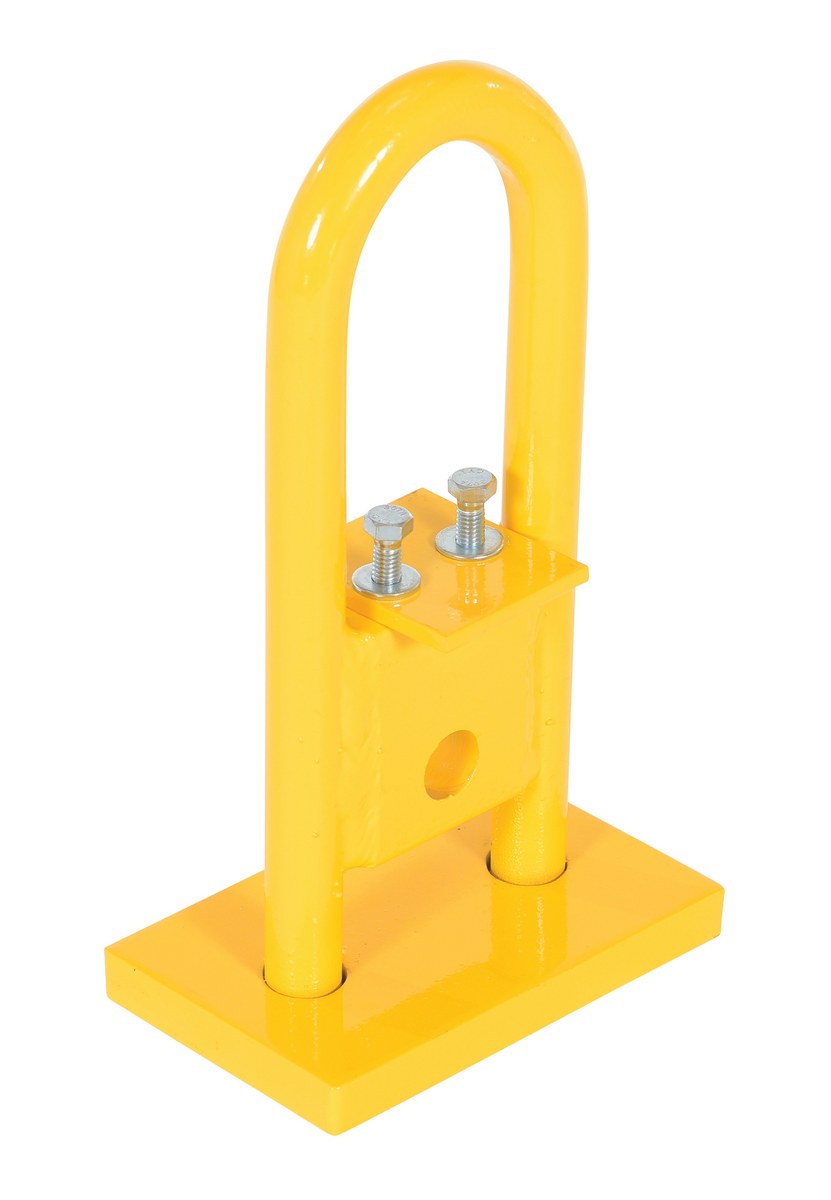

SM-UB-40 SBM-BFB-100-10Steel Upper Bail 4-1/2 In. x 7 In. x 12-3/4 In. For Adjustab… Limited Warranty17
SM-UB-80 SBM-BFB-100-10Steel Upper Bail 6 In. x 9-1/4 In. x 17-3/4 In. For Adjustab… Limited Warranty33

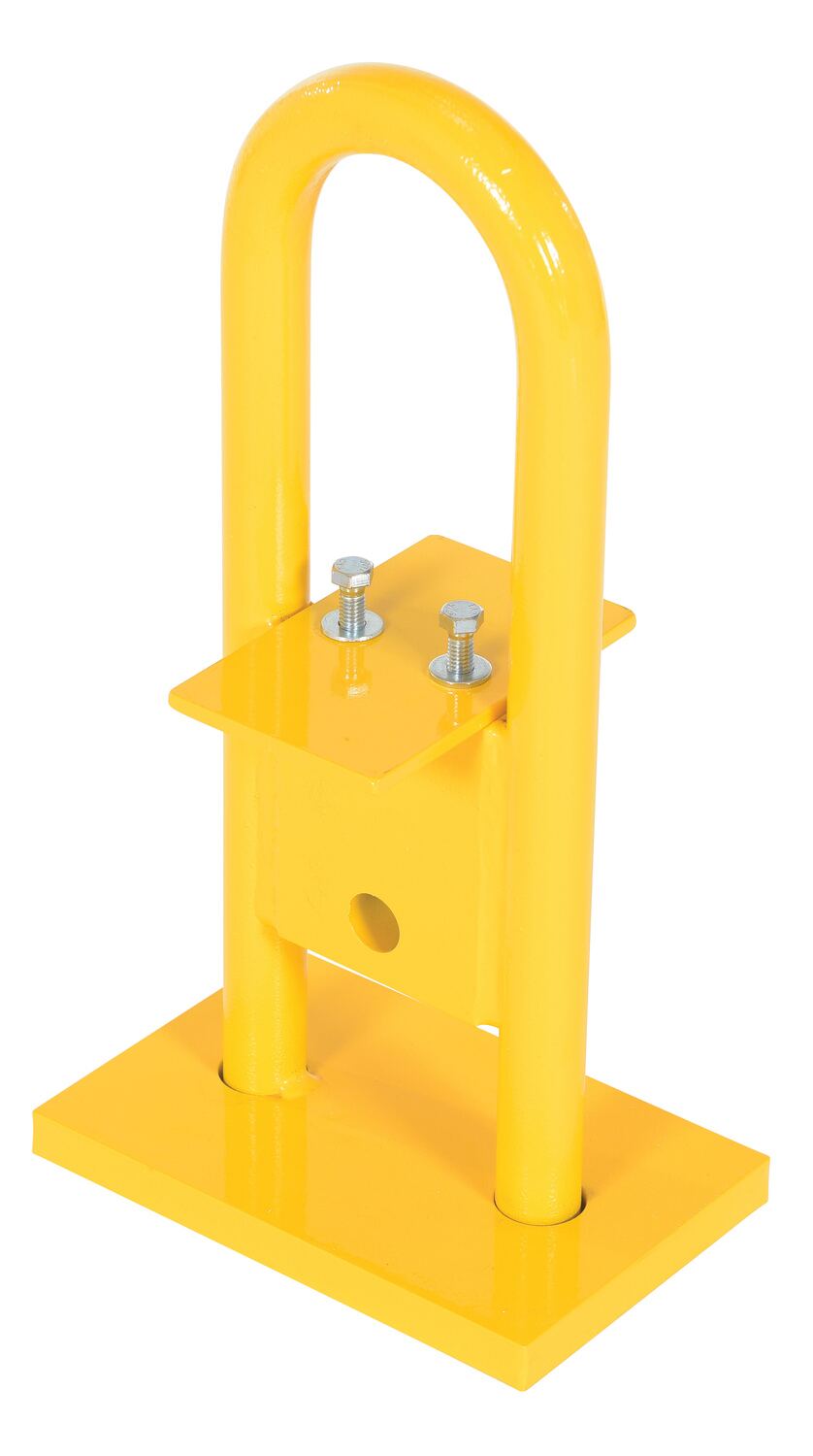

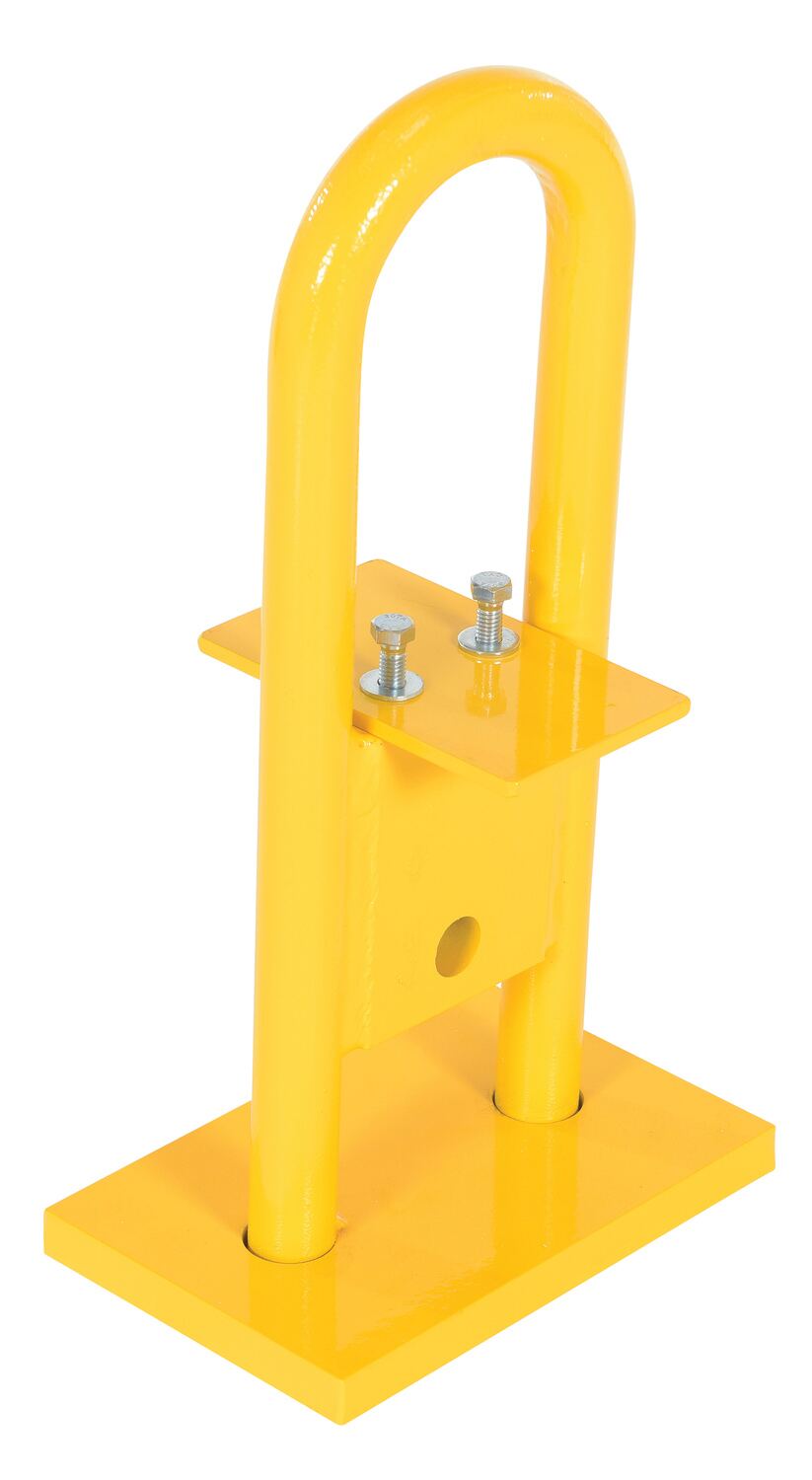

SM-UB-BFB-100 SBM-BFB-100-10Steel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-1… Limited Warranty38

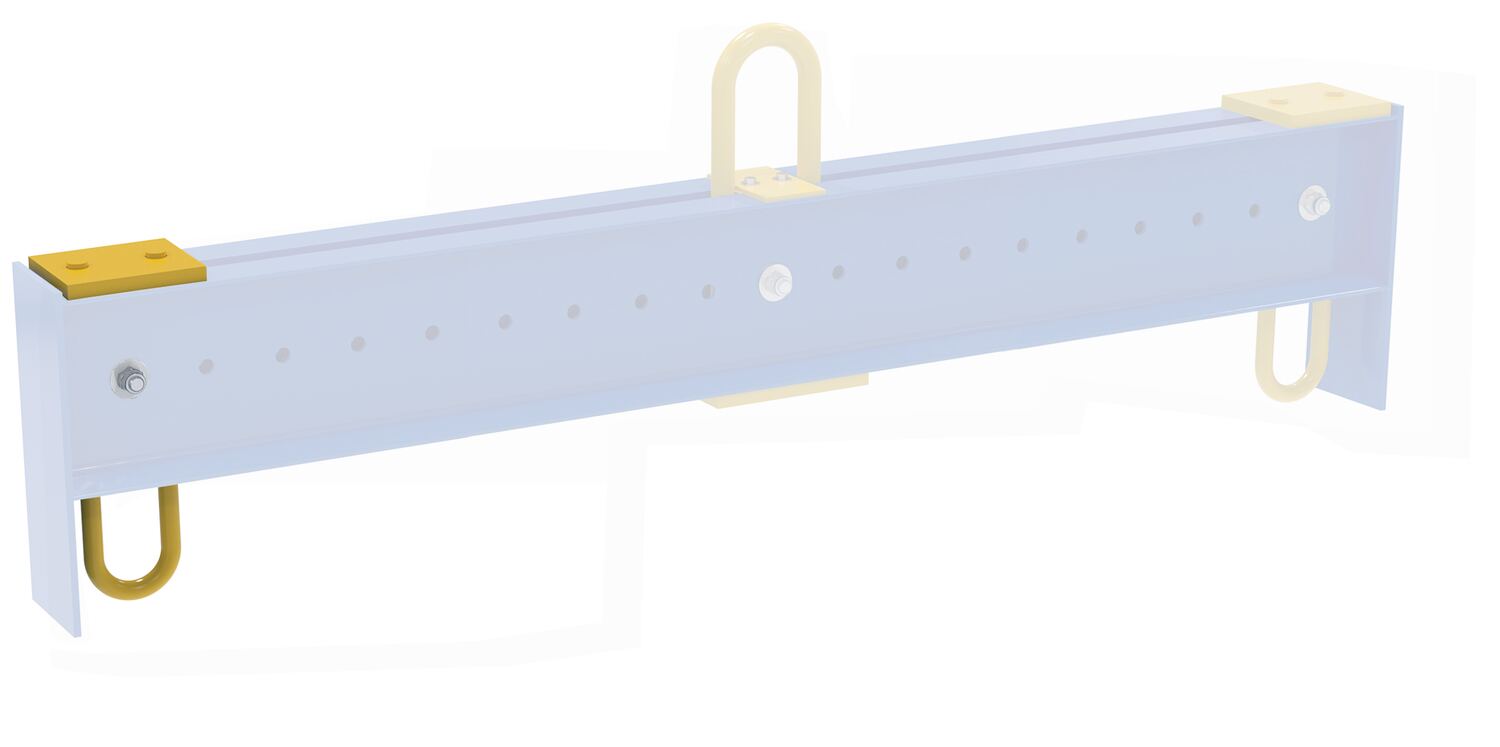

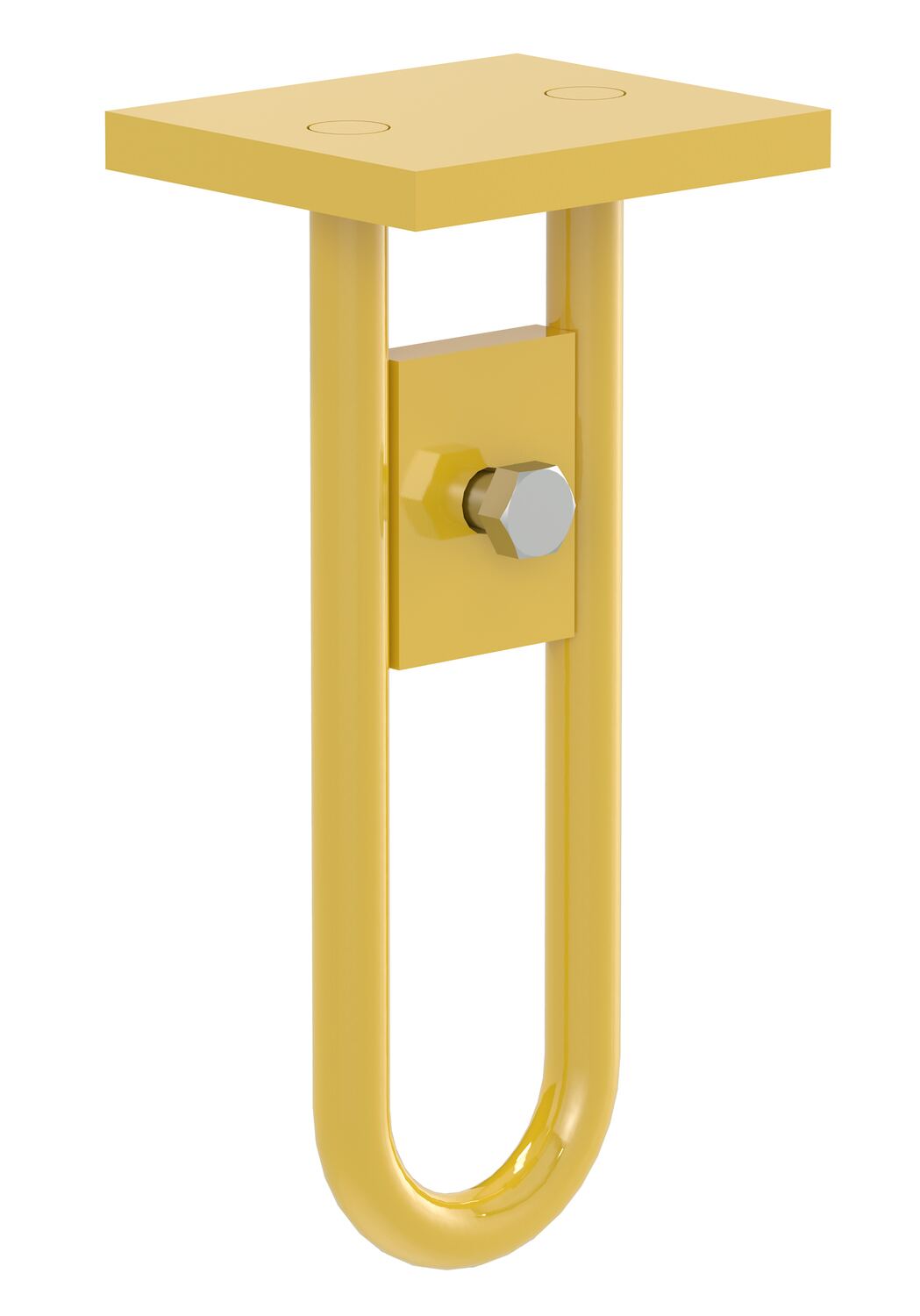

SM-LB-BFB-100 SBM-BFB-100-10Steel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-1… Limited Warranty22

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

SBM

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

SBM-25

SBM-40

SBM-80

SBM-BFB-100-6

SBM-BFB-100-10

SM-UB-25

SM-UB-40

SM-UB-80

SM-LB-25

SM-LB-40

SM-LB-80

SM-UB-BFB-100

SM-LB-BFB-100

Testing Certificates

SBM-25

SBM-40

SBM-80

SBM-BFB-100-10

SBM-BFB-100-6

SM-LB-25

SM-LB-40

SM-LB-80

SM-LB-BFB-100

SM-UB-25

SM-UB-40

SM-UB-80

SM-UB-BFB-100

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

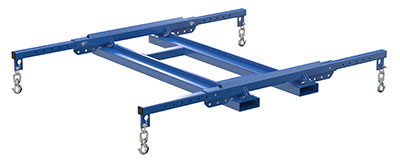

Reference #: CF-6508 4 Point Spreader Beam
 Reference #: CF-6508 4 Point Spreader Beam
Reference #: CF-6508 4 Point Spreader Beam
Special 4 Point Forklift Spreader Beam
For more Specialty Designs similar to these... Click Here

Q: What is the diameter of the bails?

A: The lower bails have a 1" diameter. The upper bail has a 1 14"diameter.

Q: What kind of steel are SBM models made from?

A: A-36
