Mini Cable Hoists

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Mini Cable Hoists

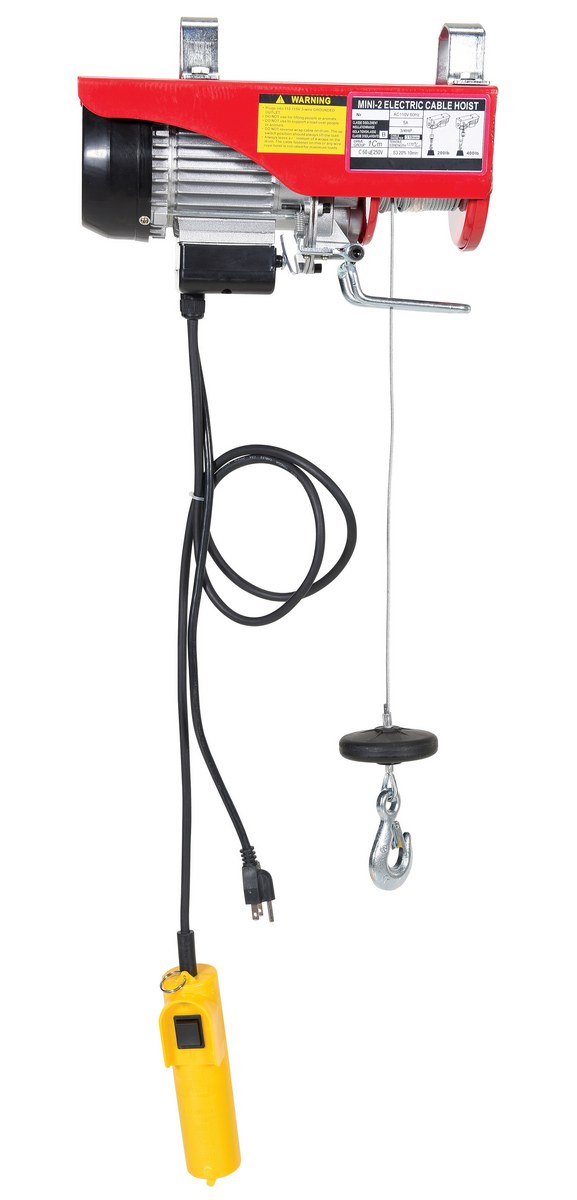

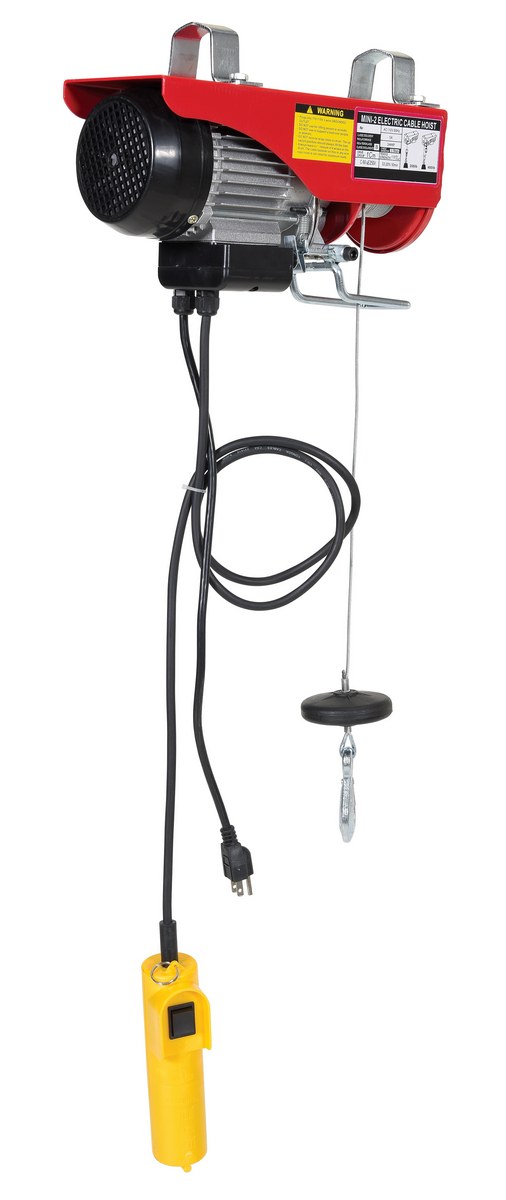

model: MINI-2

MINI-2_C.jpg MINI-2_A.jpg MINI-2_B.jpg More Images +

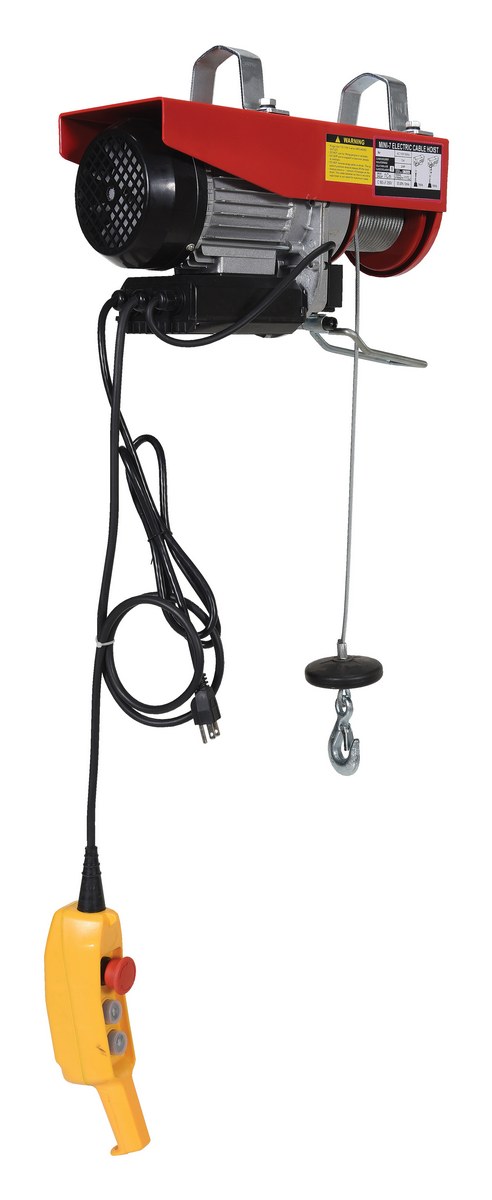

Mini Cable Hoists
SERIES: MINI

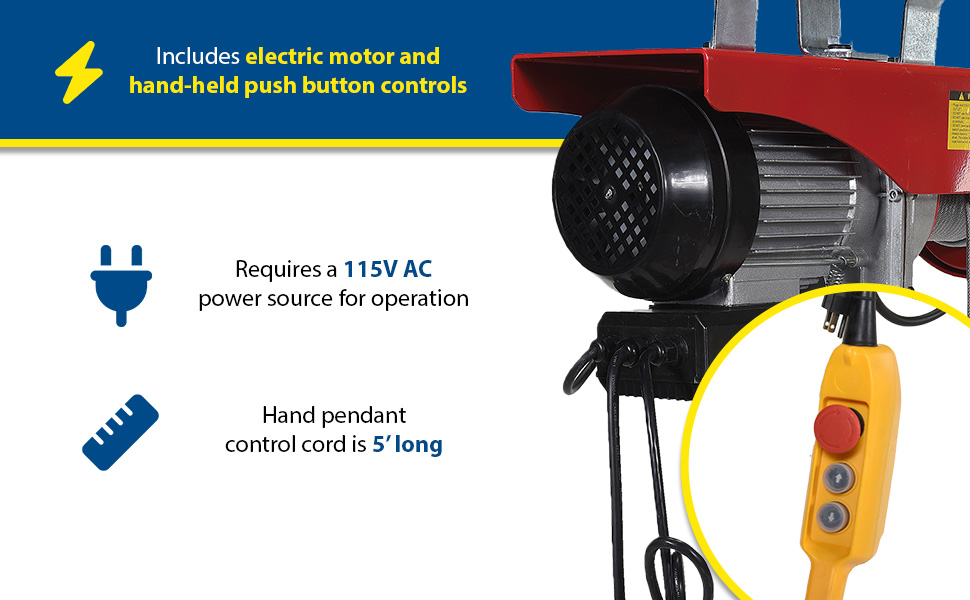

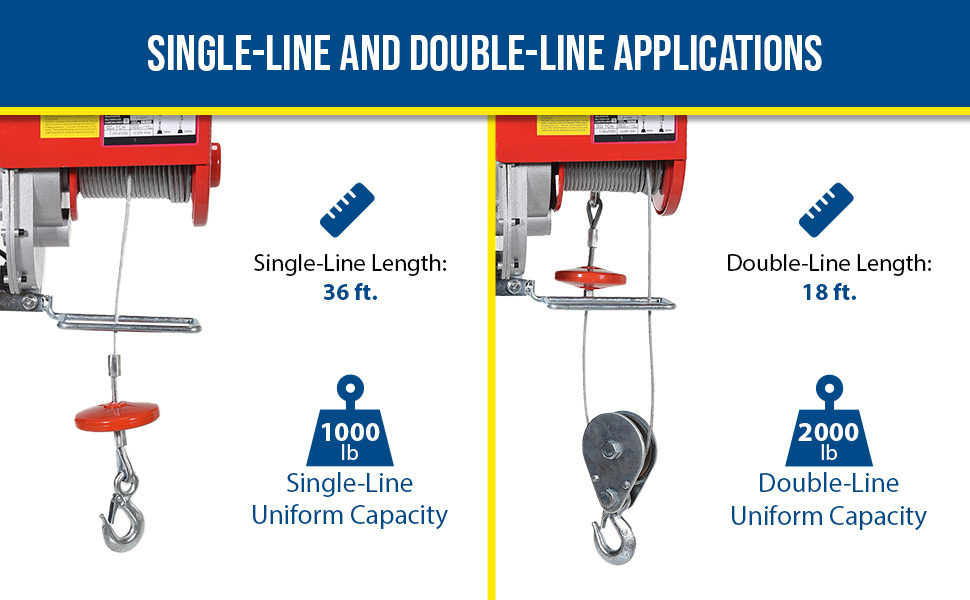

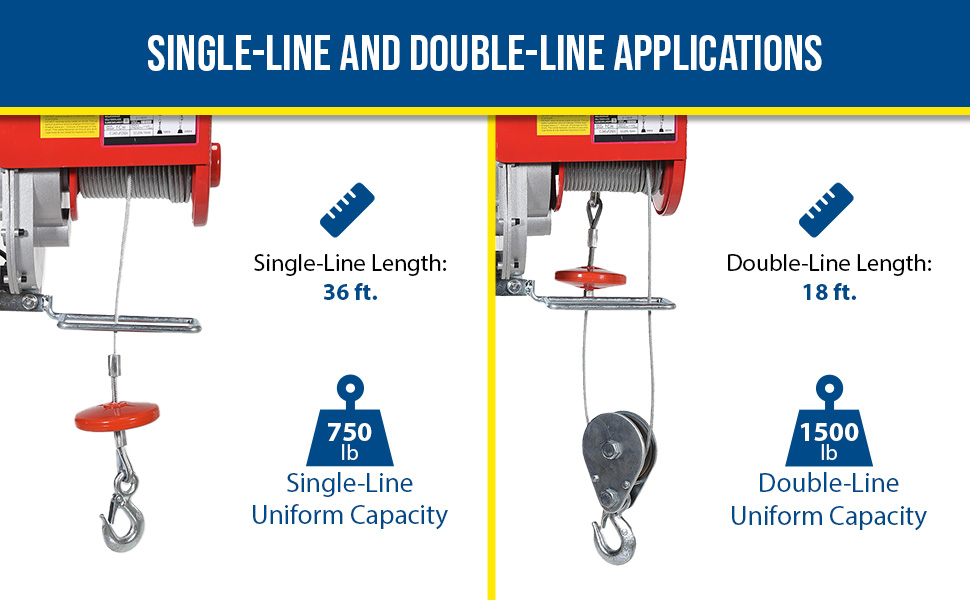

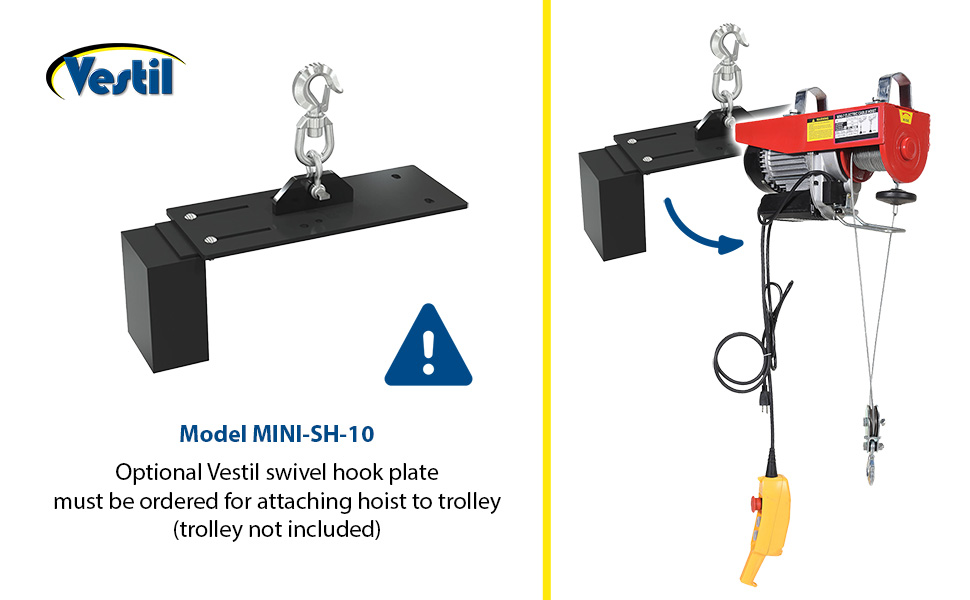

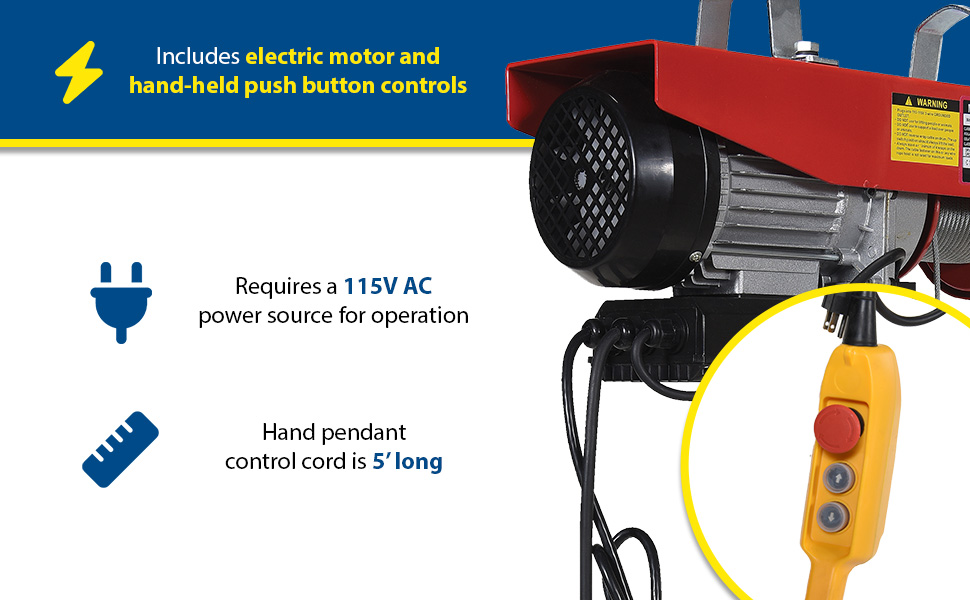

Use in single-line and double-line lifting applications. Cable length is 36' when used as a single-line - 18' when used as a double-line. Includes electric motor and hand-held push button controls. Installation bracket will fit on 1-5/8" round pipe or 1-5/8" square tubing. Optional Swivel Hook Plate must be ordered for attaching hoist to a trolley (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long.
  • Requires 115V AC power source for operation
Mini Cable Hoists

model: MINI-2

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

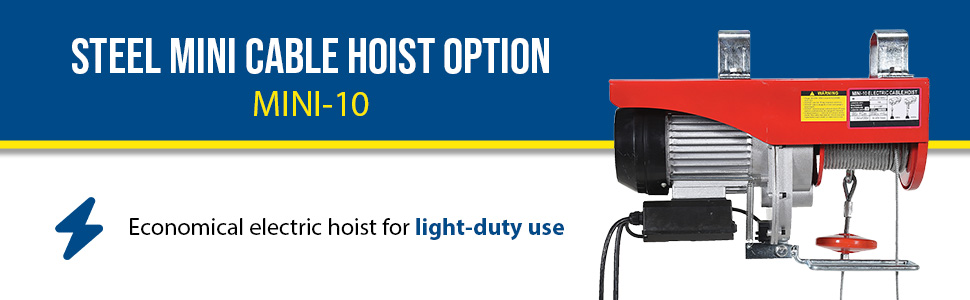

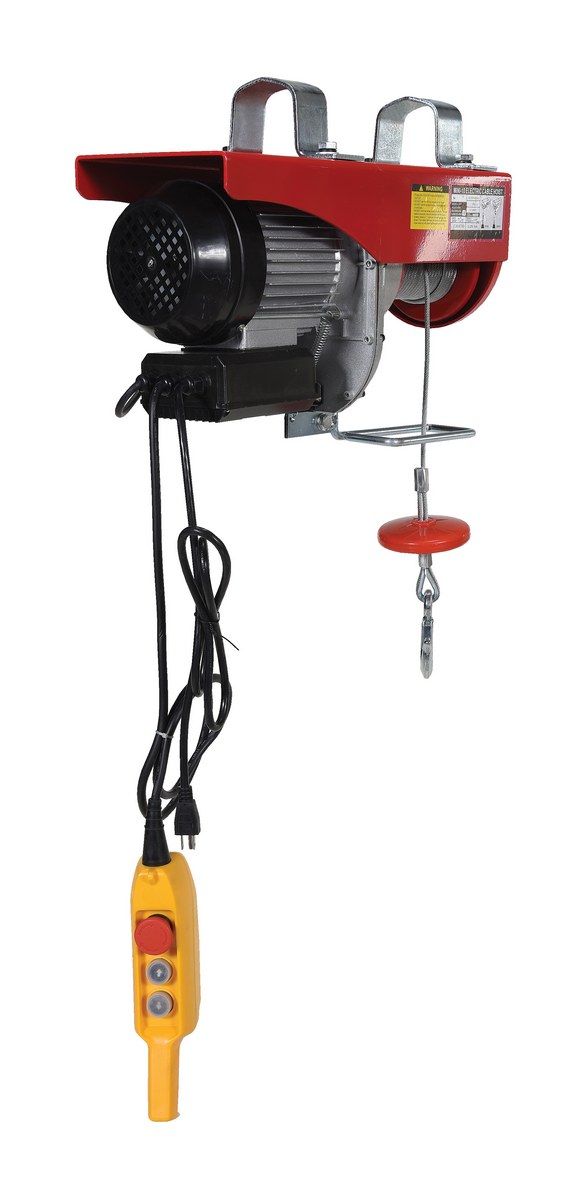

MINI-10 MINI-1030 Days Limited WarrantySteel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000		83

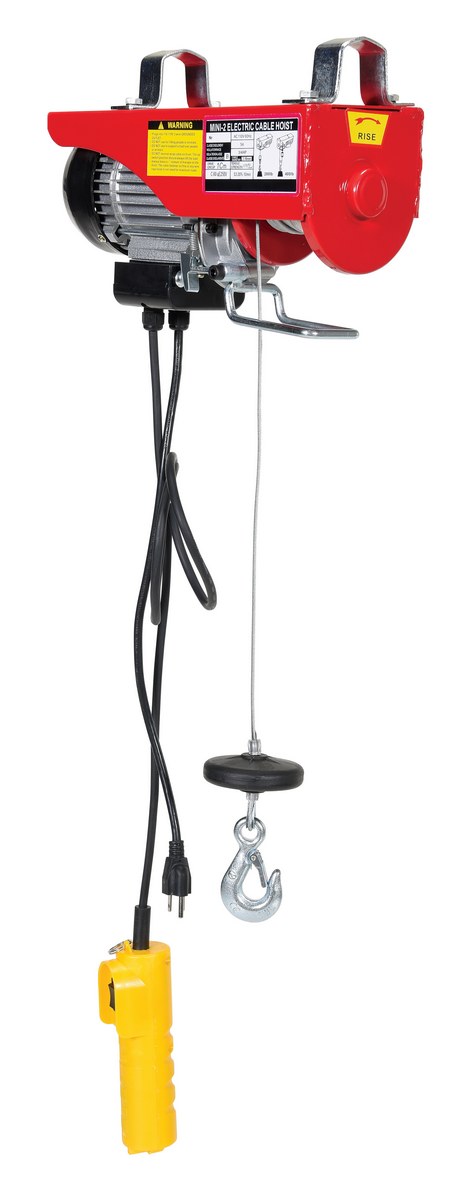

MINI-2 MINI-230 Days Limited WarrantySteel Mini Cable Hoist Option 15-3/16 In. x 5-7/8 In. x 8-13/16 In. 200 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400		26

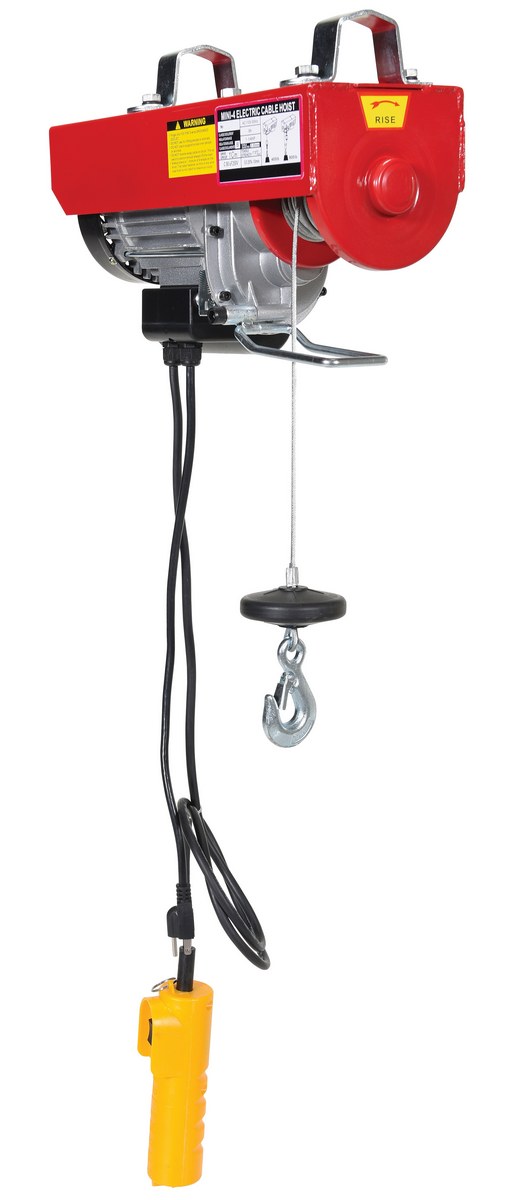

MINI-4 MINI-430 Days Limited WarrantySteel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800		38

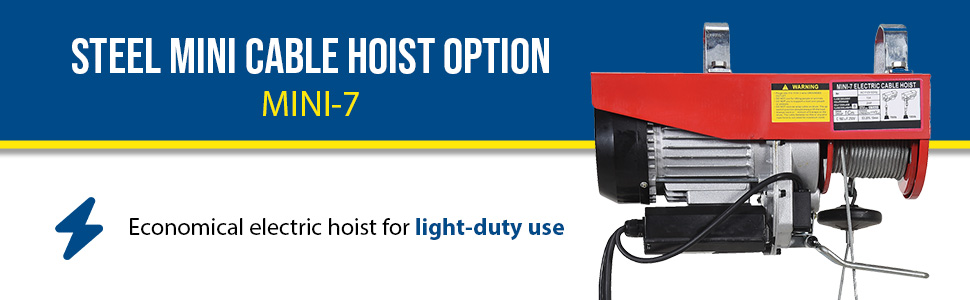

MINI-7 MINI-730 Days Limited WarrantySteel Mini Cable Hoist Option 16 In. x 6-1/4 In. x 10 In. 750 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500		47

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MINI-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400
Single-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400

MINI-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800
Single-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800

MINI-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000
Single-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000

MINI-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500
Single-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

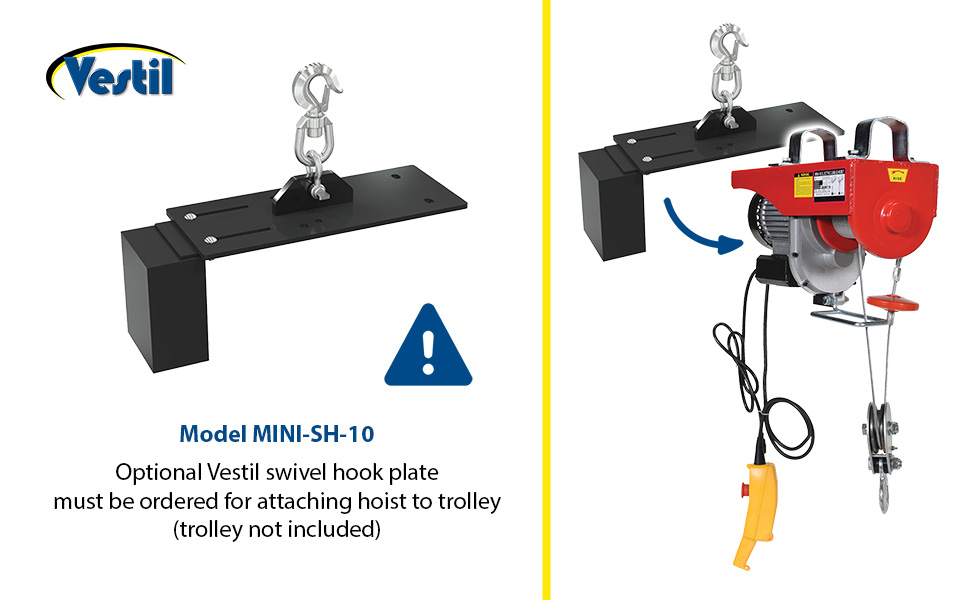

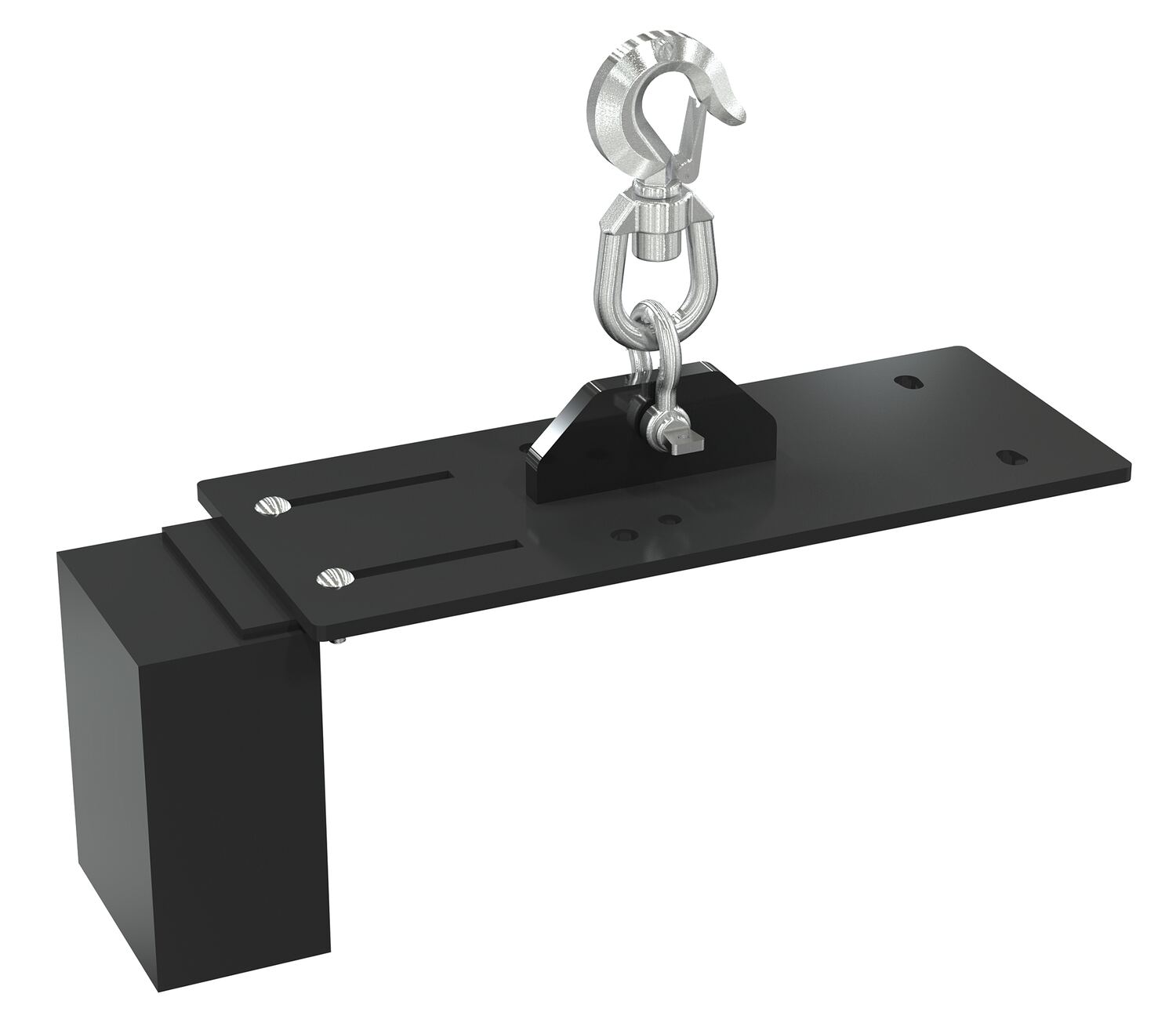

MINI-SH-10 MINI-7Swivel Hook Plate 23-9/16 In. x 8 In. x 19-1/8 In. 2000 Lb. … Limited Warranty78
MINI-SH-2 MINI-7Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 440 Lb. Ca… Limited Warranty42

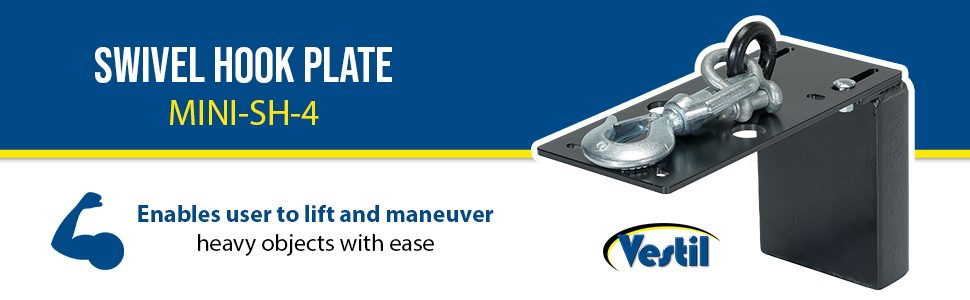

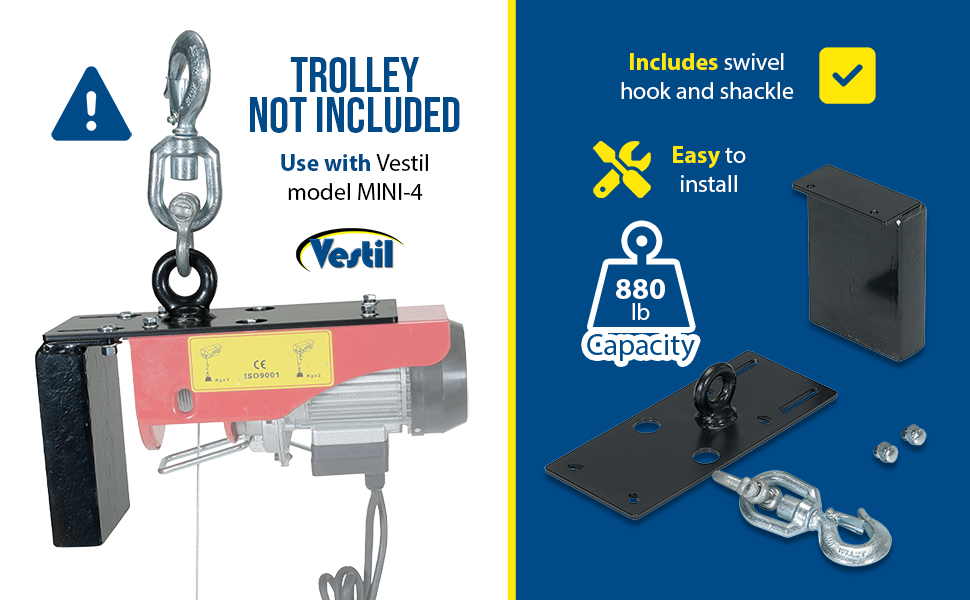

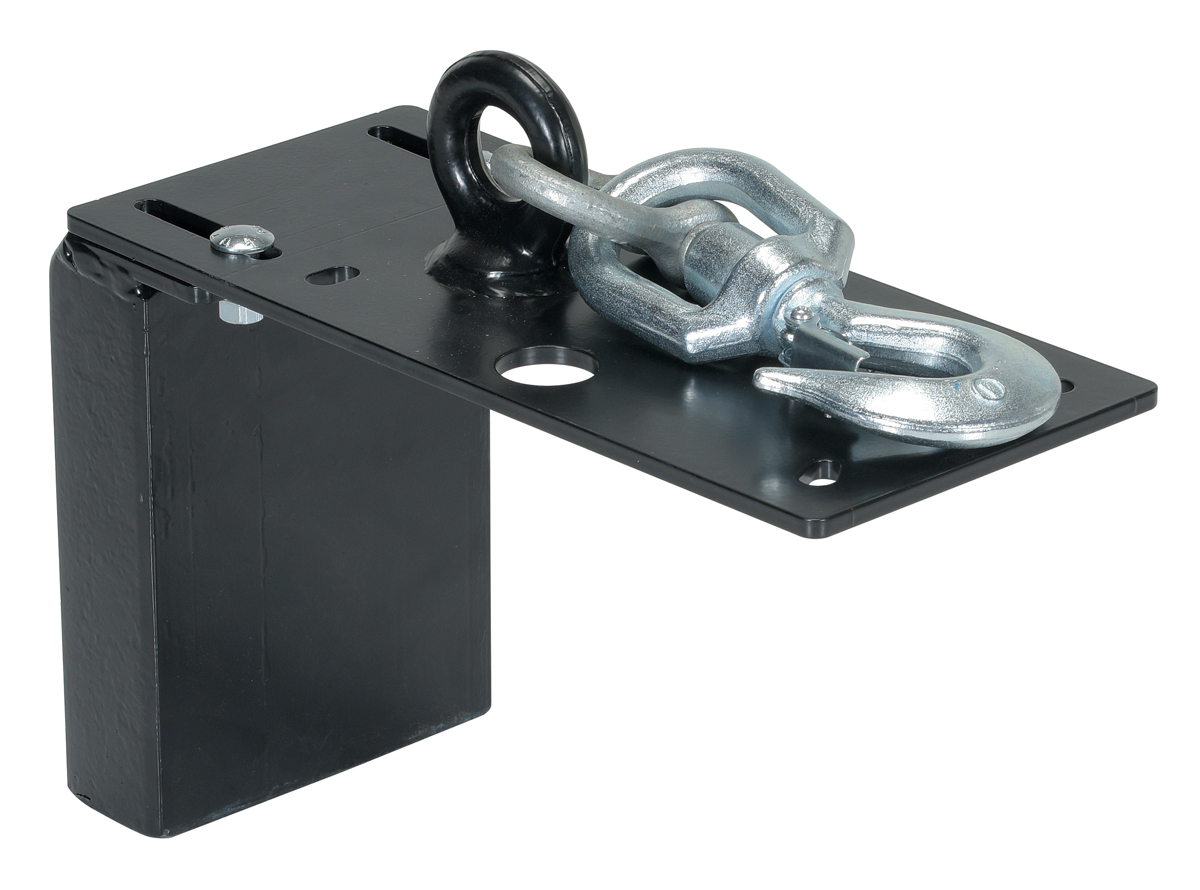

MINI-SH-4 MINI-7Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 880 Lb. Ca… Limited Warranty42

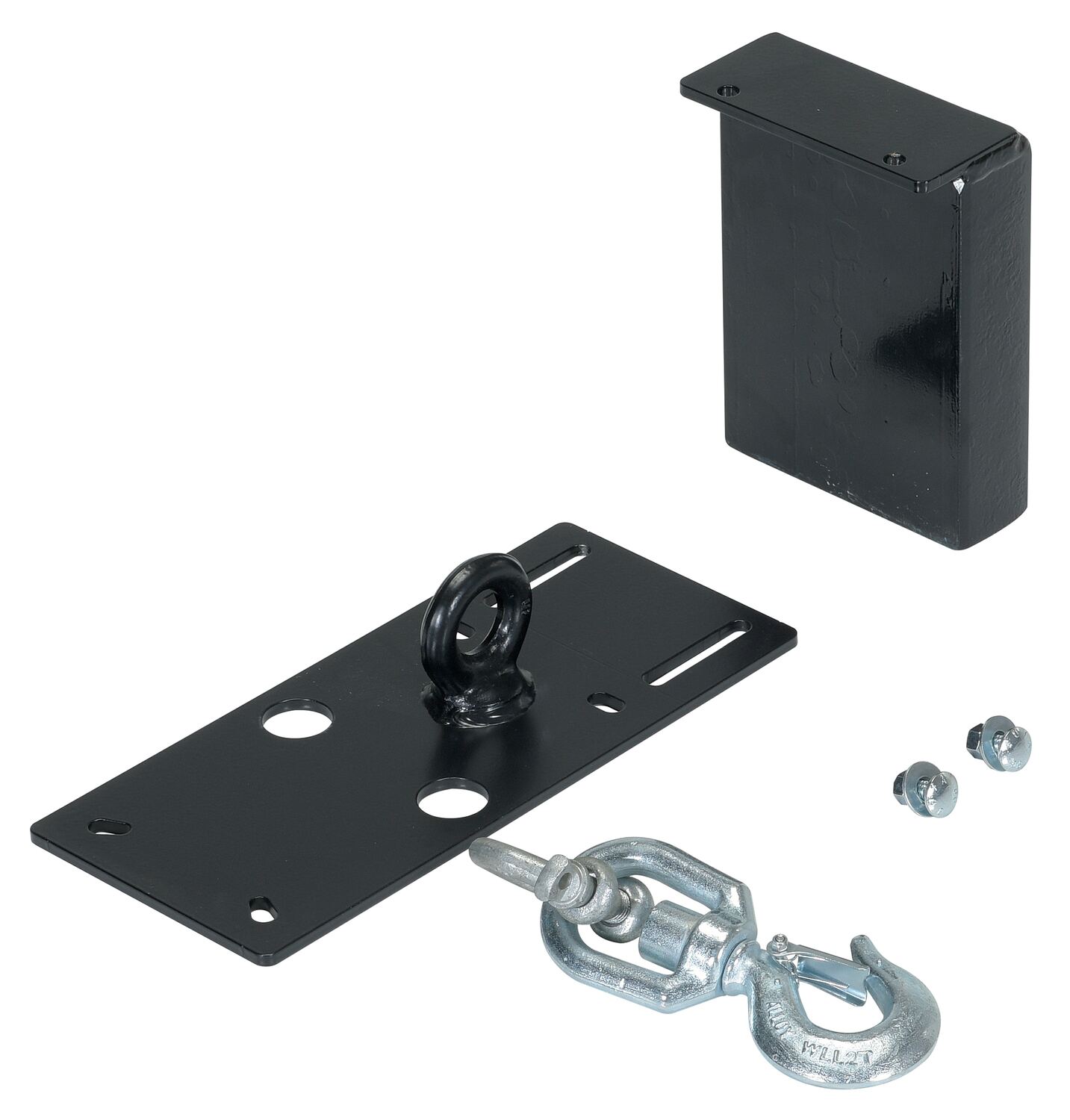

MINI-SH-7 MINI-7Swivel Hook Plate 21-9/16 In. x 8 In. x 19-1/8 In. 1500 Lb. … Limited Warranty50

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

MINI-2

MINI-SH

MINI-7

MINI-4

MINI-10

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

MINI-2

MINI-4

MINI-SH-2

MINI-SH-4

MINI-SH-7

MINI-SH-10

Testing Certificates

MINI-10

MINI-2

MINI-4

MINI-7

MINI-SH-10

MINI-SH-2

MINI-SH-4

MINI-SH-7

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Q: What is the tubing for the SUPPORT POLE/SQUARE of the MINI-2? 5/8" or 1-5/8" for this hoist?

A: The measurement of the collar on the MINI-2 is 1-7/8" wide X 1-1/2" high.

Q: What is the voltage of the hoist?

A: The hoists are 115V single phase power.
