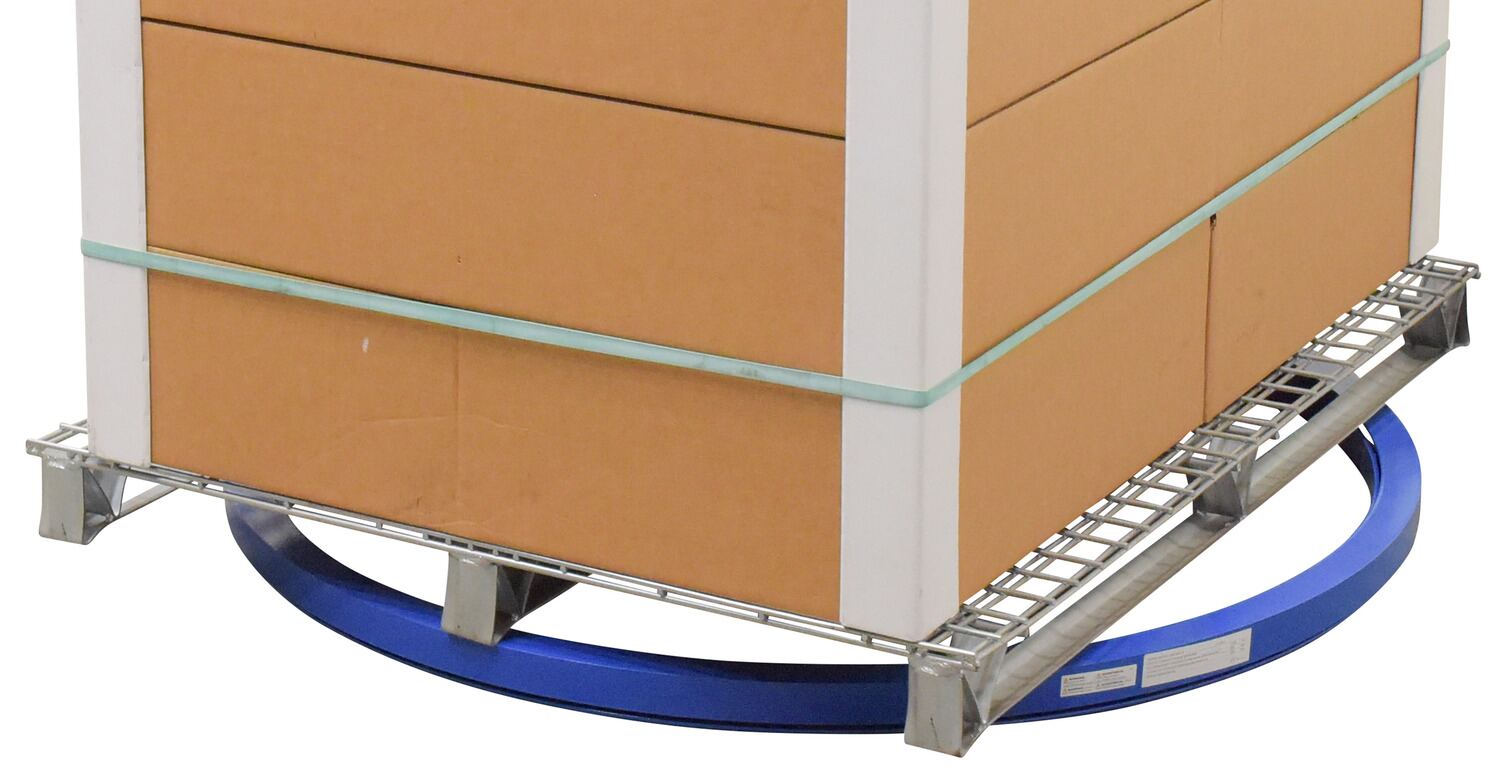

Steel Manual Carousels

model: CA-48-2


Steel Manual Carousels
SERIES: CA   114Products 20Options
Best Seller Quick Ship Custom Fabrication

The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned.

  • Manually rotating top ring will rotate 360 degrees
  • Steel rings are flat for precision

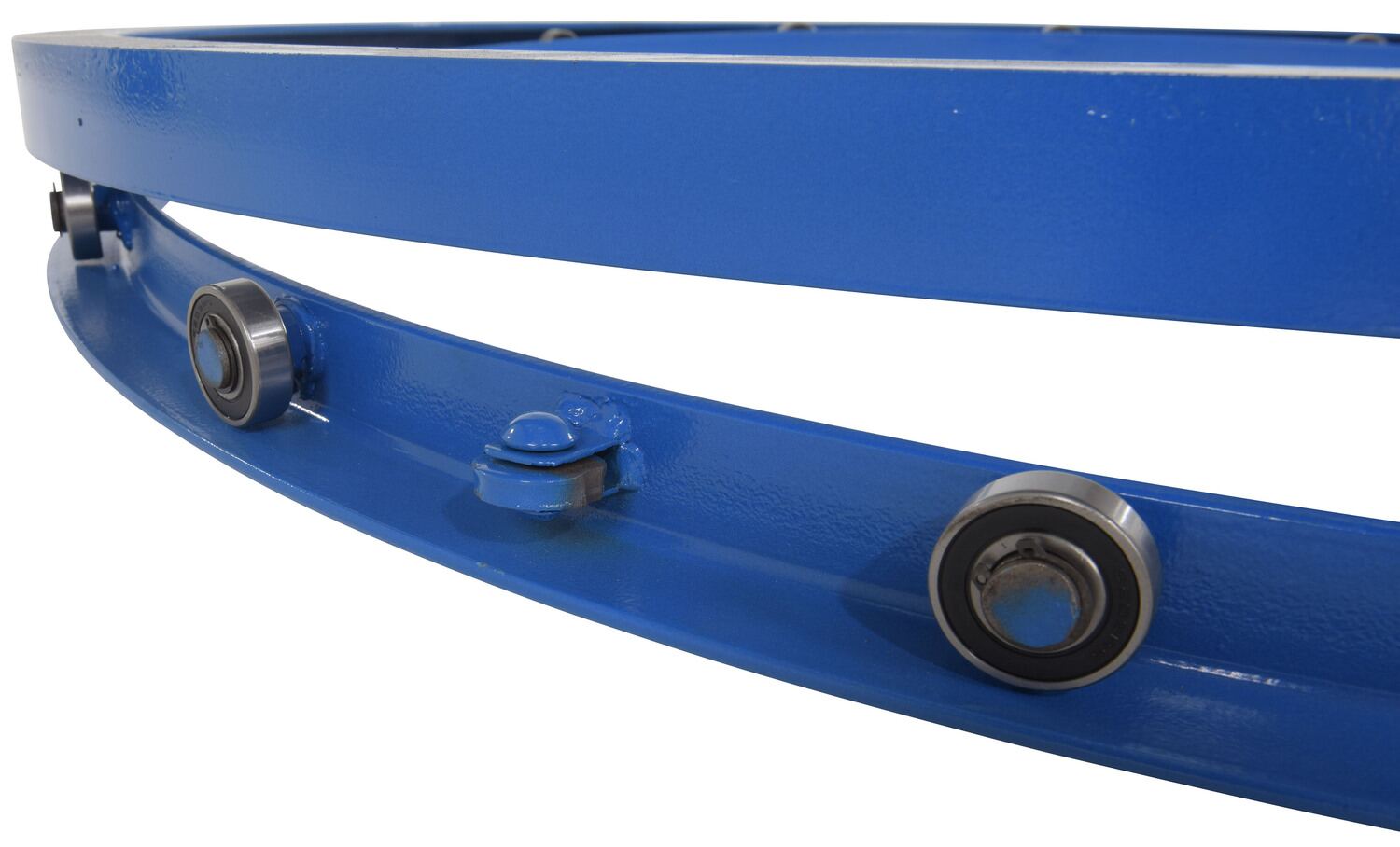

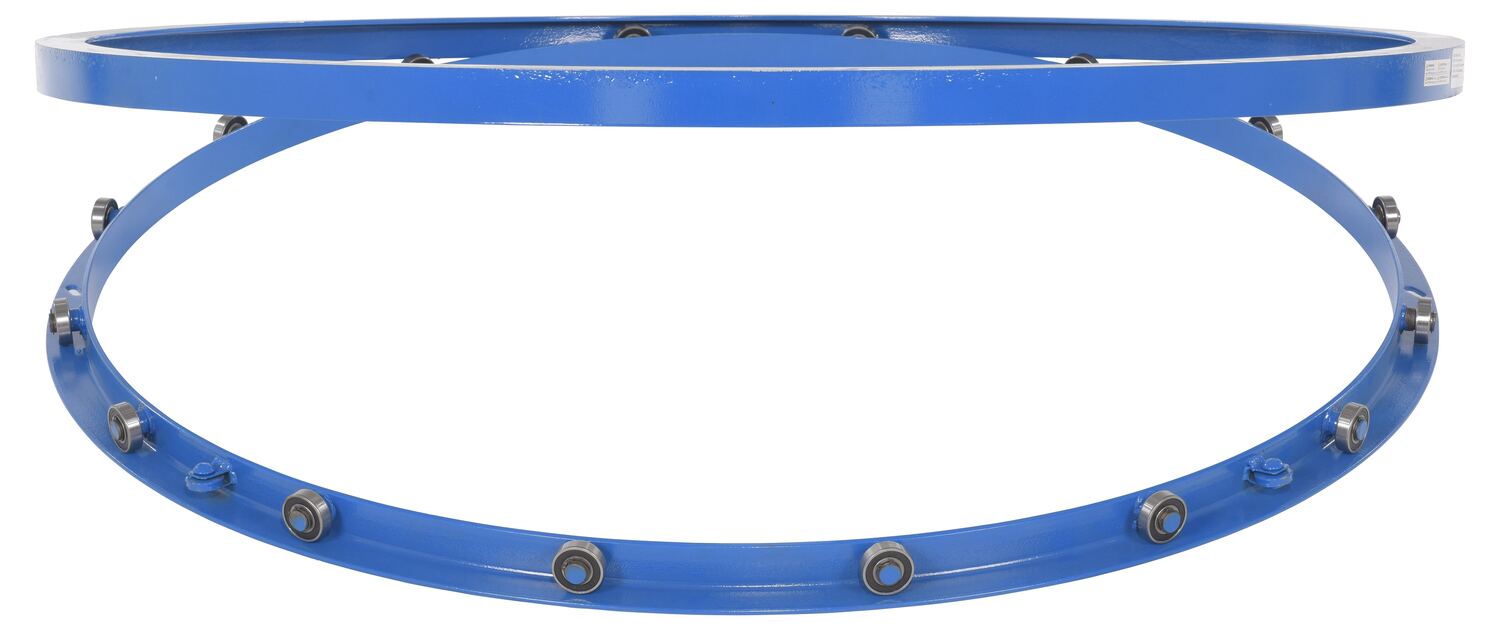

  • Internally sealed roller bearings and guide rollers provide long lasting use
  • Four guide rollers keep the rings aligned
Steel Manual Carousels

model: CA-48-2

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

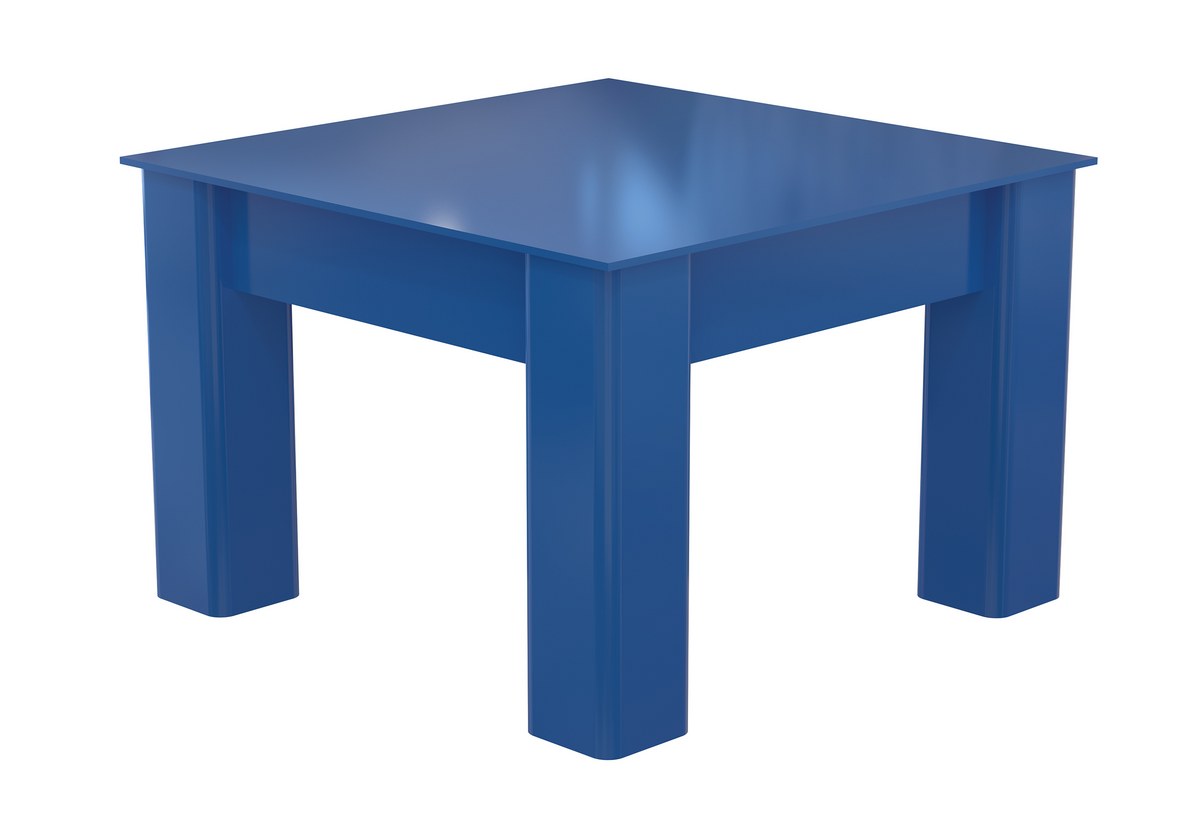

CA-BASE-18-12 CA-BASE-18-12 Factory Installed Steel Elevated Bases for Carousels 18 In. … 90 Days Limited Warranty 195

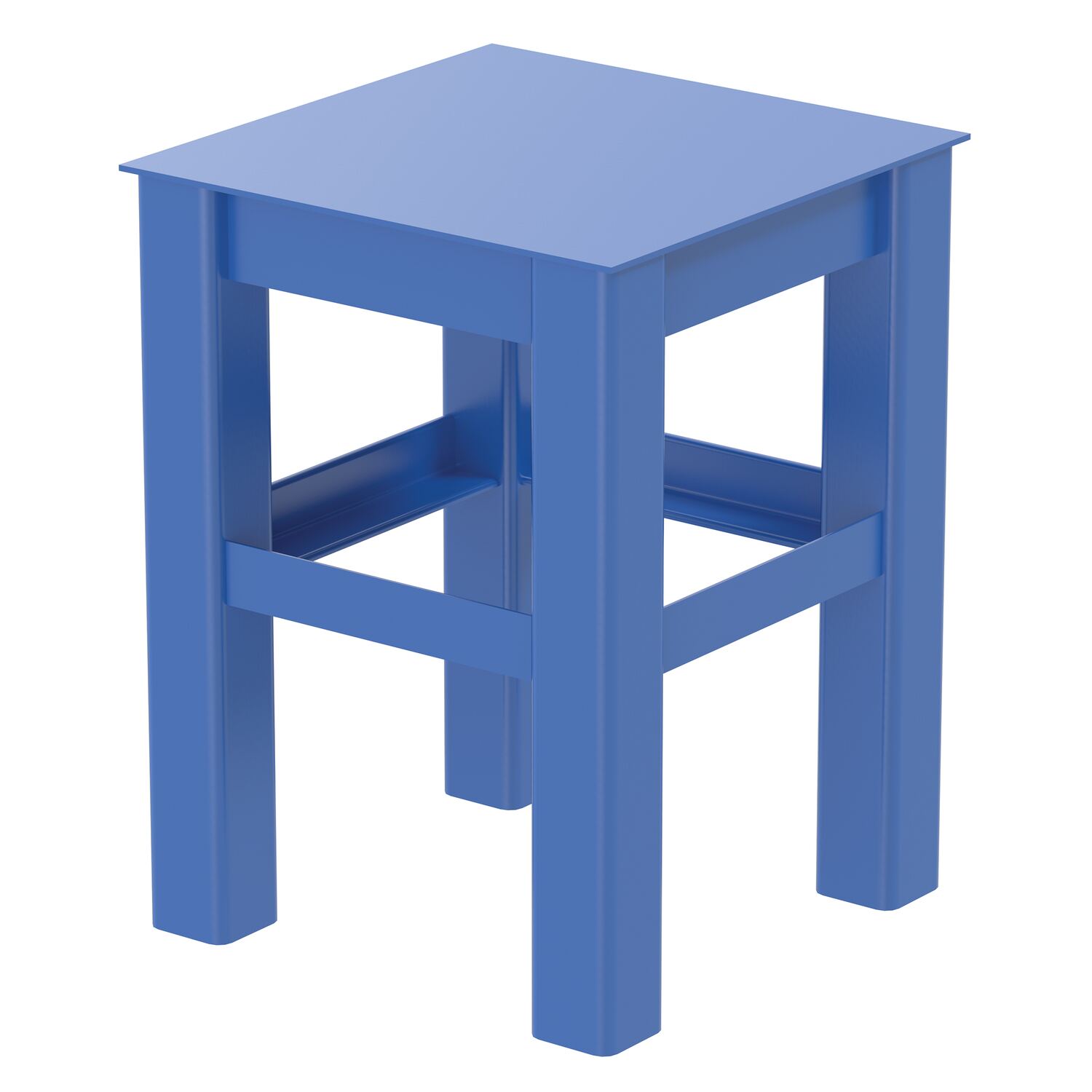

CA-BASE-18-24 CA-BASE-18-24 Factory Installed Steel Elevated Bases for Carousels 18 In. … 90 Days Limited Warranty 330

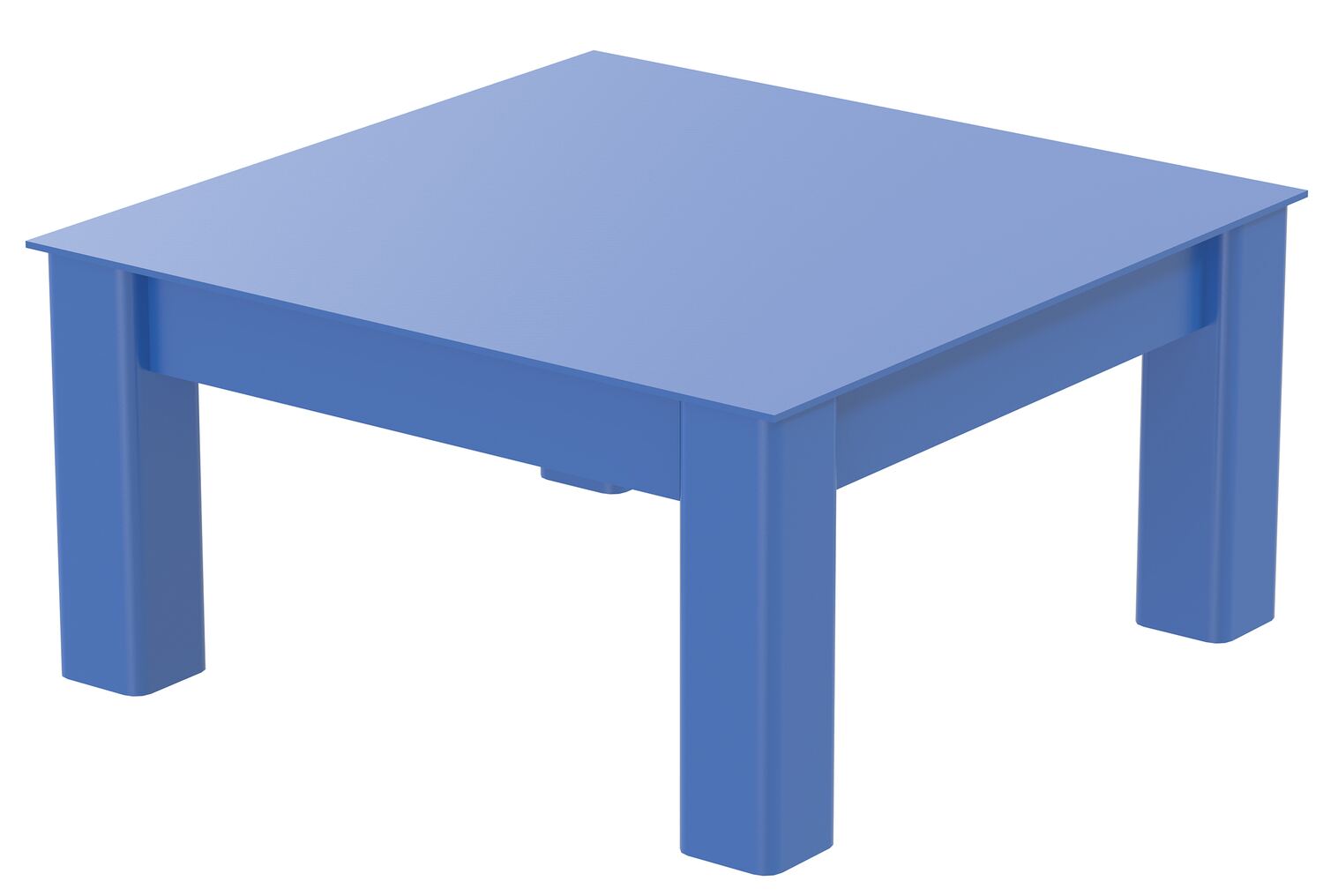

CA-BASE-24-12 CA-BASE-24-12 Factory Installed Steel Elevated Bases for Carousels 24 In. … 90 Days Limited Warranty 245

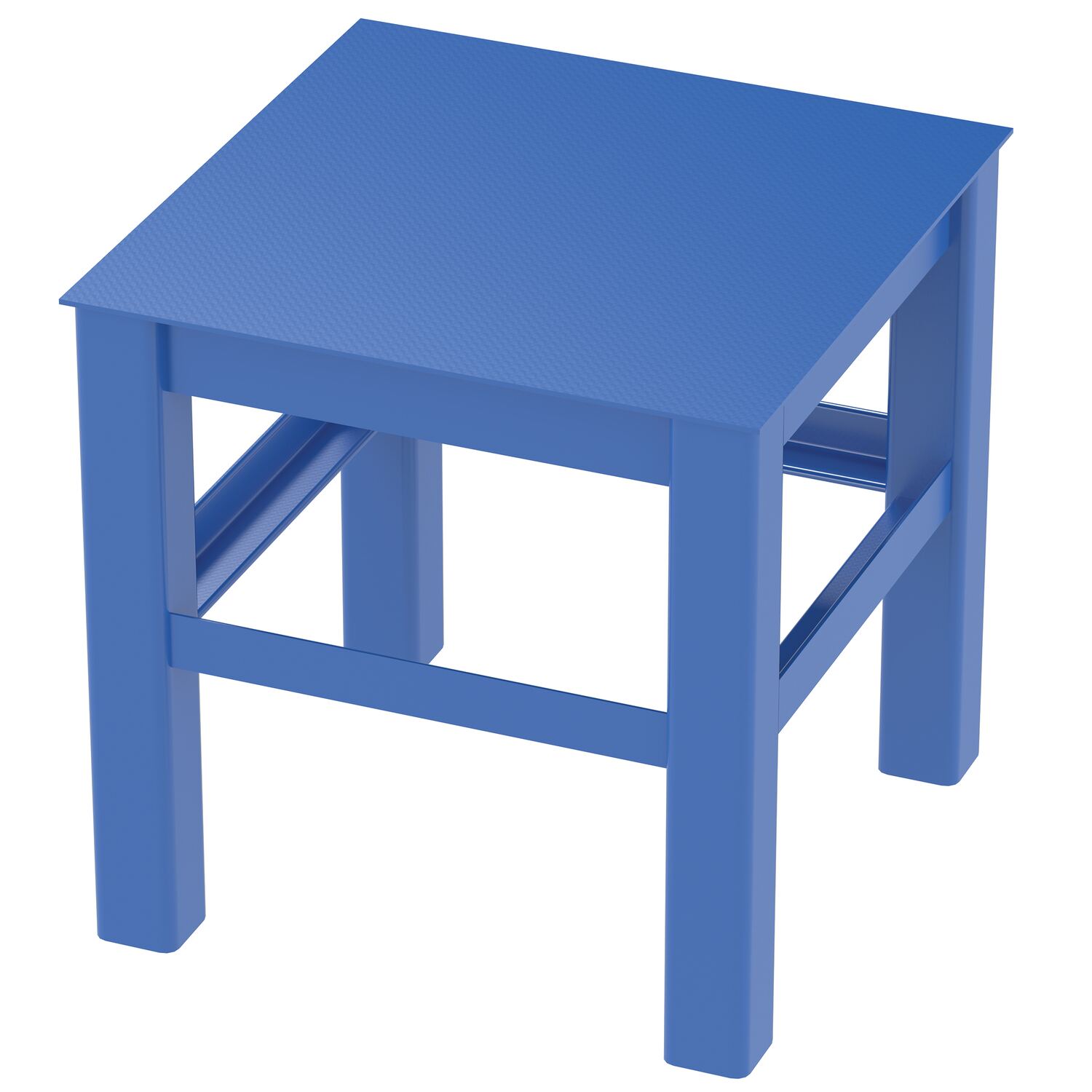

CA-BASE-24-24 CA-BASE-24-24 Factory Installed Steel Elevated Bases for Carousels 24 In. … 90 Days Limited Warranty 380

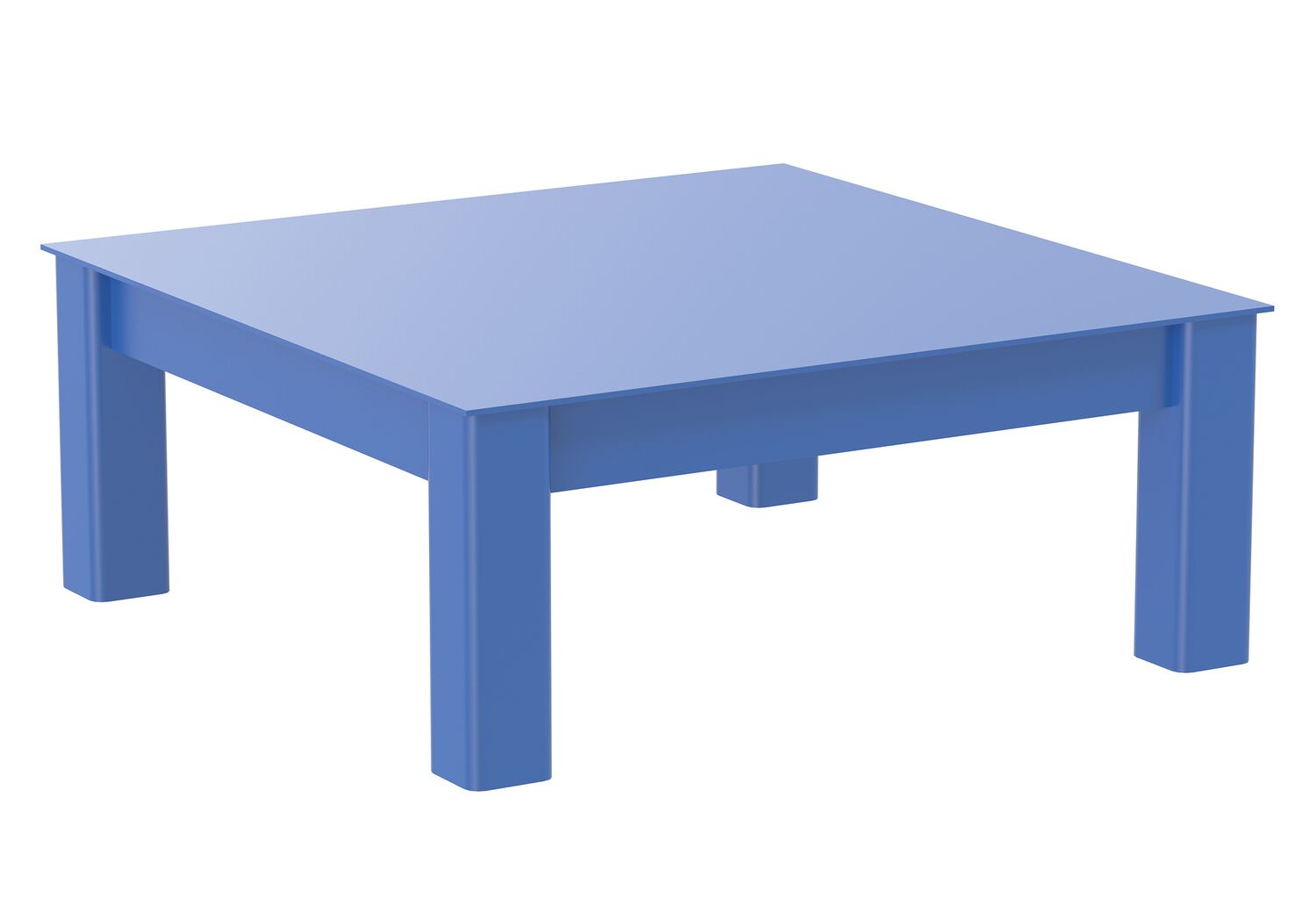

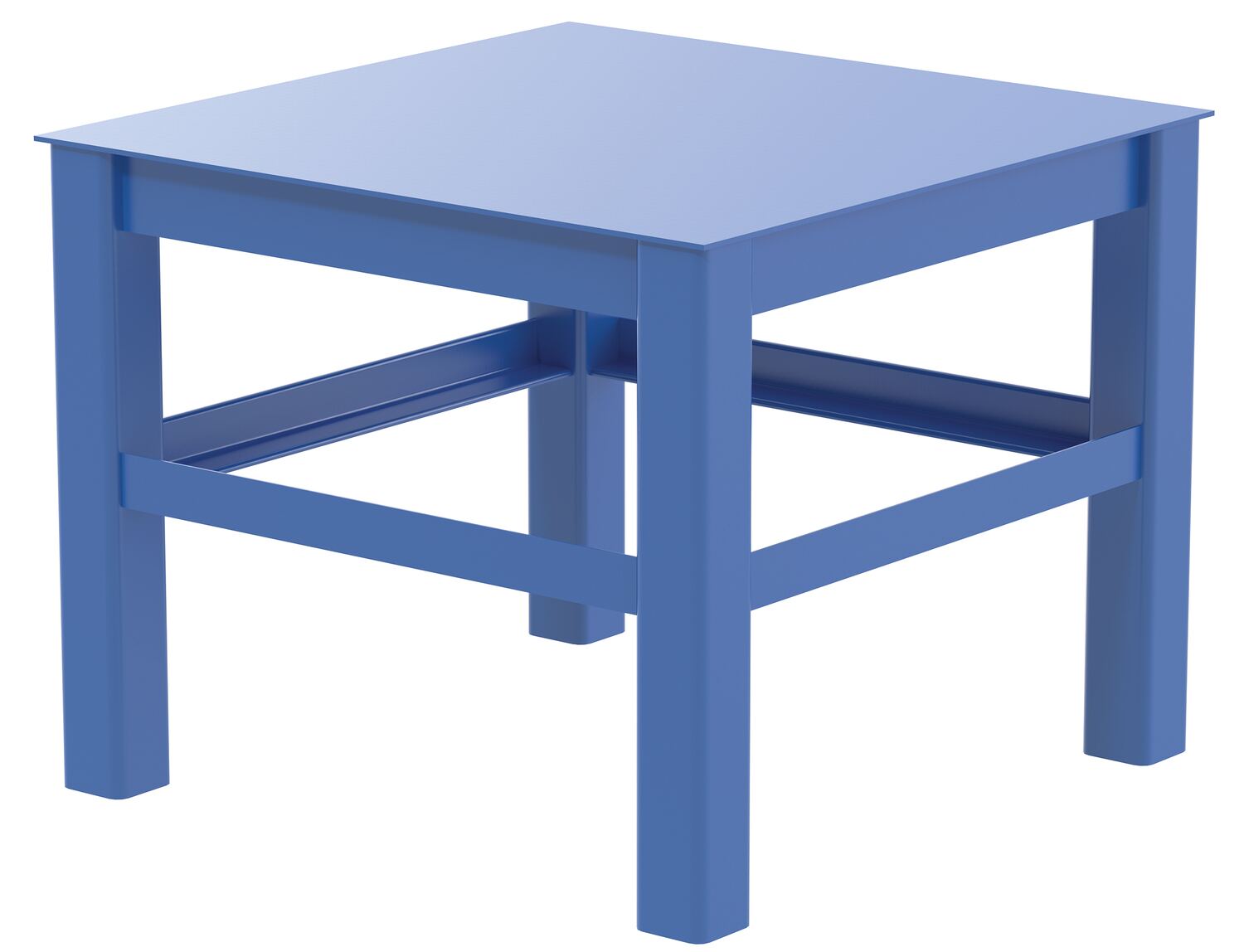

CA-BASE-30-12 CA-BASE-30-12 Factory Installed Steel Elevated Bases for Carousels 30 In. … 90 Days Limited Warranty 295
CA-BASE-30-24 CA-BASE-30-24 Factory Installed Steel Elevated Bases for Carousels 30 In. … 90 Days Limited Warranty 430

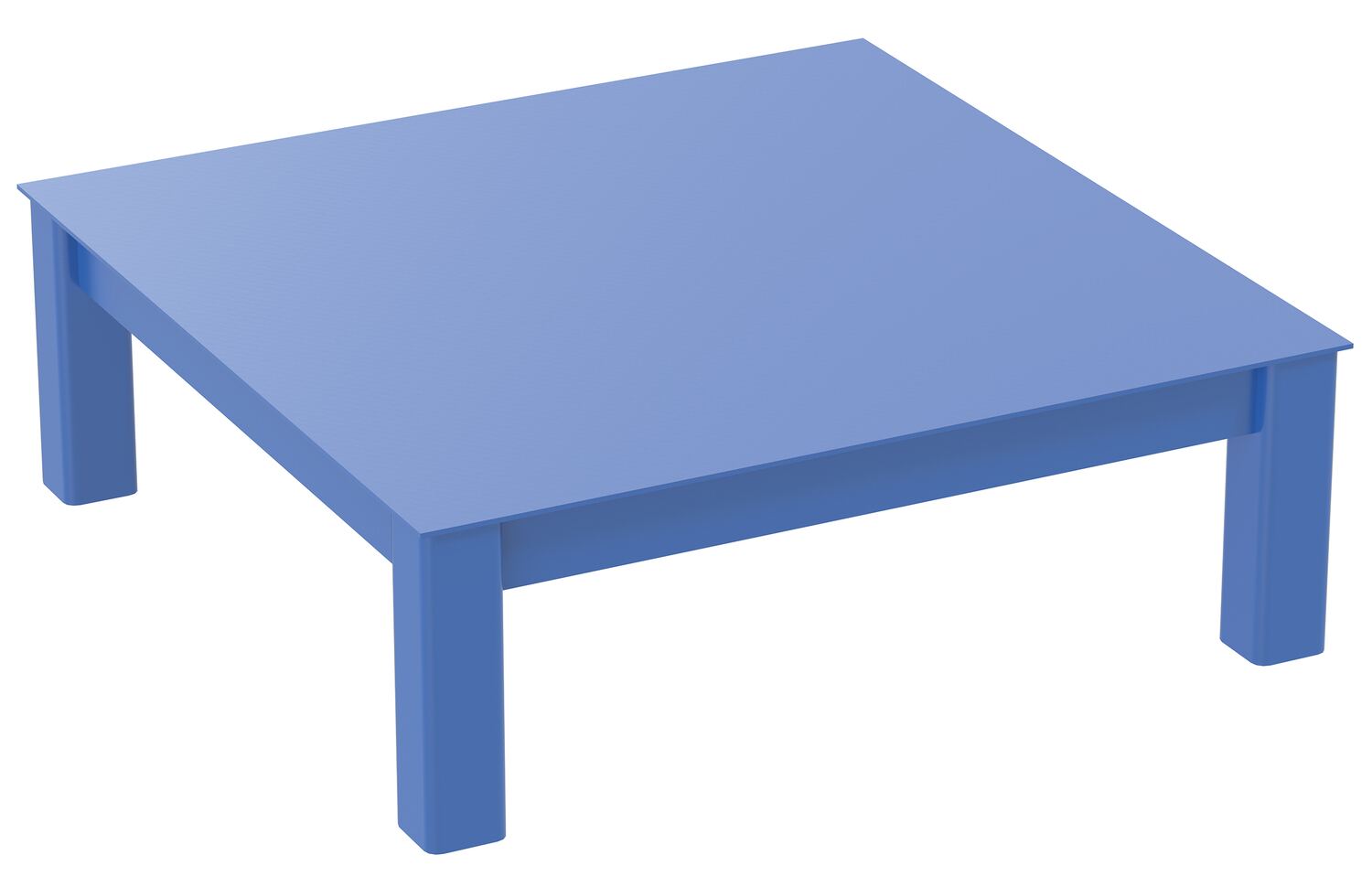

CA-BASE-36-12 CA-BASE-36-12 Factory Installed Steel Elevated Bases for Carousels 36 In. … 90 Days Limited Warranty 345

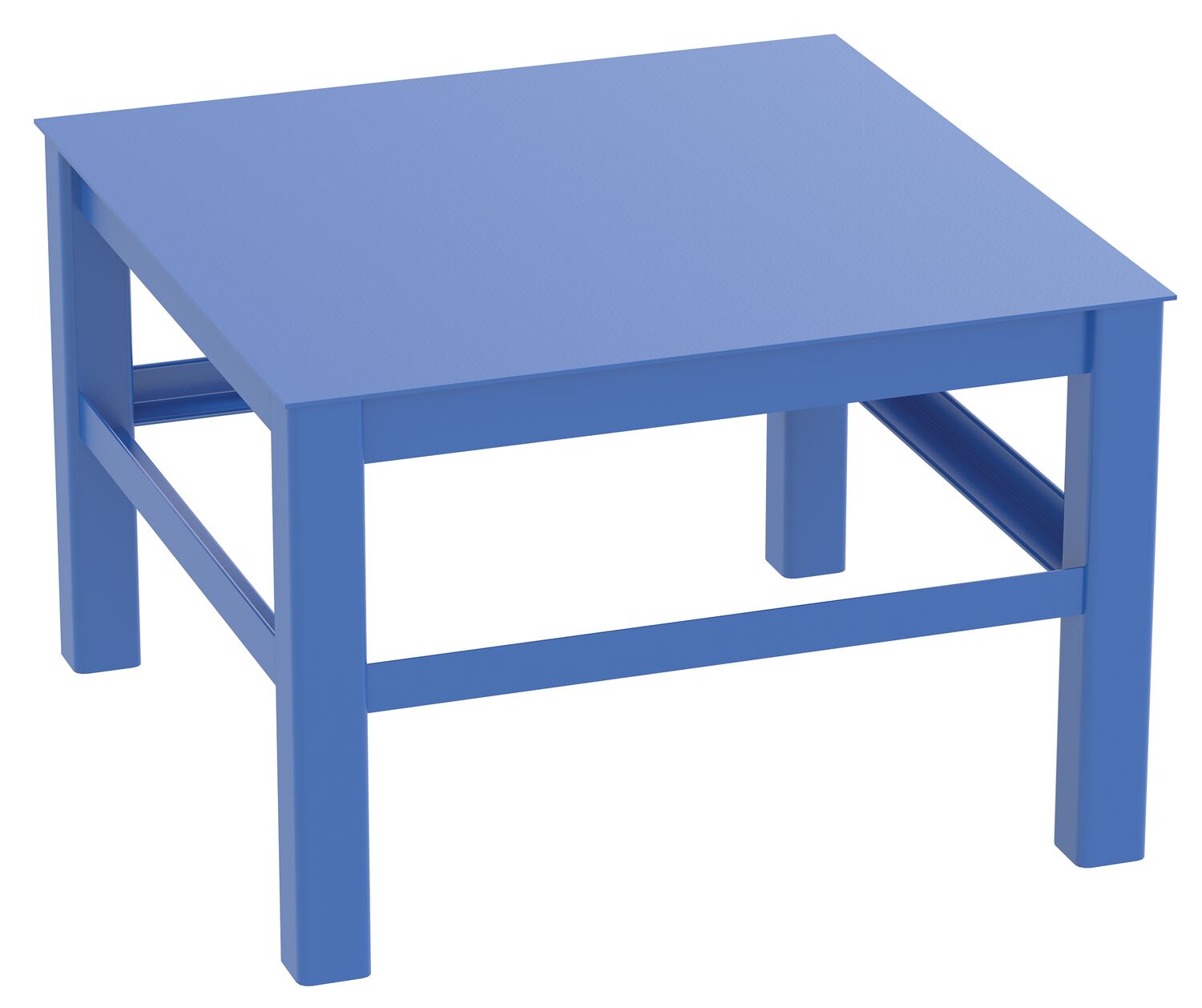

CA-BASE-36-24 CA-BASE-36-24 Factory Installed Steel Elevated Bases for Carousels 36 In. … 90 Days Limited Warranty 460

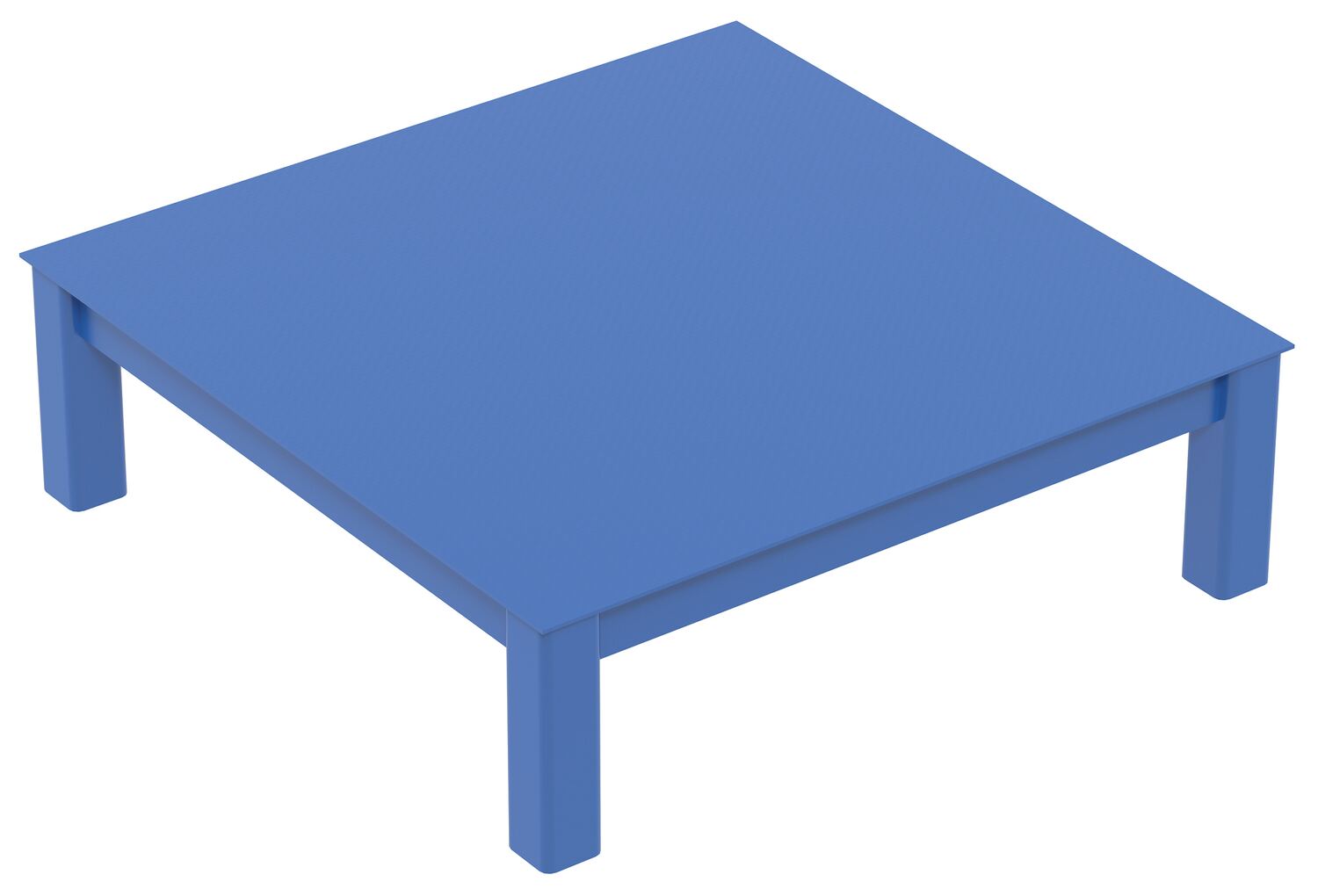

CA-BASE-40-12 CA-BASE-40-12 Factory Installed Steel Elevated Bases for Carousels 40 In. … 90 Days Limited Warranty 395

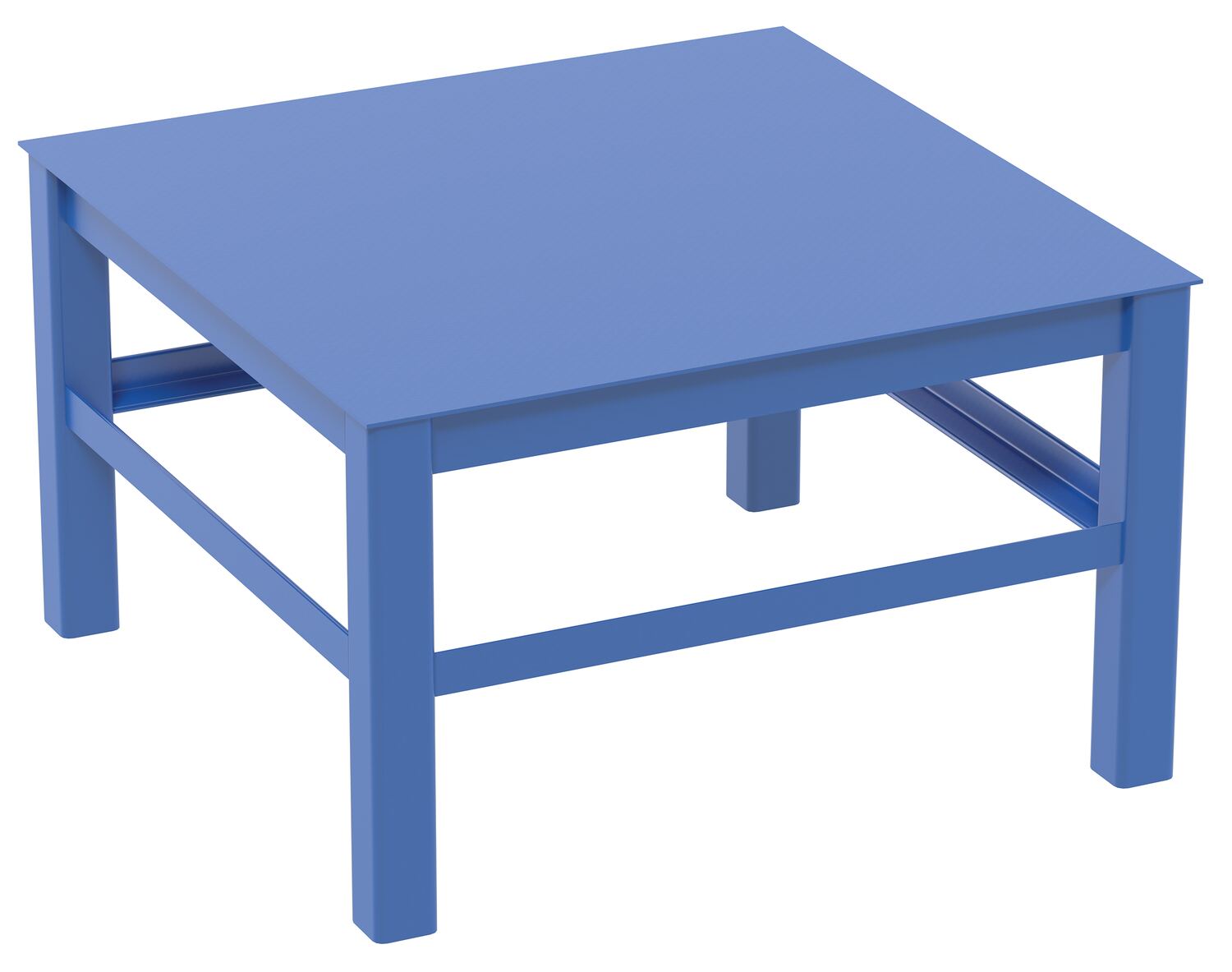

CA-BASE-40-24 CA-BASE-40-24 Factory Installed Steel Elevated Bases for Carousels 40 In. … 90 Days Limited Warranty 510

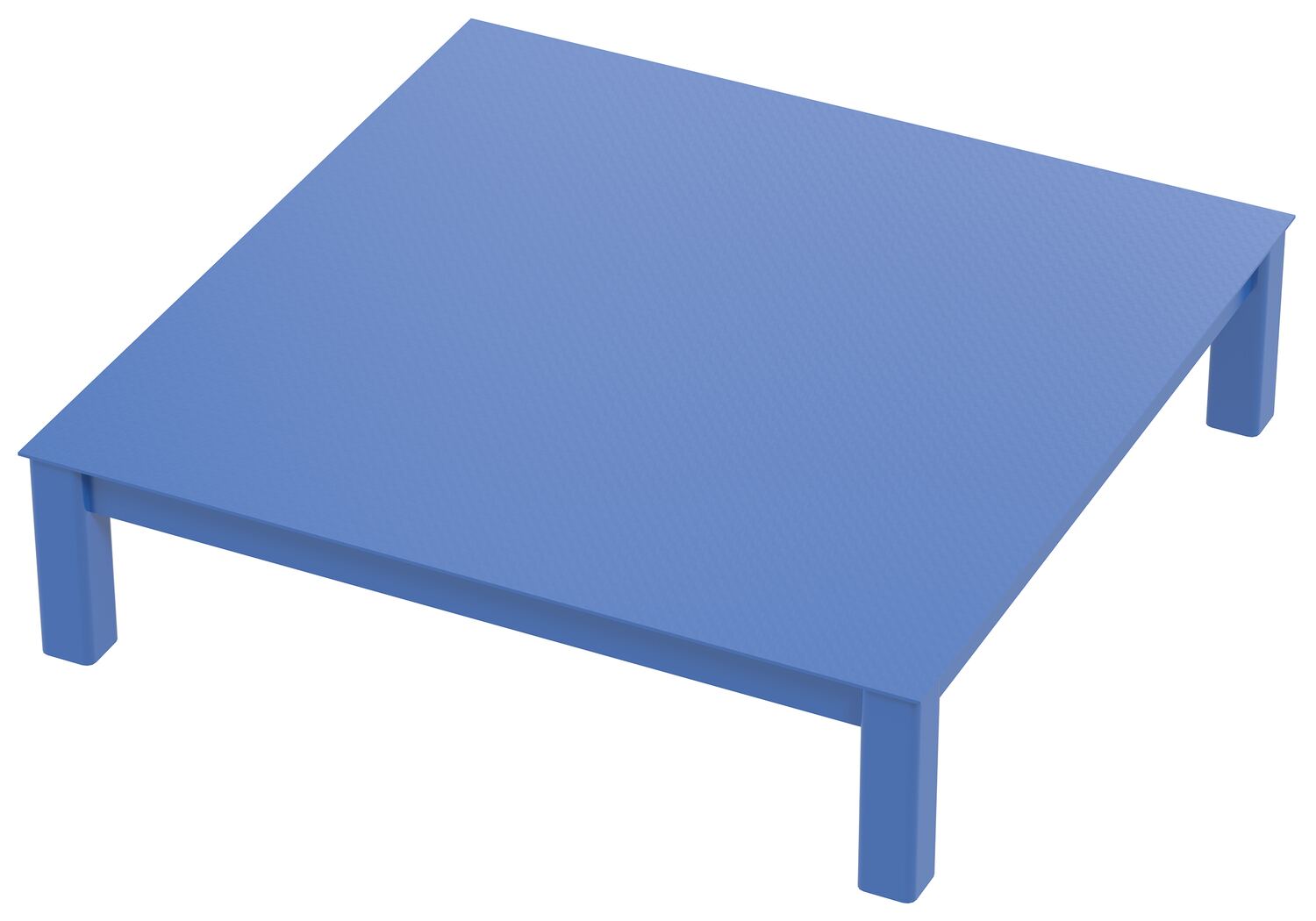

CA-BASE-48-12 CA-BASE-48-12 Factory Installed Steel Elevated Bases for Carousels 48 In. … 90 Days Limited Warranty 450

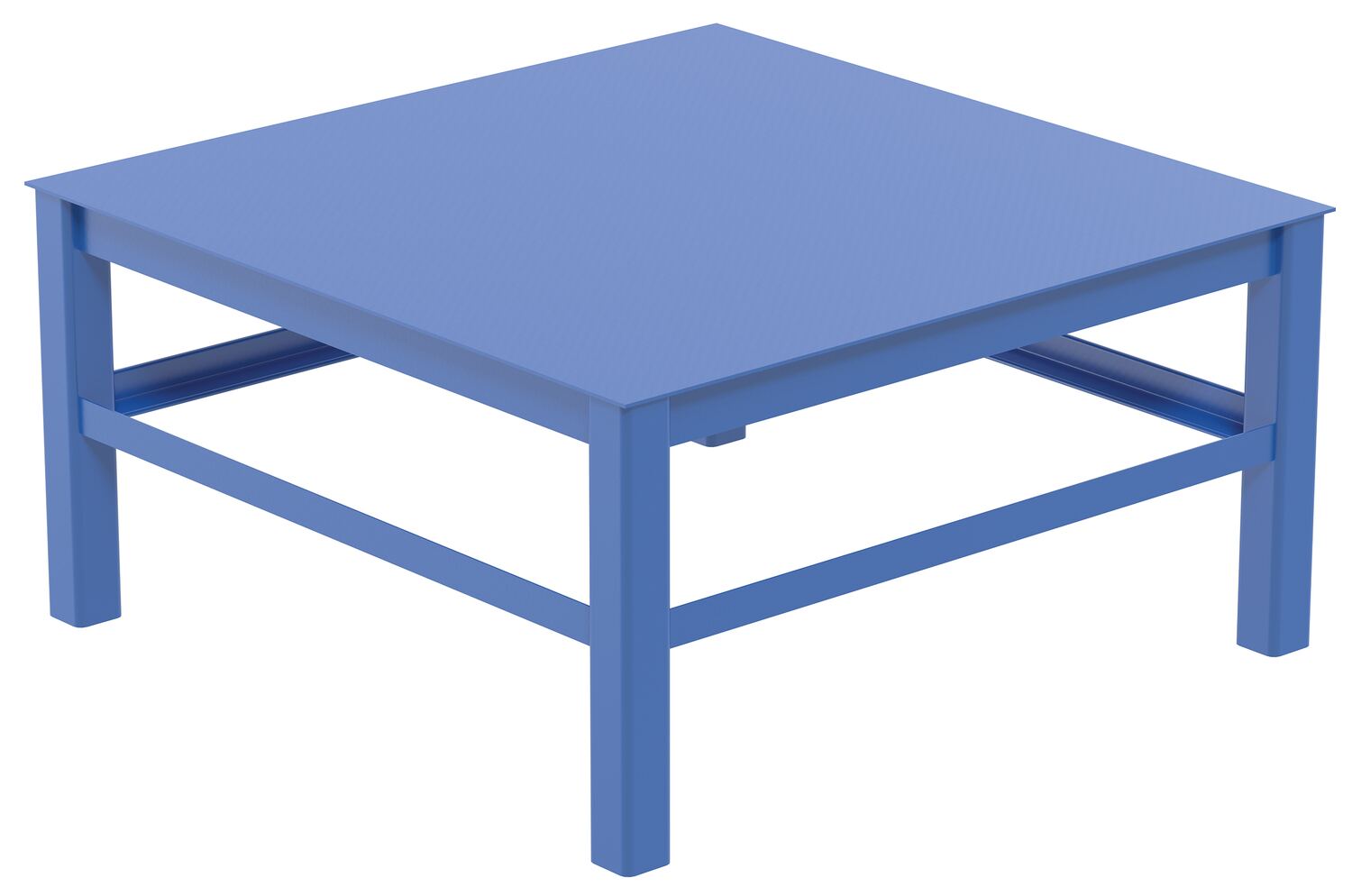

CA-BASE-48-24 CA-BASE-48-24 Factory Installed Steel Elevated Bases for Carousels 48 In. … 90 Days Limited Warranty 565

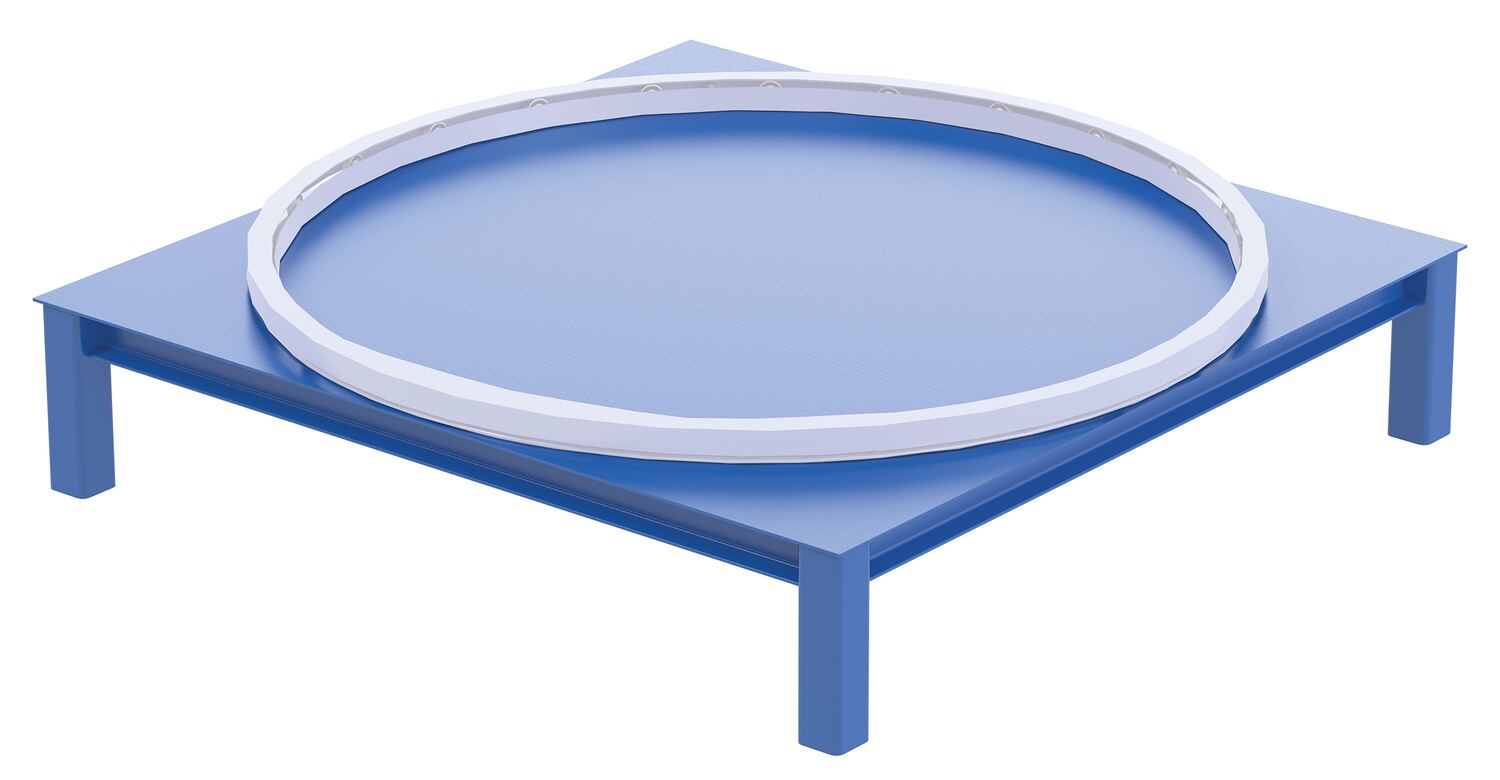

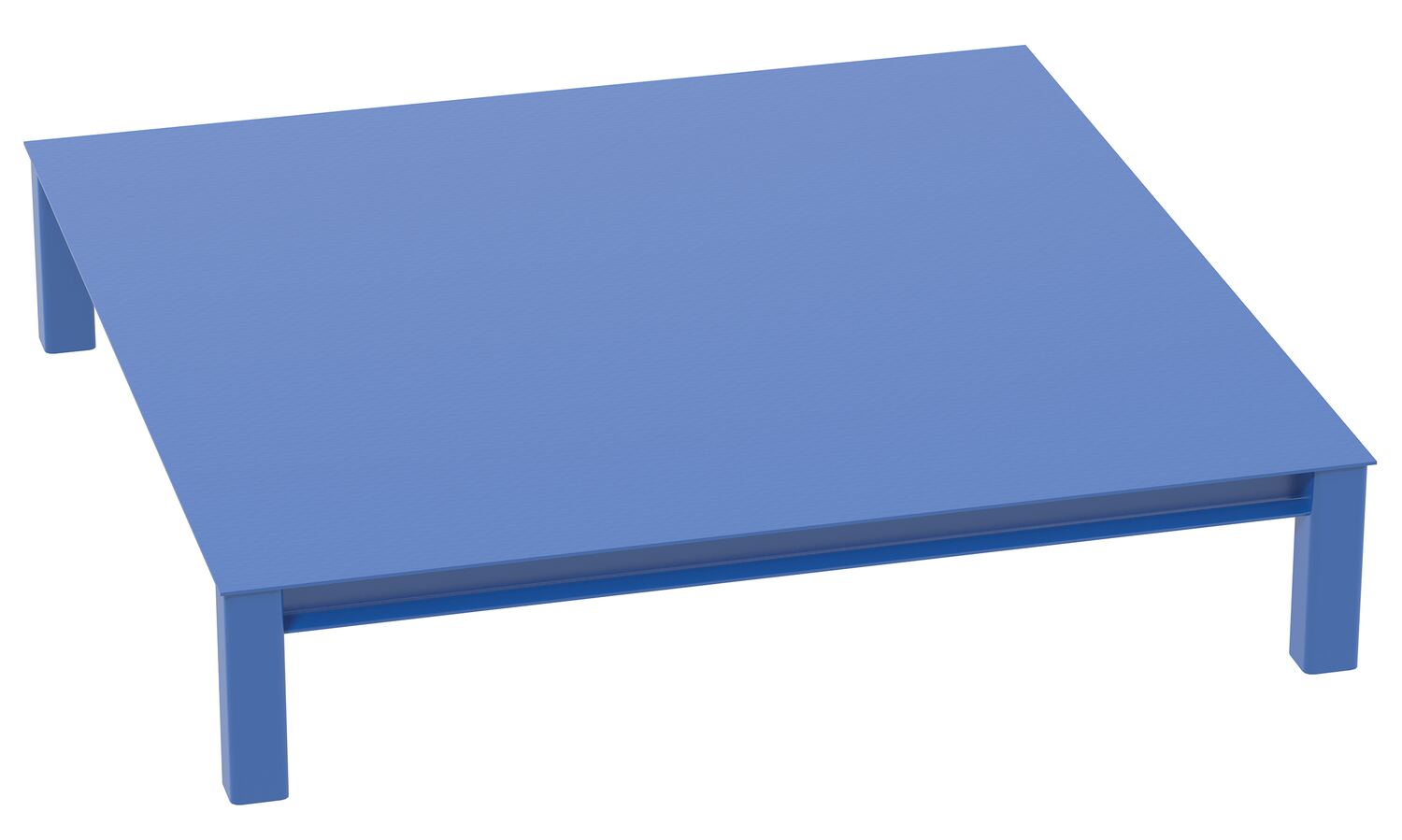

CA-BASE-60-12 CA-BASE-60-12 Factory Installed Steel Elevated Bases for Carousels 60 In. … 90 Days Limited Warranty 530

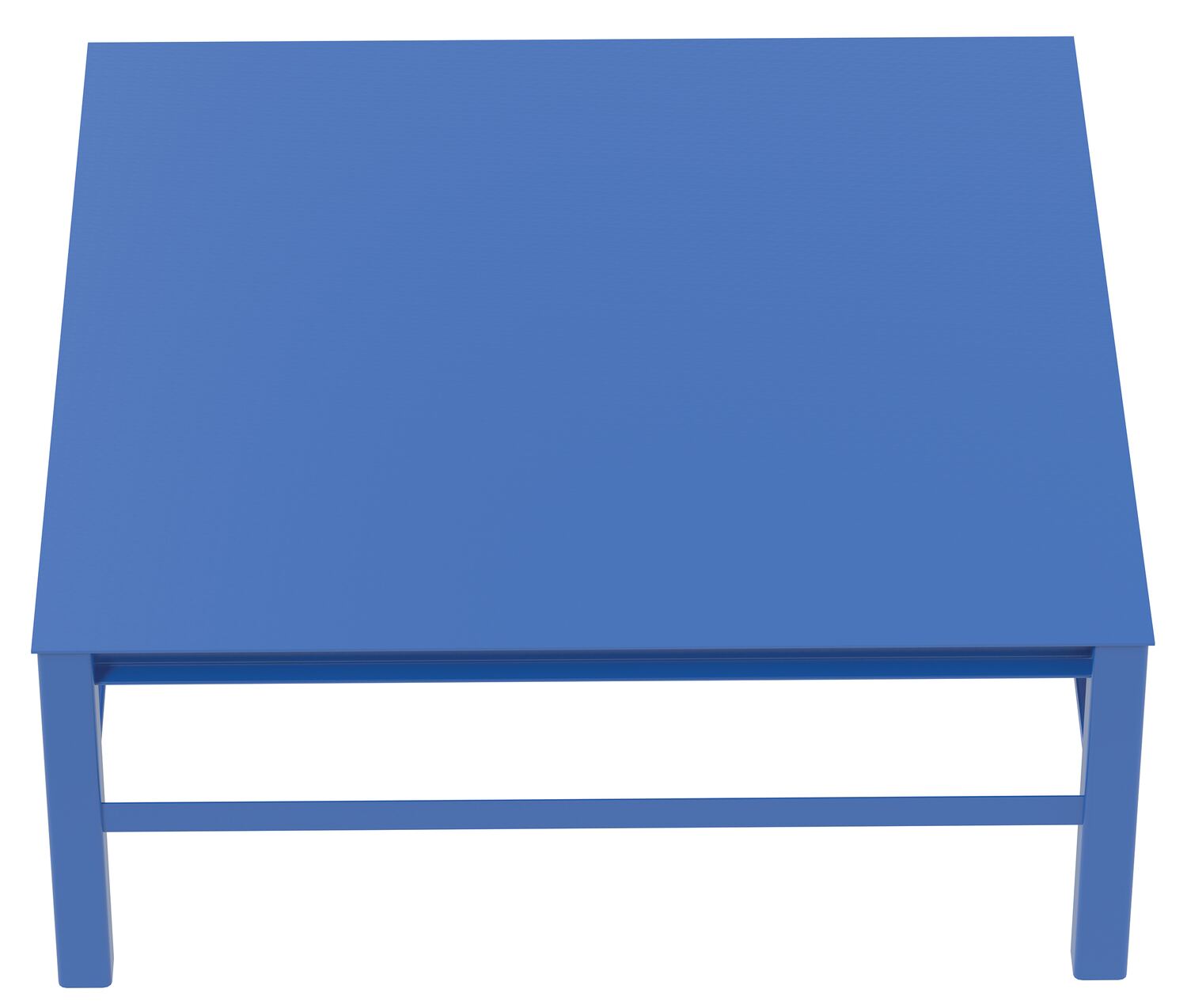

CA-BASE-60-24 CA-BASE-60-24 Factory Installed Steel Elevated Bases for Carousels 60 In. … 90 Days Limited Warranty 645

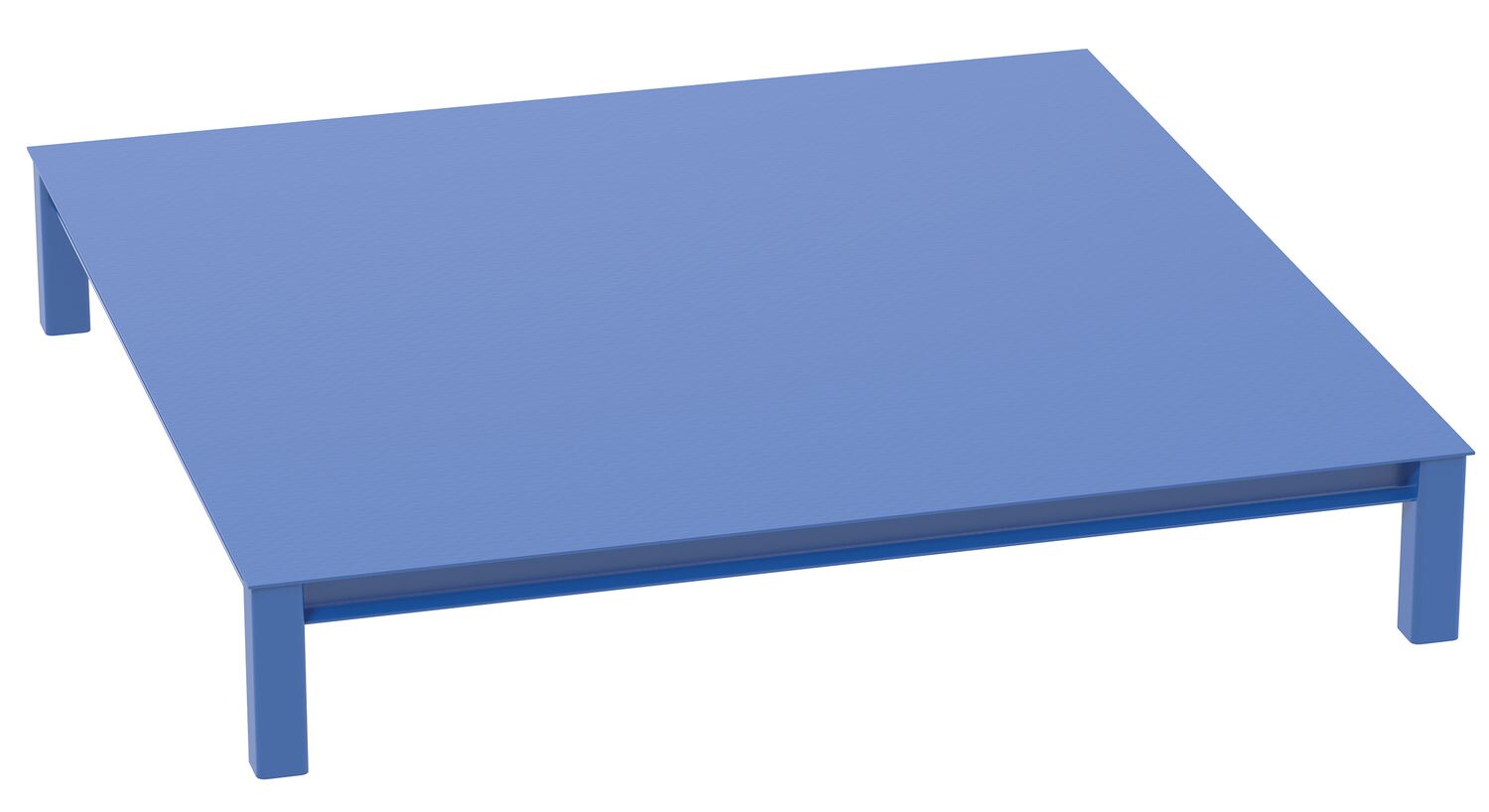

CA-BASE-72-12 CA-BASE-72-12 Factory Installed Steel Elevated Bases for Carousels 72 In. … 90 Days Limited Warranty 590

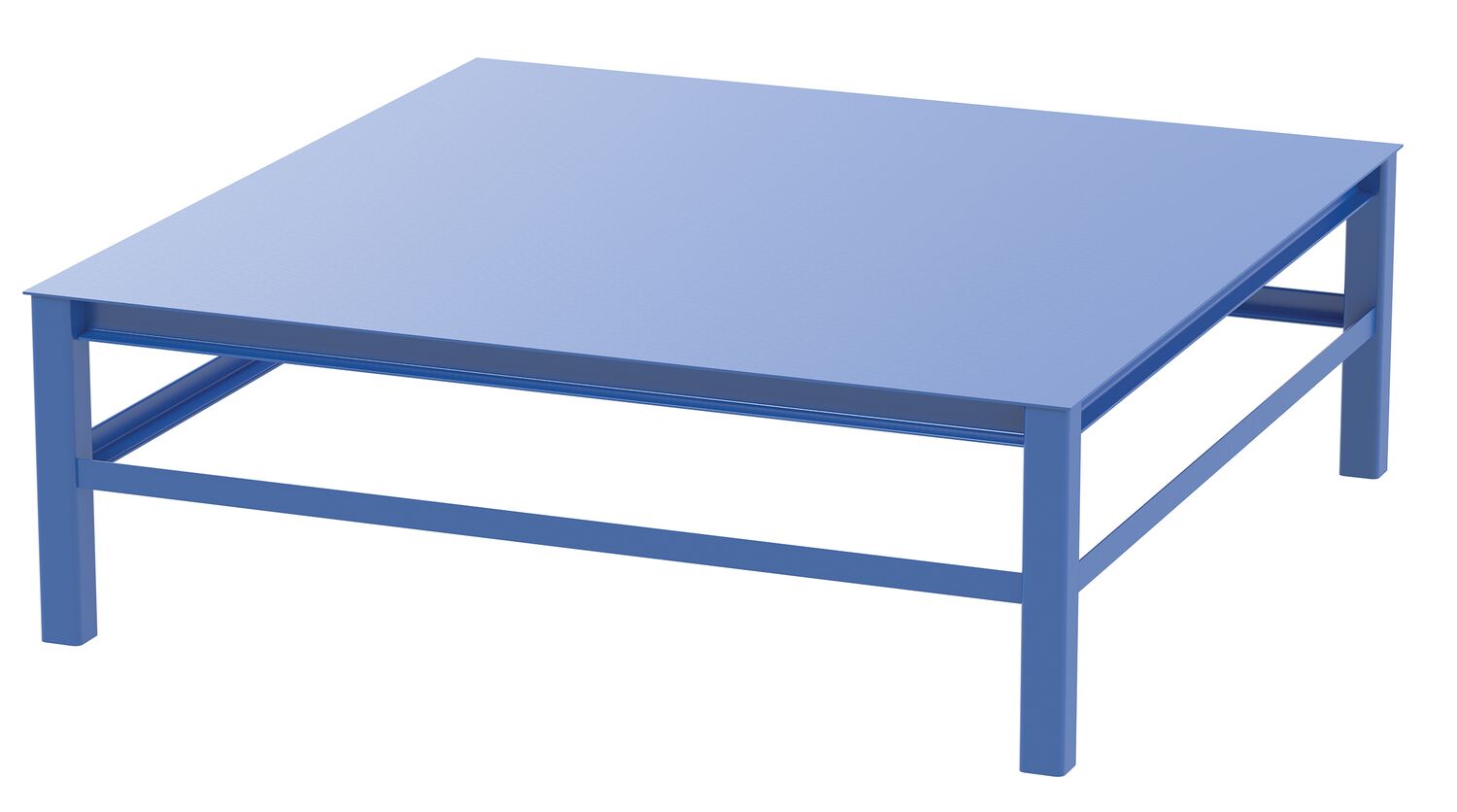

CA-BASE-72-24 CA-BASE-72-24 Factory Installed Steel Elevated Bases for Carousels 72 In. … 90 Days Limited Warranty 705

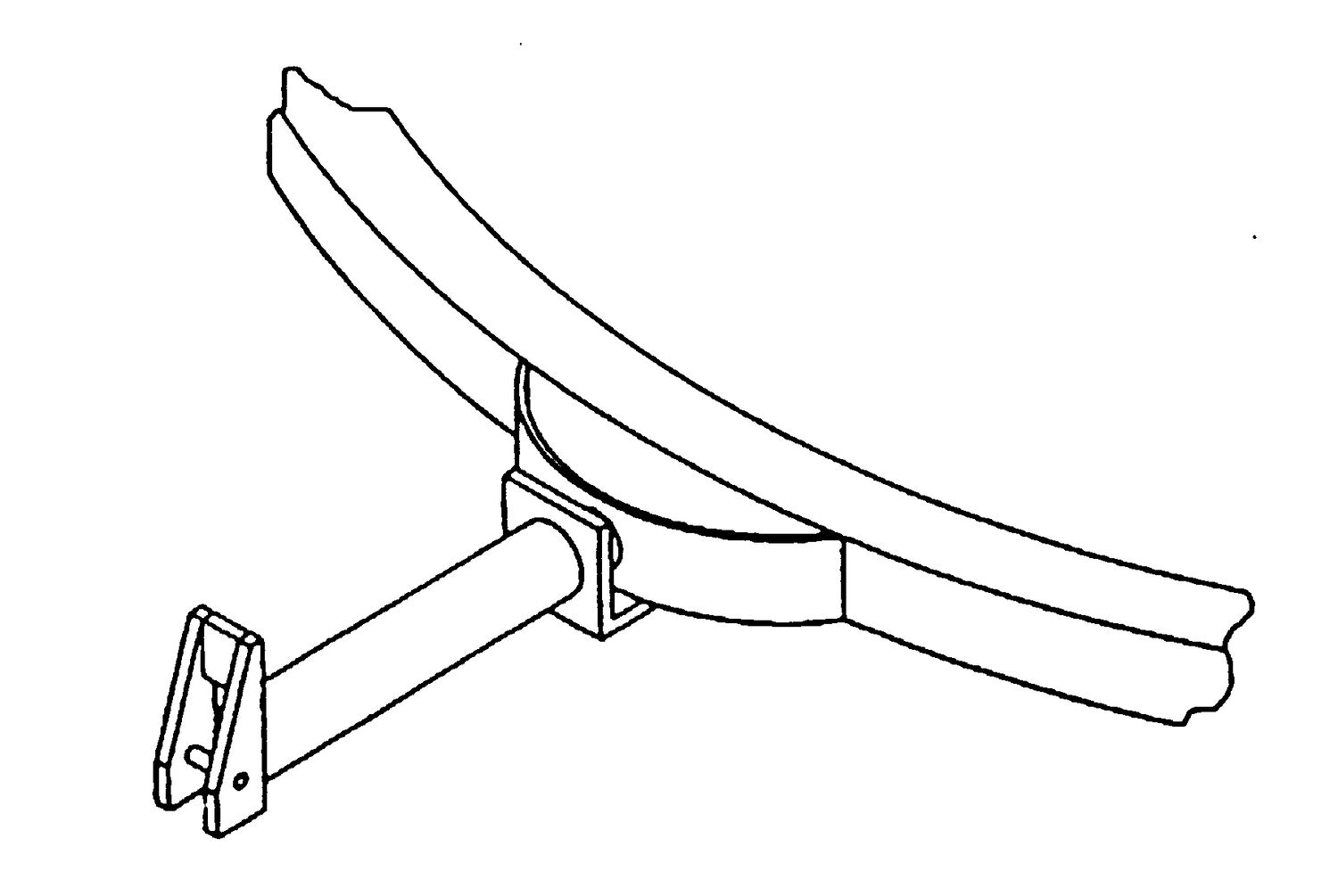

CA-FTK CA-FTK Factory Installed Foot Operated Locking Detent For Manual Ca… 90 Days Limited Warranty 3

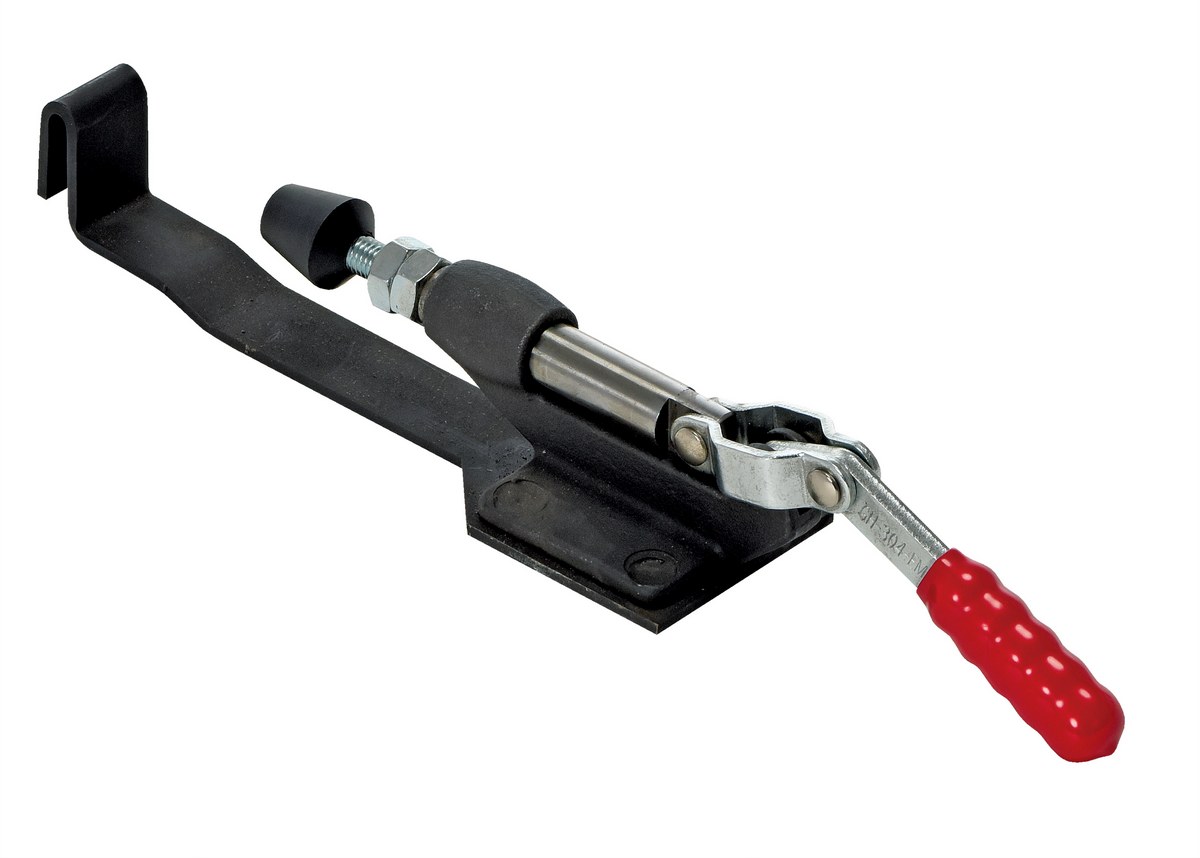

CA-HBK CA-HBK Factory Installed Manual Brake for Manual Carousels 90 Days Limited Warranty 3

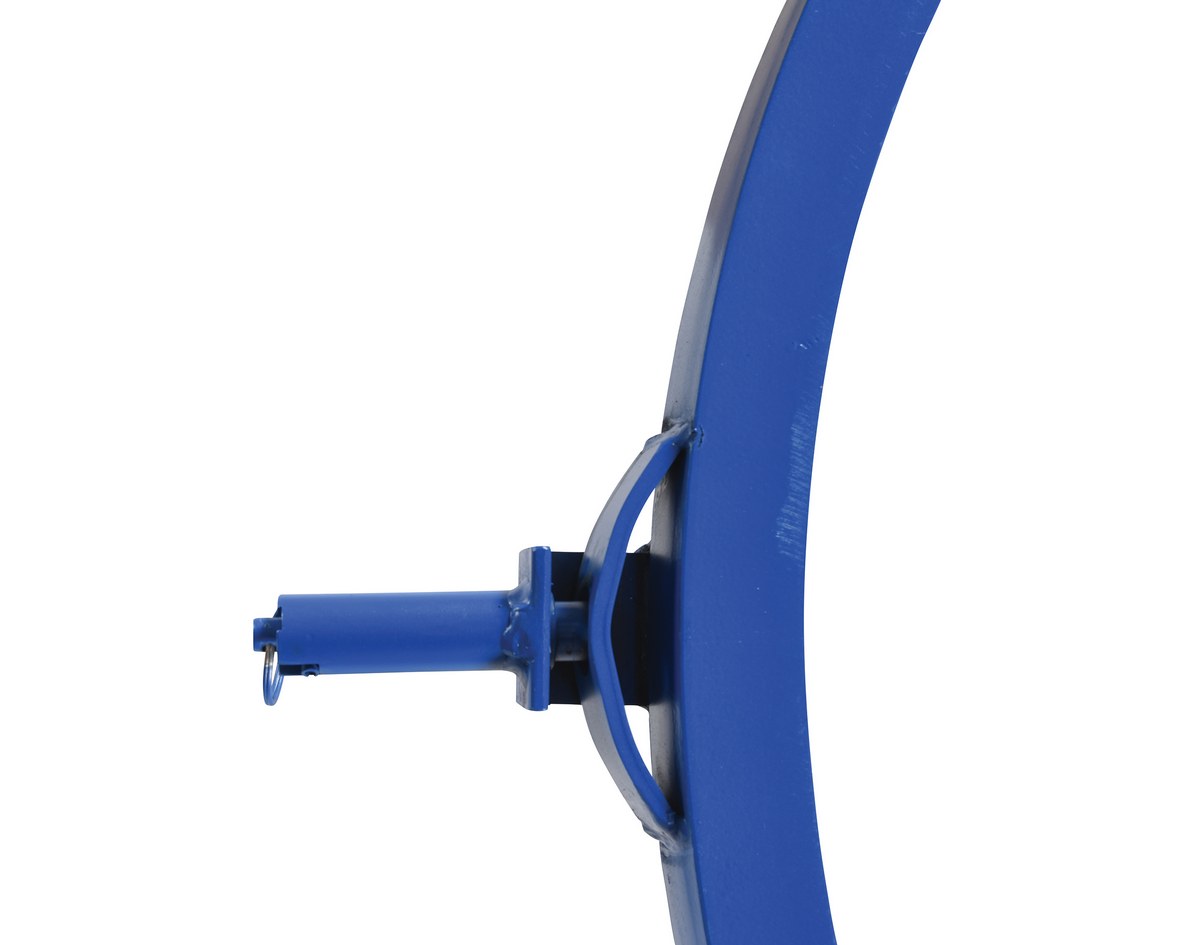

CA-HOD CA-HOD Factory Installed Hand Operated Locking Detent For Manual Ca… 90 Days Limited Warranty 2
PLATF-MTG-CA MOUNTING OF CONVEYOR or CA-SERIES CAROUSEL TO PLATFORM
CA-HBK and CA-FTK Only Available with Round Top Plates.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

Testing Certificates

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

CA-40-2
CA-40-2 CA-40-2 A+ Content - 2

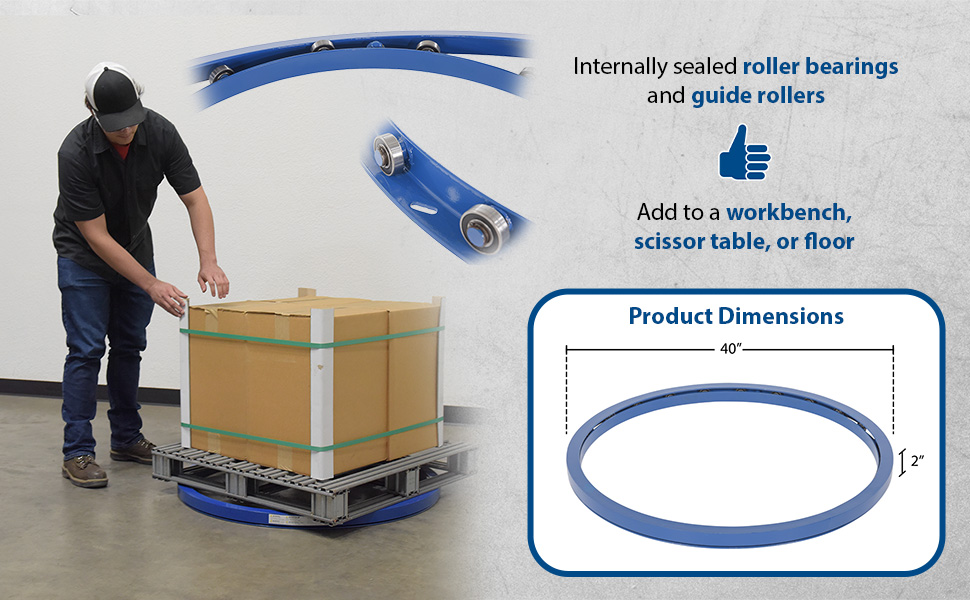

CA-40-2 CA-40-2 A+ Content - 1

CA-48-2

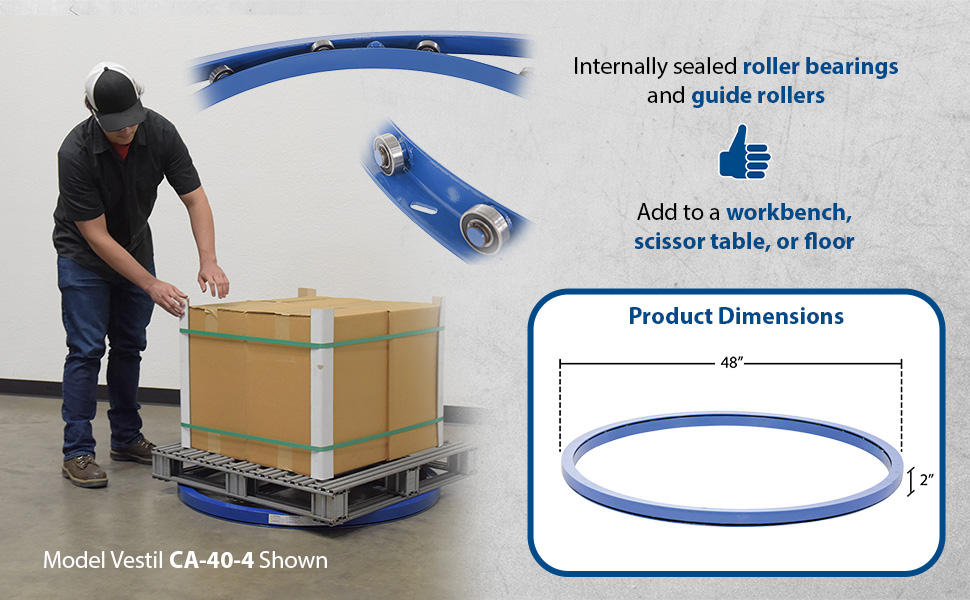

CA-48-2 CA-48-2 A+ Content - 2
CA-48-2 CA-48-2 A+ Content - 1







Steel Manual Carousels




The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned.

  • Manually rotating top ring will rotate 360 degrees
  • Steel rings are flat for precision
  • Internally sealed roller bearings and guide rollers provide long lasting use
  • Four guide rollers keep the rings aligned


Model # Description Attributes Net Wt.
(lbs)

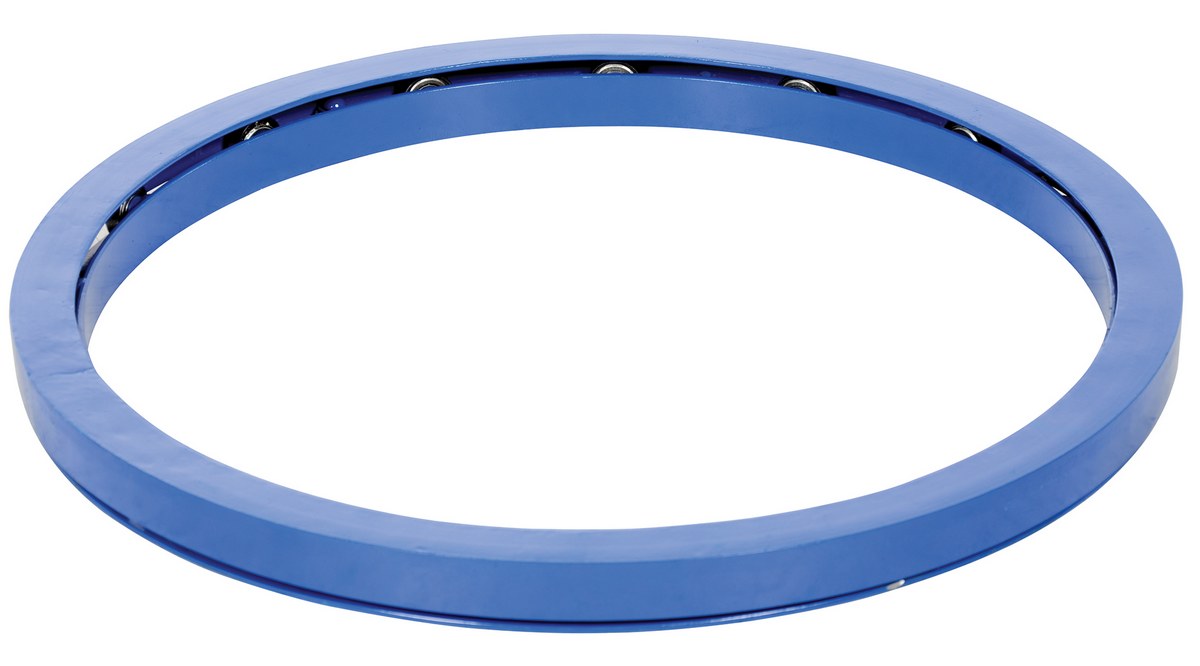

CA-18-2 CA-18-2Steel Manual Carousel 18 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Diameter (in.): 18
21
CA-18-2-TP-RSM CA-18-2-TP-RSMSteel 18 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
40
CA-18-2-TP-RTP CA-18-2-TP-RTPSteel 18 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
46

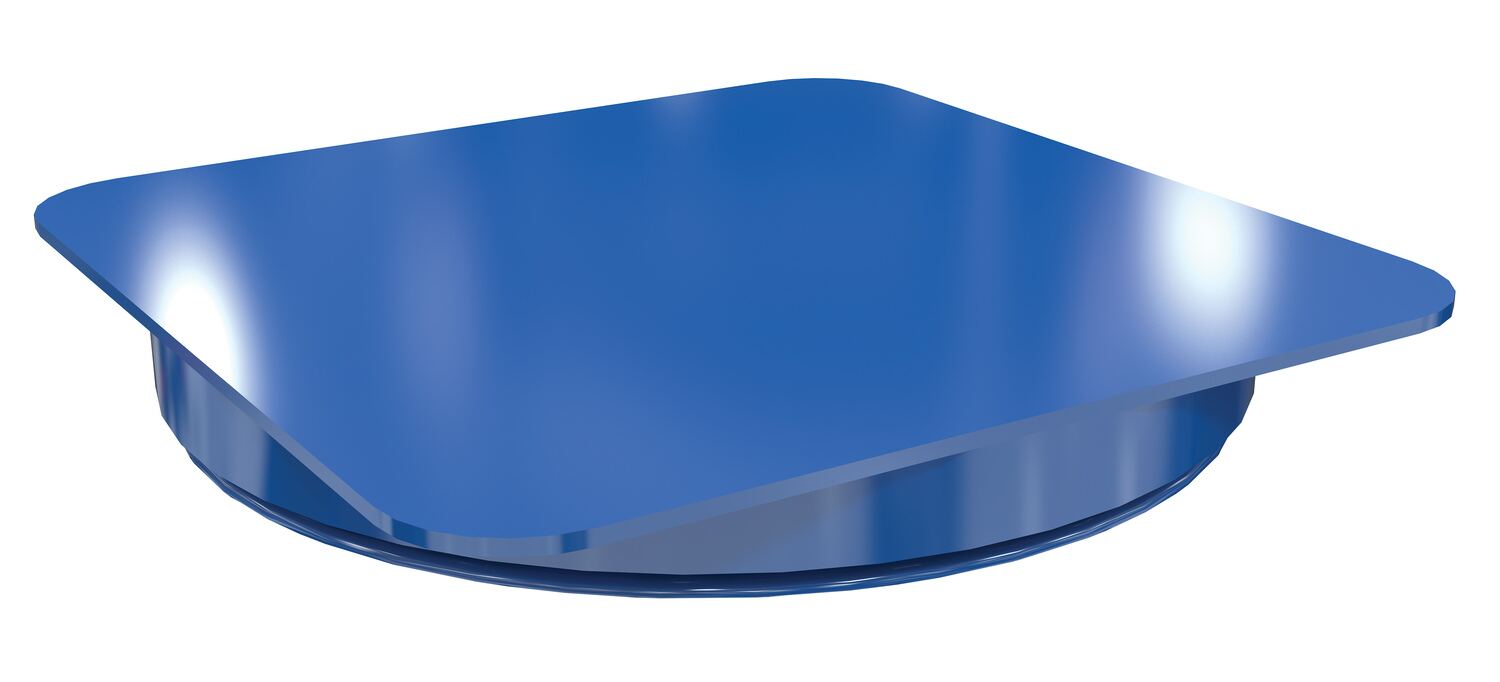

CA-18-2-TP-SSM CA-18-2-TP-SSMSteel 18 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
51

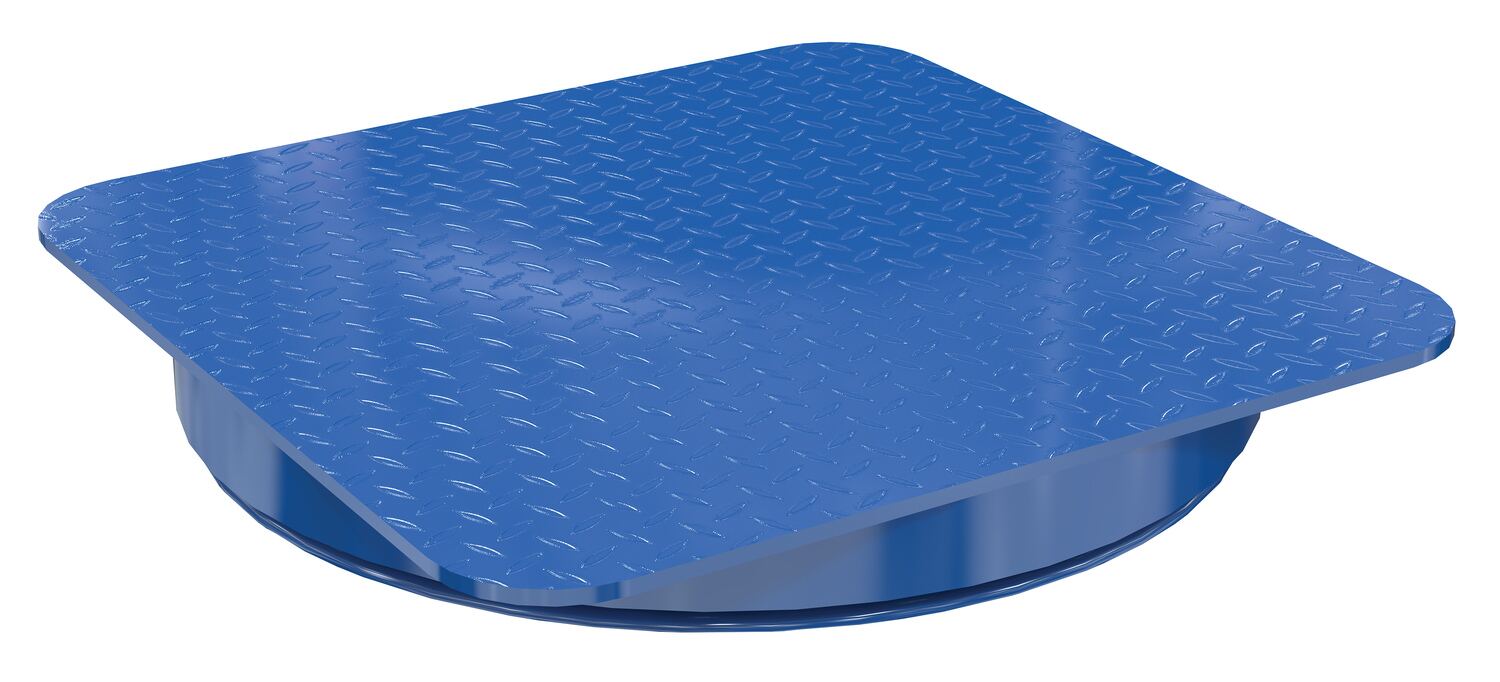

CA-18-2-TP-STP CA-18-2-TP-STPSteel 18 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
51
CA-24-2 CA-24-2Steel Manual Carousel 24 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
28
CA-24-2-TP-RSM CA-24-2-TP-RSMSteel 24 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
66
CA-24-2-TP-RTP CA-24-2-TP-RTPSteel 24 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
66
CA-24-2-TP-SSM CA-24-2-TP-SSMSteel 24 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
74

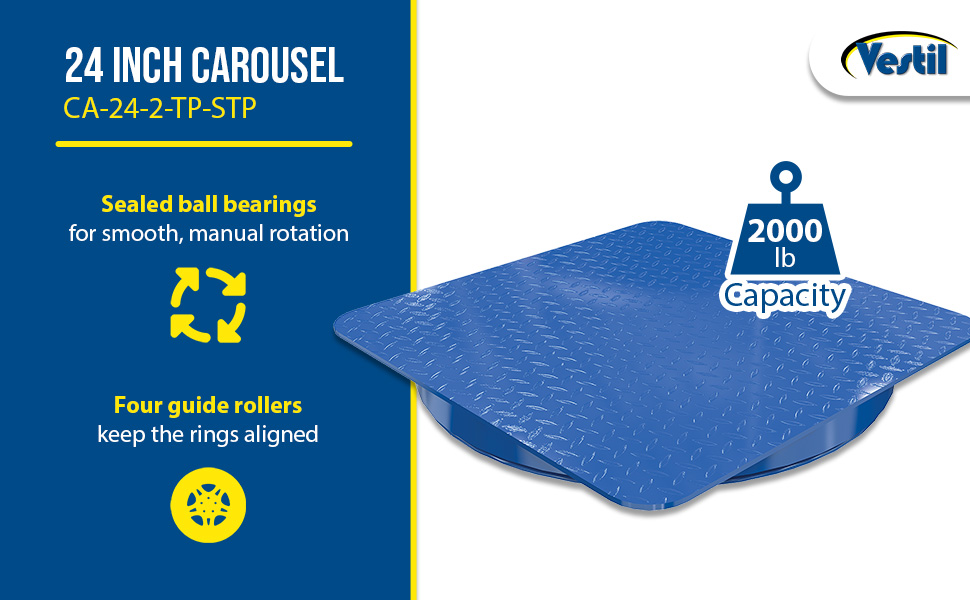

CA-24-2-TP-STP CA-24-2-TP-STPSteel 24 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
74
CA-24-4 CA-24-4Steel Manual Carousel 24 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
30
CA-24-4-TP-RSM CA-24-4-TP-RSMSteel 24 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
68
CA-24-4-TP-RTP CA-24-4-TP-RTPSteel 24 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
68
CA-24-4-TP-SSM CA-24-4-TP-SSMSteel 24 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
77
CA-24-4-TP-STP CA-24-4-TP-STPSteel 24 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
77
CA-30-2 CA-30-2Steel Manual Carousel 30 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
34
CA-30-2-TP-RSM CA-30-2-TP-RSMSteel 30 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
117
CA-30-2-TP-RTP CA-30-2-TP-RTPSteel 30 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
117
CA-30-2-TP-SSM CA-30-2-TP-SSMSteel 30 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
131
CA-30-2-TP-STP CA-30-2-TP-STPSteel 30 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
131

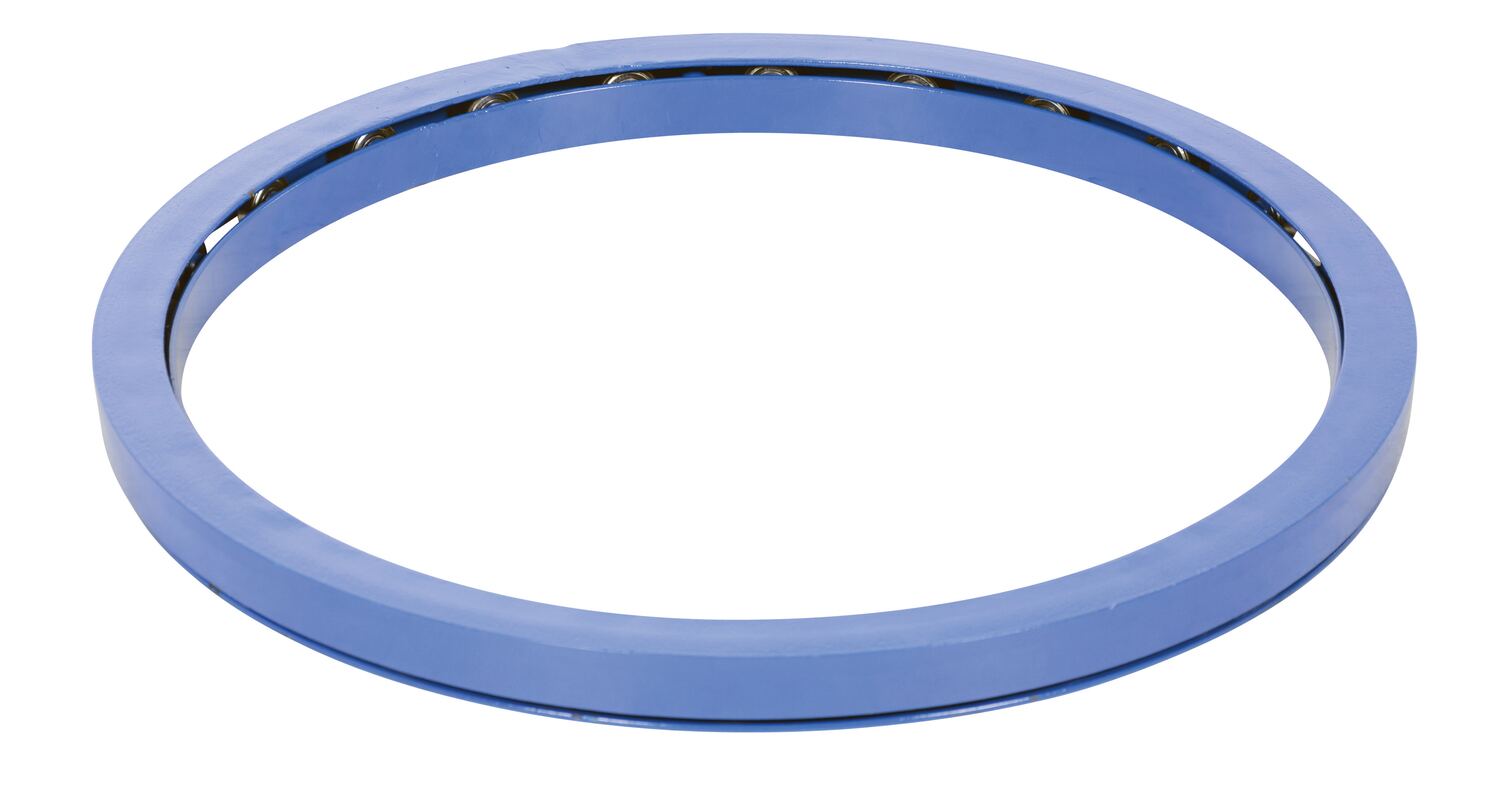

CA-30-4 CA-30-4Steel Manual Carousel 30 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
36
CA-30-4-TP-RSM CA-30-4-TP-RSMSteel 30 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
120
CA-30-4-TP-RTP CA-30-4-TP-RTPSteel 30 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
120
CA-30-4-TP-SSM CA-30-4-TP-SSMSteel 30 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
133
CA-30-4-TP-STP CA-30-4-TP-STPSteel 30 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
133

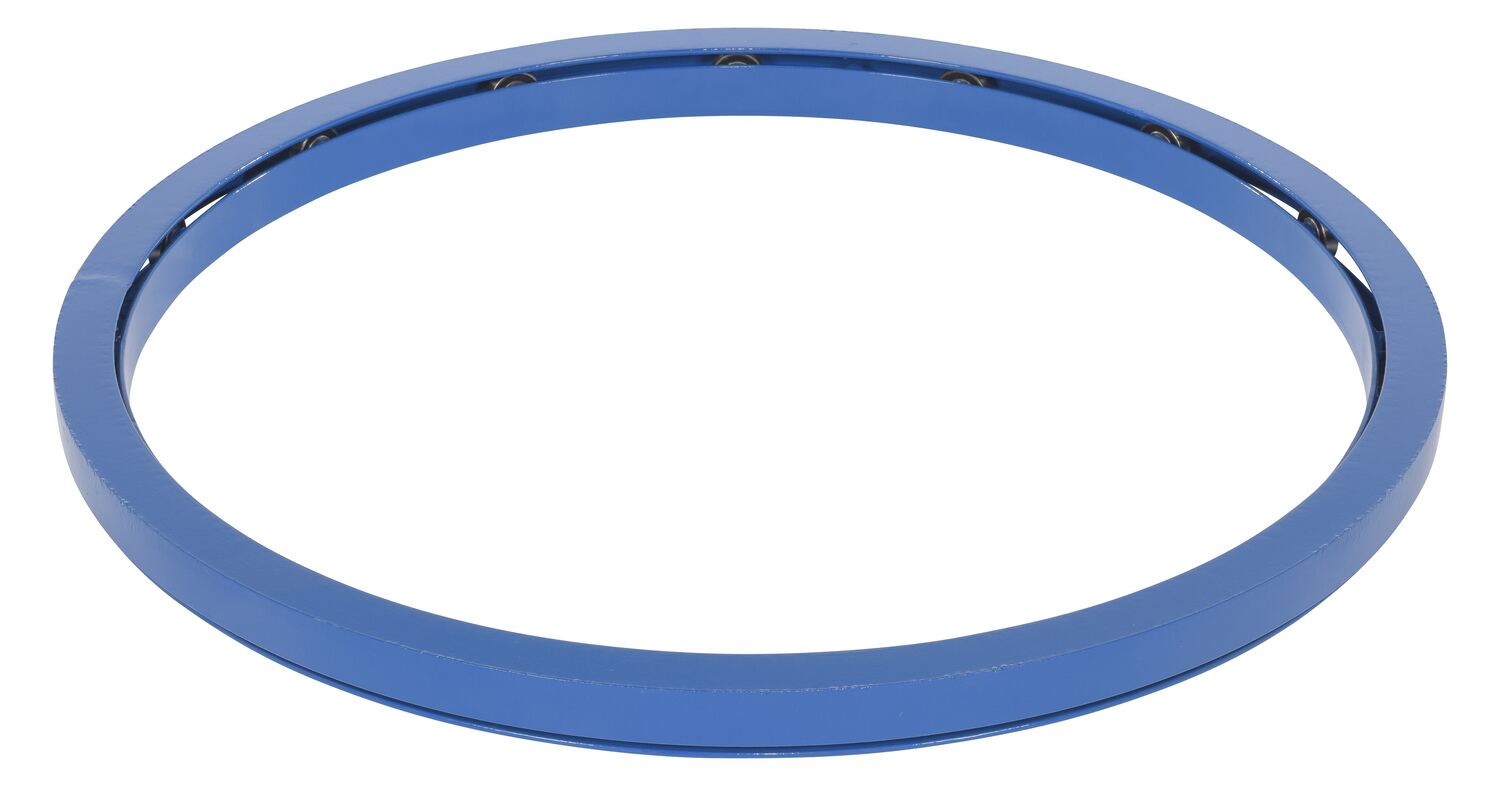

CA-36-2 CA-36-2Steel Manual Carousel 36 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
41
CA-36-2-TP-RSM CA-36-2-TP-RSMSteel 36 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
145
CA-36-2-TP-RTP CA-36-2-TP-RTPSteel 36 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
145
CA-36-2-TP-SSM CA-36-2-TP-SSMSteel 36 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
164
CA-36-2-TP-STP CA-36-2-TP-STPSteel 36 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
164

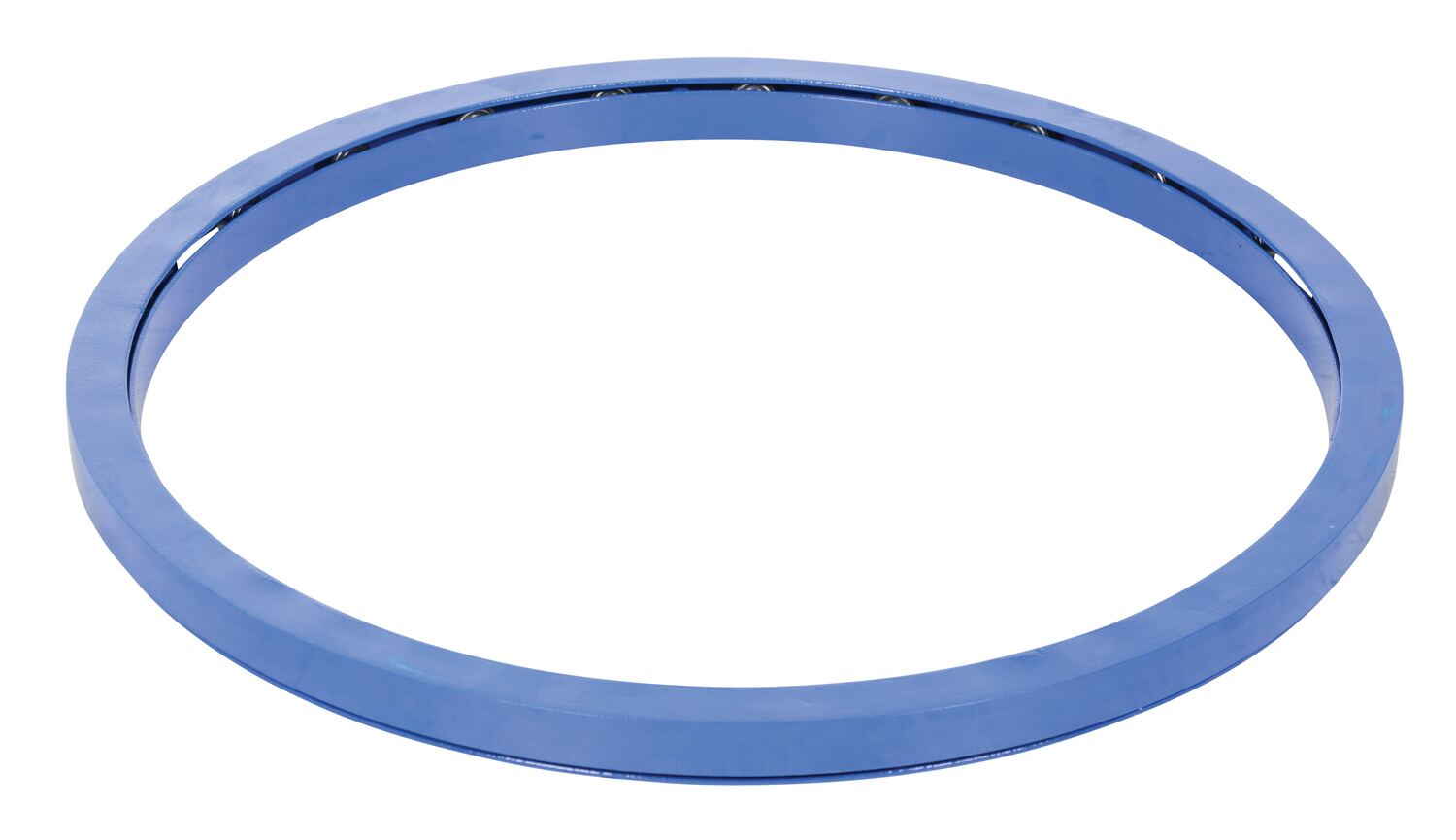

CA-36-4 CA-36-4Steel Manual Carousel 36 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
45
CA-36-4-TP-RSM CA-36-4-TP-RSMSteel 36 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
147
CA-36-4-TP-RTP CA-36-4-TP-RTPSteel 36 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
147
CA-36-4-TP-SSM CA-36-4-TP-SSMSteel 36 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
167
CA-36-4-TP-STP CA-36-4-TP-STPSteel 36 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
167

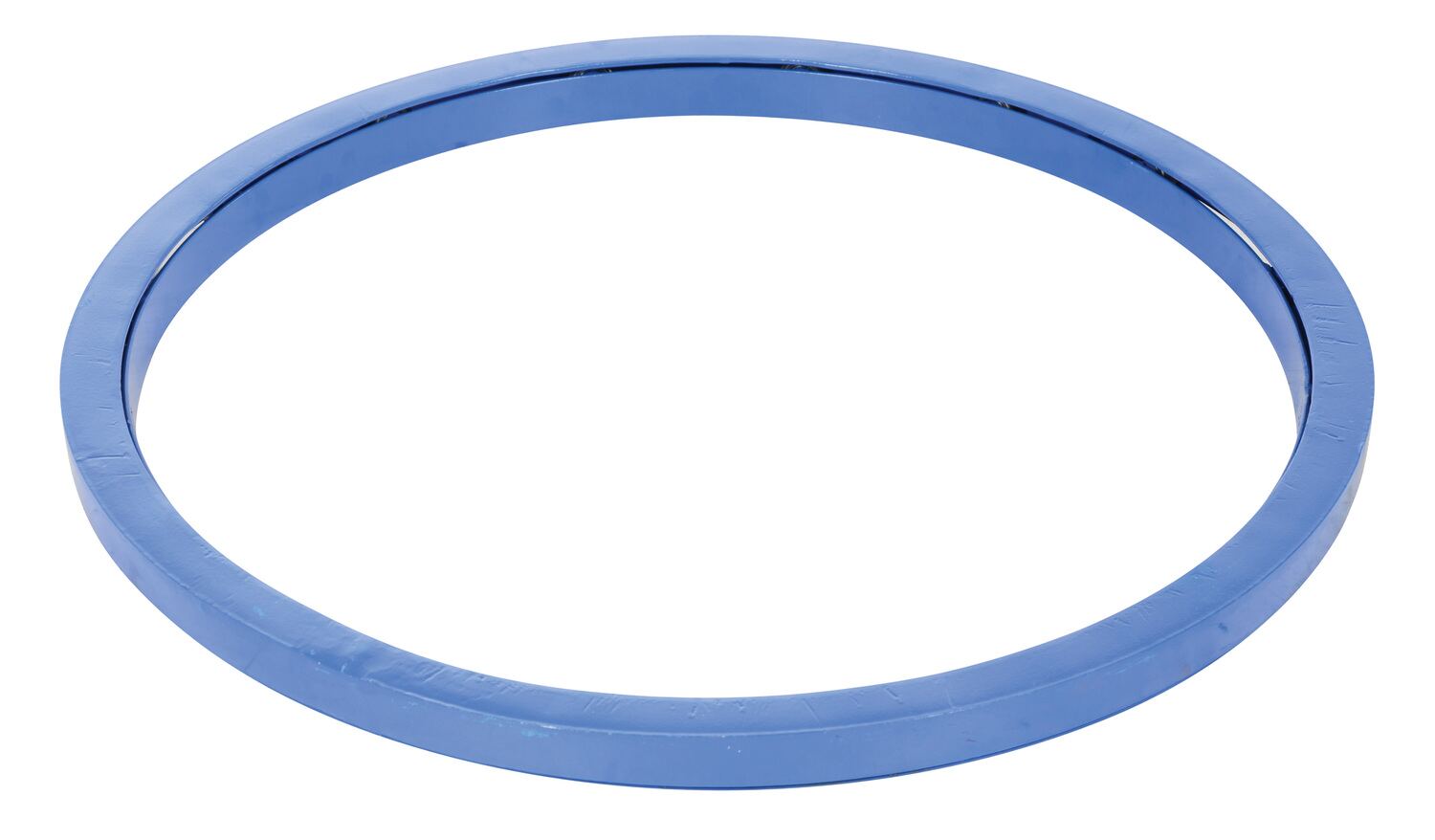

CA-40-2 CA-40-2Steel Manual Carousel 40 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
47
CA-40-2-TP-RSM CA-40-2-TP-RSMSteel 40 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
165
CA-40-2-TP-RTP CA-40-2-TP-RTPSteel 40 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
165
CA-40-2-TP-SSM CA-40-2-TP-SSMSteel 40 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
190
CA-40-2-TP-STP CA-40-2-TP-STPSteel 40 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
190

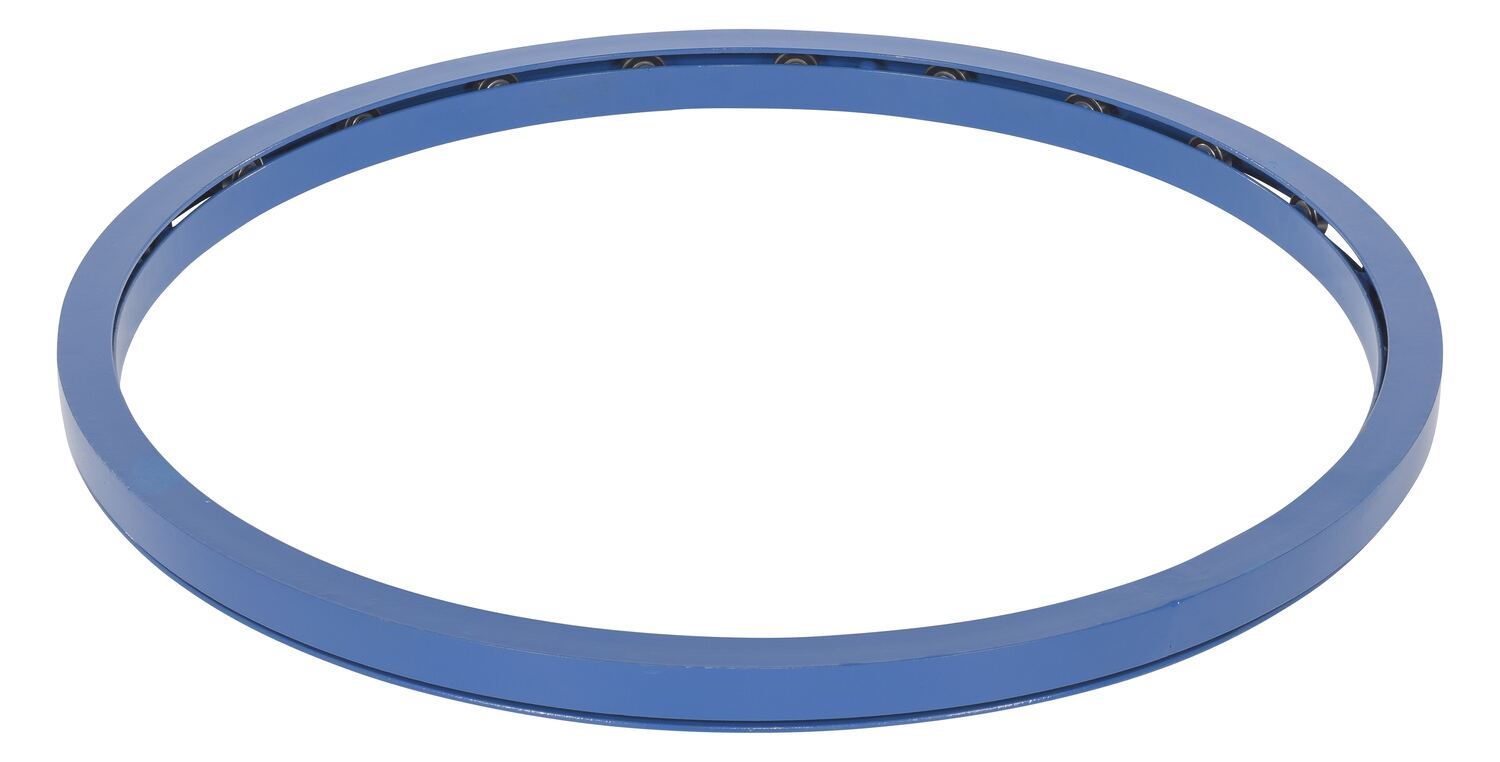

CA-40-4 CA-40-4Steel Manual Carousel 40 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
49
CA-40-4-TP-RSM CA-40-4-TP-RSMSteel 40 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
168
CA-40-4-TP-RTP CA-40-4-TP-RTPSteel 40 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
168
CA-40-4-TP-SSM CA-40-4-TP-SSMSteel 40 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
192
CA-40-4-TP-STP CA-40-4-TP-STPSteel 40 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
192

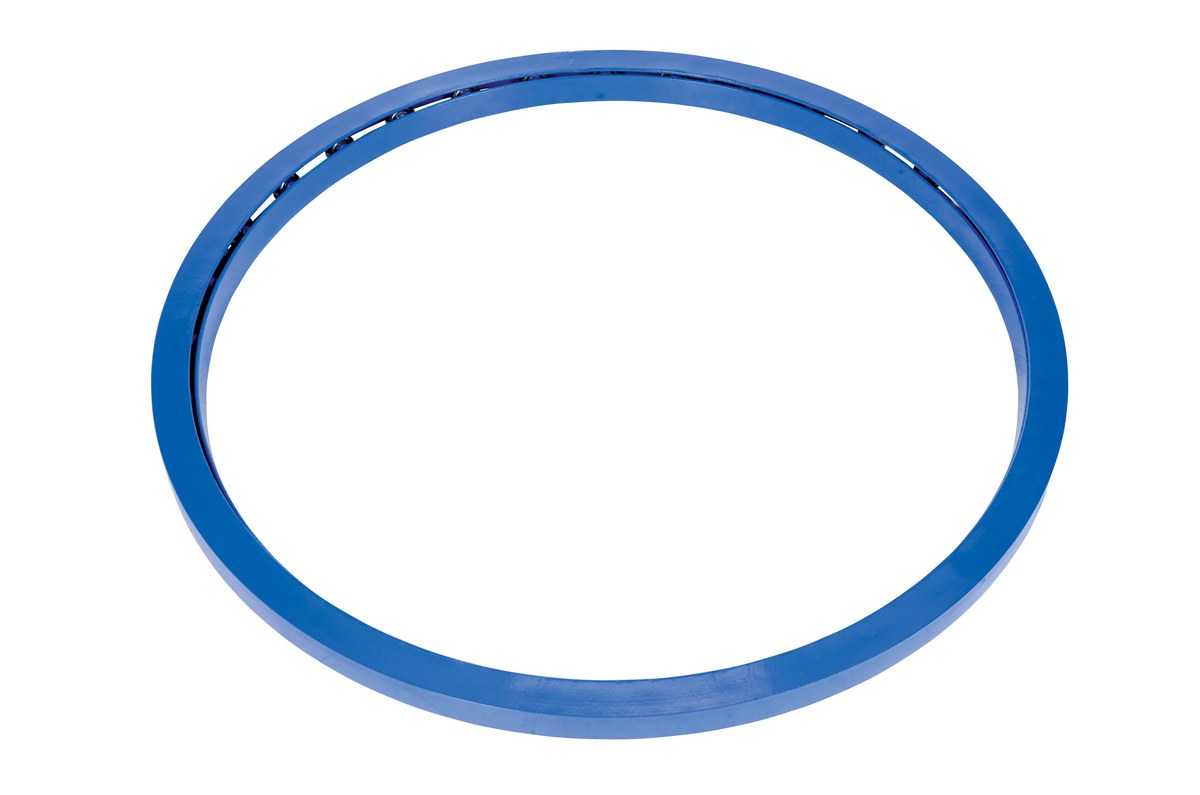

CA-40-6 CA-40-6Steel Manual Carousel 40 In. Diameter 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Rotation (degrees): 360
51
CA-40-6-TP-RSM CA-40-6-TP-RSMSteel 40 In. Carousel, 6K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
170

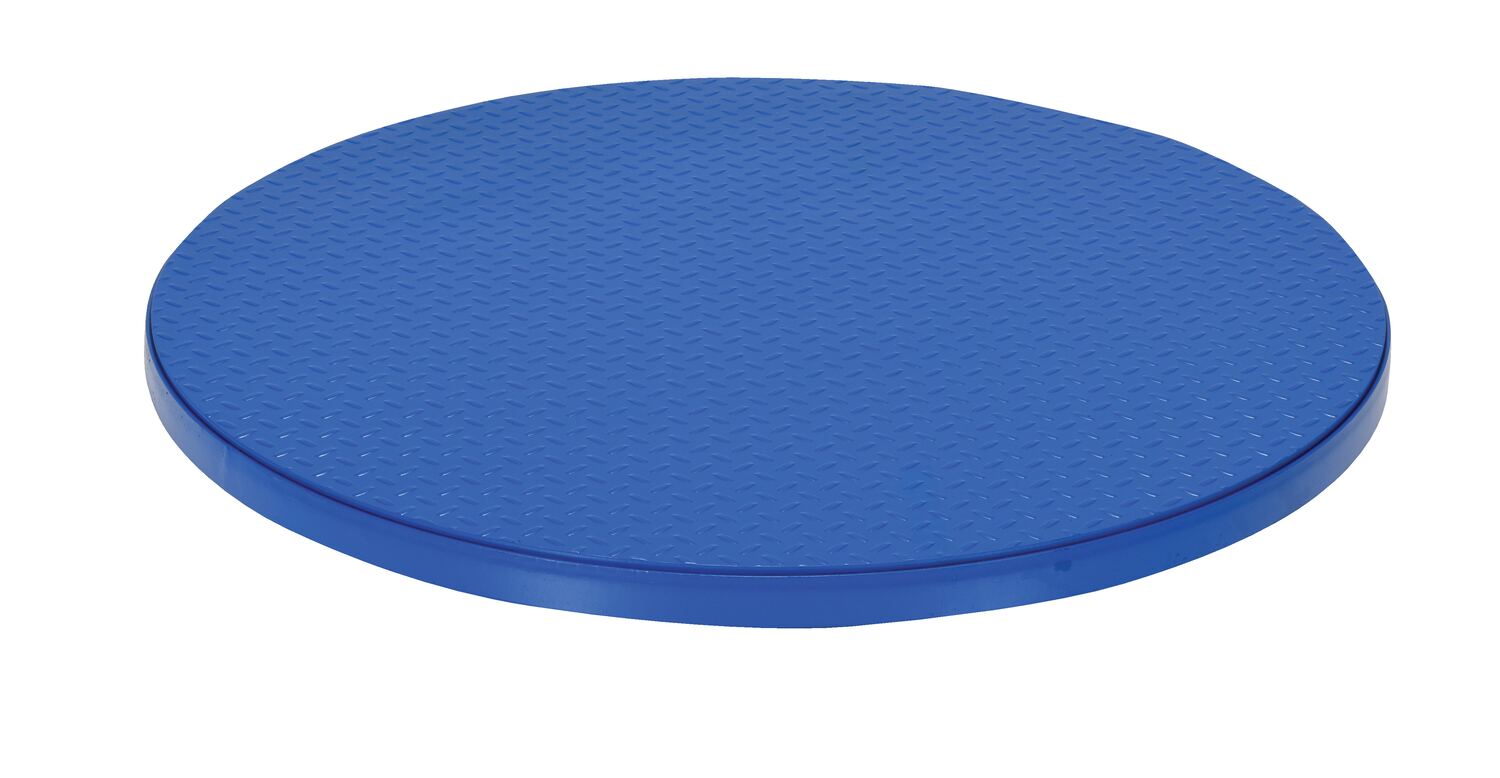

CA-40-6-TP-RTP CA-40-6-TP-RTPSteel 40 In. Carousel, 6K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
170
CA-40-6-TP-SSM CA-40-6-TP-SSMSteel 40 In. Carousel, 6K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
194
CA-40-6-TP-STP CA-40-6-TP-STPSteel 40 In. Carousel, 6K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
194

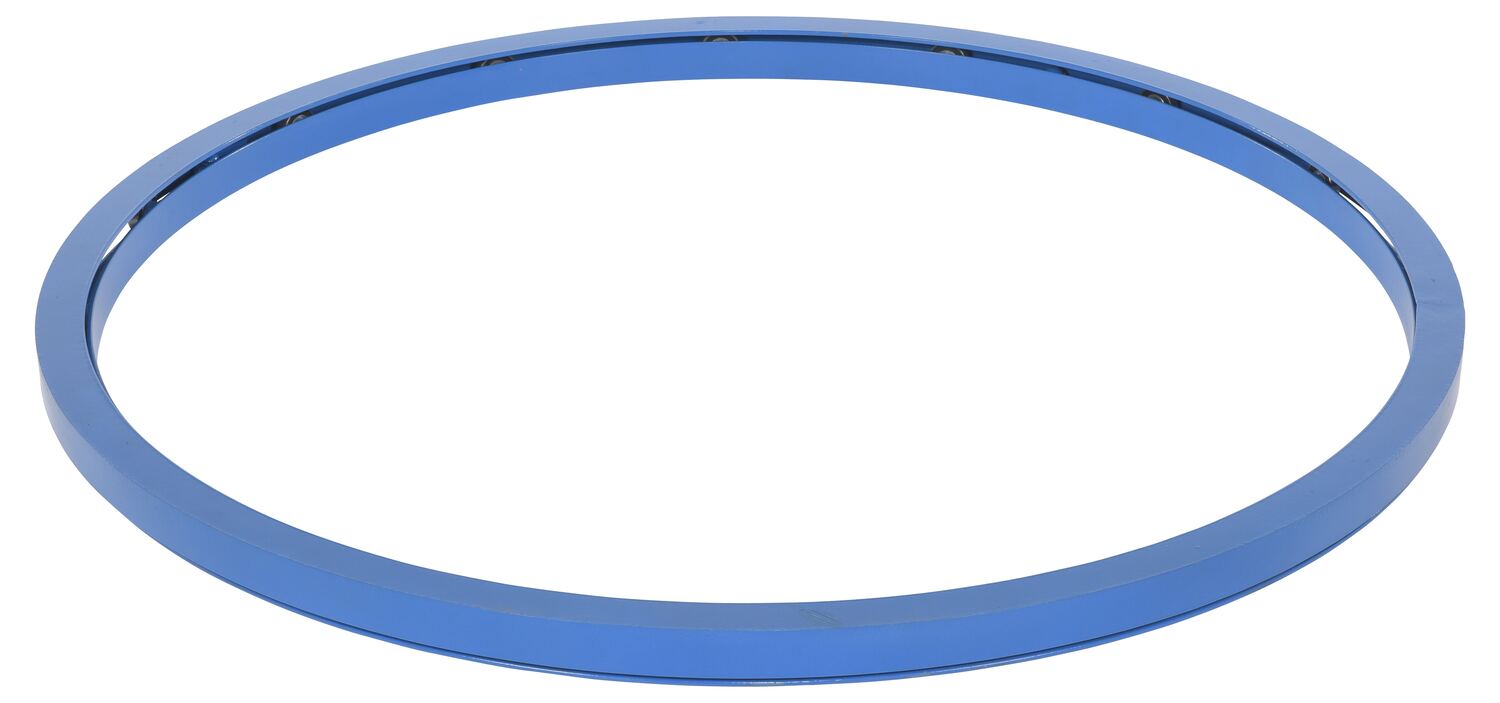

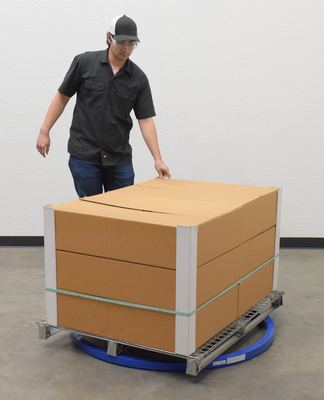

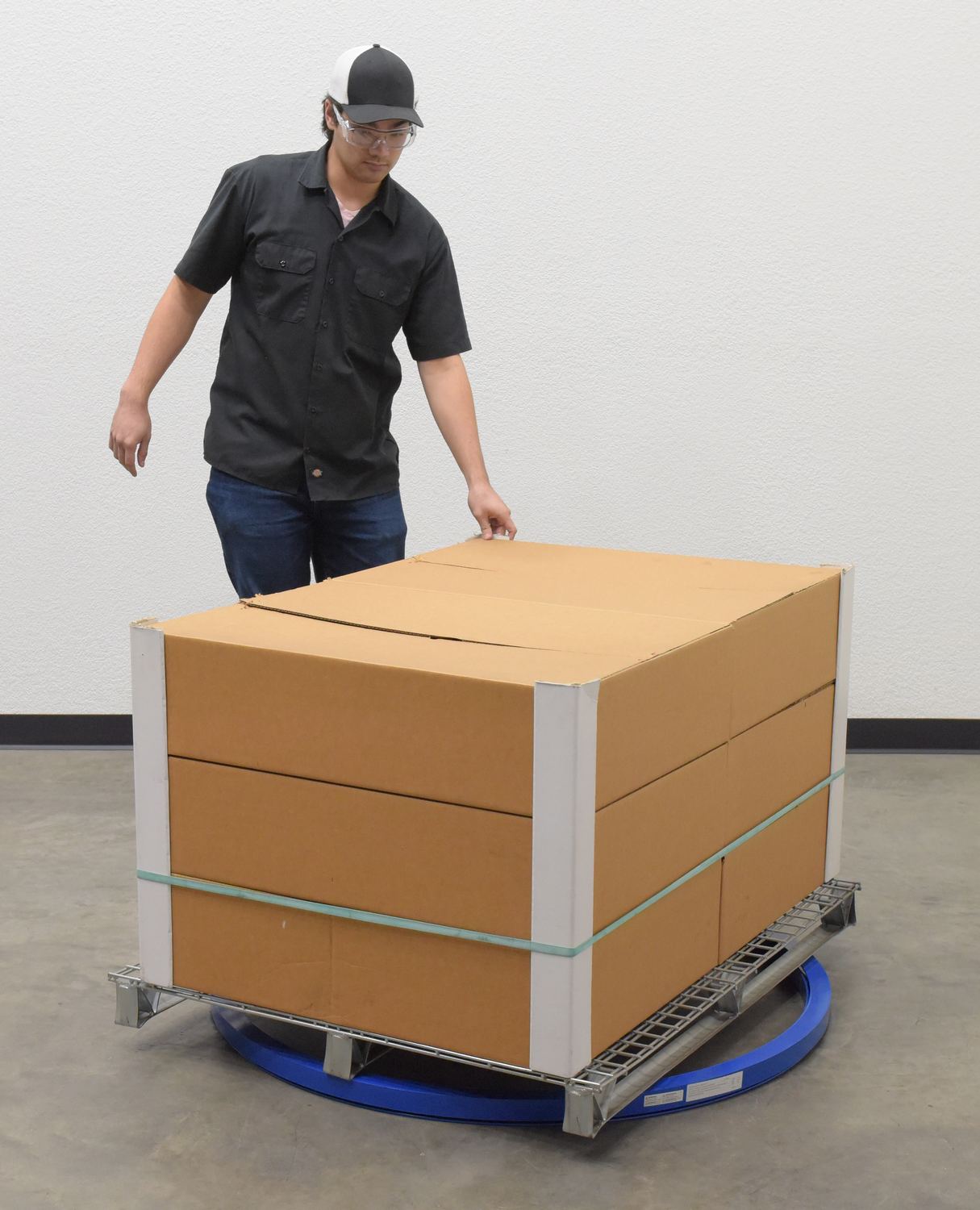

CA-48-2 CA-48-2Steel Manual Carousel 48 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
71
CA-48-2-TP-RSM CA-48-2-TP-RSMSteel 48 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
224
CA-48-2-TP-RTP CA-48-2-TP-RTPSteel 48 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
224
CA-48-2-TP-SSM CA-48-2-TP-SSMSteel 48 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
259

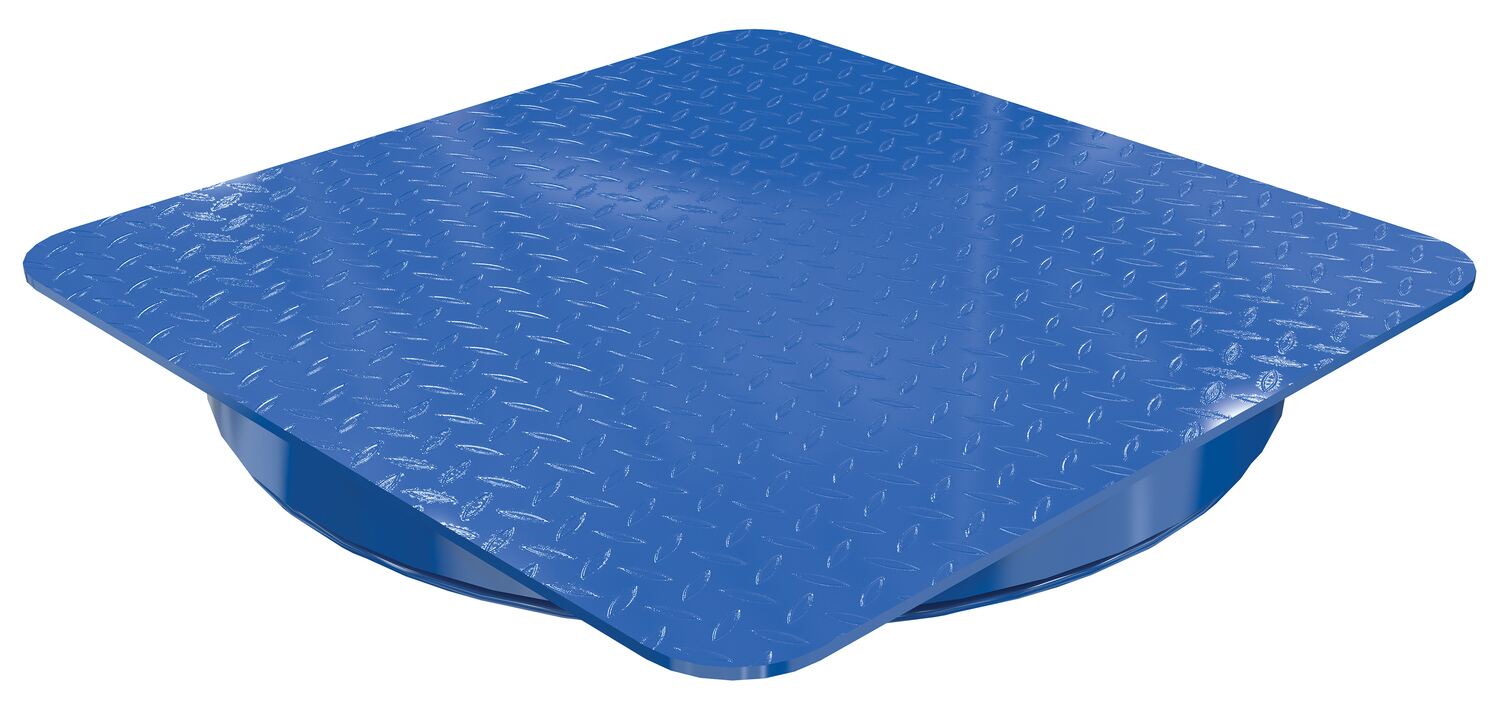

CA-48-2-TP-STP CA-48-2-TP-STPSteel 48 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
259

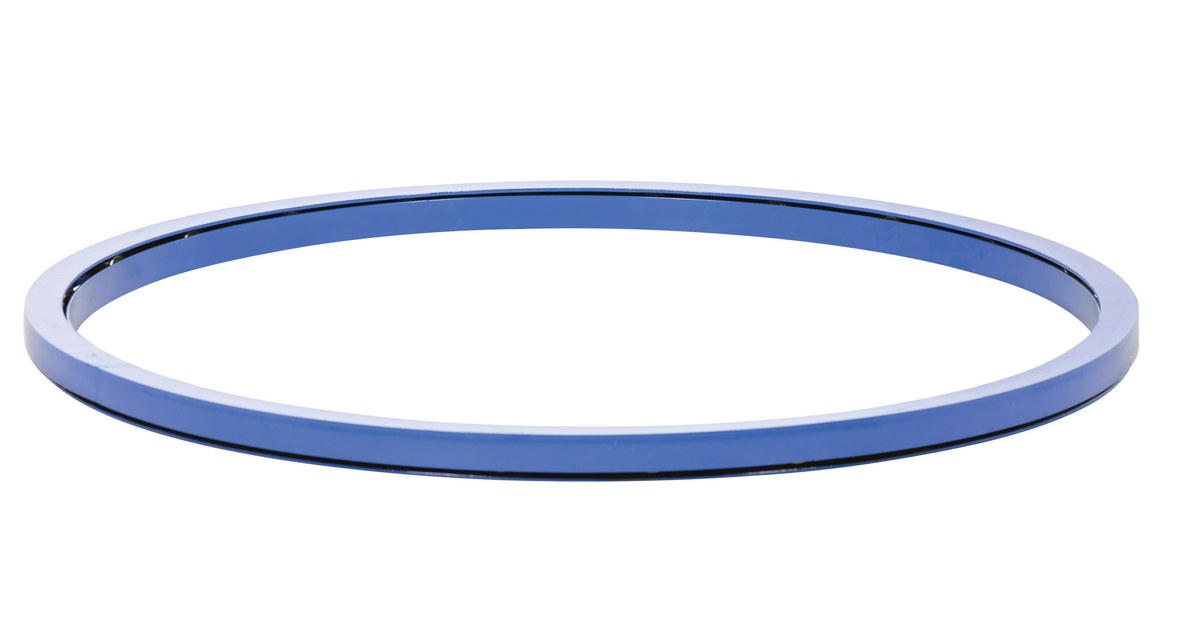

CA-48-4 CA-48-4Steel Manual Carousel 48 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
86
CA-48-4-TP-RSM CA-48-4-TP-RSMSteel 48 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
226
CA-48-4-TP-RTP CA-48-4-TP-RTPSteel 48 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
226
CA-48-4-TP-SSM CA-48-4-TP-SSMSteel 48 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
261
CA-48-4-TP-STP CA-48-4-TP-STPSteel 48 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
261
CA-48-6 CA-48-6Steel Manual Carousel 48 In. Diameter 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Rotation (degrees): 360
97
CA-48-6-TP-RSM CA-48-6-TP-RSMSteel 48 In. Carousel, 6K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
229

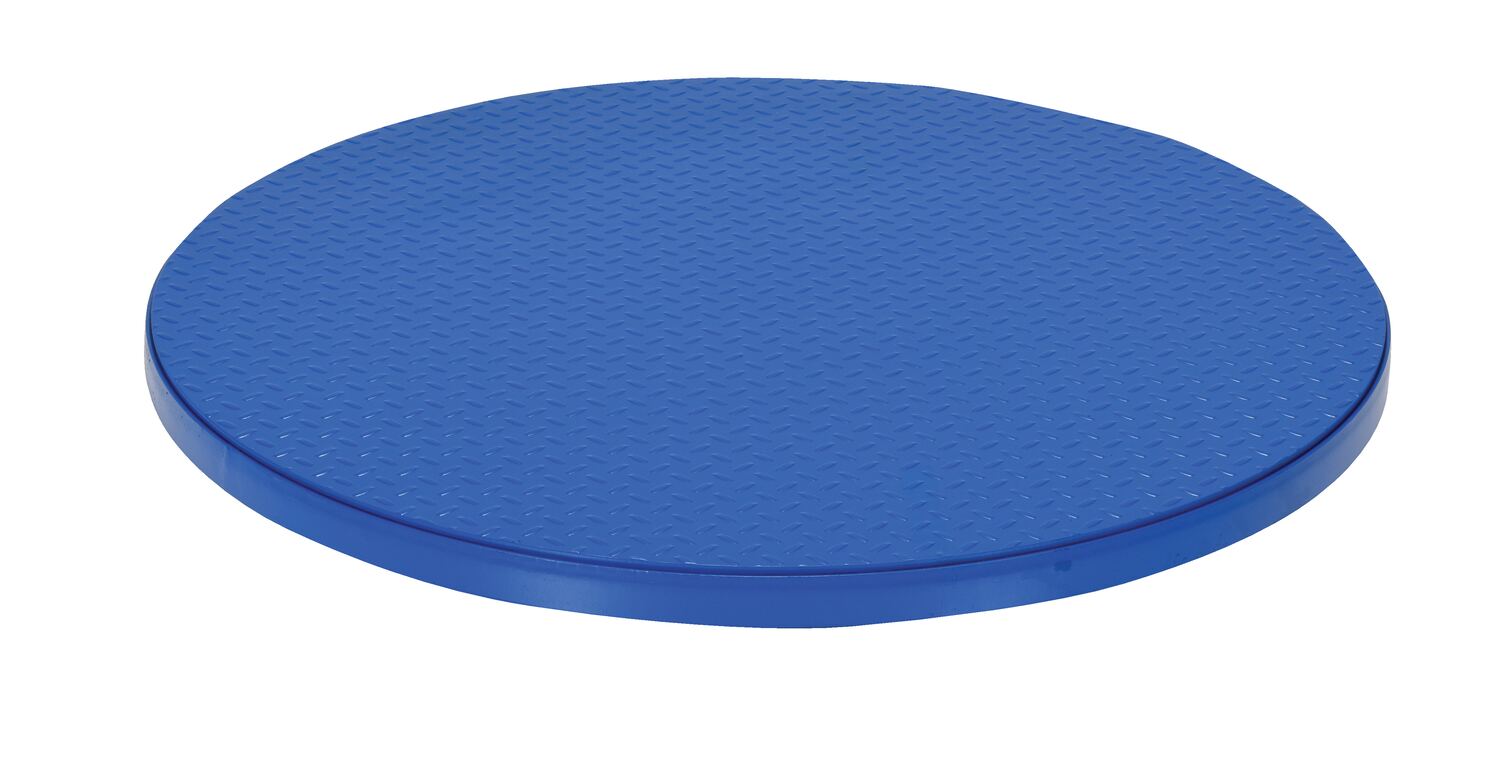

CA-48-6-TP-RTP CA-48-6-TP-RTPSteel 48 In. Carousel, 6K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
229
CA-48-6-TP-SSM CA-48-6-TP-SSMSteel 48 In. Carousel, 6K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
264
CA-48-6-TP-STP CA-48-6-TP-STPSteel 48 In. Carousel, 6K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
264

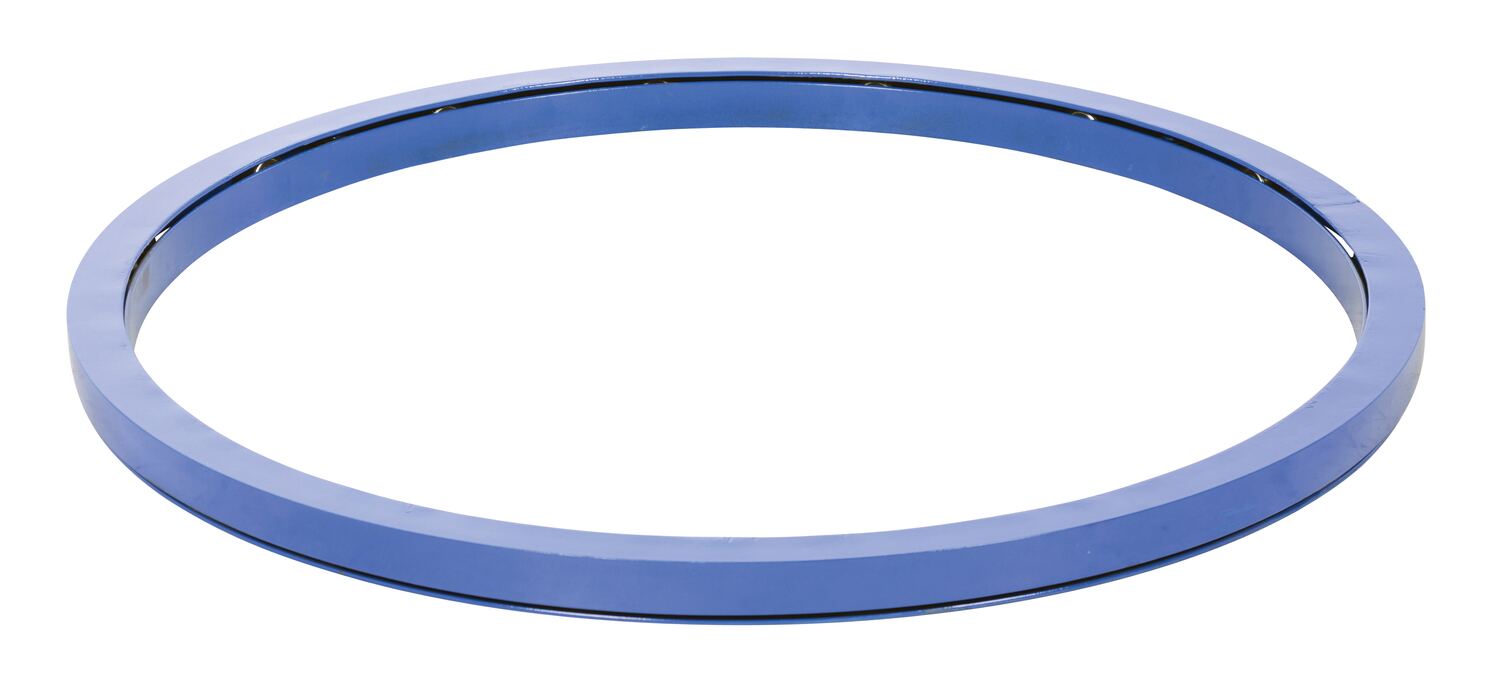

CA-60-2 CA-60-2Steel Manual Carousel 60 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
110
CA-60-2-TP-RSM CA-60-2-TP-RSMSteel 60 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
300
CA-60-2-TP-RTP CA-60-2-TP-RTPSteel 60 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
300
CA-60-2-TP-SSM CA-60-2-TP-SSMSteel 60 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
355
CA-60-2-TP-STP CA-60-2-TP-STPSteel 60 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
341

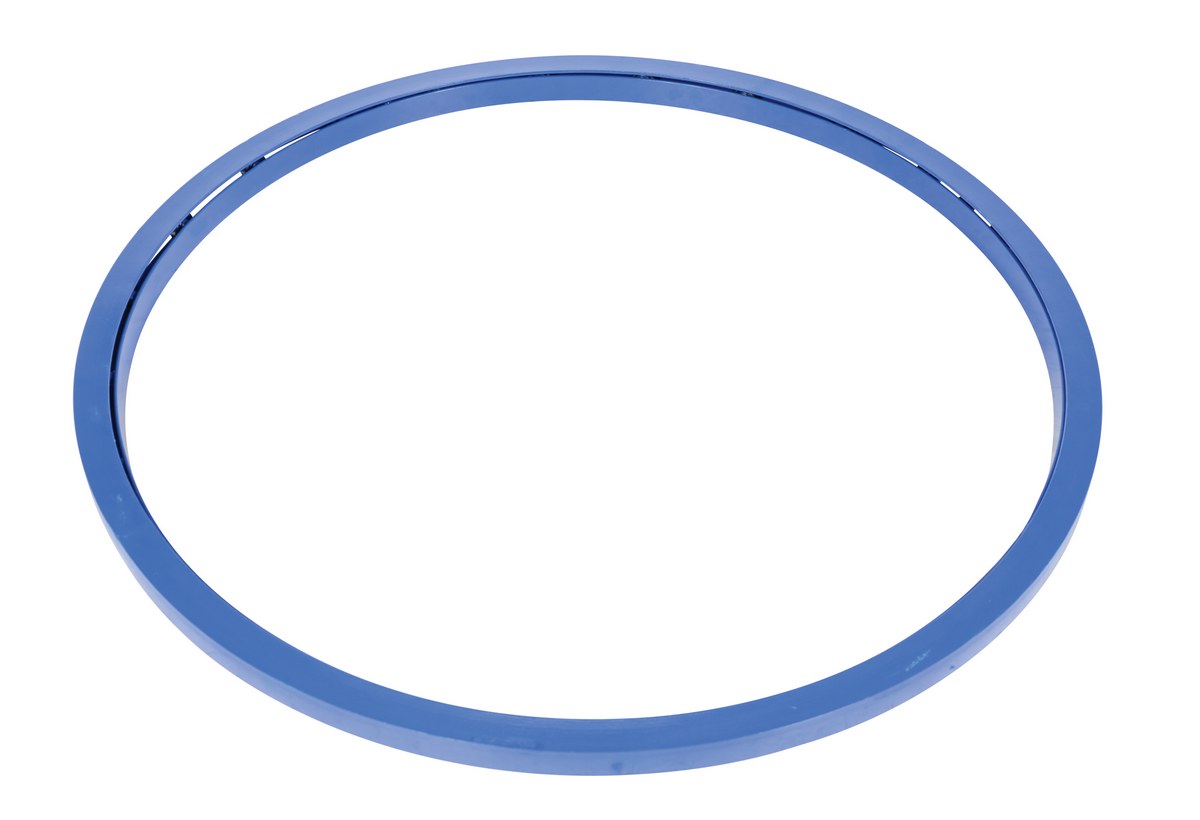

CA-60-4 CA-60-4Steel Manual Carousel 60 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
116

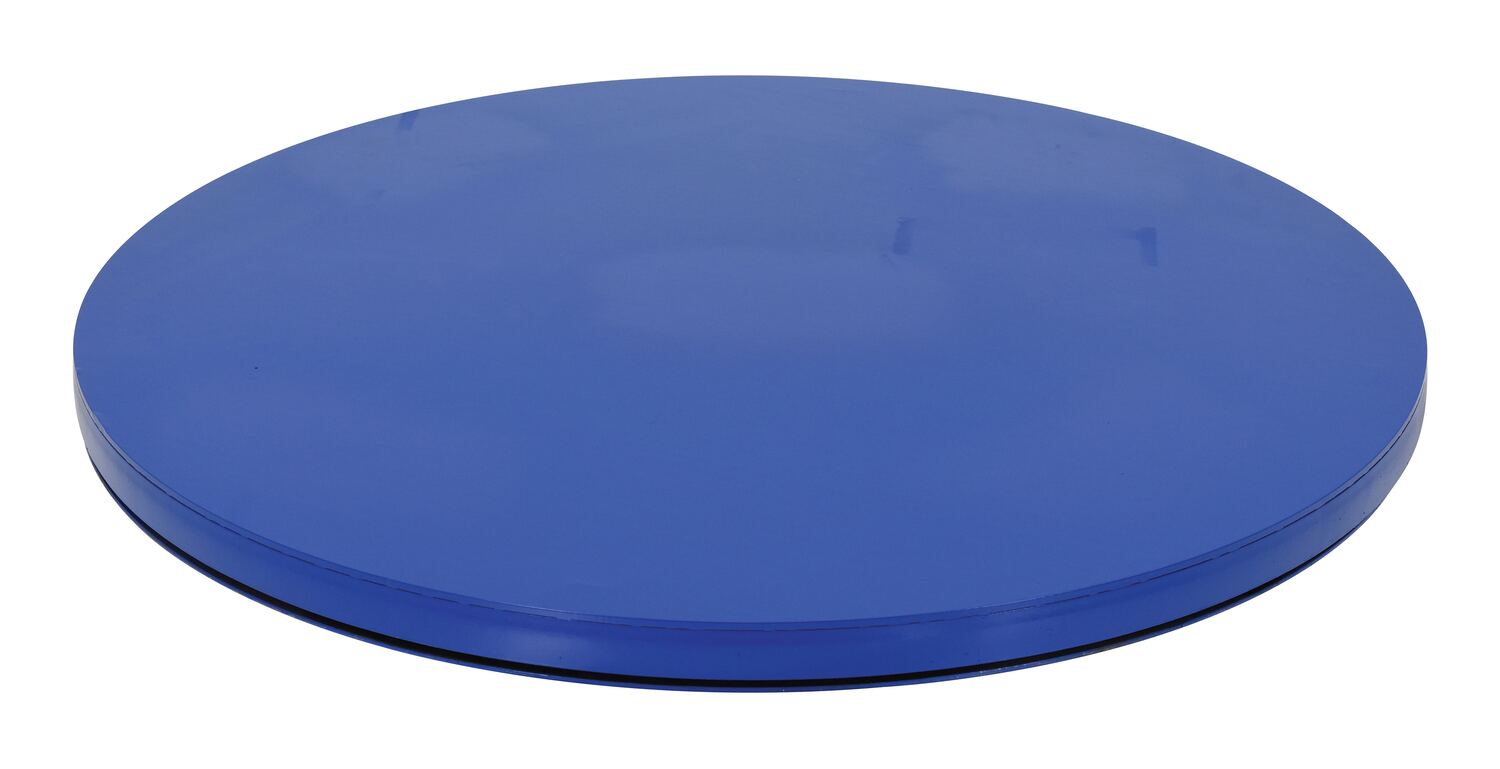

CA-60-4-TP-RSM CA-60-4-TP-RSMSteel 60 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
303
CA-60-4-TP-RTP CA-60-4-TP-RTPSteel 60 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
303

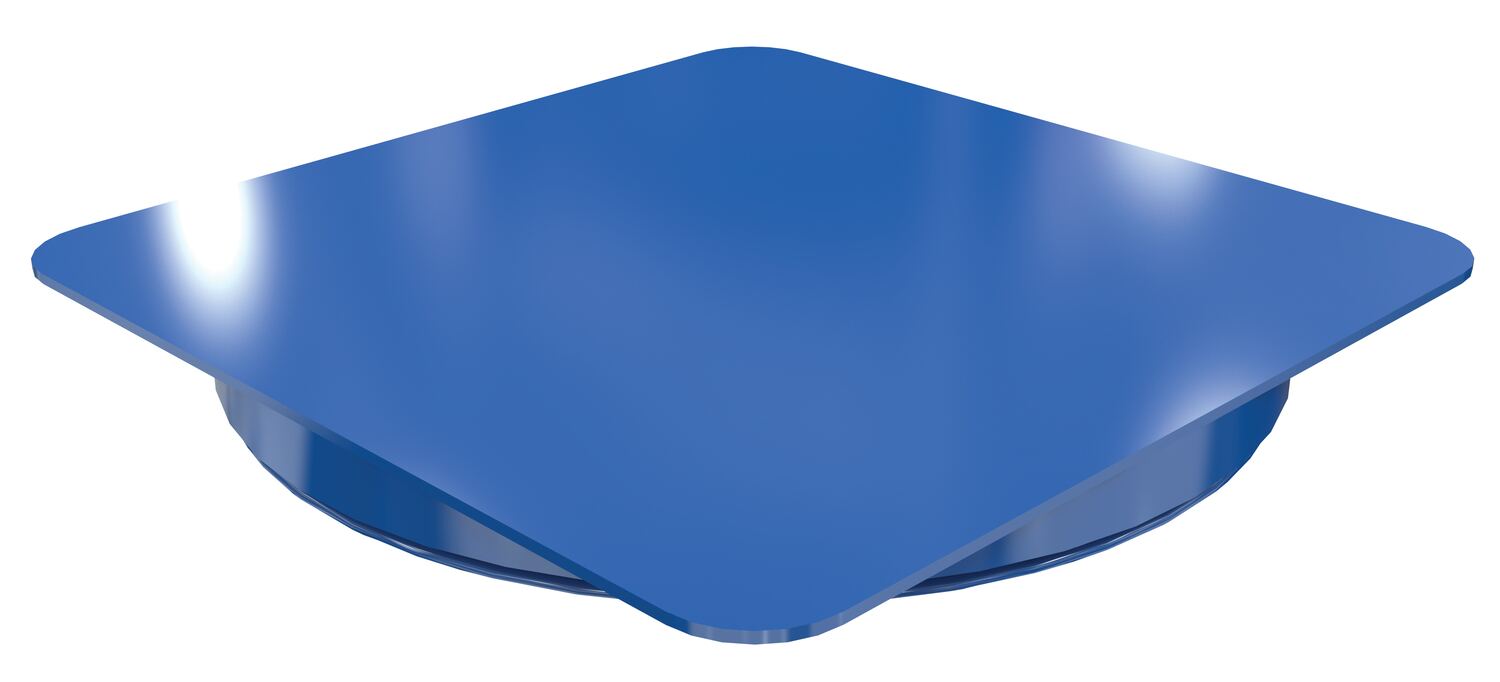

CA-60-4-TP-SSM CA-60-4-TP-SSMSteel 60 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
357
CA-60-4-TP-STP CA-60-4-TP-STPSteel 60 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
357

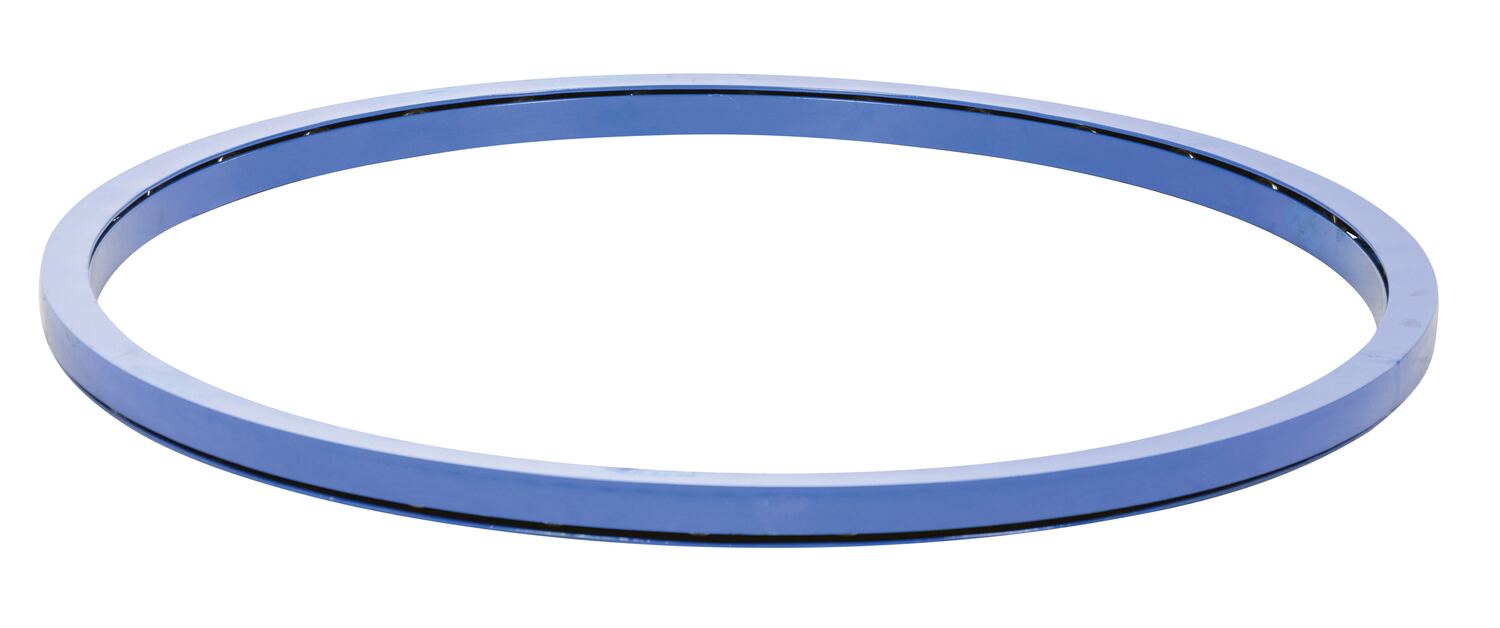

CA-60-6 CA-60-6Steel Manual Carousel 60 In. Diameter 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Rotation (degrees): 360
128
CA-60-6-TP-RSM CA-60-6-TP-RSMSteel 60 In. Carousel, 6K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
305
CA-60-6-TP-RTP CA-60-6-TP-RTPSteel 60 In. Carousel, 6K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
305
CA-60-6-TP-SSM CA-60-6-TP-SSMSteel 60 In. Carousel, 6K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
360
CA-60-6-TP-STP CA-60-6-TP-STPSteel 60 In. Carousel, 6K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
360
CA-72-2 CA-72-2Steel Manual Carousel 72 In. Diameter 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Rotation (degrees): 360
138
CA-72-2-TP-RSM CA-72-2-TP-RSMSteel 72 In. Carousel, 2K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
400
CA-72-2-TP-RTP CA-72-2-TP-RTPSteel 72 In. Carousel, 2K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
400
CA-72-2-TP-SSM CA-72-2-TP-SSMSteel 72 In. Carousel, 2K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Smooth
478
CA-72-2-TP-STP CA-72-2-TP-STPSteel 72 In. Carousel, 2K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 2,000
Top Plate Style: Tread
478
CA-72-4 CA-72-4Steel Manual Carousel 72 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Rotation (degrees): 360
163
CA-72-4-TP-RSM CA-72-4-TP-RSMSteel 72 In. Carousel, 4K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
402
CA-72-4-TP-RTP CA-72-4-TP-RTPSteel 72 In. Carousel, 4K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
402
CA-72-4-TP-SSM CA-72-4-TP-SSMSteel 72 In. Carousel, 4K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Smooth
481
CA-72-4-TP-STP CA-72-4-TP-STPSteel 72 In. Carousel, 4K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 4,000
Top Plate Style: Tread
481
CA-72-6 CA-72-6Steel Manual Carousel 72 In. Diameter 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Rotation (degrees): 360
134
CA-72-6-TP-RSM CA-72-6-TP-RSMSteel 72 In. Carousel, 6K Capacity, Round Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
405
CA-72-6-TP-RTP CA-72-6-TP-RTPSteel 72 In. Carousel, 6K Capacity, Round Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
405
CA-72-6-TP-SSM CA-72-6-TP-SSMSteel 72 In. Carousel, 6K Capacity, Square Smooth Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Smooth
483
CA-72-6-TP-STP CA-72-6-TP-STPSteel 72 In. Carousel, 6K Capacity, Square Tread Top Plate BlueUniform Capacity (lb.): 6,000
Top Plate Style: Tread
483

Options


PLATF-MTG-CA MOUNTING OF CONVEYOR or CA-SERIES CAROUSEL TO PLATFORM
CA-HBK and CA-FTK Only Available with Round Top Plates.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
