Medium Duty Powered Stretch Wrap Machines

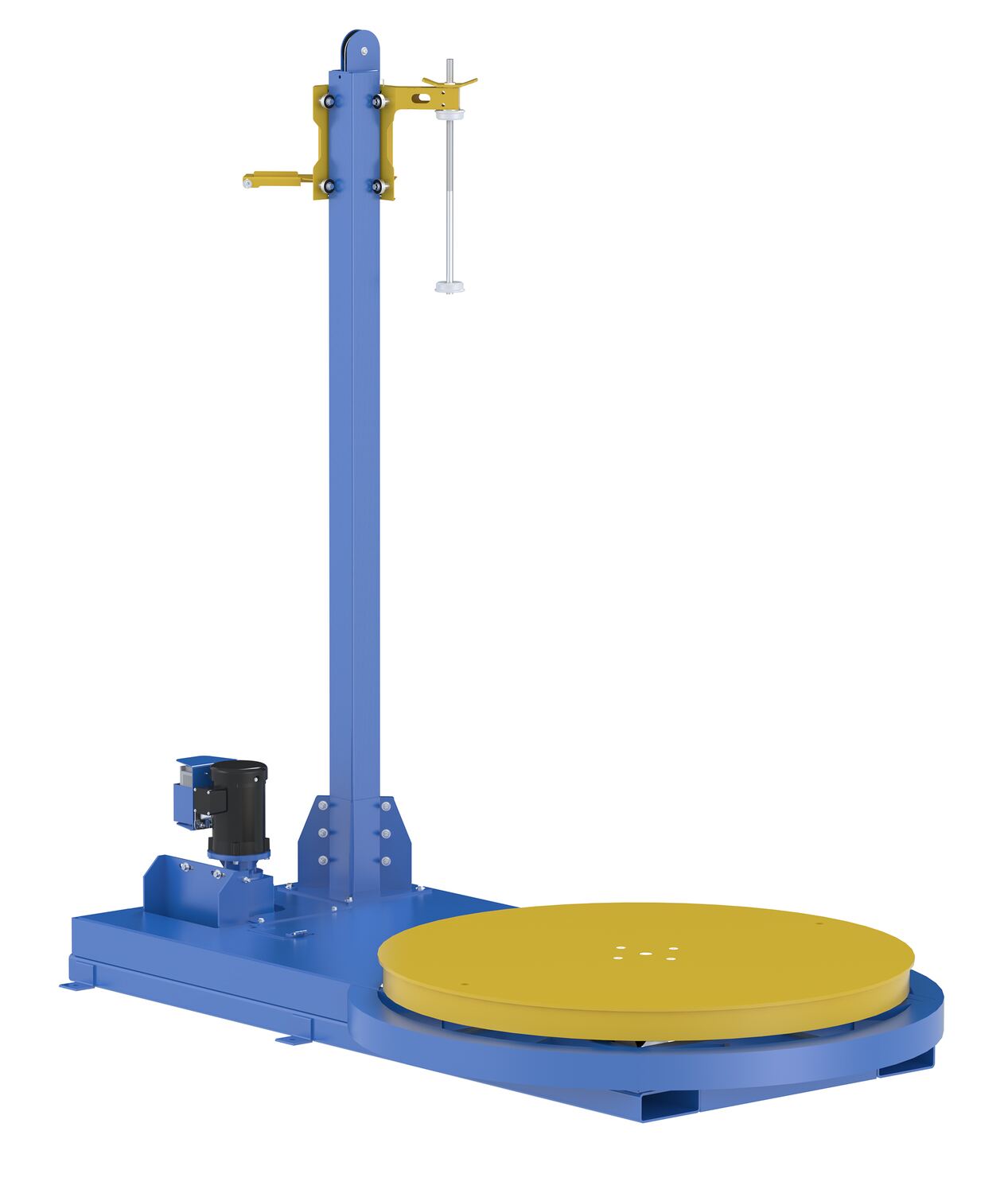

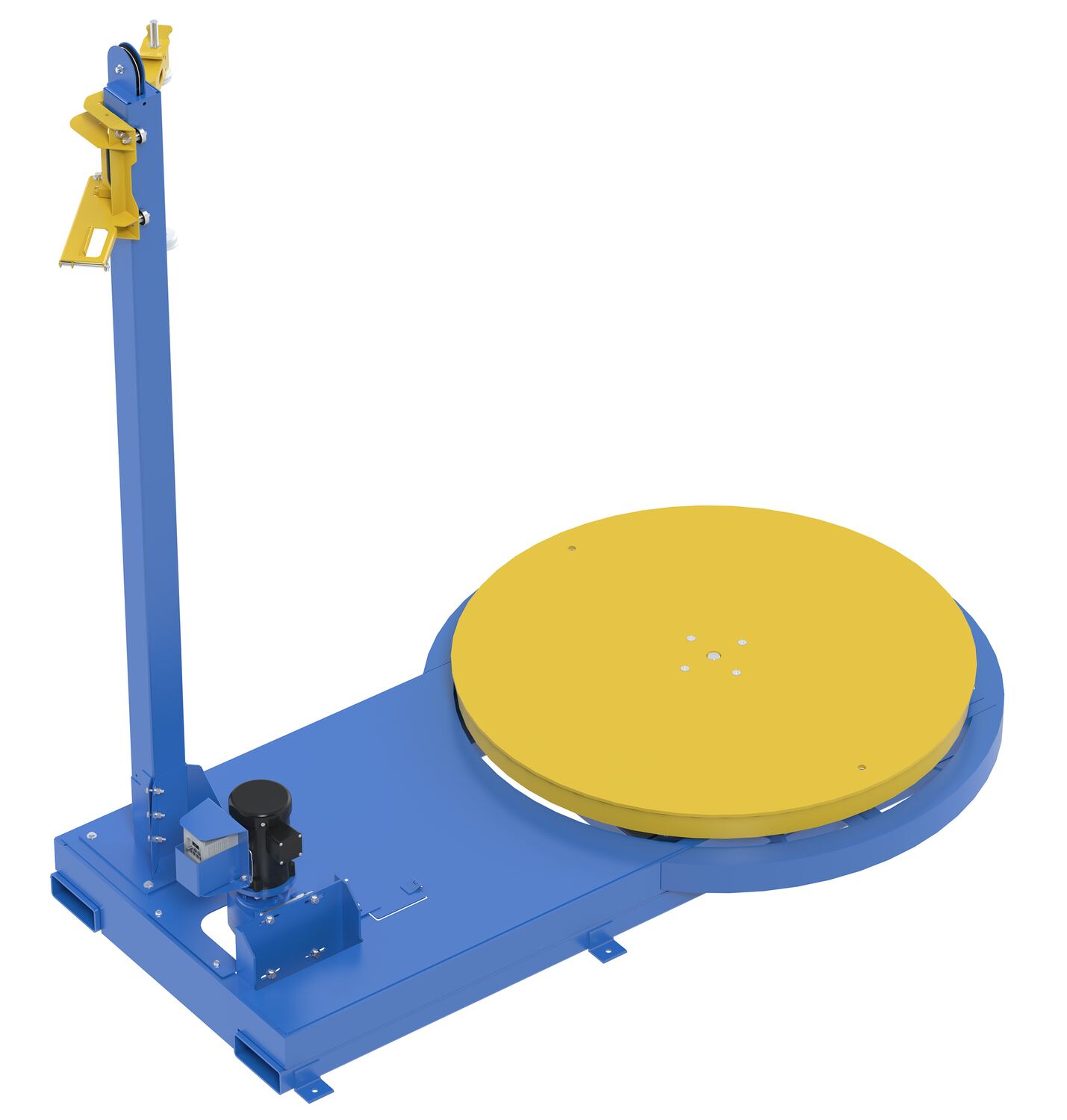

model: SWA-54

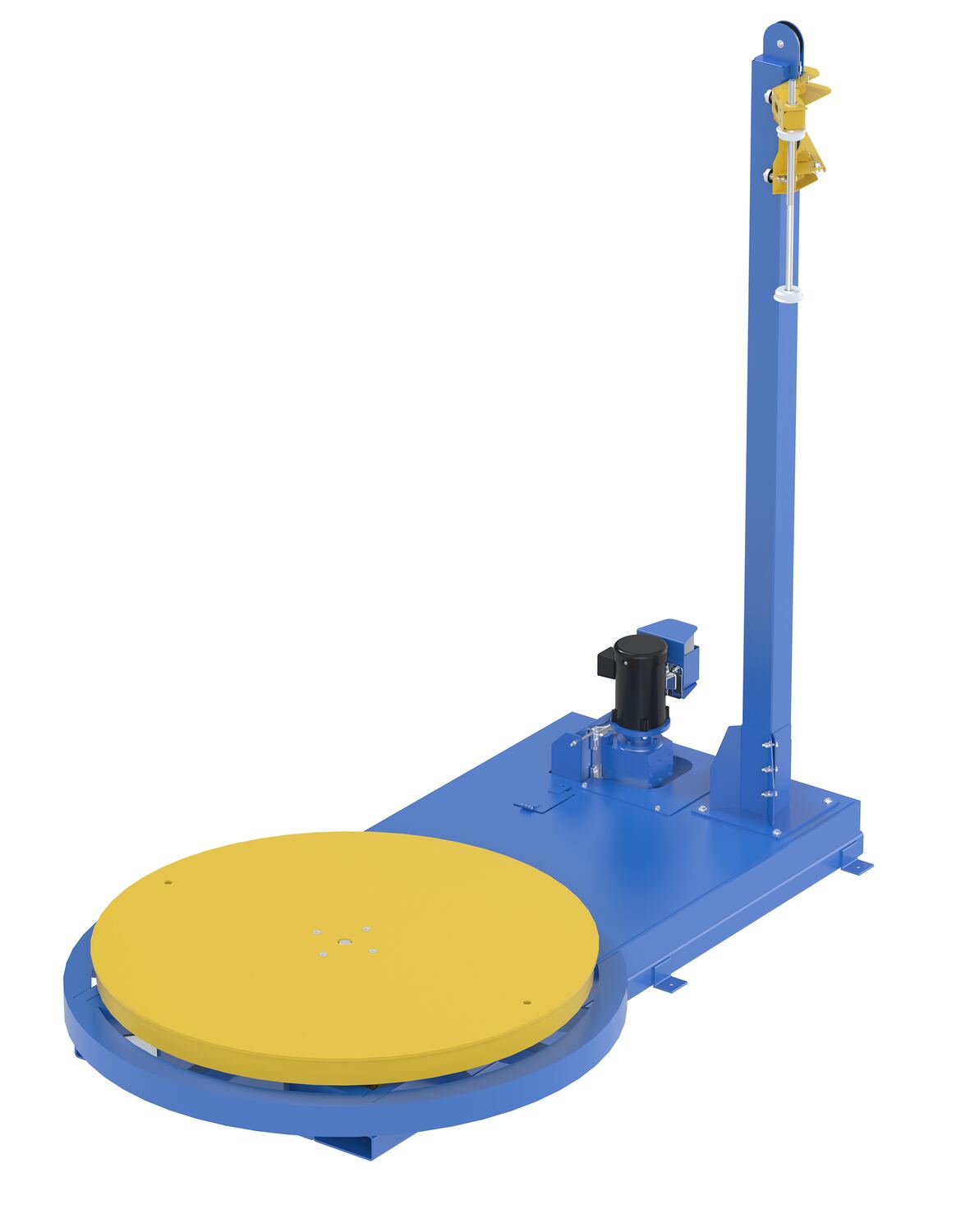

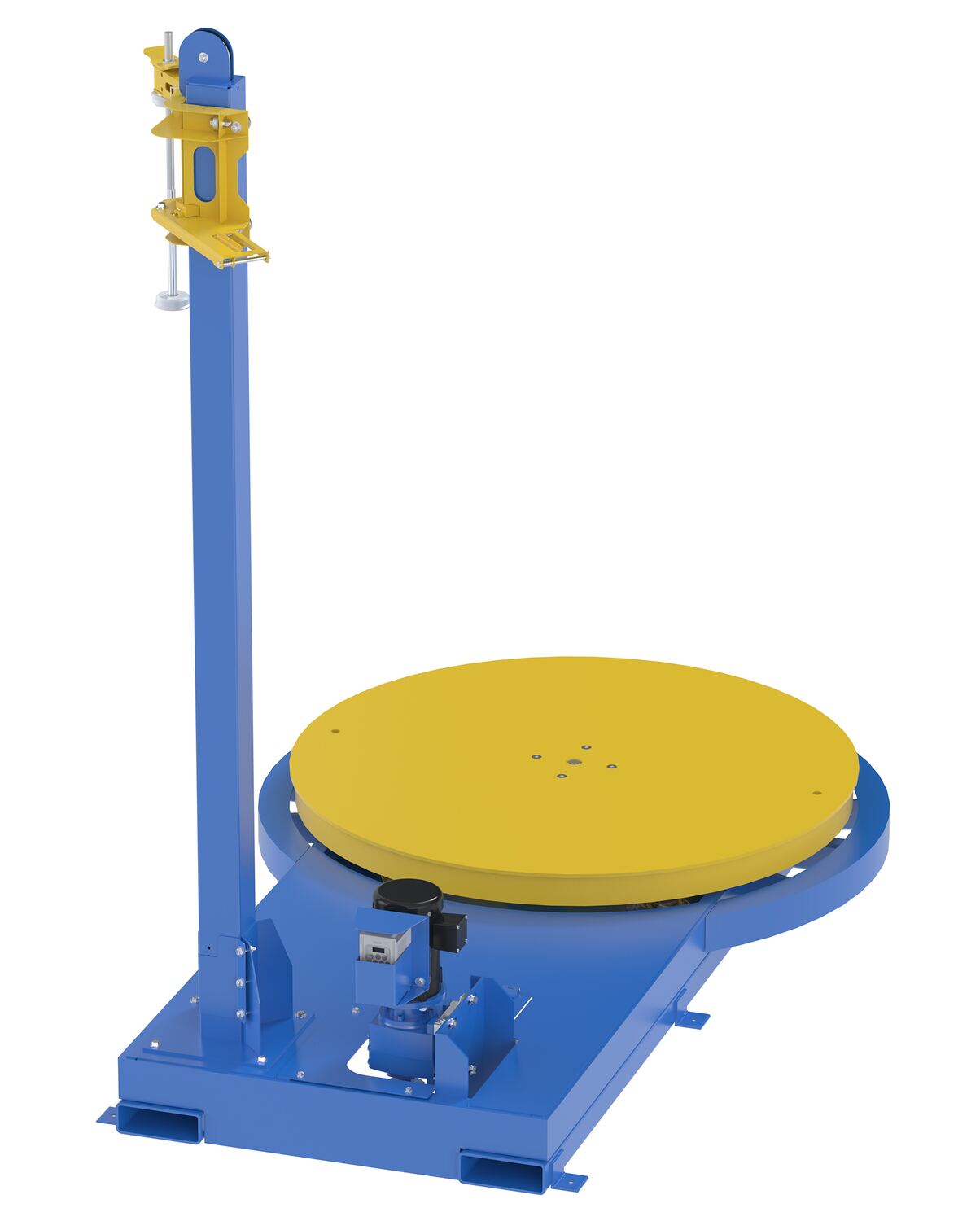

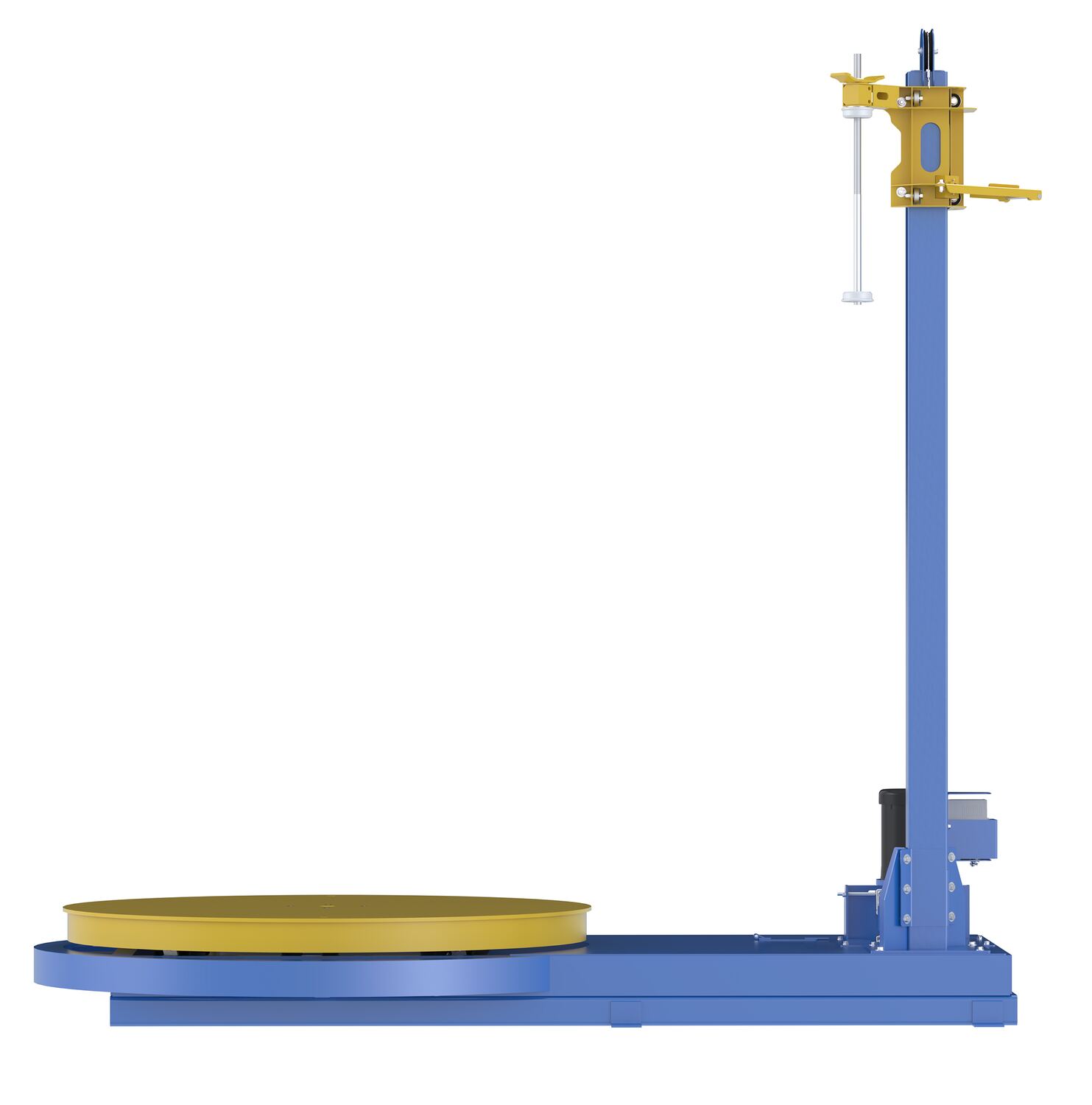

SWA-54_A.jpg SWA-54_B.jpg SWA-54_C.jpg SWA-54_D.jpg SWA-54_E.jpg More Images +
Medium Duty Powered Stretch Wrap Machines
SERIES: SWA

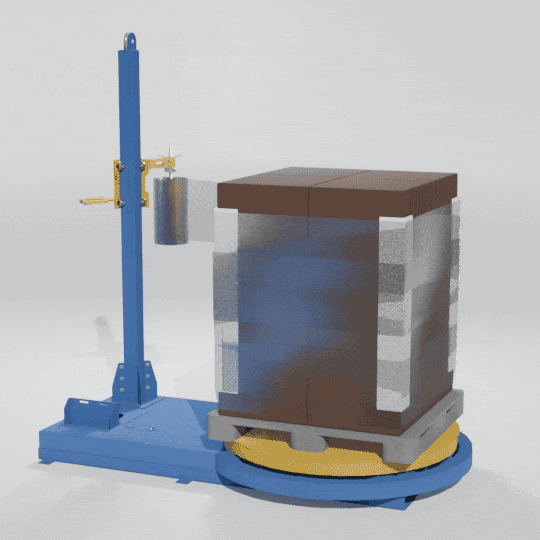

Vestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable (RPM is vairable from 3 and 12) and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.

Approach ramps and scales make a great addition to stretch wrap machines. The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use
Medium Duty Powered Stretch Wrap Machines

model: SWA-54

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SWA-54 SWA-541 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 54 In. Turntable Diameter 5,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54		1365

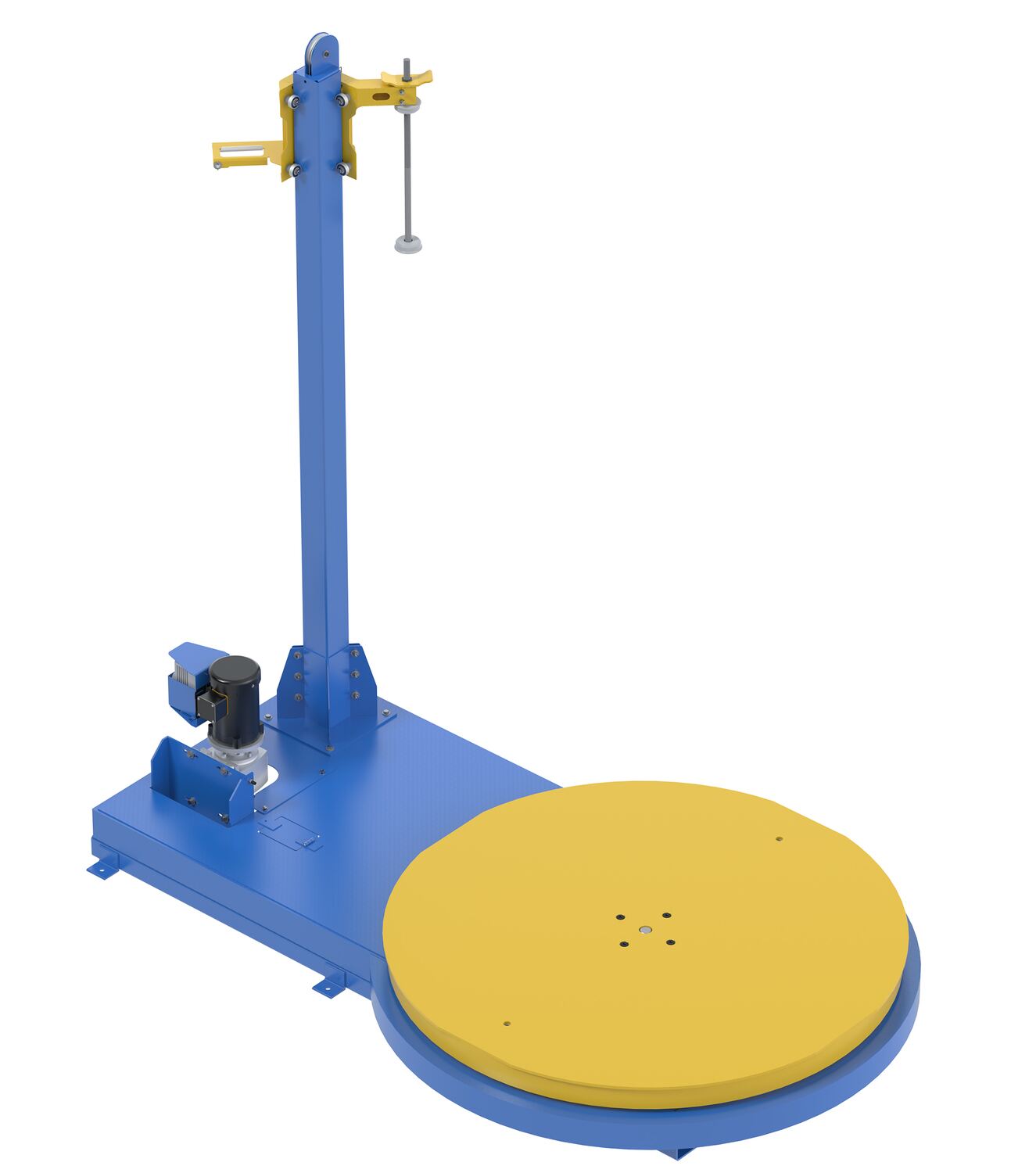

SWA-60 SWA-601 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 60 In. Turntable Diameter 5,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60		1393

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54

SWA-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

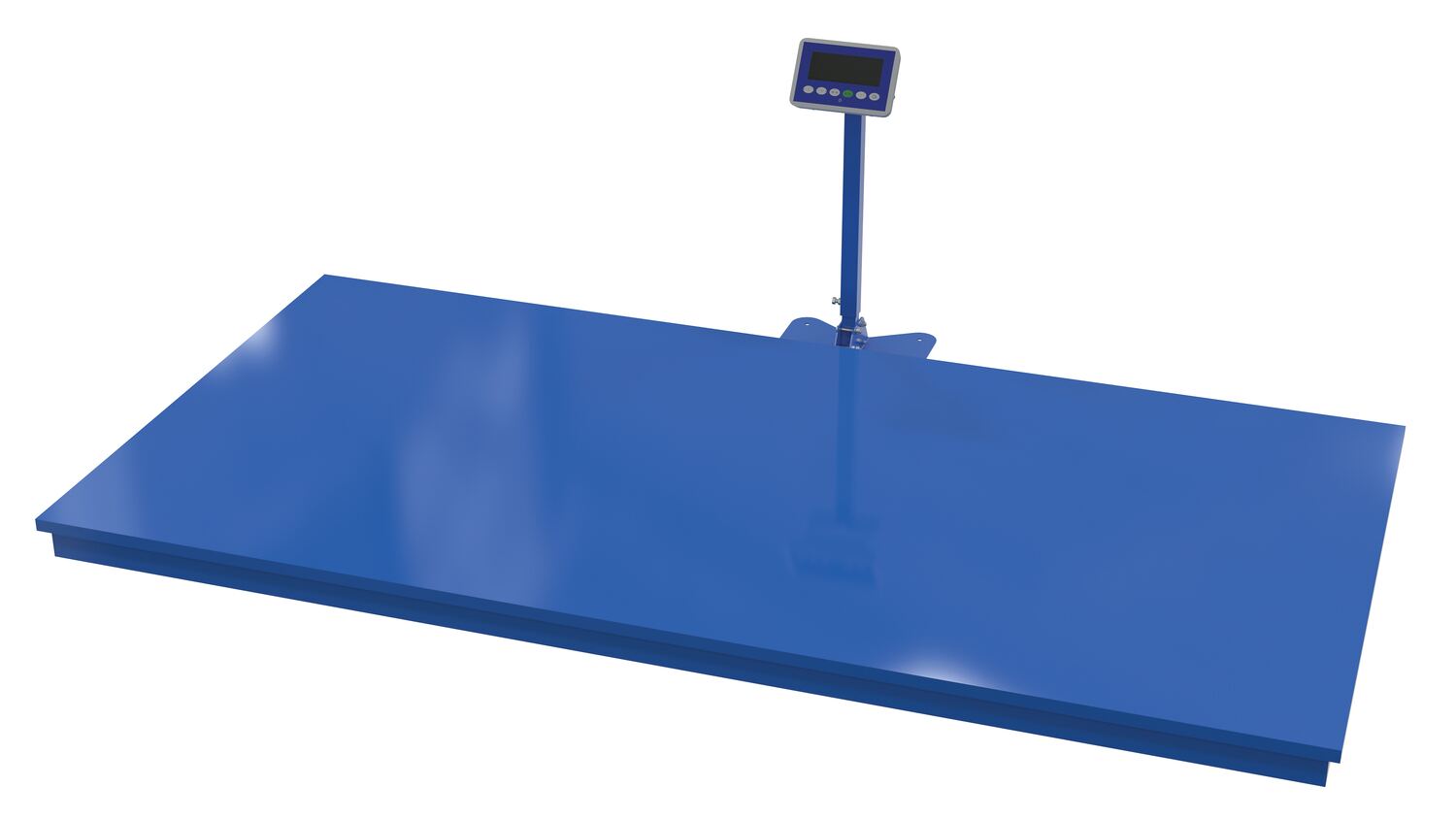

SWA-54-SCALE SWA-60Digital Stretch Wrap Scale For Use With SWA-54 Limited Warranty838

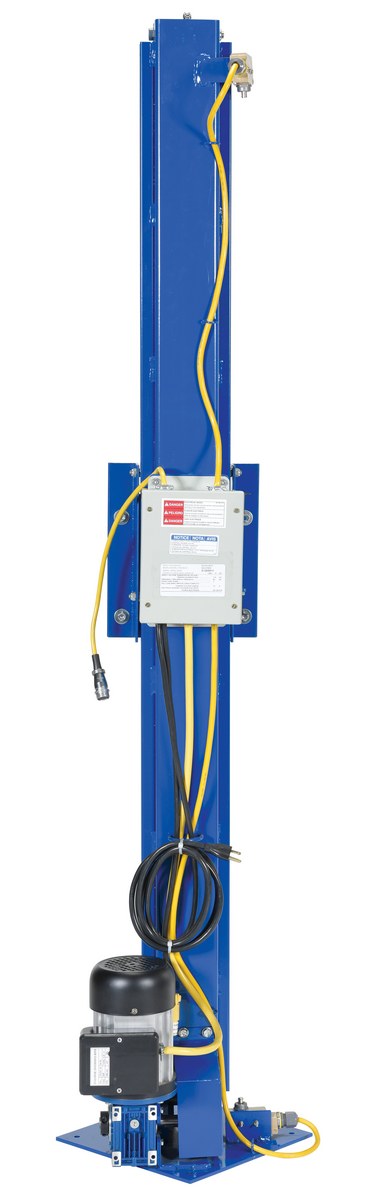

SWA-5460-PMO SWA-60Factory Installed AC Powered 115 Volt Single Phase Unit For … Limited Warranty1044

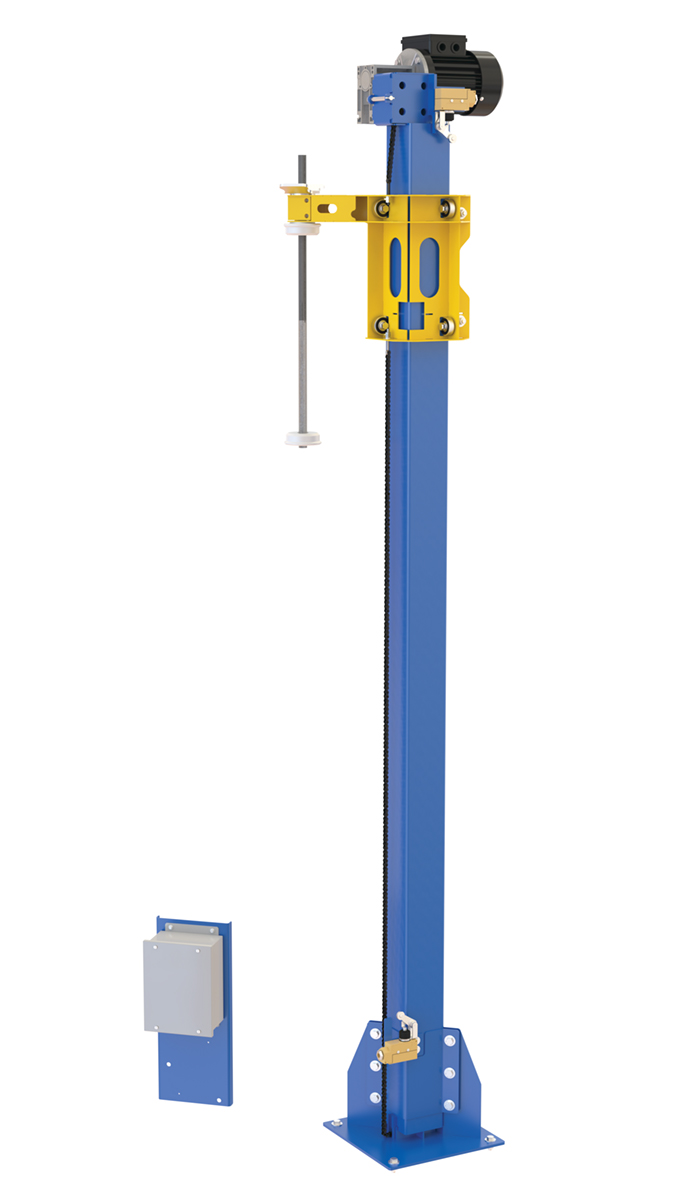

SWA-5460-PMO-RF SWA-60Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Hei… Limited Warranty220

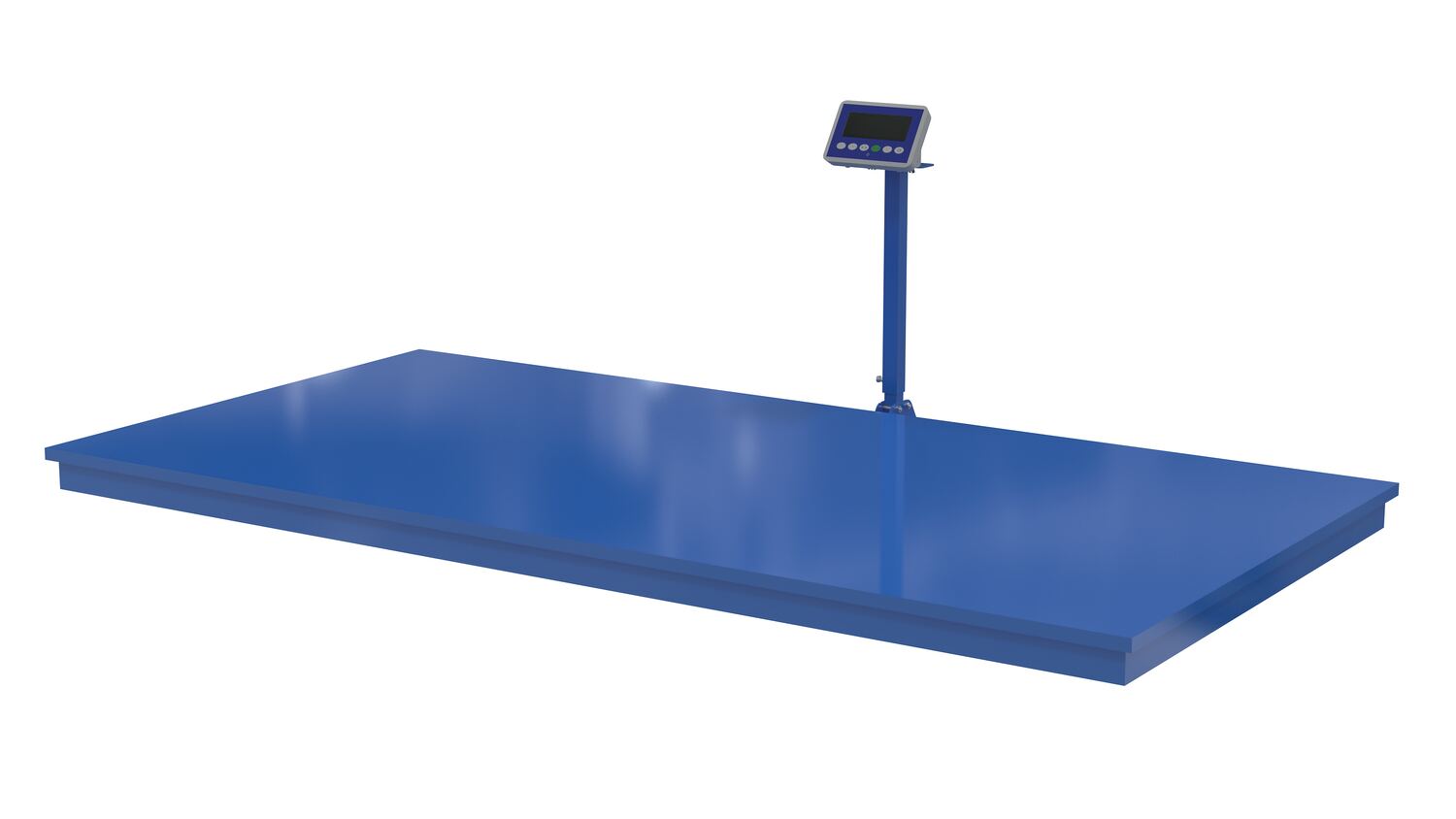

SWA-60-SCALE SWA-60Digital Stretch Wrap Scale For Use With SWA-60 Limited Warranty838
SWA-INDEX SWA-60Factory Installed Auto Indexing For Stretch Wrap Machines Limited Warranty1

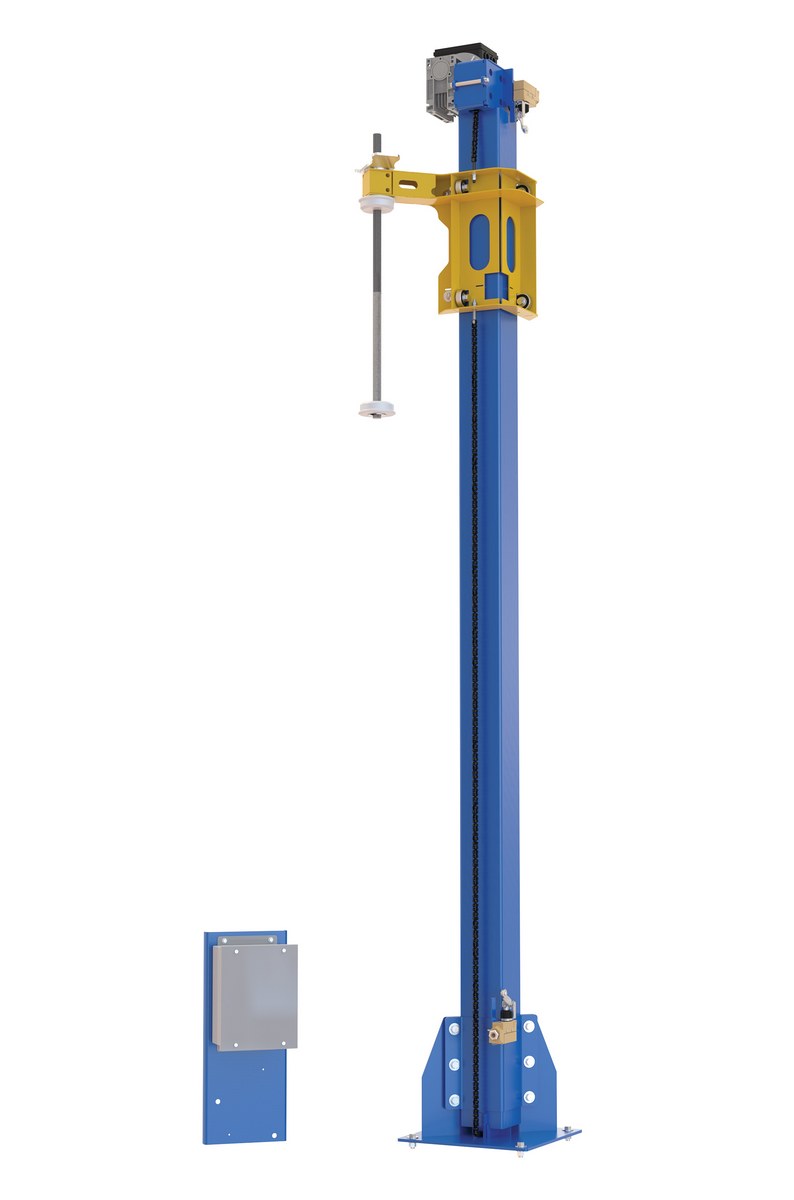

SWA-PMO-RF SWA-60Steel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Hei… Limited Warranty194
Model Image PDFs Details Wt.
(lbs)
SWA-COUNT - Counter option 1
SWA-NRTL-COMP - UL Approved components --
SWA-FILM - 20"H x 80 ga. x 6,000' x 3" Core (one Roll) 42
PLATF-MTG-CA - Factory Installation/Mounting of SWA onto Scale -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

SWA-54

SWA-60

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

SWA-54

SWA-54-SCALE

SWA-60

SWA-60-SCALE

SWA-5460-PMO

SWA-5460-PMO-RF

SWA-PMO-RF

Testing Certificates

SWA-54

SWA-54-SCALE

SWA-5460-PMO

SWA-5460-PMO-RF

SWA-60

SWA-60-SCALE

SWA-INDEX

SWA-PMO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Q: Does this stretch wrap machine have fork pockets so it can be moved?

A: Yes, the SWA-54 and the SWA-60 have fork pockets.

Q: Can the wrap height be set on the Powered Mast Options so when the stretch wrap reaches a specified height, it either stops or reverts back down?

A: No, the wrap height be set on the Powered Mast Options. The Powered Mast Options height is controlled by an up/down hand control.

Q: If you order the SWA-54 or SWA-60 with the powered mast option (SWA-5460-PMO), will you still receive the standard manual mast with the machine?

A: No, the SWA-5460-PMO option is factory installed- so it replaces the standard manual mast.

Q: How do you control the powered mast? Do you have to keep pressing the up and down buttons for it to move? Is there a stop button?

A: The Powered Mast Options (-PMO and -PMO-RF) have a hand control. The user must hold the up or down button for the wrap to move. There is no stop button as the mast will stop when the button is released.

Q: How does the stretch wrap machine attach to the scale?

A: The stretch wrap machine sits right on top of the scale for easy assembly, or they can be bolted together before shipping to you with the factory installation option PLATF-MTG-CA.
