Fork Truck Seats and Accessories

model: LTSD-V

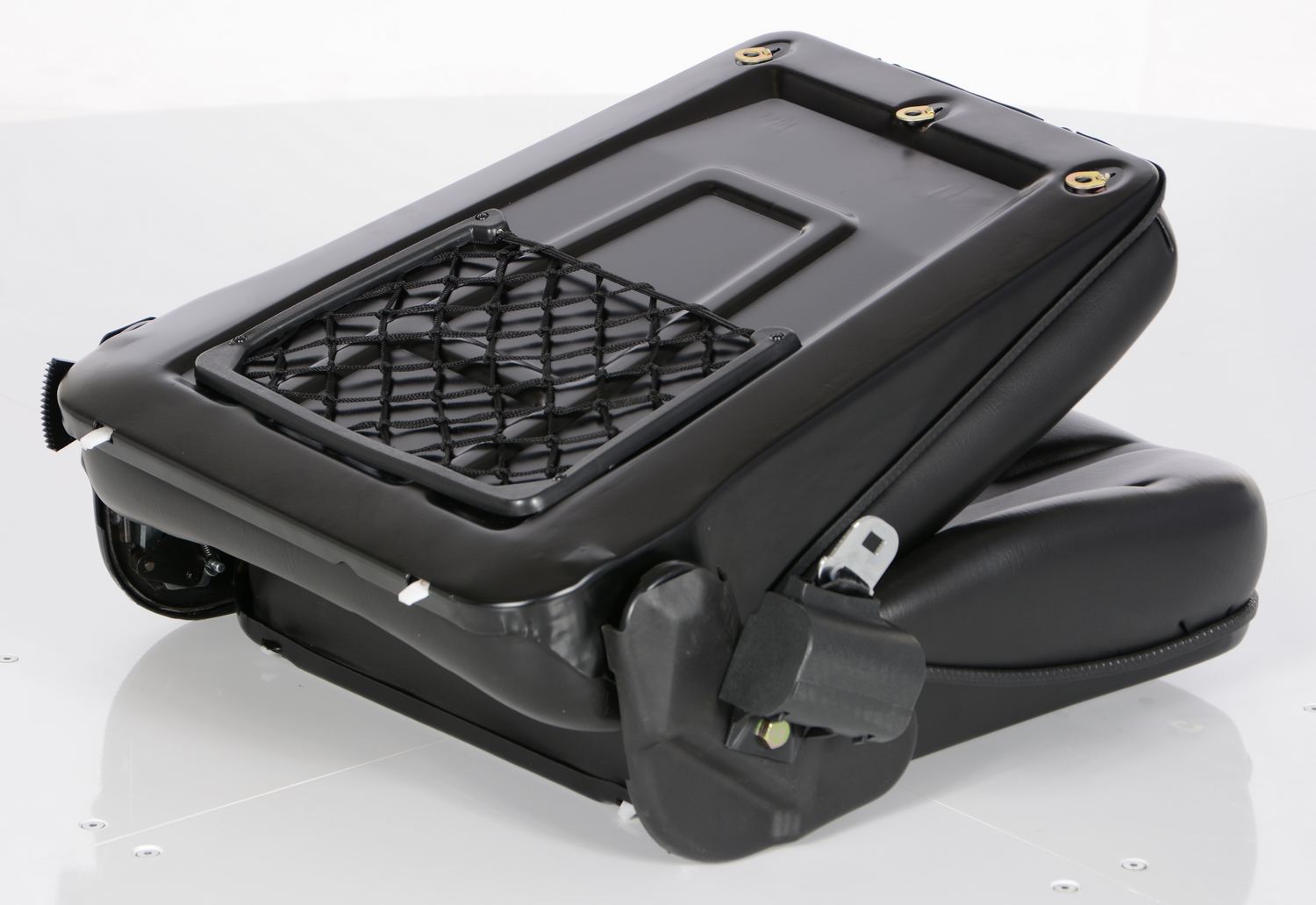

LTSD-V_A.jpg LTSD-V_B.jpg LTSD-V_C.jpg LTSD-V_D.jpg LTSD-V_1.jpg More Images +
Fork Truck Seats and Accessories
SERIES: LTS,LTSD

Ergonomic and comfortable seat design helps provide optimum body support for individual operators. Replace worn or broken fork truck seats with our easy to install universal mounting design. Standard features include: ergonomic seat design, vinyl or cloth material, low profile design, safety seat switch, storage pockets, seat back angle adjustment 8 degrees, and retractable safety belt.

Ergo-Turn System - Smooth pivoting motion enables driver to turn seat 30 degrees left or right of center position. Swivel system can be incorporated with air suspension system for total driver ergonomics.

Seat Safety Switch - Prevents fork truck from operating when an operator is not sitting on the seat. Rated 50 VDC, 2A.

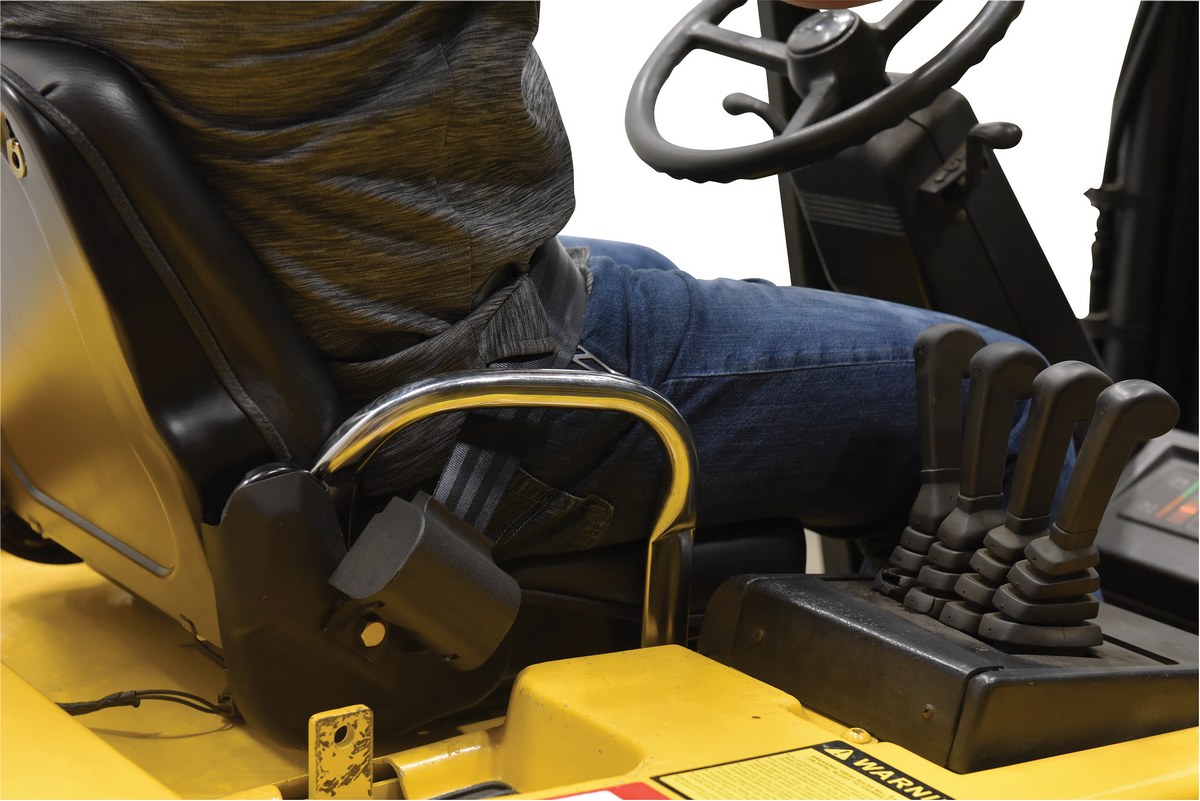

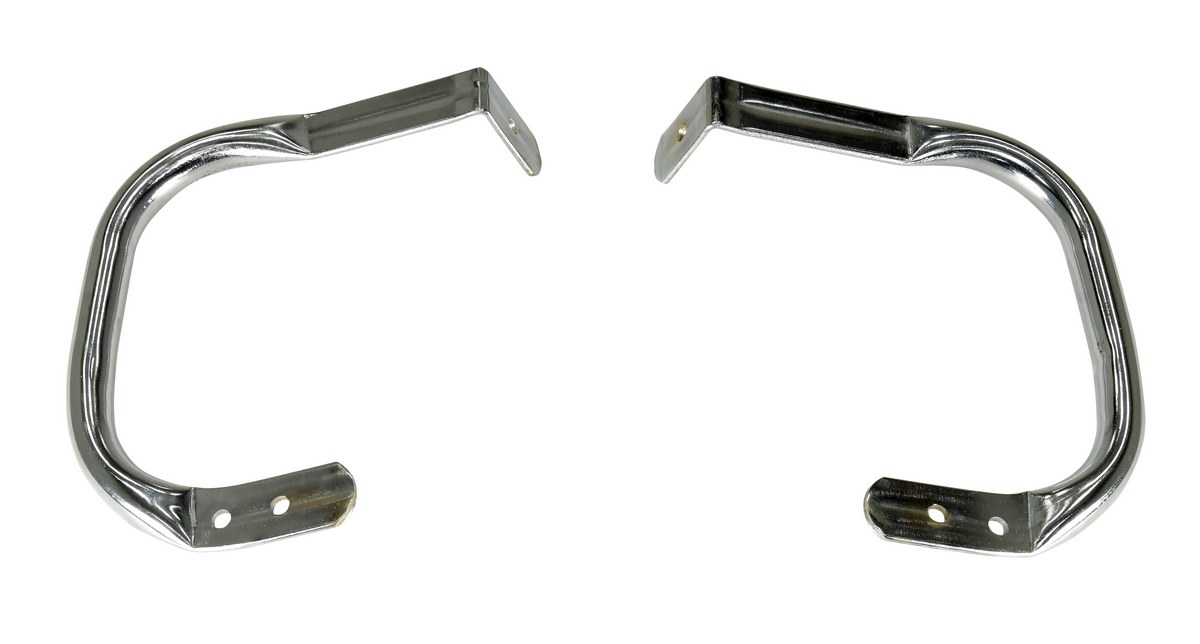

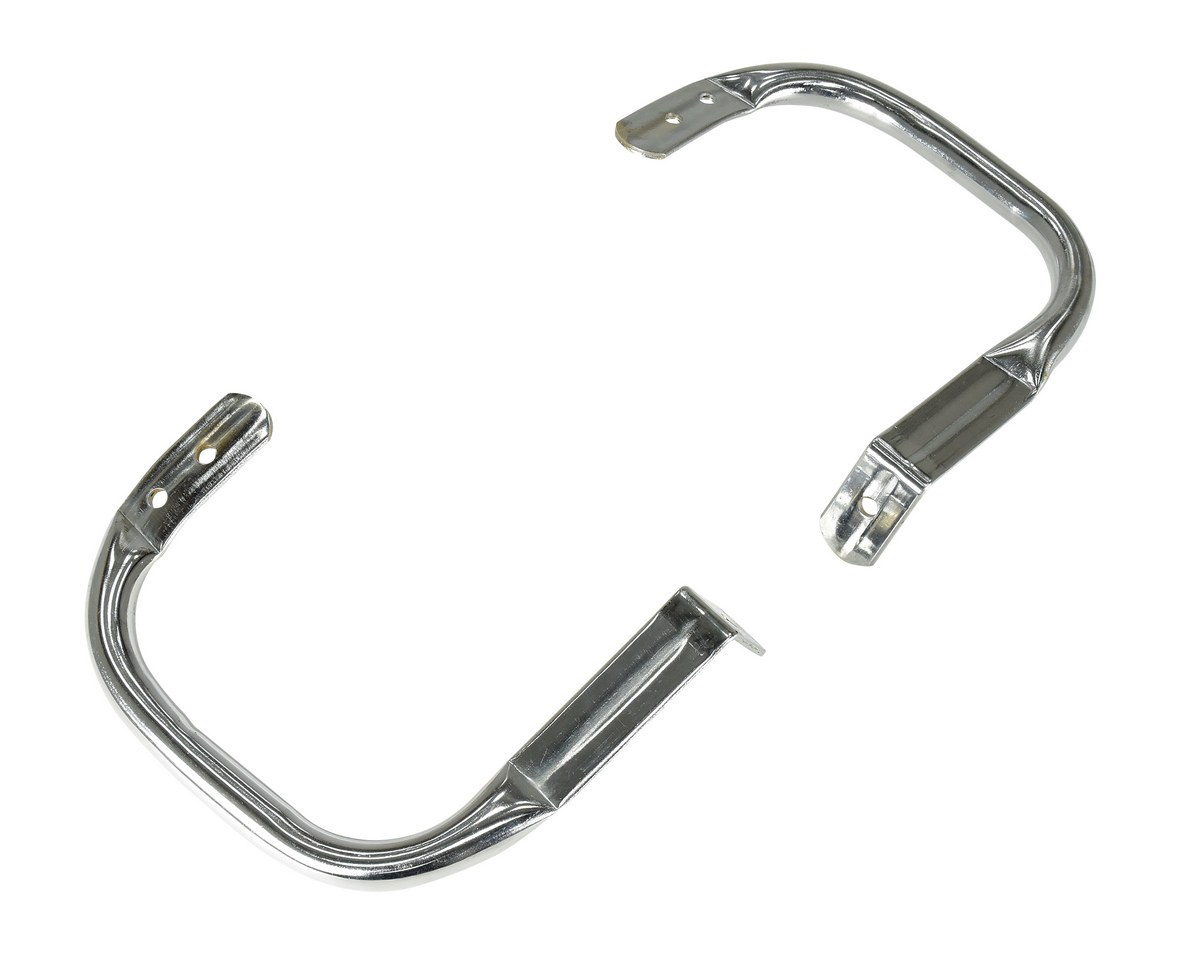

Chrome Hip Restraints - Used in place of arm rests to stabilize and secure the operator in the fork truck seat.

Flip Up Arm Rest - Flip up arm rests are moveable to allow easy access on and off fork truck.

Standard Features

  • Ergonomic Seat Design
  • Vinyl or Cloth Material
  • Low Profile Design
  • Safety Seat Switch
  • Storage Pockets
  • Seat Back Angle Adjustment 8 degrees
  • Retractable Safety Belt
Fork Truck Seats and Accessories

model: LTSD-V

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

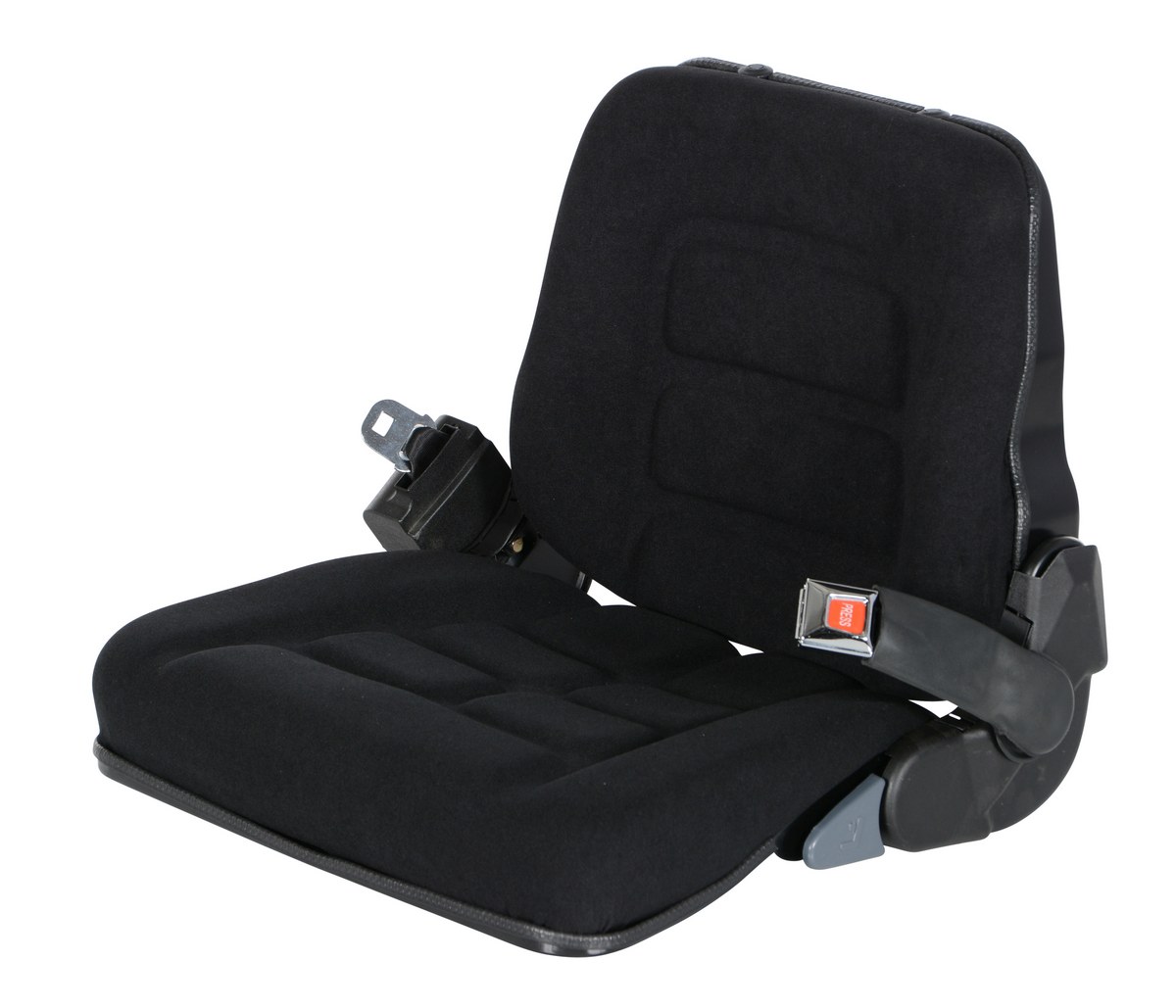

LTS-C LTS-C30 Days Limited WarrantyCloth Fork Truck Seat with Seat Belt 4-1/2 In. x 4-1/2 In. x 4 In. BlackSeat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17		29

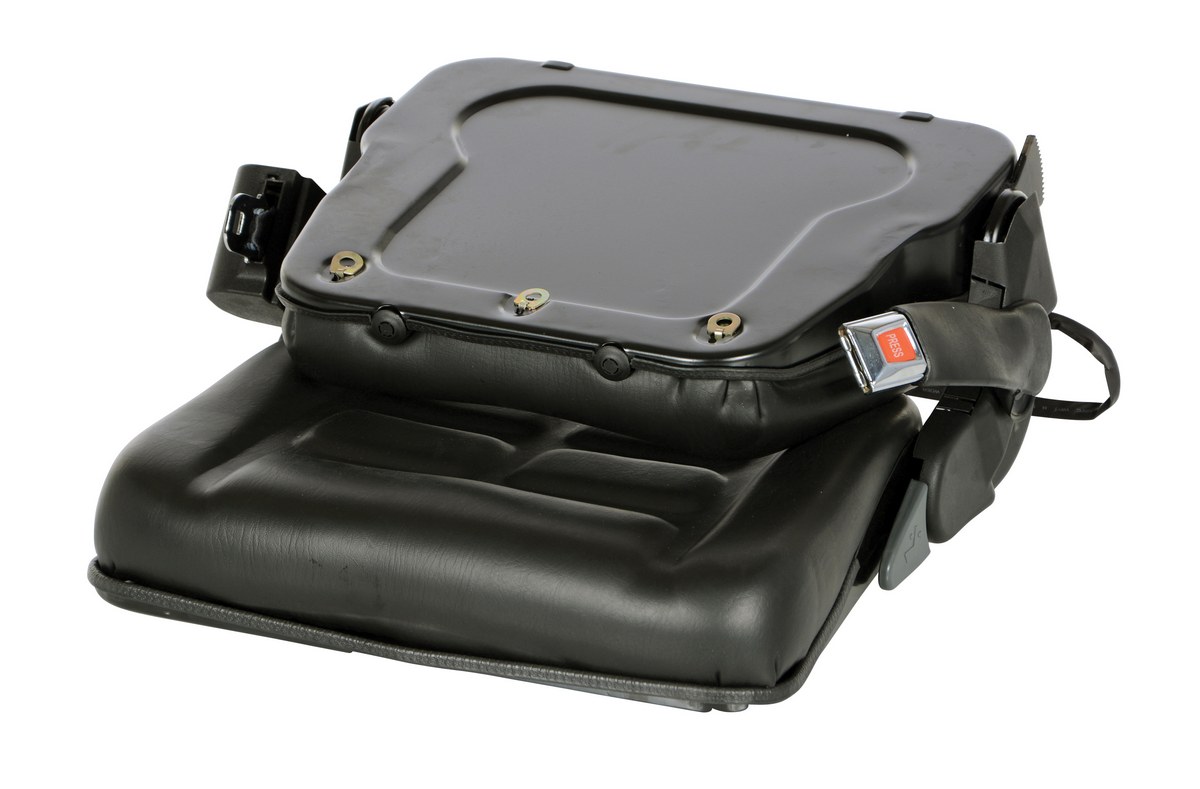

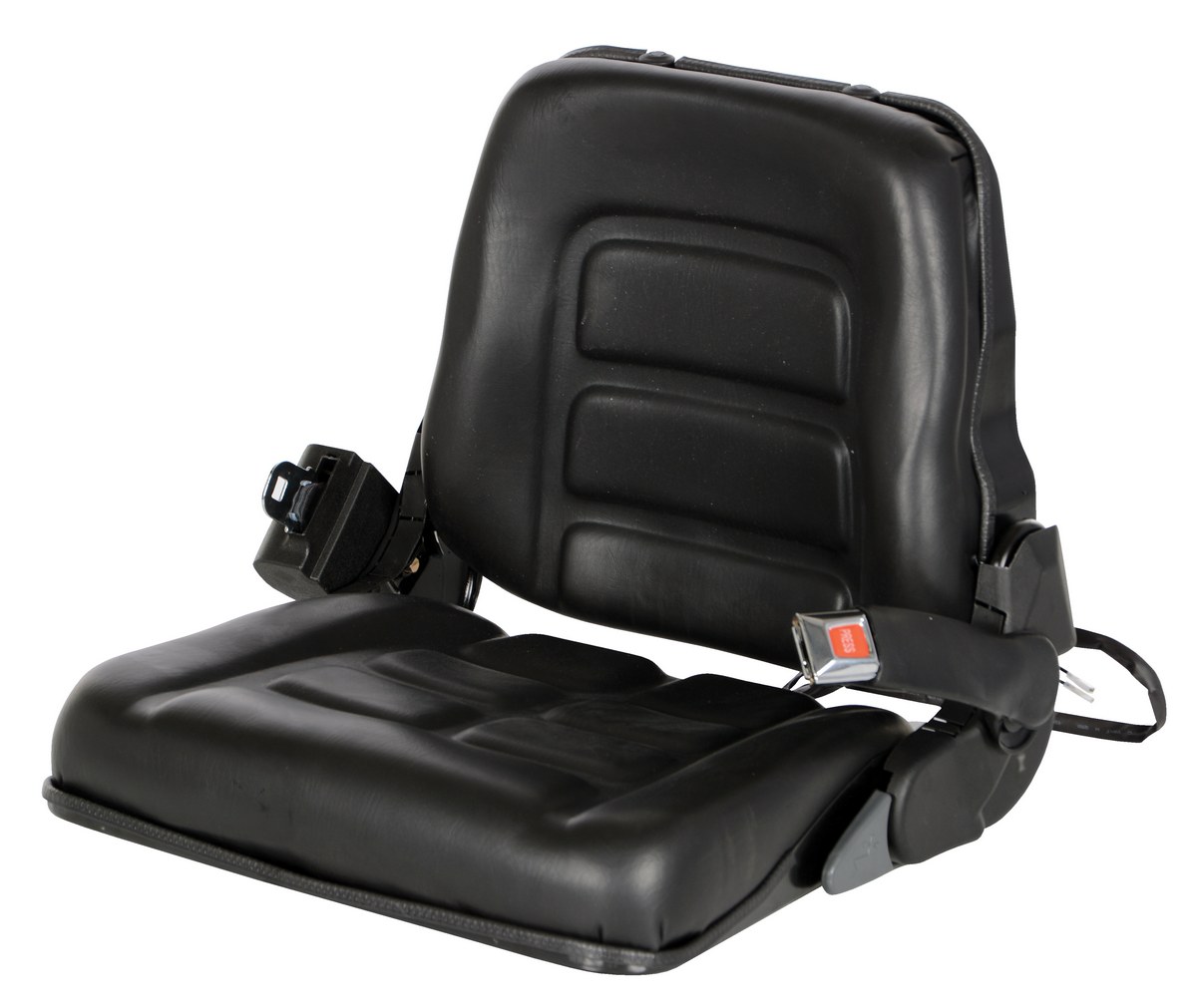

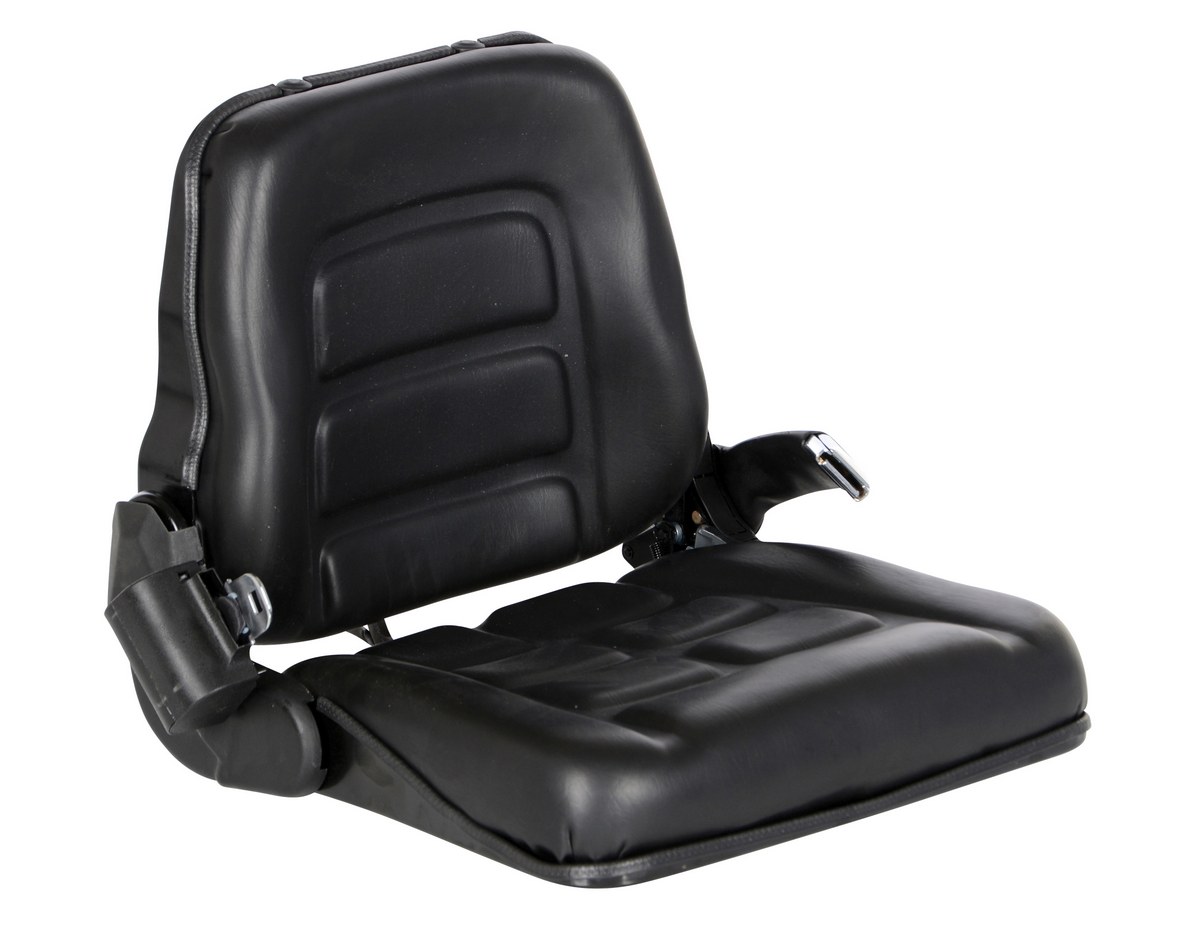

LTS-V LTS-V30 Days Limited WarrantyVinyl Fork Truck Seat with Seat Belt 19 In. x 21-1/2 In. x 7 In. BlackSeat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17		31

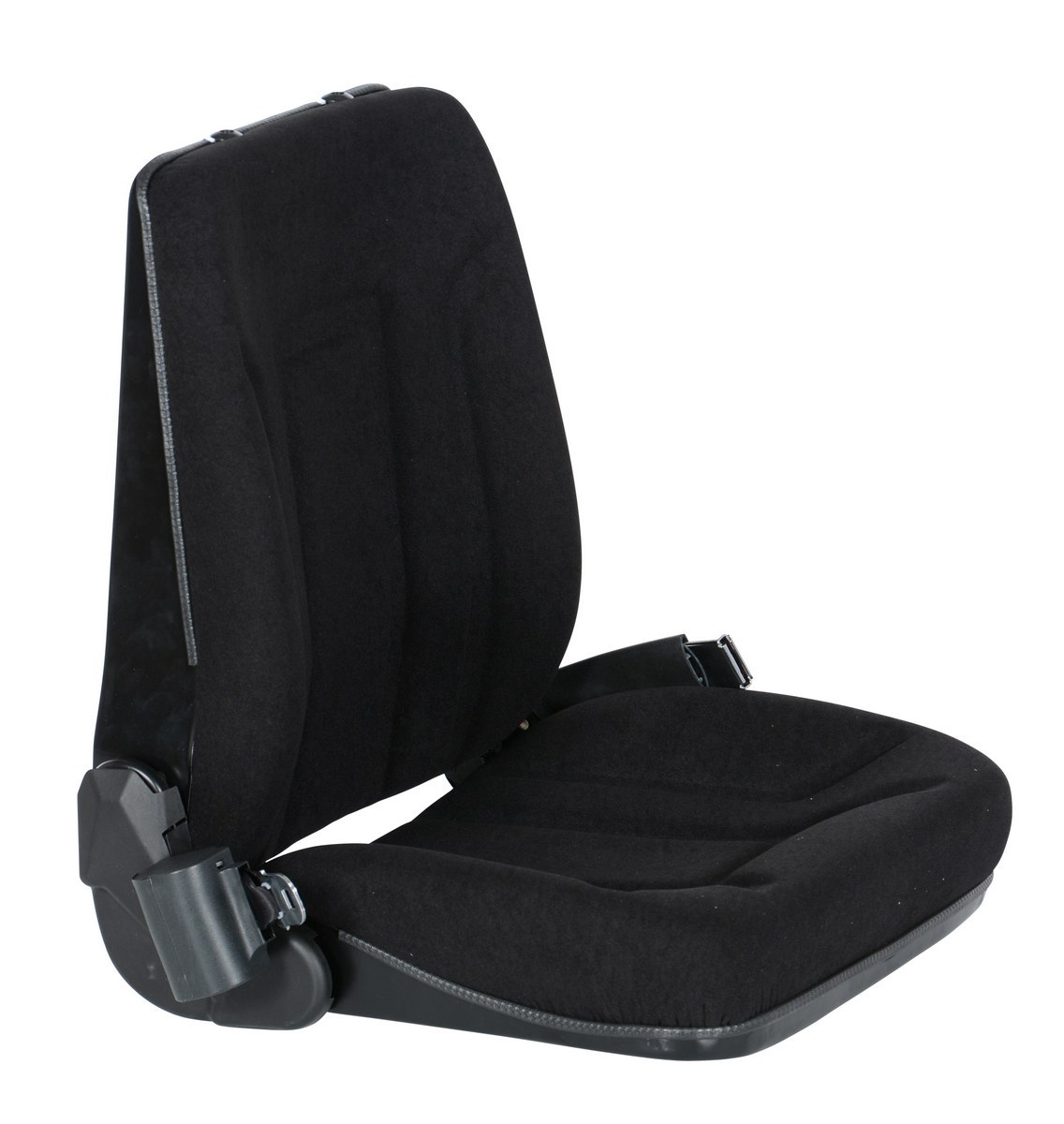

LTSD-C LTSD-C30 Days Limited WarrantyCloth Deluxe Fork Truck Seat with Seat Belt 4-1/2 In. x 4-1/2 In. x 4 In. BlackSeat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24		40

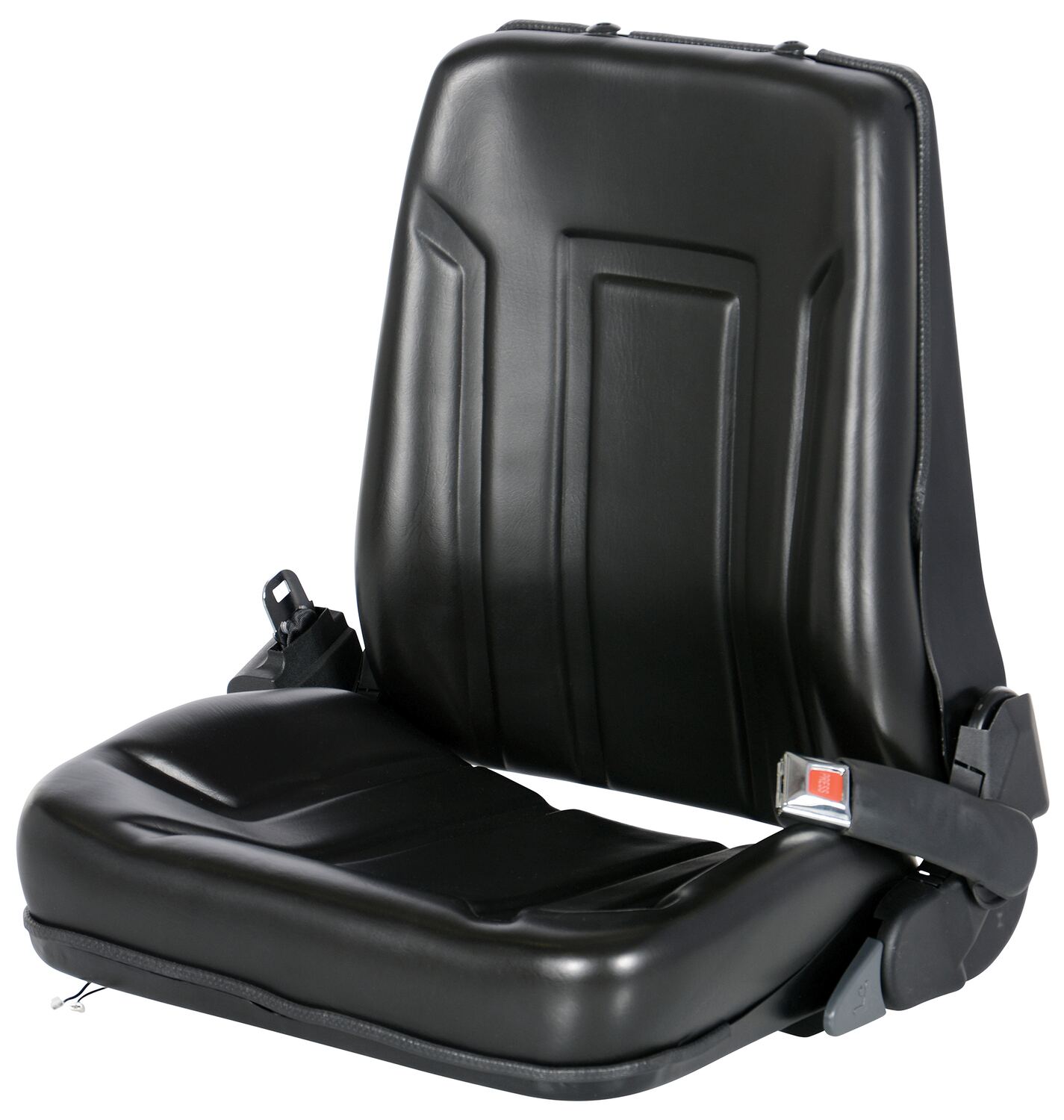

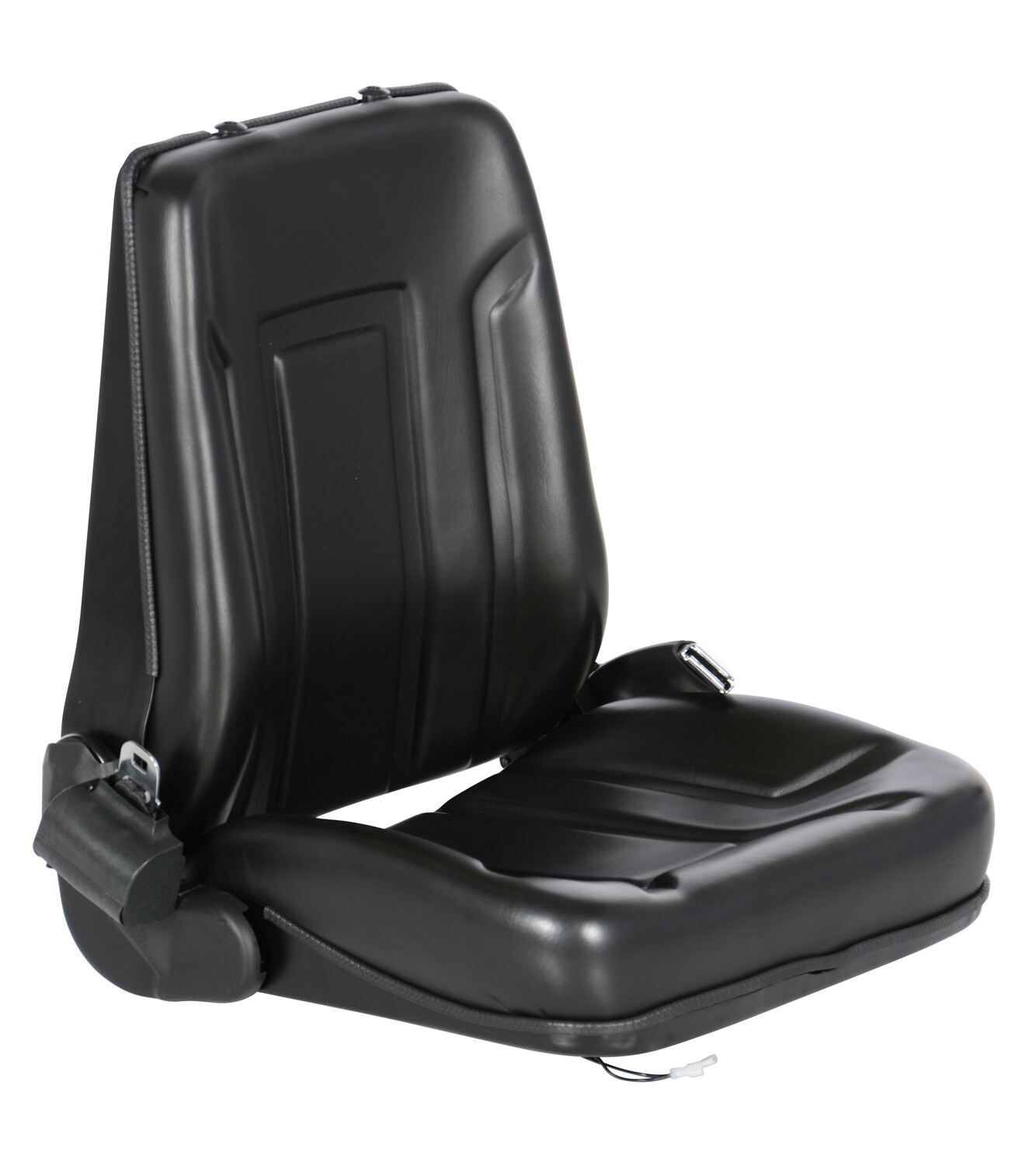

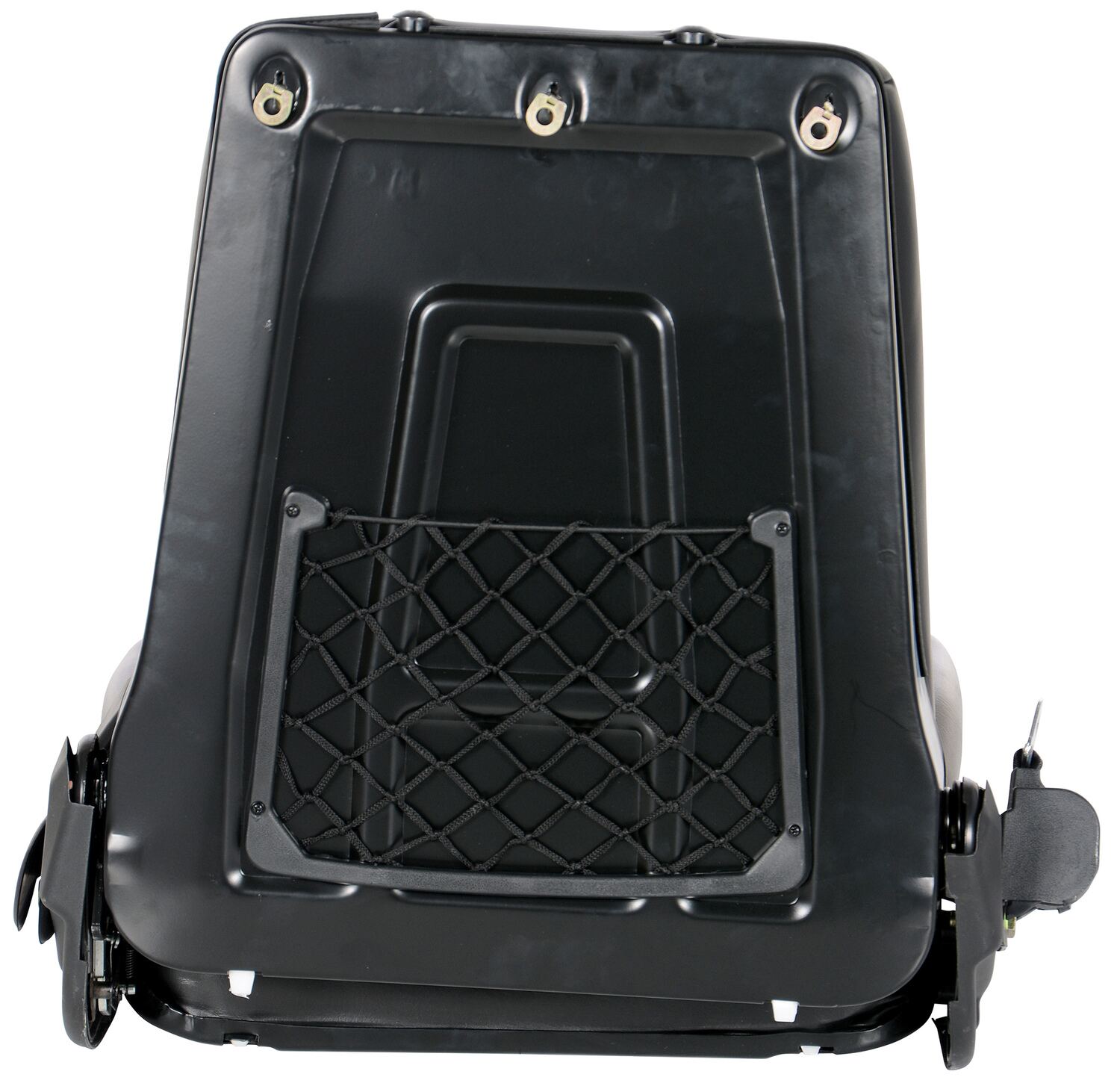

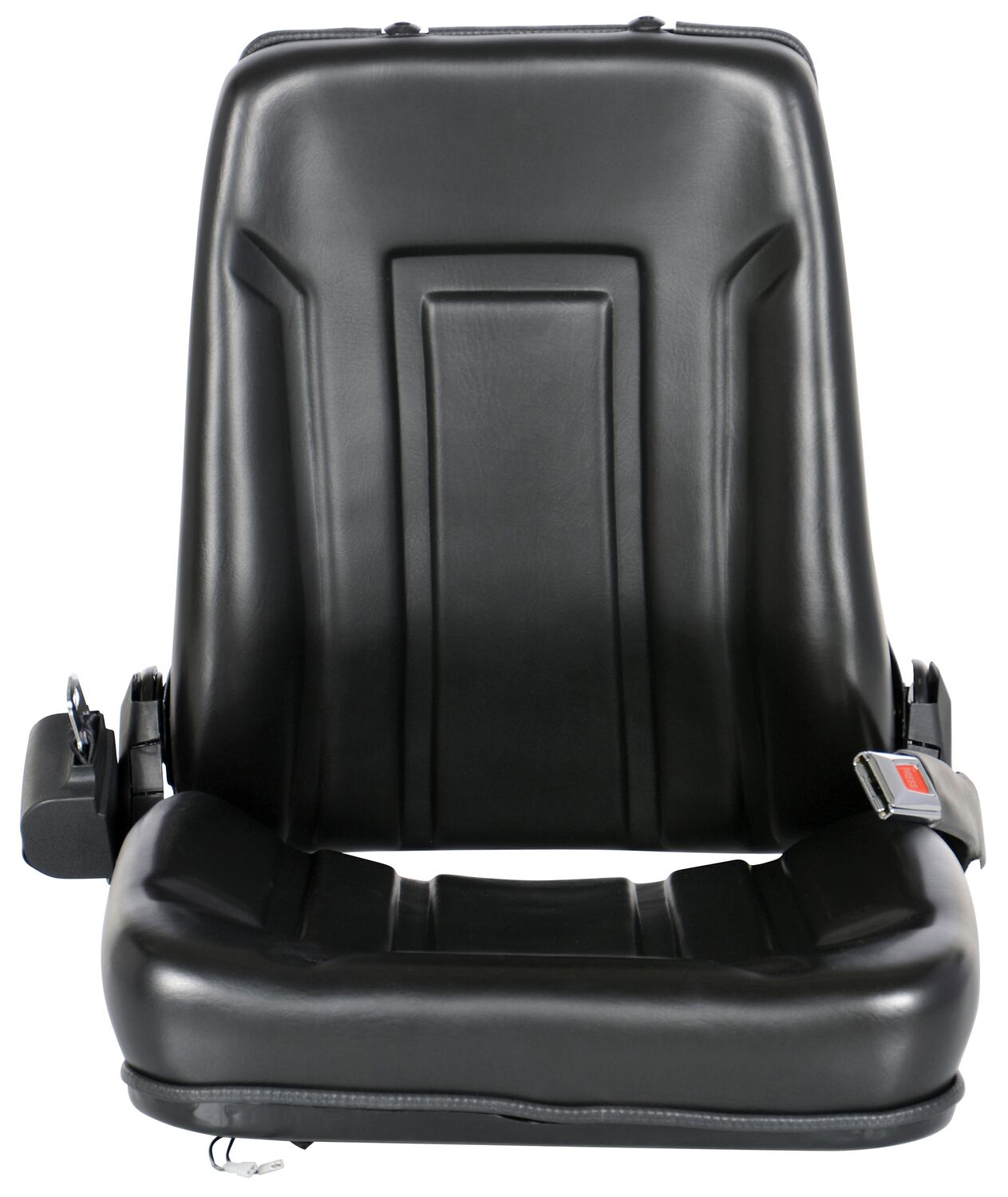

LTSD-V LTSD-V30 Days Limited WarrantyVinyl Deluxe Fork Truck Seat with Seat Belt 20-1/2 In. x 23 In. x 12 In. BlackSeat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24		41

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LTS-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17

LTS-V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 17

LTSD-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24

LTSD-V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24
Seat Back Angle Adjustment Degree: 8
Back Seat Rest Raised Height (in.): 24
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

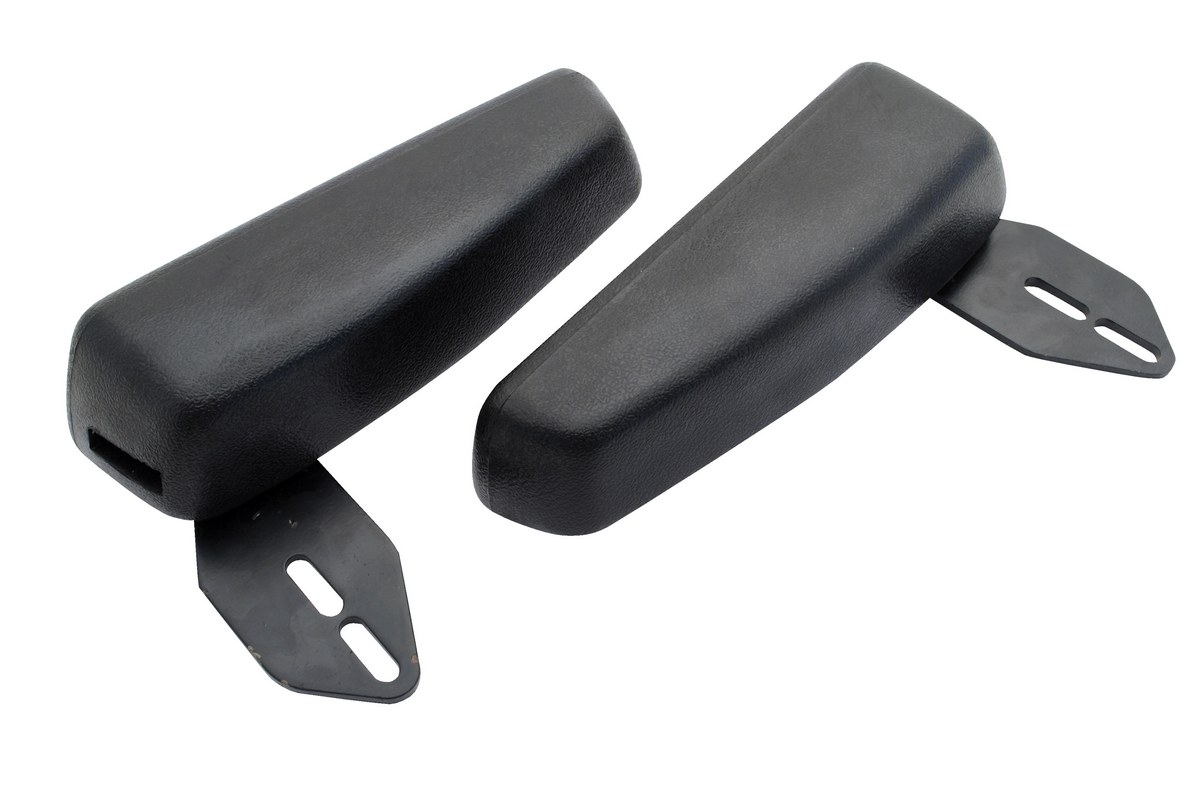

LTS-AR LTSD-VPlastic Fork Truck Seat Flip Up Arm Rests 4-1/2 In. x 4-1/2 … Limited Warranty6

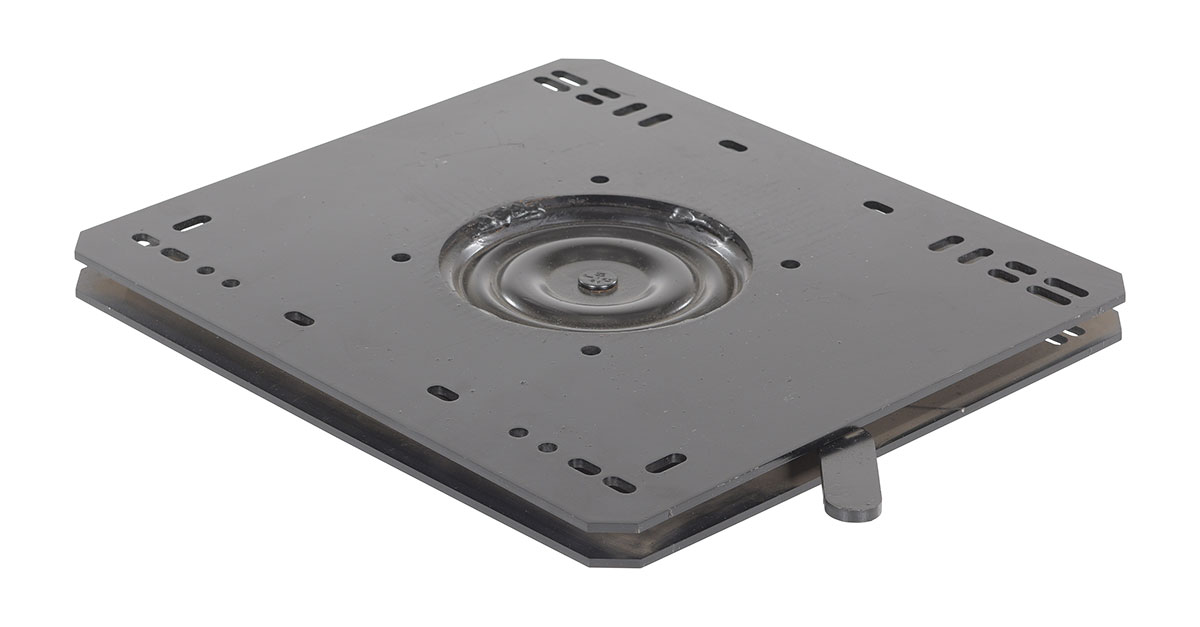

LTS-ET LTSD-VSteel Swivel Platform 17-7/8 In. x 14 In. x 1-5/16 In. 350 L… Limited Warranty30

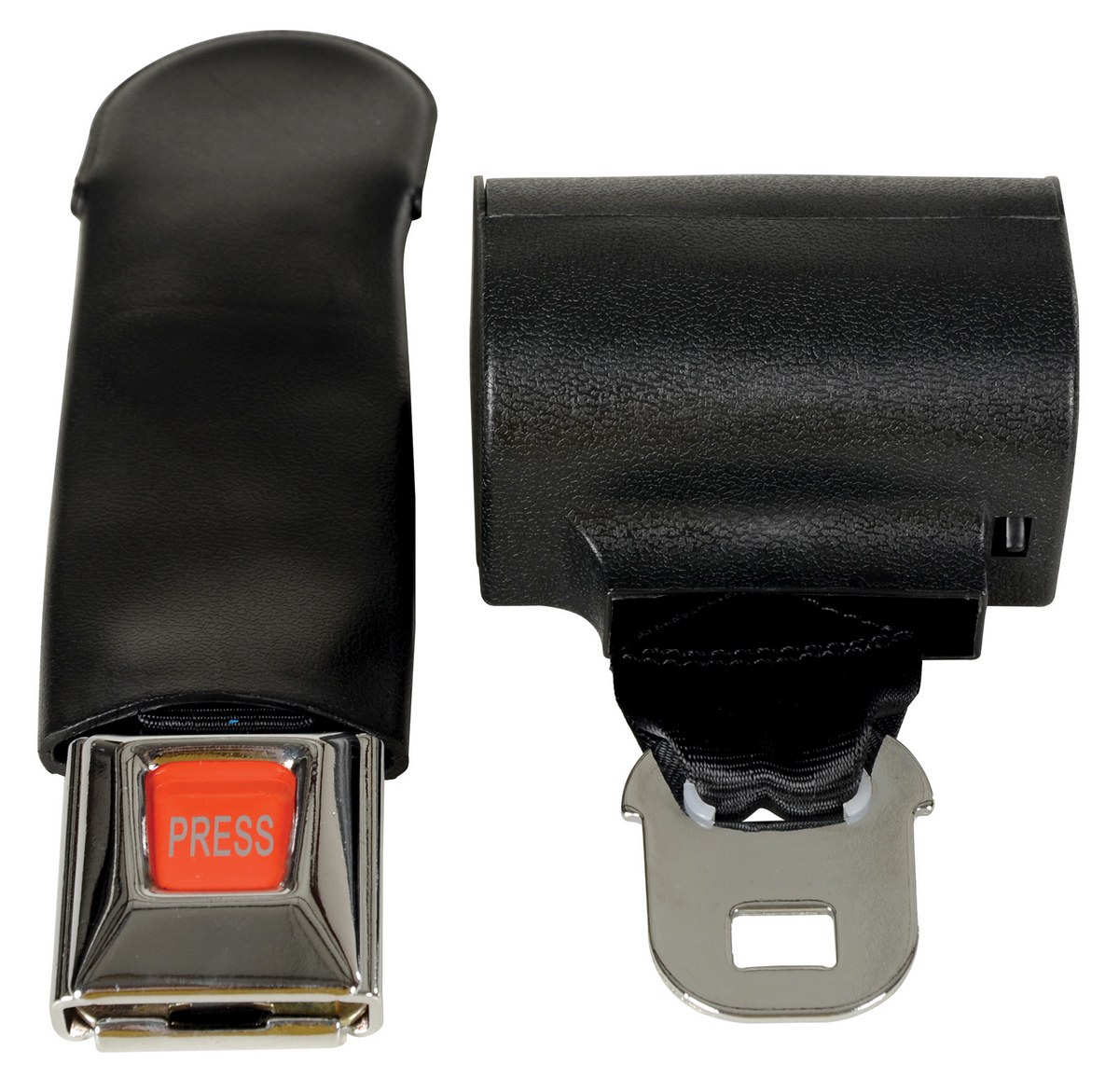

LTS-FTSB LTSD-VFork Truck Safety Belt 13-11/16 In. x 6-1/16 In. x 7/8 In. B… Limited Warranty3
LTS-HR LTSD-VChrome Plated Fork Truck Hip Restraints 2-1/2 In. x 11-1/4 I… Limited Warranty4

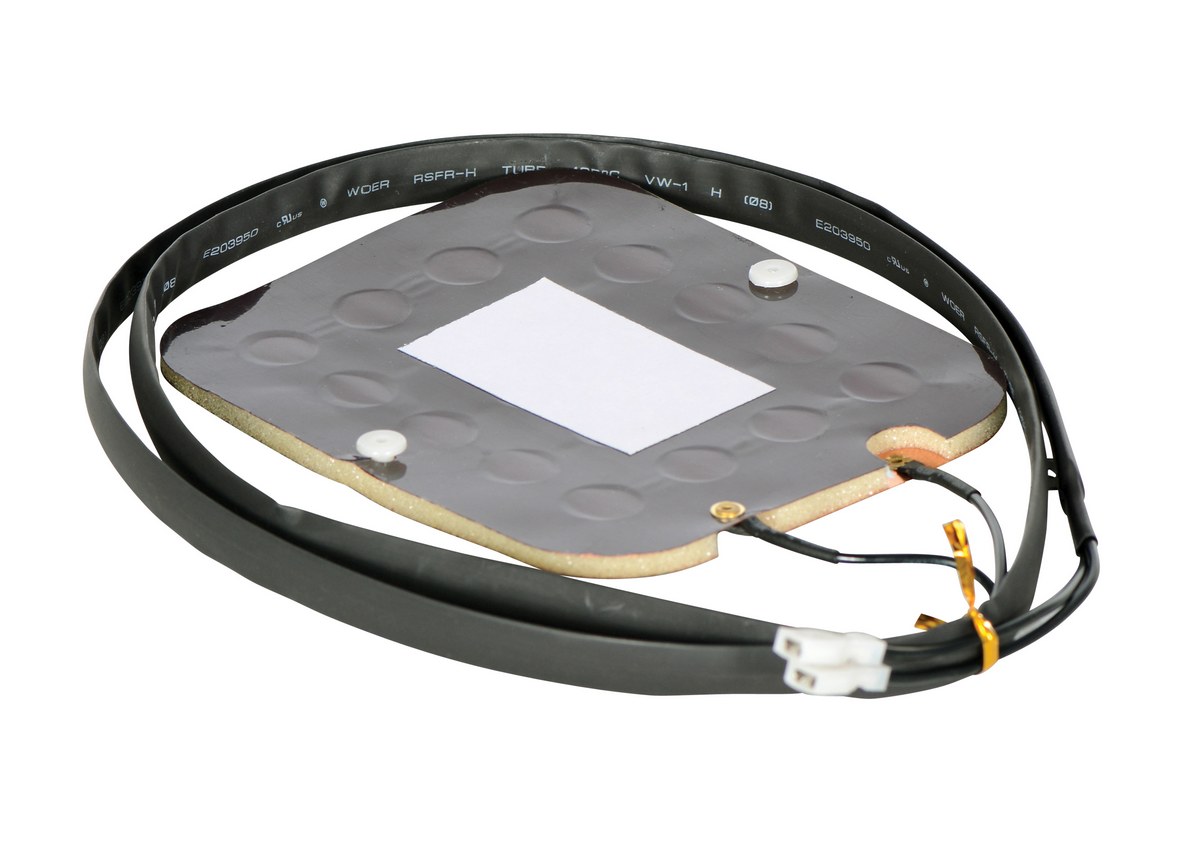

LTS-SSS LTSD-VFork Truck Seat Safety Switch Replacement 5 In. x 6 In. x 1/… Limited Warranty2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

LTSD-V%20Bolt%20Hole%20Pattern

LTS-V%20Bolt%20Hole%20Pattern

LTS-ET

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

LTS-ET

Testing Certificates

LTS-AR

LTS-C

LTS-ET

LTS-FTSB

LTS-HR

LTS-SSS

LTS-V

LTSD-C

LTSD-V

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the belt length and width for model LTS-FTSB?

A: The belt extends to 4.5 feet and is 2" wide.
