Adjustable Pallet Stands

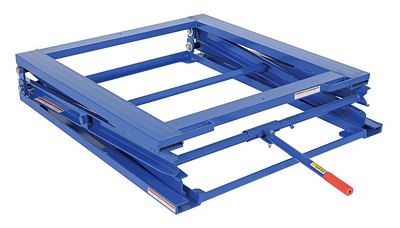

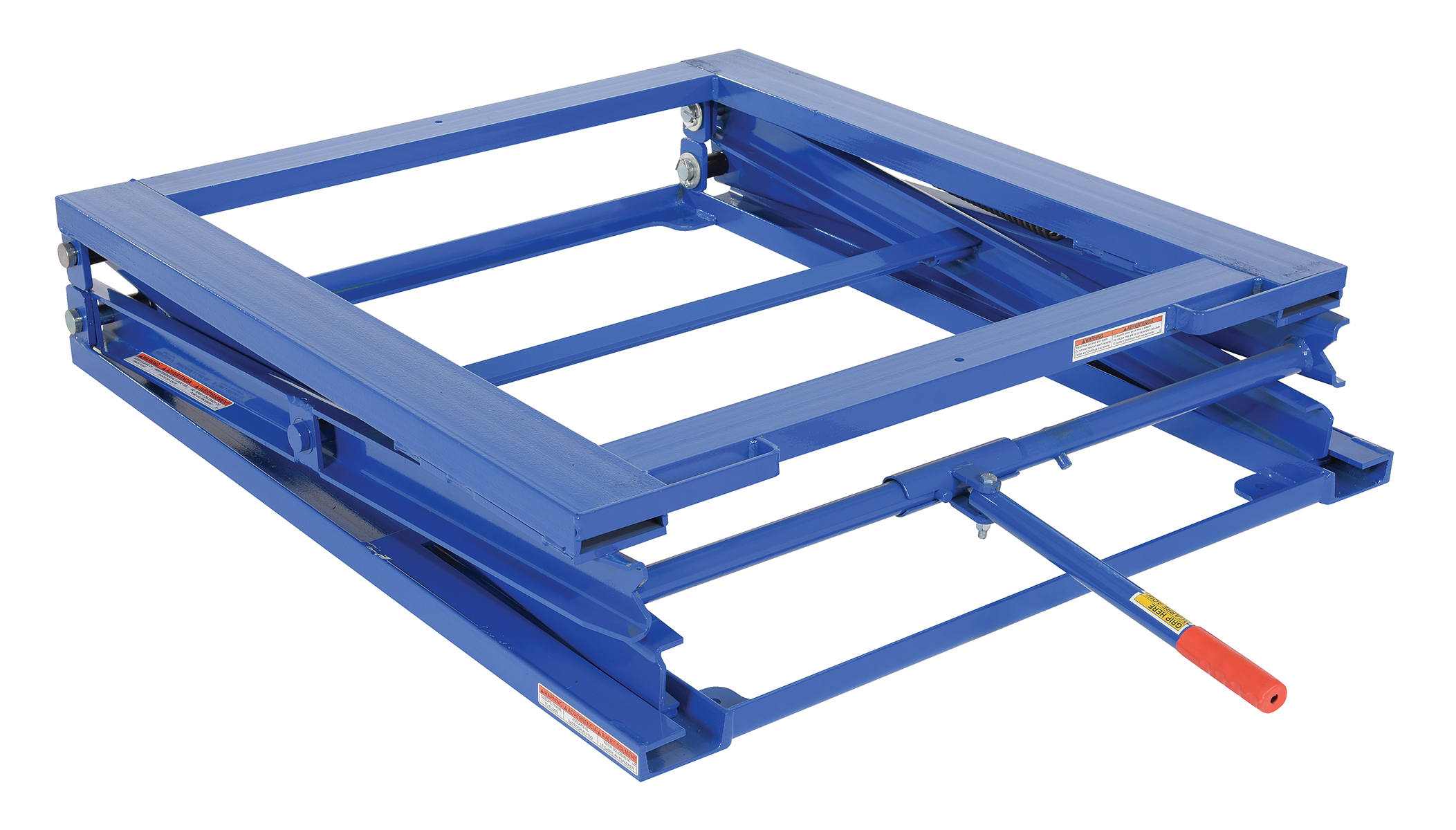

model: PS-4045

PS-4045_B.jpg PS-4045_A.jpg PS-4045_C.jpg PS-4045_D.jpg PS-4045_E.jpg PS-4045_F.jpg PS-4045_G.jpg More Images +
Adjustable Pallet Stands
SERIES: PS

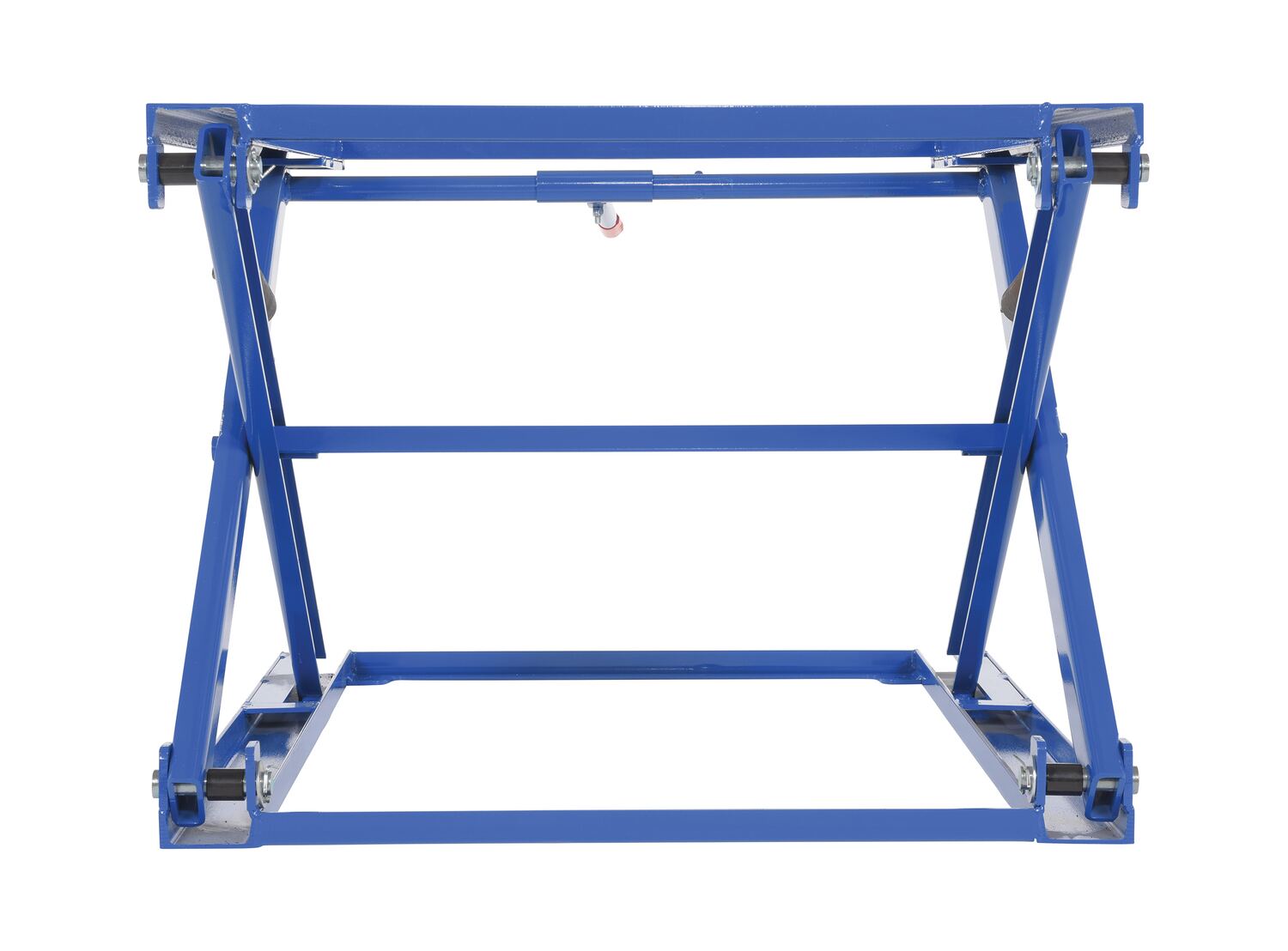

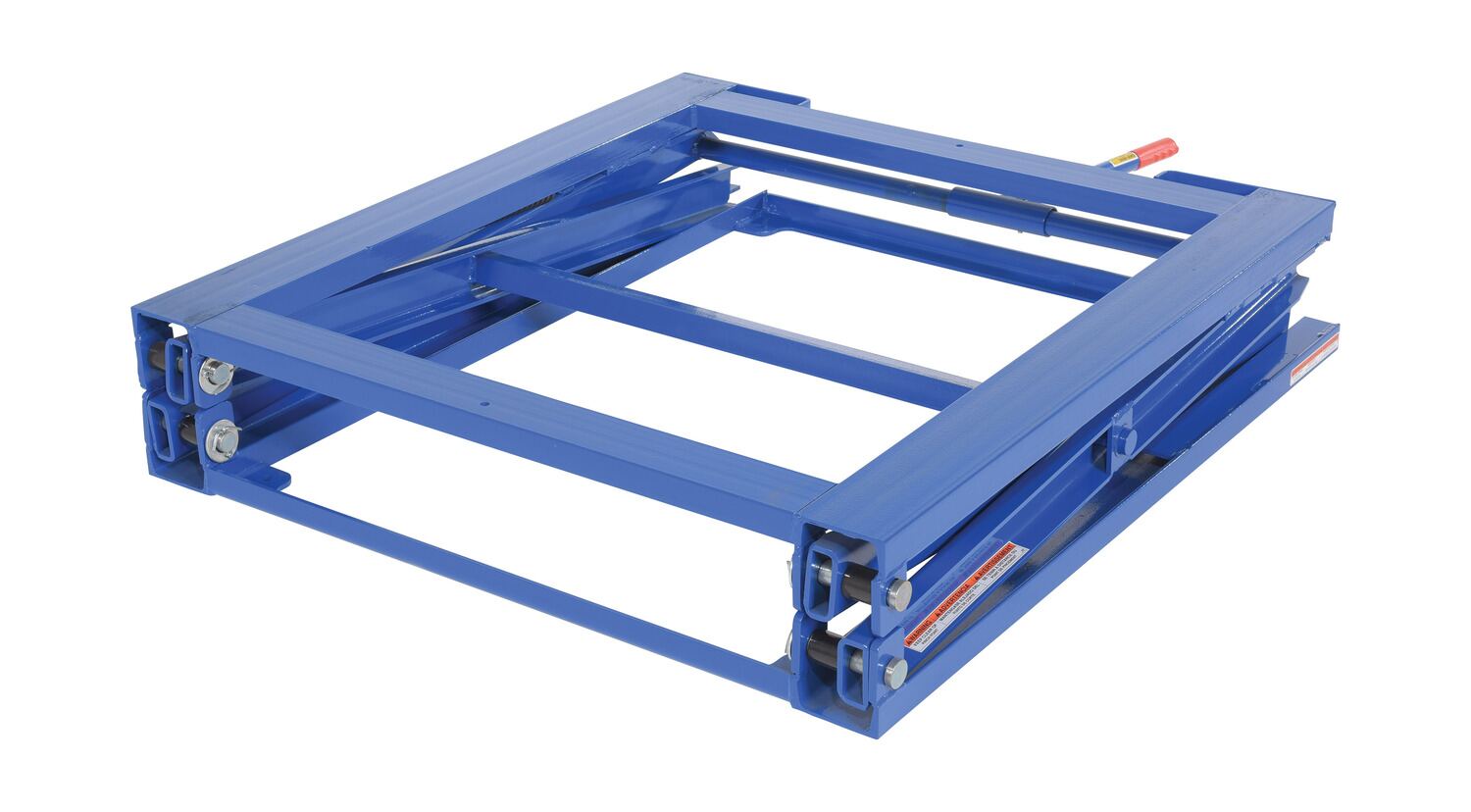

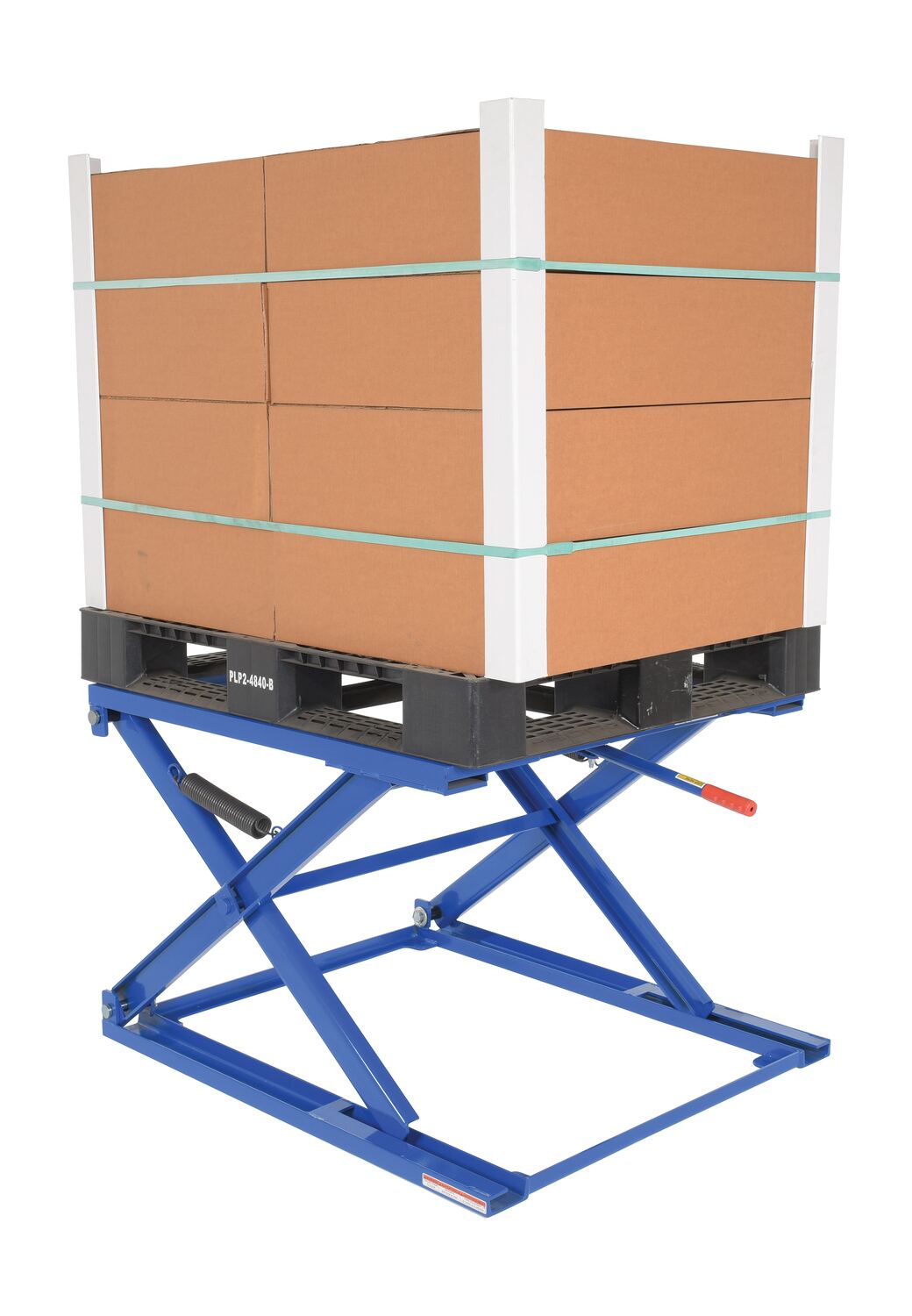

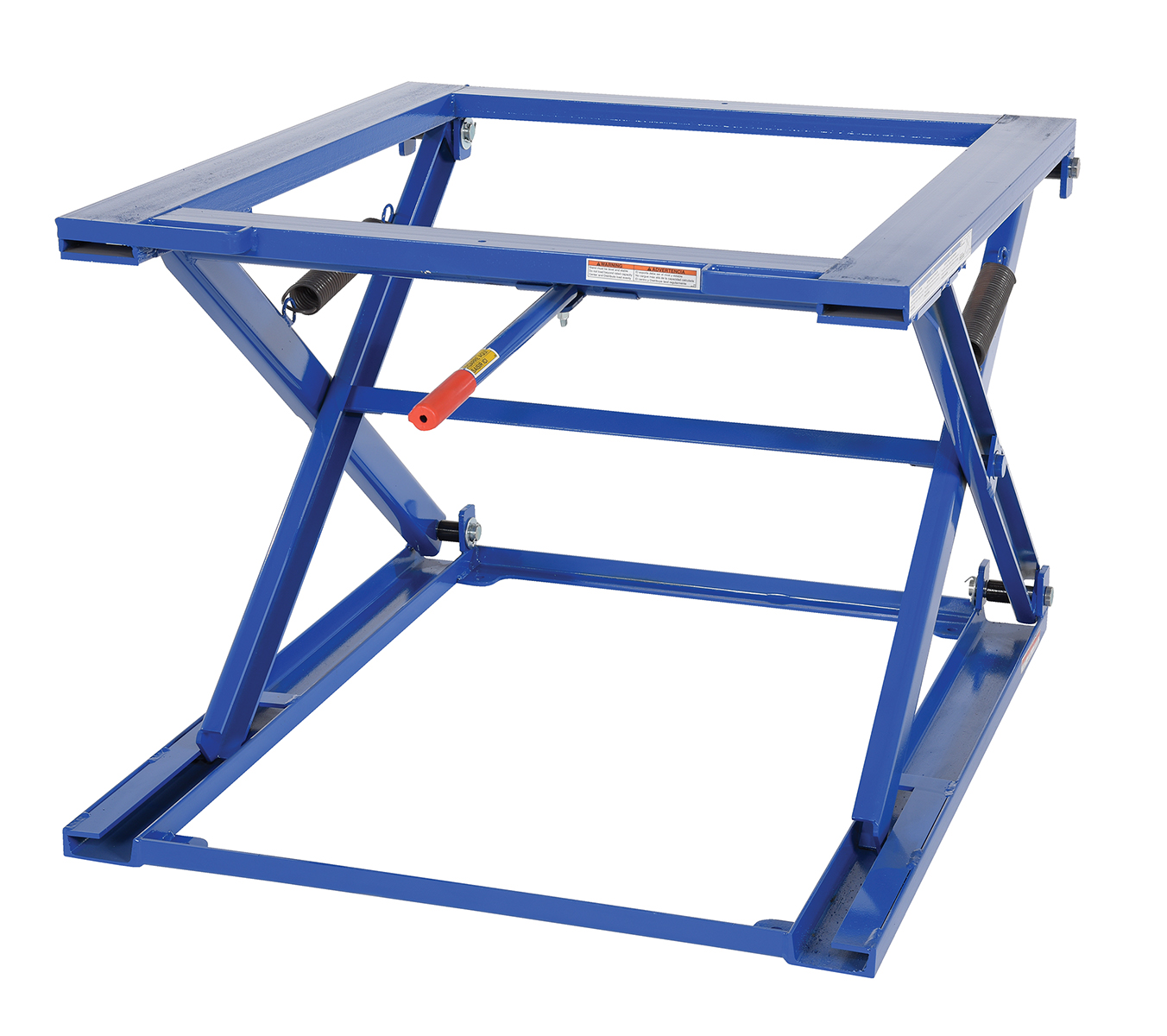

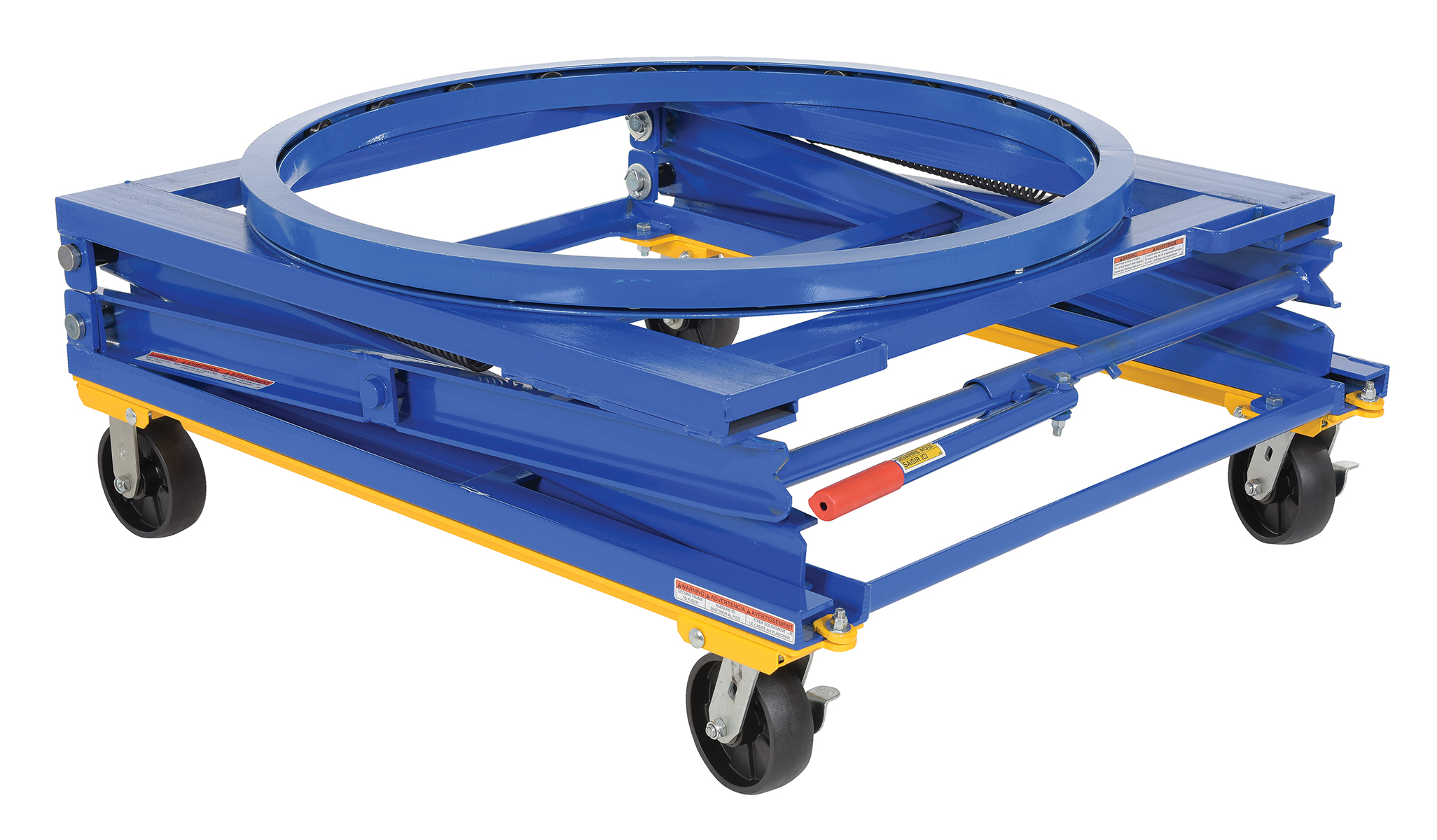

The Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights. Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the height. Unit is welded steel construction and includes a blue baked-in powder coated finish for added toughness. The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360 degrees. The caster feature, suffix CK, consists of 6" x 2" glass filled-nylon (2) rigid and (2) swivel casters with brake.

  • Unique design works as a variable-height ergonomic work station

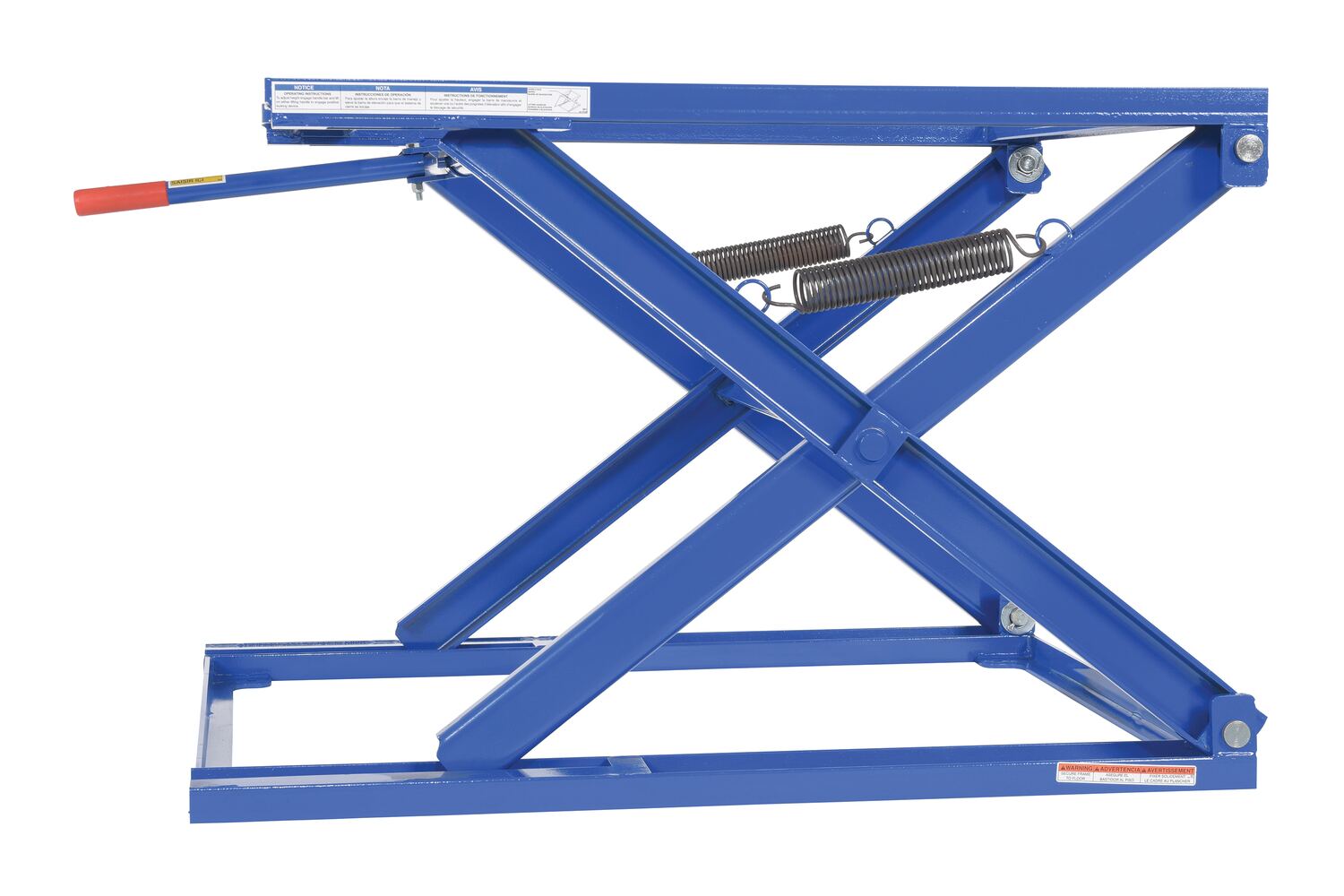

  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.

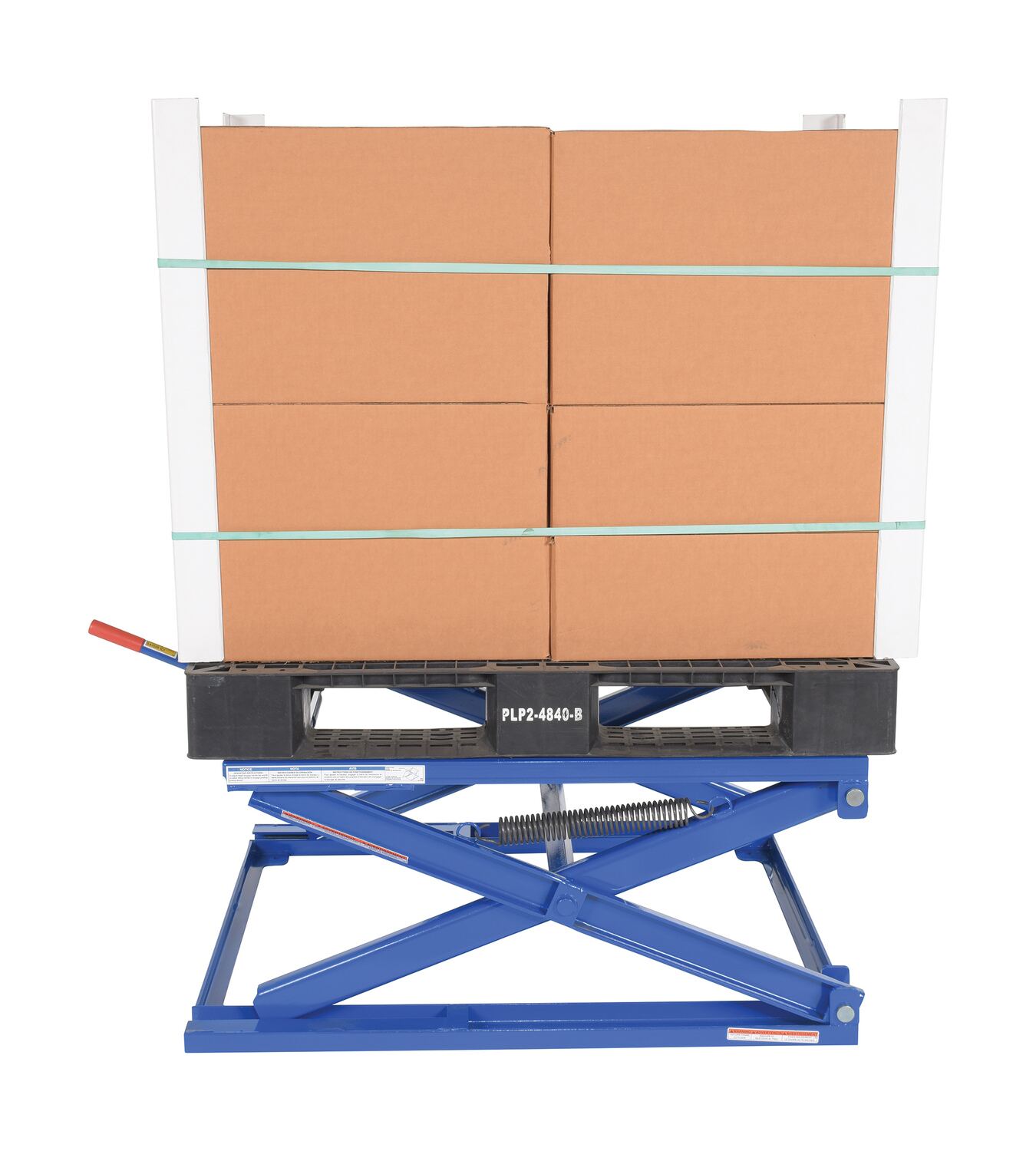

  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.
Adjustable Pallet Stands

model: PS-4045

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PS-4045 POPULAR PS-404590 Days Limited WarrantySteel Adjustable Pallet Stand 45-3/4 In. x 40-1/2 In. x 9 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Lowered Height (in.): 9		253

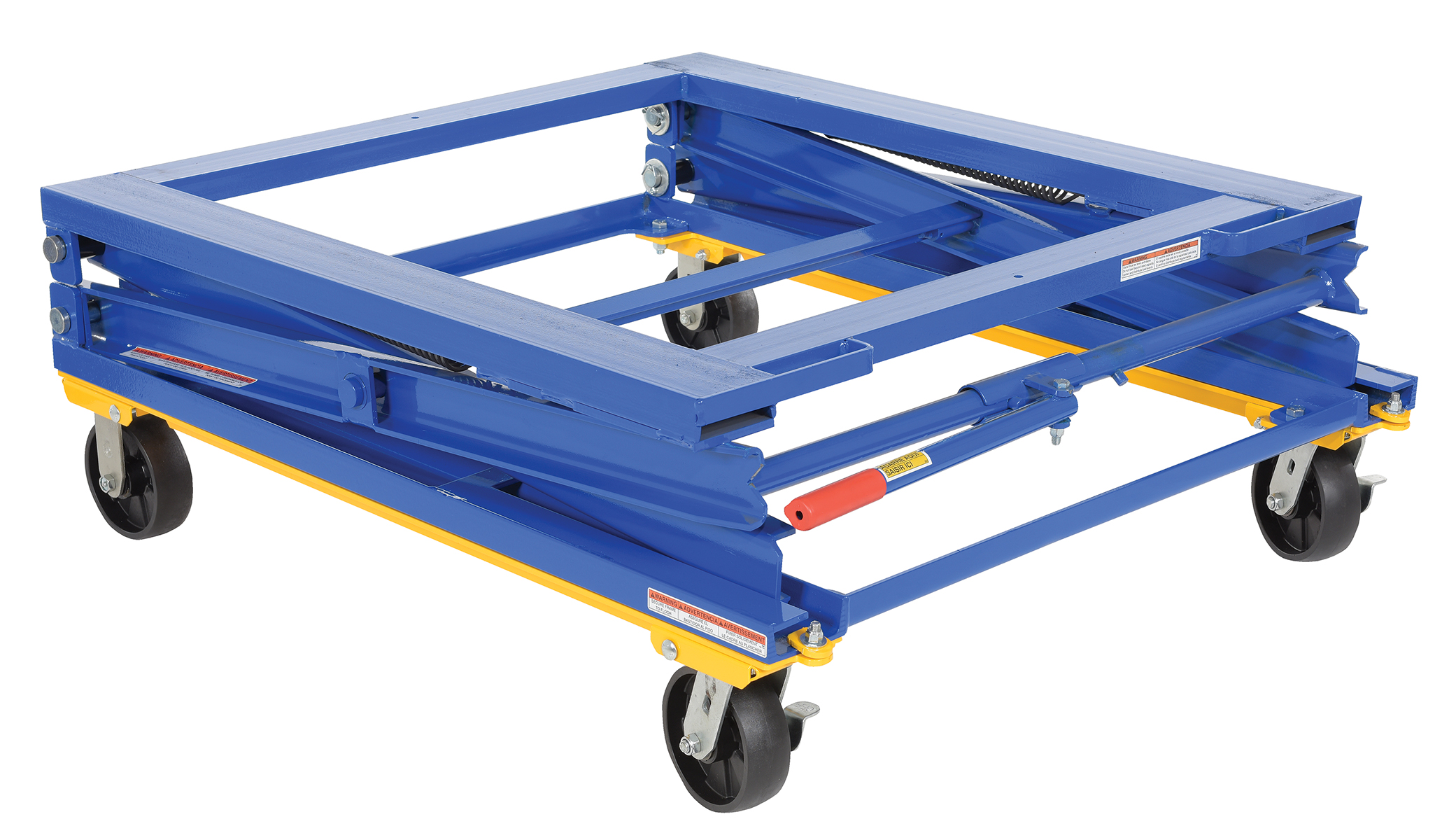

PS-4045-CK PS-4045-CK90 Days Limited WarrantySteel Adjustable Pallet Stand with Casters 48-13/16 In. x 40-1/2 In. x 16-13/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16		320

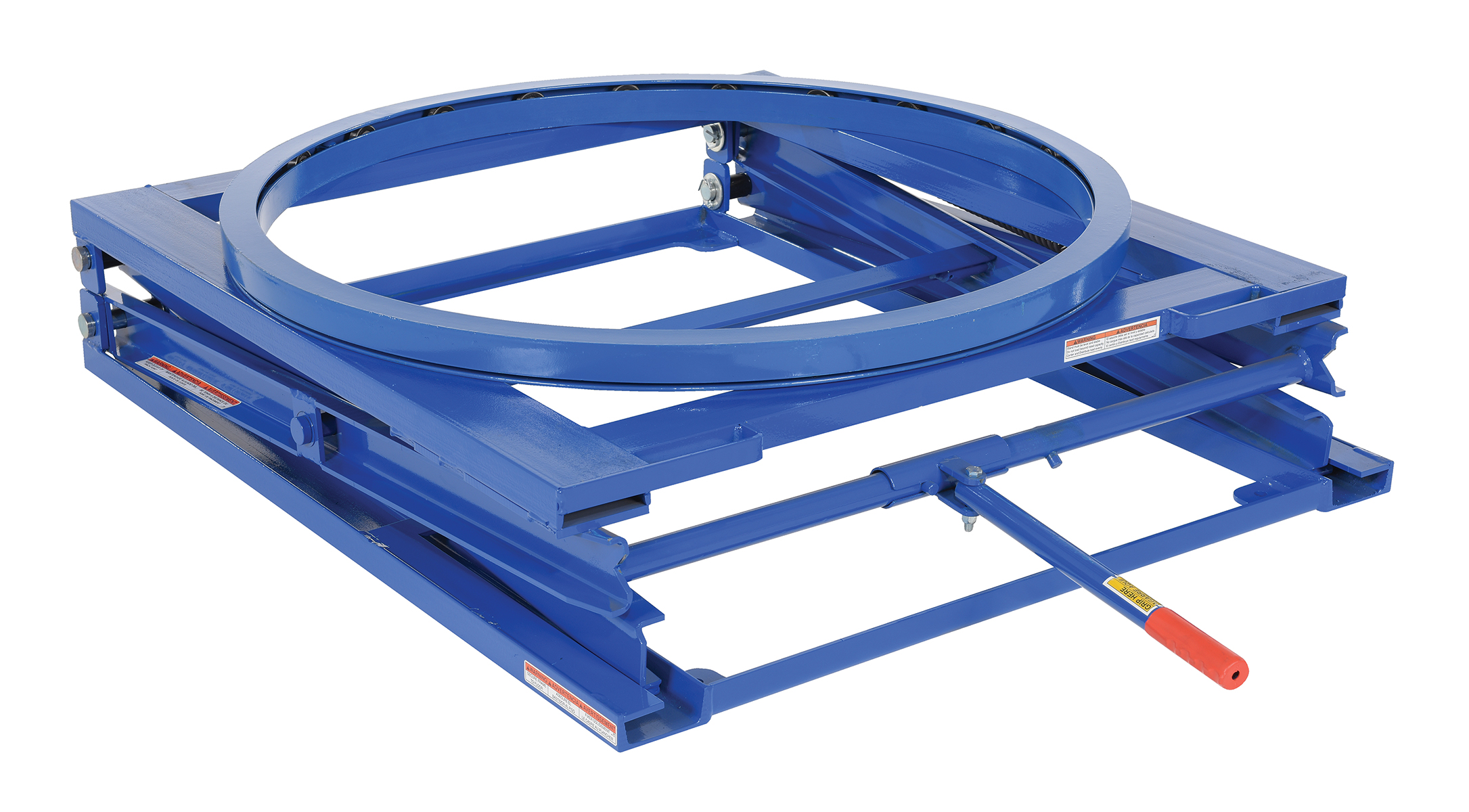

PS-4045/CA PS-4045/CA90 Days Limited WarrantySteel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 11 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Lowered Height (in.): 11		312
PS-4045/CA-CK PS-4045/CA-CK90 Days Limited WarrantySteel Adjustable Pallet Carousel Stand with Casters 48-13/16 In. x 40-1/2 In. x 18-13/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16		333

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PS-4045
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 9
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 9

PS-4045/CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 11

PS-4045/CA-CK
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16

PS-4045-CK
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

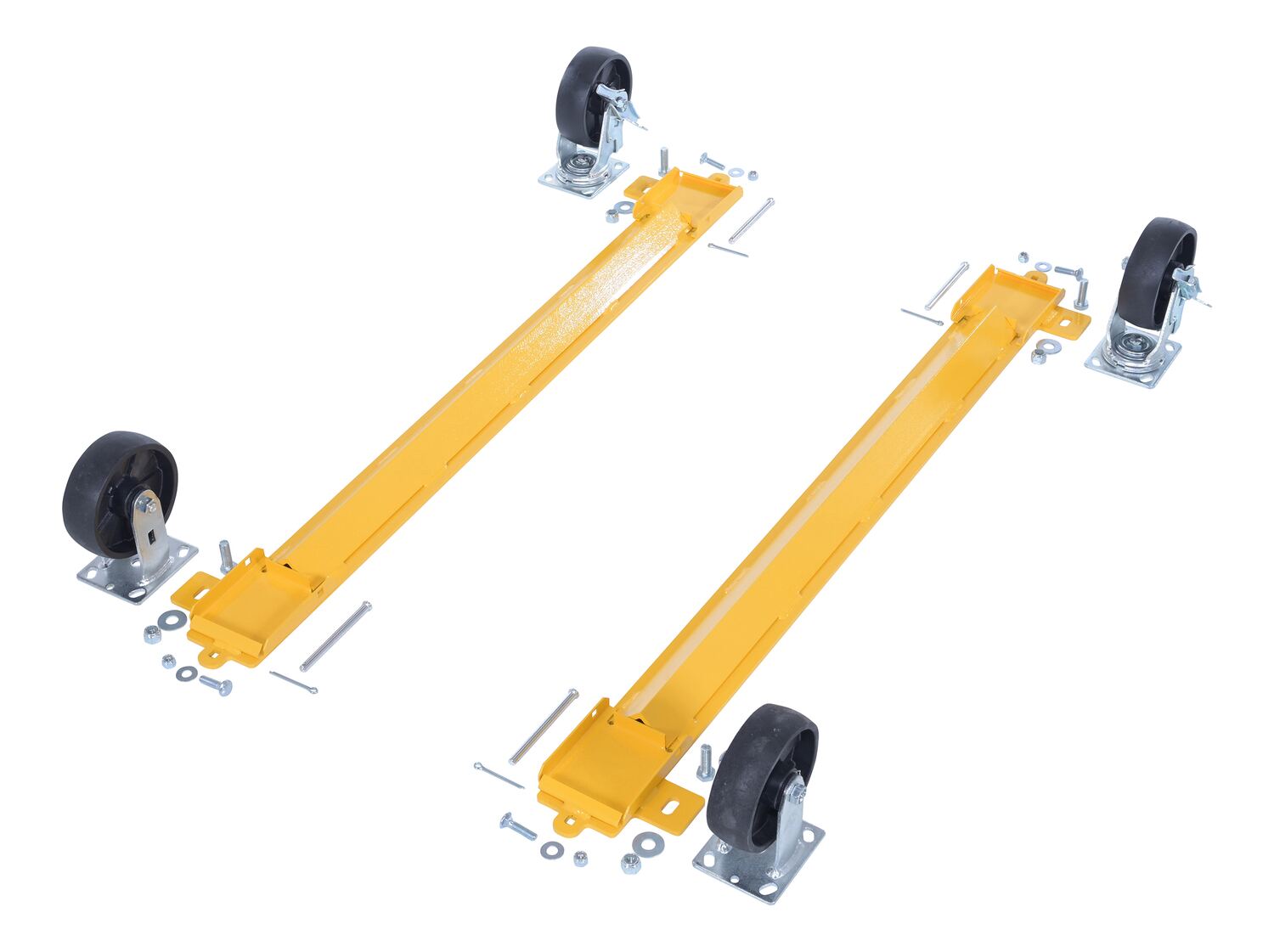

PS-RF-CK PS-4045-CKGlass Filled Nylon Caster Kit 6 In x 2 In For Adjustable Pal… Limited Warranty60

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

PS-4045

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PS-4045

PS-4045/CA

PS-4045/CA-CK

PS-4045-CK

PS-RF-CK

Testing Certificates

PS-4045

PS-4045-CK

PS-4045/CA

PS-4045/CA-CK

PS-RF-CK

SDS Sheets

Hydraulic Oil
PS-4045 SDS

Hydraulic Oil
PS-4045/CA SDS

Hydraulic Oil
PS-4045/CA-CK SDS

Hydraulic Oil
PS-4045-CK SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Q: What will the capacity be for PS-4045 and PS-4045/CA if I add the PS-RF-CK option?

A: The capacity for PS-4045 and PS-4045/CA will both change to 1,500 lbs. if you add the PS-RF-CK option.
