Dock Seals

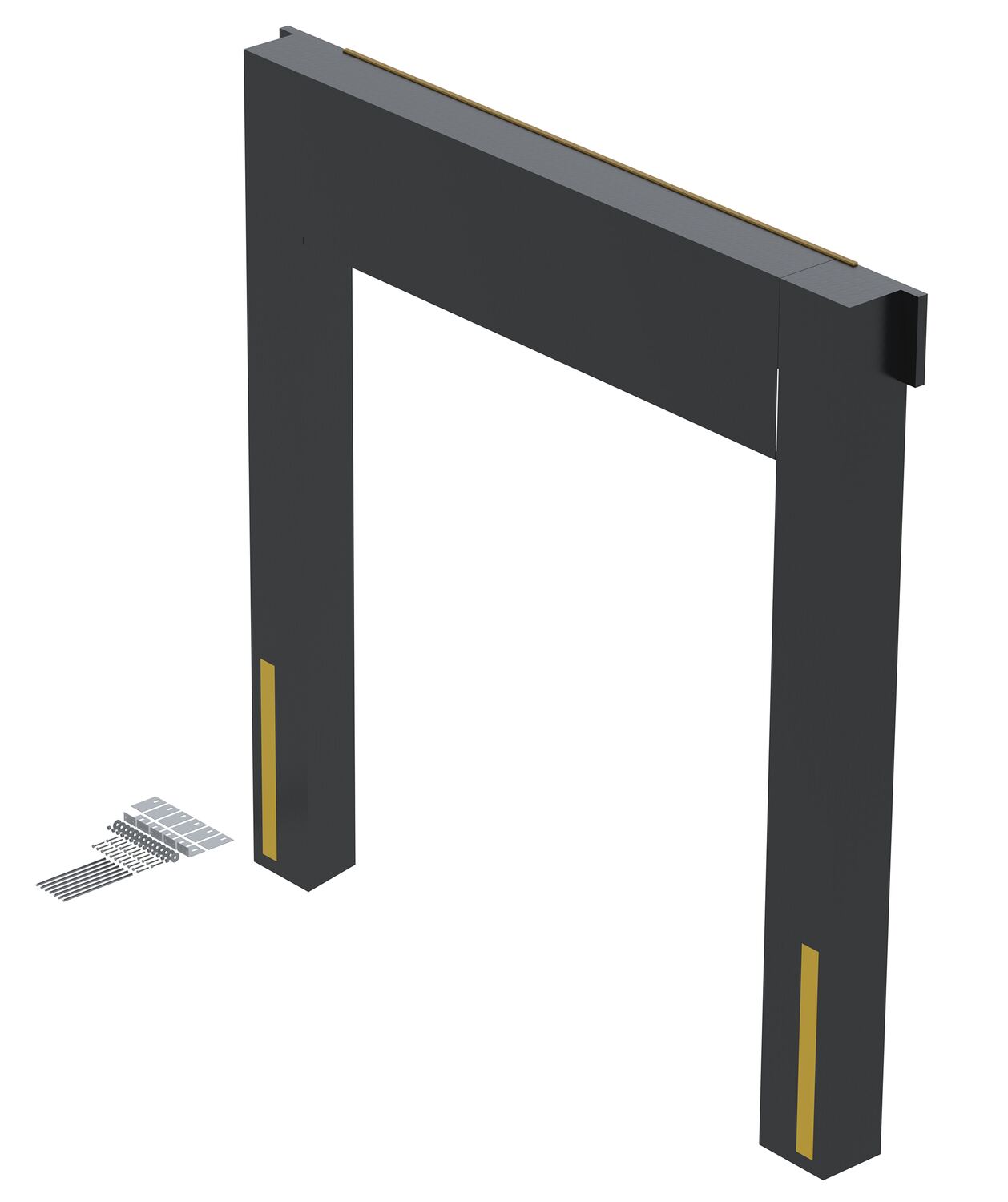

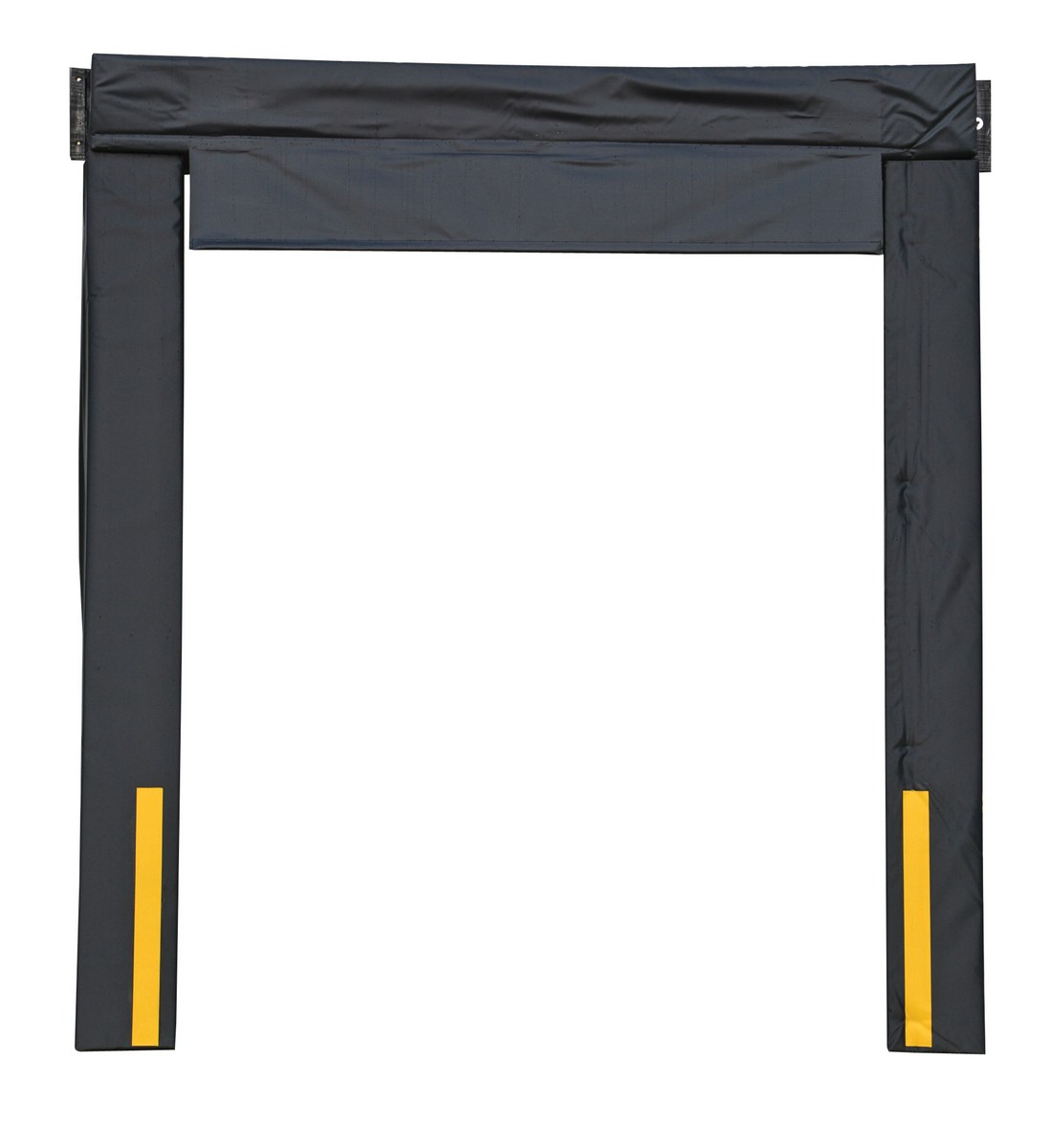

model: D-350-10

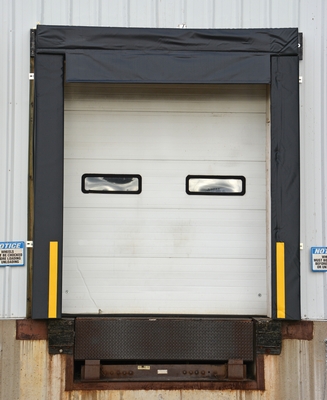

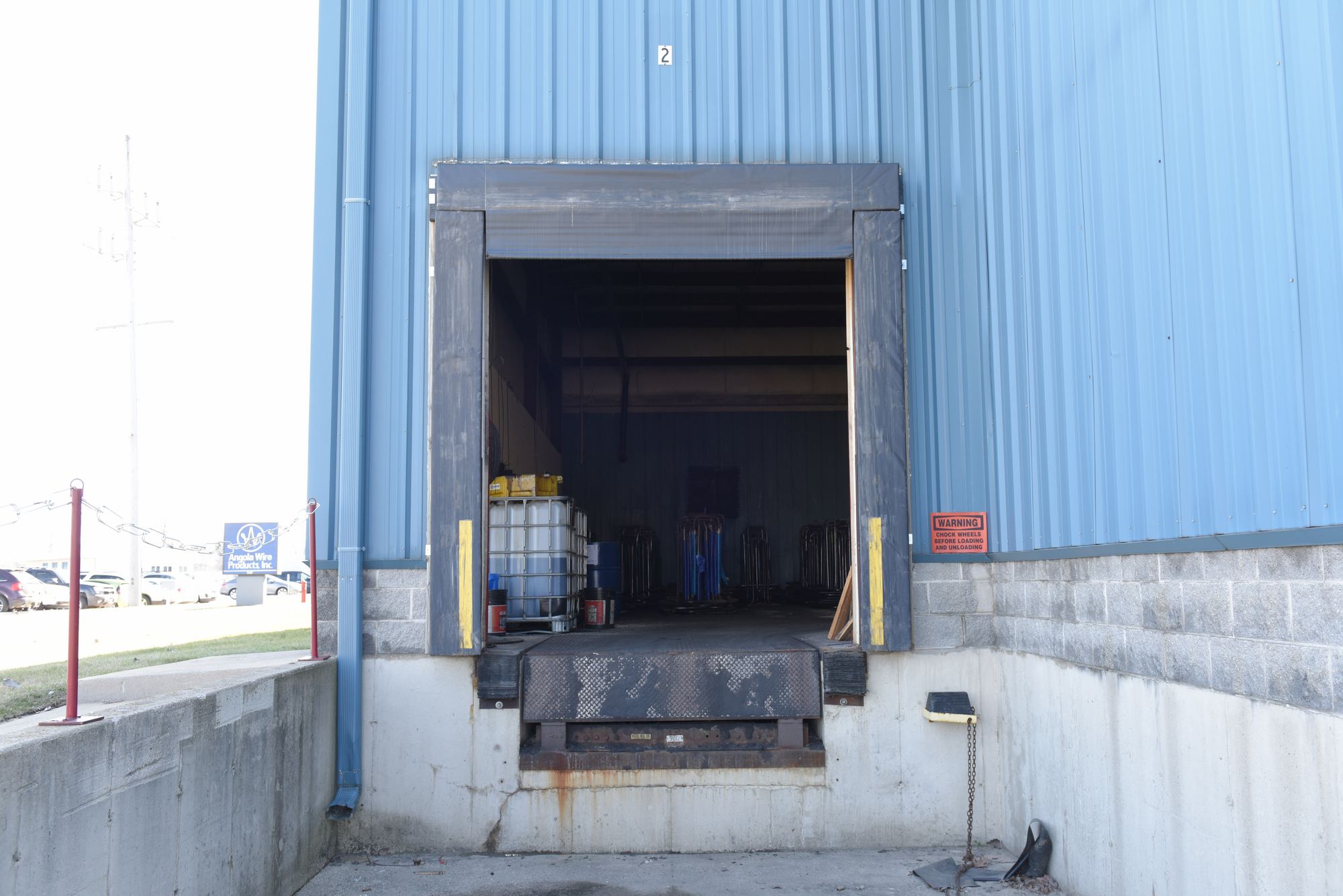

D-350-10_B.jpg D-350-10_A.jpg D-350-10_1.jpg D-350-10_2.jpg D-350-10_3.jpg More Images +
Dock Seals
SERIES: D

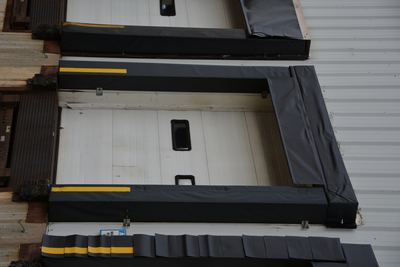

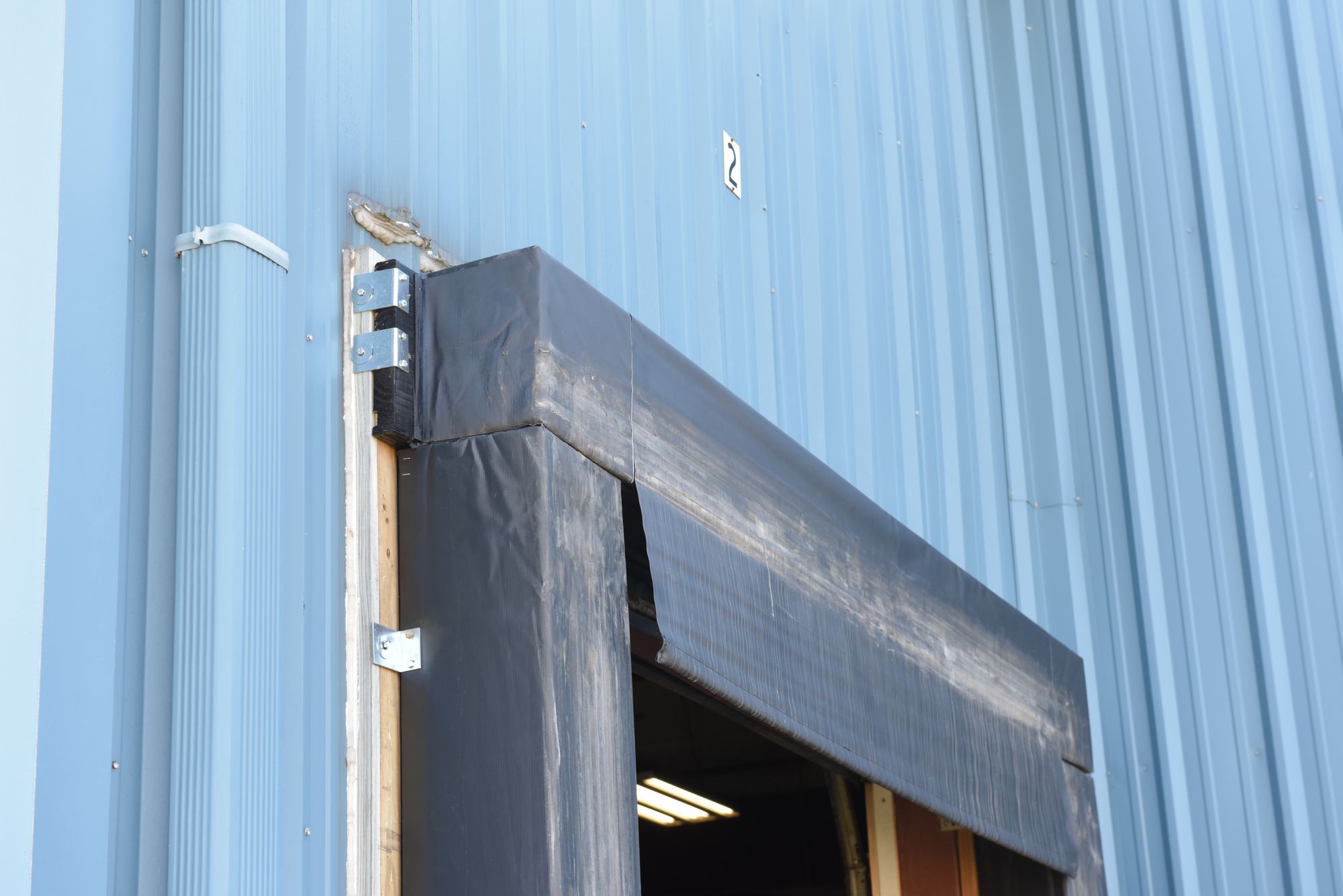

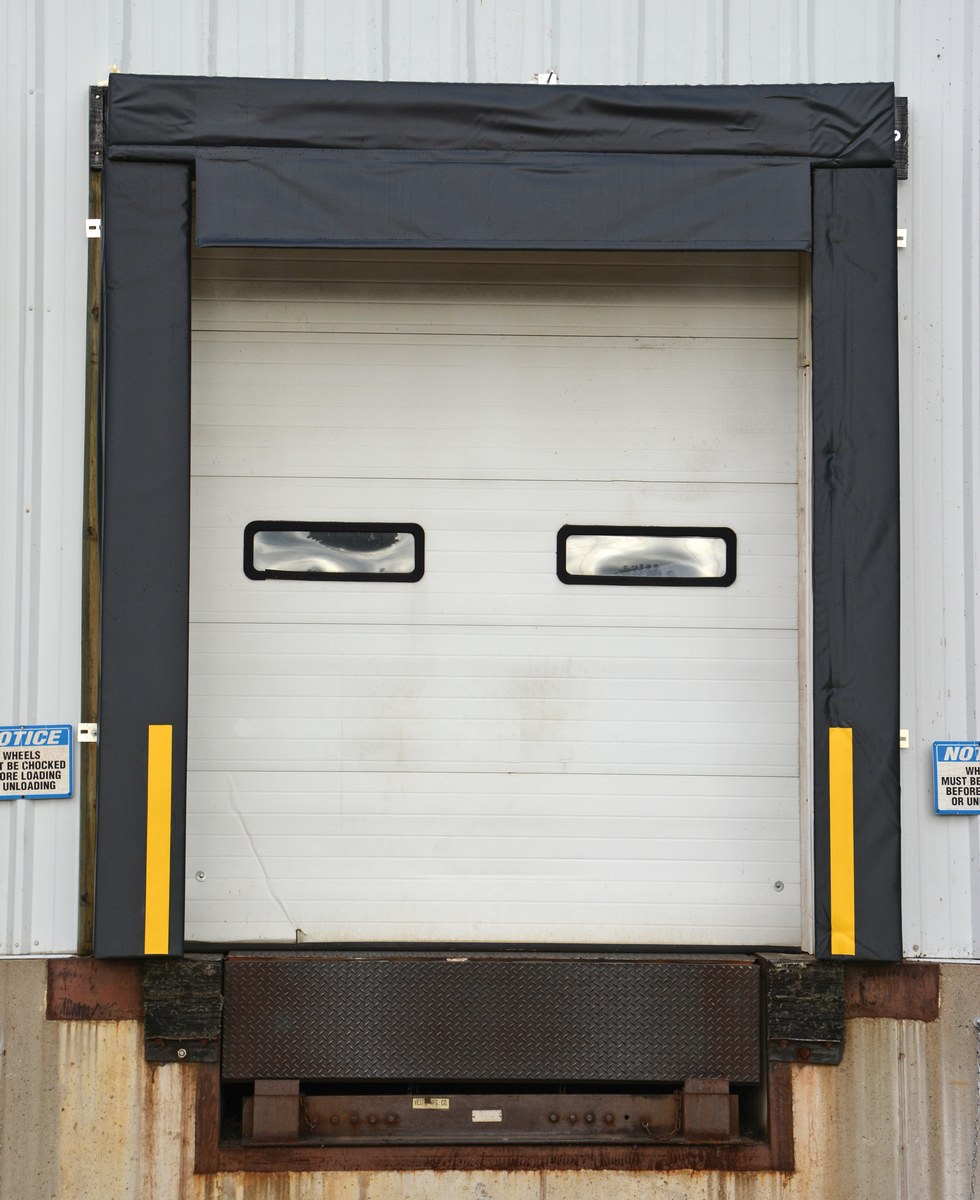

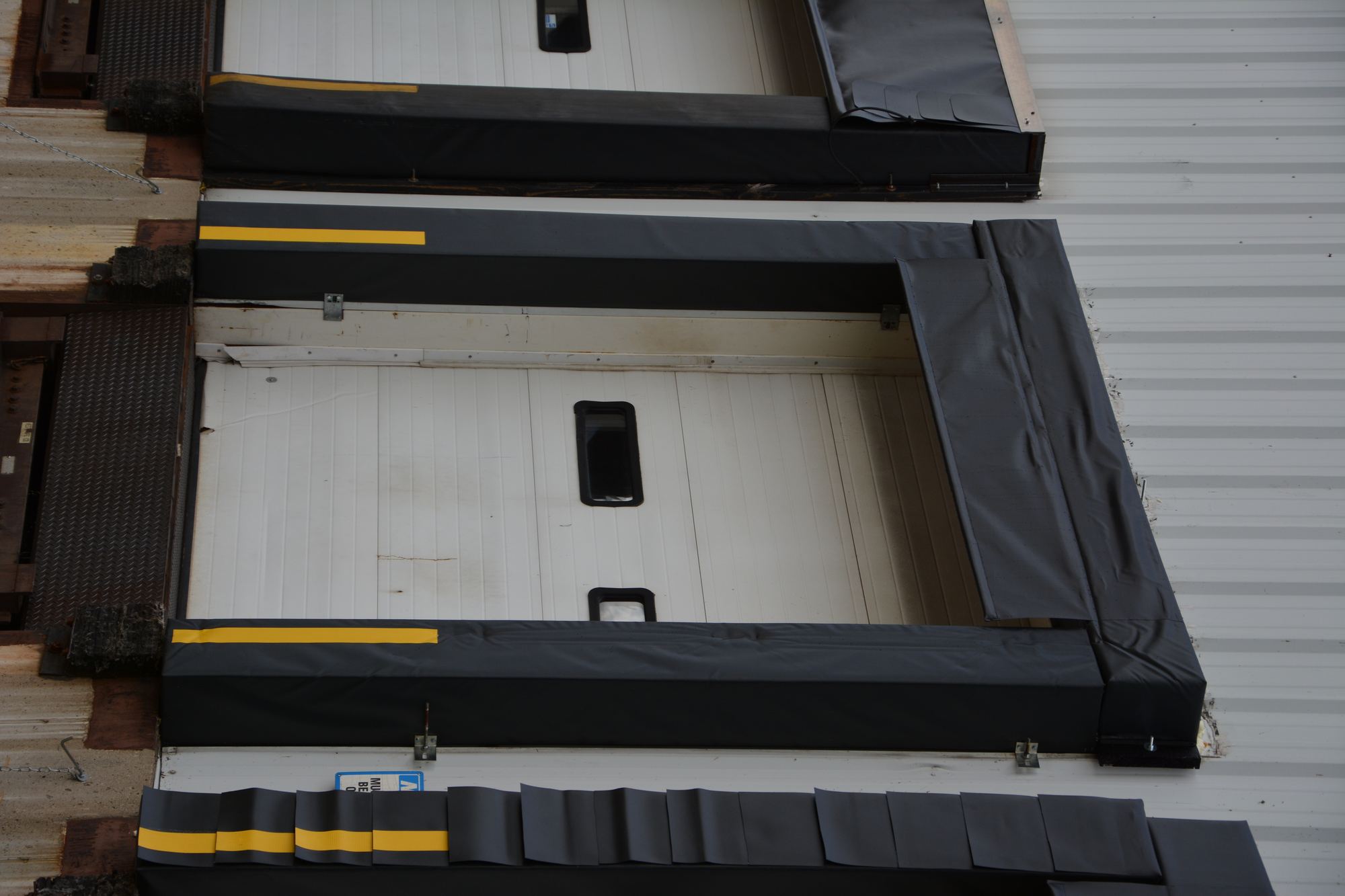

Dock Seals are designed to create an airtight seal between the loading dock and the back of a trailer, helping to conserve energy and protect freight from weather elements. The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

Optional Wear Pleats For Dock Seals

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost

Dock Seals

model: D-350-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
D-150-10
D-150-11
D-150-12
D-150-13
D-150-14
D-150-15
D-150-16
D-150-17
D-150-18
D-150-19
D-150-20
D-350-10
D-350-11
D-350-12
D-350-13
D-350-14
D-350-15
D-350-16
D-350-17
D-350-18
D-350-19
D-350-20
D-KIT
SP-STL
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

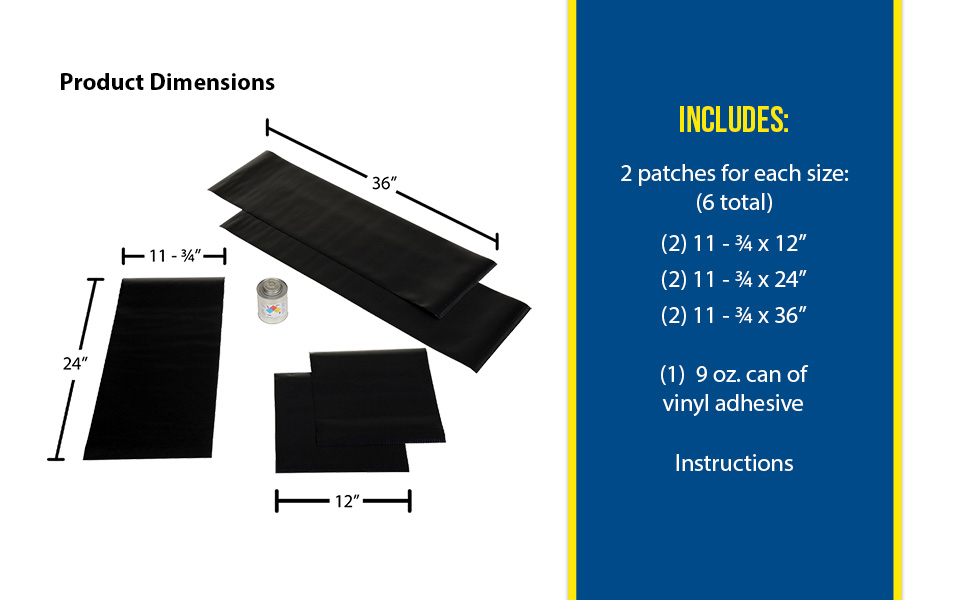

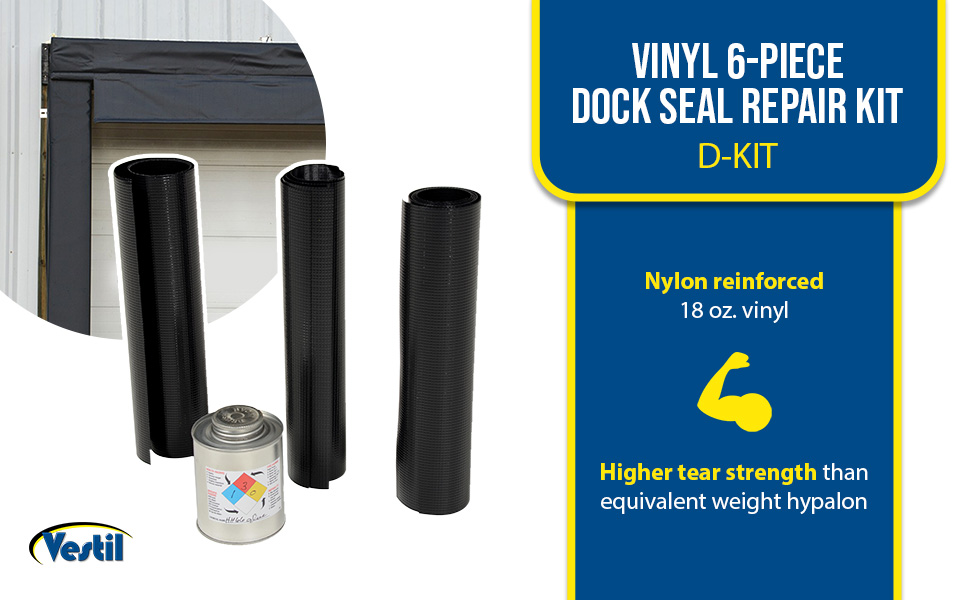

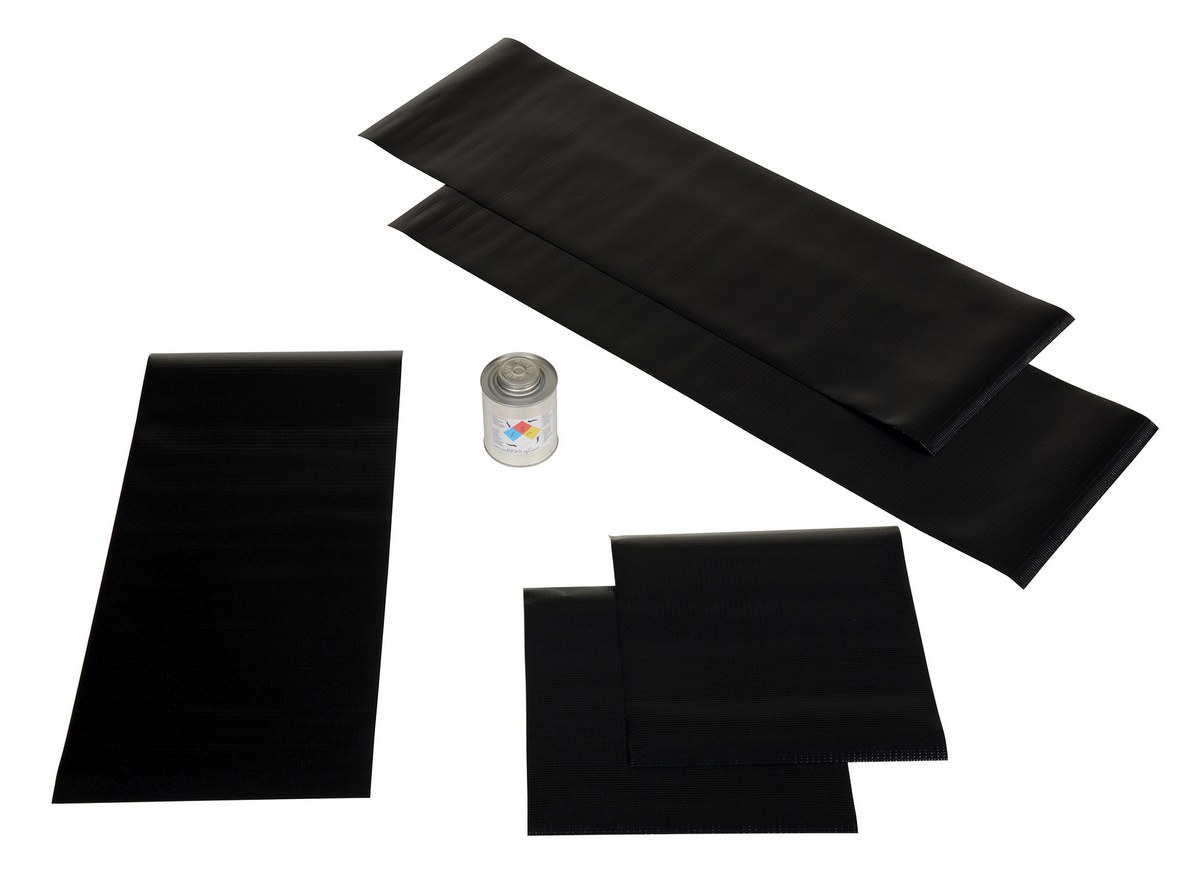

D-KIT D-KITVinyl 6-Piece Dock Seal Repair Kit For Dock Seal/Shelter Com…3
SP-STL Factory Installed Span Pins/Holes For Steel Dock Board Units
Model Number Image PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

D-150 D-350

D-150650

D-KIT

Survey Sheets

DOCK SEAL & DOCK SHELTER

Engineering Drawings

D-150-10

D-150-11

D-150-12

D-150-13

D-150-14

D-150-15

D-150-16

D-150-17

D-150-18

D-150-19

D-150-20

D-350-10

D-350-11

D-350-12

D-350-13

D-350-14

D-350-15

D-350-16

D-350-17

D-350-18

D-350-19

D-350-20

D-KIT

Testing Certificates

D-150-10

D-150-11

D-150-12

D-150-13

D-150-14

D-150-15

D-150-16

D-150-17

D-150-18

D-150-19

D-150-20

D-350-10

D-350-11

D-350-12

D-350-13

D-350-14

D-350-15

D-350-16

D-350-17

D-350-18

D-350-19

D-350-20

D-KIT

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Cold Weather Products Mailing Brochure

Winter Spotlight - Interactive -  Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

D-KIT
D-KIT D-KIT A+ Content - 2
D-KIT D-KIT A+ Content - 1

Applications



Cold Environments

Trucking Companies

Warehouses

Related or Similar Products:

More From Dock Seals & Shelters





Dock Seals




Dock Seals are designed to create an airtight seal between the loading dock and the back of a trailer, helping to conserve energy and protect freight from weather elements. The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

Optional Wear Pleats For Dock Seals

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost


Model # Description Attributes Net Wt.
(lbs)

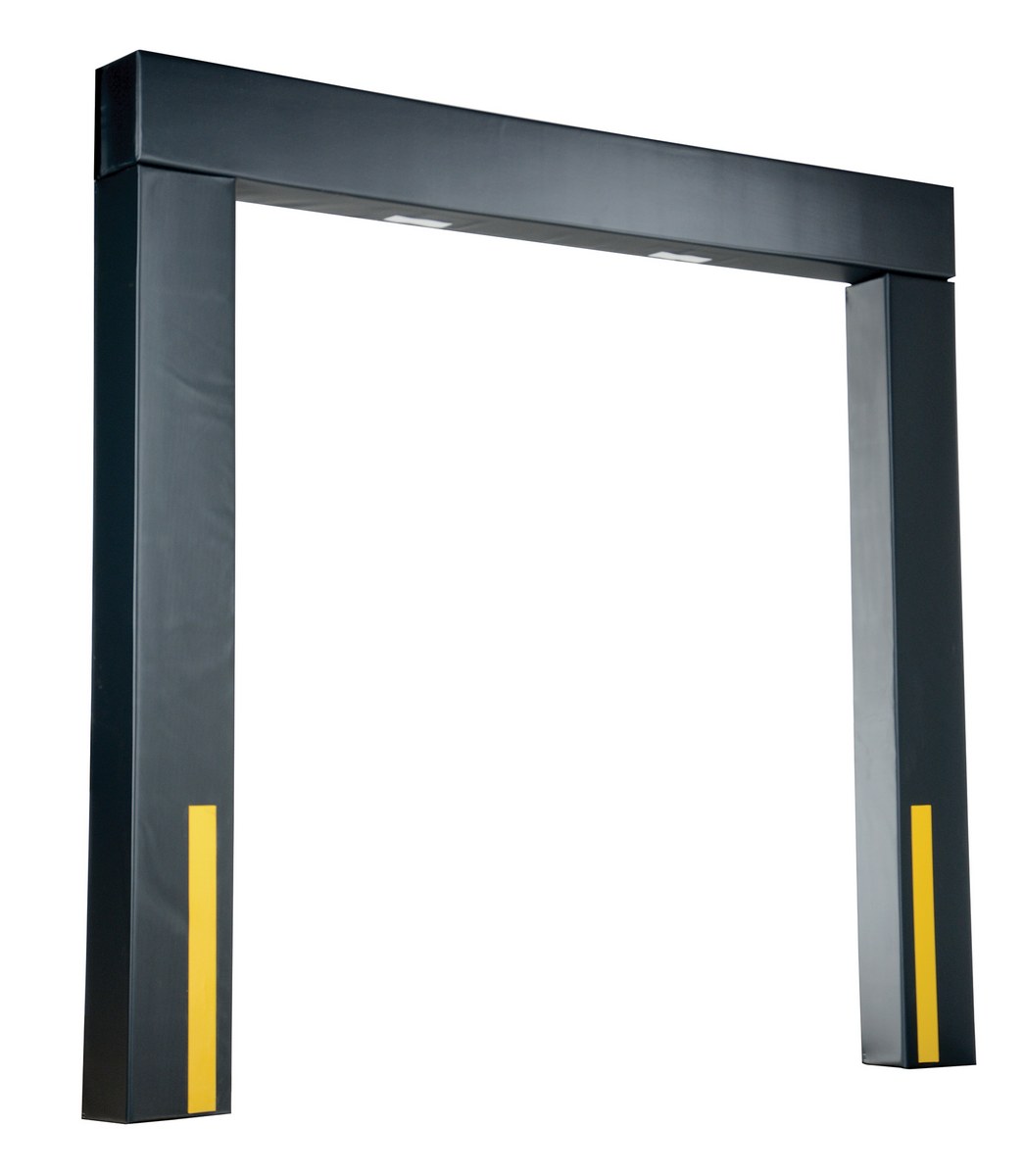

D-150-10 D-150-10Vinyl Dock Seal 10 In. 8 Ft. x 8 Ft. BlackProjection (in.): 10
Nylon Reinforced Vinyl (oz.): 36		212

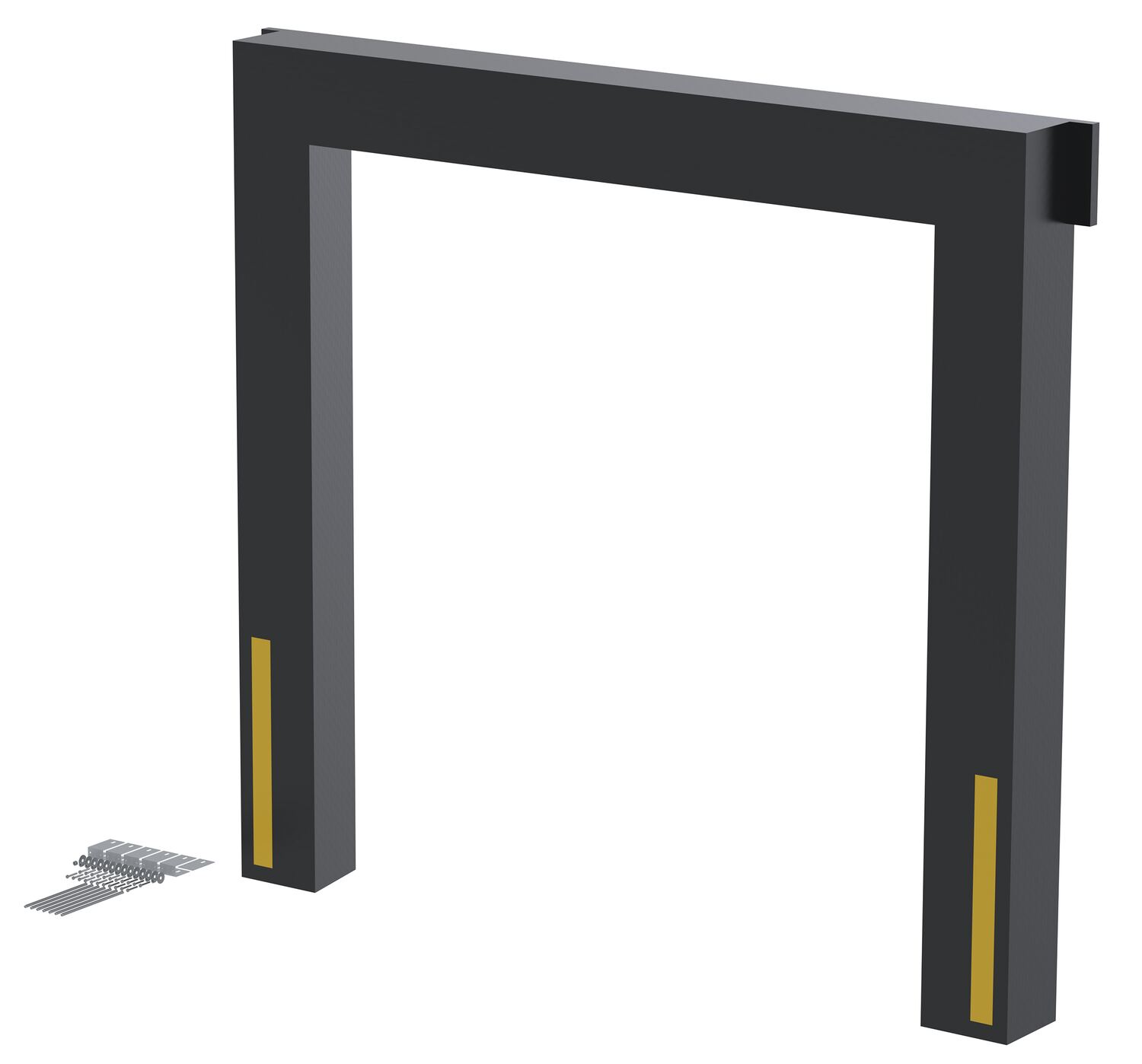

D-150-11 D-150-11Vinyl Dock Seal 11 In. 8 Ft. x 8 Ft. BlackProjection (in.): 11
Nylon Reinforced Vinyl (oz.): 36		214

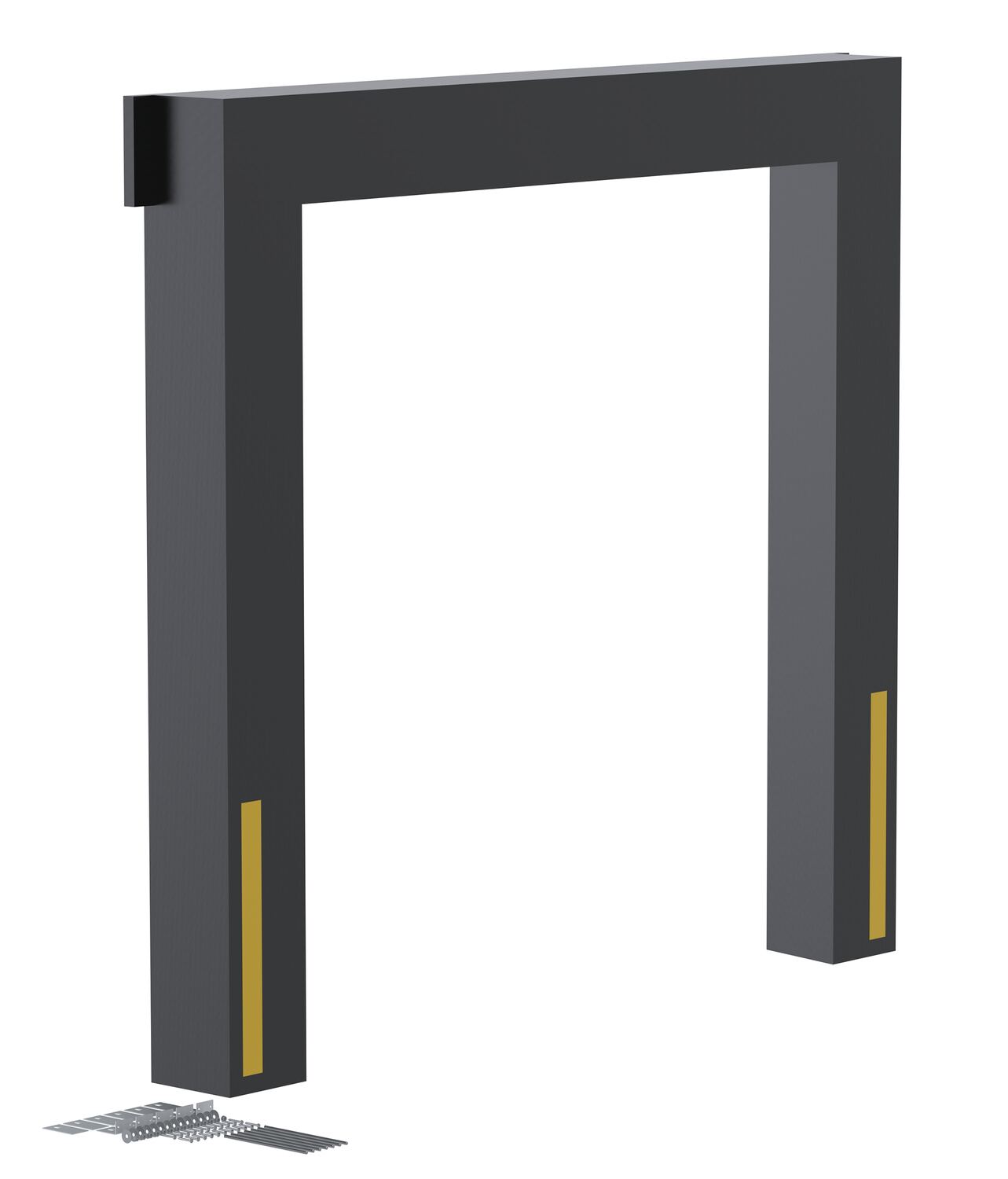

D-150-12 D-150-12Vinyl Dock Seal 12 In. 8 Ft. x 8 Ft. BlackProjection (in.): 12
Nylon Reinforced Vinyl (oz.): 36		216

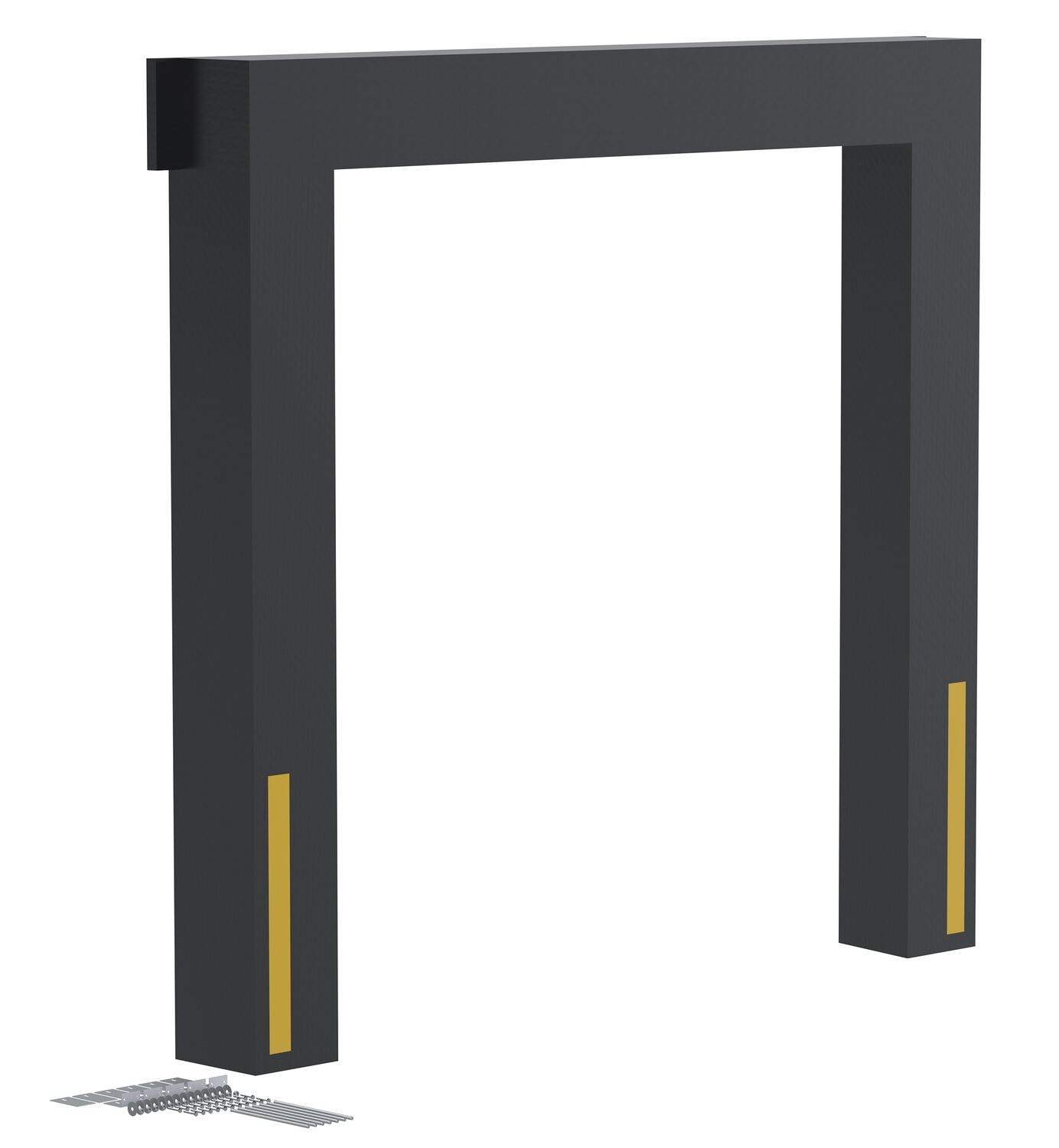

D-150-13 D-150-13Vinyl Dock Seal 13 In. 8 Ft. x 8 Ft. BlackProjection (in.): 13
Nylon Reinforced Vinyl (oz.): 36		218

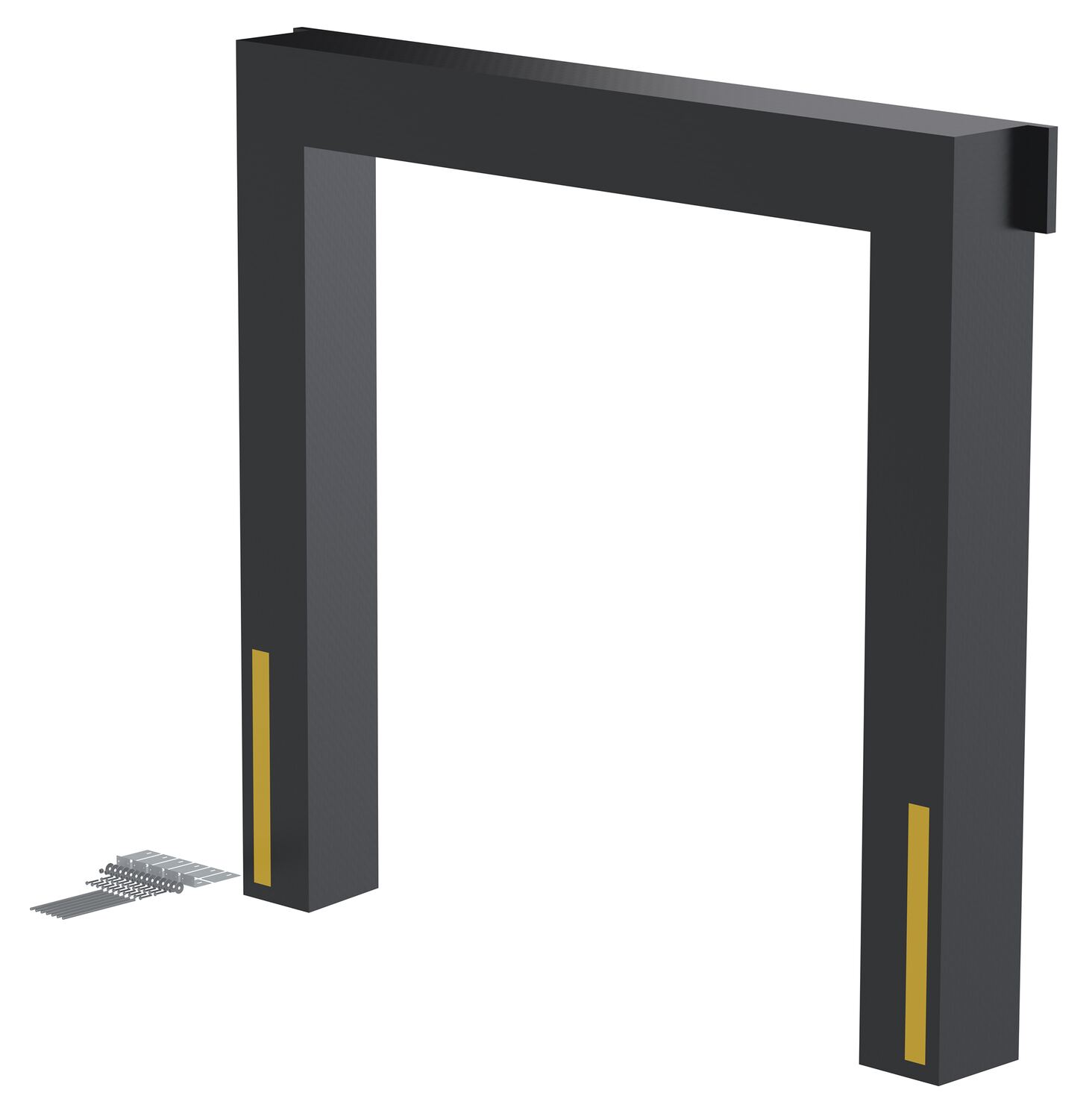

D-150-14 D-150-14Vinyl Dock Seal 14 In. 8 Ft. x 8 Ft. BlackProjection (in.): 14
Nylon Reinforced Vinyl (oz.): 36		219

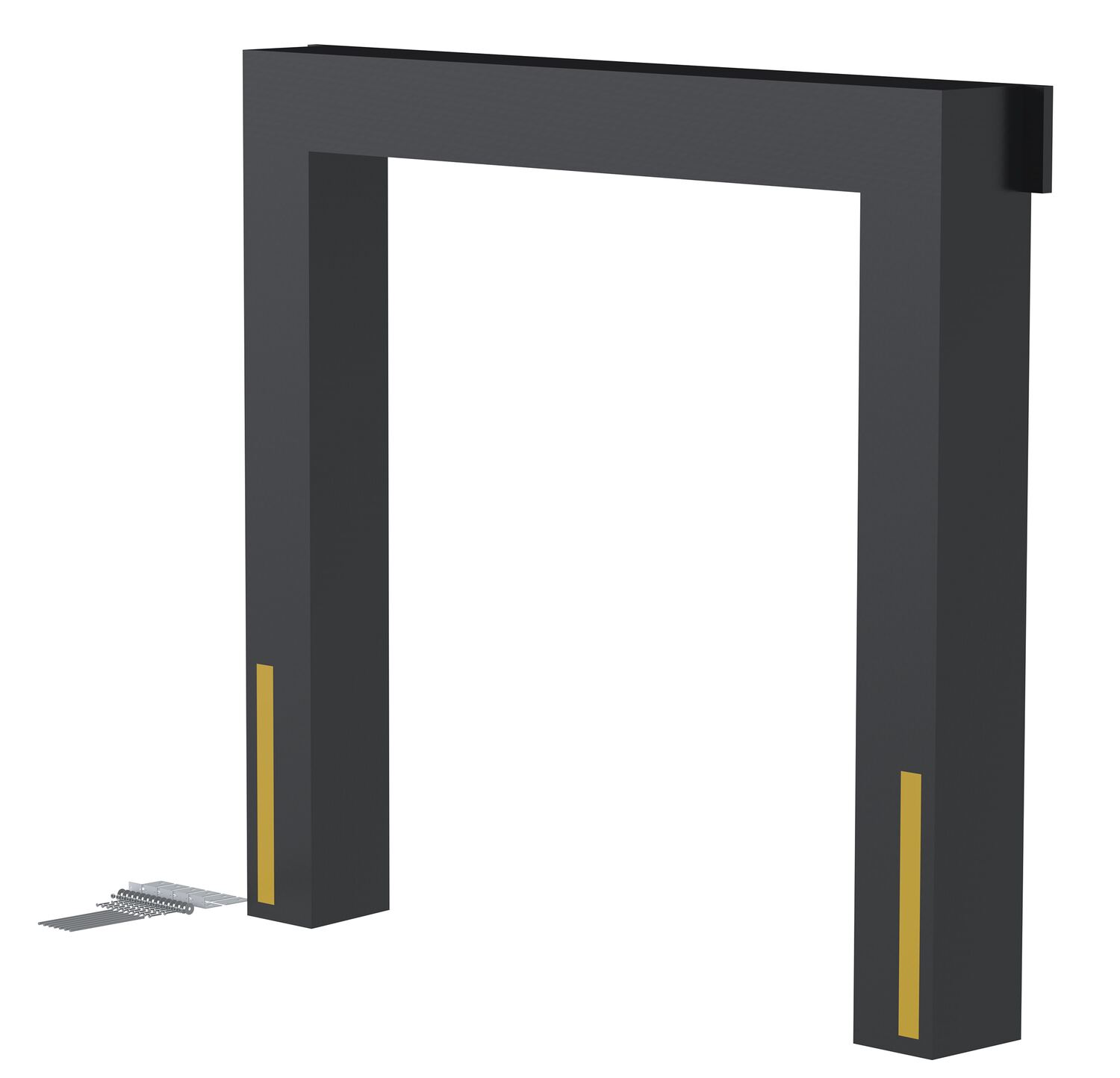

D-150-15 D-150-15Vinyl Dock Seal 15 In. 8 Ft. x 8 Ft. BlackProjection (in.): 15
Nylon Reinforced Vinyl (oz.): 36		220

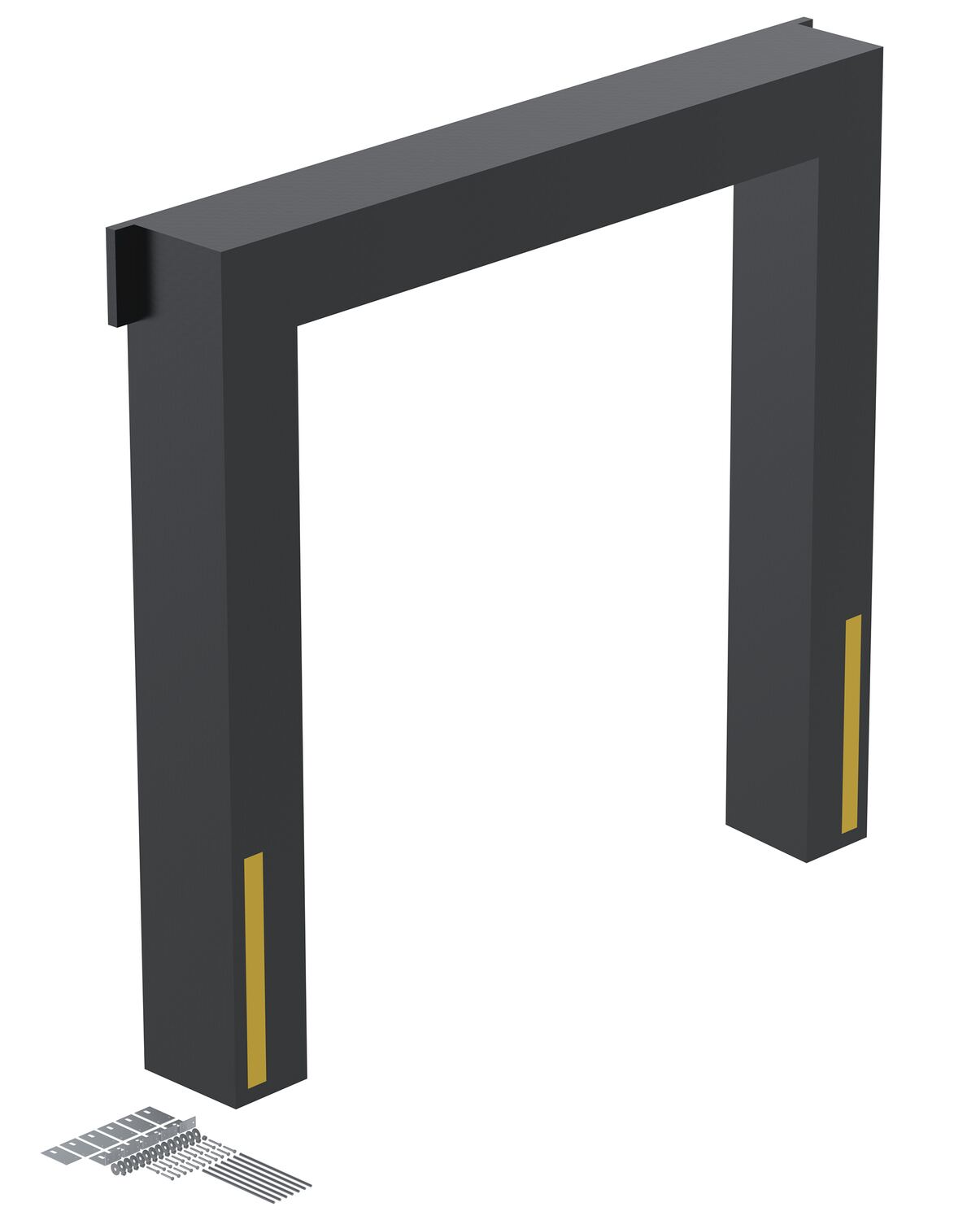

D-150-16 D-150-16Vinyl Dock Seal 16 In. 8 Ft. x 8 Ft. BlackProjection (in.): 16
Nylon Reinforced Vinyl (oz.): 36		221

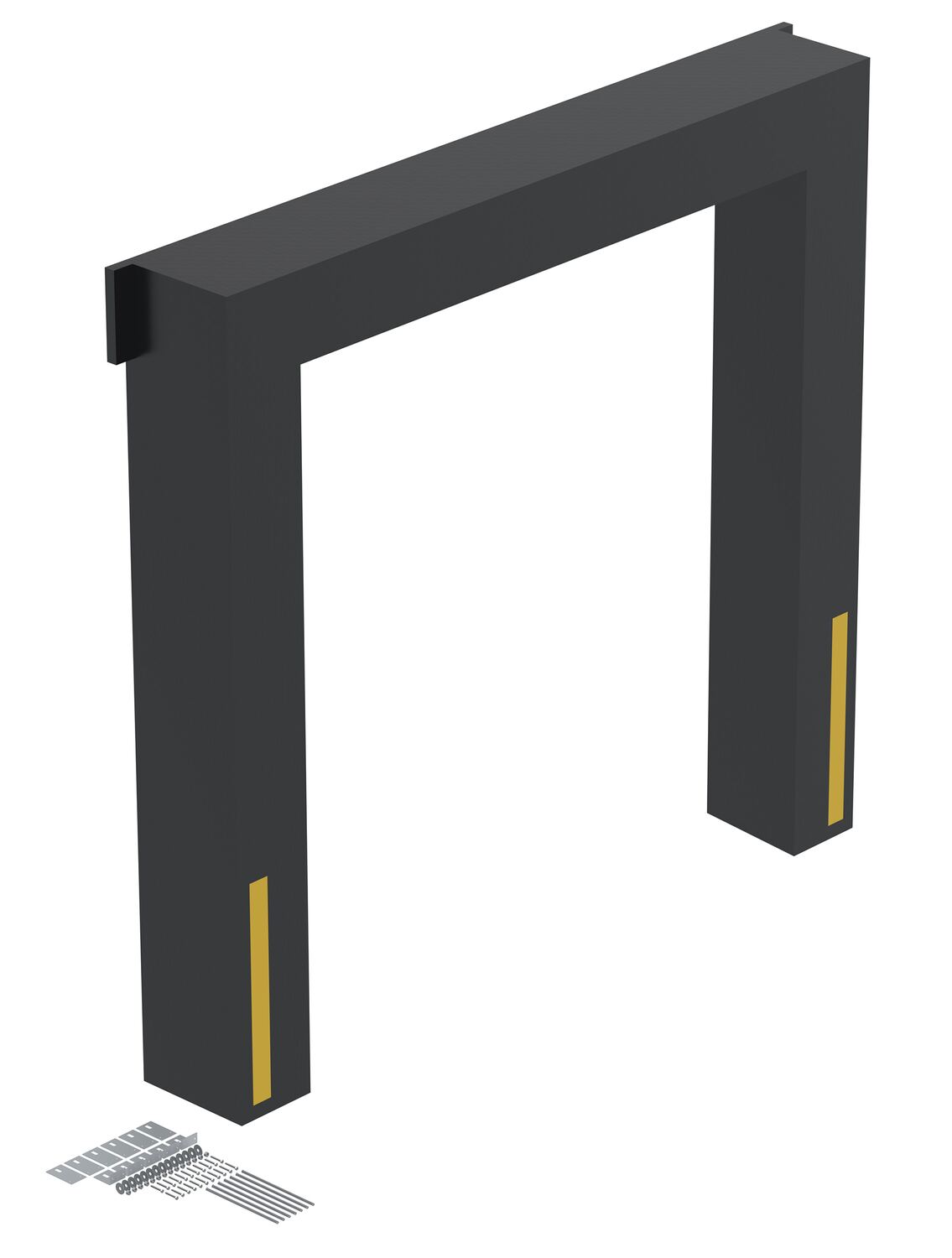

D-150-17 D-150-17Vinyl Dock Seal 17 In. 8 Ft. x 8 Ft. BlackProjection (in.): 17
Nylon Reinforced Vinyl (oz.): 36		222

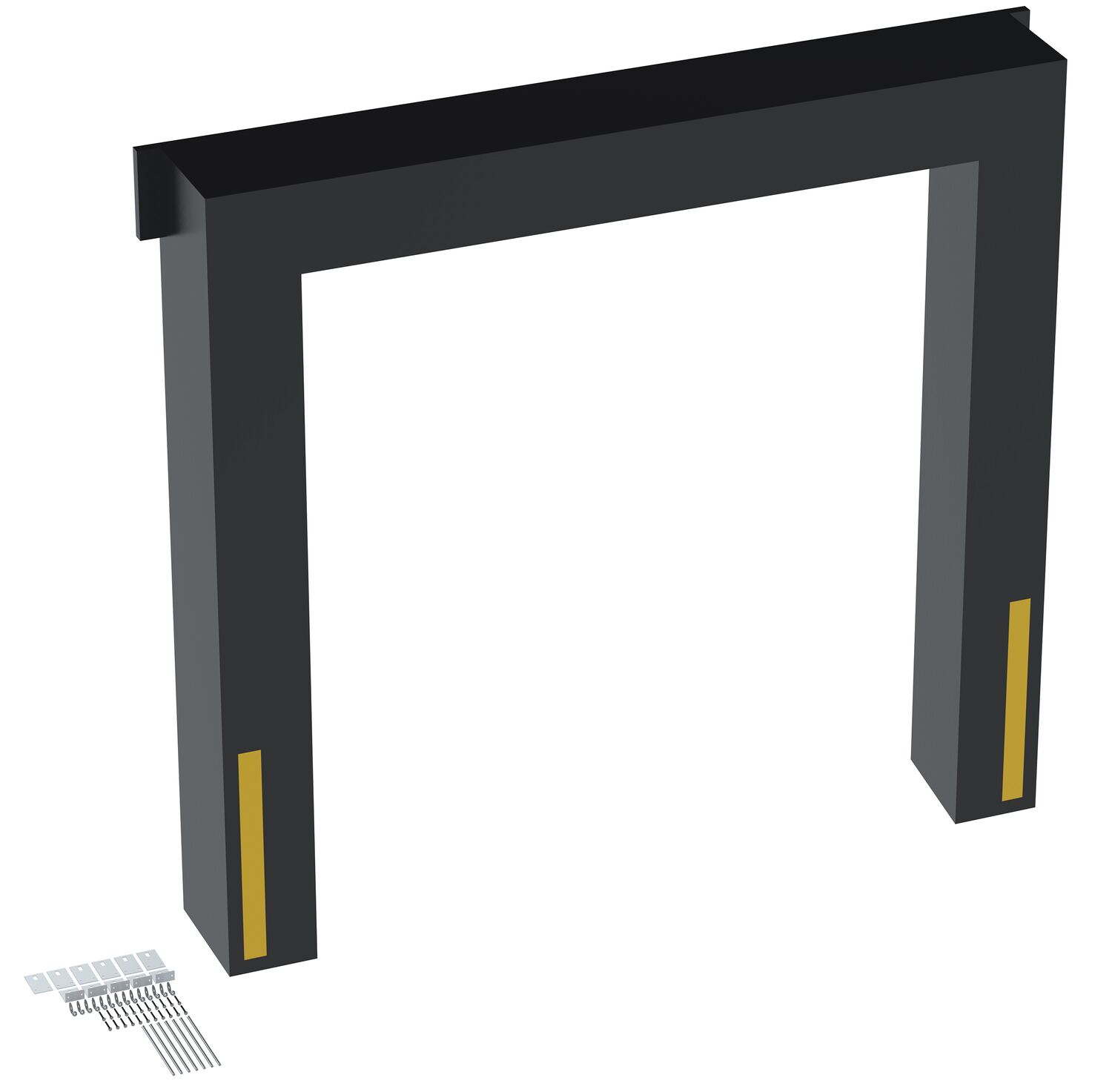

D-150-18 D-150-18Vinyl Dock Seal 18 In. 8 Ft. x 8 Ft. BlackProjection (in.): 18
Nylon Reinforced Vinyl (oz.): 36		249

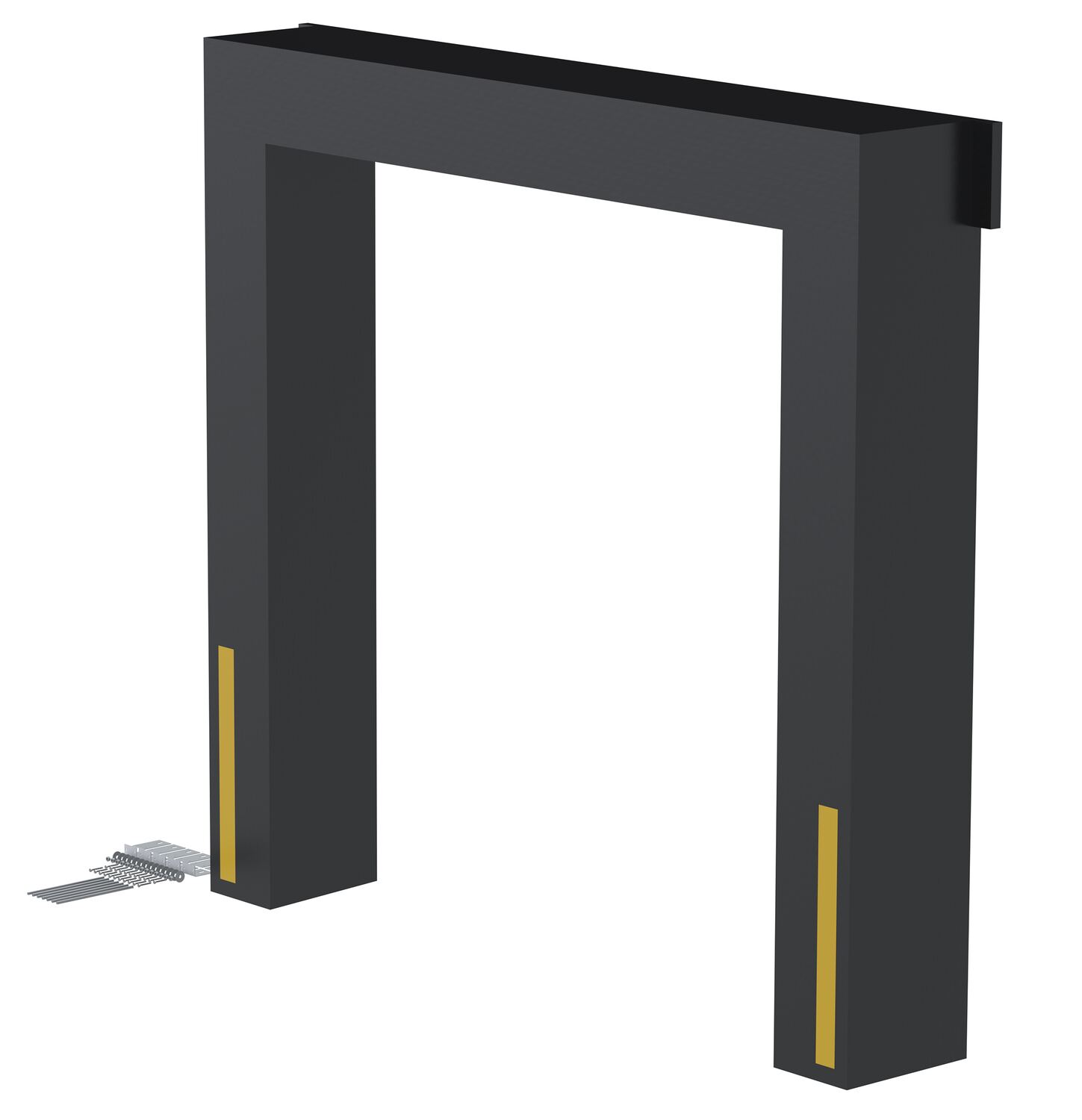

D-150-19 D-150-19Vinyl Dock Seal 19 In. 8 Ft. x 8 Ft. BlackProjection (in.): 19
Nylon Reinforced Vinyl (oz.): 36		251

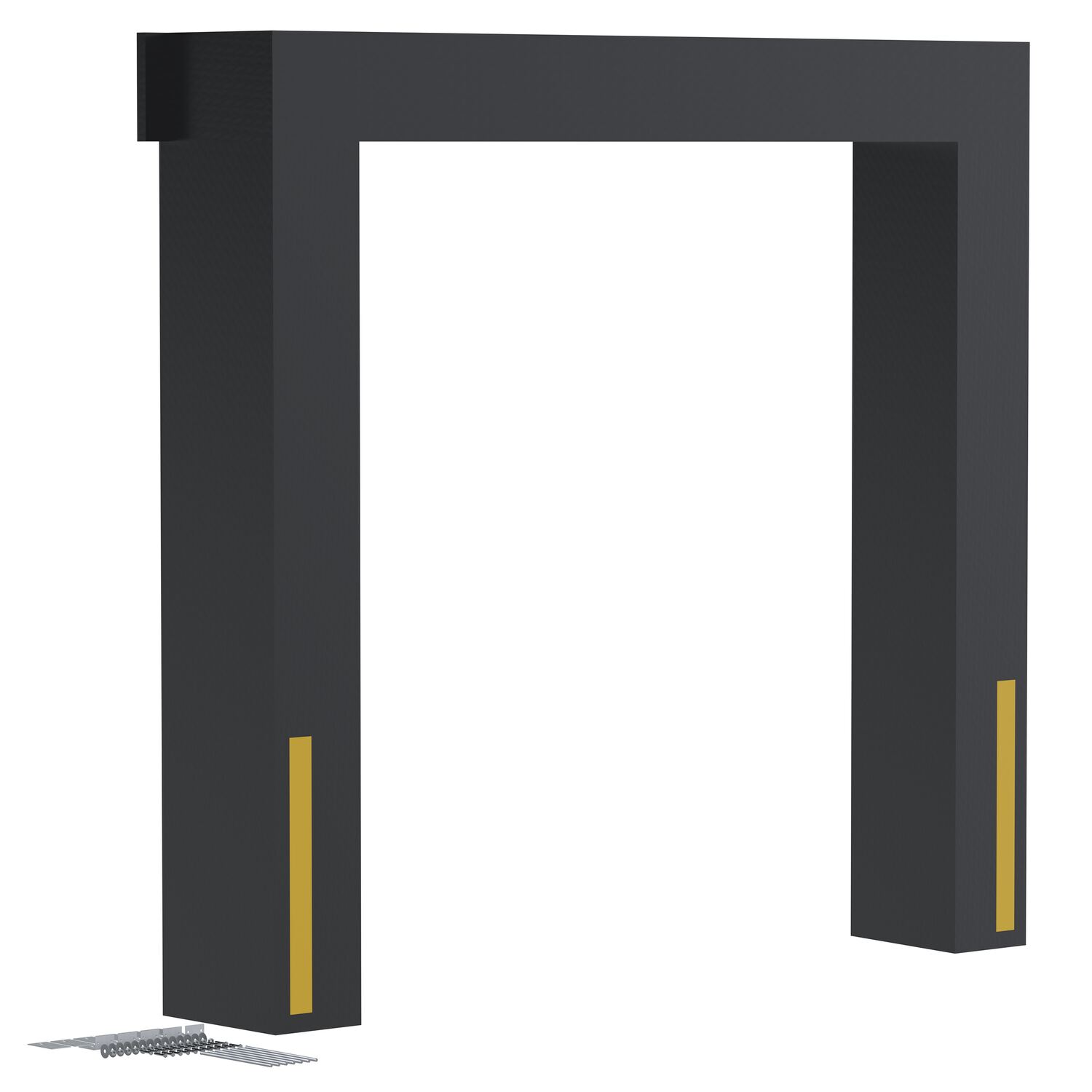

D-150-20 D-150-20Vinyl Dock Seal 20 In. 8 Ft. x 8 Ft. BlackProjection (in.): 20
Nylon Reinforced Vinyl (oz.): 36		252
D-350-10 D-350-10Nylon (Vinyl) Dock Seal 10 In. 8 Ft. x 9 Ft. BlackProjection (in.): 10
Nylon Reinforced Vinyl (oz.): 36		216

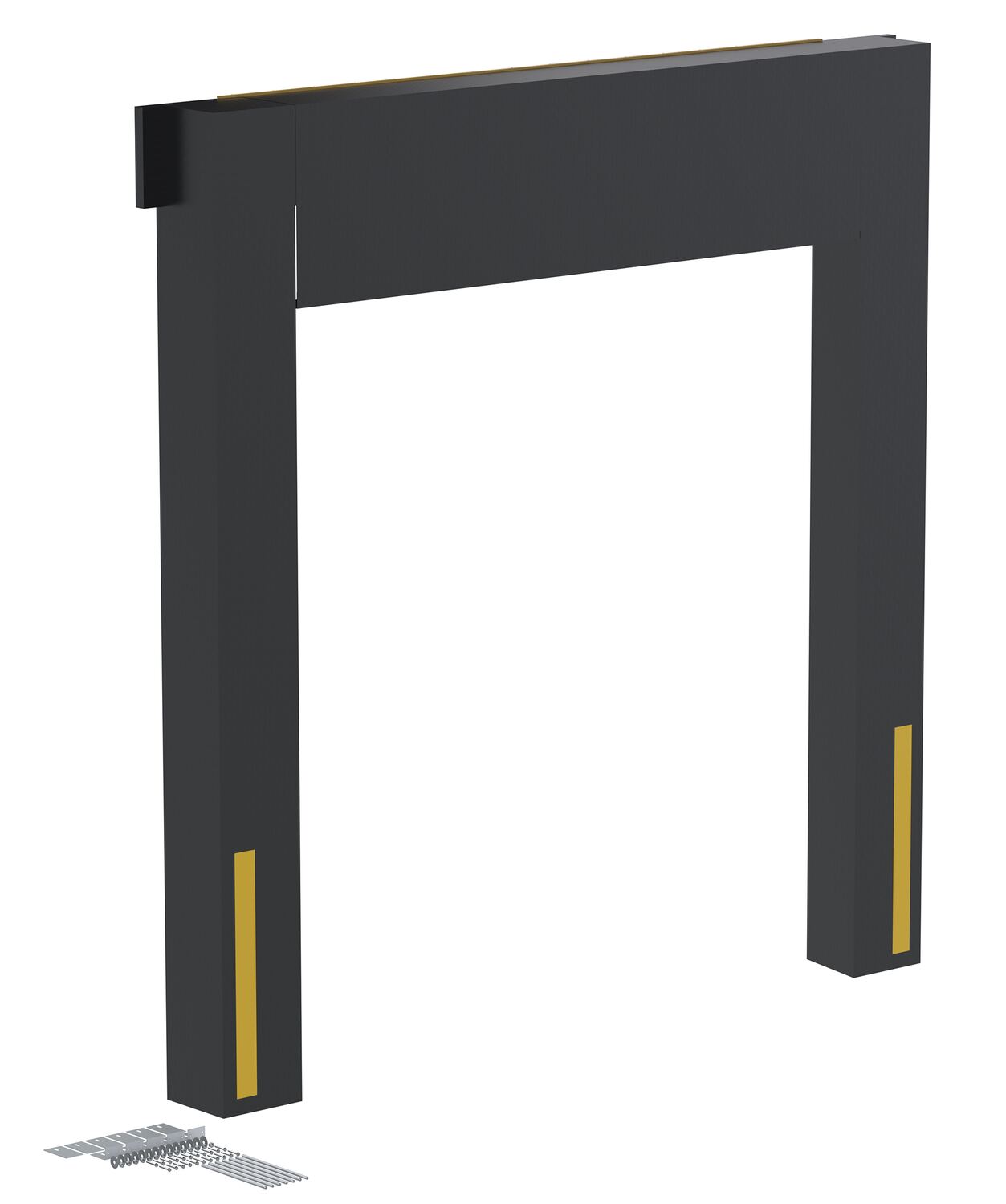

D-350-11 D-350-11Nylon (Vinyl) Dock Seal 11 In. 8 Ft. x 9 Ft. BlackProjection (in.): 11
Nylon Reinforced Vinyl (oz.): 36		218

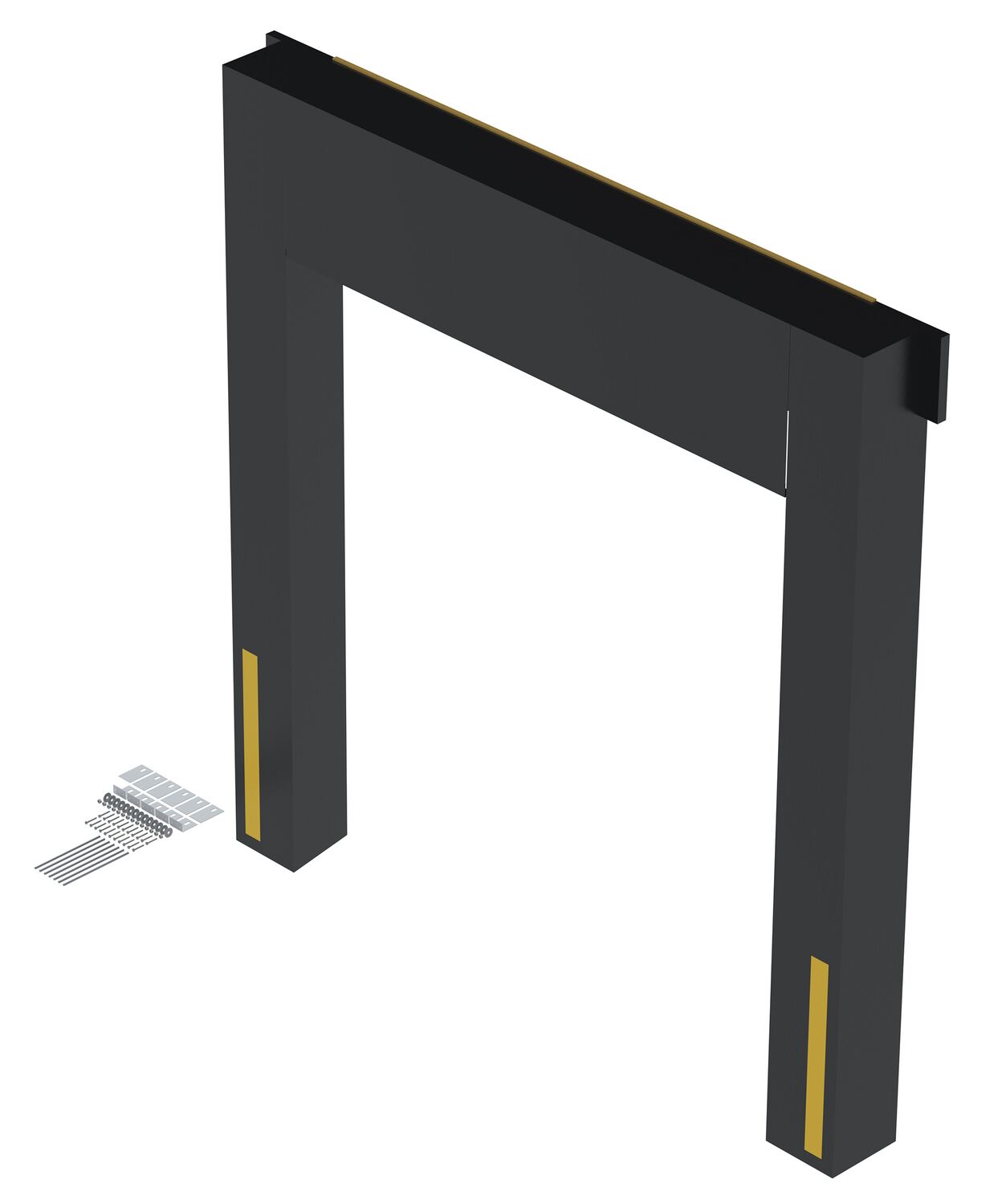

D-350-12 D-350-12Nylon (Vinyl) Dock Seal 12 In. 8 Ft. x 9 Ft. BlackProjection (in.): 12
Nylon Reinforced Vinyl (oz.): 36		221

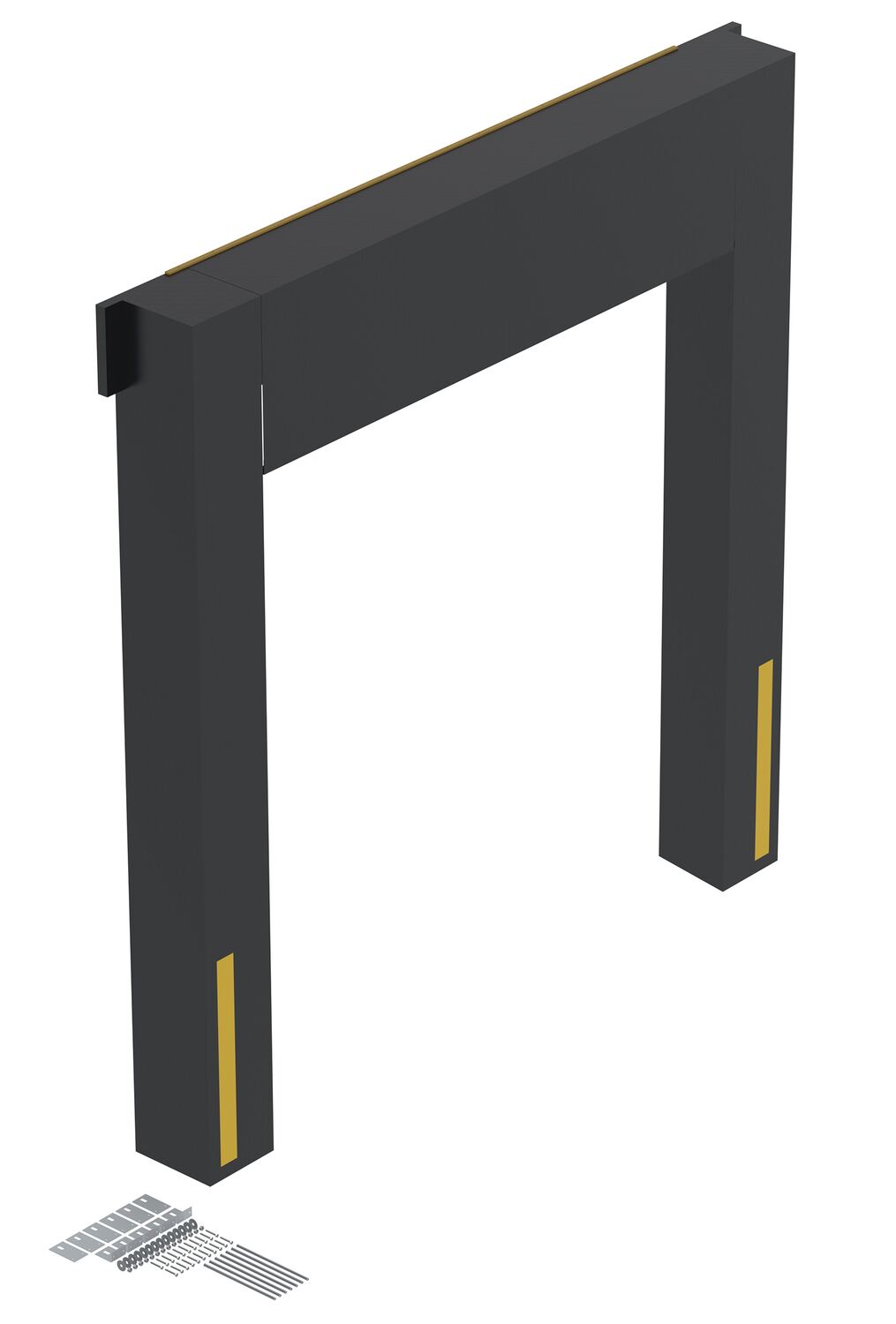

D-350-13 D-350-13Nylon (Vinyl) Dock Seal 13 In. 8 Ft. x 9 Ft. BlackProjection (in.): 13
Nylon Reinforced Vinyl (oz.): 36		225

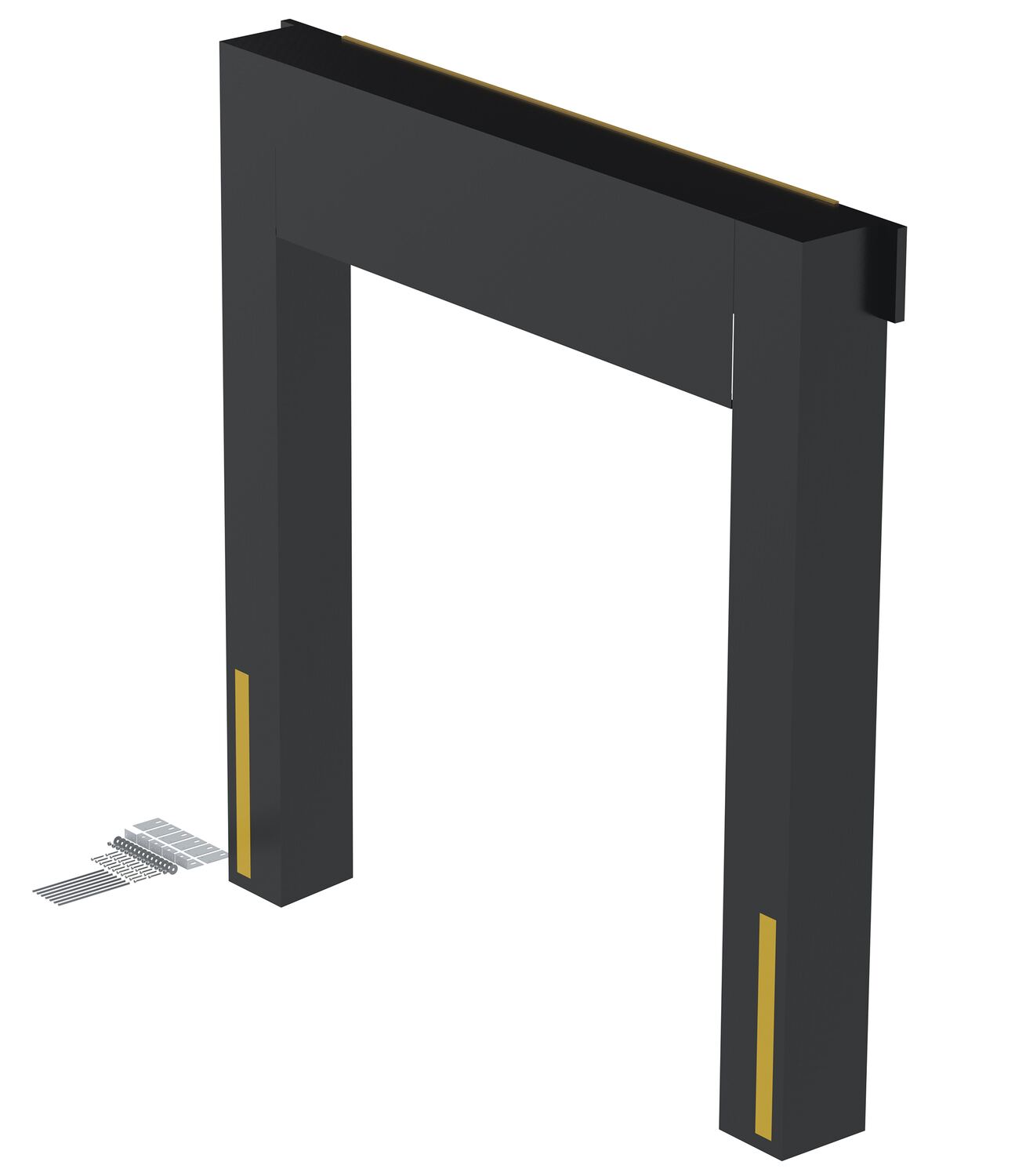

D-350-14 D-350-14Nylon (Vinyl) Dock Seal 14 In. 8 Ft. x 9 Ft. BlackProjection (in.): 14
Nylon Reinforced Vinyl (oz.): 36		237

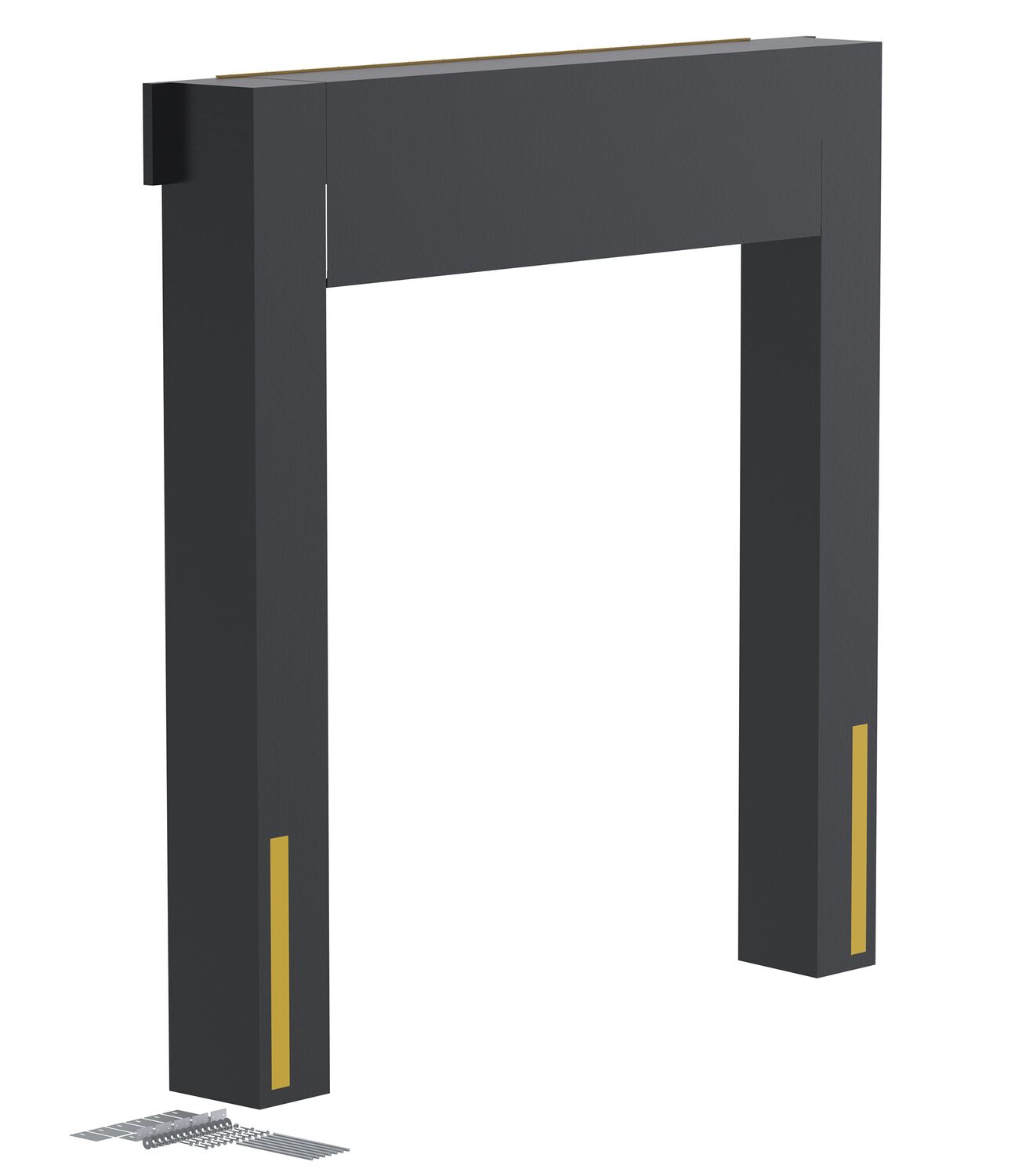

D-350-15 D-350-15Nylon (Vinyl) Dock Seal 15 In. 8 Ft. x 9 Ft. BlackProjection (in.): 15
Nylon Reinforced Vinyl (oz.): 36		243

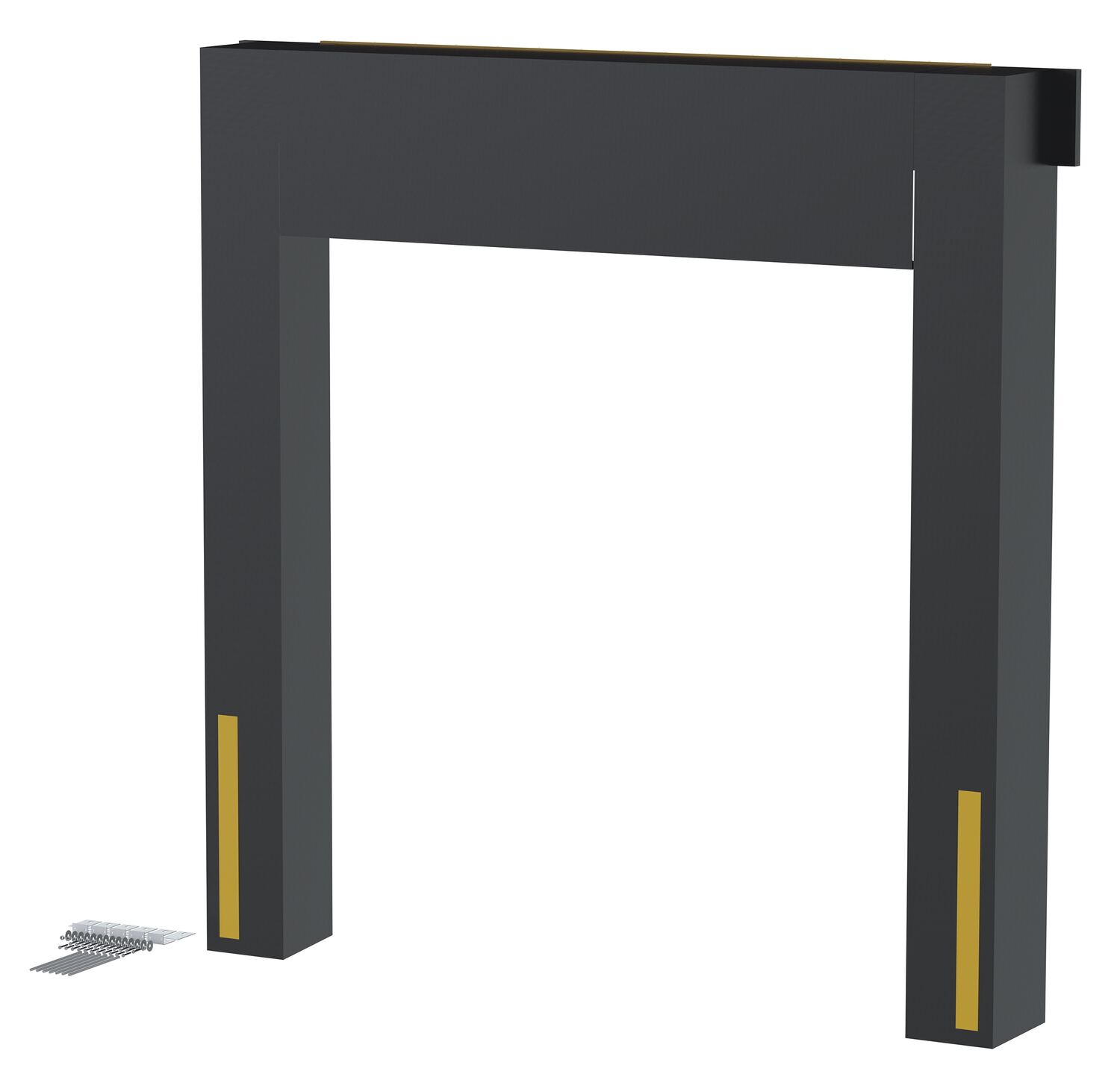

D-350-16 D-350-16Nylon (Vinyl) Dock Seal 16 In. 8 Ft. x 9 Ft. BlackProjection (in.): 16
Nylon Reinforced Vinyl (oz.): 36		248

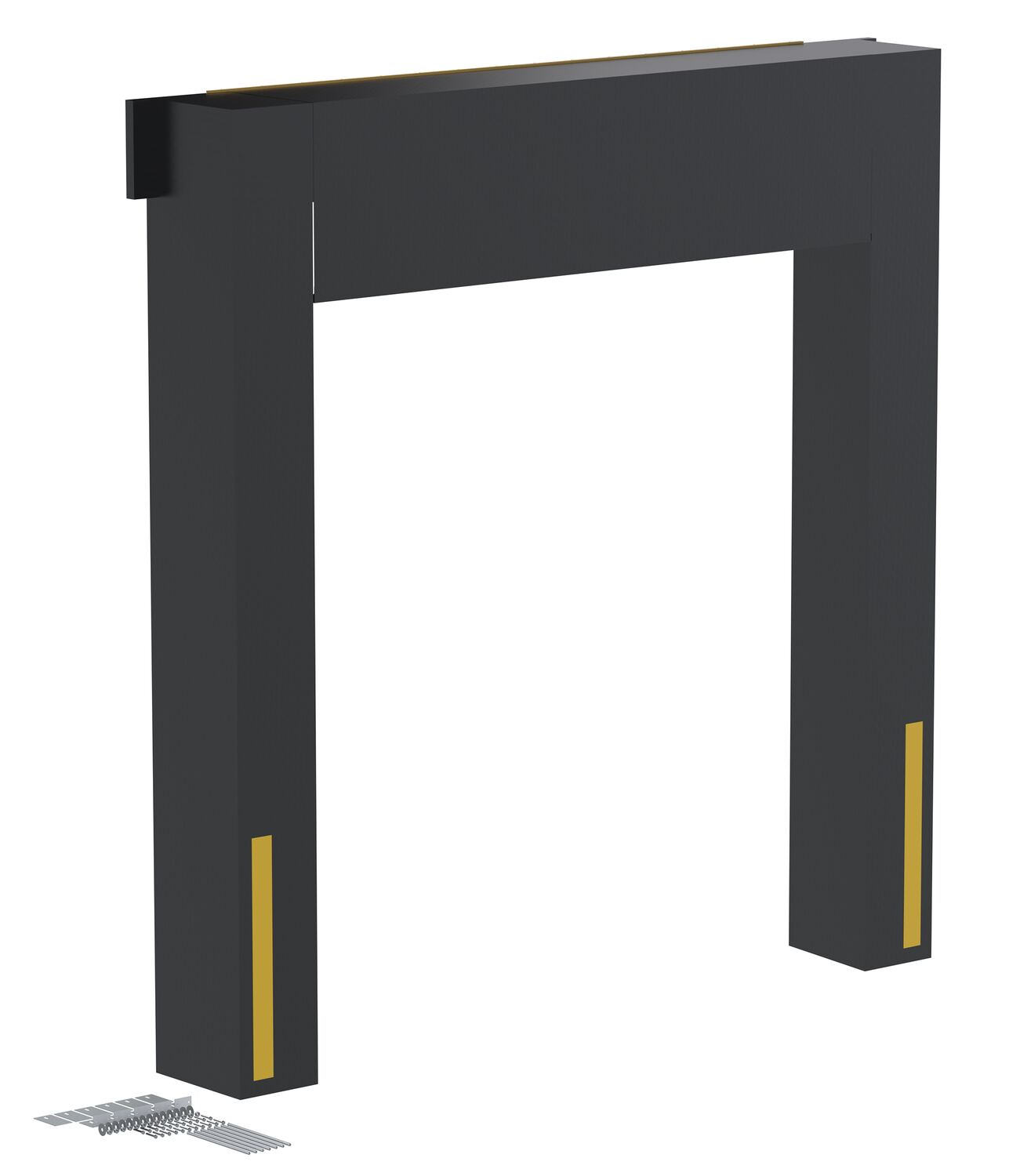

D-350-17 D-350-17Nylon (Vinyl) Dock Seal 17 In. 8 Ft. x 9 Ft. BlackProjection (in.): 17
Nylon Reinforced Vinyl (oz.): 36		250

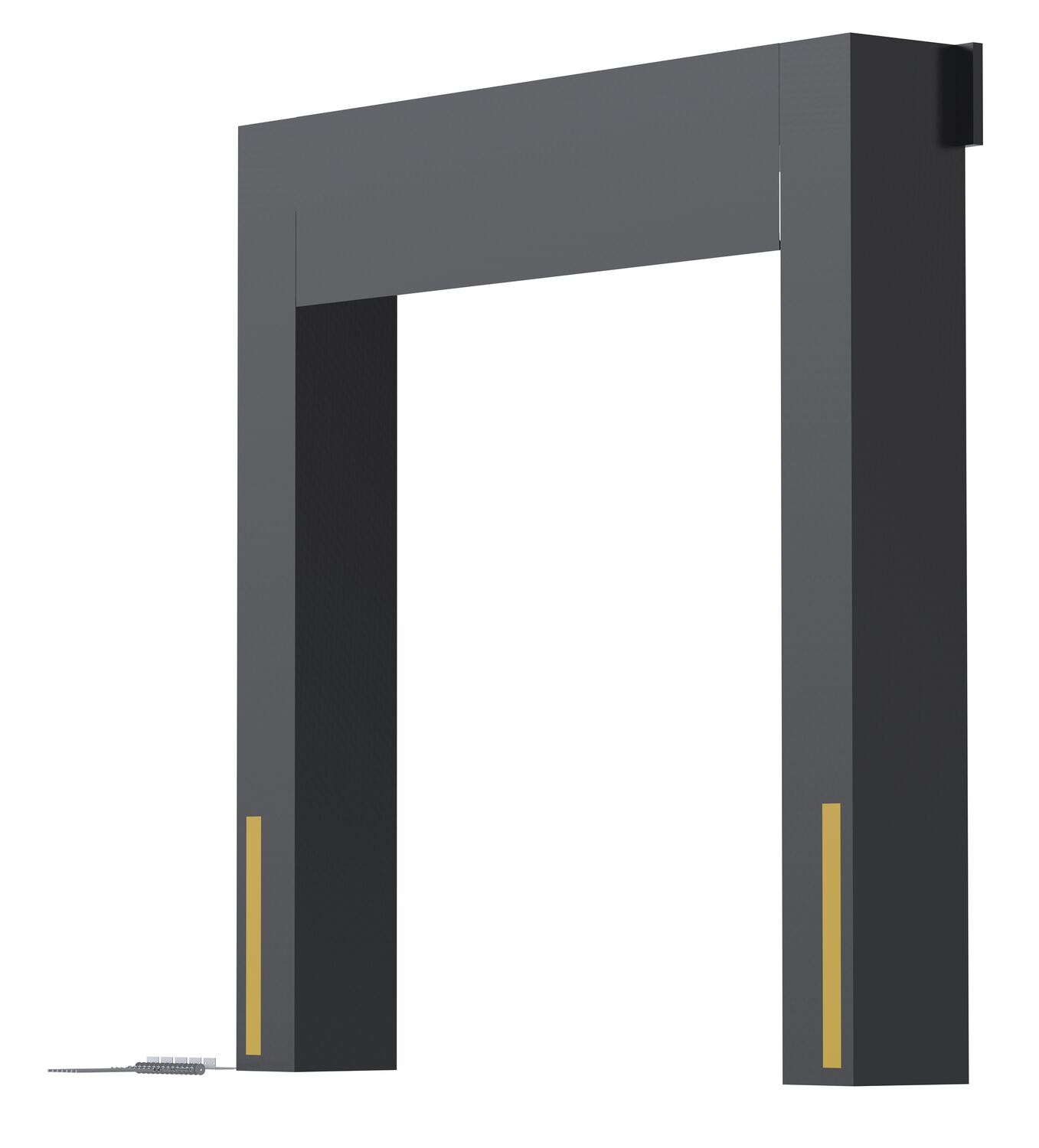

D-350-18 D-350-18Nylon (Vinyl) Dock Seal 18 In. 8 Ft. x 9 Ft. BlackProjection (in.): 18
Nylon Reinforced Vinyl (oz.): 36		264

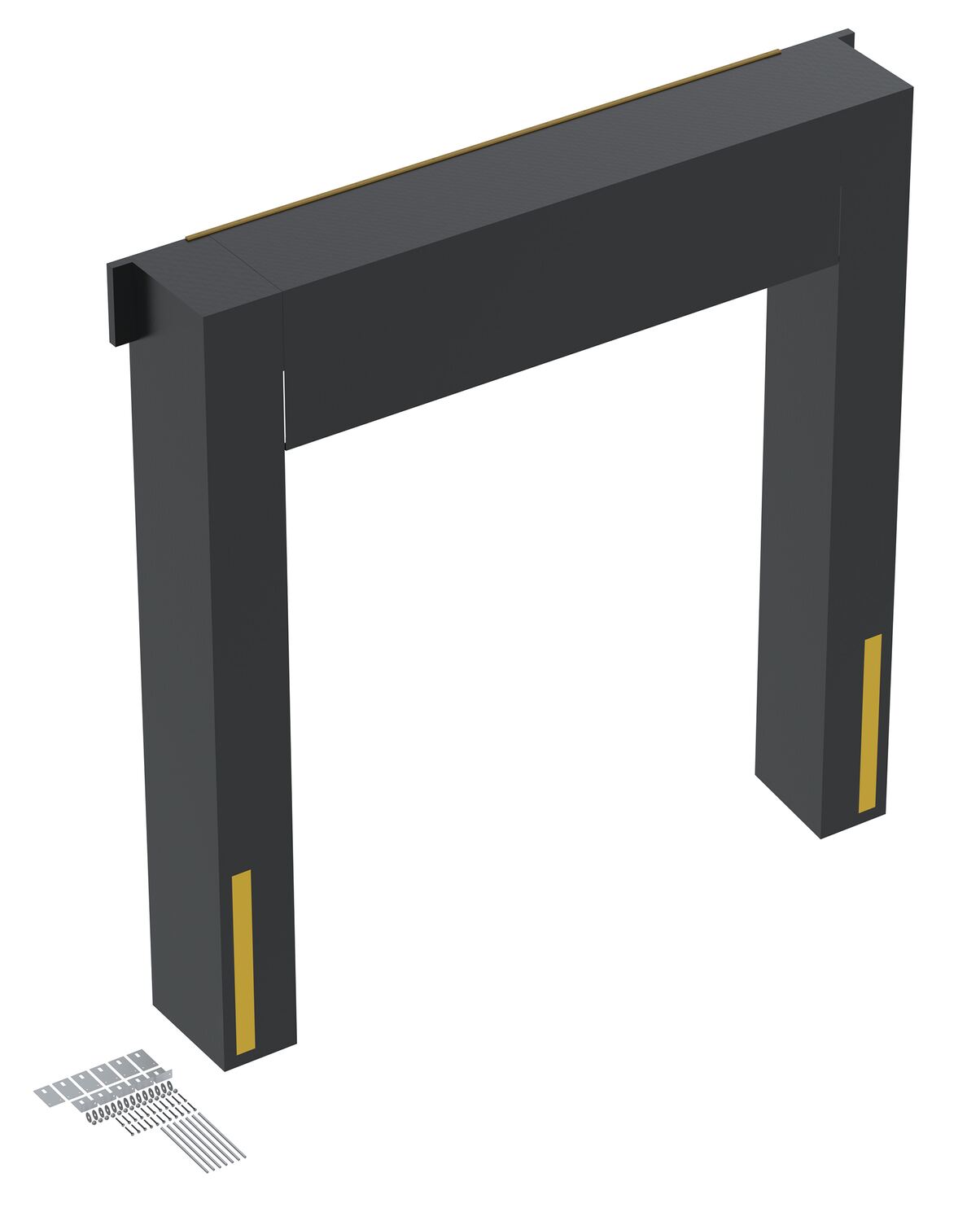

D-350-19 D-350-19Nylon (Vinyl) Dock Seal 19 In. 8 Ft. x 9 Ft. BlackProjection (in.): 19
Nylon Reinforced Vinyl (oz.): 36		270

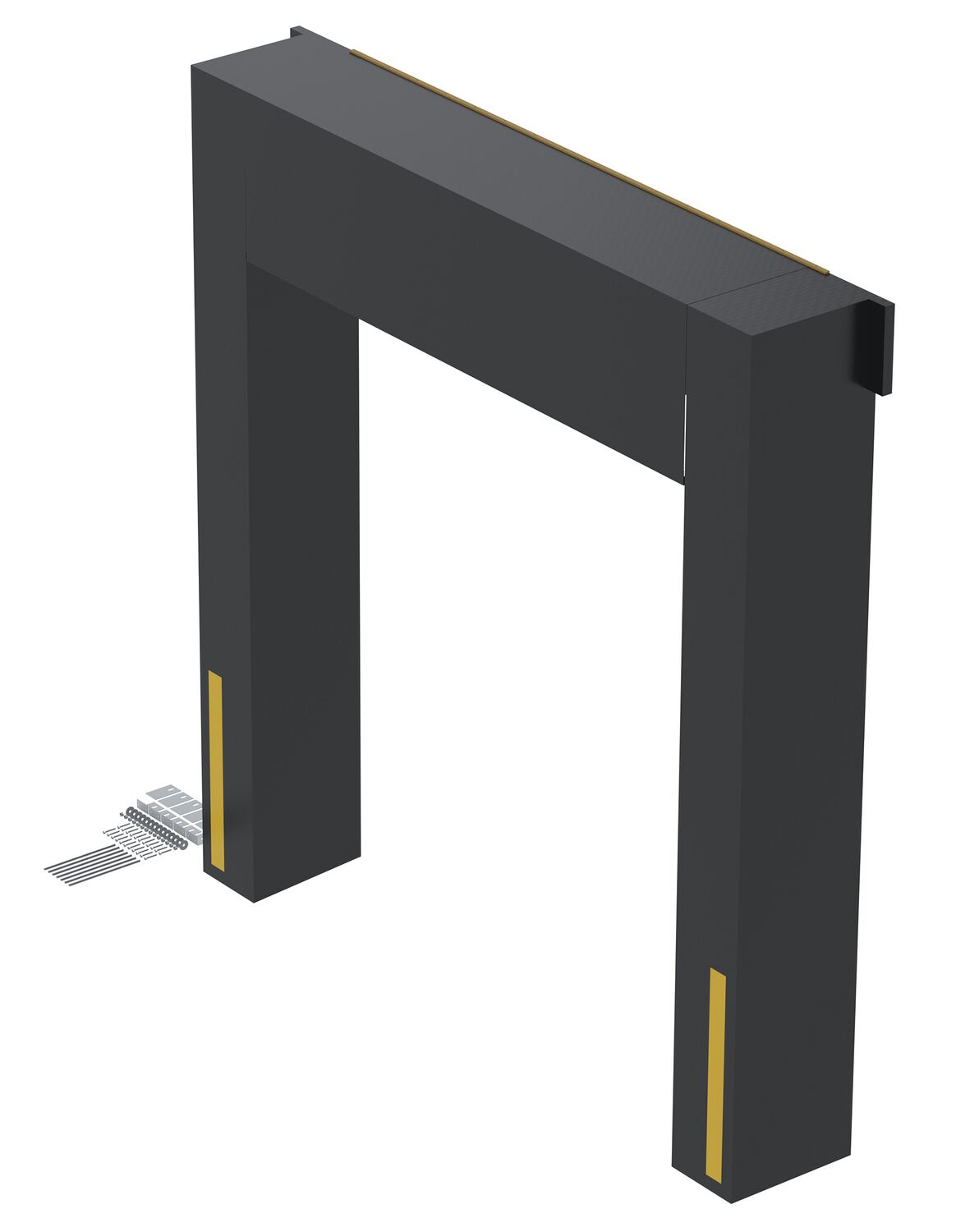

D-350-20 D-350-20Nylon (Vinyl) Dock Seal 20 In. 8 Ft. x 9 Ft. BlackProjection (in.): 20
Nylon Reinforced Vinyl (oz.): 36		275

Options


Model Number Image PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
